Material Analysis of the Remains of a Wooden Chest from the 4th Century and a Proposal for Its Reconstruction
Abstract
:1. Introduction
2. Materials and Methods

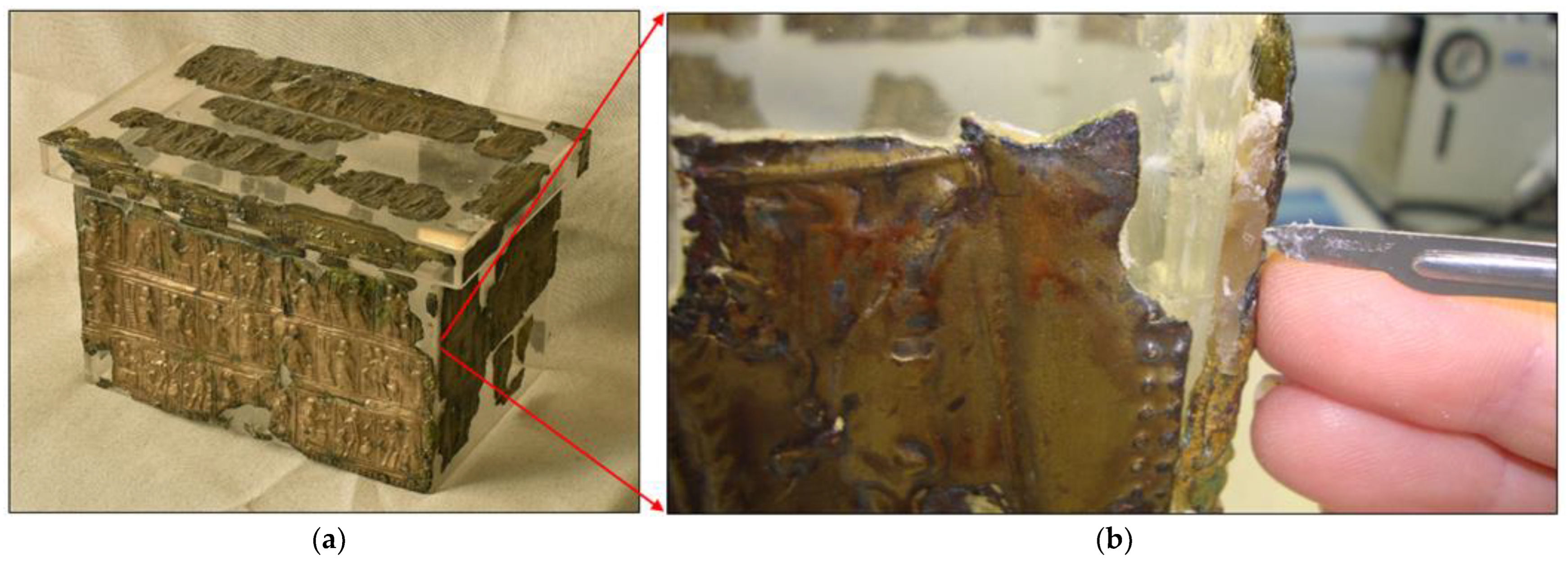

2.1. Materials

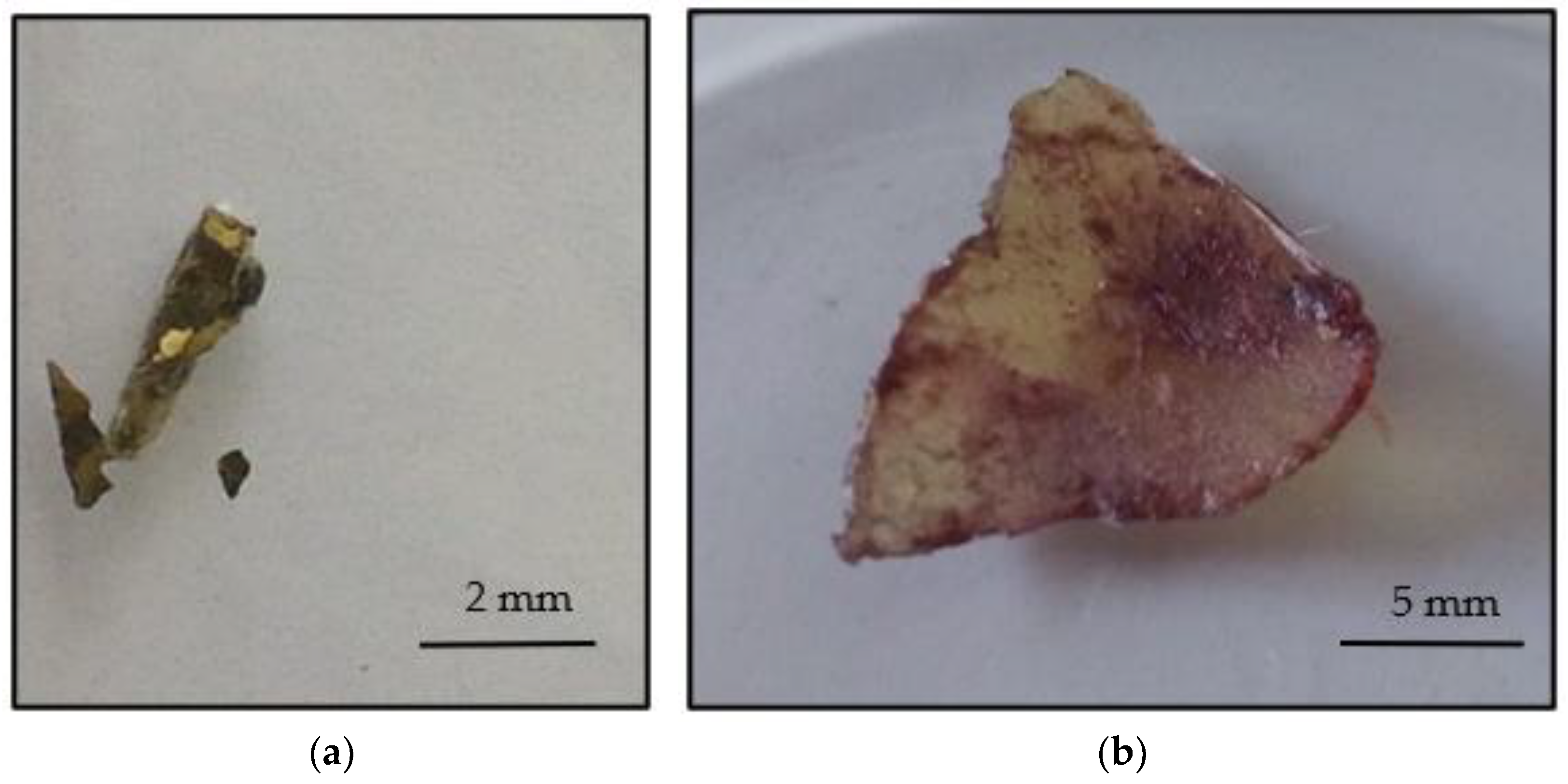

2.2. Sampling
2.3. Characterisation
2.3.1. XRF
2.3.2. ICP-MS
2.3.3. SEM with EDX Analysis
2.3.4. Fourier Transform InfraRed Spectroscopy (FTIR)
2.3.5. Differential Scanning Calorimetry (DSC)
2.4. Solubility Test
3. Results and Discussions
3.1. XRF and ICP-MS Results
3.1.1. Bright Sample—XRF
3.1.2. Dark and Smaller Samples—XRF
3.1.3. Smaller sample—ICP-MS
3.2. SEM Microstructure with EDX Analysis

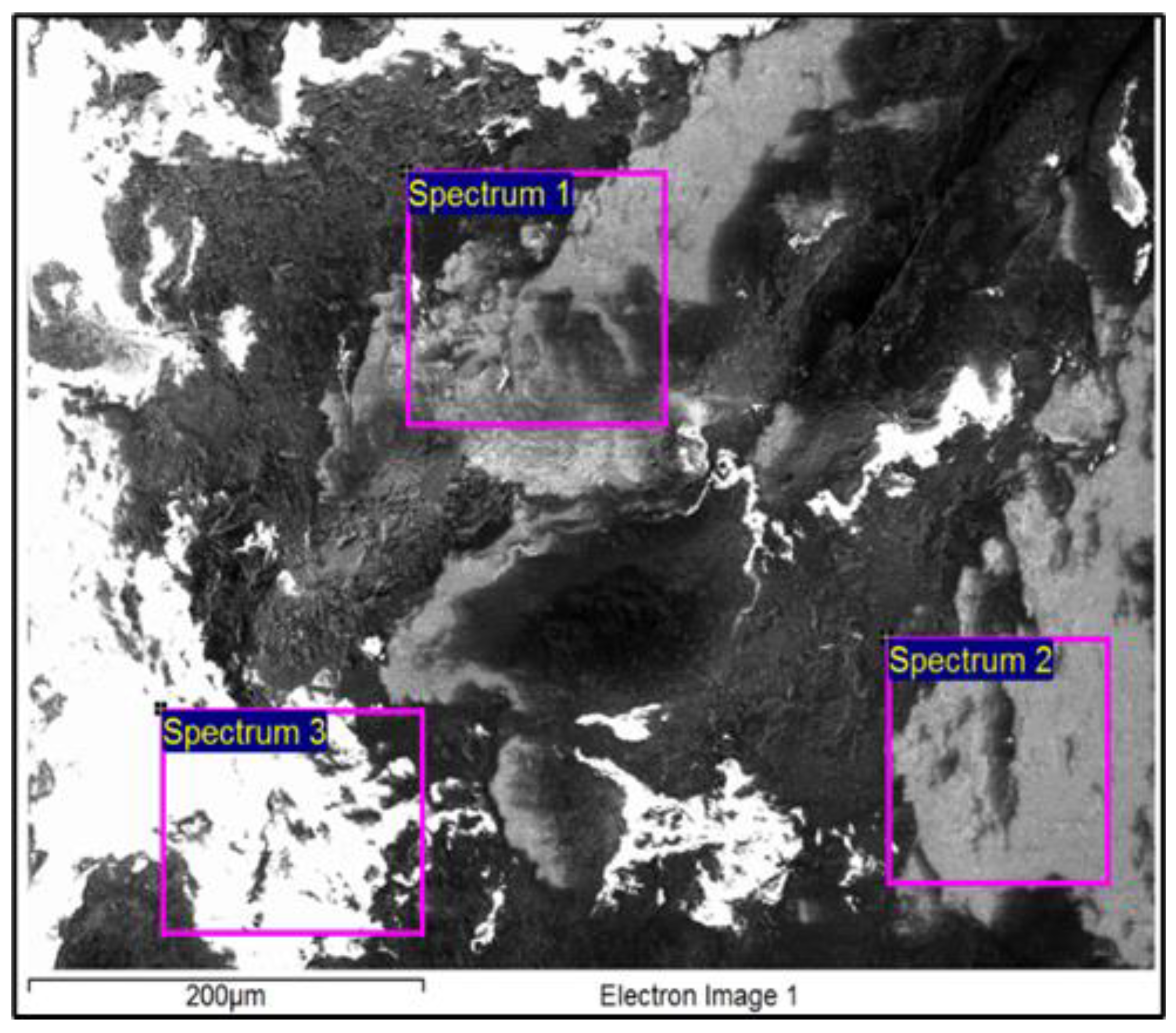

3.2.1. SEM/EDX Microscopic Examination of the Unpolished Dark Sample

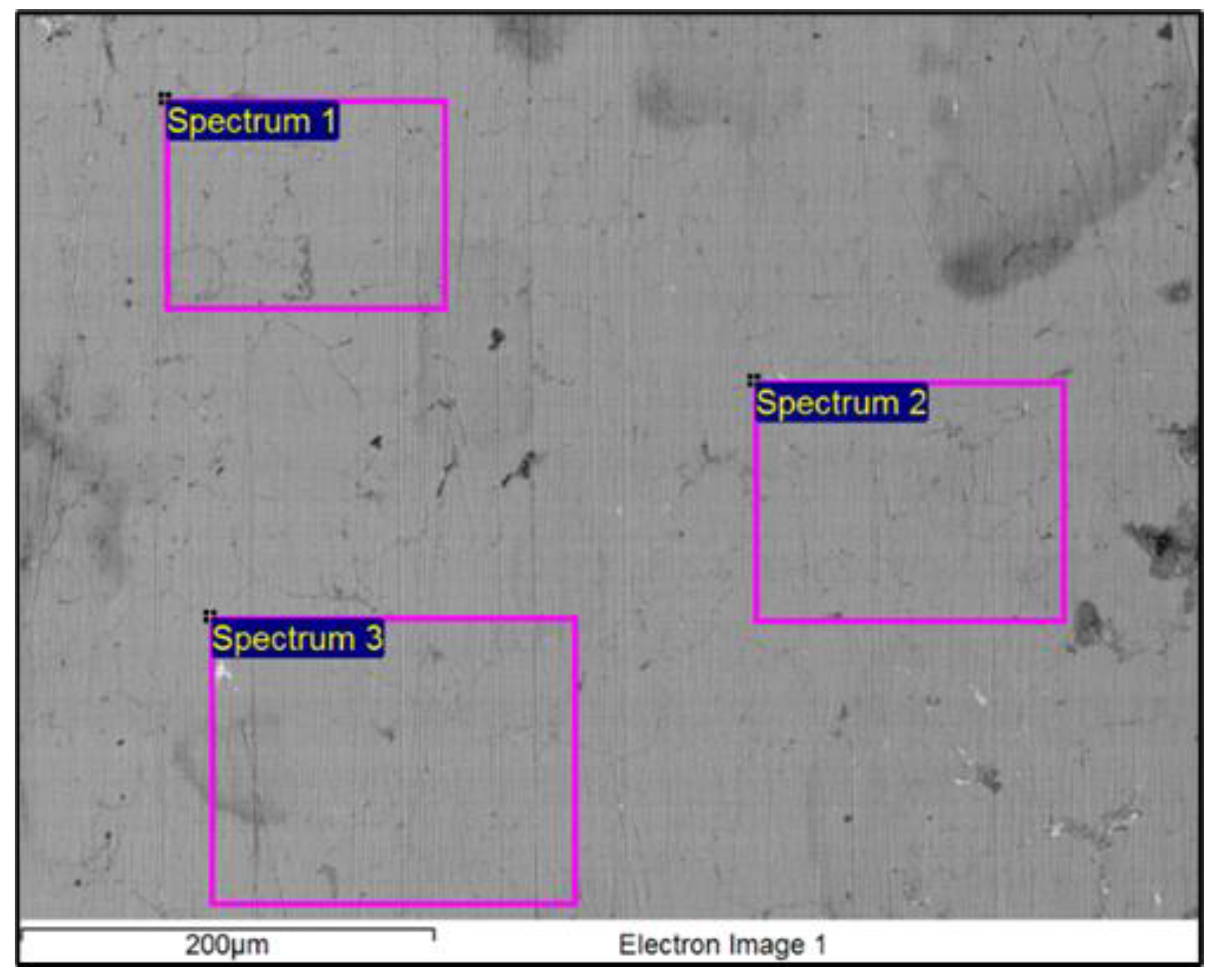

3.2.2. SEM/EDX Microscopic Examination of the Polished Dark Sample

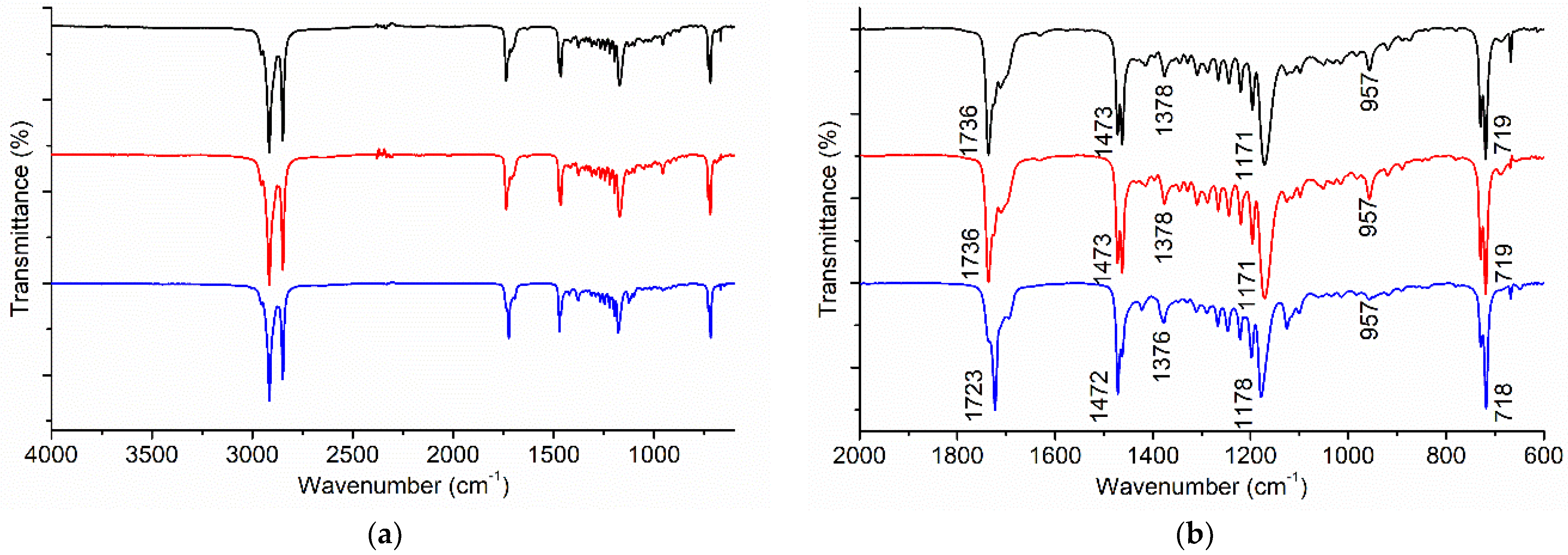

3.3. FTIR Spectroscopy

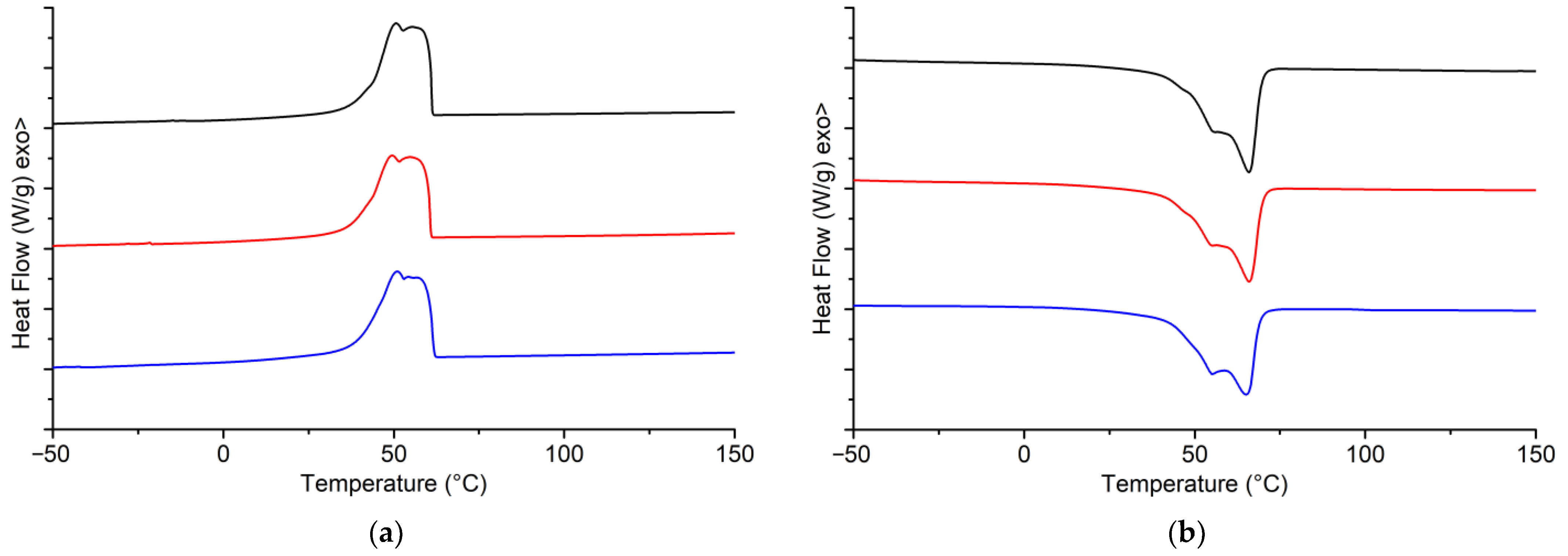

3.4. DSC Analysis

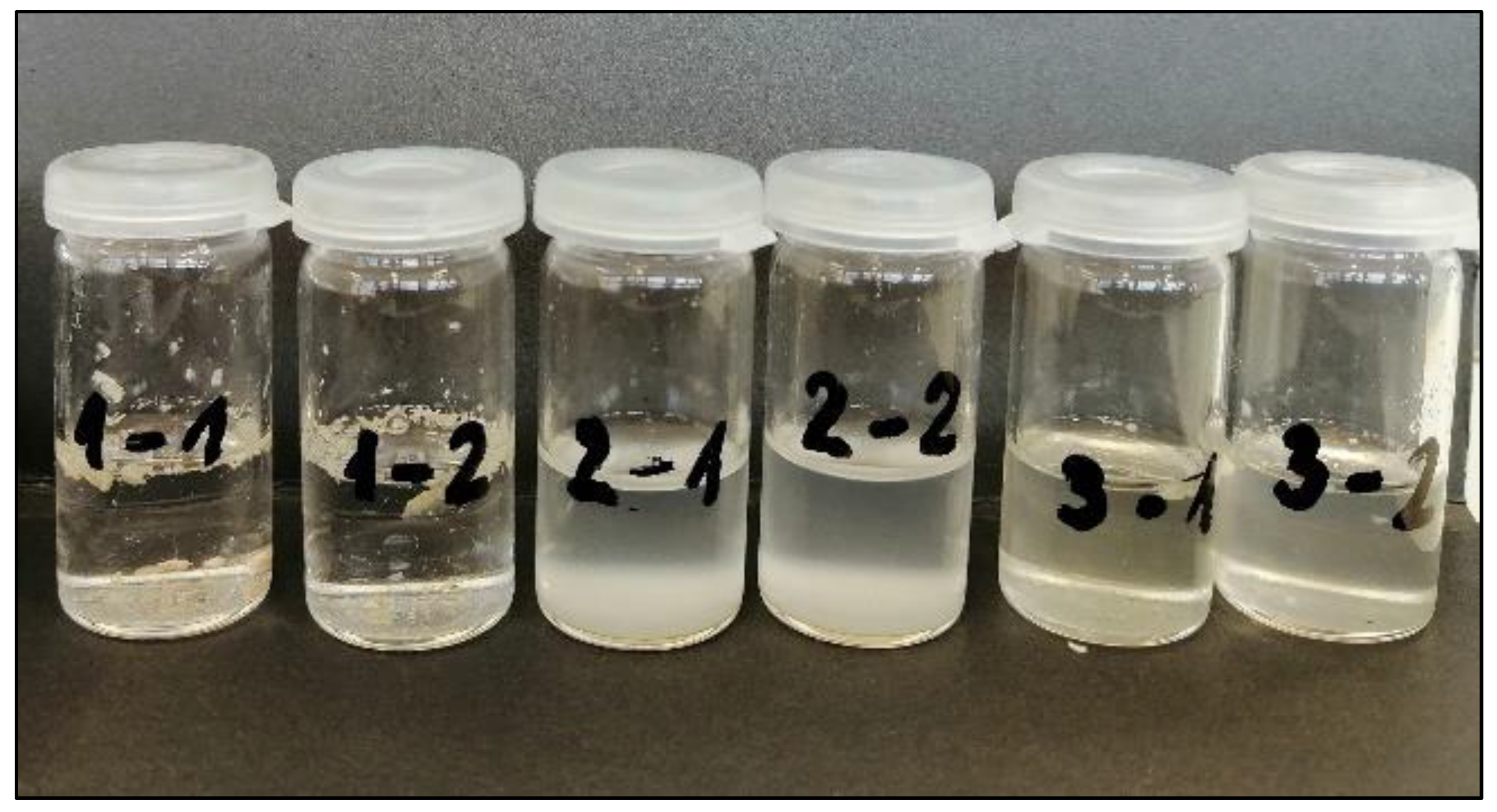

3.5. Solubility Tests
- -
- By applying the solvent with a dropper or a brush;
- -
- By removing brass plates with a scalpel in combination with a solvent;
- -
- With immersion of individual brass plates in a solvent to finally remove the adhesive;
- -
- By thermal decomposition and mechanical solvent removal.
4. Conclusions
- The investigation of archaeological objects is demanding, and therefore it is necessary to use non-destructive characterisation techniques to preserve the authenticity and archaeological value of the objects found;
- The results of our own investigations on samples of brass tiles and glue of a historically important chest confirmed the assumption that it is possible to remove brass tiles from an existing plastic chest with suitable solvents without any damage to the brass tiles;
- The proposal for the reconstruction of the chest includes the use of Dichloromethane with a dropper or a brush to the existing glue, so that the process results in 100% removal of all brass pieces. For those that cannot be removed, immersion in a bathtub is envisaged;

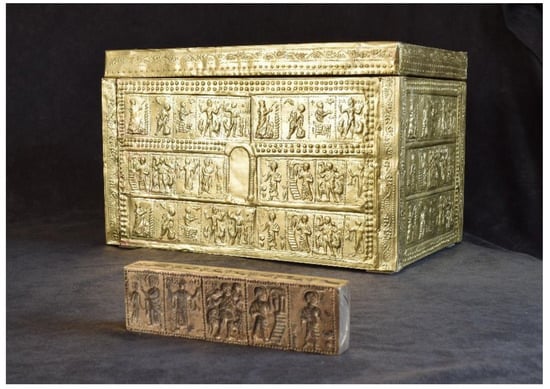

- The reconstruction and reproduction of the chest, which will reflect the authenticity of the 4th century CE, will require the cooperation, not only of material scientists, but also of archaeology and masters of superior manual skills. The removal of the old archaeologically historically significant brass plates from the plastic chest will require strict adherence to the removal protocol and great precision;
- For the preservation of cultural heritage, it is crucial to include different profiles of scientists in the research, in order to get as realistic an insight into the past as possible.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Abbreviations
References
- Rudolf, R.; Bobovnik, R.; Vučić, J.; Milkota, A. Suvremena zaštita i restauracija kroz istraživanje materijala od kojih je izrađeno umjetničko djelo. In IRT 3000: Inovacije, Razvoj, Tehnologije; PROFIDTP: Škofljica, Slovenia, 2019; pp. 20–21. ISSN 1846-5951. [Google Scholar]
- Vučić, J. The Plaque of the Early Christian Casket from Novalja. In Zbornik I. Skupa Hrvatske Ranokršćanske Arheologije. In Proceedings of the I. Skup Hrvatske Ranokršćanske Arheologije, Zagreb, Croatia, 15–17 March 2018; ISBN 9789531757850. [Google Scholar]
- Hall, E.T. X-Ray Fluorescent Analysis Applied to Archaeology. Archaeometry 1960, 3, 29–35. [Google Scholar] [CrossRef]
- Monnier, G.F. A review of infrared spectroscopy in microarchaeology: Methods, applications and recent trends. J. Archaeol. Sci. Rep. 2018, 18, 806–823. [Google Scholar] [CrossRef]
- Shackley, M.S. X-Ray Fluorescence (XRF): Applications in Archaeology. In Encyclopedia of Global Archaeology; Springer: Berlin/Heidelberg, Germany, 2014; pp. 1–7. [Google Scholar] [CrossRef]
- Frahm, E. Scanning Electron Microscopy (SEM): Applications in Archaeology. In Encyclopedia of Global Archaeology; Springer: Berlin/Heidelberg, Germany, 2014; pp. 6487–6495. ISBN 9781441904652. [Google Scholar] [CrossRef]
- Nielsen-Marsh, C.M.; Hedges, R.E.; Mann, T.; Collins, M.J. A preliminary investigation of the application of differential scanning calorimetry to the study of collagen degradation in archaeological bone. Thermochim. Acta 2000, 365, 129–139. [Google Scholar] [CrossRef]
- Shillito, L.M.; Almond, M.J.; Wicks, K.; Marshall, L.-J.R.; Matthews, W. The use of FT-IR as a screening technique for organic residue analysis of archaeological samples. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2009, 72, 120–125. [Google Scholar] [CrossRef] [PubMed]
- Singh, P.; Sharma, S. Thermal and spectroscopic characterization of archeological pottery from Ambari, Assam. J. Archaeol. Sci. Rep. 2016, 5, 557–563. [Google Scholar] [CrossRef]
- Adineh, M.; Doostmohammadi, H. Microstructure, mechanical properties and machinability of Cu–Zn–Mg and Cu–Zn–Sb brass alloys. Mater. Sci. Technol. 2019, 35, 1504–1514. [Google Scholar] [CrossRef]
- Vazdirvanidis, A.; Rikos, A.; Toulfatzis, A.I.; Pantazopoulos, G.A. Electron Backscatter Diffraction (EBSD) Analysis of Machinable Lead-Free Brass Alloys: Connecting Texture with Fracture. Metals 2022, 12, 569. [Google Scholar] [CrossRef]
- Ibrahim, A.; Rizal, S.; Ali, N.; Huzni, S. The Effect of Chemical Composition on Grain Size and Formability of the Free-Lead Cu-30Zn Alloy: A Short Review. IOP Conf. Ser. Mater. Sci. Eng. 2019, 536, 012019. [Google Scholar] [CrossRef]
- Buchwald, R.; Breed, M.D.; Bjostad, L.; Hibbard, B.E.; Greenberg, A.R. The role of fatty acids in the mechanical properties of beeswax. Apidologie 2009, 40, 585–594. [Google Scholar] [CrossRef] [Green Version]
- Waś, E.; Szczęsna, T.; Rybak-Chmielewska, H. Determination of Beeswax Hydrocarbons by Gas Chromatography with a Mass Detector (GC-MS ) Technique. J. Apic. Sci. 2014, 58, 145–157. [Google Scholar] [CrossRef] [Green Version]
- Buchwald, R.; Breed, M.; Greenberg, A.R. The thermal properties of beeswaxes: Unexpected findings. J. Exp. Biol. 2008, 211, 121–127. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Zhang, Y.; Simpson, B.K.; Dumont, M.-J. Effect of beeswax and carnauba wax addition on properties of gelatin films: A comparative study. Food Biosci. 2018, 26, 88–95. [Google Scholar] [CrossRef]
- Holser, R.A. Temperature-dependent solubility of wax compounds in ethanol. Eur. J. Lipid Sci. Technol. 2009, 111, 1049–1052. [Google Scholar] [CrossRef]
- Kagwade, S.V.; Clayton, C.R.; Chidambaram, D.; Du, M.L.; Chiang, F.P. The Influence of Acetone Degreasing on the Corrosion Behavior of AA2024-T3. J. Electrochem. Soc. 2000, 147, 4125–4130. [Google Scholar] [CrossRef]
- Selvaraj, S.; Ponmariappan, S.; Natesan, M.; Palaniswamy, N. Dezincification of Brass and its Control—An Overview. Corros. Rev. 2003, 21, 41–74. [Google Scholar] [CrossRef]
- Chao, S.-J.; Tsai, M.-H.; Yu, R.-P.; Hua, L.-C.; Hu, C.-C.; Huang, C. Dezincification of brass water meters in a long-term study: Effects of anions, alkalinity and residual chlorine. Environ. Sci. Water Res. Technol. 2021, 7, 1666–1676. [Google Scholar] [CrossRef]
- Kazazović, D.; Bikić, F. Investigation of the effect of the addition H2O2 on the general corrosion of brass in hydrochloric acid. Glas. Hem. Teh. Bosne Hercegovine 2022, 39, 39–42. [Google Scholar] [CrossRef]
XRF | Sn | Zn | Fe | Ti | Pb | Cu |
Bright sample | 0.99 | 6.6 | 1.2 | 0.32 | 12.9 | rest |
Dark sample | 0.31 | 16.6 | 0.23 | / | 2.3 | rest |
Small sample | 0.21 | 16.3 | 0.18 | / | 1.0 | rest |
ICP-MS | Sn | Zn | Fe | Ti | Pb | Cu |
Small sample | 0.13 | 8.7 | 0.11 | <0.01 | 1.6 | rest |
EDX | ||||||
---|---|---|---|---|---|---|
C | O | Al | Si | Ca | Sn | |
mean | 63.98 | 34.77 | 0.18 | 0.66 | 0.07 | 0.25 |
STD | 2.41 | 2.15 | 0.27 | 0.39 | 0.16 | 0.23 |
Max | 67.04 | 38.53 | 0.62 | 1.16 | 0.40 | 0.71 |
Min | 59.55 | 31.81 | 0.00 | 0.00 | 0.00 | 0.00 |
EDX | ||||||
---|---|---|---|---|---|---|
C | O | Cu | Zn | Pb | Sn | |
mean | 5.50 | 2.10 | 61.45 | 23.34 | 7.05 | 0.56 |
STD | 1.56 | 1.40 | 2.86 | 2.47 | 2.96 | 0.26 |
Max | 8.85 | 4.51 | 64.61 | 26.24 | 11.13 | 1.24 |
Min | 3.31 | 0.00 | 53.37 | 17.63 | 2.92 | 0.06 |
Sample | Adhesive 1 | Adhesive 2 | Beeswax |
---|---|---|---|
Mass (g) | 13.3867 | 14.8614 | 14.2298 |
Tc1 (°C) | 55.4 | 54.7 | 54.2 |
Tc2 (°C) | 50.7 | 49.6 | 51.1 |
ΔHc (J/g) | 156.9 | 151.0 | 155.7 |
Tm1 (°C) | 56.0 | 55.3 | 55.1 |
Tm2 (°C) | 66.0 | 66.0 | 65.1 |
ΔHm (J/g) | 156.9 | 151.0 | 155.7 |
