On Structural Rearrangements during the Vitrification of Molten Copper

Abstract

We utilise displacement analysis of Cu-atoms between the chemical bond-centred Voronoi polyhedrons to reveal structural changes at the glass transition. We confirm that the disordered congruent bond lattice of Cu loses its rigidity above the glass transition temperature (T_g) in line with Kantor–Webman theorem due to percolation via configurons (broken Cu-Cu chemical bonds). We reveal that the amorphous Cu has the T_g = 794 ± 10 K at the cooling rate q = 1 × 10¹³ K/s and that the determination of T_g based on analysis of first sharp diffraction minimum (FDSM) is sharper compared with classical Wendt–Abraham empirical criterion.

1. Introduction

Spatial distributions and displacement analysis through and between Voronoi polyhedrons are widely used to reveal structural changes in various materials in wide ranges of temperature and composition utilising molecular dynamic (MD) simulations [1,2]. The Voronoi polyhedrons are constructed using tessellations (honeycombs)-atomic centred polyhedrons which are regular or semiregular polyhedrons in crystalline materials and irregular polyhedrons in amorphous materials which are characterised by topological disorder. MD simulations are particularly effective in detecting changes that occur on vitrification of melts or melting of glasses (glass transition). Pure metals having only one sort of atoms are attractive as they enable a simplified approach compared to multiatomic compounds or metallic alloys. There are several ways in which amorphous materials including metallic systems can be produced. These include enough rapid cooling of melts, physical vapor deposition, solid-state reactions, irradiation- and pressure-induced amorphization. Amorphous Cu was produced both by extra-rapid cooling and ultrahigh pressure 14 GPa [3,4]. Many researchers utilise MD simulations to investigate its behaviour and properties [5]. The most intriguing question is about structural changes at the glass transition which was analysed using MD simulations for Fe [6,7], Ni [8,9], Cu [10], Al [11] as well as for other metals [12]. We aim here to analyse the glass transition (vitrification) of Cu revealing the structural differences below and above the glass transition temperature (T_g) and utilising the pair distribution functions, mainly their first sharp diffraction minimum (FSDM) as a tool to identify the T_g.

2. Structural Differences between Glasses and Melts

It is believed that both glasses and liquids have almost the same topologically disordered structure despite of the fact that their properties are completely different. Variations of specific volume and thermodynamic parameters of amorphous materials such as enthalpy, entropy, heat capacity indicate on a second order-like phase transformation at T_g whereas attempts to directly unveil the structural differences of atomic distributions below and above the T_g fail as standard symmetries which are typically broken on phase transformations remain unchanged e.g., translation and rotation symmetries. The structural difference between glasses and melts is however unambiguously revealed by the set theory which accounts for the Hausdorff–Besicovitch dimensionality of bonding system of materials [13,14,15,16].

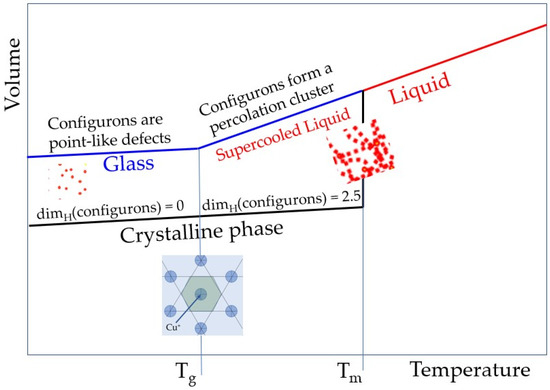

The set theory as a branch of mathematical logic that studies abstract sets which has been used to characterise the configuron phase formed in amorphous materials out of broken chemical bonds termed configurons. The configuron phase behaves differently in glasses and melts forming a condensed-like phase in melts and occurring as a point-like (defect) phase in glasses. It has therefore different Hausdorff–Besicovitch dimensions in melts and glasses. The Hausdorff–Besicovitch dimension is defined as the limit D = lim(ε→0)[logN(ε)/log(1/ε)] where N(ε) is the number of boxes of side length ε required to cover the set. It has been revealed that the set has the Hausdorff–Besicovitch dimension D when N(ε) grows proportionally to (1/ε)^D as ε tends to zero. The dimensionality of the set of configurons (of the configuron phase) changes at the glass transition temperature (T_g) from 0 (which is typical for point-like systems such as gases) to D = 2.55 ± 0.05 (which is fractal and is typical for liquids) above it. The stepwise change of Hausdorff–Besicovitch dimension of the set of configurons is due to the formation of the condensed configuron phase above the T_g and has as consequence the appearance of a kink in the first sharp diffraction minimum of scattered X-rays or neutrons [17,18]. Thus, the set theory provides clear evidence of structural differences between glasses and melts as both glassy and liquid structures near T_g are disordered, however they have different Hausdorff–Besicovitch dimensions.

3. Configurons in Amorphous Cu

A powerful way to investigate the structure of materials is to analyse the structure of chemical bonds between atoms which constitute the condensed matter either solid or liquid. The initial fully connected atoms in a solid material may lose their solid-like behaviour on breaking the chemical bonds. Kantor and Webman have proved in 1984 that the rigidity threshold of an elastic percolating network is identical to the percolation threshold [19]. This means that finding the percolation threshold as a function of temperature, we can find the critical temperature when the solid-like behaviour changes to a liquid-like that is for amorphous materials we can find the T_g assigning it to the temperature when the percolation via broken bonds occurs [20]. In addition to that, once the percolation cluster made up of configurons is formed, its structure has a fractal geometry rather than 3D, its Hausdorff–Besicovitch dimension is ≈2.5 instead of 3 [13,14,15,16]. The utilisation of chemical bond concept in metals is not straightforward as for metals bonding is provided by the delocalised valence electrons from the s and p orbitals of the metal which form a common “sea” of electrons that surrounds the positively charged atomic nuclei (Figure 1a).

We follow here the concept of configurons first developed by Angel-Rao [21] based on concepts developed for metallic glasses by Egami et al. [22] who emphasised that local atomic connectivity is changed by gaining or losing a nearest neighbour (topological excitation) and introduced local configurational excitation as the elementary excitation in high temperature liquids [23]. The congruent bond lattice (CBL) replaces the system of N strongly interacting ions by the system of N’ = N(Z/2) weakly interacting chemical bonds where Z is the coordination number (Z = 12 for metallic Cu). Figure 1a,b schematically shows both the almost regular lattice and the corresponding CBL of Cu where we accounted that the [111] plane of face-centred cubic lattice is a hexagonal grid. The Voronoi polyhedrons are constructed by first picking a lattice point, which is the Cu⁺ ion the case (a) and the centre of Cu-Cu bond in case (b) after which lines are drawn to all nearby lattice points followed by drawing perpendicular planes which in such a way enclose the smallest volume termed also as the Wigner–Seitz primitive cell. The Voronoi polyhedrons are typically approximated by spheres of equal volume characterised by a single parameter–their radii or diameters [16].

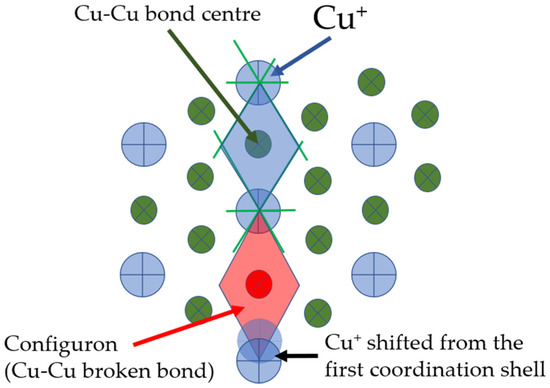

At the nil temperature all chemical bonds are intact (unbroken), and the amorphous Cu is a solid-like material: it is a glass. On increasing the temperature some of the chemical bonds are broken forming configurons which at low temperatures are point-like entities such as point defects in solids. Figure 2 shows formation of a configuron in the CBL of amorphous Cu with a notable shifting of the unbound Cu⁺ and an increased volume of configuron Voronoi polyhedron compared to original bond Voronoi polyhedron.

In such a way we can utilise the configuron concept in metallic systems which can be described as a displacement of an atom out of the first coordination shell with the neighbouring adjustments and has as a microscopic result the shift on one or more atoms from the first coordination shell (Table 1 of [16]). The atomic displacements caused by configuron formation can be revealed analysing the scattering of X-rays or neutrons through pair distribution functions PDF(r), moreover it was shown that variations in the first sharp diffraction minimum (FSDM) of PDF(r) contain the information on structural changes in vitrifying/melting materials at the T_g through the onset of the FSDM temperature variation kinks [18].

The following sections demonstrate the utilisation of configuron concept for amorphous copper and illustrates the methodology of identification of T_g based on temperature behaviour of FDSM. The higher the temperature the more chemical bonds are broken until the critical temperature has been achieved where percolation via broken chemical bonds occurs. Because the rigidity threshold of an elastic percolating network is identical to the percolation threshold [19] the amorphous Cu transform at this temperature from the glass into a liquid, i.e., the glass transition occurs. Further atomic displacements above T_g due to configuron formation will follow a different law because the material has become liquid. Indeed, the condensed phase of configurons strongly changes the behaviour of the material because a new path of facilitated motion of atoms appears. Additional availability for atomic motions is ensured and the material shifts from the solid-like to the gas-like type behaviour [24,25,26,27,28]. The Benigni’s liquid-like B phase in the 2-state model [29] is formed and the state of atoms within the percolation cluster made up of configurons is assimilated to a gas-like type with consequent contributions to the heat capacity of material and its mechanical properties [16,29].

4. Experimental

The vitrification of Cu was simulated on continuous cooling and isothermal annealing via classical molecular dynamic (MD) computer simulation procedure at constant pressure using the software package (LAMMPS) [30]. The simulation was performed at 1 fs time step using the embedded atom potential for Cu taken from Ref. [31] under periodic boundary conditions with stabilised temperature and pressure. The cubic cell size was about 10 nm aiming to let crystallisation to occur. A crystalline cell containing 256,000 atoms was heated to the temperature T = 2500 K at 1 × 10¹⁴ K/s and held for 10 ps obtaining the melt confirmed by the radial distribution function form and by time stabilisation of the materials density. Equilibrium liquid state was obtained at 2500 K in less than 1 ps. Holding liquid for longer times caused no visible changes in the liquid structure and density. To obtain vitreous Cu the melt was cooled down with the rate as high as q = 1 × 10¹³ K/s keeping the accuracy of temperature upon simulation within ±5 K. It is known that at lower cooling rates of 5 × 10¹² K/s and lower the molten Cu started to crystallise [32]. Thermostat and barostat were used to control the temperatures and pressures [33,34,35]. The “OVITO” software package [36] was used to visualise and analyse simulation results while the adaptive common neighbour analysis was used to detect structural changes. The density of Cu as a function of temperature is shown in Figure 3a.

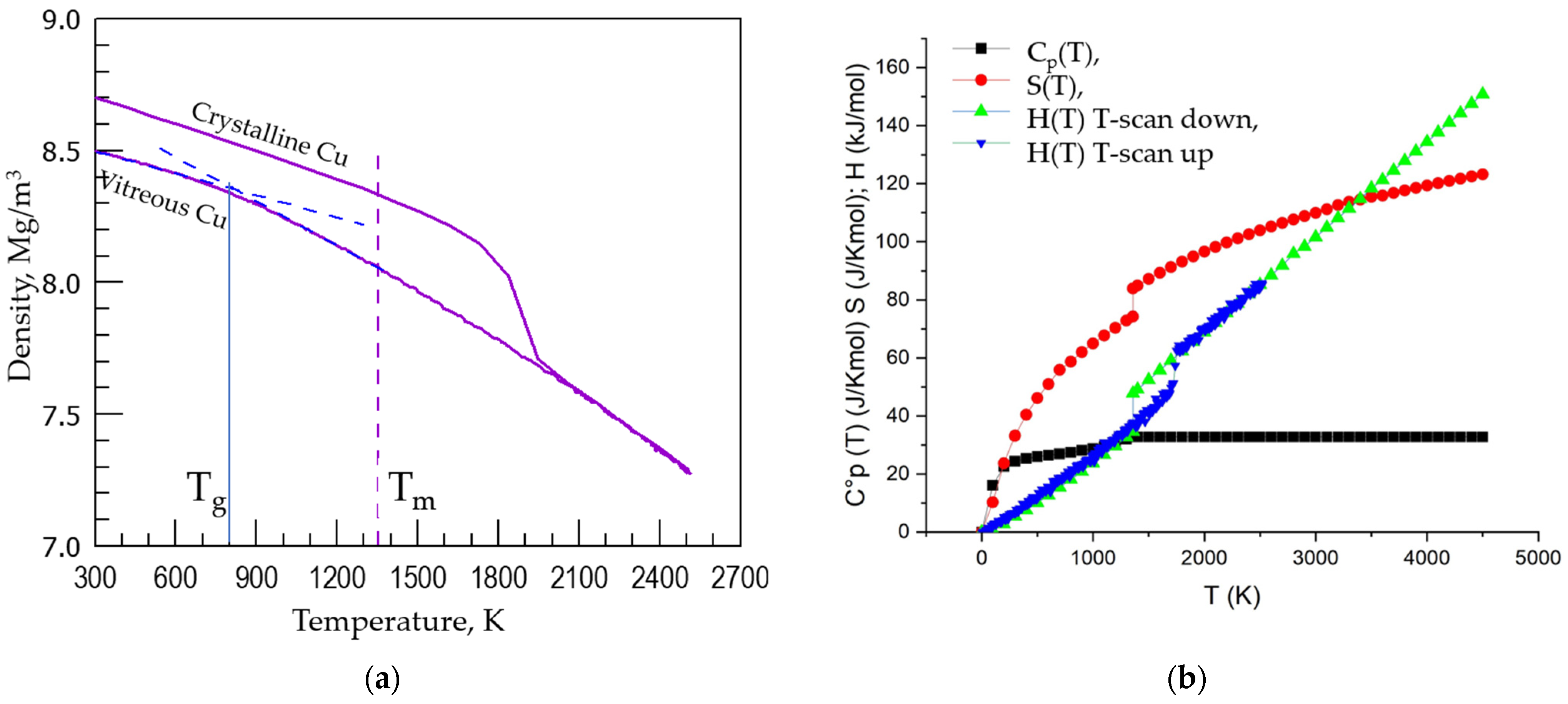

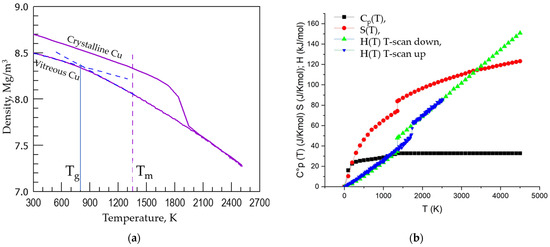

The T_g roughly estimated from the temperature dependence of density of vitreous Cu (Figure 3a) at such high cooling rate (q = 1 × 10¹³ K/s) is approximately 800 K. A more exact determination of T_g is possible using either the empirical Wendt–Abraham criterion [38] which is based on the analysis of the pair distribution functions PDF(r) peak minimum to maximum ratio or using the more sensitive method proposed by authors [18]. Indeed, the structure of condensed matter (crystals, glasses, melts) can be unveiled using the PDF(r) which can be also used to understand the changes that occur in materials on cooling/heating, including the structural modifications on vitrification of melts. It was found that variations in the first sharp diffraction minimum (FSDM) of PDF(r) contains the information on structural changes in vitrifying/melting materials at the T_g. A useful application from this discovery was the method proposed for determining the glass transition temperature which assigns the T_g to the temperature of the onset of the FSDM variation kink [18]. Experimental data were processed using the R-statistic with segmented package: the intersection point of two fitting lines produced by segmented fitting using a computer program R, namely an environment for data analysis and graphics [39] and Akaike criterion [40] for segmented regression [41]. Figure 4 shows the results of utilisation of these criteria for amorphous Cu based on data obtained in this work.

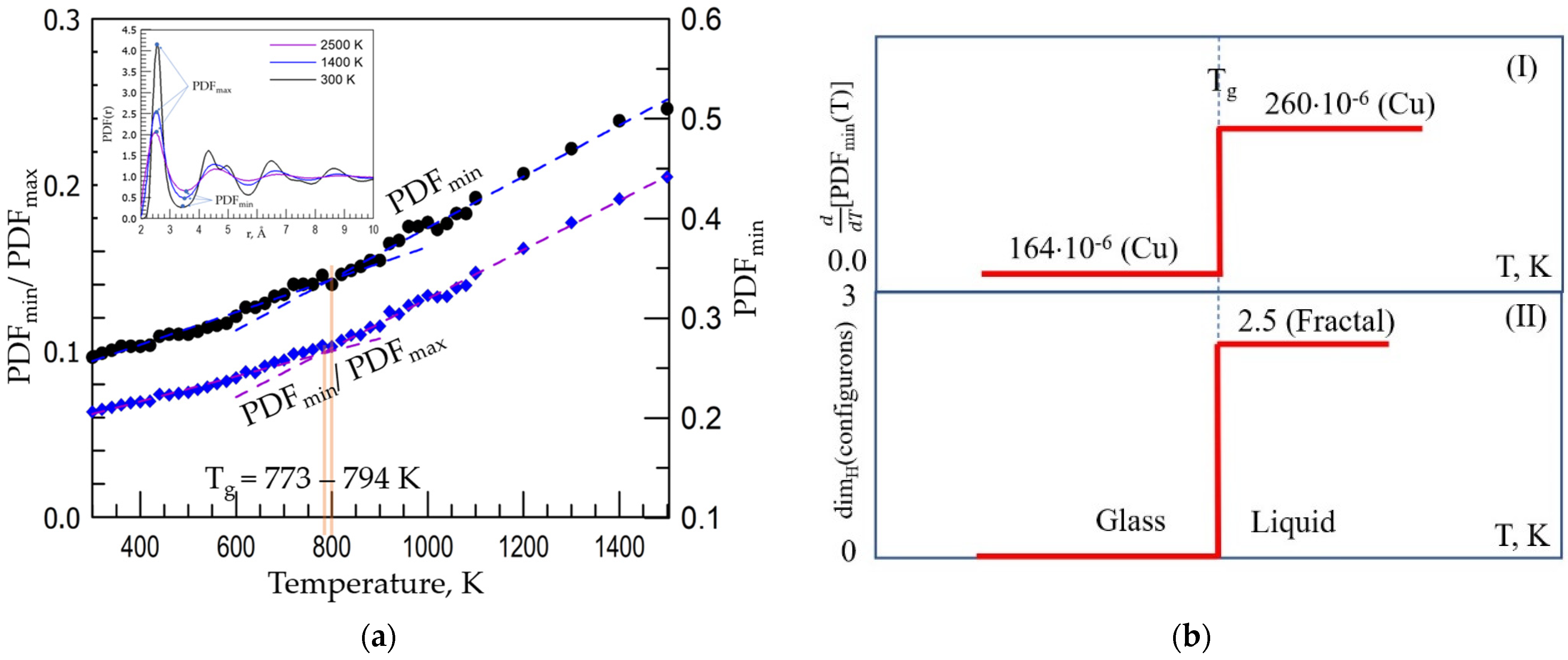

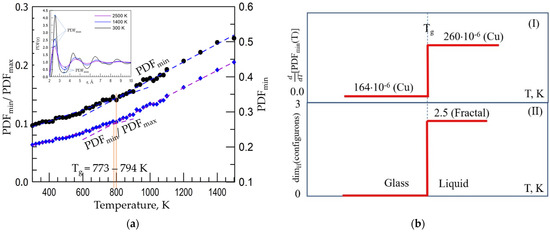

As seen from the inset of Figure 4a, the FDSM (PDF_min) is progressively increased with the temperature change: the higher the T, the higher FDSM. The temperature changes of FDSM are linear with temperature while the rate of growth dPDF_min/dt changes stepwise from a lower value to a higher one at the T_g as observed by Wendt–Abraham who proposed a practical criterion to identify the glass transition temperatures based on data on temperature dependence of $\Phi \left(T\right)=\left(PD{F}_{min}/PD{F}_{max}\right)$ [38]. Thus, the following equations hold [18,38]:

$$PD{F}_{min}\left(T\right)=a_{g}T+b_g,\mathrm{at}T<T_g$$

(1)

$$PD{F}_{min}\left(T\right)=a_{l}T+b_l,\mathrm{at}T>T_g$$

(2)

$$\Phi \left(T\right)=c_{g}T+d_g,\mathrm{at}T<T_g$$

(3)

$$\Phi \left(T\right)=c_{l}T+d_l,\mathrm{at}T>T_g$$

(4)

The parameters of these equations are presented in the

Table 1. The parameters of linear dependences of PDF_min(T) and PDF_min(T)/PDF_max(T).

ag	bg	cg	dg	al	bl	cl	dg
0.0001635	0.2080342	0.0000757	0.0394081	0.0002568	0.1339328	0.0001478	−0.0163428

as found from statistical processing of experimental data.

The T_g based on PDF_min(T) or $\Phi \left(T\right)$ are found accordingly from the Equations (5) and (6):

$$T_g=(b_g-b_l)/(a_l-a_g),$$

(5)

$$T_g=(d_g-d_l)/(c_l-c_g)$$

(6)

The T_g of Cu is hence found as high as 794 ± 10 K from the FSDM temperature dependence and 773 ± 12 K from the Wendt–Abraham criterion based on temperature dependence of $\Phi \left(T\right)=\left(PD{F}_{min}/PD{F}_{max}\right)$ at q = 1 × 10¹³ K/s. Both data are consistent with the rough estimate based on density change with temperature T_g = 800 K (Figure 3a and Figure 4b reveals that the change of the growth rate of FSDM at T_g given by dPDF_min/dT = (a_l−a_g) is 93 ppm which is significantly larger compared with the change of the growth rate of the Wendt–Abraham criterion at T_g given by d$\Phi \left(T\right)/\mathrm{dT}=$ (c_l−c_g) = 72 ppm, therefore the identification method based on FSDM is considerably sharper compared with the Wendt–Abraham criterion which stands in line with previous data for amorphous Ni [18].

5. Discussion

Glass transition phenomena are observed universally. In practice, any liquid can be vitrified (transformed from liquid to a glass) if the cooling rate is enough high to avoid crystallisation. However structural changes that occur on vitrification are almost undetectable despite qualitative differences of characteristics of amorphous materials above and below T_g. This makes difficult treatment of glass transition as a real phase transformation (which can be non-equilibrium). Often the glass transition is considered as just a gradual although considerable change of material viscosity with an arbitrarily defined glass transition temperature at which the equilibrium viscosity of the melt reaches 10¹² Pa·s [42]. The definition of a glass as an amorphous material at viscosities above 10¹² Pa·s is inconsistent for at least the reasons that (i) the viscosity is a continuous function of temperature in contrast with derivative thermodynamic parameters such as heat capacity, and (ii) the viscosity is not necessarily equal to 10¹² Pa·s at T_g [17]. Also, in many marginal glass-formers equilibrium viscosity of 10¹² Pa·s (or any other similarly high value) can never be reached owing to competing crystallization process. Experimentally the glass transition is observed as a second order-like phase transformation. Indeed, the material volume and entropy are continuous functions of temperature exhibiting kinks at T_g, and discontinuities are observed only for their derivatives. Namely these characteristics are used in practice to detect where transformation occurs, that is to detect the T_g. Because of universally observed thermodynamic evidence of second order-like phase transformation in amorphous materials the term “calorimetric glass transition” was coined—see Chapter 3.2 of Ref. [43].

The crucial argument in treating the vitrification as a phase transformation of an amorphous materials at T_g is related to the possibility to observe structural changes at the glass transition. Obvious symmetry changes occur at crystallisation with the formation of an ordered (most often periodic, although for quasicrystals not necessarily) anisotropic structure. The structure of glasses is, however, also disordered similarly to that of liquids (though somewhat more ordered on the medium range scale of 0.5–1 nm). This makes almost impossible to distinguish structurally a glass from a melt based on distribution of atoms. Here we show how to utilise data of neutron and/or X-ray diffraction to reveal the structural differences between liquids and glasses. The almost undetectable changes of the structure of amorphous materials at glass transition can be revealed based on the concept of broken chemical bonds (configurons). We emphasise that the configuron percolation theory (CPT) treats transformation of glasses into liquids at glass transition as an effect resulting from percolation via broken chemical bonds (configurons). It is important that MD simulations showed that low atomic density Voronoi polyhedrons percolation clusters are formed in the liquid state made whereas there are no such clusters in the solid (glassy) state [44]. The CPT envisages that structurally melts have a fractal geometry of chemical bonds with broken chemical bonds forming extended (macroscopic) fractals and because of that a liquid-like behaviour, and glasses have a 3D geometry of chemical bonds with point-type broken chemical bonds having a 0D geometry and because of that a solid-like behaviour (Chapter 3.1 in [45]). Figure 5 shows the temperature dependence of amorphous Cu volume on glass transition and melting and related changes of Hausdorff–Besicovitch dimensionalities of configuron phases dim_H(configurons).

The interatomic chemical bonds in condensed materials can be broken by fluctuations of temperature, also by high pressure and ionizing radiation. Bond breaking processes inevitably lead to shifts of atoms from their original lattice (which is not necessarily ordered) places. In order to experimentally reveal the presence of configurons which are elementary excitations rather than material entities one can detect the atomic displacements caused by configuron formation. The displacements of atoms from lattice sites can be detected using neutron and/or X-ray diffraction. While the temperature causes bond-breaking processes and the higher the temperature, the more configurons are formed and thus more atoms are displaced out of the first coordination shell. Namely the atoms are shifted to distances corresponding to minima of PDF(r) due to configuron formation [18]. The higher the temperature, the higher is thus the PDF_min. Moreover, on approaching and crossing the T_g, the temperature behaviour of PDF_min will change its character. The change occurs because the topological organisation of chemical bonds (the geometry of chemical bonds) in the liquid state of matter drastically changes from 3D which is characteristic to solid state to the fractal geometry which is characteristic to the liquid state. Thus, the FSDM contains information on structural changes in amorphous materials at the T_g. A method for determining the T_g is hence to assign it to the onset of kink of FSDM and the proposed method is more sensitive than the Wendt–Abraham criterion based on the analysis of diffraction peaks [18,47,48]. It is also notable that the Wendt–Abraham criterion supposed that at T_g the equality holds $\Phi \left(T_g\right)$ = 0.15 [38]. This however is not always an exact relationship [49] and one can see from Figure 4a that for the amorphous Cu we get $\Phi \left(T_g\right)=0.1$, whilst using the original Wendt–Abraham criterion we obtain a significantly overestimated T_g. We also emphasise that the decrease of the coordination number with the increase of temperature alone cannot explain the glass transition because such changes can be caused by rearrangements of crystalline lattice and the change of FSDM is the crucial parameter to be checked for eventual changes signalling on phase transformations in amorphous materials.

6. Conclusions

In conclusion we have used the connection between atomic shifts which can be detected via X-ray diffraction and formation of configurons which are broken chemical bonds in amorphous materials. We have analysed the temperature behaviour of FSDM (minima of PDF(r) as a function of temperature), identifying the temperature where the dependence exhibits a kink and allocating that temperature to the glass transition temperature, T_g = 794 ± 10 K at the cooling rate of 1 × 10¹³ K/s. It has been found that for amorphous Cu the method based on analysis of FSDM is more sensitive compared with the empirical criterion of Wendt−Abraham.
