Phase Analysis and Thermoelectric Properties of Cu-Rich Tetrahedrite Prepared by Solvothermal Synthesis

Abstract

Because of the large Seebeck coefficient, low thermal conductivity, and earth-abundant nature of components, tetrahedrites are promising thermoelectric materials. DFT calculations reveal that the additional copper atoms in Cu-rich Cu₁₄Sb₄S₁₃ tetrahedrite can effectively engineer the chemical potential towards high thermoelectric performance. Here, the Cu-rich tetrahedrite phase was prepared using a novel approach, which is based on the solvothermal method and piperazine serving both as solvent and reagent. As only pure elements were used for the synthesis, the offered method allows us to avoid the typically observed inorganic salt contaminations in products. Prepared in such a way, Cu₁₄Sb₄S₁₃ tetrahedrite materials possess a very high Seebeck coefficient (above 400 μVK⁻¹) and low thermal conductivity (below 0.3 Wm⁻¹K⁻¹), yielding to an excellent dimensionless thermoelectric figure of merit ZT ≈ 0.65 at 723 K. The further enhancement of the thermoelectric performance is expected after attuning the carrier concentration to the optimal value for achieving the highest possible power factor in this system.

1. Introduction

Due to its unique property to interconvert heat and electricity, thermoelectric (TE) materials can be used for the construction of two main types of devices [1]. The first ones are thermoelectric generators (TEG), which directly convert waste heat into electric energy based on the Seebeck effect [2]. The other ones are Peltier’s cooling modules, so-called thermoelectric heat pumps, which can operate using the Peltier effect [3]. To create a temperature gradient, which is the necessary condition to induce the electro-motive force in TEG elements, the waste heat from the combustion gasses, nuclear reactors, or even human bodies can be used [4]. Thermoelectric generators have become especially important in the development of modern electronically powered devices where recovering waste energy is significant in terms of the price and eco-friendly nature [5,6].

The efficiency of thermoelectric material is defined by the dimensionless thermoelectric figure of merit ZT  =  S²σT/κ_el+κ_L, where S is the Seebeck coefficient, σ is the electrical conductivity, T is the temperature, and κ_el, κ_lat are the electronic and lattice components of the thermal conductivity [7,8]. As the Seebeck coefficient, electrical conductivity, and electronic thermal conductivity are interrelated through the carrier concentration and particularities of the band structure, the development of the highly efficient TE materials requires specific properties (narrow bandgap, multivalley band structure, high mobility, high solubility of dopants, intrinsically low κ_lat) [9,10,11]. Such an unusual combination of properties in one compound was found in the heavily-doped semiconductors, e.g., PbTe [12,13,14], Bi₂Te₃ [15,16], GeTe [17,18], CoSb₃ [19,20], which are excellent thermoelectric materials. The limiting factors, which restrict their widespread utilization, are the costs of production, environmental friendliness, and efficiency of energy conversion. Therefore, many efforts of the thermoelectric community are now dedicated to the development of new classes of the materials, e.g., Mg₂X (X = Si, Sn) [21], SnSe [22,23], argyrodites [24], and tetrahedrites [25,26,27], which better meet the modern industrial requirements.

In the last decades, more and more sulfide-based thermoelectric materials have been reported as excellent candidates for the construction of TEG converters [28]. Many transitional metal sulfides show good TE performance caused by their ultralow lattice thermal conductivity κ_L and promising electronic properties [29]. They also possess excellent features for widespread commercial use, such as non-toxicity and low price caused by high abundance [30]. Within the promising sulfide-based thermoelectrics, there are also materials that crystallize in the tetrahedrite-type structure [25,31,32]. The early investigation of the naturally-occurring Cu₁₂Sb₄S₁₃ mineral has opened a large playground for this promising family of compounds [33,34]. Tetrahedrite minerals, which may have large potential for thermoelectric applications, can be extended to the compounds with the general formula A₁₀⁺B₂²⁺X₄³⁺Y₁₃^2-, where A is Cu or Ag; B is Fe, Zn, Ni, Co, or Mn; X is Sb or As; and Y is for S [33,35].

The tetrahedrite materials are environmentally friendly and cheap in comparison to the well-established TE materials, which usually consist of expensive and toxic elements. Thermoelectric materials based on Cu₁₂Sb₄S₁₃ possess very low lattice thermal conductivity (κ_L ≈ 0.5–0.9 Wm⁻¹K⁻¹) and promising values of the Seebeck coefficient (S ≈ 60–300 μVK⁻¹) over the wide temperature range [36,37]. Yan et al. reported that tetrahedrite-based samples can possess extremely low lattice thermal conductivity (as low as ~0.25 Wm⁻¹K⁻¹ or even lower) [37], which makes them very promising candidates for further research.

Tetrahedrite-based materials are commonly synthesized using a solid-state reaction method. Subsequently, synthesized ingots should be annealed for a few weeks to obtain homogenous materials [25,38]. Alternatively, the TE tetrahedrites can be prepared using the naturally existing tetrahedrite minerals, which should be mixed with dopants and grounded in high-energy ball mills. In the next step, the obtained powders should be compacted and sintered [39]. However, due to high synthesis/sintering temperatures and long-term preparation processes, both described methods require enormous energy consumption. The alternative and low-energy-consuming methods for the preparation of tetrahedrite-based materials are based on solvothermal synthesis, e.g., in ethanol solution from inorganic chlorides and thiourea. CuCl₂, SbCl₃, and NH₂CSNH₂ should be mixed in absolute ethanol to form a heterogeneous mixture. In this case, the reaction occurs in an autoclave for 14–20 h at a remarkably low temperature of ~430 K [40]. However, the generation of the ultrahigh pressures inside an autoclave requires additional safety control, and the resulting products usually contain nonreacted precursors.

In this work, we offer a novel approach for the fabrication of TE materials, which is based on the solvothermal method. Particularly, to prepare Cu-rich Cu₁₄Sb₄S₁₃ tetrahedrite, pure elemental powders were used as precursors, and ethanol, typically employed for solvothermal synthesis, was changed with the 1-(2-aminoethyl) piperazine, serving both as a solvent and reagent. The unique advantage of this method is that the synthesis can be carried out in an open vessel at relatively low temperatures and under atmospheric pressure. Moreover, the proposed method helps to avoid inorganic contaminations from substrate salts. The prepared Cu₁₄Sb₄S₁₃ materials show a high thermoelectric dimensionless figure of merit ZT ≈ 0.65 at 723 K, which is mostly connected with the high Seebeck coefficient S, and low thermal conductivity κ. The measured thermal conductivity κ, for the Cu₁₄Sb₄S₁₃ tetrahedrite, is equal to 0.17–0.32 Wm⁻¹K⁻¹, which is in the range of the lowest values of the thermal conductivity observed in the light-weight sulfides.

2. Materials and Methods

2.1. Synthesis

Synthesis of Cu-rich tetrahedrite was conducted by a single-step solvothermal reaction, where 1-(2-aminoethyl) piperazine (AEP) (Alpha Aesar, Haverhill, MA, USA, 98%) plays the role of the solvent as well as the reagent. AEP was placed in a double-neck round-bottom flask with added elemental powders of Cu (Alpha Aesar, Haverhill, MA, USA, 99.99%), Sb (Alpha Aesar, Haverhill, MA, USA, 99.99%), and S (Alpha Aesar, Haverhill, MA, USA, 99.999%). All syntheses were carried out in an oil bath at 200 °C. The syntheses were performed with continuous mixing using a magnetic stirrer with a heating plate. Samples described in this work were obtained in reactions carried out for one, two, five, and ten days, respectively. Obtained powders were filtered out using a Büchner funnel and washed at least three times with distilled water and acetone. After that, drying of powders was performed at 70 °C. The powders were subjected to structural analysis.

2.2. Sintering

The resultant powders were densified by pulsed electric current sintering (PECS) technique at 723 K for 20 min in 12.8 mm diameter graphite mold under axial compressive stress of 40 MPa in an argon atmosphere. The heating rate was 70 K/min, and the cooling rate was 20 K/min. Compacted pellets with a diameter of 12.8 mm and thickness of 2.5 mm were obtained and annealed in argon atmosphere for 5 h at 673 K for sample homogenization. Annealed pellets were polished and cut for transport property measurements.

2.3. Characterization

Powder X-ray diffraction (XRD) was performed on the BRUKER D8 Advance diffractometer (Bruker, Billerica, MA, USA) using Ni-filtered Cu-K_α radiation (λ = 1.5406 Å Δ2Ѳ = 0.007°, 2Ѳ range 10–90°). The multi-phase Rietveld refinement was carried out using GSAS II software (version 5149, 2010, Chicago, IL, USA) [41].

Microstructure investigation and chemical composition analyses were performed using scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDS) on the NOVA NANO SEM 200 (FEI EUROPE COMPANY, Eindhoven, Netherlands) microscope.

The Seebeck coefficient S and electrical conductivity σ were measured with NETZSCH SBA 458 Nemesis (Netzsch, Selb, Germany) in argon flow over the temperature range of 300–723 K. The electrical conductivity was measured using a four-probe method, applying the constant current of 1 mA through the sample. The Seebeck coefficient was estimated by creating temperature gradients with the help of the microheaters, which were placed below the two sample edges. The resulting voltage was measured by the thermocouples and then used for the calculation of the Seebeck coefficient. Thermal diffusivity α was measured by employing the NETZSCH LFA 457 equipment (Netzsch, Selb, Germany) using InSb high-temperature detector, and specific heat capacity C_p was estimated using the Dulong-Petit limit. The samples were first spray-coated with a thin layer of graphite to minimize errors from the emissivity of the material and laser beam reflection caused by the shiny pellet surface. Thermal conductivity was calculated using the equation κ = ρC_pα, where ρ is the density determined by Archimedes’ principle at the discs obtained from PECS. Hall effect was investigated by applying the four-probe method in constant electric and magnetic fields (H = 0.9 T) and current through a sample of 100 mA. In order to measure sample grain sizes, analyzed powders were suspended in water and then sonicated for 3 min. Then, suspensions were analyzed with the dynamic light scattering method with a Zetasizer Nano-ZS, manufactured by Malvern Instruments (Malvern, PA, USA).

2.4. Electronic Structure Calculations

The electronic band structure calculations of densities of states (DOS) and dispersion E(k) curves of ordered Cu₁₂Sb₄S₁₂ and Cu₁₂Sb₄S₁₃ compounds were performed using the Korringa–Kohn–Rostoker (KKR) technique based on the Green function methodology [42]. In the case of disordered Cu_12+xSb₄S₁₃ alloys, the KKR was combined with the coherent potential approximation (CPA) [43,44], which explicitly treats the chemical disorder introduced by an excess of Cu in a random way. In these computations, the crystal potential was constructed within the local density approximation employing the exchange-correlation potential of Perdew and Wang [45]. The Fermi energy was determined precisely by the generalized Lloyd formula [46], which is especially important in systems lying on the verge of a metal-semiconductor limit. For all compositions, the experimental lattice parameters and atomic coordinates determined from Rietveld refinements were used. It is worth noting that in Cu_12+xSb₄S₁₃ alloys, Cu atoms occupied three crystallographic sites (12d, 12e, 24g), and the Cu excess was modeled by ‘alloying’ copper atoms (with nuclear charge Z = 29) and empty spheres (Z = 0), randomly occupying the 24g site, called Cu(3). However, in order to better understand the energetic distribution of copper atoms and the preference of the crystallographic position, we performed accurate total energy KKR-CPA calculations for several possible configurations of Cu atoms. In particular, we intended to check whether the excess Cu in this system is related to occupying only a new position Cu(3) or whether it may cause an incomplete filling of positions Cu(1) and Cu(2), as well. For well-converged crystal potential and atomic charges (below 1 meV and 10⁻³ e, respectively), the total-, site-, and l-decomposed DOS were computed with the use of the tetrahedron method for integration in the reciprocal k-space. The energy dispersion curves were calculated in the first bcc Brillouin zone along the high-symmetry directions. In the case of the compounds Cu₁₂Sb₄S₁₂ and Cu₁₂Sb₄S₁₃, their electronic structure was also calculated using the full-potential KKR method, which enables a comparison with the KKR-CPA results obtained within the spherical crystal potential of the muffin-tin form.

3. Results and Discussion

3.1. Structural Analysis

Investigations of the Cu−Sb−S phase diagram suggest that the tetrahedrite structure could be obtained over a wide compositional range from Cu₁₂Sb₄S₁₂ to Cu₁₄Sb₄S₁₃ (Figure 1). The well-known Cu₁₂Sb₄S₁₃ tetrahedrite mineral crystallizes in a complex cubic structure (space group I-43m (No. 217)) with a large unit cell of 58 atoms (Figure 1b). There were two different Wyckoff positions (

Table 1. Crystal structure parameters of Cu₁₂Sb₄S₁₂ [53], Cu₁₂Sb₄S₁₃ [54], and Cu₁₄Sb₄S₁₃ [52,55].

Nominal Composition		Cu12Sb4S12 (Phase I)				Cu12Sb4S13 (Phase II)				Cu14Sb4S13 (Phase III)
Space group		I-43m (No. 217)
a/Å		10.240				10.329				10.448
Unit cell volume/Å3		1073.74				1102.08				1140.51
Z		2				2				2
Atom	Site	x	y	z	SOF	x	y	z	SOF	x	y	z	SOF
Cu(1)	12d	0.2500	0.5000	0.0000	1	0.2500	0.5000	0.0000	1	0.2500	0.5000	0.0000	1
Cu(2)	12e	0.2500	0.0000	0.0000	1	0.2150	0.0000	0.0000	1	0.2157	0.0000	0.0000	1
Cu(3)	24g	-	-	-	-	-	-	-	-	0.2851	0.2851	0.0102	0.167
Sb	8c	0.2780	0.2780	0.2780	1	0.2682	0.2682	0.2682	1	0.2663	0.2663	0.2663	1
S(1)	24g	0.1250	0.1250	0.3750	1	0.1152	0.1152	0.3609	1	0.1137	0.1137	0.3613	1
S(2)	2a	-	-	-	-	0.0000	0.0000	0.0000	1	0.0000	0.0000	0.0000	1

), where the Cu(1) atoms (12d) were tetrahedrally coordinated by four sulfur atoms, whereas the Cu(2) atoms (12e) had a triangular environment formed by three sulfur atoms in nearly coplanar coordination. The Sb atoms occupied tetrahedral 8c sites but were bonded to only three S atoms, leaving 5s lone pair electrons in the structure [47]. The crystal structure of Cu₁₂Sb₄S₁₃ contained unoccupied sites, which could be partially occupied by the additional Cu(3) atoms (24g). In such a case, the Cu-rich tetrahedrite Cu₁₄Sb₄S₁₃ with 62 atoms per unit cell could be obtained (Figure 1c [48,49]). The Cu(3) atoms, similar to Cu(2), had triangular coordination by three S atoms. Cubic modification of skinnerite, or so-called pseudotetrahedrite, with a chemical composition of Cu₁₂Sb₄S₁₂ (or Cu₃SbS₃), had the same structural organization as tetrahedrite. However, it had only 56 atoms in the unit cell due to the absence of S(2) atoms in the 2a position (Figure 1) [50].

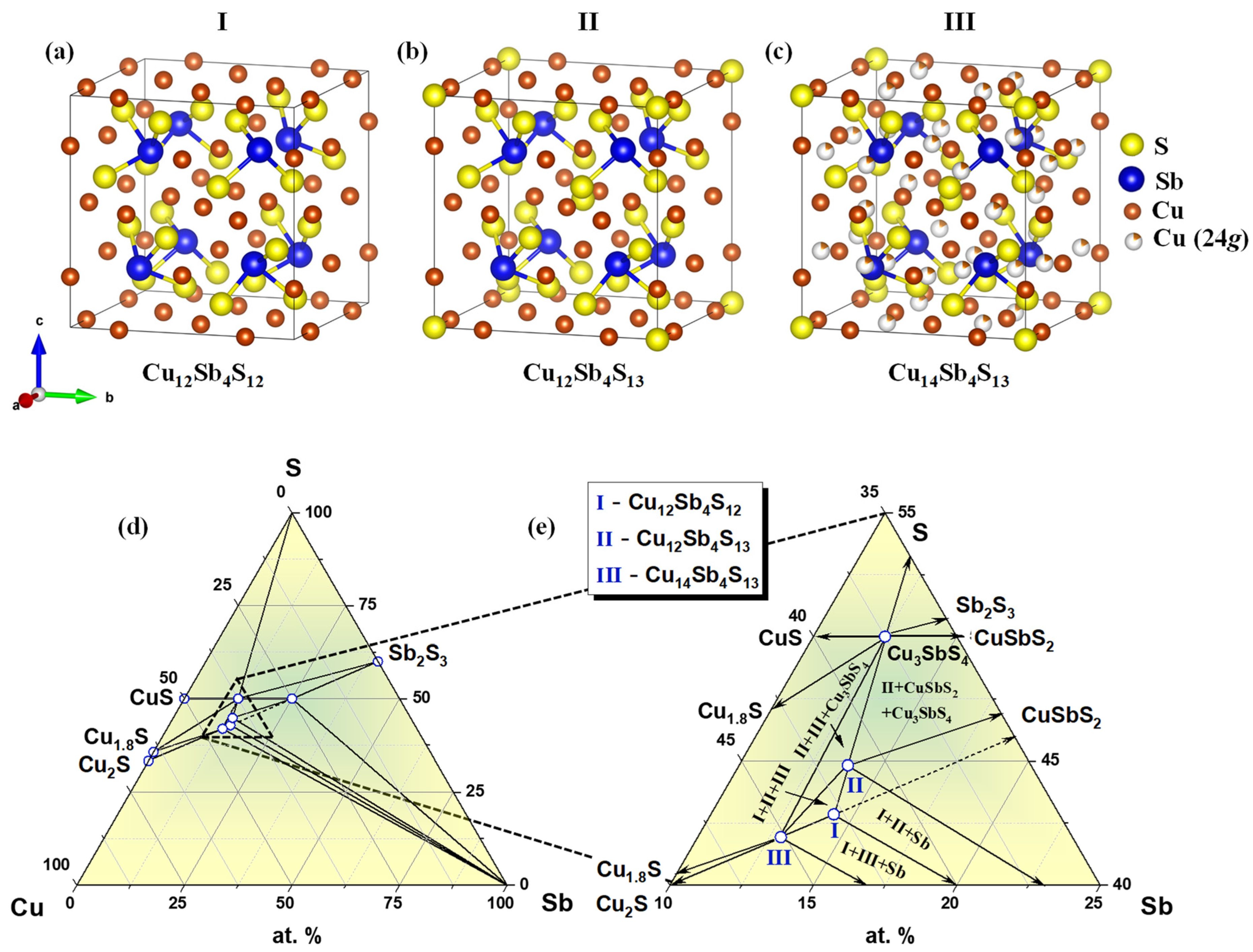

The ternary phase diagram of the Cu-Sb-S system at 300 K (Figure 1d,e) was reconstructed using data presented in Refs. [51] and [52]. Besides, the well-known CuSbS₂ (chalcostibite), Cu₃SbS₄ (famatinite), and Cu₁₂Sb₄S₁₃ (tetrahedrite, phase II) ternary compounds, the Cu₁₂Sb₄S₁₂ (phase I) and Cu₁₄Sb₄S₁₃ (phase III) are additionally presented in the form of separate phases. The Cu₁₄Sb₄S₁₃ (phase III) forms tie lines with elemental antimony and with the Cu₁₂Sb₄S₁₃ (phase II) (Figure 1d,e).

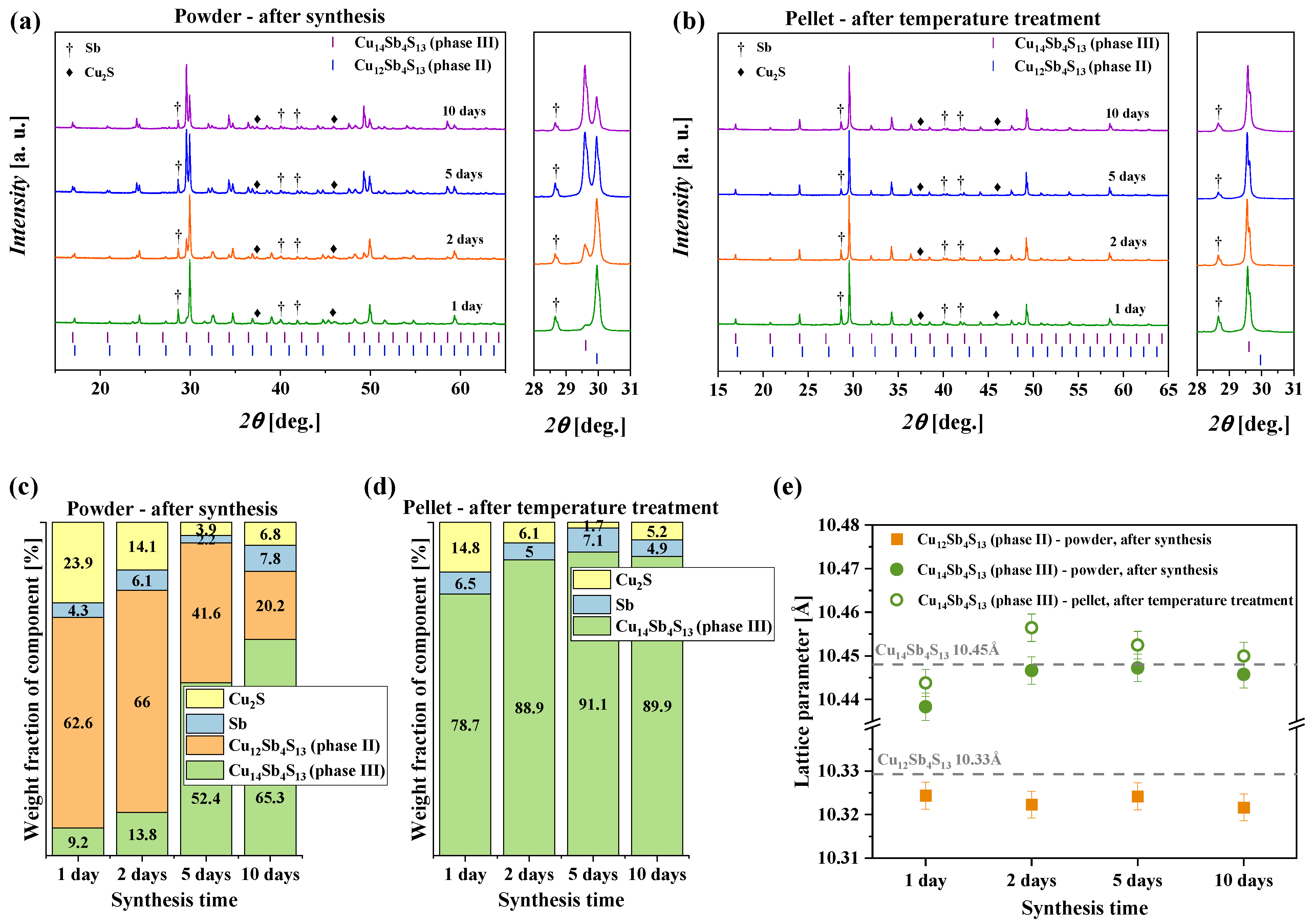

The investigated samples with nominal compositions of Cu₁₄Sb₄S₁₃ were characterized by powder X-ray diffraction. The powder XRD patterns are presented in Figure 2a,b along with the theoretical Bragg positions of Cu-rich (phase III-Cu₁₄Sb₄S₁₃) and Cu-poor (phase II-Cu₁₂Sb₄S₁₃) tetrahedrite. The performed phase analysis indicates that the main phase after 1-day synthesis was Cu-poor tetrahedrite (phase II) with a small amount of Cu-rich tetrahedrite (phase III) and by-products in the form of Cu₂S and Sb (Figure 2a,c). The increase of the synthesis duration caused a content decrease of the Cu-poor tetrahedrite (phase II) and by-products. As a result, the Cu-rich tetrahedrite (phase III) became the dominant phase (Figure 2a,c). Intriguingly, after PECS treatment and annealing of prepared pellets, all samples showed presence of Cu-rich tetrahedrite (phase III) with a minor amount of Cu₂S and Sb by-products (Figure 2b shows good agreement with the literature data (Figure 2e).

3.2. Microstructural Analysis

Figure 3 shows the results of the dynamic light scattering (DLS) analysis and scanning electronic microscopy (SEM) images of the Cu-rich tetrahedrite powders. The DLS data demonstrate that grains after each synthesis ranged from 0.17 µm to 70 µm (Figure 3a). The performed analysis also showed that for the powders obtained after 1 and 2 days, the particle size distributions had two overlapping peaks (Figure 3a). In the case of 1-day synthesis, the number of larger aggregates predominated with the modal value d of 14.2 µm. However, their number decreased along with the increase of synthesis time. After 5 and 10 days of synthesis, we observed unimodal particle size distributions with modes d₁ and d₂ of 5.4 and 4.7 µm, respectively. Those results may be related to a larger amount of the substrates present in 1–2 days syntheses, which had grain sizes of ca. 10–20 µm. On the other hand, the products were characterized by smaller grains of 3–6 µm. Therefore, the 5- and 10-day syntheses possess unimodal grain size distributions with smaller grains.

The SEM images, performed for Cu-rich tetrahedrite powder after five days of synthesis, roughly confirmed the DLS data (Figure 3b–d). The sizes of grains observed in SEM varied from tens of micrometers to hundreds of nanometers, which agrees with the results shown in Figure 3a. Moreover, as can be indicated in Figure 3d, the estimated DLS particles probably correspond to the grain aggregates consisting of even smaller nano-scale grains.

3.3. Electronic Structure Calculations

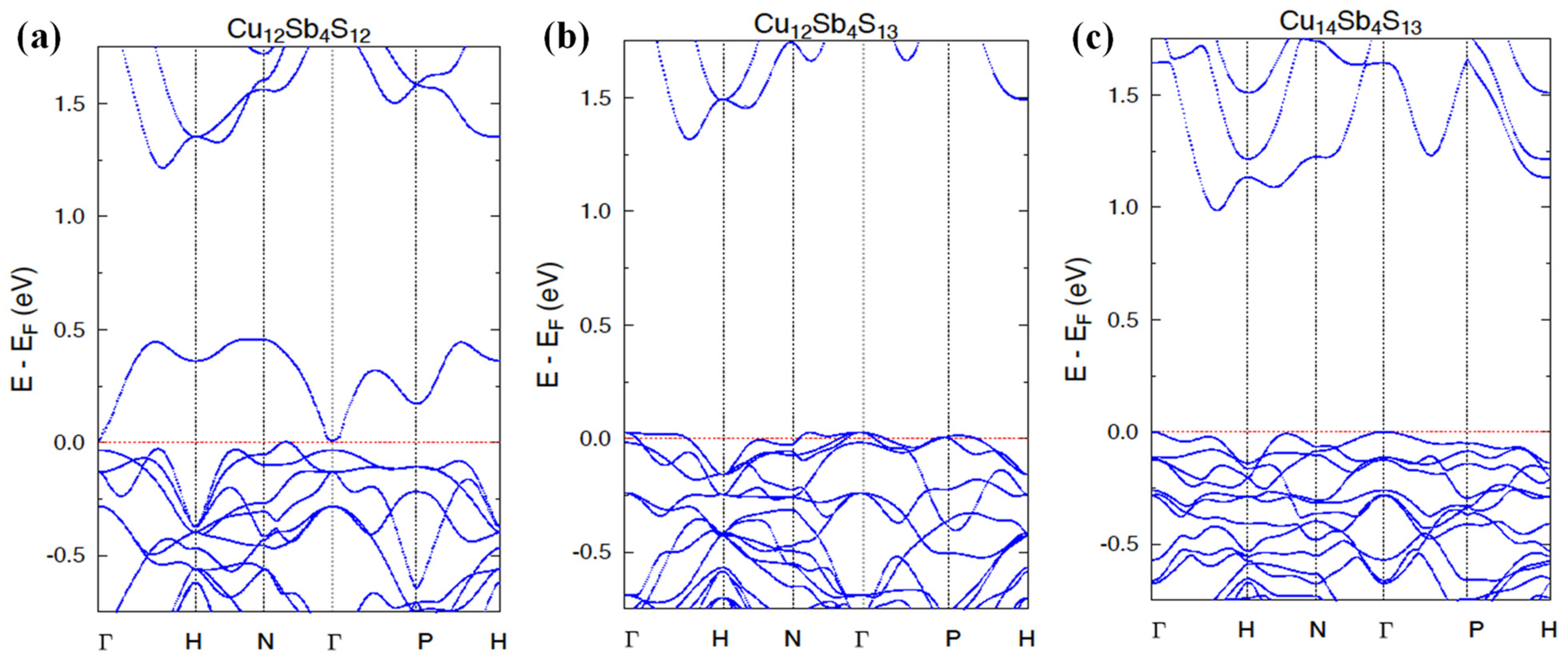

Figure 4 shows the dispersion curves for Cu₁₂Sb₄S₁₂ and Cu₁₂Sb₄S₁₃ compounds. Let us remind that the unit cell of the latter contains the additional S atoms located in position 2a (0, 0, 0). The dispersion relations E(k) of Cu₁₂Sb₄S₁₃ are characterized by weakly dispersive valence bands along the Gamma–H, N–H, and N–P directions and by an indirect energy gap of ~1.4 eV, as already reported in previous theoretical studies [35]. The Fermi level lies inside the valence bands (leaving two holes to reach the energy gap), suggesting that the p-type metallic character of this compound and the semiconducting properties can be expected when adding two extra electrons to the system (e.g., substituting Sb with Te in Cu₁₂Sb₂Te₂S₁₃ [35]). Unlike in Cu₁₂Sb₄S₁₂, the Fermi level was found in the pseudogap, with one strongly dispersive band developed just above this pseudogap. Consequently, the large gap separating the valence and conduction bands—the characteristic electronic structure feature of tetrahedrite and tennantite ternary systems—can be recognized above this single band, but is much smaller (~0.8 eV) than in Cu₁₂Sb₄S₁₃.

We suppose that such important modifications of the electronic band structure in the two seemingly close compounds arrive from intense electronic interactions between S(2a) and the surrounding Cu atoms. It appears to be responsible for stronger p-d hybridization, leading to the formation of a more compact block of valence states with respect to the single band seen in Cu₁₂Sb₄S₁₂. This electronic structure behavior can be well seen in Figure 5, presenting the total and site-decomposed DOS in both compounds. Indeed, E_F is detected in either the large peak or deep minimum of DOS in Cu₁₂Sb₄S₁₃ (Figure 5b) and Cu₁₂Sb₄S₁₂ (Figure 5a), respectively. It is worth noting that the interactions between S(2a) and Cu(1) and Cu(2) atoms are quite different since the d-states of Cu(1) markedly dominated at the Fermi level in comparison with the d-Cu(2) states in Cu₁₂Sb₄S₁₃ (Figure 6b). This is probably due to the much shorter S(2)-Cu(2) interatomic distance of ~2.2 A yielding strong bonding, with respect to ~5.7 A observed for the S(2a)-Cu(1) one. Conversely, in Cu₁₂Sb₄S₁₂ (having 2a site vacant), the d-state contributions of Cu(1) and Cu(2), forming the large DOS peak just below E_F, were comparable (see Figure 6a).

As already mentioned in Section 2.4, we intended to study from the KKR-CPA total energy calculations whether the excess of Cu in the Cu_12+xSb₄S₁₃ system was related to occupancy of only the third position Cu(3) (24 g Wyckoff site), or if it additionally modifies the copper atom distribution on the Cu(1) and Cu(2) sites. Accordingly, we have considered a few representative models with different occupancies on the Cu sites (

Table 2. Results of the KKR-CPA total energy computations in Cu_12+xSb₄S₁₃ models with different occupancies of Cu sites. ΔE = E_min-E_tot denotes the total energy difference between the considered models with various copper atom distributions on the Cu(1), Cu(2), and Cu(3) sites (ΔE is given per atom). E_min is the lowest total energy among these models of each composition, suggesting that Cu atoms first occupy the Cu(1) and Cu(2) sites, and the only remaining atoms fulfill the Cu(3) site.

Cu12Sb4S13				Cu13Sb4S13				Cu14Sb4S13
ΔE (eV)	Cu(1)	Cu(2)	Cu(3)	ΔE (eV)	Cu(1)	Cu(2)	Cu(3)	ΔE (eV)	Cu(1)	Cu(2)	Cu(3)
0	6	6	0	0	6	6	1	0	6	6	2
+0.20	5	6	1	+0.39	5	6	2	+0.29	4	6	3
+0.19	6	5	1	+0.40	6	5	2	+0.32	6	4	3

) in three tetrahedrite alloys Cu₁₂Sb₄S₁₃, Cu₁₃Sb₄S₁₃, and Cu₁₄Sb₄S₁₃. In view of the KKR-CPA results, the model where Cu atoms first occupy the Cu(1) and Cu(2) sites, and the remaining atoms fulfill the Cu(3) site, is energetically the most favorable case, whatever the considered composition. The three above-mentioned compositions accounted for the computations, and the models with partial disorder at all sites appear to have markedly higher total energy, ca. 0.2–0.4 eV (per atom), with respect to the lowest energy model containing partial disorder (vacancies) exclusively on the Cu(3) site. The reasons for the preference for such a filling of crystallographic positions of copper can also be notified when inspecting in more detail the DOSs for the three Cu positions. The d-Cu(3) states formed a narrow band just below the block of d-p valence states constituted by electrons from Cu(1), Cu(2), Sb and S(1), and S(2) atoms, being well seen in Figure 5c,d. This means that it is energetically more advantageous for electrons to occupy the d-Cu(3) states compared to the d-Cu(1) and d-Cu(2) states, which are much higher on the energy scale. The distinctly different position and shape of DOS (narrow peak) for Cu(3) in relation to the DOS, computed for Cu(1) and Cu(2), also implies the overall evolution of the electronic structure of Cu_12+xSb₄S₁₃ with an increase in x concentration.

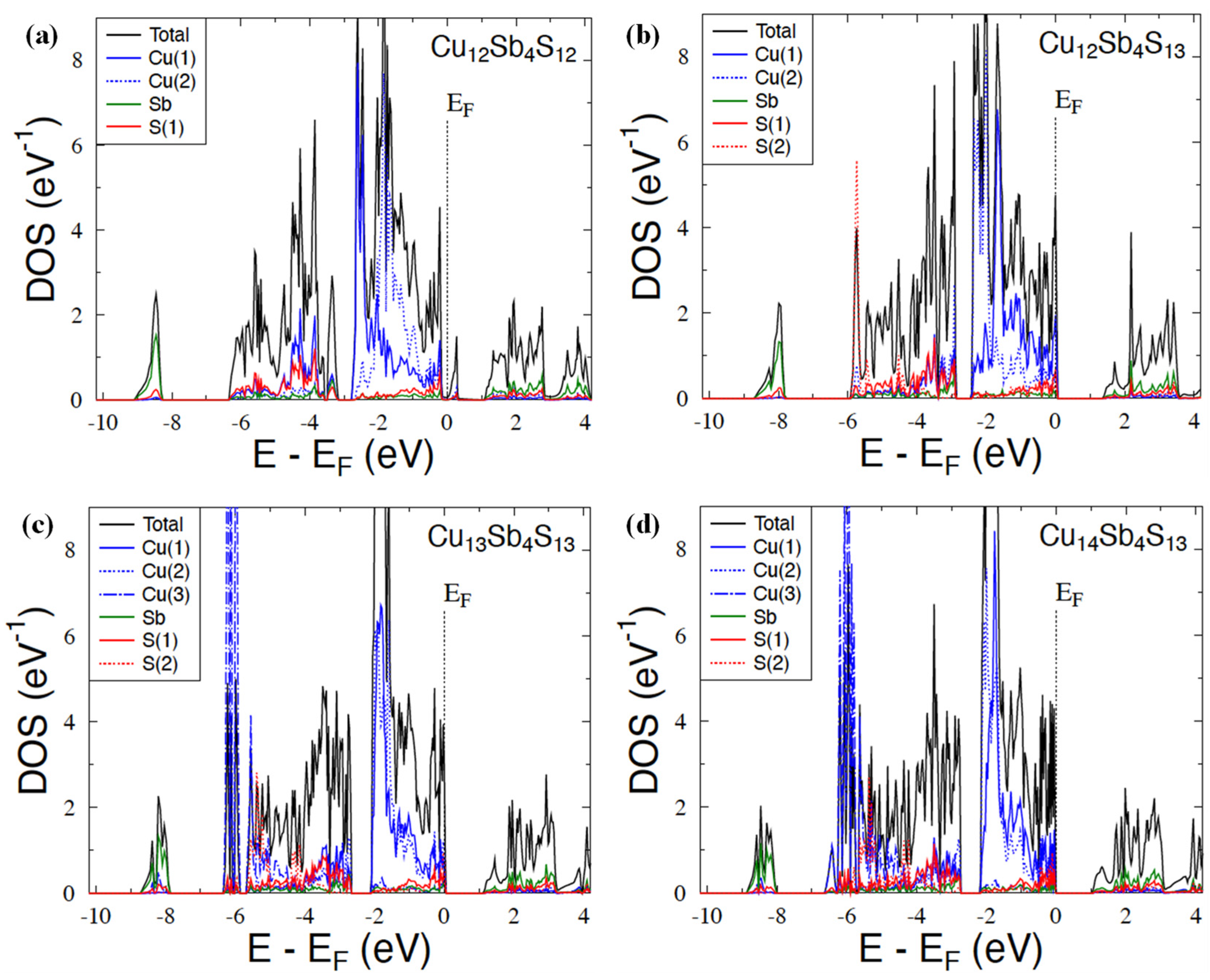

The weak overlap of the DOS peak of Cu(3), with those of Cu(3) and Cu(1), caused the highest-lying valence states (just below the energy gap) to not be markedly affected with the x increase. It was found that each extra Cu atom occupying the 24g sites actually delivered only one electron to the p-d block of valence states, shifting E_F into the gap edge. The consequence of such the more-or-less rigid band behavior was the appearance of a semiconducting state for the composition Cu₁₄Sb₄S₁₃ (x = 2) when the Fermi level fell into the energy gap.

3.4. Electrical and Thermal Transport Properties

Transport properties for the investigated Cu-rich tetrahedrites at T = 300 K are shown in

Table 3. The Seebeck coefficient S, electrical conductivity σ, lattice thermal conductivity κ_L, Hall concentration p_, carrier mobility µ, and DOS effective mass m* for investigated specimens at T = 300 K.

Sample	S, μVK−1	σ, Scm−1	κL, Wm−1K−1	p, cm−3	µ, cm2V−1s−1	m*/me
1 day (Phase III)	421	1.53	0.28	1.08 × 1018	8.7	0.9
2 days (Phase III)	428	1.78	0.32	1.32 × 1018	8.5	0.9
5 days (Phase III)	418	1.28	0.24	1.09 × 1018	7.4	0.9
10 days (Phase III)	440	1.07	0.28	1.06 × 1018	6.5	0.9
Cu12Sb4S12 (Phase I) [57]	166	5.4	0.30	9.1 × 1019	3.7	0.68
Cu12Sb4S13 (Phase II) [56]	71	1030	0.85	4.1 × 1020	15.7	1.3

. All samples measured in this work showed very high values of the Seebeck coefficients S, in the range of 420–440 μVK⁻¹. The Cu-poor tetrahedrites, taken for comparison from the literature [56,57], showed much lower values of the Seebeck coefficient (Table 3). This is mainly connected with the ca. two orders of magnitude higher carrier concentration for Cu-poor tetrahedrite (~10²⁰ cm⁻³) compared with the Cu-rich one (~10¹⁸ cm⁻³). The Cu-poor Cu₁₂Sb₄S₁₃ tetrahedrite is reported to be a p-type metal with two holes per formula unit [58]. In the case of the Cu-rich Cu₁₄Sb₄S₁₃ tetrahedrite, two additional Cu atoms per formula unit would largely compensate the holes and materials, preferably exhibiting semiconducting behavior, as shown by our DFT calculations. The chemical potential for the Cu-poor tetrahedrite phase was located deeply in the valence band. However, in the case of the Cu-rich phase, the chemical potential was approaching the bandgap, which led to the semiconducting behavior of electrical transport and high Seebeck coefficients.

On the other hand, the carrier mobility of the investigated samples was rather low (6–9 cm²V⁻¹s⁻¹). Such a strongly disturbed carrier transport could be related to the mobile Cu ions in tetrahedrites, as is proposed in refs. [48,59]. Because the Cu(1) site neighbors the partially filled Cu(3) sites, the migration of copper ions should be mainly located between these positions. As the occupancy of the Cu(1) site was reported to be lower for the Cu₁₄Sb₄S₁₃, compared with the Cu₁₂Sb₄S₁₃, the more intensive copper ion migration is expected in the Cu-rich tetrahedrite phase [37], which could have led to the low carrier mobility recorded in our samples.

Using the Wiedemann-Franz law and measured values of the electrical conductivity σ, we found that the electronic component of the thermal conductivity κ_el was less than 5% for all samples and temperatures investigated in this work. Thus, the thermal conductivity κ for the studied Cu-rich tetrahedrites was mainly defined by the lattice thermal conductivity κ_L. Therefore, for further analysis, we assumed that κ = κ_L. The lattice thermal conductivity κ_L for Cu-rich tetrahedrites at T = 300 K was in the range of 0.24–0.32 W m⁻¹ K⁻¹. Such ultralow κ_L values were comparable to those in Cu₁₂Sb₄S₁₂ tetrahedrites (0.30 W m⁻¹ K⁻¹, phase I [57]); however, it was much lower than that of the common Cu₁₂Sb₄S₁₃ (0.85 W m⁻¹ K⁻¹, phase II [56]) tetrahedrite. This phenomenon could also be connected with the liquid-like nature of copper ions, which is more probable in Cu-rich tetrahedrite phases. As is often reported for the superionic argyrodites [24,60], as well as tetrahedrites [48,61,62], the migration of Cu ions can strongly disturb phonon propagation. To verify the TE performance of the investigated samples, the density of the state effective mass m^* was calculated using the Kane band model. Details of the calculations can be found in refs. [12,13]. Cu-rich tetrahedrites have the effective mass m^* around 0.9 m_e, which is in between Cu₁₂Sb₄S₁₂ (phase I) ~0.68 m_e [57] and Cu₁₂Sb₄S₁₃ (phase II) ~1.3 m_e [56].

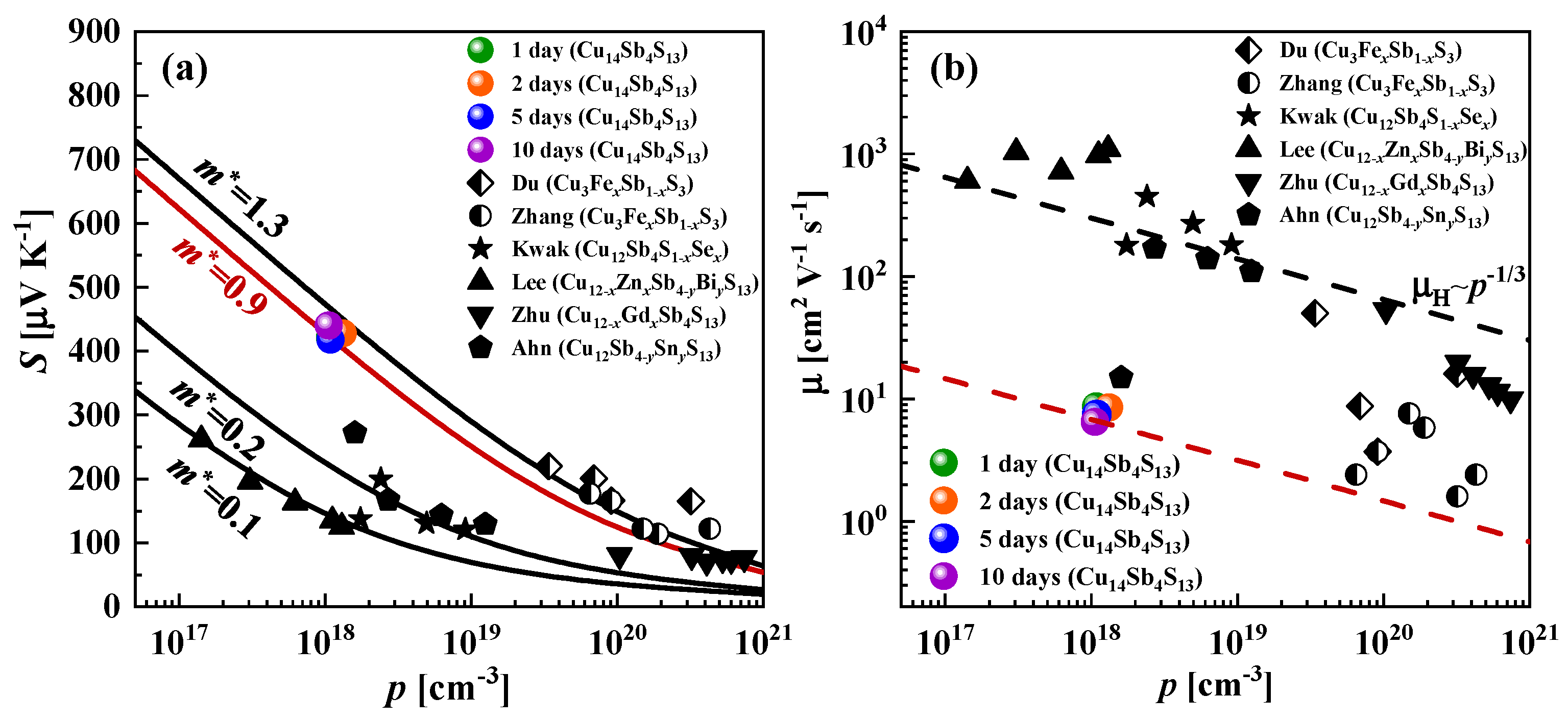

To better understand the transport properties of the investigated tetrahedrite materials, we plotted the Seebeck coefficient and Hall mobility as a function of the carrier concentration (Figure 7). The concentration-dependent Seebeck coefficient at 298 K was calculated using the Kane band model, considering acoustic phonons as the main scattering mechanism (scattering parameter r = 0). Within this model, the Seebeck coefficient S could be defined using the following expression [3,13]:

$$S=-\frac{k_B}{e}\left[\frac{I_{r+1,2}^1\left(\eta ,\beta \right)}{I_{r+1,2}^0\left(\eta ,\beta \right)}-\eta \right]$$

(1)

where k_B, e, r, and η denote the Boltzmann constant, charge of an electron, scattering parameter, and reduced chemical potential, respectively. $I_{n,k}^m\left(\eta ,\beta \right)$ are the two-parametric Fermi integrals, which were calculated as follows:

$$I_{n,k}^m(\eta ,\beta )={\displaystyle \underset{0}{\overset{\infty }{\int }}\left(-\frac{df}{dx}\right)}\frac{x^m{(x+\beta x^2)}^{n}dx}{{(1+2\beta x)}^k}$$

(2)

With the obtained values of η, carrier concentration p could be calculated by the following expression:

$$p=\frac{{\left(2m^{*}{}_{}{k}_{B}T\right)}^{3/2}}{3{\pi }^2{\hslash }^3}{I}_{3/2,0}^0\left(\eta ,\beta \right)$$

(3)

where N is band degeneracy and m* is the density of states effective mass. The calculated dependence of the Seebeck coefficient S, as a function of carrier concentration p, assuming different effective masses, is shown by the solid lines in Figure 7a.

The effective masses of the reported Cu-poor tetrahedrites varied significantly from 0.1 m_e up to 1.3 m_e; however, the large effective masses were recorded mainly for the tetrahedrites with high carrier concentration (10¹⁹ cm⁻³–10²¹ cm⁻³). For the case of the investigated Cu-rich tetrahedrites in this work, the relatively high effective mass (m* = 0.9 m_e) is accompanied by the low carrier concentration (p ≈ 10¹⁸ cm⁻³). Such a tendency agreed well with the performed DFT calculations. As discussed above, the mobility μ for the investigated Cu-rich tetrahedrite materials was lower compared with the Cu-poor tetrahedrite materials, which can also be connected with the liquid-like nature of the Cu ions.

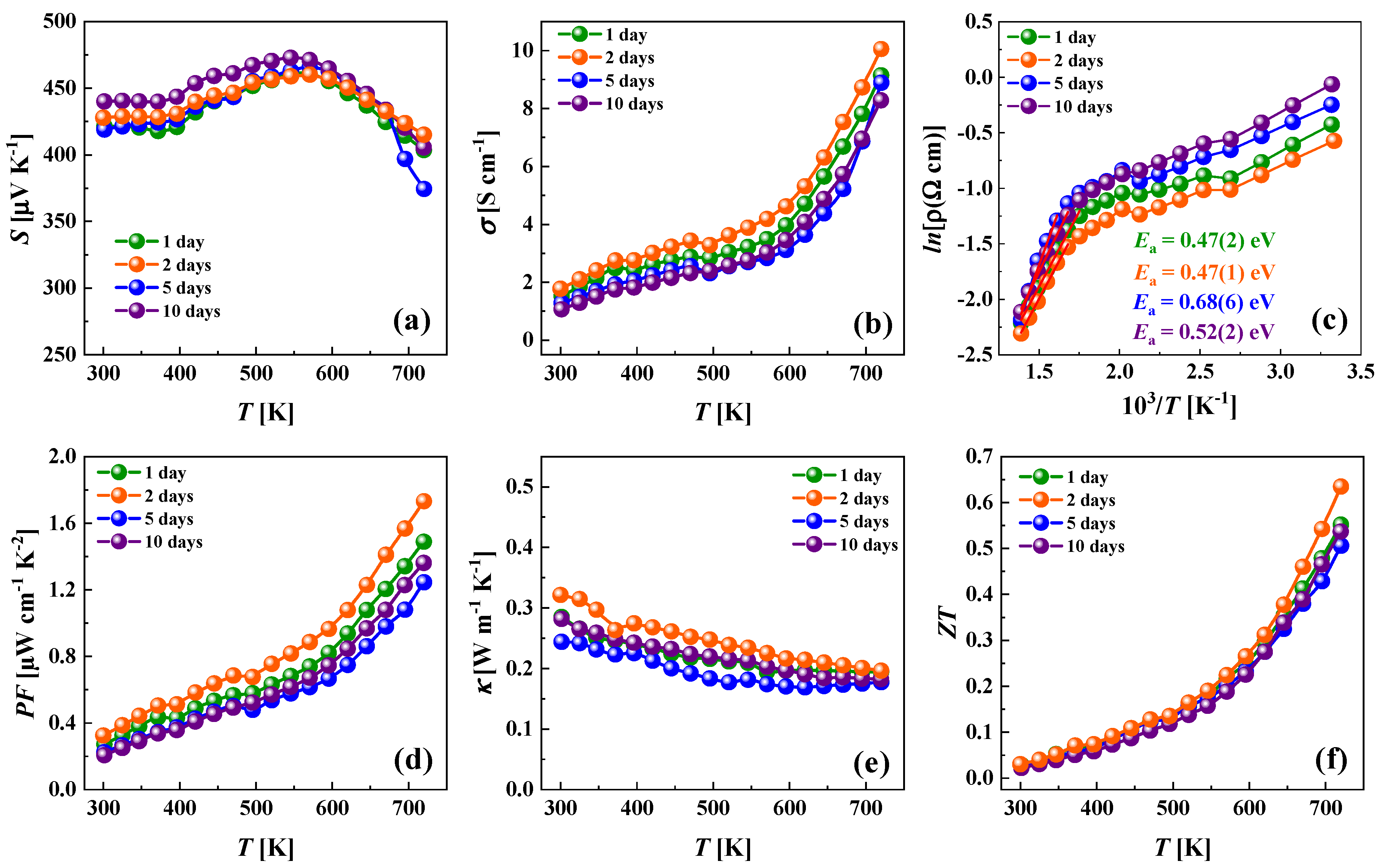

The temperature-dependent results of the thermoelectric property measurements of the annealed samples are presented in Figure 8. All investigated Cu-rich tetrahedrites possess a positive Seebeck coefficient S over the entire temperature range, indicating that holes are the dominant charge carriers (Figure 8a). Values of the Seebeck coefficient are much higher than reported previously for Cu-rich (80–225 μVK⁻¹ [48]) or Cu-poor (60–140 μVK⁻¹ [25]) tetrahedrites. The record-high values of the Seebeck coefficient could be attributed to low carrier concentration and relatively high charge carrier effective mass, as discussed above. The Seebeck coefficient was nearly temperature independent in the range of 300–400 K for all samples, and then a characteristic increase of S from 400 K up to 575 K was observed. Similar trends of S for the Cu-rich tetrahedrite were already reported by Vaqueiro et al. [37,48]. This phenomenon was attributed to the superionic phase transition in Cu-rich tetrahedrites, which cause copper ion migration [48,61]. In the temperature range of 575–725 K, the Seebeck coefficient showed a decreasing tendency, which is typical for intrinsic semiconductors.

The electrical conductivity as a function of temperature is shown in Figure 8b. Overall, the dependence of σ(T) resembles the typical semiconductor behavior for all prepared materials. In the temperature range of 300–575 K, a weak increasing tendency of electrical conductivity was observed, which could be attributed to the self-doped region of an intrinsic semiconductor. Such behavior is also indicated on the Arrhenius plot of electrical resistivity (Figure 8c) with activation energies E_a of 0.1–0.15 eV in this temperature region. Above 575 K, a strong growing tendency of electrical conductivity with temperature could be ascribed to the intrinsic region of the semiconductor with activation energies E_a of 0.47–0.68 eV (Figure 8c). The obtained values of σ = 1–10 Scm⁻¹ for the investigated temperature range were lower than values usually obtained for Cu-poor (400–1000 Scm⁻¹ [25]) or Cu-rich (20–200 Scm⁻¹ [48]) tetrahedrites for similar temperatures. This could be the result of the low carrier concentration and low carrier mobility, which supports literature statements of Cu-ion liquid-like behavior in Cu-rich tetrahedrites. At 370 K, noticeable discontinuities in a monotonic increase of σ could be attributed to the phase transitions of the Cu₂S secondary phase [68,69]. However, this effect, as well as a small dip at 480 K, also overlaps with endothermal effects of the main Cu-rich tetrahedrite phase, as was noticed by Vaquiero et al. [48].

Power factors (PF) for Cu-rich Cu₁₄Sb₃S₁₃ tetrahedrite materials are depicted as a function of temperature in Figure 8d. Due to the very high Seebeck coefficient, the PF for the best sample achieved 1.7 μWcm⁻¹K⁻², which is a quite promising value among other Cu-based sulfides.

The complex unit cell of Cu-rich tetrahedrite with partial occupancy of Cu sites encourages the migration of Cu ions and leads to the ultralow thermal conductivity over the investigated temperature range. Particularly, the κ shows decreasing tendency from ~0.24–0.32 Wm⁻¹K⁻¹ at 300 K to 0.18–0.22 Wm⁻¹K⁻¹ at 725 K. The lowest thermal conductivity κ = 0.17 at 625 K was detected for the material after 5-day synthesis, which is among the lowest values observed in tetrahedrite materials (Figure 8e).

The calculated values of dimensionless thermoelectric figures of merit ZT as a function of temperature are shown in Figure 8f. Even if values of the power factor are moderated for the investigated Cu-rich tetrahedrites, high values of the ZT parameters were obtained, mainly due to ultralow thermal conductivity. The ZT parameters were rising over the investigated temperature range and did not observe a bipolar effect (in the decrease of ZT) due to a relatively large bandgap in tetrahedrites (1–1.4 eV [35,70]). The highest value of the thermoelectric figure of merit ZT = 0.65 at 725 K was found with the material synthesized at 2 days. Further enhancement of the thermoelectric performance for the investigated Cu-rich tetrahedrites is expected after careful attuning the carrier concentration.

4. Conclusions

In this work, we prepared and characterized a Cu-rich Cu₁₄Sb₄S₁₃ tetrahedrite compound obtained by a new solvothermal method. The influence of Cu excess in Cu_12+xSb₄S₁₃ on the electronic properties was studied using electronic structure calculations by the KKR-CPA method, accounting for the presence of Cu vacancy defects and chemical disorder on three inequivalent Cu sites. The problems of co-existence of two tetrahedrite phases with different stoichiometry and different occupancies of Cu sites, as well as the tendency of tetrahedrite structure to release Cu atoms, were addressed in total energy analyses. The determined impact of increasing Cu content on the character of electronic bands in the vicinity of the Fermi energy was discussed in the context of potential thermoelectric properties.

Cu-rich tetrahedrite phases were prepared using a modified solvothermal method and piperazine, serving both as solvent and reagent. Obtained Cu₁₄Sb₄S₁₃ tetrahedrite materials were characterized by very high Seebeck coefficient values (above 400 μVK⁻¹), which can be explained by the measured low carrier concentration (~10¹⁸ cm⁻³) and derived by a DFT E_F position close to the bandgap edge in Cu-rich tetrahedrite. The temperature-dependent transport properties can be well explained considering the liquid-like nature of the Cu ions in Cu-rich tetrahedrites. Particularly, the low carrier mobility and ultra-low thermal conductivity (κ = 0.17–0.32 Wm⁻¹K⁻¹ at the temperature range of 300–625 K) are good arguments supporting the above statement. Even moderated power factors combined with ultralow thermal conductivity yield an excellent dimensionless thermoelectric figure of merit ZT ≈ 0.65 at 723 K for Cu-rich tetrahedrite samples. Further enhancement of power factors through carrier concentration tuning and maintaining ultralow thermal conductivity will lead to an even higher thermoelectric performance of Cu-rich tetrahedrites.
