Next Article in Journal
Review on Graphene-, Graphene Oxide-, Reduced Graphene Oxide-Based Flexible Composites: From Fabrication to Applications
Next Article in Special Issue
Laser Direct Joining of Steel to Polymethylmethacrylate: The Influence of Process Parameters and Surface Mechanical Pre-Treatment on the Joint Strength and Quality
Previous Article in Journal
Correction: Sałasińska et al. Burning Behaviour of Rigid Polyurethane Foams with Histidine and Modified Graphene Oxide. Materials 2021, 14, 1184

Nanometers-Thick Ferromagnetic Surface Produced by Laser Cutting of Diamond

Division of Superconductivity and Magnetism, Felix-Bloch-Institute for Solid State Physics, University of Leipzig, 04103 Leipzig, Germany
Technological Institute for Superhard and Novel Carbon Materials, 7a Centralnaya Street, 108840 Moscow, Russia
Division of Applied Quantum Systems, Felix-Bloch-Institute for Solid State Physics, University of Leipzig, 04103 Leipzig, Germany
Institute of Medical Physics and Biophysics, University of Leipzig, 04107 Leipzig, Germany
Author to whom correspondence should be addressed.
Current address: Moscow Institute of Physics and Technology, 9 Institutskiy Per., 141701 Moscow, Russia.
Current address: Condensed Matter Physics and Microelectronics Division, Faculty of Physics, Sofia University St. Kl. Ohridski, James Bouchier Blvd 5, 1164 Sofia, Bulgaria.
Academic Editor: Zaneta Swiatkowska-Warkocka
Materials 2022, 15(3), 1014;
Received: 6 December 2021 / Revised: 15 January 2022 / Accepted: 25 January 2022 / Published: 28 January 2022
(This article belongs to the Special Issue Laser Machining Technology in Materials Science)

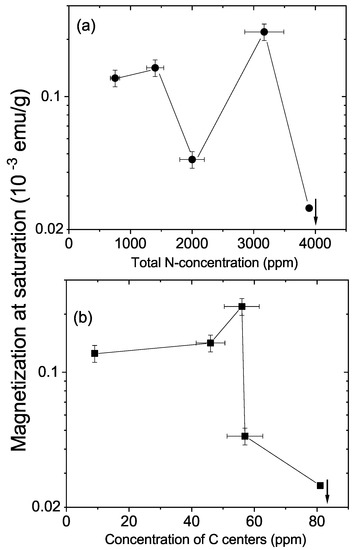

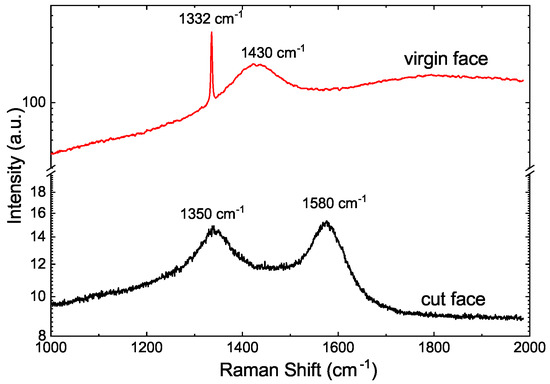

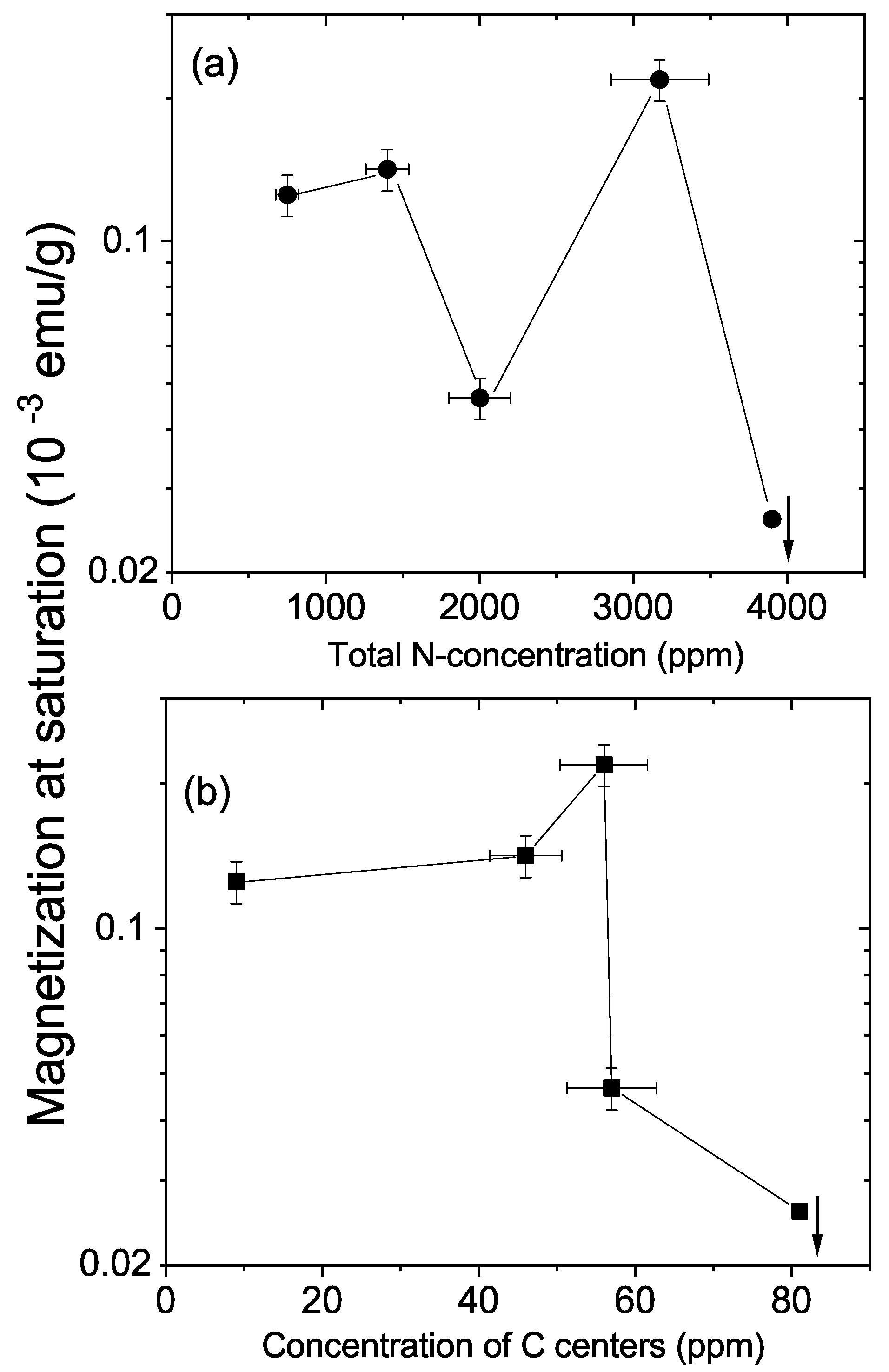

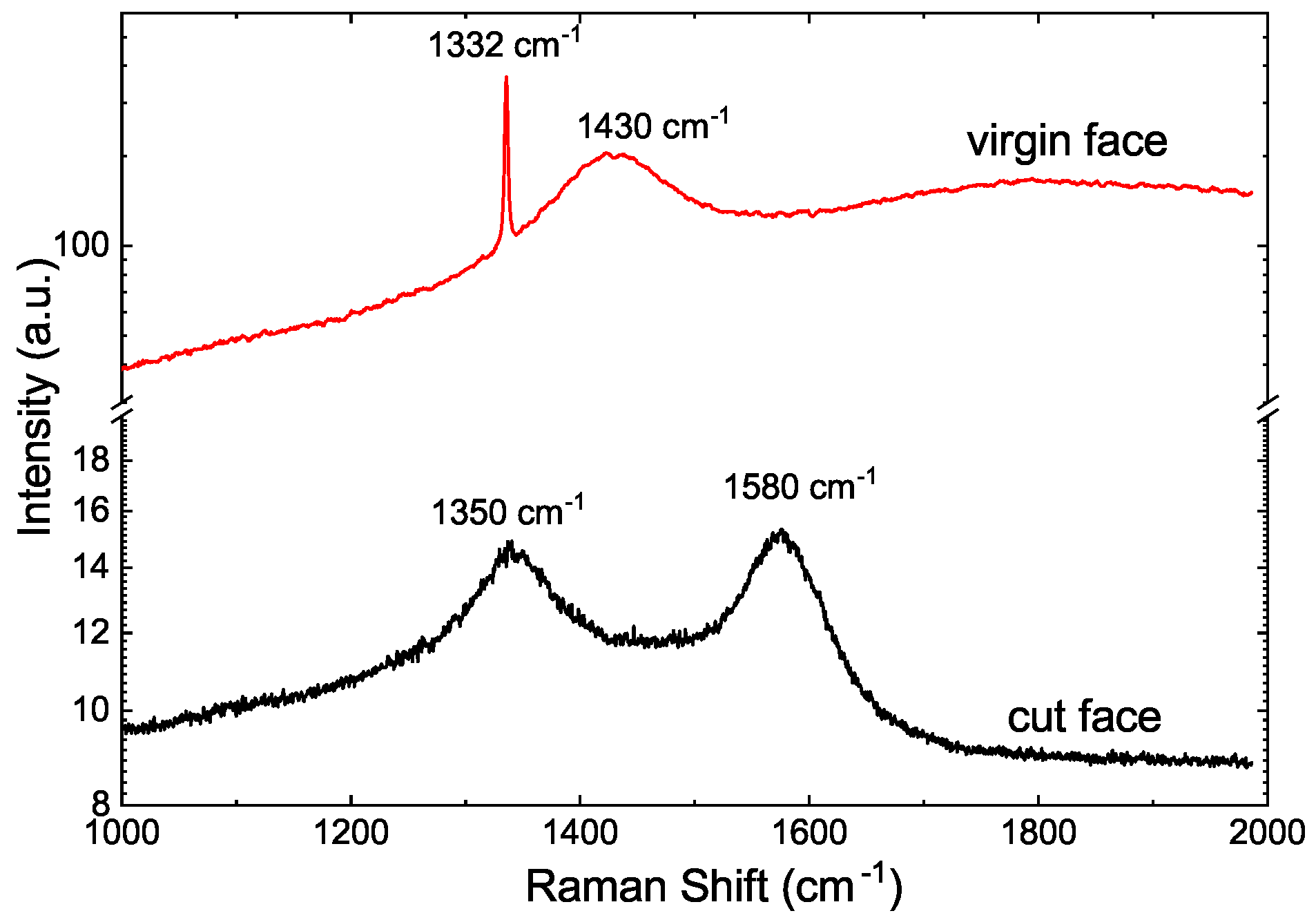

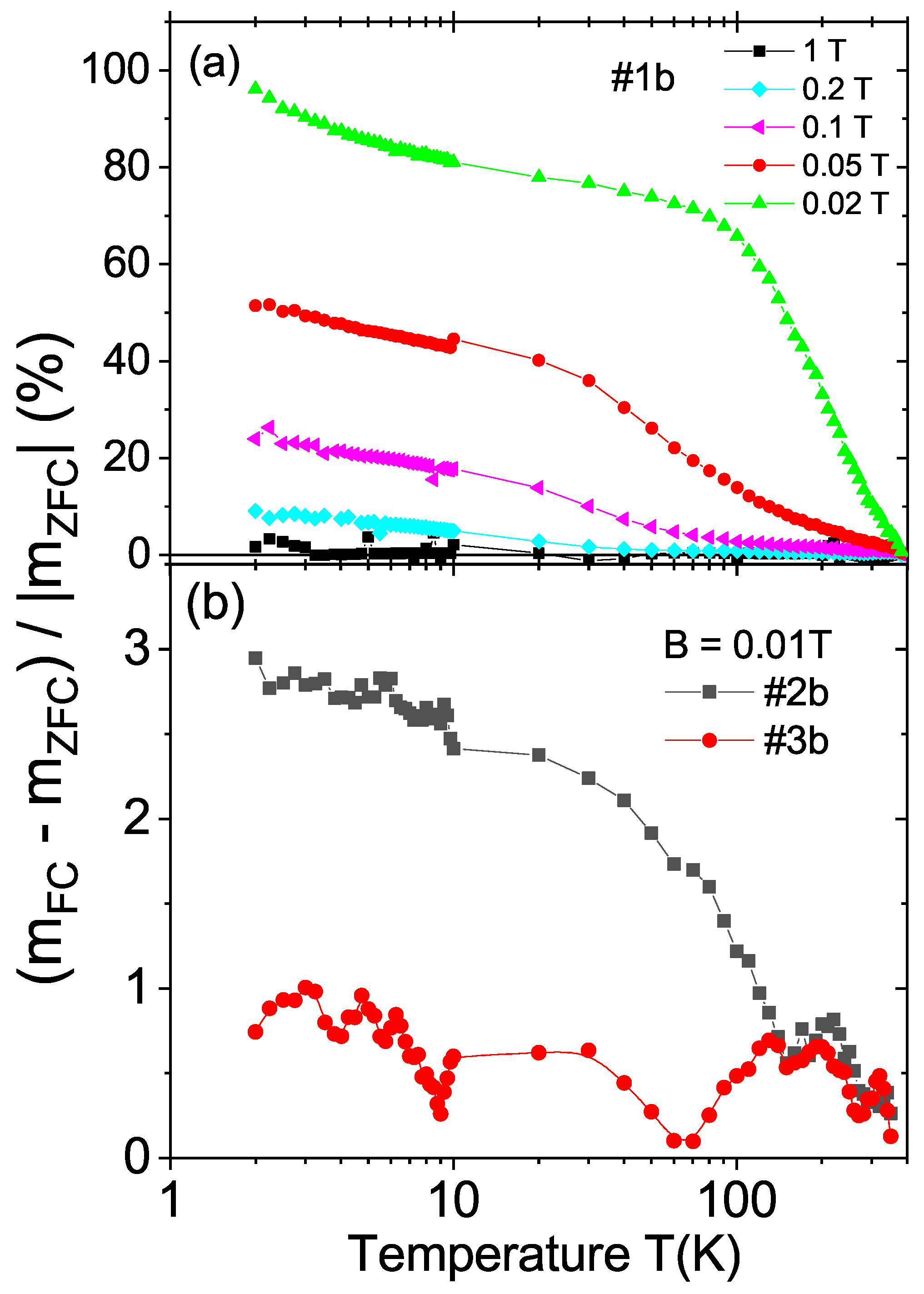

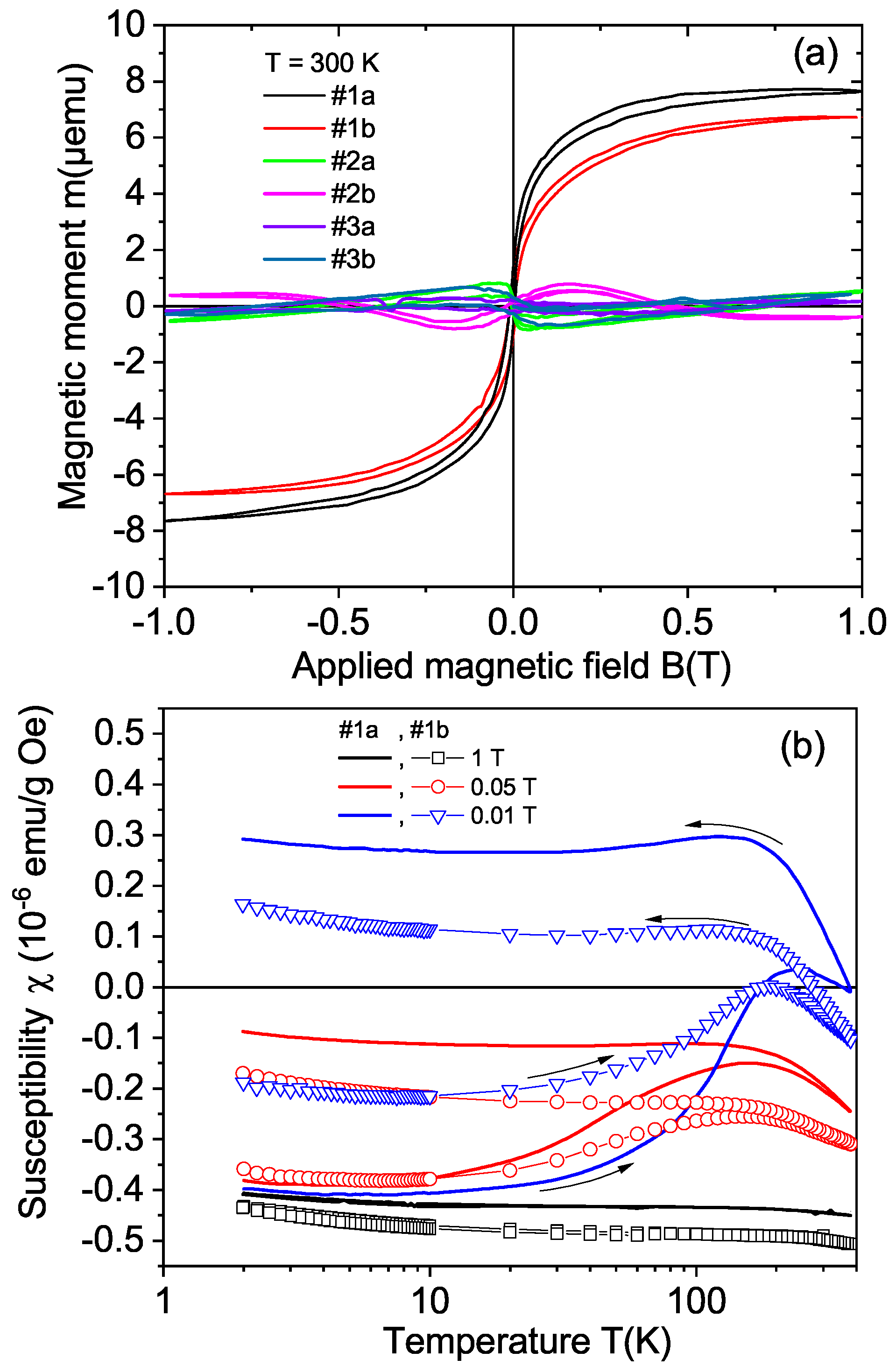

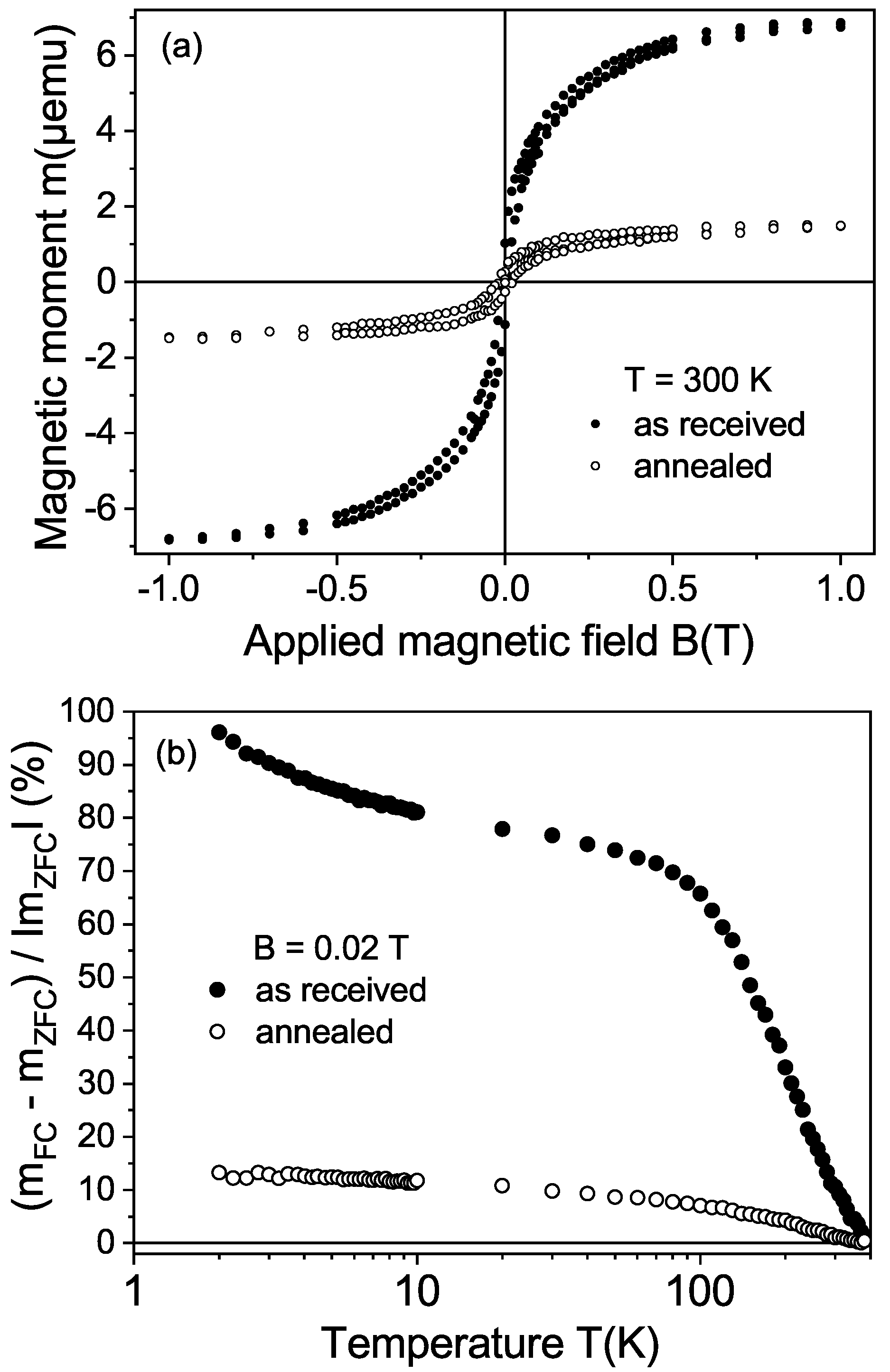

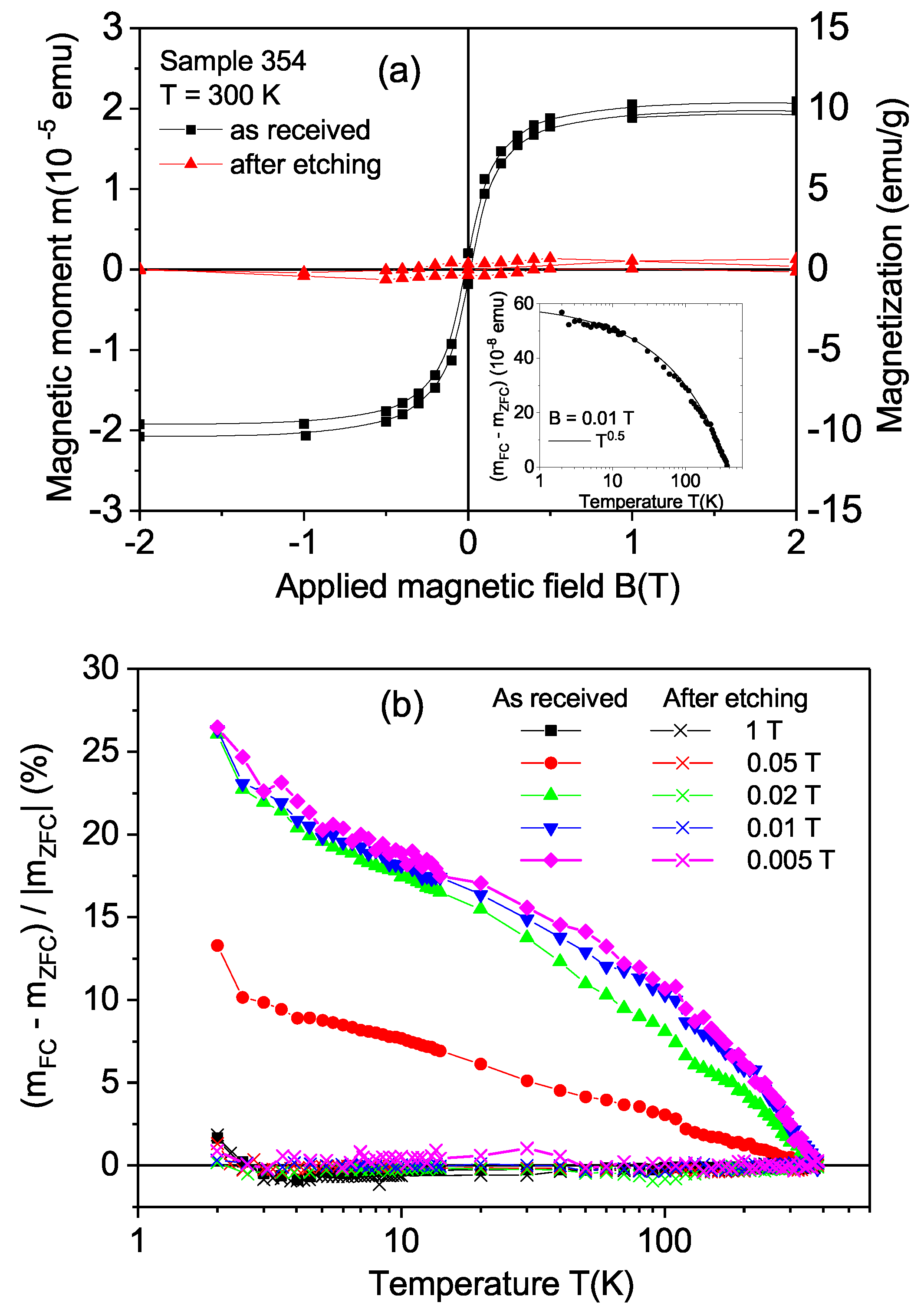

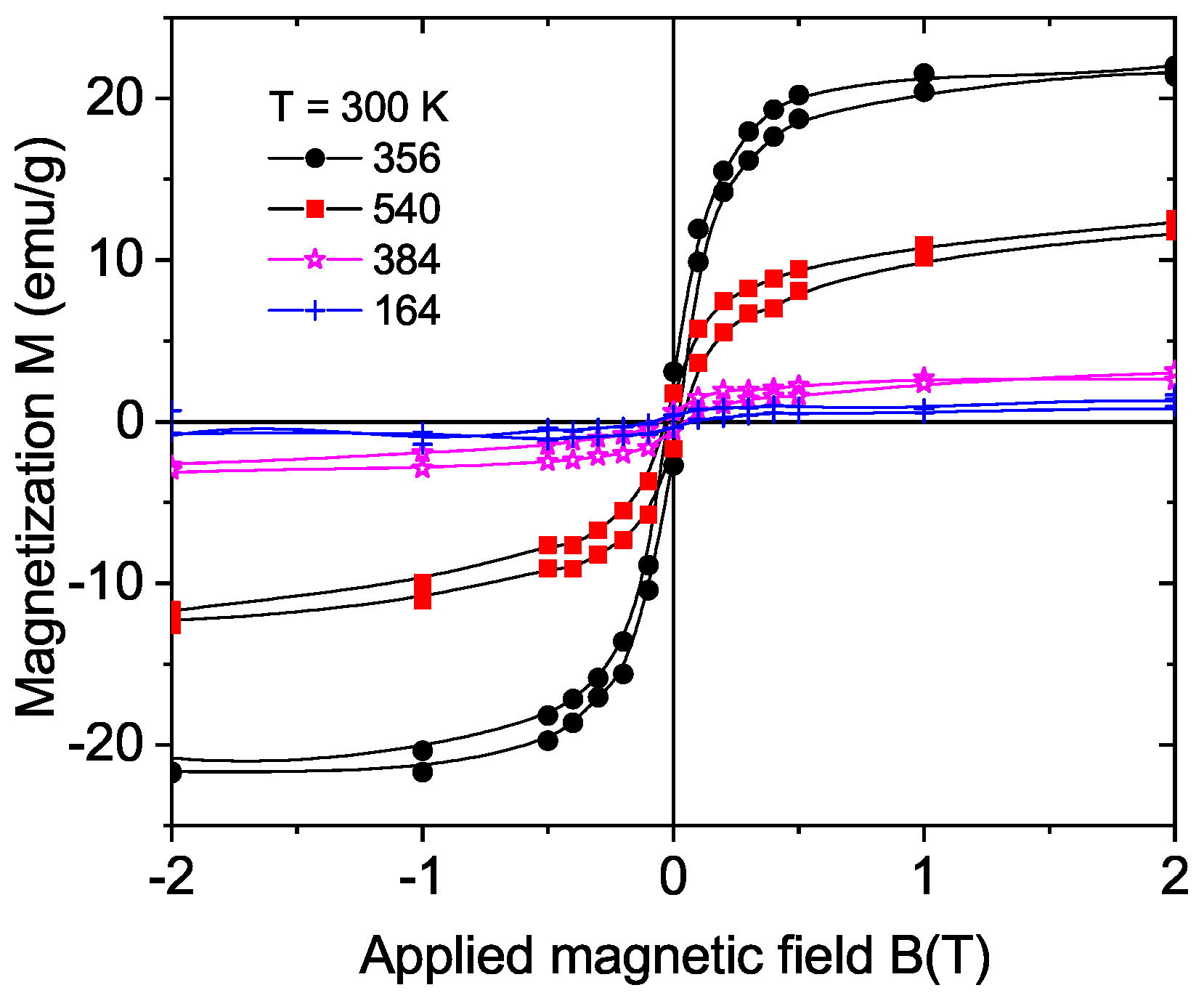

In this work, we demonstrate that cutting diamond crystals with a laser (532 nm wavelength, 0.5 mJ energy, 200 ns pulse duration at 15 kHz) produced a ≲20 nm thick surface layer with magnetic order at room temperature. We measured the magnetic moment of five natural and six CVD diamond crystals of different sizes, nitrogen contents and surface orientations with a SQUID magnetometer. A robust ferromagnetic response at 300 K was observed only for crystals that were cut with the laser along the (100) surface orientation. The magnetic signals were much weaker for the (110) and negligible for the (111) orientations. We attribute the magnetic order to the disordered graphite layer produced by the laser at the diamond surface. The ferromagnetic signal vanished after chemical etching or after moderate temperature annealing. The obtained results indicate that laser treatment of diamond may pave the way to create ferromagnetic spots at its surface. View Full-Text
Keywords: diamond; magnetic order; laser treatment diamond; magnetic order; laser treatment
Show Figures

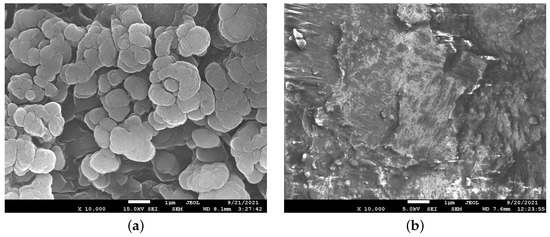

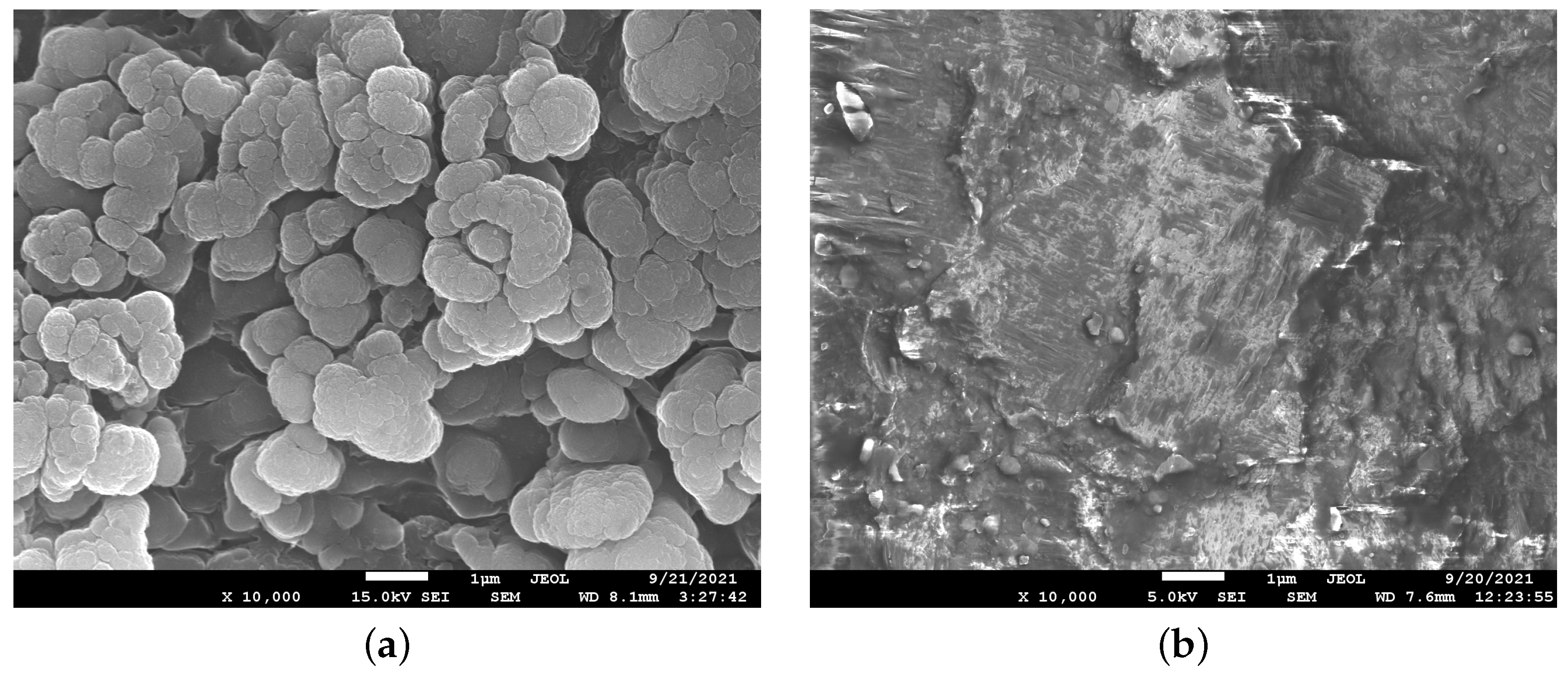

Figure 1

MDPI and ACS Style

Setzer, A.; Esquinazi, P.D.; Buga, S.; Georgieva, M.T.; Reinert, T.; Venus, T.; Estrela-Lopis, I.; Ivashenko, A.; Bondarenko, M.; Böhlmann, W.; Meijer, J. Nanometers-Thick Ferromagnetic Surface Produced by Laser Cutting of Diamond. Materials 2022, 15, 1014.

AMA Style

Setzer A, Esquinazi PD, Buga S, Georgieva MT, Reinert T, Venus T, Estrela-Lopis I, Ivashenko A, Bondarenko M, Böhlmann W, Meijer J. Nanometers-Thick Ferromagnetic Surface Produced by Laser Cutting of Diamond. Materials. 2022; 15(3):1014.

Chicago/Turabian Style

Setzer, Annette, Pablo D. Esquinazi, Sergei Buga, Milena T. Georgieva, Tilo Reinert, Tom Venus, Irina Estrela-Lopis, Andrei Ivashenko, Maria Bondarenko, Winfried Böhlmann, and Jan Meijer. 2022. "Nanometers-Thick Ferromagnetic Surface Produced by Laser Cutting of Diamond" Materials 15, no. 3: 1014.

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
