Article

Simulation and Optimization of FAPbI3 Perovskite Solar Cells with a BaTiO3 Layer for Efficiency Enhancement

1
Department of Physics, University of Osijek, Trg Ljudevita Gaja 6, 31000 Osijek, Croatia
2
Ruđer Bošković Institute, Bijenička Cesta 54, 10000 Zagreb, Croatia
3
Institute for Chemistry and Technology of Materials, NAWI Graz, Graz University of Technology, Stremayrgasse 9, 8010 Graz, Austria
*
Author to whom correspondence should be addressed.
Materials 2022, 15(20), 7310; https://doi.org/10.3390/ma15207310
Received: 12 September 2022 / Revised: 9 October 2022 / Accepted: 17 October 2022 / Published: 19 October 2022
(This article belongs to the Special Issue New Developments in Perovskite Solar Cells)

Abstract

:
Since the addition of BaTiO3 in perovskite solar cells (PSCs) provides a more energetically favorable transport route for electrons, resulting in more efficient charge separation and electron extraction, in this work we experimentally prepared such a PSC and used a modeling approach to point out which simulation parameters have an influence on PSC characteristics and how they can be improved. We added a layer of BaTiO3 onto the TiO2 electron transport layer and prepared a PSC, which had an FTO/TiO2/BaTiO3/FAPbI3/spiro-OMeTAD/Au architecture with a power conversion efficiency (PCE) of 11%. Further, we used the simulation program SCAPS-1D to investigate and optimize the device parameters (thickness of the BaTiO3 and absorber layers, doping, and defect concentration) resulting in devices with PCEs reaching up to 15%, and even up to 20% if we assume an ideal structure with no interlayer defects. Our experimental findings and simulations in this paper highlight the promising interplay of multilayer TiO2/BaTiO3 ETLs for potential future applications in PSCs.

1. Introduction

Within the past decade, organometal halide perovskites have become the forerunning thin film material for the development of next-generation solar cells. Synthesized by chemical solution processing, the cubic perovskite structure shows remarkable properties as an active layer in solar cell devices. Formamidinium-based lead perovskites have been widely used for several years, characterized by an optimal optical band gap of 1.47 eV [1], a high charge carrier mobility for polycrystalline films measuring 2.5 cm2 V−1 s−1, as well as carrier diffusion lengths with values of 1 µm [2]. However, obtaining solar cells with high efficiency still depends highly on the experience and craft of the research team. It is therefore difficult for new groups to comprehend all the potential factors that can influence the quality of perovskite films and solar cells. In that sense, numerical simulation can be a very useful tool for studying solar cell performance. One of these tools is the SCAPS 1D software (version 3.3.09), which has been shown to be useful for investigating various solar cell parameters such as device thickness, resistance, and temperature [3], the theoretical impact of novel hole transport layers [4], and multiple terminal tandem perovskite devices [5], or even estimating the potential solar cell devices comprising chalcogenide-based perovskite active layers [6].
Regarding the use of BaTiO3 in perovskite solar cells, its most prevalent application is as an intermediate layer between the electron transport layer (ETL), e.g., TiO2, and the perovskite active layer. As reported in the current literature, by adding the BaTiO3 interlayer, depending on the layer parameters, e.g., thickness, there is an increase in efficiencies in regards to the un-modified perovskite cells. This is probably due to several phenomena. The first group, to our knowledge, to investigate this complex ETL was Okamoto et al. in 2016 [7]. They showed that the crystal size of the perovskite increases when prepared on BaTiO3-modified TiO2, which leads to an increase in light absorption and a decrease in the number of grain boundaries that serve as trap sites for photogenerated charges. Several papers were later published [8,9,10] indicating that the addition of BaTiO3 onto TiO2 reduces charge recombination and increases charge separation due to more favorable energy alignments of conduction and valence bands of the different layers.
In a recent research study [11], we synthesized perovskite solar cells (PSCs) with bare TiO2, which acts as an electron transport layer with a power conversion efficiency (PCE) of 7%, and showed that it can theoretically reach up to 15%. In that study [11], we discussed in detail the experimental approach for the advancement of the parameters that could lead to an improvement in the PCE. Since we found that the interface between layers considerably influences the PSC, we continue our study in the direction of interface engineering.
In this paper, in order to increase the PCE of a FAPbI3-based solar cell, we added a layer of BaTiO3 between the perovskite absorber and the TiO2 electron transport layer. This layer should affect the local electric field, enhance the extraction of electrons from the perovskite layer, and thus increase the current and performance of the PSC. Theoretical simulations were performed using SCAPS-1D software, which is primarily made for the simulation of thin film solar cells but is also widely used for modeling PSCs [12,13,14]. Using SCAPS-1D, we modeled a PSC with an additional BaTiO3 layer and in the first calculations, we found a PCE of 10%, which is 3% more efficient compared to the PSC we modeled without the BaTiO3 layer in our previous work [11]. According to this result, we synthesized a new PSC with a BaTiO3 layer between the perovskite and TiO2 layer and we produced a device with an experimental PCE of 11%, which is even 1% higher than the previous simulation result. Therefore, SCAPS was first used to fit the experimental curve, and we obtained a simulated PCE of 10.7%. Then, further optimization of the PSC parameters that can affect its performance (thickness of the BaTiO3 and absorber layers, doping, and defect concentration) was performed, and the result indicated that the PCE could reach a value of 14.71%. If we further assumed an ideal structure of the PSC with a low impact of interlayer resistivity, our device could theoretically reach over 20% PCE.

2. Materials and Methods

2.1. Preparation and Characterization of Perovskite Solar Cells

The prepared solar cells were comprised of a multilayer n-i-p architecture. On top of the glass/FTO substrate, a planar TiO2 thin film was deposited using DC magnetron sputtering with an added spin-coated mesoporous BaTiO3 layer, which together served as an electron transport layer (ETL). On top of the ETL, a formamidinium lead iodide perovskite active layer was deposited using spin-coating. The hole transport layer (HTL), spiro-OMeTAD (≥99%, Merk, Darmstadt, Germany), was also spin-coated on top of the active layer. Finally, gold contacts were deposited using thermal evaporation. The perovskite solution preparation, active layer, HTL layer, and gold contact deposition were all conducted inside a nitrogen-filled glove-box (MBraun Labmaster system, Garching, Germany).
Prior to cleaning and magnetron deposition, the 15 × 15 mm FTO substrates (7 Ω/sq, Sigma Aldrich, St. Louis, MO, USA) were patterned using a small amount of Zn powder (p.a., T.T.T. Ltd., Sveta Nedelja, Croatia) and 2.5 M HCl (37%, p.a., Val-de-Reuil Carlo Erba Reagens, France). The middle FTO strip (9 × 15 mm) was covered and preserved prior to patterning using scotch tape, and cut to match the desired dimensions. The Zn powder was applied onto the substrate and HCl was added dropwise until the powder was saturated and started to react violently. This reaction was conducted in a fume hood and lasted for about 1–2 min until the reaction stopped. The patterning resulted in a substrate with two glass strips and an FTO strip in between, serving as the transparent contact of the cell. After patterning, the scotch tape was removed and the substrates were rinsed with water. The substrates were then cleaned in an ultrasonic bath submerged in acetone (99.9% Gram-mol Ltd., Zagreb, Croatia), then isopropanol (99.9% Gram-mol Ltd., Zagreb, Croatia) for 10 min each. After sonication, the substrates were rinsed in water and ethanol (97% Gram-mol Ltd., Zagreb, Croatia), dried in a nitrogen stream, and finally cleaned in an L2002A2 UV Ozone Cleaner (Ossila, Sheffield, UK) for 10 min to remove any residual organic compounds.
The compact TiO2 (c-TiO2) thin films were deposited using reactive DC magnetron sputtering. The sputtering process was conducted using a 2’’ diameter Ti target (99.995% Kurt J. Lesker, Saint Leonards-on-sea, UK) without additional heating at a set DC power of 100 W. Prior to the deposition, the magnetron chamber was evacuated to a high vacuum base pressure of 1∙10−6 mbar. The working gas that was introduced for the sputtering procedure was a mixture of argon and oxygen (p(O2)/p(Ar) = 0.2), which increased the pressure to 5 mTorr. The deposition lasted for 45 min, and afterward the samples were annealed at 450 °C for 2 h to induce crystallinity (anatase TiO2).
The mesoporous BaTiO3 (m-BaTiO3) thin films were prepared on top of the magnetron sputtered TiO2 thin films by spin-coating (H6-23 Spin Coater, Laurell Technologies Corporation, North Wales, PA, USA) a diluted BaTiO3 suspension at 4000 rpm for 30 s followed by thermal annealing at 450 °C for 2 h. The BaTiO3 stock suspension was prepared by mixing 170 mg of cubic BaTiO3 nanopowder (≥99%, Sigma Aldrich, St. Louis, MO, USA, particulates <100 nm) with 85 mg of dioctyl sulfosuccinate sodium salt (96%, Alfa Aesar, Kandel, Germany) and 850 mg of α-terpineol (90%, Sigma Aldrich, St. Louis, MO, USA). This stock solution had a consistency of a paste and was mixed for 24 h and intermittently sonicated to ensure good homogeneity. To prepare the suspension for spin-coating, 150 mg of the stock suspension was diluted in 1 mL of ethanol (99.9%, Gram-mol Ltd., Zagreb, Croatia) and was also mixed for 2 h and intermittently sonicated.
To prepare the perovskite thin films, 461 mg of PbI2 (99%, Sigma Aldrich, St. Louis, MO, USA) and 172 mg of formamidinium iodide (FAI, ≥99%, Sigma Aldrich, St. Louis, MO, USA) were dissolved in 1 mL of dimethylformamide/dimethyl sulfoxide (both ≥99%, Merck, Darmstadt, Germany) mixture (V(DMF):V(DMSO) = 4:1) in order to prepare a 1 mmol/mL solution of the precursor. Perovskite films were prepared inside a nitrogen-filled glovebox by spin coating 50 µL of the perovskite precursor on top of the m-BaTiO3 films. The spin-coating of the perovskite layer was performed using the two-step procedure: for the first step, the solution was spin-coated for 10 s at a speed of 1000 rpm and an acceleration of 200 rpm/s, after which the speed was increased to 6000 rpm (acceleration: 2000 rpm/s) for the next 20 s. During the last 10 s of perovskite spin-coating, 75 µL of chlorobenzene (≥99% Merck, Darmstadt, Germany) was dripped onto the rotating substrate. The as prepared substrates were annealed on a hotplate at 150 °C for 45 min.
The spiro-OMeTAD solution was prepared by dissolving 50 mg of spiro-OMeTAD in 498 μL of chlorobenzene and adding 18 μL of 4-tert-butylpyridine (tBP, 99% Sigma Aldrich, St. Louis, MO, USA), 10 μL of lithium bis(trifluoromethanesulfonyl)imide (LiTFSI, 99% Sigma Aldrich, St. Louis, MO, USA) stock solution, and 4 μL of tris(2-(1H-pyrazol-1-yl)-4-tert-butylpyridine)cobalt(III) tri[bis(trifluoromethane)sulfonimide] (FK209, 99% Sigma Aldrich, St. Louis, MO, USA) stock solution. The stock solution molar concentrations of LiTFSI and FK209 were 1.8 mmol/mL and 0.25 mmol/mL in acetonitrile (p.a. Merck, Darmstadt, Germany), respectively. Before spin-coating the spiro-OMeTAD layer, the spin-coater was dried with a continuous flow of nitrogen in order to remove residual DMF and DMSO vapors left from the preparation of perovskite thin layers. Afterward, 50 µL of the spiro-OMeTAD solution was spin-coated on the perovskite film (4000 rpm, 1000 rpm/s) for 10 s. The substrates were left resting overnight in dark and dry air. For the final step, 100 nm of gold contacts were deposited on the substrates by thermal evaporation.
The J-V measurements were conducted in a nitrogen-filled glove box using a Keithley 2400 (Tektronix Ltd., Oldbury, UK) source meter and a DLH400D lamp (Dedo Weigert Film GmbH, Munich, Germany) calibrated to 100 mW/cm2 using a reference silicon cell. The area of one cell was 0.09 cm2 and the potential sweep was performed at a scan speed of 20 mV/s in the range between −50 and 1100 mV. For this paper, a total of 12 solar cells were prepared (six cells at a time) and characterized. The successful cells had similar characteristics so one of them was used as the starting point for the modeling and optimization of the photovoltaic system.
The layer structure of the prepared PSCs is illustrated in Figure 1a, while the energy band diagram of the structure is shown in Figure 1b. This diagram shows a good matching of ETL and HTL with the absorption layer (FAPbI3), which allows efficient extraction of electrons and holes, respectively.

2.2. Numerical Simulation

The simulation was performed by using the solar cell capacitance simulator SCAPS-1D, which is based on solving one-dimensional continuity and Poisson equations [16]. It can simulate solar cell structures and calculate their basic characteristics, such as band diagrams, external quantum efficiency, generation and recombination profiles, cell current densities, J–V characteristics including open-circuit voltages (Voc), short-circuit currents (Jsc), fill factor (FF), and power conversion efficiency (PCE). For SCAPS simulations, the input parameters are taken from the literature [2,11,17,18,19,20,21,22,23,24,25,26,27] and our experimental results, which are listed in Table 1. The interface defects at ETL/absorber and absorber/HTL interfaces are considered neutral and single. The work function of FTO and back gold contact are set to 4.4 and 5.1 eV, respectively. All the simulations are performed at a working temperature of 300 K using a series resistance of 1 Ω and under standard AM1.5G illumination.

3. Results and Discussion

Using the data from Table 1, we have simulated the current density–voltage (JV) characteristic of the prepared PSC. The results are shown in Figure 2, which compares the experimental and simulated JV characteristics. In addition, the comparison between the main solar cell parameters is shown in Table 2. A good match between experimental and simulation results is observed, which is a validation of our simulation model.

3.1. The Impact of the BaTiO3 Layer Thickness on the Performance of the PSC

There are several phenomena reported that improve the efficiencies of a PSC when a BaTiO3 interlayer is added. When the perovskite layer is prepared on BaTiO3-modified TiO2, its crystal size increases leading to higher light absorption and photogeneration of charged pairs [7]. At the same time, the number of grain boundaries, which serve as trap sites for photogenerated charges, decreases which lowers the recombination rate. Both of these effects enhance the efficiency of PSC. Furthermore, adding BaTiO3 onto TiO2 causes more favorable energy alignments of conduction and valence bands (Figure 1b) which increases charge separation and reduces charge recombination leading again to enhanced efficiency of the PSC. Recently, Zhang et al. [28] used ferroelectric properties of BaTiO3 material and increased the inner electric field of the PSC and the width of the depletion layer. This can lead to enhanced separation of charges and better transport of the carriers, which again raises the efficiency of PSC. On the other hand, it is difficult to synthesize a transparent, defect-free, and homogeneous thin film of BaTiO3 at low temperatures (since high temperatures can result in the TiO2 layer forming an undesirable rutile phase). This may induce a crystallization defect of the absorber layer which inhibits the expected efficient charge separation and transport. The interplay of these factors defines the net efficiency of the PSC.
Since we added the BaTiO3 layer into our previous PSC structure [11] to improve its performance, the influence of the BaTiO3 layer thickness on the performance of the PSC was studied in order to find its optimal thickness. We simulated the performance in a range of thickness of the BaTiO3 layer from 10 to 500 nm, and the results are presented in Figure 3.
The open circuit voltage Voc and short circuit current Jsc stay almost constant with an increase in the thickness of the BaTiO3 layer. The addition of the BaTiO3 layer onto TiO2 causes more favorable energy alignments of conduction and valence bands. Once this alignment is fully developed, increasing the thickness of the BaTiO3 layer will not change it, and therefore Voc will stay constant. The charge separation will not be changed and Jsc will also stay constant. Thus, the only parameter that can influence the PCE is the FF. For this reason, the fill factor FF and the efficiency of the solar cell show the same saturation behavior, with the PCE rising from 9.4 to 11%. Since our experimentally prepared PSC device had a BaTiO3 layer with a thickness of 300 nm, and the PCE calculated from the fitting curve was 10.7% (pretty near the experimental value of 11%), we decided to take this thickness as an optimal value for further simulations. The experimental PSC with a thicker BaTiO3 layer would improve the device performance by only 0.3%, but would almost double the amount of BaTiO3 used in the production of the PSC.

3.2. Effect of Changing the Absorber Doping Concentration

Doping of the absorber layer is another important parameter that can affect the performance of the PSC, and we simulated the performance of PSC in the doping range of NA from 1014 cm−3 to 1019 cm−3. The rest of the parameters were kept constant and corresponded to the values indicated in Table 1. The simulation results of changing the PSC parameters with NA are shown in Figure 4.
Increasing the doping concentration can increase the electric field at the perovskite interface and consequently enhance the process of charge separation. This can lead to an increase in Voc, as can be seen in Figure 4. On the other hand, increasing the NA concentration can cause an increase in the recombination rate that can negatively affect cell performance. This can be found in the behavior of the other PSC parameters (Figure 4), whose values decrease with increasing NA.
Experimentally, when a perovskite thin film was synthesized by using a single cation (as is the case in this work where formamidinium as a single cation was used), the vacancies behave as dopants. The synthesis parameters can influence the nature of the thin film, so the crystallization of the active perovskite layer creates lattice strains, which can lead to vacancies or structural defects as is the case for polycrystalline thin films. The number of present vacancies and the defect concentration depends on the ratio of lead (II) iodide and formamidinium iodide in the precursor’s solution, as well as the choice of solvents [29] or the length of thermal annealing [30]. In this way, doping concentrations can be changed by changing the vacancy concentration without the necessity to add other cations.
The influence of raising the doping concentration on the recombination inside the perovskite absorber material is presented in Figure 5a. The recombination rate is calculated by solving the Poisson and continuity equations in SCAPS-1D software where the doping concentration enters into the Poisson equation, as is described by Equations (1)–(5) in our previous work [11] and explained in Burgelman et al. [16]. Raising the doping concentration of NA increases the recombination rate that strongly affects the J-V curves, reducing the performance of the device (Figure 5b).
Taking into account the PCE graph in Figure 4, the best performance of PSC is obtained if the concentration of NA = 1016 cm−3 is used as the optimum one for further simulation. Since the starting concentration of NA = 1.9·1015 cm−3, the result of the optimization tells us that we need to increase the absorber doping concentration in order to get the higher PCE of the cell.

3.3. Effect of Changing Absorber Layer Thickness

The thickness of the absorber layer is another parameter that can affect the behavior of the PSC. In order to study its influence on the cell performance, the thickness is changed in the interval from 100 nm to 1000 nm, and the results are shown in Figure 6.
Thinner absorber layers result in lower light absorption leading to lower values of photocurrent, and consequently lower values of PCE. As the thickness is increased, the amount of absorbed light is also increased, leading to higher values of current and PCE. However, it also increases the recombination rates in the bulk (depending on the diffusion length), saturating the Jsc and PCE values for absorber layer thicknesses higher than 600 nm. Thus, this value is chosen as an optimum for the thickness of the absorber layer. The Voc also shows saturation for the higher values of the absorber thickness, while the FF is decreasing to 53%.

3.4. Effect of Changing the Defect Concentration Nt

In order to improve the PSC performance, the change in defect density was considered. Polycrystalline films tend to have a larger number of defects in comparison to monocrystalline films, and synthesis techniques such as crystal-oriented growth [31] can influence the concentration of present defects. The morphology and film quality of the perovskite layer have an important influence on the performance of the perovskite solar cell [32]. Poor quality and film coverage on mesoporous TiO2 have been shown to increase the charge recombination inside the active layer [33]. The recombination is explained by the increase in the defect density (Nt), which can impact the Voc of the solar cell.
To study the influence of the defect density of the perovskite active layer on the cell performance, the Shockley–Read–Hall recombination model (SRH) was used. The neutral defects were set at the center of the band gap following the Gaussian distribution with the characteristic energy value of 0.1 eV, centered in the middle of the band gap. In the SRH recombination model, the recombination rate R is given by [34,35]:
R = n p n i 2 τ p ( n + N C e ( E C E t ) / k T ) + τ n ( p + N V e ( E t E V ) / k T ) ,
where n and p are the concentrations of the mobile electrons and holes, respectively. These concentrations can be found by solving the continuity and Poisson equations. At positive voltage values, where qV > 3 kT, the term n i 2 , which explains the thermal generation, can be neglected. Et represents the energy level of the trap defects, while Nt is their concentration. τn and τp are the lifetimes of the electrons and the holes, respectively, and are given by the following equations:
τ n = 1 σ n v t h N t ,         τ p = 1 σ p v t h N t ,
where σn and σp are the capture cross-sections of the electrons and holes, respectively, and vth represents the thermal velocity.
The diffusion length l of the carrier is given by the equation:
l = D τ ,
where D is the diffusion coefficient defined by the equation:
D = μ k T / q ,
where μ is the charge carrier mobility. According to Equation (2), when defect density decreases, the charge carrier lifetimes increase, leading to longer diffusion lengths (Equation (3)) and a lower recombination rate (Equation (1)). These are the main factors influencing the improvement of cell performance.
The defect density Nt was investigated as a parameter in the PSC performance, and the defect density values were changed from 1014 cm3 to 1018 cm3. The change in the recombination rate (R) (Equation (1)) is shown in Figure 7a. It is clear that the reduction in Nt lowers the recombination rate and at the same time increases the diffusion length l.
Therefore, the reduction in defect density in the perovskite material can significantly improve the performance of the PSC, which is consistent with the simulation results shown in Figure 7b. The obtained simulated J–V characteristics reveal an improvement with the reduction in Nt. The behavior of the PSC parameters with the change of the Nt concentration is shown in Figure 8. The increase in Nt reduces all the parameters, especially Jsc and PCE as soon as the Nt crosses a value of 1015 cm−3. The recombination rate increases and reduces the charge concentration, which further decreases the current through the device. The charge separation is reduced too, so the Voc also drops with increasing Nt, and the FF shows similar behavior.
The best performance was obtained with the lowest defect density of 1·1014 cm3, but it is very difficult to obtain such a low Nt in experiments due to the polycrystalline nature of the perovskite films. Because of that, we set the optimized value of defect density at 1·1015 cm3. As can be seen from Figure 8, this value of Nt, gives the following PSC parameters: Voc = 1.00 V, Jsc = 23.32 mAcm−2, FF = 62.87% and PCE = 14.71%. The J–V curve with these optimized parameters is presented in Figure 9. Following the discussion in our previous research [11], if we can make the ideal structure of the PSC with low series resistivities and neglect the interlayer resistivities, we could have the ideal J–V characteristic (Figure 9). Its parameters are Voc = 1.09 V, Jsc = 28.79 mAcm−2, FF = 66.45%, PCE = 20.79%.

4. Conclusions

By adding a BaTiO3 layer in between the TiO2 ETL and the perovskite absorber layer, we improved the PCE of a FAPbI3-based solar cell from 7% to 11%. According to mentioned references, we consider that this improvement comes from influencing the electric field, which facilitated better charge separation and transport, and from a reduction in recombination processes. After using numerical simulation and optimization processes with SCAPS-1D, the theoretical PCE rises almost up to 15%. In an ideal device, the efficiencies can even reach 20%, verifying that the BaTiO3 layer can drastically improve the PSC performance and can be used in future research as a promising material for optoelectronic devices.

Author Contributions

Conceptualization, D.S., V.K. and A.G.; Formal analysis, D.S., V.K. and M.B.; Funding acquisition, A.G.; Investigation, V.K., M.B. and D.S.; Supervision, A.G.; Validation, T.Č. and K.J.; Visualization, D.S.; Writing—original draft, D.S., M.B., V.K., K.J. and A.G.; Writing—review & editing, D.S., M.B., V.K., T.Č., K.J., T.R. and A.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Croatian Science Foundation, grant number HrZZ-IP-2018-01-5246 and the Center of Excellence for Advanced Materials and Sensing Devices, Ruđer Bošković Institute, Zagreb, Croatia, grant number KK.01.1.1.01.0001.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Authors are grateful to M. Burgelmann and his staff at the University of Gent, Belgium, for providing the open-source SCAPS-1D simulator.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Eperon, G.E.; Stranks, S.D.; Menelaou, C.; Johnston, M.B.; Herz, L.M.; Snaith, H.J. Formamidinium lead trihalide: A broadly tunable perovskite for efficient planar heterojunction solar cells. Energy Environ. Sci. 2014, 7, 982–989. [Google Scholar] [CrossRef]
  2. Gelvez-Rueda, M.C.; Renaud, N.; Grozema, F.C. Temperature dependent charge carrier dynamics in formamidinium lead iodide perovskite. J. Phys. Chem. C 2017, 121, 23392–23397. [Google Scholar] [CrossRef] [PubMed]
  3. Belarbi, M.; Zeggai, O.; Louhibi-Fasla, S. Numerical study od methylammonium lead iodide perovskite solar cells using SCAPS-1D simulation program. Mater. Today 2022, 51, 2115–2119. [Google Scholar] [CrossRef]
  4. Doyranly, C.; Choi, F.P.G.; Alishah, H.M.; Koyuncu, S.; Gunes, S.; San, N. Triphenylamine-based organic small-molecule interlayer materials for inverted perovskite solar cells. Org. Electron. 2022, 188, 106595. [Google Scholar] [CrossRef]
  5. Deepthi Jayan, K. Design and comparative performance analysis of high-efficiency lead-based and lead-free perovskite solar cells. Phys. Status Solidi A 2022, 219, 2100606. [Google Scholar] [CrossRef]
  6. Karthick, S.; Velumani, S.; Bouclé, J. Chalcogenide BaZrS3 perovskite solar cells: A numerical simulation and analysis using SCAPS 1D. Opt. Mater. 2022, 126, 112250. [Google Scholar] [CrossRef]
  7. Okamoto, Y.; Suzuki, Y. Mesoporous BaTiO3/TiO2 double layer for electron transport in perovskite solar cells. J. Phys. Chem. C 2016, 120, 13995–14000. [Google Scholar] [CrossRef]
  8. Qin, J.; Zhang, Z.; Shi, W.; Liu, Y.; Gao, H.; Mao, Y. Enhanced performance of perovskite solar cells by using ultrathin BaTiO3 interface modification. ACS Appl. Mater. Interfaces 2018, 10, 36067–36074. [Google Scholar] [CrossRef]
  9. Zhang, J.; Meng, X.; Su, P.; Liu, L.; Feng, S.; Wang, J.; Liu, T.; Yang, J.; Yang, H.; Fu, W. Applying BaTiO3-coated TiO2 core–shell nanoparticles films as scaffold layers to optimize interfaces for better-performing perovskite solar cells. J. Mater. Sci. Mater. Electron. 2019, 30, 7733–7742. [Google Scholar] [CrossRef]
  10. Zhang, X.; Zhang, J.; Su, P.; Feng, S.; Xu, R.; Bian, C.; Fu, W.; Yang, H.; Li, Z. Perovskite-type BaTiO3 nanocrystal modifier in TiO2/CH3NH3PbI3 interface to enhance the performance of planar perovskite solar cells. J. Electron. Mater. 2020, 49, 4601–4609. [Google Scholar] [CrossRef]
  11. Stanić, D.; Kojić, V.; Čižmar, T.; Juraić, K.; Bagladi, L.; Mangalam, J.; Rath, T.; Gajović, A. Simulating the Performance of a Formamidinium Based Mixed Cation Lead Halide Perovskite Solar Cell. Materials 2021, 14, 6341. [Google Scholar] [CrossRef] [PubMed]
  12. Jafarzadeh, F.; Aghili, H.; Nikbakht, H.; Javadpour, S. Design and optimization of highly efficient perovskite/homojunction SnS tandem solar cells using SCAPS-1D. Sol. Energy 2022, 236, 195–205. [Google Scholar] [CrossRef]
  13. Kumar, P.; Shankar, G.; Pradhan, B. Improved performance study of monolithic all perovskite tandem solar cell in nip and pin structure. Mater. Taday Proc. 2022, in press. [Google Scholar] [CrossRef]
  14. Bal, S.S.; Basak, A.; Singh, U.P. Numerical modeling and performance analysis of Sb-based tandem solar cell structure using SCAPS-1D. Opt. Mater. 2022, 127, 112282. [Google Scholar] [CrossRef]
  15. Kim, T.; Lim, J.; Song, S. Recent progress and challenges of electron transport layers in organic–inorganic perovskite solar cells. Energies 2020, 13, 5572. [Google Scholar] [CrossRef]
  16. Burgelman, M.; Nollet, P.; Degrave, S. Modelling polycrystalline semiconductor solar cells. Thin Solid Film. 2000, 361, 527–532. [Google Scholar] [CrossRef]
  17. Karthick, S.; Velumani, S.; Bouclé, J. Experimental and SCAPS simulated formamidinium perovskite solar cells: A comparison of device performance. Sol. Energy 2020, 205, 349–357. [Google Scholar] [CrossRef]
  18. Abdelaziz, S.; Zekry, A.; Shaker, A.; Abouletta, M. Investigating the performance of formamidinium tin-based perovskite solar cell by SCAPS device simulation. Opt. Mater. 2020, 101, 109738. [Google Scholar] [CrossRef]
  19. Du, H.-J.; Wang, W.-C.; Zhu, J.-Z. Device simulation of lead-free CH3NH3SnI3 perovskite solar cells with high efficiency. Chin. Phys. B 2016, 25, 108802. [Google Scholar] [CrossRef]
  20. Stamate, M.D. On the dielectric properties of dc magnetron TiO2 thin films. Appl. Surf. Sci. 2003, 218, 318–323. [Google Scholar] [CrossRef]
  21. Saha, R.; Chakraborty, K.; Choudhury, M.G.; Paul, S. Simulation study of Formamidinium Lead Halide (FAPbX3; X = I and Br) Based Perovskite Solar Cells Using SCAPS-1D Device Simulator. J. Nano Electron. Phys. 2021, 13, 03019. [Google Scholar] [CrossRef]
  22. Suzuki, K.; Kijima, K. Optical Band Gap of Barium Titanate Nanoparticles Prepared by RF-plasma Chemical Vapor Deposition. Jpn. J. Appl. Phys. 2005, 44, 2081–2082. [Google Scholar] [CrossRef]
  23. Vagadia, M.; Ravalia, A.; Solanki, P.S.; Pandey, P.; Asokan, K.; Kuberkar, D.G. Electrical properties of BaTiO3 based—MFIS heterostructure: Role of semiconductor channel carrier concentration. AIP Adv. 2014, 4, 057131. [Google Scholar] [CrossRef]
  24. Yusoff, N.H.; Osman, R.A.M.; Idris, M.S.; Muhsen, K.N.D.K.; Nor, N.I.M. Dielectric and structural analysis of hexagonal and tetragonal phase BaTiO3. AIP Conf. Proc. 2020, 2203, 020038. [Google Scholar] [CrossRef]
  25. Chen, L.C.; Tseng, Z.L.; Huang, J.K. A study of inverted-type perovskite solar cells with various composition ratios of (FAPbI3)1-x(MAPbI3)x. Nanomaterials 2016, 6, 183. [Google Scholar] [CrossRef]
  26. Ma, F.; Li, J.; Li, W.; Lin, N.; Wang, L.; Qiao, J. Stable α/δ phase junction of formamidinium lead iodide perovskites for enhanced near-infrared emission. Chem. Sci. 2017, 8, 80. [Google Scholar] [CrossRef]
  27. Zhou, Y.; Long, G. Low density of conduction and valence band states contribute to the high open-circuit voltage in perovskite solar cells. J. Phys. Chem. C 2017, 121, 3. [Google Scholar] [CrossRef]
  28. Zhang, C.; Li, X.; Ding, L.; Jin, C.; Tao, H. Effect of BaTiO3 powder as an additive in perovskite films on solar cells. RSC Adv. 2022, 12, 7950. [Google Scholar] [CrossRef]
  29. Shi, J.; Wei, H.; Lv, S.; Xu, X.; Wu, H.; Luo, Y.; Li, D.; Meng, Q. Control of Charge Transport in the Perovskite CH3NH3PbI3 Thin Film. ChemPhysChem 2015, 16, 842–847. [Google Scholar] [CrossRef]
  30. Bi, C.; Shao, Y.; Yuan, Y.; Xiao, Z.; Wang, C.; Gao, Y.; Huang, J. Understanding the formation and evolution of interdiffusion grown organolead halide perovskite thin films by thermal annealing. J. Mater. Chem. A 2014, 2, 18508–18514. [Google Scholar] [CrossRef]
  31. Yin, J.; Cortecchia, D.; Krishna, A.; Chen, S.; Mathews, N.; Grimsdale, A.C.; Soci, C. Interfacial Charge Transfer Anisotropy in Polycrystalline Lead Iodide Perovskite Films. J. Phys. Chem. Lett. 2015, 6, 1396–1402. [Google Scholar] [CrossRef] [PubMed]
  32. Xing, G.C.; Mathews, N.; Sun, S.Y.; Lim, S.S.; Lam, Y.M.; Grätzel, M.; Mhaisalkar, S.; Sum, T.C. Long-Range Balanced Electronand Hole-Transport Lengths in Organic-Inorganic CH3NH3PbI3. Science 2013, 342, 344–347. [Google Scholar] [CrossRef] [PubMed]
  33. Hao, F.; Stoumpos, C.C.; Guo, P.; Zhou, N.; Marks, T.J.; Chang, R.P.H.; Kanatzidis, M.G. Solvent-Mediated Crystallization of CH3NH3SnI3 Films for Heterojunction Depleted Perovskite Solar Cells. J. Am. Chem. Soc. 2015, 137, 11445–11452. [Google Scholar] [CrossRef] [PubMed]
  34. Shockley, W.; Read, W.T.; Sze, S.M. Statistics of the Recombinations of Holes and Electrons. In Semiconductor Devices: Pioneering Papers; World Scientific: London, UK, 1991; pp. 62–69. [Google Scholar]
  35. Grove, A.S. Physics and Technology of Semiconductor Devices, 1st ed.; John Wiley and Sons: New York, NY, USA, 1967; pp. 129–133. [Google Scholar]

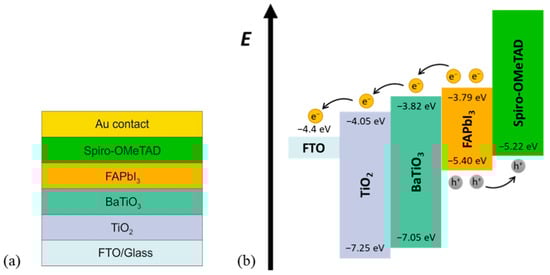

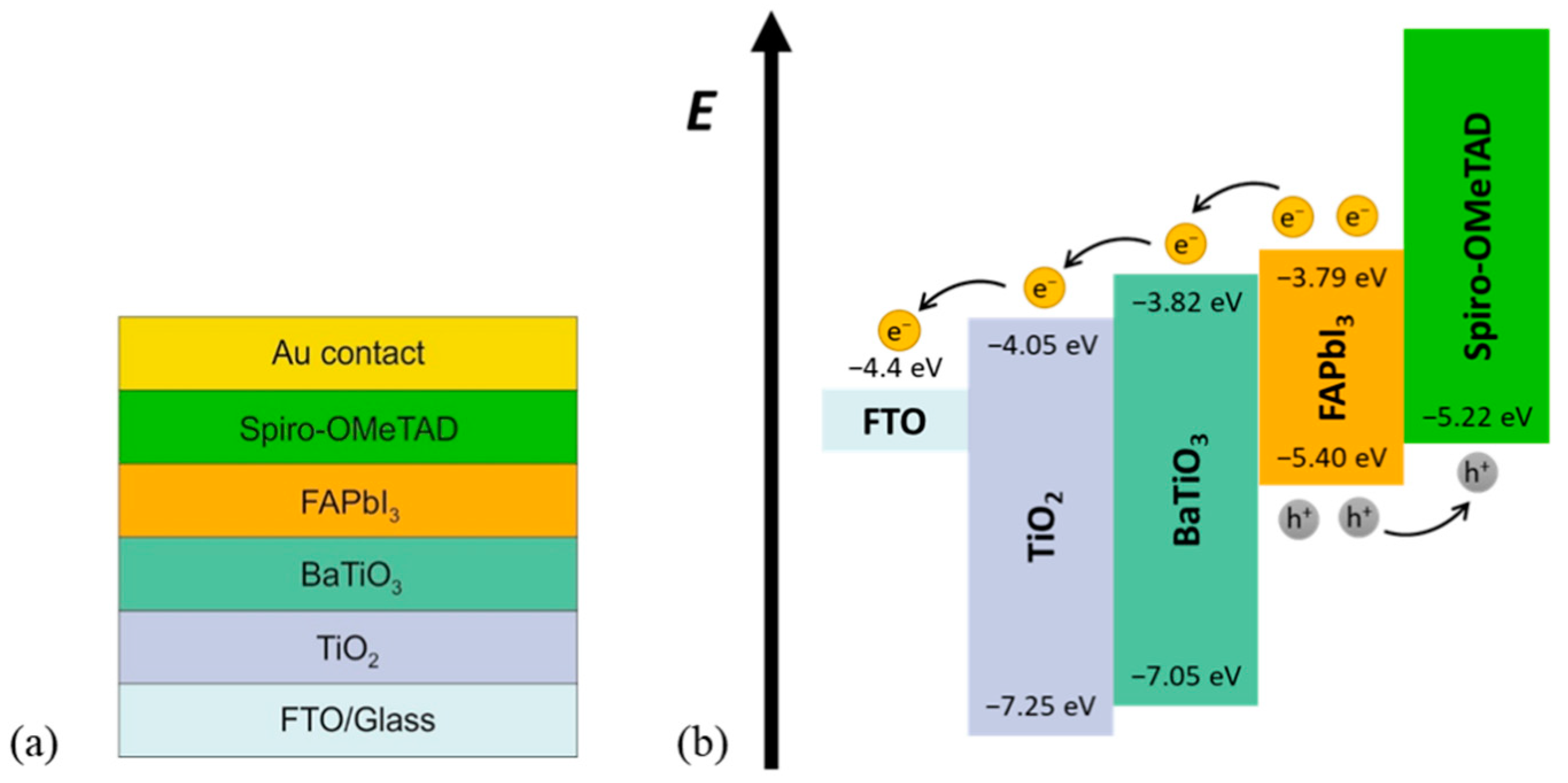

Figure 1. (a) The perovskite solar cell layer structure and (b) PSC band diagram [8,15].
Figure 1. (a) The perovskite solar cell layer structure and (b) PSC band diagram [8,15].
Materials 15 07310 g001

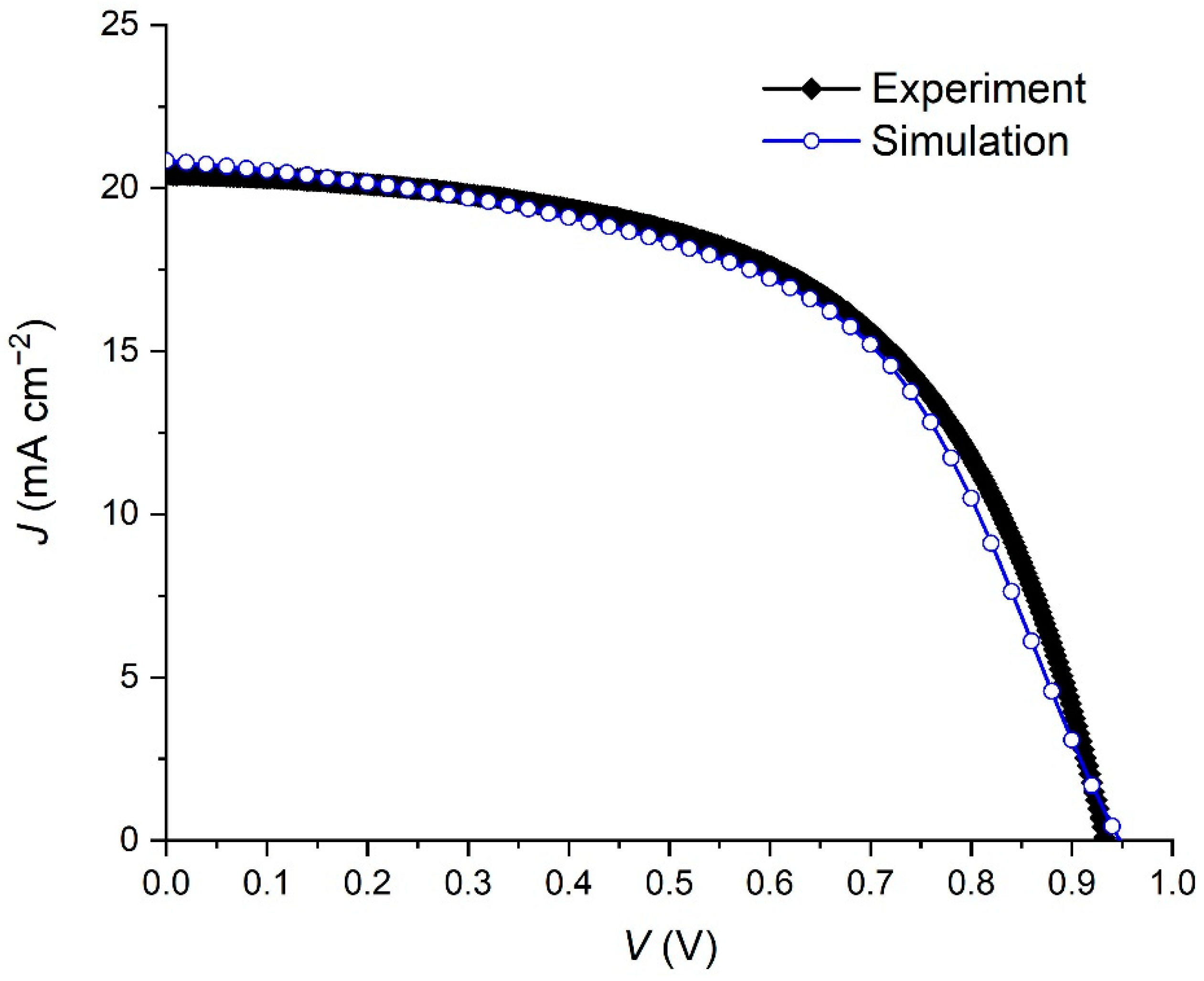

Figure 2. Current density–voltage characteristics under illumination of the experimental and simulated PSC with the device architecture FTO/TiO2/BaTiO3/FAPbI3/spiro-OMeTAD/Au.
Figure 2. Current density–voltage characteristics under illumination of the experimental and simulated PSC with the device architecture FTO/TiO2/BaTiO3/FAPbI3/spiro-OMeTAD/Au.
Materials 15 07310 g002

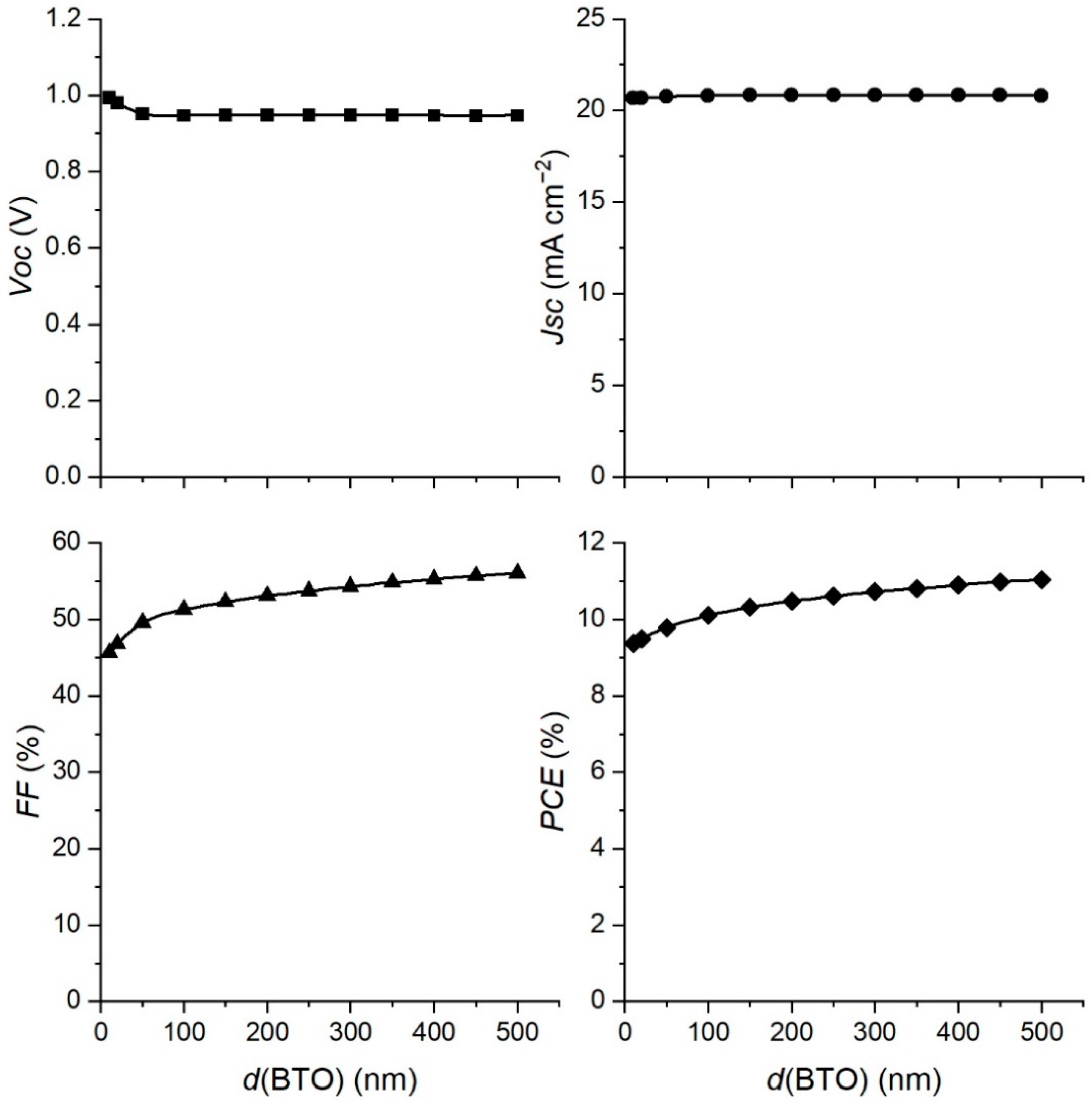

Figure 3. Variation of PSC parameters with the changing BaTiO3 layer thickness.
Figure 3. Variation of PSC parameters with the changing BaTiO3 layer thickness.
Materials 15 07310 g003

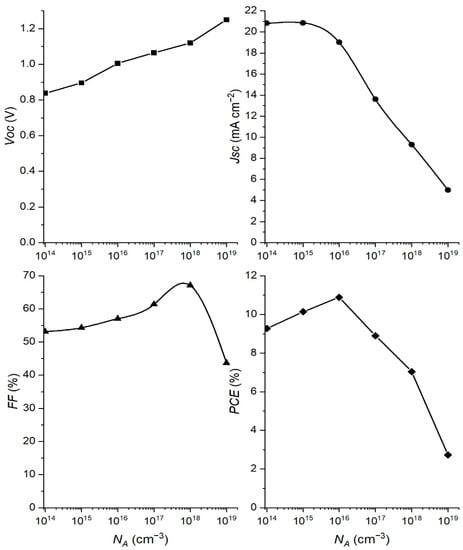

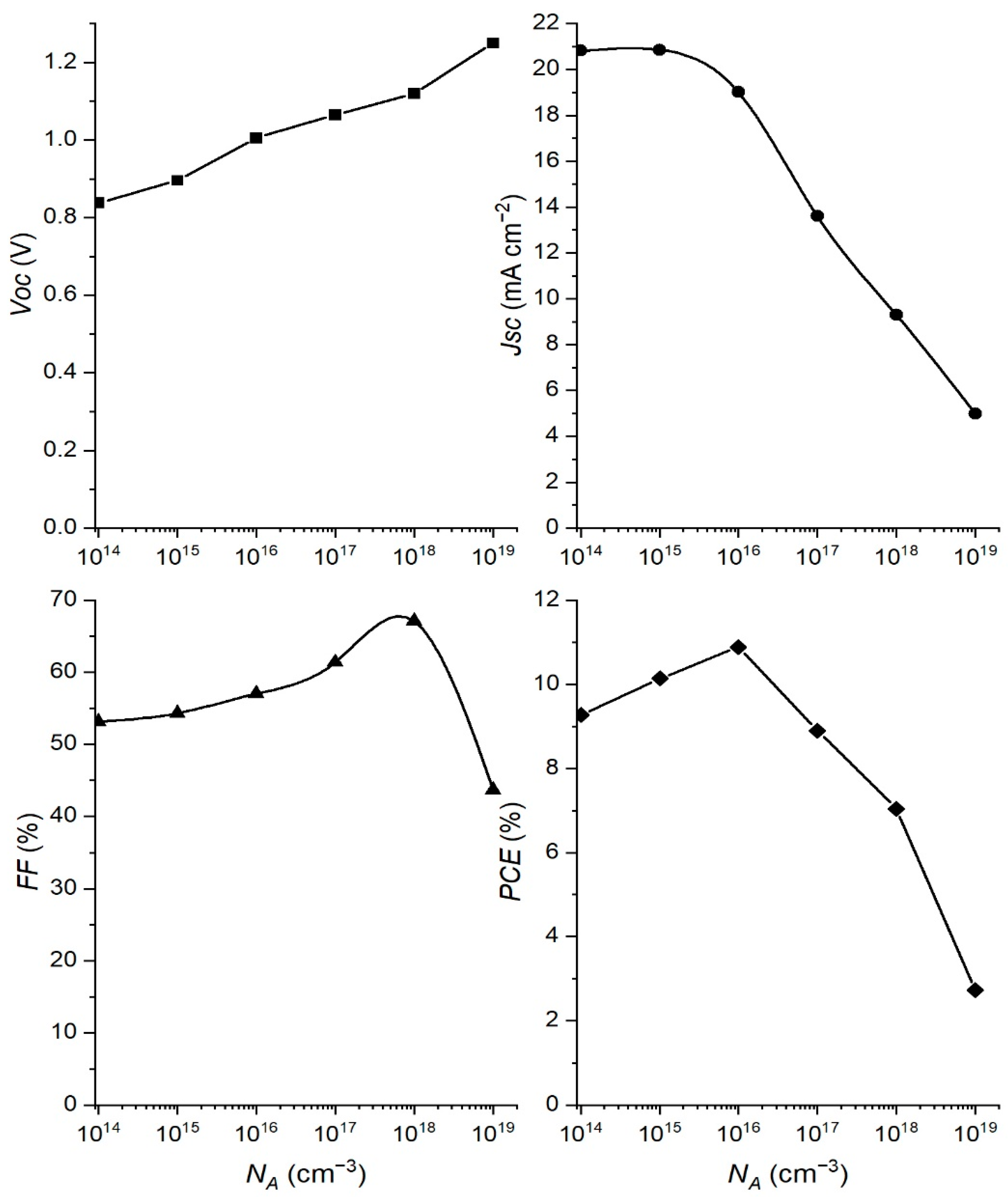

Figure 4. Variation of PSC parameters with the doping concentration NA.
Figure 4. Variation of PSC parameters with the doping concentration NA.
Materials 15 07310 g004

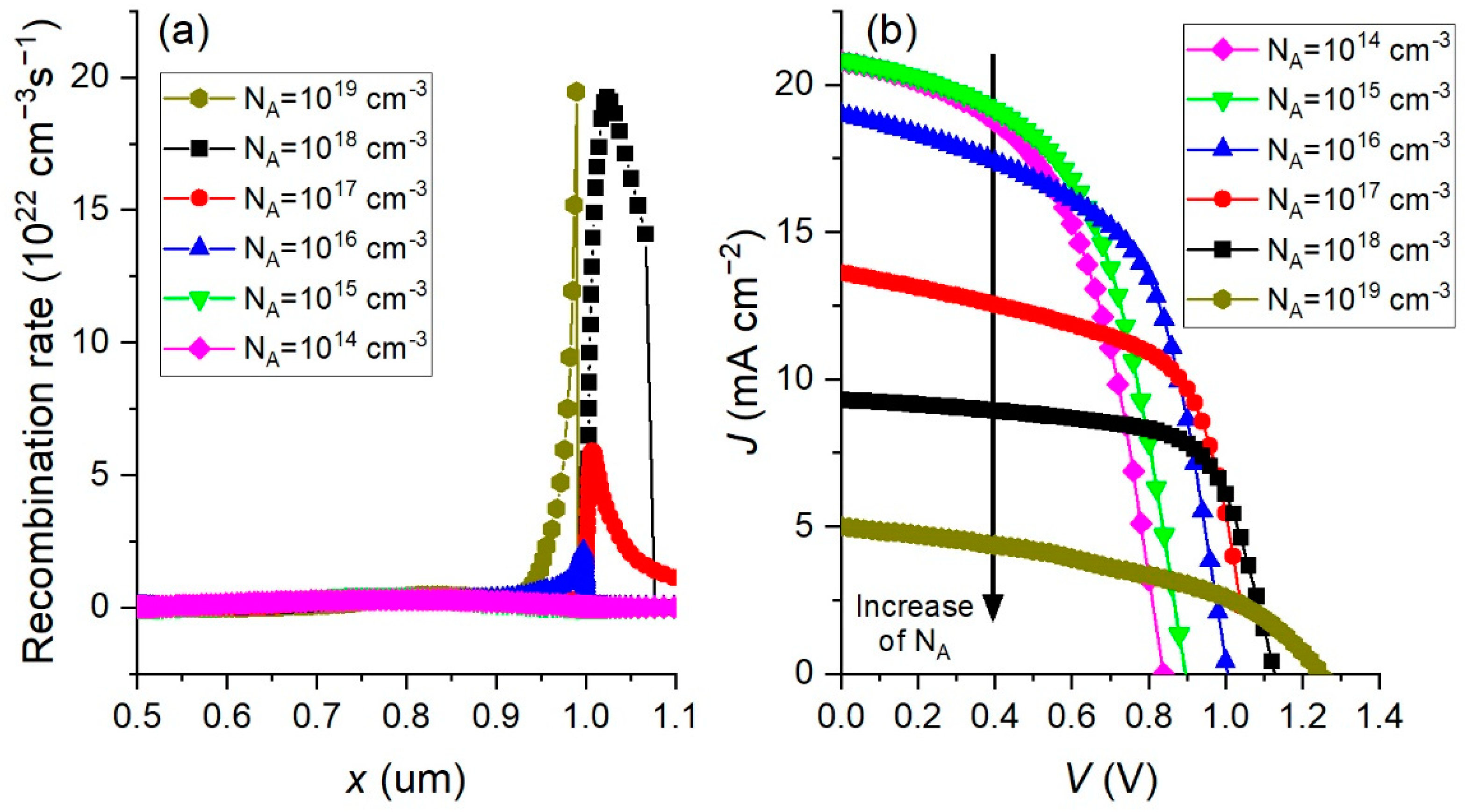

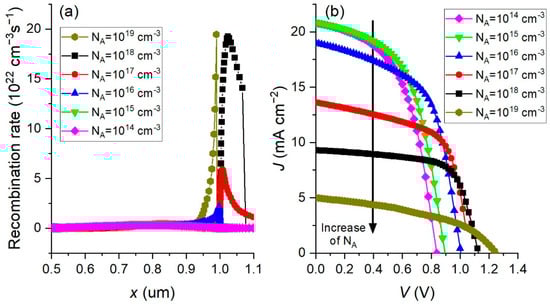

Figure 5. (a) Effect of changing the absorber layer’s doping concentration NA on recombination rates along the perovskite material. (b) Effect of increasing the doping concentration NA on JV characteristics of the PSC device.
Figure 5. (a) Effect of changing the absorber layer’s doping concentration NA on recombination rates along the perovskite material. (b) Effect of increasing the doping concentration NA on JV characteristics of the PSC device.
Materials 15 07310 g005

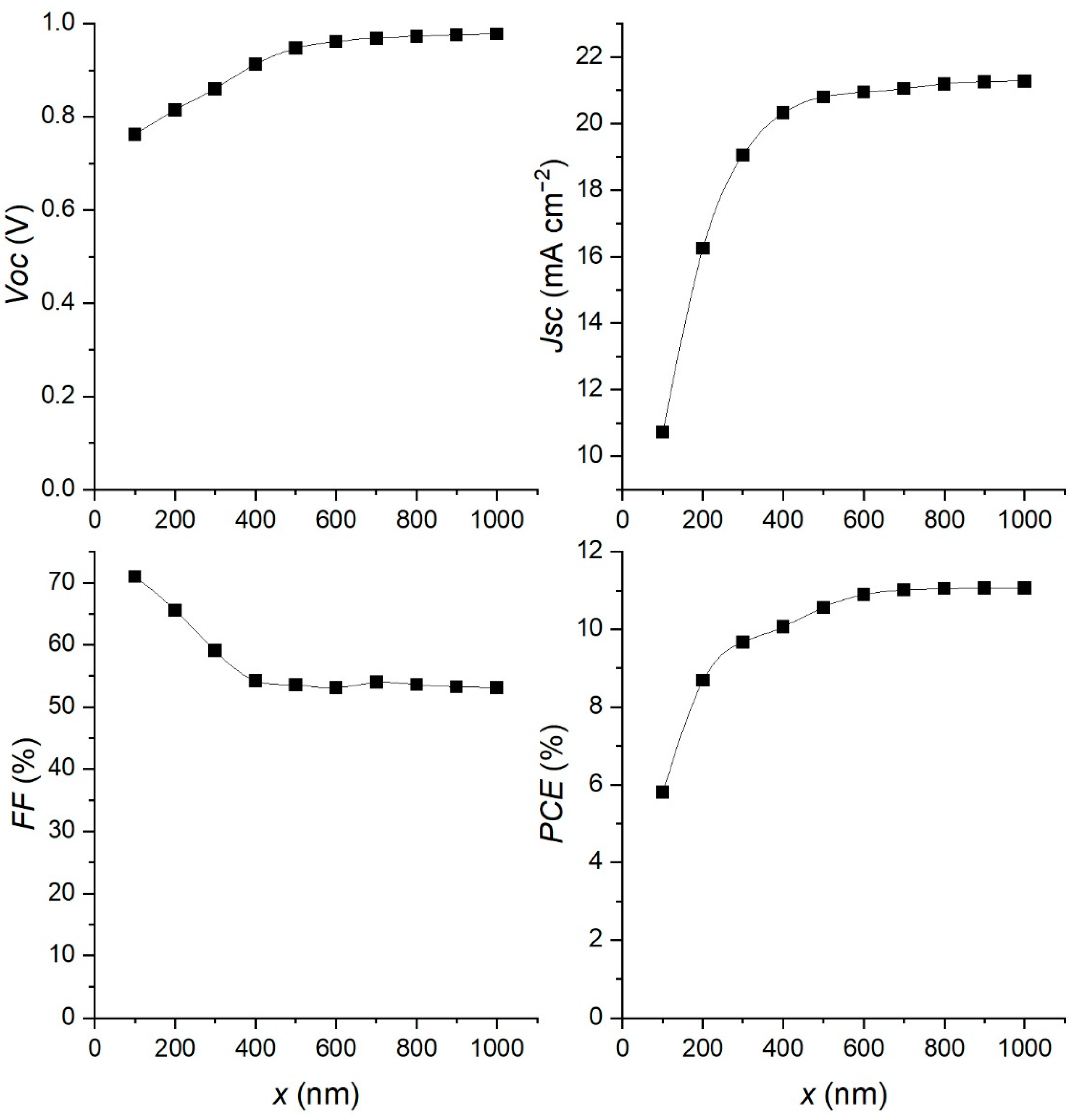

Figure 6. Impact of increasing absorber thickness on PSC device performance.
Figure 6. Impact of increasing absorber thickness on PSC device performance.
Materials 15 07310 g006

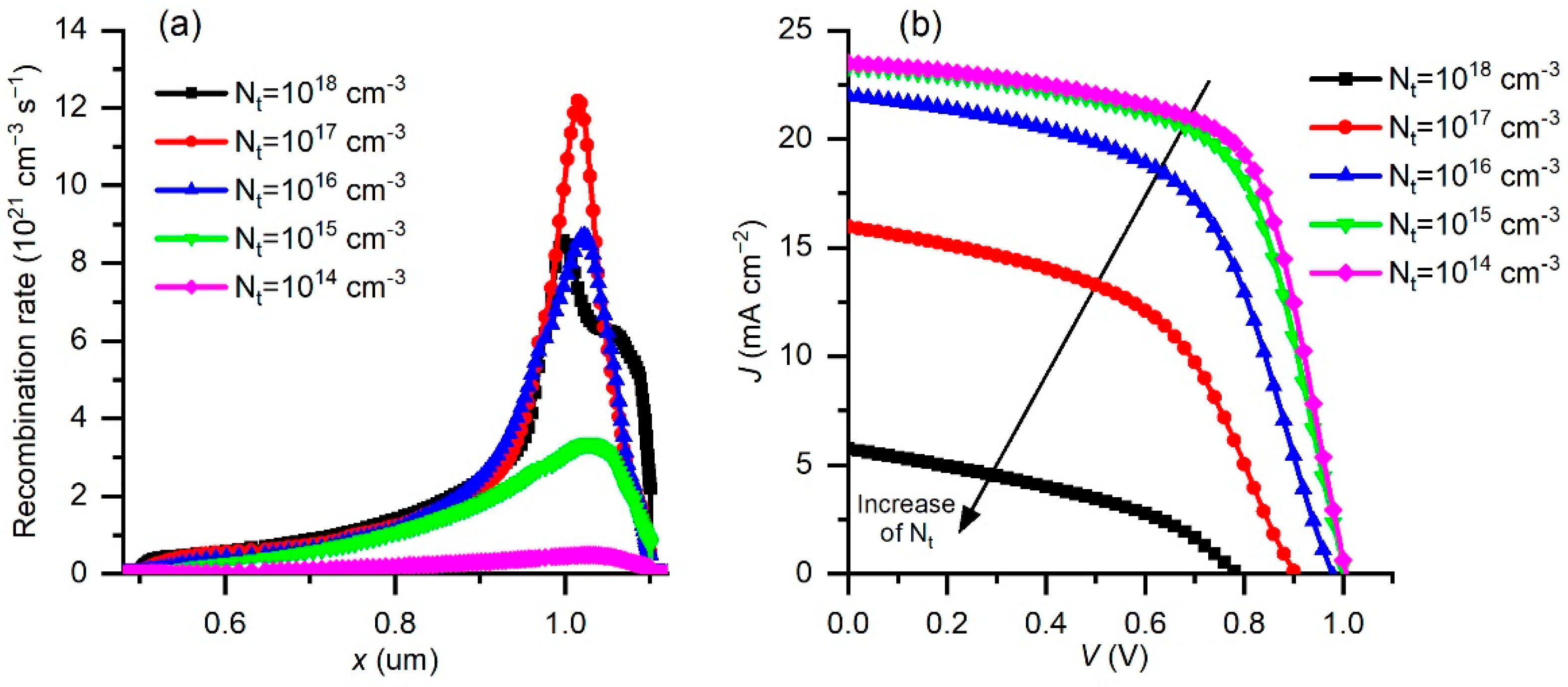

Figure 7. (a) Change in recombination rate as a function of depth in the absorber layer for different Nt values. (b) J–V characteristics of simulated PSCs as a function of defect density Nt.
Figure 7. (a) Change in recombination rate as a function of depth in the absorber layer for different Nt values. (b) J–V characteristics of simulated PSCs as a function of defect density Nt.
Materials 15 07310 g007

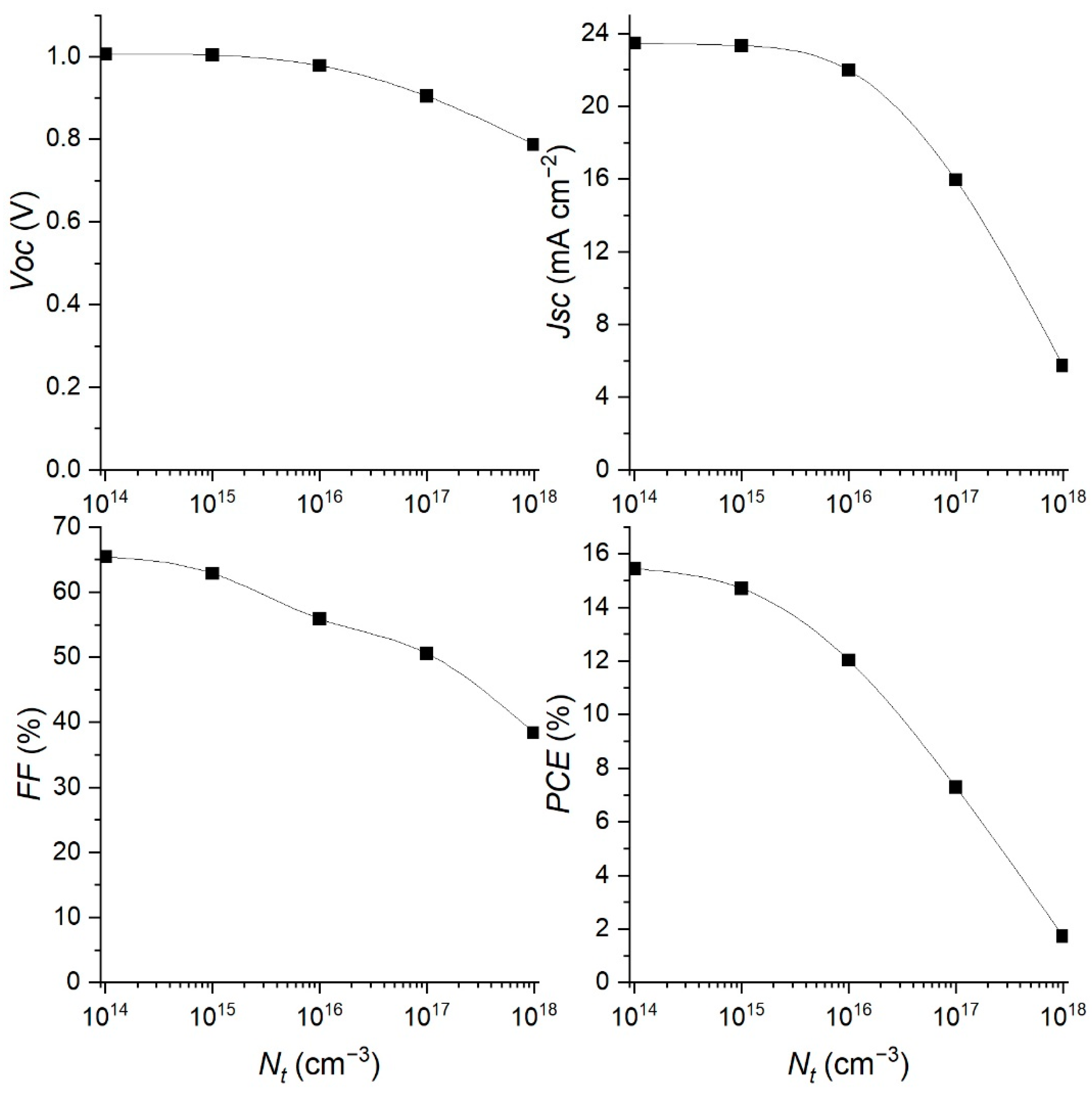

Figure 8. Effect of changing the Nt concentration on the device parameters of the PSC.
Figure 8. Effect of changing the Nt concentration on the device parameters of the PSC.
Materials 15 07310 g008

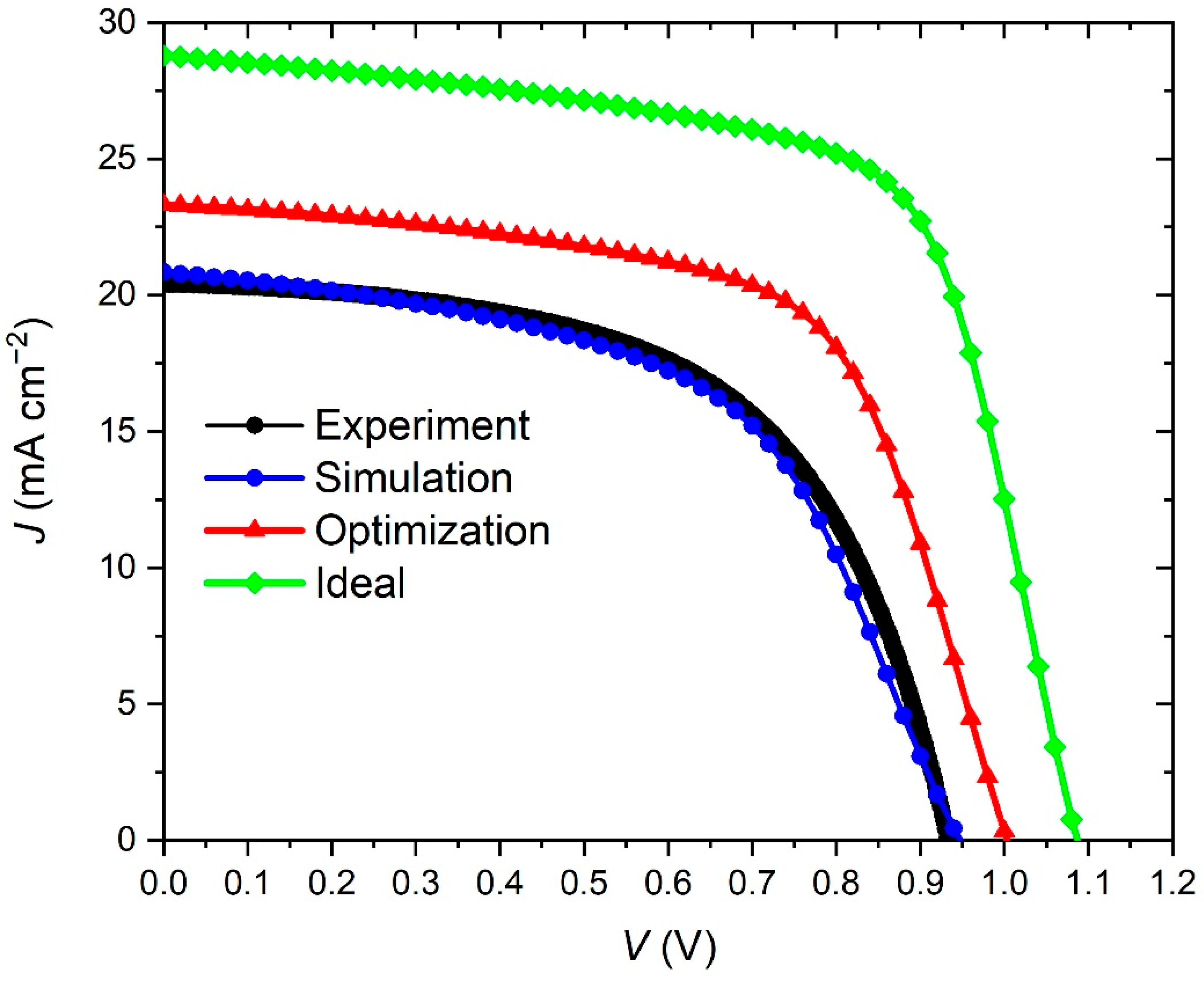

Figure 9. J–V characteristics: experimental, simulation (best fit), optimized, and ideal.
Figure 9. J–V characteristics: experimental, simulation (best fit), optimized, and ideal.
Materials 15 07310 g009
Table 1. Basic input parameters of the materials used in the PSC.
Table 1. Basic input parameters of the materials used in the PSC.
ParameterFTO
[17,18]
TiO2
[11,18,19]
BaTiO3FAPbI3
[17]
spiro-OMeTAD
[17,18,21]
Thickness (nm)300 *100 *300 *550 *500 *
Band gap (eV)3.53.263.2 [22]1.512.9
Electron affinity (eV)4.04.23.8 [23]4.0 [25]2.2
Dielectric permittivity99 [20]2500 [24]6.6 [26]3
CB effective density of states (cm3)2·10182.2·10182.2·10181.2·1019 [27]2.2·1018
VB effective density of states (cm3)1.8·10191.8·10181.8·10182.9·1018 [2]1.8·1018
Thermal velocity of electrons (cm/s)107107107107107
Thermal velocity of holes (cm/s)107107107107107
Electron mobility (cm2/Vs)2020202.7 [2]10−4
Hole mobility (cm2/Vs)1010101.8 [2]10−4
Shallow donor density ND (cm3)10195·10165·101600
Shallow acceptor density NA (cm3)0001.9·10151018
Defect density Nt (cm3)1015101510151.9·10161015
* Experimentally determined.
Table 2. Experimental and simulated parameters of the FAPbI3-based solar cell comprising a BaTiO3 interlayer.
Table 2. Experimental and simulated parameters of the FAPbI3-based solar cell comprising a BaTiO3 interlayer.
ParameterExperimentalSimulated
Voc (V)0.930.94
Jsc (mA/cm2)20.4420.80
FF (%)57.6254.29
PCE (%)11.0010.72
