Highly Loaded and Binder-Free Molybdenum Trioxide Cathode Material Prepared Using Multi-Arc Ion Plating for Aqueous Zinc Ion Batteries

School of Minerals Processing and Bioengineering, Central South University, Changsha 410083, China
School of Materials Science and Engineering, Central South University, Changsha 410083, China
Authors to whom correspondence should be addressed.
Materials 2022, 15(17), 5954;
Submission received: 29 July 2022 / Revised: 23 August 2022 / Accepted: 23 August 2022 / Published: 29 August 2022
(This article belongs to the Topic Electrochemical Energy Storage Materials)


Aqueous zinc-ion batteries (ZIBS) are becoming more popular as the use of energy storage devices grows, owing to advantages such as safety and an abundant zinc supply. In this study, molybdenum powder was loaded directly on carbon fiber cloth (CFC) via multi-arc ion plating to obtain Mo@CFC, which was then oxidatively heated in a muffle furnace for 20 min at 600 °C to produce high mass loading α-MoO3@CFC (α-MoO3 of 12–15 mg cm−2). The cells were assembled with α-MoO3@CFC as the cathode and showed an outstanding Zn2+ storage capacity of 200.8 mAh g−1 at 200 mA g−1 current density. The capacity retention rate was 92.4 % after 100 cycles, along with an excellent cycling performance of 109.8 mAh g−1 following 500 cycles at 1000 mA g−1 current density. Subsequently, it was shown that CFC-loaded α-MoO3 cathode material possessed significantly improved electrochemical performance when compared to a cell constructed from commercial MoO3 using conventional slurry-based electrode methods. This work presents a novel yet simple method for preparing highly loaded and binder-free cathodic materials for aqueous ZIBs. The results suggest that the highly loaded cathode material with a high charge density may be potentially employed for future flexible device assembly and applications.

Graphical Abstract

1. Introduction

Lithium-ion batteries have been widely used in consumer gadgets and automobiles as a result of their excellent energy density. However, the inherent disadvantages, including lack of safety, increased cost, and environmental concerns have limited their applications in grid-scale energy storage [1,2,3]. Aqueous zinc-ion batteries (ZIBs) are seen as a viable alternative to lithium-ion batteries because of their benefits, such as a high theoretical capacity (820 mAh g−1), cost efficiency, environmental friendliness, and safety [4,5]. To date, various cathode materials, including manganese-based [6,7,8], vanadium-based [9,10,11,12], and Prussian blue analogues [13,14,15] have been investigated and used in aqueous ZIBs. During the preparation of electrode materials at the laboratory level, for a high mass specific capacity, an active material mass (such as mentioned above) of no more than 3 mg cm−2 may be commonly employed. It is still difficult to meet the demand for higher mass loading to achieve superior energy density and high capacity [16,17]. That is to say, further increasing the loading of active materials remains a great challenge. In addition, with the rapid development of flexible wearable devices, the research on flexible electrodes has attracted extensive attention [18,19,20]. Combining the two, a more suitable preparation of high-mass-loading flexible self-supporting electrode materials is needed, which not only can improve the capacity of aqueous ZIBs, but additionally promote the practical application of flexible wearable devices.
In this regard, several studies have used the in situ growth of active materials on flexible substrates to create cathode materials for ZIBs. For example, a series of manganese-based and vanadium-based cathode materials with a high mass loading using different synthetic methods (e.g., 3D printing and the hydrothermal method) have been studied [21,22,23,24]. Among various candidate cathode materials, orthogonal molybdenum trioxide (α-MoO3) is theoretically promising as a high mass loading electrode material for high-performance ZIBs because of its unique layered structure and remarkable thermodynamic stability [25,26]. To meet the requirements of high mass loading, multi-arc ion plating may be a feasible method, where the metal is directly evaporated on the solid cathode target by arc discharge, so as to deposit a thin film on the surface of the substrate [27,28]. To meet the requirements of flexibility, it is feasible to use carbon fiber cloth (CFC) as the deposition substrate [29,30]. In the current study, a novel method for producing an α-MoO3@CFC cathode with high mass loading and no binder via multi-arc ion plating and simple heat treatment is presented. This approach allows for a significant quantity of active material (about 12–15 mg cm−2) with a high binding strength to be placed on the CFC without the use of a conductive agent or binder, thereby improving the problems of active material shedding and the deterioration of battery performance. As a result, the prepared α-MoO3@CFC demonstrated an areal capacity of 2.61 mAh cm−2 at 200 mA g−1 current, and a higher energy density of 200.8 Wh kg−1 (a cathode energy density normalized to the cathode mass). This work may not only increase the ZIB capacity, but also facilitate the practical use of flexible wearable devices.

2. Experiments

2.1. Material Synthesis

A two-step procedure was used to fabricate the α-MoO3@CFC. First, the molybdenum target (Juno Metal Materials Co., Baoji, China) was placed in the multi-arc ion coating machine (SH007, Changsha Divine Arc Ion Coating Co., Changsha, China) along with the CFC, both of which had been sonicated with deionized water, acetone, and anhydrous ethanol. Following that, electrodeposition was initiated for 3 h, and the Mo@CFC was removed when the furnace temperature decreased to room temperature. The mass loading of Mo@CFC was about 8–10 mg cm−2. The mass ratio of Mo and CFC (about 11–13 mg cm−2) was about 0.62–0.91. Finally, Mo@CFC was oxidatively heated for 20 min in a muffle furnace at 600 °C to produce α-MoO3@CFC.

2.2. Material Characterization

Characterization of the specimens was conducted using an X-ray diffractometer (XRD, Rigaku DX-2500) and Cu Kα rays (λ = 1.54178Å) in the 3° to 80° range, and the morphology and structure were examined in detail using a scanning electron microscope (Nova Nano SEM 230) and a high-resolution transmission electron microscope (HRTEM, FEI Tecnai G2 F20, 200 kv).

2.3. Electrochemical Measurements

The batteries utilized in this work for testing electrochemical performance were all coin cells, type CR2016, and all of the constructed ones were run in air. The anode was made from a zinc foil with a 12 mm diameter, whereas the manufactured α-MoO3@CFC was cut into small square pieces of 1 cm × 1 cm for the cathode, with active material mass loading of about 12–15 mg cm−2. A glass microfiber filter (GFF Whatman) was employed as a separator, and the electrolyte was a 2 M ZnSO4 solution. They were then assembled layer by layer and sealed with a fully automated sealer (MSK-110D) before being kept at room temperature for 24 h for electrochemical testing.
The cathode for the commercial MoO3 cells was fabricated by coating a slurry of commercial MoO3 powder (purchased from Aladdin Industrial Corporation), polyvinylidene difluoride (PVDF), and acetylene black, with an 8:1:1 mass ratio on the stainless-steel mesh, which was cut in a 12 mm diameter. The cathode, electrolyte, separator, and assembly procedures are the same as described above. Moreover, for the battery testing equipment, galvanostatic charge–discharge measurements (LAND CT2001A) were made between 0.4 and 1.4 V. Cyclic voltammetry (CV) was carried out at a scan rate of 1 mV s−1 using an electrochemical workstation (CHI-600C, Shanghai, China). To conduct electrochemical impedance spectroscopy (EIS), a ZAHNER-IM6ex electrochemical workstation (ZAHNER Co., Kronach, Germany) was employed.

2.4. Results and Discussion

Figure 1 schematically represents a basic two-step synthesis of α-MoO3@CFC. Mo@CFC is directly produced by multi-arc ion plating. As a molybdenum source, six pure molybdenum targets (99.99% purity) are evenly distributed on both sides of the vacuum chamber, whereas the treated CFC is fixed as a carrier on a rotating rack located at the upper end of the vacuum chamber, allowing molybdenum to be uniformly plated on. The Mo@CFC is then placed within a quartz crucible and heated for 20 min at 600 °C, allowing Mo@CFC to fully oxidize to α-MoO3@CFC.
As depicted by the Mo@CFC and α-MoO3@CFC in Figure S1 of the Supporting Information, a layer of off-white α-MoO3 evenly covers the surface of the black pure CFC following 20 min of heating at 600 °C, forming α-MoO3@CFC with good flexibility.
All of the Mo@CFC diffraction peaks are in line with the standard PDF card 42-1120, as shown in Figure 2b. Figure 2a,b suggest that not only Mo is uniformly plated on the surface of CFC, but the native structures of Mo and CFC are not disrupted throughout the preparation process. All of the diffraction peaks of MoO3 are indexed well to orthorhombic α-MoO3 (JCPDS No.05-0508), with high crystallinity. In contrast, there is a diffraction peak attributed to Mo4O11 (JCPDS No. 05-0337), indicative of the existence of low-valence-state Mo after the oxidation treatment. The EDS result (Figure 2d) also suggests that a high purity α-MoO3@CFC was prepared.
The XRD patterns of α-MoO3@CFC at various heating temperatures are presented in Figure S2a. When the temperature increases, the crystallinity of α-MoO3 increases gradually. At 600°C, the characteristic peak of Mo disappears, which indicates that Mo loaded on CFC is completely oxidized to α-MoO3 at this temperature. Figure S2b displays the XRD patterns of α-MoO3@CFC heated for different times at 600 °C (40 min and 60 min). With the increase in heating time, the oxidation of Mo is more complete. At 60 min, the characteristic peak of Mo4O11 disappears. However, with the extension of time, the CFC was destroyed by oxidation, and the mechanical properties of the samples weakened. Therefore, 20 min was determined as being the optimal preparation condition.
SEM images of pure CFC, Mo@CFC, and α-MoO3@CFC are shown in Figure 3a–c. Because of the enormous amount of Mo powder present on the surface, the diameter of the previously smooth CFC becomes much thicker following multi-arc ion plating. After oxidation, α-MoO3@CFC with a one-dimensional rod-like shape are obtained, as presented in Figure 3c. Furthermore, the SEM image of commercial MoO3 is shown in Figure S3, presenting an irregular morphology. The TEM image further confirms the typical rod-like structure, with a uniform width of about 25 nm and a length of up to about 2 μm. As presented in Figure 3e, the HRTEM image displays clear lattice fringes with a d-spacing of 0.3814 nm, in good agreement with the (200) crystalline planes of the orthorhombic MoO3. Moreover, the rod-like structure demonstrates the monocrystalline structure, as indicated by the SAED pattern (Figure 3f). The energy dispersive spectroscopy (EDS) elemental mapping images show the compositions of Mo, O, and C (Figure 3g,g1–g3). It is worth mentioning that the distribution of C is relatively unapparent, due to the high loading on CFC.
The electrochemical performances of ZIBs containing α-MoO3@CFC and commercial MoO3 as active cathode materials are shown in Figure 4. Figure 4a and Figure S5 display the classic CV curves for α-MoO3@CFC and commercial MoO3 in the potential window of 0.4–1.4 V, at a 1 mV s−1 scan rate. Figure 4a represents a group of redox peaks located at around 0.83 V and 0.48 V, indicating typical battery behavior, with the oxidation peak situated around 0.83 V arising from the extraction of Zn2+ from α-MoO3@CFC; and the reduction peak located near 0.48 V can be assigned to the insertion of Zn2+ into MoO3 [25]. A comparison of the cycling performance of α-MoO3@CFC and commercial MoO3 powder at a current density of 200 mA g−1 is shown in Figure 4b. The initial commercial MoO3 has a specific capacity of just 125.6 mAh g−1 and decays to 55.8 mAh g−1 following 100 cycles, with a capacity retention rate amounting to 44.4%. In contrast, the specific capacity of α-MoO3@CFC stabilizes at around 200 mAh g−1 after 100 cycles, with a capacity retention rate of 92.4%. Additionally, the calculated areal capacity of this Zn//α-MoO3@CFC battery reaches 2.61 mAh cm−2 (200.8 mAh g−1 based on the average mass of 13 mg cm−2), with an excellent energy density of 200.8 Wh kg−1.
Figure 4c shows the curves of the α-MoO3@CFC-containing cathode at the 1st, 2nd, 5th, 50th, and 100th cycles, charged and discharged at 200 mA g−1. The initial discharge and charge capacities were equal to 409.3 and 288 mA h g−1, respectively. These values correspond to a Coulombic efficiency of 70.4%. The series of charge/discharge plateaus agree well with the CV curves shown in Figure 4a. More notably, the rate performance of α-MoO3@CFC is significantly improved in comparison to that of commercial MoO3, as is evident in Figure 4d, with specific capacities of 483.4, 196.2, 138.8, 114.6, and 95.4 mAh g−1 at current densities ranging from 100 mA g−1 to 2000 mA g−1, respectively. The specific capacity increased to 308.2 mAh g−1 when the current density was returned to 100 mA g−1, and it remained steady in future cycles. The long-term cycling performance of α-MoO3@CFC at a current density of 1000 mA g−1 is shown in Figure 4e, where the specific capacity of α-MoO3@CFC remained at 109.8 mAh g−1 following 500 cycles, whereas the commercial MoO3 had poor performance, with a rapid decline of the capacity. In addition, the ex situ SEM images of α-MoO3@CFC and commercial MoO3 after 20 cycles at a current density of 1000 mA g−1 are shown in Figure S4. Obviously, the mechanical stability of α-MoO3@CFC is better.
In order to better comprehend the excellent electrochemical performance of the α-MoO3@CFC electrode, electrochemical impedance spectroscopy (EIS) measurements are shown in Figure 5. The Nyquist plots of both α-MoO3@CFC and commercial MoO3 consist of semicircles at high frequencies and a straight line at lower frequencies. These regions correspond to the resistance of the electrode surface (Rf) and a charge-transfer resistance (Rct), respectively [26,31,32]. Fitting the EIS data obtained for the α-MoO3@CFC and commercial MoO3 electrodes before cycling showed that Rct values of the cathodes based on the α-MoO3@CFC and commercial MoO3 materials are equal to 43.73 and 82.09 Ω, respectively. These results confirmed that α-MoO3@CFC possessed better conductivity, as well as stronger ion and electron migration ability, than commercial MoO3. From a comparison of this work with some reported studies (high mass loading), in some respects, α-MoO3@CFC-based electrodes for ZIBs have possible application prospects (see Table 1). The main reason for the improved performance may be the strategy of a binder-free electrode.

3. Conclusions

In summary, ZIBs are fabricated with a high mass loading (12–15 mg cm−2) and binder-free cathode material, α-MoO3@CFC, prepared using multi-arc ion plating and simple heating. When operated at a current density of 200 mA g−1, the α-MoO3@CFC electrode has an electrochemical specific capacity of 200.8 mAh g−1 after 100 cycles. After 500 cycles at a current density of 1000 mA g−1, it still has a capacity of 109.8 mAh g−1. The exceptional mechanical characteristics and high areal capacity of 2.61 mAh cm−2 with an excellent energy density of 200.8 Wh kg−1 reveal considerable promise for flexible wearable and grid energy storage applications.

Supplementary Materials

The following supporting information can be downloaded at:, Figure S1: Macroscopic morphology of (a) Mo@CFC, (b) α-MoO3@CFC. Figure S2: XRD patterns of α-MoO3@CFC at (a) different heating temperatures, (b) different heating times at 600°C. Figure S3: SEM image of commercial MoO3. Figure S4: The ex-situ SEM images of α-MoO3@CFC (a) and commercial MoO3 (b) after 20 cycles at a current density of 1000 mA g−1. Figure S5: 1 mV s−1 CV curves of commercial MoO3.

Author Contributions

S.L.: conceptualization, investigation, supervision, writing—review and editing, funding acquisition. Y.S.: conceptualization, methodology, investigation, data curation, software, visualization, writing—original draft. J.Y.: data curation, formal analysis, software. Y.Z. and Z.C.: supervision, writing—review and editing. All authors have read and agreed to the published version of the manuscript.


This research was funded by the National Natural Science Foundation of China under Grant No. 52104285.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on reasonable request from the corresponding author.

Conflicts of Interest

The authors declare that they have no conflict of interest.


  1. Tarascon, J.M.; Armand, M. Issues and challenges facing rechargeable lithium batteries. Nature 2001, 414, 359–367. [Google Scholar] [CrossRef] [PubMed]
  2. Lu, L.; Han, X.; Li, J.; Hua, J.; Ouyang, M. A review on the key issues for lithium-ion battery management in electric vehicles. J. Power Sources 2013, 226, 272–288. [Google Scholar] [CrossRef]
  3. Kim, T.; Song, W.; Son, D.-Y.; Ono, L.K.; Qi, Y. Lithium-ion batteries: Outlook on present, future, and hybridized technologies. J. Mater. Chem. A 2019, 7, 2942–2964. [Google Scholar] [CrossRef]
  4. Shi, Y.; Chen, Y.; Shi, L.; Wang, K.; Wang, B.; Li, L.; Ma, Y.; Li, Y.; Sun, Z.; Ali, W.; et al. An Overview and Future Perspectives of Rechargeable Zinc Batteries. Small 2020, 16, e2000730. [Google Scholar] [CrossRef]
  5. Chen, H.; Qin, H.; Chen, L.; Wu, J.; Yang, Z. V2O5@CNTs as cathode of aqueous zinc ion battery with high rate and high stability. J. Alloy. Compd. 2020, 842, 155912. [Google Scholar] [CrossRef]
  6. Huang, J.; Wang, Z.; Hou, M.; Dong, X.; Liu, Y.; Wang, Y.; Xia, Y. Polyaniline-intercalated manganese dioxide nanolayers as a high-performance cathode material for an aqueous zinc-ion battery. Nat. Commun. 2018, 9, 2906. [Google Scholar] [CrossRef]
  7. Wu, J.; Chi, X.W.; Liu, Y.Z.; Yang, J.H.; Liu, Y. Electrochemical characterization of hollow urchin-like MnO2 as high-performance cathode for aqueous zinc ion batteries. J. Electroanal. Chem. 2020, 871, 114242. [Google Scholar] [CrossRef]
  8. Xu, J.W.; Gao, Q.L.; Xia, Y.M.; Lin, X.S.; Liu, W.L.; Ren, M.M.; Kong, F.G.; Wang, S.J.; Lin, C. High-performance reversible aqueous zinc-ion battery based on iron-doped alpha-manganese dioxide coated by polypyrrole. J. Colloid Interface Sci. 2021, 598, 419–429. [Google Scholar] [CrossRef]
  9. Tang, B.; Zhou, J.; Fang, G.; Guo, S.; Guo, X.; Shan, L.; Tang, Y.; Liang, S. Structural Modification of V2O5 as High-Performance Aqueous Zinc-Ion Battery Cathode. J. Electrochem. Soc. 2019, 166, A480–A486. [Google Scholar] [CrossRef]
  10. Wei, T.; Li, Q.; Yang, G.; Wang, C. Highly reversible and long-life cycling aqueous zinc-ion battery based on ultrathin (NH4)2V10O25·8H2O nanobelts. J. Mater. Chem. A 2018, 6, 20402–20410. [Google Scholar] [CrossRef]
  11. Qin, M.L.; Liu, W.M.; Shan, L.T.; Fang, G.Z.; Cao, X.X.; Liang, S.Q.; Zhou, J. Construction of V2O5/NaV6O15 biphase composites as aqueous zinc-ion battery cathode. J. Electroanal. Chem. 2019, 847, 113246. [Google Scholar] [CrossRef]
  12. Mao, F.F.; Li, Y.W.; Zou, Z.G.; Huang, B.; Yang, J.W.; Yao, J.H. Zn2+ storage performance and structural change of orthorhombic V2O5 nanowires as the cathode material for rechargeable aqueous zinc-ion batteries. Electrochim. Acta 2021, 397, 139255. [Google Scholar] [CrossRef]
  13. Ni, G.; Xu, X.; Hao, Z.; Wang, W.; Li, C.; Yang, Y.; Zhou, C.; Qin, L.; Chen, W.; Yao, X.; et al. Tuning the Electrochemical Stability of Zinc Hexacyanoferrate through Manganese Substitution for Aqueous Zinc-Ion Batteries. ACS Appl. Energy Mater. 2020, 4, 602–610. [Google Scholar] [CrossRef]
  14. Lu, K.; Song, B.; Zhang, Y.; Ma, H.; Zhang, J. Encapsulation of zinc hexacyanoferrate nanocubes with manganese oxide nanosheets for high-performance rechargeable zinc ion batteries. J. Mater. Chem. A 2017, 5, 23628–23633. [Google Scholar] [CrossRef]
  15. Li, Z.; Liu, T.; Meng, R.; Gao, L.; Zou, Y.; Peng, P.; Shao, Y.; Liang, X. Insights into the Structure Stability of Prussian Blue for Aqueous Zinc Ion Batteries. Energy Environ. Mater. 2020, 4, 111–116. [Google Scholar] [CrossRef]
  16. Song, Y.; Duan, S.; Yang, D.; Dong, R.; Guo, D.; Sun, X.; Liu, X.-X. 3D Exfoliated Carbon Paper toward Highly Loaded Aqueous Energy Storage Applications. Energy Technol. 2019, 7, 1900892. [Google Scholar] [CrossRef]
  17. Jiao, T.; Yang, Q.; Wu, S.; Wang, Z.; Chen, D.; Shen, D.; Liu, B.; Cheng, J.; Li, H.; Ma, L.; et al. Binder-free hierarchical VS2 electrodes for high-performance aqueous Zn ion batteries towards commercial level mass loading. J. Mater. Chem. A 2019, 7, 16330–16338. [Google Scholar] [CrossRef]
  18. Li, Y.; Fu, J.; Zhong, C.; Wu, T.; Chen, Z.; Hu, W.; Amine, K.; Lu, J. Recent Advances in Flexible Zinc-Based Rechargeable Batteries. Adv. Energy Mater. 2018, 9, 1802605. [Google Scholar] [CrossRef]
  19. Yu, P.; Zeng, Y.; Zhang, H.; Yu, M.; Tong, Y.; Lu, X. Flexible Zn-Ion Batteries: Recent Progresses and Challenges. Small 2019, 15, e1804760. [Google Scholar] [CrossRef]
  20. Yao, M.; Yuan, Z.; Li, S.; He, T.; Wang, R.; Yuan, M.; Niu, Z. Scalable Assembly of Flexible Ultrathin All-in-One Zinc-Ion Batteries with Highly Stretchable, Editable, and Customizable Functions. Adv. Mater. 2021, 33, e2008140. [Google Scholar] [CrossRef]
  21. Chen, D.; Lu, M.; Wang, B.; Cheng, H.; Yang, H.; Cai, D.; Han, W.; Fan, H.J. High-mass loading V3O7·H2O nanoarray for Zn-ion battery: New synthesis and two-stage ion intercalation chemistry. Nano Energy 2021, 83, 106157. [Google Scholar] [CrossRef]
  22. Lei, J.; Yao, Y.; Wang, Z.; Lu, Y.-C. Towards high-areal-capacity aqueous zinc–manganese batteries: Promoting MnO2 dissolution by redox mediators. Energy Environ. Sci. 2021, 14, 4418–4426. [Google Scholar] [CrossRef]
  23. Ma, H.; Tian, X.; Wang, T.; Tang, K.; Liu, Z.; Hou, S.; Jin, H.; Cao, G. Tailoring Pore Structures of 3D Printed Cellular High-Loading Cathodes for Advanced Rechargeable Zinc-Ion Batteries. Small 2021, 17, e2100746. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, W.; Liang, S.; Fang, G.; Yang, Y.; Zhou, J. Ultra-High Mass-Loading Cathode for Aqueous Zinc-Ion Battery Based on Graphene-Wrapped Aluminum Vanadate Nanobelts. Nanomicro Lett. 2019, 11, 69. [Google Scholar] [CrossRef]
  25. He, X.; Zhang, H.; Zhao, X.; Zhang, P.; Chen, M.; Zheng, Z.; Han, Z.; Zhu, T.; Tong, Y.; Lu, X. Stabilized Molybdenum Trioxide Nanowires as Novel Ultrahigh-Capacity Cathode for Rechargeable Zinc Ion Battery. Adv. Sci. 2019, 6, 1900151. [Google Scholar] [CrossRef]
  26. Liu, Y.; Wang, J.; Zeng, Y.; Liu, J.; Liu, X.; Lu, X. Interfacial Engineering Coupled Valence Tuning of MoO3 Cathode for High-Capacity and High-Rate Fiber-Shaped Zinc-Ion Batteries. Small 2020, 16, e1907458. [Google Scholar] [CrossRef]
  27. Wang, Z.; Tian, C.; Tolstogouzov, A.; Liang, F.; Zou, C.; Li, S.; Gusev, S.I.; Yousaf, M.I.; Pelenovich, V.; Zuo, W.; et al. Microstructure and Rutherford Backscattering Spectrometry of Hard/Lubricant Mo-Ti-Al-N Multilayered Coatings Prepared by Multi-Arc Ion Plating at Low Substrate Rotation. Coatings 2020, 10, 101. [Google Scholar] [CrossRef]
  28. Wang, H.-D.; Xu, B.-S.; Liu, J.-J.; Zhuang, D.-M. Molybdenum disulfide coating deposited by hybrid treatment and its friction-reduction performance. Surf. Coat. Technol. 2007, 201, 6719–6722. [Google Scholar] [CrossRef]
  29. Xu, N.; Yan, C.; He, W.; Xu, L.; Jiang, Z.; Zheng, A.; Wu, H.; Chen, M.; Diao, G. Flexible electrode material of V2O5 carbon fiber cloth for enhanced zinc ion storage performance in flexible zinc-ion battery. J. Power Sources 2022, 533, 231358. [Google Scholar] [CrossRef]
  30. Qian, Y.; Meng, C.; He, J.; Dong, X. A lightweight 3D Zn@Cu nanosheets@activated carbon cloth as long-life anode with large capacity for flexible zinc ion batteries. J. Power Sources 2020, 480, 228871. [Google Scholar] [CrossRef]
  31. Tang, B.; Tian, N.; Jiang, J.; Li, Y.; Yang, J.; Zhu, Q. Investigation of zinc storage capacity of WS2 nanosheets for rechargeable aqueous Zn-ion batteries. J. Alloy. Compd. 2022, 894, 162391. [Google Scholar] [CrossRef]
  32. Wu, T.H.; Liang, W.Y. Reduced Intercalation Energy Barrier by Rich Structural Water in Spinel ZnMn2O4 for High-Rate Zinc-Ion Batteries. ACS Appl. Mater. Interfaces 2021, 13, 23822–23832. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, L.; Yan, S.; Quilty, C.D.; Kuang, J.; Dunkin, M.R.; Ehrlich, S.N.; Ma, L.; Takeuchi, K.J.; Takeuchi, E.S.; Marschilok, A.C. Achieving Stable Molybdenum Oxide Cathodes for Aqueous Zinc-Ion Batteries in Water-in-Salt Electrolyte. Adv. Mater. Interfaces 2021, 8, 2002080. [Google Scholar] [CrossRef]

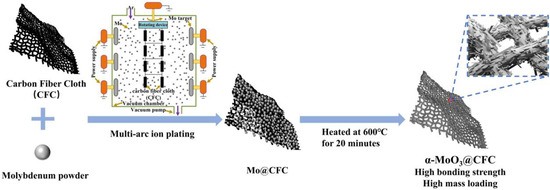

Figure 1. Schematic representation showing the synthesis of α-MoO3@CFC.
Figure 1. Schematic representation showing the synthesis of α-MoO3@CFC.
Materials 15 05954 g001

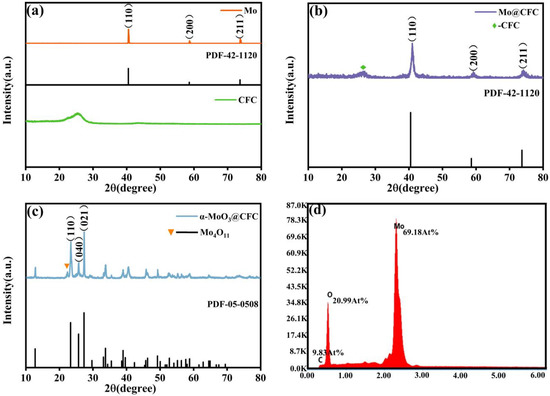

Figure 2. The patterns of X-ray diffraction for (a) Mo powder and pure CFC, and (b) Mo@CFC; (c,d) X-ray diffraction and EDS of α-MoO3@CFC.
Figure 2. The patterns of X-ray diffraction for (a) Mo powder and pure CFC, and (b) Mo@CFC; (c,d) X-ray diffraction and EDS of α-MoO3@CFC.
Materials 15 05954 g002
Figure 3. SEM image of (a) CFC, (b) Mo@CFC, and (c) α-MoO3@CFC heated at 600 °C for 20 min; (dg) TEM image, HRTEM image, SAED image, and EDS mapping of C (g1), O (g2), and Mo (g3) of the α-MoO3@CFC.
Figure 3. SEM image of (a) CFC, (b) Mo@CFC, and (c) α-MoO3@CFC heated at 600 °C for 20 min; (dg) TEM image, HRTEM image, SAED image, and EDS mapping of C (g1), O (g2), and Mo (g3) of the α-MoO3@CFC.
Materials 15 05954 g003

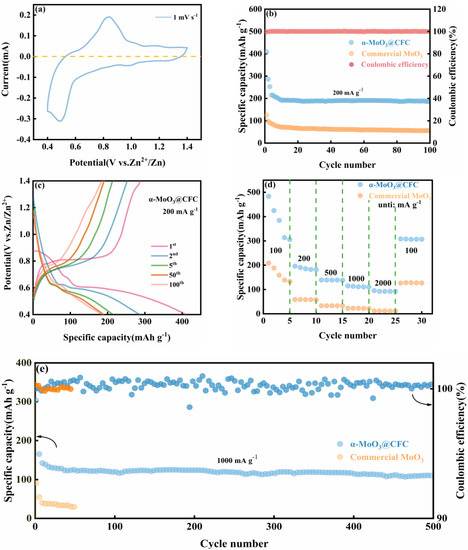

Figure 4. Electrochemical performance of α-MoO3@CFC and commercial MoO3. (a) Presented are 1 mV s−1 CV curves of α-MoO3@CFC, (b) cycle performance of α-MoO3@CFC and commercial MoO3 powder at 200 mA g1 density, (c) galvanostatic charge–discharge curves of α-MoO3@CFC, (d) rate performance of α-MoO3@CFC and commercial MoO3 powders. (e) Long-term cycling performance of α-MoO3@CFC and commercial MoO3 powders at a current density of 1000 mA g−1.
Figure 4. Electrochemical performance of α-MoO3@CFC and commercial MoO3. (a) Presented are 1 mV s−1 CV curves of α-MoO3@CFC, (b) cycle performance of α-MoO3@CFC and commercial MoO3 powder at 200 mA g1 density, (c) galvanostatic charge–discharge curves of α-MoO3@CFC, (d) rate performance of α-MoO3@CFC and commercial MoO3 powders. (e) Long-term cycling performance of α-MoO3@CFC and commercial MoO3 powders at a current density of 1000 mA g−1.
Materials 15 05954 g004

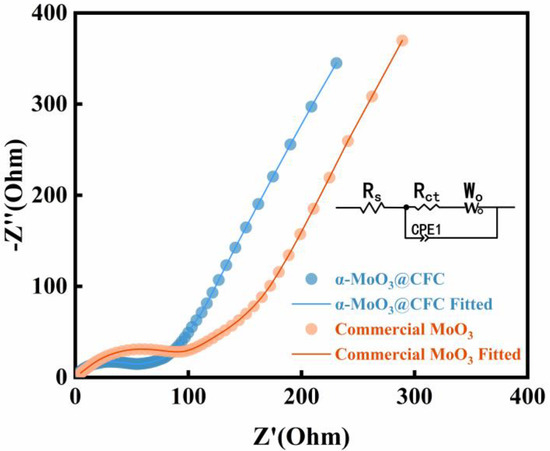

Figure 5. Electrochemical impedance spectroscopy of α-MoO3@CFC and commercial MoO3.
Figure 5. Electrochemical impedance spectroscopy of α-MoO3@CFC and commercial MoO3.
Materials 15 05954 g005
Table 1. Comparison of electrochemical properties of α-MoO3@CFC and reported aqueous zinc-ion cathode materials.
Table 1. Comparison of electrochemical properties of α-MoO3@CFC and reported aqueous zinc-ion cathode materials.
Type of MaterialCycle Number, Cycling Capacity (mAh g−1)
(Current Density (mA g−1))
Mass Loading (mg cm−2)Ref.
α-MoO3@CFC100th, 200.8 (200)
500th, 109.8 (1000)
12–15This Work
MoO3 nanowires400th, 171.14 (400)11.1[25]
MoO3 nanobelt100th, 254.77 (100)4.4–4.5[33]
V3O7⋅H2O nanoarray50th, 323 (100)
800th, 155 (2000)
H11Al2V6O23.2@graphene400th, 131.7 (2000)15.7[24]
3D printed FeVO/rHGO650th, 126.4 (2000)12.4[23]
MnO2 composite electrode300th, 184 (200)9.5[16]
