In-Silico Monte Carlo Simulation Trials for Investigation of V2O5 Reinforcement Effect on Ternary Zinc Borate Glasses: Nuclear Radiation Shielding Dynamics

by
Huseyin O. Tekin
1,2,
Shams A. M. Issa
3,4,
Gokhan Kilic
5,
Hesham M. H. Zakaly
3,6,*,
Mohamed M. Abuzaid
1,
Nevzat Tarhan
2,7,
Khatar Alshammari
8,9,
Hj Ab Aziz Sidek
10,
Khamirul A. Matori
10 and
Mohd H. M. Zaid
10,*
1
Medical Diagnostic Imaging Department, College of Health Sciences, University of Sharjah, Sharjah 27272, United Arab Emirates
2
Medical Radiation Research Center (USMERA), Uskudar University, 34672 Istanbul, Turkey
3
Physics Department, Faculty of Science, Al-Azhar University, Assiut 71524, Egypt
4
Physics Department, Faculty of Science, University of Tabuk, Tabuk 71451, Saudi Arabia
5
Department of Physics, Eskisehir Osmangazi University, 26040 Eskisehir, Turkey
6
Institute of Physics and Technology, Ural Federal University, 620000 Ekaterinburg, Russia
7
NP Istanbul Brain Hospital, 34768 Istanbul, Turkey
8
Department of Physics, Faculty of Arts and Sciences, Northern Border University, Turaif 75311, Saudi Arabia
9
Faculty of Medical Sciences, Newcastle University, Newcastle NE2 4HH, UK
10
Department of Physics, University Putra Malaysia, Serdang 43400, Selangor, Malaysia
*
Authors to whom correspondence should be addressed.
Materials 2021, 14(5), 1158; https://doi.org/10.3390/ma14051158
Submission received: 27 January 2021 / Revised: 20 February 2021 / Accepted: 24 February 2021 / Published: 1 March 2021
Browse Figures
Review Reports Versions Notes

Abstract

:
In the current study, promising glass composites based on vanadium pentoxide (V2O5)-doped zinc borate (ZnB) were investigated in terms of their nuclear-radiation-shielding dynamics. The mass and linear attenuation coefficient, half-value layer, mean free path, tenth-value layer, effective atomic number, exposure-buildup factor, and energy-absorption-buildup factor were deeply simulated by using MCNPX code, Phy-X PSD code, and WinXcom to study the validation of ZBV1, ZBV2, ZBV3, and ZBV4 based on (100−x)(0.6ZnO-0.4B2O3)(x)(V2O5) (x = 1, 2, 3, 4 mol%) samples against ionizing radiation. The results showed that attenuation competencies of the studied glasses slightly changed while increasing the V2O5 content from 1 mol% to 4 mol%. The domination of ZnO concentration in the composition compared to B2O3 makes ZnO substitution with V2O5 more dominant, leading to a decrease in density. Since density has a significant role in the attenuation of gamma rays, a negative effect was observed. It can be concluded that the aforementioned substitution can negatively affect the shielding competencies of studied glasses.

1. Introduction

Glasses, which are flexible materials in terms of ease of production and structural variations to production, have vital roles in technology and research [1]. Utilized as the primary raw materials, phosphorus pentoxide, boron oxide, and vanadium pentoxide are the most common compounds in the manufacture of glasses [2,3,4]. Of these chemicals, B2O3 is regarded as the strongest glass former [5,6,7]. Borate glasses in which B2O3 establishes the glass network are mostly used as optical materials because they have low melting points, high transmittance properties, and high thermal stability [8,9,10]. They are widely used in the processing of dielectric materials, and used in electronic materials. In addition to their use as dielectric components, the presence of transition metal ions in the borate glass network results in a semiconducting character [11,12,13,14,15]. Transition metals are used in glass science in different contexts because of their complex properties that emerge from several valence states [16]. Zinc oxide/borax glasses are being used in plasma screens and displays for high definition and quality. They are chosen due to their ability to quickly pass energy in dielectric layers and their high transparency [17]. With all of the qualities mentioned above, zinc borate glasses stand out among products for applications that are in doubt. Studies on vanadium have grown recently due to the material’s curious optical, electrical, and magnetic properties [18,19,20,21,22,23]. Though studies on transition-metal-doped glasses can frequently be found in the literature, there are still components, compositions, and properties that have not yet been studied. Despite the broad variety of papers researching transition-metal-doped glasses, many elements, formulations, and properties are not yet researched. On the other hand, analysis suggests that these glasses can be extremely protective against radiation [24,25,26,27,28,29,30,31,32,33]. The use of the glass material for radiation shielding is not limited to this kind of glass, but the frequency of experimental studies on the issue has been increasing daily as a hot topic. Any conventional materials such as lead and concrete used in nuclear fields do not possess superior material properties and have some features that can endanger health [34]. Although this report does not say unequivocally that these new shielding materials are an insufficient radiation-shielding material, some organizations such as IAEA have direct incentives for researchers to study new-generation shielding materials. In this case, glasses suit the profile of these kinds of uses. For this aim, the compositions of a group of glasses encoded as ZBV1, ZBV2, ZBV3, and ZBV4 [35] were tested and extensively researched for their capabilities in gamma-radiation attenuation.
In this study, gamma-attenuation properties of the ZnO-B2O3-V2O5 glass system were investigated in terms of the relationship between substitution-type (i.e., V2O5) changes in typical shielding behaviors of glass system. Previously, Kilic [35] investigated the synthesis process and the optical, thermal, and structural properties of four different glasses based on zinc borate containing V2O5. His results showed that V2O5 enabled the glass-transition temperature of a sample to fall from 553 °C to 531 °C. Moreover, density declined with a rise in the quantity of V2O5. Volume improved as the V2O5 concentration increased. Compared with the earlier calculation, the refractive index improved. Their large refractive indices suggest that they may be strong optical materials that could be used in optical structures needing a high refractive index. These glasses may be used in many areas of optics, but in some sense are often innovative materials for solar-energy systems due to their semiconducting properties. However, those promising findings are worthy of continuous investigations of aspects such as resistance competencies against gamma rays. In fulfilment of international safety requirements, the value of alternate shielding materials is growing. Therefore, this paper simply focused on examining the interaction between nuclear-radiation-shielding properties in V2O5-reinforced ternary zinc borate glasses. This is because of glass materials’ potential as attenuator in industrial, medical, and research ionizing-radiation facilities. It is well known that material density has a remarkable impact on gamma-ray-shielding properties [36,37]. Therefore, the importance of traditional shields such as concrete and lead (Pb) is obvious in ionizing-radiation facilities. Since the glasses have been widely reported as alternative shields instead of the aforementioned conventional shields, this study aimed to characterize the material properties of a ZnO-B2O3-V2O5 system along with its gamma-shielding properties.
M.A. Tunes et al. developed a computational model of a compact pressurized-water nuclear reactor to investigate the use of innovative materials to enhance the biological-shielding effectiveness. They used MCNP and GEM/EVENT codes to simulate the behavior of several materials and the shielding thickness for gamma and neutron radiation [38]. J. Kaewkhao et al. investigated the mass attenuation coefficients and shielding parameters of borate-based glasses involving Bi2O3 and BaO. They established that the increment of the mass-attenuation coefficients was a function of the Bi2O3, BaO, and PbO contents. Furthermore, the half-value layers of investigated glasses were more favorable than normal concretes and marketable window glasses. These results reflect that the Bi-based glass can replace Pb in radiation-shielding glass [39]. P. Limkitjaroenporn et al. prepared lead sodium borate glasses via melt-quenching and explored their optical, physical, structural, and gamma-ray-shielding properties. They recorded that the gamma-ray-shielding properties increased with an increase in PbO concentration [40]. K. Kirdsiri et al. measured the radiation-shielding and optical properties of bismuth lead silicate and barium silicate glasses. They observed that total mass-attenuation coefficients of the glasses at 662 keV were enhanced by the increment of Bi2O3 and PbO, which elevated the photoelectric absorption in the glass networks [41]. S. Kaewjang et al. fabricated and investigated the (80−x)B2O3-10SiO2-10CaO-xGd2O3 (where x = 15, 20, 25, 30, and 35 mol%) for their radiation-shielding, physical, and optical properties. They found that the experimental values of the mass-attenuation coefficients, effective atomic number, and effective electron densities of the glasses increased with the increasing of Gd2O3 concentration, and also with the increasing of photon energy from 223 to 662 keV [42]. N. Chanthima et al. investigated the impacts of BaO on the physical properties of zinc borate-based glasses. They recorded that the radiation-shielding parameters were enhanced as a function of BaO, and the decrement of γ-ray energy [43]. K. Boonin et al. synthesized and inspected zinc barium tellurite glasses for their radiation-defense mechanism and structural behavior. They found that the effective atomic number and effective electron density decreased with the increase in γ-ray energies, which is in a good agreement with theoretical values attained using Geant4 and WinXCOM [44]. W. Cheewasukhanont et al. studied the radiation-shielding parameters of bismuth borosilicate-based glasses. The outcomes revealed that the density of the glasses increased with the increase of Bi2O3 content, while the particle size did not account for the density. They found that the radiation-shielding parameters of these glasses were enhanced over those for traditional glass windows and for some types of concrete [45]. S. Kaewjaeng et al. prepared and investigated (80−x)B2O3:10SiO2:10CaO:xLa2O3 glass (where x = 10, 15, 20, 25, and 30 mol%) for x-ray-shielding, physical, and optical properties. The found that the half-value layer and tenth-value layer of the glass samples tended to decrease when the kVp of an x-ray instrument decreased and La2O3 concentrations increased [46]. F. H. ElBatal et al. studied UV-Vis and FTIR absorption spectra of some prepared undoped and NdF3-doped borophosphate glasses, with varying dopant contents before and after gamma irradiation [47]. H. ElBatal et al. prepared undoped and CuO-doped lithium phosphate, lead phosphate, and zinc phosphate glasses. The measured the UV–VIS and infrared absorption spectra of the prepared samples before and after successive gamma irradiation [48].
This study aims to discuss the potential effects of V2O5 substitution on the nuclear-radiation-shielding properties of ZnO-B2O3-V2O5 glasses. The investigated radiation-attenuation parameters can be ordered as: linear-attenuation coefficients (LACs), mass-attenuation coefficients (MACs), effective electron density (Neff), half-value layer (T1/2), exposure buildup factor (EBF), energy-absorption buildup factor (EABF), tenth-value layer (TVL), mean free path (λ), and effective atomic number (Zeff). The obtained outcomes from the current investigation could be useful to understand the direct impact of glass structure, glass density, and replacement type on the radiation-shielding properties of ZnO-B2O3-V2O5 glasses. In this research report, all the investigated parameters will be discussed in terms of synergistic effect of substitution and changes in the resistance behavior against gamma radiation.

2. Materials and Methods

2.1. Behavioral Changes in ZnO-B2O3-V2O5 Glasses

Figure 1 shows that the fabricated glasses samples encoded as ZBV1, ZBV2, ZBV3, and ZBV4 based on a (100−x)(0.6ZnO–0.4B2O3)(x)(V2O5) (x = 1, 2, 3, 4 mol%) system. Glass densities and elemental compositions are presented in Table 1. As can be seen in Table 1, the values for the glass samples gradually declined from 3.392 g/cm3 to 3.329 g/cm3 with rising concentrations of V2O5 [35]. On the other hand, the molar volume values rose linearly from 22.910 cm3/mol to 24.289 cm3/mol. Therefore, a smooth decrement in gamma-ray-attenuation competencies from ZBV1 to ZBV4 can be expected to be a potential consequence.

2.2. MCNPX Monte Carlo Simulations

MCNPX general-purpose Monte Carlo code was implemented for gamma-ray-transmission simulations in the current investigation. Accordingly, mass-attenuation coefficients (MACs) of the (100−x)(0.6ZnO–0.4B2O3)(x)(V2O5) (x = 1, 2, 3, 4 mol%) glass system was determined. As a first step in the INPUT file, cell cards and surface cards were prepared using elemental mass fractions (wt %) and material densities (Table 1) of ZBV1, ZBV2, ZBV3, and ZBV4 glasses in the 0.015–10 MeV photon-energy range. Next, MAC values obtained from WinXcom [49] and MCNPX [50,51,52] were compared. The overall MAC values were largely stable regarding variations in incident photon energy. Despite this, smooth numerical differences were reported between WinXcom and the Monte Carlo code (Table 2).
This can be clarified by the form of processes and physics used in the Monte Carlo simulation and random event generator for a radiation-transfer method, whereas WinXcom is a mechanism that utilizes mathematical improvement for direct determination of MACs. It is worth noting that the MCNPX does not explicitly record MAC values. In some instances, some data processing is achieved by looking at performance data. Simulations were created by integrating various details, including information such as input files, cell cards, and source. The glass samples were measured in terms of their elemental mass fractions (weight per unit length), and dimensions (cm). The gamma-ray-emitting systems’ total geometry can be seen in Figure 2. In this step, the F4 Tally mesh was directly utilized for detection of attenuated gamma rays. In this tally mesh, the total photon flux in a cell was determined. Finally, it is worth mentioning that a point radioactive isotope was utilized as a source for incident gamma rays. The simulation process was repeated from 0.015 to 15 MeV for each glass sample. Moreover, a well-known variance-reduction technique known as tracking optimization was utilized. To increase simulation efficiency, neutron and electron tracking were set as off, and only photon tracking was allowed in the cell definition (i.e., IMP: P).

3. Results and Discussions

To determine the nuclear-radiation-shielding dynamics of V2O5-reinforced ZnO-B2O3 glasses, in silicon Monte Carlo simulation studies were performed. Accordingly, four separate glasses encoded as ZBV1, ZBV2, ZBV3, and ZBV4 based on a (100−x)(0.6ZnO-0.4B2O3)(x)(V2O5) (x = 1, 2, 3, 4 mol. %) glass system was checked for their potentials as possible materials for nuclear-radiation-shielding implementations. In this study, we used Monte Carlo simulations and Phy-X PSD [53] code for determination of shielding parameters. First, linear-attenuation coefficients (LACs) were determined between 0.015–15 MeV gamma photon energy. Figure 3 depicts the variation in the linear attenuation coefficients (µ) against photon energy for all glasses. Figure 3 shows that the influence of the photoelectric effect, Compton scattering, and pair production processes on the LAC was variable depending on the incident energy zones (i.e., low, middle, and high energy). This finding follows as a result of the association of radiation with matter. At low energy values, the LAC is lost due to photo adsorption. Compton scattering accounted for the majority of the energy difference at the mid-energy area, while the lowest LAC was reported in the ZBV4 sample. In other words, the ZBV4 sample with the highest amount of V2O5 additive showed the lowest LAC values. In contrast, the ZBV1 sample showed the highest LAC values. In the low-energy region, LAC values were quite similar, whereas in the high-energy region, the differences were slightly higher. The importance of density and direct LAC relationship with density were dominant factors (Figure 3). The mass-attenuation coefficient (MAC) of a material is a specific parameter that can be used in terms of density-independent categorizations of studied shielding materials. Figure 4 illustrates the variations in the mass-attenuation coefficient (µm) against incident photon energy for all glasses at 0.015–15 MeV. The chemical structure of the attenuator glass altered the rate of variation of the calculated MAC values. The mathematical analysis of the MAC data show patterns in distinct regions. In the low-energy condition, in which the photoelectric effect is important, the absorption dramatically decreased. Compton-scattering superiority showing the total decrease from the MAC at the mid-energy region. The ZBV1 sample displayed very high atomic concentrations at all incident photon energies. The situation in both the low- and high-energy areas can be clarified by the presence of the highest volume of zinc (Z = 30) in the glass structure, since it has a significant atomic number among the utilized composition elements (i.e., B, O, V, Zn).
HVL, which stands for “half-value layer” (T1/2), is a valuable amount when measuring the thickness of a shielding material in order to minimize gamma rays. So, a smaller HVL may serve as a measure of a material’s capacity to shield incident gamma rays from a primary source. Using the calculated LAC values, the HVLs of the studied glasses were calculated. Figure 5 demonstrates the association between photon energy and T1/2 for all glass samples. In the low-energy spectrum, calculations of HVL values were reported smaller. This is a predictable result for shielding in materials that low-intensity gamma rays cannot move through almost completely. To learn more about the efficiency of the studied materials as gamma-ray absorbers, we found it useful to compare them with some of the materials most commonly used as shields against gamma rays. The HVL value for the best glass sample (ZBV4 = 8.13915 cm) at 15 MeV was compared with other shielding materials (lead= 1.08069 cm, ordinary concrete = 13.89992 cm, HSC = 11.63975 cm, ILC = 9.40269 cm, IL = 7.81848 cm, G1 = 15.25284 cm, and G2 = 10.53327 cm) glasses [54,55]. The comparison shows that the ZBV4 glass came third after lead, and with IL outperforming the other shield types. Considering its other distinguishing features, such as lack of toxicity risk and lower weight, this glass is recommended as the ideal choice in many applications that require gamma-ray shields with specific properties.
However, Figure 5 shows that the HVL values were greater in the mid- as well as the high-energy field. This was attributed to the penetration property of gamma rays and how it changes with higher energy levels. Considering the direct impact of material densities, which were reported as 3.392 g/cm3, 3.371 g/cm3, 3.339 g/cm3, and 3.329g/cm3 for ZBV1, ZBV2, ZBV3, and ZBV4, respectively, the HVL values were changed in similar order. For example, HVL values of 1.109 cm HVLZBV1 < 1.121 cm HVLZBV2 < 1.136 HVLZBV3 < 1.143 cm HVLZBV4 were reported at 0.15 MeV. The initial difference in HVL values was 0.034 cm at 0.015 MeV. To confirm the previously mentioned interpretation of the changing trend of HVL values depending on energy region, it is favorable to order those HVL values in the high-energy region. Thus, 7.948 cm HVLZBV1 < 8.011 cm HVLZBV2 < 8.101 cm HVLZBV3 < 8.139 cm HVLZBV4 were also reported at 15 MeV. In this case, the difference in HVL values was 0.191 cm at 0.015 MeV. Therefore, one can say that the negative effect of V2O5 on HVL values was slightly lower at low energies. Accordingly, the aforementioned reinforcement type negativity can be tolerated at low energy values, considering the positive effects on optical, structural, and thermal properties. The effect of the mean free path (λ) is critical in the capacity of shielding materials to defend against gamma radiation. Glass samples were analyzed in terms of λ values, and details are summarized in Figure 6. The λ values can fluctuate, similar to the shifting patterns in the HVL. The λ values of ZBV1 have been recoded as the minimum in the investigated energy range. Another main element to remember is the tenth-value layer (TVL). The TVL element is another critical criterion to verify the thickness of shields, minimizing gamma rays’ strength to 1/10 of their original intensity. The TVLs of the studied samples were calculated, and a graph was drawn showing their importance against incident photon energy (Figure 7). In the lower-energy ranges, the TVL values were lower. Similar to the changing trend in HVL values, TVL values were registered as 3.685 cm HVLZBV1 < 3.722 cm HVLZBV2 < 3.772 cm HVLZBV3 < 3.797 cm HVLZBV4 at 0.15 MeV. The effective atomic number (Zeff) of a substance used for gamma-ray exposure regulation would contribute to its photon-attenuation properties. The variation of effective atomic number (Zeff) against photon energy for all glasses is shown in Figure 8.
The Zeff values for ZBV1 glass were the best. For example, a Zeff value of 14.01 was found for the ZBV1 sample at 0.15 MeV. However, the maximum Zeff values recorded for samples were 28.42, 28.30, 28.19, and 28.07 for ZBV1, ZBV2, ZBV3, and ZBV4, respectively. The average photon flux was measured in the detection field by using an F4 tally mesh (Figure 2). Then, an absorption coefficient was used to compensate for a scattering of the radiation. Excess radiation required the cumulative measurement of radiation buildup. The attenuation component was multiplied by the photon’s attenuation rate to measure the photon’s overall attenuation. The moderator attenuates the penetration of photons of varying intensities such that they both achieve the same reception. In this case, buildup factors can be classified as exposure buildup factor (EBF) and energy-absorption buildup factor (EABF).
In this analysis, a G-P fitting method was utilized for determination of EBF and EABF values. The fitting parameters’ calculated numerical values are displayed in Table 3, Table 4, Table 5 and Table 6 along with equivalent atomic numbers (Zeq). Figure 9a–d and Figure 10a–d illustrate the measured EBF and EABF values for studied glasses at various mean free paths from 0.6 to 40 mfp. Figure 9 and Figure 10 express the concentration of the different layers of EBF and EABF owing to irradiation by gamma rays. We shall explain the changing trend of EBF and EABF values at different energy values. Due to the photoelectric influence being neglected in regions with large atomic numbers, one may see smooth increments in the first region (Table 3, Table 4, Table 5 and Table 6). In addition, the third section of the sample was the most interesting during pair growth due to its absorption processes, which resulted in the decline in its value. Figure 9 and Figure 10 depict the changes in EBF and EABF values of ZBV1, ZBV2, ZBV3, and ZBV4 glass samples for different mean free path (mfp) values (i.e., 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30, 35, and 40 mfp). These figures demonstrate the reliance of the EBF and EABF values upon the glass structure. The obtained EBF and EABF values showed that ZBV1 had the lowest EBF and EABF levels, and was superior to all other glasses.
Figure 11 and Figure 12 show the differing energy-absorption buildup factors (EABF) and exposure buildup factors (EBF) at 0.4 MeV along with 10, 20, 30, and 40 mfp values for all glasses. It can be seen that the ZBV1 sample showed the minimum EBF and EABF values at the studied mfp values. From ZBV1 to ZBV4, EBF and EABF values showed an increasing trend. This can be explained by decreasing gamma-ray-attenuation competencies with a V2O5 reinforcement amount from 1 to 4 mol.%. As a last analysis of EBF and EABF values, Figure 13 shows the variations in the energy-absorption buildup factor (EABF) and exposure buildup factor (EBF) against effective atomic number (Zeff) for all glasses at 1 MeV/5 mfp. This is another sign of the synergistic effect of V2O5 reinforcement, which caused a decrement in densities of glasses, and in gamma-ray-shielding competencies accordingly. As illustrated in Figure 13, EBF values increased gradually from ZBV1 to ZBV4. This trend was a natural consequence of variations in effective atomic numbers, which was discussed in previous sections.

4. Conclusions

Glasses doped with transition-metal oxides were reported to show semiconducting properties in many experimental data due to their multivalid states. Furthermore. boron oxide-based glasses are preferred since they can be synthesized easily, and due to their many characteristic optical and thermal properties. In fact, since zinc borate oxide glasses have a broad spectrum of formation range, they have been the hosts for dopant many times. Zinc borate glasses with a high ZnO ratio were doped with vanadium oxide at varying ratios and constituted the study samples. Increasing the amount of V2O5 within the structure resulted in a negative effect, contrary to what was expected in a previous study, and this was valid for the radiation properties observed in this study. V2O5 replaced B2O3 and ZnO. Though vanadium is an element that is heavier than boron. it is lighter than zinc. The domination of ZnO concentration in the composition compared to B2O3 made the ZnO substitution with V2O5 more dominant, leading to a decrease in density. Since density has a significant role in data obtained from radiation calculations, the negative effect was observed. The first outcome can be associated with the relationship of density variation and gamma-ray-attenuation properties, since the density values of the samples were changed with the V2O5 additive. Considering the obtained results for gamma-ray-attenuation properties, it can be concluded that V2O5 reinforcement had an adverse impact against gamma rays. This situation was obtained for all the gamma-ray-attenuation properties such as LAC, MAC, HVL, TVL, mfp, Zeff, EBF, and EABF. Some of the numerical values were discussed in previous sections. Among the investigated glasses, ZBV1 was reported to have the highest gamma-ray-attenuation properties. Therefore, it can be said that ZBV1 would attenuate incident gamma rays at the maximum level. It can be concluded that some other investigations, such as on mechanical properties acquired upon utilization, should be performed.

Author Contributions

Conceptualization, G.K., H.M.H.Z. and M.H.M.Z.; methodology, G.K.; software, H.O.T., S.A.M.I., H.M.H.Z.; validation, H.O.T., S.A.M.I., H.M.H.Z., H.A.A.S., M.M.A., K.A., K.A.M.; formal analysis, G.K., N.T., H.M.H.Z., M.M.A., M.H.M.Z.; investigation, H.O.T., S.A.M.I., G.K., K.A., H.M.H.Z.; resources, G.K., S.A.M.I.; data curation, H.O.T., H.M.H.Z.; writing—original draft preparation, H.M.H.Z., M.M.A., M.H.M.Z.; writing—review and editing, H.O.T., S.A.M.I., N.T., K.A., H.A.A.S., K.A.M.; visualization, H.M.H.Z.; supervision, G.K., H.M.H.Z., M.H.M.Z.; project administration, H.M.H.Z., M.M.A., M.H.M.Z.; funding acquisition, H.A.A.S., M.H.M.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kilic, G.I.U. Synthesis of Nb5+ Doped Zinc Borate Glasses for Optoelectronic Applications and Determination of Optical, Thermal and Structural Properties. J. Adv. Res. Nat. Appl. Sci. 2020, 6, 66–80. [Google Scholar]
  2. El-Falaky, G.; Gaafar, M.; El-Aal, N.A. Ultrasonic relaxation in Zinc–Borate glasses. Curr. Appl. Phys. 2012, 12, 589–596. [Google Scholar] [CrossRef]
  3. Wu, J.; Xie, C.; Hu, J.; Zeng, D.; Wang, A. Microstructure and electrical characteristics of ZnO–B2O3–PbO–V2O5–MnO2 ceramics prepared from ZnO nanopowders. J. Eur. Ceram. Soc. 2004, 24, 3635–3641. [Google Scholar] [CrossRef]
  4. Kilic, G.; Ilik, E.; Issever, U.G.; Peker, M. The effect of B2O3/CdO substitution on structural, thermal, and optical properties of new black PVB/Cd semiconducting oxide glasses. Appl. Phys. A 2020, 126, 1–12. [Google Scholar] [CrossRef]
  5. Kiliç, G.; Aral, E. Determination of optical band gaps and structural properties of Cu2+ Doped B2O3-Na2O-Al2O3-V2O5 Glasses. Gazi Univ. J. Sci. 2009, 22, 129–139. [Google Scholar]
  6. Rao, R.B.; Veeraiah, N.; Nalluri, V. Study on some physical properties of Li2O–MO–B2O3: V2O5 glasses. Phys. B Condens. Matter 2004, 348, 256–271. [Google Scholar] [CrossRef]
  7. Ilik, E.; Kilic, G.; Issever, U.G. Synthesis of novel AgO-doped vanadium–borophosphate semiconducting glasses and investigation of their optical, structural, and thermal properties. J. Mater. Sci. Mater. Electron. 2020, 31, 8986–8995. [Google Scholar] [CrossRef]
  8. El-Batal, H.A.R.; Ezz-El-Din, F.M. Interaction of gamma-rays with Some Alkali-Alkaline-Earth Borate Glasses Containing Chromium. J. Am. Ceram. Soc. 1993, 76, 523–529. [Google Scholar] [CrossRef]
  9. Marltan, W.; Rao, P.V.; Tekin, H.; Sayyed, M.; Klement, R.; Galusek, D.; Lakshminarayana, G.; Prasad, P.S.; Veeraiah, N. Analysis of red mud doped Bi2O3-B2O3-BaO glasses for application as glass solder in radiation shield repair using MCNPX simulation. Ceram. Int. 2019, 45, 7619–7626. [Google Scholar] [CrossRef]
  10. Kilic, G.; Ilik, E.; Mahmoud, K.; El-Mallawany, R.; El-Agawany, F.; Rammah, Y. Novel zinc vanadyl boro-phosphate glasses: ZnO–V2O5–P2O5–B2O3: Physical, thermal, and nuclear radiation shielding properties. Ceram. Int. 2020, 46, 19318–19327. [Google Scholar] [CrossRef]
  11. He, F.; Wang, J.; Deng, D. Effect of Bi2O3 on structure and wetting studies of Bi2O3–ZnO–B2O3 glasses. J. Alloys Compd. 2011, 509, 6332–6336. [Google Scholar] [CrossRef]
  12. Li, S.; Chen, P.; Li, Y. Structural and physical properties in the system ZnO–B2O3–P2O5–RnOm. Phys. B Condens. Matter 2010, 405, 4845–4850. [Google Scholar] [CrossRef]
  13. Aleksandrov, L.A.; Komatsu, T.; Iordanova, R.; Dimitriev, Y. Structure study of MoO3–ZnO–B2O3 glasses by Raman spectroscopy and formation of α-ZnMoO4 nanocrystals. Opt. Mater. 2011, 33, 839–845. [Google Scholar] [CrossRef]
  14. Bale, S.; Rahman, S. Electrical conductivity studies of Bi2O3–Li2O–ZnO–B2O3 glasses. Mater. Res. Bull. 2012, 47, 1153–1157. [Google Scholar] [CrossRef]
  15. Ozturk, S.; Ilik, E.; Kilic, G.; Issever, U.G. Ta2O5-doped zinc-borate glasses: Physical, structural, optical, thermal, and radiation shielding properties. Appl. Phys. A 2020, 126, 1–16. [Google Scholar] [CrossRef]
  16. Tekin, H.O.; Kassab, L.R.P.; Issa, S.A.M.; Dias da Silva Bordon, C.; Al-Buriahi, M.S.; de Oliviera Pereira Delboni, F.; Kilic, G.; Magalhaes, E.S. Structural and physical characterization study on synthesized tellurite (TeO2) and germanate (GeO2) glass shields using XRD, Raman spectroscopy, FLUKA and PHITS. Opt. Mater. 2020, 110. [Google Scholar] [CrossRef]
  17. Kilic, G.; Issa, S.; Ilik, E.; Kilicoglu, O.; Tekin, H. A journey for exploration of Eu2O3 reinforcement effect on zinc-borate glasses: Synthesis, optical, physical and nuclear radiation shielding properties. Ceram. Int. 2021, 47, 2572–2583. [Google Scholar] [CrossRef]
  18. Işsever, U.G.; Kilic, G.; Peker, M.; Ünaldi, T.; Aybek, A. Şenol Effect of low ratio V5+ doping on structural and optical properties of borotellurite semiconducting oxide glasses. J. Mater. Sci. Mater. Electron. 2019, 30, 15156–15167. [Google Scholar] [CrossRef]
  19. Dimitrov, V.; Dimitriev, Y.; Montenero, A. IR spectra and structure of V2O5GeO2Bi2O3 glasses. J. Non. Cryst. Solids 1994, 180, 51–57. [Google Scholar] [CrossRef]
  20. Ravikumar, R.; Reddy, V.R.; Chandrasekhar, A.; Reddy, B.; Reddy, Y.; Rao, P. Tetragonal site of transition metal ions doped sodium phosphate glasses. J. Alloys Compd. 2002, 337, 272–276. [Google Scholar] [CrossRef]
  21. Hirashima, H.; Arai, D.; Yoshida, T. Electrical Conductivity of PbO-P2O5-V2O5 Glasses. J. Am. Ceram. Soc. 1985, 68, 486–489. [Google Scholar] [CrossRef]
  22. Srinivas, B.; Hameed, A.; Shareefuddin, M.; Chary, M.N. EPR and optical studies of BaO-TeO2-TiO2-B2O3 glasses containing V4+ and Cu2+ transitional metal ion. In Proceedings of the Materials Today: Proceedings; Elsevier Ltd: Amsterdam, the Netherlands, 2015; Volume 2, pp. 1915–1922. [Google Scholar]
  23. Nagaraja, N.; Sankarappa, T.; Kumar, M.P. Electrical conductivity studies in single and mixed alkali doped cobalt–borate glasses. J. Non-Crystalline Solids 2008, 354, 1503–1508. [Google Scholar] [CrossRef]
  24. Hemeda, O.; Eid, M.; Sharshar, T.; Ellabany, H.; Henaish, A. Synthesis of nanometer-sized PbZr Ti1-O3 for gamma-ray attenuation. J. Phys. Chem. Solids 2021, 148, 109688. [Google Scholar] [CrossRef]
  25. Sallam, O.; Madbouly, A.; Elalaily, N.; Ezz-Eldin, F. Physical properties and radiation shielding parameters of bismuth borate glasses doped transition metals. J. Alloys Compd. 2020, 843, 156056. [Google Scholar] [CrossRef]
  26. Henaish, A.M.A.; Mostafa, M.; Salem, B.I.; Zakaly, H.M.H.; Issa, S.A.M.; Weinstein, I.A.; Hemeda, O.M. Spectral, electrical, magnetic and radiation shielding studies of Mg-doped Ni–Cu–Zn nanoferrites. J. Mater. Sci. Mater. Electron. 2020, 1–13. [Google Scholar] [CrossRef]
  27. Abouhaswa, A.; Zakaly, H.M.; Issa, S.A.; Rashad, M.; Pyshkina, M.; Tekin, H.; El-Mallawany, R.; Mostafa, M.Y. Synthesis, physical, optical, mechanical, and radiation attenuation properties of TiO2–Na2O–Bi2O3–B2O3 glasses. Ceram. Int. 2021, 47, 185–204. [Google Scholar] [CrossRef]
  28. Elazaka, A.; Zakaly, H.M.; Issa, S.A.; Rashad, M.; Tekin, H.; Saudi, H.; Gillette, V.; Erguzel, T.; Mostafa, A. New approach to removal of hazardous Bypass Cement Dust (BCD) from the environment: 20Na2O-20BaCl2-(60−x)B2O3-(x)BCD glass system and Optical, mechanical, structural and nuclear radiation shielding competences. J. Hazard. Mater. 2021, 403, 123738. [Google Scholar] [CrossRef]
  29. Zakaly, H.M.; Saudi, H.; Issa, S.A.; Rashad, M.; Elazaka, A.; Tekin, H.; Saddeek, Y. Alteration of optical, structural, mechanical durability and nuclear radiation attenuation properties of barium borosilicate glasses through BaO reinforcement: Experimental and numerical analyses. Ceram. Int. 2021, 47, 5587–5596. [Google Scholar] [CrossRef]
  30. Zakaly, H.M.; Abouhaswa, A.; Issa, S.A.M.; Mostafa, M.Y.A.; Pyshkina, M.; El-Mallawany, R. Optical and nuclear radiation shielding properties of zinc borate glasses doped with lanthanum oxide. J. Non-Crystalline Solids 2020, 543, 120151. [Google Scholar] [CrossRef]
  31. Mostafa, A.; Zakaly, H.M.; Pyshkina, M.; Issa, S.A.; Tekin, H.; Sidek, H.; Matori, K.; Zaid, M. Multi-objective optimization strategies for radiation shielding performance of BZBB glasses using Bi2O3: A FLUKA Monte Carlo code calculations. J. Mater. Res. Technol. 2020, 9, 12335–12345. [Google Scholar] [CrossRef]
  32. Saudi, H.A.; El Kameesy, S.U. Effect of barium addition and plasma nitriding treatment on chemical and physical properties of Al, Pb borate glass system as a developed radiation shield. In Proceedings of the Journal of Physics: Conference Series; IOP Publishing: Luxor, Egypt, 2019; Volume 1253, p. 012033. [Google Scholar]
  33. Singh, K.; Singh, H.; Sharma, G.; Gerward, L.; Khanna, A.; Kumar, R.; Nathuram, R.; Sahota, H.S. Gamma-ray shielding properties of CaO–SrO–B2O3 glasses. Radiat. Phys. Chem. 2005, 72, 225–228. [Google Scholar] [CrossRef]
  34. Kaplan, M.F. Concrete Radiation Shielding; John Wiley & Sons, Inc: New York, NY, USA, 1989. [Google Scholar]
  35. Kiliç, G. Synthesis and Optical, Thermal, Structural Investigation of Zinc-Borate Glasses Containing V2O5. Adıyaman Univ. J. Sci. 2020, 10, 307–325. [Google Scholar] [CrossRef]
  36. Issa, S.A. Effective atomic number and mass attenuation coefficient of PbO–BaO–B2O3 glass system. Radiat. Phys. Chem. 2016, 120, 33–37. [Google Scholar] [CrossRef]
  37. Yasmin, S.; Barua, B.S.; Khandaker, M.U.; Chowdhury, F.-U.-Z.; Rashid, A.; Bradley, D.A.; Olatunji, M.A.; Kamal, M. Studies of ionizing radiation shielding effectiveness of silica-based commercial glasses used in Bangladeshi dwellings. Results Phys. 2018, 9, 541–549. [Google Scholar] [CrossRef]
  38. Tunes, M.; De Oliveira, C.; Schön, C. Multi-objective optimization of a compact pressurized water nuclear reactor computational model for biological shielding design using innovative materials. Nucl. Eng. Des. 2017, 313, 20–28. [Google Scholar] [CrossRef]
  39. Kaewkhao, J.; Pokaipisit, A.; Limsuwan, P. Study on borate glass system containing with Bi2O3 and BaO for gamma-rays shielding materials: Comparison with PbO. J. Nucl. Mater. 2010, 399, 38–40. [Google Scholar] [CrossRef]
  40. Limkitjaroenporn, P.; Kaewkhao, J.; Limsuwan, P.; Chewpraditkul, W. Physical, optical, structural and gamma-ray shielding properties of lead sodium borate glasses. J. Phys. Chem. Solids 2011, 72, 245–251. [Google Scholar] [CrossRef]
  41. Kirdsiri, K.; Kaewkhao, J.; Chanthima, N.; Limsuwan, P. Comparative study of silicate glasses containing Bi2O3, PbO and BaO: Radiation shielding and optical properties. Ann. Nucl. Energy 2011, 38, 1438–1441. [Google Scholar] [CrossRef]
  42. Kaewjang, S.; Maghanemi, U.; Kothan, S.; Kim, H.; Limkitjaroenporn, P.; Kaewkhao, J. New gadolinium based glasses for gamma-rays shielding materials. Nucl. Eng. Des. 2014, 280, 21–26. [Google Scholar] [CrossRef]
  43. Chanthima, N.; Kaewkhao, J.; Limkitjaroenporn, P.; Tuscharoen, S.; Kothan, S.; Tungjai, M.; Kaewjaeng, S.; Sarachai, S.; Limsuwan, P. Development of BaO–ZnO–B2O3 glasses as a radiation shielding material. Radiat. Phys. Chem. 2017, 137, 72–77. [Google Scholar] [CrossRef]
  44. Boonin, K.; Yasaka, P.; Limkitjaroenporn, P.; Rajaramakrishna, R.; Askin, A.; Sayyed, M.; Kothan, S.; Kaewkhao, J. Effect of BaO on lead free zinc barium tellurite glass for radiation shielding materials in nuclear application. J. Non-Crystalline Solids 2020, 550, 120386. [Google Scholar] [CrossRef]
  45. Cheewasukhanont, W.; Limkitjaroenporn, P.; Kothan, S.; Kedkaew, C.; Kaewkhao, J. The effect of particle size on radiation shielding properties for bismuth borosilicate glass. Radiat. Phys. Chem. 2020, 172, 108791. [Google Scholar] [CrossRef]
  46. Kaewjaeng, S.; Kothan, S.; Chaiphaksa, W.; Chanthima, N.; Rajaramakrishna, R.; Kim, H.; Kaewkhao, J. High transparency La2O3-CaO-B2O3-SiO2 glass for diagnosis x-rays shielding material application. Radiat. Phys. Chem. 2019, 160, 41–47. [Google Scholar] [CrossRef]
  47. ElBatal, F.; Ibrahim, S.; Abdelghany, A. Optical and FTIR spectra of NdF3-doped borophosphate glasses and effect of gamma irradiation. J. Mol. Struct. 2012, 1030, 107–112. [Google Scholar] [CrossRef]
  48. Elbatal, H.; Abdelghany, A.; Elbatal, F.; Elbadry, K.; Moustaffa, F. UV–visible and infrared absorption spectra of gamma irradiated CuO-doped lithium phosphate, lead phosphate and zinc phosphate glasses: A comparative study. Phys. B Condens. Matter 2011, 406, 3694–3703. [Google Scholar] [CrossRef]
  49. Gerward, L.; Guilbert, N.; Jensen, K.; Levring, H. WinXCom—a program for calculating X-ray attenuation coefficients. Radiat. Phys. Chem. 2004, 71, 653–654. [Google Scholar] [CrossRef]
  50. Tekin, H.O. MCNP-X Monte Carlo Code Application for Mass Attenuation Coefficients of Concrete at Different Energies by Modeling 3 × 3 Inch NaI(Tl) Detector and Comparison with XCOM and Monte Carlo Data. Sci. Technol. Nucl. Install. 2016, 2016, 1–7. [Google Scholar] [CrossRef] [Green Version]
  51. Tekin, H.O.; Singh, V.P.; Manici, T.; Altunsoy, E.E. Validation of MCNPX with Experimental Results of Mass Attenuation Coefficients for Cement, Gypsum and Mixture. J. Radiat. Prot. Res. 2017, 42, 154–157. [Google Scholar] [CrossRef]
  52. RSICC Computer Code Collection, MCNPX User’s Manual Version 2.4.0. Monte Carlo N-Particle Transport Code System for Multiple and High Energy Application. 2002. Available online: https://rsicc.ornl.gov/codes/ccc/ccc8/ccc-810.html (accessed on 15 January 2021).
  53. Şakar, E.; Özpolat, Ö.F.; Alım, B.; Sayyed, M.; Kurudirek, M. Phy-X/PSD: Development of a user friendly online software for calculation of parameters relevant to radiation shielding and dosimetry. Radiat. Phys. Chem. 2020, 166, 108496. [Google Scholar] [CrossRef]
  54. Bashter, I. Calculation of radiation attenuation coefficients for shielding concretes. Ann. Nucl. Energy 1997, 24, 1389–1401. [Google Scholar] [CrossRef]
  55. Issa, S.A.; Saddeek, Y.B.; Tekin, H.; Sayyed, M.; Shaaban, K.S. Investigations of radiation shielding using Monte Carlo method and elastic properties of PbO-SiO2-B2O3-Na2O glasses. Curr. Appl. Phys. 2018, 18, 717–727. [Google Scholar] [CrossRef]
Materials 14 01158 g001 550

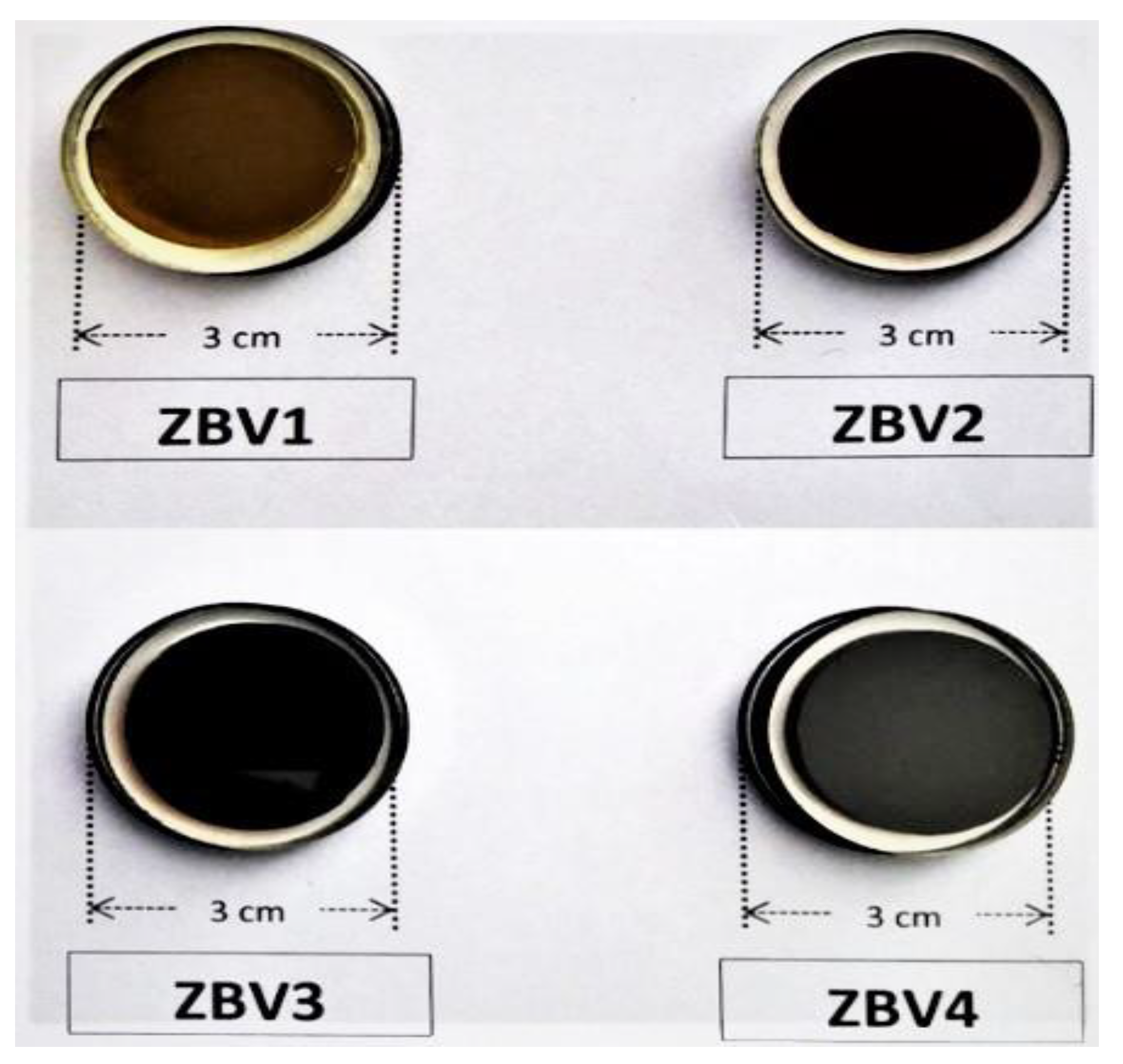

Figure 1. Studied glass samples [35] and their physical/optical appearances.
Figure 1. Studied glass samples [35] and their physical/optical appearances.
Materials 14 01158 g001
Materials 14 01158 g002 550

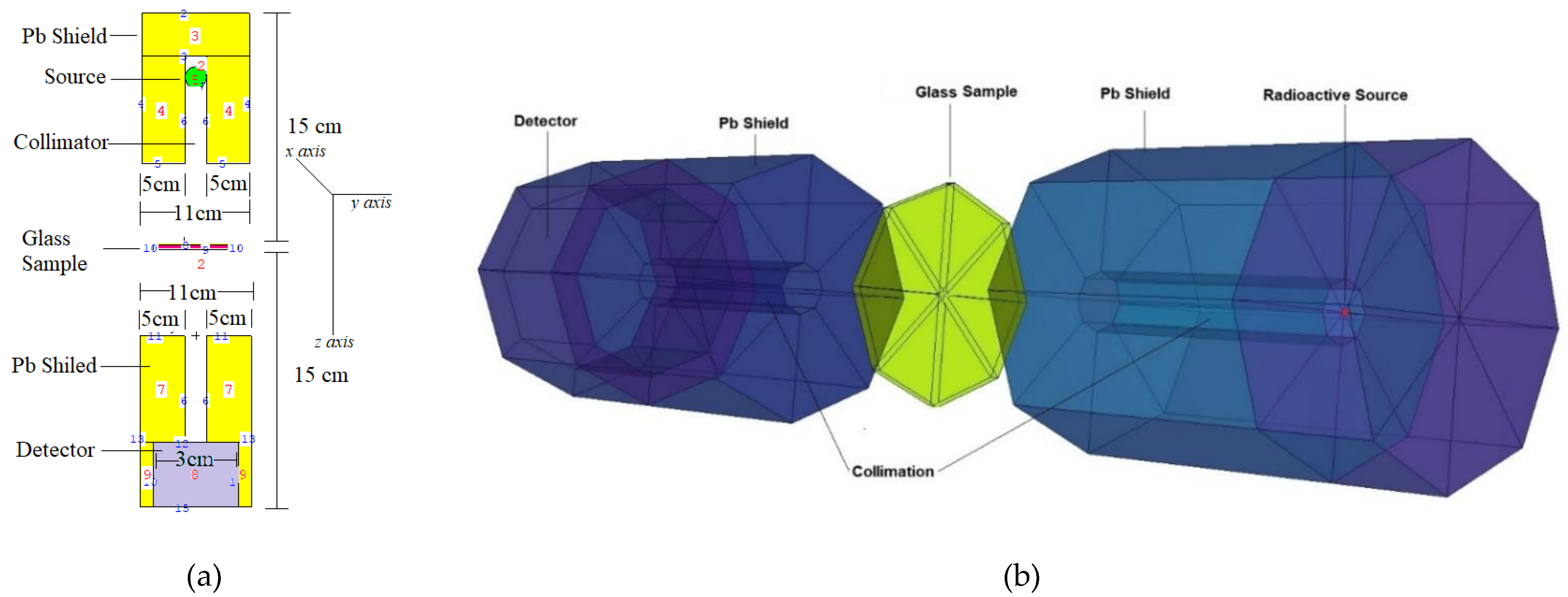

Figure 2. MCNPX simulation setup for gamma-ray-transmission studies: (a) 2D view with dimensions, (b) 3D view of setup obtained from MCNPX Visual Editor.
Figure 2. MCNPX simulation setup for gamma-ray-transmission studies: (a) 2D view with dimensions, (b) 3D view of setup obtained from MCNPX Visual Editor.
Materials 14 01158 g002
Materials 14 01158 g003 550

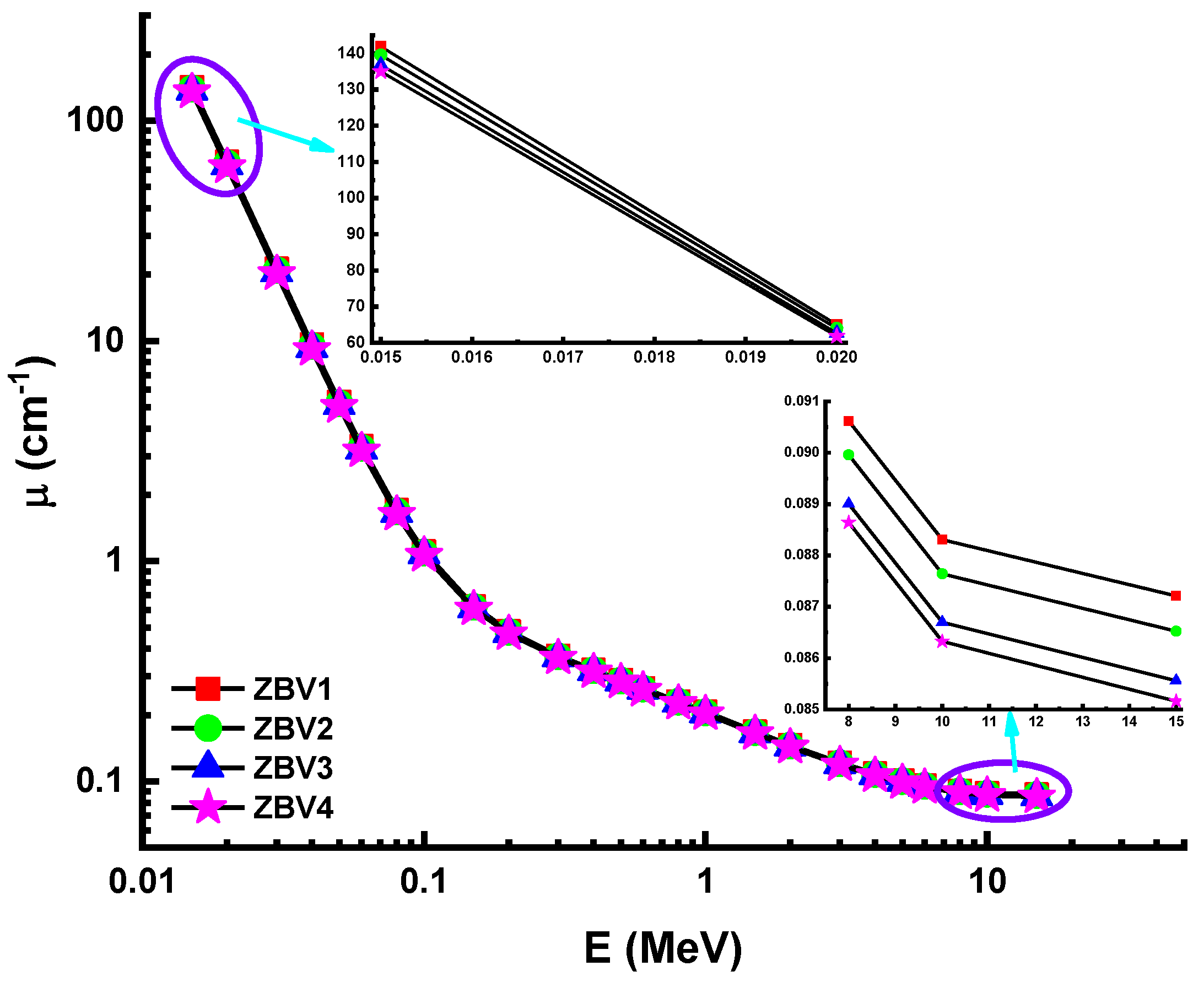

Figure 3. Variation of linear-attenuation coefficient (µ) against photon energy for all glasses.
Figure 3. Variation of linear-attenuation coefficient (µ) against photon energy for all glasses.
Materials 14 01158 g003
Materials 14 01158 g004 550

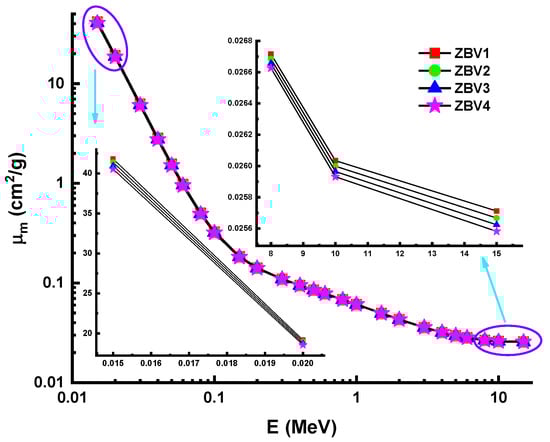

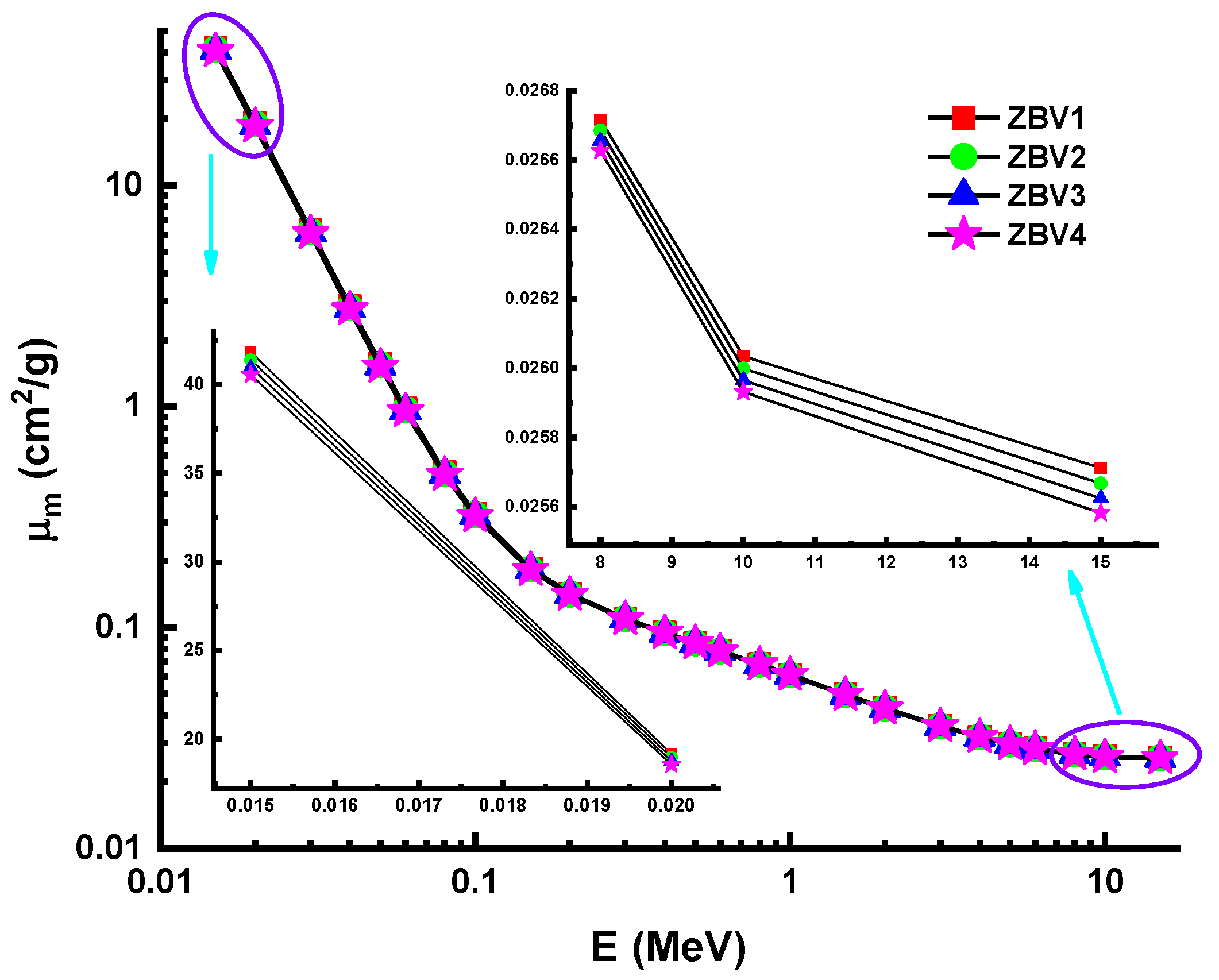

Figure 4. Variation of mass-attenuation coefficient (µm) against photon energy for all glasses.
Figure 4. Variation of mass-attenuation coefficient (µm) against photon energy for all glasses.
Materials 14 01158 g004
Materials 14 01158 g005 550

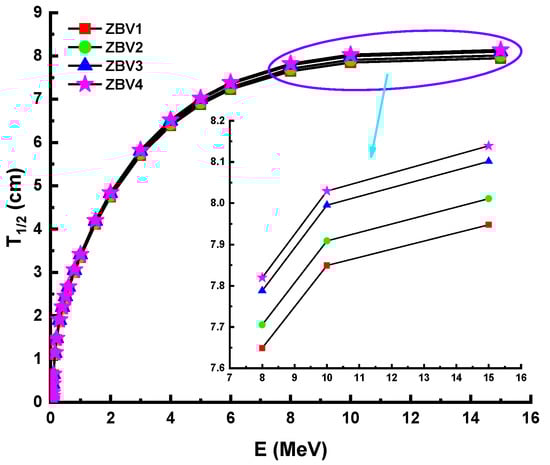

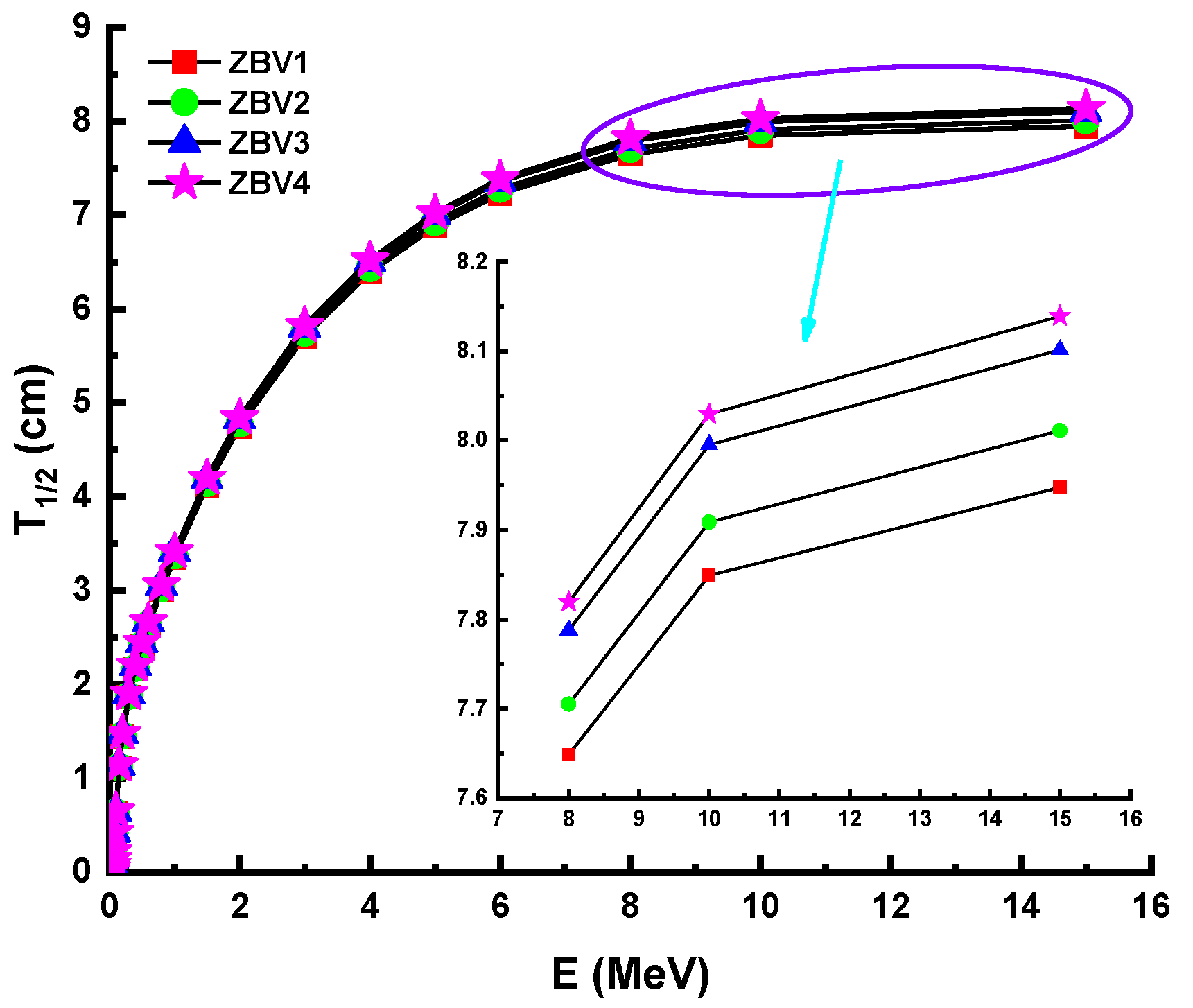

Figure 5. Variation of half-value layer (T1/2) against photon energy for all glasses.
Figure 5. Variation of half-value layer (T1/2) against photon energy for all glasses.
Materials 14 01158 g005
Materials 14 01158 g006 550

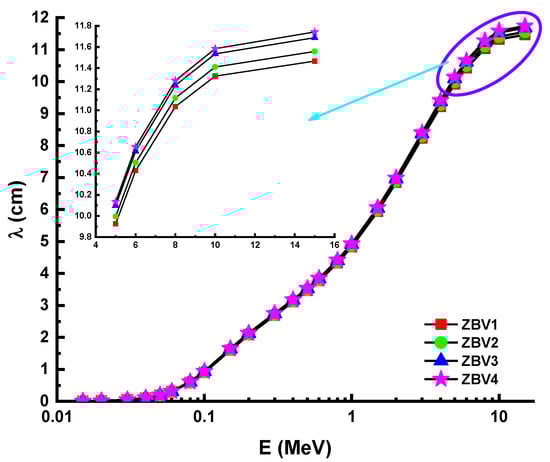

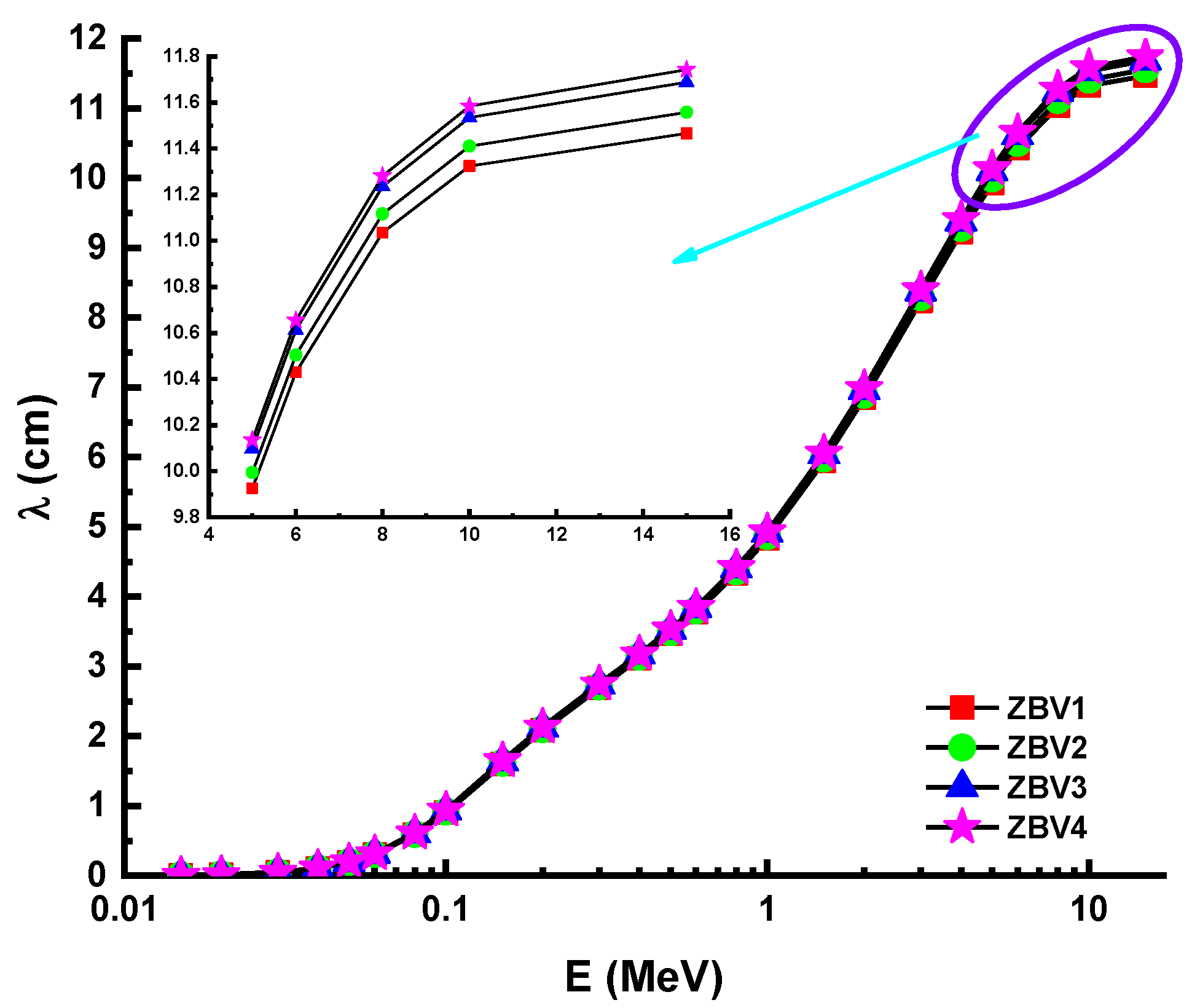

Figure 6. Variation of mean free path (λ) against photon energy for all glasses.
Figure 6. Variation of mean free path (λ) against photon energy for all glasses.
Materials 14 01158 g006
Materials 14 01158 g007 550

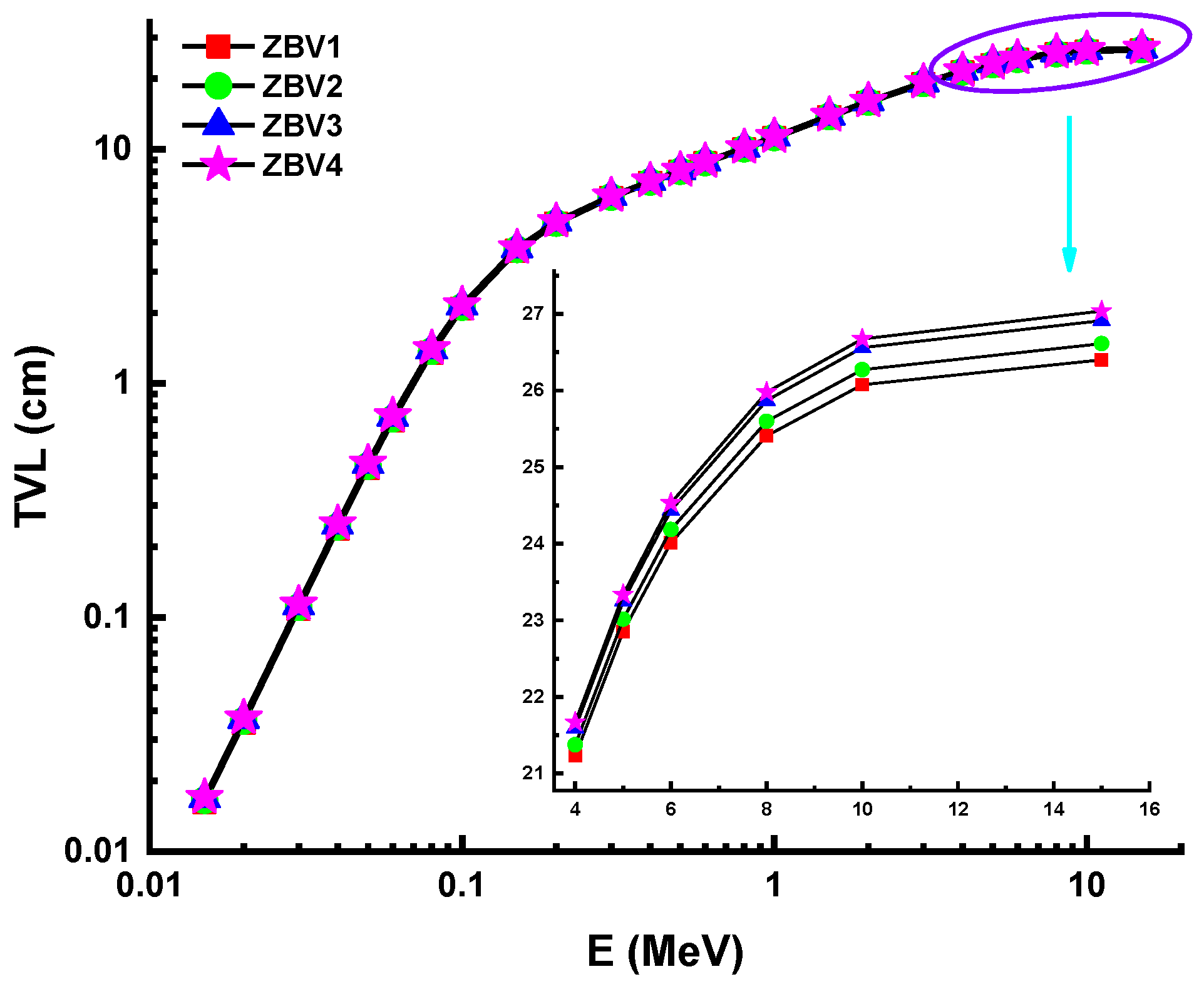

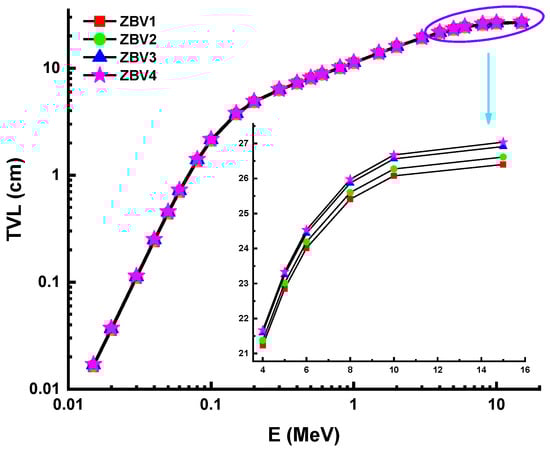

Figure 7. Variation of tenth-value layer (TVL) against photon energy for all glasses.
Figure 7. Variation of tenth-value layer (TVL) against photon energy for all glasses.
Materials 14 01158 g007
Materials 14 01158 g008 550

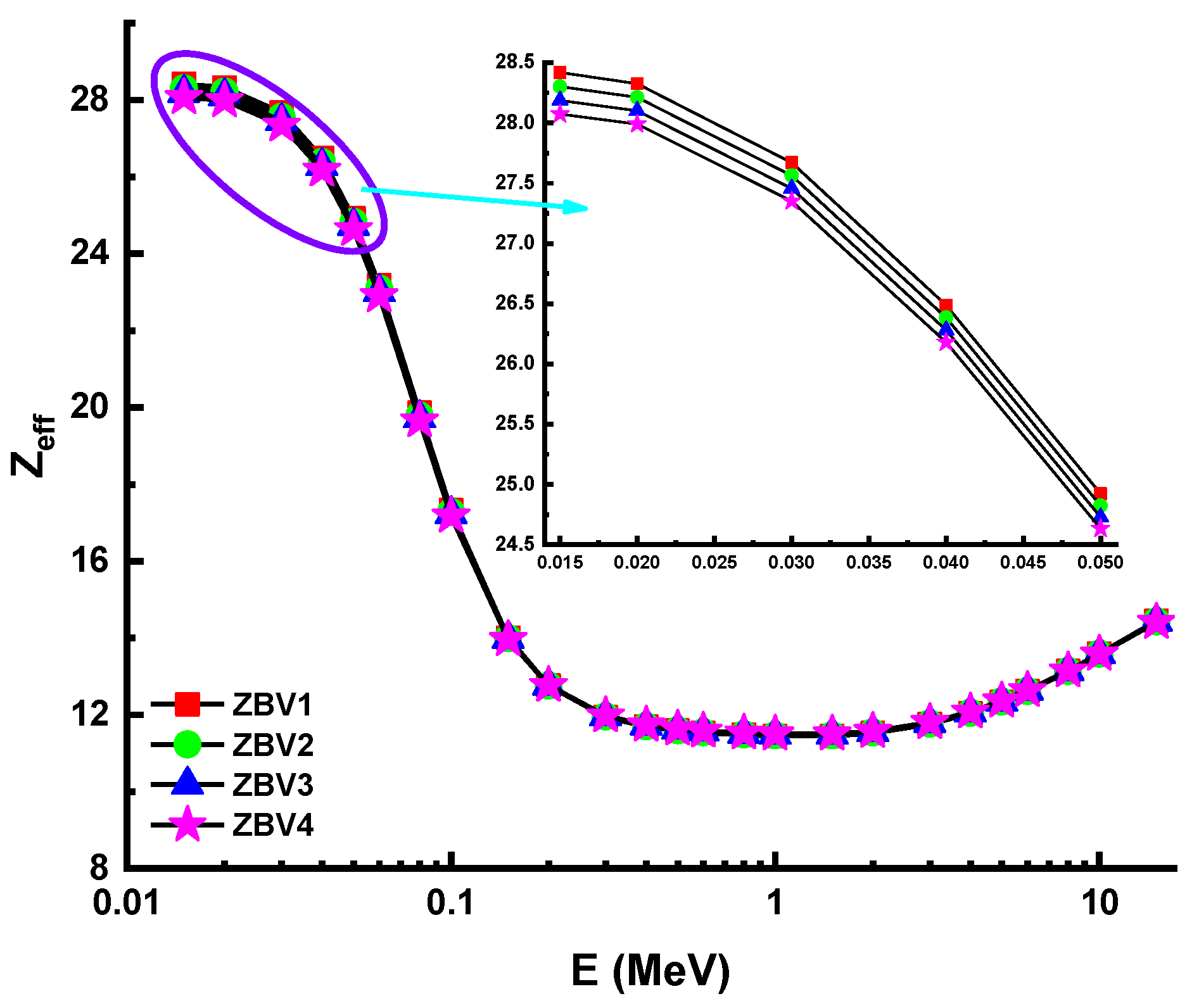

Figure 8. Variation of effective atomic number (Zeff) against photon energy for all glasses.
Figure 8. Variation of effective atomic number (Zeff) against photon energy for all glasses.
Materials 14 01158 g008
Materials 14 01158 g009 550

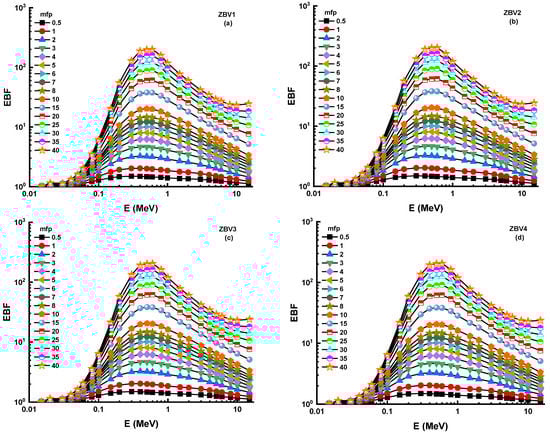

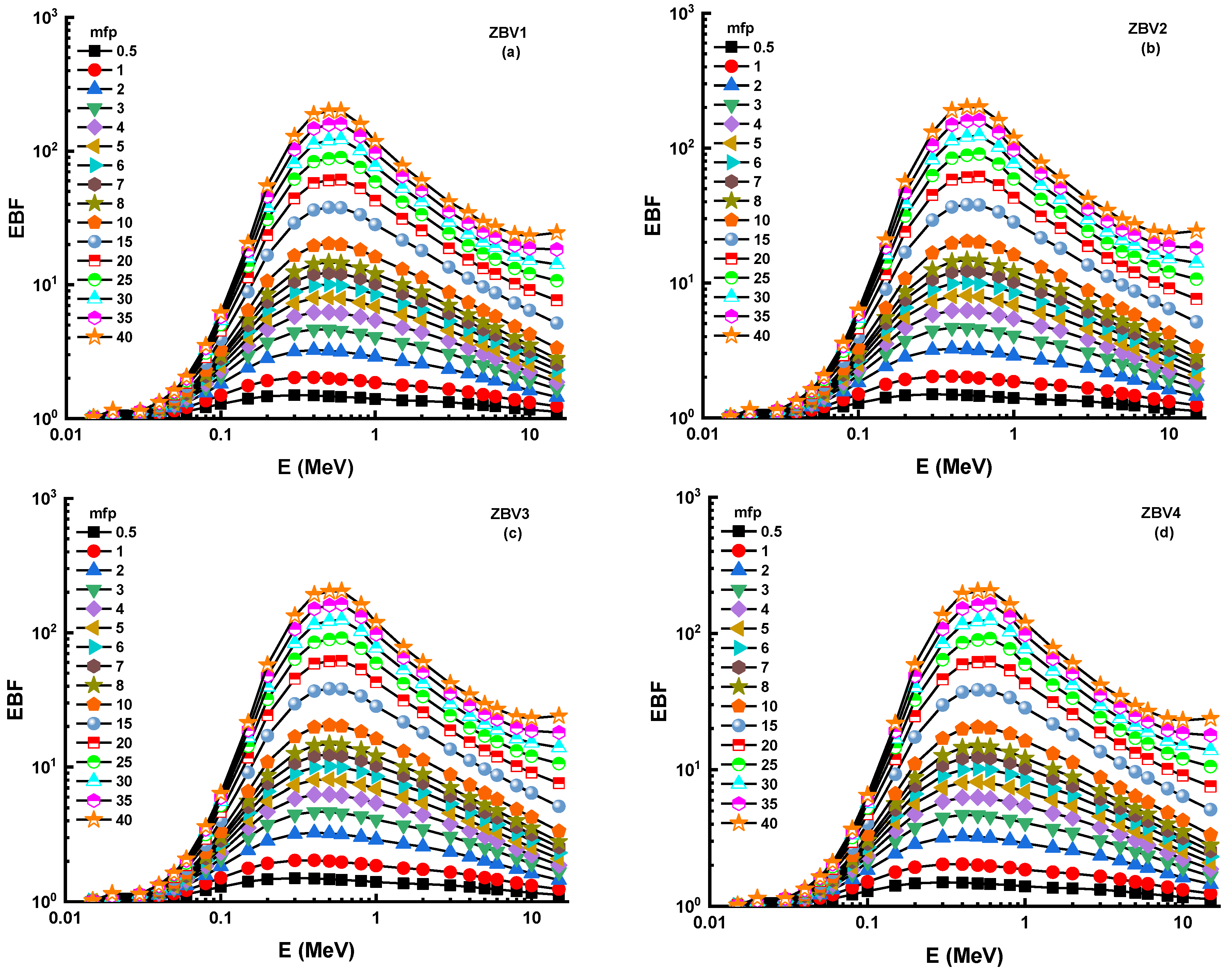

Figure 9. (a–d): Variation of exposure buildup factor (EBF) against photon energy for all glasses.
Figure 9. (a–d): Variation of exposure buildup factor (EBF) against photon energy for all glasses.
Materials 14 01158 g009
Materials 14 01158 g010 550

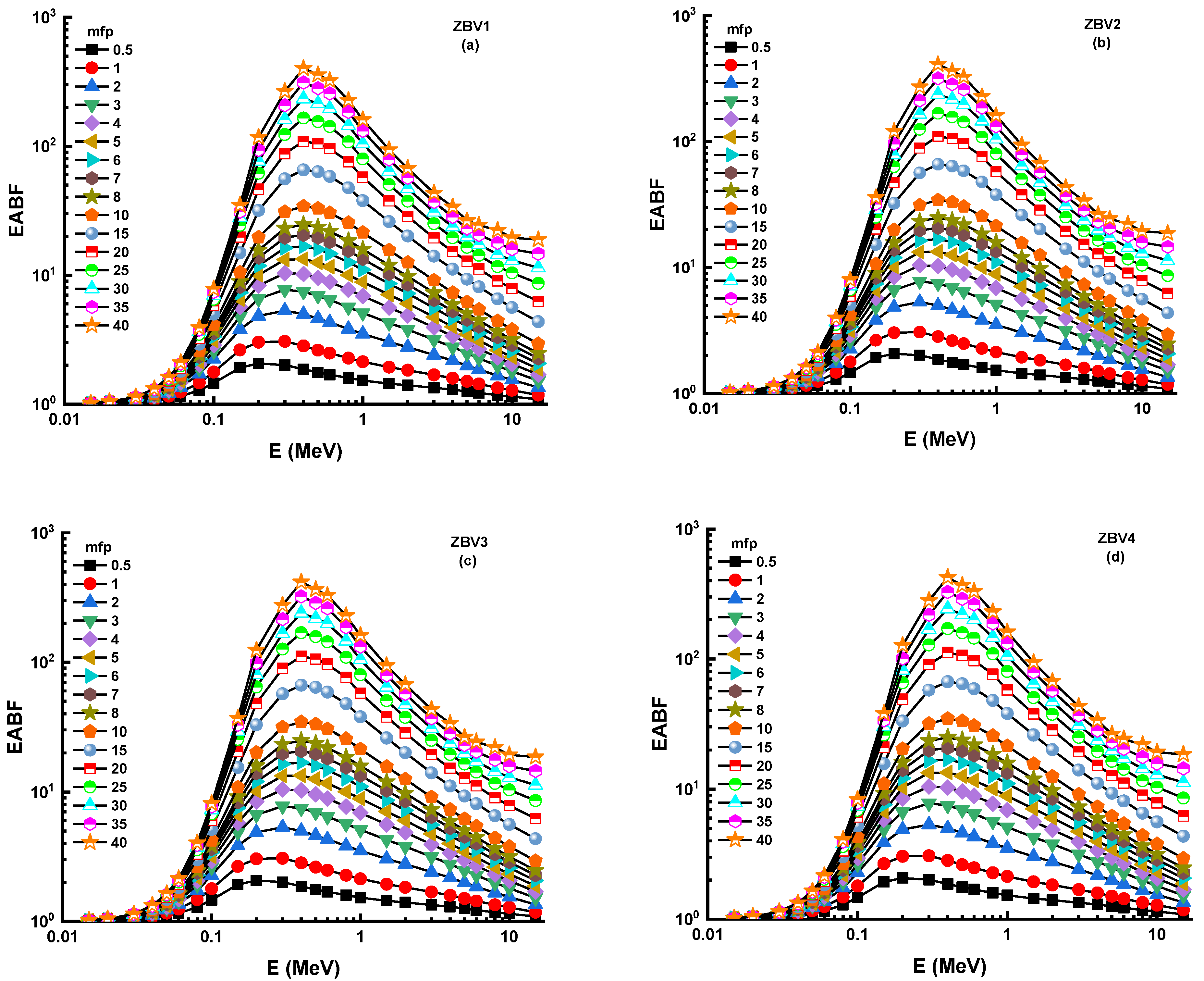

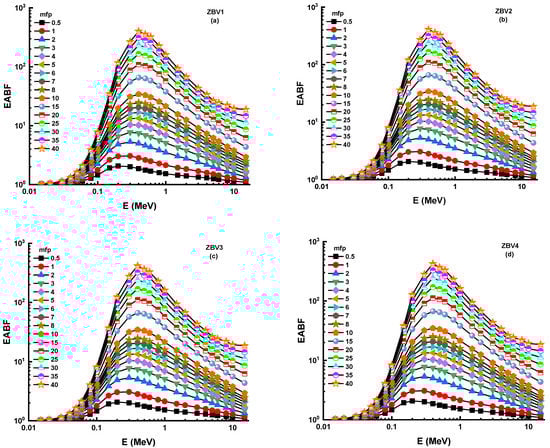

Figure 10. (a–d): Variation of energy-absorption buildup factor (EABF) against photon energy for all glasses.
Figure 10. (a–d): Variation of energy-absorption buildup factor (EABF) against photon energy for all glasses.
Materials 14 01158 g010
Materials 14 01158 g011 550

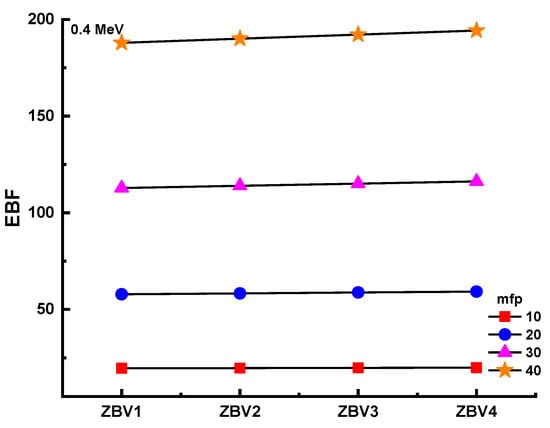

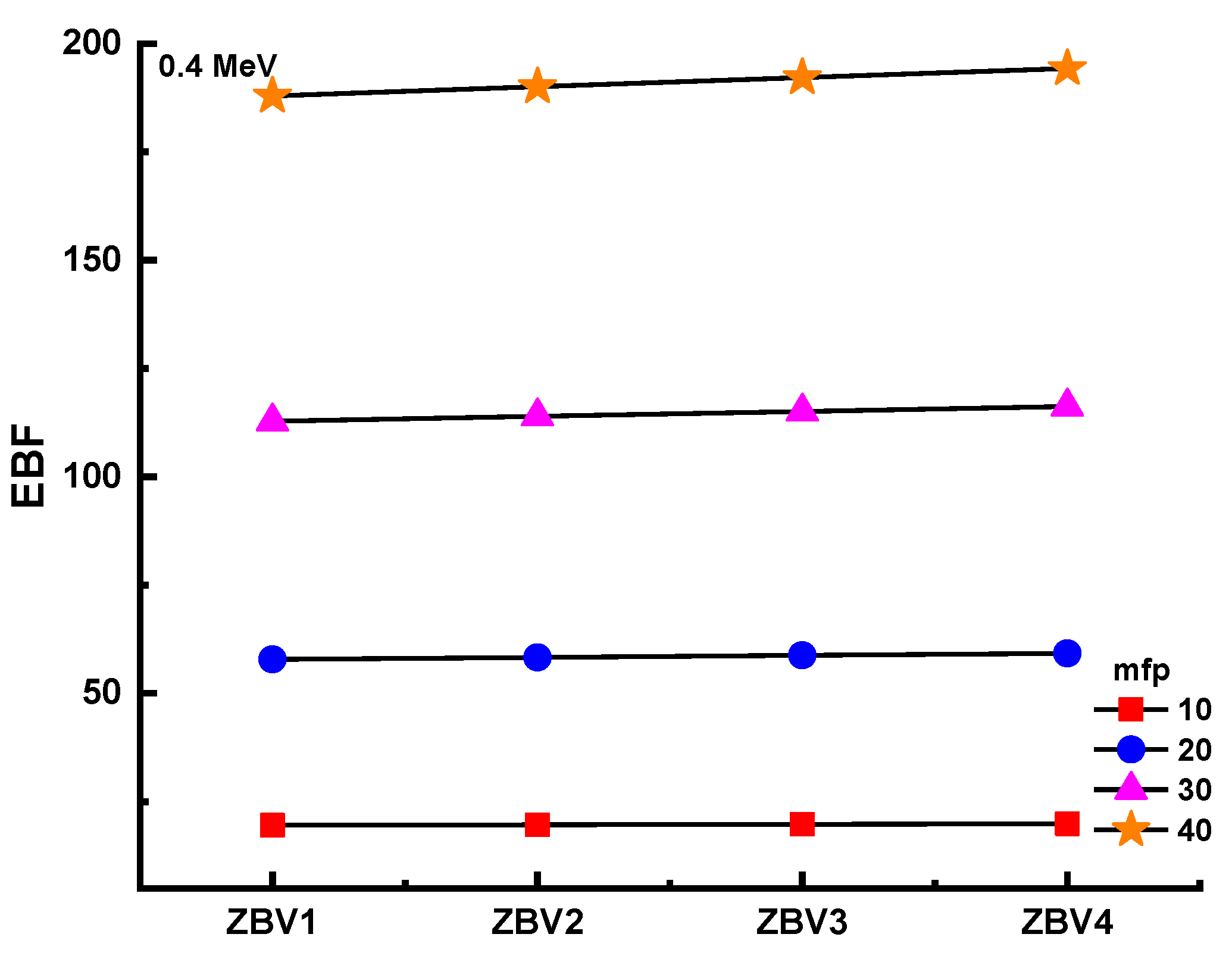

Figure 11. Variation of exposure buildup factor (EBF) against glass compositions.
Figure 11. Variation of exposure buildup factor (EBF) against glass compositions.
Materials 14 01158 g011
Materials 14 01158 g012 550

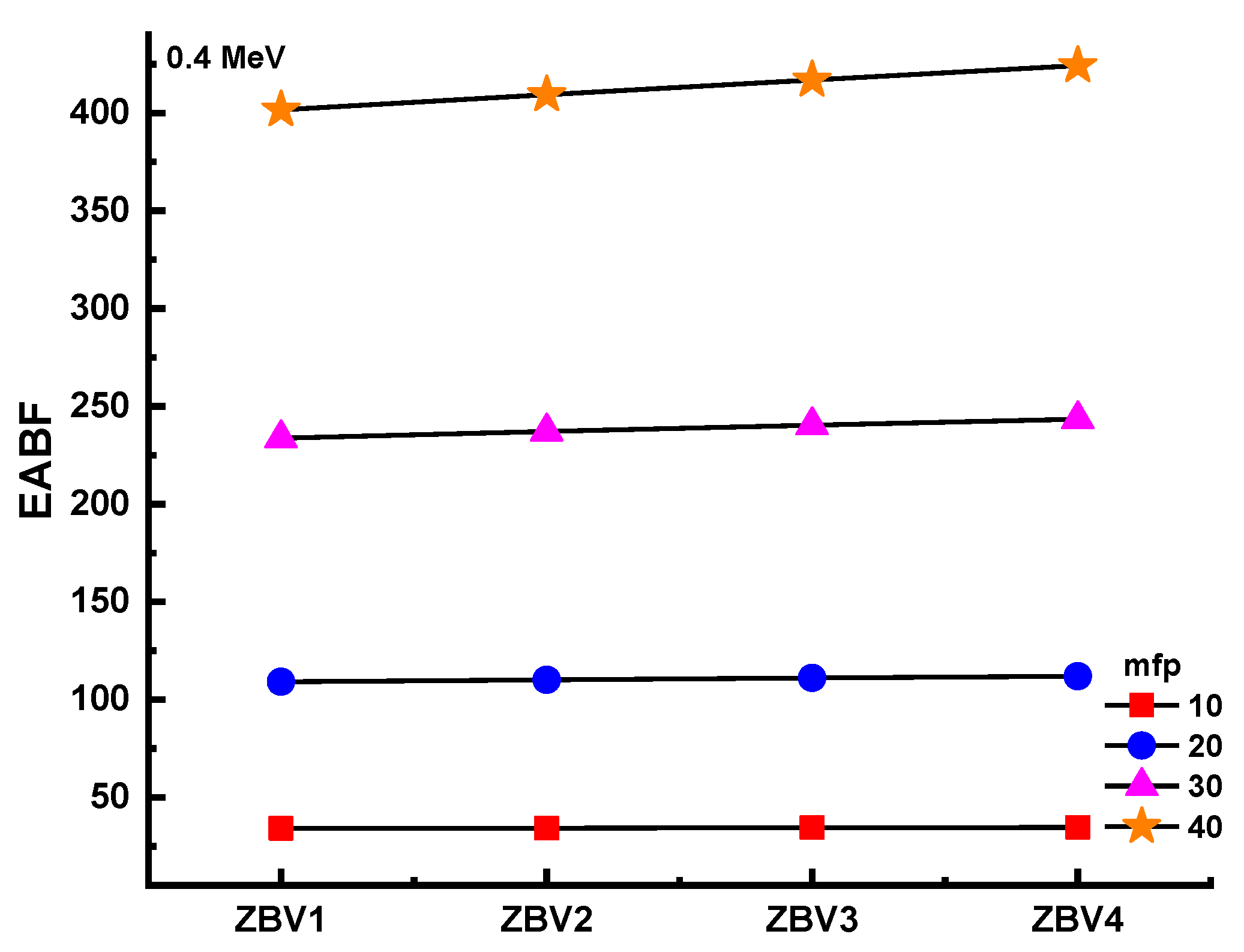

Figure 12. Variation of energy-absorption buildup factor (EABF) against glass compositions.
Figure 12. Variation of energy-absorption buildup factor (EABF) against glass compositions.
Materials 14 01158 g012
Materials 14 01158 g013 550

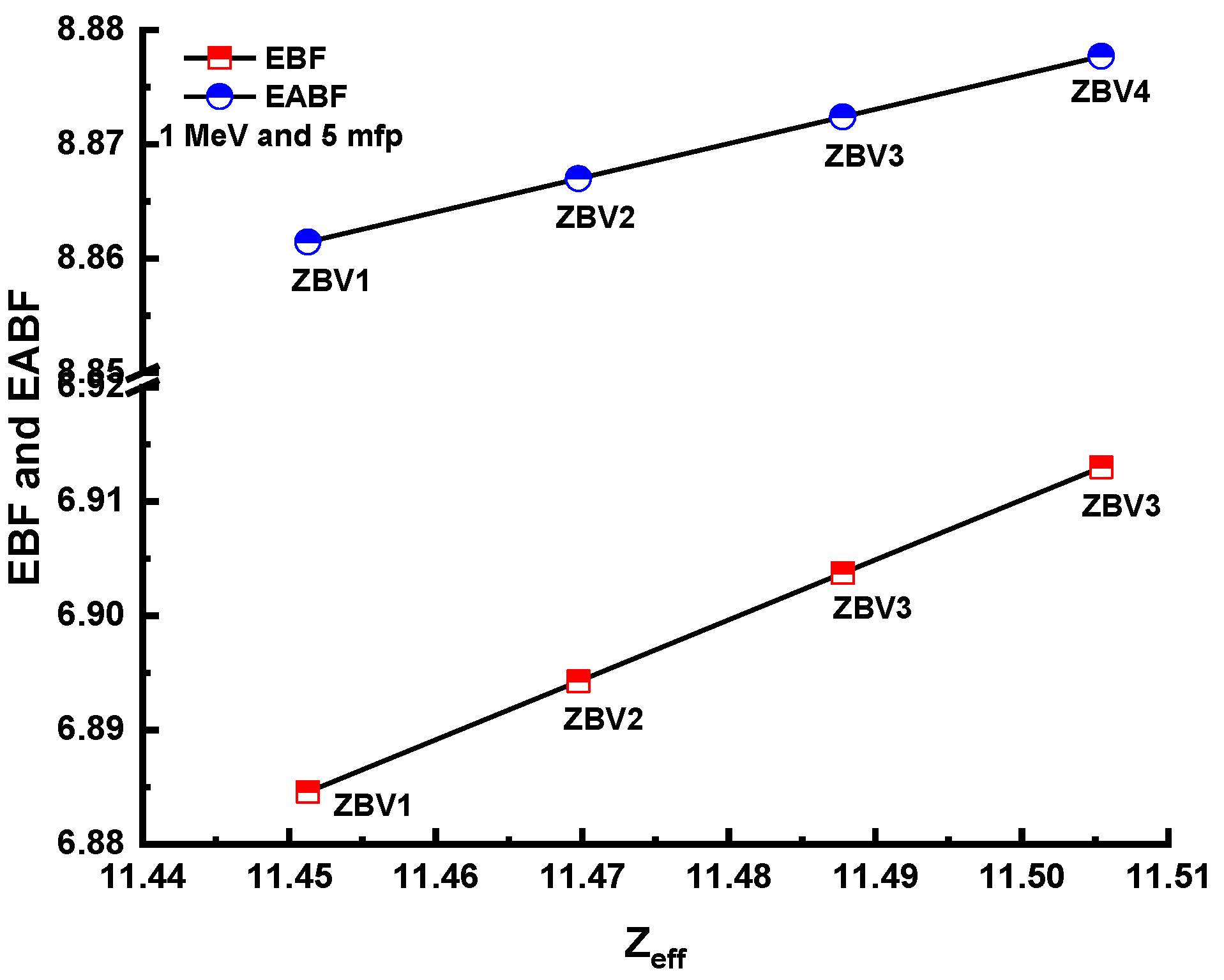

Figure 13. Variation of energy-absorption buildup factor (EABF) and exposure buildup factor (EBF) against effective atomic number (Zeff) for all glasses.
Figure 13. Variation of energy-absorption buildup factor (EABF) and exposure buildup factor (EBF) against effective atomic number (Zeff) for all glasses.
Materials 14 01158 g013
Table
Table 1. Chemical compositions and density for glass samples.
Table 1. Chemical compositions and density for glass samples.
Glass Codemol%wt%Density (g/cm3)
ZnOB2O3V2O5BOVZn
ZBV159.439.610.1101496630.3770948520.0131080560.4996474293.392
ZBV258.839.220.10758090.3785577690.0258660080.4879953233.371
ZBV358.238.830.1050798430.3799821280.0382876970.4766503323.339
ZBV457.638.440.1026438490.3813694330.0503862450.4656004733.329
Table
Table 2. Mass-attenuation coefficients (cm2/g) of the studied glass samples obtained using the MCNPX code and Phy-X PSD program.
Table 2. Mass-attenuation coefficients (cm2/g) of the studied glass samples obtained using the MCNPX code and Phy-X PSD program.
Energy (MeV)ZBV1ZBV2ZBV3ZBV4
Phy-X PSDMCNPXPhy-X PSDMCNPXPhy-X PSDMCNPXPhy-X PSDMCNPX
0.01541.826643.265441.390242.862440.965441.241640.551641.0625
0.0219.175419.652118.968119.512418.766218.812618.569518.7250
0.036.26746.31246.19786.30046.13006.15266.06406.1236
0.042.83992.85242.80872.83242.77822.78162.74852.7628
0.051.56171.57211.54511.56291.52891.5231.51311.5321
0.060.98000.99360.97010.98240.96050.9720.95120.9626
0.080.50320.50920.49890.50540.49470.50230.49060.4926
0.10.32610.32950.32380.32860.32170.32510.31950.3198
0.150.18420.19010.18350.18820.18280.18620.18210.1832
0.20.14170.14210.14140.1410.14110.14060.14080.1409
0.30.10960.1110.10950.11010.10940.10910.10930.1089
0.40.09460.09520.09460.0950.09450.09470.09450.0946
0.50.08510.0860.0850.08560.0850.08540.0850.0852
0.60.07810.07920.0780.0790.0780.07820.0780.0781
0.80.0680.06950.0680.06920.0680.06880.0680.0684
10.0610.06240.06090.06210.06090.06190.06090.0612
1.50.04960.05010.04960.04990.04960.04950.04960.0494
20.0430.04460.0430.04390.0430.04360.0430.0434
30.03580.03630.03580.0360.03580.03590.03580.0356
40.0320.03340.0320.03330.03190.03310.03190.0325
50.02970.03090.02970.03050.02970.03020.02960.0301
60.02830.02860.02820.02840.02820.02830.02820.0282
80.02670.02710.02670.0270.02670.02680.02660.0267
100.0260.02630.0260.02610.0260.0260.02590.0259
150.02570.02620.02570.0260.02560.02590.02560.0257
Table
Table 3. (EBF and EABF) G–P fitting coefficients for the ZBV1 glass sample.
Table 3. (EBF and EABF) G–P fitting coefficients for the ZBV1 glass sample.
Energy (MeV)ZeqG–P Fitting Parameters for EBFG–P Fitting Parameters for EABF
abcdXkabcdXk
0.01522.430.2301.0061.0180.2270.2231.0061.0110.2177.920−0.223
0.02022.780.3981.0140.287−0.3480.2831.0140.314−0.23614.7110.283
0.03023.210.2061.0410.373−0.2310.2461.0400.337−0.17216.2530.246
0.04023.470.2431.0860.347−0.1250.2381.0850.350−0.12713.8950.238
0.05023.650.2251.1450.380−0.1290.2371.1540.360−0.13414.3350.237
0.06023.800.2031.2110.422−0.1130.2161.2400.398−0.12614.7240.216
0.08024.000.1681.3580.502−0.0920.1741.4630.482−0.09815.3360.174
0.10024.130.1291.4950.600−0.0730.1561.7720.541−0.09415.2760.156
0.15024.320.0651.7630.796−0.0430.1252.6320.657−0.10114.5890.125
0.20024.430.0231.9190.960−0.0300.0613.0260.856−0.06213.0650.061
0.30024.55−0.0162.0241.131−0.017−0.0013.0651.086−0.03011.983−0.001
0.40024.61−0.0312.0301.210−0.013−0.0292.8281.204−0.01314.934−0.029
0.50024.65−0.0412.0001.253−0.008−0.0412.6241.256−0.00811.683−0.041
0.60024.67−0.0441.9691.264−0.005−0.0432.4841.266−0.00612.436−0.043
0.80024.70−0.0421.9171.250−0.006−0.0442.2731.262−0.0079.857−0.044
1.00024.70−0.0501.8531.2580.014−0.0512.1301.2650.01317.995−0.051
1.50022.35−0.0421.7771.2050.012−0.0431.9371.2100.01315.494−0.043
2.00019.86−0.0301.7381.1470.008−0.0291.8341.1440.00717.096−0.029
3.00018.94−0.0041.6581.047−0.011−0.0081.6851.057−0.00612.383−0.008
4.00018.680.0081.5791.003−0.0170.0141.5900.984−0.02312.0870.014
5.00018.560.0141.5100.982−0.0210.0211.5010.962−0.03314.1470.021
6.00018.480.0211.4620.962−0.0260.0271.4350.944−0.03412.9130.027
8.00018.400.0321.3810.935−0.0360.0341.3390.928−0.03412.2120.034
10.00018.350.0391.3190.922−0.0420.0441.2810.903−0.04713.9030.044
15.00018.310.0641.2360.866−0.0650.0351.1760.944−0.03914.4860.035
Table
Table 4. (EBF and EABF) G–P fitting coefficients for the ZBV2 glass sample.
Table 4. (EBF and EABF) G–P fitting coefficients for the ZBV2 glass sample.
Energy (MeV)ZeqG–P Fitting Parameters for EBFG–P Fitting Parameters for EABF
abcdXkabcdXk
0.01522.350.2221.0061.0040.2236.4250.2151.0060.9980.2137.978
0.02022.700.3921.0140.291−0.34111.1310.2821.0140.316−0.23414.615
0.03023.130.2061.0410.373−0.22821.3870.2451.0400.338−0.17116.167
0.04023.390.2421.0870.347−0.12612.6270.2381.0860.351−0.12713.894
0.05023.570.2251.1470.381−0.12914.0590.2361.1560.361−0.13414.333
0.06023.710.2021.2140.423−0.11314.1980.2151.2430.399−0.12614.725
0.08023.910.1681.3620.503−0.09214.4380.1731.4680.484−0.09715.347
0.10024.040.1291.5000.602−0.07314.1670.1541.7800.544−0.09415.290
0.15024.230.0641.7680.798−0.04214.0040.1242.6440.661−0.10014.567
0.20024.340.0221.9240.963−0.03013.0660.0603.0340.860−0.06213.062
0.30024.46−0.0162.0271.133−0.01711.487−0.0023.0671.090−0.03011.952
0.40024.52−0.0312.0321.212−0.01310.506−0.0292.8291.207−0.01215.154
0.50024.56−0.0412.0021.254−0.0088.420−0.0412.6241.259−0.00811.778
0.60024.58−0.0441.9711.265−0.00411.502−0.0442.4841.267−0.00512.591
0.80024.61−0.0431.9181.252−0.00510.254−0.0442.2731.263−0.0079.970
1.00024.61−0.0501.8541.2580.01418.992−0.0512.1301.2660.01317.965
1.50022.26−0.0421.7771.2050.01215.823−0.0431.9371.2100.01315.498
2.00019.78−0.0301.7381.1470.00817.345−0.0291.8341.1450.00717.043
3.00018.88−0.0041.6581.048−0.01111.312−0.0081.6861.056−0.00612.417
4.00018.620.0081.5791.003−0.01711.3390.0141.5900.984−0.02212.128
5.00018.500.0141.5100.982−0.02113.3950.0211.5010.963−0.03214.300
6.00018.420.0211.4620.963−0.02613.5790.0271.4350.944−0.03412.928
8.00018.340.0311.3810.936−0.03513.4180.0341.3390.927−0.03412.221
10.00018.300.0391.3190.921−0.04213.4530.0441.2810.905−0.04613.904
15.00018.250.0661.2370.862−0.06613.7700.0351.1760.944−0.03814.494
Table
Table 5. (EBF and EABF) G–P fitting coefficients for the ZBV3 glass sample.
Table 5. (EBF and EABF) G–P fitting coefficients for the ZBV3 glass sample.
Energy (MeV)ZeqG–P Fitting Parameters for EBFG–P Fitting Parameters for EABF
abcdXkabcdXk
0.01522.270.2141.0060.9910.2206.4450.2071.0060.9840.2108.035
0.02022.620.3861.0140.295−0.33411.1240.2811.0140.318−0.23214.520
0.03023.040.2071.0410.373−0.22521.1370.2451.0400.339−0.17016.081
0.04023.300.2421.0880.348−0.12612.6610.2371.0870.351−0.12713.892
0.05023.480.2251.1480.381−0.12814.0610.2361.1570.361−0.13414.330
0.06023.620.2021.2160.424−0.11314.1990.2151.2460.401−0.12514.726
0.08023.820.1671.3660.505−0.09214.4370.1731.4740.486−0.09715.357
0.10023.950.1281.5050.604−0.07214.1690.1531.7890.547−0.09315.303
0.15024.140.0631.7740.801−0.04213.9980.1232.6550.665−0.09914.546
0.20024.250.0221.9280.966−0.03013.0570.0593.0420.863−0.06113.059
0.30024.37−0.0162.0301.135−0.01711.464−0.0033.0691.093−0.03011.921
0.40024.43−0.0322.0351.214−0.01310.492−0.0302.8291.210−0.01215.370
0.50024.47−0.0412.0041.255−0.0088.425−0.0422.6231.261−0.00711.871
0.60024.49−0.0441.9721.267−0.00411.717−0.0442.4841.269−0.00512.743
0.80024.52−0.0431.9191.253−0.00510.408−0.0452.2731.265−0.00610.080
1.00024.52−0.0501.8551.2590.01418.959−0.0512.1301.2670.01317.936
1.50022.17−0.0421.7781.2050.01215.821−0.0431.9371.2110.01315.502
2.00019.71−0.0301.7391.1470.00717.271−0.0291.8341.1450.00716.991
3.00018.82−0.0041.6581.048−0.01011.333−0.0081.6861.056−0.00612.451
4.00018.560.0081.5791.003−0.01711.3050.0141.5900.984−0.02212.169
5.00018.440.0141.5110.982−0.02113.3930.0201.5010.964−0.03214.450
6.00018.370.0201.4620.963−0.02513.5950.0271.4350.944−0.03412.943
8.00018.290.0311.3810.936−0.03513.4130.0341.3400.927−0.03412.231
10.00018.240.0391.3200.921−0.04213.4470.0431.2810.906−0.04613.905
15.00018.200.0671.2390.858−0.06713.7910.0341.1760.945−0.03814.502
Table
Table 6. (EBF and EABF) G–P fitting coefficients for the ZBV4 glass sample.
Table 6. (EBF and EABF) G–P fitting coefficients for the ZBV4 glass sample.
Energy (MeV)ZeqG–P Fitting Parameters for EBFG–P Fitting Parameters for EABF
abcdXkabcdXk
0.01522.190.2061.0060.9780.2176.4650.1981.0060.9710.2078.091
0.02022.540.3801.0140.300−0.32611.1170.2801.0140.319−0.23114.426
0.03022.960.2071.0420.373−0.22320.8950.2451.0410.339−0.17015.999
0.04023.220.2421.0890.348−0.12612.6950.2371.0880.352−0.12713.891
0.05023.400.2241.1500.382−0.12814.0620.2361.1590.362−0.13414.328
0.06023.540.2021.2190.424−0.11314.2000.2141.2490.402−0.12514.727
0.08023.730.1671.3700.506−0.09114.4350.1721.4790.488−0.09615.367
0.10023.860.1271.5100.606−0.07214.1720.1521.7970.550−0.09315.317
0.15024.050.0631.7790.804−0.04213.9930.1212.6660.669−0.09814.525
0.20024.160.0211.9330.969−0.02913.0490.0583.0500.867−0.06113.056
0.30024.28−0.0172.0331.137−0.01611.443−0.0043.0711.096−0.02911.891
0.40024.35−0.0322.0371.215−0.01310.479−0.0302.8291.212−0.01115.580
0.50024.38−0.0412.0061.256−0.0088.430−0.0422.6231.263−0.00711.961
0.60024.40−0.0451.9741.268−0.00411.927−0.0452.4841.271−0.00412.891
0.80024.43−0.0431.9201.254−0.00410.559−0.0452.2721.266−0.00610.188
1.00024.43−0.0501.8561.2590.01418.927−0.0512.1301.2670.01317.908
1.50022.08−0.0421.7791.2050.01215.819−0.0431.9371.2110.01315.506
2.00019.64−0.0301.7391.1470.00717.198−0.0291.8341.1450.00716.941
3.00018.76−0.0041.6581.048−0.01011.354−0.0081.6871.056−0.00612.484
4.00018.500.0081.5791.003−0.01611.2710.0141.5900.984−0.02212.208
5.00018.390.0141.5110.981−0.02113.3920.0201.5010.965−0.03214.597
6.00018.310.0201.4620.963−0.02513.6100.0271.4350.944−0.03412.957
8.00018.230.0311.3800.936−0.03513.4090.0351.3400.926−0.03412.240
10.00018.190.0391.3200.921−0.04213.4410.0431.2810.907−0.04513.906
15.00018.150.0681.2400.854−0.06813.8120.0341.1760.946−0.03714.509
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tekin, H.O.; Issa, S.A.M.; Kilic, G.; Zakaly, H.M.H.; Abuzaid, M.M.; Tarhan, N.; Alshammari, K.; Sidek, H.A.A.; Matori, K.A.; Zaid, M.H.M. In-Silico Monte Carlo Simulation Trials for Investigation of V2O5 Reinforcement Effect on Ternary Zinc Borate Glasses: Nuclear Radiation Shielding Dynamics. Materials 2021, 14, 1158. https://doi.org/10.3390/ma14051158

AMA Style

Tekin HO, Issa SAM, Kilic G, Zakaly HMH, Abuzaid MM, Tarhan N, Alshammari K, Sidek HAA, Matori KA, Zaid MHM. In-Silico Monte Carlo Simulation Trials for Investigation of V2O5 Reinforcement Effect on Ternary Zinc Borate Glasses: Nuclear Radiation Shielding Dynamics. Materials. 2021; 14(5):1158. https://doi.org/10.3390/ma14051158

Chicago/Turabian Style

Tekin, Huseyin O., Shams A. M. Issa, Gokhan Kilic, Hesham M. H. Zakaly, Mohamed M. Abuzaid, Nevzat Tarhan, Khatar Alshammari, Hj Ab Aziz Sidek, Khamirul A. Matori, and Mohd H. M. Zaid. 2021. "In-Silico Monte Carlo Simulation Trials for Investigation of V2O5 Reinforcement Effect on Ternary Zinc Borate Glasses: Nuclear Radiation Shielding Dynamics" Materials 14, no. 5: 1158. https://doi.org/10.3390/ma14051158

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
