Article

Thermocatalytic CO2 Conversion over a Nickel-Loaded Ceria Nanostructured Catalyst: A NAP-XPS Study

by
Adrián Barroso-Bogeat
1,2,*,
Ginesa Blanco
1,2,*,
Juan José Pérez-Sagasti
3,
Carlos Escudero
4,
Eric Pellegrin
4,†,
Facundo C. Herrera
4,5 and
José María Pintado
1,2
1
Department of Materials Science and Metallurgical Engineering and Inorganic Chemistry, Faculty of Sciences, University of Cádiz, Campus Río San Pedro s/n, 11510 Puerto Real (Cádiz), Spain
2
Institute for Research in Electron Microscopy and Materials (IMEYMAT), Faculty of Sciences, University of Cádiz, Campus Río San Pedro s/n, 11510 Puerto Real (Cádiz), Spain
3
Central Services of Scientific and Technological Research (SC-ICYT), University of Cádiz, Campus Río San Pedro s/n, 11510 Puerto Real (Cádiz), Spain
4
ALBA Synchrotron Light Source, Carrer de la Llum 2-26, 08290 Cerdanyola del Vallès (Barcelona), Spain
5
Institute for Theoretical and Applied Physicochemical Research (INIFTA, CONICET), Department of Chemistry, Faculty of Exact Sciences, National University of La Plata, Diagonal 113 and 64, La Plata 1900, Argentina
*
Authors to whom correspondence should be addressed.
†
Present address: Carl Zeiss SMT GmbH, Rudolf-Eber-Straβe. 2, 73447 Oberkochen, Germany.
Materials 2021, 14(4), 711; https://doi.org/10.3390/ma14040711
Submission received: 31 December 2020 / Revised: 22 January 2021 / Accepted: 30 January 2021 / Published: 3 February 2021
(This article belongs to the Special Issue Rare Earth Oxides and Their Applications)
Browse Figures
Versions Notes

Abstract

:
Despite the increasing economic incentives and environmental advantages associated to their substitution, carbon-rich fossil fuels are expected to remain as the dominant worldwide source of energy through at least the next two decades and perhaps later. Therefore, both the control and reduction of CO2 emissions have become environmental issues of major concern and big challenges for the international scientific community. Among the proposed strategies to achieve these goals, conversion of CO2 by its reduction into high added value products, such as methane or syngas, has been widely agreed to be the most attractive from the environmental and economic points of view. In the present work, thermocatalytic reduction of CO2 with H2 was studied over a nanostructured ceria-supported nickel catalyst. Ceria nanocubes were employed as support, while the nickel phase was supported by means a surfactant-free controlled chemical precipitation method. The resulting nanocatalyst was characterized in terms of its physicochemical properties, with special attention paid to both surface basicity and reducibility. The nanocatalyst was studied during CO2 reduction by means of Near Ambient Pressure X-ray Photoelectron Spectroscopy (NAP-XPS). Two different catalytic behaviors were observed depending on the reaction temperature. At low temperature, with both Ce and Ni in an oxidized state, CH4 formation was observed, whereas at high temperature above 500 °C, the reverse water gas shift reaction became dominant, with CO and H2O being the main products. NAP-XPS was revealed as a powerful tool to study the behavior of this nanostructured catalyst under reaction conditions.

1. Introduction

Since the start of the Industrial Revolution in 1750, carbon-rich fossil fuels (i.e., oil, coal, and natural gas) have become essential raw materials for the production not only of energy but also of commodity chemicals [1]. Despite the obvious environmental benefits and increasing governments’ economic incentives associated with their substitution, these fuels are foreseen to remain as the dominant primary energy source in the medium-term future [2]. Such an extensive use, together with the still low efficiency of the vast majority of energetic processes, has been causing a steady rise in the atmospheric levels of CO2, the major human-related greenhouse gas, during the past two centuries and especially in the second half of the 20th century [1,3].
One of the possible strategies to reduce atmospheric CO2 levels entails its conversion in high added value products, such as fuels or chemicals [4,5,6]. CO2 reduction with H2 is an interesting way to address this important challenge, as it can use hydrogen obtained from water electrolysis by employing the electricity coming from renewable sources [7,8,9,10]. CO2 hydrogenation can lead to the production of CO, methanol, or hydrocarbons depending on the catalyst and reaction conditions [11,12]. Reverse water–gas shift reaction (rWGS) is another way to obtain CO [13], which can be later used as feedstock in other processes, for example, to obtain fuels. More intense research efforts are still required in order to make these reactions sustainable in large-scale processes [11], and a great deal of work has been done in testing metal/reducible oxides catalysts. Although pathways for these reactions are not yet clear, there is a certain agreement concerning the way both the supported metal phase and the oxide are involved in the reaction. In this regard, H2 activation is performed by the supported metal, whereas the support provides oxygen vacancies to activate CO2 [14,15,16].
Cerium oxide has be considered an excellent candidate as a reducible support for CO2 activation due to its well-known basic properties [17], as well as to its ability to create surface oxygen vacancies when being reduced [18]. Concerning the metal, nickel has been revealed as a good choice due to its low price, relative stability, and good properties for reactions involving CO2 [19,20,21,22,23]. However, one of the main drawbacks when using nickel is related to its sintering and formation of undesirable carbon deposits when working under harsh conditions [24,25]. Both sintering and coke resistance can be improved if nickel is combined with a lanthanoid oxide such as ceria [26].
Recently, our research group successfully prepared and characterized ceria nanocubes with enhanced reducibility as compared to bulk ceria [26]. Herein, this nanostructured ceria has been used as support for nickel nanoparticles, as a possible combination that is expected to give good results in the CO2 hydrogenation reaction.
To study this catalyst, Near Ambient Pressure X-ray Photoelectron Spectroscopy (NAP-XPS) was chosen, as it can provide information in quasi-real conditions. This technique is becoming a great tool to study catalysts’ performance in conditions close to real ones [27].

2. Materials and Methods

2.1. Synthesis of the Nickel-Loaded Ceria Nanocubes Catalyst

The synthesis of the Ni-loaded CeO2 NCs catalyst sample was carried out in 2 consecutive stages using simple surfactant-free wet chemistry methods. First, CeO2 NCs with an average edge length of around 50 nm were prepared by a facile hydrothermal procedure, which had been previously reported elsewhere [28] and successfully applied by our research group to the synthesis of both pure [29] and Ln-doped CeO2 NCs, Ln representing the lanthanoid elements La [30,31] and Pr [32]. In brief, 125 mL of a 17.3 mol·L−1 NaOH (99%, Scharlau, Sentmenat, Spain) aqueous solution, 100 mL of a 0.12 mol·L−1 Ce(NO3)3·6H2O (99.5%, Alfa Aesar, Kandel, Germany) aqueous solution, and 15 mL of deionized water were mixed in a polypropylene beaker and magnetically stirred for 30 min at room temperature. The resulting grayish homogeneous suspension was poured into a 250 mL Teflon container, which was placed in a stainless-steel autoclave reactor and tightly sealed. This reactor was heated at 180 °C for 24 h in an electric oven. After this time had elapsed, the system was allowed to slowly cool down to room temperature, and then the yellowish solid product was separated by centrifugation, thoroughly washed several times with deionized water until neutral pH of the liquid phase and washed once with absolute ethanol (VWR Chemicals, Briare, France), and finally oven-dried at 80 °C for 24 h. This synthetic procedure yielded about 1.9 g of CeO2 NCs (i.e., approximately 92% overall yield), so it was performed in duplicate to obtain the required mass of product for later tasks, including its physicochemical characterization and support of the nickel catalytic phase.
In a second stage, a 5 wt.% nickel nominal loading was supported on the as-prepared CeO2 NCs by employing a surfactant-free controlled chemical precipitation method based on a slight modification of a previous method also developed by our research group [33,34,35]. Ni(NO3)2 and hexamethylenetetramine (HMT, hereafter), which are readily soluble both in water and ethanol, were selected as precursor and precipitant agent, respectively. Then, 1 g of the freshly synthesized CeO2 NCs and an excess amount of HMT (99%, Scharlab), equivalent to a HMT/Ni2+ molar ratio of 5, were dispersed in 60 mL of ethanol (96%, VWR Chemicals, France) with the assistance of ultrasonication. The suspension was heated from room temperature up to 75 °C under continuous mechanical stirring of 800 rpm and using a reflux tube cooled with water to avoid solvent losses. Once the system reached this temperature, 20 mL of an aqueous solution containing the appropriate mass of Ni(NO3)2·6H2O (99.9%, Sigma Aldrich, Steinheim, Germany) for achieving the desired metal loading in the final multicomponent catalyst was slowly added to the suspension at a rate of 0.33 mL·min−1 by a highly precise syringe pump (KD Scientific, Holliston, MA, USA). The reaction mixture was additionally aged for 1 h under identical heating and stirring conditions. After this time, the obtained precipitate was centrifuged, repeatedly washed with deionized water to eliminate any remnants of reagents and washed once with ethanol, and oven-dried at 80 °C overnight. Finally, the oven-dried solid was ground, sieved, and calcined in a muffle furnace with a heating rate of 5 °C·min−1 up to 370 °C and kept at such temperature for 4 h. The resulting powder catalyst sample will be henceforth denoted as “5Ni-CeO2 NCs.”

2.2. Physicochemical Characterisation

2.2.1. Chemical Composition

The actual nickel loading of the freshly prepared nanocatalyst sample was estimated by X-ray fluorescence (XRF) analysis carried out in a M4 Tornado energy dispersive spectrometer from Bruker (Billerica, MA, USA), equipped with Mo Kα radiation (λ = 0.7107 Å) source operating at 50 kV and 600 μA. The nickel content of the 5Ni-CeO2 NCs sample, as determined by XRF, was around 5 wt.%, corresponding to 13.3 at.%.

2.2.2. Structural Characterization

X-ray diffraction (XRD) patterns for both the CeO2 NCs support and the fresh Ni catalyst were collected at room temperature in a D8 ADVANCE diffractometer from Bruker, operating with Cu Kα radiation (λ = 1.5406 Å), and under the following specific acquisition conditions: 2θ range from 10 to 90°, step size of 0.02°, and step counting time of 38.4 s.

2.2.3. Specific Surface Area

The specific surface area (SBET) of the nanomaterials was assessed by applying the Brunauer, Emmet, and Teller equation [36] to their respective N2 adsorption-desorption isotherms in the relative pressure (p/po) range between 0.05 and 0.20. These isotherms were registered at −196 °C using an automatic Autosorb iQ3 equipment (Quantachrome, Boynton Beach, FL, USA). Prior to starting the adsorption-desorption measurements, about 100 mg of each powder sample was out-gassed under vacuum at 200 °C for 4 h in order to remove moisture and any possible gases and vapors from the laboratory atmosphere adsorbed on the materials surface.
With this technique, a specific surface area of around 30 m2·g−1 was measured for both samples.

2.2.4. Electron Microscopy Characterization

The freshly prepared nanomaterials were characterized by means of advanced electron microscopy techniques, such as high-resolution transmission electron microscopy (HRTEM), high-angle annular dark field-scanning transmission electron microscopy (HAADF-STEM), and energy-dispersive X-ray spectroscopy (X-EDS). These studies were accomplished in a Talos F200X scanning transmission electron microscope (FEI, Thermo Scientific, Waltham, MA, USA), coupled to a X-EDS ChemiSTEM system (Thermo Scientific) implementing four windowless SDD detectors [37,38]. The powdered samples, as prepared without any further treatment, were mounted on holey carbon-coated TEM grids. Processing of X-EDS data was performed by the Thermo Scientific Velox software (version 2.13).

2.2.5. Reducibility Measurements

Characterization of the redox behavior of both the pristine CeO2 NCs and the 5Ni-CeO2 NCs catalyst was accomplished by the temperature-programmed reduction (TPR) technique, followed by mass spectrometry (MS). TPR-MS studies were performed in a setup equipped with a quadrupole mass spectrometer (Thermostar GSD301T1, Pfeiffer Vacuum, Wetzlar, Germany) to accurately monitor the composition of the outlet gas stream. Around 100 mg of sample was used in each of these experiments. Prior to starting the experiments, both samples were submitted to cleaning pretreatment: consisting of oxidation under a 60 cm3·min-1 STP flow of O2(5%)/He at 350 °C for 1 h, followed by cooling down in the same atmosphere to approximately 150 °C. Then, the gas was changed to He for additional cooling down to room temperature, thus avoiding oxygen adsorption on samples surface. Subsequently, the TPR-MS experiments were carried out in a 60 cm3·min−1 STP flow of H2(5%)/Ar from room temperature to 950 °C at a heating rate of 10 °C·min−1. The nanomaterials were kept at this temperature for 1 h. The mass/charge (m/z henceforward) ratios registered during these runs were 2 (H2+) to follow hydrogen consumption and 18 (H2O+) for the associated water evolution. In this connection, it should be pointed out that, for the sake of simplicity, TPR results are plotted as water evolution profiles, since a complete agreement with the corresponding hydrogen consumption curves was found for both nanomaterials. The m/z ratios 28 (CO+), 40 (Ar+), and 44 (CO2+) were also recorded.

2.2.6. Surface Basicity Characterization

Surface basicity (i.e., both the nature and concentration of basic sites) of the raw CeO2 NCs and the Ni nanocatalyst sample was studied by temperature-programmed desorption (TPD) of pre-adsorbed CO2 followed by mass spectrometry (MS). These TPD-MS diagrams were recorded in the same equipment previously employed for the TPR-MS essays. About 100 mg of powder sample was subjected to the aforementioned standard cleaning pretreatment in O2(5%)/He at 350 °C for 1 h. After cooling down to room temperature, the pretreated nanomaterial was exposed to a 60 cm3·min−1 STP flow of pure CO2 (PCO2 = 1 atm) for 1 h in order to saturate the sample surface with adsorbed CO2. Then, the sample was flushed with a flow of 60 cm3·min−1 STP of pure Ar at room temperature for 1 h to remove the physically adsorbed CO2. Finally, the TPD-MS experiment was carried out in the same flow from room temperature up to 900 °C at a heating rate of 10 °C·min−1. During this analysis, MS signals for m/z 12 (C+), 28 (CO+), 40 (Ar+), and 44 (CO2+) were registered. Additionally, similar TPD-MS experiments were also accomplished by exposing the pretreated oxide samples to the pure CO2 stream at 500 °C for 1 h and subsequently cooling down to room temperature under the same atmosphere.
Furthermore, additional information regarding the surface basicity of the prepared nanomaterials was derived from CO2 volumetric chemisorption experiments. The CO2 isotherms were also recorded on the Micromeritics ASAP 2020 apparatus and employing around 100 mg of sample. Once again, prior to the adsorption measurements, the materials were pretreated in a O2(5%)/He atmosphere at 350 °C for 1 h, followed by 1 h evacuation at the same temperature and under a residual pressure below 10−6 Torr. Then, 2 consecutive CO2 isotherms were acquired at 35 °C and over the partial pressure range from 0 to 1013 mbar, with an evacuation treatment at identical temperature for 1 h in between them.

2.2.7. XPS and NAP-XPS Measurements

Conventional XPS (X-ray Photoelectron Spectrocopy) measurements were performed in a Kratos Axis UltraDLD spectrometer (Kratos Analytical Ltd., Manchester, UK), using monochromatized Al Kα (hν = 1486.6 eV), and X-ray power of 150 W. High-resolution spectra were acquired with a pass energy of 20 eV under the Fixed Analyzer Transmission (FAT) mode. Samples were pressed into self-supported pellets and fixed by means of a conductive double-sided carbon polymer tape. Charging effects were compensated with the coaxial charge neutralizer device developed by Kratos, and the binding energy (BE) scale was corrected with respect to adventitious carbon and set to 284.8 eV [39].
Near Ambient Pressure XPS (NAP-XPS) measurements were performed in CIRCE beamline, ALBA Synchrotron Light Source, Barcelona, Spain. Samples were pressed into pellets over a gold mesh which was used to minimize charging effects during the experiments. For each core level, acquisition was performed with 2 different mean kinetic energies (KE), namely KE = 550 eV and KE = 190 eV. Table 1 summarizes the different photon energies used for the acquisition of the different core levels. Using the QUASES-IMFP-TPP2M software, Ver. 3.0, developed by S.Tougaard (©2016) (QUASES-Tougaard Inc., Odense, Denmark), the IMFP was calculated [40], and the approximated sampling depth was 3.3 nm for KE = 550 eV and 1.8 nm for KE = 190 eV. This provides the depth profile information of the samples. Prior to any measurement, the samples were submitted to a cleaning treatment under 0.5 mbar O2 at 150 °C for 30 min and further cooled to room temperature under the same atmosphere. Then, the samples were successively treated under H2 (1 mbar), CO2 (1 mbar), and a reaction mixture consisting of 0.2 mbar of CO2 and 0.8 mbar of H2 (CO2:H2 ratio 1:4). The tested reaction temperatures were 250 °C, 500 °C, 600 °C, and 640 °C. A quadrupole mass spectrometer coupled to the analysis chamber of the NAP-XPS system was used to follow the reactants and products during the experiments.
Spectra were acquired in the FAT mode, with a pass energy of 10 eV. At each photon energy selected, together with the core level, a survey spectrum was acquired. This survey was used to help in the BE scale correction where C 1s could not be used. In this sense, the signal for the Ce 3d u’’’ peak at 917.0 eV [41] for energy correction when photon energy was 1440 eV and 1080 eV and the signal for Ce 4p3/2 at 207.2 eV [42] were used for all other spectra. All data, both from the conventional or the NAP-XPS systems, were processed with CasaXPS software (version 2.3.23PR1.0, Casa Software Ltd., Devon, UK). Details from fitting procedures are given in Supplementary Materials file.

3. Results and Discussion

3.1. Structural and Textural Characterization

First, a basic structural and textural characterization of the as-prepared CeO2 NCs and 5Ni-CeO2 NCs samples was performed by XRD and N2 physical adsorption, respectively. The recorded XRD diagrams are shown in Figure 1, together with the reference patterns for cubic fluorite-type CeO2 (space group Fm-3m) and face-centered cubic NiO (space group Fm-3m) for the sake of comparison. As can be seen from the Figure 1, the diffractogram for CeO2 NCs was dominated by a well-defined set of very intense and sharp reflection peaks typical of ceria with fluorite structure, which was preserved after nickel incorporation. Furthermore, the absence of clearly distinguishable diffraction peaks ascribable to the cubic NiO phase in the diagram for 5Ni-CeO2 NCs advocates for either a relatively high dispersion or an essentially amorphous nature of the supported nickel-containing phases in the sample. More insights into this latter aspect were gained from the electron microscopy study, as discussed below.

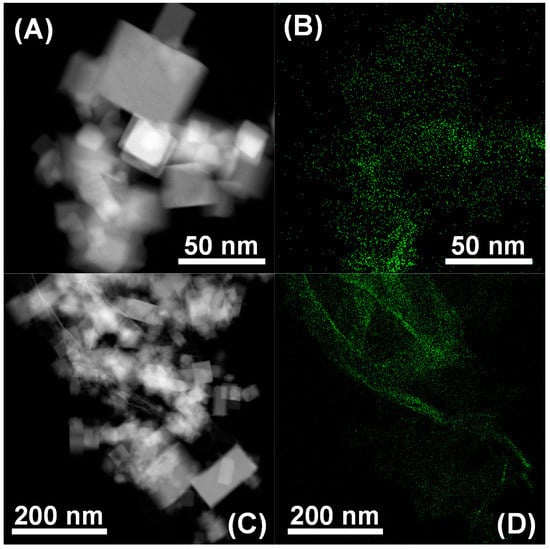

Figure 2A,C gathers representative HAADF-STEM images registered for the fresh 5Ni-CeO2 nanostructured catalyst. From them, it is clear that this sample in fact consisted of cubic-shaped nanocrystals with edge lengths spanning from 5 mm to nearly 100 nm and an average value of around 50 nm. Furthermore, a HRTEM study (not shown here for the sake of brevity) confirmed that these nanocubes were mostly enclosed by crystallographically well-defined (100) surfaces, with truncations at corners and edges associated with (111) and (110) facets, respectively. This morphological and crystallographic description is basically the same as that obtained for the bare CeO2 NCs support (readers are referred to the Supporting Information, Figure S1, for more details), which is also fully consistent with that previously reported by our research group for ceria nanocubes prepared by the same hydrothermal method [29]. Accordingly, neither the morphology nor the nanostructure of the pristine CeO2 NCs underwent significant modifications due to the incorporation of the nickel-containing phase by the aforesaid surfactant-free controlled chemical precipitation procedure. Additionally, complementary X-EDS analyses were also carried out on the as-prepared 5Ni-CeO2 NCs catalyst in order to confirm the spatial distribution of the first-row transition metal. The resulting maps are displayed in Figure 2B,D, in which the Ni signal appears in green. As can be seen, this chemical element mainly accumulated on the surface of the cubic-shaped ceria nanocrystals in a highly dispersed state, and the presence of large (i.e., up to a few nanometers in size) nickel-based nanoparticles was not detected.
Conventional XPS measurements also confirmed the high dispersion of the nickel-containing nanoparticles in the 5Ni-CeO2 NCs catalyst. After registering Ce 3d, Ni 2p, Ce 4d, and Ni 3p core levels, the Ni/Ce ratio was estimated at two different depths. Photoelectrons from Ce 3d and Ni 2p core levels possessed a similar kinetic energy (about 600 eV when using Al Kα as excitation source), which was different from that of Ce 4d and Ni 3p (around 1390 eV under the same conditions). These values led to an IMFP close to 1.2 nm for Ce 3d and Ni 2p, which increased up to 2.2 nm for Ce 4d and Ni 3p signals. Accordingly, the Ni 2p/Ce 3d ratio provides information corresponding to a maximum depth of around 3.6 nm from the sample surface (which corresponds to three times the IMFP for these photoelectrons [43]), while the depth of Ni 3p/Ce 4d increased to 6.6 nm. Ni 2p/Ce 3d and Ni 3p/Ce 4d ratios of 0.44 and 0.33, respectively, were obtained from the quantification of the corresponding high-resolution XPS spectra for the fresh nanostructured catalyst. These results are markedly higher than the corresponding Ni/Ce nominal value (i.e., 0.15), thus corroborating the essentially surface character of the nickel-containing phases and their excellent dispersion degree, well in agreement with the conclusions drawn from the XRD and X-EDS analyses.

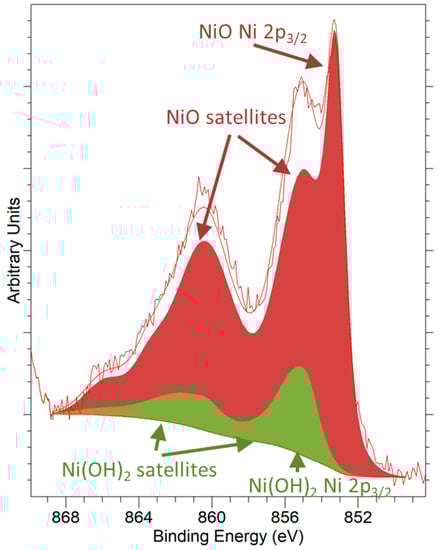

Concerning the chemical state of nickel in the freshly prepared nanostructured catalyst sample, an in-depth analysis and deconvolution of the Ni 2p3/2 core level in Figure 3 reveals that it was only present in oxidized state, chiefly as NiO (85%), with a small amount of Ni(OH)2 (15%). This latter compound was likely formed as a result of chemisorption of water from the laboratory atmosphere during the handling and storage of the calcined sample. Ni 2p3/2 spectral fitting parameters were extracted from Reference [44] (see Supplementary Materials for details).

3.2. Redox Characterization

Cerium and nickel oxidation states are well known to play pivotal roles in the interaction with CO2, and thereby in the hydrogenation of this chemically stable molecule [6,45,46,47]. In this regard, a number of works have revealed the ability of ceria to activate the CO2 molecule by an oxygen-vacancy assisted mechanism [45], which obviously requires the presence of Ce3+ cations at the surface level. Moreover, the nickel oxidation state has been tentatively correlated with both the activity and selectivity of ceria-supported nickel catalysts in CO2 hydrogenation reactions [6]. Therefore, it is essential to characterize in detail the redox properties of the CeO2 NCs and 5Ni-CeO2 NCs samples. For such purpose, TPR experiments under flowing H2(5%)/Ar were performed on these nanomaterials. The resulting profiles are depicted in Figure 4 as water evolution traces, with a complete consistency with the corresponding hydrogen consumption curves being observed for both samples. Consequently, the different events in the former traces were all unambiguously associated with abstraction of lattice oxygen from the nanomaterials by hydrogen.
As far as the bare CeO2 NCs sample is concerned, its profile displays the typical bimodal shape reported in the literature for ceria in the form of nanostructured and high surface area powders [48,49,50,51]. In accordance with the traditional interpretation, the low temperature peak centered at around 550 °C is attributed to surface reduction of CeO2, while the much more intense and broader band peaked at 850 °C is connected with bulk oxide reduction. As expected, the incorporation of nickel brought remarkable modifications in the TPR profile of the nanostructured ceria support. Thus, the most prominent change involves the surface reduction feature, which significantly shifted toward much lower temperatures, appearing at about 325 °C, and overlapped with some additional bands, which is likely ascribable to the reduction of the supported Ni2+-containing phases (i.e., essentially NiO and Ni(OH)2). In addition, the relatively low temperature observed for the reduction of these nickel phases advocates for the presence in the catalyst sample of surface amorphous or very fine reducible species, which weakly interact with the ceria support [52]. Again, these observations are in line with the results derived from XRD, electron microscopy, and conventional XPS analyses. Finally, from the whole set of TPR results, it is clear that the 5Ni-CeO2 NCs catalyst exhibited an enhanced reducibility at low temperature in comparison with the pristine CeO2 NCs support, while the effect on the high temperature reduction was almost negligible.

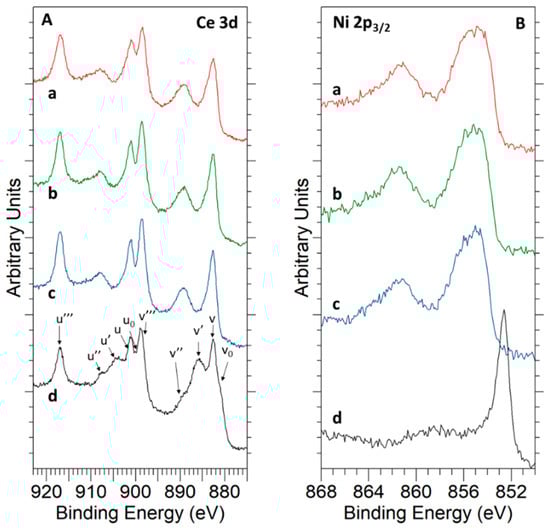

The evolution of the surface chemical features during the reduction process by hydrogen was followed for both samples by means of the NAP-XPS technique. Prior to discussing the obtained results, it should be borne in mind that, during these experiments, the hydrogen pressure (i.e., 1 mbar) was much lower than that in the conventional TPR-MS runs, in which it reached a value of 50 mbar. Accordingly, a marked shift to higher temperatures was expected for the onset of the different reduction events as compared to that observed in the TPR profiles. Table 2 compiles the evolution of ceria reduction degree with the application of different treatments. These values were calculated from NAP-XPS data at the selected analysis depths, i.e., 3.3 nm (KE = 550 eV) and 1.8 nm (KE = 190 eV). Ce3+ percentages were estimated as described in Reference [30]. As can be seen from Table 2, cerium reduction was almost negligible for both nanomaterials at temperatures below 500 °C, regardless of the composition of the atmosphere (see Figures S3 and S4 in Supplementary Material). Reduction begins at this temperature, with the Ce3+ content being slightly higher for the nickel catalyst sample. It is also worth noting that Ce3+ and foreseeable oxygen vacancies were essentially concentrated in the outermost surface layers of the nanocubes. Furthermore, it should be also noted that no ceria reduction was observed at surface level until Ni2+ was completely reduced to metallic nickel, as inferred from Figure 5 in which Ce 3d and Ni 2p3/2 core levels were registered under 1 mbar H2 and at KE = 190 eV (i.e., analysis depth of 1.8 nm).
By contrast, at temperatures of 500 °C and above, Ce3+ fraction is high for both samples, and nickel was found in a completely reduced state, i.e., as Ni(0), irrespective of the atmosphere. In this connection, it is worth highlighting that, although the nickel reduction degree did not change up to a temperature of 350 °C, an evolution of the NiO/Ni(OH)2 ratio was clearly identified. Figure S3 depicts the deconvolution of the Ni 2p3/2 signal for different reduction temperatures and both analysis depths. The relative amount of Ni(OH)2 increased from around 20% at 3.3 nm up to 40% at 1.8 nm, suggesting that, as expected, this phase was mainly located at the uppermost layers of the nickel-containing nanoparticles.
An undesirable effect observed during reduction of the catalyst sample was the sintering of nickel-containing particles associated with their reduction to the metallic state. In this regard, it is well known that supported nickel catalysts usually suffer from strong sintering when operating under demanding reaction conditions [24]. As deduced from Table 3, the Ni/Ce ratio strongly decreased after reduction to 500 °C and approached the nominal value of 0.15, thus corroborating the sintering of the nickel nanoparticles under such reducing conditions.

3.3. Surface Basicity and Interaction with the CO2 Molecule

Ceria is a moderately basic oxide [54,55,56], so it is expected to easily interact with the CO2 molecule. Accordingly, this section is devoted to study both the amount and nature of the adsorbed CO2 species by means of Temperature Programmed Desorption (TPD) of pre-adsorbed CO2 at room temperature, CO2 volumetric chemisorption experiments, and NAP-XPS under 1 mbar of pure CO2.

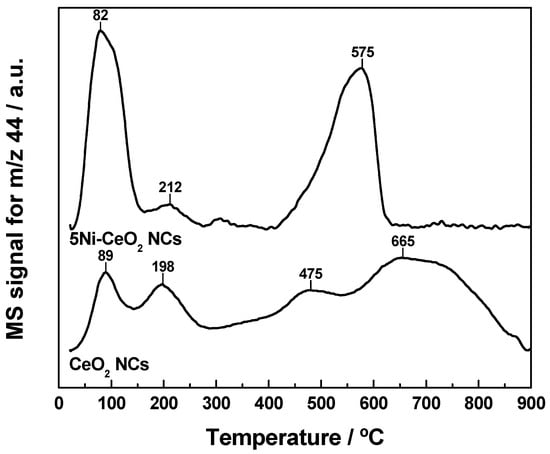

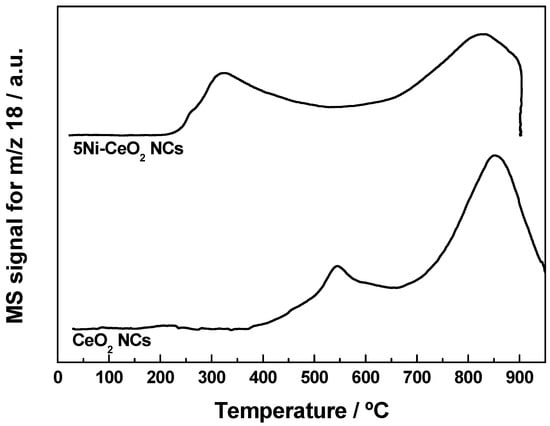

Obtained results from the TPD-MS experiments after CO2 adsorption at room temperature are displayed in Figure 6. In this regard, it should be kept in mind that the samples were subjected to a cleaning pretreatment in O2(5%)/He at 350 °C. Then, they were exposed to the CO2 flow at 25 °C for 1 h and finally flushed with Ar at the same temperature for 1 h. Therefore, since this purging removes physically adsorbed CO2 species, it is evident that profiles shown in Figure 6 mainly account for those irreversibly adsorbed CO2 forms.
Two clearly distinguishable regions can be identified in the TPD-CO2 traces. CO2 evolution at temperatures above 400 °C is essentially attributable to the thermal decomposition of strongly bound bulk carbonate species, which probably remained in the nanomaterials after applying the cleaning routine. For the purpose of the present study, the low temperature region is much more interesting. As can be seen, the TPD profiles were as a rule dominated by two overlapping major desorption peaks located at about 90 °C and 200 °C. The former was much more intense for the 5Ni-CeO2 NCs sample and appeared to result from the overlap of at least two very close and sharp peaks. This CO2 evolution feature is likely ascribed to the desorption of weakly bound CO2 forms, one of them likely related to NiO, which seems to play a key role in the adsorption of this acidic molecule. The second desorption peak, centered at around 200 °C, is rather similarly shaped for both nanostructured materials and exclusively attributable to CO2 adsorption on ceria surface.
Quantitative data for CO2 adsorption were obtained from volumetric chemisorption measurements. Adsorbed quantities at room temperature after dosing 7 mbar and 1013 mbar of CO2 are collected in Table 4 for both samples. In good agreement with the corresponding TPD profiles, the volumetric data fully confirm the positive effect of the supported nickel phases on the CO2 adsorption capability of the bare CeO2 NCs support.
Summarizing the results from the TPD-MS and volumetric adsorption studies, the 5Ni-CeO2 NCs catalyst sample was able to adsorb larger amounts of CO2 than the raw CeO2 NCs support both at low and high CO2 pressures. Moreover, the interaction of the CO2 molecule with the sample surface appeared to be slightly weaker for the nickel catalyst, which makes it a suitable candidate for its application in CO2 hydrogenation reactions.
On the other hand, the interaction of CO2 with the samples surface at a temperature of 250 °C was studied by NAP-XPS, with the results displayed in Figure 7. Peaks deconvolution was accomplished as follows: Light green peaks at the higher BE side of C 1s and O 1s correspond to CO2 in the gas phase [57]; pink peaks at about 290.2 eV for C 1s and about 532.0 eV for O 1s are associated with the carbonate (CO32−) species [57]; adventitious carbon components are too small to be significant; blue and purple peaks in O 1s spectra are ascribed to the oxide (CeO2 and NiO) and OH- groups, respectively; a small dark green peak at about 288.1 eV in the C 1s spectrum is related to carboxylate (CO2δ−) species [57]; and, finally, the broad peak in C 1s appearing in dark red corresponds to the Ce 4s signal. Details for peak fitting of O 1s and C 1s signals can be found in Supplementary Materials file, Table S1.

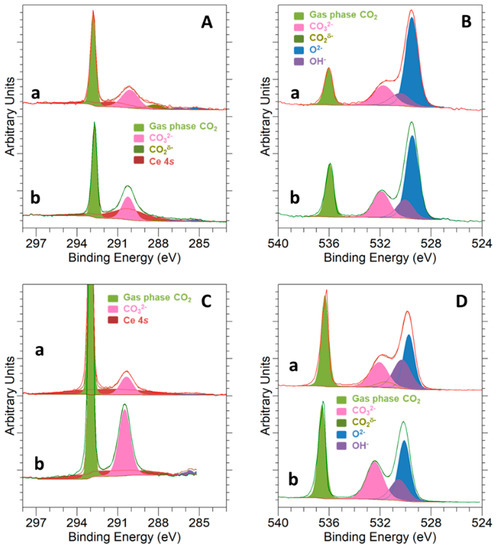

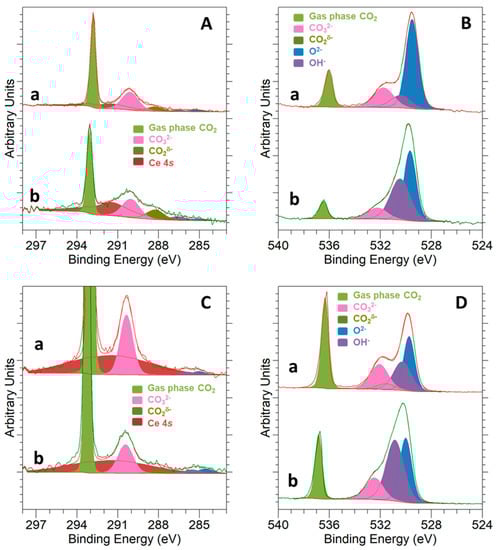

As deduced from Figure 7, carbonate species were the main states for CO2 adsorption in both samples, with the corresponding pink peaks being clearly visible in the C 1s and O 1s spectra. Carbonates were the only CO2 adsorption form identified for the bare CeO2 NCs, whereas in the case of 5Ni-CeO2 NCs, a small number of carboxylates was additionally detected in the C 1s spectrum. In this regard, it is worth noting that the identification of carboxylate species in the O 1s spectrum is a rather complex task, since their peak is usually centered at BE values very close to those reported for carbonates [57].
Finally, NAP-XPS data for CO2 adsorption over the 5Ni-CeO2 NCs catalyst at two different temperatures, 250 °C and 500 °C, are shown in Figure 8. The peaks deconvolution follows an identical scheme to that previously described for Figure 7. An increase in the temperature for CO2 adsorption on the nickel-containing sample led to a decline in the intensity of the carbonate signals, both in the C 1s and O 1s spectra. Simultaneously, the presence of carboxylate species was more evident in the C 1s signals. Furthermore, some noticeable changes concerning the relative intensity of oxide and hydroxyl group peaks in the O 1s spectra are also noted. In fact, the intensity of this latter signal increased in comparison with that for the former peak, mainly due to the hydrogen incorporation in the reduction treatment that was applied prior to CO2 exposure.

3.4. CO2 Hydrogenation Reaction Followed by NAP-XPS

The performance of the 5Ni-CeO2 NCs catalyst in the CO2 hydrogenation reaction was followed in situ by the NAP-XPS technique. The total pressure in the analysis chamber during the catalytic tests was set to 1 mbar, with a gaseous mixture of pure CO2 and H2 in a molar ratio of 1:4 (i.e., 0.2 mbar CO2 and 0.8 mbar H2). Starting from 250 °C, the reaction temperature was increased stepwise to 500 °C, 600 °C, and 640 °C, with the latter being the highest temperature that could be reached in the experimental setup. With a view to carefully identifying and following the possible reaction intermediates appearing on the catalyst surface during the reaction, this study was performed at KE = 190 eV to enhance the surface contribution.
Before discussing the obtained NAP-XPS results, it is worth recalling that CO2 hydrogenation over supported nickel catalysts is well known to exclusively yield CH4 and/or CO as products [11,58]. Therefore, the formation of both oxygenates and long-chain hydrocarbons during the catalytic tests can be completely ruled out. This hypothesis is further corroborated from a careful and detailed analysis of the mass spectrometry signals recorded for different representative m/z ratios during the CO2 hydrogenation experiments. From them, only CH4 and CO were detected, while no clear evidence of the presence of other reaction products was found.

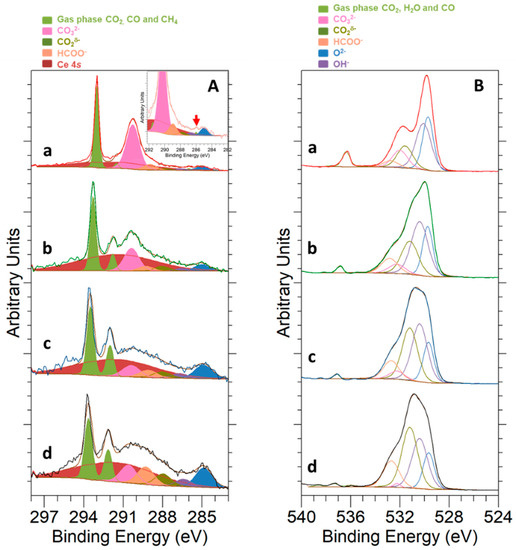

Figure 9 summarizes the NAP-XPS results registered for the C 1s and O 1s core levels, which were employed to follow the evolution of the reaction at different temperatures. The color caption for the peaks deconvolution is the same as previously described for Figure 7 and Figure 8. Nevertheless, in this case, we added an additional contribution in orange, which was associated with formate species (HCOO-, a typical intermediate in CO2 hydrogenation reactions) and set at 289.2 eV and 532.8 eV in the C 1s and O 1s spectra, respectively [57].
C 1s spectra (Figure 9A) reveal a change in reaction selectivity from 250 to 500 °C. A number of possible reaction pathways have been described in the literature for CO2 hydrogenation, with each of them leading to different products, such as CO, methanol, and methane [11], depending on the metal active phase and reaction conditions (i.e., temperature and CO2:H2 molar ratio). At a temperature of 250 °C, the reaction yielded a small amount of methane, which could be detected over the catalyst sample as seen in the inset in Figure 9A. Nonetheless, methane was not identified at higher temperatures, which is well in agreement with the reaction thermodynamics. Instead of this hydrocarbon product, a clearly visible peak for gaseous CO at 291.8 eV was observed with increasing reaction temperatures. This fact advocates for the prevalence of the reverse water–gas shift reaction (referred to as rWGS hereinafter) at temperatures above 500 °C. Furthermore, carbonate peaks also decreased in intensity as the reaction temperature rose, and they were replaced by those ascribed to formate and carboxylate species, which became progressively more relevant in the overall spectra. According to the literature, these formate species, which were absence at low reaction temperatures, are involved as intermediates in the reaction mechanism for rWGS [11].
As far as the O 1s high resolution spectra are concerned (see Figure 9B), a gradual increase of the relative intensity of the hydroxyl group peak (colored in purple) with respect to oxide peaks (blue-colored) was noted as the catalyst surface was covered with hydrogen due to increasing temperature. These hydroxyl groups are also involved in different proposed pathways for CO2 hydrogenation to methane and CO [11]. On the other hand, the progressive decrease of carbonate species observed in the C 1s spectra was also followed from the evolution of the O 1s signal. An increase in the reaction temperature from 250 °C to 640 °C was accompanied by a decline in the relative intensity of the carbonates peak from around 13% of the total oxygen detected at 250 °C to only 1% at 640 °C. Finally, both carboxylate and formate intermediates were easily detected in the O 1s profile, increasing their relative intensity as the rWGS progressed and became dominant.
From the above NAP-XPS results, it is observed that the rWGS reaction was dominant at a temperature of 640 °C, so that CO2 was almost exclusively reduced to CO. After reaching this latter reaction temperature, additional NAP-XPS spectra were also recorded during the cooling up to room temperature under reaction atmosphere. For such purpose, the sample pellet was pulled forward, so only electrons from the gas phase could be detected, and a series of fast scans of the O 1s core level was registered to track the changes in the gas composition during cooling. More than 280 fast scans of O 1s signal were collected, with 1 in 10 of them being depicted in Figure 10A. Additionally, a mass spectrometer coupled to the analysis chamber allowed us to monitor the gas composition during cooling, with the evolution of CO2, CO, H2O, and CH4 representative signals plotted in Figure 10B. A steady decrease in the signals for both CO and H2O, which were the main products of the rWGS reaction, was observed when cooling from 640 °C to 400 °C. A signal attributable to CH4 production was detected at this latter temperature. However, methanation reaction coexisted with rWGS (this latter being less important) until catalytic activity completely ceased at around 100 °C.

4. Conclusions

CO2 hydrogenation reaction was studied over a nanostructured ceria-supported nickel catalyst using Near Ambient Pressure X-ray Photoelectron Spectroscopy (NAP-XPS). The as-prepared nanocatalyst was first characterized in terms of its physicochemical features. This basic characterization study revealed that the ceria support consisted of cubic-shaped nanocrystals enclosed by crystallographically well-defined (100) facets and with and average edge length of around 50 nm, while the nickel-containing phase was found in a highly dispersed state on the nanocubes surface. Both surface basicity and reducibility features of the ceria support, which are well known to play key roles in CO2 hydrogenation, were markedly improved as a result of the incorporation of nickel.
NAP-XPS was revealed as a very useful tool to monitor chemical changes at the surface level occurring during the interaction of CO2 with the nanostructured catalyst and under reaction conditions. Furthermore, the use of synchrotron radiation also allowed us to study different sampling depths.
Concerning the catalytic performance, two different temperature ranges were distinguished:
  • Below 500 °C, the catalyst behavior was characterized by:
    • Well-dispersed nickel particles over ceria surface.
    • Both cerium and nickel were in an oxidized state (i.e., Ce4+ and Ni2+), even under reducing conditions.
    • CO2 adsorption and reaction with H2 proceeded with high carbonate content on the catalyst surface.
    • Only CH4 was detected as hydrogenation product, without evidence of any other reaction, such as reverse water–gas shift (rWGS).
2
Above 500 °C, the catalyst evolution was described by:
  • Strong sintering of supported nickel nanoparticles.
  • Both nickel and cerium were reduced (100% Ni0 and a large fraction of Ce3+).
  • Much lower amounts of carbonate species were detected on the catalyst surface after CO2 adsorption and reaction with H2.
  • The appearance of new adsorbed species, which were identified as carboxylates and formates.
  • CO2 reduction essentially proceeded via a rWGS mechanism, thus yielding CO as main product and without any evidence of CH4 formation.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/14/4/711/s1, Figure S1. Representative HAADF-STEM and HRTEM images for the bare CeO2 NCs support. Ni 2p peak fitting section. Figure S2. Ni 2p3/2 XPS signal obtained with Al Kα for the as-prepared 5Ni-CeO2 NCs catalyst. Figure S3. Ce 3d NAP-XPS spectra recorded at KE = 550 eV (A) and KE = 190 eV (B) corresponding to 5Ni-CeO2 NCs under different atmospheres at 250 °C: (a) 1 mbar H2, (b) 1 mbar CO2, and (c) 1 mbar CO2 + H2 (1:4). Figure S4. Ce 3d NAP-XPS spectra recorded at KE = 550 eV (A) and KE = 190 eV (B) corresponding to 5Ni-CeO2 NCs under 1 mbar CO2 + H2 (1:4) at different temperatures: (a) 250 °C, (b) 500 °C, and (c) 600 °C. C 1s and O 1s peak fitting section. Figure S5. Ni 2p3/2 NAP-XPS spectra recorded at KE = 550 eV (A) and KE = 190 eV (B) corresponding to 5Ni-CeO2 NCs under 1 mbar H2 at different temperatures: (a) 250 °C, (b) 300 °C, and (c) 350 °C. Figure S6. Ni 2p3/2 obtained at KE = 190 eV for 5Ni-CeO2 NCs under 1 mbar H2 at 500 °C. Table S1. C 1s and O 1s peak fitting parameters.

Author Contributions

A.B.-B. performed laboratory experiments and prepared the samples; J.J.P.-S. performed conventional XPS experiments. A.B.-B., G.B., J.J.P.-S., C.E., E.P., F.C.H. and J.M.P. were involved in synchrotron experiments. Conceptualization and methodology, A.B.-B., G.B. and J.M.P.; original draft preparation G.B., A.B.-B. and J.M.P. Supervision, G.B. and J.M.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Spanish Ministry of Science and Innovation and FEDER Program of EU (MAT2017-87579-R), Junta de Andalucía (Group FQM-110).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

Adrián Barroso Bogeat thanks support from the “Juan de la Cierva-Formación” Fellowship Program of the Spanish Ministry of Science and Innovation (FJCI-2015-25999) and from the University of Cádiz through a postdoctoral contract. Electron microscopy data were acquired using the equipment at the DME-UCA node of the ELECMI Spanish Unique Infrastructure for Electron Microscopy of Materials. NAP-XPS experiments were performed at CIRCE (BL-24) beamline at ALBA Synchrotron with the collaboration of ALBA staff.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kondratenko, E.V.; Mul, G.; Baltrusaitis, J.; Larrazábal, G.O.; Pérez-Ramírez, J. Status and perspectives of CO2 conversion into fuels and chemicals by catalytic, photocatalytic and electrocatalytic processes. Energy Environ. Sci. 2013, 6, 3112–3135. [Google Scholar] [CrossRef] [Green Version]
  2. U.S. Energy Information Administration. International Energy Outlook 2019 with Projections to 2050; U.S. Energy Information Administration: Washington, DC, USA, 2019.
  3. Mikkelsen, M.; Jørgensen, M.; Krebs, F.C. The teraton challenge. A review of fixation and transformation of carbon dioxide. Energy Environ. Sci. 2010, 3, 43–81. [Google Scholar] [CrossRef]
  4. Centi, G.; Perathoner, S. Opportunities and prospects in the chemical recycling of carbon dioxide to fuels. Catal. Today 2009, 148, 191–205. [Google Scholar] [CrossRef]
  5. Perathoner, S.; Centi, G. CO2 Recycling: A key strategy to introduce green energy in the chemical production chain. ChemSusChem 2014, 7, 1274–1282. [Google Scholar] [CrossRef] [PubMed]
  6. Winter, L.R.; Chen, R.; Chen, X.; Chang, K.; Liu, Z.; Senanayake, S.D.; Ebrahim, A.M.; Chen, J.G. Elucidating the roles of metallic Ni and oxygen vacancies in CO2 hydrogenation over Ni/CeO2 using isotope exchange and in situ measurements. Appl. Catal. B Environ. 2019, 245, 360–366. [Google Scholar] [CrossRef]
  7. Graves, C.; Ebbesen, S.D.; Mogensen, M.B.; Lackner, K.S. Sustainable hydrocarbon fuels by recycling CO2 and H2O with renewable or nuclear energy. Renew. Sustain. Energy Rev. 2011, 15, 1–23. [Google Scholar] [CrossRef]
  8. Costentin, C.; Robert, M.; Savéant, J.-M. Catalysis of the electrochemical reduction of carbon dioxide. Chem. Soc. Rev. 2013, 42, 2423–2436. [Google Scholar] [CrossRef] [PubMed]
  9. Centi, G.; Quadrelli, E.A.; Perathoner, S. Catalysis for CO2 conversion: A key technology for rapid introduction of renewable energy in the value chain of chemical industries. Energy Environ. Sci. 2013, 6, 1711–1731. [Google Scholar] [CrossRef]
  10. Appel, A.M.; Bercaw, J.E.; Bocarsly, A.B.; Dobbek, H.; Dubois, D.L.; Dupuis, M.; Ferry, J.G.; Fujita, E.; Hille, R.; Kenis, P.J.A.; et al. Frontiers, opportunities, and challenges in biochemical and chemical catalysis of CO2 fixation. Chem. Rev. 2013, 113, 6621–6658. [Google Scholar] [CrossRef] [Green Version]
  11. Kattel, S.; Liu, P.; Chen, J.G. Tuning selectivity of CO2 hydrogenation reactions at the metal/oxide interface. J. Am. Chem. Soc. 2017, 139, 9739–9754. [Google Scholar] [CrossRef]
  12. Porosoff, M.D.; Yan, B.; Chen, J.G. Catalytic reduction of CO2 by H2 for synthesis of CO, methanol and hydrocarbons: Challenges and opportunities. Energy Environ. Sci. 2016, 9, 62–73. [Google Scholar] [CrossRef]
  13. Daza, Y.A.; Kuhn, J.N. CO2 conversion by reverse water gas shift catalysis: Comparison of catalysts, mechanisms and their consequences for CO2 conversion to liquid fuels. RSC Adv. 2016, 6, 49675–49691. [Google Scholar] [CrossRef]
  14. Chen, C.-S.; Cheng, W.-H.; Lin, S.-S. Study of reverse water gas shift reaction by TPD, TPR and CO2 hydrogenation over potassium-promoted Cu/SiO2 catalyst. Appl. Catal. A Gen. 2003, 238, 55–67. [Google Scholar] [CrossRef]
  15. Wang, X.; Shi, H.; Kwak, J.H.; Szanyi, J. Mechanism of CO2 hydrogenation on Pd/Al2O3 catalysts: Kinetics and transient DRIFTS-MS studies. ACS Catal. 2015, 5, 6337–6349. [Google Scholar] [CrossRef]
  16. Chen, C.; Cheng, W.; Lin, S. Mechanism of CO formation in reverse water–gas shift reaction over Cu/Al2O3 catalyst. Catal. Lett. 2000, 68, 45–48. [Google Scholar] [CrossRef]
  17. Bernal, S.; Blanco, G.; Gatica, J.M.; Perez-Omil, J.A.; Pintado, J.M.; Vidal, H. Chemical reactivity of binary rare earth oxides. In Binary Rare Oxides; Adachi, G., Imanaka, N., Kang, Z.C., Eds.; Springer: Dordrecht, The Netherlands, 2004; pp. 9–55. [Google Scholar]
  18. Trovarelli, A. Catalytic properties of ceria and CeO2-containing materials. Catal. Rev. 1996, 38, 439–520. [Google Scholar] [CrossRef]
  19. Du, G.; Lim, S.; Yang, Y.; Wang, C.; Pfefferle, L.; Haller, G.L. Methanation of carbon dioxide on Ni-incorporated MCM-41 catalysts: The influence of catalyst pretreatment and study of steady-state reaction. J. Catal. 2007, 249, 370–379. [Google Scholar] [CrossRef]
  20. Chang, F.-W.; Kuo, M.-S.; Tsay, M.-T.; Hsieh, M.-C. Hydrogenation of CO2 over nickel catalysts on rice husk ash-alumina prepared by incipient wetness impregnation. Appl. Catal. A Gen. 2003, 247, 309–320. [Google Scholar] [CrossRef]
  21. Yamasaki, M.; Komori, M.; Akiyama, E.; Habazaki, H.; Kawashima, A.; Asami, K.; Hashimoto, K. CO2 methanation catalysts prepared from amorphous Ni–Zr–Sm and Ni–Zr–misch metal alloy precursors. Mater. Sci. Eng. A 1999, 267, 220–226. [Google Scholar] [CrossRef] [Green Version]
  22. Yamasaki, M.; Habazaki, H.; Asami, K.; Izumiya, K.; Hashimoto, K. Effect of tetragonal ZrO2 on the catalytic activity of Ni/ZrO2 catalyst prepared from amorphous Ni–Zr alloys. Catal. Commun. 2006, 7, 24–28. [Google Scholar] [CrossRef]
  23. Lunde, P.J.; Kester, F.L. Carbon dioxide methanation on a ruthenium catalyst. Ind. Eng. Chem. Process. Des. Dev. 1974, 13, 27–33. [Google Scholar] [CrossRef]
  24. Wang, S.; Lu, G. (Max). Role of CeO2 in Ni/CeO2–Al2O3 catalysts for carbon dioxide reforming of methane. Appl. Catal. B Environ. 1998, 19, 267–277. [Google Scholar] [CrossRef]
  25. Rahmani, S.; Rezaei, M.; Meshkani, F. Preparation of promoted nickel catalysts supported on mesoporous nanocrystalline gamma alumina for carbon dioxide methanation reaction. J. Ind. Eng. Chem. 2014, 20, 4176–4182. [Google Scholar] [CrossRef]
  26. Ahmad, W.; Younis, M.N.; Shawabkeh, R.; Ahmed, S. Synthesis of lanthanide series (La, Ce, Pr, Eu & Gd) promoted Ni/γ-Al2O3 catalysts for methanation of CO2 at low temperature under atmospheric pressure. Catal. Commun. 2017, 100, 121–126. [Google Scholar] [CrossRef]
  27. Schnadt, J.; Knudsen, J.; Johansson, N. Present and new frontiers in materials research by ambient pressure X-ray photoelectron spectroscopy. J. Phys. Condens. Matter 2020, 32, 413003. [Google Scholar] [CrossRef]
  28. Mai, H.-X.; Sun, L.-D.; Zhang, Y.-W.; Si, R.; Feng, W.; Zhang, H.-P.; Liu, A.H.-C.; Yan, C.-H. Shape-selective synthesis and oxygen storage behavior of ceria nanopolyhedra, nanorods, and nanocubes. J. Phys. Chem. B 2005, 109, 24380–24385. [Google Scholar] [CrossRef]
  29. Tinoco, M.; Fernandez-Garcia, S.; Lopez-Haro, M.; Hungria, A.B.; Chen, X.; Blanco, G.; Perez-Omil, J.A.; Collins, S.E.; Okuno, H.; Calvino, J.J. Critical influence of nanofaceting on the preparation and performance of supported gold catalysts. ACS Catal. 2015, 5, 3504–3513. [Google Scholar] [CrossRef]
  30. Fernandez-Garcia, S.; Jiang, L.; Tinoco, M.; Hungria, A.B.; Han, J.; Blanco, G.; Calvino, J.J.; Chen, X. Enhanced hydroxyl radical scavenging activity by doping lanthanum in ceria nanocubes. J. Phys. Chem. C 2015, 120, 1891–1901. [Google Scholar] [CrossRef]
  31. Collins, S.M.; Fernandez-Garcia, S.; Calvino, J.J.; Midgley, P.A. Sub-nanometer surface chemistry and orbital hybridization in lanthanum-doped ceria nano-catalysts revealed by 3D electron microscopy. Sci. Rep. 2017, 7, 5406. [Google Scholar] [CrossRef]
  32. Jiang, L.; Fernandez-Garcia, S.; Tinoco, M.; Yan, Z.; Xue, Q.; Blanco, G.; Calvino, J.J.; Hungria, A.B.; Chen, X. Improved oxidase mimetic activity by praseodymium incorporation into ceria nanocubes. ACS Appl. Mater. Interfaces 2017, 9, 18595–18608. [Google Scholar] [CrossRef]
  33. Cabeza, I.; Souto, L.G.; Pintado, J.M.; Pereira, C.; Freire, C.; Blanco, G. Influence of ceria distribution on the redox behaviour of nanoparticulated CeO2-SiO2 systems with application in catalysis. Surf. Interface Anal. 2014, 46, 712–715. [Google Scholar] [CrossRef]
  34. Bogeat, A.B.; Núñez-Pérez, B.; Blanco, G.; Pintado, J.M.; Hernández-Garrido, J.C.; Calvino, J.J. Surface and redox characterization of new nanostructured ZrO2@CeO2 systems with potential catalytic applications. Surf. Interface Anal. 2018, 50, 1025–1029. [Google Scholar] [CrossRef]
  35. Bogeat, A.B.; Raposo, I.D.; Blanco, G.; Pintado, J.M. Tuning the integration rate of Ce(Ln)O2 nanoclusters into nanoparticulated ZrO2 Supports: When the cation size matters. Materials 2020, 13, 2818. [Google Scholar] [CrossRef] [PubMed]
  36. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  37. Allen, L.J.; D’Alfonso, A.J.; Freitag, B.; Klenov, D.O. Chemical mapping at atomic resolution using energy-dispersive X-ray spectroscopy. MRS Bull. 2012, 37, 47–52. [Google Scholar] [CrossRef]
  38. Sánchez, J.J.; López-Haro, M.; Hernández-Garrido, J.C.; Blanco, G.; Cauqui, M.A.; Rodríguez-Izquierdo, J.M.; Pérez-Omil, J.A.; Calvino, J.J.; Yeste, M.P. An atomically efficient, highly stable and redox active Ce0.5Tb0.5Ox (3% mol.)/MgO catalyst for total oxidation of methane. J. Mater. Chem. A 2019, 7, 8993–9003. [Google Scholar] [CrossRef]
  39. Barr, T.L.; Seal, S. Nature of the use of adventitious carbon as a binding energy standard. J. Vac. Sci. Technol. A 1995, 13, 1239–1246. [Google Scholar] [CrossRef]
  40. Tanuma, S.; Powell, C.J.; Penn, D.R. Calculations of electron inelastic mean free paths (IMFPS). IV. Evaluation of calculated IMFPs and of the predictive IMFP formula TPP-2 for electron energies between 50 and 2000 eV. Surf. Interface Anal. 1993, 20, 77–89. [Google Scholar] [CrossRef]
  41. Holgado, J.P.; Alvarez, R.; Munuera, G. Study of CeO2 XPS spectra by factor analysis: Reduction of CeO2. Appl. Surf. Sci. 2000, 161, 301–315. [Google Scholar] [CrossRef]
  42. Sarma, D.; Rao, C. XPES studies of oxides of second- and third-row transition metals including rare earths. J. Electron. Spectrosc. Relat. Phenom. 1980, 20, 25–45. [Google Scholar] [CrossRef]
  43. Tanuma, S.; Powell, C.J.; Penn, D.R. Calculations of electron inelastic mean free paths. V. Data for 14 organic compounds over the 50-2000 eV range. Surf. Interface Anal. 1994, 21, 165–176. [Google Scholar] [CrossRef]
  44. Biesinger, M.C.; Payne, B.P.; Lau, L.W.M.; Gerson, A.; Smart, R.S.C. X-ray photoelectron spectroscopic chemical state quantification of mixed nickel metal, oxide and hydroxide systems. Surf. Interface Anal. 2009, 41, 324–332. [Google Scholar] [CrossRef]
  45. Boaro, M.; Colussi, S.; Trovarelli, A. Ceria-based materials in hydrogenation and reforming reactions for CO2 valorization. Front. Chem. 2019, 7, 28. [Google Scholar] [CrossRef] [PubMed]
  46. Ma, Y.; Gao, W.; Zhang, Z.; Zhang, S.; Tian, Z.; Liu, Y.; Ho, J.C.; Qu, Y. Regulating the surface of nanoceria and its applications in heterogeneous catalysis. Surf. Sci. Rep. 2018, 73, 1–36. [Google Scholar] [CrossRef]
  47. Winter, L.R.; Gomez, E.; Yan, B.; Yao, S.; Chen, J.G. Tuning Ni-catalyzed CO2 hydrogenation selectivity via Ni-ceria support interactions and Ni-Fe bimetallic formation. Appl. Catal. B Environ. 2018, 224, 442–450. [Google Scholar] [CrossRef]
  48. Yao, H.C.; Yao, Y.F.Y. Ceria in automotive exhaust catalysts: I. Oxygen storage. J. Catal. 1984, 86, 254–265. [Google Scholar] [CrossRef]
  49. Giordano, F.; Trovarelli, A.; De Leitenburg, C.; Giona, M. A model for the temperature-programmed reduction of low and high surface area ceria. J. Catal. 2000, 193, 273–282. [Google Scholar] [CrossRef]
  50. Désaunay, T.; Bonura, G.; Chiodo, V.; Freni, S.; Couzinié, J.-P.; Bourgon, J.; Ringuedé, A.; Labat, F.; Adamo, C.; Cassir, M. Surface-dependent oxidation of H2 on CeO2 surfaces. J. Catal. 2013, 297, 193–201. [Google Scholar] [CrossRef]
  51. Perrichon, V.; Laachir, A.; Bergeret, G.; Fréty, R.; Tournayan, L.; Touret, O. Reduction of cerias with different textures by hydrogen and their reoxidation by oxygen. J. Chem. Soc. Faraday Trans. 1994, 90, 773–781. [Google Scholar] [CrossRef]
  52. Lechkar, A.; Bogeat, A.B.; Blanco, G.; Pintado, J.M.; El Begrani, M.S. Methanation of carbon dioxide over ceria-praseodymia promoted Ni-alumina catalysts. Influence of metal loading, promoter composition and alumina modifier. Fuel 2018, 234, 1401–1413. [Google Scholar] [CrossRef]
  53. Romeo, M.; Bak, K.; El Fallah, J.; Le Normand, F.; Hilaire, L. XPS study of the reduction of cerium dioxide. Surf. Interface Anal. 1993, 20, 508–512. [Google Scholar] [CrossRef]
  54. Rosynek, M.P. Catalytic properties of rare earth oxides. Catal. Rev. 1977, 16, 111–154. [Google Scholar] [CrossRef]
  55. Bernal, S.; Blanco, G.; Calvino, J.; Omil, J.P.; Pintado, J. Some major aspects of the chemical behavior of rare earth oxides: An overview. J. Alloys Compd. 2006, 408–412, 496–502. [Google Scholar] [CrossRef]
  56. Sato, S.; Takahashi, R.; Kobune, M.; Gotoh, H. Basic properties of rare earth oxides. Appl. Catal. A Gen. 2009, 356, 57–63. [Google Scholar] [CrossRef]
  57. Zhong, L.; Chen, D.; Zafeiratos, S. A mini review of in situ near-ambient pressure XPS studies on non-noble, late transition metal catalysts. Catal. Sci. Technol. 2019, 9, 3851–3867. [Google Scholar] [CrossRef]
  58. Vesselli, E.; Schweicher, J.; Bundhoo, A.; Frennet, A.; Kruse, N. Catalytic CO2 hydrogenation on nickel: Novel insight by chemical transient kinetics. J. Phys. Chem. C 2010, 115, 1255–1260. [Google Scholar] [CrossRef]
Materials 14 00711 g001 550

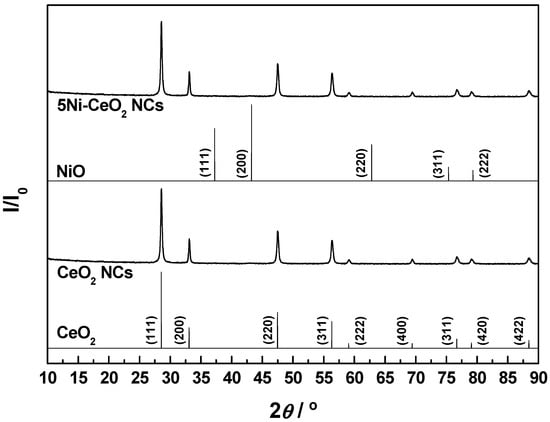

Figure 1. X-ray diffraction (XRD) diagrams recorded for the freshly prepared CeO2 nanostructured catalysts (NCs) and 5Ni-CeO2 NCs samples. Reference patterns for cubic fluorite-type CeO2 and face-centered cubic NiO are also plotted for comparison purposes.
Figure 1. X-ray diffraction (XRD) diagrams recorded for the freshly prepared CeO2 nanostructured catalysts (NCs) and 5Ni-CeO2 NCs samples. Reference patterns for cubic fluorite-type CeO2 and face-centered cubic NiO are also plotted for comparison purposes.
Materials 14 00711 g001
Materials 14 00711 g002 550
Figure 2. (A,C) Representative high-angle annular dark field-scanning transmission electron microscopy (HAADF-STEM) images for the freshly prepared 5Ni-CeO2 NCs catalyst; (B,D) the corresponding energy-dispersive X-ray spectroscopy (X-EDS) maps for Ni (green).
Figure 2. (A,C) Representative high-angle annular dark field-scanning transmission electron microscopy (HAADF-STEM) images for the freshly prepared 5Ni-CeO2 NCs catalyst; (B,D) the corresponding energy-dispersive X-ray spectroscopy (X-EDS) maps for Ni (green).
Materials 14 00711 g002
Materials 14 00711 g003 550
Figure 3. Ni 2p3/2 XPS signal registered with an Al Kα X-ray source for the as-prepared 5Ni-CeO2 NCs catalyst. Peak decomposition was accomplished using data from Biesinger et al. [44]. Peaks corresponding to NiO and Ni(OH)2 appear in dark red and green, respectively (see Supplementary Materials for details on the fitting procedure, Figure S2).
Figure 3. Ni 2p3/2 XPS signal registered with an Al Kα X-ray source for the as-prepared 5Ni-CeO2 NCs catalyst. Peak decomposition was accomplished using data from Biesinger et al. [44]. Peaks corresponding to NiO and Ni(OH)2 appear in dark red and green, respectively (see Supplementary Materials for details on the fitting procedure, Figure S2).
Materials 14 00711 g003
Materials 14 00711 g004 550
Figure 4. TPR-MS profiles for the CeO2 NCs and 5Ni-CeO2 NCs samples.
Figure 4. TPR-MS profiles for the CeO2 NCs and 5Ni-CeO2 NCs samples.
Materials 14 00711 g004
Materials 14 00711 g005 550
Figure 5. NAP-XPS spectra recorded at KE = 190 eV for Ce 3d (A) and Ni 2p3/2 (B) core levels of the 5Ni-CeO2 NCs catalyst during reduction under hydrogen (1 mbar) at different temperatures: (a) 250 °C, (b) 300 °C, (c) 350 °C, and (d) 500 °C. Ce 3d peaks assignments as proposed by the authors of [53]. For further details of the Ni 2p3/2 peak decomposition, see Supplementary Materials File, Figures S5 and S6.
Figure 5. NAP-XPS spectra recorded at KE = 190 eV for Ce 3d (A) and Ni 2p3/2 (B) core levels of the 5Ni-CeO2 NCs catalyst during reduction under hydrogen (1 mbar) at different temperatures: (a) 250 °C, (b) 300 °C, (c) 350 °C, and (d) 500 °C. Ce 3d peaks assignments as proposed by the authors of [53]. For further details of the Ni 2p3/2 peak decomposition, see Supplementary Materials File, Figures S5 and S6.
Materials 14 00711 g005
Materials 14 00711 g006 550
Figure 6. TPD-MS study of CO2 (m/z = 44) pre-adsorbed at room temperature on CeO2 NCs and 5Ni-CeO2 NCs sample.
Figure 6. TPD-MS study of CO2 (m/z = 44) pre-adsorbed at room temperature on CeO2 NCs and 5Ni-CeO2 NCs sample.
Materials 14 00711 g006
Materials 14 00711 g007 550
Figure 7. NAP-XPS spectra for C 1s at KE = 550 eV and KE = 190 eV (A,C) and O 1s at KE = 550 eV and KE = 190 eV (B,D) corresponding to (a) 5Ni-CeO2 NCs and (b) CeO2 NCs under 1 mbar CO2 at a temperature of 250 °C.
Figure 7. NAP-XPS spectra for C 1s at KE = 550 eV and KE = 190 eV (A,C) and O 1s at KE = 550 eV and KE = 190 eV (B,D) corresponding to (a) 5Ni-CeO2 NCs and (b) CeO2 NCs under 1 mbar CO2 at a temperature of 250 °C.
Materials 14 00711 g007
Materials 14 00711 g008 550
Figure 8. NAP-XPS spectra for C 1s at KE = 550 eV and KE = 190 eV (A,C) and O 1s at KE = 550 eV and KE = 190 eV (B,D) corresponding to 5Ni-CeO2 NCs under 1 mbar CO2 at temperatures of 250 °C (a) and 500 °C (b).
Figure 8. NAP-XPS spectra for C 1s at KE = 550 eV and KE = 190 eV (A,C) and O 1s at KE = 550 eV and KE = 190 eV (B,D) corresponding to 5Ni-CeO2 NCs under 1 mbar CO2 at temperatures of 250 °C (a) and 500 °C (b).
Materials 14 00711 g008
Materials 14 00711 g009 550
Figure 9. NAP-XPS experiments at KE = 190 eV for C 1s (A) and O 1s (B) corresponding to 5Ni-CeO2 NCs under reaction conditions (0.2 mbar CO2 + 0.8 mbar H2) at temperatures of 250 °C (a), 500 °C (b), 600 °C (c), and 640 °C (d). A detail of the C 1s signal featuring the peak ascribable to CH4 is depicted as an inset.
Figure 9. NAP-XPS experiments at KE = 190 eV for C 1s (A) and O 1s (B) corresponding to 5Ni-CeO2 NCs under reaction conditions (0.2 mbar CO2 + 0.8 mbar H2) at temperatures of 250 °C (a), 500 °C (b), 600 °C (c), and 640 °C (d). A detail of the C 1s signal featuring the peak ascribable to CH4 is depicted as an inset.
Materials 14 00711 g009
Materials 14 00711 g010 550

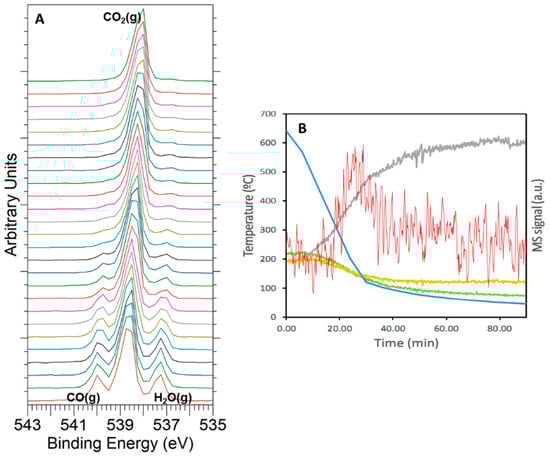

Figure 10. (A) Evolution of the O 1s signal for the gas phase under reaction conditions when cooling from 640 °C (bottom) to 80 °C (top). (B) Mass spectrometry (MS) signal registered for CO2 (gray, m/z = 44), CO (yellow, m/z = 28), and H2O (green, m/z = 18), and CH4 (red, m/z = 15) during cooling (in blue, temperature trace).
Figure 10. (A) Evolution of the O 1s signal for the gas phase under reaction conditions when cooling from 640 °C (bottom) to 80 °C (top). (B) Mass spectrometry (MS) signal registered for CO2 (gray, m/z = 44), CO (yellow, m/z = 28), and H2O (green, m/z = 18), and CH4 (red, m/z = 15) during cooling (in blue, temperature trace).
Materials 14 00711 g010
Table
Table 1. Photon energies used for the acquisition of the core levels studied in this paper. All energies are in eV.
Table 1. Photon energies used for the acquisition of the core levels studied in this paper. All energies are in eV.
Core LevelBE Rangehν (KE = 190 eV)hν (KE = 550 eV)
Ce 3d+Ni 2p850–92510801440
O 1s525–5407201080
C 1s281–293475835
Table
Table 2. Ce3+ percentages for the as-prepared samples estimated from Near Ambient Pressure X-ray Photoelectron Spectroscopy (NAP-XPS) experiments under different conditions.
Table 2. Ce3+ percentages for the as-prepared samples estimated from Near Ambient Pressure X-ray Photoelectron Spectroscopy (NAP-XPS) experiments under different conditions.
SampleTreatment%Ce3+ at 3.3 nm%Ce3+ at 1.8 nm
CeO2 NCs1 mbar H2 250 °C22
1 mbar 1CO2:4H2 250 °C13
1 mbar 1CO2:4H2 500 °C3352
1 mbar 1CO2:4H2 600 °C3352
1 mbar 1CO2:4H2 640 °C3758
5Ni-CeO2 NCs1 mbar H2 250 °C11
1 mbar H2 300 °C02
1 mbar H2 350 °C03
1 mbar H2 500 °C3650
1 mbar 1CO2:4H2 250 °C03
1 mbar 1CO2:4H2 500 °C3752
1 mbar 1CO2:4H2 600 °C4257
Table
Table 3. Ni 2p3/2/Ce 3d ratio estimated at different depths for the 5Ni-CeO2 NCs catalyst sample subjected to a reduction treatment in 1 mbar H2 at increasing temperatures.
Table 3. Ni 2p3/2/Ce 3d ratio estimated at different depths for the 5Ni-CeO2 NCs catalyst sample subjected to a reduction treatment in 1 mbar H2 at increasing temperatures.
TemperatureNi 2p3/2/Ce 3d at 3.3 nmNi 2p3/2/Ce 3d at 1.8 nm
250 °C0.550.74
350 °C0.550.70
500 °C0.200.23
Table
Table 4. Amounts of CO2 adsorbed on both samples at room temperature. Data are expressed in mmol CO2·g−1.
Table 4. Amounts of CO2 adsorbed on both samples at room temperature. Data are expressed in mmol CO2·g−1.
Sample7 mbar CO21013 mbar CO2
CeO2 NCs0.0480.119
5Ni-CeO2 NCs0.0630.219
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Barroso-Bogeat, A.; Blanco, G.; Pérez-Sagasti, J.J.; Escudero, C.; Pellegrin, E.; Herrera, F.C.; Pintado, J.M. Thermocatalytic CO2 Conversion over a Nickel-Loaded Ceria Nanostructured Catalyst: A NAP-XPS Study. Materials 2021, 14, 711. https://doi.org/10.3390/ma14040711

AMA Style

Barroso-Bogeat A, Blanco G, Pérez-Sagasti JJ, Escudero C, Pellegrin E, Herrera FC, Pintado JM. Thermocatalytic CO2 Conversion over a Nickel-Loaded Ceria Nanostructured Catalyst: A NAP-XPS Study. Materials. 2021; 14(4):711. https://doi.org/10.3390/ma14040711

Chicago/Turabian Style

Barroso-Bogeat, Adrián, Ginesa Blanco, Juan José Pérez-Sagasti, Carlos Escudero, Eric Pellegrin, Facundo C. Herrera, and José María Pintado. 2021. "Thermocatalytic CO2 Conversion over a Nickel-Loaded Ceria Nanostructured Catalyst: A NAP-XPS Study" Materials 14, no. 4: 711. https://doi.org/10.3390/ma14040711

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
