Performance and Nanostructure Simulation of Phosphogypsum Modified by Sodium Carbonate and Alum

by
Dongqing Zhong
1,
Jingchen Wang
2,
Guihua Hou
1,
Luming Wang
1,
Qian Wu
1 and
Bao Lu
1,*
1
School of Materials Science and Engineering, Yancheng Institute of Technology, Yancheng 224051, China
2
Phillips Exeter Academy, Exeter, NH 03833, USA
*
Author to whom correspondence should be addressed.
Materials 2021, 14(19), 5830; https://doi.org/10.3390/ma14195830
Submission received: 6 September 2021 / Revised: 29 September 2021 / Accepted: 1 October 2021 / Published: 5 October 2021
(This article belongs to the Special Issue Corrosion, Properties and Characterization in Concrete)
Browse Figures
Versions Notes

Abstract

:
This paper presents a new modification of the nanostructure of CaSO4·2H2O crystals containing nanopores. This nanoporous structure was achieved in phosphogypsum samples that were modified by sodium carbonate and alum. The effects of sodium carbonate and alum on the properties of phosphogypsum were studied. X-ray diffraction (XRD) and scanning electron microscopy (SEM) methods were used to explore the micro-mechanism of the composite system. Subsequently, molecular dynamics simulations were used to study the nanopore structures of the modified CaSO4·2H2O. The results show that the addition of sodium carbonate and alum reduced the absolute dry density by 23.1% compared with the original phosphogypsum sample, with a bending strength of 2.1 MPa and compressive strength of 7.5 MPa. In addition, new hydration products, sodium sulfate and sodium aluminum sulfate, were formed in the sample doped with sodium carbonate and alum. A new nanostructure of CaSO4·2H2O crystal containing nanopores was formed. Molecular simulations show that the hydration products were responsible for the surface nanopore formation, which was the main factor leading to an increase in mechanical strength. The presented nanopore structure yields lightweight and high strength properties in the modified phosphogypsum.

Graphical Abstract

1. Introduction

Phosphogypsum is produced in the chemical process of preparing phosphoric acid using the sulfuric acid method. For every ton of phosphoric acid produced, about 4.5–5.5 tons of phosphogypsum is produced [1,2,3]. Reports show that the average annual emission of phosphogypsum has reached 70 million tons and that the accumulated stockpiles have reached more than 300 million tons while the utilization rate is only about 15% [4,5]. Phosphogypsum storage not only occupies much land but also contains phosphorus [6,7,8,9,10], fluorine [11,12], organic matter [13,14], and other impurities. Once leaching, it pollutes the surrounding soil and water sources and restricts sustainable development. Thus, research on the reuse of phosphogypsum is beneficial to environmental protection.
Phosphogypsum is commonly made into construction and building materials [15,16,17,18], which allows it to become utilized as a resource. Blocks, plasterboard, binders, and self-leveling plaster are the potential phosphogypsum products. Recent researches show significant interest in reducing the absolute dry density of gypsum and other cement-based materials and in simultaneously yielding lightweight and high strength properties [19,20,21]. Examples of treating methods include CO2 curing [22], replacement of anhydrite with limestone powder [23], and pretreating lightweight aggregates with soaking and vacuum saturation [24]. For phosphogypsum, this provides a wide range of low-cost applications, which can replace cement products and reduce CO2 emissions.
The common method to realize the purpose of lightweight and high strength is by adding air-entraining agent during the mixing process of phosphogypsum. This reduces the absolute dry density of phosphogypsum blocks by increasing the air content of phosphogypsum. Commonly used air-entraining agents are mostly animal and plant air-entraining agents [25,26], ammonium bicarbonate [27,28], hydrogen peroxide [29,30], sodium bicarbonate [31,32], etc. Xiancai Liu [33] added the chemical air-entraining agent polyisocyanate to the construction gypsum, resulting in a significant swelling of the gypsum, and an increase of volume; Alena et al. [34] used the mechanism of the chemical reaction between calcium carbonate and aluminum sulfate to produce carbon dioxide and prepared gypsum with an absolute dry density of (586 ± 19) kg/m3, which effectively reduced its absolute dry density. The air-entraining agent reacts with gypsum and then changes its crystal structure. The microstructure of such samples is described as classic lapping of the perfect gypsum crystal with mesoscale pores. The mechanism of air-entraining agents yields more formation of pores in hardened gypsum plaster. In theory, the nanostructure of CaSO4·2H2O crystal with nanopores can further decrease the dry density of gypsum.
The studies mentioned in the above paragraph [33,34] have revealed the effect of air-entraining agents. However, they fail to introduce nanopores into the CaSO4·2H2O crystals. Such modifications regarding nanopores have been made in cement-based materials such as in the stacking process of calcium silicate hydrate [35]. However, studies on the performance and mechanism of phosphogypsum modified by this new nanostructure of CaSO4·2H2O crystal that contains nanopores are still lacking.
This paper introduces a new modification of the nanostructure of CaSO4·2H2O crystals containing nanopores. Sodium carbonate and alum were added to phosphogypsum samples for modification purposes. The effect of sodium carbonate and alum content and water–cement ratio on the setting times, mechanical properties, and dry densities of the phosphogypsum samples were studied. The formation of nanopores was observed and the mechanisms of their nanostructures were subsequently studied by molecular dynamics simulations. Molecular simulations were also used to study the enhancing effect of nanopores on the mechanical properties of CaSO4·2H2O crystals.

2. Materials and Methods

2.1. Raw Materials

Phosphogypsum: purchased from Nantong Oasis Energy Conservation and Environmental Protection Products Co., Ltd. (Nantong, China); sodium carbonate: industrial grade, purity 99%, purchased from Shanxi Xinghua Group Co., Ltd. (Xianyang, China); Alum: chemically pure, purity 99.9%, purchased from Lianyungang Guansu Industrial Co., Ltd (Lianyungang, China).
The main component of phosphogypsum is CaSO4·0.5H2O, and it also contains a small amount of CaSO4·2H2O and impurities. According to the GB/T 17669.3-1999 test of the mechanical properties of phosphogypsum, when the water–cement ratio is 0.7, its flexural strength is 2.4 MPa and the compressive strength is 8.6 MPa, the absolute dry density of phosphogypsum is 1289 kg/m3.

2.2. Sample Preparation

According to the ratio shown in Table 1, alum was first dissolved in water to make a potassium aluminum sulfate solution; then, phosphogypsum and sodium carbonate were mixed uniformly to make a mixed powder. The mixed powder was poured into the potassium aluminum sulfate solution and quickly stirred until the slurry was uniform, and the slurry was poured into a mold of 40 mm × 40 mm × 120 mm. Then, it was placed in a drying oven at 40 °C until it was completely dry. The sample preparation process is demonstrated in Figure 1.

2.3. Test Methods

The mechanical properties of the sample were tested based on GB/T 17669.3-1999. The initial and final setting time was tested by the Vicat meter per GB/T 17669.1-1999. The domestic Y-550 X-ray diffractometer (XRD, Fangyuan, Liaoning, China) was used to determine the hydration products of the samples. The microscopic morphology of the sample was observed with the QUANT 200 scanning electron microscope of the FEI company in Hillsboro, Oregon, USA.

2.4. Molecular Dynamics Simulation Methods

The large-scale Atomic/Molecular Massively Parallel Simulator (LAMMPS) was used for the molecular dynamics simulations and calculations of CaSO4·2H2O, where the pore formation mechanism with hydration products as well as the effects of pores on the mechanical properties of the gypsum crystal was studied [36]. CaSO4·2H2O crystal belongs to the monoclinic crystal system, and its lattice parameters are a = 5.678 Å, b = 15.213 Å, c = 6.286 Å, α = γ = 90°, and β = 114.08° [37]. Based on these parameters, the initial model of CaSO4·2H2O crystals was established. The COMPASS force field (Condensed-phase Optimized Molecular Potential for Atomistic Simulation Studies) was used in molecular simulations of CaSO4·2H2O [38]. The force field model includes cross-coupling reactions that predict the vibration frequency and structural changes as well as non-bonding interactions based on the Lennard-Jones-9-6 function and the Coulomb function calculations. The COMPASS force field is widely used in molecular simulation research of gypsum. Chang et al. used the COMPASS force field to study the wettability of the gypsum surface nanosphere [39]. Khalkhali et al. used the COMPASS force field to study the bulk and surface properties of gypsum [40].

2.4.1. Simulation of Pore Formation Mechanisms

To increase the number of crystal grains that can be studied, a 5 Å × 5 Å × 5 Å supercell was first established. Subsequently, a vacuum layer with a width of 5 Å was established to prevent periodic atoms from affecting the reaction surface [41]. Both sides of the vacuum layer channel are wrapped by gypsum crystals to allow for filling of the hydration products. Subsequently, the Metropolis calculation method from the Monte Carlo method was used to adsorb water molecules and hydration products in the gypsum channel [42]. The Monte Carlo method is widely used for water absorption of microporous and mesoporous materials [43,44,45]. In this process, the adsorbed molecules are randomly added, deleted, moved, and rotated and are added to the model through the repeated sampling method of Metropolis, and the energy is minimized. All models used an isothermal and pressure NPT ensemble for dynamics simulation and stability, with a time step of 1 fs and a total time of 1000 ps. The temperature was set to 298 K, and the Nose–Hoover thermostat and Parrinello–Rahman barostat were used to monitor and adjust the temperature, pressure, energy, etc. to maintain the stability of the system. At the same time, the Ewald method is used to calculate static electricity, and the atom-based method was used to calculate van der Waals forces. When the system stabilized, the formation mechanism of pores inside the channel surfaces was studied.

2.4.2. Effects of Pores on Mechanical Properties

Taking the center of the outer surface of the gypsum model crystal lattice as the center, hemispherical holes with the diameters of 2 Å, 3 Å, 4 Å, 5 Å, and 6 Å were dug out. Subsequently, water molecules and hydration products were adsorbed on the surface of the pores, and the uniaxial young’s modulus was calculated. In order to complete the uniaxial tensile test, the simulated box was stretched in a single direction under constant strain conditions, and the NPT ensemble was used to ensure that the pressure in other directions remained zero [46,47,48].

3. Results and Discussion

3.1. Setting Time

Table 2 shows the effect of different content of sodium carbonate and alum on the properties of phosphogypsum. Figure 2 displays the effect of sodium carbonate and alum compounding on the initial and final setting times. It can be seen from Table 2 and Figure 2 that, with the increase in sodium carbonate content, the initial setting time and final setting time of phosphogypsum increased; with the increase of alum content, the initial setting time and final setting time of phosphogypsum decreased; and with the increase of water–cement ratio, the initial setting time and final setting time of phosphogypsum linearly increase. The hydration process of gypsum consists of the dissolution of CaSO4·0.5H2O and the crystallization of CaSO4·2H2O, and the addition of salt affects the process [49]. Guangya Zheng discussed the retardation mechanism of gypsum and believed that the coating material formed on the crystal surface can delay the hydration of gypsum crystals [50]. When the sodium carbonate content increases, the carbonate ions in the solution and the calcium ions dissolved in the phosphogypsum combine to form calcium carbonate, and the resulting calcium carbonate surrounds the phosphogypsum, which increases the initial setting time and the final setting time of the phosphogypsum. When the content of alum increases, the alum solution contains more sulfate ions, which combine with calcium ions in the solution to form CaSO4·2H2O, which leads to a decrease in the initial setting time and final setting time of phosphogypsum. When sodium carbonate is mixed with alum, there is a competition mechanism for the influence of the two substances on the setting time of gypsum. The final result is related to the relative ratio of sodium carbonate and alum. Another explanation for the phenomena is relative with impurities in phosphogypsum. The salts added in system may be affected by organic phase or phosphate.

3.2. Mechanical Properties

Figure 3 shows the changes in compressive strength and flexural strength of phosphogypsum. It can be seen from Table 2 and Figure 3 that the alum content was first fixed at 1%, and the influence of sodium carbonate content on strength was studied. With the increase of sodium carbonate content, the flexural strength of phosphogypsum gradually increased, and the compressive strength first increased and then decreased. When the sodium carbonate content was 0.3%, the compressive strength reached the peak value of 8.1 MPa. Then, the sodium carbonate content was fixed at 0.3%, and the influence of alum content on the strength was studied. As the alum content increased, the flexural strength of phosphogypsum first increased and then decreased, and the compressive strength gradually decreased. Specifically, the compressive strength of phosphogypsum was gradually reduced from 8.1 MPa to 6.8 MPa, and when the alum content was 3%, the flexural strength reached the peak value of 2.2 MPa. The effect of the water–cement ratio on strength was subsequently studied. The sodium carbonate content was fixed at 0.3%, and the alum content was fixed at 2%. With the increase in the water–cement ratio, the flexural strength and compressive strength of phosphogypsum show a linearly decreasing trend. In order to obtain phosphogypsum with high mechanical properties, the water–cement ratio should be controlled within the range of 0.70–0.72. At this time, the flexural strength is higher than 2.0 MPa, and the compressive strength is higher than 7.2 MPa. When sodium carbonate and alum are compounded, the flexural strength and compressive strength of the modified phosphogypsum are slightly lower than that of the blank phosphogypsum under the same water–cement ratio. To summarize the effects of sodium carbonate, alum, and water–cement ratio on the mechanical properties of phosphogypsum, when the sodium carbonate content was 0.3%, the alum content was 1%, and the water–cement ratio was 0.70, the mechanical properties of the modified phosphogypsum were optimal. The flexural strength was 2.0 MPa, and the compressive strength was 8.1 MPa. Theoretically, the strength is relative to the pore structure and CaSO4·2H2O crystals. For example, the strength of α type CaSO4·2H2O crystals is dozens of times higher than β type CaSO4·2H2O crystals. The crystal morphology causes the change of gypsum strength. Thus, modification about CaSO4·2H2O crystals provide a “bottom-up” method to enhance the gypsum strength. In our research, the nanopores were introduced into the β type CaSO4·2H2O crystals. This provides a better strength of β type CaSO4·2H2O crystals, which is discussed below.

3.3. Absolute Dry Density

Figure 4 shows the influence of sodium carbonate and alum on the absolute dry density of phosphogypsum. It can be seen from Figure 4 and Table 2 that the blank phosphogypsum sample G0 with a water–cement ratio of 0.70 has a bone-dry density of 1289 kg/m3, and the blank phosphogypsum sample G1 with a water–cement ratio of 0.88 has a bone-dry density of 998 kg/m3. When the water–cement ratio is 0.70, the absolute dry density of phosphogypsum mixed with sodium carbonate and alum is maintained at 980–1050 kg/m3; when the water–cement ratio is increased to 0.74, the absolute dry density of phosphogypsum linearly decreases. The absolute dry density of phosphogypsum is in the range of 960–990 kg/m3, indicating that the compounding of sodium carbonate and alum causes the absolute dry density of phosphogypsum to decrease. Comparing the mechanical properties of blank phosphogypsum G1 with sample P1 of similar dry density with sodium carbonate and alum added, it can be found that the flexural strength of P1 is about 123.5% of that of G1, and the compressive strength of P1 is about 110.3% of that of G1. Compounding sodium carbonate and alum can improve the mechanical properties of phosphogypsum and can reduce the lowering of mechanical properties due to air entraining.

3.4. XRD Analysis

Figure 5 shows the XRD diffraction images of modified phosphogypsum and blank phosphogypsum. It can be seen from Figure 5 that the hydration products of the blank group phosphogypsum G1 are CaSO4·2H2O and CaPO3(OH)·2H2O. The hydration products of phosphogypsum P1 mixed with calcium carbonate and alum are CaSO4·2H2O, CaPO3(OH)·2H2O, Na2SO4, and the NaAl(SO4)2·6H2O. XRD results showed that new hydration products were formed after modification: NaAl(SO4)2·6H2O and Na2SO4. The test of bone-dry density and mechanical properties showed that the phosphogypsum added with calcium carbonate and alum reduced the bone-dry density and enhanced the mechanical properties. This phenomenon may be related to the effects of the newly formed hydration products NaAl(SO4)2·6H2O and Na2SO4.

3.5. SEM Morphology

Figure 6 shows the SEM image of phosphogypsum. Figure 6a is the SEM image of the blank group phosphogypsum; Figure 6b is the SEM image of the phosphogypsum mixed with calcium carbonate and alum. It can be seen from Figure 6a that the phosphogypsum CaSO4·2H2O crystals of the blank group are closely arranged in a prismatic shape, and the surface is smooth and has no obvious defects. It can be seen from Figure 6b that the CaSO4·2H2O crystals of phosphogypsum P1 mixed with calcium carbonate and alum are prismatic. In addition, there are nanopores in the CaSO4·2H2O crystals. The formation of nanopores may be one of the factors leading to the enhancement of mechanical properties. In order to explore the influence of pores on the mechanical properties of gypsum, molecular dynamics simulation was used to study the influence of nanometer size and pores on the mechanical properties of CaSO4·2H2O crystals.

3.6. Molecular Dynamics Simulation Analysis

On the perfect crystal form of CaSO4·2H2O, wedge-shaped pores were made to conform to the real situation of CaSO4·2H2O crystals. Figure 7 shows the modeling process of CaSO4·2H2O, where wedge pores were created to conform to the realistic mechanical properties. The uniaxial young’s modulus of the constructed model is 0.73 GPa, which is consistent with the experimental test [51]. Figure 8 is the calculated XRD pattern of the CaSO4·2H2O model. It can be seen from Figure 8 that the main characteristic peaks of the calculated XRD pattern of the constructed model are consistent with the peak positions of the XRD pattern of the experimentally tested CaSO4·2H2O (PDF# 33-0311), indicating that the CaSO4·2H2O model established in this paper is consistent with that of experimental preparation.

3.6.1. Pore Formation Mechanisms

In order to further explore the effects of nanopores on CaSO4·2H2O, molecular dynamics simulation was used to study the mechanism regarding the formation of the nanopores on the surface of columnar CaSO4·2H2O crystals produced by the hydration products Na2SO4 and NaAl(SO4)2·6H2O. Figure 9 shows the CaSO4·2H2O models with different contents of salts. It can be seen from the figure that the CaSO4·2H2O model without added hydration products is stable, and surface water molecules escape outward. The surface of the CaSO4·2H2O channel after the addition is deformed, and the hydration products can be adsorbed on the surface of the CaSO4·2H2O. The sulfate groups on the surface undergo more obvious rotational and translational displacement, and the surrounding calcium atoms also undergo similar changes. Table 3 displays the total surface pore volume (including channel volume) of the original model and the modified models. It can be seen from the table that the pore volume of CaSO4·2H2O without addition is the smallest, but after adding hydration products, the pore volume on the CaSO4·2H2O surface increases. This indicates that microscopic pores formed on different sites of the channel surface. Among them, the pore diameter ranges from approximately 2 Å to 6 Å. When the contents of Na2SO4 and NaAl(SO4)2·6H2O are 0.3% and 3%, respectively, the pore volume is the largest. Figure 10 shows the interaction between hydration products and CaSO4·2H2O. Figure 10a shows the interaction between Na ions and the surface of the pores. It can be seen from Figure 10a that the interaction forces are dominated by the Van der Waals forces between Na ions and sulfate groups on the CaSO4·2H2O surface, resulting in microscopic deformation of around two–three sulfate groups on the surface. Figure 10b shows the interaction between NaAl(SO4)2·6H2O and the surface of CaSO4·2H2O. It can be seen from Figure 10b that the hydrated product exists in a crystalline structure, and its surface water molecules form about 20 hydrogen bonds with the sulfate groups and water molecules of CaSO4·2H2O and, at the same time, cause microscopic deformation of around five–six sulfate groups. It can be seen from the figure that Na ions can penetrate deeper into the CaSO4·2H2O surface and cause structural changes. In addition, due to the strong interaction forces between sodium aluminum sulfate and water molecules, more surrounding water molecules are attracted, of which about five water molecules are provided by CaSO4·2H2O after erosion. Mao et al. used molecular dynamics simulations to study the interactions of additives on the CaSO4·0.5H2O surface [52]. They discovered that the interaction energy is determined by the electrostatic attraction between the O in the additive (-0.706 e) and the Ca2+ ions as well as the repulsion between the S in the additive (+1.318 e) and Ca2+. In this experiment, the Na+ ions experience a similar magnitude of electrostatic attraction to the O in the sulfate of CaSO4·2H2O (−0.879 e), while experiencing a much smaller repulsion with the S in the sulfate of CaSO4·2H2O (+1.516 e). This shows that hydration products, especially Na+ ions, can form strong interaction forces with the surface of CaSO4·2H2O. This causes the surface structure deformation of CaSO4·2H2O, which is the main mechanism in the formation of pores. The formation of surface nanopores is correlated with the observed increase in mechanical properties. The extent of such effects is presented in the next section.

3.6.2. Effects of Pore Diameter on Mechanical Properties

In order to explore the effects of surface pores on the mechanical properties of CaSO4·2H2O, surface pores with different radii were created in the established CaSO4·2H2O model and the changes in its mechanical properties were studied. Figure 11a–e are models with surface pore diameters of 2 Å, 3 Å, 4 Å, 5 Å, and 6 Å, respectively. The pores are on the left side of the model, and the adsorbed salts can be seen. Table 4 shows the effect of pore size on the mechanical properties of CaSO4·2H2O crystals. As shown in Table 4, young’s modulus in the X direction of the CaSO4·2H2O model first decreases and then increases with the increase of pore size, but all models have a larger young’s modulus than the original model. When the pore size is 2 Å, the young’s modulus reaches the peak value of 2.5079 GPa. It can be seen that the pores can enhance the mechanical properties of CaSO4·2H2O crystals. CaSO4·2H2O has a layered structure of sulfate and calcium ions with water molecules in between. The porous structure likely has an impact on the layer dynamics during loading. Sarkar et al. studied CaSO4·2H2O in tensile loading. They discovered that the layer separation decreases after the loading process in the X direction [33]. The formation of pores gives more structural freedom and therefore allows for more molecular rearrangement during loading. This is likely the cause of the increase in young’s modulus. Molecular dynamics simulations show that, within the nano-scale, surface micropores of appropriate sizes can enhance the mechanical properties of CaSO4·2H2O crystals. In the actual application process, the water–cement ratio of CaSO4·2H2O is 0.5–0.8, and its theoretical water consumption is only 0.186. After the excess water evaporates, an interconnected pore system is formed, which is the main reason for the decrease in the mechanical properties of CaSO4·2H2O. CaSO4·2H2O crystal grains do not contain a large-scale pore system in the nano-scale, so its mechanical properties are higher than the macro-mechanical strength.

4. Conclusions

This article explored the influence of sodium carbonate and alum on the performance of phosphogypsum as well as the modification of the nanostructure containing nanopores. Through the changes in the content of sodium carbonate and alum, and the water–cement ratio, the trend and mechanism of phosphogypsum performance were analyzed. The formation and effects of the nanopores were also studied. The conclusions are as follows:
  • Considering the mechanical strength and absolute dry density of phosphogypsum, the best content of sodium carbonate is 0.3% and the best content of alum is 2%. At this time, the initial setting time is 330 s, the final setting time is 390 s, the flexural strength of the phosphogypsum test block is 2.1 MPa, the compressive strength is 7.5 MPa, and the absolute dry density is 990 kg/m3.
  • When phosphogypsum is mixed with sodium carbonate and alum, new hydration products are generated, and the CaSO4·2H2O crystal grains contain a large number of nanopores. Molecular dynamics simulations show that the hydration products are responsible for the surface deformation and the generation of surface nanopores. This is mainly caused by the Van der Waals forces between the Na ions and sulfate groups and by hydrogen bonding of the eroded CaSO4·2H2O water molecules and NaAl(SO4)2·6H2O. The nanopore structure in the CaSO4·2H2O crystal yields enhanced mechanical properties by providing structural freedom and molecular rearrangement.

Author Contributions

Conceptualization, D.Z. and B.L.; investigation, D.Z. and J.W.; resources, J.W.; L.W.; Q.W. and G.H.; writing—original draft preparation, D.Z. and J.W.; writing—review and editing, B.L.; project administration, B.L.; funding acquisition, L.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Jiangsu agricultural science and technology innovation fund (CX(19)2041) and Joint open fund of key laboratory for advanced technology in environment protection of Jiangsu province (JH201845).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

Additionally, thanks are extended to the anonymous reviewers whose suggestions improved this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rashad, A.M. Phosphogypsum as a construction material. J. Clean. Prod. 2017, 166, 732–743. [Google Scholar] [CrossRef]
  2. Neto, J.; Bersch, J.D.; Silva, T.; Rodríguez, E.D.; Kirchheim, A.P. Influence of phosphogypsum purification with lime on the properties of cementitious matrices with and without plasticizer. Constr. Build. Mater. 2021, 299, 123935. [Google Scholar] [CrossRef]
  3. Wu, K.; Han, H.; Xu, L.; Gao, Y.; Yang, Z.; Jiang, Z.; De Schutter, G. The improvement of freezing–thawing resistance of concrete by cellulose/polyvinyl alcohol hydrogel. Constr. Build. Mater. 2021, 291, 123274. [Google Scholar] [CrossRef]
  4. Attallah, M.F.; Metwally, S.S.; Moussa, S.I.; Soliman, M.A. Environmental impact assessment of phosphate fertilizers and phosphogypsum waste: Elemental and radiological effects. Microchem. J. 2019, 146, 789–797. [Google Scholar] [CrossRef]
  5. Liu, S.; Fang, P.; Ren, J.; Li, S. Application of lime neutralised phosphogypsum in supersulfated cement. J. Clean. Prod. 2020, 272, 122660. [Google Scholar] [CrossRef]
  6. Rosales, J.; Pérez, S.M.; Cabrera, M.; Gázquez, M.J.; Bolivar, J.P.; de Brito, J.; Agrela, F. Treated phosphogypsum as an alternative set regulator and mineral addition in cement production. J. Clean. Prod. 2020, 244, 118752. [Google Scholar] [CrossRef]
  7. Liu, S.; Wang, L.; Yu, B. Effect of modified phosphogypsum on the hydration properties of the phosphogypsum-based supersulfated cement. Constr. Build. Mater. 2019, 214, 9–16. [Google Scholar] [CrossRef]
  8. Cánovas, C.R.; Chapron, S.; Arrachart, G.; Pellet-Rostaing, S. Leaching of rare earth elements (REEs) and impurities from phosphogypsum: A preliminary insight for further recovery of critical raw materials. J. Clean. Prod. 2019, 219, 225–235. [Google Scholar] [CrossRef]
  9. Campos, M.P.; Costa, L.J.P.; Nisti, M.B.; Mazzilli, B.P. Phosphogypsum recycling in the building materials industry: Assessment of the radon exhalation rate. J. Environ. Radioact. 2017, 172, 232–236. [Google Scholar] [CrossRef]
  10. Ding, W.; Chen, Q.; Sun, H.; Peng, T. Modified mineral carbonation of phosphogypsum for CO2 sequestration. J. CO2 Util. 2019, 34, 507–515. [Google Scholar] [CrossRef]
  11. Morales, B.R.D.S.C.; García-Martínez, A.; Pineda, P.; García-Tenório, R. Valorization of phosphogypsum in cement-based materials: Limits and potential in eco-efficient construction. J. Build. Eng. 2021, 44, 102506. [Google Scholar] [CrossRef]
  12. Tao, T.I.A.N.; Zhang, C.L.; Feng, Z.H.U.; Yuan, S.X.; Ying, G.U.O.; Xue, S.G. Effect of phosphogypsum on saline-alkalinity and aggregate stability of bauxite residue. Trans. Nonferrous Met. Soc. China 2021, 31, 1484–1495. [Google Scholar]
  13. Syczewski, M.D.; Borkowski, A.; Gąsiński, A.; Raczko, J.; Mordak, K.; Grądziel, I.; Siuda, R. Phosphogypsum and clay mineral/phosphogypsum ceramic composites as useful adsorbents for uranium uptake. Appl. Geochem. 2020, 123, 104793. [Google Scholar] [CrossRef]
  14. Mashifana, T.P. Chemical treatment of phosphogypsum and its potential application for building and construction. Procedia Manuf. 2019, 35, 641–648. [Google Scholar] [CrossRef]
  15. Gu, K.; Chen, B.; Pan, Y. Utilization of untreated-phosphogypsum as filling and binding material in preparing grouting materials. Constr. Build. Mater. 2020, 265, 120749. [Google Scholar] [CrossRef]
  16. Chen, Q.; Ding, W.; Sun, H.; Peng, T.; Ma, G. Indirect mineral carbonation of phosphogypsum for CO2 sequestration. Energy 2020, 206, 118148. [Google Scholar] [CrossRef]
  17. Vaičiukynienė, D.; Nizevičienė, D.; Kielė, A.; Janavičius, E.; Pupeikis, D. Effect of phosphogypsum on the stability upon firing treatment of alkali-activated slag. Constr. Build. Mater. 2018, 184, 485–491. [Google Scholar] [CrossRef]
  18. Alla, M.; El Hafiany, M.L.; Gharibi, E.K.; Ghalit, M. Thermodynamic study of the desulfurization process of phosphogypsum. Mater. Today Proc. 2019, 13, 556–561. [Google Scholar] [CrossRef]
  19. Wang, T.; Wu, K.; Wu, M. Development of green binder systems based on flue gas desulfurization gypsum and fly ash incorporating slag or steel slag powders. Constr. Build. Mater. 2020, 265, 120275. [Google Scholar] [CrossRef]
  20. Xu, L.; Wu, K.; Li, N.; Zhou, X.; Wang, P. Utilization of flue gas desulfurization gypsum for producing calcium sulfoaluminate cement. J. Clean. Prod. 2017, 161, 803–811. [Google Scholar] [CrossRef]
  21. Wu, Q.; Zhu, Z.; Li, S.; Wang, S.; Chen, B. Effect of polyacrylic ester emulsion on mechanical properties of macro-defect free desulphurization gypsum plaster. Constr. Build. Mater. 2017, 153, 656–662. [Google Scholar] [CrossRef]
  22. Song, B.; Shi, C.; Hu, X.; Ouyang, K.; Ding, Y.; Ke, G. Effect of early CO2 curing on the chloride transport and binding behaviors of fly ash-blended Portland cement. Constr. Build. Mater. 2021, 288, 123113. [Google Scholar] [CrossRef]
  23. Wang, Y.; Liu, S.; Xuan, D.; Guan, X.; Zhang, H. Improving the mechanical properties of sulfoaluminate cement-based grouting material by incorporating limestone powder for a double fluid system. Materials 2020, 13, 4854. [Google Scholar] [CrossRef]
  24. Liu, J.; Shi, C.; Farzadnia, N.; Ma, X. Effects of pretreated fine lightweight aggregate on shrinkage and pore structure of ultra-high strength concrete. Constr. Build. Mater. 2019, 204, 276–287. [Google Scholar] [CrossRef]
  25. Nizevičienė, D.; Vaičiukynienė, D.; Michalik, B.; Bonczyk, M.; Vaitkevičius, V.; Jusas, V. The treatment of phosphogypsum with zeolite to use it in binding material. Constr. Build. Mater. 2018, 180, 134–142. [Google Scholar] [CrossRef]
  26. Liu, S.; Ouyang, J.; Ren, J. Mechanism of calcination modification of phosphogypsum and its effect on the hydration properties of phosphogypsum-based supersulfated cement. Constr. Build. Mater. 2020, 243, 118226. [Google Scholar] [CrossRef]
  27. Contreras, M.; Teixeira, S.R.; Santos, G.T.A.; Gázquez, M.J.; Romero, M.; Bolívar, J.P. Influence of the addition of phosphogypsum on some properties of ceramic tiles. Constr. Build. Mater. 2018, 175, 588–600. [Google Scholar] [CrossRef] [Green Version]
  28. Mohammed, F.; Biswas, W.K.; Yao, H.; Tadé, M. Sustainability assessment of symbiotic processes for the reuse of phosphogypsum. J. Clean. Prod. 2018, 188, 497–507. [Google Scholar] [CrossRef] [Green Version]
  29. Pérez-López, R.; Carrero, S.; Cruz-Hernández, P.; Asta, M.P.; Macías, F.; Cánovas, C.R.; Nieto, J.M. Sulfate reduction processes in salt marshes affected by phosphogypsum: Geochemical influences on contaminant mobility. J. Hazard. Mater. 2018, 350, 154–161. [Google Scholar] [CrossRef]
  30. Lachehab, A.; Mertah, O.; Kherbeche, A.; Hassoune, H. Utilization of phosphogypsum in CO2 mineral sequestration by producing potassium sulphate and calcium carbonate. Mater. Sci. Energy Technol. 2020, 3, 611–625. [Google Scholar] [CrossRef]
  31. Pinto, S.R.; da Luz, C.A.; Munhoz, G.S.; Medeiros-Junior, R.A. Resistance of phosphogypsum-based supersulfated cement to carbonation and chloride ingress. Constr. Build. Mater. 2020, 263, 120640. [Google Scholar] [CrossRef]
  32. Islam, G.S.; Chowdhury, F.H.; Raihan, M.T.; Amit, S.K.S.; Islam, M.R. Effect of phosphogypsum on the properties of Portland cement. Procedia Eng. 2017, 171, 744–751. [Google Scholar] [CrossRef]
  33. Liu, X. New widely used material—Foam plaster. J. Achiev. Sci. Technol. 1995, 4, 32–33. [Google Scholar]
  34. Vimmrova, A.; Nazmunnahar, M.; Cerny, R. Lightweight gypsum-based materials prepared with aluminum powder as foaming agent. J. Cem. Wapno Beton 2016, 19, 299–307. [Google Scholar]
  35. Zhu, Z.; Wang, Z.; Zhou, Y.; Wei, Y.; She, A. Synthesis and structure of calcium silicate hydrate (C-S-H) modified by hydroxyl-terminated polydimethylsiloxane (pdms). Constr. Build. Mater. 2020, 267, 120731. [Google Scholar] [CrossRef]
  36. Plimpton, S.; Crozier, P.; Thompson, A. Lammps-large-scale atomic/molecular massively parallel simulator. Sandia Natl. Lab. 2007, 18, 43. [Google Scholar]
  37. Sarkar, P.K.; Mitra, N. Gypsum under tensile loading: A molecular dynamics study. Constr. Build. Mater. 2019, 201, 1–10. [Google Scholar] [CrossRef]
  38. Sun, H. COMPASS: An ab initio force-field optimized for condensed-phase applications overview with details on alkane and benzene compound. J. Phys. Chem. B 1998, 102, 7338–7364. [Google Scholar] [CrossRef]
  39. Chang, X.; Xue, Q.; Li, X.; Zhang, J.; Zhu, L.; He, D.; Zheng, H.; Lu, S.; Liu, Z. Inherent wettability of different rock surfaces at nanoscale: A theoretical study. Appl. Surf. Sci. 2018, 434, 73–81. [Google Scholar] [CrossRef]
  40. Khalkhali, M.; Ma, X.; Zhang, H.; Liu, Q. Bulk and surface properties of gypsum: A comparison between classical force fields and dispersion-corrected DFT calculations. Comput. Mater. Sci. 2019, 164, 8–16. [Google Scholar] [CrossRef]
  41. Su, M.; Bai, Y.; Han, J.; Chen, J.; Sun, H. Adhesion of gypsum crystals to polymer membranes: Mechanisms and prediction. J. Membr. Sci. 2018, 566, 104–111. [Google Scholar] [CrossRef]
  42. Hou, D.; Zhao, T.; Ma, H.; Li, Z. Reactive molecular simulation on water confined in the nanopores of the calcium silicate hydrate gel: Structure, reactivity, and mechanical properties. J. Phys. Chem. C 2015, 119, 1346–1358. [Google Scholar] [CrossRef]
  43. Rogge, S.M.; Goeminne, R.; Demuynck, R.; Gutiérrez-Sevillano, J.J.; Vandenbrande, S.; Vanduyfhuys, L.; Waroquier, M.; Verstraelen, T.; Van Speybroeck, V. Modeling Gas Adsorption in Flexible Metal–Organic Frameworks via Hybrid Monte Carlo/Molecular Dynamics Schemes. Adv. Theory Simul. 2019, 2, 1800177. [Google Scholar] [CrossRef]
  44. Widom, M.; Huhn, W.P.; Maiti, S.; Steurer, W. Hybrid Monte Carlo/molecular dynamics simulation of a refractory metal high entropy alloy. Metall. Mater. Trans. A 2014, 45, 196–200. [Google Scholar] [CrossRef] [Green Version]
  45. Hou, D.; Ma, H.; Li, Z.; Jin, Z. Molecular simulation of “hydrolytic weakening”: A case study on silica. Acta Mater. 2014, 80, 264–277. [Google Scholar] [CrossRef]
  46. Zhang, N.; Carrez, P.; Shahsavari, R. Screw-dislocation-induced strengthening–toughening mechanisms in complex layered materials: The case study of tobermorite. ACS Appl. Mater. Interfaces 2017, 9, 1496–1506. [Google Scholar] [CrossRef] [Green Version]
  47. Tao, L.; Shahsavari, R. Diffusive, displacive deformations and local phase transformation govern the mechanics of layered crystals: The case study of tobermorite. Sci. Rep. 2017, 7, 5907. [Google Scholar] [CrossRef] [Green Version]
  48. Zhang, N.; Shahsavari, R. Balancing strength and toughness of calcium-silicate-hydrate via random nanovoids and particle inclusions: Atomistic modeling and statistical analysis. J. Mech. Phys. Solids 2016, 96, 204–222. [Google Scholar] [CrossRef] [Green Version]
  49. Singh, N.B.; Middendorf, B. Calcium sulphate hemihydrate hydration leading to gypsum crystallization. Prog. Cryst. Growth Charact. Mater. 2007, 53, 57–77. [Google Scholar] [CrossRef]
  50. Zheng, G.; Xia, J.; Han, Y. The influence of retarders on the properties of phosphogypsum-based building gypsum. J. Non Met. Miner. 2019, 42, 79–81. [Google Scholar]
  51. Plachy, T.; Tesarek, P.; Padevet, P.; Polak, M. Determination of Young’s modulus of gypsum blocks using two different experimental methods. In Recent Advances in Applied and Theoretical Mechanics, Proceedings of 5th WSEAS International Conference on Applied and Theoretical Mechanics, Puerto De La Cruz, Spain, 14–16 December 2009; Bulucea, C., Ed.; WSEAS Press: Athens, Greece, 2009. [Google Scholar]
  52. Mao, X.; Song, X.; Lu, G.; Xu, Y.; Sun, Y.; Yu, J. Effect of additives on the morphology of calcium sulfate hemihydrate: Experimental and molecular dynamics simulation studies. Chem. Eng. J. 2015, 278, 320–327. [Google Scholar] [CrossRef]
Materials 14 05830 g001 550
Figure 1. Sample preparation method demonstration.
Figure 1. Sample preparation method demonstration.
Materials 14 05830 g001
Materials 14 05830 g002 550

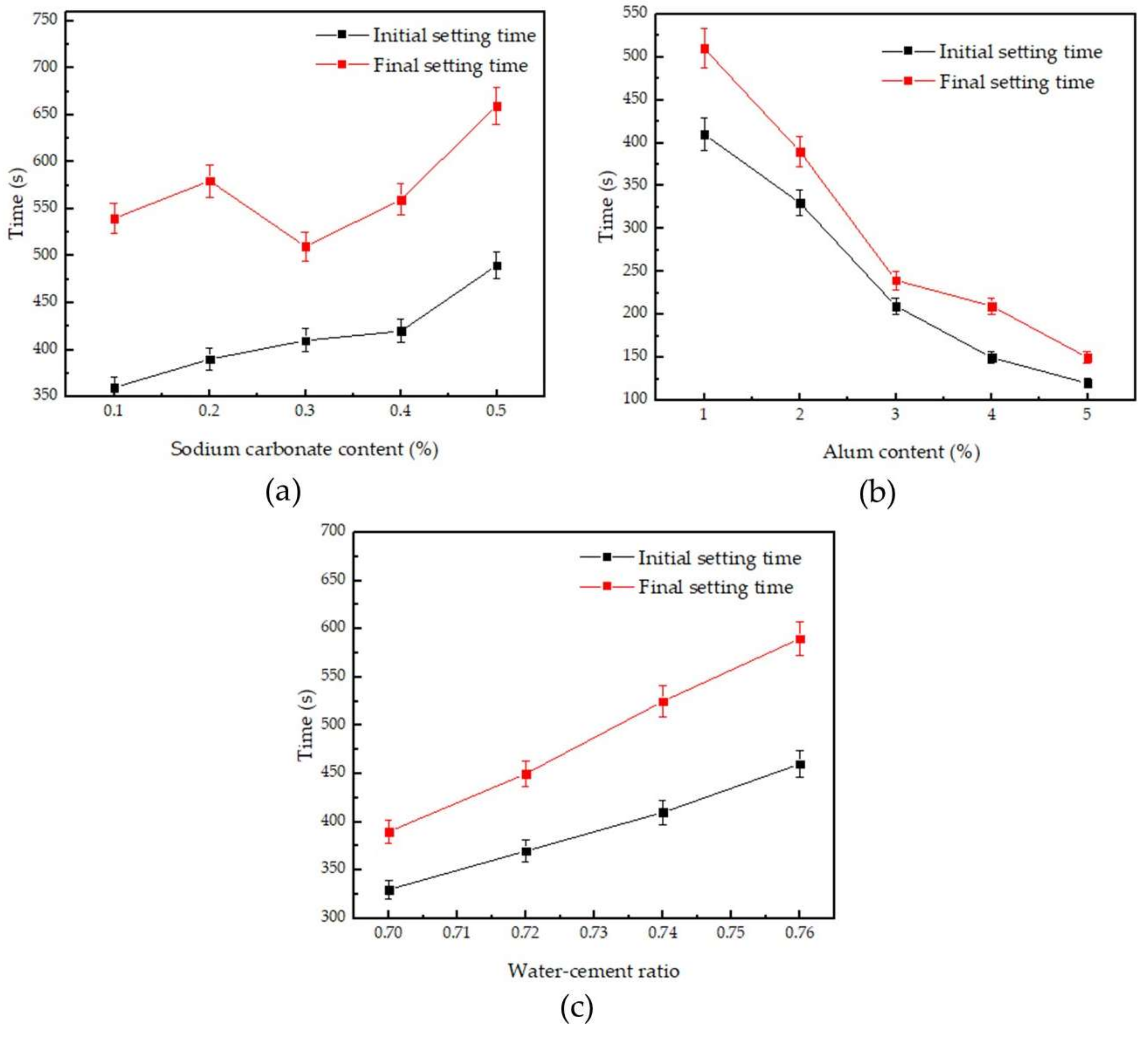

Figure 2. Effect of sodium carbonate and alum on the initial setting time and final setting time: (a) alum content is 1%, and sodium carbonate content changed; (b) sodium carbonate content is 0.3%, and alum content changed; and (c) sodium carbonate content is 0.3%, alum content is 2%, and the water–cement ratio changed.
Figure 2. Effect of sodium carbonate and alum on the initial setting time and final setting time: (a) alum content is 1%, and sodium carbonate content changed; (b) sodium carbonate content is 0.3%, and alum content changed; and (c) sodium carbonate content is 0.3%, alum content is 2%, and the water–cement ratio changed.
Materials 14 05830 g002
Materials 14 05830 g003 550

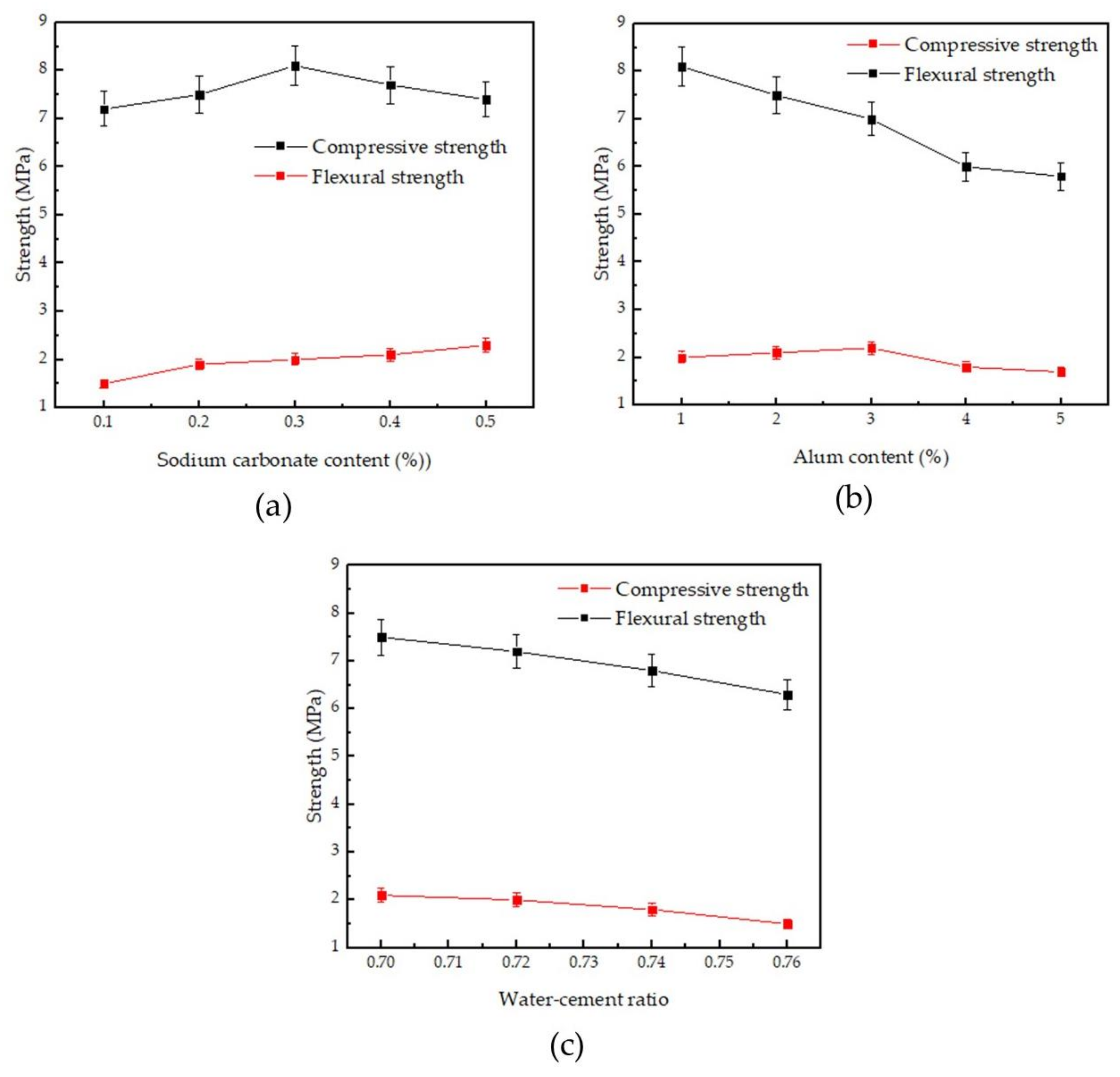

Figure 3. Effect of sodium carbonate and alum on compressive strength and flexural strength: (a) alum content is 1%, and sodium carbonate content changed; (b) sodium carbonate content is 0.3%, and alum content changed; and (c) sodium carbonate content is 0.3%, alum content is 2%, and water–cement ratio changed.
Figure 3. Effect of sodium carbonate and alum on compressive strength and flexural strength: (a) alum content is 1%, and sodium carbonate content changed; (b) sodium carbonate content is 0.3%, and alum content changed; and (c) sodium carbonate content is 0.3%, alum content is 2%, and water–cement ratio changed.
Materials 14 05830 g003
Materials 14 05830 g004 550
Figure 4. Effect of sodium carbonate and alum on the absolute dry density of phosphogypsum: (a) alum content is 1%, and sodium carbonate content changed; (b) sodium carbonate content is 0.3%, and alum content changed; and (c) sodium carbonate content is 0.3%, alum content is 2%, and water–cement ratio changed.
Figure 4. Effect of sodium carbonate and alum on the absolute dry density of phosphogypsum: (a) alum content is 1%, and sodium carbonate content changed; (b) sodium carbonate content is 0.3%, and alum content changed; and (c) sodium carbonate content is 0.3%, alum content is 2%, and water–cement ratio changed.
Materials 14 05830 g004
Materials 14 05830 g005 550

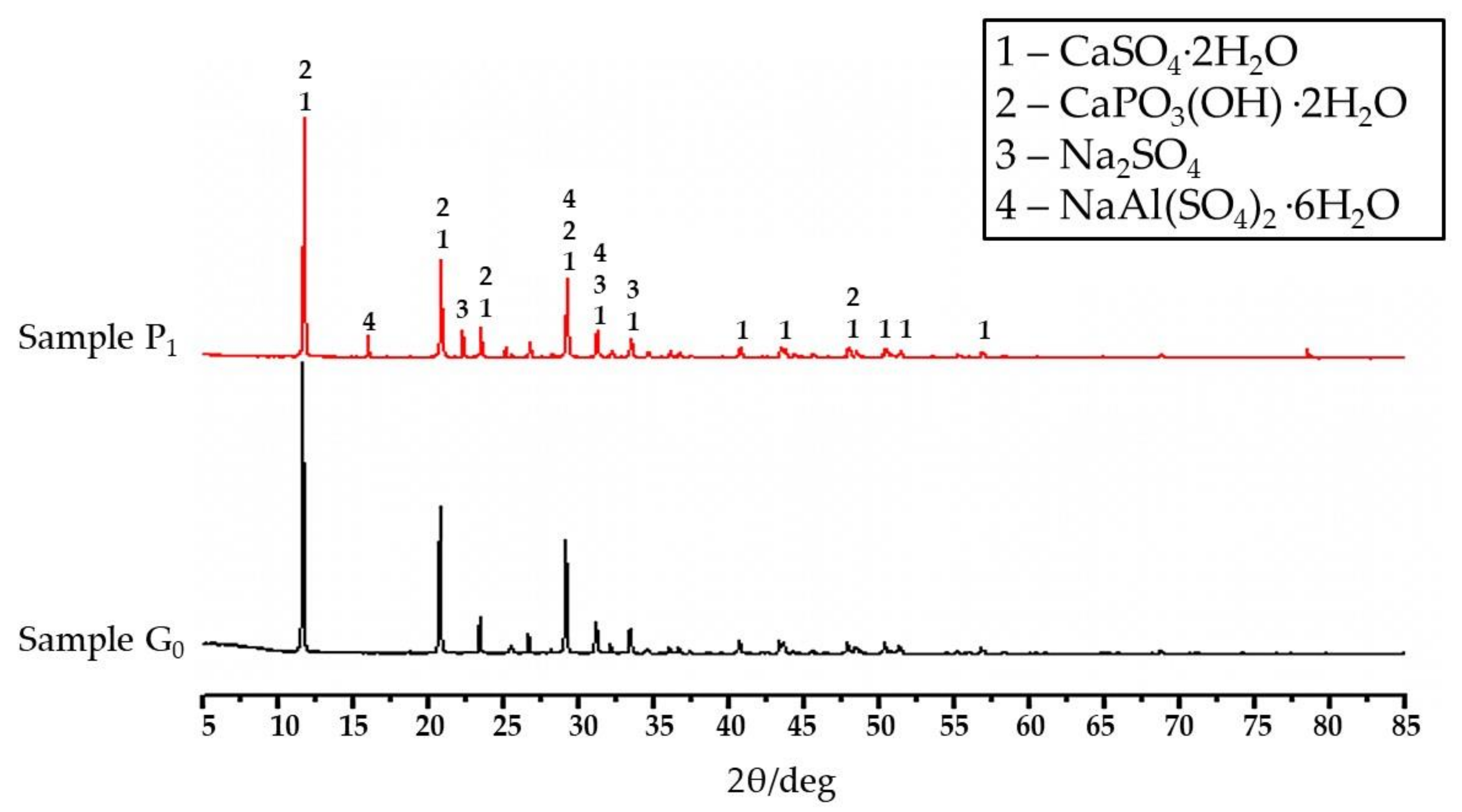

Figure 5. XRD diffraction image of phosphogypsum.
Figure 5. XRD diffraction image of phosphogypsum.
Materials 14 05830 g005
Materials 14 05830 g006 550
Figure 6. SEM image of phosphogypsum. (a) G0: blank group; (b) P1: modified group.
Figure 6. SEM image of phosphogypsum. (a) G0: blank group; (b) P1: modified group.
Materials 14 05830 g006
Materials 14 05830 g007 550
Figure 7. CaSO4·2H2O modeling process (a) unit crystal; (b) 4 Å × 2 Å × 3 Å supercell; (c) modified crystal with wedge pores. (White balls are hydrogen, red balls are oxygen, yellow balls are sulfur, and green balls are calcium.)
Figure 7. CaSO4·2H2O modeling process (a) unit crystal; (b) 4 Å × 2 Å × 3 Å supercell; (c) modified crystal with wedge pores. (White balls are hydrogen, red balls are oxygen, yellow balls are sulfur, and green balls are calcium.)
Materials 14 05830 g007
Materials 14 05830 g008 550
Figure 8. XRD pattern of the CaSO4·2H2O model.
Figure 8. XRD pattern of the CaSO4·2H2O model.
Materials 14 05830 g008
Materials 14 05830 g009 550

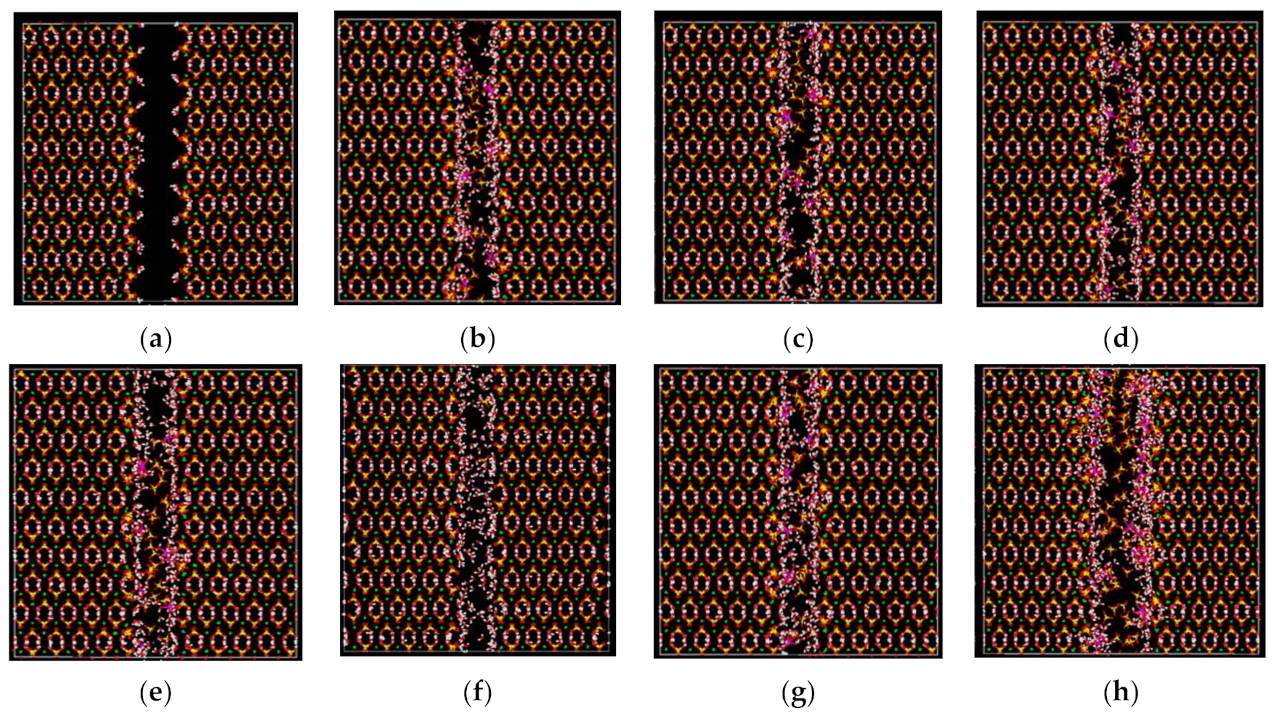

Figure 9. CaSO4·2H2O model with hydration product adsorption: (a) model with G0 contents, (b) model with F1 contents, (c) model with F2 contents, (d) model with F3 contents, (e) model with F4 contents, (f) model with P1 contents, (g) model with P2 contents, and (h) model with P3 contents. (White balls are hydrogen, red balls are oxygen, yellow balls are sulfur, green balls are calcium, purple balls are sodium, and pink balls are aluminum).
Figure 9. CaSO4·2H2O model with hydration product adsorption: (a) model with G0 contents, (b) model with F1 contents, (c) model with F2 contents, (d) model with F3 contents, (e) model with F4 contents, (f) model with P1 contents, (g) model with P2 contents, and (h) model with P3 contents. (White balls are hydrogen, red balls are oxygen, yellow balls are sulfur, green balls are calcium, purple balls are sodium, and pink balls are aluminum).
Materials 14 05830 g009
Materials 14 05830 g010 550

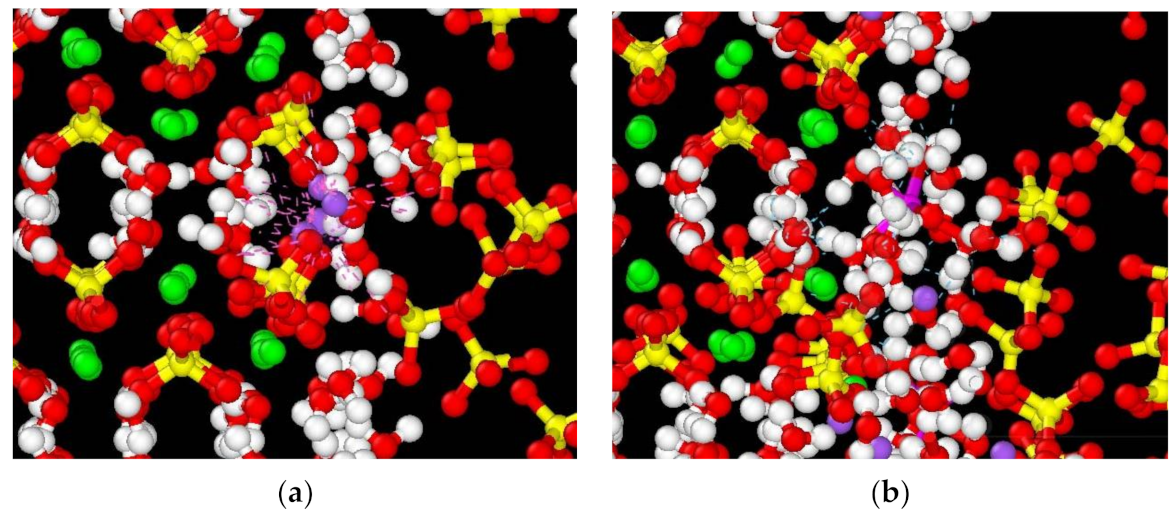

Figure 10. Interactions between hydration products and CaSO4·2H2O surface: (a) Na ion interactions; (b) sodium aluminum sulfate interactions. (White balls are hydrogen, red balls are oxygen, yellow balls are sulfur, green balls are calcium, purple balls are sodium, and pink balls are aluminum).
Figure 10. Interactions between hydration products and CaSO4·2H2O surface: (a) Na ion interactions; (b) sodium aluminum sulfate interactions. (White balls are hydrogen, red balls are oxygen, yellow balls are sulfur, green balls are calcium, purple balls are sodium, and pink balls are aluminum).
Materials 14 05830 g010
Materials 14 05830 g011 550

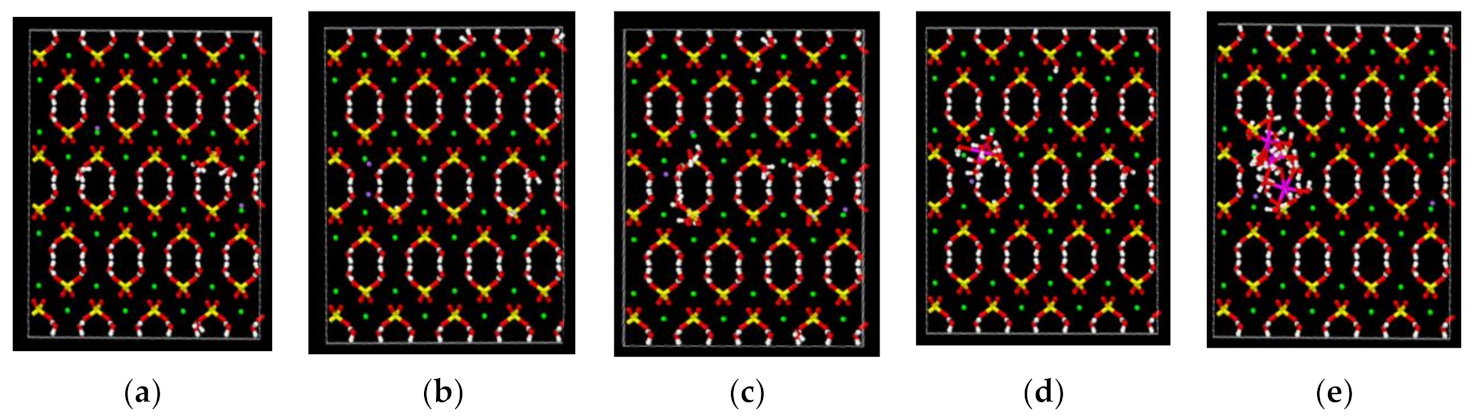

Figure 11. CaSO4·2H2O surface pores and salt adsorption: (a) 2 Å pores, (b) 3 Å pores, (c) 4 Å pores, (d) 5 Å pores, and (e) 6 Å pores. (White balls are hydrogen, red balls are oxygen, yellow balls are sulfur, green balls are calcium, purple balls are sodium, and pink balls are aluminum).
Figure 11. CaSO4·2H2O surface pores and salt adsorption: (a) 2 Å pores, (b) 3 Å pores, (c) 4 Å pores, (d) 5 Å pores, and (e) 6 Å pores. (White balls are hydrogen, red balls are oxygen, yellow balls are sulfur, green balls are calcium, purple balls are sodium, and pink balls are aluminum).
Materials 14 05830 g011
Table
Table 1. Contents of sodium carbonate, alum, and water–cement ratios in sample preparation.
Table 1. Contents of sodium carbonate, alum, and water–cement ratios in sample preparation.
No.Sodium Carbonate Content (%)Alum Content (%)Water–Cement Ratio
G0000.70
G1000.88
F10.110.70
F20.210.70
F30.310.70
F40.410.70
F50.510.70
P10.320.70
P20.330.70
P30.340.70
P40.350.70
W10.320.72
W20.320.74
W30.320.76
G: the water–cement ratio changed, while the sodium carbonate and alum contents remained at zero; F: sodium carbonate content changed, while the rest remained constant; P: the alum content changed, while the rest remained constant; and W: the water–cement ratio changed, while sodium carbonate and alum contents remained at nonzero constants.
Table
Table 2. Effects of different contents of sodium carbonate and alum on properties of phosphogypsum.
Table 2. Effects of different contents of sodium carbonate and alum on properties of phosphogypsum.
No.Initial Setting Time (s)Final Setting Time (s)Flexural Strength (MPa)Compressive Strength (MPa)Absolute Dry Density (kg/m3)
G03305982.48.61289
G15307401.76.8993
F13605401.57.21050
F23905801.97.51050
F34105102.08.11030
F44205602.17.71040
F54906602.37.41050
P13303902.17.5990
P22102402.27.01000
P31502101.86.0980
P41201501.75.81000
W13704502.07.2980
W24105251.86.8972
W34605901.56.3965
Table
Table 3. Effects of different content Na2SO4 and NaAl(SO4)2·6H2O on total internal pore volume.
Table 3. Effects of different content Na2SO4 and NaAl(SO4)2·6H2O on total internal pore volume.
No.Na2SO4 Content (%)NaAl(SO4)2·6H2O Content (%)Total Pore Volume (Å3)
G00097,853.75
F101105,481.02
F20.11105,747.92
F30.21105,676.17
F40.31105,965.05
P10.30103,818.17
P20.32106,379.60
P30.33111,369.97
Table
Table 4. Effects of pore size on the mechanical properties of CaSO4·2H2O.
Table 4. Effects of pore size on the mechanical properties of CaSO4·2H2O.
Pore Size0 Å2 Å3 Å4 Å5 Å6 Å
Young’s Modulus (GPa)0.732.50790.82881.14161.15671.7919
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhong, D.; Wang, J.; Hou, G.; Wang, L.; Wu, Q.; Lu, B. Performance and Nanostructure Simulation of Phosphogypsum Modified by Sodium Carbonate and Alum. Materials 2021, 14, 5830. https://doi.org/10.3390/ma14195830

AMA Style

Zhong D, Wang J, Hou G, Wang L, Wu Q, Lu B. Performance and Nanostructure Simulation of Phosphogypsum Modified by Sodium Carbonate and Alum. Materials. 2021; 14(19):5830. https://doi.org/10.3390/ma14195830

Chicago/Turabian Style

Zhong, Dongqing, Jingchen Wang, Guihua Hou, Luming Wang, Qian Wu, and Bao Lu. 2021. "Performance and Nanostructure Simulation of Phosphogypsum Modified by Sodium Carbonate and Alum" Materials 14, no. 19: 5830. https://doi.org/10.3390/ma14195830

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
