Review

Effects of Graphite on Electrically Conductive Cementitious Composite Properties: A Review

by
Ting Luo
and
Qiang Wang
*
Department of Civil Engineering, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Materials 2021, 14(17), 4798; https://doi.org/10.3390/ma14174798
Submission received: 9 July 2021 / Revised: 15 August 2021 / Accepted: 23 August 2021 / Published: 24 August 2021
(This article belongs to the Special Issue Concrete and Construction Materials)
Browse Figures
Versions Notes

Abstract

:
Electrically conductive cementitious composites (ECCCs) have been widely used to complete functional and smart construction projects. Graphite, due to its low cost and wide availability, is a promising electrically conductive filler to generate electrically conductive networks in cement matrixes. Cement-based materials provide an ideal balance of safety, environmental protection, strength, durability, and economy. Today, graphite is commonly applied in traditional cementitious materials. This paper reviews previous studies regarding the effects and correlations of the use of graphite-based materials as conductive fillers on the properties of traditional cementitious materials. The dispersion, workability, cement hydration, mechanical strength, durability, and electrically conductive mechanisms of cementitious composites modified with graphite are summarized. Graphite composite modification methods and testing methods for the electrical conductivity of ECCCs are also summarized.

1. Introduction

Cement is a dielectric material which functions as an ionic conductor due to its water content [1]. Electronic conduction can also be engineered by adding electrically conductive fillers to cement-based materials [2]. Various types of conductive fillers can reduce the electrical resistivity of cement-based materials so as to realize electrical conductivity. Carbon-based fillers have been widely investigated in recent decades. Cementitious composite materials with high electrical conductivity can be obtained by modification with conductive carbon fillers such as graphite power (GP) [3], graphene [4], carbon nanotubes (CNTs) [5], carbon fibers (CFs) [6], and carbon black (CB) [7] to form conductive networks inside the cementitious matrix [8].
The addition of functional fillers can also endow some properties of electrically conductive cementitious composites (ECCCs), such as the electromagnetic (EM) shielding effect [8,9,10,11]. The multifunctionality of ECCCs lends wide application prospects in terms of de-icing and snow melting [12,13,14], EM shielding of vital equipment [15], electric grounding materials [16], cathodic protection systems [17], structure health monitoring systems [18,19], and self-sensing for smart structures [20,21]. Figure 1 shows a diagram of potential applications of conductive carbon material within ECCCs.
The electrical conductivity of cementitious composites is controlled by the conductivity of the conductive filler itself, the dispersion degree of the filler components, and the contact resistivity of the interface between the filler phase and the matrix [22]. Graphite has a stacked planar sp2-hybridized C6 ring structure [23] with excellent electrical, thermal, and mechanical properties [24,25,26]; it has proven to be an excellent conductor of electricity [27]. Compared with other carbon allotropic forms (2D graphene, 1D CNTs, 1D CFs, and 0D CB), 3D GP is an ideal electric conduction phase for improving the electrical and mechanical properties of cement-based materials [3,23,28].
CB is less crystalline than GP, so it is less conductive. Further, graphene, CNTs, and CFs are more expensive than GP. Fiber fillers do not disperse as readily as powder fillers as the high aspect ratio of fibers gives them the tendency to cling together [22]. Dispersion has important effects on both the electrical and mechanical properties of composites. An overview of the general properties of carbon materials is given in Table 1. The practical application of high-performance carbon materials is restricted by their high cost, so this article mainly centers on the research progress of graphite, which is relatively inexpensive.
Graphite is widely considered to be a prospective material in certain cases [29] and a critical material in other cases for both industrial and national security applications [23]. Graphite has been tested as a conductive filler to find that it can improve electrical conductivity performance. Ioanna et al. [3] reported that GP has a layered planar structure, rendering it relatively soft due to its anisotropy and weak inter-planar forces; it also conducts electricity and heat well, is resistant to chemical attacks, and remains stable under standard conditions. Chen et al. [30] reported that graphite can fill the space between fibers and form a local conductive network. The synergistic effect of electron conduction and electron transition increases the intelligent agility of conductive concrete. Bhattacharya et al. [31] reported a novel conductor–insulator composite system designed with graphite-filled cement composites. The system showed high mechanical strength and strong shielding effectiveness against electromagnetic radiation.

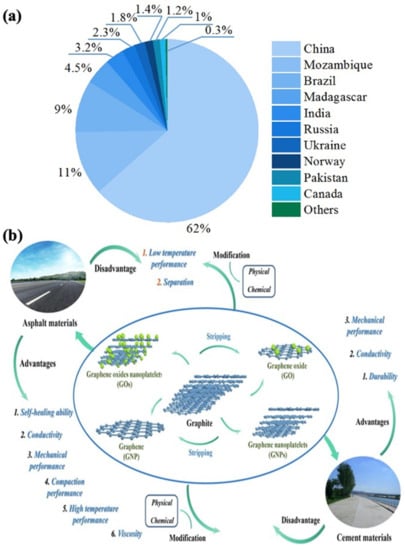

Based on data from the US Geological Survey (Mineral Commodity Summaries—2021), the total global production of graphite was about 1.05 million tons in 2020. Major producers of graphite and the primary applications of graphite-based materials in civil engineering are shown in Figure 2a,b, respectively. Graphite is a national strategic supply material representative of a 21st-century sunrise industry, with very extensive application fields. The emergence of electric vehicles and a continuous increase in demand for green energy have dramatically revolutionized the graphitic carbon market [23]. Demand for graphite is expected to continue growing rapidly. Various types of graphite-based materials lend different properties to different types of cement and induce varied, unique properties into cementitious composite materials [3,4,5,10,16,27,28,30]. Hence, graphite-based materials are potentially applicable in large-scale civil engineering projects.
To date, although several important reviews have discussed ECCCs [8,22], most have focused on multi-element conductive fillers rather than specifically targeting graphite-based ECCCs. Our focus here is on the properties of the cementitious composites mixed with graphite in fresh and hardened states. As shown in Figure 3, this review covers the dispersion, workability, cement hydration, mechanical strength, durability, and electrical conductivity of traditional cementitious materials modified with graphite. Various modify graphite composite modification methods and testing methods for the electrical conductivity of ECCCs are also summarized.

2. Inherent Properties of Graphite

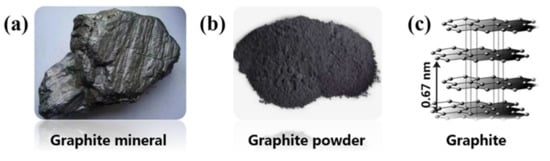

Graphite can be divided into two categories: natural and artificial. Natural graphite is a mineral as shown in Figure 4a, which is found in metamorphic rocks and igneous rocks with extremely soft sheets and very low specific gravity [33]. Artificial graphite affords various properties of the material due to the different types of precursors and formation processes [23]. The most common form of graphite currently utilized is flake graphite, which is suitable for many practical applications and has the highest market share in the world among the various forms of graphite available [34]. Photographs of the crystalline structure of flake graphite powder are shown in Figure 4b,c. The fundamental structure of graphite is composed of a series of stacked parallel layers (i.e., graphene layers), which are comprised of carbon atoms bonded by strong covalent bonds. Weak bonds (Van der Waals) also exist among each layer. The d-spacing of the C6 ring is 0.335 nm [35,36,37].
The fundamental structure of graphite determines its anisotropy. In-plane metallic bonding provides strong electrical and thermal conductivity within its layers, while weak Van der Waals forces among the layers result in poor electrical and thermal conductivity perpendicular to them [38,39]. The anisotropy allows the carbon layers to slide easily over each other, thus making graphite a highly lubricating material [38]. High chemical inertness, corrosion resistance, large heat capacity, and high thermal structural stability ensure diverse technological applications among graphite-based materials [40,41,42]. Graphite is also a natural conductive filler, making it a popular material for preparing conductive composites [43]. However, the applications of graphite-based ECCCs are limited, mainly because conductive fillers cause poor workability and deteriorate mechanical strength and durability.
The successful use of graphite in ECCCs requires: (1) adequate dispersion in the aqueous fresh mix to ensure that an electrically conductive network forms within the cementitious structure [44]; (2) sufficient workability to ensure wide application in practical engineering projects [45]; and (3) adequate bonding of cement hydration products to surfaces for effective stress transfer across the interfaces, thus securing proper ECCC mechanical properties [46].

3. Dispersion of Graphite in Cement-Based Materials

The dispersion of graphite is a problem in regard to the properties of graphite composites [18,47]. The surfaces of graphite are hydrophobic and atomically smooth, which lead to mutual bonding (i.e., agglomeration) in aqueous solutions (e.g., fresh cement mixtures) [48]. The agglomeration of graphite within a cementitious system prevents it from fully forming conductive networks. It is not feasible to disperse graphite directly within cement paste during the mixing process, as paste thickens very quickly upon the addition of water [49]. In general, there are two strategies for adding the graphite powders into a cement matrix: dry mixing dispersal in the solid phase, or ultrasonic dispersal in the liquid phase. The preparation process of cementitious composites with graphite fillers is illustrated in Figure 5a,b.
The dispersion of particles is largely determined by their free surface energy as well as the polar and dispersive parts of their components [52]. Therefore, non-polar carbon-based materials such as graphite do not readily disperse in highly polar media such as water [53]. The poor or insufficient dispersion of fillers results in large clusters within the hydrated paste that negatively affect the properties of the cement matrix [44,52,53,54]. Various approaches have been employed to improve the dispersibility of carbon material in cementitious matrices, such as the use of surfactants [55], cement admixtures [53,56], and surface modifications [57,58].
Commonly used surfactants include sodium dodecylbenzene sulfonate (SDBS), cetyl trimethyl ammonium bromide (CTAB), sodium deoxycholate (NaDC), gum Arabic (GA), and Triton X-100 (TX100). The aqueous dispersion of hydrophobic materials can be improved with surfactants by reducing the surface tension of water. Zhou et al. [59] employed TX100 to modify expanded graphite (EG) for improved hydrophilicity. As shown in Figure 6a, the contact angle of EG with water is about 87.1° while that of TX100 modified EG (MEG) is around 0°. To this effect, modification with TX100 is effective for EG.
Commonly used cement admixtures include polycarboxylate superplasticizer (SP), naphthalene superplasticizer (NS), and lignosulfonate (L), which are used as water-reducing agents within cement paste. Wang et al. [60] investigated the dispersion of graphene nanoplatelets (GNPs) using different water reducing agents with a sulfonic group (-SO3H), hydroxyl (-OH), and amino group (-NH2), respectively. The results showed that these groups can be grafted onto the surface of GNPs, weakening the interaction between the graphene layers to further improve their hydrophilicity and dispersion. As shown in Figure 6b, Du et al. [61] found that SP molecules can absorb onto the surface of GNPs as the polarity of the GNP itself is similar to the anionic backbone in the SP molecule. The hydrophilicity of the long, grafted side chains of the SP molecule can effectively prevent GNP from agglomerating in water, thus enhancing dispersion. As a result, GNP sheet layers can be gradually separated from the GNP agglomerates.
Surface modification techniques based on the introduction of hydrophilic groups to graphite can improve its dispersion in aqueous media. An et al. [62] used 1-pyrenecarboxylic acid (PCA) to modify the surface of graphene sheets to provide a polar medium for stable dispersion. As shown in Figure 6c, PCA has a hydrophobic (nonpolar) pyrene group and a hydrophilic (polar) carboxylic acid group (-COOH). Hence, PCA can interact with an exposed graphitic surface through the hydrophobic pyrene group while the hydrophilic -COOH enables the sheets to be dispersed in water as a complex.

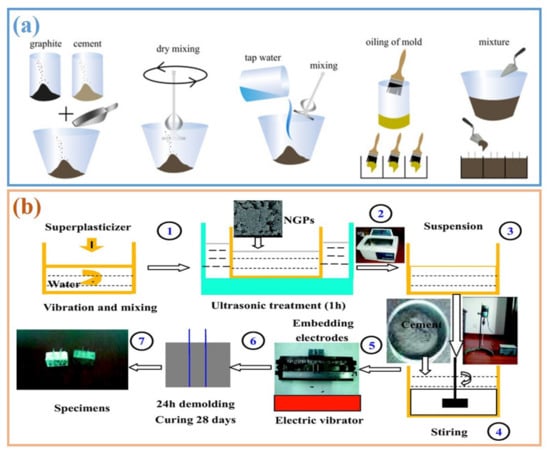

The fabrication of graphite-cement (GC) composites is the key to the feasibility and applicability of ECCCs. However, chemical pathways cannot directly disperse graphite materials in water. Rather, they can be targeted to improve dispersion and stability by wetting the graphite materials with water. Typically, these chemical pathways used in combination with ultrasonic treatment to directly disperse the graphite material.

4. Workability of Graphite in Cement-Based Materials

Conductive cementitious composite is a heterogeneous material. Its poor workability restricts its practical application [44]. “Workability” refers here to the ease of flow and consolidation in fresh cement composites, which significantly affects the mechanical properties and durability of hardened cement composites. Many researchers have reported that the addition of graphite adversely affects workability (Table 2).
Increasing the content [18] or fineness [3] of graphite drastically reduces its fluidity due to the inter-particle friction with cement particles and the low hydrophilicity of graphite [3,63]. Wang et al. [44] reported that the spread diameter of cement paste with 4% graphite content is reduced by about 50% and the shear stress is increased by 300%. The poor fluidity of GC paste can be attributed to water trapped in agglomerated graphite particles, which decreases the amount of free water. El-Dieb et al. [18] reported that the incorporation of 7% graphite (by volume) can reduce slump by 33%; the slump reduction was in a nearly linear relationship with the increase in graphite replacement level due to the very high surface area of graphite. Domenico et al. [64] found that when graphite content increases to a certain extent (>70%), GC composites have no consistency and quickly collapse into powder.
Ioanna et al. [3] investigated the effect of graphite fineness on cementitious composite performance. The viscosity of the samples with 10% (by weight) coarse graphite and fine graphite increased progressively by 76% and 130% compared to their control, respectively. Fine graphite of the same weight dosage has more particles that cause inter-particle friction with cement, which dramatically increases viscosity. Moreover, smaller size graphite has a relatively large surface area that requires more water to cover. Wang et al. [60] used different water-reducing agents to disperse GNPs, improve their fluidity, and promote electrostatic repulsion and steric repulsion among particles. They successfully reduced the adsorption of water to partially mitigate the negative impact of GNPs on fluidity [65].
Overall, a reduction in fluidity creates practical limitations when using graphite as a conductive additive. The poor workability is a significant barrier that restricts its wide application in practical engineering. The workability of fresh ECCC is of key importance to ensure the quality and mechanical performance of the harden ECCC. Hence, the mixture design, water content, water reducing agent utilized, graphite content, and fineness must be adjusted to ensure the sufficient flowability without affecting functionality.
Table
Table 2. Influence of graphite on fresh cement composite workability.
Table 2. Influence of graphite on fresh cement composite workability.
MatrixGraphite Contentw/cMethodChanges in Fluidity/SlumpRefs.
Paste10, 20, 30 and 40 (wt%) a0.45Rheology measurementIncreasing graphite fineness led to a dramatic reduction in fluidity. Viscosity increased progressively as graphite content increased.[3]
Concrete0.23, 0.68, 1.13, and 1.58 (vol%) b0.57Slump testsThe effect of graphite on slump increased as the replacement level increased. The use of 7 vol% replacement resulted in 33% reduction in slump.[18]
Paste1, 2, 3 and 4 (wt%) a0.5Mini-cone testSpread diameters decreased with increase in graphite addition.[44]
Mortar0.01, 0.1, and 0.2 (wt%) a0.18Rheology measurementNano-graphite thickened the cementitious admixture.[66]
Paste10, 15,20, and 30 (wt%) a0.4Flow diameter testCement paste flow diameter decreased from 25.5 cm to 9.5 cm after 30% graphite addition.[67]
Mortar10, 20, 30 (wt%) a0.7Flow diameter testThe flow diameter of 25.4 cm for plain cement mortar reduced to 12.5 cm when graphite was increased to a 30% weight. [67]
MortarGraphite nanoplatelets water paste-Rheology measurementA higher shear stress to start flowing and a slightly higher plastic viscosity were observed. Workability decreased due to the reduction of free water in the paste and an increase in friction among the particles. [68]
a: By weight of cement; b: by volume of total concrete.

5. Effect of Graphite on Cement Hydration

Hydration kinetics play an important role in the microstructural development and final properties of cement composites [69]. The hydration products of cement generally include hydrated calcium silicate gels (C-S-H), calcium hydroxide (CH), ettringite (AFt), and monosulfates (AFm). Many researchers [3,70,71] have reported that graphite does not directly participate in hydration; cement hydration is not affected by graphite addition when using it as a conductive additive.

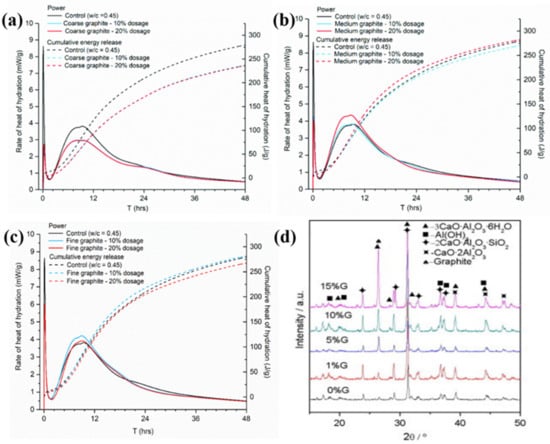

Tadahiro et al. [70] quantitatively analyzed hardened GC paste hydrates containing graphite to find that the amount of CH was in proportion to the initial amount of cement, and that the Ca/Si molar ratio in C-S-H was constant. To this effect, graphite appears to not directly participate in hydration. Ioanna et al. [3] reported that graphite in a cement matrix acts as an inert filler. With increasing graphite fineness (>100 mesh), the filler effect emerges, and fine graphite begins to promote cement hydration due to the hydrophobic graphite particles pushing water towards the cement grains. The effects of graphite on the hydration process can be observed by isothermal calorimetry measurement, as shown in Figure 7a–c. As illustrated in Figure 7a–c, the same hydration peaks were observed in all cases, which indicated that graphite acts as an inert filler and does not participate directly in cement hydration. However, the three graphite products had a somewhat different effect on the hydration. The differences between fineness products can be explained by their physical mechanisms. The evolution of hydration products of aluminate cement mixed with graphite was analyzed by Yuan et al. [71] The XRD results shown in Figure 7d indicate that the characteristic peak of graphite is enhanced as graphite content increases, while the corresponding peak positions and intensities of other phases remain constant. To this effect, graphite does not directly participate in the hydration process.
Zel et al. [72] used the neutron diffraction method to analyze the primary phase of graphite-cement composite materials. The results diffraction peaks corresponding to graphite, AFt, and CH phases, respectively, with no extra new crystal phase produced. Bi et al. [73] reported that nucleation sites can be provided for hydration product precipitation due to the addition of carriers with a large surface area. Graphite sheets have large and thin flake structures (Figure 8a) which can act as nucleation sites in GC composites to promote the nucleation and growth of hydration products. Figure 8b shows the microstructural characterization of five-month-old GC paste by SEM. A large number of hydration products (mainly C-S-H and a small amount of Aft) can be observed near the graphite flakes, which may be attributable to the high surface area of graphite [3]. The addition of graphite does not significantly affect the cement matrix, which indicates close compatibility of graphite with cement composites [67].

6. Effects of Graphite on Cementitious Composite Mechanical Performance

The mechanical properties of cement composites are a critical indicator of performance in many applications [69]. Conductive fillers (e.g., graphite) may be added in efforts to provide satisfactory conductivity in concrete but can drive down the strength of the material [45]. Many studies have shown that graphite influences the mechanical properties of GC composites (Table 3). Compressive strength decreases after graphite addition at all test ages, and to a greater extent as the graphite dosage increases.
El-Dieb et al. [18] reported that concrete with strong conductivity can be produced by adding appropriate types and contents of conductive fillers as partial replacements for the fine aggregate, but their use negatively impacts compressive strength. Wu et al. [74] reported that graphite does not improve the strength of conductive composites due to its intrinsic structural features (Figure 4c). Ioanna et al. [3] used micro-indentation testing to assess the effects of graphite on the mechanical performance of cement paste; they found that hardness decreases after graphite addition. Frattini et al. [64] reported that when graphite addition exceeds 40%, the compressive strength of GC composites is less than 5 MPa.
Previously reported strength reduction mechanisms for graphite include the following. (1) Cementitious matrix and graphite particles have poor adhesion, so the porosity of hardened GC composites tends to increase [18,46,70]. (2) Loose bonding among graphite sheets allows the graphite to easily slip between layers, which damages the microstructures and drives down mechanical properties [74]. (3) Water is entrapped in agglomerated graphite particles and blocked from reaching the cement grains [3,44]. (4) The use of graphite increases the demand for water, which reduces concrete strength [45]. (5) The agglomeration of graphite is not conducive to the mechanical properties of cement paste [44]. (6) Strength and density are reduced when graphite replaces cement or sand [67].
The conductive network formed by graphite sheets plays an important role in the electrical conductivity of GC composites, but also degrades mechanical properties. The graphite content should be controlled within an appropriate level to prepare a matrix with both electrical conductivity and strong mechanical performance [74].
Table
Table 3. Effects of graphite on cement-based material mechanical performance.
Table 3. Effects of graphite on cement-based material mechanical performance.
Matrixw/cGraphite Size (μm)Compressive StrengthRef.
Graphite ContentIncrease/Reduction (%)/d
Paste0.45200010 (wt%) a−47/2d, −39/7d, and −45/28d[3]
150 −28/2d, −32/7d, and −36/28d
44 −12/2d, −21/7d, and −12/28d
200020 (wt%) a−51/2d, −50/7d, and −56/28d
150 −31/2d, −40/7d, and −42/28d
44 −21/2d, −20/7d, and −35/28d
Concrete0.57Few microns0.23 (vol%) b−6/28d[18]
0.68 (vol%)−17/28d
1.13 (vol%)−22/28d
1.58 (vol%)−30/28d
Concrete0.38302.5 (wt%) a+10.1/28d[30]
5 (wt%)+7.8/28d
7.5 (wt%)+0.5/28d
Paste0.5312 (d90)5 (wt%) a−28/21d[64]
0.55 10 (wt%)−39/21d
0.60 20 (wt%)−61/21d
0.65 30 (wt%)−72/21d
0.70 40 (wt%)−83/21d
0.75 50 (wt%)−93/21d
0.80 60 (wt%)−95/21d
0.85 70 (wt%)−97/21d
0.90 80 (wt%)−98/21d
Concrete0.3011 (d50)5 (wt%) a−12/7d[75]
10 (wt%)−38/7d
15 (wt%)−49/7d
20 (wt%)−52/7d
Mortar 0.4300.5 (wt%) a+1.2/28d[76]
1.0 (wt%)−5.5/28d
2.0 (wt%)−10.1/28d
3.0 (wt%)−18.9/28d
Concrete0.59
0.801.0
1.2		1–50005.0 (wt%) c
10 (wt%)
15 (wt%)
20 (wt%)		−82.5/28d
−91.9/28d
−96.2/28d
−99.4/28d		[77]
a: By weight of cement; b: by volume of total concrete; c: by weight of sand.

7. Effects of Graphite on Cementitious Composite Durability

The durability of cement-based cementitious materials refers to the resistance to environmental media (such as CO2, SO2-4, and Cl-) and the ability to maintain the desired properties and integrity long-term [78]. The durability of cement-based materials is directly related to their transport performance. The main penetration channels of erosive agents are cracks and pores within the cement matrix [69]. However, there have been relatively few studies to date on the durability of GC composites. This section summarizes the effects of graphite on the durability of cementitious materials as reported in the literature.
“Transport performance” is defined as the penetration rate of erosive agents (such as H2O and ions) into the cement matrix within the service environment [79]. Connected pores are inherent microstructural defects in cementitious materials that act as primary transmission channels. An open porosity test of GC composites was conducted by Medina et al. [67] to find that after adding 30% graphite, the open porosity of cement paste is 49.5% higher than that of plain cement.
The carbonation of cementitious composites is a chemical corrosion process that reduces alkalinity in the cement matrix and causes corrosive damage to the material. A carbonation test of GC composites was also performed by Medina et al. [67] to find that the carbonation depth increases significantly with the addition of graphite. The ability of graphite to capture CO2 molecules and an increase in porosity in GC composites appeared to accelerate the movement of CO2 into the matrix.
Interestingly, other researchers have reported that water absorption is reduced after the immersion of graphite-cement composites. Peyvandi et al. [10] conducted acid resistance and moisture sorptivity tests to find that GNP incorporation enhances the moisture sorption resistance of concrete specimens. Medina et al. [67] reached a similar conclusion whereby the addition of graphite in their cement paste samples significantly reduced capillary absorption. Graphite likely reduces the accessibility to liquids and diminishes the size and tortuosity of the pore network. Previous studies [58,66,80] have reported that graphene-based materials in cementitious matrixes act as a physical barrier. The incorporation of graphite leads to the formation of tortuous network paths which ultimately decrease permeability.
Carbon-based additives significantly improve the crack resistance of cementitious matrixes during exothermic reactions, especially in the initial stages of the hydration process [81,82]. The high surface area of the fillers allows them to efficiently control the propagation of microcracks in cementitious composite materials. Highly dense graphite powder is not prone to disintegration even under harsh experimental conditions (such as ion bombardment) [23], so its incorporation into cement-based materials may prevent calcium leaching under aggressive solutions (pH < 12.5). Mehdi et al. [66] found that the penetration of chloride decreases significantly as the amount of nano-graphite addition increases. Chloride ions may be entrapped in between the graphene layers of graphite [83], so an appropriate graphite addition can protect the matrix.
Previously published experimental results have highlighted the effects of graphene-based materials (graphite powder, nano-graphite, and graphite nanoplatelet) in regard to cementitious material durability based on graphite-containing composites. However, the long-term performance of graphite-based cementitious composites has not yet been reported (e.g., freeze–thaw resistance, shrinkage, sulfate resistance, steel corrosion resistance). Further studies on other durability related properties are needed to support the use of graphite in construction practice.

8. Electrical Properties of Graphite-Based ECCCs

Regular concrete is a poor conductor. The resistivity of saturated and dry concrete ranges between 106 Ω cm and 109 Ω cm, respectively [18,84]. It is theoretically feasible to obtain certain electrical properties in cementitious composite matrixes by adding different conductive materials [1,2,3,5,6,7,8,11,12,18,22,43,47,85]. Our focus in this section is the effects of graphite-based materials as conductive fillers. Electrical conductivity is the primary ECCC index that determines its performance and application value [86]. Studies have shown that changes in graphite content cause the resistivity of concrete to range from 10−1 Ω cm to 105 Ω cm [45,64]. Graphite has considerable conductive capacity with its high carbon content (>98%), which can significantly enhance the conductivity of ECCCs [87].
Achieving high electrical conductivity in cementitious composites requires that conductive fillers be percolated through the cementitious matrix. Percolation is a common phenomenon in particle-filled composites, where certain physical properties (e.g., conductivity) of the system change suddenly when the concentration of the particles reaches a certain level [88]. This critical value is the “percolation threshold” to which the dosage of conductive fillers should be equal to or greater than in order to form conductive networks through the composites.

8.1. Conductive Mechanisms

The conductive mechanisms of cementitious materials theoretically include conductive pathways, tunnelling effect, and field emission [8,89]. Current is transmitted in the cementitious matrix through electrons or holes in the conductive network and through tunnels over the substrate barrier after conductive fillers are added [45,88].
(1)
Conductive pathway theory: when some conductive fillers are in contact with each other, the conductive pathway can be formed to allow current to pass through the cementitious matrix [90].
(2)
Tunnelling effect theory: in a cementitious matrix, partially conductive fillers are distributed in the form of isolated particles or small aggregates. When these isolated particles and small aggregates are surrounded by a thin layer of hydration products, the electrons can hop across the thin layer into adjacent conductive particles [91]. This phenomenon is the so-called tunnelling effect, where electrons can be activated by thermal vibration and electron transition.
(3)
Field emission theory: when there is a strong internal electric field among conductive fillers, an electric field emission current can be generated as electrons pass through the electronic barrier formed by the thin cementitious layer [92].
Sun et al. [87] analyzed the typical microstructures of ECCC samples with steel slag (SS), GP, and granulated blast-furnace slag (GGBS) fillers. A schematic diagram of the conductive concrete mechanism is given in Figure 9a, where conductive fillers (GP and SS) are evenly distributed and the C–S–H gel is well-filled in the aggregate framework. C–S–H gel plays an important role in improving both the mechanical and electrical performance of materials as it fills up the micropores of the mixture and tightens its bonds. SS containing ferrite can also improve ECCC conductivity. The optimized dispersion of these conductive components through the cementitious matrix can form privileged free conductive pathways.
Witpathomwong et al. [93] reported on Polybenzoxazine (PBA) composites filled with three types of carbon filler for enhanced thermal conductivity: graphite, graphene, and CNTs. The dispersion of the fillers is blocked by the matrix, thus forming a barrier. When the amount of the conductive element increases to a critical value, the conductive networks expand to a certain range to form conductive paths (Figure 9b). Higher conductive pathways facilitate electron mobility, thus decreasing the resistivity of conductive concrete. These types of fillers can easily overlap and interlace with adjacent fillers, which can also create electrical conductive pathways [93]. Overlapped composite fillers play a critical role in the conductivity of composites.
Ioanna et al. [3] used μCT-scan technology to assess the dispersion of a 30 wt% graphite dose in a cement matrix. Figure 9c shows a 3D reconstructed image of the graphite-cement paste sample, where graphite flakes are well dispersed within the matrix and located near each other. Electric current can travel both through the conductive additive via “electronic conduction” and through the available free water via “electrolytic conduction”.
Many studies have shown that functional fillers can effectively enhance the electrical properties of cementitious composites. The ECCC is an interesting type of percolation system; its transport characteristics have attracted a great deal of research attention. The complex mechanisms of conduction suggest that the key to electrical conductivity is the formation of conductive pathways. The conductive pathways of cementitious composites filled with conductive fillers can be divided into three possible categories.
(1)
Through the cement-based matrix: the electrical transport behavior of the cement-based composites is mainly affected by cement matrix system when the conductive component is lower than the percolation threshold value [94]. Electrical resistance is closely related to water consumption. Han et al. [95] found that electrical resistance decreases as water content increases, thus enhancing ionic conduction and ultimately improving electrical conductivity. Frattini et al. [64] reported that hardened cement paste with a relatively low added graphite content behaves as an insulator; the order of magnitude of its conductivity is approximately 10−5 S/m.
(2)
Through composite conductive pathway: the composite conductive pathway is composed of a conductive component and cement matrix, so there is a synergic effect between the cementitious matrix and conductive fillers. The filler–matrix interface and C-S-H gel surface may be conductive insofar as improving the charge transfer mechanism [88]. Once graphite content reaches a certain level, the conductivity of GC composite pastes is of the order of magnitude from 10−5 to 1 S/m [64].
(3)
Through the conductive network: once the conductive components in a cementitious composite form a conductive network, conductive fillers dominate electrical transport in the material. A higher conductive component content forms more continuous conductive pathways. A certain level of graphite content can bring the magnitude order of conductivity in GC composite pastes to between 1 and 10 S/m [64]. However, the conductive filler content should be controlled within a certain range to prevent the degradation of other concrete mixture properties.

8.2. Resistivity Testing Methods

Electrical resistivity (ρ) or conductivity (σ) are primary indicators of the electrical properties of materials. Electrical resistivity data must be accurately and precisely determined to characterize cementitious composites [86]. Currently, there is no standard or specification for the resistivity testing of cement-based composites. The selection and arrangement of electrodes significantly affects the conductive properties observed experimentally [45], and various methods produce variations in resistivity measurements [96]. Resistance-measuring methodology such as the specimen size, electrode material, and electrode embedded form affect the conductivity data of cementitious composites [86]. The resistivity test methods of the cement-based composites are summarized in Table 4.
(1)
Specimen size: when small-size specimens are used, the discreteness and error of test values increase due to the inhomogeneity of the materials. Large specimen sizes are recommended for resistivity tests to improve uniformity and ensure the veracity of test data [97].
(2)
Specimen treatment: fresh samples can be cured in molds for 24 h, then demolded and cured for 28 days (20 °C and 95% RH). After curing, such samples are usually processed in an oven for treatment to eliminate any polarization effect during resistivity measurements [98,99] and to minimize the influence of moisture and pore solution on the resulting volume resistivity data [100]. However, there is no universal standard for sample treatments. Samples may also be placed in an oven at 60 °C for three days followed by 95 °C for another three days [98], into an 105 °C oven for 24 h [100], or held overnight at 80 °C to eliminate free water [101].
(3)

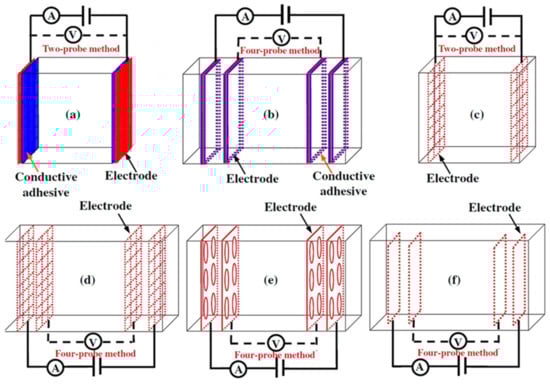

Test method: resistivity test methods include the two-probe method and four-probe method [8] (Figure 10). The 4-probe method has generally shown higher accuracy, as the 2-probe method may introduce contact resistance that results in error. The 2-probe method is more commonly used due to its relative convenience. However, the 4-probe method is recommended for the sake of accuracy [86].
(4)
Test power supply: the supply voltage used to measure the resistivity of cementitious composites must fall within the resistivity stable region. Alternating current (AC) is recommended to measure the electrical resistance of the samples, as this can resolve the technical difficulties and problems (e.g., polarization effects) associated with direct current (DC) measurements [8,101].
(5)
Test instrument: a high precision desktop digital multimeter is typically used in resistivity tests to reduce the influence of the test instrument on the resulting data.
Table
Table 4. Electrical resistivity measurement methods.
Table 4. Electrical resistivity measurement methods.
Matrixw/cSpecimen SizeTest MethodTest Power Supply Test InstrumentEquation Ref.

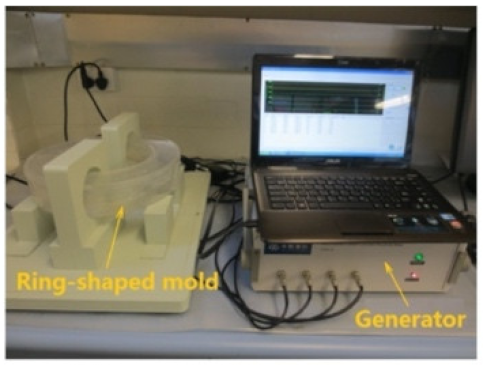

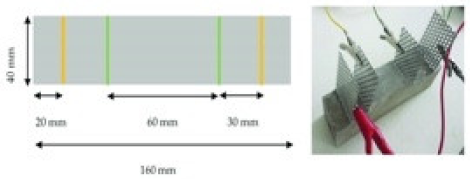

Paste0.45 Materials 14 04798 i001
40 mm × 40 mm × 160 mm		4-probe method10 V
(DC)		--[3]

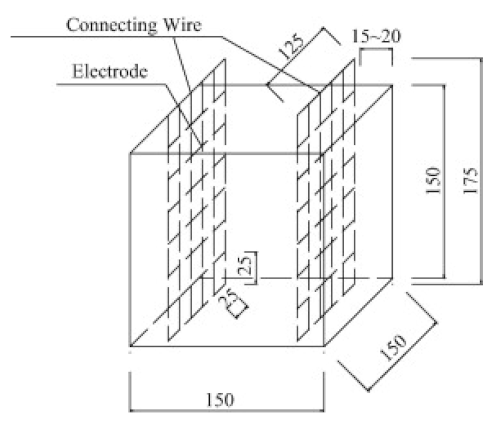

Concrete0.44 Materials 14 04798 i002
150 mm × 150 mm × 150 mm		2-probe method50 Hz
(AC) 		Digital multimeter-[45]
Mortar Materials 14 04798 i003

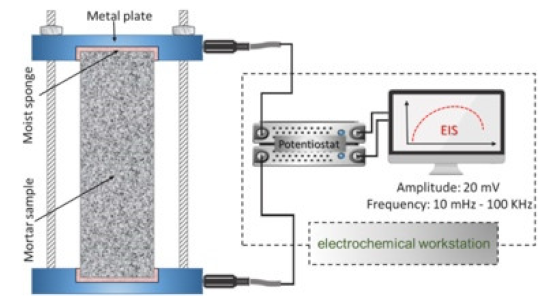

40 mm × 40 mm × 160 mm		Uniaxial two-point electrode method 20 mV
10 mKz-100 kHz
(AC)		EIS tests
(VMP3)		ρ = RS/L[68]
Concrete0.28 Materials 14 04798 i004

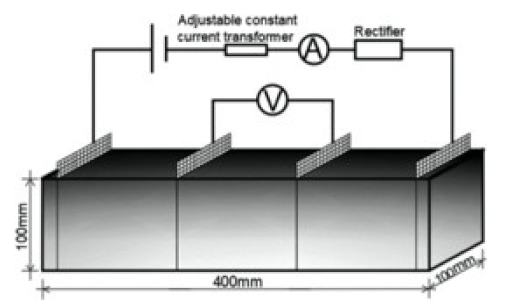

100 mm × 100 mm × 400 mm		4-probe method-Digital multimeterρ = 100 × UA/IL[87]

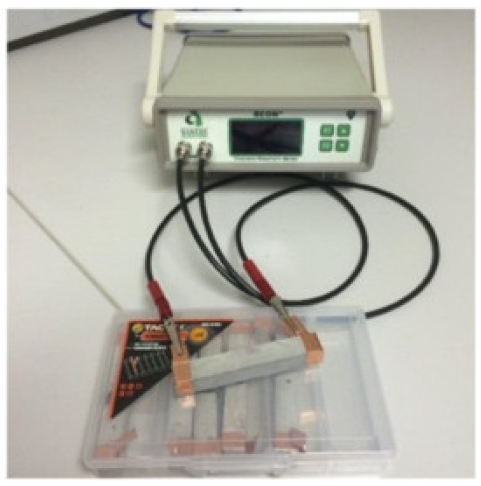

Paste0.4 Materials 14 04798 i005
110 mm × 15 mm × 15 mm		2-probe method1000 Hz(AC)Resistivity meterρ = RAcosθ/L[98]

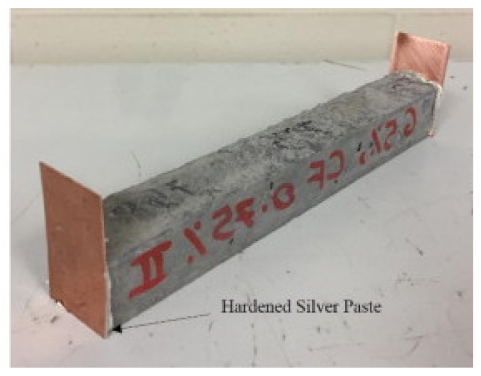

Paste0.5 Materials 14 04798 i006

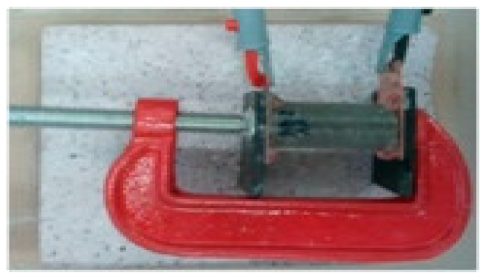

203.2 mm × 25.4 mm × 25.4 mm		2-probe methodDCDigital multimeter and DC Hipot Testerρ = RS/L[100]
Paste0.45 Materials 14 04798 i007
20 mm × 20 mm × 75 mm		2-probe method300 mV
200 KHz (AC)		--[101]

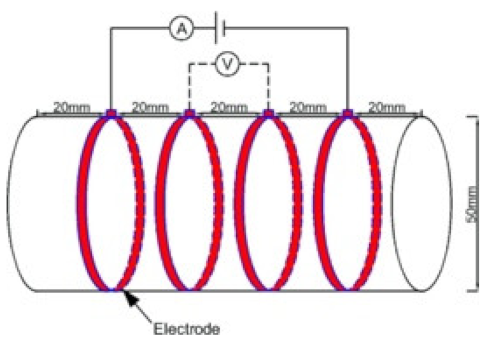

Concrete0.43 Materials 14 04798 i008
50 mm × 100 mm		4-probe method DCDigital multimeterρ = 2παV/I[102]
Paste0.4 Materials 14 04798 i009
770 mm × 55 mm × 42 mm		Non-contact electrical resistivity test-Cement and Concrete Resistivity-III-[103]

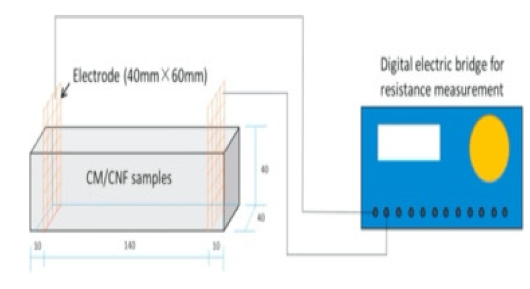

Mortar0.35 Materials 14 04798 i010
40 mm × 40 mm × 160 mm		2-probe methodACDigital multimeterρ = RS/L[104]

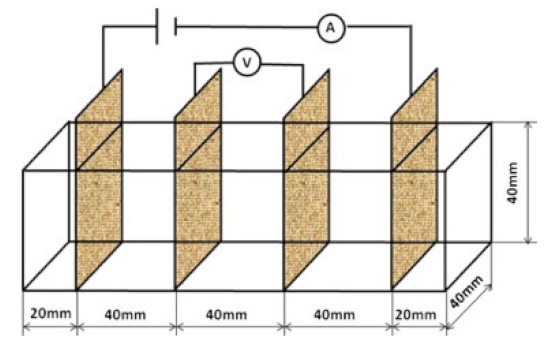

Paste0.35 Materials 14 04798 i011
40 mm × 40 mm × 160 mm		4-probe methodDCDigital multimeter-[105]

9. Methods to Improve Graphite-Based ECCC Properties

Carbon-based materials are currently the most often-used addition agents in the manufacture of ECCCs due to their excellent electrical conductivity and working stability. These materials involve CF, CB, and GP at the nanoscale. Despite their noteworthy potential as discussed above, they have technical limitations, yet restrict the practical utilization of carbon-based materials in cement composites.
ECCCs containing graphite-based fillers have negative effects in terms of physical microstructure, rheology, and mechanical behavior [87]. Considering the problems that emerge when utilizing graphite-based materials, many researchers have attempted different methods to improve their properties (e.g., fluidity, compatibility, mechanical properties, electrical conductivity).
The compatibility between cement-based material and carbonic filler is poor, so effective dispersion technology and dispersing agents should be considered in establishing new ECCC designs. Surface modifications can be conducted with low-cost graphite materials to improve their dispersion and interfacial interactions in cementitious matrixes. Acid functionalization (a chemical modification) on the surface of graphite can introduce carboxyl and hydroxyl groups (-COOH and -OH), which creates uniform dispersion of graphite in the cement matrix and forms active sites for the initiation of cement hydration [106].
Graphite is comprised of conductive particles. Compared with fibrous material, however, it does not form conductive networks in a matrix as readily. To effectively increase conductivity, other types of conductive material (e.g., CNTs, CF, steel fiber) can be added to produce a multi-phase conductive matrix. These fiber-type fillers can further enhance the mechanical strength of the cementitious matrix to offset the low strength of graphite as well [45].
The ECCC design mixture should be optimized to balance mechanical and electrical properties. The use of slag as an admixture in carbon-based ECCCs can create workable tradeoffs among conductive properties, mechanical performance, cost-effectiveness, and environmental-friendliness [87].

10. Concluding Remarks and Future Research Directions

Researchers have expressed interest in ECCCs for many years. The relatively low costs of graphite materials have made them attractive as potential ECCC additives for a variety of industrial purposes. This paper reviewed theoretical and experimental results relevant to graphite-based materials in the preparation of ECCCs. The main conclusions can be summarized as follows.
(1)
The dispersion of graphite in the cement matrix is a notable technical limitation. The surfaces of graphite are hydrophobic and atomically smooth, thus encouraging mutual bonding to each other (i.e., agglomeration) in aqueous solutions (e.g., fresh cement mixtures).
(2)
The properties of a fully fabricated ECCC are dependent on the quality of the filler dispersion. The size and dispersion of a given filler are more important than its conductivity. This dispersion may require further treatments such as surfactant addition to improve the final properties, or graphite may need further functionalization to achieve the desired properties.
(3)
The ECCC is a heterogeneous material which has poor workability that restricts its wider application in engineering practice. A reduction in fluidity due to the inter-particle friction with cement particles, as well as the low hydrophilicity of graphite, cause a large amount of water to be entrapped in agglomerated graphite particles. The mixture design, water content, addition of any water reducing agents, graphite content, and fineness should be adjusted to ensure sufficient flowability without sacrificing functionality.
(4)
Graphite does not directly participate in cement hydration; rather, graphite particles act as inert conductive fillers. Graphite has a large specific surface area which can provide nucleation sites for hydration product precipitation. A large amount of hydration products is generated near the graphite sheets, which may improve the compatibility of graphite as a cement composite additive.
(5)
The key parameter of an ECCC is its electrical conductivity. Electrical conductivity increases as graphite addition increases, but compressive strength decreases simultaneously. The cementitious matrix–graphite particle interface has a significant effect on compressive strength. The graphite content supplied to a cementitious system must be properly adjusted to minimize any adverse effects on the mechanical properties of the material.
(6)
The addition of graphite in the matrix increases its porosity. Graphene-based materials as fillers not only create a physical barrier, but also form tortuous network paths that ultimately reduce the permeability of the composite.
(7)
The high surface area of fillers allows them to efficiently control the propagation of microcracks in cementitious composite materials. The layered structure of graphite further allows it to entrap ions which can protect the matrix.
(8)
The long-term performance (e.g., freeze–thaw resistance, shrinkage, sulfate resistance, steel corrosion resistance) of graphite-based cementitious composites has not yet been reported. To effectively utilize graphite in future engineering practice, in-depth research on other properties of ECCCs with graphite are yet needed.
(9)
The ECCC is a percolation system with complex conduction mechanisms that have attracted a great deal of research attention. The electrically conductive mechanisms of cementitious composites need further research in regard to their transport and electrical conductivity properties.
(10)
Currently, there is no strict standard or specification for ECCC conductivity testing. Electrical resistivity is the primary index of ECCCs, which determines its performance and application value. A standardized test method for ECCC electrical resistivity is of great significance in terms of the material’s potential application in engineering practice.
Graphite-based cementitious composites have shown excellent performance in previous studies, but challenges persist. The successful use of graphite in ECCCs requires adequate dispersion in the aqueous fresh mixture to ensure that an electrically conductive network forms within the cementitious structure, sufficient workability for practical engineering, and adequate bonding of cement hydration products for effective stress transfer across the interfaces. The physical or chemical modification of graphite-based materials can enhance the overall performance of the cementitious matrix. It is necessary to further research graphite-based material modification technologies to support the usage of conductive carbon fillers in the construction industry, and in turn to extend the possible applications of ECCCs.

Author Contributions

Conceptualization, T.L. and Q.W.; methodology, T.L.; software, T.L.; validation, T.L. and Q.W.; formal analysis, T.L.; investigation, T.L.; resources, Q.W.; data curation, T.L.; writing—original draft preparation, T.L.; writing—review and editing, T.L.; visualization, T.L.; supervision, T.L.; project administration, Q.W.; funding acquisition, Q.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China, grant number 51822807.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable. No new data were created or analyzed in this article. Data sharing is not applicable to this article.

Acknowledgments

The authors would like to thank the support from National Natural Science Foundation of China (NO. 51822807).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Haddad, A.S.; Chung, D. Decreasing the electric permittivity of cement by graphite particle incorporation. Carbon 2017, 122, 702–709. [Google Scholar] [CrossRef]
  2. Wen, S.; Chung, D. The role of electronic and ionic conduction in the electrical conductivity of carbon fiber reinforced cement. Carbon 2006, 44, 2130–2138. [Google Scholar] [CrossRef]
  3. Papanikolaou, I.; Litina, C.; Zomorodian, A.; Al-Tabbaa, A. Effect of Natural Graphite Fineness on the Performance and Electrical Conductivity of Cement Paste Mixes for Self-Sensing Structures. Materials 2020, 13, 5833. [Google Scholar] [CrossRef]
  4. Zhu, P.; Li, H.; Ling, Q.; Asghar, H.K.; Gang, L.; Jun, W.Z.; Frank, C.; Dan, L.; Wen, H.D.; Ming, C.W. Mechanical Properties and Microstructure of a Graphene Oxide-Cement Composite. Cem. Concr. Compos. 2015, 58, 140–147. [Google Scholar]
  5. Yoo, D.Y.; You, I.; Lee, S.J. Electrical Properties of Cement-Based Composites with Carbon Nanotubes, Graphene, and Graphite Nanofibers. Sensors 2017, 17, 1064. [Google Scholar] [CrossRef] [PubMed]
  6. Alireza, S.; Ali, A.; Halil, C.; Sunghwan, K.; Sajed, S.S.M.; Kasthurirangan, G.; Taylor, P.C.; Hesham, A. Carbon Fiber-Based Electrically Conductive Concrete for Salt-Free Deicing of Pavements. J. Clean. Prod. 2018, 203, 799–809. [Google Scholar]
  7. Zhang, J.; Xu, L.; Zhao, Q. Investigation of carbon fillers modified electrically conductive concrete as grounding electrodes for transmission towers: Computational model and case study. Constr. Build. Mater. 2017, 145, 347–353. [Google Scholar] [CrossRef]
  8. Wang, L.N.; Farhad, A. A Review on Material Design, Performance, and Practical Application of Electrically Conductive Cementitious Composites. Constr. Build. Mater. 2019, 229, 116892. [Google Scholar] [CrossRef]
  9. Cao, J.; Chung, D. Carbon fiber reinforced cement mortar improved by using acrylic dispersion as an admixture. Cem. Concr. Res. 2001, 31, 1633–1637. [Google Scholar] [CrossRef]
  10. Peyvandi, A.A.; Soroushian, P.; Balachandra, A.M.; Sobolev, K. Enhancement of the durability characteristics of concrete nanocomposite pipes with modified graphite nanoplatelets. Constr. Build. Mater. 2013, 47, 111–117. [Google Scholar] [CrossRef]
  11. Sassani, A.; Ceylan, H.; Kim, S.; Gopalakrishnan, K.; Arabzadeh, A.; Taylor, P.C. Influence of mix design variables on engineering properties of carbon fiber-modified electrically conductive concrete. Constr. Build. Mater. 2017, 152, 168–181. [Google Scholar] [CrossRef] [Green Version]
  12. Sassani, A.; Ceylan, H.; Kim, S.; Arabzadeh, A.; Taylor, P.C.; Gopalakrishnan, K. Development of Carbon Fiber-modified Electrically Conductive Concrete for Implementation in Des Moines International Airport. Case Stud. Constr. Mater. 2018, 8, 277–291. [Google Scholar] [CrossRef]
  13. Mohammed, A.G.; Ozgur, G.; Sevkat, E. Electrical resistance heating for deicing and snow melting applications: Experimental study. Cold Reg. Sci. Technol. 2019, 160, 128–138. [Google Scholar] [CrossRef]
  14. Tuan, C.Y.; Yehia, S. Evaluation of Electrically Conductive Concrete Containing Carbon Products for Deicing. ACI Mater. J. 2004, 101, 287–293. [Google Scholar]
  15. Chung, D. Electromagnetic interference shielding effectiveness of carbon materials. Carbon 2001, 39, 279–285. [Google Scholar] [CrossRef]
  16. Qin, Z.; Wang, Y.; Mao, X.; Xie, X. Development of Graphite Electrically Conductive Concrete and Application in Grounding Engineering. New Build. Mater. 2009, 11, 46–48. [Google Scholar]
  17. Bertolini, L.; Bolzoni, F.M.; Pastore, T.; Pedeferri, P. Effectiveness of a conductive cementitious mortar anode for cathodic protection of steel in concrete. Cem. Concr. Res. 2004, 34, 681–694. [Google Scholar] [CrossRef]
  18. El-Dieb, A.S.; El-Ghareeb, M.A.; Abdel-Rahman, M.A.; Nasr, E.S.A. Multifunctional electrically conductive concrete using different fillers. J. Build. Eng. 2018, 15, 61–69. [Google Scholar] [CrossRef]
  19. Sun, M.-Q.; Liew, R.; Zhang, M.-H.; Li, W. Development of cement-based strain sensor for health monitoring of ultra high strength concrete. Constr. Build. Mater. 2014, 65, 630–637. [Google Scholar] [CrossRef]
  20. Chiarello, M.; Zinno, R. Electrical conductivity of self-monitoring CFRC. Cem. Concr. Compos. 2005, 27, 463–469. [Google Scholar] [CrossRef]
  21. Chen, P.-W.; Chung, D.D.L. Carbon fiber reinforced concrete as an electrical contact material for smart structures. Smart Mater. Struct. 1993, 2, 181–188. [Google Scholar] [CrossRef]
  22. Chung, D.D.L. Electrically Conductive Cement-Based Materials. Adv. Cem. Res. 2004, 16, 167–176. [Google Scholar] [CrossRef]
  23. Jara, A.; Betemariam, A.; Woldetinsae, G.; Kim, J.Y. Purification, application and current market trend of natural graphite: A review. Int. J. Min. Sci. Technol. 2019, 29, 671–689. [Google Scholar] [CrossRef]
  24. Lee, C.; Wei, X.; Kysar, J.W.; Hone, J. Measurement of the Elastic Properties and Intrinsic Strength of Monolayer Graphene. Science 2008, 321, 385–388. [Google Scholar] [CrossRef]
  25. Balandin, A.A. Thermal properties of graphene and nanostructured carbon materials. Nat. Mater. 2011, 10, 569–581. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Geim, A.K.; Novoselov, K.S. The Rise of Graphene. Nat. Mater. 2007, 6, 183–191. [Google Scholar] [CrossRef]
  27. Zheng, W.; Wong, S.-C. Electrical conductivity and dielectric properties of PMMA/expanded graphite composites. Compos. Sci. Technol. 2003, 63, 225–235. [Google Scholar] [CrossRef]
  28. Sachdev, V.K.; Sharma, S.K.; Bhattacharya, S.; Patel, K.; Mehra, N.C.; Gupta, V.; Tandon, R.P. Electromagnetic Shielding Performance of Graphite in Cement Matrix for Applied Application. Adv. Mater. Lett. 2015, 6, 965–972. [Google Scholar] [CrossRef]
  29. Scogings, A. Global Graphite Market Set for Change. Aust. Paydirt 2016, 1, 42. [Google Scholar]
  30. Chen, M.; Gao, P.; Geng, F.; Zhang, L.; Liu, H. Mechanical and smart properties of carbon fiber and graphite conductive concrete for internal damage monitoring of structure. Constr. Build. Mater. 2017, 142, 320–327. [Google Scholar] [CrossRef]
  31. Bhattacharya, S.; Sachdev, V.K.; Chatterjee, R.; Tandon, R.P. Decisive properties of graphite-filled cement composites for device application. Appl. Phys. A 2008, 92, 417–420. [Google Scholar] [CrossRef]
  32. Han, M.; Muhammad, Y.; Wei, Y.; Zhu, Z.; Huang, J.; Li, J. A review on the development and application of graphene based materials for the fabrication of modified asphalt and cement. Constr. Build. Mater. 2021, 285, 122885. [Google Scholar] [CrossRef]
  33. Wenk, H.R.; Bulakh, A. Minerals: Their Constitution and Origin; Cambridge University Press: Cambridge, UK, 2016. [Google Scholar]
  34. Gust, W.H. Phase transition and shock-compression parameters to 120 GPa for three types of graphite and for amorphous carbon. Phys. Rev. B 1980, 22, 4744–4756. [Google Scholar] [CrossRef]
  35. Solfiti, E.; Berto, F. Mechanical properties of flexible graphite: Review. Procedia Struct. Integr. 2020, 25, 420–429. [Google Scholar] [CrossRef]
  36. Wallace, P.R. The Band Theory of Graphite. Phys. Rev. 1947, 71, 622–634. [Google Scholar] [CrossRef]
  37. Nakamizo, M.; Honda, H.; Inagaki, M. Raman spectra of ground natural graphite. Carbon 1978, 16, 281–283. [Google Scholar] [CrossRef]
  38. Chung, D.D.L. Review Graphite. J. Mater. Sci. 2002, 37, 1475–1489. [Google Scholar] [CrossRef]
  39. Caragiu, M.; Finberg, S. Alkali metal adsorption on graphite: A review. J. Phys. Condens. Matter 2005, 17, R995–R1024. [Google Scholar] [CrossRef]
  40. Kavanagh, A.; Schlögl, R. The morphology of some natural and synthetic graphites. Carbon 1988, 26, 23–32. [Google Scholar] [CrossRef]
  41. Chung, D.D.L. A review of exfoliated graphite. J. Mater. Sci. 2015, 51, 554–568. [Google Scholar] [CrossRef]
  42. Zhang, G.; Liu, Y.; Guo, F.; Liu, X.; Wang, Y. Friction Characteristics of Impregnated and Non-Impregnated Graphite against Cemented Carbide under Water Lubrication. J. Mater. Sci. Technol. 2017, 33, 1203–1209. [Google Scholar] [CrossRef]
  43. Chen, G.-H.; Wu, D.-J.; Weng, W.-G.; Yan, W.-L. Dispersion of graphite nanosheets in a polymer matrix and the conducting property of the nanocomposites. Polym. Eng. Sci. 2001, 41, 2148–2154. [Google Scholar] [CrossRef]
  44. Wang, D.; Wang, Q.; Huang, Z. Investigation on the poor fluidity of electrically conductive cement-graphite paste: Experiment and simulation. Mater. Des. 2019, 169, 107679. [Google Scholar] [CrossRef]
  45. Wu, J.; Liu, J.; Yang, F. Three-phase composite conductive concrete for pavement deicing. Constr. Build. Mater. 2015, 75, 129–135. [Google Scholar] [CrossRef]
  46. Zhang, H.; Xing, F.; Cui, H.-Z.; Chen, D.-Z.; Ouyang, X.; Xu, S.-Z.; Wang, J.-X.; Huang, Y.-T.; Zuo, J.-D.; Tang, J.-N. A novel phase-change cement composite for thermal energy storage: Fabrication, thermal and mechanical properties. Appl. Energy 2016, 170, 130–139. [Google Scholar] [CrossRef]
  47. Banthia, N.; Djeridane, S.; Pigeon, M. Electrical resistivity of carbon and steel micro-fiber reinforced cements. Cem. Concr. Res. 1992, 22, 804–814. [Google Scholar] [CrossRef]
  48. Helmy, A.K.; Ferreiro, E.A.; de Bussetti, S.G. The water/graphitic-carbon interaction energy. Appl. Surf. Sci. 2007, 253, 4966–4969. [Google Scholar] [CrossRef]
  49. Gopalakrishnan, K.; Birgisson, B.; Taylor, P.; Attoh-Okine, N.O. (Eds.) Nanotechnology in Civil Infrastructure; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar] [CrossRef] [Green Version]
  50. Birgin, H.B.; D’Alessandro, A.; Laflamme, S.; Ubertini, F. Smart Graphite–Cement Composite for Roadway-Integrated Weigh-In-Motion Sensing. Sensors 2020, 20, 4518. [Google Scholar] [CrossRef]
  51. Sun, S.; Han, B.; Jiang, S.; Yu, X.; Wang, Y.; Li, H.; Ou, J. Nano graphite platelets-enabled piezoresistive cementitious composites for structural health monitoring. Constr. Build. Mater. 2017, 136, 314–328. [Google Scholar] [CrossRef] [Green Version]
  52. Dresel, A.; Teipel, U. Influence of the wetting behavior and surface energy on the dispersibility of multi-wall carbon nanotubes. Colloids Surf. A Physicochem. Eng. Asp. 2016, 489, 57–66. [Google Scholar] [CrossRef]
  53. Liebscher, M.; Dinh, T.T.; Schröfl, C.; Mechtcherine, V. Dispersion of different carbon-based nanofillers in aqueous suspension by polycarboxylate comb-type copolymers and their influence on the early age properties of cementitious matrices. Constr. Build. Mater. 2020, 241, 118039. [Google Scholar] [CrossRef]
  54. Parveen, S.; Rana, S.; Fangueiro, R. A Review on Nanomaterial Dispersion, Microstructure, and Mechanical Properties of Carbon Nanotube and Nanofiber Reinforced Cementitious Composites. J. Nanomater. 2013, 2013, 710175. [Google Scholar] [CrossRef]
  55. Luo, J.; Duan, Z.; Li, H. The influence of surfactants on the processing of multi-walled carbon nanotubes in reinforced cement matrix composites. Phys. Status Solidi A 2009, 206, 2783–2790. [Google Scholar] [CrossRef]
  56. Kaur, R.; Kothiyal, N. Positive synergistic effect of superplasticizer stabilized graphene oxide and functionalized carbon nanotubes as a 3-D hybrid reinforcing phase on the mechanical properties and pore structure refinement of cement nanocomposites. Constr. Build. Mater. 2019, 222, 358–370. [Google Scholar] [CrossRef]
  57. Li, G.Y.; Wang, P.M.; Zhao, X. Mechanical behavior and microstructure of cement composites incorporating surface-treated multi-walled carbon nanotubes. Carbon 2005, 43, 1239–1245. [Google Scholar] [CrossRef]
  58. Peyvandi, A.A.; Soroushian, P.; Abdol, N.; Balachandra, A.M. Surface-modified graphite nanomaterials for improved reinforcement efficiency in cementitious paste. Carbon 2013, 63, 175–186. [Google Scholar] [CrossRef]
  59. Zhou, Y.; Sun, W.; Ling, Z.; Fang, X.; Zhang, Z. Hydrophilic Modification of Expanded Graphite to Prepare a High-Performance Composite Phase Change Block Containing a Hydrate Salt. Ind. Eng. Chem. Res. 2017, 56, 14799–14806. [Google Scholar] [CrossRef]
  60. Wang, B.; Pang, B. Mechanical property and toughening mechanism of water reducing agents modified graphene nanoplatelets reinforced cement composites. Constr. Build. Mater. 2019, 226, 699–711. [Google Scholar] [CrossRef]
  61. Du, H.; Pang, S.D. Dispersion and stability of graphene nanoplatelet in water and its influence on cement composites. Constr. Build. Mater. 2018, 167, 403–413. [Google Scholar] [CrossRef]
  62. An, X.; Simmons, T.; Shah, R.; Wolfe, C.; Lewis, K.M.; Washington, M.; Nayak, S.K.; Talapatra, S.; Kar, S. Stable Aqueous Dispersions of Noncovalently Functionalized Graphene from Graphite and their Multifunctional High-Performance Applications. Nano Lett. 2010, 10, 4295–4301. [Google Scholar] [CrossRef]
  63. Kozbial, A.; Li, Z.; Sun, J.; Gong, X.; Zhou, F.; Wang, Y.; Xu, H.; Liu, H.; Li, L. Understanding the intrinsic water wettability of graphite. Carbon 2014, 74, 218–225. [Google Scholar] [CrossRef] [Green Version]
  64. Frattini, D.; Accardo, G.; Ferone, C.; Cioffi, R. Fabrication and Characterization of Graphite-Cement Compositesfor Microbial Fuel Cells Applications. Mater. Res. Bull. 2017, 88, 188–199. [Google Scholar] [CrossRef]
  65. Collins, F.; Lambert, J.; Duan, W.H. The Influences of Admixtures on The Dispersion, Workability, and Strength of Carbon Nanotube–OPC Paste Mixtures. Cem. Concr. Compos. 2012, 34, 201–207. [Google Scholar] [CrossRef]
  66. Chougan, M.; Marotta, E.; Lamastra, F.R.; Vivio, F.; Montesperelli, G.; Ianniruberto, U.; Ghaffar, S.H.; Al-Kheetan, M.J.; Bianco, A. High performance cementitious nanocomposites: The effectiveness of nano-Graphite (nG). Constr. Build. Mater. 2020, 259, 119687. [Google Scholar] [CrossRef]
  67. Medina, N.F.; Barbero-Barrera, M.D.M.; Jové-Sandoval, F. Improvement of the Mechanical and Physical Properties of Cement Pastes and Mortars through The Addition Isostatic Graphite. Constr. Build. Mater. 2018, 189, 898–905. [Google Scholar] [CrossRef]
  68. Lamastra, F.R.; Chougan, M.; Marotta, E.; Ciattini, S.; Ghaffar, S.H.; Caporali, S.; Vivio, F.; Montesperelli, G.; Ianniruberto, U.; Al-Kheetan, M.J.; et al. Toward a better understanding of multifunctional cement-based materials: The impact of graphite nanoplatelets (GNPs). Ceram. Int. 2021, 47, 20019–20031. [Google Scholar] [CrossRef]
  69. Zhao, L.; Guo, X.; Song, L.; Song, Y.; Dai, G.; Liu, J. An intensive review on the role of graphene oxide in cement-based materials. Constr. Build. Mater. 2020, 241, 117939. [Google Scholar] [CrossRef]
  70. Nishikawa, T.; Takatsu, M.; Daimon, M. Fracture behavior of hardened cement paste incorporating mineral additions. Cem. Concr. Res. 1995, 25, 1218–1224. [Google Scholar] [CrossRef]
  71. Yuan, H.-W.; Lu, C.-H.; Xu, Z.-Z.; Ni, Y.-R.; Lan, X.-H. Mechanical and thermal properties of cement composite graphite for solar thermal storage materials. Sol. Energy 2012, 86, 3227–3233. [Google Scholar] [CrossRef]
  72. Zel, I.Y.; Kenessarin, M.; Kichanov, S.; Balasoiu, M.; Kozlenko, D.; Nazarov, K.; Nicu, M.; Ionascu, L.; Dragolici, A.; Dragolici, F. Spatial distribution of graphite in cement materials used for radioactive waste conditioning: An approach to analysis of neutron tomography data. Cem. Concr. Compos. 2021, 119, 103993. [Google Scholar] [CrossRef]
  73. Bi, L.; Long, G.; Ma, C.; Wu, J.; Xie, Y. Effect of phase change composites on hydration characteristics of steam-cured cement paste. Constr. Build. Mater. 2020, 274, 122030. [Google Scholar] [CrossRef]
  74. Wu, S.; Mo, L.; Shui, Z.; Chen, Z. Investigation of the conductivity of asphalt concrete containing conductive fillers. Carbon 2005, 43, 1358–1363. [Google Scholar] [CrossRef]
  75. Cordon, H.C.F.; Tadini, F.B.; Akiyama, G.A.; De Andrade, V.O.; Da Silva, R.C. Development of electrically conductive concrete. Cerâmica 2020, 66, 88–92. [Google Scholar] [CrossRef]
  76. Dong, W.; Li, W.; Wang, K.; Shah, S.P. Physicochemical and Piezoresistive properties of smart cementitious composites with graphene nanoplates and graphite plates. Constr. Build. Mater. 2021, 286, 122943. [Google Scholar] [CrossRef]
  77. Shen, G.; Dong, F.Q. Study on Graphite Electrically Conductive Concrete. Concrete 2004, 2, 21–24. [Google Scholar]
  78. Mohammed, A.; Sanjayan, J.; Duan, W.H.; Nazari, A. Incorporating graphene oxide in cement composites: A study of transport properties. Constr. Build. Mater. 2015, 84, 341–347. [Google Scholar] [CrossRef]
  79. Hou, P.K.; Cheng, X.; Qian, J.S.; Zhang, R.; Cao, W.; Shah, S.P. Characteristics of Surface-Treatment of Nano-Sio2 on The Transport Properties of Hardened Cement Pasts with Different Water-To-Cement Ratios. Cem. Concr. Compos. 2015, 55, 26–33. [Google Scholar] [CrossRef]
  80. Compton, O.C.; Kim, S.; Pierre, C.; Torkelson, J.M.; Nguyen, S. Crumpled Graphene Nanosheets as Highly Effective Barrier Property Enhancers. Adv. Mater. 2010, 22, 4759–4763. [Google Scholar] [CrossRef]
  81. Yanturina, R.; Trofimov, B.; Ahmedjanov, R. The Influence of Graphite-Containing Nano-Additives on Thermo-Frost Resistance of Concrete. Procedia Eng. 2017, 206, 869–874. [Google Scholar] [CrossRef]
  82. Sedaghat, A.; Ram, M.K.; Zayed, A.; Kamal, R.; Shanahan, N. Investigation of Physical Properties of Graphene-Cement Composite for Structural Applications. Open J. Compos. Mater. 2014, 4, 12–21. [Google Scholar] [CrossRef] [Green Version]
  83. Zheng, Q.; Han, B.; Cui, X.; Yu, X.; Ou, J. Graphene-Engineered Cementitious Composites: Small Makes a Big Impact. Nanomater. Nanotechnol. 2017, 7, 1–18. [Google Scholar] [CrossRef]
  84. Tang, Z.; Li, Z.; Qian, J.; Wang, K. Experimental Study on Deicing Performance of Carbon Fiber Reinforced Conductive Concrete. J. Mater. Sci. Technol. 2005, 21, 113–117. [Google Scholar]
  85. Cañón, A.; Garcés, P.; Climent, M.; Carmona, J.; Zornoza, E. Feasibility of electrochemical chloride extraction from structural reinforced concrete using a sprayed conductive graphite powder–cement paste as anode. Corros. Sci. 2013, 77, 128–134. [Google Scholar] [CrossRef]
  86. Xin, T.; Hu, H. Test and Study on Electrical Property of Conductive Concrete. Procedia Earth Planet. Sci. 2012, 5, 83–87. [Google Scholar]
  87. Sun, J.; Lin, S.; Zhang, G.; Sun, Y.; Zhang, J.; Chen, C.; Morsy, A.M.; Wang, X. The effect of graphite and slag on electrical and mechanical properties of electrically conductive cementitious composites. Constr. Build. Mater. 2021, 281, 122606. [Google Scholar] [CrossRef]
  88. Sun, S.; Ding, S.; Han, B.; Dong, S.; Yu, X.; Zhou, D.; Ou, J. Multi-layer graphene-engineered cementitious composites with multifunctionality/intelligence. Compos. Part B Eng. 2017, 129, 221–232. [Google Scholar] [CrossRef]
  89. Fan, X.; Fang, D.; Sun, M.; Li, Z. Piezoresistivity of carbon fiber graphite cement-based composites with CCCW. J. Wuhan Univ. Technol. Sci. Ed. 2011, 26, 339–343. [Google Scholar] [CrossRef]
  90. Tang, Z.Q.; Li, Z.Q.; Hou, Z.F.; Liang, X.D. Properties Analysis on Electrically Conductive Concrete Road Material and Conductive Additive Selection. Concrete 2002, 4, 28–31. [Google Scholar]
  91. Rajagopal, S.M. Studies on Electrical Conductivity of Insulator Conductor Composites. Appl. Phys. 1978, 49, 461–469. [Google Scholar] [CrossRef]
  92. Carmonn, A.F. Conducting Filled Polymers. Solid State Commu. 1989, 157, 461–469. [Google Scholar] [CrossRef]
  93. Witpathomwong, S.; Okhawilai, M.; Jubsilp, C.; Karagiannidis, P.; Rimdusit, S. Highly filled graphite/graphene/carbon nanotube in polybenzoxazine composites for bipolar plate in PEMFC. Int. J. Hydrog. Energy 2020, 45, 30898–30910. [Google Scholar] [CrossRef]
  94. Dong, S.; Li, L.; Ashour, A.; Dong, X.; Han, B. Self-assembled 0D/2D nano carbon materials engineered smart and multifunctional cement-based composites. Constr. Build. Mater. 2020, 272, 121632. [Google Scholar] [CrossRef]
  95. Han, B.-G.; Ou, J.-P. Humidity sensing property of cements with added carbon. New Carbon Mater. 2008, 23, 382–384. [Google Scholar] [CrossRef]
  96. Dehghanpour, H.; Yilmaz, K.; Afshari, F.; Ipek, M. Electrically conductive concrete: A laboratory-based investigation and numerical analysis approach. Constr. Build. Mater. 2020, 260, 119948. [Google Scholar] [CrossRef]
  97. Chen, B.; Wu, K.R.; Yao, W. Studies on Electrical Conductivity of Fiber Reinforced Concrete and Its Application. Concrete 2002, 7, 23–27. [Google Scholar]
  98. Li, X.; Wang, L.; Liu, Y.; Li, W.; Dong, B.; Duan, W.H. Dispersion of graphene oxide agglomerates in cement paste and its effects on electrical resistivity and flexural strength. Cem. Concr. Compos. 2018, 92, 145–154. [Google Scholar] [CrossRef]
  99. Konsta-Gdoutos, M.S.; Aza, C.A. Self sensing carbon nanotube (CNT) and nanofiber (CNF) cementitious composites for real time damage assessment in smart structures. Cem. Concr. Compos. 2014, 53, 162–169. [Google Scholar] [CrossRef]
  100. Arabzadeh, A.; Sassani, A.; Ceylan, H.; Kim, S.; Gopalakrishnan, K.; Taylor, P.C. Comparison between cement paste and asphalt mastic modified by carbonaceous materials: Electrical and thermal properties. Constr. Build. Mater. 2019, 213, 121–130. [Google Scholar] [CrossRef]
  101. Lavagna, L.; Musso, S.; Ferro, G.; Pavese, M. Cement-based composites containing functionalized carbon fibers. Cem. Concr. Compos. 2018, 88, 165–171. [Google Scholar] [CrossRef]
  102. Dong, W.; Huang, Y.; Lehane, B.; Aslani, F.; Ma, G. Mechanical and electrical properties of concrete incorporating an iron-particle contained nano-graphite by-product. Constr. Build. Mater. 2020, 270, 121377. [Google Scholar] [CrossRef]
  103. Li, W.; Li, X.; Jian, S.; Ming, Y.; Hui, W.; Shah, S.P. Effects of Graphene Oxide on Early-Age Hydration and Electrical Resistivity of Portland Cement Paste. Constr. Build. Mater. 2017, 136, 506–514. [Google Scholar] [CrossRef]
  104. Liu, Y.; Wang, M.; Wang, W. Ohmic heating curing of electrically conductive carbon nanofiber/cement-based composites to avoid frost damage under severely low temperature. Compos. Part A Appl. Sci. Manuf. 2018, 115, 236–246. [Google Scholar] [CrossRef]
  105. Xie, N.; Shi, X.; Feng, D.; Kuang, B.; Li, H. Percolation backbone structure analysis in electrically conductive carbon fiber reinforced cement composites. Compos. Part B Eng. 2012, 43, 3270–3275. [Google Scholar] [CrossRef]
  106. Tabatabaei, M.; Taleghani, A.D.; Alem, N. Nanoengineering of cement using graphite platelets to refine inherent microstructural defects. Compos. Part B Eng. 2020, 202, 108277. [Google Scholar] [CrossRef]
Materials 14 04798 g001 550

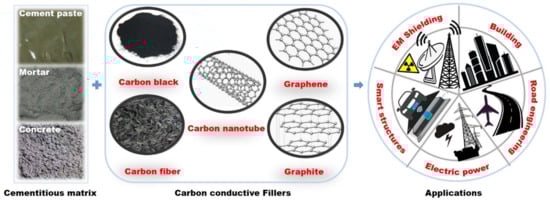

Figure 1. Potential applications of conductive carbon material within ECCCs.
Figure 1. Potential applications of conductive carbon material within ECCCs.
Materials 14 04798 g001
Materials 14 04798 g002 550
Figure 2. (a) Countries as major producers of graphite; (b) main applications of graphite-based materials in civil engineering (reprinted from [32] ©2021 with permission from Elsevier).
Figure 2. (a) Countries as major producers of graphite; (b) main applications of graphite-based materials in civil engineering (reprinted from [32] ©2021 with permission from Elsevier).
Materials 14 04798 g002
Materials 14 04798 g003 550

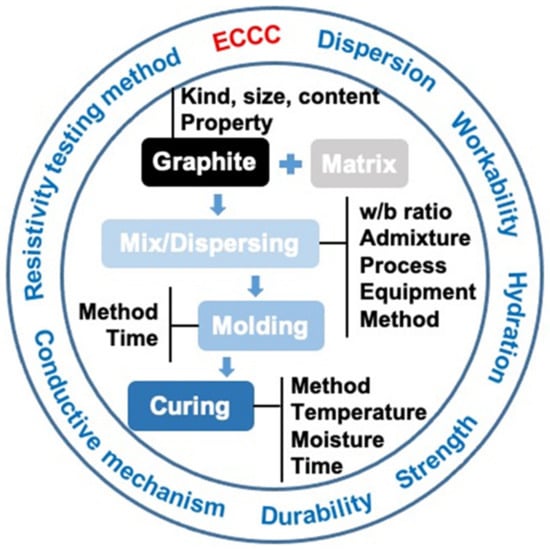

Figure 3. Schematic representation of main topics of this review.
Figure 3. Schematic representation of main topics of this review.
Materials 14 04798 g003
Materials 14 04798 g004 550
Figure 4. Photographs of (a) graphite mineral, (b) flake graphite powder, (c) crystalline structure of graphite.
Figure 4. Photographs of (a) graphite mineral, (b) flake graphite powder, (c) crystalline structure of graphite.
Materials 14 04798 g004
Materials 14 04798 g005 550
Figure 5. Preparation of graphite filled cementitious composites. Dispersion methods of (a) mixing compounds in dry powder form (reprinted (adapted) from [50] which is an open access article and permits unrestricted use); (b) adding powders into solution to prepare uniform suspensions (reprinted (adapted) with permission from [51] ©2017 with permission from Elsevier).
Figure 5. Preparation of graphite filled cementitious composites. Dispersion methods of (a) mixing compounds in dry powder form (reprinted (adapted) from [50] which is an open access article and permits unrestricted use); (b) adding powders into solution to prepare uniform suspensions (reprinted (adapted) with permission from [51] ©2017 with permission from Elsevier).
Materials 14 04798 g005
Materials 14 04798 g006 550

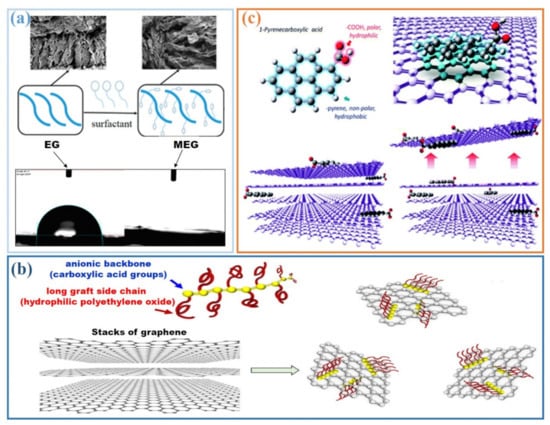

Figure 6. Homogeneous dispersion of graphite via (a) surfactants (reprinted (adapted) with permission from [59]. Copyright © 2017 American Chemical Society); (b) cement admixtures (reprinted (adapted) with permission from [61] © 2018 with permission from Elsevier); (c) surface modifications (reprinted (adapted) with permission from [62]. Copyright © 2010 American Chemical Society).
Figure 6. Homogeneous dispersion of graphite via (a) surfactants (reprinted (adapted) with permission from [59]. Copyright © 2017 American Chemical Society); (b) cement admixtures (reprinted (adapted) with permission from [61] © 2018 with permission from Elsevier); (c) surface modifications (reprinted (adapted) with permission from [62]. Copyright © 2010 American Chemical Society).
Materials 14 04798 g006
Materials 14 04798 g007 550
Figure 7. Effect of graphite size and concentration on cement paste hydration: (a) coarse, (b) medium, and (c) fine graphite (reprinted (adapted) from [3] which is an open access article and permits unrestricted use); (d) XRD patterns of graphite-aluminate cement composite paste (reprinted (adapted) with permission from [71] ©2012 with permission from Elsevier).
Figure 7. Effect of graphite size and concentration on cement paste hydration: (a) coarse, (b) medium, and (c) fine graphite (reprinted (adapted) from [3] which is an open access article and permits unrestricted use); (d) XRD patterns of graphite-aluminate cement composite paste (reprinted (adapted) with permission from [71] ©2012 with permission from Elsevier).
Materials 14 04798 g007
Materials 14 04798 g008 550

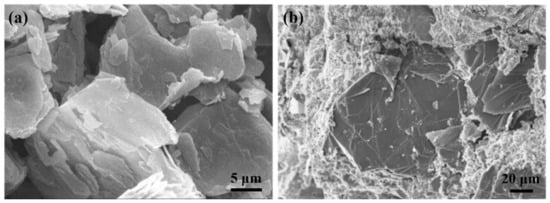

Figure 8. SEM micrographs of (a) pure graphite (reprinted (adapted) with permission from [71] ©2012 with permission from Elsevier) and (b) graphite-cement paste after five months (reprinted (adapted) from [3] which is an open access article and permits unrestricted use).
Figure 8. SEM micrographs of (a) pure graphite (reprinted (adapted) with permission from [71] ©2012 with permission from Elsevier) and (b) graphite-cement paste after five months (reprinted (adapted) from [3] which is an open access article and permits unrestricted use).
Materials 14 04798 g008
Materials 14 04798 g009 550

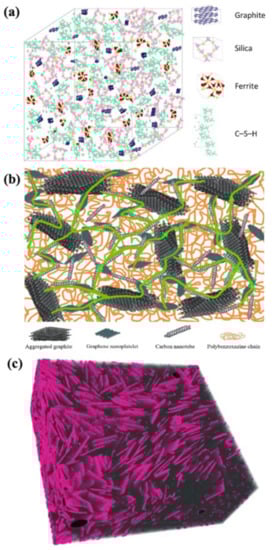

Figure 9. (a) conductive concrete mechanism (reprinted (adapted) with permission from [87] ©2021 with permission from Elsevier); (b) thermal conduction path (reprinted (adapted) with permission from [93] ©2020 with permission from Elsevier); (c) graphite flakes (pink) dispersed in matrix (gray), 3D reconstructed image of specimen (reprinted (adapted) from [3] which is an open access article and permits unrestricted use).
Figure 9. (a) conductive concrete mechanism (reprinted (adapted) with permission from [87] ©2021 with permission from Elsevier); (b) thermal conduction path (reprinted (adapted) with permission from [93] ©2020 with permission from Elsevier); (c) graphite flakes (pink) dispersed in matrix (gray), 3D reconstructed image of specimen (reprinted (adapted) from [3] which is an open access article and permits unrestricted use).
Materials 14 04798 g009
Materials 14 04798 g010 550
Figure 10. Schematic diagram of electrode configurations: (a) two-probe method, and (b) four-probe method with the attached electrode; (c) two-probe method, and (d) four-probe method with the copper mesh embedded electrode; (e), (f) the em-bedded electrode four-probe method with enlarged copper mesh opening (reprinted with permission from [8] ©2019 with permission from Elsevier).
Figure 10. Schematic diagram of electrode configurations: (a) two-probe method, and (b) four-probe method with the attached electrode; (c) two-probe method, and (d) four-probe method with the copper mesh embedded electrode; (e), (f) the em-bedded electrode four-probe method with enlarged copper mesh opening (reprinted with permission from [8] ©2019 with permission from Elsevier).
Materials 14 04798 g010
Table
Table 1. General properties of carbon materials [8,9].
Table 1. General properties of carbon materials [8,9].
Carbon MaterialStateBulk Density (g/cm3)Specific Surface Area (m2/g)Conductivity (S/cm)DispersionCost
CNFsFiber0.06–2.113–20010–104Aggregates easilyHigh
CFsFiber1.5–2.010–5010−1–103Aggregates easilyMedium
GraphenePowder1–2.5120–575103Relatively easier dispersion High
GPPowder1.9–2.310–35104Relatively easier dispersionLow
CBPowder0.4–2.020–25010Aggregates easilyLow
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Luo, T.; Wang, Q. Effects of Graphite on Electrically Conductive Cementitious Composite Properties: A Review. Materials 2021, 14, 4798. https://doi.org/10.3390/ma14174798

AMA Style

Luo T, Wang Q. Effects of Graphite on Electrically Conductive Cementitious Composite Properties: A Review. Materials. 2021; 14(17):4798. https://doi.org/10.3390/ma14174798

Chicago/Turabian Style

Luo, Ting, and Qiang Wang. 2021. "Effects of Graphite on Electrically Conductive Cementitious Composite Properties: A Review" Materials 14, no. 17: 4798. https://doi.org/10.3390/ma14174798

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
