Article

Synthesis of FePcS–PMA–LDH Cointercalation Composite with Enhanced Visible Light Photo-Fenton Catalytic Activity for BPA Degradation at Circumneutral pH

by
Fenglian Huang
1,
Shiqiang Tian
1,
Yan Qi
1,
Erping Li
1,
Liangliang Zhou
1 and
Yaqun Qiu
1,2,*
1
Hunan Provincial Key Laboratory of Water Pollution Control Technology, Hunan Academy of Environmental Protection Sciences, Changsha 410004, Hunan, China
2
College of Environmental Science and Engineering, Central South University of Forestry and Technology, Changsha 410004, Hunan, China
*
Author to whom correspondence should be addressed.
Materials 2020, 13(8), 1951; https://doi.org/10.3390/ma13081951
Submission received: 14 February 2020 / Revised: 1 April 2020 / Accepted: 3 April 2020 / Published: 21 April 2020
Browse Figures
Review Reports Versions Notes

Abstract

(1) Background: Iron tetrasulfophthalocyanine with a large nonlinear optical coefficient, good stability, and high catalytic activity has aroused the attention of researchers in the field of photo-Fenton reaction. Further improvement of the visible light photo-Fenton catalytic activity under circumneutral pH conditions for their practical application is still of great importance. (2) Methods: In this paper, iron tetrasulfophthalocyanine (FePcS) and phosphomolybdic acid (PMA) cointercalated layered double hydroxides (LDH) were synthesized by the ion-exchange method. All samples were fully characterized by various techniques and the results showed that FePcS and PMA were successfully intercalated in layered double hydroxides and the resulted compound exhibited strong absorption in the visible light region. The cointercalation compound was tested as a heterogeneous catalyst for the visible light photo-Fenton degradation of bisphenol A (BPA) at circumneutral pH. (3) Results: The results showed that the degradation and total organic carbon removal efficiencies of bisphenol A were 100% and 69.2%, respectively. (4) Conclusions: The cyclic voltammetry and electrochemical impedance spectroscopy measurements demonstrated that the main contribution of PMA to the enhanced photo-Fenton activity of FePcS–PMA–LDH comes from the acceleration of electron transfer in the reaction system. Additionally, the possible reaction mechanism in the photo-Fenton system catalyzed by FePcS–PMA–LDH was also proposed.

1. Introduction

In recent years, great endeavors have been made to develop efficient chelating agents for stabilizing iron and enhancing the photo-Fenton degradation of refractory organic contaminants in water under neutral pH conditions [1,2,3,4]. To date, a large number of Fe complexes such as Fe–ethylenediaminetetraacetic acid, Fe–oxalate, Fe–ethylenediamine–N, N′–disuccinic acid, and iron phthalocyanine complex (FePc) have been reported as photo-Fenton catalysts [5,6,7,8], in which FePc has been found to have good response to visible light [7,9,10,11]. Under visible light irradiation, effective energy transfer can occur between the excited FePc and H2O2, resulting in the formation of the •OH radical, which can oxidize organic matter with high efficiency [12]. However, the practical application of FePc is limited because of the low quantum yield of •OH resulting from the short life of excited MPc [13].
Coupling FePc with polyoxometalates (POM) may be an effective strategy to improve the utilization of electronically excited FePc. Previous studies have shown that POM can act as an electron acceptor and lead to the formation of reduced POM [14,15,16,17,18], which can not only accelerate the transfer of Fe(III) to Fe(II) in FePc, but can also activate hydrogen peroxide or oxygen to produce various reactive oxygen species with strong oxidizing property [19]. Inspired by these studies, we expect that the introduction of phosphomolybdic acid (PMA), a Keggin polyoxometalate, can greatly enhance the photo-Fenton catalytic activity of FePc. Considering the high solubility of FePcS and PMA in aqueous media, the immobilization of FePcS–PMA is of great importance for the recovery and reuse of this catalyst. Layered double hydroxides (LDHs) have been considered as attractive materials for their high surface area, variable gallery height, and strong adsorption performance [20,21,22]. Moreover, due to the remarkable anion-exchange capacity, LDHs are very suitable supporters for the immobilization of the anionic complex [23,24].
With this understanding, we report herein the synthesis of FePcS–PMA–LDH composite catalyst using ZnAl–layered double hydroxide (ZnAl–LDH) as the host material to support FePcS and PMA. The as-prepared catalyst was used as an efficient heterogeneous catalyst for the photo-Fenton degradation of bisphenol A (BPA) under visible light irradiation and neutral pH.

2. Materials and Methods

2.1. Synthesis of FePcS–PMA–LDH

ZnAl–LDH with a Zn/Al ratio of 2 was prepared through the co-precipitation method at a constant pH of 6. FePcS was synthesized and purified according to the method of Griffin [25]. To synthesize the FePcS–PMA–LDH, a 100 mL suspension containing 2.0 g ZnAl–LDH was added dropwise to a 50 mL mixed solution of FePcS/PMA (0.02 g:0.06 g) under magnetic stirring and an inert atmosphere. In addition, 20 mL of ethylene glycol and 20 mL of ethanol were added to the reacting mixture, which was sonicated for 10 min to obtain a homogeneous dispersion and was then magnetically stirred for 24 h. The obtained precipitate was filtered and washed with deionized water under an inert atmosphere, and then dried at 60 °C under vacuum.

2.2. Characterization

The x-ray diffraction (XRD) patterns were investigated by a LabX-6000 diffractometer (Shimadzu, Hong Kong, China). The Fourier transform infrared (FTIR) spectra were recorded by a Nicolet 380 FTIR spectrometer using KBr pellets at room temperature. The zeta potential values were measured using a Zeta sizer (nano zs90, Malvern Instruments, Worcestershire, UK). The Brunauer–Emmett–Teller (BET) measurements of the materials were taken on a IGA 100B instrument (Hiden, Warrington, England). Diffuse reflectance–UV–Vis (DRS–UV–Vis) measurements were performed on a Shimadzu UV-2550 double-beam digital spectrometer (Hong Kong, China) equipped with conventional components of a reflectance spectrometer. Scanning electron microscopy (SEM) images were obtained using a scanning electron microscope (SEM, JSM-6360LV, JEOL, Peabody, MA, USA).
The electrochemical measurements were performed with a CHI660 Electrochemical Workstation (Shanghai Chenhua Instrumental Co. Ltd., Shanghai, China) and a conventional three-electrode system, in which a ZnAl–LDH/FePcS–LDH/FePcS–PMA–LDH modified glassy carbon electrode (GCE), a platinum plate, and a saturated calomel electrode were used as the working, counter, and reference electrodes, respectively. The electrolyte was 0.1 M KCl solution containing 5 mM K3[Fe(CN)6]/K4[Fe(CN)6] (1:1) mixture. Cyclic voltammetry (CV) experiments were conducted at a sweep rate of 100 mV/s and the scan range was from −0.2 to +0.8 V. The electrochemical impedance spectra (EIS) were obtained over the frequency range from 100 kHz to 0.01 Hz with an AC signal amplitude of 10 mV.

2.3. Photocatalytic Tests and Analytical Methods

The photocatalytic experiments were conducted in a photochemical reaction instrument (BL-GHX-CH500, Xi’an Depai Biotech. Co. Ltd., Xi’an, China) and a 500 W xenon lamp was applied as the visible-light source. Typically, 40 mg FePcS–PMA–LDH was added to 100 mL of BPA solution with the initial concentration of 10 mg L−1. The initial pH value of the solution was adjusted by adding NaOH or HNO3 solutions. The mixed solution was magnetically stirred for 30 min in the dark to achieve adsorption equilibrium between FePcS–PMA–LDH and BPA. Then, the xenon lamp was turned on and H2O2 was added to the BPA solution. At predetermined time intervals, the sample was taken out and centrifuged to obtain the supernatant for analysis. The concentration of the remaining BPA in the aqueous solution was determined with high efficiency liquid chromatography (HPLC, Agilent 1260). The concentration of Total Organic Carbon (TOC) during the degradation solutions was measured by a TOC analyzer (Shimadzu TOC-L CPH CN 200, Kyoto, Japan) equipped with an auto-sampler. Electron spin resonance (ESR) spectra of •OH, O2•−, and 1O2 were tested by an ESR spectrometer (JEOL JES-FA, Peabody, MA, USA).

3. Results

3.1. Characterization of Catalyst

Figure 1 shows the XRD patterns of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH. As demonstrated in the diffractograms of ZnAl–LDH, the diffraction peaks at 2θ = 9.8° (003), 19.8° (006), 34.2° (009) matched well with the characteristic peaks of the reported ZnAl–LDH [26,27,28]. The above peaks can also be found in the patterns of FePcS–LDH and FePcS–PMA–LDH, but slightly shifted to lower angles when compared with ZnAl–LDH. Additionally, the value of the basal distance increased from 0.894 nm for ZnAl–LDH to 1.037 nm and 1.046 nm for FePcS–LDH and FePcS–PMA–LDH, respectively (Table 1). These results indicate the interlayer space of ZnAl–LDH is expanded after intercalated by FePcS and FePcS–PMA.
The molecular structure and chemical nature of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH were analyzed by FTIR spectra, which are shown in Figure 2. In the spectrum of ZnAl–LDH, the characteristic absorption peaks at 3446, 1630, and 1403 cm−1 can be attributed to the O–H stretching vibration of interlayer water molecules, the bending vibration of H2O in the brucite-like layer, and the stretching vibration of nitrate, respectively [29,30,31]. Compared to the ZnAl–LDH sample, the FTIR spectra of FePcS–LDH and FePcS–PMA–LDH appeared as a new absorption band at 1120 cm−1, which was assigned to the stretching vibration absorption of the S=O bond in FePcS [32,33], whereas the infrared absorbance near 647 cm−1 was assigned to the vibration absorption of C–H out-of-plane ring bend on the aromatic ring in FePcS [34]. Furthermore, in contrast to ZnAl–LDH, the FTIR spectrum of FePcS–PMA–LDH appeared as characteristic peaks of PMA. The absorption peak at 871 cm−1 corresponded to the stretching vibrations of Mo–Oc–Mo and Mo–Ob–Mo bands, and the stretching vibrations at 966 cm−1 and 1064 cm−1 referred to Mo=Od and P–Oa bands [35,36,37].The results of the FTIR spectra further confirmed the successful modification of FePcS and FePcS–PMA in ZnAl–LDH.
Figure 3 presents the evolution of the zeta potential as a function of pH for the ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH with the particle concentration of 2 g/L. As can be seen, the zeta potential values of ZnAl–LDH were positive in a wide range of pH (pH = 4–10), which resulted from the structural charge and the hydroxyl groups located on the surface of the ZnAl–LDH particles [38]. However, the zeta potential values for FePcS–LDH and FePcS–PMA–LDH were reversed to negative because of the immobilization of FePcS and FePcS–PMA. The physical electrostatic force between the LDH’s structural positive charges and anionic charge compounds is one of the main interaction forces between LDHs and the anionic compounds [39]. Therefore, the immobilized anionic compounds can neutralize the structural charges of ZnAl–LDH. It should be noted that FePcS–PMA exhibited more negative zeta potential values than FePcS–LDH. This result also reflects that FePcS and PMA have been cointercalated into the interlayer galleries of ZnAl–LDH.
The surface morphologies of the catalysts were examined by SEM. As shown in Figure 4, the surface of ZnAl–LDH was smooth, while relatively rough surfaces of FePcS–LDH and FePcS–PMA–LDH particles can be observed, which may result from the homogeneous distributions of FePcS and FePcS–PMA on the LDHs surface. It also should be noted that FePcS–PMA–LDH exhibited a rougher surface morphology compared with FePcS–LDH, indicating that FePcS–PMA–LDH can provide more adsorption sites than FePcS–LDH.
The specific area, pore volume, and pore size of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH were measured by nitrogen adsorption–desorption isotherms. As shown in Figure 5, ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH exhibited type H3 hysteresis loops of the Brunauer–Deming–Deming–Teller (BDDT) type Ⅳ isotherm [40], illustrating the above catalysts belong to the characteristic of mesoporous materials [41,42].
The specific areas, pore volumes, and pore sizes of the three samples are listed in Table 2, where the specific area, pore volume, and pore size of ZnAl–LDH were 9 m2/g, 0.012 cm3/g, and 16.6 nm, respectively. After loaded with FePcS, the values increased to 16 m2/g, 0.031 cm3/g, and 18.0 nm, respectively. For FePcS–PMA–LDH, the corresponding values (22 m2/g, 0.041 cm3/g, and 21.7 nm) were higher than those of ZnAl–LDH and FePcS–LDH, suggesting that FePcS–PMA–LDH can provide more catalytic active sites in the process of pollutant degradation [43]. These results are in agreement with the SEM observations.
From the UV–Vis diffused reflectance spectra of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH (Figure 6), it can be seen that FePcS–PMA–LDH had two strong absorption bands at around 650 nm and 350 nm, while ZnAl–LDH exhibited an absorption only in the ultraviolet light region (250–340 nm). The additional UV–Vis absorbance for FePcS–PMA–LDH can be ascribed to the existence of FePcS with the “Q-band” and “B-band” absorption band [44]. Additionally, because of the existence of PMA, the region of absorption peak around 650 nm for FePcS–PMA–LDH was larger than that for FePcS–LDH.

3.2. Catalytic Performance of Samples

Figure 7 shows the degradation and mineralization of BPA in aqueous solution by various systems, in which the experimental conditions of the photo-Fenton reaction were decided according the influence factor experiments (Figures S1–S4). As shown in Figure 7, negligible degradation and mineralization of BPA in the system with only visible light (curve a) indicates that BPA is quite stable under visible light irradiation. Under the dark conditions (curves b–e), the degradation and mineralization rates of BPA are rarely increased, which may be caused by the fact that H2O2 cannot be converted into •OH radicals without light irradiation. Additionally, only 28.6% of BPA was removed in the “Vis/FePcS–PMA–LDH” system (curve f), demonstrating that it is inefficient to degrade BPA when FePcS–PMA–LDH is only used as a photocatalyst. While in the “Vis/H2O2” (curve g) and “Vis/H2O2/ZnAl-LDH” (curve h) systems, the degradation efficiencies of BPA were 90.8% and 91.2% after only 80 min irradiation (Figure 7a), however, both of them had limited Total Organic Carbon (TOC) removal efficiencies, which were 18.5% and 18.9%, respectively (Figure 7b). These results indicate that the hydroxyl radicals released in this system can only degrade BPA into longer-lived intermediates. As for the “Vis/H2O2/FePcS-LDH” (curve i) and the “Vis/H2O2/FePcS–PMA–LDH” (curve j) systems, the BPA degradation achieved 100% due to the photo-Fenton like reaction [45,46,47]. However, the BPA mineralization efficiency in the Vis/H2O2/FePcS–PMA–LDH system (69.2%) within 180 min was much larger than that in the Vis/H2O2/FePcS–LDH system (41.4%). Moreover, compared with the kinetic rate constants of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH (shown in Figure 8), the kinetic rate constant of FePcS–PMA–LDH (0.061 min−1) was higher than that of ZnAl–LDH (0.022 min−1) and FePcS–LDH (0.032 min−1). These results show that FePcS–PMA–LDH has better catalytic activity than ZnAl–LDH and FePcS–LDH for the degradation of BPA under circumneutral pH condition.
The stability is also an important index in the practical application of the catalyst. The stability of FePcS–PMA–LDH was evaluated by recycling tests (Figure 9), where the results show that the degradation and mineralization reached 97.6% and 65.3% after three cycles, implying that the catalyst is relatively stable in photo-Fenton catalytic applications.

3.3. Photo-Fenton Mechanism Discussion

To explore the catalytic mechanism of the photo-Fenton system with FePcS–PMA–LDH, active species capture experiments were carried out. In these experiments, isopropanol (IPA), p-benzoquinone (PBQ), ammonium oxalate (AO), and sodium azide (NaN3) were applied as the scavengers of •OH, O2•−, h+ and 1O2, respectively. The results of the experiments are shown in Figure 10, it can be clearly seen that the degradation of BPA is more or less suppressed by these four scavengers. Particularly, the suppression of BPA degradation by IPA, PBQ, and NaN3 were more prominent than that by AO, which means that •OH, O2•− and 1O2 play main roles in the system.
In order to understand the production path of hydroxyl radicals, superoxide radicals, and singlet oxygen, the corresponding ESR spin trapping experiments were carried out in the systems with ZnAl–LDH, PMA–LDH, FePcS–LDH, and FePcS–PMA–LDH, respectively. As shown in Figure 11, significant signals of •OH, O2•−, and 1O2 can be detected in the systems with FePcS–LDH and FePcS–PMA–LDH, which were much stronger than that in the PAM–LDH and ZnAl–LDH systems. These results demonstrate that the generation of these radicals is mainly due to the existence of FePcS. As a kind of Fe complexes, FePcS was extensively studied as a photo-Fenton catalyst, in which the iron center can react with H2O2 to form •OH [47,48]. In addition, FePcS proved that it could be excited to generate an excited state (FePcS*) upon irradiation, which can interact with O2 to form O2•− and 1O2 [48]. Compared with the FePcS–LDH system, the signals of •OH, O2•−, and 1O2 were all further enhanced in the FePcS–PMA–LDH system, which verified that the addition of PMA is favorable to the formation of these active species. According to the study of Chen et al. [18], polyoxometalates (POM) can easily capture electrons from electron acceptors to form reduced POM (POM−). POM− can not only promote the transition between Fe(III) to Fe(II) in FePc to accelerate the Fenton-like reaction, but can also directly reduce O2 to O2•−. Therefore, as a kind of POM, PMA has a synergistic effect with FePcS in the generation of •OH, O2•−, and 1O2.
The electrochemical measurements were carried out to investigate the process of electron transfer. The CV curves of ZnAl–LDH/GCE, FePcS–LDH/GCE, and FePcS–PMA–LDH/GCE are shown in Figure 12. The CV curves of ZnAl–LDH/GCE and FePcS–LDH/GCE show a couple of small redox peaks, whereas the FePcS–PMA–LDH modified GCE shows a pair of stable, symmetrical, and obvious redox peaks. These results imply that a faster electron transfer occurred on the surface of the FePcS–PMA–LDH/GCE electrode [49,50,51], which promotes the redox reaction between Fe(III) to Fe(II) in the iron center of FePcS.
The above results can also be confirmed by the EIS measurements. According to previous reports [52,53,54,55], the smaller radius of the Nyquist circle implies a faster electron transfer rate. As shown in Figure 13, the radius on the EIS Nyquist plot of FePcS–PMA–LDH/GCE was much smaller than that of ZnAl–LDH/GCE and FePcS–LDH/GCE, indicating a faster charge transfer occurred on the interface of the FePcS–PMA–LDH/GCE electrode. These results show that the presence of FePcS and PMA make the electron transfer easier and thus favor the photo-Fenton treatment in water.
According to the above experiments, the main contribution of PMA to the enhanced photo-Fenton activity of FePcS–PMA–LDH comes from the acceleration of electron transfer in the reaction system. The possible reaction mechanism can be proposed in Figure 14. FePcS can first be excited under the irradiation of visible light. Then, PMA can capture electrons from the excited FePcS to generate reduced PMA (PMA−). On one hand, PMA− can reduce Fe(III)–PcS to Fe(II)–PcS, which can react with H2O2 to form •OH. On the other hand, PMA− can directly act with O2, leading to the formation of O2•−. Furthermore, O2 can directly react with excited FePcS to form O2•−, and 1O2. Therefore, •OH, O2•−, and 1O2 become the main active species for BPA degradation in this system. Of course, the roles of PMA in the studied catalyst need to be further investigated.

4. Conclusions

A FePcS–PMA–LDH composite was successfully synthesized by the anion exchange method. The photo-Fenton catalytic activity of the as-prepared FePcS–PMA–LDH composite in the degradation of PBA was investigated under visible-light irradiation and circumneutral pH. The results showed that the FePcS–PMA–LDH composite exhibited superior catalytic activity and excellent stability. In addition, the possible photo-Fenton catalytic mechanism of FePcS–PMA–LDH was also proposed.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/8/1951/s1, Figure S1: Effects of initial pH value on the degradation of BPA. ([BPA] = 10 mg/L; [H2O2] = 6 mM; catalyst dosage = 0.4 g/L; Light intensity = 500 W.), Figure S2: Effects of H2O2 dosages on the degradation of BPA. ([BPA] = 10 mg/L; pH = 6.0; catalyst dosage = 0.4 g/L; Light intensity = 500 W.), Figure S3: Effects of light intensity on the degradation of BPA. ([BPA] = 10 mg/L; [H2O2] = 6 mM; pH = 6.0; catalyst dosage = 0.4 g/L.), Figure S4: Effects of catalyst loading on the degradation of BPA. ([BPA] = 10 mg/L; [H2O2] = 6 mM; pH = 6.0; Light intensity = 500 W).

Author Contributions

Conceptualization, Y.Q (Yaqun Qiu) and F.H.; Investigation, S.T. and Y.Q. (Yan Qi); Project administration, Y.Q. (Yan Qi), E.L., and L.Z.; Writing—original draft, Y.Q. (Yaqun Qiu) and F.H.; Writing—review and editing, L.Z. and E.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Huang, W.; Brigante, M.; Wu, F.; Mousty, C.; Hanna, K.; Mailhot, G. Assessment of the Fe(III)–EDDS Complex in Fenton-Like Processes: From the Radical Formation to the Degradation of Bisphenol A. Environ. Sci. Technol. 2013, 47, 1952–1959. [Google Scholar] [CrossRef]
  2. Ortega-Gómez, E.; Martín, M.; Carratalà, A.; Ibañez, P.; Pérez, J.; Pulgarín, C. Principal parameters affecting virus inactivation by the solar photo-Fenton process at neutral pH and μM concentrations of H2O2 and Fe2+/Fe3+. Appl. Catal. B Environ. 2015, 174, 395–402. [Google Scholar] [CrossRef]
  3. Chen, L.; Ma, J.; Li, X.; Zhang, J.; Fang, J.; Guan, Y. Strong enhancement on fenton oxidation by addition of hydroxylamine to accelerate the ferric and ferrous iron cycles. Environ. Sci. Technol. 2011, 45, 3925–3930. [Google Scholar] [CrossRef] [PubMed]
  4. Monteagudo, J.; Durán, A.; Aguirre, M.; San, M. Optimization of the mineralization of a mixture of phenolic pollutants under a ferrioxalate-induced solar photo-Fenton process. J. Hazard. Mater. 2011, 185, 131–139. [Google Scholar] [CrossRef] [PubMed]
  5. Huang, W.; Brigante, M.; Wu, F.; Hanna, K.; Mailhot, G. Development of a new homogenous photo-Fenton process using Fe(III)-EDDS complexes. J. Photochem. Photobiol. A Chem. 2012, 239, 17–23. [Google Scholar] [CrossRef]
  6. Huang, Z.; Wu, P.; Zhang, X.; Wang, X.; Zhu, N.; Wu, J. Intercalation of Fe(III) complexes into layered double hydroxides: Synthesis and structural preservation. Appl. Clay Sci. 2012, 65, 87–94. [Google Scholar] [CrossRef]
  7. Silva, M.; Calvete, M.; Goncalves, N.; Burrows, H.; Sarakha, M.; Fernandes, A. Zinc(II) phthalocyanines immobilized in mesoporous silica Al-MCM-41 and their applications in photocatalytic degradation of pesticides. J. Hazard. Mater. 2012, 233, 79–88. [Google Scholar] [CrossRef]
  8. Sorokin, A. Phthalocyanine metal complexes in catalysis. Chem. Rev. 2013, 113, 8152–8191. [Google Scholar] [CrossRef]
  9. Granados-Oliveros, G.; Páez-Mozo, E.; Ortega, F.; Ferronato, C.; Chovelon, J.-M. Degradation of atrazine using metalloporphyrins supported on TiO2 under visible light irradiation. Appl. Catal. B Environ. 2009, 89, 448–454. [Google Scholar] [CrossRef]
  10. Kim, W.; Park, J.; Jo, H.; Kim, H.; Choi, W. Visible Light Photocatalysts Based on Homogeneous and Heterogenized Tin Porphyrins. J. Phys. Chem. 2008, 112, 491–499. [Google Scholar] [CrossRef]
  11. Shen, C.; Song, S.; Zang, L.; Kang, X.; Wen, Y.; Liu, W. Efficient removal of dyes in water using chitosan microsphere supported cobalt (II) tetrasulfophthalocyanine with H2O2. J. Hazard. Mater. 2010, 177, 560–566. [Google Scholar] [CrossRef] [PubMed]
  12. Ozoemena, K.; Kuznetsova, N.; Nyokong, T. Comparative photosensitised transformation of polychlorophenols with different sulphonated metallophthalocyanine complexes in aqueous medium. J. Mol. Catal. A Chem. 2001, 176, 29–40. [Google Scholar] [CrossRef]
  13. Spiller, W.; Kliesch, H.; Hackbarth, S. Singlet Oxygen Quantum Yields of Different Photosensitizers in Polar Solvents and Micellar Solutions. J. Porphyr. Phthalocyanines 1998, 2, 145–158. [Google Scholar] [CrossRef]
  14. Lei, P.; Chen, C.; Yang, J.; Wan, M.; Zhao, J.; Zang, L. Degradation of dye pollutants by immobilized polyoxometalate with H2O2 under visible-light irradiation. Environ. Sci. Technol. 2005, 39, 8466–8474. [Google Scholar] [CrossRef] [PubMed]
  15. Tachikawa, T.; Fujitsuka, M.; Majima, T. Mechanistic insight into the TiO2 photocatalytic reactions: Design of new photocatalysts. J. Phys. Chem. C 2007, 111, 5259–5275. [Google Scholar] [CrossRef]
  16. Yoon, M.; Chang, J.A.; Kim, Y.; Choi, J.R. Heteropoly Acid-Incorporated TiO2 Colloids as Novel Photocatalytic Systems Resembling the Photosynthetic Reaction Center. J. Phys. Chem. B 2001, 105, 2539–2545. [Google Scholar] [CrossRef]
  17. Ozer, R.; Ferry, J. Investigation of the Photocatalytic Activity of TiO2-Polyoxometalate Systems. Environ. Sci. Technol. 2001, 35, 3242–3246. [Google Scholar] [CrossRef]
  18. Chen, C.C.; Lei, P.X.; Ji, H.W.; Ma, W.H.; Zhao, J.C. Photocatalysis by Titanium Dioxide and Polyoxometalate/TiO2 Cocatalysts. Intermediates and Mechanistic Study. Environ. Sci. Technol. 2004, 38, 329–337. [Google Scholar] [CrossRef]
  19. Kholdeevaa, O.A.; Zalomaeva, O.V. Recent advances in transition-metal-catalyzed selective oxidation of substituted phenols and methoxyarenes with environmentally benign oxidants. Coord. Chem. Rev. 2016, 306, 302–330. [Google Scholar] [CrossRef]
  20. Demel, J.; Lang, K. Layered Hydroxide-Porphyrin Hybrid Materials: Synthesis, Structure, and Properties. Eur. J. Inorg. Chem. 2012, 2012, 5154–5164. [Google Scholar] [CrossRef]
  21. Valente, J.; Tzompantzi, F.; Prince, J. Highly efficient photocatalytic elimination of phenol and chlorinated phenols by CeO2/MgAl layered double hydroxides. Appl. Catal. B Environ. 2011, 102, 276–285. [Google Scholar] [CrossRef]
  22. Ahmed, S.; Rasul, M.; Martens, W.; Brown, R.; Hashib, M. Advances in heterogeneous photocatalytic degradation of phenols and dyes in wastewater: A review. Water Air Soil Pollut. 2011, 215, 3–29. [Google Scholar] [CrossRef]
  23. Abellán, G.; Busolo, F.; Coronado, E.; Martígastaldo, C.; Ribera, A. Hybrid Magnetic Multilayers by Intercalation of Cu(II) Phthalocyanine in LDH Hosts. J. Phys. Chem. C 2012, 116, 15756–15764. [Google Scholar] [CrossRef]
  24. Bourzami, R.; Eyele-Mezui, S.; Delahaye, E.; Drillon, M.; Rabu, P.; Parizel, N. New metal phthalocyanines/metal simple hydroxide multilayers: Experimental evidence of dipolar field-driven magnetic behavior. Inorg. Chem. 2014, 53, 1184–1194. [Google Scholar] [CrossRef] [PubMed]
  25. Griffin, J.; Bedell, S.; Worley, C. Tetra-Sulfo Iron-Phthalocyanine and Related Methods. U.S. Patent Application No. 8,318,005, 27 November 2012. [Google Scholar]
  26. Bderrazek, A.; Najoua, F.S.; Srasra, E. Synthesis and characterization of [Zn-Al] LDH:Study of the effect of calcination on the photocatalytic activity. Appl. Clay Sci. 2016, 119, 229–235. [Google Scholar] [CrossRef]
  27. Hadnadjev-Kostic, M.; Vulic, T.; Marinkovic-Neducin, R. Photo-induced properties of photocatalysts: A study on the modified structural, optical and textural properties of TiO2-ZnAl layered double hydroxide based materials. J. Clean. Prod. 2017, 164, 1–18. [Google Scholar] [CrossRef]
  28. Li, X.H.; Yu, Z.X.; Shao, L.Y.; Zeng, H.J.; Liu, Y.C.; Feng, X.F. A novel strategy to construct a visible-light-driven Z-scheme (ZnAl-LDH with active phase/g-C3N4) heterojunction catalyst via polydopamine bridge (a similar “bridge” structure). J. Hazard. Mater. 2020, 386, 121650. [Google Scholar] [CrossRef]
  29. Isupov, V.P.; Chupakhina, L.E.; Mitrofanova, R.P. Synthesis and thermolysis of lithium aluminum double hydroxide containing [Fe(OH)EDTA2−]. Russ. J. Inorg. Chem. 2009, 54, 204–210. [Google Scholar] [CrossRef]
  30. Suárez-Quezada, M.; Mantilla, A. H2 production by the water splitting reaction using photocatalysts derived from calcined ZnAl-LDH. Fuel 2019, 240, 262–269. [Google Scholar] [CrossRef]
  31. Liu, L.L.; Cheng, M.; Yang, Z.H. Improved performance of flower-like ZnAl-LDH growing on carbon nanotubes used in zincenickel secondary battery. Electrochim. Acta 2018, 227, 67–76. [Google Scholar]
  32. Xing, R.; Liu, N.; Liu, Y.; Wu, H.; Jiang, Y.; Chen, L. Novel Solid Acid Catalysts: Sulfonic Acid Group-Functionalized Mesostructured Polymers. Adv. Funct. Mater. 2007, 17, 2455–2461. [Google Scholar] [CrossRef]
  33. Liu, X.B.; Chang, F.X.; Xu, L.; Yang, Y.Z.; Liu, M. Preparation of ordered carbon/silica hybrid mesoporous materials with specific pore size expansion. Microporous Mesoporous Mater. 2005, 79, 269–273. [Google Scholar] [CrossRef]
  34. González, L.; Villa de, P.A.; Montes, D.; Sorokin, A. Allylic oxidation of cyclohexene over silica immobilized iron tetrasulfophthalocyanine. Tetrahedron Lett. 2006, 47, 6465–6468. [Google Scholar] [CrossRef]
  35. Li, T.T.; Liu, C.; Zhang, Z.; Li, B.A.; Yang, C. Preparation and Performance of POMs/PS/PVA Electrospinning Fiber Membranes. Chem. J. Chin. Univ. 2014, 35, 389–395. [Google Scholar]
  36. Sampurnam, S.; Dhanasekaran, T.; Narayanan, V. Synthesis, Characterization, and Photocatalytic activity of Silver nanoparticledoped Phosphomolybdic acid supportedZirconia. Mater. Today Proc. 2019, 14, 558–562. [Google Scholar] [CrossRef]
  37. Armatas, G.S.; Bilis, G.; Louloudi, M. Highly ordered mesoporous zirconia-polyoxometalate nanocomposite materials for catalytic oxidation of alkenes. J. Mater. Chem. 2011, 21, 2997–3005. [Google Scholar] [CrossRef]
  38. Xu, Z.P.; Jin, Y.; Liu, S.; Hao, Z.P.; Lu, G.Q. Surface charging of layered double hydroxides during dynamic interactions of anions at the interfaces. J. Colloid Interface Sci. 2008, 326, 522–529. [Google Scholar] [CrossRef] [PubMed]
  39. Li, D.; Xu, X.; Xu, J.; Hou, W. Poly(ethylene glycol) haired layered double hydroxides as biocompatible nanovehicles: Morphology and dispersity study. Colloids Surf. A Physicochem. Eng. Asp. 2011, 384, 585–591. [Google Scholar] [CrossRef]
  40. Sangwichien, C.; Aranovich, G.L.; Donohue, M.D. Density functional theory predictions of adsorption isotherms with hysteresis loops. Colloids Surf. A Physicochem. Eng. Asp. 2002, 206, 313–320. [Google Scholar] [CrossRef]
  41. Gong, Q.J.; Liu, Y.; Dang, Z. Core-shell structured Fe3O4@GO@MIL-100(Fe) magnetic nanoparticles as heterogeneous photo-Fenton catalyst for 2,4-dichlorophenol degradation under visible light. J. Hazard. Mater. 2019, 371, 677–686. [Google Scholar] [CrossRef]
  42. Xu, T.; Liu, Y.; Ge, F.; Ouyang, Y. Simulated solar light photooxidation of azocarmine B over hydroxyl iron–aluminum pillared bentonite using hydrogen peroxide. Appl. Clay Sci. 2014, 100, 35–42. [Google Scholar] [CrossRef]
  43. Jiang, L.B.; Yuan, X.Z.; Zeng, G.M.; Liang, J. In-situ synthesis of direct solid-state dual Z-scheme WO3/g-C3N4/Bi2O3 photocatalyst for the degradation of refractory pollutant. Appl. Catal. B Environ. 2018, 227, 376–385. [Google Scholar] [CrossRef]
  44. Leznoff, C.; Lever, A. Phthalocyanines. Properties and applications; Weinheim/VCH Publishers: New York, NY, USA, 1989; pp. 99–117. [Google Scholar]
  45. Stepanow, S.; Rizzini, A.L.; Krull, C.; Kavich, J.; Cezar, J.C.; Harris, F.Y.; Sheverdyaeva, P.M.; Moras, P.; Carbone, C.; Ceballos, G.; et al. Spin tuning of electron-doped metal-phthalocyanine Layers. J. Am. Chem. Soc. 2014, 136, 5451–5459. [Google Scholar] [CrossRef] [PubMed]
  46. Ponce, I.; Silva, J.F.; Onate, R.; Rezende, M.C.; Paez, M.A.; Zagal, J.H.; Pavez, J. Enhancement of the catalytic activity of Fe phthalocyanine for the reduction of O2 anchored to Au(111) via conjugated self-assembled monolayers of aromatic thiols as compared to Cu phthalocyanine. J. Phys. Chem. C 2012, 116, 15329–15341. [Google Scholar] [CrossRef]
  47. Zhu, Z.X.; Chen, Y.; Gu, Y.; Wu, F.; Lu, W.Y.; Xu, T.F.; Chen, W.X. Catalytic degradation of recalcitrant pollutants by Fenton-like process using polyacrylonitrile-supported iron(II) phthalocyanine nanofibers: Intermediates and pathway. Water Res. 2016, 93, 296–305. [Google Scholar] [CrossRef] [PubMed]
  48. Tang, X.X.; Liu, Y. Heterogeneous photo-Fenton degradation of methylene blue under visible irradiation by iron tetrasulphophthalocyanine immobilized layered double hydroxide at circumneutral pH. Dye Pigment 2016, 134, 397–408. [Google Scholar] [CrossRef]
  49. Zhu, W.; Zhang, W.; Li, S.; Ma, H.; Chen, W.; Pang, H. Fabrication and electrochemical sensing performance of a composite film containing a phosphovanadomolybdate and cobalt(II) tetrasulfonate phthalocyanine. Sens. Actuators B Chem. 2013, 181, 773–781. [Google Scholar] [CrossRef]
  50. Agboola, B.; Pillay, J.; Makgopa, K.; Ozoemena, K. Electrochemical Characterization of Mixed Self-Assembled Films of Water-Soluble Single-Walled Carbon Nanotube-Poly (m-aminobenzene sulfonic acid) and Iron (II). J. Electrochem. Soc. 2010, 157, F159–F166. [Google Scholar] [CrossRef]
  51. Li, N.; Zhu, M.; Qu, M.; Gao, X.; Li, X.; Zhang, W. Iron-tetrasulfophthalocyanine functionalized graphene nanosheets: Attractive hybrid nanomaterials for electrocatalysis and electroanalysis. J. Electroanal. Chem. 2011, 651, 12–18. [Google Scholar] [CrossRef]
  52. Xia, J.; Ge, Y.; Di, J.; Xu, L.; Yin, S.; Chen, Z.; Liu, P.; Li, H. Ionic liquid-assisted strategy for bismuth-rich bismuth oxybromides nanosheets with superior visible light-driven photocatalytic removal of bisphenol-A. J. Colloid Interface Sci. 2016, 473, 112–119. [Google Scholar] [CrossRef]
  53. Xu, Y.; Huang, S.; Xie, M.; Li, Y.; Jing, L.; Xu, H. Core–shell magnetic Ag/AgCl@Fe2O3 photocatalysts with enhanced photoactivity for eliminating bisphenol A and microbial contamination. New J. Chem. 2016, 40, 3413–3422. [Google Scholar] [CrossRef]
  54. Di, J.; Xia, J.; Yin, S.; Xu, H.; Xu, L.; Xu, Y. Preparation of sphere-like g-C3N4/BiOI photocatalysts via a reactable ionic liquid for visible-light-driven photocatalytic degradation of pollutants. J. Mater. Chem. A 2014, 2, 5340–5351. [Google Scholar] [CrossRef]
  55. Zhou, M.; Wu, H.B.; Bao, J.; Xie, Y. Ordered macroporous BiVO4 architectures with controllable dual porosity for efficient solar water splitting. Angew. Chem. 2013, 52, 8741–8745. [Google Scholar] [CrossRef]
Materials 13 01951 g001

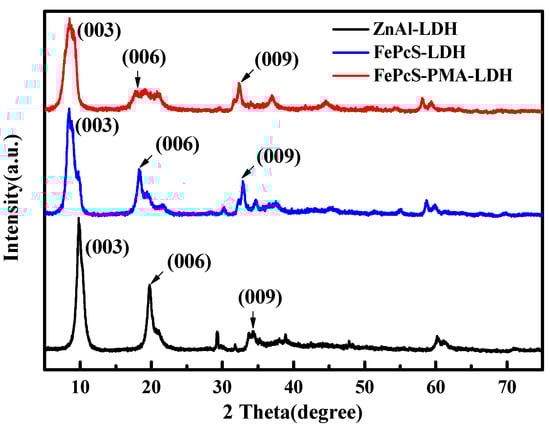

Figure 1. X-ray diffraction (XRD) patterns of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Figure 1. X-ray diffraction (XRD) patterns of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Materials 13 01951 g001
Materials 13 01951 g002

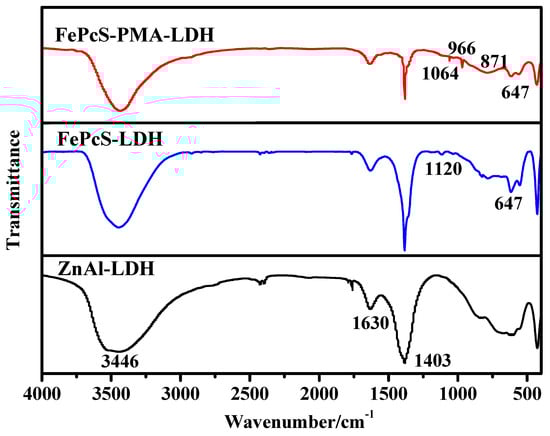

Figure 2. Fourier transform infrared (FTIR) spectra of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Figure 2. Fourier transform infrared (FTIR) spectra of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Materials 13 01951 g002
Materials 13 01951 g003

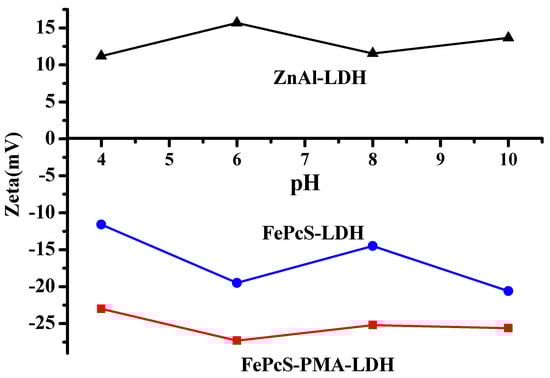

Figure 3. Variation of zeta potential with pH of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Figure 3. Variation of zeta potential with pH of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Materials 13 01951 g003
Materials 13 01951 g004
Figure 4. Scanning electron microscopy (SEM) images of ZnAl–LDH (a), FePcS–LDH (b), and FePcS–PMA–LDH (c).
Figure 4. Scanning electron microscopy (SEM) images of ZnAl–LDH (a), FePcS–LDH (b), and FePcS–PMA–LDH (c).
Materials 13 01951 g004
Materials 13 01951 g005

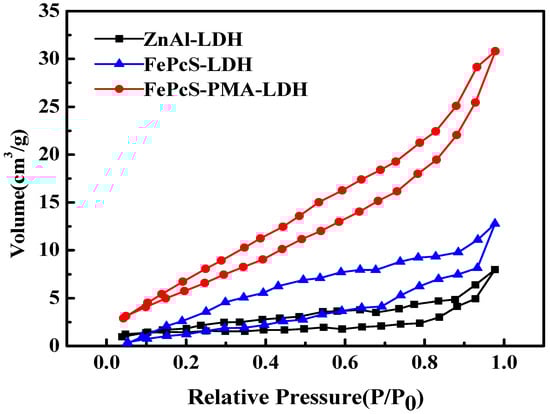

Figure 5. Nitrogen adsorption–desorption isotherms of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Figure 5. Nitrogen adsorption–desorption isotherms of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Materials 13 01951 g005
Materials 13 01951 g006

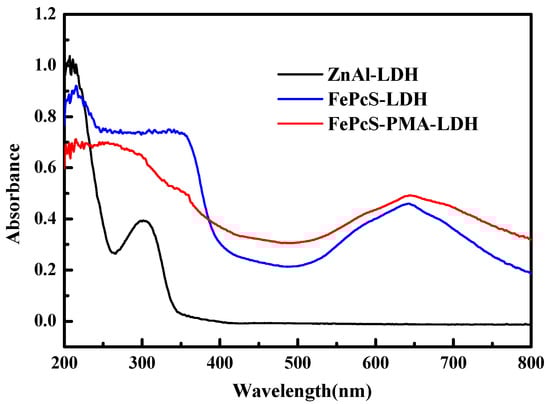

Figure 6. Diffuse reflectance spectra of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Figure 6. Diffuse reflectance spectra of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Materials 13 01951 g006
Materials 13 01951 g007

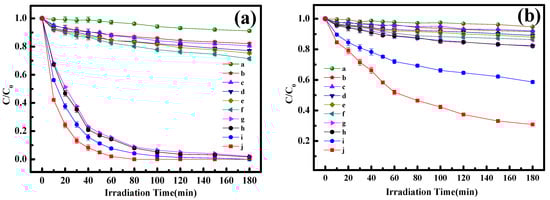

Figure 7. (a) Degradation of bisphenol A (BPA) under different conditions. (b) Mineralization of BPA under different conditions. (a) Vis; (b) H2O2; (c) H2O2/ZnAl–LDH; (d) H2O2/FePcS–LDH; (e) H2O2/FePcS–PMA–LDH; (f) Vis/FePcS–PMA–LDH; (g) Vis/H2O2; (h) Vis/H2O2/ZnAl–LDH; (i) Vis/H2O2/FePcS–LDH; (j) Vis/H2O2/FePcS–PMA–LDH. [BPA] = 10 mg/L; [H2O2] = 6 mM; pH = 6.0; catalyst dosage = 0.4 g/L; Light intensity = 500 W.
Figure 7. (a) Degradation of bisphenol A (BPA) under different conditions. (b) Mineralization of BPA under different conditions. (a) Vis; (b) H2O2; (c) H2O2/ZnAl–LDH; (d) H2O2/FePcS–LDH; (e) H2O2/FePcS–PMA–LDH; (f) Vis/FePcS–PMA–LDH; (g) Vis/H2O2; (h) Vis/H2O2/ZnAl–LDH; (i) Vis/H2O2/FePcS–LDH; (j) Vis/H2O2/FePcS–PMA–LDH. [BPA] = 10 mg/L; [H2O2] = 6 mM; pH = 6.0; catalyst dosage = 0.4 g/L; Light intensity = 500 W.
Materials 13 01951 g007
Materials 13 01951 g008

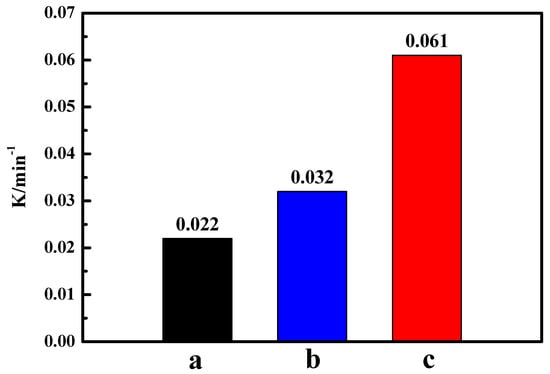

Figure 8. The kinetic rate constant of BPA degradation in the photo-Fenton system with different catalysts. (a–c) represent ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH, respectively.
Figure 8. The kinetic rate constant of BPA degradation in the photo-Fenton system with different catalysts. (a–c) represent ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH, respectively.
Materials 13 01951 g008
Materials 13 01951 g009

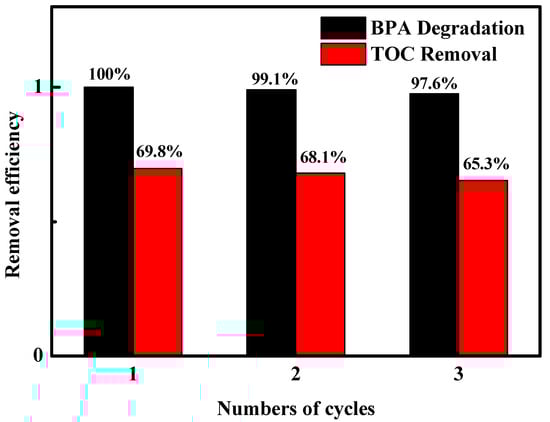

Figure 9. Cycling runs in the heterogeneous photo-Fenton system with FePcS–PMA–LDH.
Figure 9. Cycling runs in the heterogeneous photo-Fenton system with FePcS–PMA–LDH.
Materials 13 01951 g009
Materials 13 01951 g010

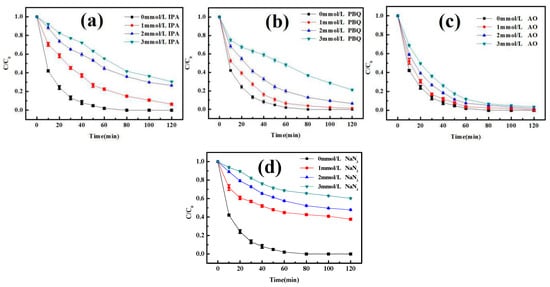

Figure 10. Effects of (a) isopropanol, (b) p-benzoquinone, (c) ammonium oxalate (AO), and (d) sodium azide (NaN3) on the degradation of BPA in the heterogeneous photo-Fenton system with FePcS–PMA–LDH.
Figure 10. Effects of (a) isopropanol, (b) p-benzoquinone, (c) ammonium oxalate (AO), and (d) sodium azide (NaN3) on the degradation of BPA in the heterogeneous photo-Fenton system with FePcS–PMA–LDH.
Materials 13 01951 g010
Materials 13 01951 g011

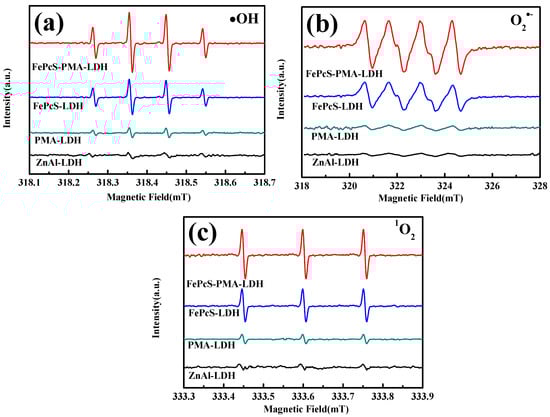

Figure 11. Electron spin resonance (ESR) spectra of (a) DMPO–HO· adducts, (b) DMPO–O2•− adducts and (c) TEMP–1O2 adducts in the photo-Fenton system with ZnAl–LDH, PMA–LDH, FePcS–LDH, and FePcS–PMA–LDH under visible light irradiation.
Figure 11. Electron spin resonance (ESR) spectra of (a) DMPO–HO· adducts, (b) DMPO–O2•− adducts and (c) TEMP–1O2 adducts in the photo-Fenton system with ZnAl–LDH, PMA–LDH, FePcS–LDH, and FePcS–PMA–LDH under visible light irradiation.
Materials 13 01951 g011
Materials 13 01951 g012

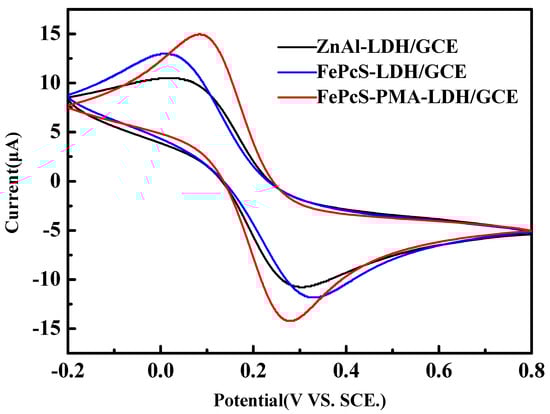

Figure 12. Cyclic voltammetry of ZnAl-LDH/GCE, FePcS-LDH/GCE, and FePcS–PMA–LDH/GCE in 0.1 M KCl solution containing K3[Fe(CN)6]/K4[Fe(CN)6] (both 5 mM) with a scan rate of l0 mV/s.
Figure 12. Cyclic voltammetry of ZnAl-LDH/GCE, FePcS-LDH/GCE, and FePcS–PMA–LDH/GCE in 0.1 M KCl solution containing K3[Fe(CN)6]/K4[Fe(CN)6] (both 5 mM) with a scan rate of l0 mV/s.
Materials 13 01951 g012
Materials 13 01951 g013

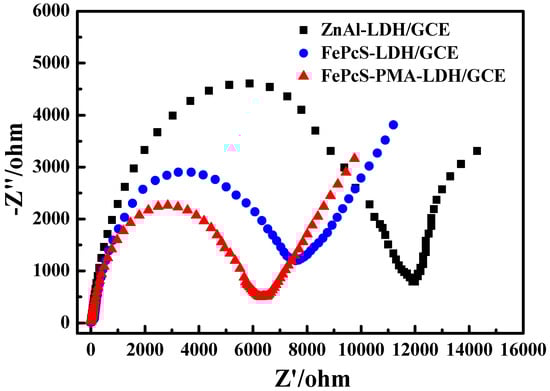

Figure 13. Nyquist diagrams obtained at ZnAl–LDH/GCE, FePcS–LDH/GCE, and FePcS–PMA–LDH/GCE in 0.1 M KCl solution containing K3[Fe(CN)6]/K4[Fe(CN)6] (both 5 mM).
Figure 13. Nyquist diagrams obtained at ZnAl–LDH/GCE, FePcS–LDH/GCE, and FePcS–PMA–LDH/GCE in 0.1 M KCl solution containing K3[Fe(CN)6]/K4[Fe(CN)6] (both 5 mM).
Materials 13 01951 g013
Materials 13 01951 g014

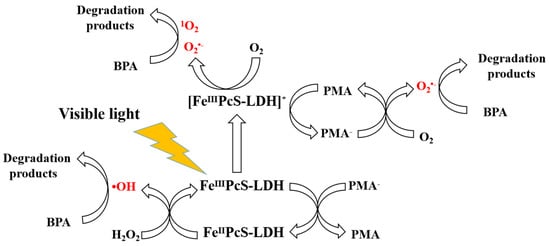

Figure 14. The possible photo-Fenton catalytic mechanism of FePcS–PMA–LDH to degrade BPA.
Figure 14. The possible photo-Fenton catalytic mechanism of FePcS–PMA–LDH to degrade BPA.
Materials 13 01951 g014
Table 1. Basal spacing of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH, determined by the Bragg’s Law.
Table 1. Basal spacing of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH, determined by the Bragg’s Law.
Samples2θ (°)Basal Spacing (nm)
(003)
(003)(006)(009)
ZnAl–LDH9.8819.6833.780.894
FePcS–LDH8.5218.2632.221.037
FePcS–PMA–LDH8.4418.0832.361.046
Table 2. Brunauer–Emmett–Teller (BET) surface areas, pore volumes, and pore sizes of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
Table 2. Brunauer–Emmett–Teller (BET) surface areas, pore volumes, and pore sizes of ZnAl–LDH, FePcS–LDH, and FePcS–PMA–LDH.
SamplesBET Surface Area (m2/g)Pore Volume (cm3/g)Pore Size (nm)
ZnAl–LDH90.01216.6
FePcS–LDH160.03118.0
FePcS–PMA–LDH220.04121.7
