Effect of Ga on the Oxide Film Structure and Oxidation Resistance of Sn–Bi–Zn Alloys as Heat Transfer Fluids
Abstract
:1. Introduction
2. Materials and Methods
3. Results and Discussion
3.1. Oxidation Kinetics

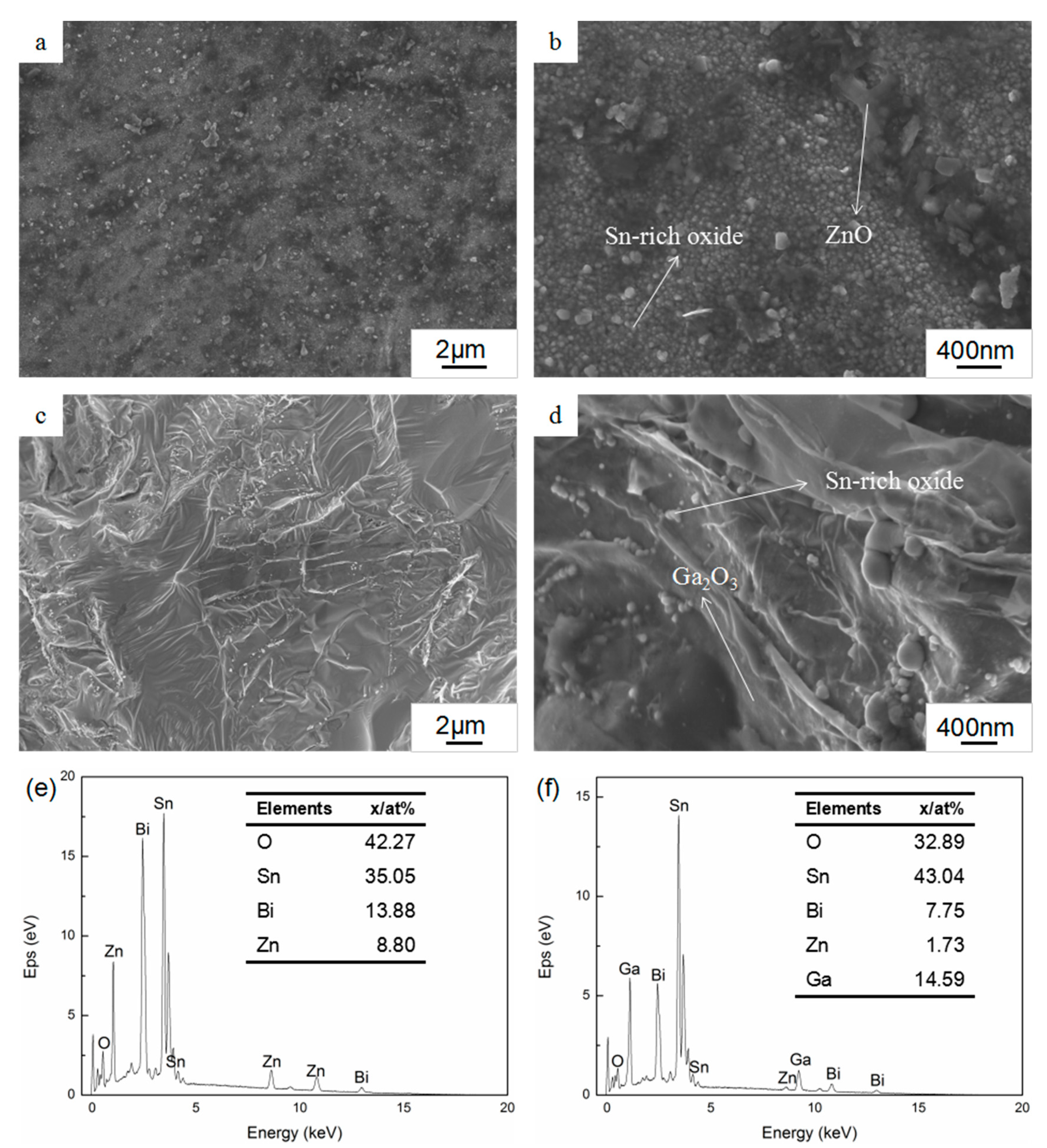

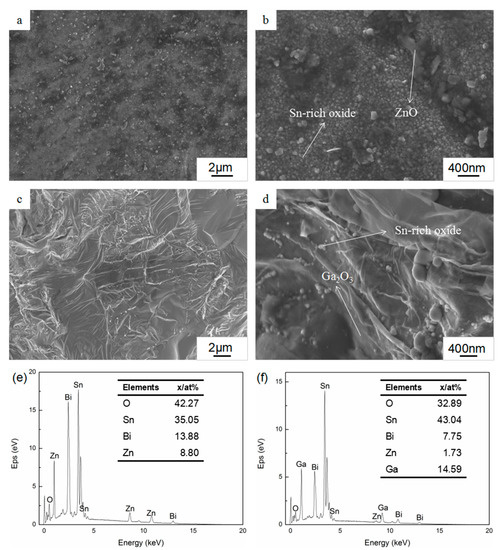

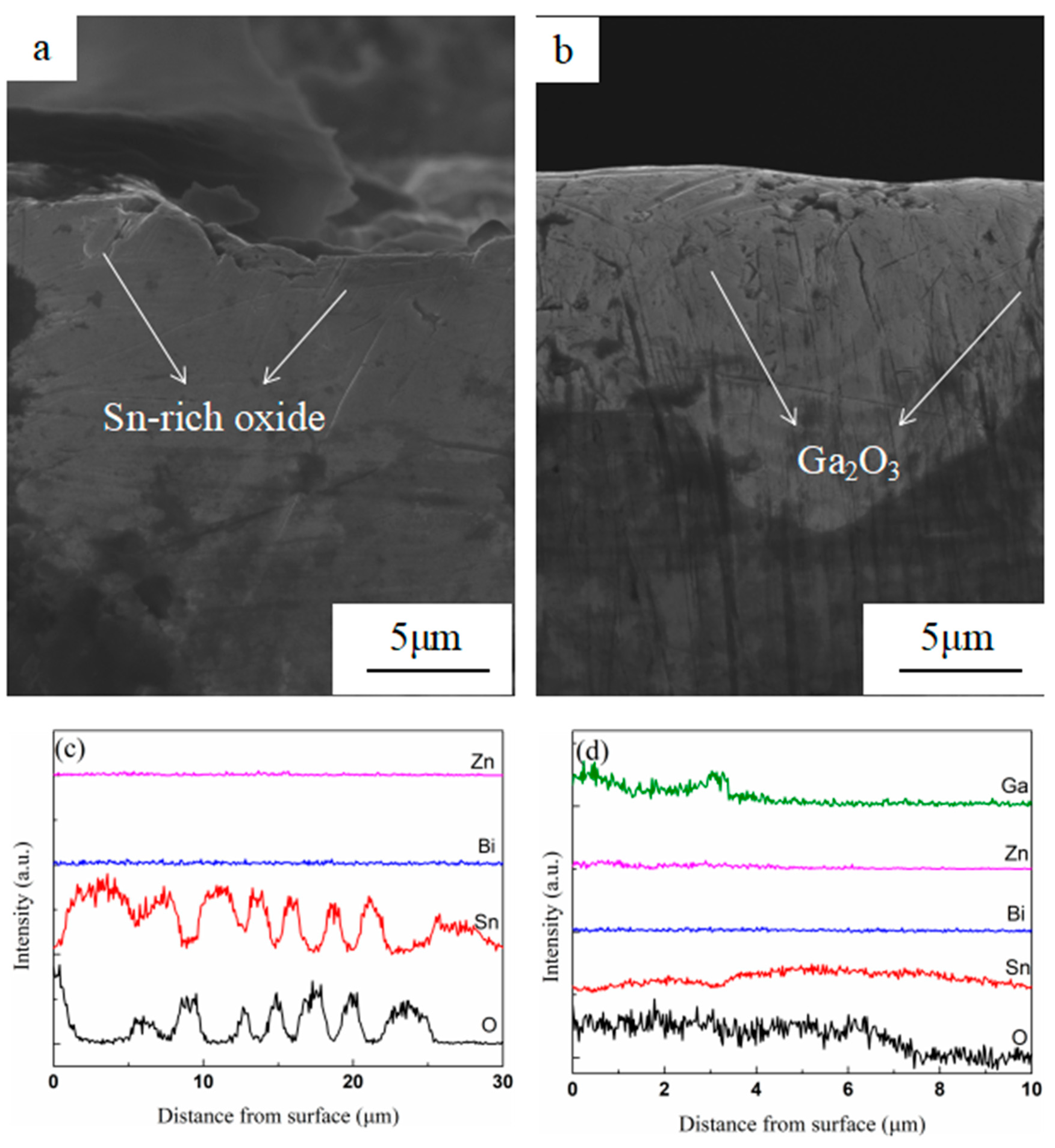

3.2. Surface and Cross-Sectional Morphology of Oxide Scale

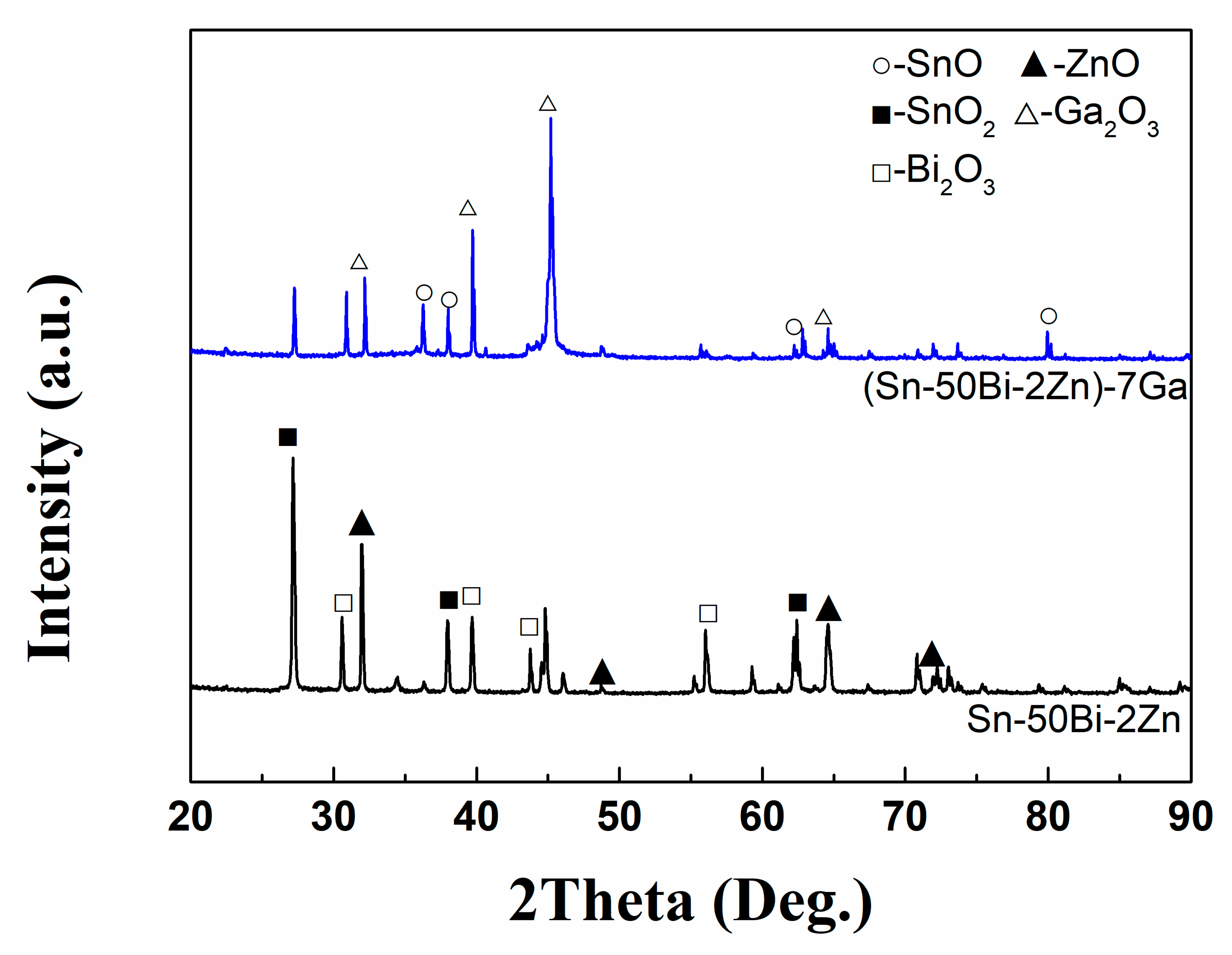

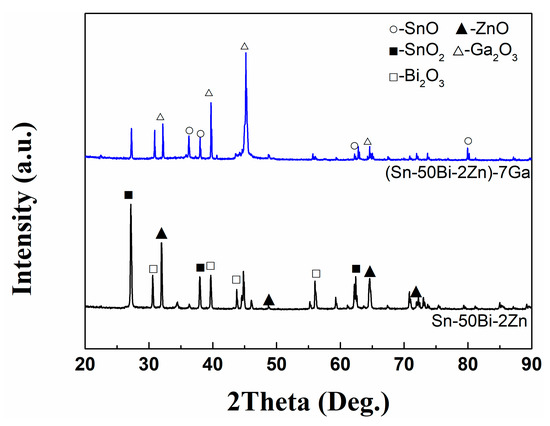

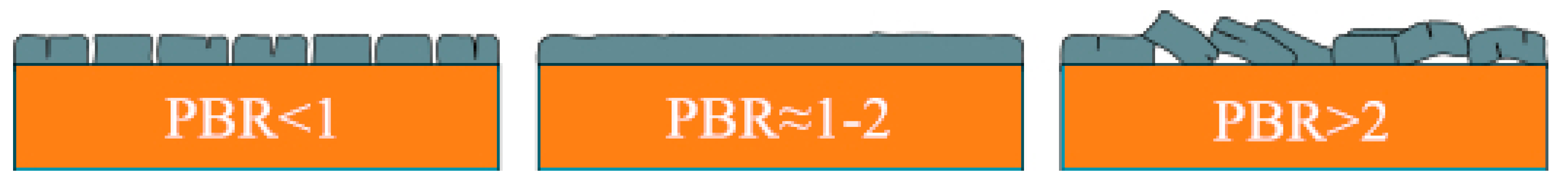

3.3. Composition of Oxide Scale
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Takada, O.; Kamiyama, T.; Kiyanagi, Y. Study on phase transition of Pb–Bi eutectic alloy by neutron transmission spectroscopy. J. Nucl. Mater. 2010, 398, 129–131. [Google Scholar] [CrossRef] [Green Version]
- Prabu, T.; Sekar, C.A. Improving Heat Transfer in Hybrid Solar Systems Using Liquid Metal Alloys as a Coolant. J. Sol. Energy Eng. 2017, 139, 064501. [Google Scholar] [CrossRef]
- Popović, M.; Olmsted, D.; Bolind, A.; Asta, M.; Sohn, S.; Schroers, J.; Shao, R.; Hosemann, P. A study of the effects of minor additives to Pb–Bi eutectic: Designing novel Pb–Bi–X liquid alloys for heat transfer applications. Mater. Des. 2018, 159, 240–251. [Google Scholar] [CrossRef]
- Wang, Q.M.; Cheng, X.M.; Li, Y.Y.; Yu, G.M.; Liu, Z. Microstructures and thermal properties of Sn–Bi–Pb–Zn alloys as heat storage and transfer materials. Rare Met. 2019, 38, 350–358. [Google Scholar] [CrossRef]
- Xu, Z.; Utton, C.; Tsakiropoulos, P. A Study of the Effect of 2 at.% Sn on the Microstructure and Isothermal Oxidation at 800 and 1200 °C of Nb–24Ti–18Si-Based Alloys with Al and/or Cr Additions. Materials 2018, 11, 1826. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Pacio, J.; Wetzel, T. Corrigendum to “Assessment of liquid metal technology status and research paths for their use as efficient heat transfer fluids in solar central receiver systems”. Sol. Energy 2017, 93, 11–22. [Google Scholar] [CrossRef]
- Lorenzin, N.; Abánades, A. A review on the application of liquid metals as heat transfer fluid in Concentrated Solar Power technologies. Int. J. Hydrogen Energy 2016, 41, 6990–6995. [Google Scholar] [CrossRef]
- Song, J.-M.; Cheng, Y.-M.; Tsai, C.-H. Oxidation of liquid solders for die attachment. Corros. Sci. 2010, 52, 4011–4016. [Google Scholar] [CrossRef]
- Wu, X.D.; Liu, S.; Lin, F.; Weng, D. Nitrate storage behavior of Ba/MnOx–CeO2 catalyst and its activity for soot oxidation with heat transfer limitations. J. Hazard. Mater. 2010, 181, 722–728. [Google Scholar] [CrossRef]
- Han, J.; Su, B.; Meng, J.; Zhang, A.; Wu, Y. Microstructure and Composition Evolution of a Fused Slurry Silicide Coating on MoNbTaTiW Refractory High-Entropy Alloy in High-Temperature Oxidation Environment. Materials 2020, 13, 3592. [Google Scholar] [CrossRef]
- Yang, Y.; Kitashima, T.; Hara, T.; Hara, Y.; Yamabe-Mitarai, Y.; Hagiwara, M.; Iwasaki, S. Effects of Ga, Sn Addition and Microstructure on Oxidation Behavior of Near-α Ti Alloy. Oxid. Met. 2017, 88, 583–598. [Google Scholar] [CrossRef]
- Zhang, X.; Li, C.; Gao, Z.; Liu, Y.; Ma, Z.; Yu, L.; Li, H. Correlation between Zn-Rich Phase and Corrosion/Oxidation Behavior of Sn–8Zn–3Bi Alloy. Metals 2016, 6, 175. [Google Scholar] [CrossRef] [Green Version]
- Zhao, Z.Q.; Yu, L.; Shen, Y.; Jia, Z.Q. Influence of Al Addition on Oxidation Behavior of Cu–Ni–Cr Alloys at 973–1073 K in 1.01 × 102 kPa Pure Oxygen. Oxid. Met. 2017, 88, 397–407. [Google Scholar]
- Wang, X.J.; Zhu, Q.S.; Liu, B.; Liu, N.; Wang, F.J. Effect of doping Al on the liquid oxidation of Sn–Bi–Zn solder. J. Mater. Sci. Mater. Electron. 2014, 25, 2297–2304. [Google Scholar] [CrossRef]
- Xu, Y.X.; Lu, J.T.; Yang, X.W.; Yan, J.B.; Li, W.Y. Effect and role of alloyed Nb on the air oxidation behaviour of Ni–Cr–Fe alloys at 1000 degrees C. Corros. Sci. 2017, 127, 10–20. [Google Scholar] [CrossRef]
- Al Zoubi, W.; Ko, Y.G. Self-assembly of hierarchical N-heterocycles-inorganic materials into three-dimensional structure for superior corrosion protection. Chem. Eng. J. 2019, 356, 850–856. [Google Scholar] [CrossRef]
- Al Zoubi, W.; Kim, M.J.; Kim, Y.G.; Ko, Y.G. Dual-functional crosslinked polymer-inorganic materials for robust electrochemical performance and antibacterial activity. Chem. Eng. J. 2020, 392, 123654. [Google Scholar] [CrossRef]
- Al Zoubi, W.; Kamil, M.P.; Fatimah, S.; Nashrah, N.; Ko, Y.G. Recent advances in hybrid organic-inorganic materials with spatial architecture for state-of-the-art applications. Prog. Mater. Sci. 2020, 112, 100663. [Google Scholar] [CrossRef]
- Wang, Q.M.; Cheng, X.M.; Li, Y.Y.; Yu, G.M.; Liu, Z. Microstructures and Thermal Properties of Sn–Bi–Zn–Ga Alloys as Heat Transfer and Heat Storage Materials. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2019, 34, 676–683. [Google Scholar] [CrossRef]
- Cruchley, S.; Taylor, M.P.; Evans, H.E.; Hardy, M.C.; Child, D.J. Characterisation of subsurface oxidation damage in Ni based superalloy, RR1000. Mater. Sci. Technol. 2014, 30, 1884–1889. [Google Scholar] [CrossRef]
- Zhu, L.J.; Zhu, S.L.; Wang, F.H.; Zhang, J.Q. Comparison of the cyclic oxidation behavior of low expansion Ni + Cr AlYSiN nanocomposite and a NiCrAlYSi coating. Corros. Sci 2014, 80, 393. [Google Scholar] [CrossRef]
- Perdew, J.P.; Wang, Y. Accurate and simple analytic representation of the electron-gas correlation energy. Phys. Rev. B 1992, 45, 13244–13249. [Google Scholar] [CrossRef] [PubMed]
- Moulder, J.F.; Stickle, W.F.; Sobol, P.E.; Bomben, K.D. Handbook of Photoelectron Spectroscopy; Perkin-Elmer Corporation: Waltham, MA, USA, 1992. [Google Scholar]
- Cho, S.; Yu, J.; Kang, S.K.; Shih, D.-Y. Oxidation study of pure tin and its alloys via electrochemical reduction analysis. J. Electron. Mater. 2005, 34, 635–642. [Google Scholar] [CrossRef]
- Cheng, W.; Liu, M.; Wu, Z.; Xing, X.; Mo, G.; Wu, Z.; Liu, H. In-situ GISAXS study on the oxidation behavior of liquid Ga on Ni(Cu)/Si substrates. Nucl. Instrum. Methods Phys. Res. Sect. B 2015, 362, 133–137. [Google Scholar] [CrossRef]
- Denisov, V.M.; Denisova, L.T.; Osipovich, T.V.; Kirik, S.D. Influence of silver on oxidation of Ge–Bi melts. Russ. J. Non-Ferrous Met. 2010, 51, 49–51. [Google Scholar] [CrossRef]
- Landolt, B.; Börnstein, R. Thermodynamic Properties of Inorganic Material; Springer: Berlin, Germany, 1999; Volume 19A1. [Google Scholar]
- Zhang, S.; Zhang, Y.; Wang, H. Effect of oxide thickness of solder powders on the coalescence of SnAgCu lead-free solder pastes. J. Alloys Compd. 2009, 487, 682–686. [Google Scholar] [CrossRef]
- Meier, H. Introduction to High Temperature Oxidation of Metals; Edward Arnold: London, UK, 1983; p. 88. [Google Scholar]
- Fontana, M.G.; Stactile, W. Corrosion Science and Technology; Plenum Press: London, UK, 1970; p. 149. [Google Scholar]
Designed Compounds | XRF Results (wt.%) | |||
---|---|---|---|---|
Sn | Bi | Zn | Ga | |
Sn–50Bi–2Zn | 48.29 | 49.57 | 2.14 | 0 |
(Sn–50Bi–2Zn)–1Ga | 47.61 | 49.51 | 1.91 | 0.97 |
(Sn–50Bi–2Zn)–3Ga | 46.65 | 48.57 | 1.87 | 2.91 |
(Sn–50Bi–2Zn)–5Ga | 45.62 | 47.58 | 1.86 | 4.94 |
(Sn–50Bi–2Zn)–7Ga | 44.73 | 46.54 | 1.81 | 6.92 |

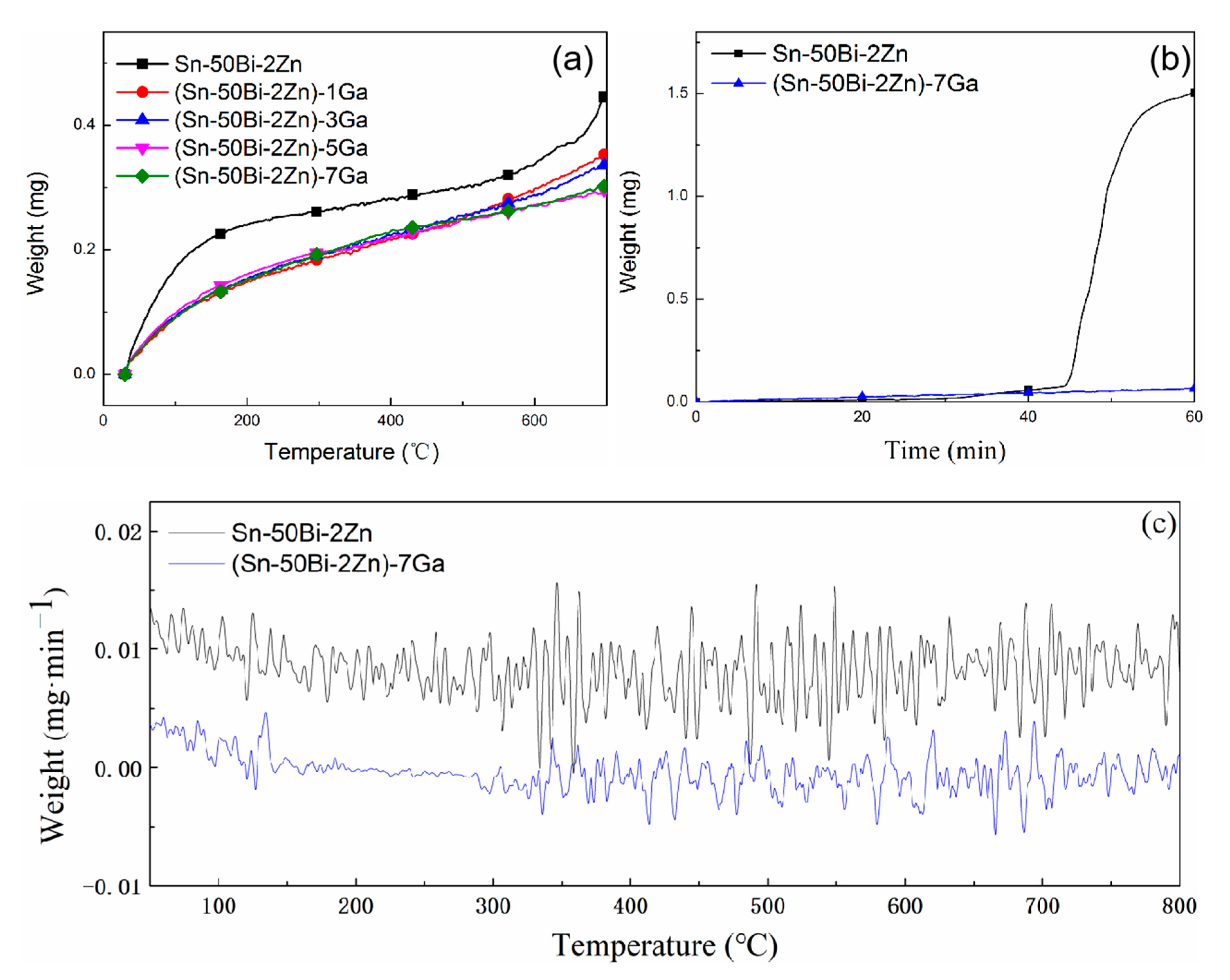

Alloys | k1 (10−3∙mg∙cm−2∙min−1) | Q (kJ∙mol−1) |
---|---|---|
Sn–50Bi–2Zn | 7.11 | 12.05 |
(Sn–50Bi–2Zn)–1Ga | 3.71 | 15.69 |
(Sn–50Bi–2Zn)–3Ga | 1.37 | 21.27 |
(Sn–50Bi–2Zn)–5Ga | 1.11 | 22.45 |
(Sn–50Bi–2Zn)–7Ga | 1.16 | 22.20 |

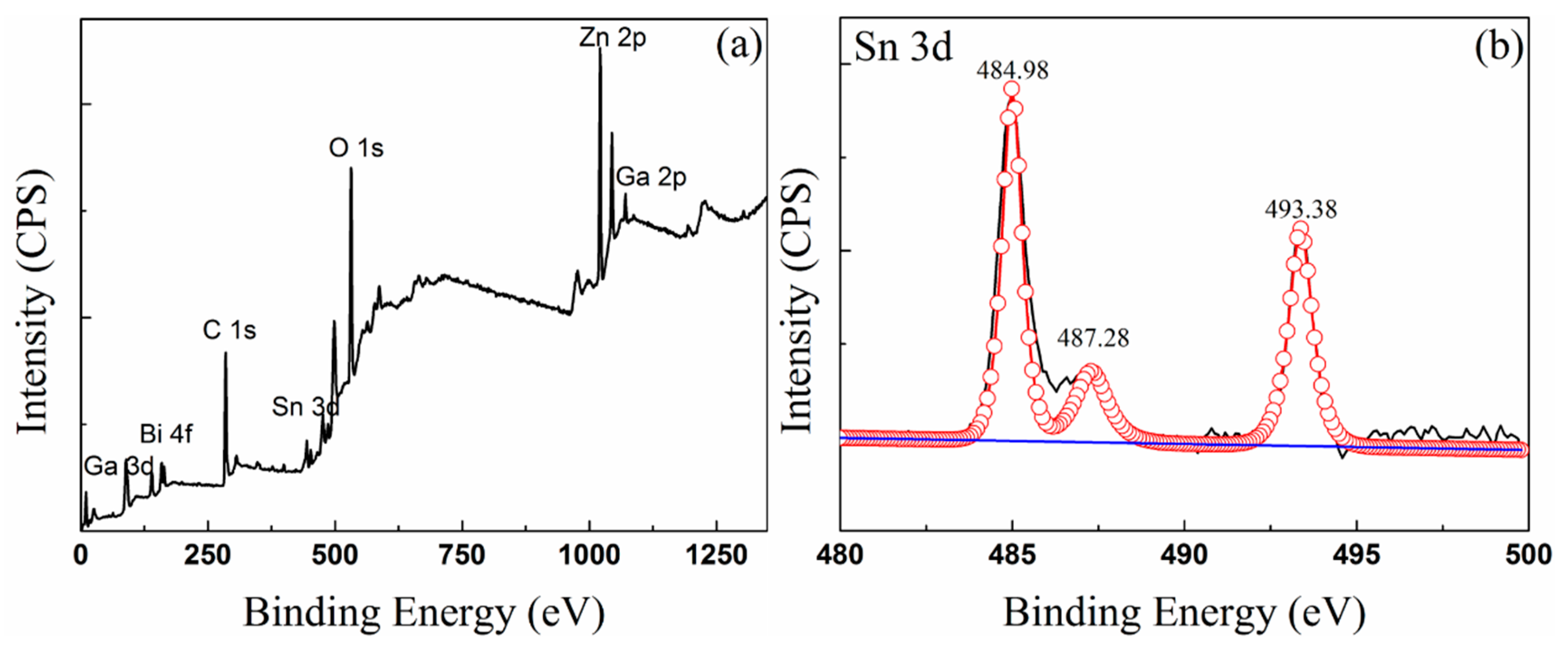

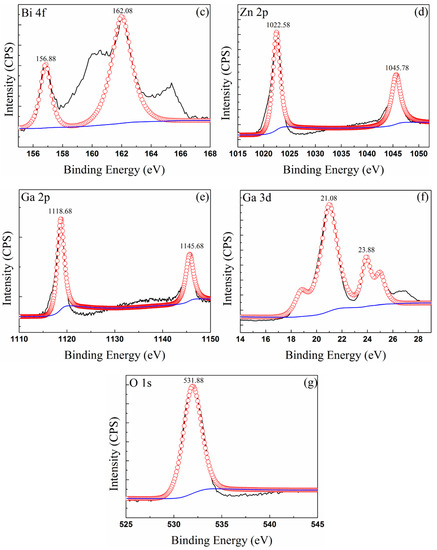

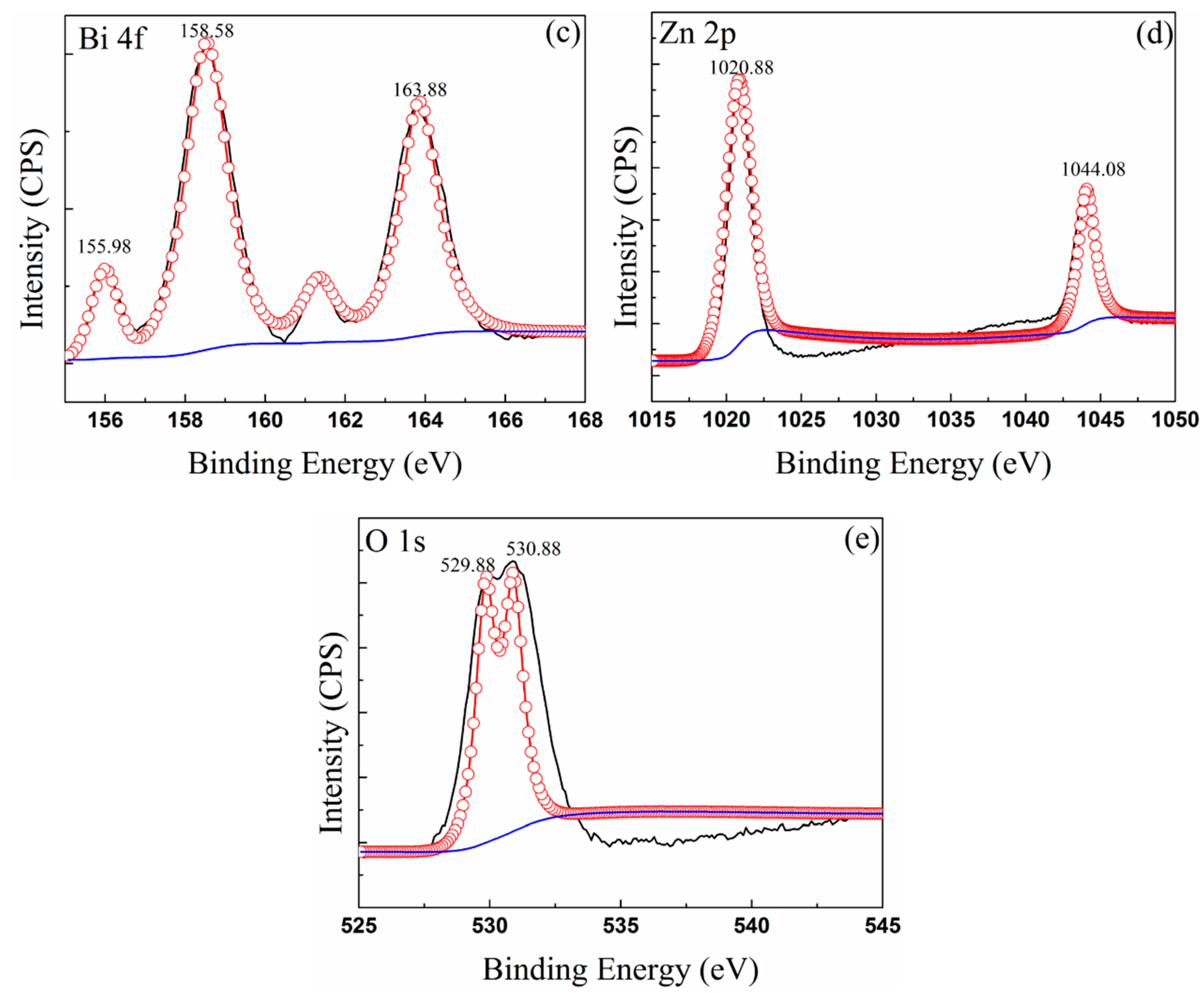

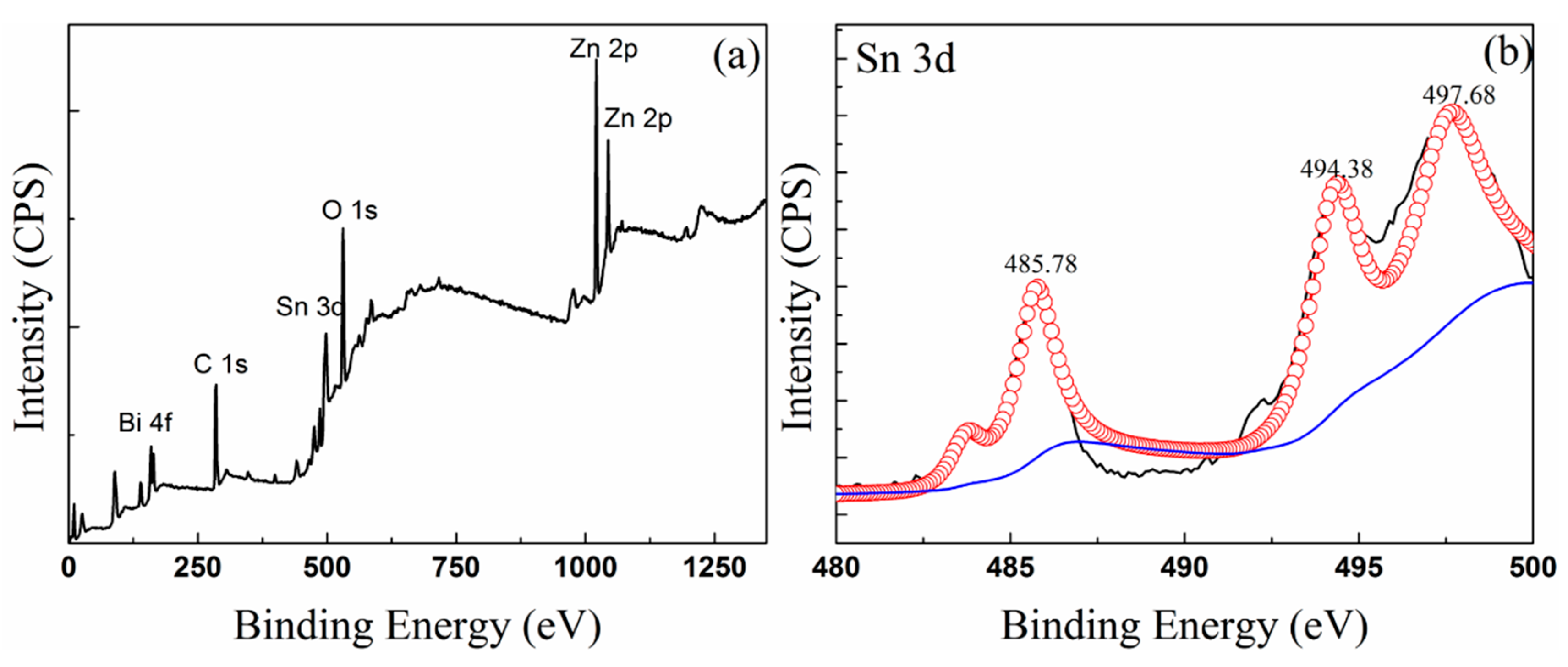

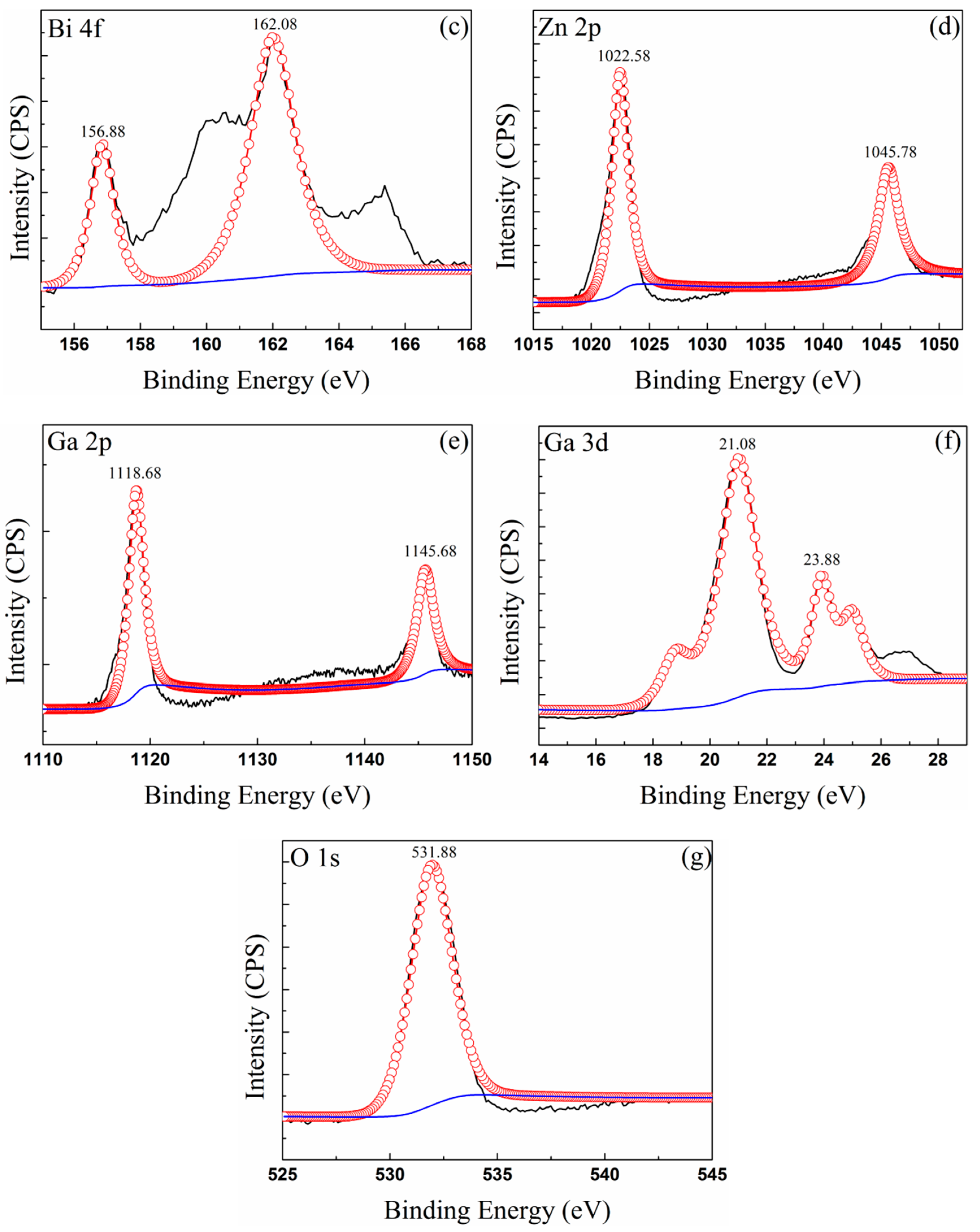

Elements and Oxides | Sn 3d (eV) | Bi 4f (eV) | Zn 2p (eV) | Ga 2p (eV) | Ga 3d (eV) |
---|---|---|---|---|---|
Sn [23] | 484.9, 493.3 | ||||
SnO [23] | 486.3 | ||||
SnO2[25] | 487.3 | ||||
Bi [24] | 157, 162.3 | ||||
Bi2O3 [24,25] | 158.1–159.5 | ||||
Zn [26] | 1021.8, 1044 | ||||
ZnO [26] | 1021.7 | ||||
Ga [26] | 1116.6, 1143.4 | ||||
Ga2O3 [26] | 20.7 |
Samples | Sn | Bi | Zn | Ga | O |
---|---|---|---|---|---|
Sn–50Bi–2Zn | 50.36 | 5.95 | 9.23 | — | 34.47 |
(Sn–50Bi–2Zn)–7Ga | 24.14 | 5.33 | 13.14 | 33.4 | 32.24 |
Oxidation Reaction | ΔGθ/(J·mol−1) | |||
---|---|---|---|---|
298 K | 400 K | 600 K | 800 K | |
Sn–SnO | −302.61 | −309.06 | −325.03 | −344.30 |
Sn–SnO2 | −596.33 | −602.56 | −619.43 | −641.61 |
Bi–Bi2O3 | −615.89 | −633.08 | −675.29 | −725.87 |
Zn–ZnO | −361.08 | −366.18 | −379.44 | −396.05 |
Ga–Ga2O3 | −1114.43 | −1124.63 | −1152.28 | −1187.79 |
