Next Article in Journal
Experimental Verification of Isotropic and Anisotropic Anhysteretic Magnetization Models
Previous Article in Journal
Ethylene Glycol Dicyclopentenyl (Meth)Acrylate Homo and Block Copolymers via Nitroxide Mediated Polymerization
Article Menu
Issue 9 (May-1) cover image

Export Article

Open AccessArticle

Generalized Stacking Fault Energy of {10-11}<11-23> Slip System in Mg-Based Binary Alloys: A First Principles Study

1
College of Materials Science and Engineering, Sichuan University of Science and Engineering, Zigong 643000, China
2
College of Materials Science and Engineering, Chongqing University, Chongqing 400044, China
3
National Engineering Research Center for Magnesium Alloys, Chongqing 400044, China
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(9), 1548; https://doi.org/10.3390/ma12091548
Received: 16 April 2019 / Revised: 6 May 2019 / Accepted: 8 May 2019 / Published: 11 May 2019
  |
PDF [1186 KB, uploaded 11 May 2019]
  |     |

Abstract

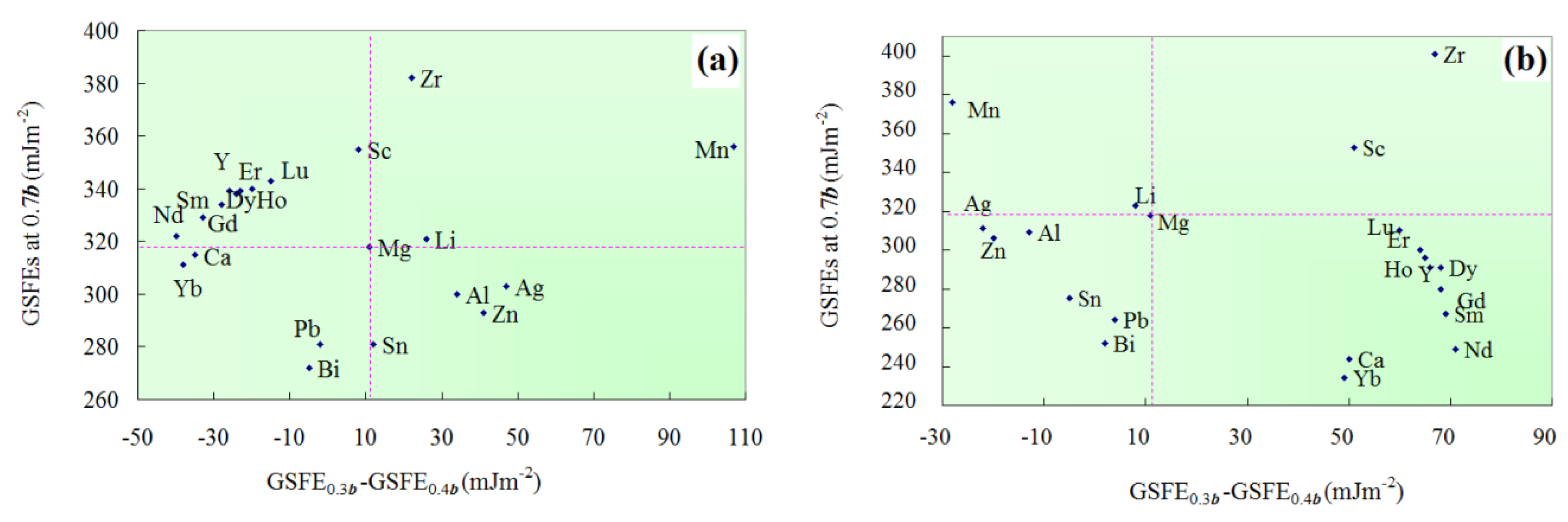

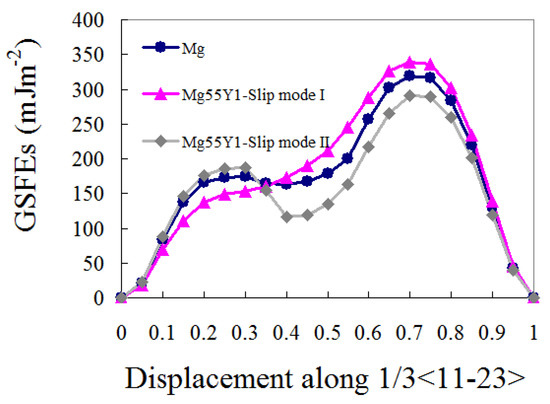

In this work, the generalized stacking fault energies (GSFEs) of {10-11}<11-23> slip system in a wide range of Mg-X (X = Ag, Al, Bi, Ca, Dy, Er, Gd, Ho, Li, Lu, Mn, Nd, Pb, Sc, Sm, Sn, Y, Yb, Zn and Zr) binary alloys has been studied. The doping concentration in the doping plane and the Mg-X system is 12.5 at.% and 1.79 at.%, respectively. Two slip modes (slip mode I and II) were considered. For pure magnesium, these two slip modes are equivalent to each other. However, substituting a solute atom into the magnesium matrix will cause different effects on these two slip modes. Based on the calculated GSFEs, two design maps were constructed to predict solute effects on the behavior of the {10-11}<11-23> dislocations. The design maps suggest that the addition of Ag, Al, Ca, Dy, Er, Gd, Ho, Lu, Nd, Sm, Y, Yb and Zn could facilitate the {10-11}<11-23> dislocations. View Full-Text
Keywords: magnesium alloys; first-principle calculation; stacking-fault energy; ductility magnesium alloys; first-principle calculation; stacking-fault energy; ductility
Figures

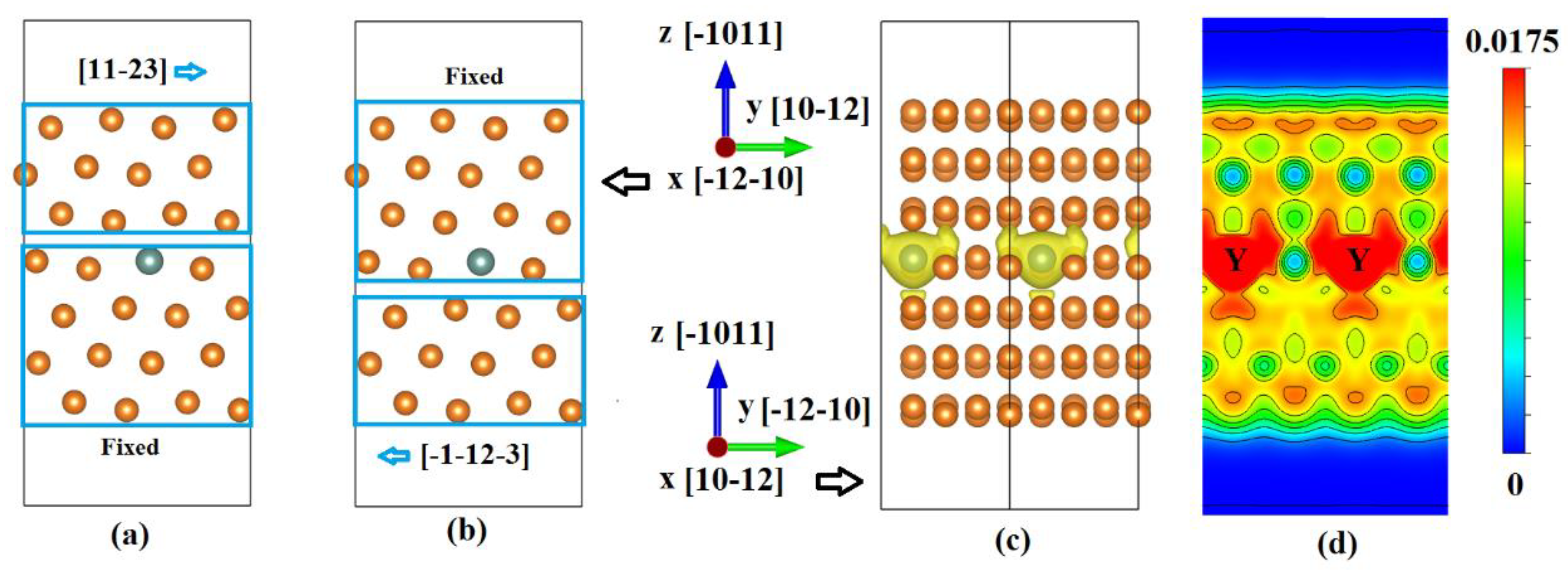

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Dou, Y.; Luo, H.; Zhang, J.; Tang, X. Generalized Stacking Fault Energy of {10-11}<11-23> Slip System in Mg-Based Binary Alloys: A First Principles Study. Materials 2019, 12, 1548.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
