Microstructured Optical Waveguide-Based Endoscopic Probe Coated with Silica Submicron Particles

Skolkovo Institute of Science and Technology, 3 Nobelya str., 121205 Moscow, Russia
Department of Physics, Institute of Nanostructures and Biosystems, Saratov State University, 83 Astrakhanskaya str., 410012 Saratov, Russia
SPE LLC Nanostructured Glass Technology, 101 50 Let Oktjabrja, 410033 Saratov, Russia
Institute of Biochemistry and Physiology of Plants and Microorganisms, 13 Prospekt Entuziastov, 410049 Saratov, Russia
Department of Electrical Engineering, Tel Aviv University, Ramat Aviv, Tel Aviv 69978, Israel
Interdisciplinary Laboratory of Biophotonics, Tomsk State University, 36 Lenin’s av., 634050 Tomsk, Russia
Laboratory of Laser Diagnostics of Technical and Living Systems, Institute of Precision Mechanics and Control of the Russian Academy of Sciences, 24 Rabochaya str., 410028 Saratov, Russia
Author to whom correspondence should be addressed.
Materials 2019, 12(9), 1424;
Received: 5 April 2019 / Revised: 24 April 2019 / Accepted: 28 April 2019 / Published: 1 May 2019
(This article belongs to the Special Issue Design and Synthesis of Novel Optical Probes)
PDF [5871 KB, uploaded 1 May 2019]

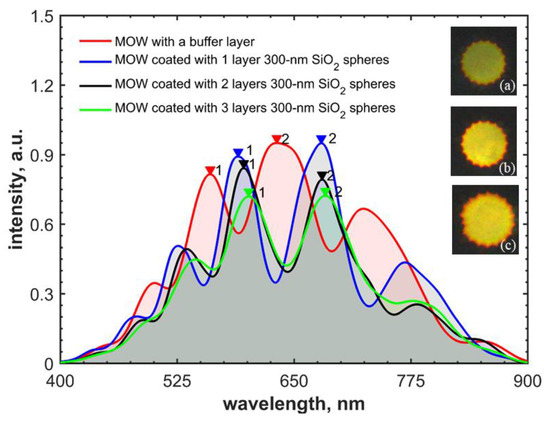

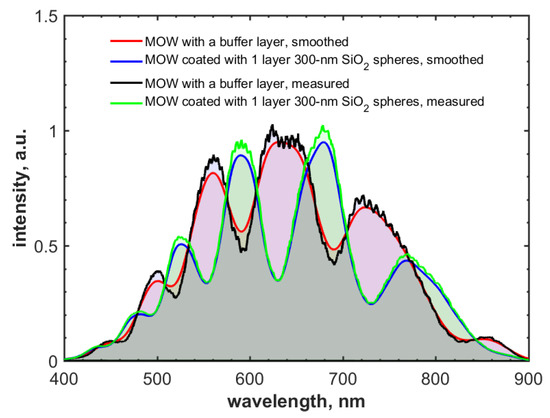

Microstructured optical waveguides (MOW) are of great interest for chemical and biological sensing. Due to the high overlap between a guiding light mode and an analyte filling of one or several fiber capillaries, such systems are able to provide strong sensitivity with respect to variations in the refractive index and the thickness of filling materials. Here, we introduce a novel type of functionalized MOWs whose capillaries are coated by a layer-by-layer (LBL) approach, enabling the alternate deposition of silica particles (SiO2) at different diameters—300 nm, 420 nm, and 900 nm—and layers of poly(diallyldimethylammonium chloride) (PDDA). We demonstrate up to three covering bilayers consisting of 300-nm silica particles. Modifications in the MOW transmission spectrum induced by coating are measured and analyzed. The proposed technique of MOW functionalization allows one to reach novel sensing capabilities, including an increase in the effective sensing area and the provision of a convenient scaffold for the attachment of long molecules such as proteins. View Full-Text
Keywords: sensing; layer-by-layer deposition; surface modification; microstructured optical waveguide; silica particles sensing; layer-by-layer deposition; surface modification; microstructured optical waveguide; silica particles
