Broadband Perfect Optical Absorption by Coupled Semiconductor Resonator-Based All-Dielectric Metasurface

1,2 and 3,*
1
College of Electronic Information Engineering, Inner Mongolia University, Hohhot 010021, China
2
School of Physical Science and Technology, Inner Mongolia University, Hohhot 010021, China
3
Department of Applied Physics, Inner Mongolia University of Science and Technology, Baotou 014010, China
*
Author to whom correspondence should be addressed.
Received: 4 March 2019 / Revised: 2 April 2019 / Accepted: 11 April 2019 / Published: 14 April 2019
  |
PDF [1748 KB, uploaded 14 April 2019]
  |

Abstract

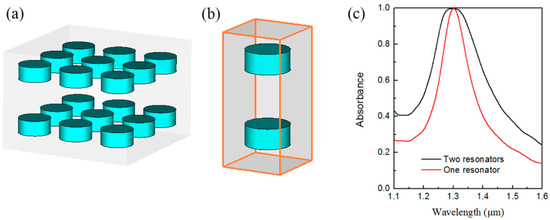

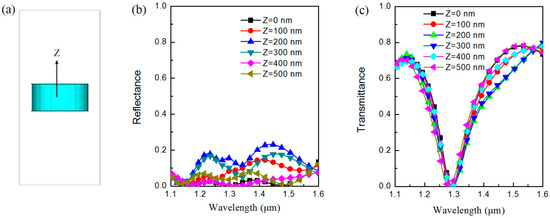

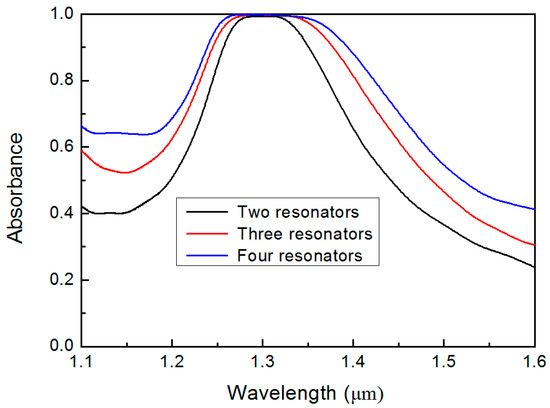

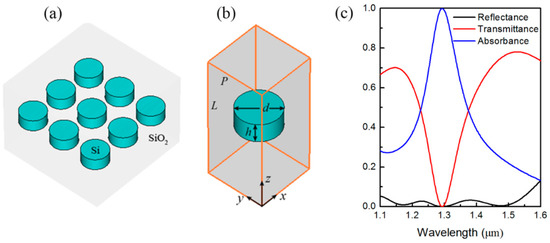

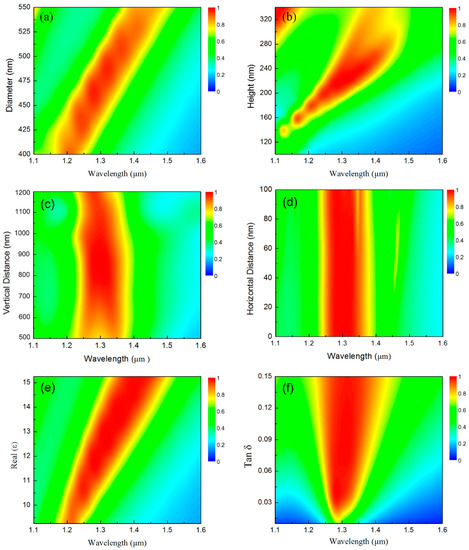

Resonance absorption mechanism-based metasurface absorbers can realize perfect optical absorption. Further, all-dielectric metasurface absorbers have more extensive applicability than metasurface absorbers that contain metal components. However, the absorption peaks of the all-dielectric metasurface absorbers reported to date are very sharp. In this work, we propose a broadband optical absorption all-dielectric metasurface, where a unit cell of this metasurface is composed of two coupled subwavelength semiconductor resonators arrayed in the direction of the wave vector and embedded in a low-index material. The results indicate that the peak absorption for more than 99% is achieved across a 60 nm bandwidth in the short-wavelength infrared region. This absorption bandwidth is three times that of a metasurface based on the conventional design scheme that consists of only a single layer of semiconductor resonators. Additionally, the coupled semiconductor resonator-based all-dielectric metasurface shows robust perfect absorption properties when the geometrical and material parameters—including the diameter, height, permittivity, and loss tangent of the resonator and the vertical and horizontal distances between the two centers of the coupled resonators—are varied over a wide range. With the convenience of use of existing semiconductor technologies in micro/nano-processing of the surface, this proposed broadband absorption all-dielectric metasurface offers a path toward realizing potential applications in numerous optical devices. View Full-Text
Keywords: perfect absorption; optical broadband; semiconductor metasurface; coupled resonators; optical device perfect absorption; optical broadband; semiconductor metasurface; coupled resonators; optical device
