Next Article in Journal
A Semi-Empirical Deflection-Based Method for Crack Width Prediction in Accelerated Construction of Steel Fibrous High-Performance Composite Small Box Girder
Next Article in Special Issue
NDE Detection Techniques and Characterization of Aluminum Wires Embedded in Honeycomb Sandwich Composite Panels Using Terahertz Waves
Previous Article in Journal
UV Irradiated Graphene-Based Nanocomposites: Change in the Mechanical Properties by Local HarmoniX Atomic Force Microscopy Detection
Previous Article in Special Issue
Magnetostrictive Guided Wave Technique Verification for Detection and Monitoring Defects in the Pipe Weld
Article Menu
Issue 6 (March-2) cover image

Export Article

Open AccessArticle

Inspection of Reactor Steel Degradation by Magnetic Adaptive Testing

1
Hungarian Academy of Sciences, Centre for Energy Research, 1121 Budapest, Hungary
2
SCK•CEN Belgian Nuclear Research Centre, 2400 Mol, Belgium
*
Author to whom correspondence should be addressed.
Materials 2019, 12(6), 963; https://doi.org/10.3390/ma12060963
Received: 25 February 2019 / Revised: 12 March 2019 / Accepted: 18 March 2019 / Published: 22 March 2019
(This article belongs to the Special Issue Non-destructive Inspection)
  |
PDF [2293 KB, uploaded 22 March 2019]
  |

Abstract

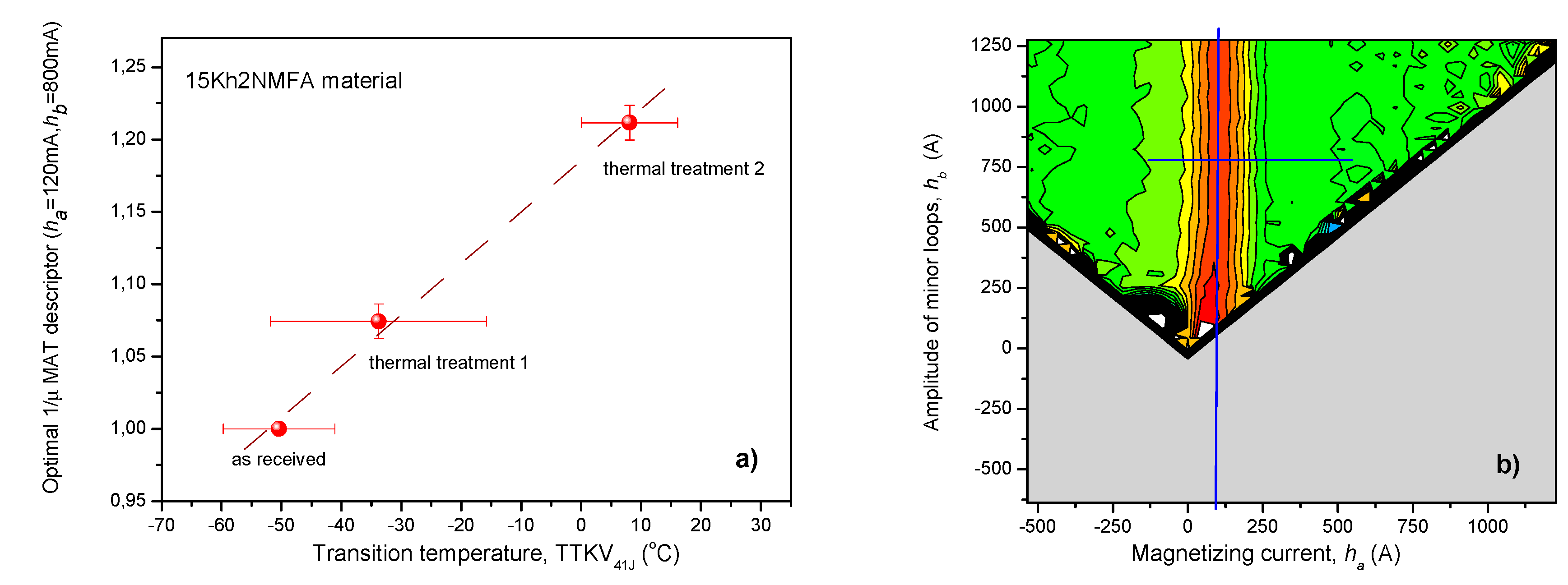

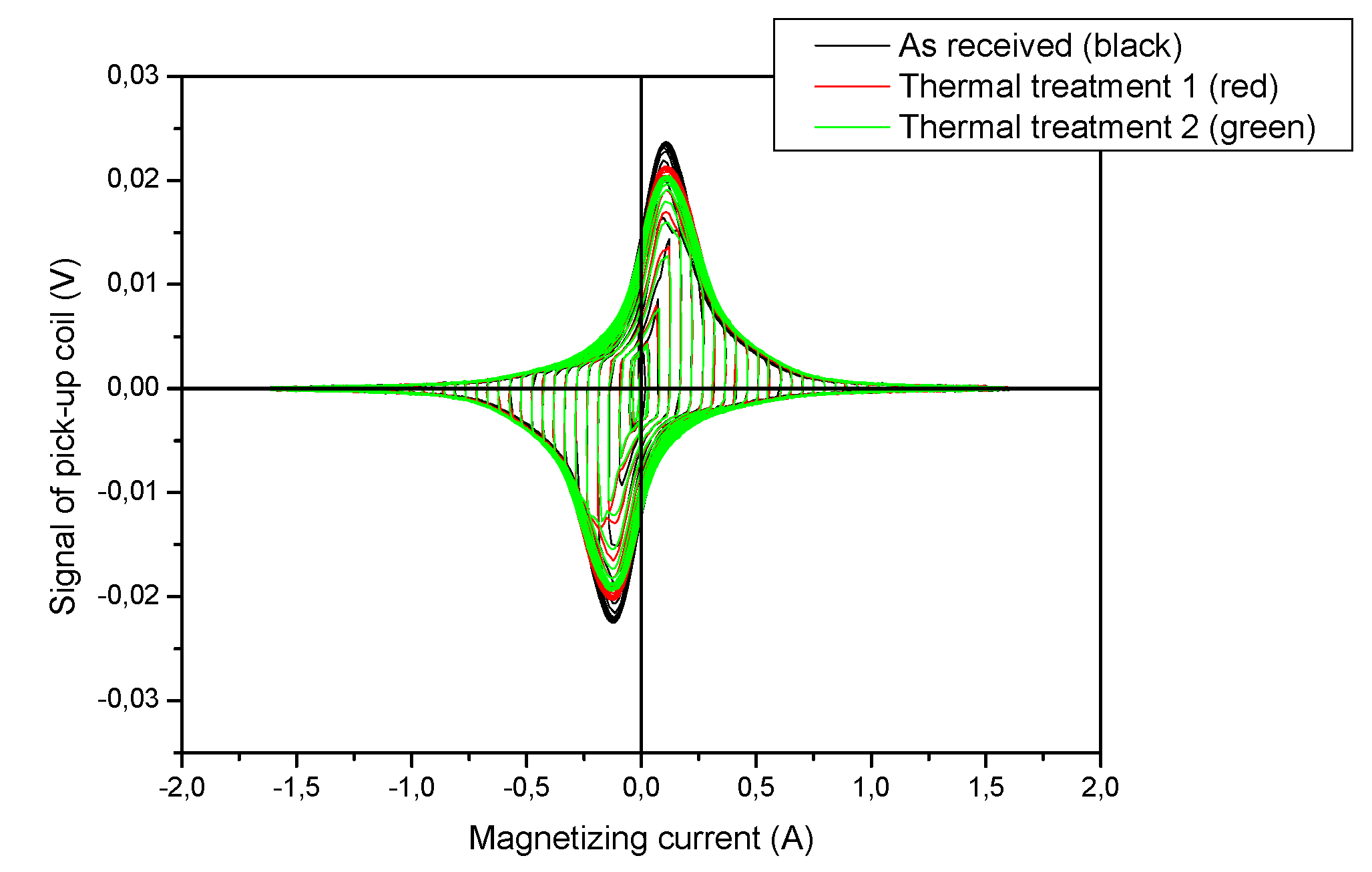

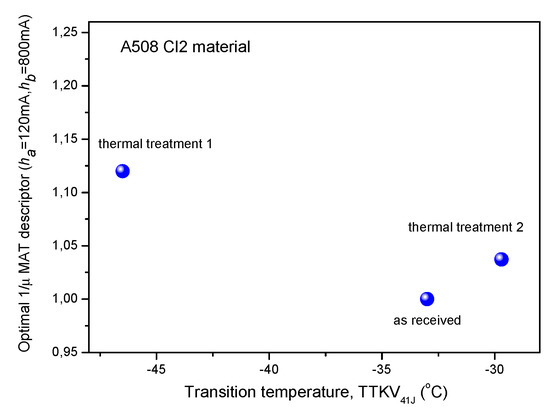

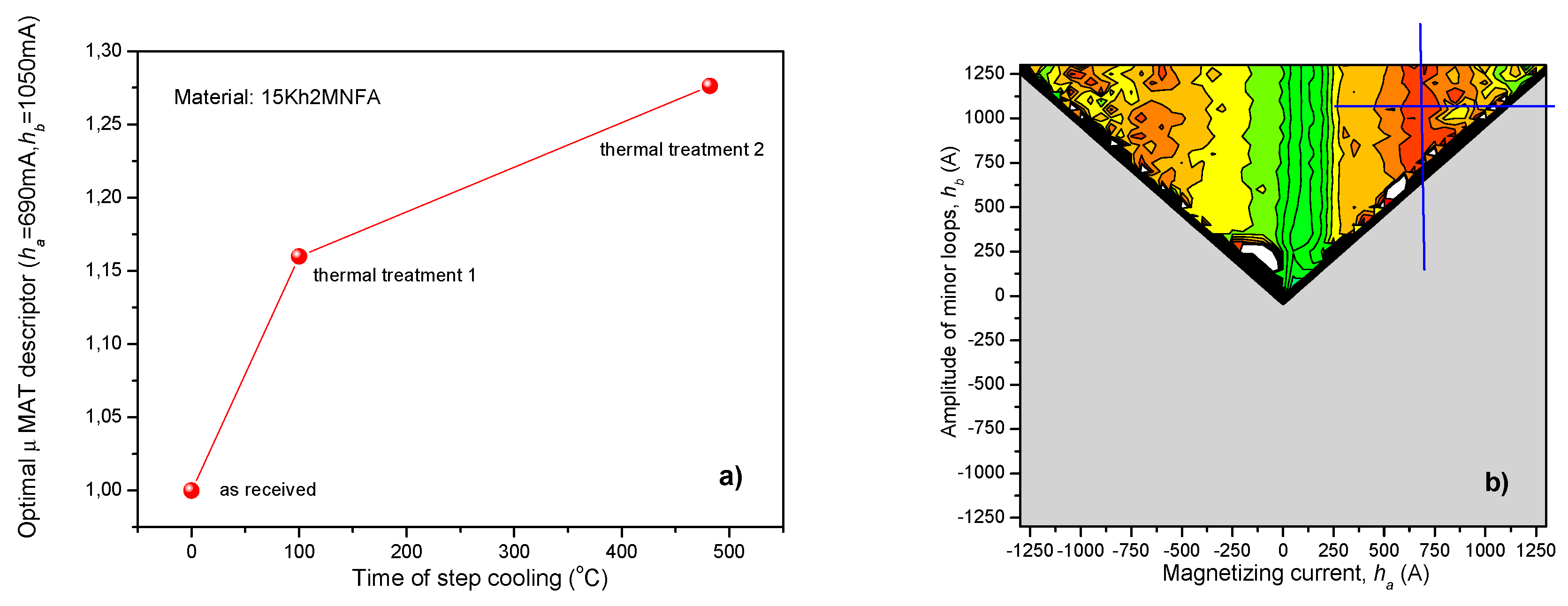

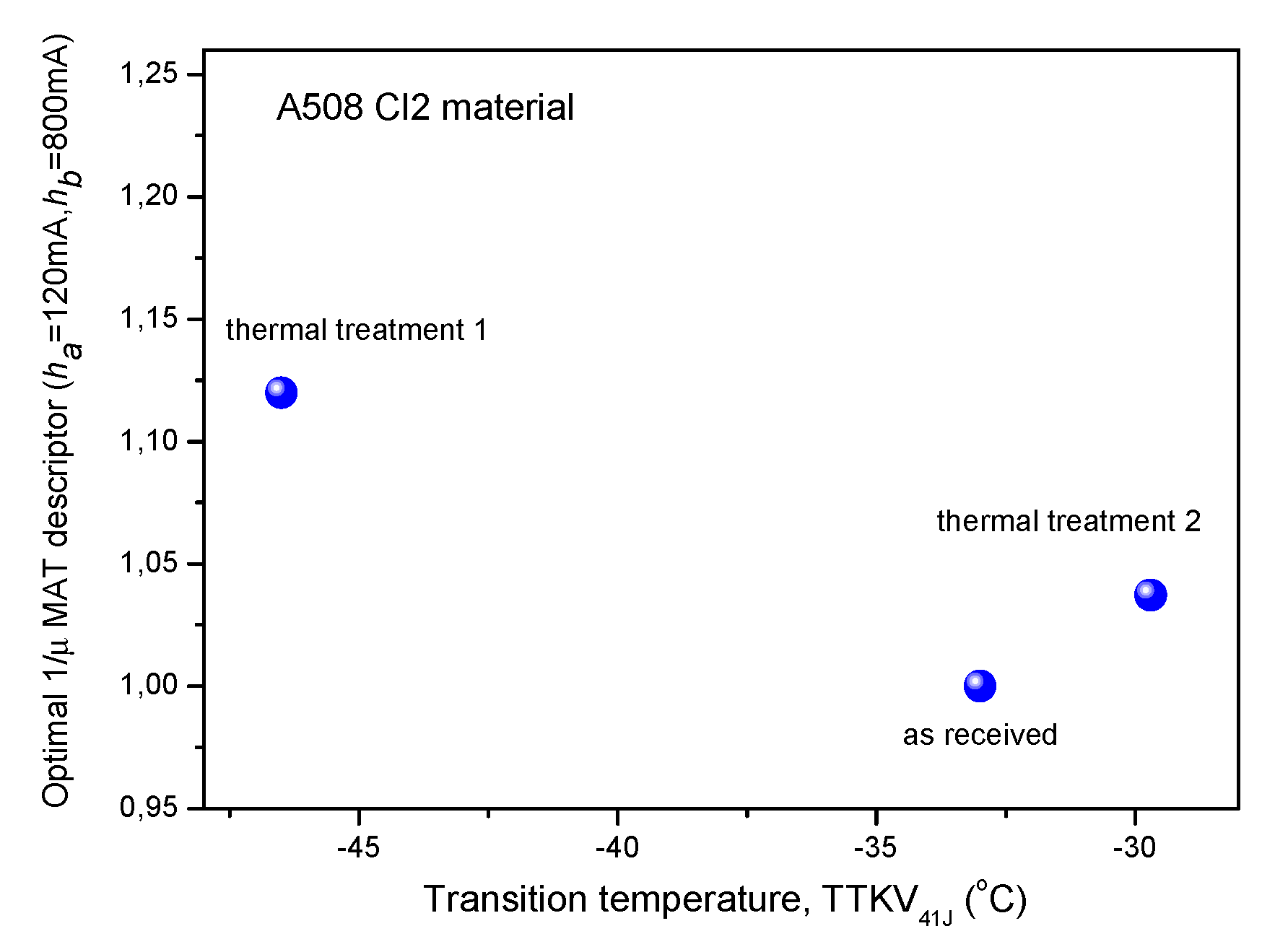

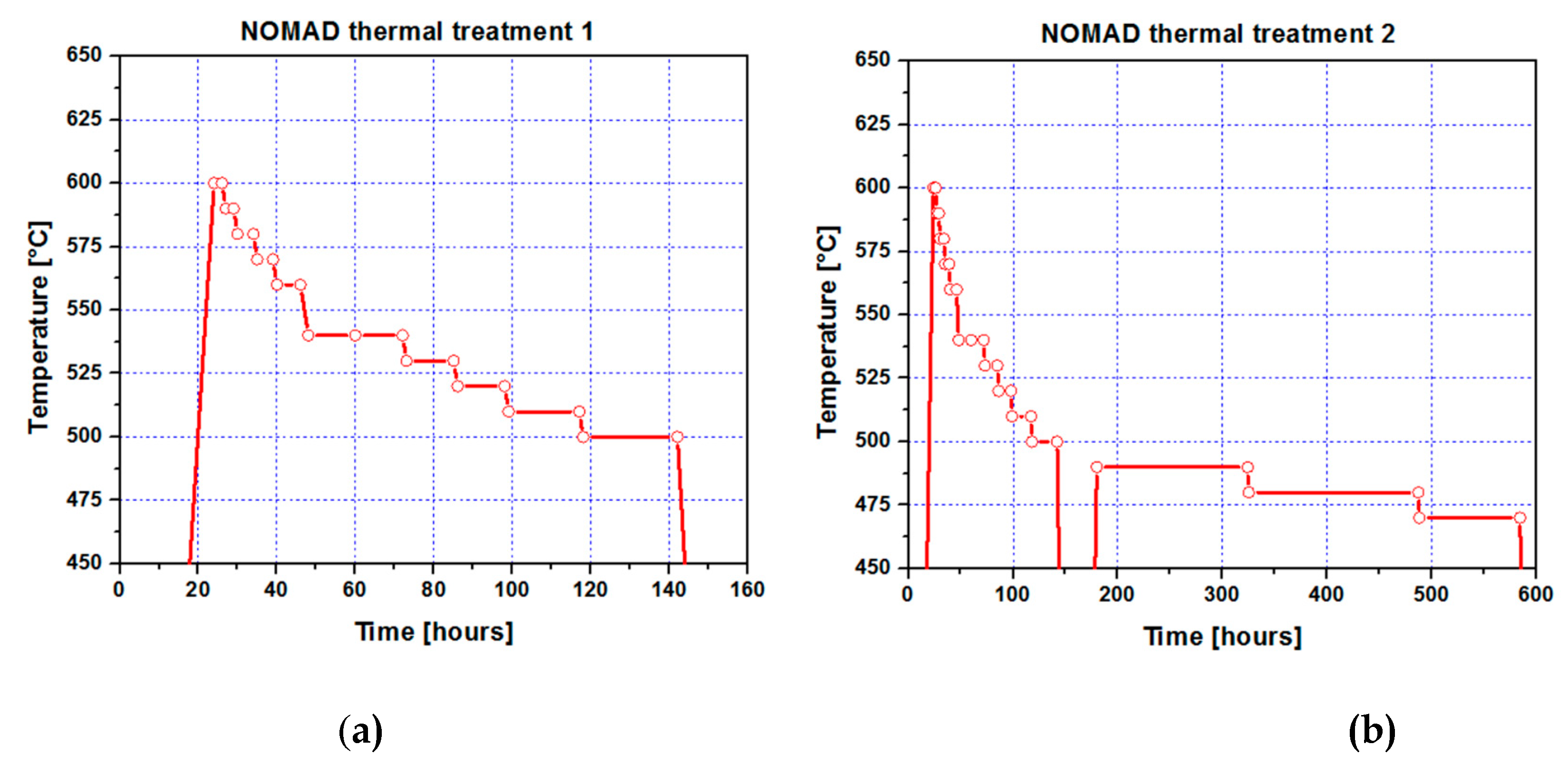

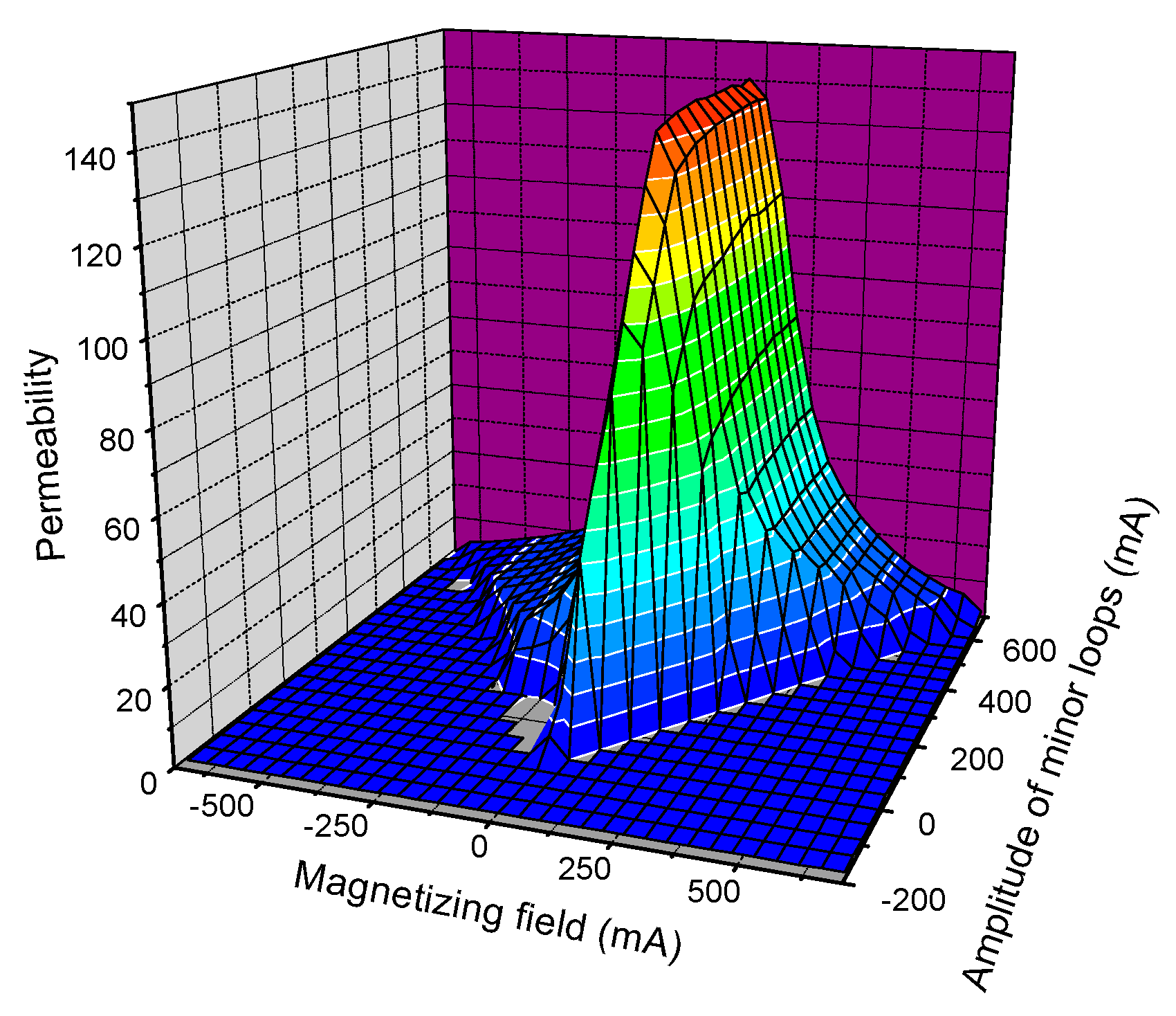

Degradation of nuclear pressure vessel steel materials, 15Kh2NMFA type and A508 Cl2 type (definition is given in the text) were investigated by a novel magnetic nondestructive testing method, so-called Magnetic Adaptive Testing (MAT), which is based on systematic measurement and evaluation of minor magnetic hysteresis loops. The measured samples were thermally treated by a special step cooling procedure, which generated structural changes in the material. It was found that this type of degradation can be easily followed by magnetic measurements. Charpy impact test were also performed and the results were compared with the magnetic parameters. In case of 15Kh2NMFA steel, a good, reliable and closely linear correlation was found between magnetic descriptors and transition temperature. View Full-Text
Keywords: steel degradation; nuclear reactor pressure vessel; magnetic nondestructive evaluation; magnetic adaptive testing steel degradation; nuclear reactor pressure vessel; magnetic nondestructive evaluation; magnetic adaptive testing
Figures

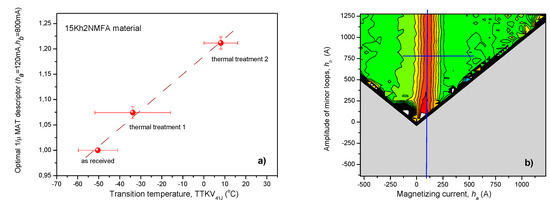

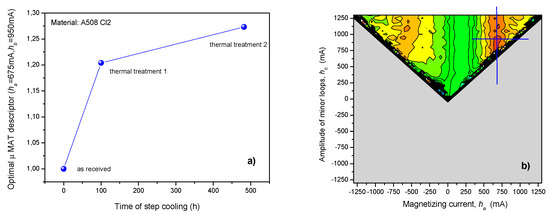

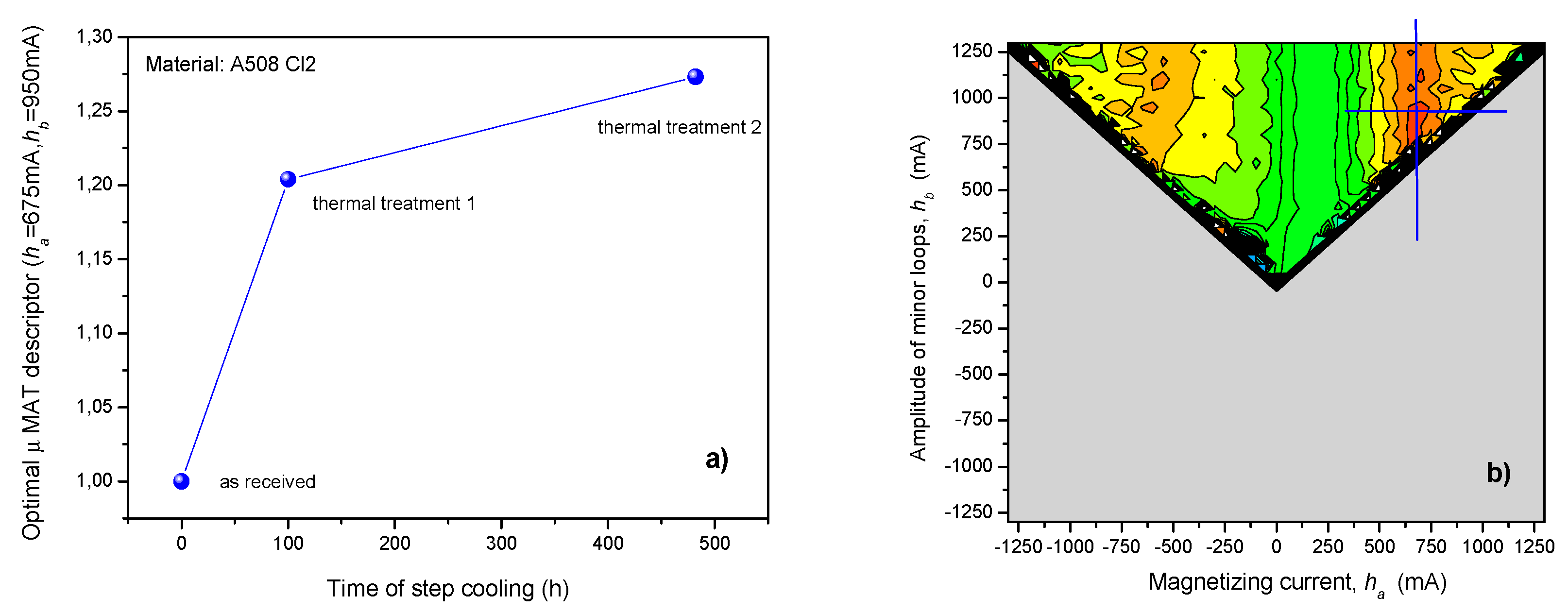

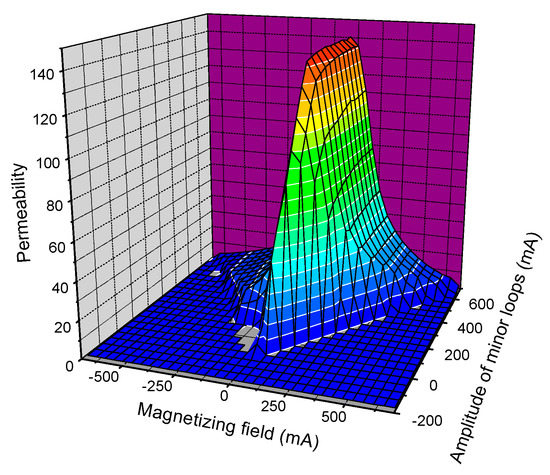

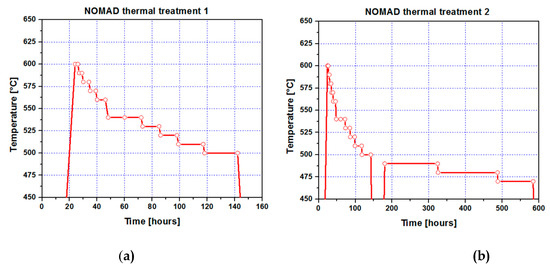

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Vértesy, G.; Gasparics, A.; Szenthe, I.; Gillemot, F.; Uytdenhouwen, I. Inspection of Reactor Steel Degradation by Magnetic Adaptive Testing. Materials 2019, 12, 963.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
