Next Article in Journal
Barkhausen Noise Emission in Hard-Milled Surfaces
Previous Article in Journal
Effect of Atmospheric Cold Plasma Treatment on the Adhesion and Tribological Properties of Polyamide 66 and Poly(Tetrafluoroethylene)
Article Menu
Issue 4 (February-2) cover image

Export Article

Open AccessArticle

Strain-Rate-Dependent Tensile Response of Ti–5Al–2.5Sn Alloy

CAS Key Laboratory of Mechanical Behavior and Design of Materials, Department of Modern Mechanics, University of Science and Technology of China, Hefei 230027, China
*
Author to whom correspondence should be addressed.
Materials 2019, 12(4), 659; https://doi.org/10.3390/ma12040659
Received: 24 January 2019 / Revised: 14 February 2019 / Accepted: 20 February 2019 / Published: 22 February 2019
  |
PDF [3296 KB, uploaded 22 February 2019]
  |

Abstract

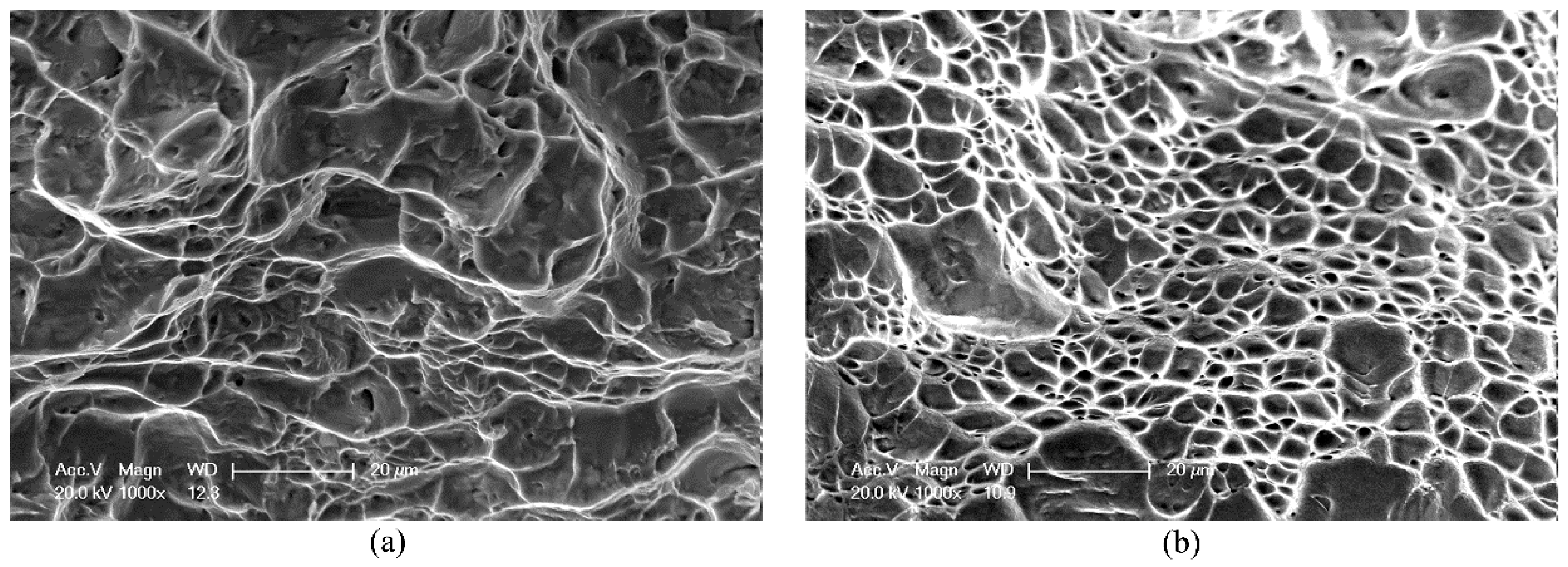

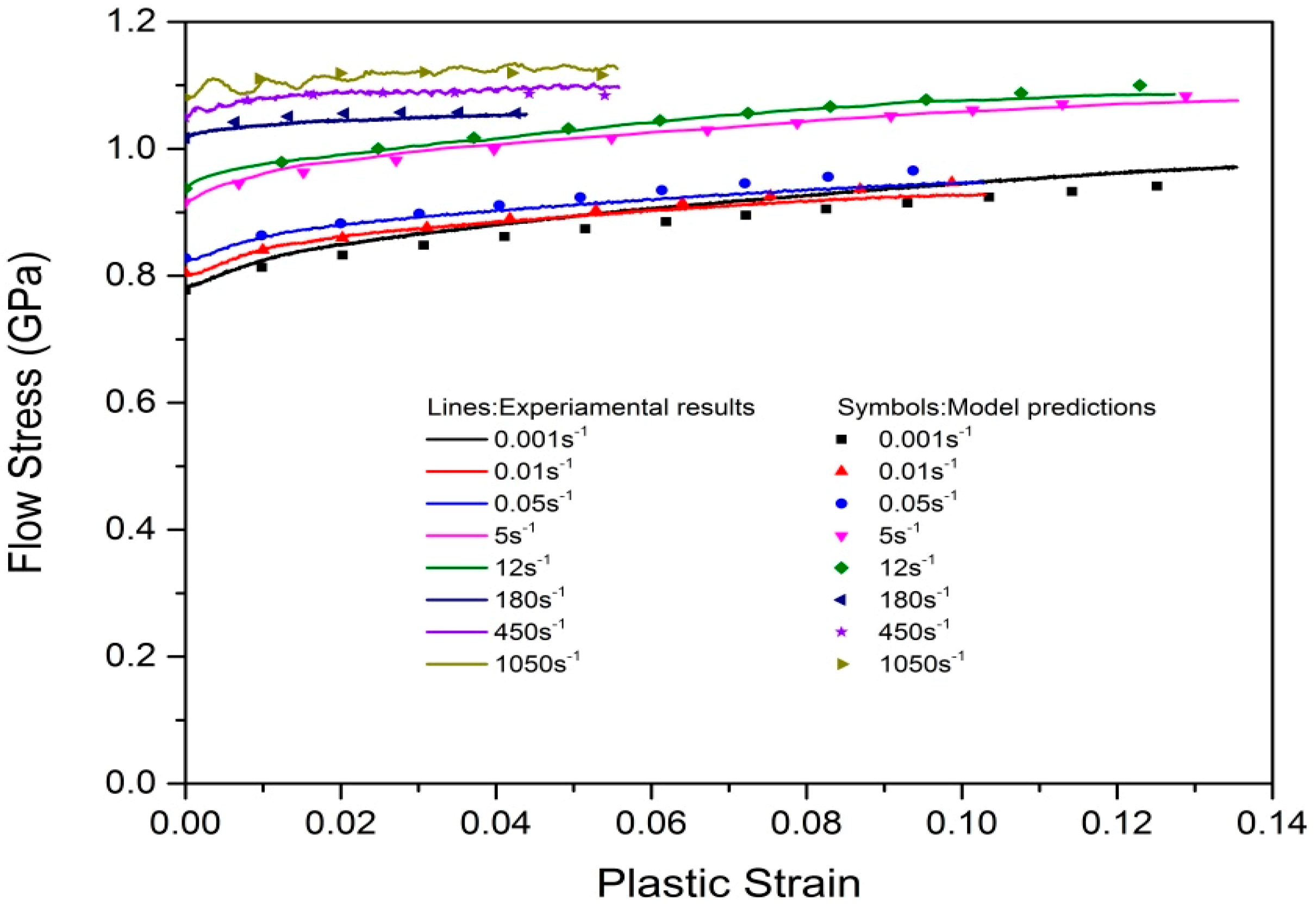

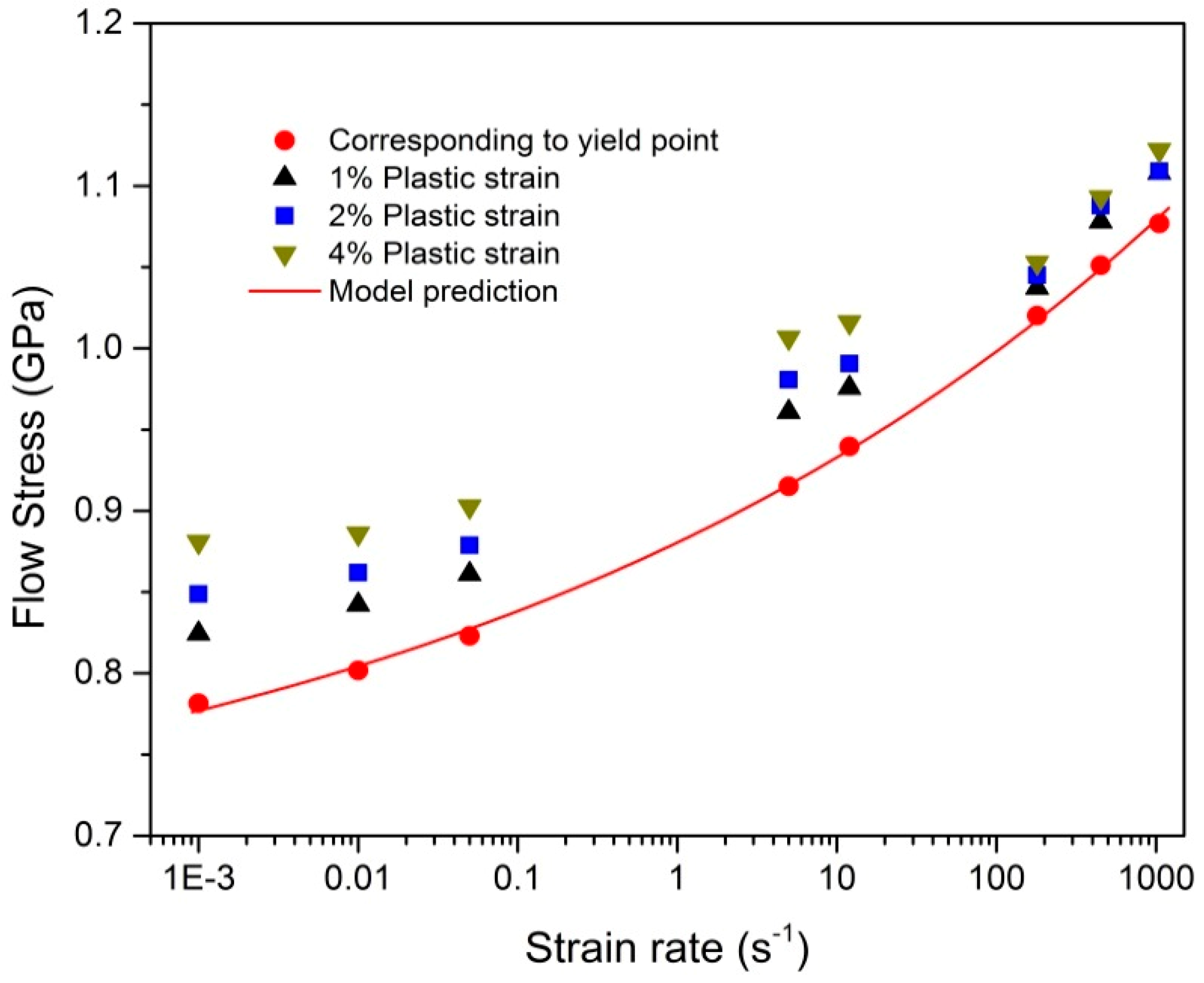

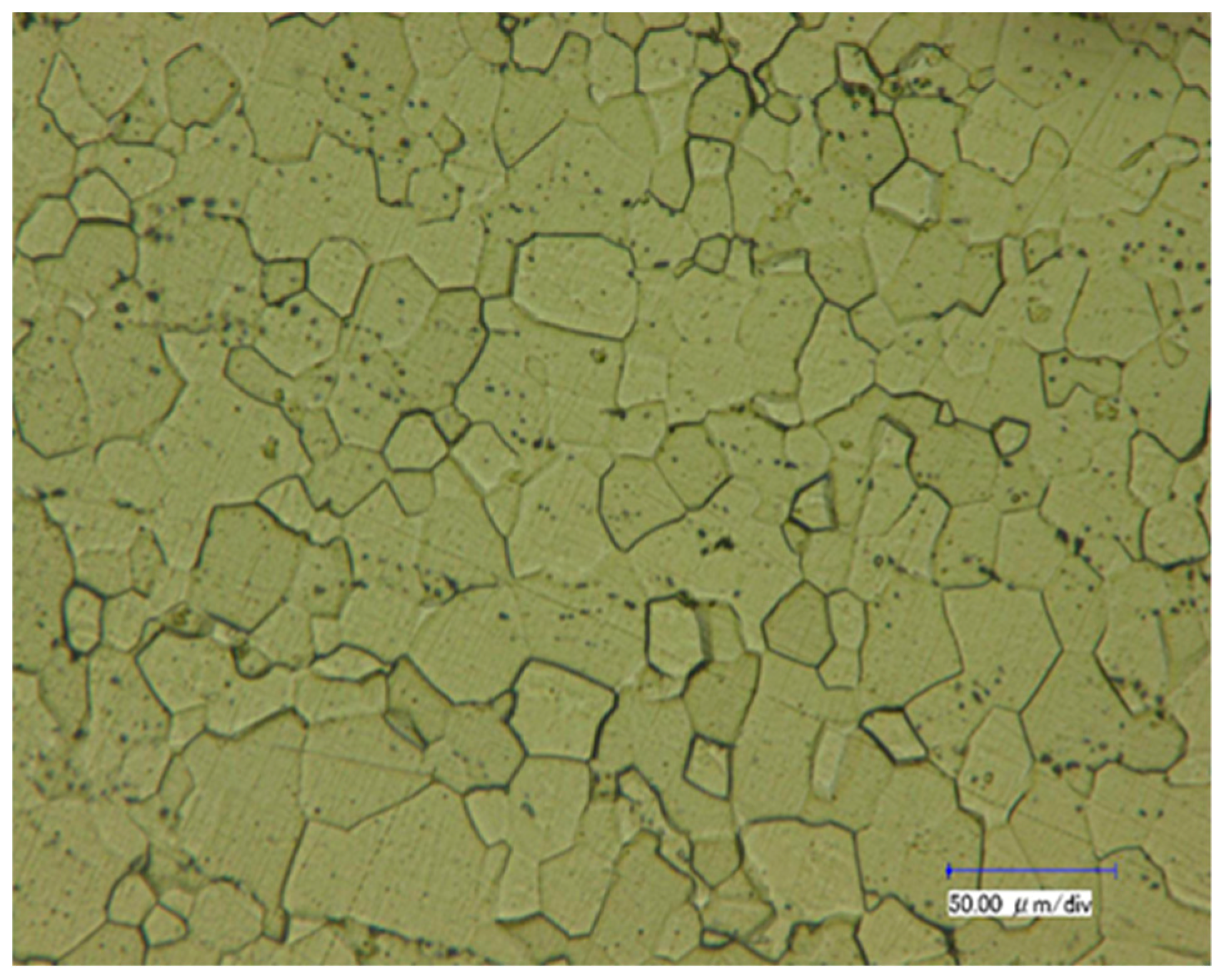

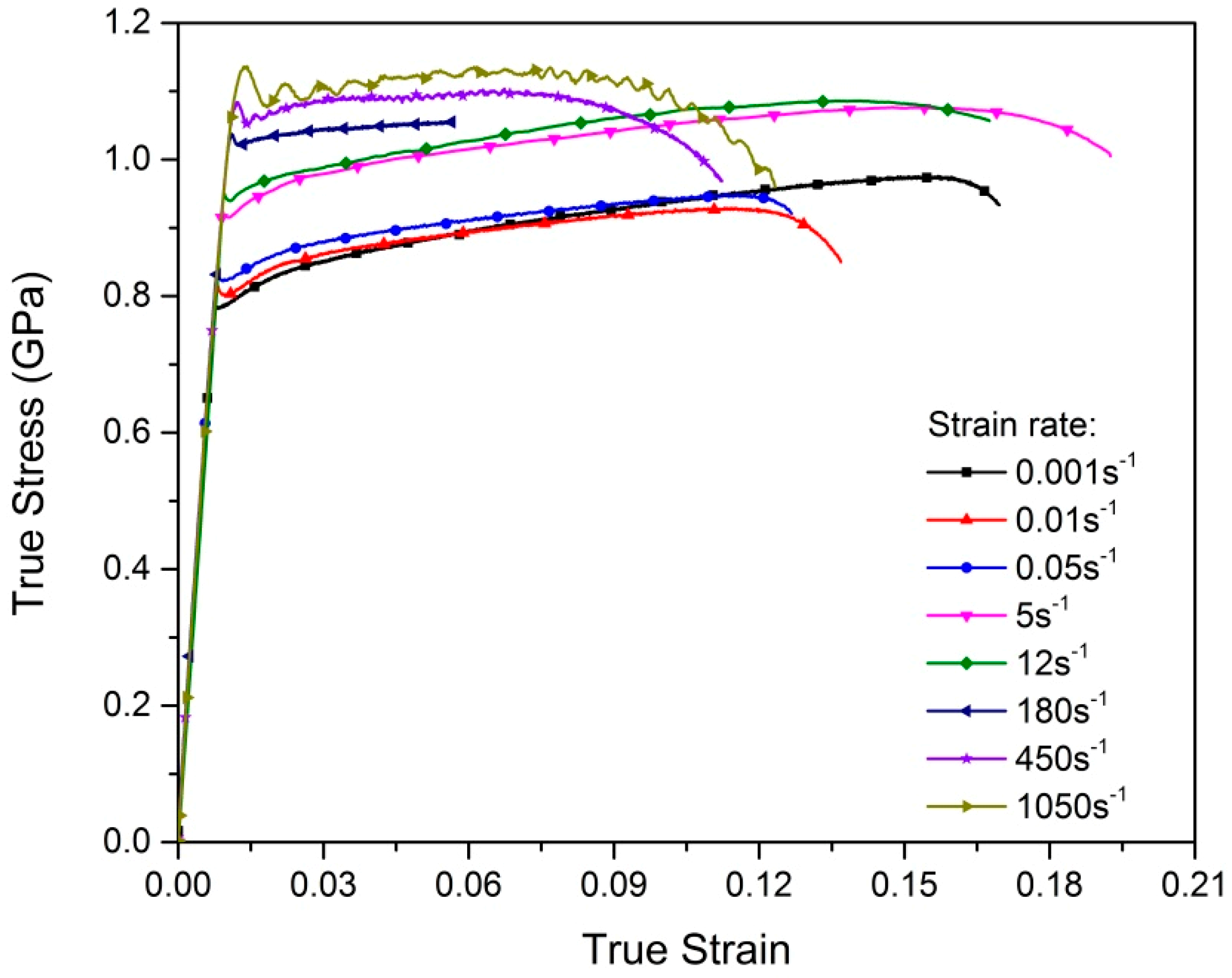

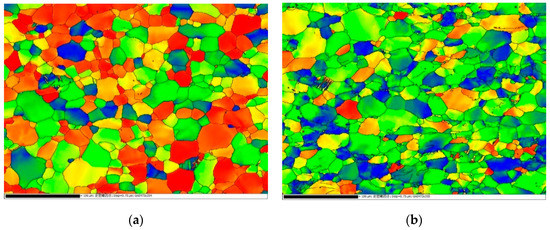

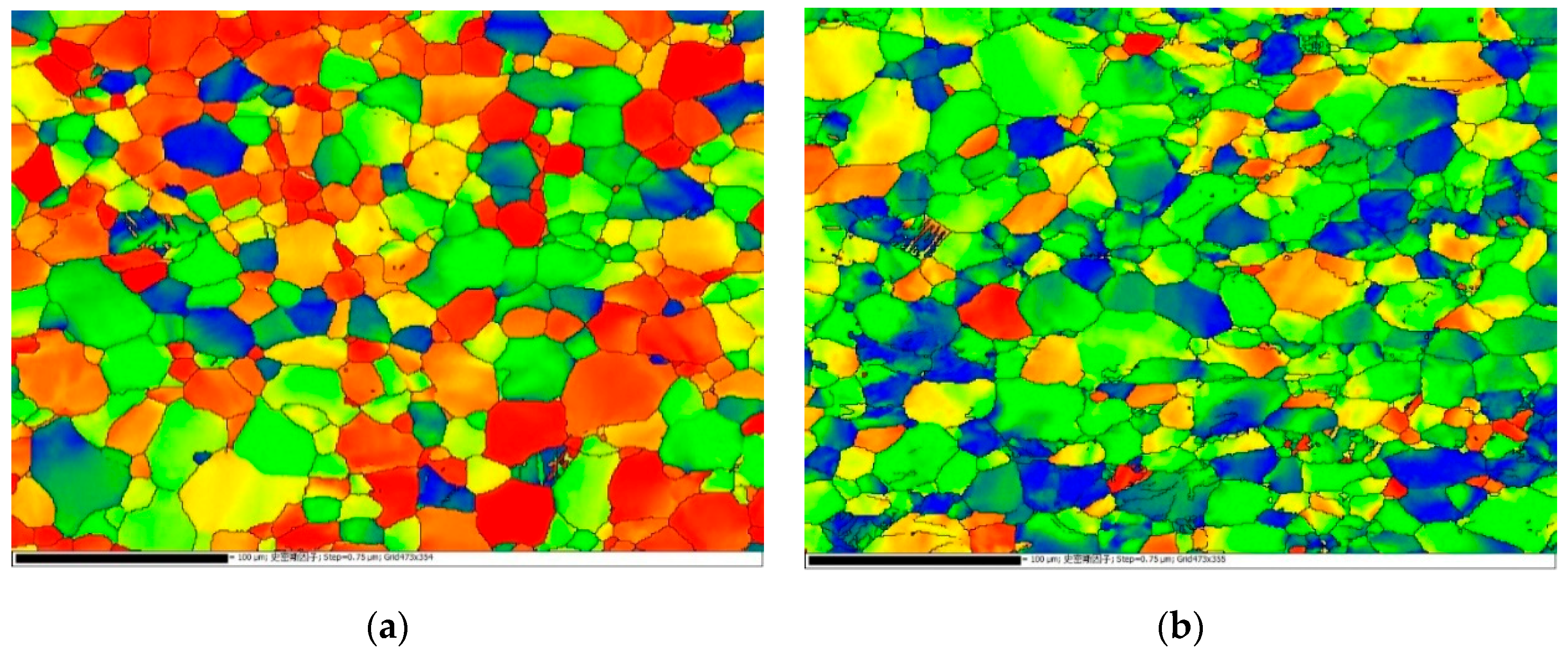

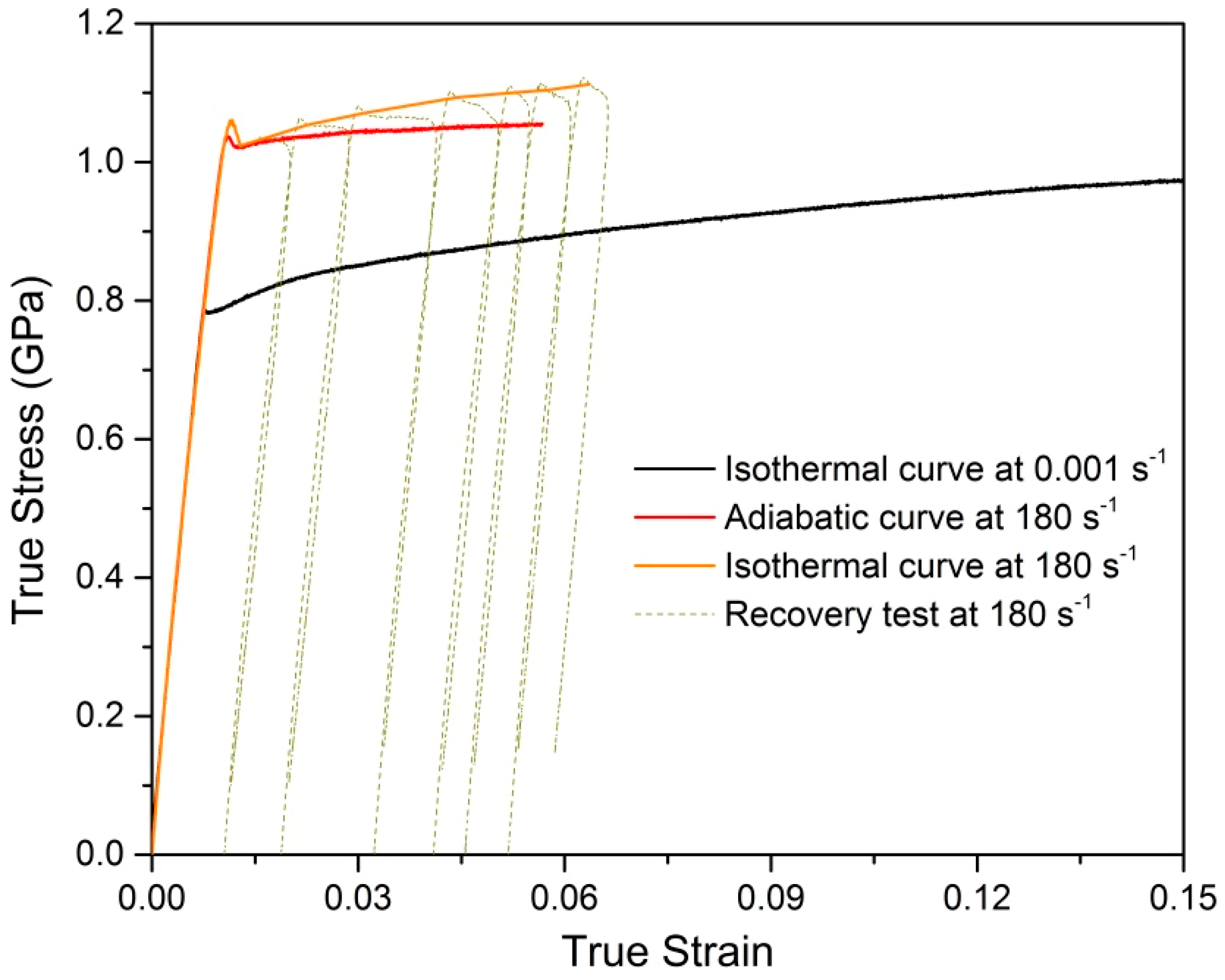

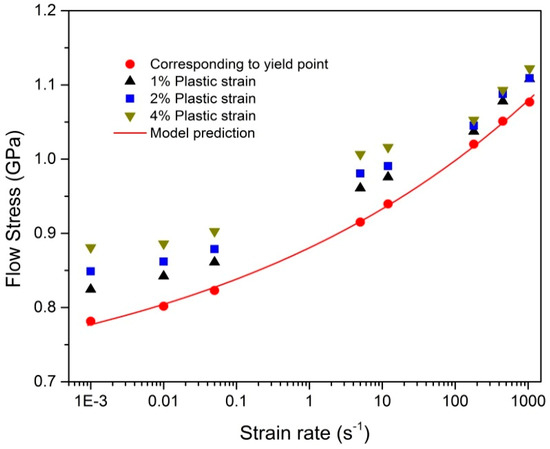

This study is an experimental investigation on the tensile responses of Ti–5Al–2.5Sn alloy over a wide range of strain rates. Uniaxial tension tests within the rate range of 10−3–101 s−1 are performed using a hydraulic driven MTS810 machine and a moderate strain-rate testing system. The high-rate uniaxial tension and tension recovery tests are conducted using a split-Hopkinson tension bar to obtain the adiabatic and isothermal stress–strain responses of the alloy under dynamic loading conditions. The experimental results show that the value of the initial yield stress increases with the increasing strain rate, while the strain rate sensitivity is greater at high strain rates. The isothermal strain-hardening behavior changes little with the strain rate, and the adiabatic temperature rise is the main reason for the reduction of the strain-hardening rate during high strain-rate tension. The electron backscatter diffraction (EBSD) analysis of the post-deformed samples indicates that there are deformation twins under quasi-static and high-rate tensile loadings. Scanning electron microscope (SEM) micrographs of the fracture surfaces of the post-deformed samples show dimple-like features. The Zerilli–Armstrong model is modified to incorporate the thermal-softening effect of the adiabatic temperature rise at high strain rates and describe the tension responses of Ti–5Al–2.5Sn alloy over strain rates from quasi-static to 1050 s−1. View Full-Text
Keywords: Ti–5Al–2.5Sn alloy; strain rate; tension deformation and fracture; constitutive model Ti–5Al–2.5Sn alloy; strain rate; tension deformation and fracture; constitutive model
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Zhang, B.; Wang, J.; Wang, Y.; Wang, Y.; Li, Z. Strain-Rate-Dependent Tensile Response of Ti–5Al–2.5Sn Alloy. Materials 2019, 12, 659.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
