Next Article in Journal
Non-Destructive Characterization of Railway Materials and Components with Infrared Thermography Technique
Next Article in Special Issue
High Strength X3NiCoMoTi 18-9-5 Maraging Steel Prepared by Selective Laser Melting from Atomized Powder
Previous Article in Journal
Structure and Optical Properties of Co-Sputtered Amorphous Silicon Tin Alloy Films for NIR-II Region Sensor
Previous Article in Special Issue
Zn-Mg Biodegradable Composite: Novel Material with Tailored Mechanical and Corrosion Properties
Open AccessArticle

Influence of Heat Treatment on Microstructure and Properties of NiTi46 Alloy Consolidated by Spark Plasma Sintering

1
COMTES FHT, Prumyslova 995, 334 41 Dobrany, Czech Republic
2
Department of Metals and Corrosion Engineering, University of Chemistry and Technology, Technická 5, 166 28 Prague 6, Czech Republic
3
Faculty of Nuclear Sciences and Physical Engineering, Department of Materials, Czech Technical University in Prague, Trojanova 13, 120 00 Prague 2, Czech Republic
4
Faculty of Mathematics and Physics, Department of Physics of Materials, Charles University, Ke Karlovu 5, 121 16 Prague 2, Czech Republic
*
Author to whom correspondence should be addressed.
Materials 2019, 12(24), 4075; https://doi.org/10.3390/ma12244075
Received: 12 November 2019 / Revised: 30 November 2019 / Accepted: 3 December 2019 / Published: 6 December 2019
(This article belongs to the Special Issue Advanced Powder Metallurgy Technologies)

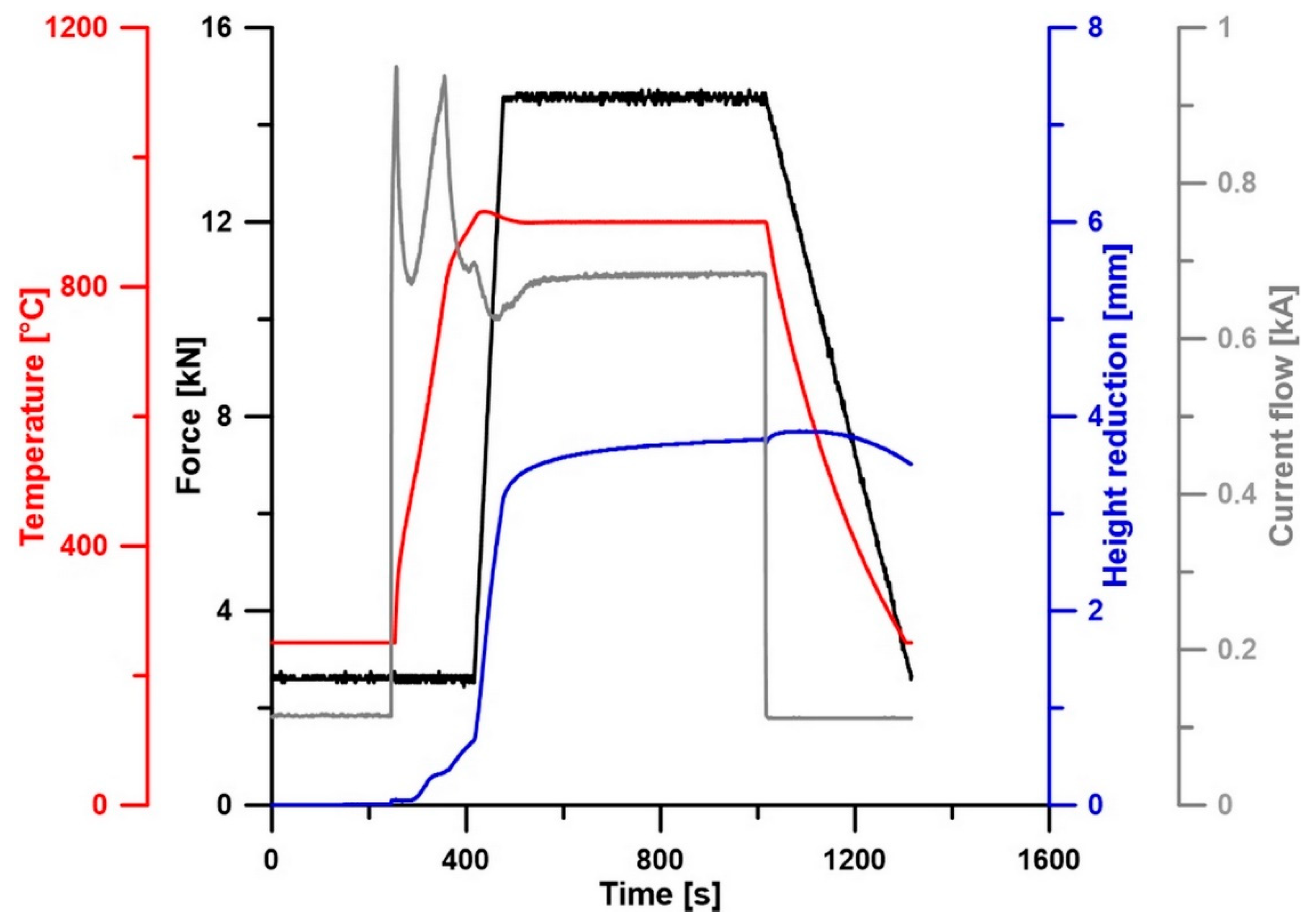

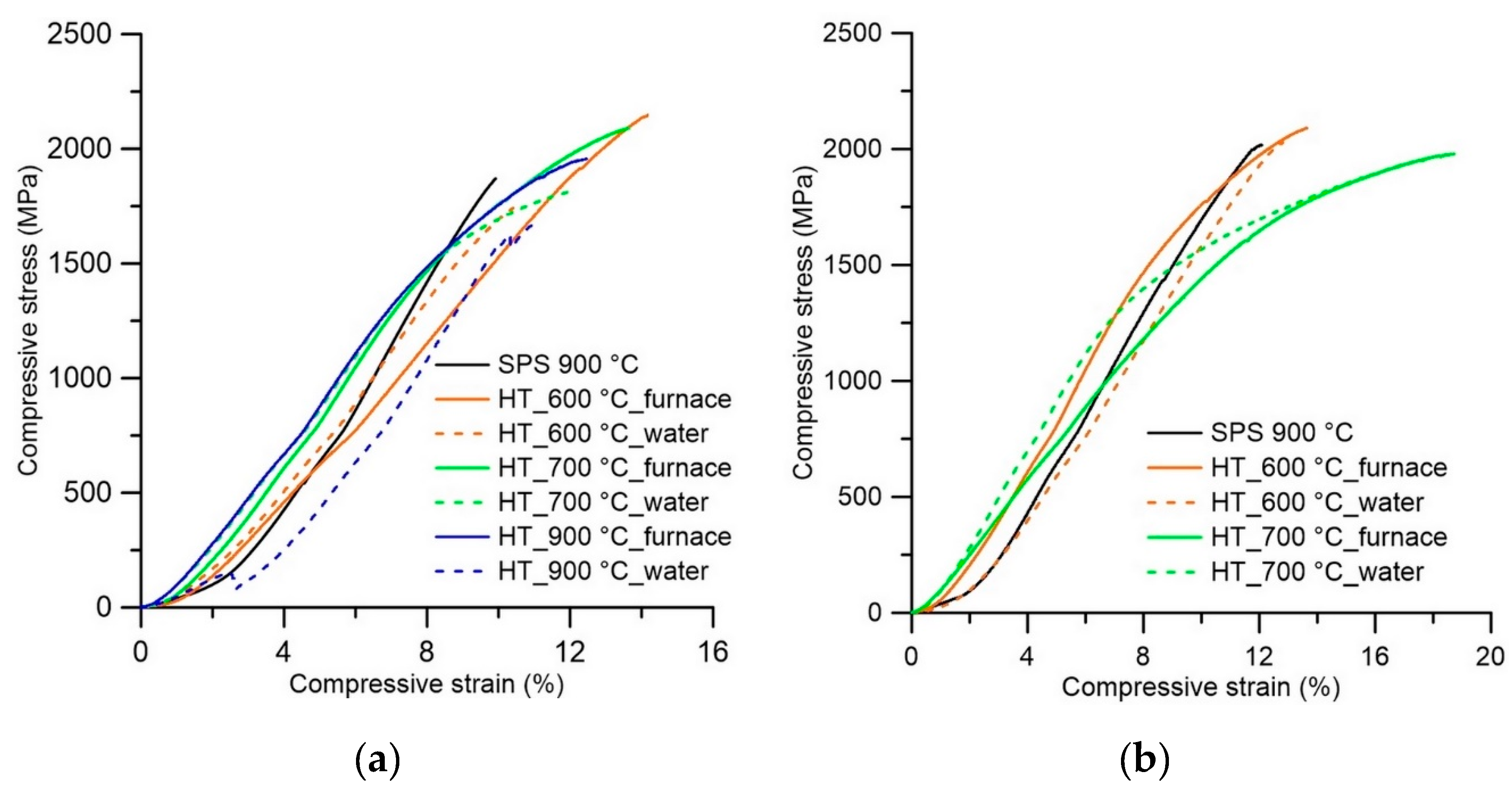

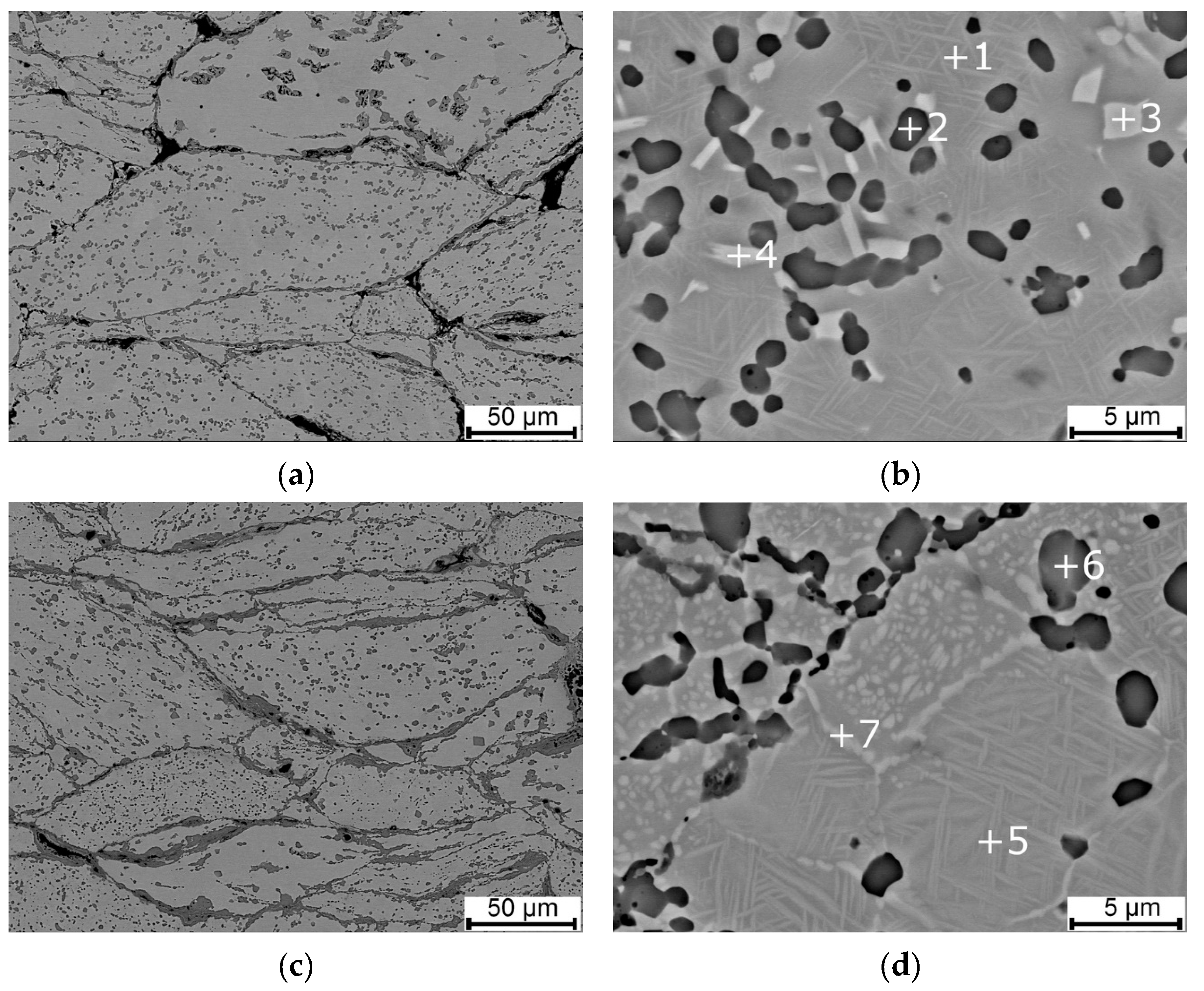

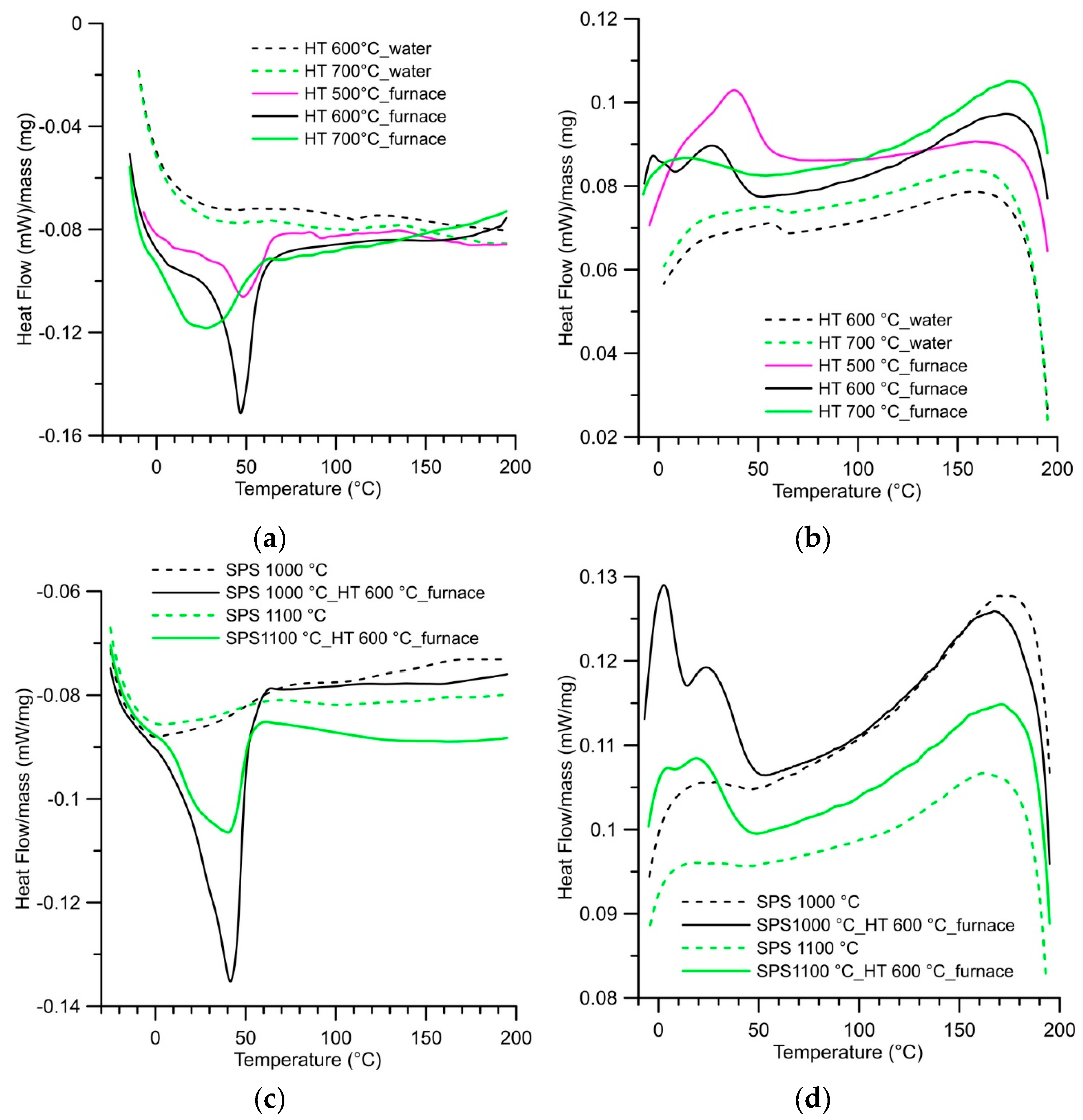

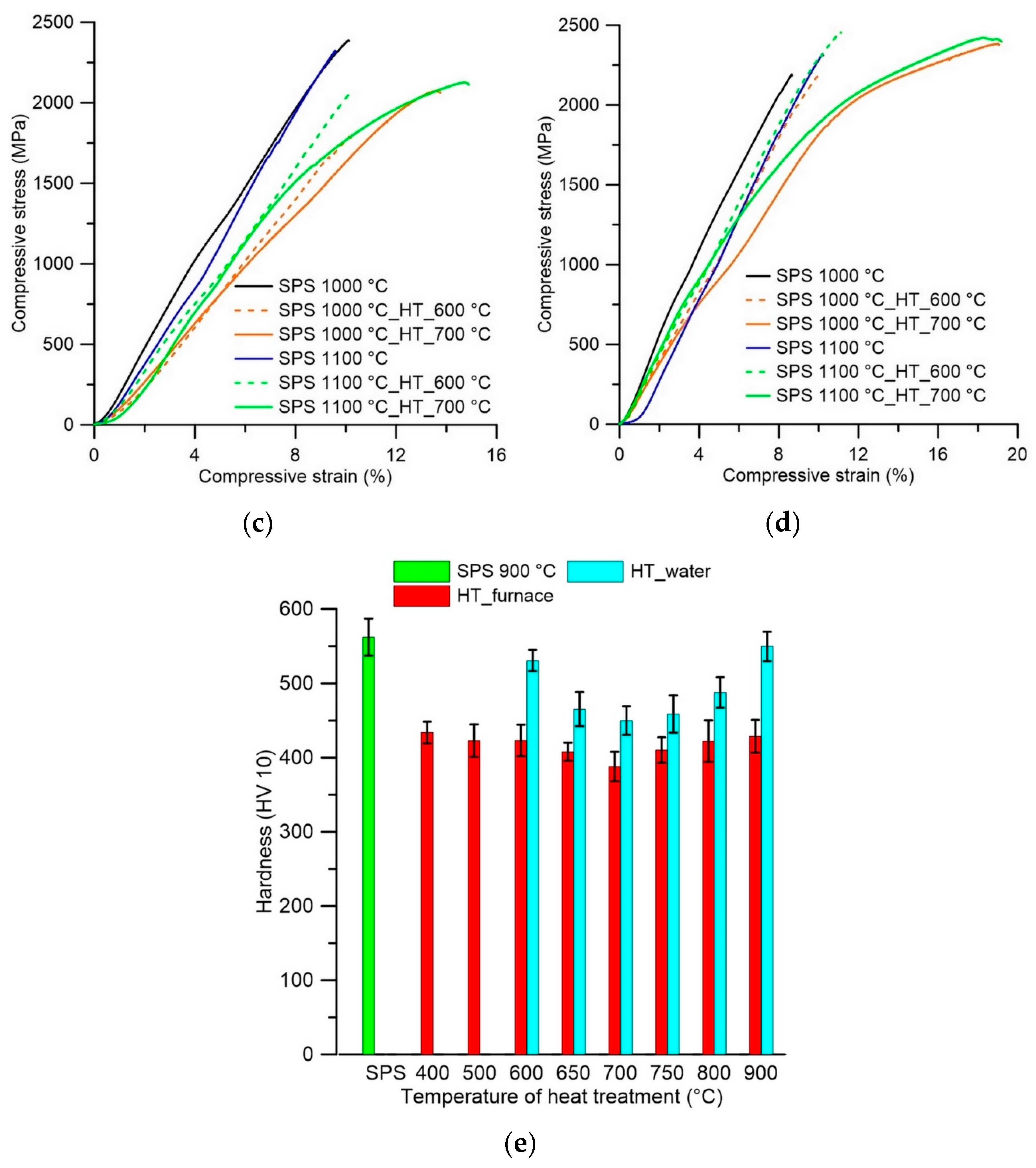

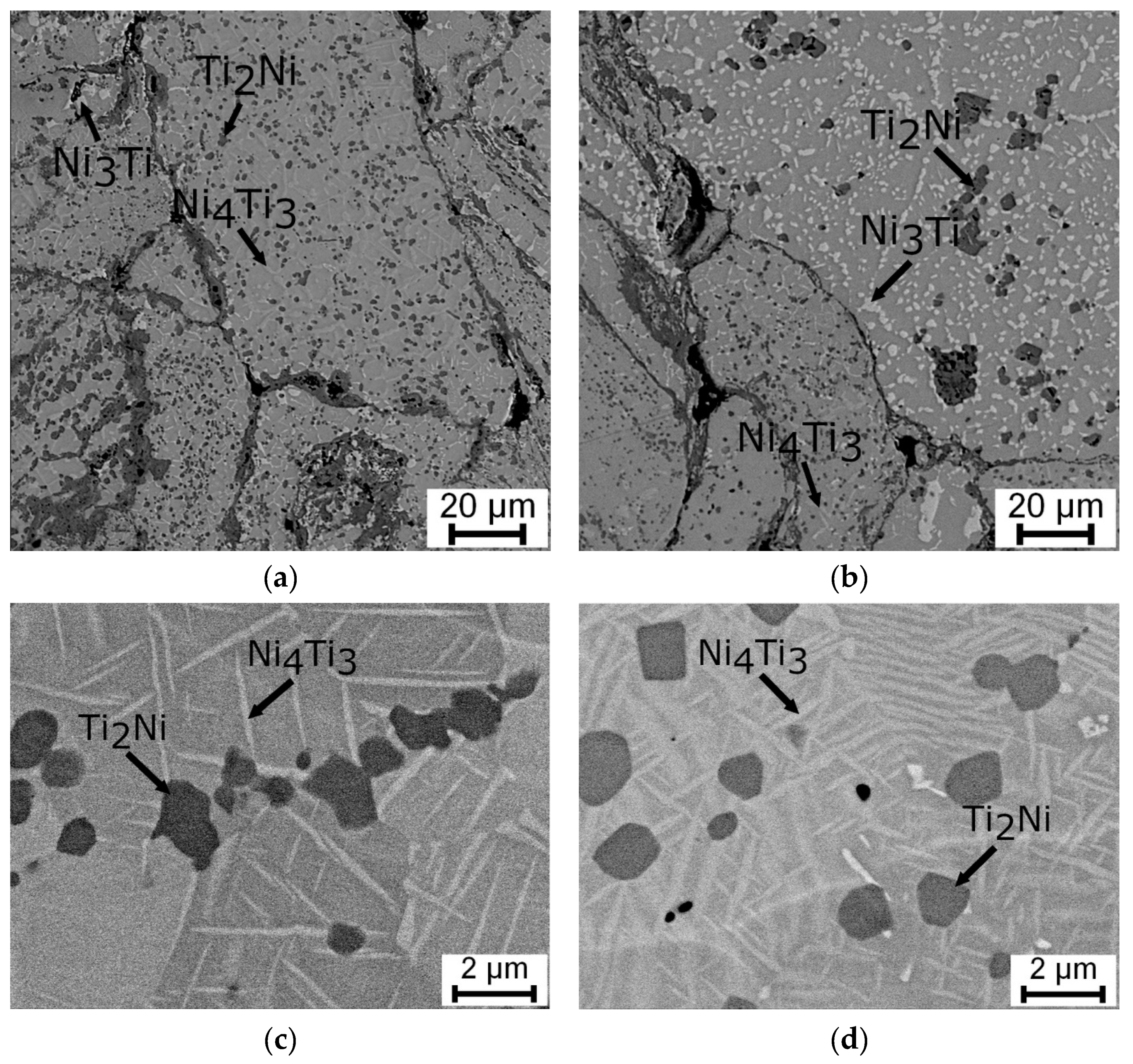

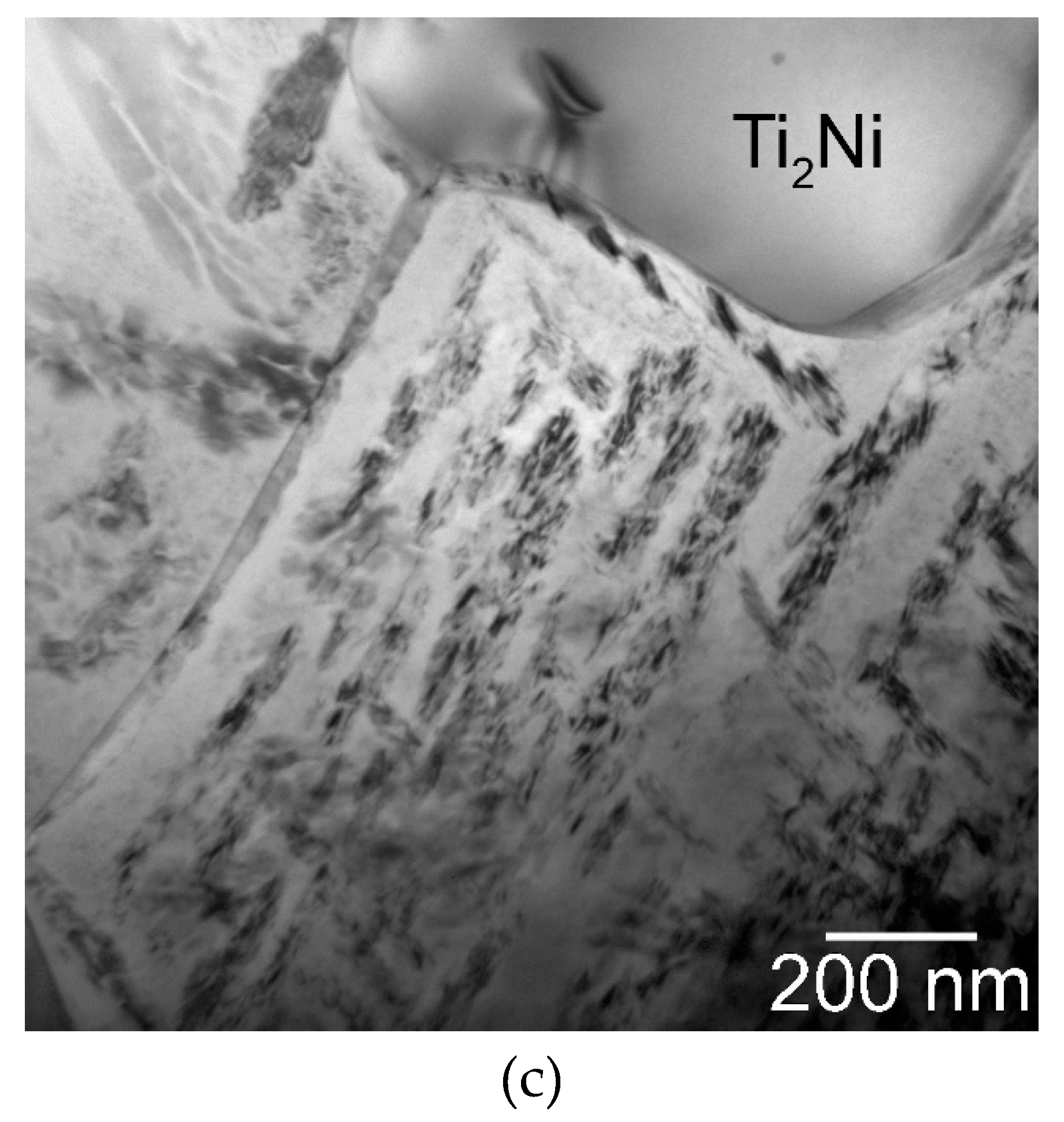

Ni-Ti alloys are considered to be very important shape memory alloys with a wide application area including, e.g., biomaterials, actuators, couplings, and components in automotive, aerospace, and robotics industries. In this study, the NiTi46 (wt.%) alloy was prepared by a combination of self-propagating high-temperature synthesis, milling, and spark plasma sintering consolidation at three various temperatures. The compacted samples were subsequently heat-treated at temperatures between 400 °C and 900 °C with the following quenching in water or slow cooling in a closed furnace. The influence of the consolidation temperature and regime of heat treatment on the microstructure, mechanical properties, and temperatures of phase transformation was evaluated. The results demonstrate the brittle behaviour of the samples directly after spark plasma sintering at all temperatures by the compressive test and no transformation temperatures at differential scanning calorimetry curves. The biggest improvement of mechanical properties, which was mainly a ductility enhancement, was achieved by heat treatment at 700 °C. Slow cooling has to be recommended in order to obtain the shape memory properties. View Full-Text
Keywords: Ni-Ti alloy; self-propagating high-temperature synthesis; spark plasma sintering; aging; compressive test; hardness; shape memory Ni-Ti alloy; self-propagating high-temperature synthesis; spark plasma sintering; aging; compressive test; hardness; shape memory
Show Figures

Graphical abstract

MDPI and ACS Style

Salvetr, P.; Dlouhý, J.; Školáková, A.; Průša, F.; Novák, P.; Karlík, M.; Haušild, P. Influence of Heat Treatment on Microstructure and Properties of NiTi46 Alloy Consolidated by Spark Plasma Sintering. Materials 2019, 12, 4075.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
