Next Article in Journal
Characteristics of Different Types of Basic Oxygen Furnace Slag Filler and its Influence on Properties of Asphalt Mastic
Next Article in Special Issue
Solidification Crack Evolution in High-Strength Steel Welding Using the Extended Finite Element Method
Previous Article in Journal
Dielectric and Impedance Studies of (Ba,Ca)TiO3 Ceramics Obtained from Mechanically Synthesized Powders
Previous Article in Special Issue
Fracture Mechanisms of S355 Steel—Experimental Research, FEM Simulation and SEM Observation
Open AccessArticle

Critical Assessment of Techniques for the Description of the Phase Composition of Advanced High-Strength Steels

Department of Metals and Corrosion Engineering, University of Chemistry and Technology, Technická 5, 166 28 Prague, Czech Republic
Nuclear Physics Institute, Czech Academy of Sciences, 250 68 Řež, Czech Republic
European Spallation Source ERIC, 222 70 Lund, Sweden
Author to whom correspondence should be addressed.
Materials 2019, 12(24), 4033;
Received: 4 November 2019 / Revised: 27 November 2019 / Accepted: 2 December 2019 / Published: 4 December 2019
(This article belongs to the Special Issue The Progress of Advance High-Strength Steels (AHSS))

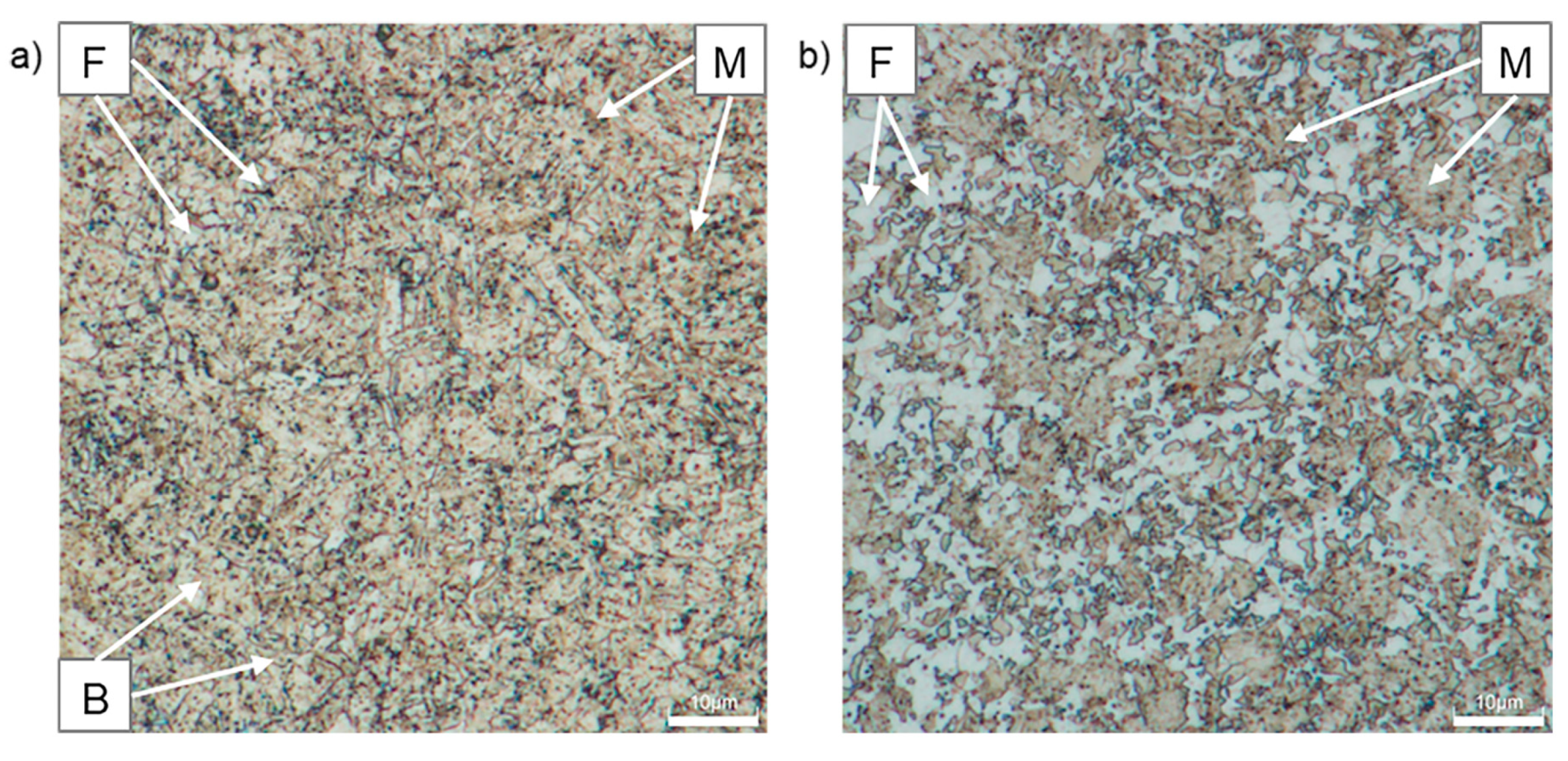

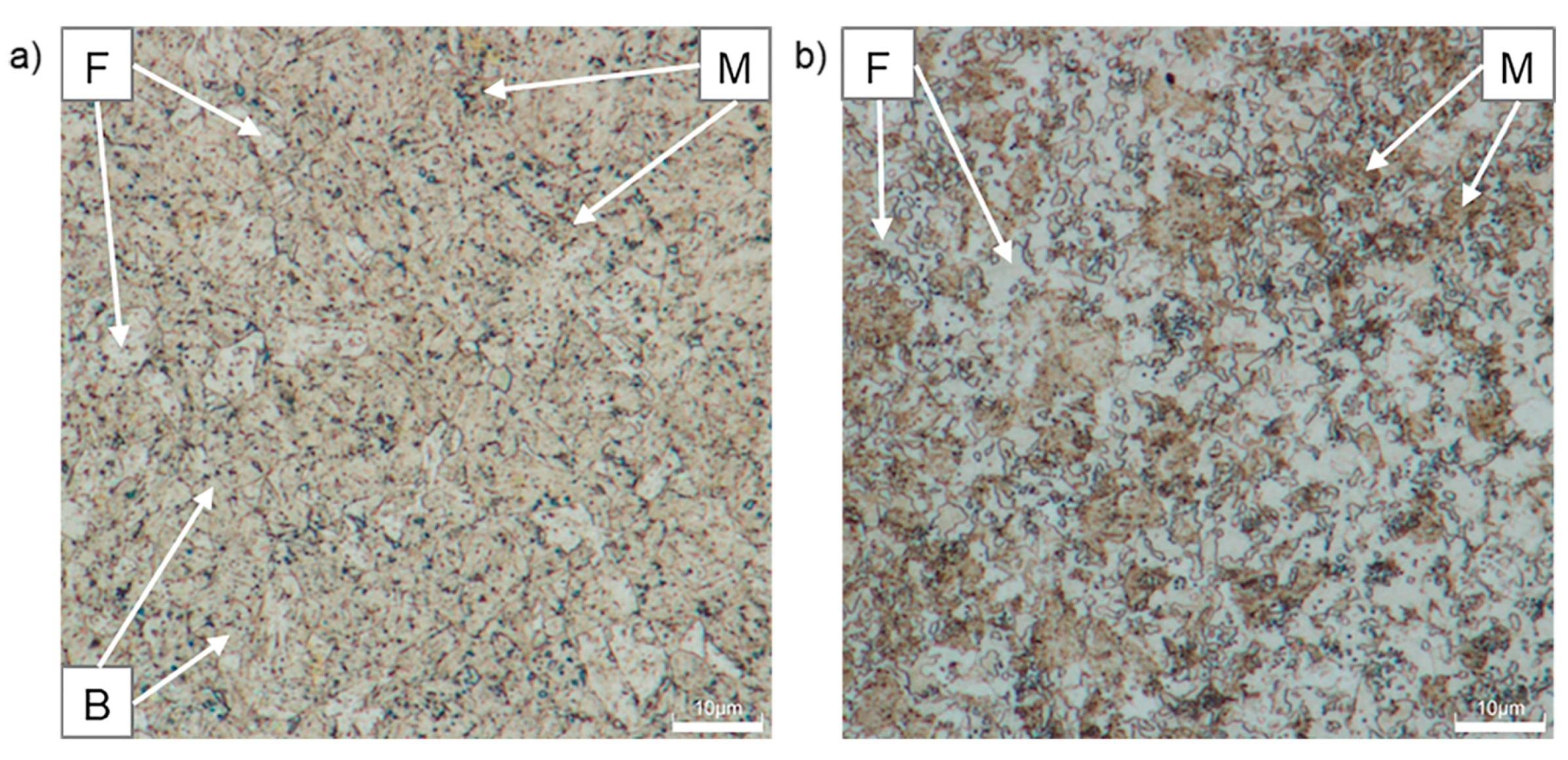

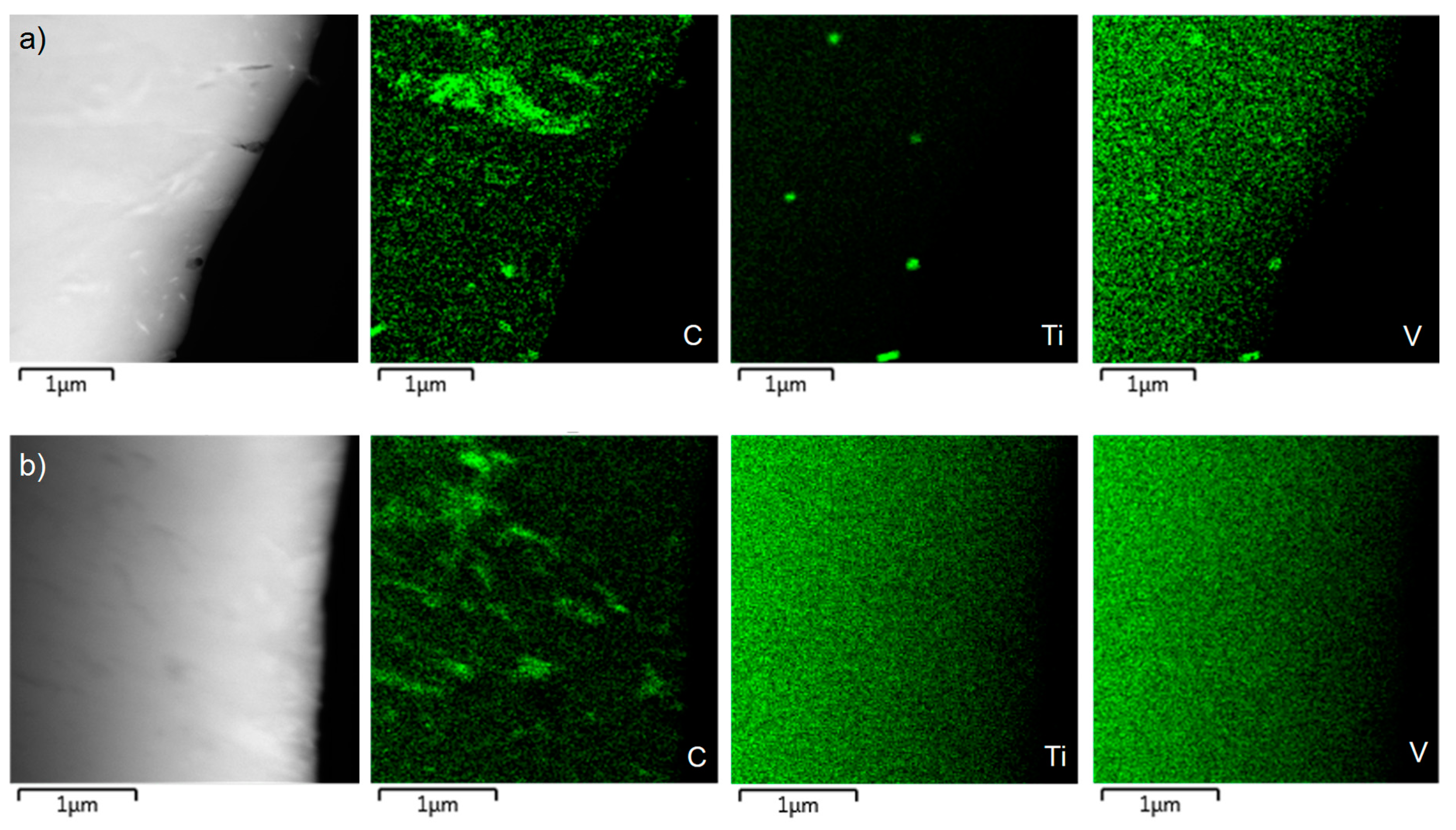

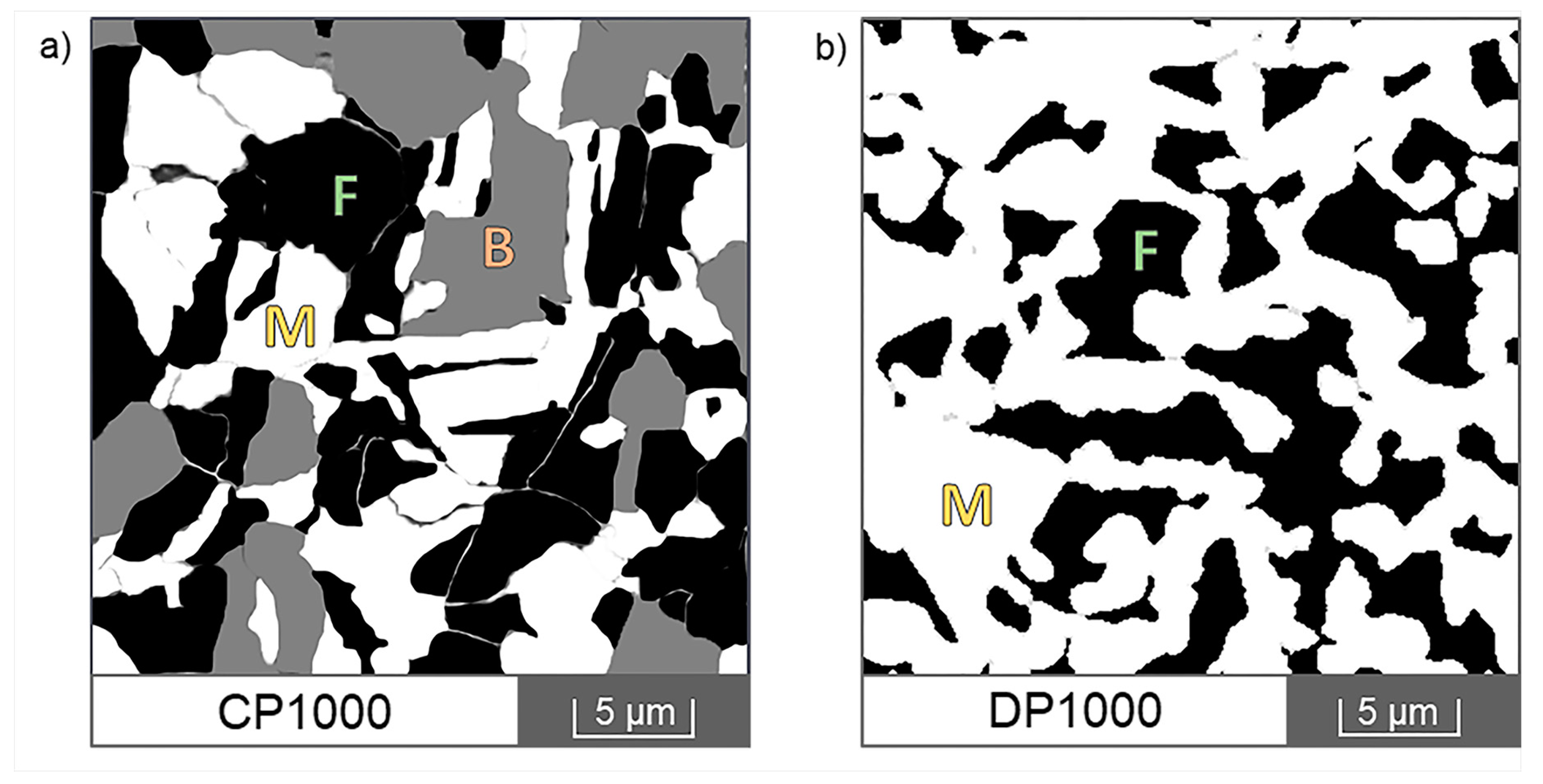

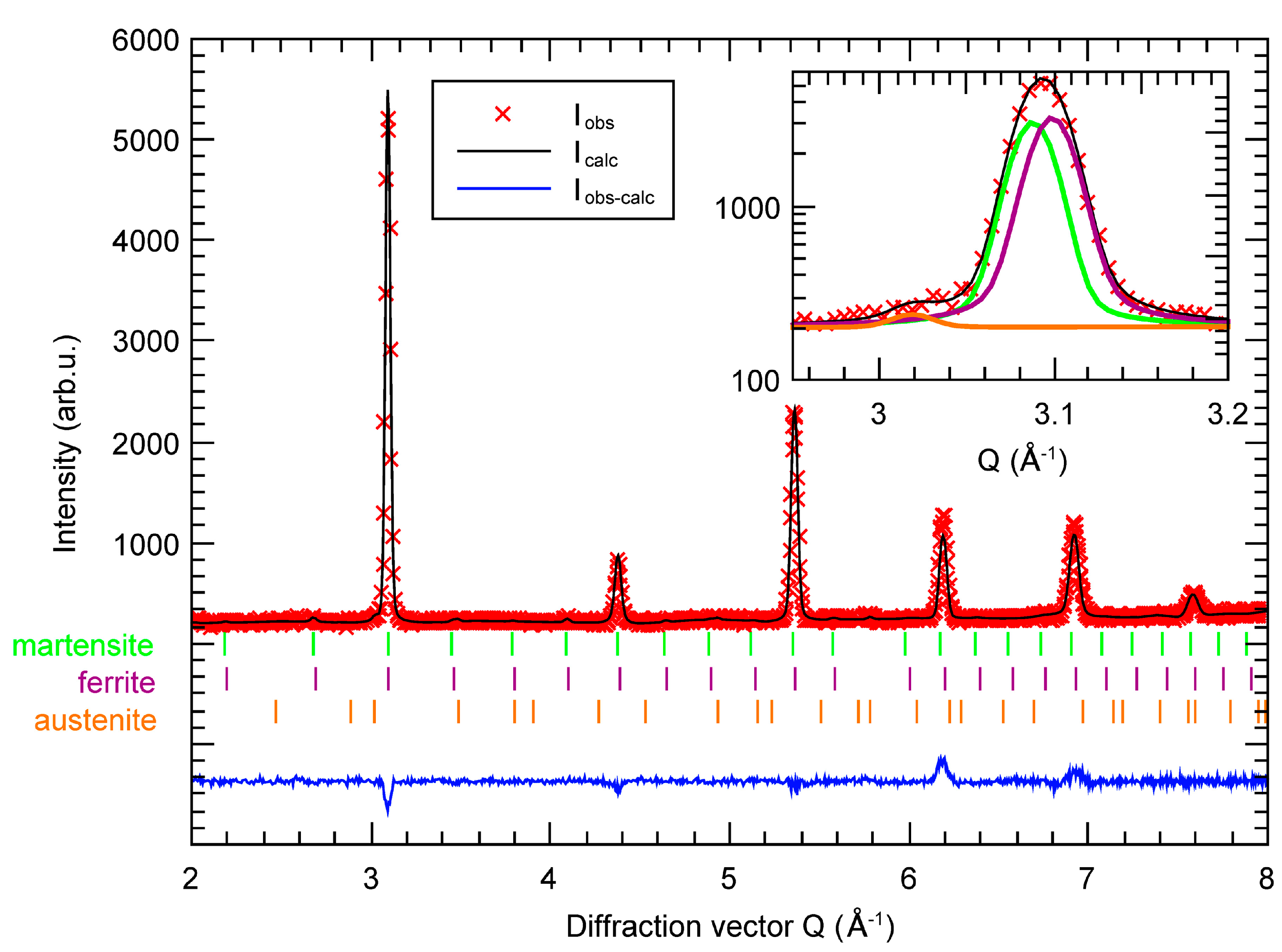

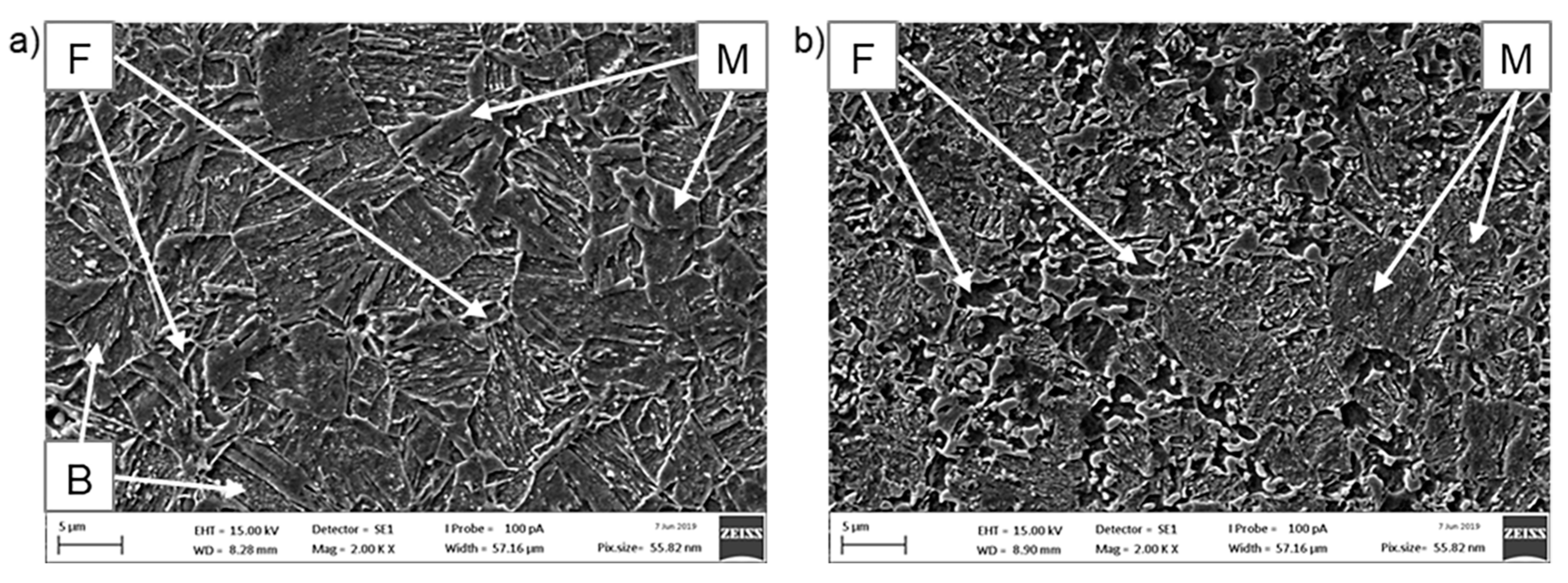

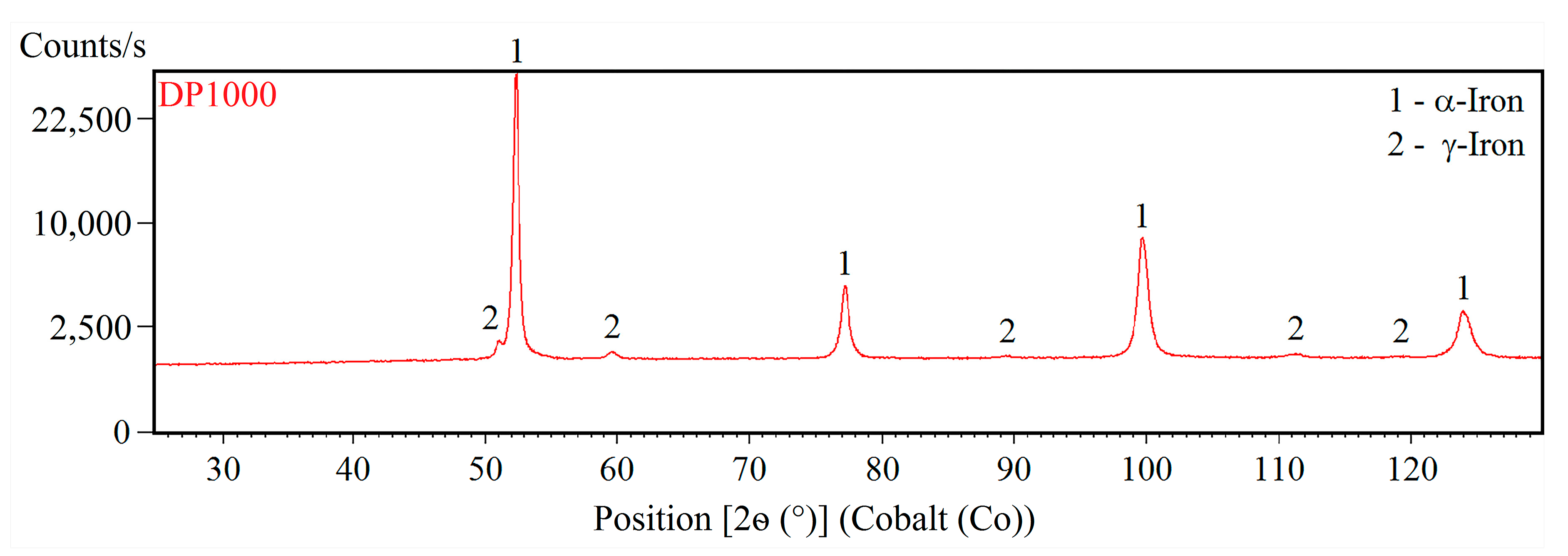

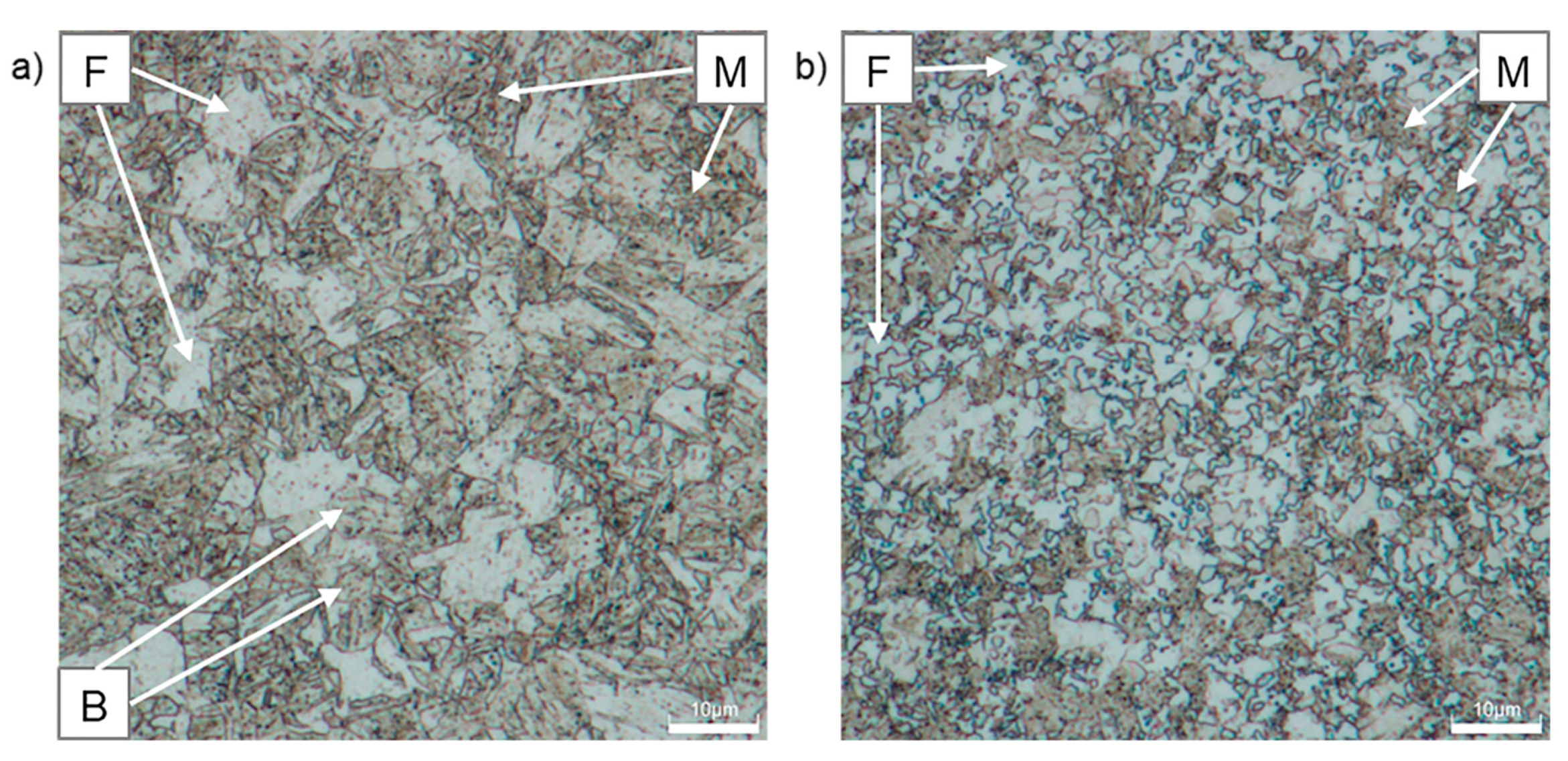

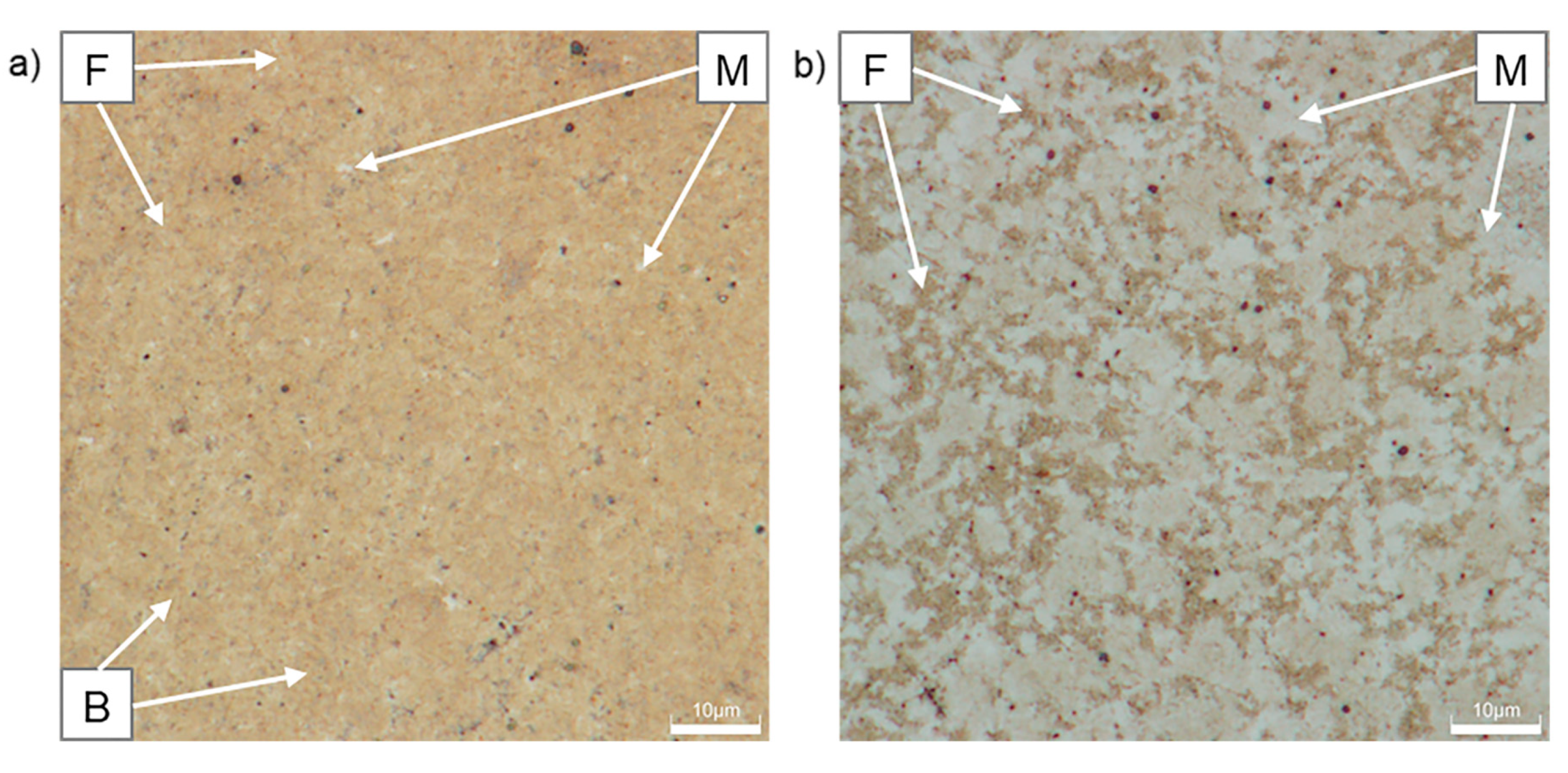

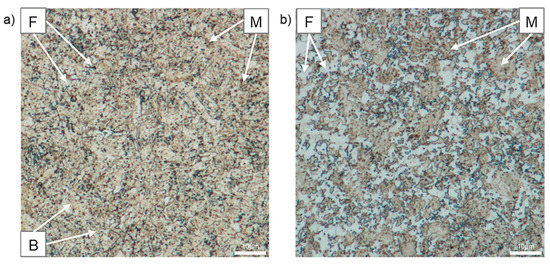

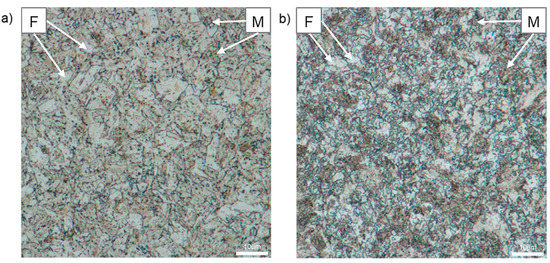

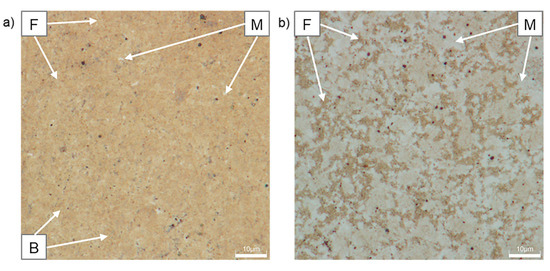

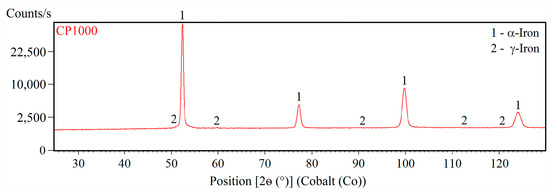

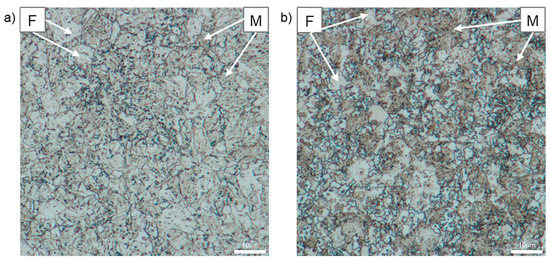

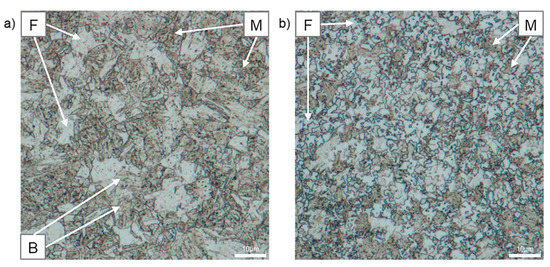

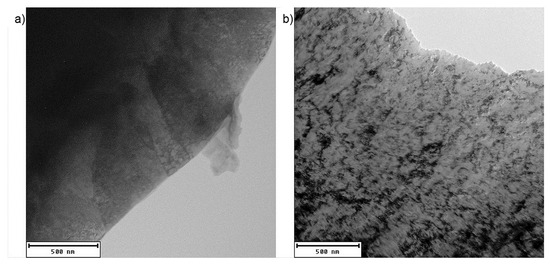

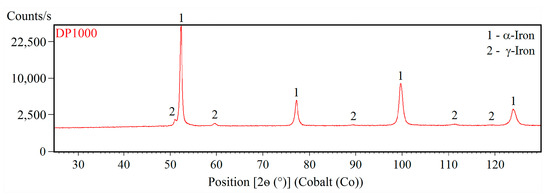

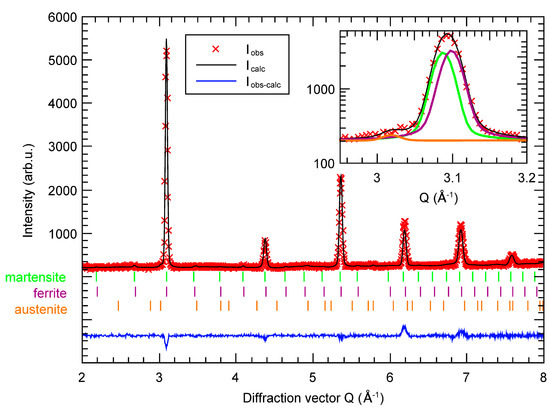

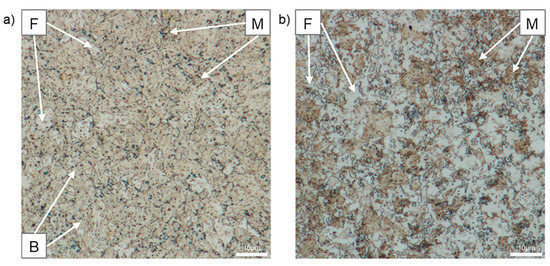

The phase composition and portion of individual phases in advanced high-strength steels (AHSS) CP1000 and DP1000 was studied by complementary microscopic and diffraction techniques. CP1000 and DP1000 steel grades have a high strength-to-density ratio and they are used in many applications in the automotive industry. The microstructure of the CP1000 “complex phase” steel consists of ferrite, bainite, martensite and a small amount of retained austenite. DP1000 is a dual phase steel, which has a structure of a ferritic matrix with islands of martensite and a minor amount of retained austenite. The influence of selected etchants (Nital, LePera, Beraha I, Nital followed by metabisulfite, Nital followed by LePera, and Nital followed by Beraha I) on the microstructure image is described. X-ray diffraction, neutron diffraction and light optical, scanning and transmission electron microscopy were used in this work for advanced characterization of the microstructure and phase composition. The information provided by each technique is critically compared. View Full-Text
Keywords: high strength steels; microstructure; etching agents high strength steels; microstructure; etching agents
Show Figures

Figure 1

MDPI and ACS Style

Knaislová, A.; Rudomilova, D.; Novák, P.; Prošek, T.; Michalcová, A.; Beran, P. Critical Assessment of Techniques for the Description of the Phase Composition of Advanced High-Strength Steels. Materials 2019, 12, 4033.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Search more from Scilit
Back to TopTop
