Initial Crack Propagation and the Influence Factors of Aircraft Pipe Pressure
Abstract
:1. Introduction
2. The Extended Finite Element Method

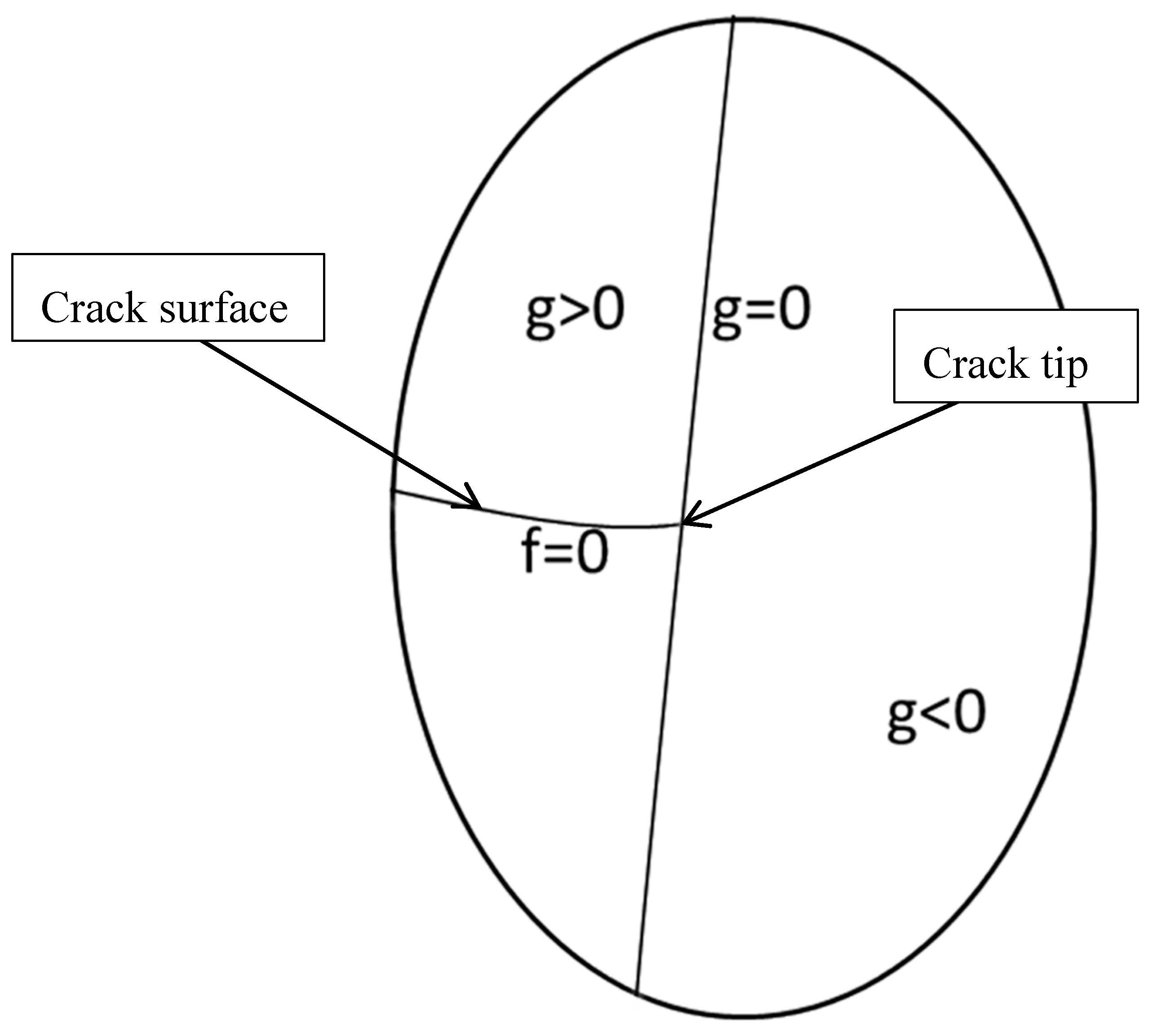

2.1. Level Set Method and Unit Decomposition Method

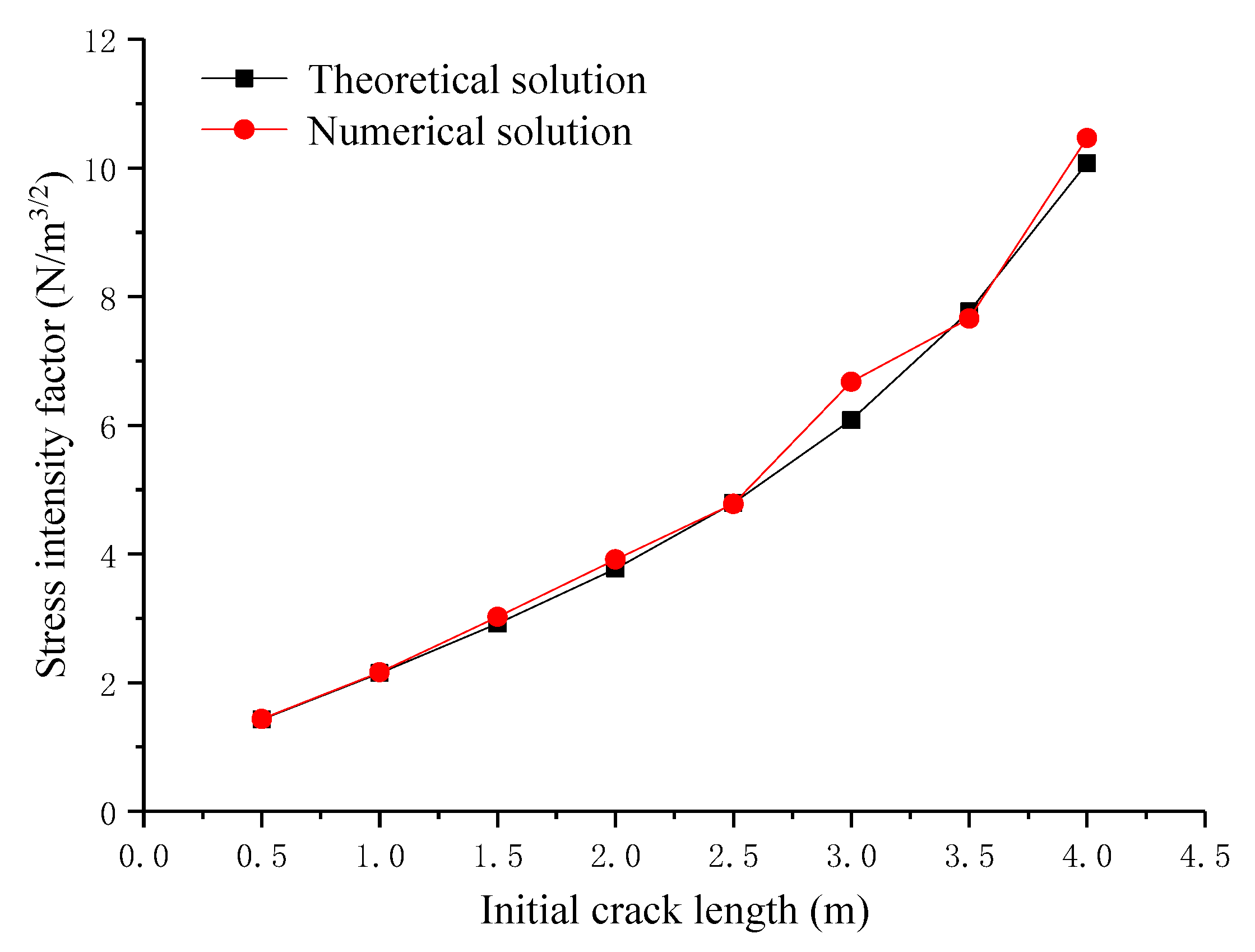

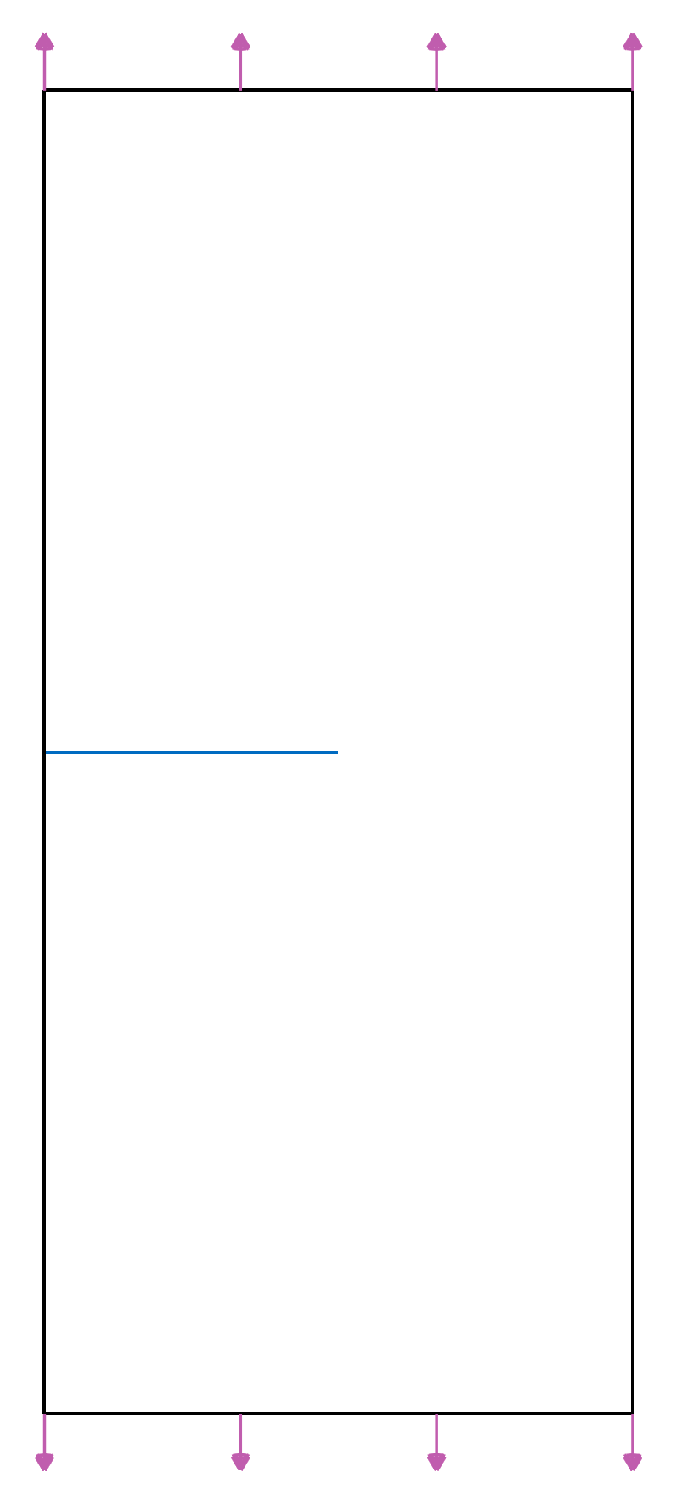

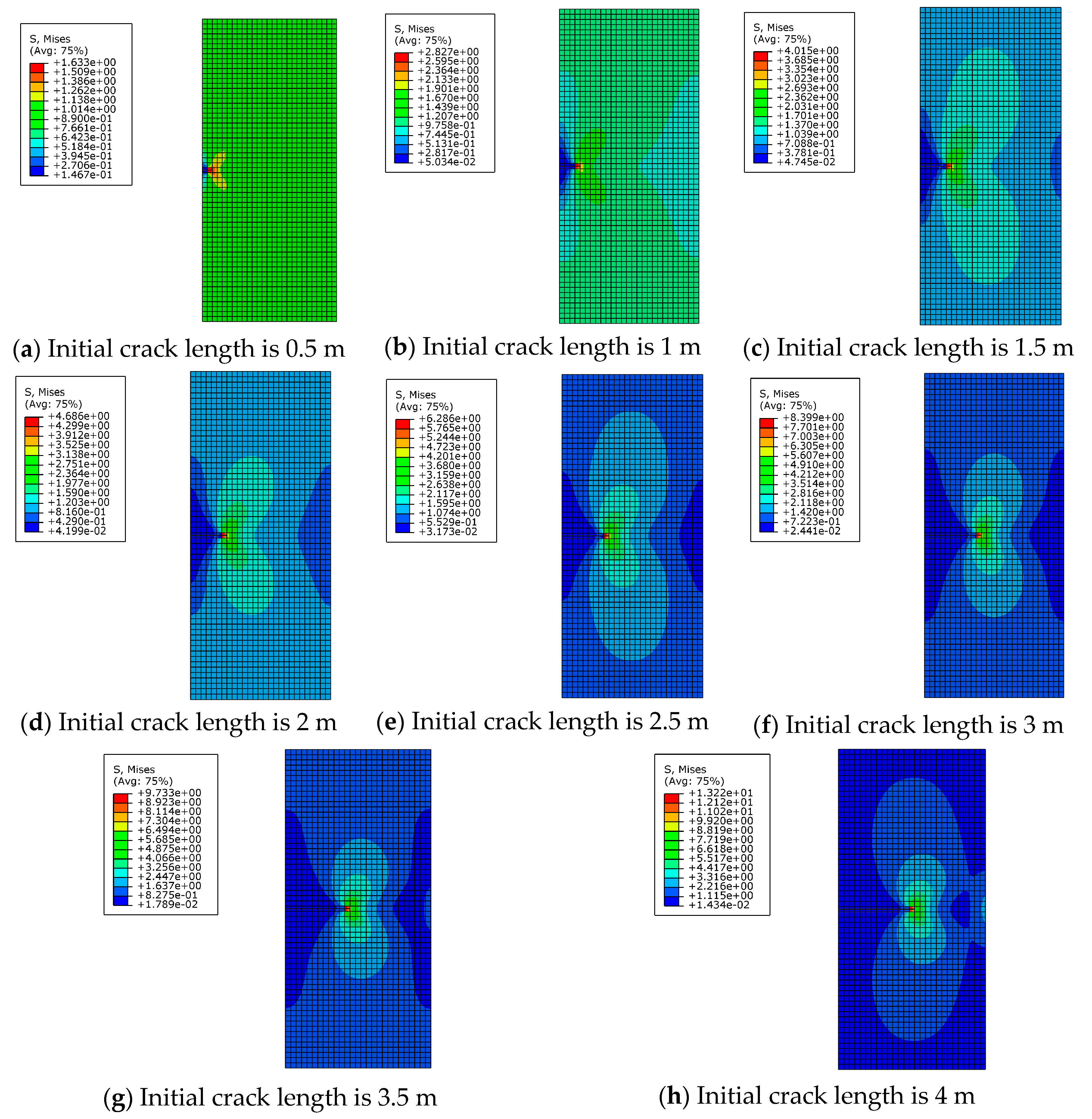

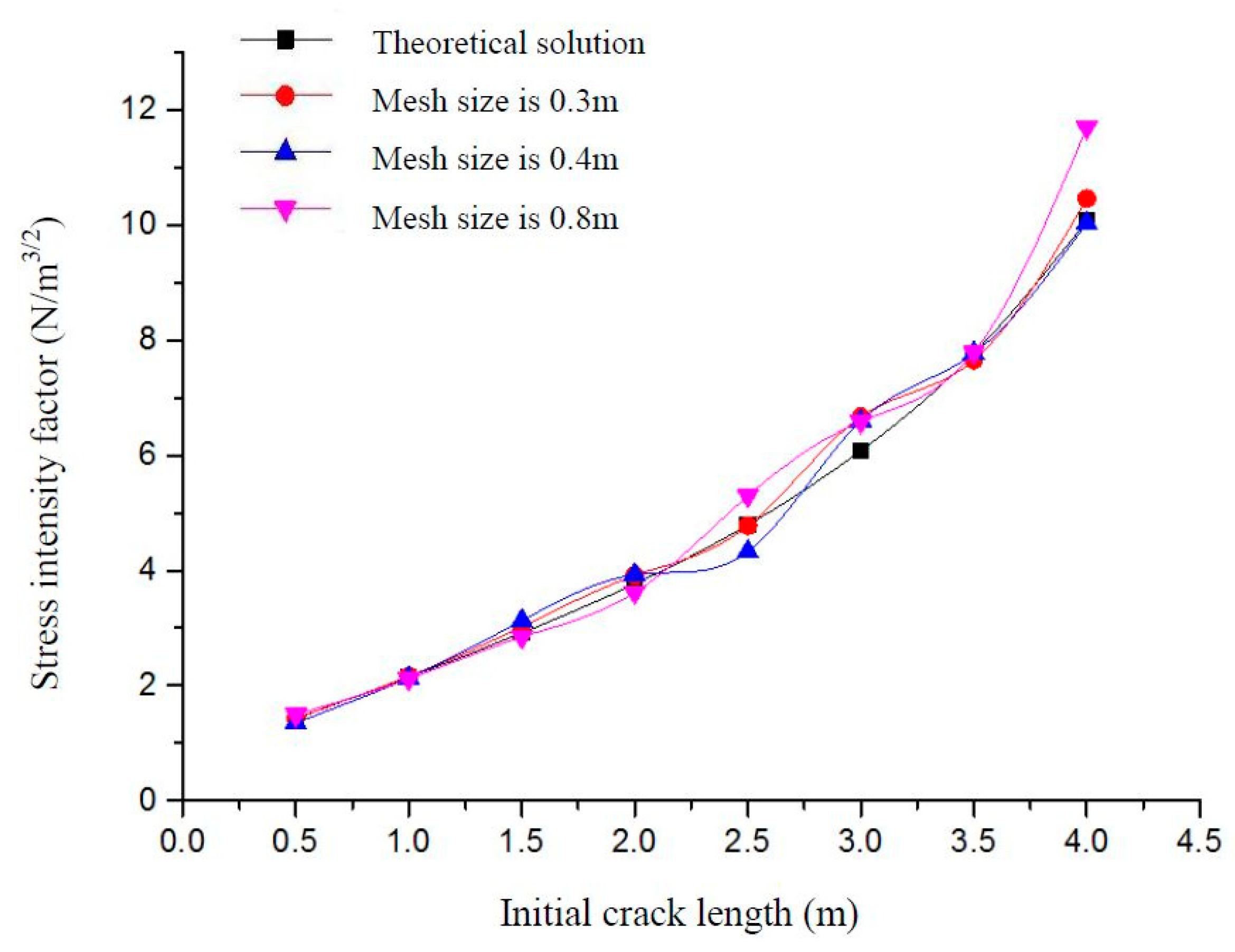

2.2. Correctness and Mesh Independence Verification of the XFEM
3. Crack Propagation in Aircraft Pipes

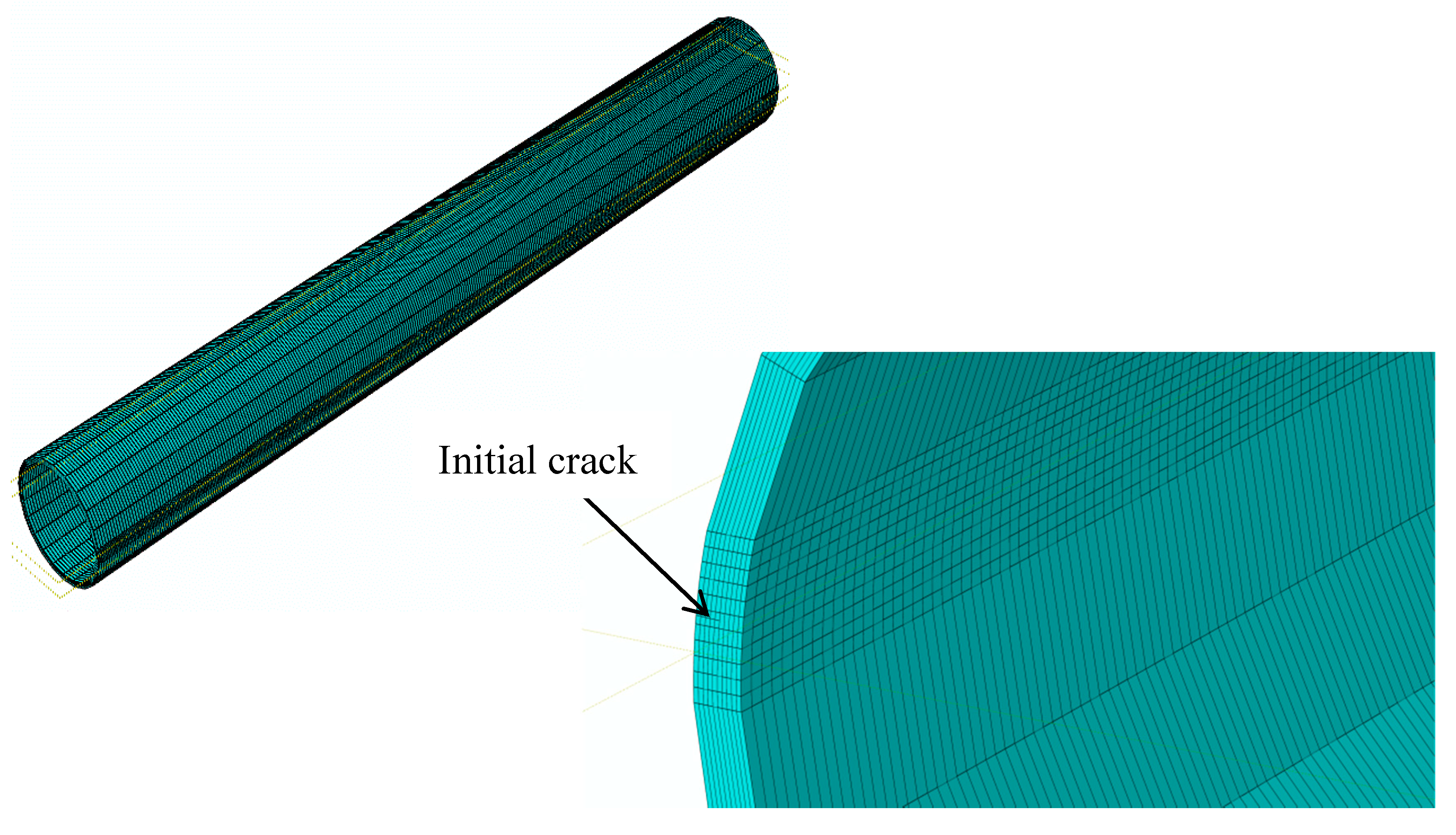

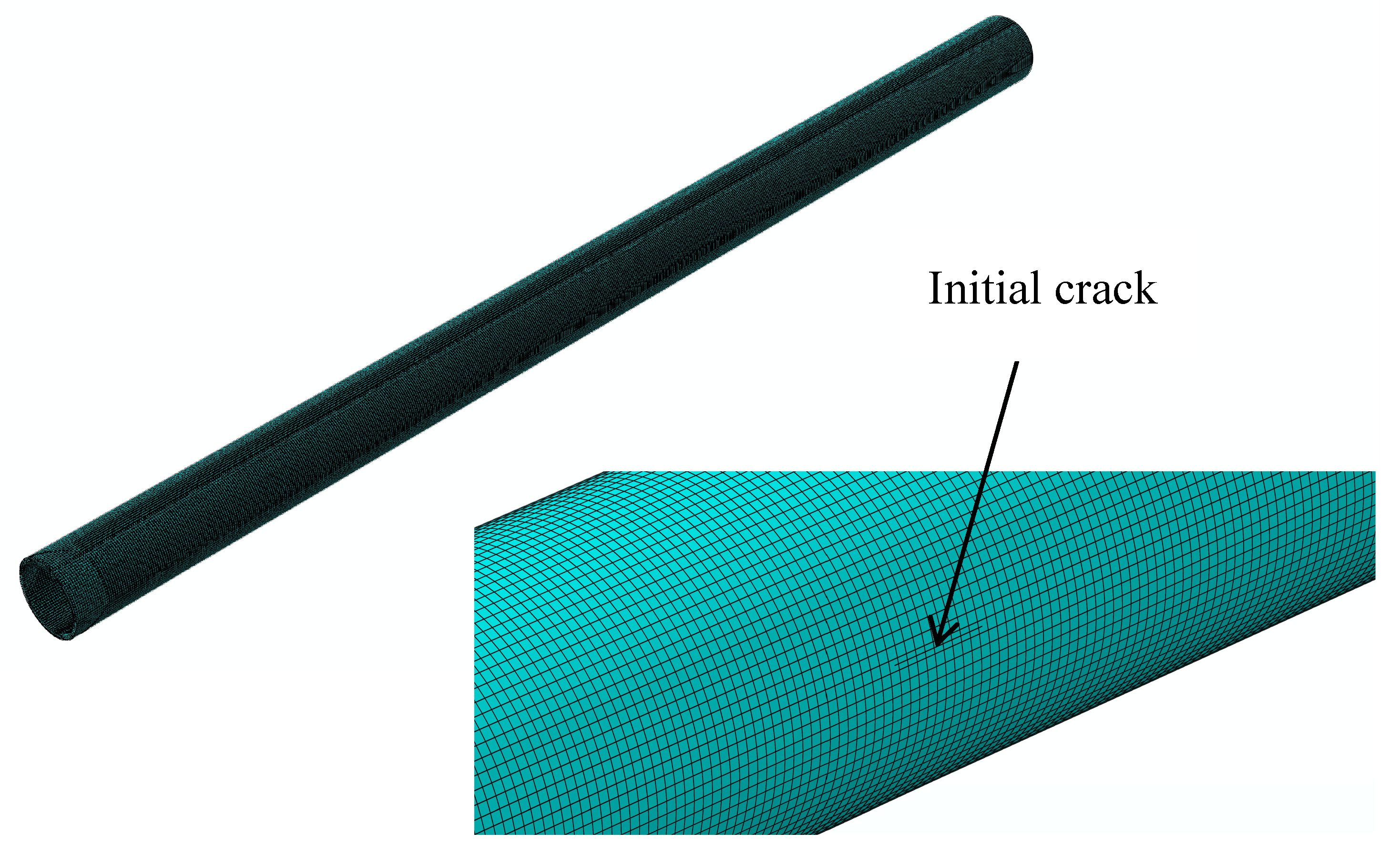

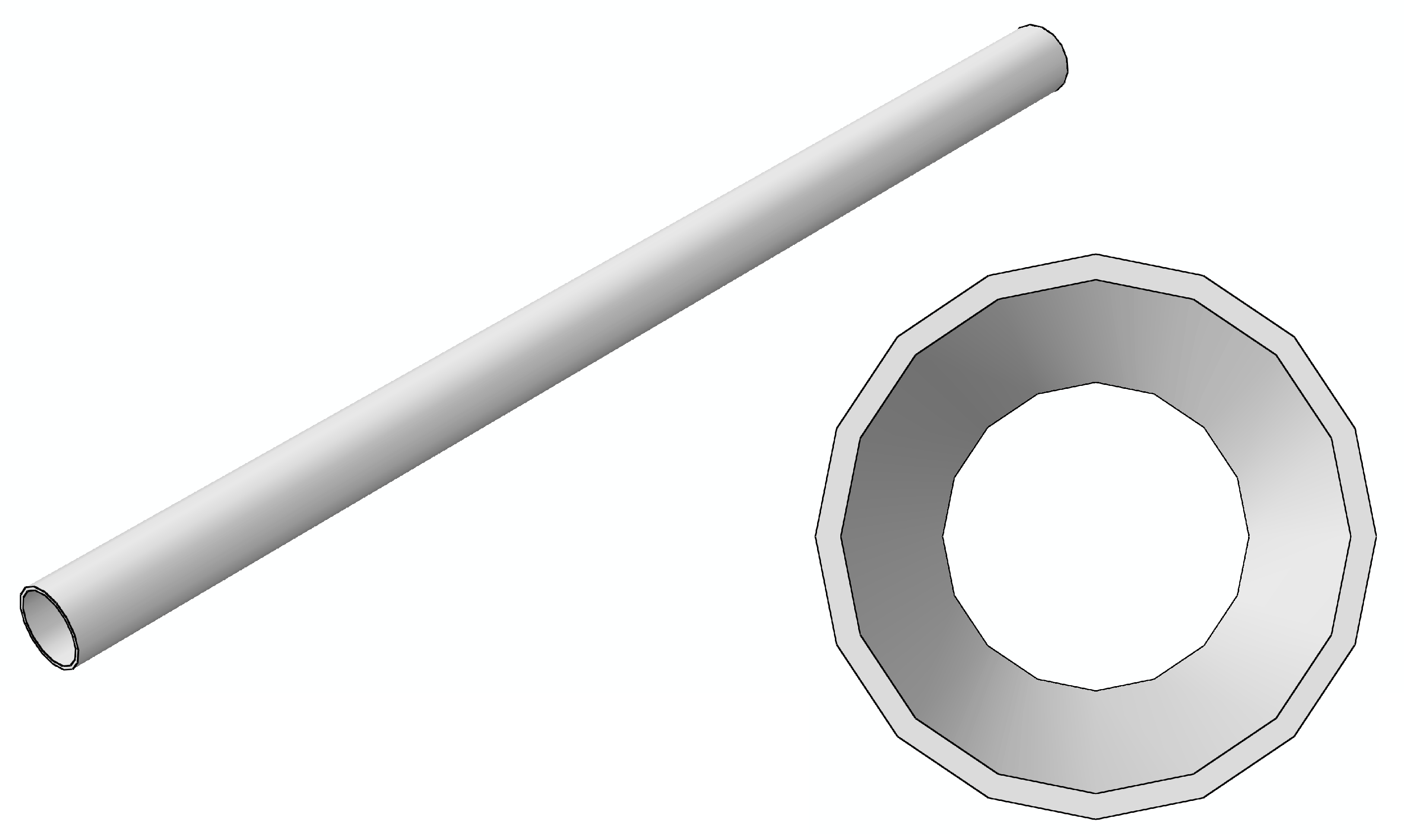

3.1. Geometric and Numerical Models

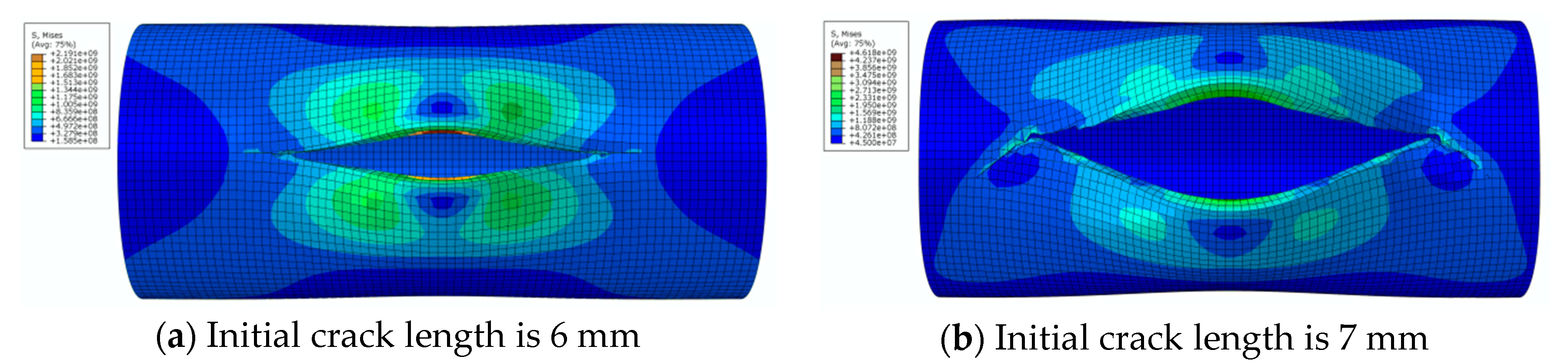

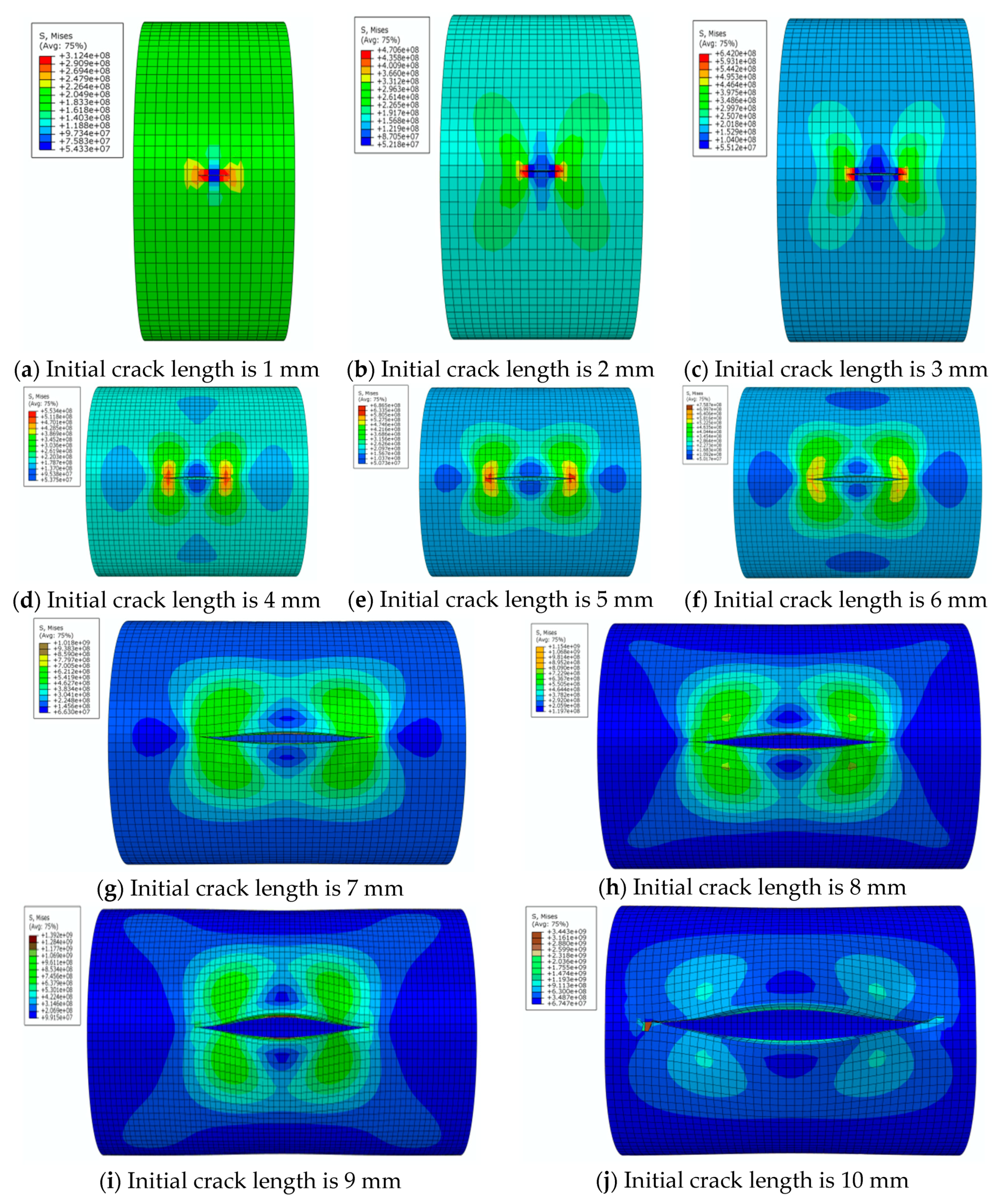

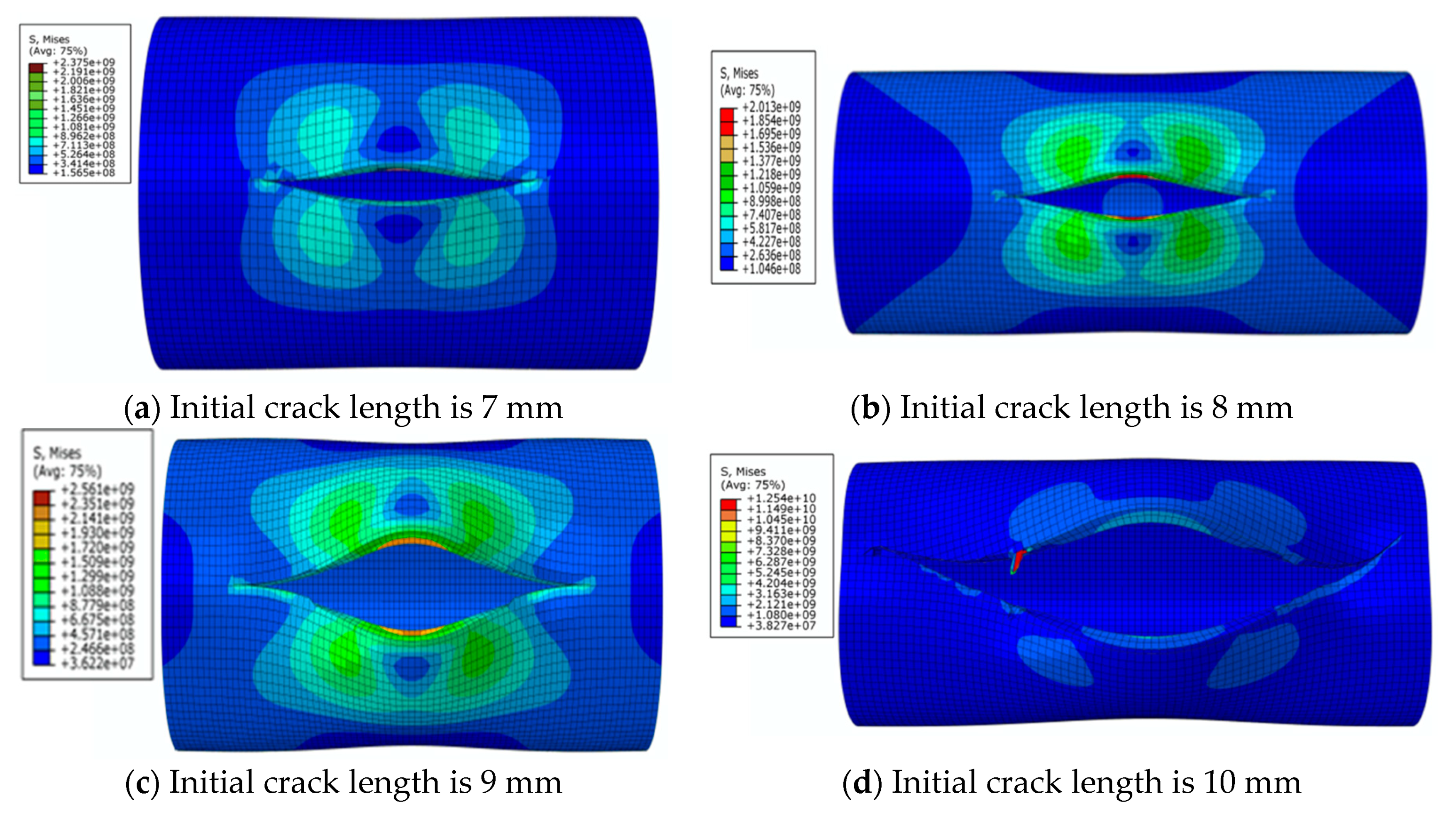

3.2. Results and Discussion
4. Factors Affecting Crack Propagation

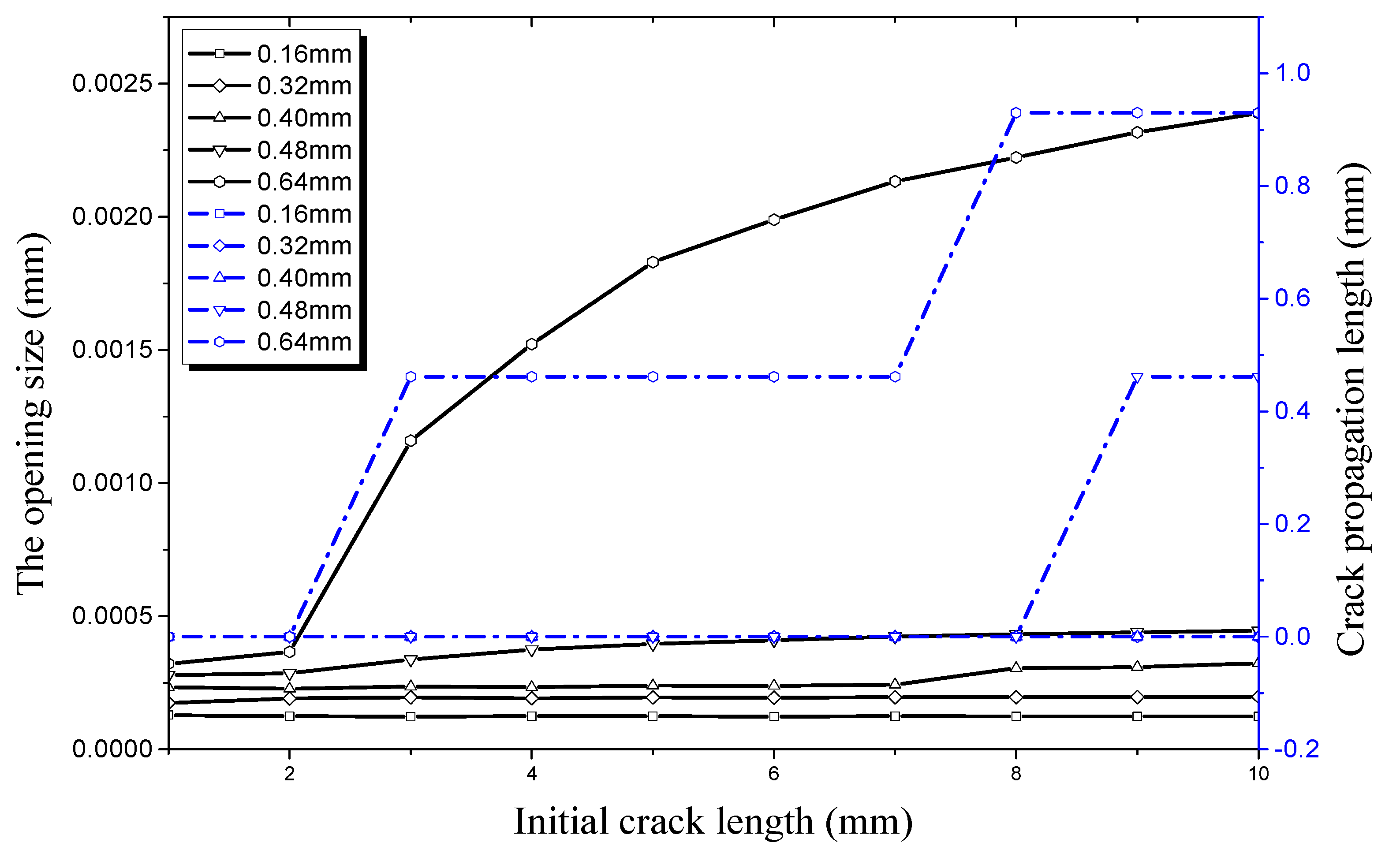

4.1. Factors Affecting Initial Crack Propagation on the Outer Surface

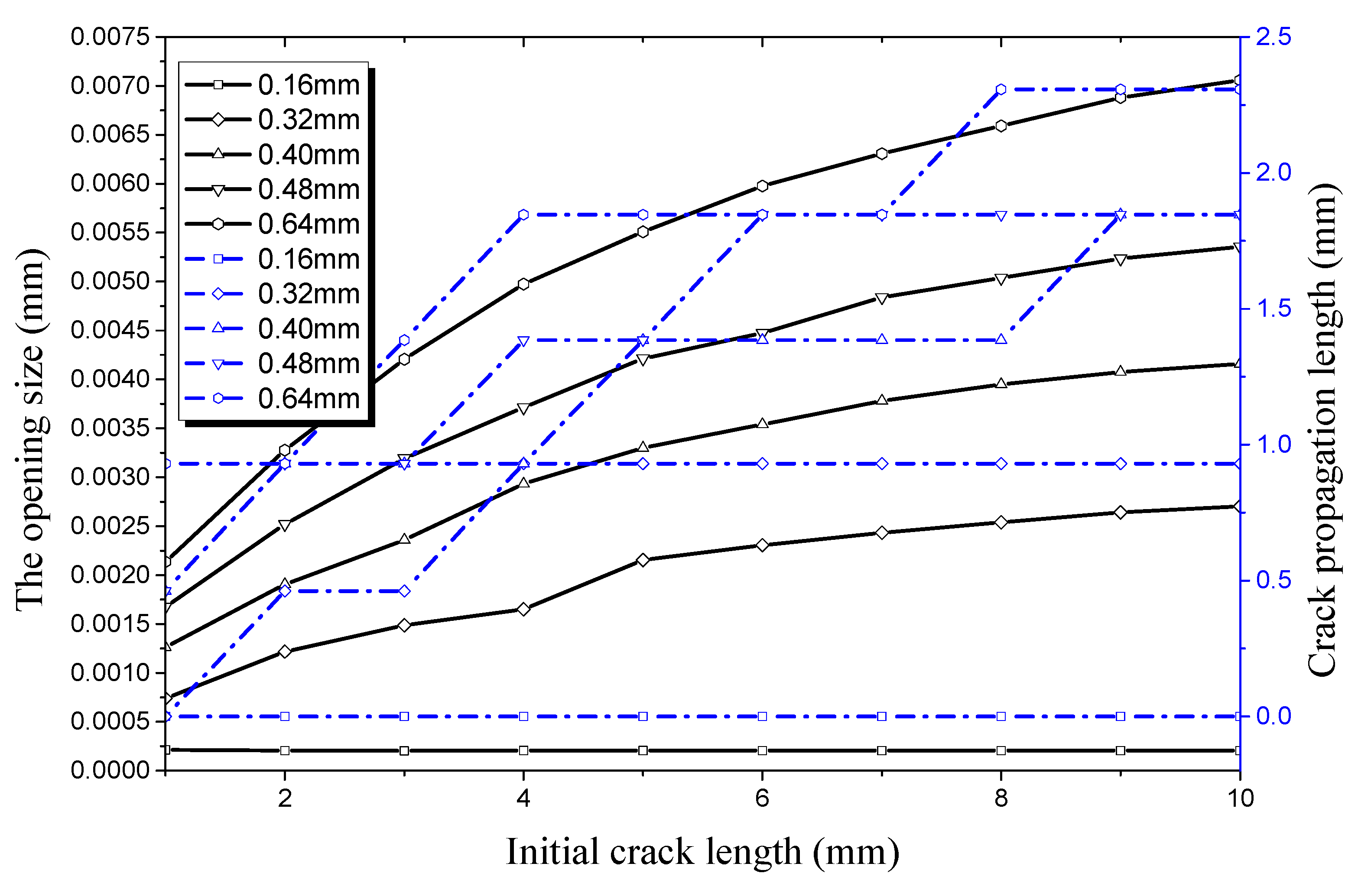

4.1.1. Crack Propagation in the Longitudinal Direction

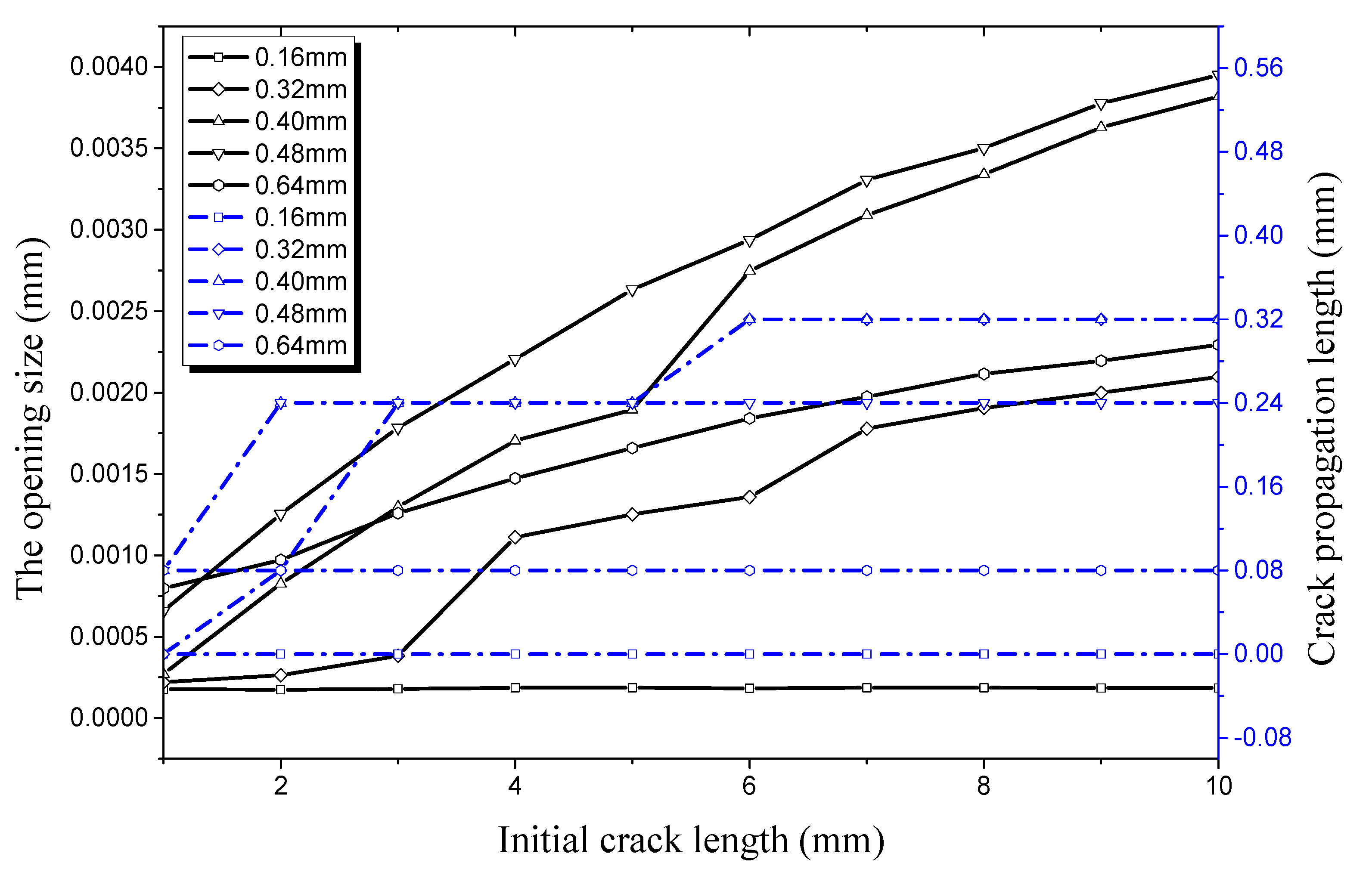

4.1.2. Crack Propagation in the Radial Direction

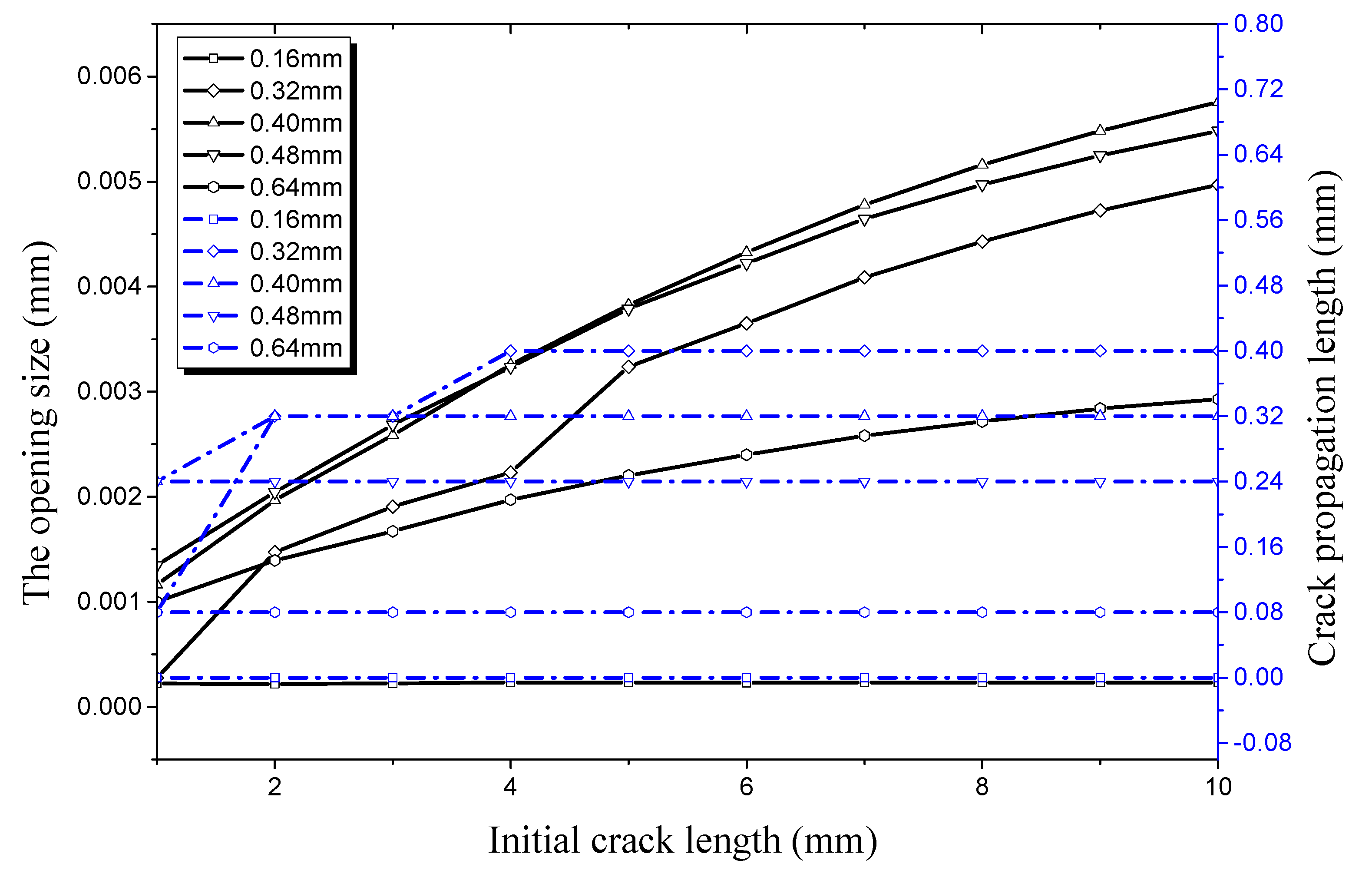

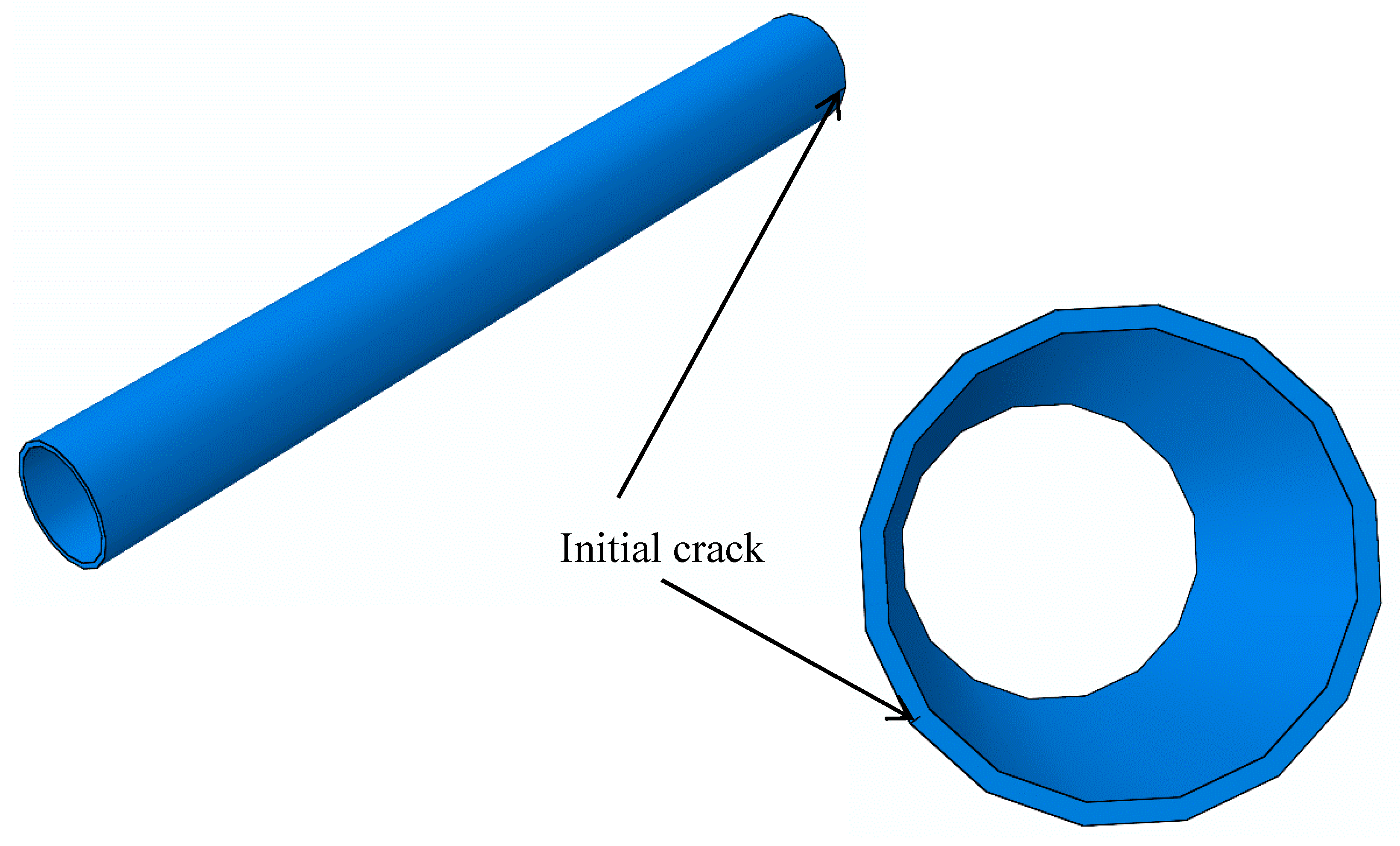

4.2. Factors Affecting Initial Crack Propagation on the Inner Surface

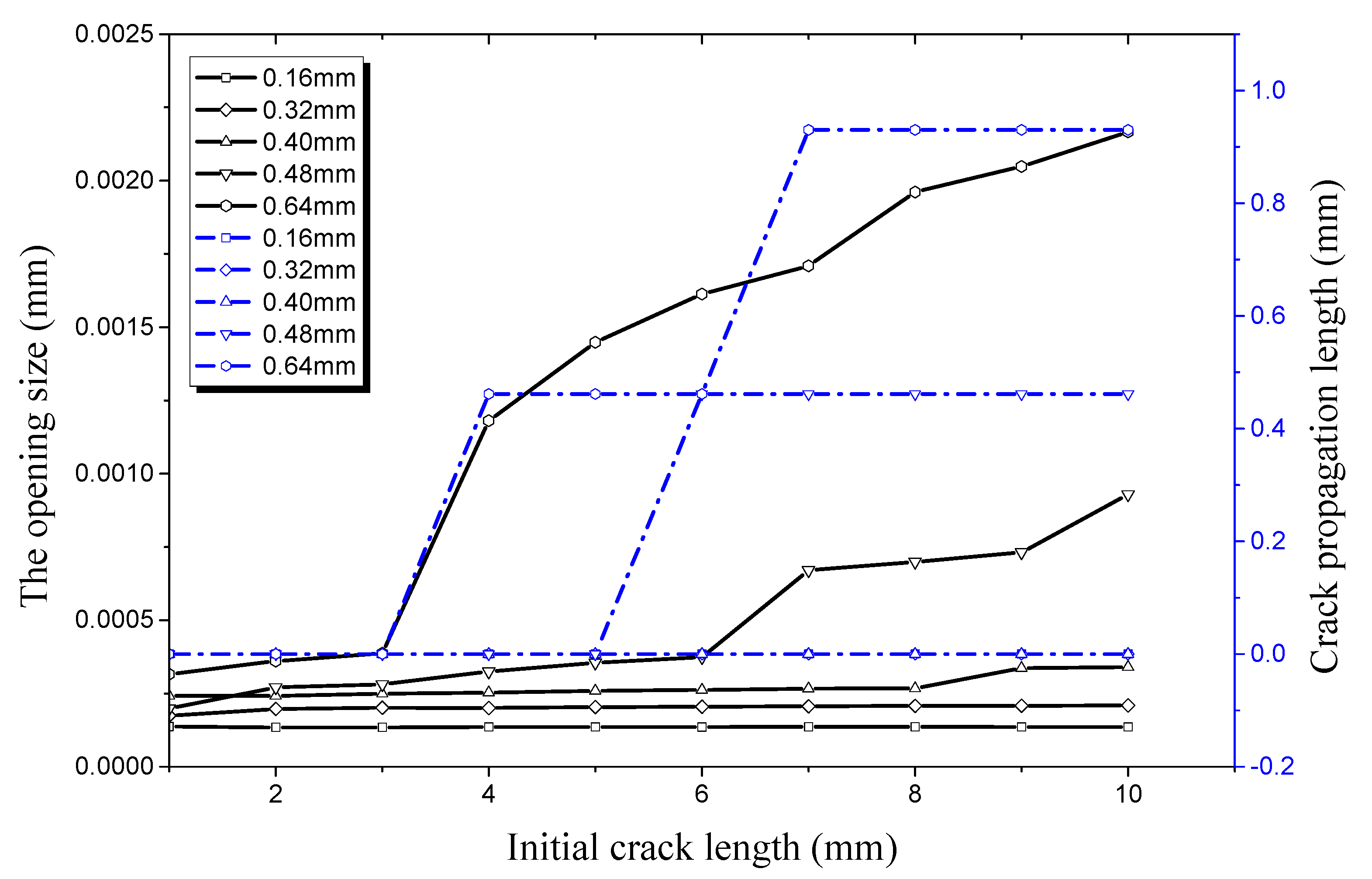

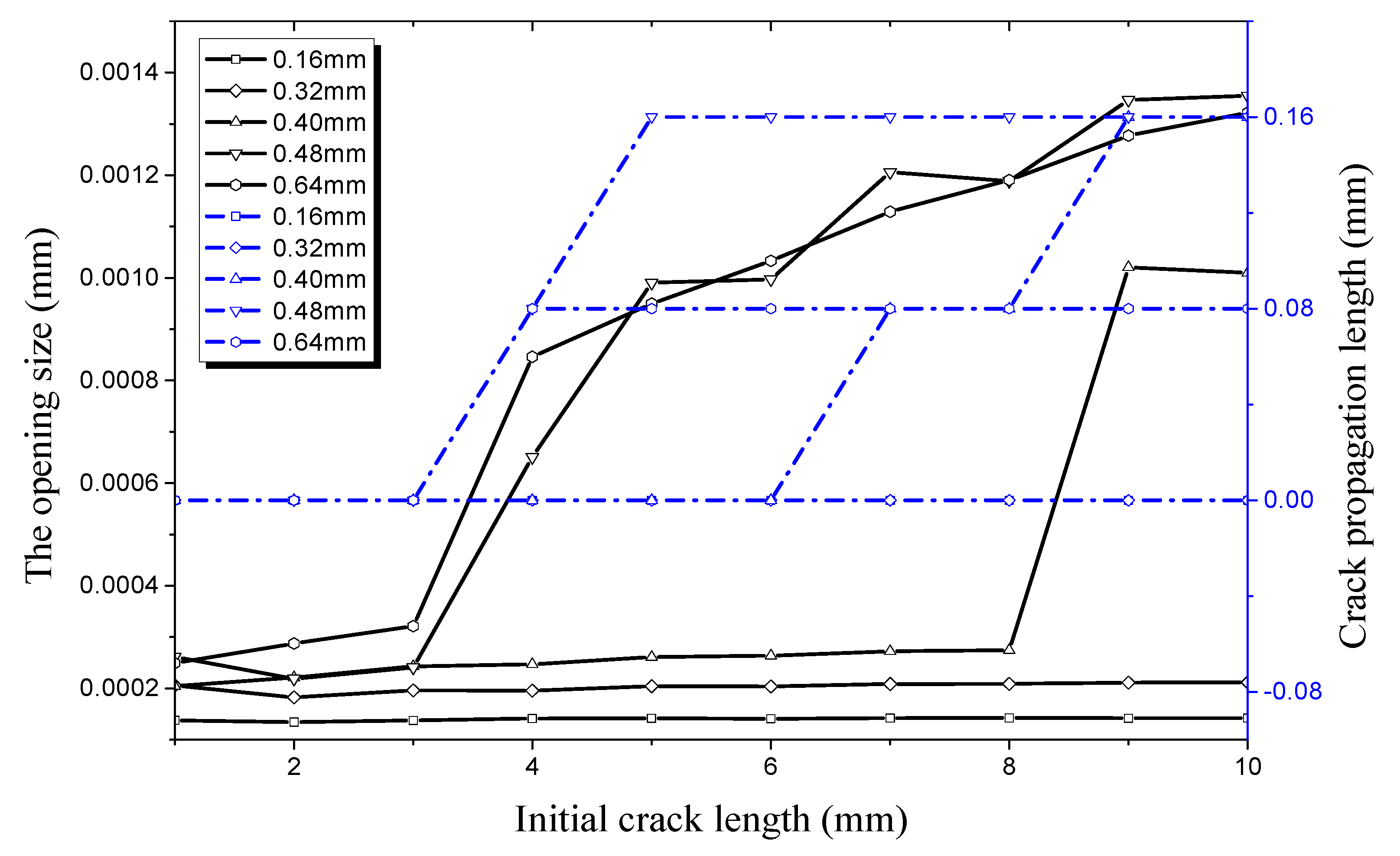

4.2.1. Crack Propagation along the Longitudinal Direction

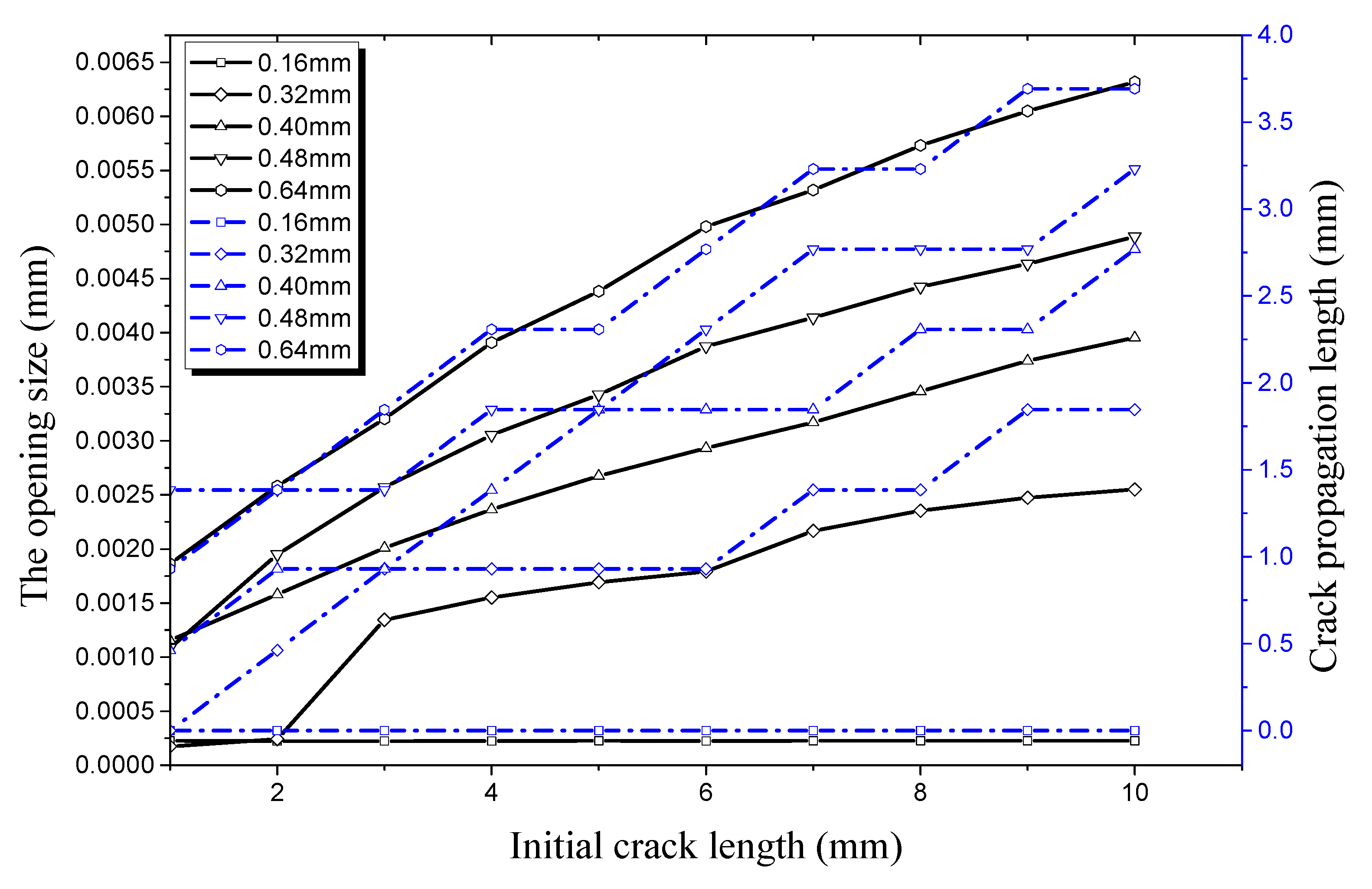

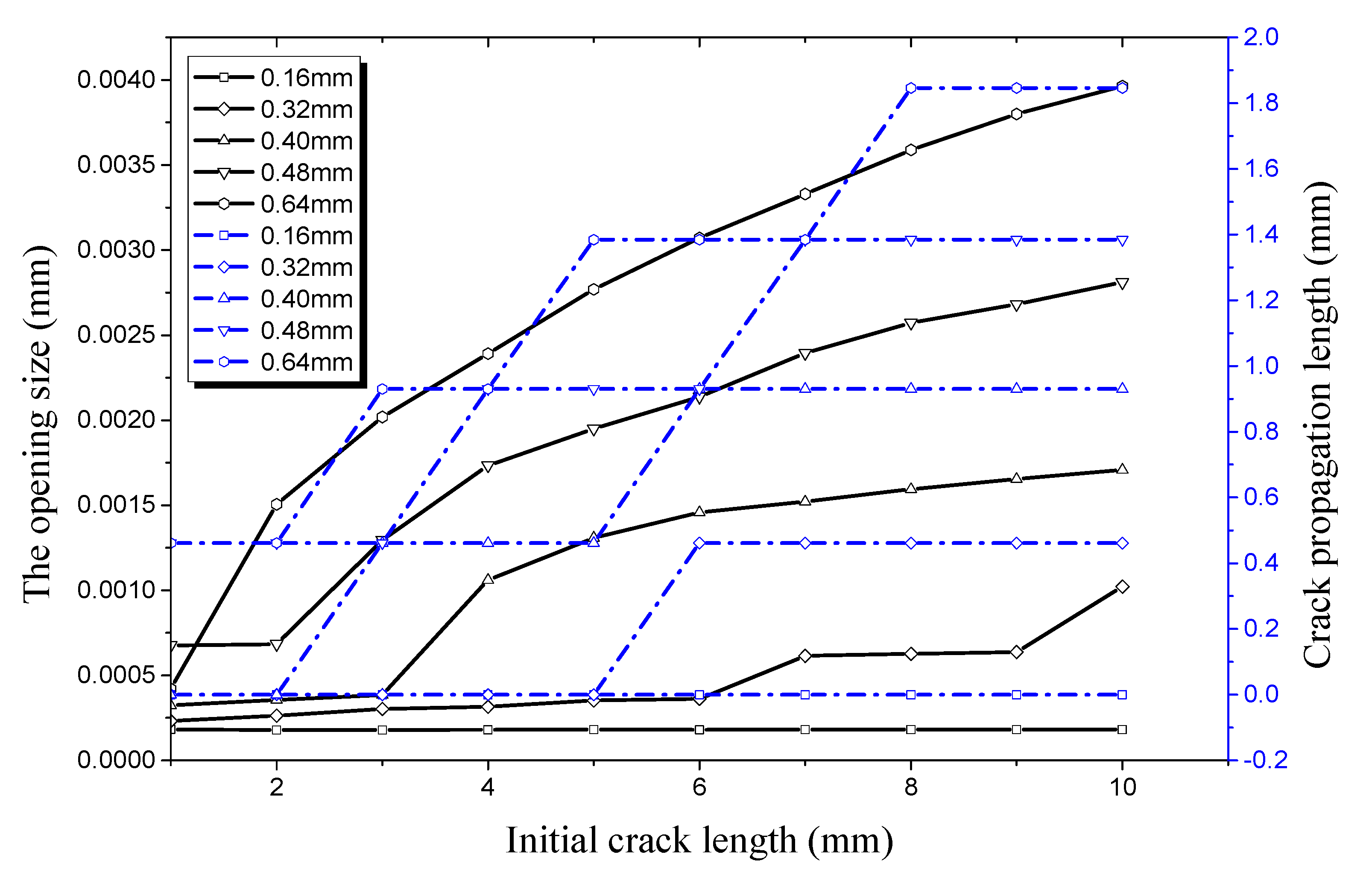

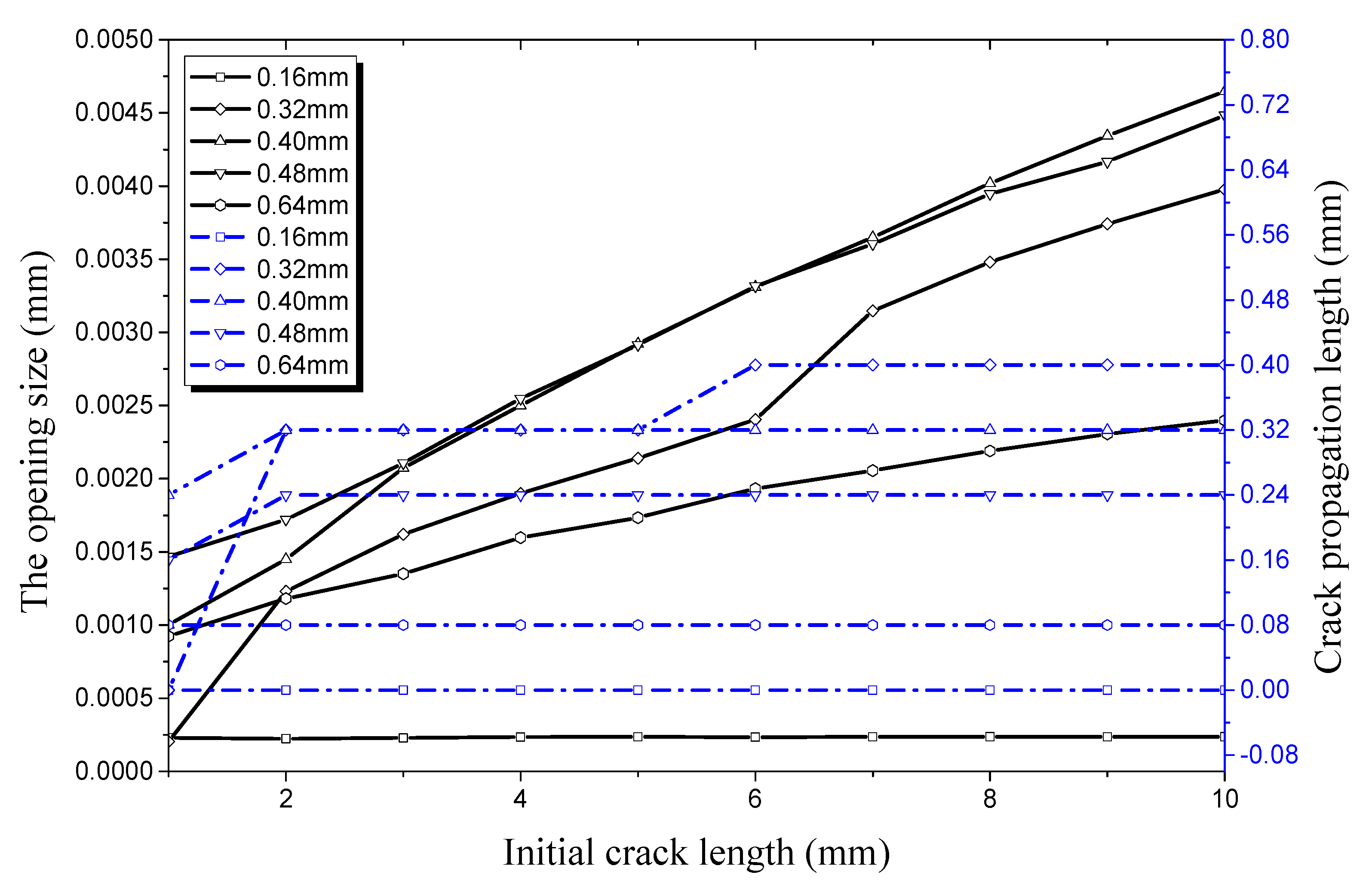

4.2.2. Crack Propagation along the Radial Direction
5. Conclusions
