Next Article in Journal
Incidence Dependency of Photonic Crystal Substrate and Its Application on Solar Energy Conversion: Ag2S Sensitized WO3 in FTO Photonic Crystal Film
Previous Article in Journal
The Effect of the Length and Distribution of Implants for Fixed Prosthetic Reconstructions in the Atrophic Posterior Maxilla: A Finite Element Analysis
Open AccessArticle

Basalt/Wood Hybrid Composites Based on Polypropylene: Morphology, Processing Properties, and Mechanical and Thermal Expansion Performance

Faculty of Mechanical Engineering, Cracow University of Technology, ul. Warszawska 24, 31-155 Cracow, Poland
*
Author to whom correspondence should be addressed.
Materials 2019, 12(16), 2557; https://doi.org/10.3390/ma12162557
Received: 19 July 2019 / Revised: 8 August 2019 / Accepted: 9 August 2019 / Published: 11 August 2019
  |
PDF [3960 KB, uploaded 11 August 2019]
  |

Abstract

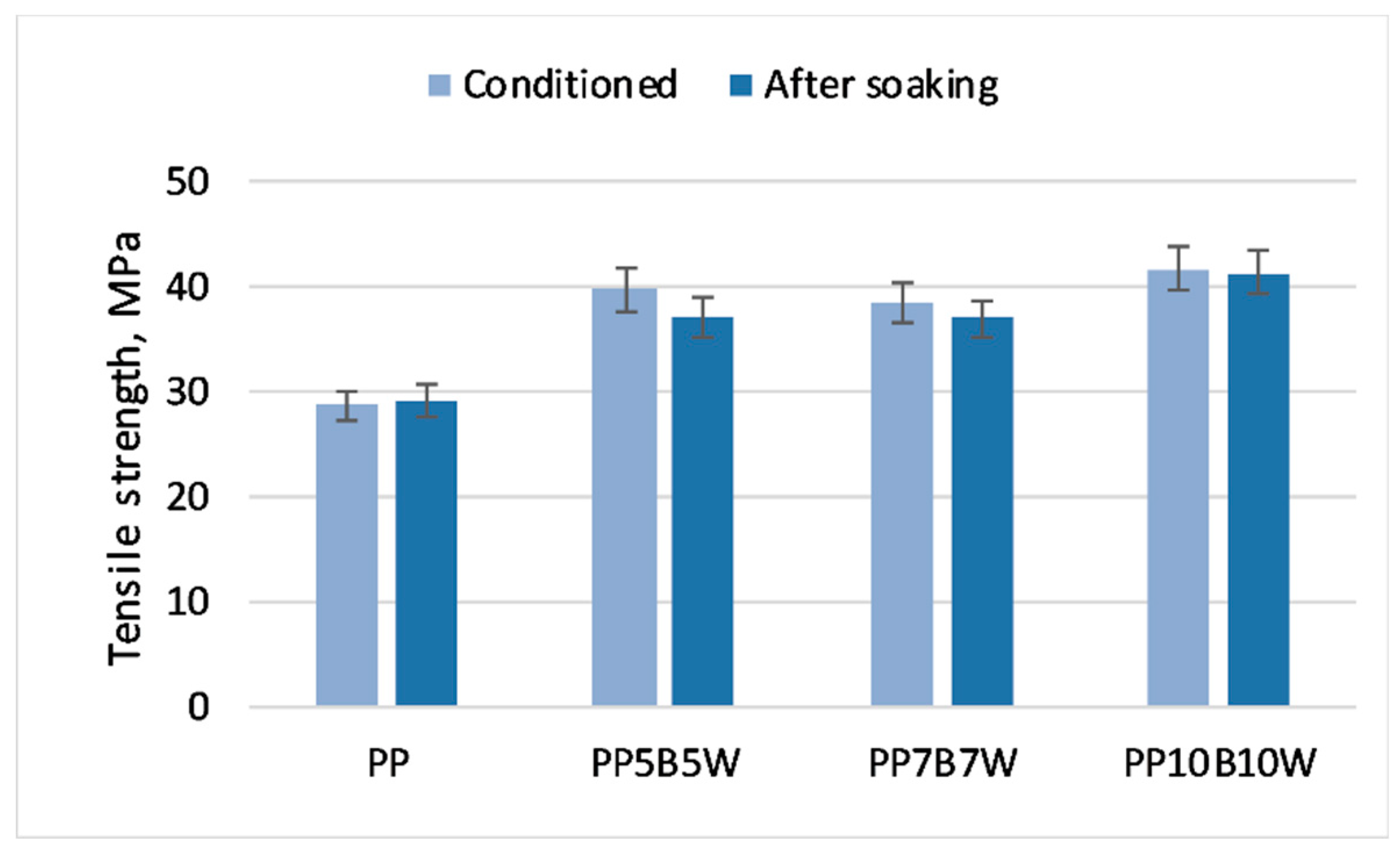

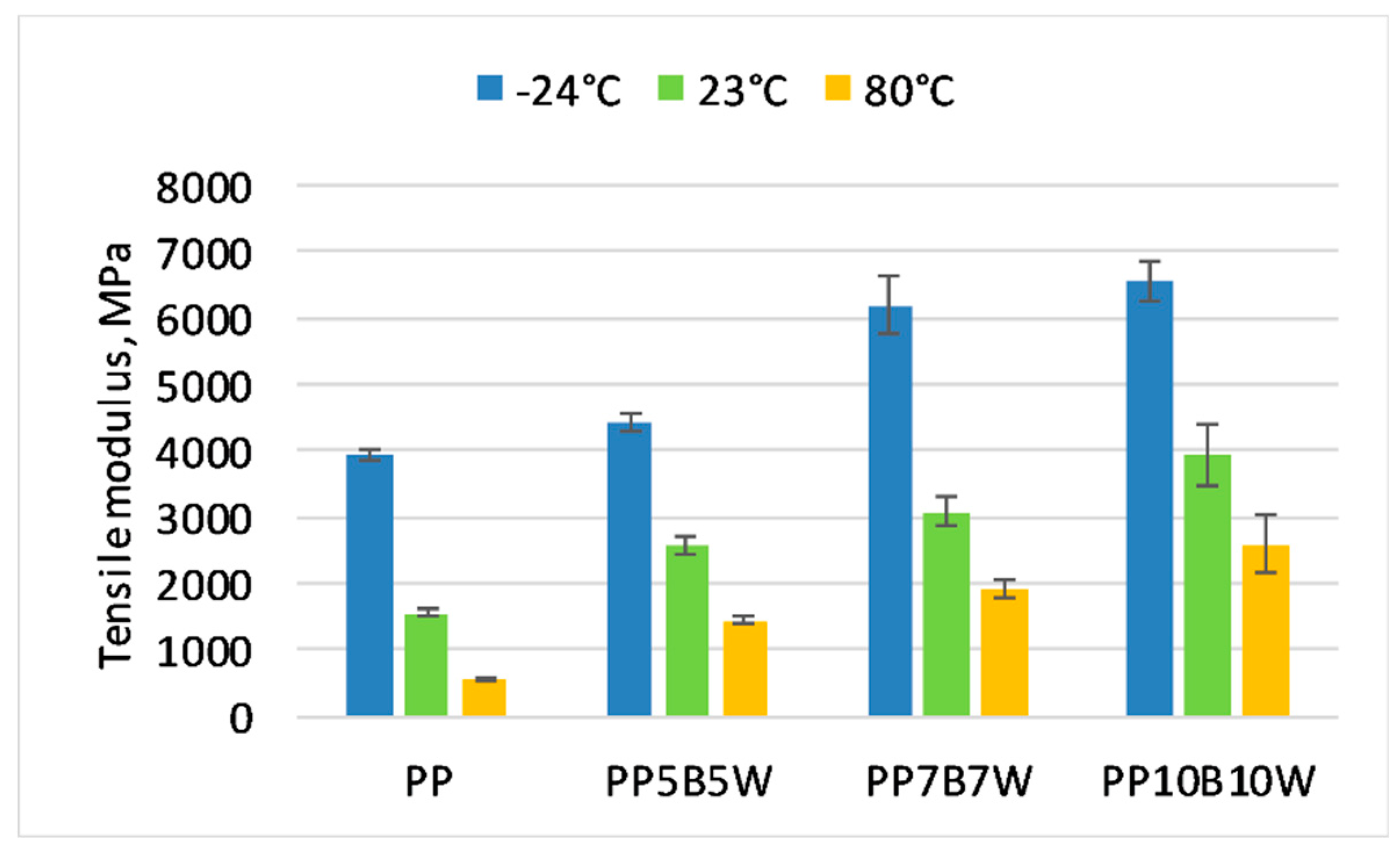

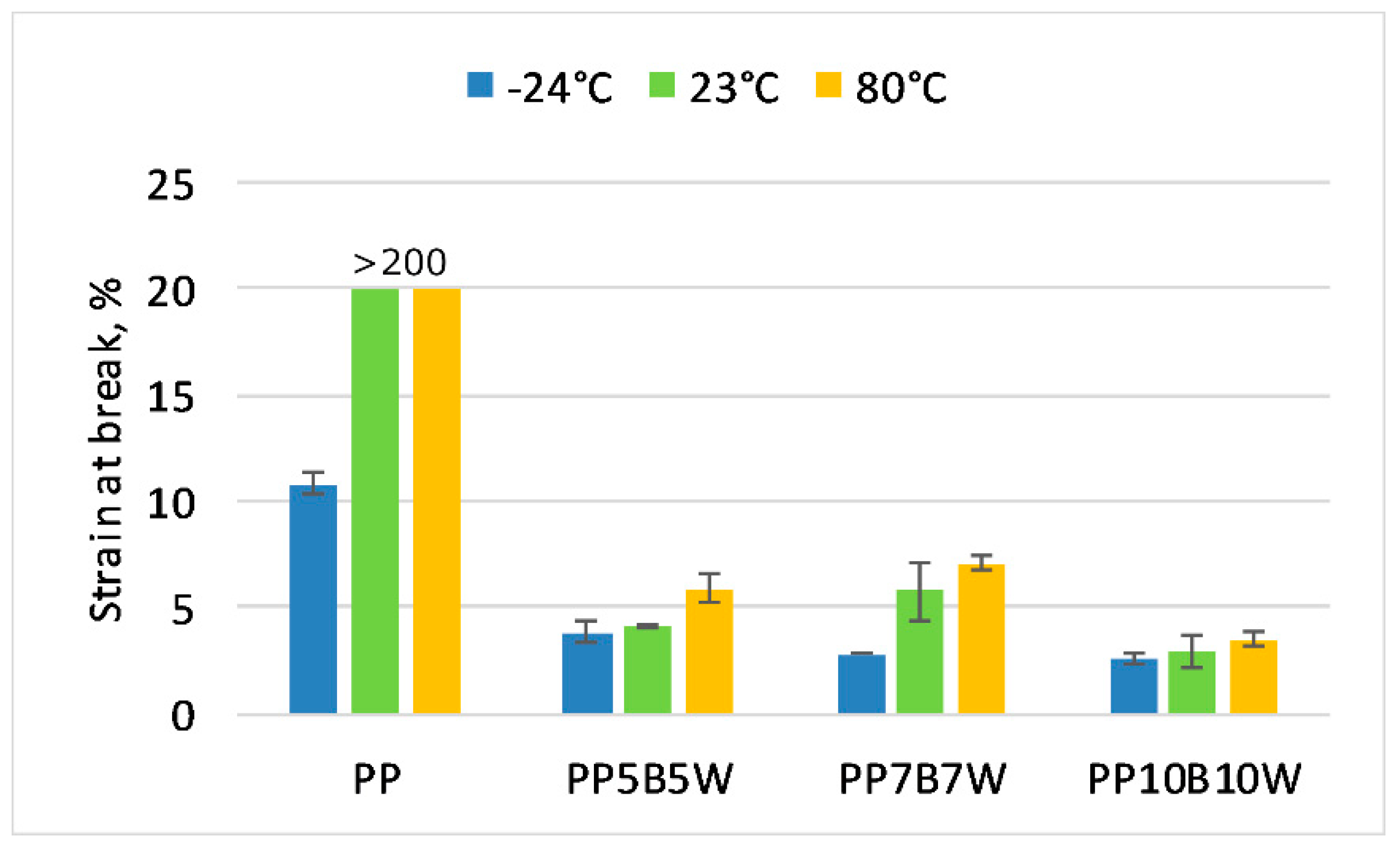

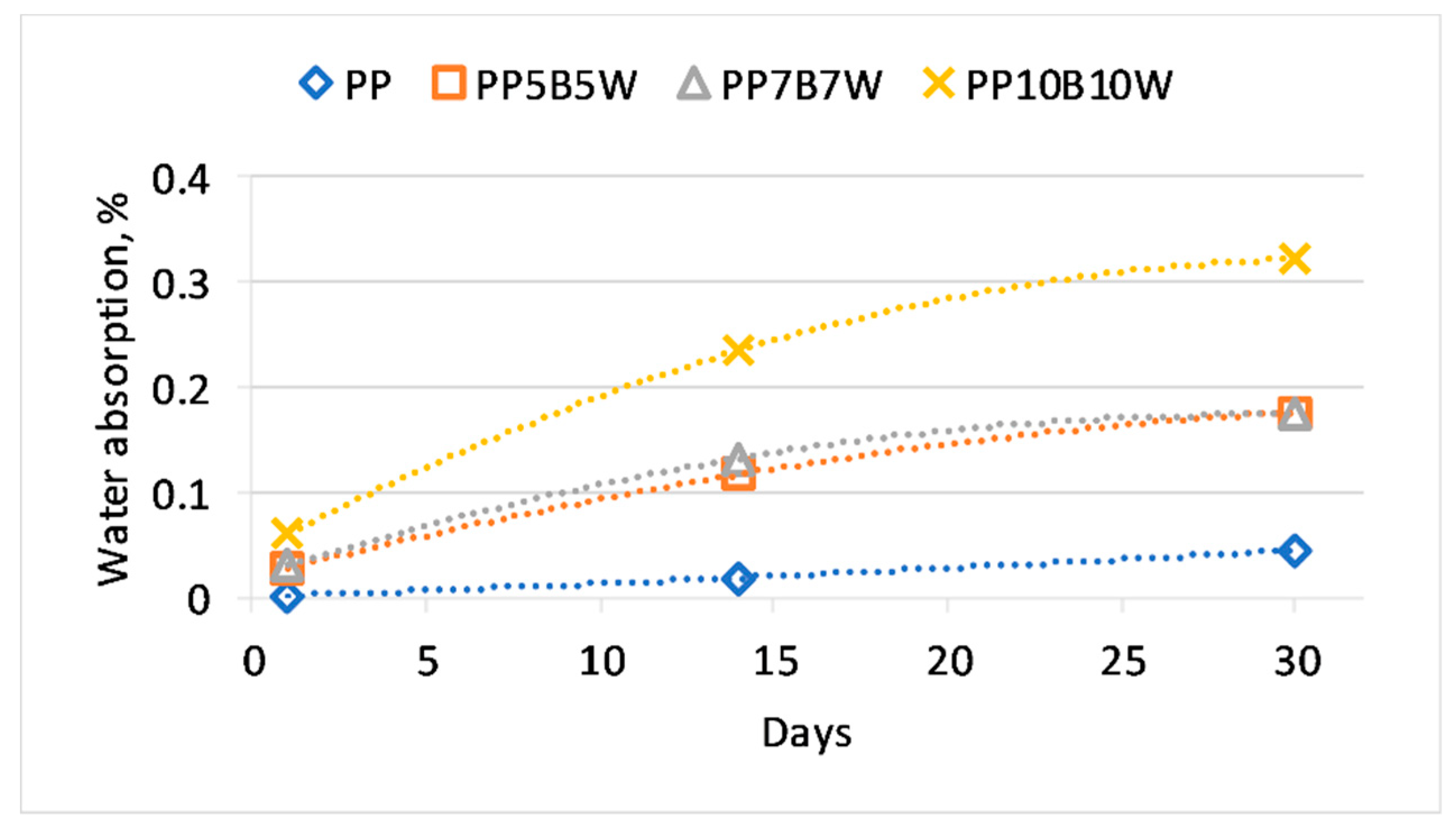

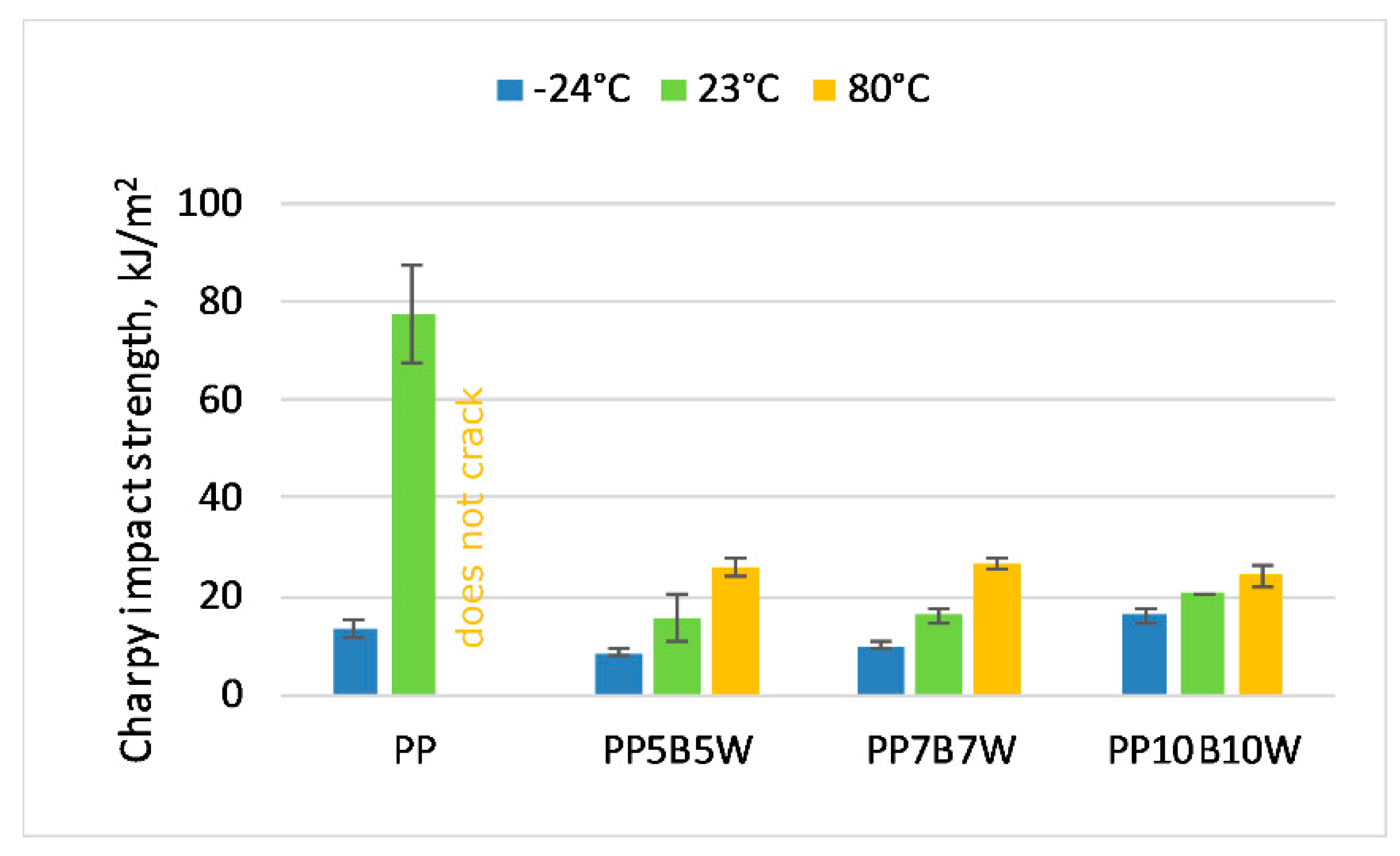

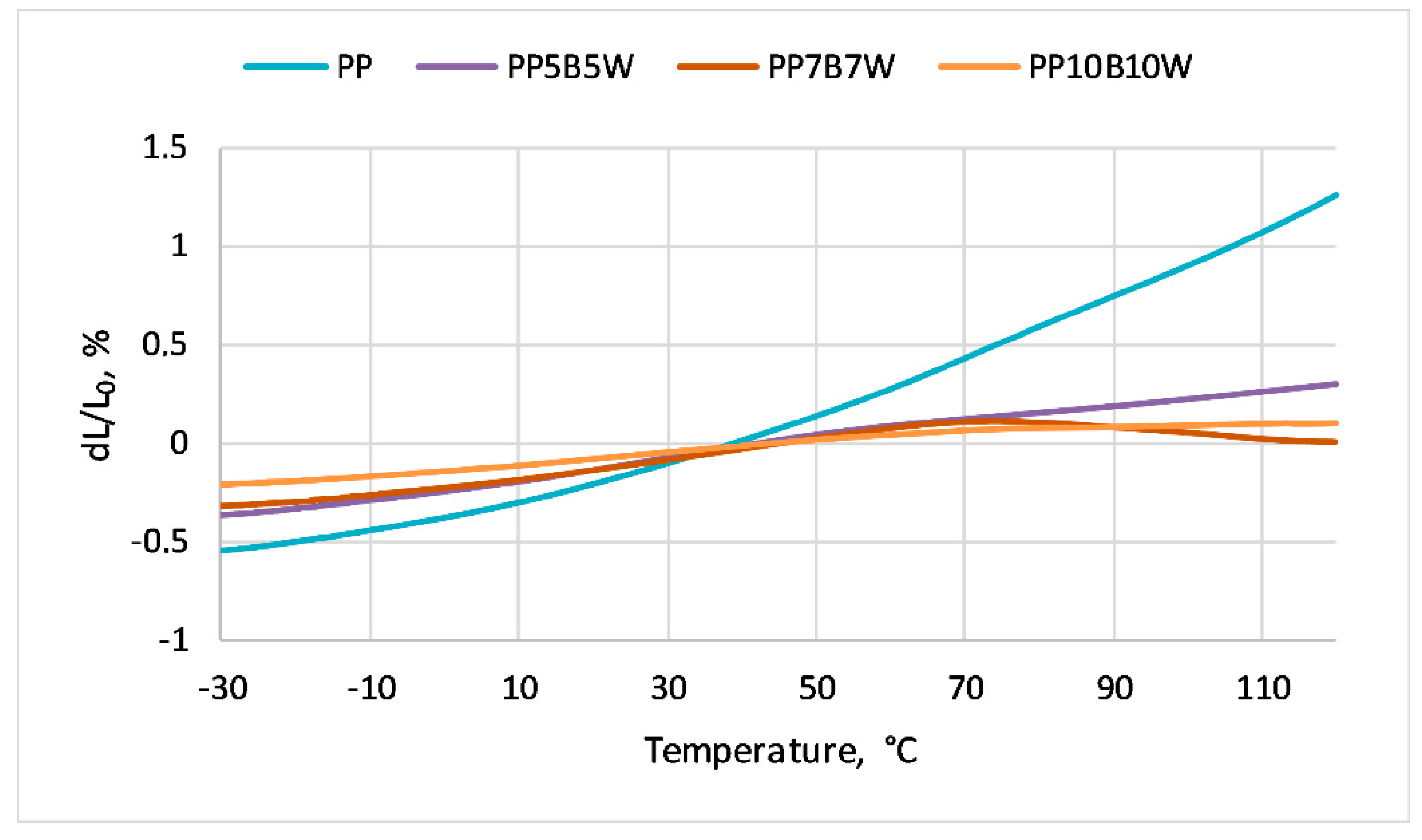

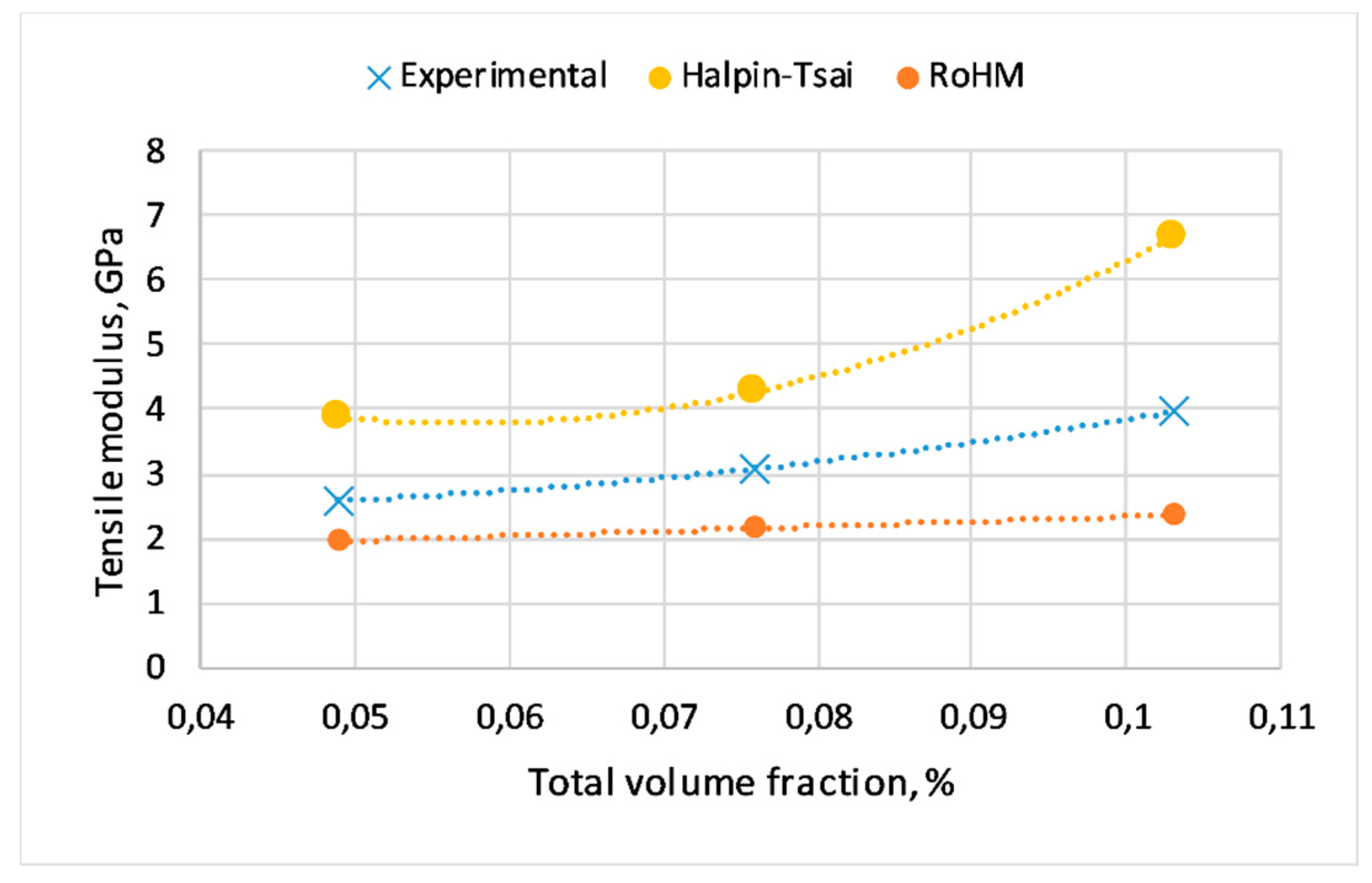

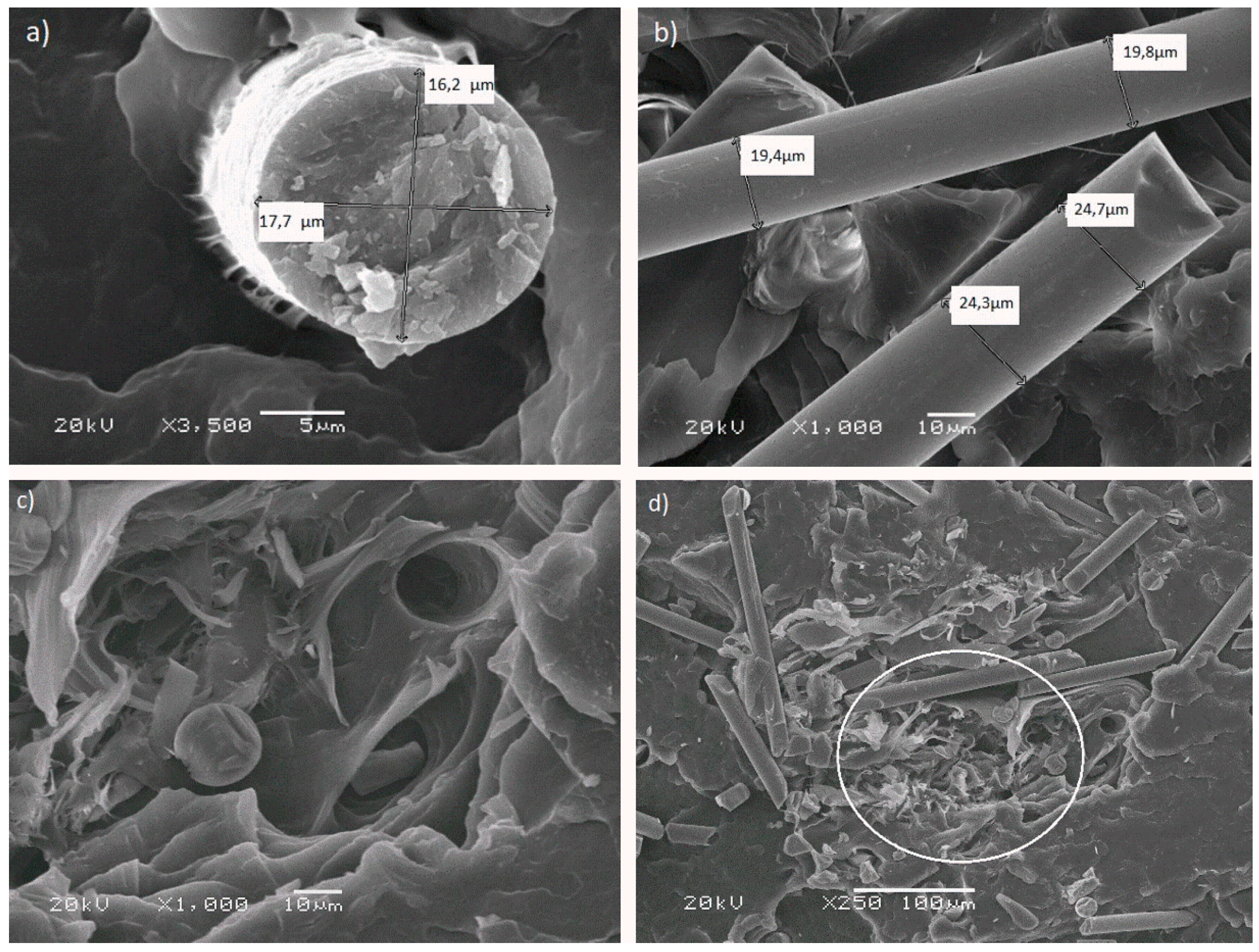

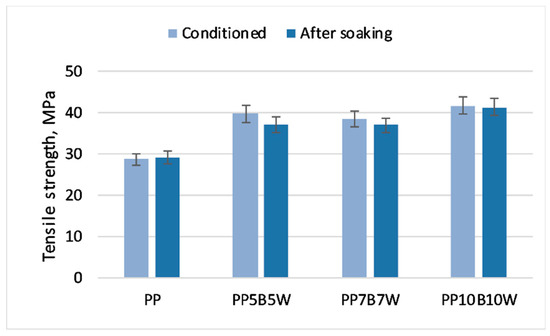

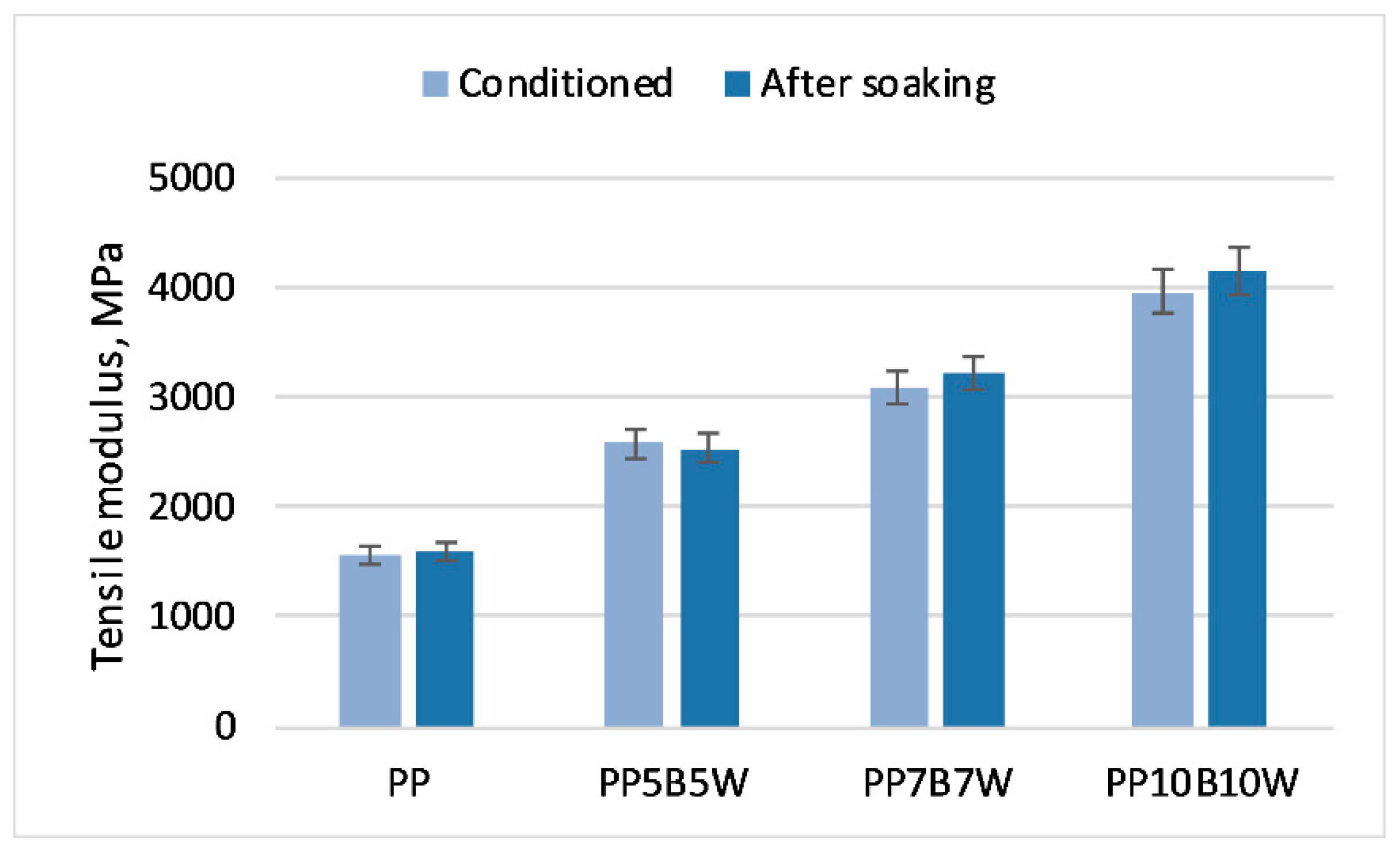

The main aim of this study was to investigate the effect of basalt fiber (BF) reinforcement in wood–plastic composites (WPCs). Basalt/wood hybrid composites based on polypropylene (PP) were prepared with different percentages of the reinforcement (the total fiber content was 10 wt%, 15 wt%, and 20 wt%). The BCS17-6.4-KV16 chopped basalt fibers with nominal diameter of 17 μm, cutting length of 6.4 mm, and wood fibers—Lignocel C 120 with the particle size of 70–150 µm—were used as a reinforcement. Composites were produced by the injection molding method. The density of the produced composites and their processing properties such as Vicat softening point and shrinkage were determined. In addition, the thermal expansion behavior of filled plastic composites was investigated. Mechanical tests were subsequently performed to evaluate the tensile, flexural, and impact properties at various temperatures (i.e., at −24 °C, 23 °C, and 80 °C) and after soaking in water. Scanning electron microscopy images were acquired to assess the effects of reinforcement and homogenization of mixtures and to determine the characteristics of the microstructure. The results showed that the hybridization process improved the tensile and flexural properties of reinforced wood composites. Moreover, the incorporation of high-strength basalt fibers into the composite led to increased stiffness. Even a small addition of 10 wt% total fibers led to a significant decrease in shrinkage and coefficient of thermal expansion. View Full-Text
Keywords: basalt fiber; wood–plastic composites; thermoplastic; thermal expansion basalt fiber; wood–plastic composites; thermoplastic; thermal expansion
Figures

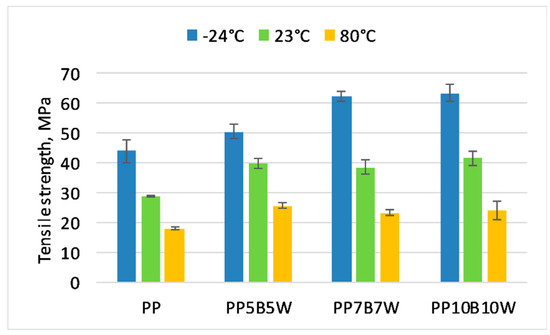

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Kufel, A.; Kuciel, S. Basalt/Wood Hybrid Composites Based on Polypropylene: Morphology, Processing Properties, and Mechanical and Thermal Expansion Performance. Materials 2019, 12, 2557.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
