Open AccessArticle

Photoluminescent Eu3+-Doped Calcium Phosphate Bone Cement and Its Mechanical Properties

Otto Schott Institute of Materials Research (OSIM), Friedrich Schiller University Jena, Löbdergraben 32, 07743 Jena, Germany
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Materials 2018, 11(9), 1610; https://doi.org/10.3390/ma11091610
Received: 17 July 2018 / Revised: 16 August 2018 / Accepted: 3 September 2018 / Published: 4 September 2018
(This article belongs to the Special Issue Mineral Bone Cements: Current Status and Future Prospects)

Abstract

Calcium phosphate cements (CPC) are well-established bone replacement materials that have been used in dentistry and orthopedics for more than 25 years. The monitoring of bone cements and the associated healing processes in the human body is difficult and so far has often been achieved using cytotoxic X-ray contrast agent additives. These additives have a negative effect on the mechanical properties and setting time of the bone cement. In this paper, we present a novel approach to prepare contrastive CPC by the incorporation of luminescent Eu3+-doped hydroxyapatite (Eu:HAp) nanoparticles. Eu-doped CPC (Eu:CPC) exhibited enhanced mechanical properties compared to pure CPC. Furthermore, the red photoluminescence of Eu:CPC may allow the observation of CPC-related healing processes without the use of harmful ionizing radiation.
Keywords: bone cement; apatite; luminescence; mechanical properties bone cement; apatite; luminescence; mechanical properties

1. Introduction

Mammalian hard tissues, like bone and teeth, mainly consist of the biomineral hydroxyapatite (HAp, Ca10(PO4)6(OH)2) and the protein collagen [1]. Artificial HAp of high biocompatibility and bioactivity can easily be synthesized by wet chemical precipitation or sol–gel synthesis as well as by solid-state reaction [2]. Consequently, it is used as commercial implant material in biological environments, e.g., as bone cement or bioactive coating on metallic implants [3,4] as well as for surgical bone augmentation in maxillofacial, thoracolumbar, and trauma surgery [5,6,7,8]. Calcium phosphate cements (CPC) are prepared by mixing a reactive CaP raw powder with an aqueous solution [9]. Starting from α-tricalcium phosphate (α-TCP), the resulting paste mixture sets under mineralization of calcium-deficient HAp (CDHA) [10]. Numerous formulations have been investigated to adjust the degradability, setting time, and mechanical properties of CPC [3,11,12]. Nowadays, commercial products are already used in restorative surgery and dentistry for non-load-bearing applications [3,13,14]. CDHA, one possible end product of the CPC setting reaction, is the basic material of bone apatite, which is strongly substituted in its natural form by ions such as Na+, K+, Mg2+, HPO42−, and CO32− [1]. This shows that the crystal lattice of apatite has a high tolerance to substitutions and distortions [15]. Therefore, synthetic HAp can be doped with numerous metal ions to improve, for example, its bioactivity, degradation rate, antibacterial, optical, and magnetic properties [16,17,18,19].
For the clinical application of CPC pastes, monitoring of the material with various imaging techniques during the intraoperative examination of material insertion into the body and observation of the healing processes are highly desirable. Nowadays, the imaging properties of CPC systems are mostly enhanced by X-ray contrastive radiopacifiers such as BaSO4, ZrO2, tantalum pentoxide, bismuth salicylate, or salts of alkaline earth metals [20,21,22,23,24,25,26]. These materials affect the cement setting time and often diminish the mechanical properties of the composite [21,24,25,26]. In particular, the most frequently used additives BaSO4 and ZrO2 have a negative effect on the bone remodeling cycle and lead to inflammatory reactions due to their cytotoxic properties [27]. The incorporation of alkaline earth metals like strontium (Sr2+) into HAp and CPC represents a common method for increasing the X-ray contrast of CPC for biomedical imaging, due to their high molar weight and biocompatibility [25,28,29]. Nevertheless, the use of X-ray contrastive bone cements increases the number of examinations with harmful ionizing radiation and the resulting radiation exposure. On the other hand, to the best of our knowledge, the use of contrastive CPCs with luminescent markers has not been reported to date.
In this paper, we show a new approach to introduce contrasting properties in CPC by incorporating luminescent Eu-doped HAp (Eu:HAp). For this purpose, wet chemical precipitated Eu:HAp was used as powder additive during the preparation of the CPC paste. The biocompatibility of Eu:HAp was already confirmed in a previous study [30,31], and, as reported in the literature, lanthanide ions are successfully used as pharmaceutical for the therapy of bone density disorders [32]. Lanthanide ions that could be released during CPC degradation are known to have a positive effect on the bone remodeling cycle by inhibiting bone resorption [32]. Furthermore, the highly crystalline Eu:HAp seeds in Eu:CPC could improve the mechanical properties of the biomaterial. The material thus utilizes the advantageous optical and mechanical properties of Eu:CPC and represents an alternative to contrastive bone cement. In the future, this material might be used for monitoring in the field of restorative surgery, employing imaging methods that use non-ionizing radiation such as photoluminescence (PL) tomography.

2. Materials and Methods

2.1. Preparation of Eu3+-Doped Luminescent Bone Cement

Alpha-tricalcium phosphate (α-TCP) was prepared by sintering calcium hydrogen phosphate (CaHPO4, Mallinckrodt-Baker, Griesheim, Germany) and calcium carbonate (CaCO3, Merck, Darmstadt, Germany) in a molar ratio of 2:1 for 5 h at 1400 °C followed by quenching to room temperature. The sintered cake was crushed and passed through a 125 μm sieve followed by ball milling at 200 rpm for 4 h [33]. Eu3+-doped HAp (Eu:HAp) with dopant concentrations of 0.5, 1, 1.5, 2, 5, and 10 mol% (denoted as 0.5Eu:Hap, 10Eu:Hap, etc.) relative to Ca2+ were synthesized via co-precipitation followed by a hydrothermal treatment [31]. For the preparation of luminescent Eu:CPC, dry α-TCP and Eu:HAp powder were mixed. Here, the Eu3+ bulk concentration results from a statistical distribution of the Eu:HAp nanoparticles (NPs) and Eu3+-ions contained in in the CPC matrix. Five Eu:CPC batches with Eu3+ bulk concentrations ranging from 0.5 to 2.5 mol% were produced. Here, a variation of the Eu:HAp mass fraction was performed using Eu:HAp with incorporated Eu3+ dopant concentrations of c E u 3 + = 0.5, 1, 1.5, 2, 5, and 10 mol%, respectively. Hereby, a maximum of 50 wt% Eu:HAp powder was added, so that maximum bulk concentrations of half the c E u 3 + in Eu:HAp+ were achievable. The nomenclature used for Eu:CPC was, e.g., 2Eu0.5b, which means Eu:CPC with an Eu3+ bulk concentration B of 0.5 mol% synthesized by fractional addition of 2Eu:HAp (Table 1). Also, 1 M trisodium citrate (Na3C6H5O7, Carl Roth, Karlsruhe, Germany) and 2.5 wt% disodium hydrogen phosphate (Na2HPO4, Carl Roth, Karlsruhe, Germany) were added to the mixture of α-TCP and Eu:HAp at a powder-to-liquid ratio (PLR) of 1.5 g∙mL−1 to add up to 50 wt% powder. The mixed Eu:CPC pastes were converted into silicon molds and stored at high humidity and 37 °C for setting.

2.2. Photoluminescence Measurement

Photoluminescence (PL) excitation and PL emission measurements at T = 300 K were performed using a 150 W Xe arc lamp (Tunable PowerArc Illuminator, OBB, Birmingham, NJ, USA) as the excitation source. For this purpose, the radiation was directed onto the surface of the samples arranged in an integrating sphere (IS236A-4, Thorlabs, Newton, NJ, USA). The emitted radiation was measured with a spectrometer (Maya2000 Pro, Ocean Optics, Largo, FL, USA) and corrected on the basis of the detector efficiency.

2.3. Mechanical Properties

Cement samples were prepared by mixing α-TCP with pure HAp instead of Eu:HAp, as the sizes of HAp and Eu:HAp NPs are very similar compared to the much larger micron-sized TCP particles. The HAp mass proportions used corresponded to the Eu:HAp mass proportions for CPC doping with 10Eu:HAp, which led to Eu3+ bulk concentrations of 0.5, 1, 1.5, 2, and 2.5 mol%. Thus, the corresponding mass fractions of HAp varied from 6 to 11, 17, 22, 27 wt%. For the mechanical tests, a PLR of 2.25 g∙mL−1 was used. For the initial setting, the samples were exposed to 100% humidity for 4 h and then transferred to distilled water for the final setting period of 7 days. The mechanical properties of HAp NP-modified CPC were characterized using a universal testing machine (Z020, Zwick, Ulm, Germany). In the three-point bending tests, a support span of L = 20 mm, a loading rate of 1 mm·min−1, and a preload of 0.1 N were applied. The compressive strength was tested using cuboid samples with dimensions of 6 mm × 6 mm × 12 mm, a loading rate of 10 mm·min−1, and a preload of 5 N. The measurement was stopped at a maximum deformation of 20%. The bending strength σb and compressive strength σc were calculated according to Equations (1) and (2), respectively, where M is the bending or compressive moment and W the modulus of resistance.
σ b = M b W = 3 F L 2 b h 2
σ c = M c W = F b h
Scanning Electron Microscopy (SEM, Sigma VP, Carl-Zeiss, Oberkochen, Germany) on pure cement and reinforced cements was performed after 7 days of setting and subsequent drying.

3. Results and Discussion

3.1. Photoluminescence

The PL excitation measurements of Eu:CPC indicated the most intense absorption band for the transition 7F0 5L6 at 395 nm. Therefore, the excitation wavelength of λex. = 395 nm (Figure 1a) was selected to measure PL emission spectra. Analyses of PL emissions at T = 300 K showed the typical red emission for Eu:CPC and Eu:HAp due to the incorporation of Eu3+-ions. Here, five characteristic Eu3+ emission transitions assigned to 5D0 7FJ (J = 0–4) manifolds appeared around 575, 595, 613, 655, and 690 nm (Figure 1a). The most intense signals were represented by the parity forbidden electronic transitions J = 2 and 4. The manifolds J = 1 and 3 exhibited a very low intensity, and the 5D0 7F0 was nearly indistinguishable from the signal noise. The emission bands J = 1–4 showed Stark splitting, where each of the peaks exhibited two visible maxima caused by crystal field contributions. Because of the presence and intensity of these transition sub-manifolds, the occupation of Eu3+ could be assigned to Ca(I) lattice sites in HAp, as already shown in a previous study [31] and confirmed by Silva et al. [34]. Eu:HAp NPs used as a powder additive for Eu:CPC exhibited a linearly increasing PL intensity with increasing dopant concentration of up to 5 mol% Eu3+. At higher concentrations of Eu3+, the PL intensity increased much less than would be expected from linear extrapolation [31]. The PL emission intensity of Eu:CPC also increased with increasing Eu:HAp powder fraction within each Eu:CPC batch at a constant Eu3+ concentration in the added powder (Figure 1b). In contrast, the PL intensity of Eu:CPC with constant Eu3+ bulk concentration using Eu:HAp powder additives of different Eu3+ concentrations did not follow the already observed PL intensity trend of Eu:HAp. Here, Eu:CPC prepared with the addition of 5Eu:HAp showed the highest PL emission of all Eu:CPC, especially for high Eu3+ bulk concentrations. Remarkably, Eu:CPC with a constant Eu3+ bulk concentration exhibited a higher PL intensity than the reference Eu:HAp NPs with the same Eu3+ concentration (Figure 1b).
Because of the substitution of Eu3+ in the crystal lattice of HAp, Eu3+ ions were permanently bound in the HAp NP matrix, which was already shown by the XRD peak shift after incorporation of Eu3+ in HAp [31]. During the setting process of CPC, a basic pH milieu of pH9.5 led to the dissolution of α-TCP and subsequent precipitation of CDHA. A simultaneous dissolution of Eu:HAp NPs did not occur, as HAp is chemically stable in this pH range. Thus, there was no release of Eu3+ from Eu:HAp NPs and subsequent incorporation into the CPC matrix that could describe the increased PL emission. This was confirmed by the unchanged PL emission transition position and intensity ratios in the PL emission spectra. In the case of Eu:CPC, the luminescent NPs were surrounded by CPC paste. During the setting of CPC, the Eu:HAp NPs were completely encapsulated in the CDHA matrix and were thus in direct contact. In addition, the Eu:HAp NPs acted as crystallization nuclei that triggered HAp precipitation and crystal growth. Since CDHA and HAp belong to the same crystal system P63/m, an epitaxial crystal growth of CDHA can be assumed from the surface of the Eu:HAp NPs. During the PL process, the radiative relaxation of the excited electrons in the PL centers of the NPs leads to visible PL. In contrast, surface defects act as electron traps that lead to non-radiative relaxation processes and reduce the PL intensity. The complete encapsulation of Eu:HAp NPs in the CDHA matrix passivated the NPs surface and led to reduced quenching losses due to a decrease in surface defect density. Therefore, the composites exhibited higher luminescence intensities than the reference powders. It is known from other host matrix systems and dopant ions that the surface quenching effects can be reduced by covering or functionalizing the NPs surface with core shell-like structures, thus healing the surface defects [35]. Energy can also migrate through the NPs and transfer excitation energy from the matrix to the luminescent Eu:HAp NPs [35]. Furthermore, the crystallite size of the single crystal Eu:HAp NPs plays an important role in surface quenching and PL intensity, as the specific surface area and associated quenching processes increase by reducing the NP size. Eu:HAp NPs showed decreasing crystallite sizes with increasing dopant concentration (D50(HAp) = 73 nm, D50(10Eu:HAp) = 55 nm). Consequently, the surface defect density of NPs increased with increasing Eu3+ content in Eu:HAp, due to the higher specific surface of smaller NPs. In a previous study on Eu:HAp NPs, only a slight increase in PL intensity from 5 to 10 mol% doping was observed due to concentration quenching [31]. These quenching effects of highly concentrated NPs led to an overall decrease in the luminescence of CPC.

3.2. Mechanical Properties

Since wet chemically precipitated HAp NPs have a similar morphology and magnitude in crystallite size compared to Eu:HAp [31], the mechanical properties were tested with addition of HAp NP to CPC instead of Eu:HAp (Figure 2). It was found that the incorporation of moderate HAp mass fractions led to increased bending and compressive strength, while, at higher NP mass fractions, the strengths tended to values comparable to those of pure CPC (Figure 2a,b).
HAp NPs were synthesized by wet chemical precipitation followed by hydrothermal maturation. As a result, HAp NPs exhibited a high crystallinity, especially compared to the CDHA crystals that formed during the setting reaction of CPC. Therefore, HAp NPs showed enhanced strength compared to the CDHA crystals of the CPC matrix and consequently increased the strength of the entire composite. HAp NPs sizes were in the range of 73 nm. From the literature it is known that the final CDHA micro- and nanostructure depend on the size of the raw powder used for CPC synthesis [36]. Taking this into account, HAp NPs added to the CPC paste mixture served as nuclei for the mineralization process, resulting in smaller CDHA crystals in the set CPC matrix (Figure 3). Because of the smaller CDHA crystals in CPC, interlocking of the crystals was more effective, resulting in increased bending and compressive strength with moderate addition of HAp NPs. As can be seen in the overview micrographs (Figure 3a–c), however, the ratio of unreacted powder increased with higher proportion of HAp NPs, so that a decrease in compressive strength could be observed from a HAp fraction of 17 wt%. Hereby, a higher specific surface area due to the NPs led to incomplete wetting and, thus, to partial setting.
Furthermore, a high content of HAp NPs led to a change in morphology and a decrease in the initial setting time. While the typical platelets of apatite cement were found for small fractions, needles were observed at higher NPs ratio (Figure 3f). Mixing α-TCP powder with an aqueous solution led to the dissolution of α-TCP particles up to a critical concentration from which CDHA nuclei formed and grew during cement setting. In contrast, after addition, the HAp-NPs, which were insoluble at the given pH of 9.5, acted like heterogeneous crystallization nuclei. As a result, the precipitation of CDHA from supersaturated solutions was accelerated. This led initially to smaller crystals and finally to a changed morphology of the composite. These observations suggested an epitaxial growth, which was also confirmed by the more intense luminescence due to a reduced amount of surface defects.

4. Conclusions

The incorporation of Eu:HAp NPs into CPC led to a composite bone cement with red light emission. Furthermore, the incorporated Eu:HAp NPs acted as nucleation seeds in the CPC paste, which led to improved interlocking of the cement matrix crystals and thus to enhanced bending and compressive strength of the material. The combination of biocompatible CPC bone cement and luminescent NPs as well as the enhanced mechanical properties make the composite a promising bone replacement material that enables monitoring without ionizing radiation.

Author Contributions

A.O. and A.V.B. equally performed the experiments and their analysis. A.O., A.V.B, and F.A.M contributed to the writing of the paper.

Funding

The authors thank the Deutsche Forschungsgemeinschaft (DFG) for financial support of project MU1803/16–1.

Acknowledgments

The SEM facilities of the Jena Center for Soft Matter (JCSM) were established with a grant from the German Research Council (DFG) and the European Funds for Regional Development (EFRE). We would also like to thank Clemens Kunz for the SEM characterization and Christoph Wenisch for his support in PL measurements. Furthermore, we would like to thankfully acknowledge Uwe Gbureck for supplying cement raw powder.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dorozhkin, S.V. Calcium orthophosphates. J. Mater. Sci. 2007, 42, 1061–1095. [Google Scholar] [CrossRef]
  2. Cox, S.C.; Walton, R.I.; Mallick, K.K. Comparison of techniques for the synthesis of hydroxyapatite. Bioinspir. Biomim. Nanobiomater. 2015, 4, 37–47. [Google Scholar] [CrossRef]
  3. Bohner, M.; Gbureck, U.; Barralet, J.E. Technological issues for the development of more efficient calcium phosphate bone cements: A critical assessment. Biomaterials 2005, 26, 6423–6429. [Google Scholar] [CrossRef] [PubMed]
  4. Jonášová, L.; Müller, F.A.; Helebrant, A.; Strnad, J.; Greil, P. Biomimetic apatite formation on chemically treated titanium. Biomaterials 2004, 25, 1187–1194. [Google Scholar] [CrossRef] [PubMed]
  5. Dorozhkin, S.V. Calcium orthophosphates: Occurrence, properties, biomineralization, pathological calcification and biomimetic applications. Biomatterials 2011, 1, 121–164. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Hench, L.L. Bioceramics. J. Am. Ceram. Soc. 1998, 81, 1705–1728. [Google Scholar] [CrossRef]
  7. Osborn, J.F.; Newesely, H. The material science of calcium phosphate ceramics. Biomaterials 1980, 1, 108–111. [Google Scholar] [CrossRef]
  8. Reznikov, N.; Shahar, R.; Weiner, S. Bone hierarchical structure in three dimensions. Acta Biomater. 2014, 10, 3815–3826. [Google Scholar] [CrossRef] [PubMed]
  9. Bohner, M. Calcium orthophosphates in medicine: From ceramics to calcium phosphate cements. Injury 2000, 31 (Suppl. 4), D37–D47. [Google Scholar] [CrossRef]
  10. Monma, H.; Kanazawa, T. The hydration of α-tricalcium phosphate. J. Ceram. Assoc. Jpn. 1976, 84, 209–213. [Google Scholar] [CrossRef]
  11. Bohner, M. Reactivity of calcium phosphate cements. J. Mater. Chem. 2007, 17, 3980–3986. [Google Scholar] [CrossRef]
  12. Canal, C.; Ginebra, M.P. Fibre-reinforced calcium phosphate cements: A review. J. Mech. Behav. Biomed. Mater. 2011, 4, 1658–1671. [Google Scholar] [CrossRef] [PubMed]
  13. Larsson, S.; Hannink, G. Injectable bone-graft substitutes: Current products, their characteristics and indications, and new developments. Injury 2011, 42 (Suppl. 2), S30–S34. [Google Scholar] [CrossRef]
  14. Von Gonten, A.S.; Kelly, J.R.; Antonucci, J.M. Load-bearing behavior of a simulated craniofacial structure fabricated from a hydroxyapatite cement and bioresorbable fiber-mesh. J. Mater. Sci. Mater. Med. 2000, 11, 95–100. [Google Scholar] [CrossRef] [PubMed]
  15. Perera, T.S.H.; Han, Y.; Lu, X.; Wang, X.; Dai, H.; Li, S. Rare earth doped apatite nanomaterials for biological application. J. Nanomater. 2015, 2015, 1–6. [Google Scholar] [CrossRef]
  16. Šupová, M. Substituted hydroxyapatites for biomedical applications: A review. Ceram. Int. 2015, 41, 9203–9231. [Google Scholar] [CrossRef]
  17. Chen, F.; Huang, P.; Zhu, Y.J.; Wu, J.; Zhang, C.L.; Cui, D.X. The photoluminescence, drug delivery and imaging properties of multifunctional eu3+/gd3+ dual-doped hydroxyapatite nanorods. Biomaterials 2011, 32, 9031–9039. [Google Scholar] [CrossRef] [PubMed]
  18. Ashokan, A.; Menon, D.; Nair, S.; Koyakutty, M. A molecular receptor targeted, hydroxyapatite nanocrystal based multi-modal contrast agent. Biomaterials 2010, 31, 2606–2616. [Google Scholar] [CrossRef] [PubMed]
  19. Boanini, E.; Gazzano, M.; Bigi, A. Ionic substitutions in calcium phosphates synthesized at low temperature. Acta Biomater. 2010, 6, 1882–1894. [Google Scholar] [CrossRef] [PubMed]
  20. Aberg, J.; Henriksson, H.B.; Engqvist, H.; Palmquist, A.; Brantsing, C.; Lindahl, A.; Thomsen, P.; Brisby, H. Biocompatibility and resorption of a radiopaque premixed calcium phosphate cement. J. Biomed. Mater. Res. A 2012, 100, 1269–1278. [Google Scholar] [CrossRef] [PubMed]
  21. Chen, W.C.; Hsu, S.M.; Ko, J.H.; Lin, C.C.; Lin, D.J. Effects of bismuth subgallate on properties of calcium phosphate bone cement in vitro. J. Med. Biol. Eng. 2014, 34, 8–13. [Google Scholar] [CrossRef]
  22. Acarturk, O.; Lehmicke, M.; Aberman, H.; Toms, D.; Hollinger, J.O.; Fulmer, M. Bone healing response to an injectable calcium phosphate cement with enhanced radiopacity. J. Biomed. Mater. Res. B Appl. Biomater. 2008, 86, 56–62. [Google Scholar] [CrossRef] [PubMed]
  23. Hoekstra, J.W.; van den Beucken, J.J.; Leeuwenburgh, S.C.; Meijer, G.J.; Jansen, J.A. Tantalumpentoxide as a radiopacifier in injectable calcium phosphate cements for bone substitution. Tissue Eng. Part C Methods 2011, 17, 907–913. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, F.; Liu, C.; Mao, Y. Bismuth-doped injectable calcium phosphate cement with improved radiopacity and potent antimicrobial activity for root canal filling. Acta Biomater. 2010, 6, 3199–3207. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, X.; Ye, J.; Wang, Y. Influence of a novel radiopacifier on the properties of an injectable calcium phosphate cement. Acta Biomater. 2007, 3, 757–763. [Google Scholar] [CrossRef] [PubMed]
  26. Lopez, A.; Montazerolghaem, M.; Engqvist, H.; Ott, M.K.; Persson, C. Calcium phosphate cements with strontium halides as radiopacifiers. J. Biomed. Mater. Res. B Appl. Biomater. 2014, 102, 250–259. [Google Scholar] [CrossRef] [PubMed]
  27. Boelen, E.J.; Lewis, G.; Xu, J.; Slots, T.; Koole, L.H.; van Hooy-Corstjens, C.S. Evaluation of a highly-radiopaque iodine-containing acrylic bone cement for use in augmentation of vertebral compression fractures. J. Biomed. Mater. Res. A 2008, 86, 76–88. [Google Scholar] [CrossRef] [PubMed]
  28. Hernandez, L.; Gurruchaga, M.; Goni, I. Injectable acrylic bone cements for vertebroplasty based on a radiopaque hydroxyapatite. Formulation and rheological behaviour. J. Mater. Sci. Mater. Med. 2009, 20, 89–97. [Google Scholar] [CrossRef] [PubMed]
  29. Hernandez, L.; Parra, J.; Vazquez, B.; Bravo, A.L.; Collia, F.; Goni, I.; Gurruchaga, M.; San Roman, J. Injectable acrylic bone cements for vertebroplasty based on a radiopaque hydroxyapatite. Bioactivity and biocompatibility. J. Biomed. Mater. Res. B Appl Biomater. 2009, 88, 103–114. [Google Scholar] [CrossRef] [PubMed][Green Version]
  30. Tesch, A.; Röder, R.; Zapf, M.; Ronning, C.; Warncke, P.; Fischer, D.; Herrmann, K.-H.; Reichenbach, J.R.; Müller, F.A. Paramagnetic, nir-luminescent nd3+- and gd3+-doped fluorapatite as contrast agent for multimodal biomedical imaging. J. Am. Ceram. Soc. 2018. [Google Scholar] [CrossRef]
  31. Tesch, A.; Wenisch, C.; Herrmann, K.-H.; Reichenbach, J.R.; Warncke, P.; Fischer, D.; Müller, F.A. Luminomagnetic eu3+- and dy3+-doped hydroxyapatite for multimodal imaging. Mater. Sci. Eng. C 2017, 81, 422–431. [Google Scholar] [CrossRef] [PubMed]
  32. Barta, C.A.; Sachs-Barrable, K.; Jia, J.; Thompson, K.H.; Wasan, K.M.; Orvig, C. Lanthanide containing compounds for therapeutic care in bone resorption disorders. Dalton. Trans. 2007, 5019–5030. [Google Scholar] [CrossRef] [PubMed]
  33. Kanter, B.; Geffers, M.; Ignatius, A.; Gbureck, U. Control of in vivo mineral bone cement degradation. Acta Biomater. 2014, 10, 3279–3287. [Google Scholar] [CrossRef] [PubMed]
  34. Silva, F.R.O.; de Lima, N.B.; Bressiani, A.H.A.; Courrol, L.C.; Gomes, L. Synthesis, characterization and luminescence properties of eu3+-doped hydroxyapatite nanocrystal and the thermal treatment effects. Opt. Mater. 2015, 47, 135–142. [Google Scholar] [CrossRef]
  35. Fischer, S.; Bronstein, N.D.; Swabeck, J.K.; Chan, E.M.; Alivisatos, A.P. Precise tuning of surface quenching for luminescence enhancement in core-shell lanthanide-doped nanocrystals. Nano. Lett. 2016, 16, 7241–7247. [Google Scholar] [CrossRef] [PubMed]
  36. Diez-Escudero, A.; Espanol, M.; Beats, S.; Ginebra, M.P. In vitro degradation of calcium phosphates: Effect of multiscale porosity, textural properties and composition. Acta Biomater. 2017, 60, 81–92. [Google Scholar] [CrossRef] [PubMed][Green Version]
Figure 1. (a) Photoluminescence (PL) excitation of Eu:HAp and associated PL emission spectra of Eu:CPC (5Eu2b) and Eu:HAp (2Eu:HAp), both with a total concentration of Eu3+ cEu3+ = 2 mol%. In the case of the cement, the Eu3+ concentration was adjusted by adding 5Eu:HAp NPs. (b) Comparison of PL intensities for the dominant transition 5D0 7F2 in relation to the total concentration cEu3+ in all Eu:CPC produced with differently concentrated Eu:HAp NPs and the corresponding pure Eu:HAp NPs as a reference, indicating a significantly higher PL intensity for Eu:CPC than for Eu:HAp at the same Eu3+ bulk concentration.
Figure 1. (a) Photoluminescence (PL) excitation of Eu:HAp and associated PL emission spectra of Eu:CPC (5Eu2b) and Eu:HAp (2Eu:HAp), both with a total concentration of Eu3+ cEu3+ = 2 mol%. In the case of the cement, the Eu3+ concentration was adjusted by adding 5Eu:HAp NPs. (b) Comparison of PL intensities for the dominant transition 5D0 7F2 in relation to the total concentration cEu3+ in all Eu:CPC produced with differently concentrated Eu:HAp NPs and the corresponding pure Eu:HAp NPs as a reference, indicating a significantly higher PL intensity for Eu:CPC than for Eu:HAp at the same Eu3+ bulk concentration.
Materials 11 01610 g001

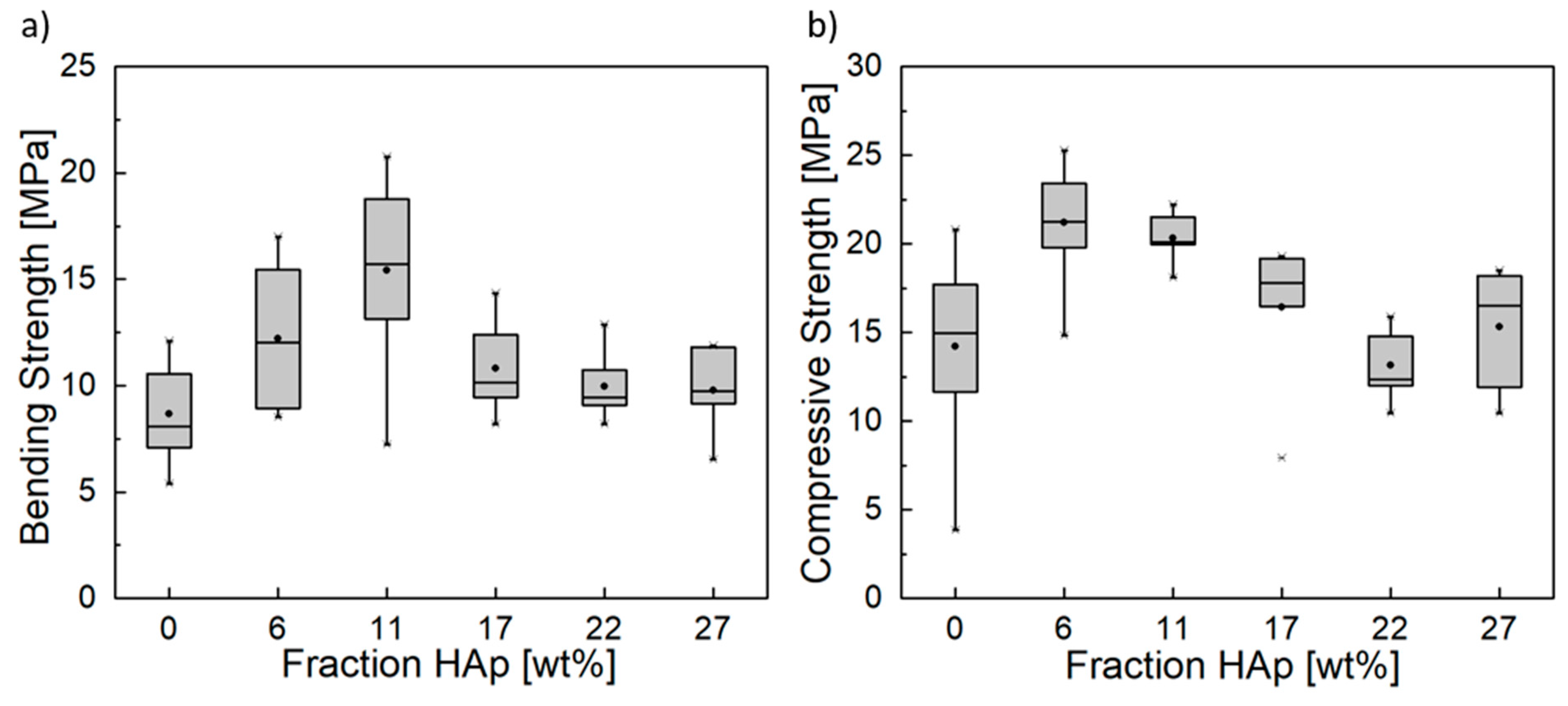

Figure 2. (a) Bending and (b) compressive strength of Hap-reinforced CPC.
Figure 2. (a) Bending and (b) compressive strength of Hap-reinforced CPC.
Materials 11 01610 g002
Figure 3. SEM micrographs of (a), and (d) pure CPC, (b) and (e), CPC with a nanoparticle (NP) concentration of 6 wt%, and (c) and (f) CPC reinforced with 27 wt% HAp NPs.
Figure 3. SEM micrographs of (a), and (d) pure CPC, (b) and (e), CPC with a nanoparticle (NP) concentration of 6 wt%, and (c) and (f) CPC reinforced with 27 wt% HAp NPs.
Materials 11 01610 g003
Table 1. Composition of Eu-doped calcium phosphate cements (Eu:CPC) for different bulk concentrations B. Concentration of the additive Eu3+-doped hydroxyapatite (Eu:HAp) is listed.
Table 1. Composition of Eu-doped calcium phosphate cements (Eu:CPC) for different bulk concentrations B. Concentration of the additive Eu3+-doped hydroxyapatite (Eu:HAp) is listed.
c E u 3 + in   the   Powder   Supplement   [ mol % ] Concentration of the Additive Eu:HAp c E u : H A p in   Cement   [ wt % ]
B = 0.5 mol%B = 1 mol%B = 1.5 mol%B = 2 mol%B = 2.5 mol%
149.7----
1.533.2----
225.150.1---
510.520.831.141.251.3
105.611.216.722.127.4
