Aging-Resistant Functionalized LDH–SAS/Nitrile-Butadiene Rubber Composites: Preparation and Study of Aging Kinetics/Anti-Aging Mechanism

by
Tianxiang Li
1,
Zhengren Shi
1,
Xianru He
1,*,
Ping Jiang
1,
Xiaobin Lu
1,
Rui Zhang
2,* and
Xin Wang
1,*
1
School of Materials Science and Engineering, Southwest Petroleum University, 8 Xindu Avenue, Chengdu 610500, Sichuan, China
2
Institut für Physik, Universität Rostock, Albert-Einstein-Str. 23-24, 18051 Rostock, Germany
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(5), 836; https://doi.org/10.3390/ma11050836
Submission received: 4 April 2018 / Revised: 13 May 2018 / Accepted: 15 May 2018 / Published: 18 May 2018
Browse Figures
Versions Notes

Abstract

:
With the aim of improving the anti-aging properties of nitrile-butadiene rubber (NBR), a functional organic filler, namely LDH–SAS, prepared by intercalating 4-amino-benzenesulfonic acid monosodium salt (SAS) into layered double hydroxides (LDHs) through anion exchange, was added to nitrile-butadiene rubber (NBR), giving the NBR/LDH–SAS composites. Successful preparation of LDH–SAS was confirmed by XRD, TGA and FTIR. LDH–SAS was well dispersed in the NBR matrix, owing to its strong interaction with the nitrile group of NBR. The obtained NBR/LDH–SAS composites exhibited excellent thermo-oxidative aging resistance as shown by TGA-DSC. Further investigation by ATR-FTIR indicated that SAS can capture the radical groups, even during the aging process, which largely accounts for the improved aging resistance.

Graphical Abstract

1. Introduction

Nitrile-butadiene rubber (NBR) is a synthetic rubber widely used for various applications, such as seals in the aerospace, automotive and oil petroleum industries [1,2,3]. Compared with most commercial rubbers, NBR has beneficial properties including excellent solvent resistance, bonding performance, and a wide temperature application range [4]. In the petroleum industry, NBR plays a key role in sealing drill devices [5,6]. However, the NBR backbone contains a relatively large number of double bonds, even after vulcanization, which are prone to thermo-oxidative degradation. This is detrimental to the exploitation of ultra-deep petroleum wells, where seals are required to be resistant to thermo-oxidative aging [7]. For this reason, hydrogenated nitrile butadiene rubber (HNBR) is used to replace NBR in the seals [8,9,10], although its cost is much higher than that of NBR. Moreover, hydrogenation itself is a high energy-consuming procedure, which further increases the cost of the products as well as adding to environmental problems. A convenient, economical and environmentally friendly method is desirable.
To overcome the cost limitations for industrial applications, filler modification is an effective method for improving the anti-aging properties of bulk polymers [7,11]. Fillers like montmorillonite, silicon dioxide, graphite oxide and Fe2O3 have been widely reported to improve mechanical properties, flame retardancy and thermal stability of bulk polymers [12,13,14,15]. To date, layered clay minerals are among the most investigated inorganic fillers due to their high surface-to-volume ratio [16] and reasonable cost [17]. The layered fillers have also been reported to improve the thermal stability of polymers [18,19,20]. Studies have shown that a tortuous structure forms between the layered filler and the rubber matrix, which reduces oxygen diffusion and thereby decreases the rate of thermo-oxidative aging [19]. However, these inorganic fillers also have drawbacks, attributed to weak interaction forces (e.g., van der Waals) between the matrix and filler. Thus, phase separation can easily occur between these two components. Chemical methods, like surface functionalization and hybrid and organic intercalation, can enhance these interactions [7,21,22,23,24,25,26,27].
In this context, layered double hydroxides (LDHs), also known as anionic clays, have received attention in recent years as a functional filler to improve mechanical, flame-retardant and thermal stability properties of polymers [28,29,30,31,32]. In contrast to other clay minerals with negatively charged layers, LDHs contain positively charged mixed metal hydroxide layers separated by charge-balancing anions and water molecules [4]. It is difficult for the polymer chains to intercalate into the LDH interlayers due to the small interlayer gallery space [33] and the hydrophilic nature of the hydroxide sheets. In addition, there may be weak interactions between the LDHs and polymers. To address these problems, the original interlayer inorganic anions (CO32−, NO3− and Cl−) in LDHs can be replaced by organic anions (styrene sulfonate, sodium dodecylsulfate, sodium dodecyl benzenesulfonate or sodium stearate), thus increasing the gallery height of the LDHs [34].
Many polymers, including polyethylene [35], polyvinyl chloride [36,37] and polystyrene [38], have been modified with LDHs to prepare composites and improve their thermal stability and flammability performance. In addition, organically modified LDHs can also be applied to rubber composite materials [39]. NBR has similarly been modified with LDHs to improve its mechanical, thermal and optical properties [32,40,41,42,43,44,45], with just previous one report on the influence of LDHs on the thermal oxidative aging resistance in NBR materials existing in the literature [7]. NBR complexes using modified LDHs have also been prepared to improve mechanical properties. For example, the influence of sodium lignosulfonate-modified LDHs (SLS-LDH) and sodium styrene sulfonate-modified LDHs (LDH-SSS) on the mechanical properties of NBR has been investigated [41,43]. In our previous study [7], double bond-containing organic fillers LDH-SSS (sodium styrene sulfonate modified LDHs) were successfully prepared and used in NBR composites. A grafting reaction between the organic filler and NBR molecular chain was found to increase the saturation of NBR molecular chains, which reduced chain scission during aging. However, a drawback in this work is that the grafting reaction is hard to control and the LDHs are easily over grafted, which might lead to compromised anti-aging performance of the filler. For this reason, a different method is desirable to provide a more controllable and stable route for LDHs to function to improve the anti-aging properties of NBR.
In this study, mechanical blending replaces the chemical grafting reaction in the preparation of LDHs modified by 4-amino-benzenesulfonic acid monosodium salt (SAS) and blended with NBR (NBR/LDH–SAS). As a control sample, an unmodified LDHs–NO3 precursor was blended with NBR (NBR/LDHs–NO3). A detailed analysis of these composites is given to show their structure, morphology, mechanical properties, thermal properties and the aging mechanism, in comparison with the unmodified NBR and NBR/LDH–NO3 composites. Using organic-functionalized LDHs as stabilizers to modify NBR is a promising method for reducing the use of monomer stabilizers, which can reduce environmental pollution in industry applications. This work sets the stage for future work on preparing rubber composites with high anti-aging ability and more environmentally friendly characteristics.

2. Experimental

2.1. Materials

Nitrile-butadiene rubber with 29 wt % of acrylonitrile was obtained from China Lanzhou Petrochemical Corporation (Lanzhou, China). Magnesium nitrate (Mg(NO3)2·6H2O), aluminum nitrate (Al(NO3)3·9H2O), NaOH, zinc oxide, sulfur, stearic acid and dioctyl phthalate (DOP) were supplied by China Kelong Chemical Reagent Factory (Chengdu, China). 4-Amino-benzenesulfonic acid monosodium salt (SAS), N-phenyl-2-naphthylamine (antioxidant D) and 2,2′-Dibenzothiazole disulfide (DM) were purchased from China Aladdin Industrial Corporation (Shanghai, China). All materials were used as received without further purification unless otherwise indicated.

2.2. Synthesis of LDH–NO3

Two-dimensional LDH–NO3 precursors were prepared by following a typical coprecipitation procedure [46]. First, a 2.0 mol/L NaOH solution was prepared by dissolving 10 g of NaOH in 400 mL of deionized water. Nitrate solution was prepared by dissolving 19.2 g of Mg(NO3)2·6H2O (0.075 mol) and 9.37 g of Al(NO3)3·9H2O (0.025 mol) in 400 mL of deionized water. Second, 400 mL of NaOH solution was added dropwise into the nitrate solution at 25 °C. The pH value of the mixture solution was adjusted to 10. Then, the well mixed solution was crystallized at 85 °C for 24 h under nitrogen atmosphere. The resultant white precipitate was filtered and rinsed with deionized water to remove the unreacted ions, followed by drying in a vacuum oven at 80 °C for 12 h.

2.3. Preparation of LDH-SAS by an Organic Anion

LDH–SAS was prepared by an anion exchange method. Ten grams of LDH–NO3 precursor and 200 mL of deionized water were added into a three-necked bottle. The mixture was heated to 100 °C and stirred for 6 h until the LDH–NO3 precursor was fully swollen in deionized water, after which the temperature was decreased from 100 to 85 °C. A desired amount of SAS solution was added into the mixture, and then HNO3 solution was added dropwise to obtain a pH value of 10. All the operations were performed under nitrogen atmosphere. Finally, the resultant light brown precipitate was filtered and washed with deionized water to remove the unreacted ions. The solid obtained was dried in a vacuum oven at 80 °C for 12 h.

2.4. Preparation of NBR/LDH Composites

NBR, additives and LDHs were mixed in a two-roll mixing mill. The components of the NBR composites are given in Table 1. The temperature of the two-roll was maintained at 30–40 °C via circulating water. The rubber composites were vulcanized in a press vulcanizer under a pressure of 10 MPa at 150 °C for t90. The t90 of each rubber composite is shown in Table 2. The vulcanized rubber composites were cut into dumbbell-shaped specimens or other shapes for particular measurements.

2.5. Aging Test of NBR

Thermo-oxidative aging experiments were carried out in a Mingzhu 401-A aging test chamber (Mingzhu Test Machinery Co., Ltd., Yangzhou, China) at 90 °C for 96 h. The NBR sample was cut into a dumbbell shape with thickness of 2 mm, width of 6 mm and the middle standard length of 25 mm.

2.6. Characterization and Measurements

X-ray diffraction (XRD) diffractograms of the LDHs and rubber specimens were obtained using a PANalytical B.V. X Pert PRO MPD X-ray diffractometer (Almelo, The Netherlands), equipped with Cu Kα radiation (λ = 0.154 nm). The scanning diffraction angle was from 3 to 70° with a scanning rate of 4°/min.
Fourier transform infrared spectra (FTIR) of LDHs were recorded using a Thermo Fisher Scientific Nicolet iS50 infrared spectrometer (Waltham, MA, USA). The samples were pre-dried and pressed with KBr powder into pellets. Attenuated total reflectance Fourier transform infrared spectra (ATR-FTIR) of NBR composites were also recorded on the same device. The scanning wavenumbers ranged from 4000 to 500 cm−1.
Thermogravimetric analysis (TGA) of dried LDHs was done on a Mettler Toledo TGA/SDTA85 thermal analyzer (Zurich, Switzerland) under nitrogen atmosphere with a flow rate of 20 mL/min. The heating rate was 10 °C/min from 25 to 800 °C. Thermogravimetric-Differential Scanning Calorimeter synchronization analysis (TGA-DSC) of unmodified NBR and NBR composites was carried out on a NETZSCH STA449F3 Jupiter instrument (Bavaria, Germany)with heating rates varying from 5 to 20 °C/min, from 40 to 800 °C. The measurements were done under oxygen atmosphere with a gas flow rate of 20 mL/min.
Tensile tests of NBR composites were carried out using a MTS CMT 6104 universal tensile testing machine (MTS Systems (China) Co., Ltd., Shanghai, China) at 25 °C by following a Chinese national test standard of GB/T528-1998. The cross-head speed was 500 mm/min during the tensile test. Each sample was tested five times and the average values were taken. The standard deviations (SD) of these data were obtained with Equation (1) [47]:
SD = ∑ i = 1 n ( x i − x ¯ ) 2 α n − 1 ,
where n is the total number of experiments, x i are the experimental values, and x ¯ is the average of the experimental values.
Dynamic mechanical analysis (DMA) of NBR specimens was performed on a TA Q800 DMA (TA Instruments, New Castle, DE, USA) in double cantilever beam mode with a frequency of 1 Hz from −50 to 20 °C at a heating rate of 3 °C/min.
Scanning electron microscopy (SEM) analysis was performed on a JSM-6360LV instrument (Japan Electronics Co., Tokyo, Japan) to study the surface morphology of the LDH particles and the fracture surface morphology of composite specimens.

3. Results and Discussion

3.1. Structural and Chemical Properties of LDHs

In general, the layer structure of LDHs can be obtained from their X-ray diffractogram. The existence of crystal planes at (003), (006), (012), (015), (018), (110) and (113) indicated that the prepared LDH materials were highly crystalline [38], as shown in Figure 1. The interlayer distance of the LDHs was calculated through Bragg’s equation. For LDH–SAS, the (003) diffraction peak at 5.84°giave an interlayer distance of 1.53 nm, which was larger than that for LDH–NO3 at 0.85 nm. This indicates that the SAS molecules were successfully intercalated into the LDH interlayer through anion exchange [48]. However, a relatively weak diffraction peak at 10.36° was also observed for LDH–SAS in Figure 1, indicating the existence of a small amount of LDH–NO3 in LDH–SAS [16]. The diffraction peaks of LDH–NO3 were all narrower and sharper than those of LDH–SAS, indicating that the crystallinity of LDH–NO3 was higher than that of LDH–SAS. This may have been caused by the expanded interlayer spacing and might disturb the crystal structure of LDH–SAS.
The interaction between LDHs and SAS is important for explaining the successful intercalation of LDH-SAS, which could be studied through FTIR spectroscopy [16]. As shown in Figure 2, both LDH–SAS and LDH–NO3 have absorption bands at 3500–3400 cm−1, 700–600 cm−1 and about 1385 cm−1. These typical LDH absorption bands are attributed to the stretching vibration of hydroxyl groups [43], the bending vibration of metal hydroxide sheets [49] and the stretching vibration of NO3− in the LDH interlayer [41,49], respectively. The stretching bands at 1623 and 1635 cm−1 are attributed to the bending vibration of the LDH interlayer–water interaction [16,37,41]. It should be noticed that the interlayer–water absorbing peak shifted from 1635 to 1623 cm−1 when LDH–NO3 was changed to LDH–SAS. This may have been caused by the presence of hydrogen bonding between the interlayer–water and the sulfonate group of SAS, as was found in a similar system [7]. The LDH–SAS band had a new absorption peak at 3554 cm−1, because the intercalation of SAS into LDHs caused relaxation of the interlayer structure, which allowed more free water molecules to enter the interlayers. For LDH–SAS, the absorption peaks at about 3411 and 3223 cm−1 were mainly related to the primary amine bending vibration of N–H. The peaks at about 1183, 1122 and 1036 cm−1 of LDH–SAS are attributed to the stretching vibration of sulfonate groups [41], and the peak at about 833 cm−1 is the bending vibration of 1,4-substituted benzene rings. X-ray diffraction and FTIR spectroscopy thus indicated the successful preparation of LDH–SAS.

3.2. Thermal Stability of LDHs

LDH–NO3 had two obvious weight loss stages, as shown in Figure 3 (curves a, d). The first stage occurred at about 150 °C (termed “low-temperature decomposition”). This is attributed to the loss of free water and interlayer water molecules. The second stage (termed “high-temperature decomposition”) occurred at about 420 °C, and was caused by degradation of the hydroxide layer of LDH–NO3.
LDH–SAS had a smoother thermal degradation curve and wider thermal degradation temperature range than LDH–NO3, as shown in Figure 3 (curves c, e). Its weight loss curve showed three main stages. The low temperature decomposition stage (the loss of physical free water and interlayer water molecules) began at a lower temperature (103 °C) compared to that of LDH–NO3 (139 °C). This can be explained, on one hand, by the increased interlayer spacing and relaxation of its structure caused by SAS intercalation, which allows easier loss of the interlayer water, and, on the other hand, because the interactions between interlayer water molecules of LDH–NO3 and interlayer nitrate ions are stronger than those between interlayer water molecules and SAS ions. [32]. The second decomposition stage, due to hydroxide layer degradation, occurred at about 470 °C, higher by about 50 °C than for LDH–NO3. A third stage took place at about 570 °C, and was caused by the degradation of SAS in the interlayer, as supported by the SAS curves shown in Figure 3 (curves b, f). This shows that LDH–SAS has greater thermal stability and a longer retention time during thermal degradation than LDH–NO3 [50].

3.3. XRD Analysis of NBR Composites

XRD was used to study the exfoliation behavior of LDHs in the rubber. The X-ray diffractograms of the unmodified NBR, both before and after aging, shown in Figure 4a,b have only one broad peak at about 19°, attributed to the amorphous region of NBR. When LDH–SAS was added to the rubber, the basal spacing (d003) increased from 1.53 to 1.94 nm (Figure 1a and Figure 4c), indicating that some NBR chains entered the interlayer of LDH–SAS during the mixing and vulcanization processes. This also indicates that LDH–SAS has a larger layer spacing and excellent compatibility with NBR molecular chains. For NBR/LDH–SAS after aging, however, the diffraction peak corresponding to the crystal face of (003) disappeared, as shown in Figure 4d. This could be explained by the fact that more NBR chains entered the LDH–SAS interlayer and formed cross-links during the aging process, making LDH-SAS completely exfoliate in NBR/LDH–SAS. In contrast, LDH–NO3 showed no change in its basal spacing (d003), which remained at about 0.85 nm after being added to NBR, as shown in Figure 1b and Figure 4e,f. This indicates that LDH–NO3 underwent no further exfoliation in the NBR matrix, probably because the smaller LDH–NO3 basal spacing prevented the NBR chain from moving into the LDH–NO3 interlayer.

3.4. Mechanical Properties of NBR Composites

Tensile tests were conducted to evaluate the mechanical properties of the NBR/LDH composites. The selected stress–strain curves of different NBR composites are shown in Figure 5. The tensile strength and elongation at failure of all NBR composites after aging decreased. However, for NBR/LDH–SAS composites with 5 phr of LDH–SAS, both the retention of tensile strength and elongation at failure were higher than those of the unmodified NBR and NBR/LDH–NO3 composites with 5 phr of LDH–NO3.

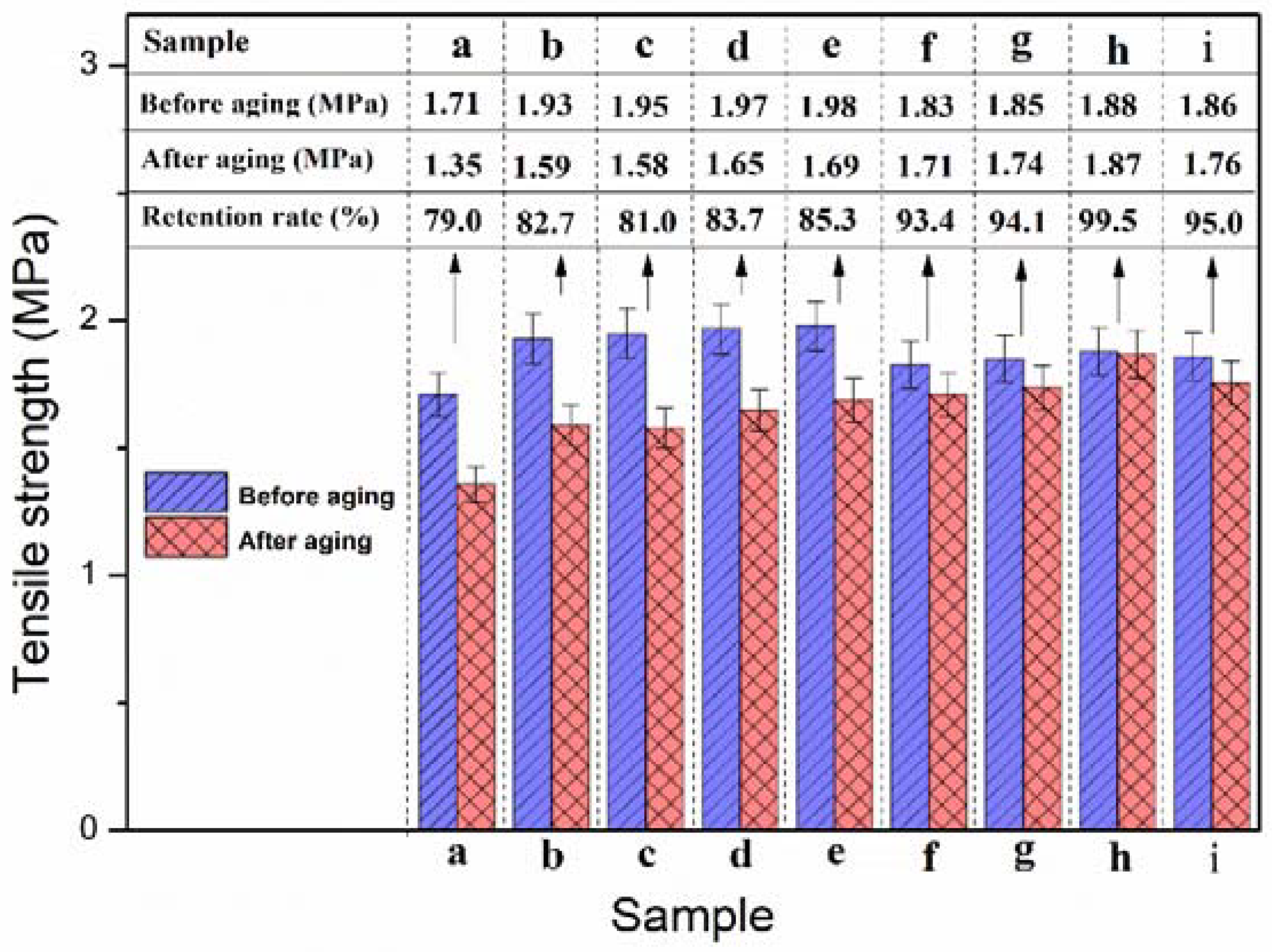

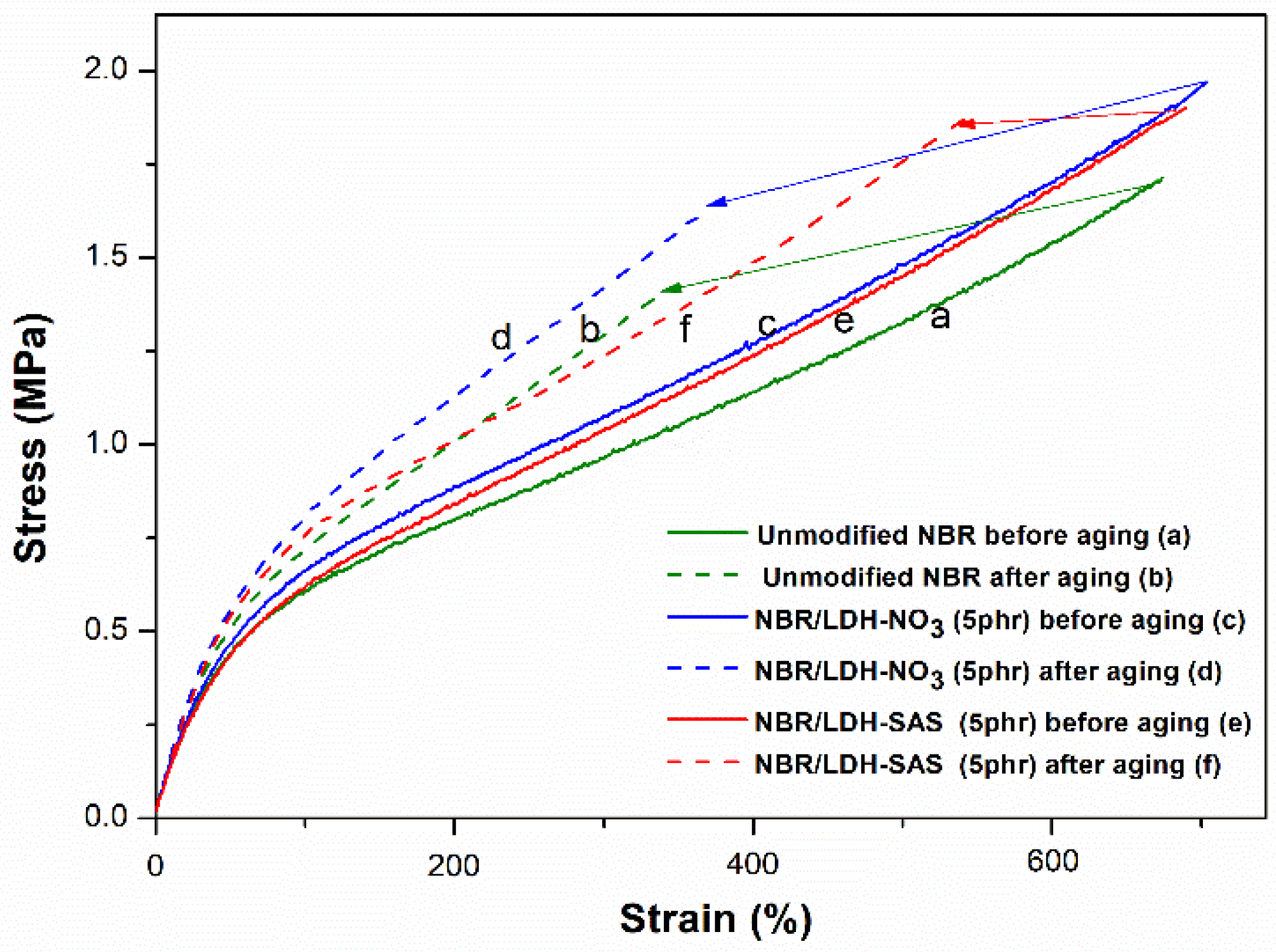

The average tensile strength and elongation at break are shown in Figure 6 and Figure 7, respectively.
Both NBR/LDH–NO3 and NBR/LDH–SAS had a higher tensile strengths and elongation at break than the unmodified NBR. The LDH–NO3 was better than LDH–SAS at improving these properties; this might be because LDH–NO3 accelerates NBR vulcanization more [41]. However, LDH–SAS maintains a higher tensile strength and elongation at break than the unmodified NBR and NBR/LDH–NO3 after thermo-oxidative aging. In particular, the retention rates of tensile strength and elongation at break point of NBR/LDH–SAS (5 phr) composite were 99% and 70%, respectively.

3.5. Micromorphology of LDHs and Fractured Surface of NBR Composites

The micromorphology of LDHs and the fractured surface micromorphology of NBR/LDH composites were studied by SEM, with representative images shown in Figure 8. Both the LDH–NO3 and LDH–SAS particles showed typical lamellar hexagons, with lateral dimensions of about 2–3 μm for LDH–NO3 and 1–2 μm for LDH–SAS. Compared with LDH–SAS, the LDH–NO3 particles had better crystal structures and more obvious hexagonal shapes. This is consistent with the XRD results in Figure 1, from which it was concluded that the intercalation of SAS in the LDH interlayers expanded the layer spacing and perturbed the crystal structure of LDH–SAS. Furthermore, LDH–NO3 aggregates in the rubber matrix reached sizes as large as 2 μm (Figure 8c), which might have been caused by the hydrophilicity and the large specific surface area as well as the strong filler–filler interactions of LDH–NO3 [51]. Compared to LDH–NO3, LDH–SAS had a better dispersion in the rubber matrix due to the stronger interactions of its organic groups with the NBR matrix.
As shown in Figure 8e, some microvoids were formed around the LDH–NO3 particles in NBR/LDH–NO3 composites after aging, which were possibly caused by the weak interaction between LDH–NO3 and the NBR matrix. Microvoids can decrease the mechanical strength of NBR/LDH–NO3 composites, which explains the results of the mechanical tests shown in Figure 6 and Figure 7. On the one hand, microvoids provide a channel to allow oxygen to penetrate NBR, enhancing thermo-oxidative processes. On the other hand, these microvoids can also increase the possibility of stress concentration. In contrast, no obvious microvoids were found in NBR/LDH–SAS after aging, as shown in Figure 8f. In line with the XRD result, this could be attributed to the organic–organic bonding layer between the intercalated NBR molecules and LDH–SAS that inhibits the formation of microvoids.

3.6. Dynamic Mechanical Analysis (DMA) of NBR Composites

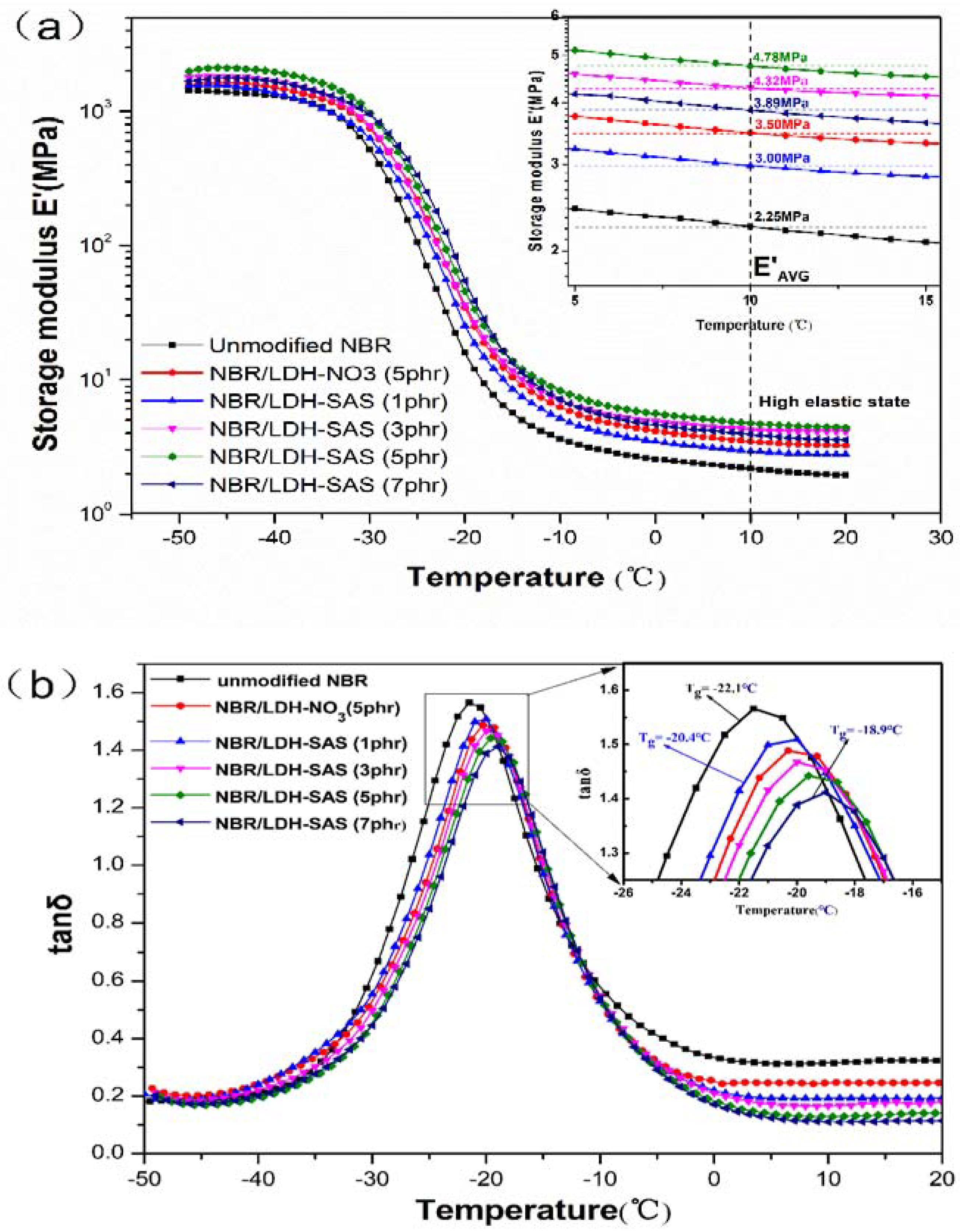

The elasticity of a material can also be characterized by its storage modulus (E′) [34]. The NBR/LDH–SAS composites with 5 phr of LDH–SAS had the highest E′ among the samples studied, and all NBR/LDH-SAS composites had a higher E′ at 10 °C than unmodified NBR, as shown in Figure 9a. This might be caused by the high aspect ratio of LDH–SAS particles [52] and the interactions between NBR and LDH–SAS particles which limit the mobility of NBR molecules. However, for the NBR/LDH–SAS composite with 7 phr LDH–SAS, E′ was slightly decreased because of the agglomeration. It was observed that the E′ of NBR/LDH–SAS was higher than that of NBR/LDH–NO3 at the same 5 phr of filler loading, because LDH–SAS particles are easy to strip in the NBR matrix due to the larger layer spacing of LDH–SAS than that of LDH–NO3, as well as LDH–SAS having stronger interaction with NBR than LDH–NO3.
The glass transition temperature (Tg) determined from the tan δ peak for all NBR/LDH composites was approximately 2 °C higher than that of the unmodified NBR, as shown in Figure 9b, which is explained by the restriction of the mobility of NBR chains by LDHs [27,53,54,55,56,57,58]. Moreover, the Tg of NBR/LDH–SAS (5 phr) was higher than that of NBR/LDH–NO3 (5 phr), due to the organic ingredient (SAS) in LDH–SAS increasing the interactions between LDH–SAS and the NBR matrix. In addition, the insertion of NBR molecules into the interlayers of LDH–SAS further restricted the mobility of NBR [59]. Generally, the height of the tan δ peak reflects the energy damping characteristics of a material [34,60]. The tan δ peaks of NBR/LDH–SAS gradually decreased with increasing LDH–SAS content, indicating that the LDH–SAS increased the stiffness of the composites when well-dispersed in NBR [34,53]. In addition, the height of the tan δ peak of the NBR/LDH–SAS with 5 phr LDH–SAS was lower than that of NBR/LDH–NO3 with 5 phr LDH–NO3, because of the better dispersity of LDH–SAS compared to LDH–NO3 based on the results shown in Figure 8.
In order to further analyze the interaction between NBR and filler, the number of network chains per unit volume of rubber, defined as N1, was calculated from the state equation of cross-linked rubber (Equation (2)) [61] and the following equations:
σ = 3 N 1 KT ε ,
σ = E ε ,
E = 3 N 1 KT ,
where σ is the stress, K is the Boltzmann constant (K = 1.38 × 10−23 J/K), T is the absolute temperature, ε is the strain, and E is Young’s modulus. For rubber materials, the storage modulus (E′) in the elastic state is assumed to be approximately equal to its Young’s modulus (E). Therefore, Equation (4) can be rewritten as
E ′ = 3 N 1 KT .
The E′ of NBR at 283.15 K (E′AVG) was chosen to calculate N1 and ΔN1 from Equation (5), and the results are listed in Table 3, where ΔN1 is the difference in the number of network chains between NBR/LDH composites and unmodified NBR.
It can be seen from Table 2 that the N1 of the NBR composite after the addition of the filler was significantly larger than that of the unmodified NBR, indicating that there was a strong interaction between the fillers and the rubber molecules, as illustrated in Scheme 1. The ΔN1 of NBR/LDH–SAS (5 phr) was twice that of NBR/LDH–NO3 (5 phr), indicating that the SAS increased the interactions between LDH–SAS and the NBR molecular chain, resulting in more physical cross-linked sites. With an increase in LDH–SAS content, ΔN1 gradually increases at first, but begins to decrease when the LDH–SAS content surpasses 5 phr, which suggests that LDH–SAS aggregation reduces the physical cross-link points between the filler and rubber matrix.

3.7. Aging Mechanism of the NBR Composites

In order to understand the aging mechanism of NBR/LDH composites, the changes in the chemical groups of NBR/LDHs before and after aging were analyzed using ATR-FTIR, as shown in Figure 10. The peaks at 1727 cm−1, 1599 cm−1 and 2238 cm−1 are attributed to the vibration of C=O, C=C and –CN, respectively [7,62]. NBR–CN was used as a reference to reflect the changes in other chemical groups, given that the –CN group is essentially stable during thermo-oxidative aging. IC=O/ICN and IC=C/ICN represent the peak intensities used to follow the chemical group changes [47].

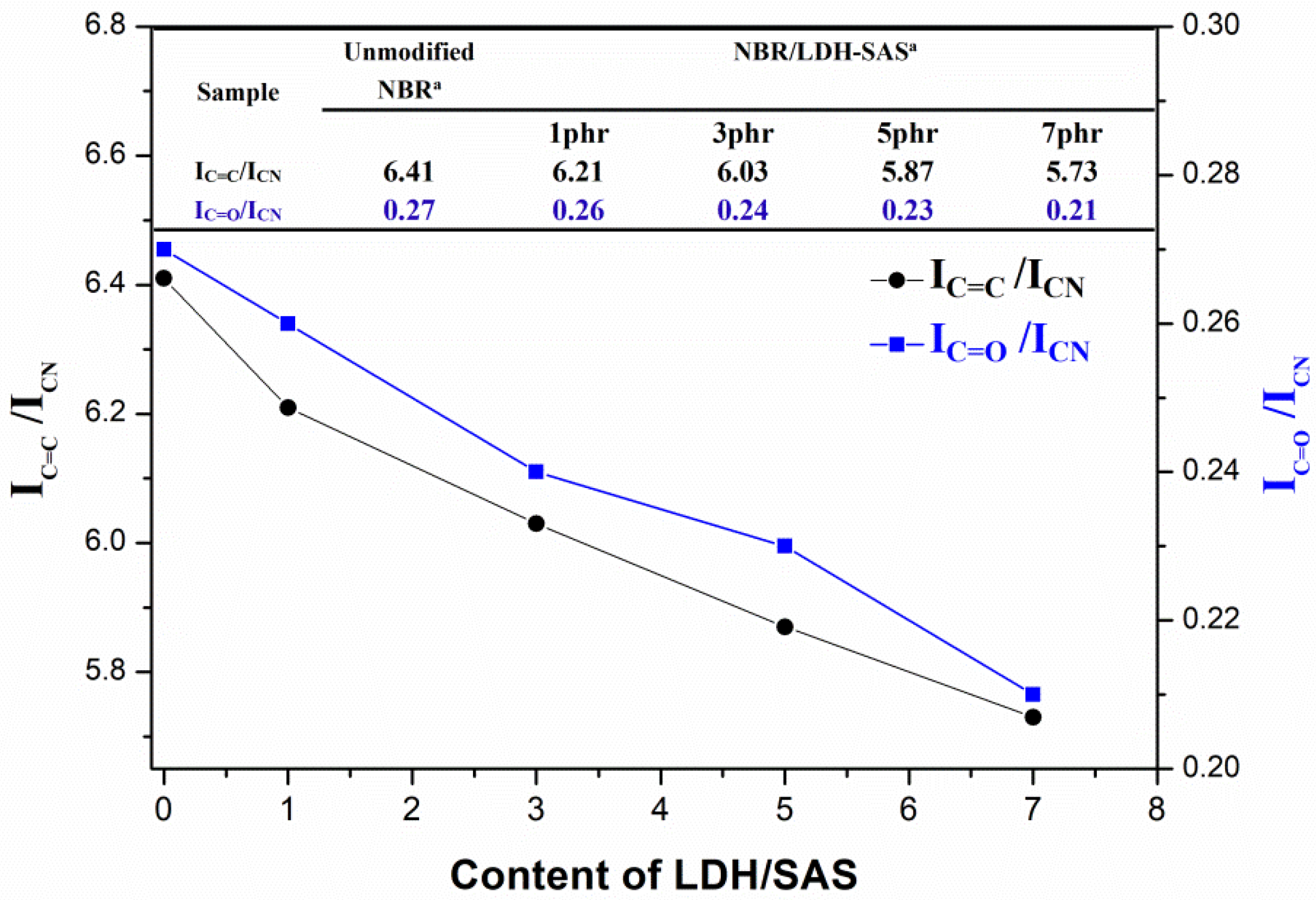

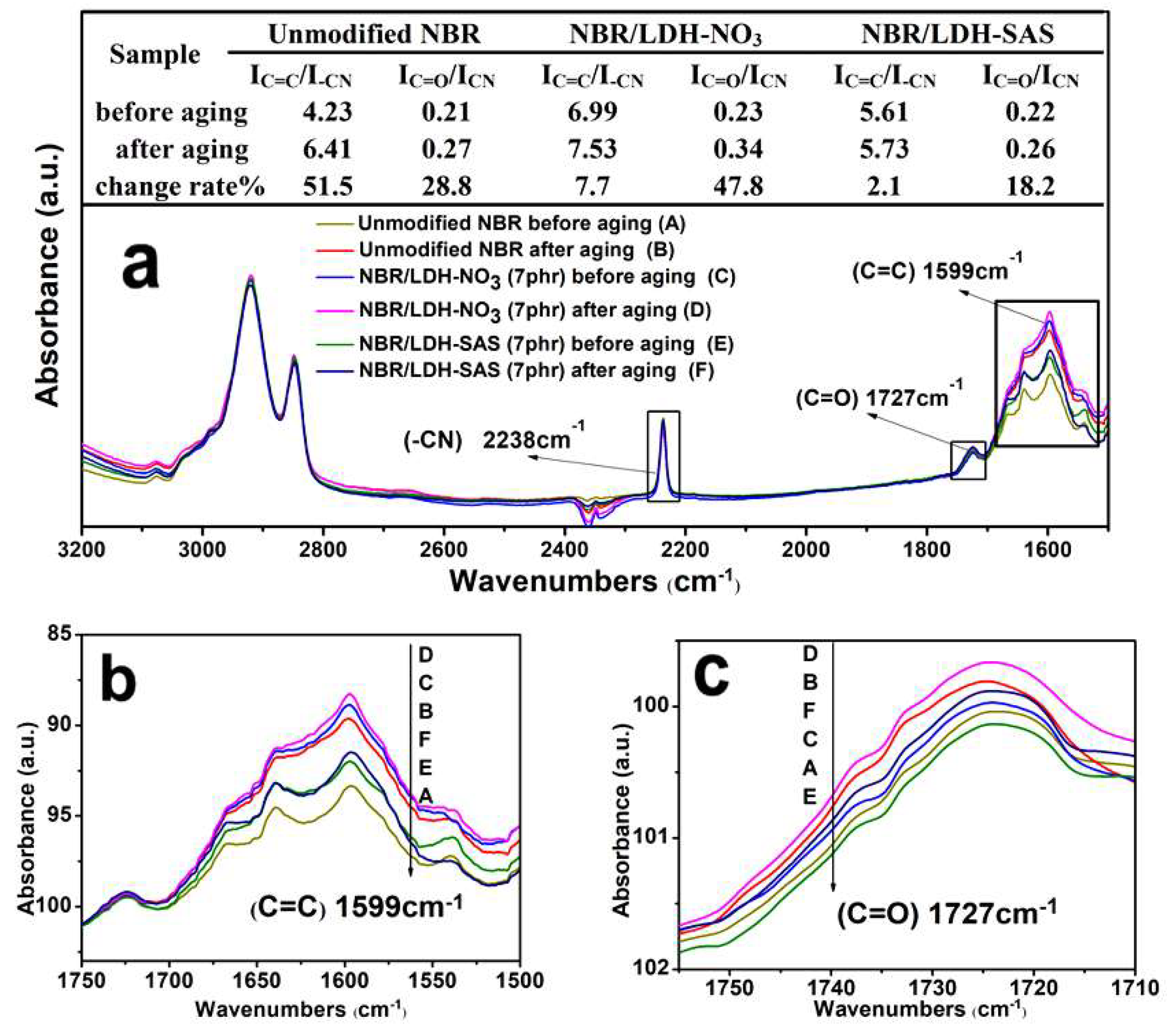

Changes in the values of IC=O/ICN and IC=C/ICN are shown in Figure 10. The increase in IC=C/ICN was caused by the scission of NBR main chains, and the increase of IC=O/ICN was caused by the oxidation of NBR main chains [63]. The IC=C/ICN and IC=O/ICN values increased to different degrees after thermo-oxidative aging for the NBR composites, as shown in Figure 10a, indicating that both scission and oxidation of the NBR molecules occurred during thermo-oxidative aging [62]. For the unmodified NBR, the IC=C/ICN and IC=O/ICN increased by 51.5% and 28.8%, respectively, after aging (Figure 10a), indicating significant scission and oxidation during the aging process. However, for NBR/LDH–NO3, IC=O/ICN and IC=C/ICN increased by 47.8% and 7.7%, respectively, due to the accelerated effect of LDH–NO3 on the sulfur vulcanization [41] and the reduced content of unsaturated carbon–carbon double bonds in the composites. On the other hand, as discussed previously, the microvoids around the LDH–NO3 particles provided a channel for oxygen to react with NBR molecules and enhance the aging. For NBR/LDH–SAS, IC=C/ICN and IC=O/ICN changed by only 2.1% and 18.2%, respectively, which was attributed to the aniline groups of SAS capturing the peroxy radicals, thereby weakening the chain scission and oxidation of NBR during aging. Another observation, shown in Figure 11, was that both IC=C/ICN and IC=O/ICN for the NBR/LDH–SAS composites decreased with an increasing content of LDH–SAS, indicating that the thermal oxidative stability of NBR increased with an increasing content of LDH–SAS.

3.8. Thermal Properties of NBR Composites

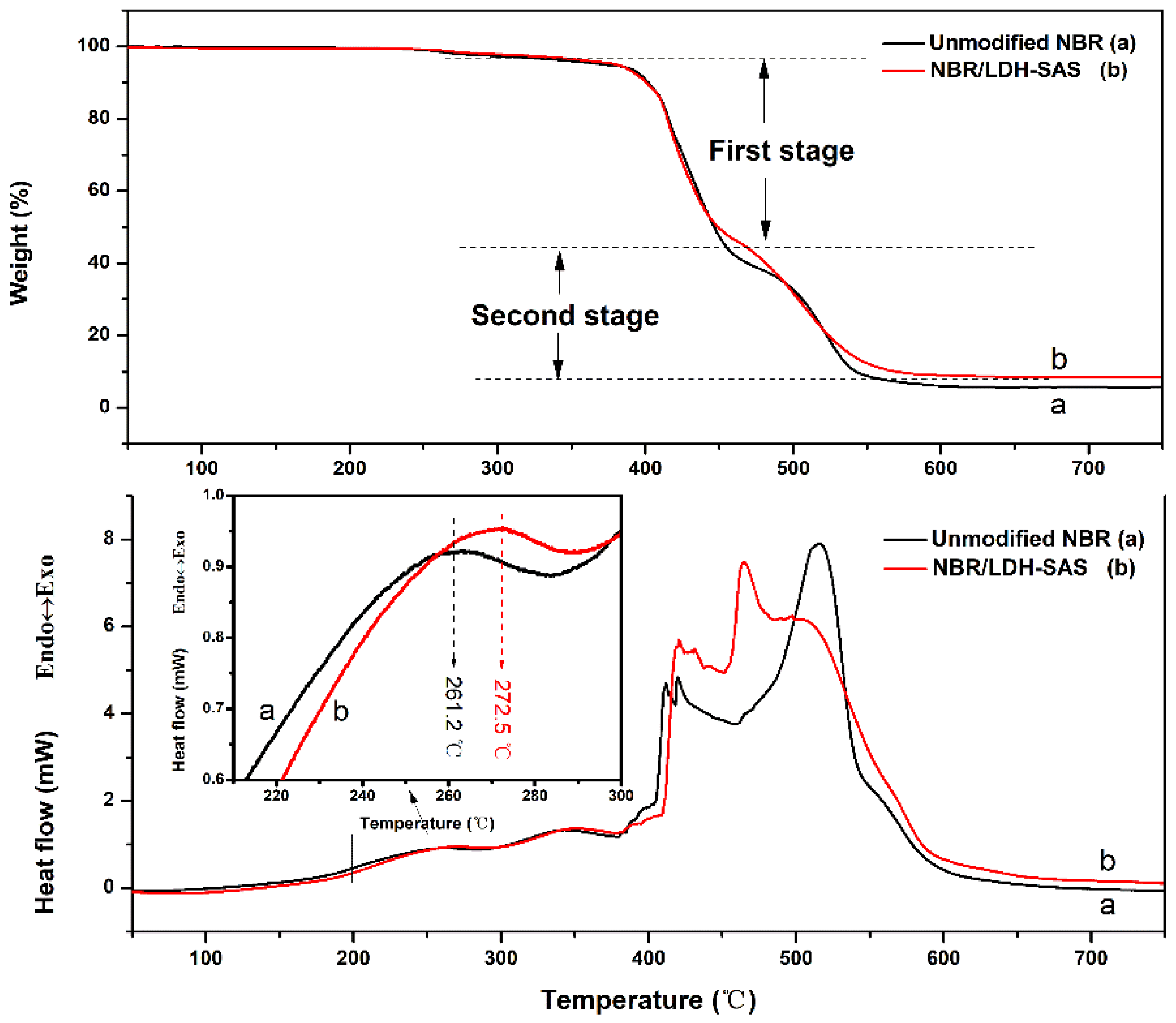

Thermo-oxidative aging and decomposition of NBR composites were studied by DSC and TGA in an oxygen atmosphere, and the results are shown in Figure 12. The TGA curves of NBR composites showed two obvious decomposition stages. This indicates that the thermo-oxidative degradation process of NBR composites can be reasonably considered to have two stages [64]. The first stage at about 360–450 °C can be considered random scissions of the NBR main chains, producing numerous alkyl radicals. The NBR/LDH–SAS composites showed a slightly lower amount of weight loss in this stage than the unmodified NBR. This indicates that LDH–SAS can effectively retard NBR main chain scission. The second stage at 460–550 °C can be considered further thermo-oxidative decomposition of alkyl radicals [65].
The thermo-oxidative aging peak at 220–300 °C in the DSC curves was due to cross-linking reactions and chain scission [7]. The aging temperature of NBR/LDH–SAS (272.5 °C) was about 11 ± 3 °C higher than that of unmodified NBR (261.2 °C), again indicating that NBR/LDH–SAS has higher thermal stability than unmodified NBR.

3.9. Kinetic Analysis of Thermal Oxidative Degradation NBR

The kinetics of thermo-oxidative degradation are important for understanding anti-aging mechanisms [47,66,67] and can illustrate the procedure of thermal oxidative degradation [47].

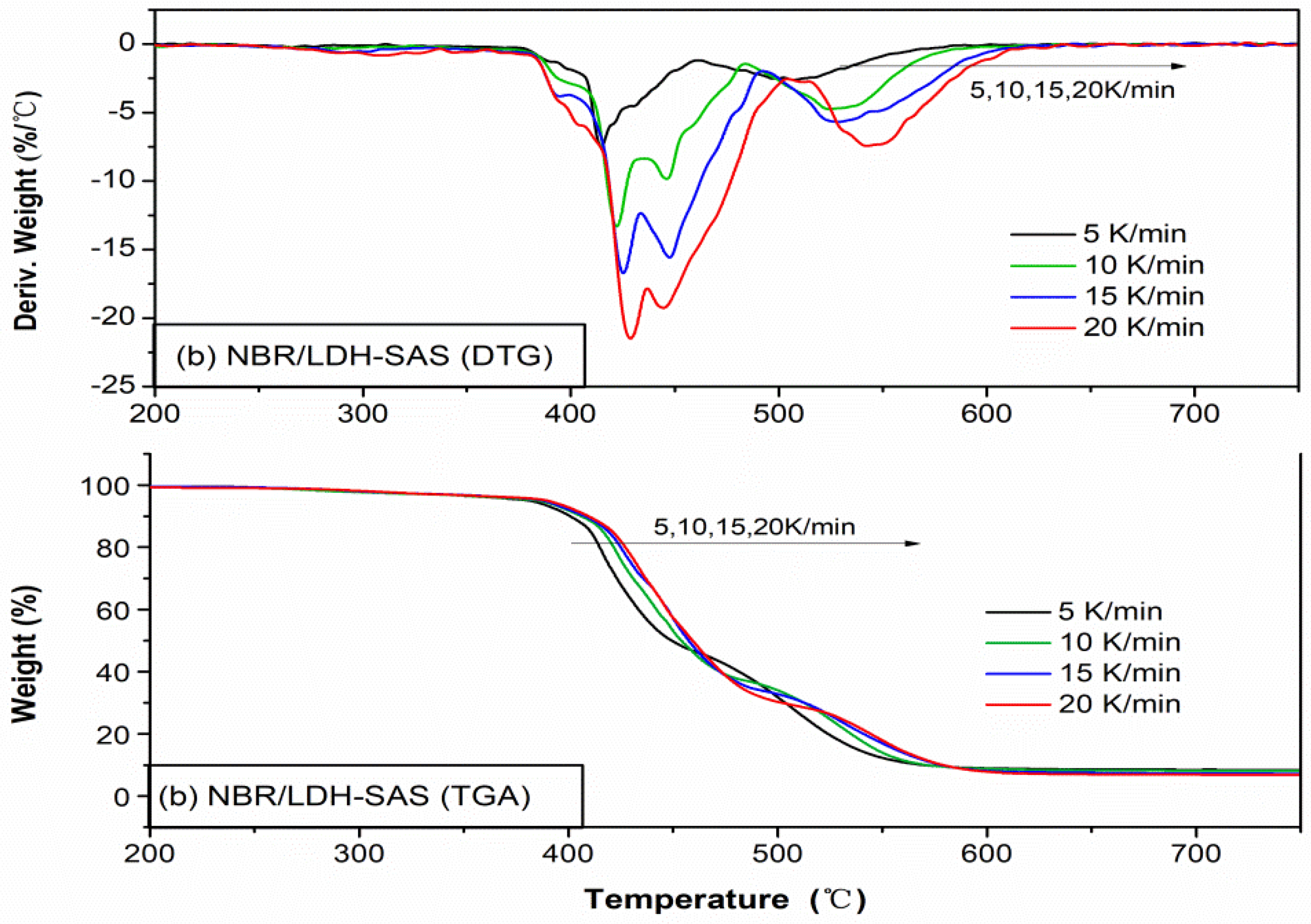

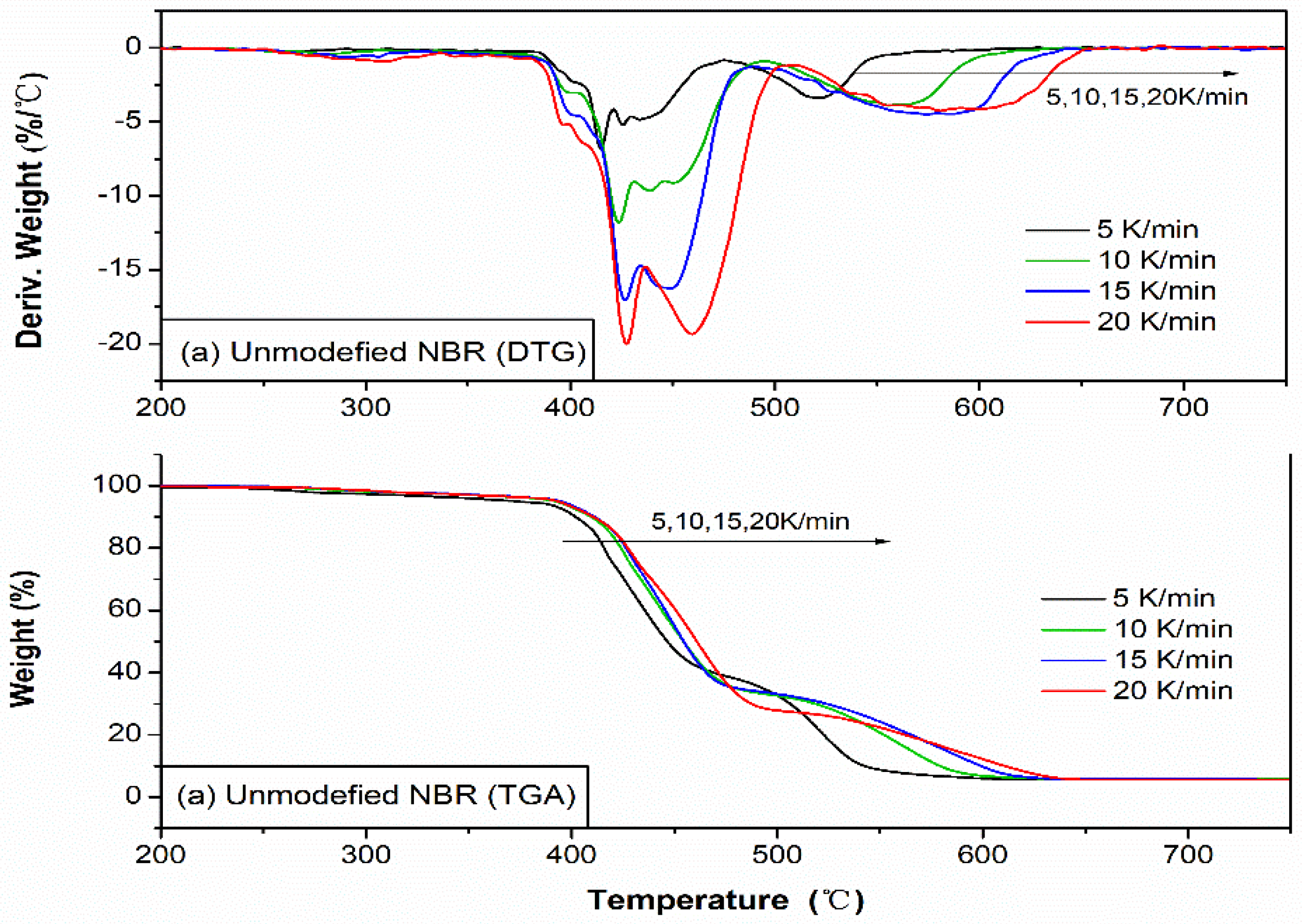

TGA and DTG curves with different heating rates were recorded to investigate the kinetics of thermo-oxidative degradation of NBR composites, as shown in Figure 13. The peaks in the DTG thermograms shifted to higher temperatures with an increase in the heating rate. The non-isothermal isoconversional Flynn–Wall–Ozawa (FWO) equation is shown as follows [64]:
lg β = lg   ( AEa RG ( a ) ) − 2.315 − 0.4567   Ea RT ,
where β is the TGA heating rate, A is a pre-exponential factor, R is the gas constant, T is the absolute temperature, α is the fractional mass loss, G(α) is a conversional function and Ea is the activation energy of thermal decomposition. With different β, but the same α, G(α) will always be a constant. Therefore, the Ea can be estimated from the slope of the straight line of lgβ against T−1 [65].

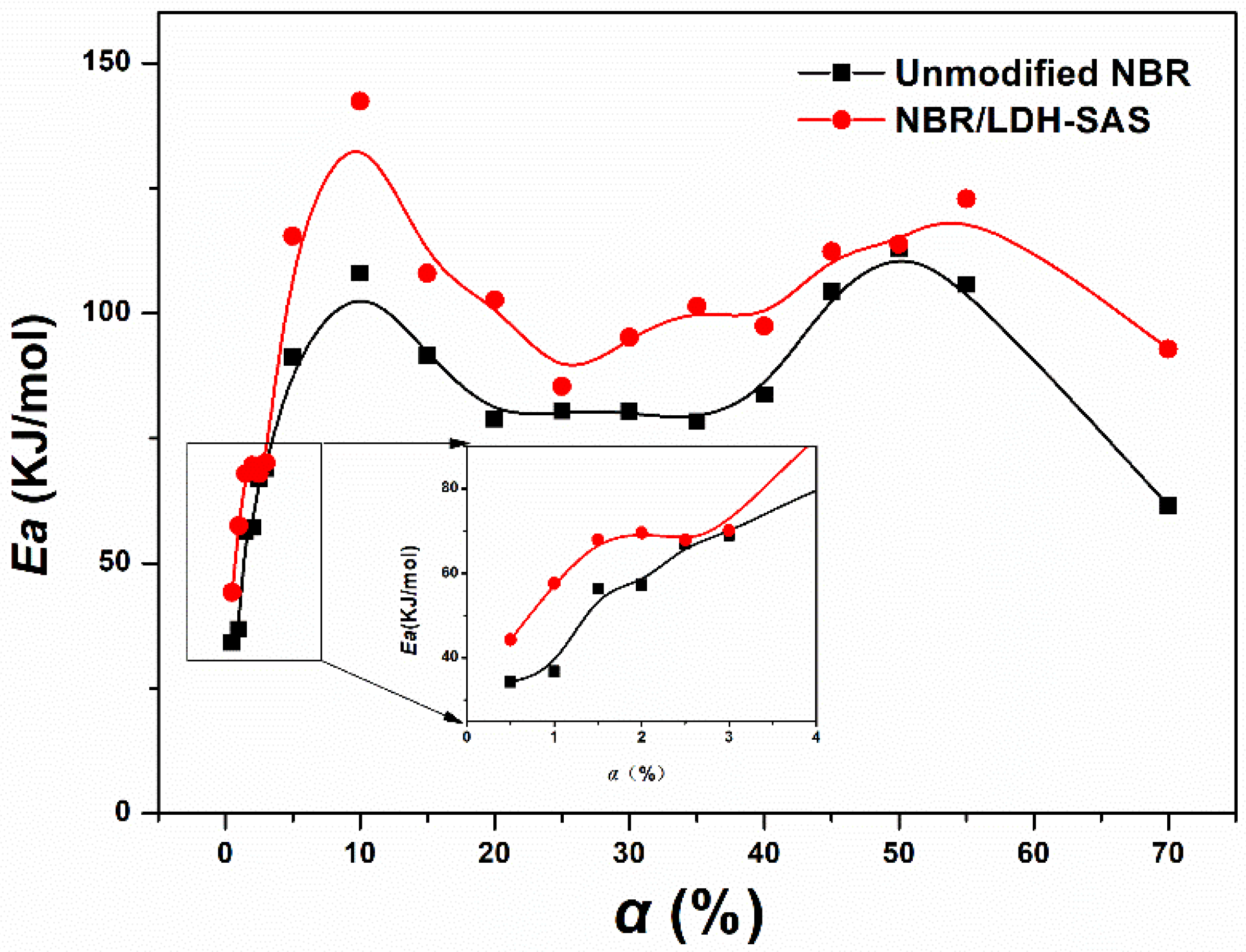

The relationship between the logarithm of heating rate (lgβ) and the reciprocal of the absolute temperature (1000/T) was linear with coefficients greater than 0.9, as shown in Figure 14. The calculated dependence of Ea on α is further shown in Figure 15. The variation of this dependence can be divided into three stages [62,68,69]. The first stage covers the values of α between 0 and 10%, where Ea increases because of chain initiation [70]. The second stage covers α values between 10% and 20%, where the apparent Ea decreases due to the autocatalytic oxidation reaction [6,68]. The third stage begins slightly above 20% for α. Here, Ea first increases and then decreases with a maximum α equal to 50%. This is caused by the further decomposition of thermo-oxidative intermediate products. It may be noted that the Ea of the NBR/LDH-SAS composites was higher than that of the unmodified NBR in the overall range, because NBR/LDH–SAS had better aging resistance than unmodified NBR, due, as explained above, to radical capture by the aniline groups, restraining degradation, and to the strong LDH–SAS/NBR interactions, which restrain oxygen penetration.

4. Conclusions

An organic aniline-containing functional filler, LDH–SAS, was successfully prepared and added to NBR to give NBR/LDH–SAS composites. LDH–SAS was found to be further exfoliated in NBR during processing, which improved the interactions between the filler and the NBR matrix. Calculation of the state equation also suggested a strong interaction between LDH–SAS and NBR, resulting in more physical cross-links. Adding LDH–SAS greatly improves the thermal oxidative aging resistance of NBR composites, because the organic groups of LDH–SAS can capture radicals produced during aging as well as prevent oxygen from penetrating the interior of the rubber matrix. The tensile strength of the NBR/LDH–SAS composites with 5 phr of LDH–SAS decreased by only 0.5% after aging. In contrast, the tensile strength of the unmodified NBR composites decreased by 21% after aging. The kinetics of thermo-oxidative degradation showed that NBR/LDH-SAS had a higher Ea than the unmodified NBR during the entire degradation process. This study thus provides an alternative for preventing the frequently occurring thermo-oxidative aging of rubber. The addition of organic SAS to NBR is advantageous in thermo-oxidative aging resistance over other approaches, particularly the double bond approach, because the filler addition is more quantitatively controllable, and thus, property improvement can be predicted, which is practically useful where performance and cost must be balanced.

Author Contributions

T.L. performed the experiments and wrote the manuscript; Z.S. conceived and designed the experiments; X.H. contributed to the conception of the study; P.J. contributed significantly to the analysis and manuscript preparation; X.L. performed the data analyses; X.W. contributed significantly to improving the laconics and smoothness of the manuscript; R.Z. helped with the analysis through constructive discussions.

Funding

This research was supported by the Department of Science of Sichuan Province (2015JY0052). The authors also acknowledge funding from the Education Department of Sichuan Province (No. 17ZA0419), as well as start-up funding from Southwest Petroleum University.

Acknowledgments

In this study, Nitrile-butadiene rubber is provided by China Lanzhou Petrochemical Corporation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Davydova, M.L.; Sokolova, M.D.; Haldeeva, A.R.; Djakonov, A.A. Modification of sealing rubber based on nitrile butadiene rubber by thermoexpanded graphite. J. Frict. Wear 2015, 36, 23–28. [Google Scholar] [CrossRef]
  2. Wang, P.; Su, Z.T.; Lai, L.Q.; Jiang, H.G.; Wang, J.H. Engine isolate mount elastomers. In Proceedings of the International Conference on Structural, Mechanical and Materials Engineering, Dalian, China, 6–8 November 2015. [Google Scholar]
  3. Gao, S.; Wang, R.; Fang, B.; Kang, H.; Mao, L.; Zhang, L. Preparation and properties of a novel bio-based and non-crystalline engineering elastomer with high low-temperature and oil resistance. J. Appl. Polym. Sci. 2015, 133, 42855. [Google Scholar] [CrossRef]
  4. Pradhan, B.; Srivastava, S.K.; Bhowmick, A.K.; Saxena, A. Effect of bilayered stearate ion-modified Mg-Al layered double hydroxide on the thermal and mechanical properties of silicone rubber nanocomposites. Polym. Int. 2012, 61, 458–465. [Google Scholar] [CrossRef]
  5. Zhang, H.; Chang, C. Study of UV Irradiation on Behavior of NBR Rubber from Oil Seal. Adv. Mater. Res. 2014, 1082, 42–45. [Google Scholar] [CrossRef]
  6. Lee, Y.S.; Hwang, K.S.; Lee, J.C.; Kim, T.G.; Ha, K.R. Effect of TESPT Silane Coupling Agent on Mechanical Properties of Precipitated Silica Filled NBR Compound for Oil Seal. Elastom. Compos. 2011, 46, 45–53. [Google Scholar]
  7. He, X.; Li, T.; Shi, Z.; Wang, X.; Xue, F.; Wu, Z. Thermal-oxidative aging behavior of nitrile-butadiene rubber/functional LDHs composites. Polym. Degrad. Stab. 2016, 133, 219–226. [Google Scholar] [CrossRef]
  8. Yuan, W.N.; Zhang, Y.X.; Xiao, F.L. Application of Tackifier Ricobond 1756HS in HNBR Framework Oil Seal. China Rubber Ind. 2014, 61, 166–170. [Google Scholar]
  9. Dato, J.E.; Campomizzi, E.C.; Achten, D. HNBR for use in oilfield applications. Rubber World 2007, 236, 28. [Google Scholar]
  10. Molinari, N.; Sutton, A.; Stevens, J.; Mostofi, A. An atomistic model for cross-linked HNBR elastomers used in seals. In Proceedings of the APS March Meeting, San Antonio, TX, USA, 2–6 March 2015. [Google Scholar]
  11. Li, B.; Zhang, X.Y.; Fu, Z.Y.; Wang, P.Y.; Quan, W.X. The Improvement of Modified Filler on the Anti-Aging Properties of Conductive Silicone Rubber. Appl. Mech. Mater. 2014, 488, 178–184. [Google Scholar] [CrossRef]
  12. Liang, Z. Study on the structure and dynamic mechanics performanceof nano montmorillonoid/styren-butadiene rubber composite. China Rubber Plast. Technol. Equip. 2006, 32, 29–33. [Google Scholar]
  13. Gallo, E.; Schartel, B.; Schmaucks, G.; Ehe, K.V.D.; Böhning, M. Effect of well dispersed amorphous silicon dioxide in flame retarded styrene butadiene rubber. Plast. Rubber Compos. 2013, 42, 34–42. [Google Scholar] [CrossRef]
  14. Wang, X.; Dou, W. Preparation of graphite oxide (GO) and the thermal stability of silicone rubber/GO nanocomposites. Thermochim. Acta 2012, 529, 25–28. [Google Scholar] [CrossRef]
  15. Peng, Y.L.; Su, Z.T.; Liu, J.; Jiao, D.S. Effect of Fe2O3 on thermal stability of HTV silicone rubber. Silicone Mater. 2005, 4, 14–16. [Google Scholar]
  16. Costa, F.R.; Pradhan, S.; Wagenknecht, U.; Bhowmick, A.K.; Heinrich, G. XNBR/LDH Nanocomposites: Effect of vulcanization and organic modifier on nanofiller dispersion and strain-induced crystallization. J. Polym. Sci. Polym. Phys. 2010, 48, 2302–2311. [Google Scholar] [CrossRef]
  17. Kaushik, A.K.; Podsiadlo, P.; Qin, M.; Shaw, C.M.; Waas, A.M.; Kotov, N.A. The Role of Nanoparticle Layer Separation in the Finite Deformation Response of Layered Polyurethane-Clay Nanocomposites. Macromolecules 2010, 42, 6588–6595. [Google Scholar] [CrossRef]
  18. Saad, G.R.; Naguib, H.F.; Elmenyawy, S.A. Effect of organically modified montmorillonite filler on the dynamic cure kinetics, thermal stability, and mechanical properties of brominated epoxy/aniline formaldehyde condensates system. J. Therm. Anal. Calorim. 2013, 111, 1409–1417. [Google Scholar] [CrossRef]
  19. Jin, H.L.; Bae, J.W.; Kim, J.S.; Choi, Y.S.; Jo, N.J. Effect of Organically Modified Layered Silicate on Degradation of Chloroprene Rubber. Asian J. Chem. 2013, 25, 5159. [Google Scholar]
  20. Zhang, S.P.; Song, H.O. Preparation of dispersible graphene oxide as a filler to increase the thermal stability of a flame retarding polymer. Carbon Mater. 2013, 56, 61–65. [Google Scholar] [CrossRef]
  21. Costa, F.R.; Leuteritz, A.; Meinl, J.; Wagenknecht, U.; Heinrich, G. LDH as Nanofiller: Organic Modification and Dispersion in Polymers. Macromol. Symp. 2011, 301, 46–54. [Google Scholar] [CrossRef]
  22. Ahmad Rasyid, M.F.; Hazizan, M.A.; Sharif, J.M. Effect of Organic Modification of Muscovite on the Polypropylene Layered Silicate Nanocomposite. Key Eng. Mater. 2011, 471, 623–645. [Google Scholar] [CrossRef]
  23. He, X.R.; Zhang, R.; Chen, Q.; Rong, Y.Q.; Yang, Z.Q. Different surface functionalized nano-Fe3O4 particles for EVA composite adhesives. Int. J. Adhes. Adhes. 2014, 50, 128–135. [Google Scholar] [CrossRef]
  24. Zhang, R.; He, X.; Chen, Q.; Feng, C.; Meng, L. Crystallization Kinetics of Functionallized FeO/Ethylene-vinyl Acetate Copolymer Nanocomposites Adhesives. J. Macromol. Sci. Part B 2015, 55, 55–72. [Google Scholar] [CrossRef]
  25. He, X.; Lu, X.; Chen, Q.; Zhang, R. Adhesive and viscoelastic performance of surface functionalized nano-Fe3O4 induced orientated ethylene vinyl-acetate composite hot melt adhesives. J. Appl. Polym. Sci. 2016, 133, 43931. [Google Scholar] [CrossRef]
  26. Zhang, Z.; He, X.; Zhang, J.; Lu, X.; Yang, C.; Liu, T. Influence of graphene/ferriferrous oxide hybrid particles on the properties of nitrile rubber. RSC Adv. 2016, 6, 91798. [Google Scholar] [CrossRef]
  27. Zhang, R.; He, X.; Lai, Z.; Yang, D. Effect of some inorganic particles on the softening dispersion of the dynamics of butyl rubber. Polym. Bull. 2016, 74, 1031–1043. [Google Scholar] [CrossRef]
  28. Becker, C.M.; Gabbardo, A.D.; Wypych, F.; Amico, S.C. Mechanical and flame-retardant properties of epoxy/Mg–Al LDH composites. Compos. Part A Appl. Sci. Manuf. 2011, 42, 196–202. [Google Scholar] [CrossRef]
  29. Zhang, M.; Ding, P.; Qu, B. Flammable, thermal, and mechanical properties of intumescent flame retardant PP/LDH nanocomposites with different divalent cations. Polym. Compos. 2009, 30, 1000–1006. [Google Scholar] [CrossRef]
  30. Chiang, M.F.; Chen, E.C.; Wu, T.M. Preparation, mechanical properties and thermal stability of poly(l-lactide)/γ-polyglutamate-modified layered double hydroxide nanocomposites. Polym. Degrad. Stab. 2012, 97, 995–1001. [Google Scholar] [CrossRef]
  31. Lebaron, P.C.; Wang, Z.; Pinnavaia, T.J. Polymer-layered silicate Nanocomposites: An overview. Appl. Clay Sci. 1999, 15, 11–29. [Google Scholar] [CrossRef]
  32. Basu, D.; Das, A.; Stöckelhuber, K.W.; Wagenknecht, U.; Heinrich, G. Advances in layered double hydroxide (LDH)-based elastomer composites. Prog. Polym. Sci. 2014, 39, 594–626. [Google Scholar] [CrossRef]
  33. Chibwe, K.; Jones, W. Synthesis of polyoxometalate pillared layered double hydroxides via calcined precursors. Chem. Mater. 1989, 1, 489–490. [Google Scholar] [CrossRef]
  34. Hsueh, H.B.; Chen, C.Y. Preparation and properties of LDHs/epoxy nanocomposites. Polymer 2003, 44, 5275–5283. [Google Scholar] [CrossRef]
  35. Costa, F.R.; Wagenknecht, U.; Heinrich, G. LDPE/Mg–Al layered double hydroxide nanocomposite: Thermal and flammability properties. Polym. Degrad. Stab. 2007, 92, 1813–1823. [Google Scholar] [CrossRef]
  36. Ven, L.V.D.; Gemert, M.L.M.V.; Batenburg, L.F.; Keern, J.J.; Gielgens, L.H.; Koster, T.P.M. On the action of hydrotalcite-like clay materials as stabilizers in polyvinylchloride. Appl. Clay Sci. 2000, 17, 25–34. [Google Scholar]
  37. Lin, Y.; Wang, J.; Evans, D.G.; Li, D. Layered and intercalated hydrotalcite-like materials as thermal stabilizers in PVC resin. J. Phys. Chem. Solids 2006, 67, 998–1001. [Google Scholar] [CrossRef]
  38. Nyambo, C.; Wang, D.; Wilkie, C.A. Will layered double hydroxides give nanocomposites with polar or non-polar polymers. Polym. Adv. Technol. 2010, 20, 332–340. [Google Scholar] [CrossRef]
  39. Basu, D.; Das, A.; Heinrich, G. Layered Double Hydroxide (LDH)-Based Rubber Nanocomposites. Encycl. Polym. Nanomater. 2014, 55, 1–7. [Google Scholar]
  40. Braga, F.C.F.; Furtado, C.R.G.; Oliveira, M.G. Influence of the Surfactant on the Hydrotalcite Dispersion in NBR/LDH Composites Produced by Coagulation. Macromol. Symp. 2015, 343, 70–77. [Google Scholar] [CrossRef]
  41. Feng, J.; Liao, Z.; Zhu, J.; Su, S. Comparison of morphology and mechanical properties of peroxide-cured acrylonitrile butadiene rubber/LDH composites prepared from different organically modified LDHs. J. Appl. Polym. Sci. 2013, 127, 3310–3317. [Google Scholar] [CrossRef]
  42. Thakur, V.; Das, A.; Mahaling, R.N.; Rooj, S.; Gohs, U.; Wagenknecht, U. Influence of Layered Double Hydroxides on the Curing of Carboxylated Nitrile Rubber with Zinc Oxide. Macromol. Mater. Eng. 2009, 294, 561–569. [Google Scholar] [CrossRef]
  43. Xiao, S.; Tan, Y.; Xu, J.; Xiong, C.; Wang, X.; Su, S. Lignosulfonate as dispersant for layered double hydroxide in nitrile–butadiene rubber composites. Appl. Clay Sci. 2014, 97, 91–95. [Google Scholar] [CrossRef]
  44. Roy, S.; Srivastava, S.K.; Mittal, V. Facile noncovalent assembly of MWCNT-LDH and CNF-LDH as reinforcing hybrid fillers in thermoplastic polyurethane/nitrile butadiene rubber blends. J. Polym. Res. 2016, 23, 1–11. [Google Scholar] [CrossRef]
  45. Long-Chao, D.U.; Zhang, Y.C.; Chen, J.Y.; Tian, Y.F. Synergism between intumescent flame retardants modified anion and cation clays in rubber. J. Anhui Univ. 2011, 2, 81–88. [Google Scholar]
  46. Carlino, S. The intercalation of carboxylic acids into layered double Hydroxides: A critical evaluation and review of the different methods. Solid State Ion. 1997, 98, 73–84. [Google Scholar] [CrossRef]
  47. Martins, M.A.; Moreno, R.M.B.; Mcmahan, C.M.; Brichta, J.L.; Gonçalves, P.D.S.; Mattoso, L.H.C. Thermooxidative study of raw natural rubber from Brazilian IAC 300 series clones. Thermochim. Acta 2008, 474, 62–66. [Google Scholar] [CrossRef]
  48. Troutier-Thuilliez, A.L.; Taviot-Guého, C.; Cellier, J.; Hintze-Bruening, H.; Leroux, F. Layered particle-based polymer composites for coatings: Part I. Evaluation of layered double hydroxides. Prog. Org. Coat. 2009, 64, 182–192. [Google Scholar] [CrossRef]
  49. Zhang, P.; Sago, S.; Yamaguchi, T.; Anilkumar, G.M. Mg–Al layered double hydroxides containing glycine betaine as low humidity-dependent anion conducting electrolyte material for Solid State Alkaline Fuel Cell (SAFC). J. Power Sources 2013, 230, 225–229. [Google Scholar] [CrossRef]
  50. Kwon, E.; Castaldi, M.J. Fundamental Understanding of the Thermal Degradation Mechanisms of Waste Tires and Their Air Pollutant Generation in a N2 Atmosphere. Environ. Sci. Technol. 2009, 43, 5996–6002. [Google Scholar] [CrossRef] [PubMed]
  51. Laskowska, A.; Zaborski, M.; Boiteux, G.; Gain, O.; Marzec, A.; Maniukiewicz, W. Effects of unmodified layered double hydroxides MgAl-LDHs with various structures on the properties of filled carboxylated acrylonitrile–butadiene rubber XNBR. Eur. Polym. J. 2014, 60, 172–185. [Google Scholar] [CrossRef]
  52. Fornes, T.D.; Paul, D.R. Crystallization behavior of nylon 6 nanocomposites. Polymer 2003, 44, 3945–3961. [Google Scholar] [CrossRef]
  53. Rajasekar, R.; Pal, K.; Heinrich, G.; Das, A.; Das, C.K. Development of nitrile butadiene rubber–nanoclay composites with epoxidized natural rubber as compatibilizer. Mater. Des. 2009, 30, 3839–3845. [Google Scholar] [CrossRef]
  54. Kotal, M.; Srivastava, S.K.; Manu, S.K. Layered double hydroxide as nanofiller in the development of polyurethane nanocomposites. J. Nanosci. Nanotechnol. 2010, 10, 5730. [Google Scholar] [CrossRef] [PubMed]
  55. Zhang, R.; He, X.; Yu, H. Why tanδ of poly (butyl acrylate) and poly (ethyl acrylate) with little double bonds are becoming asymmetric? Polymer 2014, 55, 4720–4727. [Google Scholar] [CrossRef]
  56. Zhang, R.; He, X.; Yang, D.; Lai, Z. Non-isothermal crystallization kinetics and segmental dynamics of high density polyethylene/butyl rubber blends. Polym. Int. 2015, 64, 1252–1261. [Google Scholar] [CrossRef]
  57. Zhang, R.; He, X.; Huang, G. A review of the slow relaxation processes in the glass–rubber transition region of amorphous polymers. Phase Transit. 2015, 88, 843–858. [Google Scholar] [CrossRef]
  58. Zhang, R.; He, X. Crystallization and molecular dynamics of ethylene-vinyl acetate copolymer/butyl rubber blends. RSC Adv. 2014, 5, 130. [Google Scholar] [CrossRef]
  59. Das, A.; George, J.J.; Kutlu, B.; Leuteritz, A.; Wang, D.Y.; Rooj, S. A novel thermotropic elastomer based on highly-filled LDH-SSB composites. Macromol. Rapid Commun. 2012, 33, 337–342. [Google Scholar] [CrossRef] [PubMed]
  60. He, X.; Yu, H.; Zhang, R.; Yang, C. Enhance Slower Relaxation Process of Poly(ethyl acrylate) through Internal Plasticization. Int. Polym. Process. 2014, 29, 419–424. [Google Scholar] [CrossRef]
  61. Sperling, L.H. Introduction to Physical Polymer Science; John Wiley & Sons: New York, NY, USA, 1986; pp. 155–156. ISBN 9780471706069. [Google Scholar]
  62. Zhao, J.; Yang, R.; Iervolino, R.; Barbera, S. Investigation of crosslinking in the thermooxidative aging of nitrile–butadiene rubber. J. Appl. Polym. Sci. 2015, 132, 41319–51323. [Google Scholar] [CrossRef]
  63. Wei, Z.; Li, L.; Zhao, X.; He, J.; Ao, W.; Chan, T.W. Data for effects of lanthanum complex on the thermo-oxidative aging of natural rubber. Data Brief 2015, 5, 789–795. [Google Scholar]
  64. Mei, C.; Ao, N.J.; Zhang, B.L.; Den, C.M.; Qian, H.L.; Zhou, H.L. Comparison and evaluation of the thermooxidative stability of medical natural rubber latex products prepared with a sulfur vulcanization system and a peroxide vulcanization system. J. Appl. Polym. Sci. 2010, 98, 591–597. [Google Scholar]
  65. Wei, Z.; Li, L.; Zhao, X.; He, J.; Ao, W.; Chan, T.W. Effects of lanthanum complex on the thermo-oxidative aging of natural rubber. Polym. Degrad. Stab. 2015, 120, 377–383. [Google Scholar]
  66. Gu, A.; Liang, G. Thermal stability and kinetics analysis of rubber-modified epoxy resin by high-resolution thermogravimetric analysis. J. Appl. Polym. Sci. 2003, 89, 3594–3600. [Google Scholar] [CrossRef]
  67. Marques, P.T.; Lima, A.M.F.; Bianco, G.; Laurindo, J.B.; Borsali, R.; Meins, J.F.L. Thermal properties and stability of cassava starch films cross-linked with tetraethylene glycol diacrylate. Polym. Degrad. Stab. 2006, 91, 726–732. [Google Scholar] [CrossRef]
  68. Xie, C.; Jia, Z.; Jia, D.; Luo, Y.; You, C. The Effect of Dy(III) Complex with 2-Mercaptobenzimidazole on the Thermo-Oxidation Aging Behavior of Natural Rubber Vulcanizates. Int. J. Polym. Mater. 2010, 59, 663–679. [Google Scholar] [CrossRef]
  69. Xie, C.; Jia, Z.; Luo, Y.; Jia, D. Antioxidant effect of SM(Ⅲ) complex with 2-mercaptobenzimidazole in natural rubber vulcanizates. Acta Polym. Sin. 2011, 32, 320–326. [Google Scholar]
  70. Xu, J.; Zhang, A.; Zhou, T.; Cao, X.; Xie, Z. A study on thermal oxidation mechanism of styrene–butadiene–styrene block copolymer (SBS). Polym. Degrad. Stab. 2007, 92, 1682–1691. [Google Scholar] [CrossRef]
Materials 11 00836 g001 550
Figure 1. X-ray diffractograms of (a) LDH-SAS and (b) LDH-NO3. The d-spacings of the samples are marked at the corresponding peaks.
Figure 1. X-ray diffractograms of (a) LDH-SAS and (b) LDH-NO3. The d-spacings of the samples are marked at the corresponding peaks.
Materials 11 00836 g001
Materials 11 00836 g002 550

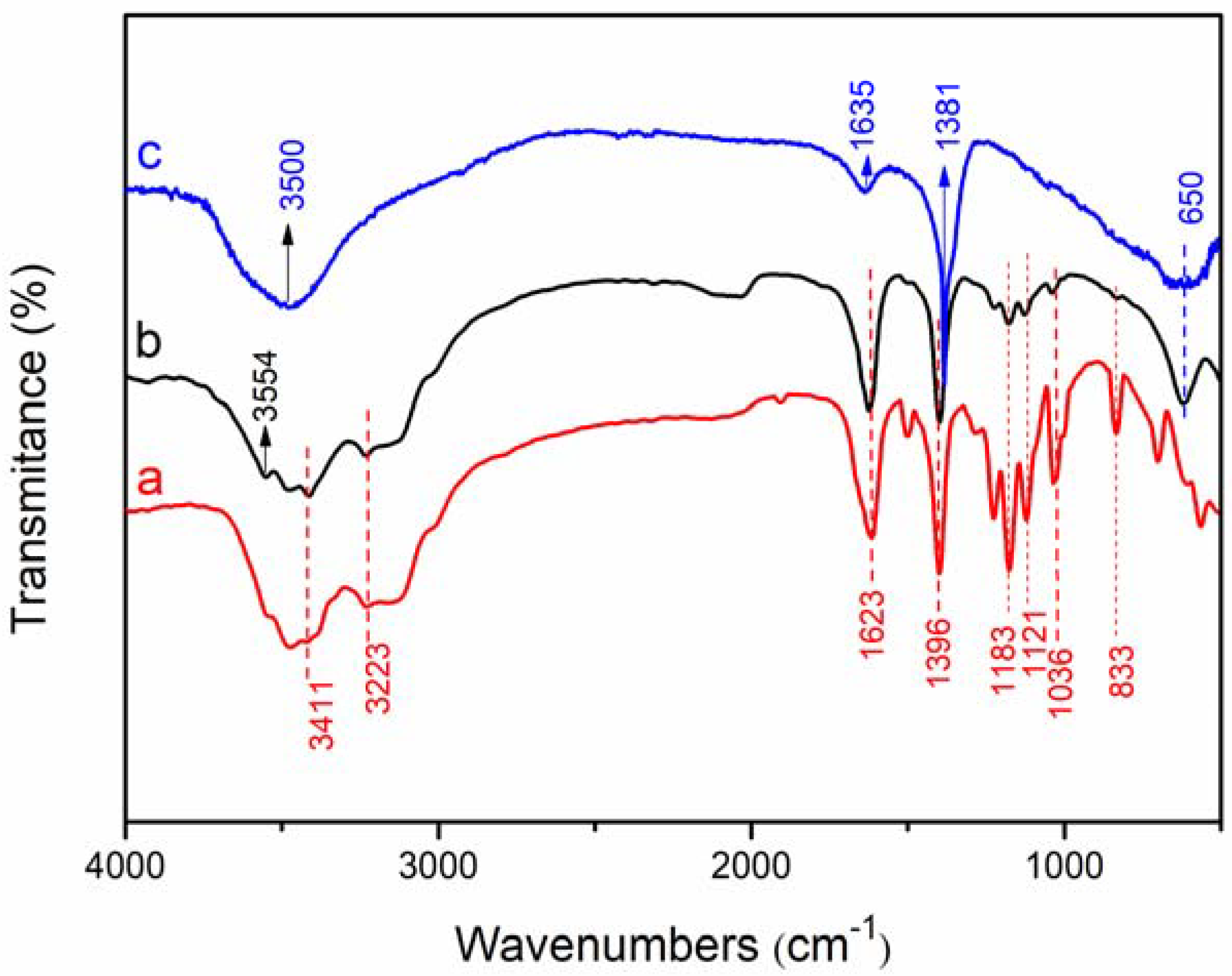

Figure 2. FT-IR spectra of (a) pure SAS, (b) LDH–SAS and (c) LDH–NO3.
Figure 2. FT-IR spectra of (a) pure SAS, (b) LDH–SAS and (c) LDH–NO3.
Materials 11 00836 g002
Materials 11 00836 g003 550

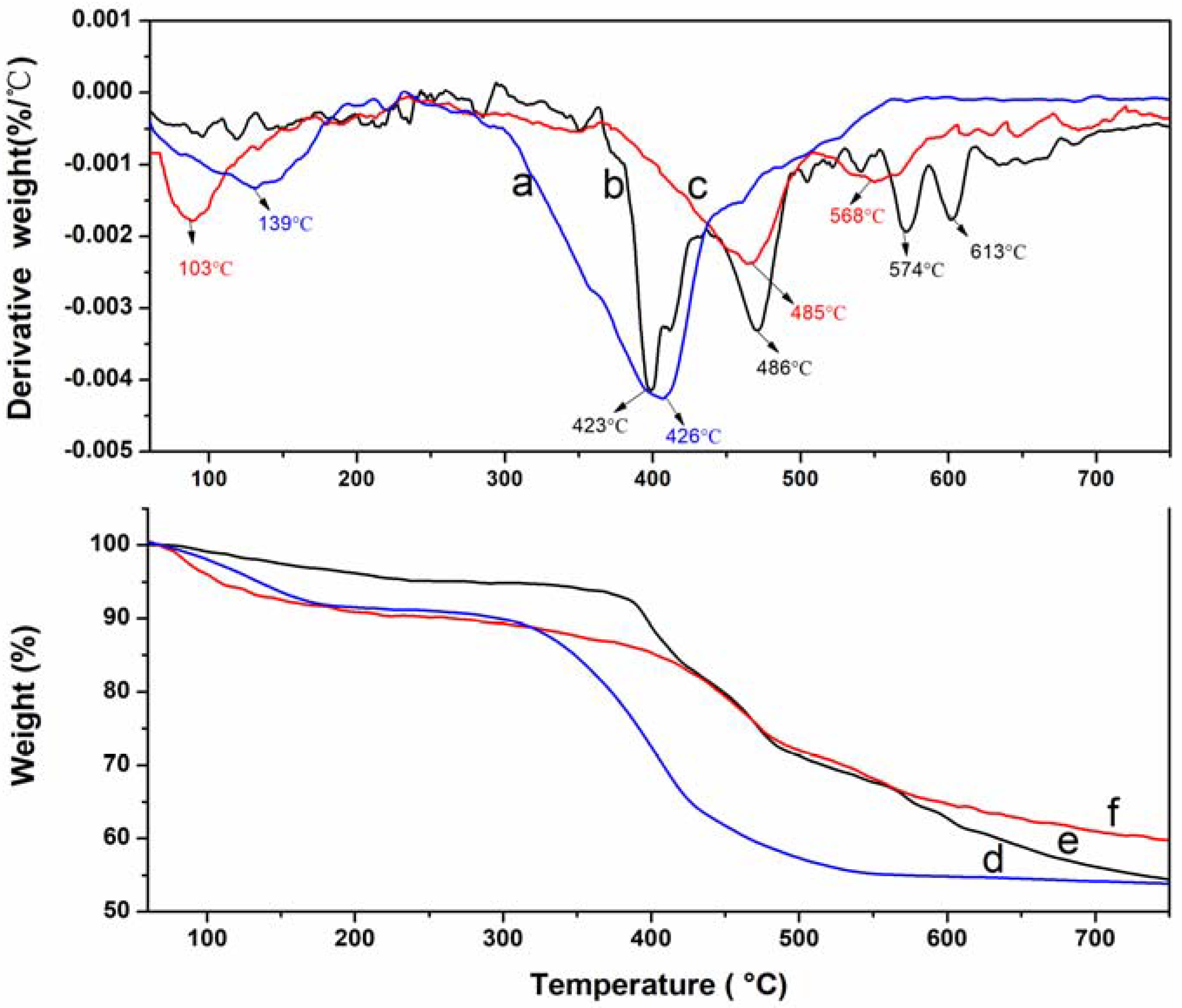

Figure 3. Differential thermogravimetric analysis (DTG) thermograms of (a) LDH–NO3, (b) pure SAS, (c) LDH–SAS and thermogravimetric analysis (TGA) thermograms of (d) LDH–NO3, (e) pure SAS, (f) LDH–SAS.
Figure 3. Differential thermogravimetric analysis (DTG) thermograms of (a) LDH–NO3, (b) pure SAS, (c) LDH–SAS and thermogravimetric analysis (TGA) thermograms of (d) LDH–NO3, (e) pure SAS, (f) LDH–SAS.
Materials 11 00836 g003
Materials 11 00836 g004 550
Figure 4. X-ray diffractograms of the NBR composites: (a) unmodified NBR before aging, (b) unmodified NBR after aging, (c) NBR/LDH–SAS before aging, (d) NBR/LDH–SAS after aging, (e) NBR/LDH–NO3 before aging, (f) NBR/ LDH–NO3 after aging.
Figure 4. X-ray diffractograms of the NBR composites: (a) unmodified NBR before aging, (b) unmodified NBR after aging, (c) NBR/LDH–SAS before aging, (d) NBR/LDH–SAS after aging, (e) NBR/LDH–NO3 before aging, (f) NBR/ LDH–NO3 after aging.
Materials 11 00836 g004
Materials 11 00836 g005 550
Figure 5. Stress–strain curve of different NBR composites (unmodified NBR, NBR with 5 phr LDH–NO3 and NBR with 5 phr LDH–SAS) before and after aging.
Figure 5. Stress–strain curve of different NBR composites (unmodified NBR, NBR with 5 phr LDH–NO3 and NBR with 5 phr LDH–SAS) before and after aging.
Materials 11 00836 g005
Materials 11 00836 g006 550
Figure 6. The tensile strength of NBR/LDHs composites before and after aging: (a) unmodified NBR, (b) NBR/LDH–NO3 with 1 phr, (c) NBR/LDH–NO3 with 3 phr, (d) NBR/LDH–NO3 with 5 phr, (e) NBR/LDH–NO3 with 7 phr, (f) NBR/LDH–SAS with 1 phr, (g) NBR/LDH–SAS with 3 phr, (h) NBR/LDH–SAS with 5 phr, (i) NBR/LDH–SAS with 7phr.
Figure 6. The tensile strength of NBR/LDHs composites before and after aging: (a) unmodified NBR, (b) NBR/LDH–NO3 with 1 phr, (c) NBR/LDH–NO3 with 3 phr, (d) NBR/LDH–NO3 with 5 phr, (e) NBR/LDH–NO3 with 7 phr, (f) NBR/LDH–SAS with 1 phr, (g) NBR/LDH–SAS with 3 phr, (h) NBR/LDH–SAS with 5 phr, (i) NBR/LDH–SAS with 7phr.
Materials 11 00836 g006
Materials 11 00836 g007 550
Figure 7. The elongation at break of NBR/LDHs composites before and after aging: (a) unmodified NBR, (b) NBR/LDH–NO3 with 1 phr, (c) NBR/LDH–NO3 with 3 phr, (d) NBR/LDH–NO3 with 5 phr, (e) NBR/LDH–NO3 with 7 phr, (f) NBR/LDH–SAS with 1 phr, (g) NBR/LDH–SAS with 3 phr, (h) NBR/LDH–SAS with 5 phr, (i) NBR/LDH–SAS with 7 phr.
Figure 7. The elongation at break of NBR/LDHs composites before and after aging: (a) unmodified NBR, (b) NBR/LDH–NO3 with 1 phr, (c) NBR/LDH–NO3 with 3 phr, (d) NBR/LDH–NO3 with 5 phr, (e) NBR/LDH–NO3 with 7 phr, (f) NBR/LDH–SAS with 1 phr, (g) NBR/LDH–SAS with 3 phr, (h) NBR/LDH–SAS with 5 phr, (i) NBR/LDH–SAS with 7 phr.
Materials 11 00836 g007
Materials 11 00836 g008 550
Figure 8. SEM images of LDH particles and fractured surfaces of NBR composites: (a) LDH–NO3 particles, (b) LDH–SAS particles, (c) NBR/LDH–NO3 before aging, (d) NBR/LDH–SAS before aging, (e) NBR/LDH–NO3 after aging, (f) NBR/LDH–SAS after aging.
Figure 8. SEM images of LDH particles and fractured surfaces of NBR composites: (a) LDH–NO3 particles, (b) LDH–SAS particles, (c) NBR/LDH–NO3 before aging, (d) NBR/LDH–SAS before aging, (e) NBR/LDH–NO3 after aging, (f) NBR/LDH–SAS after aging.
Materials 11 00836 g008
Materials 11 00836 g009 550
Figure 9. (a) Storage modulus and (b) tangent delta obtained from dynamic mechanical analysis of LDH-filled NBR composites. E′AVG is average of storage modulus from 278.15 K to 288.15 K, which was used to represent the storage modulus of 283.15K.
Figure 9. (a) Storage modulus and (b) tangent delta obtained from dynamic mechanical analysis of LDH-filled NBR composites. E′AVG is average of storage modulus from 278.15 K to 288.15 K, which was used to represent the storage modulus of 283.15K.
Materials 11 00836 g009
Materials 11 00836 sch001 550
Scheme 1. Schematic illustration of the increase of network chains per unit volume due to the formation of physical cross-linking points between LDH–SAS and NBR.
Scheme 1. Schematic illustration of the increase of network chains per unit volume due to the formation of physical cross-linking points between LDH–SAS and NBR.
Materials 11 00836 sch001
Materials 11 00836 g010 550
Figure 10. (a) FTIR-ATR spectra of NBR composites before and after aging, with the intensity of characteristic peaks at: (b) 1599 cm−1, and (c) 1727 cm−1.
Figure 10. (a) FTIR-ATR spectra of NBR composites before and after aging, with the intensity of characteristic peaks at: (b) 1599 cm−1, and (c) 1727 cm−1.
Materials 11 00836 g010
Materials 11 00836 g011 550
Figure 11. Evolution of the absorbance ratios (IC=C/ICN and IC=O/ICN) of NBR composites with different LDH–SAS contents after aging.
Figure 11. Evolution of the absorbance ratios (IC=C/ICN and IC=O/ICN) of NBR composites with different LDH–SAS contents after aging.
Materials 11 00836 g011
Materials 11 00836 g012 550
Figure 12. Synchronous DSC and TGA curves of the unmodified NBR and the NBR/LDH–SAS composites.
Figure 12. Synchronous DSC and TGA curves of the unmodified NBR and the NBR/LDH–SAS composites.
Materials 11 00836 g012
Materials 11 00836 g013a 550Materials 11 00836 g013b 550
Figure 13. TGA-DTGA thermograms of (a) unmodified NBR and (b) NBR/LDH–SAS composite at different heating rates.
Figure 13. TGA-DTGA thermograms of (a) unmodified NBR and (b) NBR/LDH–SAS composite at different heating rates.
Materials 11 00836 g013aMaterials 11 00836 g013b
Materials 11 00836 g014 550
Figure 14. Plots of the logarithm of the heating rate (lgβ) versus the reciprocal of the absolute temperature (1000/T) for the two NBR composites: (a) unmodified NBR; (b) NBR/LDH–SAS.
Figure 14. Plots of the logarithm of the heating rate (lgβ) versus the reciprocal of the absolute temperature (1000/T) for the two NBR composites: (a) unmodified NBR; (b) NBR/LDH–SAS.
Materials 11 00836 g014
Materials 11 00836 g015 550
Figure 15. Plots of Ea versus fractional mass loss determined by Flynn–Wall–Ozawa (FWO) analysis.
Figure 15. Plots of Ea versus fractional mass loss determined by Flynn–Wall–Ozawa (FWO) analysis.
Materials 11 00836 g015
Table
Table 1. Compound formulation of layered double hydroxides (LDH)/ nitrile-butadiene rubber (NBR) composites.
Table 1. Compound formulation of layered double hydroxides (LDH)/ nitrile-butadiene rubber (NBR) composites.
Materialphr a
NBR100
LDH–NO3/LDH–SAS0, 1, 3, 5, 7
ZnO5
Antioxidant D1
Stearic acid1
DM0.5
Sulfur1.5
DOP1.5
a Part per hundred rubber.
Table
Table 2. Cure time (t90) and scorch time (t10) of rubber composites.
Table 2. Cure time (t90) and scorch time (t10) of rubber composites.
CompoundScorch Time/t10 (min)Cure Time/t90 (min)
Unmodified NBR10.5827.87
NBR/LDH–SAS (1 phr)10.5727.43
NBR/LDH–SAS (3 phr)10.8727.94
NBR/LDH–SAS (5 phr)11.4328.46
NBR/LDH–SAS (7 phr)11.9628.13
NBR/LDH–NO3 (5 phr)9.4727.12
Table
Table 3. N1 and ΔN1 of LDH/NBR composites.
Table 3. N1 and ΔN1 of LDH/NBR composites.
SampleUnmodified NBRNBR/LDH–NO3 (5 phr)NBR/LDH–SAS (1 phr)NBR/LDH–SAS (3 phr)NBR/LDH–SAS (5 phr)NBR/LDH–SAS (7 phr)
Tg (°C)−22.1−20.3−20.9−19.9−19.4−18.9
E′AVG (MPa)2.253.503.004.324.783.89
N1 (1014)1.922.992.563.694.083.32
ΔN1 (1014)01.070.641.772.161.40
N1: the number of network chains per unit volume of rubber; ΔN1: the difference in the number of network chains between NBR/LDH composites and unmodified NBR.

Share and Cite

MDPI and ACS Style

Li, T.; Shi, Z.; He, X.; Jiang, P.; Lu, X.; Zhang, R.; Wang, X. Aging-Resistant Functionalized LDH–SAS/Nitrile-Butadiene Rubber Composites: Preparation and Study of Aging Kinetics/Anti-Aging Mechanism. Materials 2018, 11, 836. https://doi.org/10.3390/ma11050836

AMA Style

Li T, Shi Z, He X, Jiang P, Lu X, Zhang R, Wang X. Aging-Resistant Functionalized LDH–SAS/Nitrile-Butadiene Rubber Composites: Preparation and Study of Aging Kinetics/Anti-Aging Mechanism. Materials. 2018; 11(5):836. https://doi.org/10.3390/ma11050836

Chicago/Turabian Style

Li, Tianxiang, Zhengren Shi, Xianru He, Ping Jiang, Xiaobin Lu, Rui Zhang, and Xin Wang. 2018. "Aging-Resistant Functionalized LDH–SAS/Nitrile-Butadiene Rubber Composites: Preparation and Study of Aging Kinetics/Anti-Aging Mechanism" Materials 11, no. 5: 836. https://doi.org/10.3390/ma11050836

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
