Next Article in Journal
Study on Flake Formation Behavior and Its Influence Factors in Cr5 Steel
Previous Article in Journal
Polymeric Micelles of Biodegradable Diblock Copolymers: Enhanced Encapsulation of Hydrophobic Drugs
Open AccessArticle

Reactive Sintering Mechanism and Phase Formation in Ni-Ti-Al Powder Mixture During Heating

Department of Metals and Corrosion Engineering, University of Chemistry and Technology, Prague, Technická 5, 16628 Prague, Czech Republic
*
Author to whom correspondence should be addressed.
Materials 2018, 11(5), 689; https://doi.org/10.3390/ma11050689
Received: 28 March 2018 / Revised: 23 April 2018 / Accepted: 27 April 2018 / Published: 27 April 2018

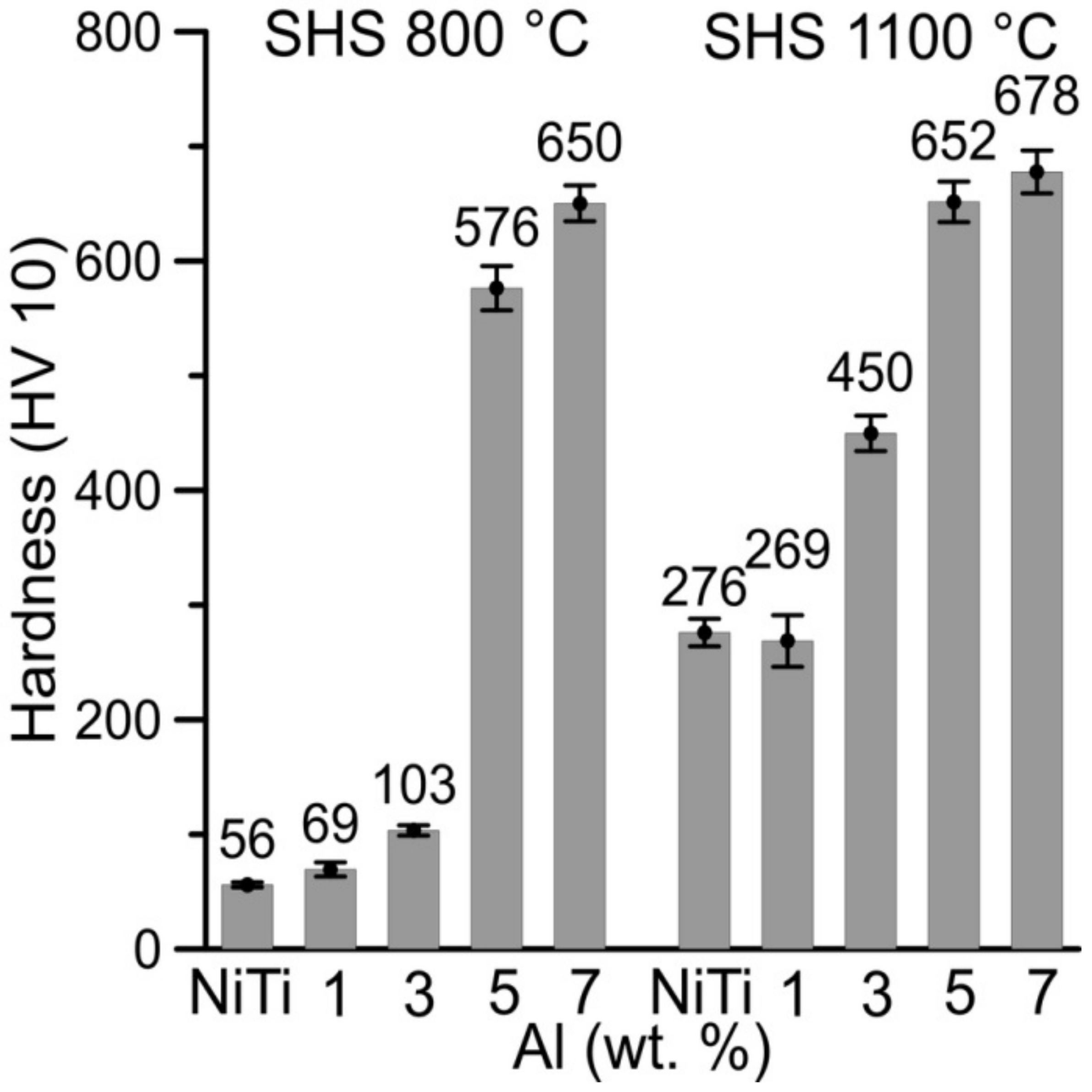

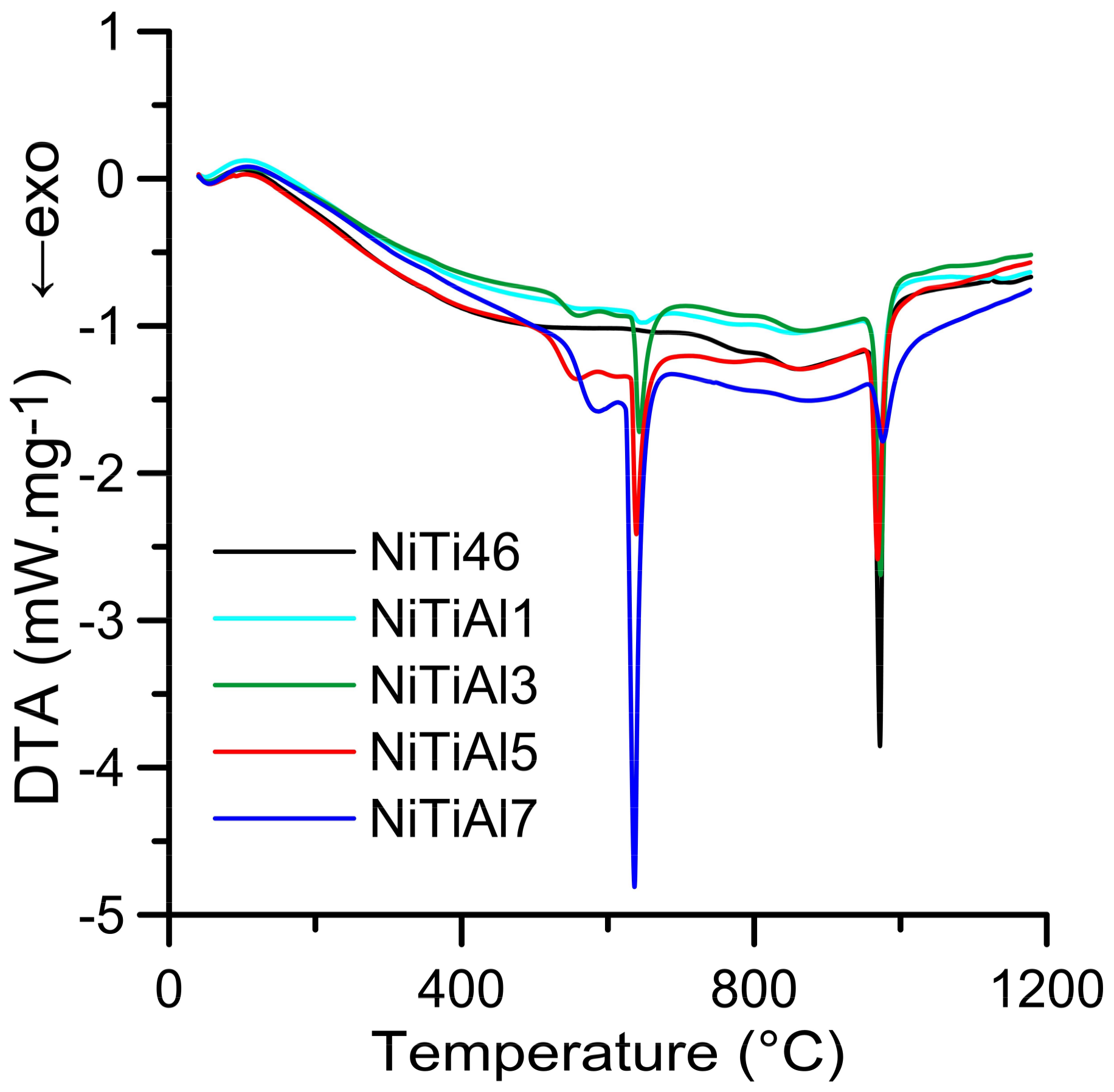

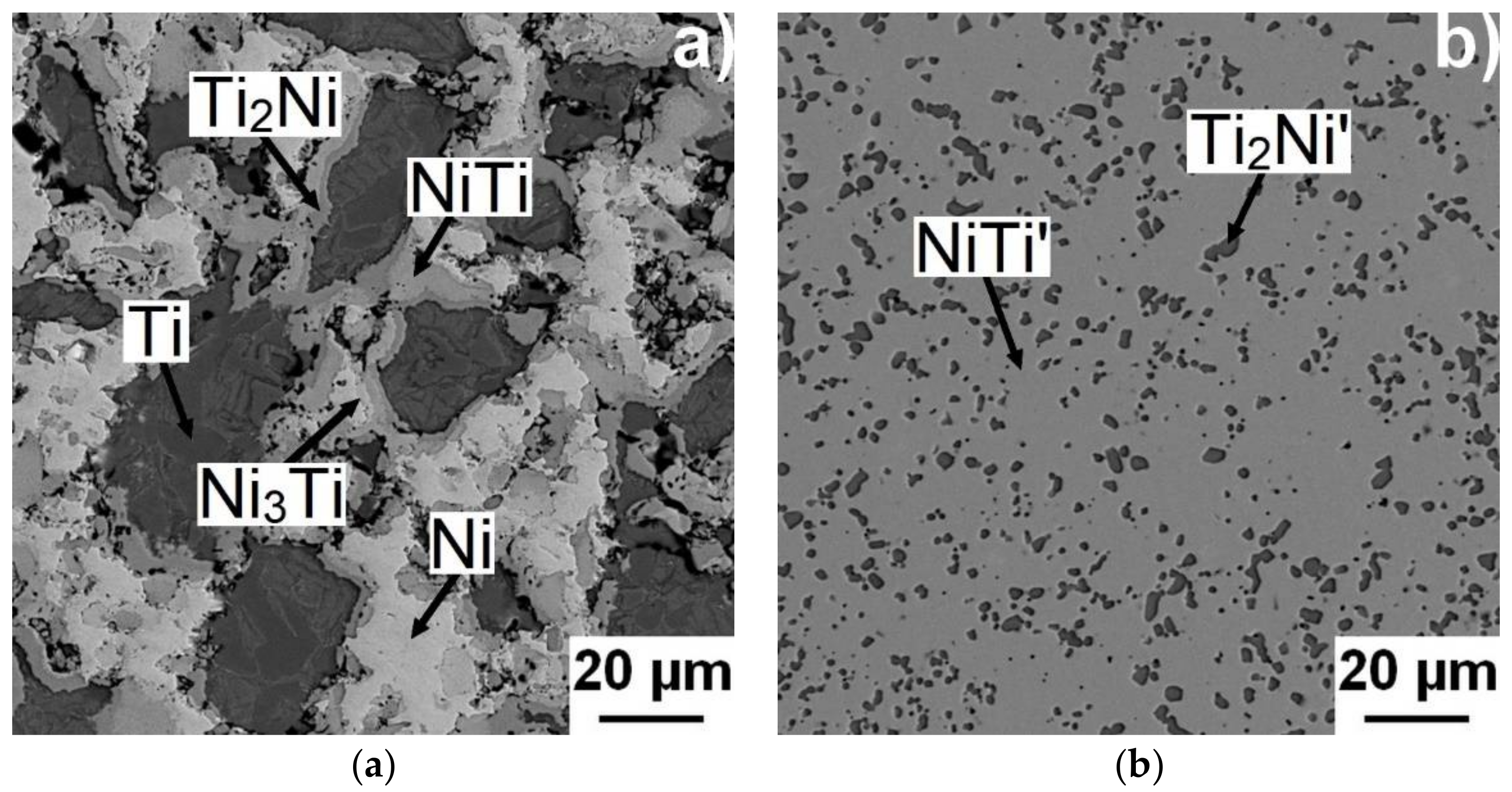

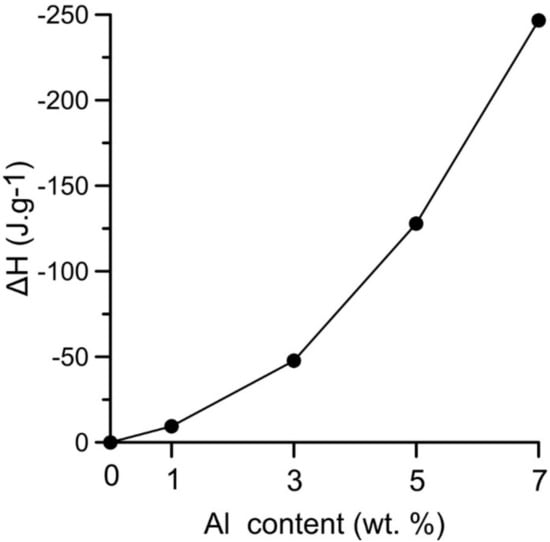

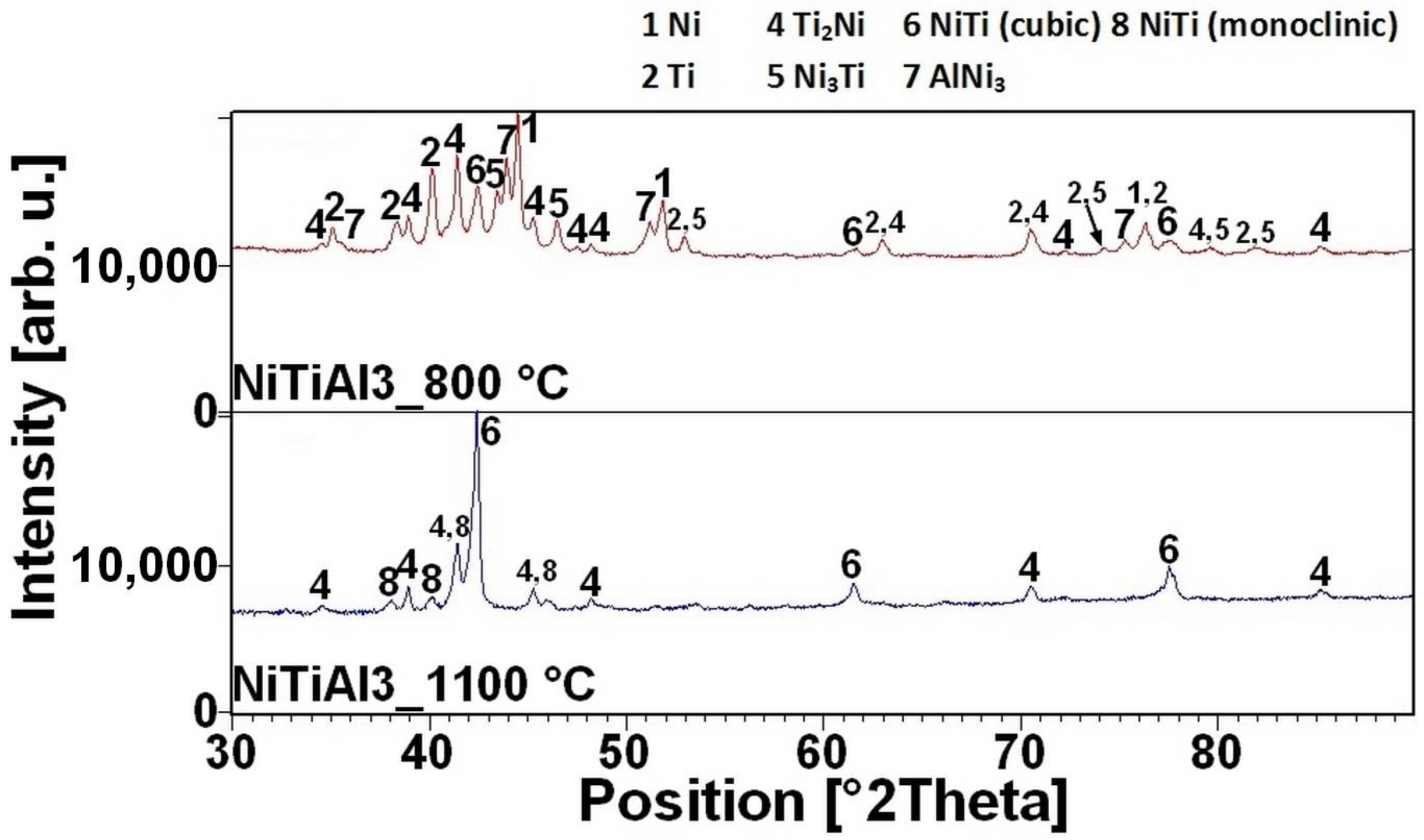

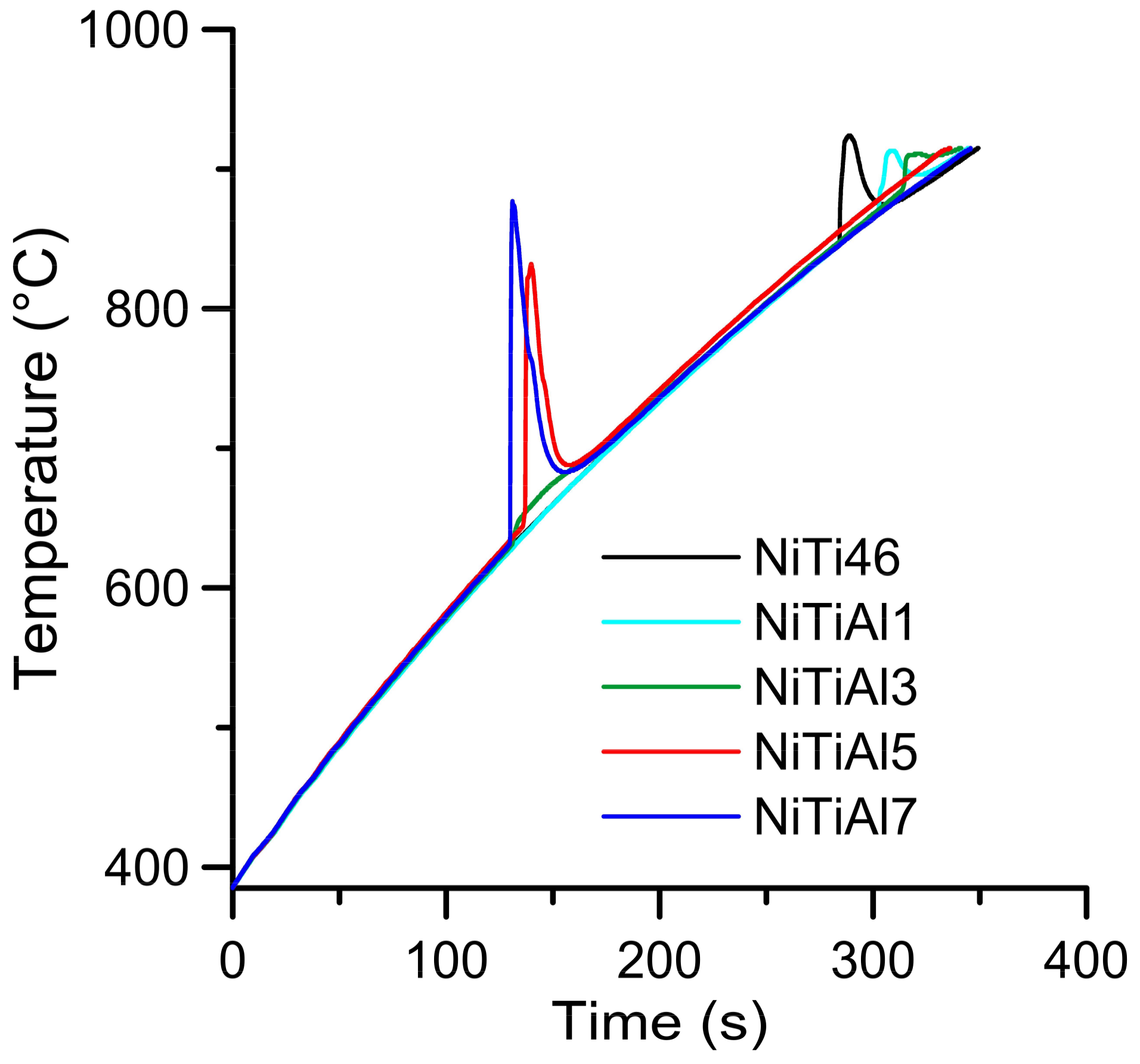

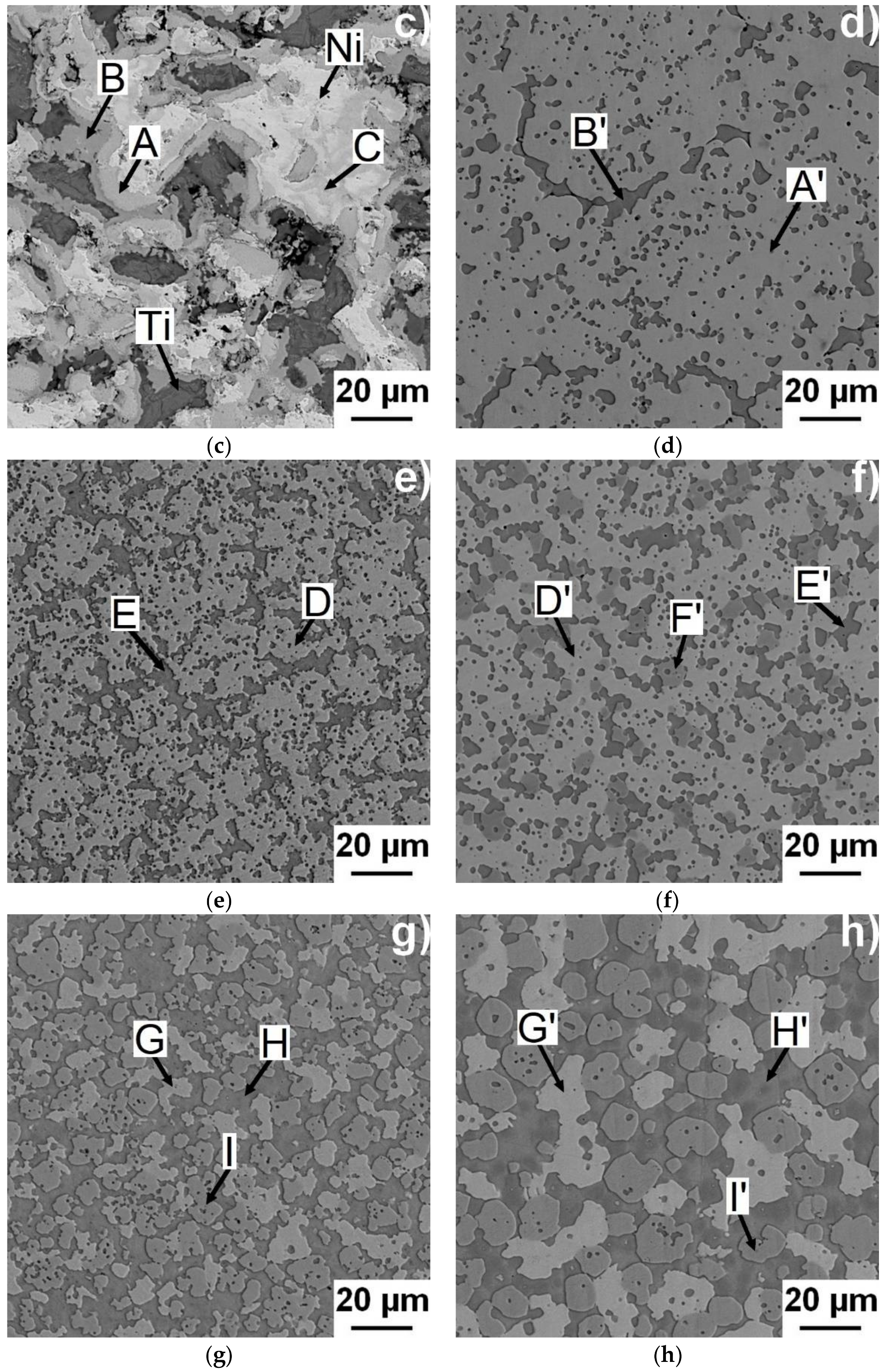

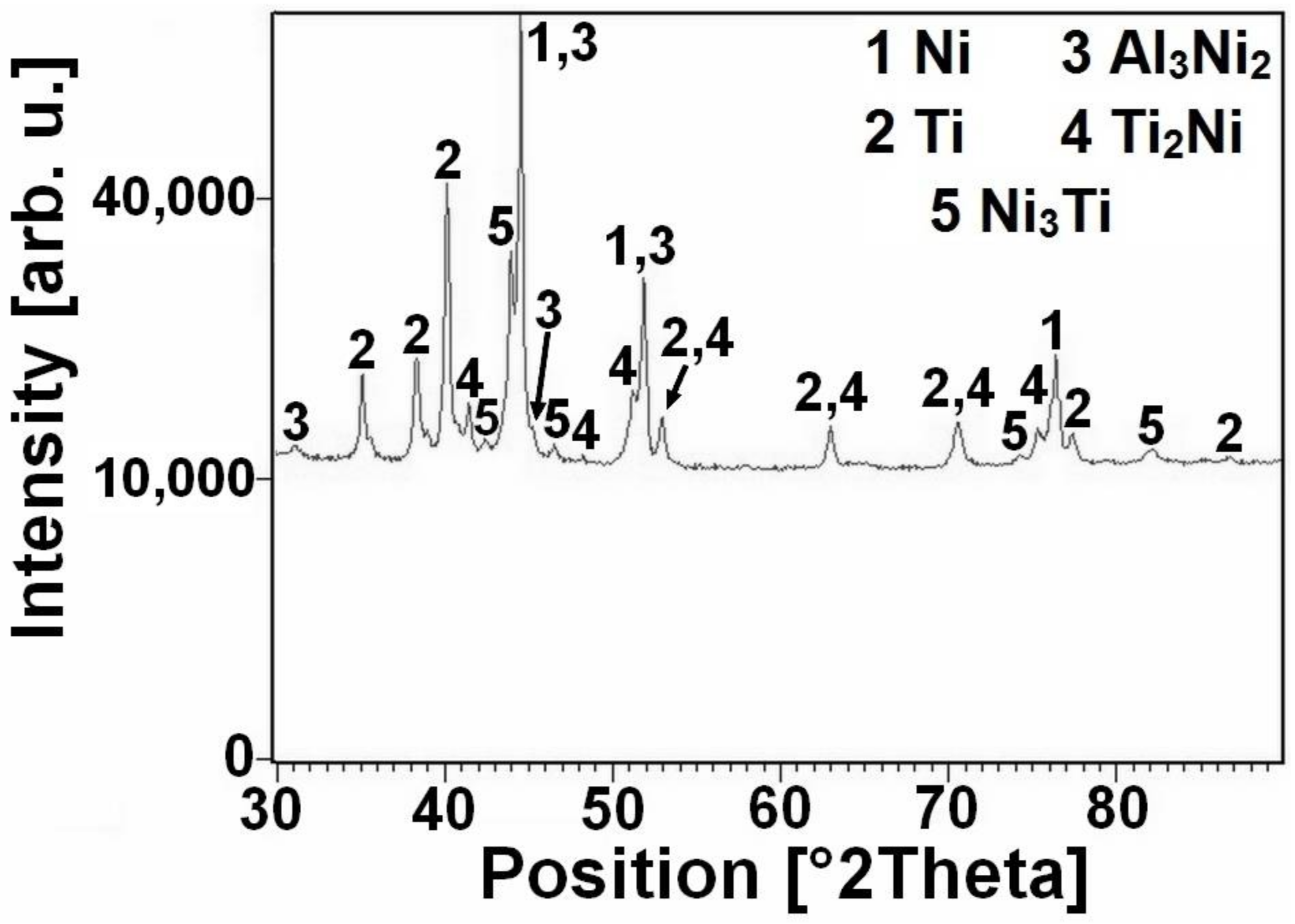

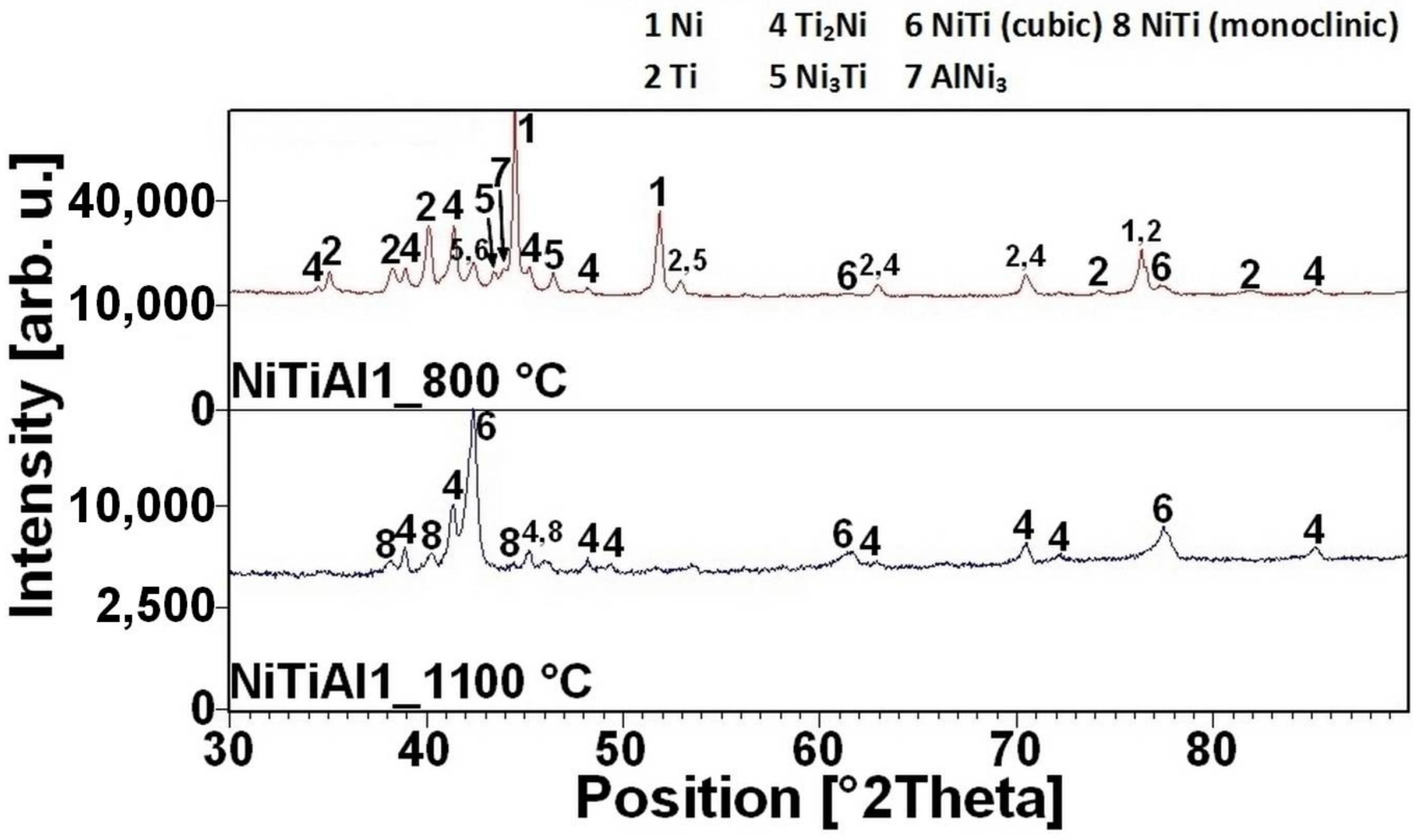

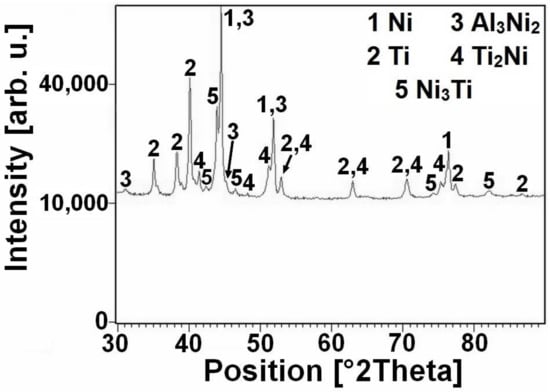

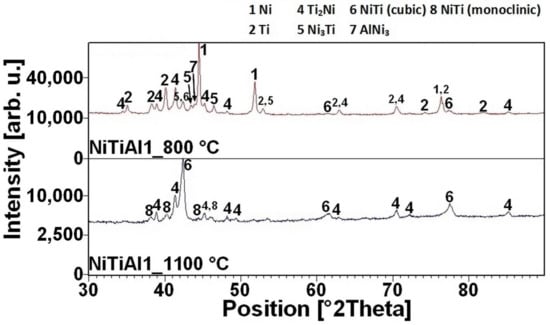

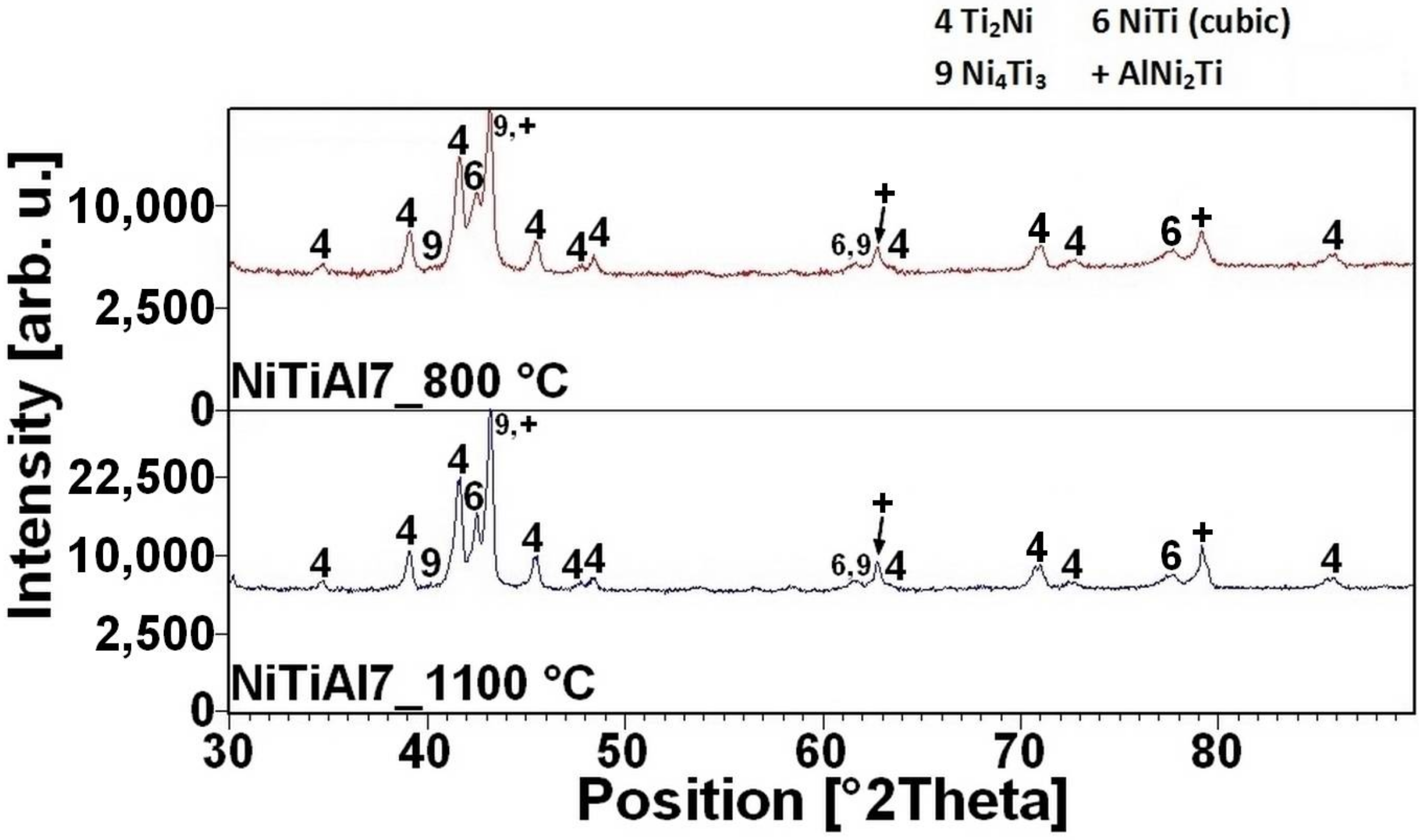

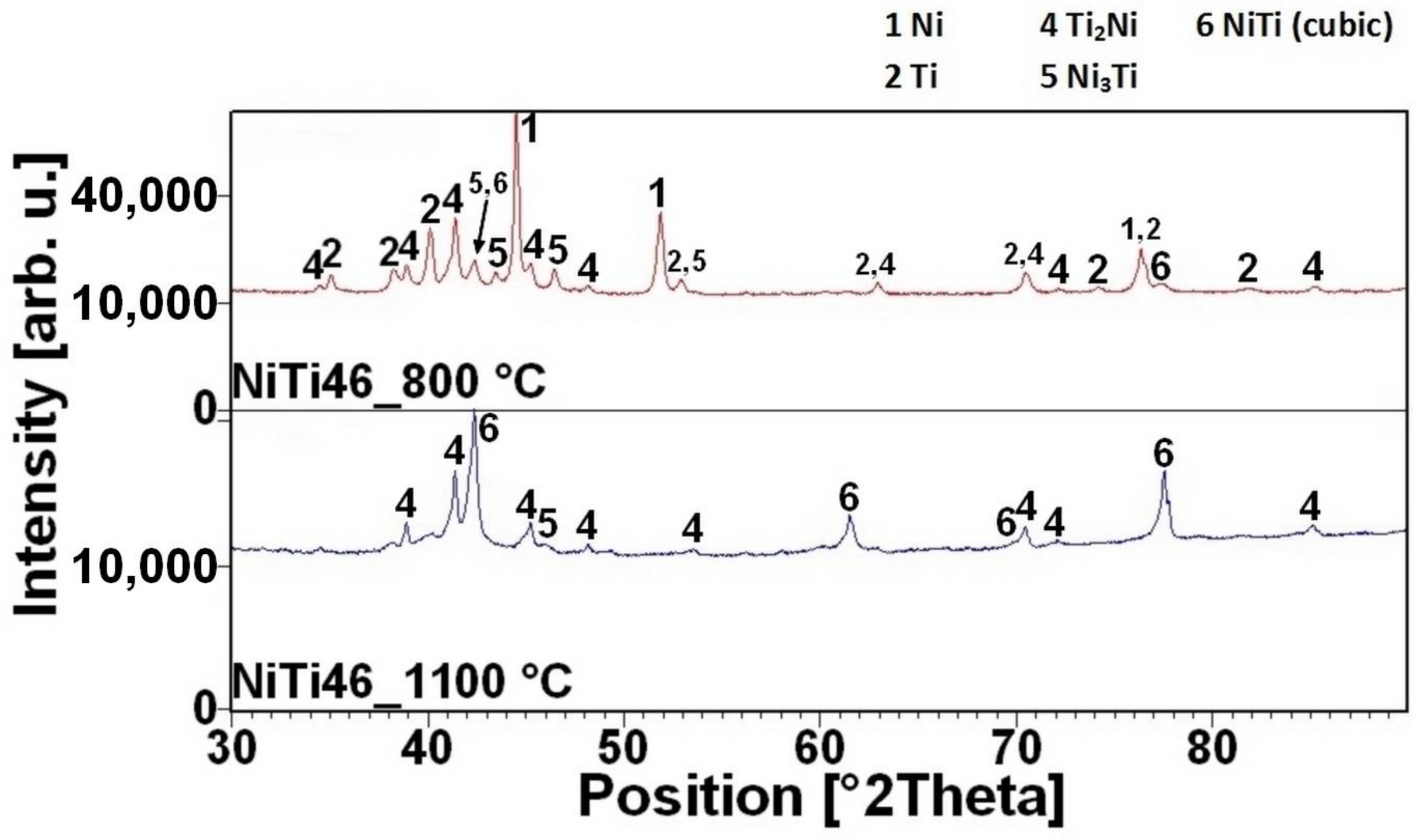

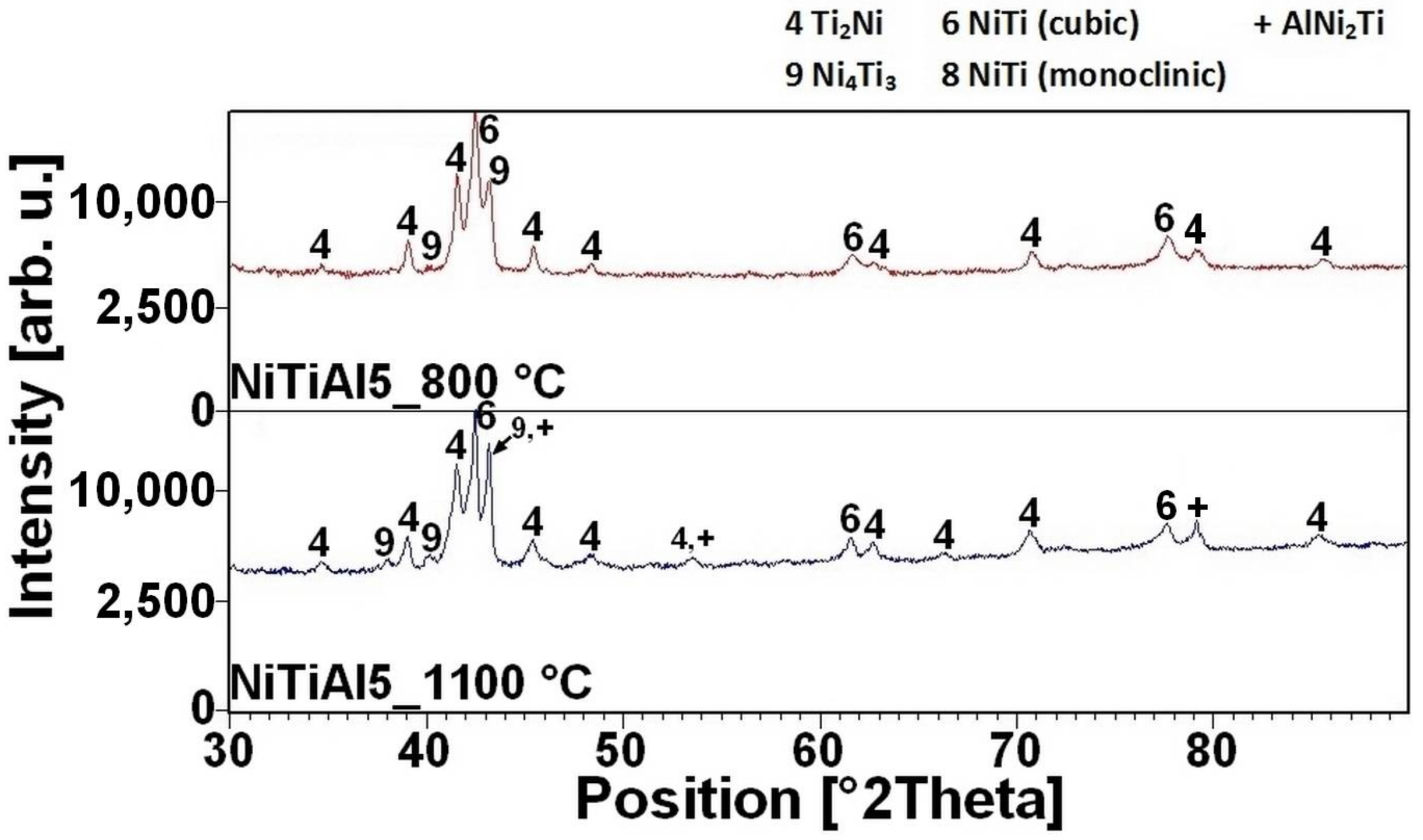

This work aims to describe the formation of intermetallics in the Ni-Ti-Al system in dependence on the heating rate, which has been determined previously as the crucial factor of thermal explosion self-propagating synthesis (TE-SHS). The tested alloys contained 1–7 wt % aluminum. Thermal analysis has been realized by the optical pyrometer under the conditions of high heating rates up to 110 °C·min−1. TE-SHS process in Ni-Ti-Al system is initiated by exothermic reaction of nickel aluminides Ni2Al3 and NiAl3 at the temperature of 535–610 °C. The next reactions occur in dependence on the heating rate. Samples containing 1–3 wt % of aluminum exhibit the similar initiation temperature as Ni-Ti binary mixture. The samples containing 5 wt % and more of aluminum were fully reacted after sintering at 800 °C with the heating rate of 300 °C·min−1 and the initiation temperature of the TE-SHS was observed close to Al-Al3Ni eutectic temperature (between 630–640 °C). View Full-Text
Keywords: intermetallics; reactive sintering; self-propagating high-temperature synthesis (SHS); Ni-Ti-Al alloy; differential thermal analysis intermetallics; reactive sintering; self-propagating high-temperature synthesis (SHS); Ni-Ti-Al alloy; differential thermal analysis
Show Figures

Graphical abstract

MDPI and ACS Style

Salvetr, P.; Školáková, A.; Hudrisier, C.; Novák, P.; Vojtěch, D. Reactive Sintering Mechanism and Phase Formation in Ni-Ti-Al Powder Mixture During Heating. Materials 2018, 11, 689.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
