Article

Atomic Scale Simulation on the Anti-Pressure and Friction Reduction Mechanisms of MoS2 Monolayer

State Key Laboratory of Tribology, Tsinghua University, Beijing 100084, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(5), 683; https://doi.org/10.3390/ma11050683
Submission received: 7 April 2018 / Revised: 24 April 2018 / Accepted: 26 April 2018 / Published: 27 April 2018

Abstract

:
MoS2 nanosheets can be used as solid lubricants or additives of lubricating oils to reduce friction and resist wear. However, the atomic scale mechanism still needs to be illustrated. Herein, molecular simulations on the indentation and scratching process of MoS2 monolayer supported by Pt(111) surface were conducted to study the anti-pressure and friction reduction mechanisms of the MoS2 monolayer. Three deformation stages of Pt-supported MoS2 monolayer were found during the indentation process: elastic deformation, plastic deformation and finally, complete rupture. The MoS2 monolayer showed an excellent friction reduction effect at the first two stages, as a result of enhanced load bearing capacity and reduced deformation degree of the substrate. Unlike graphene, rupture of the Pt-supported MoS2 monolayer was related primarily to out-of-plane compression of the monolayer. These results provide a new insight into the relationship between the mechanical properties and lubrication properties of 2D materials.

Graphical Abstract

1. Introduction

2D materials, such as graphene, few-layer MoS2 and black phosphorus, have shown great potential in many areas due to their special physical properties [1,2,3,4,5]. Their excellent mechanical performance [6,7] and high thermal conductivity [8], together with their flatness and thickness at the atomic scale [9], make some 2D materials ideal lubricants for certain areas [10], for example in micro- or nanoelectro-mechanical systems [11,12] and high density magnetic storage devices [13], where the lubricating space is limited and lubricating condition is severe [14], lubrication coatings of 2D materials are considered to be a good choice [15].
When used as lubricant additives or solid lubricants, graphene and few-layer MoS2 can improve the extreme pressure (highest load without seizure of the friction pairs) and reduce the friction of rubbing surfaces [16,17]. These excellent lubricating properties, including the anti-pressure effect and friction reduction effect, are usually attributed to the better mechanical properties of 2D materials than metal friction pairs [18]. For instance, graphene has a Young’s modulus of about 1000 GPa and a breaking strength of about 130 GPa, while the Young’s modulus of stainless steel is only 205 GPa, with a breaking strength of 0.9 Gpa [19]. Due to the high elastic modulus and breaking strength, graphene can share extra load and reduce friction before its rupture [20]. However, while the mechanical properties of the MoS2 monolayer are not as excellent as those of graphene, with a Young’s modulus of about 270 GPa and a breaking strength of about 30 GPa [19], the lubrication properties of few-layer MoS2 seem to be better. Macroscopic lubrication experiments have shown that MoS2 nanosheets can be more stable and effective than graphene when used as lubricant additives, with a lower friction coefficient [21] and higher extreme pressure [22]. The inconsistency of lubrication properties and mechanical properties requires detailed research on the atomic mechanism of the anti-pressure and friction reduction effect of MoS2 monolayer.
In this paper, in order to find out the anti-pressure mechanism of MoS2 monolayer, indentation process of MoS2 monolayer, MoS2-covered Pt (MoS2/Pt) and bare Pt substrate were studied by way of molecular dynamics simulations. After that, a contrast study on the scratch process of MoS2/Pt and bare Pt substrate was conducted to explore the friction reduction mechanism of the MoS2 monolayer. As the friction reduction effect of the monolayer rests on its ability to share extra load when covering the substrate [20], the scratch process was carried out at different indentation depths.

2. Simulation Details

In our simulation models, a rigid hemisphere tip cutout from a (111)-oriented diamond crystal is placed right above the upper surface of MoS2 monolayer, Pt(111) and MoS2/Pt substrate at an initial height (h0) of 10 Å, as shown in Figure 1a–c. The radius of the diamond tip was 18 Å and the size of the MoS2 monolayer was 104.196 × 104.478 Å2. Pt(111) substrate covered or not covered by a MoS2 monolayer has the same lateral size as the monolayer. The thickness of Pt substrate is 58.902 Å. During the indentation process, the diamond tip moves vertically to the upper surface of the substrate, while during the scratch process, the diamond tip moves laterally at different indentation depths, controlled by the vertical displacement (h) of the tip. In both indentation and scratch processes, the velocity of the tip is set to 1.0 m/s. Atoms at the edge of MoS2 are fixed in order to simulate large MoS2 layers pinned to the substrate at the edge by Van der Waals forces. Pt atoms at the bottom are also fixed to support the substrate. For MoS2/Pt substrate, the initial distance between the MoS2 monolayer and the Pt(111) surface is set to 2.8 Å, the equilibrium distance where interaction energy between these two materials is the minimum. In order to learn the structure changes caused by the mechanical effect and to avoid the affection of temperature, the initial temperature is set to 0.01 K. A Langevin thermostat [23] was used in an NVE ensemble to maintain a constant temperature of 0.01 K during the simulation of indentation and scratch. The time step in this work is 0.002 ps. The number of steps is 2 million for the indentation process of the freestanding MoS2 monolayer, 1.5 million for the indentation process of MoS2/Pt and bare Pt substrate and 1 million for the scratch process.
A modified Stilling-Webber(SW) potential parameterized by Jin-Wu Jiang was used to describe the intra-layer interaction of MoS2 [24]. Tersoff potential was used to describe the interaction between the carbon atoms of diamond [25]. An embedded atom method (EAM) potential was adopted to describe the interaction between Pt atoms [26]. Van der Waals forces between the diamond tip and MoS2 monolayer were described by C-Mo and C-S Lennard-Jones(LJ) potentials. Similarly, Van der Waals forces between the diamond tip and Pt substrate were described by a C-Pt LJ potential and Pt -Mo and Pt-S LJ potentials were used to describe the Van der Waals forces between MoS2 monolayer and Pt substrate in MoS2/Pt system. Parameters for LJ potentials mentioned above were determined by Lorentz-Berthelot mixing rules [27], with the original ε and σ parameters for C-C, Pt-Pt, Mo-Mo, S-S taken from references [28,29,30]. Parameters for all the LJ potentials used in this work are shown in Table 1. The cutoff radius for LJ potentials was 10 Å. All the simulations were carried out with the large-scale atomic/molecular massively parallel simulator (LAMMPS) [31].

3. Results and Discussions

3.1. Indentation Process

Indentation of freestanding 2D layers is a common method for experimentally measuring the elasticity modulus and rupture strength of 2D materials [32]. With the MoS2 monolayer regarded as a linear isotropic elastic material [19] and the indentation process approximated as central point loading on a clamped circular membrane [32], the relationship between indentation force and height can be deduced, as Formula (1) shows [33]:
F = σ02D π(h − h0) + E2Dq3(h − h0)3/a2,
where F is the point load at the center of the membrane, h is the vertical displacement of the tip, h − h0 can represent the deflection at the center point approximately, a is the radius of MoS2 monolayer, σ02D and E2D are the pretension and elastic modulus of the membrane, q = 1/(1.05 − 0.15ν − 0.16ν2) is a dimensionless constant, ν = 0.125 is the Poisson ratio of bulk MoS2 [34].
Here, in our simulation of the indentation process of freestanding MoS2 monolayer, the elasticity properties of MoS2 monolayer can be deduced by fitting the FN(h) curve at the elastic stage shown in Figure 2a to Formula (1). The results of E2D was 199.1 N/m,which were in good agreement with the experiments [19,35]. The rupture strength was 33.8 N/m, which was very close to the results of density functional theory (DFT) calculations by Si Xiong [36].
As the freestanding MoS2 ruptured completely in a short time during the indentation process, it was difficult to distinguish the plastic deformation stage from the force height curve before rupture, as Figure 2a shows. However, the indentation process of MoS2/Pt substrate showed clearly the plastic deformation stage of the MoS2 monolayer. As shown in Figure 2b, the FN(h) curve can be divided into three stages: elastic deformation stage (see smooth part of FN(h) curve in Figure 2b, with h < 1.07 nm for MoS2/Pt substrate, h < 0.86 nm for bare Pt substrate); plastic deformation stage (see the sawtooth shaped steps of FN(h) curve in Figure 2b, with 1.07 nm < h < 1.99 nm for MoS2/Pt substrate, h > 0.86nm for bare Pt substrate); and finally, the complete rupture of the MoS2 monolayer (see the sudden drop of FN(h) curve at h = 1.99 nm for MoS2/Pt substrate in Figure 2b). At the elastic and plastic deformation stages, the existence of the MoS2 monolayer improved the load bearing capacity of the substrate, as FN for the MoS2/Pt substrate is always larger than the bare Pt substrate at the same indentation depth. The two force-height curves nearly overlapped after the complete rupture of the MoS2 monolayer, which meant the anti-pressure effect of the MoS2 monolayer completely vanished. The maximum load the MoS2/Pt substrate can bear at the elastic deformation stage was about 62.9 nN (see Figure 2b), much smaller than 135.3 nN of the freestanding MoS2 monolayer with a same size (see Figure 2a), which indicated different fracture criterions. In order to learn the fracture mechanism in these two cases, the structural deformations of the MoS2 monolayer during the indentation process were studied.

3.2. Structural Deformation

A significant structural difference between the MoS2 monolayer and graphene is that the MoS2 monolayer consists of a molybdenum atom layer sandwiched by two sulfur layers while graphene has only one carbon atom layer. Therefore, the deformation mechanism of the MoS2 monolayer is different from graphene, as the out-of-plane compression of MoS2 monolayer exists [37]. In this paper, the main structure deformations during the indentation process were divided into two types: in-plane stretch and out-of-plane compression. The distance between two adjacent Mo atoms(dMo-Mo) in the radial direction was used to represent the in-plane stretch deformation, while the distance between two opposite S atoms(dS-S) in the vertical direction was used to represent the out-of-plane compression deformation [38], as shown in Figure 3a.
Compared with the freestanding MoS2 monolayer, a higher strain rate was found in the contact region of the MoS2/Pt substrate, as dS-S and dMo-Mo changed more rapidly for atoms right under the tip in the Pt-supported MoS2 monolayer than in the freestanding MoS2 monolayer, as shown in Figure 3b. Furthermore, the deformation was more concentrated in the contact region for MoS2/Pt substrate, as shown in Figure 3c,d. Similarly, with the FN(h) curve, both dMo-Mo(h) and dS-S(h) were smooth at the elastic stage. The minimum dS-S for bare MoS2 and MoS2/Pt substrate were very close at the end of the elasticity stage, while the maximum dMo-Mo was much smaller for MoS2/Pt substrate than for bare MoS2, as shown in Figure 3c,d. It can be speculated that the achievement of the strain limit for the out-of-plane compression is the main reason for the rupture of the MoS2 monolayer supported by Pt substrate, although both in-plane stretch and out-of-plane compression can bear load during the indentation process. The ultimate strain of out-of-plane compression was about 0.29 at the elastic stage for the indentation process of the MoS2/Pt substrate.

3.3. Scratch Process

While the results of the indentation process showed that the anti-pressure effect of the MoS2 monolayer is the result of structural deformation, the friction reduction effect of MoS2 monolayer also has a strong relationship with structural deformation. In the simulation of scratch, vertical displacement of the tip varied from 0.8 nm to more than 2 nm, thus three different deformation stages of MoS2 monolayer were covered. Figure 4 shows the friction changes with distance during the scratch process at different indentation depths. At the elastic stage, the friction force was small and the friction-distance curve was smooth, as shown in Figure 4a,b. Stick slip was found at a shallow indentation depth when h = 0.8 nm and disappeared when the indentation depth increased. At the plastic stage, the friction-distance curve became more and more irregular as the indentation depth increased, as shown in Figure 4c–e.
The average friction force and load at different indentation depths was calculated for the scratch process of MoS2/Pt and bare Pt substrates, as shown in Figure 5. Friction force increased with load at the elastic and plastic deformation stages. The friction reduction effect of MoS2 monolayer relied on the degree of deformation. When MoS2 monolayer existed, the friction coefficient was about 0.164 at the elastic stage and 0.368 at the plastic stage, which are much smaller than the 0.298 and 1.019 for the Pt substrate without MoS2 monolayer. The turning point for the load of MoS2/Pt substrate in Figure 5a,b stood for the complete rupture of the MoS2 monolayer. The MoS2 monolayer ruptured more easily in the scratch process than in the indentation process, as the maximum load MoS2/Pt substrate can bear before complete rupture of the MoS2 monolayer is about 123.5 nN for h = 1.7 nm (see Figure 5a) during the scratch process, which is much smaller than 200.5 nN for h = 1.99 nm during the indentation process (see Figure 2b). After the complete rupture of the MoS2 monolayer, both anti-pressure and the friction reduction effect vanished as FN decreased, while FL continued to increase with indentation depth for the MoS2/Pt substrate.
The friction for MoS2/Pt and bare Pt substrates were very close at the same indentation depth, while the load was much higher for MoS2/Pt substrate, which meant MoS2 monolayer can improve the load bearing capacity of the substrate without increasing friction. At the same load condition, the indentation depth for MoS2/Pt substrate was smaller than for bare Pt substrate and the deformation of the substrate was also smaller, which can be a result for the lower friction coefficient of MoS2/Pt substrate.

4. Conclusions

In conclusion, three deformation stages of Pt-supported MoS2 monolayer were observed: an elastic stage, a plastic stage and a completely ruptured stage. Unlike graphene, the MoS2 monolayer can share additional load through in-plane stretch and out-of-plane compression. The rupture of MoS2 monolayer for MoS2/Pt system was a result of out-of-plane compression, which is very different from graphene. When covering the Pt(111) surface, MoS2 monolayer can reduce deformation and increase the load bearing capacity of the substrate, which is a key reason for the friction reduction effect of MoS2 monolayer. The anti-pressure and friction reduction effects of MoS2 monolayer depend on deformation degree of the monolayer and the excellent lubrication properties will disappear after the complete rupture of the MoS2 monolayer. These results provide a new insight into the relationship between the mechanical properties and lubrication properties of 2D materials, which can be used to predict the application prospects of different 2D materials in tribology domain.

Author Contributions

Yang Liu, Yuhong Liu and Jianbin Luo conceived and designed the project. Yang Liu performed molecular dynamics simulations and wrote the manuscript. Yuhong Liu and Tianbao Ma reviewed and revised the manuscript. All authors contributed to discussions and analyses of the results.

Funding

This research was funded by the National Natural Science Foundation of China (Grant No. 51522504) and the foundation of SKLT.

Acknowledgments

The calculations were performed on “Explorer 100” cluster system of Tsinghua University and Tianhe-II supercomputing system of the National Supercomputer Center in Guangzhou. The authors also want to acknowledge PARATERA for technical support on high-performance computation.

Conflicts of Interest

The authors declare no competing financial interest.

References

  1. Gupta, A.; Sakthivel, T.; Seal, S. Recent Development in 2D Materials beyond Graphene. Prog. Mater. Sci. 2015, 73, 44–126. [Google Scholar] [CrossRef]
  2. Zhu, Y.; Murali, S.; Cai, W.; Li, X.; Suk, J.W.; Potts, J.R.; Ruoff, R.S. Graphene and Graphene Oxide: Synthesis, Properties and Applications. Adv. Mater. 2010, 22, 3906–3924. [Google Scholar] [CrossRef] [PubMed]
  3. Le, D.; Rawal, T.B.; Rahman, T.S. Single-Layer MoS2 with Sulfur Vacancies: Structure and Catalytic Application. J. Phys. Chem. C 2014, 118, 5346–5351. [Google Scholar] [CrossRef]
  4. Castellanos-Gomez, A. Black Phosphorus: Narrow Gap, Wide Applications. J. Phys. Chem. Lett. 2015, 6, 4280–4291. [Google Scholar] [CrossRef] [PubMed]
  5. Li, C.; Xie, Z.; Chen, Z.; Cheng, N.; Wang, J.; Zhu, G. Tunable Bandgap and Optical Properties of Black Phosphorene Nanotubes. Materials 2018, 11, 304. [Google Scholar] [CrossRef] [PubMed]
  6. Nemilentsau, A.; Low, T.; Hanson, G. Anisotropic 2D Materials for Tunable Hyperbolic Plasmonics. Phys. Rev. Lett. 2016, 116, 066804. [Google Scholar] [CrossRef] [PubMed]
  7. Yang, N.; Yang, D.; Chen, L.; Liu, D.; Cai, M.; Fan, X. A First-Principle Theoretical Study of Mechanical and Electronic Properties in Graphene Single-Walled Carbon Nanotube Junctions. Materials 2017, 10, 1300. [Google Scholar] [CrossRef] [PubMed]
  8. Lee, S.K.; Rana, K.; Ahn, J.H. Graphene Films for Flexible Organic and Energy Storage Devices. J. Phys. Chem. Lett. 2013, 4, 831–841. [Google Scholar] [CrossRef] [PubMed]
  9. Soldano, C.; Mahmood, A.; Dujardin, E. Production, Properties and Potential of Graphene. Carbon 2010, 48, 2127–2150. [Google Scholar] [CrossRef]
  10. Meng, F.; Han, H.; Gao, X.; Yang, C.; Zheng, Z. Experiment Study On Tribological Performances of GNPs/MoS2 Coating. Tribol. Int. 2018, 118, 400–407. [Google Scholar] [CrossRef]
  11. Luo, J.K.; Fu, Y.Q.; Le, H.R.; Williams, J.A.; Spearing, S.M.; Milne, W.I. Diamond and Diamond-Like Carbon MEMS. J. Micromech. Microeng. 2007, 17, S147. [Google Scholar] [CrossRef]
  12. Bhushan, B. Nanotribology and Nanomechanics of Mems/Nems and Biomems/Bionems Materials and Devices. Microelectron. Eng. 2007, 84, 387–412. [Google Scholar] [CrossRef]
  13. Zhong, M.; Zhang, C.; Luo, J.; Lu, X. The Protective Properties of Ultra-Thin Diamond Like Carbon Films for High Density Magnetic Storage Devices. Appl. Surf. Sci. 2009, 256, 322–328. [Google Scholar] [CrossRef]
  14. Wang, N.; Komvopoulos, K.; Rose, F.; Marchon, B. Structural Stability of Hydrogenated Amorphous Carbon Overcoats Used in Heat-Assisted Magnetic Recording Investigated by Rapid Thermal Annealing. J. Appl. Phys. 2013, 113, 083517. [Google Scholar] [CrossRef]
  15. Kim, K.; Lee, H.; Lee, C.; Lee, S.; Jang, H.; Ahn, J.; Kim, J.; Lee, H. Chemical Vapor Deposition-Grown Graphene: The Thinnest Solid Lubricant. ACS Nano 2011, 5, 5107–5114. [Google Scholar] [CrossRef] [PubMed]
  16. Berman, D.; Erdemir, A.; Sumant, A.V. Few Layer Graphene to Reduce Wear and Friction on Sliding Steel Surfaces. Carbon 2013, 54, 454–459. [Google Scholar] [CrossRef]
  17. Xie, H.; Jiang, B.; Dai, J.; Peng, C.; Li, C.; Li, Q.; Pan, F. Tribological Behaviors of Graphene and Graphene Oxide as Water-Based Lubricant Additives for Magnesium Alloy/Steel Contacts. Materials 2018, 11, 206. [Google Scholar] [CrossRef] [PubMed]
  18. Berman, D.; Erdemir, A.; Sumant, A.V. Graphene: A New Emerging Lubricant. Mater. Today 2014, 17, 31–42. [Google Scholar] [CrossRef]
  19. Bertolazzi, S.; Brivio, J.; Kis, A. Stretching and Breaking of Ultrathin MoS2. ACS Nano 2011, 5, 9703–9709. [Google Scholar] [CrossRef] [PubMed]
  20. Klemenz, A.; Pastewka, L.; Balakrishna, S.G.; Caron, A.; Bennewitz, R.; Moseler, M. Atomic Scale Mechanisms of Friction Reduction and Wear Protection by Graphene. Nano Lett. 2014, 14, 7145–7152. [Google Scholar] [CrossRef] [PubMed]
  21. Zhao, J.; He, Y.; Wang, Y.; Wang, W.; Yan, L.; Luo, J. An Investigation on the Tribological Properties of Multilayer Graphene and MoS2 Nanosheets as Additives Used in Hydraulic Applications. Tribol. Int. 2016, 97, 14–20. [Google Scholar] [CrossRef]
  22. Chen, Z.; Liu, X.; Liu, Y.; Gunsel, S.; Luo, J. Ultrathin MoS2 Nanosheets with Superior Extreme Pressure Property as Boundary Lubricants. Sci. Rep. 2015, 5, 12869. [Google Scholar] [CrossRef] [PubMed]
  23. Dong, Y.; Li, Q.; Martini, A. Molecular Dynamics Simulation of Atomic Friction: A Review and Guide. J. Vac. Sci. Technol. A 2013, 31, 30801. [Google Scholar] [CrossRef]
  24. Jiang, J.; Park, H.S.; Rabczuk, T. Molecular Dynamics Simulations of Single-Layer Molybdenum Disulphide (MoS2): Stillinger-Weber Parametrization, Mechanical Properties and Thermal Conductivity. J. Appl. Phys. 2013, 114, 064307. [Google Scholar] [CrossRef]
  25. Tersoff, J. Chemical Order in Amorphous Silicon Carbide. Phys. Rev. B 1994, 49, 16349–16352. [Google Scholar] [CrossRef]
  26. Zhou, X.W.; Johnson, R.A.; Wadley, H. Misfit-Energy-Increasing Dislocations in Vapor-Deposited Cofe/Nife Multilayers. Phys. Rev. B 2004, 69, 144113. [Google Scholar] [CrossRef]
  27. Li, L.; Xia, Z.H.; Curtin, W.A.; Yang, Y.Q. Molecular Dynamics Simulations of Interfacial Sliding in Carbon-Nanotube/Diamond Nanocomposites. J. Am. Ceram. Soc. 2009, 92, 2331–2336. [Google Scholar] [CrossRef]
  28. Girifalco, L.A.; Hodak, M.; Lee, R.S. Carbon Nanotubes, Buckyballs, Ropes and a Universal Graphitic Potential. Phys. Rev. B 2000, 62, 13104. [Google Scholar] [CrossRef]
  29. Toghraie, D.; Mokhtari, M.; Afrand, M. Molecular Dynamic Simulation of Copper and Platinum Nanoparticles Poiseuille Flow in a Nanochannels. Phys. E 2016, 84, 152–161. [Google Scholar] [CrossRef]
  30. Varshney, V.; Patnaik, S.S.; Muratore, C.; Roy, A.K.; Voevodin, A.A.; Farmer, B.L. MD Simulations of Molybdenum Disulphide (MoS2): Force-Field Parameterization and Thermal Transport Behavior. Comput. Mater. Sci. 2010, 48, 101–108. [Google Scholar] [CrossRef]
  31. Plimpton, S. Fast Parallel Algorithms for Short-Range Molecular Dynamics. J. Comput. Phys. 1995, 117, 1–19. [Google Scholar] [CrossRef]
  32. Lee, C.; Wei, X.; Kysar, J.W.; Hone, J. Measurement of the Elastic Properties and Intrinsic Strength of Monolayer Graphene. Science 2008, 321, 385–388. [Google Scholar] [CrossRef] [PubMed]
  33. Komaragiri, U.; Begley, M.R.; Simmonds, J.G. The Mechanical Response of Freestanding Circular Elastic Films Under Point and Pressure Loads. J. Appl. Mech. 2005, 72, 203–212. [Google Scholar] [CrossRef]
  34. Lovell, M.R.; Khonsari, M.M.; Marangoni, R.D. A Finite Element Analysis of the Frictional Forces Between a Cylindrical Bearing Element and MoS2 Coated and Uncoated Surfaces. Wear 1996, 194, 60–70. [Google Scholar] [CrossRef]
  35. Castellanos Gomez, A.; Poot, M.; Steele, G.A.; van der Zant, H.S.; Agraït, N.; Rubio Bollinger, G. Elastic Properties of Freely Suspended MoS2 Nanosheets. Adv. Mater. 2012, 24, 772–775. [Google Scholar] [CrossRef] [PubMed]
  36. Xiong, S.; Cao, G. Molecular Dynamics Simulations of Mechanical Properties of Monolayer MoS2. Nanotechnology 2015, 26, 185705. [Google Scholar] [CrossRef] [PubMed]
  37. Peña-Álvarez, M.; del Corro, E.; Morales-García, Á.; Kavan, L.; Kalbac, M.; Frank, O. Single Layer Molybdenum Disulfide Under Direct Out-of-Plane Compression: Low-Stress Band-Gap Engineering. Nano Lett. 2015, 15, 3139–3146. [Google Scholar] [CrossRef] [PubMed]
  38. Lorenz, T.; Joswig, J.; Seifert, G. Stretching and Breaking of Monolayer MoS2—An Atomistic Simulation. 2D Mater. 2014, 1, 011007. [Google Scholar] [CrossRef]

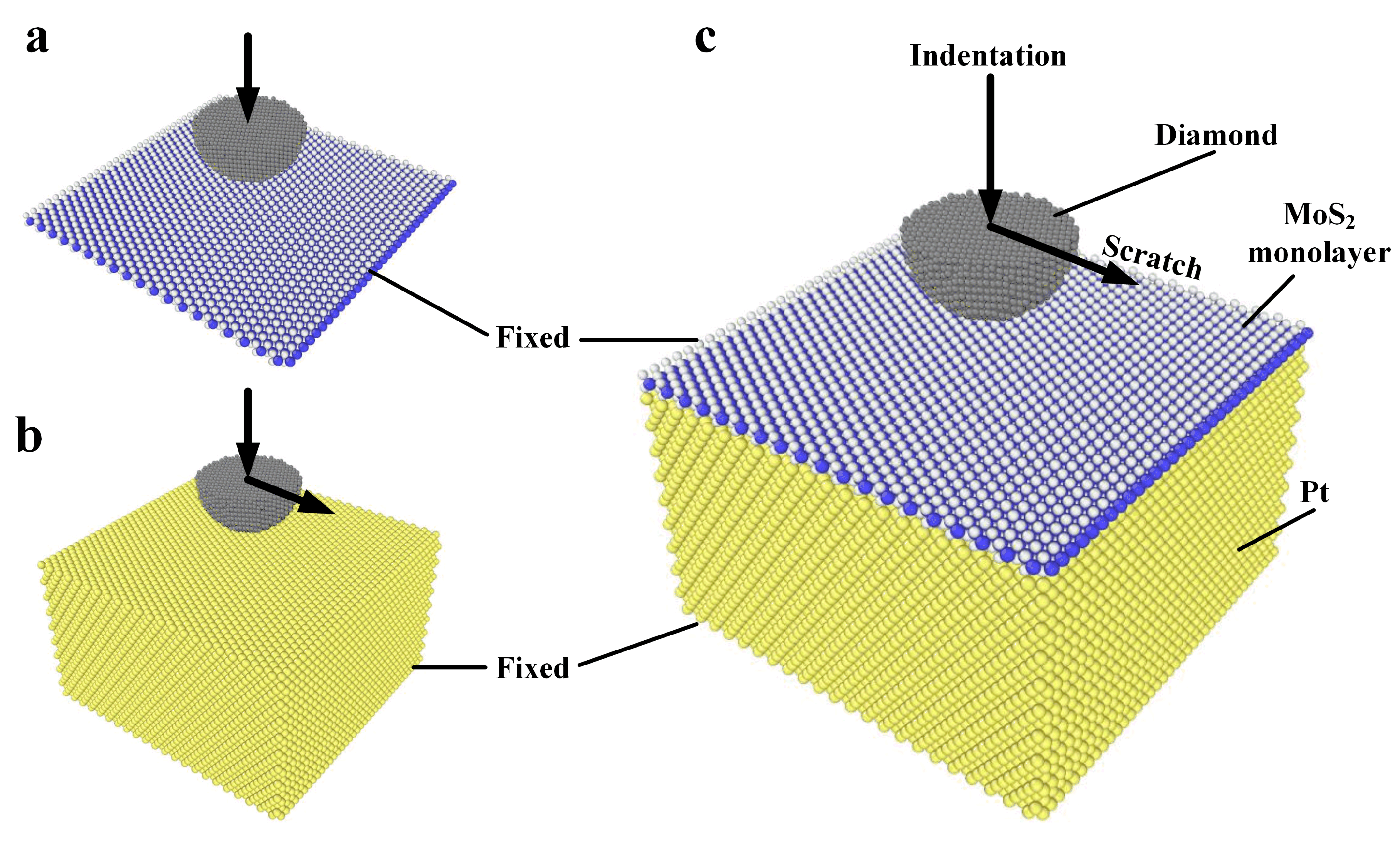

Figure 1. (a) The indentation model of freestanding MoS2 monolayer; (b) The indentation and scratch model of Pt substrate; (c) The indentation and scratch model of MoS2/Pt substrate.
Figure 1. (a) The indentation model of freestanding MoS2 monolayer; (b) The indentation and scratch model of Pt substrate; (c) The indentation and scratch model of MoS2/Pt substrate.
Materials 11 00683 g001

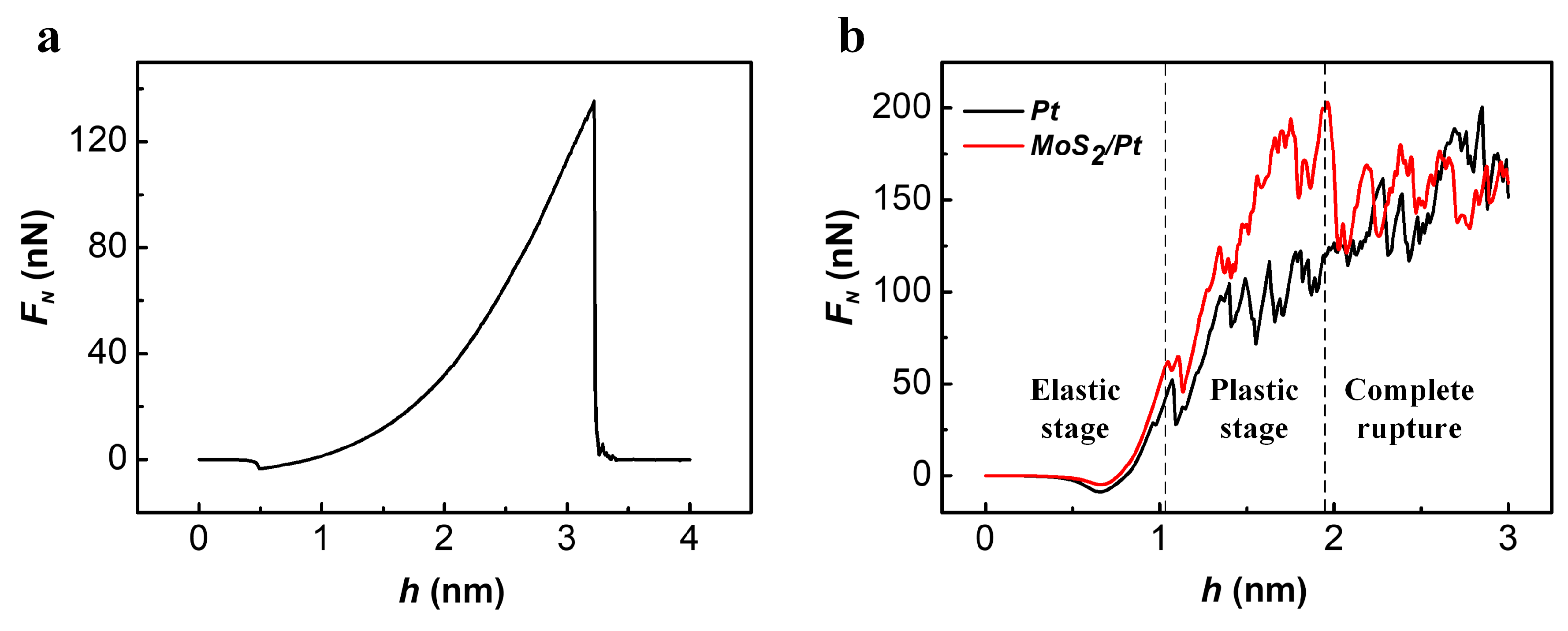

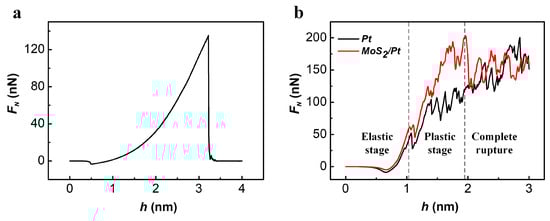

Figure 2. (a) The force-displacement curve for the indentation process of the freestanding MoS2 monolayer; (b) The force-height curve for the indentation process of bare Pt and MoS2/Pt substrate.
Figure 2. (a) The force-displacement curve for the indentation process of the freestanding MoS2 monolayer; (b) The force-height curve for the indentation process of bare Pt and MoS2/Pt substrate.
Materials 11 00683 g002

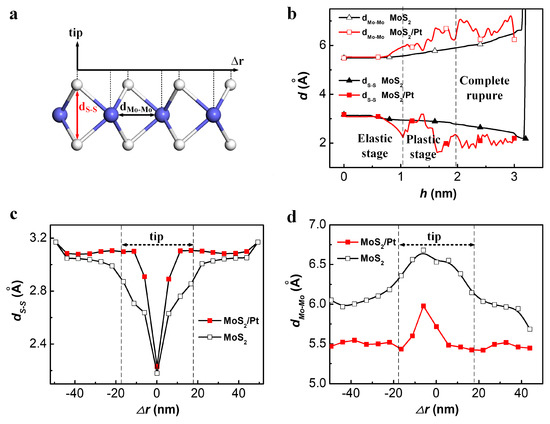

Figure 3. (a) Schematic of dS-S and dMo-Mo; (b) Evolution of dS-S and dMo-Mo for atoms right under the tip during the indentation process of freestanding MoS2 monolayer and MoS2/Pt substrate; (c) The radial distribution of dS-S for MoS2 monolayer and MoS2/Pt substrate at the end of elastic deformation stage; (d) The radial distribution of dMo-Mo for MoS2 monolayer and MoS2/Pt substrate at the end of elastic deformation stage.
Figure 3. (a) Schematic of dS-S and dMo-Mo; (b) Evolution of dS-S and dMo-Mo for atoms right under the tip during the indentation process of freestanding MoS2 monolayer and MoS2/Pt substrate; (c) The radial distribution of dS-S for MoS2 monolayer and MoS2/Pt substrate at the end of elastic deformation stage; (d) The radial distribution of dMo-Mo for MoS2 monolayer and MoS2/Pt substrate at the end of elastic deformation stage.
Materials 11 00683 g003

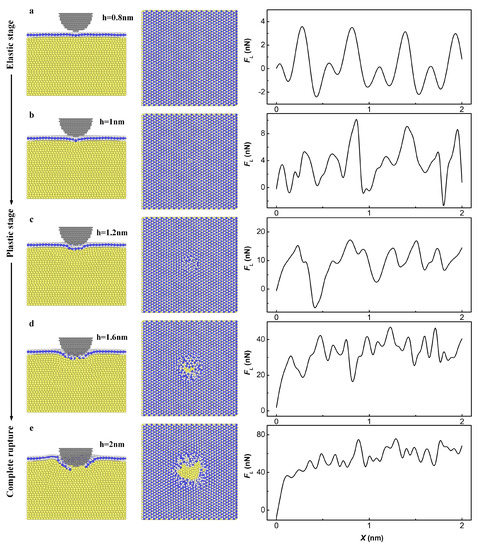

Figure 4. The left column shows the cutaway view of the simulation model, the middle column shows the top view of MoS2/Pt substrate and the right column shows variation of friction force with sliding distance at different indentation depth: (a,b) h = 0.8 and 1 nm, at elastic stage of MoS2 monolayer; (c,d) h = 1.2 and 1.6 nm, at plastic stage of MoS2 monolayer; (e) h = 2 nm, MoS2 monolayer completely ruptured.
Figure 4. The left column shows the cutaway view of the simulation model, the middle column shows the top view of MoS2/Pt substrate and the right column shows variation of friction force with sliding distance at different indentation depth: (a,b) h = 0.8 and 1 nm, at elastic stage of MoS2 monolayer; (c,d) h = 1.2 and 1.6 nm, at plastic stage of MoS2 monolayer; (e) h = 2 nm, MoS2 monolayer completely ruptured.
Materials 11 00683 g004

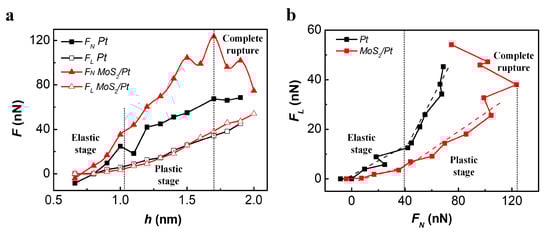

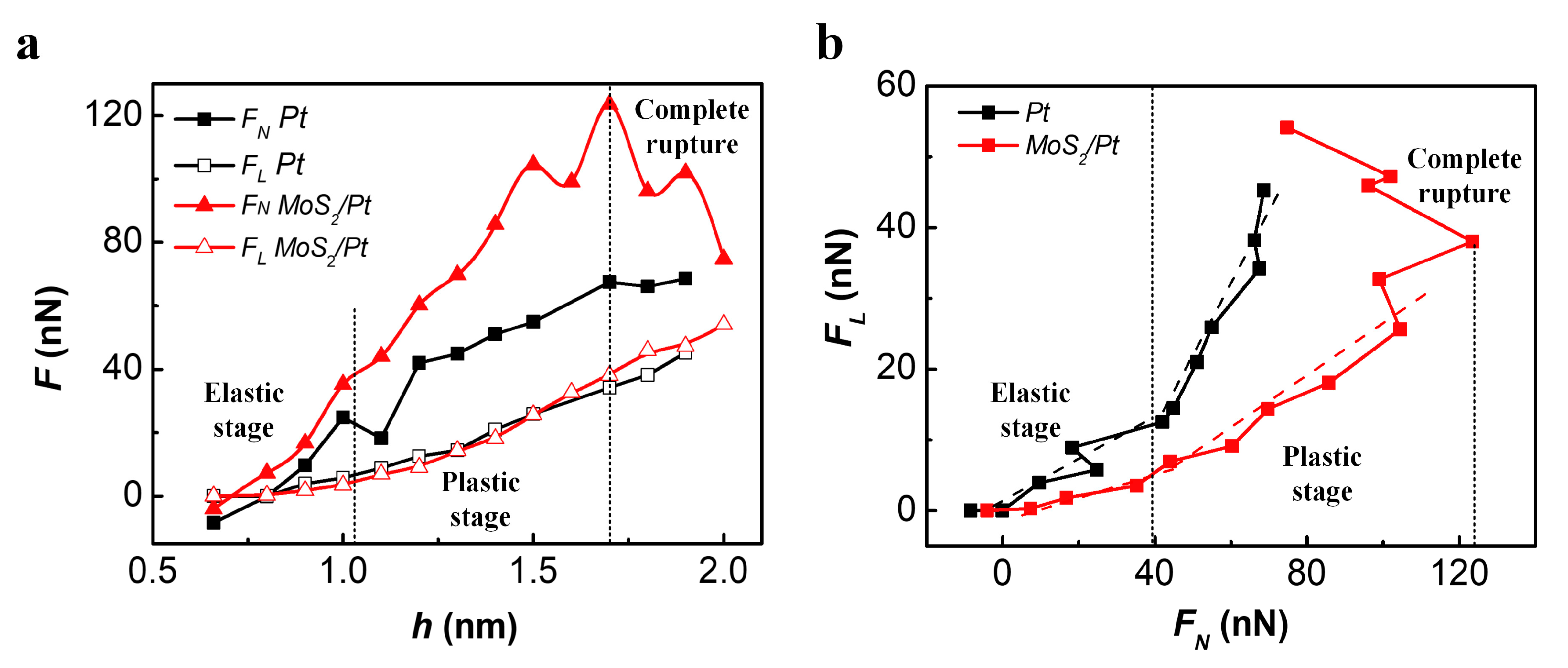

Figure 5. (a) Average load and friction varied with indentation depth during the scratch process of MoS2/Pt and bare Pt substrates; (b) The relation between average load and friction for MoS2/Pt and bare Pt substrates. Dashed line in (b) is a linear fitting of FL and FN.
Figure 5. (a) Average load and friction varied with indentation depth during the scratch process of MoS2/Pt and bare Pt substrates; (b) The relation between average load and friction for MoS2/Pt and bare Pt substrates. Dashed line in (b) is a linear fitting of FL and FN.
Materials 11 00683 g005
Table 1. Parameters of Lennard-Jones (LJ) potential used in this simulation.
Table 1. Parameters of Lennard-Jones (LJ) potential used in this simulation.
PairC-MoC-SC-PtPt-MoPt-S
εij (meV)48.96213.16538.635661.41177.840
σij (Å)3.0093.4182.9712.5132.922
