Article

Sensitive Five-Fold Local Symmetry to Kinetic Energy of Depositing Atoms in Cu-Zr Thin Film Growth

by
Lu Xie
1,*,
Haojie An
1,
Qing Peng
2,*,
Qin Qin
1 and
Yong Zhang
3
1
School of Mechanical Engineering, University of Science and Technology Beijing, Beijing 100083, China
2
Nuclear Engineering and Radiological Sciences University of Michigan, Ann Arbor, MI 48108, USA
3
State Key Laboratory for Advanced Metals and Materials, University of Science and Technology Beijing, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(12), 2548; https://doi.org/10.3390/ma11122548
Submission received: 26 November 2018 / Revised: 11 December 2018 / Accepted: 12 December 2018 / Published: 14 December 2018
Browse Figures
Versions Notes

Abstract

:
We have investigated the glass formation ability of Cu-Zr alloy by molecular dynamics simulation of the deposition process. The atomistic structures of ZrxCu100−x metallic glass films have been systematically examined under the growth conditions of hypereutectic-eutectic, near-eutectic, and hypoeutectic regions by the radial distribution function and simulated X-ray diffraction. The structure analysis using Voronoi polyhedron index method demonstrates the variations of short-range order and five-fold local symmetry in ZrxCu100−x metallic glass films with respect to the growth conditions. We manifest that the five-fold local symmetry is sensitive to the kinetic energy of the depositing atoms. There is positive correlation between the degree of five-fold local symmetry and glass forming ability. Our results suggest that sputtering conditions greatly affect the local atomic structures and consequential properties. The glass forming ability could be scaled by the degree of five-fold local symmetry. Our study might be useful in optimizing sputtering conditions in real experiments, as well as promising implications in material design of advanced glassy materials.

1. Introduction

A solid metal in general is a crystalline where atoms have long range orders. When they are quenched with ultra-high cooling rate from melt, they form amorphous metals, namely metal glasses (MGs). Unlike common glasses, metallic glasses are metals, and therefore good in electrical conductivity and thermal conductivity. Without long-range orders or translational symmetry in structure, metallic glasses in general possess much higher strength, hardness, and corrosion resistance than their crystalline counterparts [1,2,3,4]. As a result, MGs have attracted extensive interest due to their exotic mechanical properties and promising applications [5,6]. However, the poor glass-forming ability (GFA) limits the broad engineering application of MGs, which restricts both the shape and the size of MGs. The key to the design of MGs with great GFA is to understand the structural origin of GFA, which, however, is a long-standing challenge.
Metallic glasses are usually obtained by rapid cooling of multicomponent alloy that the crystallization is avoided. The binary Zr-Cu alloy is a paradigm system to study the atomistic structures properties relationships and glass transition due to the outstanding glass formation ability which originated from the ideal atomic size ratio between the two constituents [7]. Recent studies have shown that binary Zr-Cu alloys have the ability to form a variety of stable metallic glass with different atom ratios [8,9], and the amorphous film formed by Zr-Cu alloys has prefect mechanical [10,11,12] and superconducting properties [13].
Currently, MGs thin films are mainly prepared by magnetron sputtering deposition method. There are lots of experiments and theoretical studies on this deposition process. For example, Dudonis et al. [14] performed electron bombardment of Cu and Zr targets at different powers to prepare different compositional ZrxCu100−x films (5 ≤ x ≤ 95) in a magnetron sputtering deposition. Apreutesei et al. [15] prepared Zr-Cu MG films by DC magnetron sputtering in argon gas, and studied the influence of deposition parameters on structure and elastic properties. Daisman et al. [16] used single-target magnetron sputtering method to prepare Zr-based MG thin films with higher stability. Xu et al. [17] studied the correlation between GFA and mechanical behavior of Zr-Cu MGs. It is intriguing to see if there exists a similar correlation between GFA and microstructure.
Besides experiments, the method of molecular dynamics simulations (MD simulation) has been well established in the past decades and becomes a reliable and indispensable tool in various investigations [18]. For MGs, Utz et al. [19] introduced an algorithm for plastic deformation of A80B20 two-component metallic glasses, which allows the use of MD simulations to study the volume changes related to plastic deformation directly. Sha et al. [20] studied the medium/short-range order of Zr64Cu36 MG by using MD method. The compressive mechanical properties of Zr85Cu15 nanocrystal-MG composites have been analyzed via MD simulations [21]. Yang et al. [22] studied the size effects in Zr50Cu50 MG films via MD simulations. In our previous work [23], we use the MD method to simulate the deposition process of ZrxCu100−x metallic glass film and investigated the effect of different element ratios.
The microstructure and glass forming mechanism are among the main important topics of MD studies. Sha et al. [20,24] studied the forming conditions of Zr-Cu MGs by using MD simulation. Hajlaoui et al. [25] observed the microstructure of Zr-Cu MGs during deformation by in-situ HRTEM observation. The studies from Almyras et al. [26] show that both Zr35Cu65 and Zr65Cu35 MGs are composed of supercluster formed by icosahedral-like clusters. Tripathi et al. [27] proposed a glass forming ability expression that does not use the characteristic temperature, which analyzes the GFA of the alloy from the component data. Turchanin et al. [28] considered that the interaction between components is an important reason for amorphization of alloy through the study of enthalpy of Zr-Cu system. The theory proposed by Zhang et al. [29] claims that the formation of the microstructure of the multi-alloy has a direct relationship with the property parameters Ω and δ (Ω is the ratio of average melting temperature timing the mixing entropy and the mixing enthalpy, and δ is the mean square deviation of the atomic size), which can be used to predict whether the alloy can form metallic glass. It was reported that five-fold local symmetry (FFLS) is an important characteristic in MGs. Hu et al. [30] studied the structure evolution in metallic glass-forming liquids by FFLS. Lu et al. [31] studied the correlation between FFLS and dynamical slowing down in Cu-Zr glass-forming liquid, and results show that FFLS has a close relation to GFA.
For the Zr-Cu system, there are few studies on its crystal-amorphous transition and the relationship between microstructure and GFA, while current research only involves the deposition process and the mechanical properties of the metal film. The metallic glass transition mechanism remains elusive. With the well-established molecular dynamics simulations, we can accurately simulate the deposition process of Zr-Cu alloy thin films and explore the film evolution process at the atomic level. Therefore, MD method is employed in this study. We simulate the deposition process of amorphous films of ZrxCu100−x (x = 50, 70, 90) in sub-eutectic, near-eutectic, and hypoeutectic regions. The crystal-amorphous transition has been studied in depth. Its glass forming mechanism and the relationship between microstructure and GFA have been analyzed upon these simulations.

2. Models and Methods

All MD simulations in this work were performed using the Large-scale Atomic/Molecular Massively Parallel Simulator (LAMMPS) package (Sandia, Albuquerque, NM, USA) [32]. The structural analysis and post-processing were performed with OVITO [33].

2.1. Modeling

Figure 1 shows the initial deposition model used in this work. Each simulation box has periodic boundary conditions only in x and y directions. Si (1 0 0) with fixed bottom atoms was used as the substrate and the dimensions were (25 × 25 × 10) Å3. In the deposited process, two kind of deposited atoms were generated randomly. Both Zr and Cu atoms deposited from an initial position 5–7 Å above the deposition model.
For all simulations, the microcanonical ensemble (NVE) was employed with a Berendsen thermostat [34]. Berendsen thermostat can effectively dissipate the high energy coming from Zr-Cu atoms. The temperature of the simulation box was controlled to 300 K, which is similar to experimental temperature condition.
In these simulations, embedded atom method (EAM) many-body potential [35] was applied to describe the atomic interactions of the Zr-Cu systems. The interactions between Si and Si atoms were described by Tersoff empirical potential [36]. Lennard Jones potential with Lorenz Berthelot mixing rules [37] was employed for the atomic interactions between Si and Zr-Cu systems.

2.2. Simulation Process

We use the modified Thompson formula (detailed in Supplementary) to calculate the mean kinetic energy [38] of the incoming Zr and Cu atoms. We examine three different experimental conditions (Table 1). The velocities of the incoming atoms are randomly sampled from a Maxwell Boltzmann distribution. The aim is to simulate the three different conditions in metallic glass growth, and to gain insights of the effect of both the incoming atom kinetic energy and the composition on the expected phase formation of Zr-Cu system.
The deposited atoms are randomly generated. The initial velocity and direction are given to make them continuously deposited to the substrate. The time step is chosen to be 0.001 ps for the compromise of computation speed and numerical instability. Every 2 ps, 5 atom are released toward the surface. This rate of 0.5 atom/ps is carefully selected so that there is enough time for thermal relaxation to take place with Berendsen thermostat.
For post-simulation analysis, we use the radial distribution functions (RDF) to determine the correlation between the atoms. The simulated X-ray diffraction (XRD) was employed to study the phase of Zr-Cu film and the Voronoi polyhedron index method (VPIM) [39] was employed to analyze the local atomic structure and FFLS of the system.

3. Results and Discussion

In order to study the deposition process and structural evolution of Zr-Cu alloy, MD simulations of the growth of ZrxCu100−x alloy and x is percentage of the atomic concentrations. We investigate x = 50, 70, 90, which is response to the sub-eutectic, near-eutectic, and hypoeutectic composition, respectively. The growth of the alloys was performed in three different energies, as listed in Table 1, with initial conditions similar to the experimental operating ones.

3.1. Zr50Cu50

The Zr50Cu50 deposition processes with different conditions on the Si substrate are shown in Figure 2. The results show that as the mean kinetic energies increases, the morphology goes through three different stages: cluster–film–film. For Zr50Cu50 the Zr and Cu atoms grow as a cluster with height 7.0 nm under low energy. Under middle and high energies, the deposited atoms grow as clusters before 5 ns. Finally, two 5.5 nm thickness films were formed at middle and high energies. The mean kinetic energy of the deposited atoms is relatively lower at low energy (EZr = 0.13 eV, ECu = 0.34 eV), which is less than the activation energy for atomic diffusion. Therefore, the atoms are easier to aggregate with each other to form clusters.
The total RDFs for Zr50Cu50 under three energies are presented in Figure 3a. For MGs, the RDF peak positions are the inherited characteristic constant sequence [40] and the peaks show the nearest neighbor distance of atoms, which can be compared with the experimental values of the two elementals (Supplementary Table S1). The RDF shows an asymmetrical first peak and a second peak with no spilt in three energies, implying that there exists a strong short-range order. While the shoulder peak on the right side of the first peak in deposited Zr50Cu50 films are not observed as literature [41]. The three energies in our simulations show that the RDF distributions are similar, and no effect of the mean kinetic energy is observed for Zr50Cu50.
The XRD patterns for Zr50Cu50 are illustrated in Figure 3b as a function of the mean kinetic energy. All of these patterns show broad diffraction peaks without any detectable sharp Bragg peaks, implying a low order structure. Zr50Cu50 films show an amorphous XRD pattern which is consistent with the calculated RDF in Figure 3a. As the mean kinetic energies increases, the value of the first peak in the XRD pattern gradually decreases. The diffraction angles of the first XRD peaks for Zr50Cu50 under three energies are between 38 and 39 degrees.

3.2. Zr70Cu30

Deposition processes of Zr70Cu30 on Si (1 0 0) at 2 ns, 5 ns and 10 ns under three different energies are presented in Figure 4. Initially, small nanoclusters formed on the Si (1 0 0) surface and formed thin films gradually as the number of incoming atoms increases. One can see from Figure 4 that as increasing the mean kinetic energies, the morphology goes through three stages: cluster–cluster–film at 5 ns. At high energy, the thin film was formed before the other two energies. Finally, Zr70Cu30 films have been formed with thickness ranging from 6.0 to 6.4 nm.
The total RDF distributions of Zr70Cu30 deposited films are displayed in Figure 5 for three deposition energies. The first and second peaks broaden with no splits which shows a typical amorphous characteristic. The amorphous nature of Zr70Cu30 films under three energies is clearly shown in the snapshots presented in Figure 4, which means the near-eutectic alloy Zr70Cu30 has a strong GFA.
The simulated XRD intensities versus diffraction angle 2θ for Zr70Cu30 are illustrated in Figure 5b. Broad diffraction peaks with no split show an amorphous Zr70Cu30 structure. As the mean kinetic energies increases, the first peak decreases successively and the corresponding diffraction angle 2θ decreases. The main peak diffraction angles for Zr70Cu30 under three energies are around 37 degrees.

3.3. Zr90Cu10

The deposition processes of the Zr90Cu10 are displayed in Figure 6. Zr90Cu10 is deposited as a cluster at 5 ns under low energy, and a film is formed with thickness about 7.1 nm at the end. Under middle and high energies, the deposited atoms grow as films with height around 7.0 nm.
The RDF of Zr90Cu10 under three energies was calculated and is plotted in Figure 7a. For Zr90Cu10 deposition RDF, four distinct main peaks with a split of second peak arise, showing the well-crystallized structure. The crystallinity under the low energy was better than that of the other two energies according to the peak size and the split degree of second peak, that means the Zr90Cu10 deposited film shows a better crystal structure under the low energy.
The relationship between XRD intensity and diffraction angle 2θ of Zr90Cu10 alloy films is presented in Figure 7b for different deposition energies. The XRD patterns exhibit three main peaks at all three cases, and the second peak at the middle energy shows a split. The position of the main XRD peak for Zr90Cu10 under three energies are between 35 and 36 degrees. Similar to the RDF pattern, the XRD pattern also shows that the three Zr90Cu10 alloy films have a perfect crystal structure. Among them, the peak of XRD pattern under low energy is bigger, but overall, the difference of XRD pattern under three conditions is not obvious.
For deeper understanding of the film growth mechanism, snapshots of Zr90Cu10 deposited films under different energies are shown in Figure 8. The deposited film is a polycrystalline structure with both A and B crystal orientations under low energy (Figure 8a). At the beginning of the deposition process, small clusters are formed with a random orientation distribution. With time goes on the film growth rates is almost the same, but the growth directions are different under different kinetic energies. This is because that the mean kinetic energy of the deposited atoms is less than the activation energy used for diffusion under low energy, thus forming two cluster structures with different growth directions. Nanostructures with different lattice orientations were formed as the deposition proceeds, that shows that the alloy thin film can be controlled toward a predetermined single crystal or poly-crystal direction by changing the energy condition of Zr90Cu10. The deposited film has a single crystal structure under middle energy (Figure 8b). While Figure 8c shows a crystalline structure on the bottom and an amorphous structure on the top. The thickness of the amorphous structure is about 1.5 nm.
Based on these simulations, the thickness of films increases when increasing Zr concentrations. This caused by the difference of atomic radius, since the radius of Zr atoms is larger than that of Cu atoms. Comparing the RDF and XRD patterns of ZrxCu100−x (x = 50, 70, 90) deposited films under three energies, it is easy to find that the impact of the elemental composition is bigger than deposition conditions (mean kinetic energy) for GFA of Zr-Cu system. Meanwhile, Zr50Cu50 and Zr70Cu30 have stronger ability to form metallic glass, while Zr90Cu10 tends to form crystalline structure and high energy is good for forming thin films.

3.4. Glass Forming Ability

The GFA of an alloy is related to manufacturing conditions and to its own structure properties [27]. The solid-solution formation rules are applicable to characterize the collective behavior of different elements in alloys [29,42]. The parameters Ω and δ of ZrxCu100−x defined for MD simulation are Zr90Cu10 (0.6686, 6.12%), Zr80Cu20 (0.5572, 8.33%), Zr70Cu30 (0.4981, 9.75%), Zr60Cu40 (0.4607, 10.65%) and Zr50Cu50 (0.4363, 11.11%), respectively [38].
In the relationship diagram of the Ω and δ (Figure 9), Zr-Cu alloys are located in the area for bulk metallic glass (B). Meanwhile, the Ω and δ values of Zr50Cu50 and Zr70Cu30 correspond to the central of BMGs, indicating a strong amorphous forming ability. As increasing the Zr concentration, alloys trend to enter the area of BMGs to solid-solutions. This is consistent with the results of our simulations, that the system prefers to form crystalline structure with high concentration of Zr. For Zr90Cu10, the thin film structure of polycrystalline, single crystal and crystalline-amorphous composite layer were obtained under low, middle and high energy conditions, which shows that the alloy with high Zr concentration is less likely to form metallic glass under the deposition. Zr90Cu10 located at the edge of the B area, that is closer to the area of solid-solutions (S) than the others. That theoretically explains our simulation results well.
Three groups of MD simulations revealed the formation of metallic glass microscopically, and the relationship between GFA and parameters (Ω and δ) values. The simulation results which confirmed the correctness of the theory and demonstrated the reliability of MD simulation, is of great significance to predict the thin film structure using magnetron sputtering deposition in MD simulation.

3.5. Five-Fold Local Symmetry Analysis.

To gain insights on the GFA at atomic level, we do more atomic structural analysis. The amorphous structure of Zr-Cu alloys thin film was characterized by FFLS, which is one of the most popular methods to describe the nanostructure characteristics of MGs [43,44]. Different atomic clusters may contain different degree of FFLS, which can be expressed by f i k = n i k / ∑ k = 3 , 4 , 5 , 6 n i k , where n i k (k = 3,4,5,6) is the number of k-edged polygon in Voronoi polyhedron type i. And the average degree of k-fold local symmetry can be expressed by ∑ i f i k × P i , where P i is the fraction of i. Thus, the degree of FFLS for a polyhedron type can be expressed by f i 5 = n i 5 / ∑ k = 3 , 4 , 5 , 6 n i k and the average degree of FFLS can be expressed by W = ∑ i f i k × P i .
The typical Voronoi polyhedrons (VPs) with three components are calculated and shown in Table S2 and Figure S1 in the supplementary information. According to the above-mentioned formula about FFLS, we calculate the average degree of FFLS. Solid line in Figure 10 shows the component dependence of the average degree of FFLS, which is denoted as W) under different energies obtained in MD simulations. With increasing Zr concentrations, W decreases gradually. The W of the first four components (x = 50, 60, 70 and 80) are at a relatively high level, especially for Zr50Cu50. Zr50Cu50 has the strongest GFA and the largest W value, and exhibits perfect amorphous structure in our simulations.
As shown in Figure 10, the increase of FFLS with decreasing the mean kinetic energy of incoming atoms indicates that FFLS shows energy dependence expect for Zr90Cu10. The largest W value occurs at the lowest energy shows that reducing the mean kinetic energy of incoming atoms will increase the five-fold local symmetry of the amorphous alloy. The GFA of Zr90Cu10 is the smallest, and the decrease of W is the most obvious. The difference between Zr90Cu10 and ZrxCu100−x (x = 50, 60, 70 and 80) is that the maximum W of Zr90Cu10 appears in high energy conditions. This may be because of the well crystal characteristic exhibited in Zr90Cu10, and the disorder layer of 1.5 nm appearing on the surface of the film at high energy. At the same time, it shows that the FFLS is not suitable for the description of the long-range order structure.
The component dependence of the formation enthalpy of Zr-Cu amorphous at 298 K is shown in the dash line (Figure 10) [28]. It can be seen that the amorphous formation enthalpy of the Zr-Cu alloy is negative, and the enthalpy of the amorphous formation increases with the increase of Zr concentration when the Zr concentration is greater than 50%. As the value of x increases, its GFA decreases, which is consistent with our simulation result.
Nearly eutectic Zr70Cu30 films deposited at three energy conditions have amorphous structures shown in our simulations. Combined with its FFLS and Voronoi polyhedral index, it is easy to find that the deposited film has better five-fold local symmetry and the highest content of icosahedron-like clusters under low energy, most of which are Cu-centered. At the same time, using the average degree of FFLS, it is understandable that under low energy the deposited atoms formed film firstly at 5 ns (Figure 4), because it has largest degree of FFLS. On the other hand, as shown in Figure 9, the GFA of five alloys decrease with increasing x, which is coincident with the variation of the five-fold local symmetry that decrease with the x. Our results demonstrate that there is a positive correlation between GFA and the degree of FFLS of Zr-Cu systems.

4. Conclusions

We have investigated the correlation between the glass forming ability and the degree of the FFLS in the deposition process of ZrxCu100−x (x = 50, 70, 90) alloy thin films via molecular dynamics simulations. The structural state of alloy films was analyzed by RDF, XRD, Voronoi polyhedron index and FFLS. We find that Zr90Cu10 films all formed crystals under different energy deposition conditions. There are polycrystalline structure with two crystal orientations under low energy, single crystal under middle energy, and a crystalline-amorphous composite structure under high energy. The formation of crystalline-amorphous structure in Zr90Cu10 indicates that alloys located at the edge of area B can be prepared into a crystalline-amorphous composite by magnetron sputtering under certain conditions.
The Voronoi polyhedron analysis shows that the greater the number of icosahedral clusters and their deformed structures, the greater the GFA. The Voronoi polyhedron has an important influence on the GFA of Zr-Cu system, and also reveals the relationship between composition and GFA. There is a positive correlation between the degrees of FFLS and GFA. Our results imply that the degrees of FFLS could serve as a measure of the GFA, providing new approach to characterize the GFA for the design of amorphous composite materials. More importantly, our results manifest that sputtering conditions greatly affect the local atomic structures and consequential properties. This result could be extended to other glassy materials as the universality of FFLS for short-range order structure in amorphous. Our study might be useful in optimizing sputtering conditions in real experiments, as well as promising implications in material design of advanced glassy materials.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/11/12/2548/s1, Table S1: The four nearest neighbor distances in Zr and Cu bulk crystals, lattice constants for Zr and Cu are respectively a Zr = 3.23 Å, c Zr = 5.15 Å and a Cu = 3.61 Å., Table S2: Number of various Voronoi polyhedrons in ZrxCu100−x (x = 90, 70, 50) under middle energy, Figure S1: Distribution and proportion of typical Voronoi polyhedrons (VPs) in Zr70Cu30 amorphous films under three energies. The left side is FCC-like structure, with ICOS and DICOS in the middle, and other high-content polyhedron on the right.

Author Contributions

Conceptualization, L.X. and Q.P.; methodology, Q.Q.; formal analysis, L.X.; investigation, H.A.; writing—original draft preparation, H.A.; writing—review and editing, L.X. and Q.Q; visualization, Y.Z.; supervision, Q.P and Y.Z.; funding acquisition, L.X.

Funding

The authors are grateful for the financial support provided by the Fundamental Research Funds for the Central Universities (FRF-TP-16-044A1 and FRF-GF-17-B18) and National Natural Science Foundation of China (21703007 and 51375041).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, W.H. The elastic properties, elastic models and elastic perspectives of metallic glasses. Prog. Mater. Sci. 2012, 57, 487–656. [Google Scholar] [CrossRef]
  2. Si, J.; Mei, J.; Wang, R.; Chen, X.; Hui, X. Fe-B-Si-Zr bulk metallic glasses with ultrahigh compressive strength and excellent soft magnetic properties. Mater. Lett. 2016, 181, 282–284. [Google Scholar] [CrossRef]
  3. Niu, B.; Sun, M.H.; Wang, D.; Wang, L.N. Thermoplasticity of Cu45Zr42.55Y3.45Al9 metallic glass. Mater. Heat. Treat 2010, 8, 6–9. [Google Scholar]
  4. Liao, G.; Long, Z.; Zhao, M.; Zhong, M.; Liu, W.; Chai, W. Serrated flow behavior in a Pd-based bulk metallic glass under nanoindentation. J. Non-Cryst. Solids 2017, 460, 47–53. [Google Scholar] [CrossRef]
  5. Mattern, N. Structure Formation in Metallic Glasses. Available online: http://www.ww.tu-freiberg.de/mk/bht/Abstracts/mattern.pdf (accessed on 13 December 2018).
  6. Masumoto, T. Recent progress of amorphous metallic materials. Mater. Sci. Eng. A 1994, 179–180, 8–16. [Google Scholar] [CrossRef]
  7. Laws, K.J.; Miracle, D.B.; Ferry, M. A predictive structural model for bulk metallic glasses. Nat. Commun. 2015, 6, 8123. [Google Scholar] [CrossRef] [Green Version]
  8. Cheng, Y.Q.; Ma, E. Atomic-level structure and structure–property relationship in metallic glasses. Prog. Mater. Sci. 2011, 56, 379–473. [Google Scholar] [CrossRef]
  9. Zeman, P.; Zítek, M.; Zuzjaková, Š.; Čerstvý, R. Amorphous Zr-Cu thin-film alloys with metallic glass behavior. J. Alloys Compd. 2017, 696, 1298–1306. [Google Scholar] [CrossRef]
  10. Musil, J.; Daniel, R. Structure and mechanical properties of magnetron sputtered Zr–Ti–Cu–N films. Surf. Coat. Technol. 2003, 166, 243–253. [Google Scholar] [CrossRef]
  11. Eckert, J.; Das, J.; Kim, K.B.; Baier, F.; Tang, M.B.; Wang, W.H.; Zhang, Z.F. High strength ductile Cu-base metallic glass. Intermetallics 2006, 14, 876–881. [Google Scholar] [CrossRef]
  12. Xu, D.; Lohwongwatana, B.; Duan, G.; Johnson, W.; Garland, C. Bulk metallic glass formation in binary Cu-rich alloy series—Cu100−xZrx (x= 34, 36, 38.2, 40 at %) and mechanical properties of bulk Cu64Zr36 glass. Acta Mater. 2004, 52, 2621–2624. [Google Scholar] [CrossRef]
  13. Karpe, N.; Bøttiger, J.; Krog, J.P.; Nordström, A.; Rapp, Ö. Influence of deposition conditions and ion irradiation on thin films of amorphous Cu-Zr superconductors. Thin Solid Films 1996, 275, 82–86. [Google Scholar] [CrossRef]
  14. Dudonis, J.; Bručas, R.; Miniotas, A. Synthesis of amorphous Zr-Cu alloys by magnetron co-sputtering. Thin Solid Films 1996, 275, 164–167. [Google Scholar] [CrossRef]
  15. Apreutesei, M.; Djemia, P.; Belliard, L.; Abadias, G.; Esnouf, C.; Billard, A.; Steyer, P. Structural-elastic relationships of Zr-TL (TL = Cu, Co, Ni) thin films metallic glasses. J. Alloys Compd. 2017, 707, 126–131. [Google Scholar] [CrossRef]
  16. Aji, D.P.B.; Hirata, A.; Zhu, F.; Pan, L.; Reddy, K.M.; Song, S.; Liu, Y.; Fujita, T.; Kohara, S.; Chen, M. Ultrastrong and Ultrastable Metallic Glass. Available online: https://arxiv.org/ftp/arxiv/papers/1306/1306.1575.pdf (accessed on 13 December 2018).
  17. Xu, B.; Falk, M.L.; Li, J.F.; Kong, L.T. Predicting Shear Transformation Events in Metallic Glasses. Phys. Rev. Lett. 2018, 120, 125503. [Google Scholar] [CrossRef]
  18. Peng, Q.; Meng, F.; Yang, Y.; Lu, C.; Deng, H.; Wang, L.; De, S.; Gao, F. Shockwave generates <100> dislocation loops in bcc iron. Nat. Commun. 2018, 9, 4880. [Google Scholar] [CrossRef] [PubMed]
  19. Utz, M.; Peng, Q.; Nandagopal, M. Athermal simulation of plastic deformation in amorphous solids at constant pressure. J. Polym. Sci. B Polym. Phys. 2004, 42, 2057–2065. [Google Scholar]
  20. Sha, Z.D.; Zhang, Y.W.; Feng, Y.P.; Li, Y. Molecular dynamics studies of short to medium range order in Cu64Zr36 metallic glass. J. Alloys Compd. 2011, 509, 8319–8322. [Google Scholar] [CrossRef]
  21. Wu, T.W.; Feng, S.D.; Qi, L.; Gao, W.; Ma, M.Z.; Zhang, X.Y.; Li, G.; Jing, Q.; Liu, R.P. The compressive behaviour after crystallisation in Zr 85 Cu 15 metallic glasses studied by molecular dynamics simulations. J. Non-Cryst. Solids 2017, 468, 41–45. [Google Scholar] [CrossRef]
  22. Yang, G.J.; Xu, B.; Kong, L.T.; Li, J.F.; Zhao, S. Size effects in Cu 50 Zr 50 metallic glass films revealed by molecular dynamics simulations. J. Alloys Compd. 2016, 688, 88–95. [Google Scholar] [CrossRef]
  23. Xie, L.; Brault, P.; Bauchire, J.-M.; Thomann, A.-L.; Bedra, L. Molecular dynamics simulations of clusters and thin film growth in the context of plasma sputtering deposition. J. Phys. D Appl. Phys. 2014, 47, 224004. [Google Scholar] [CrossRef]
  24. Sha, Z.; Feng, Y.; Li, Y. Statistical composition-structure-property correlation and glass-forming ability based on the full icosahedra in Cu–Zr metallic glasses. Appl. Phys. Lett. 2010, 96, 061903. [Google Scholar] [CrossRef]
  25. Hajlaoui, K.; Alsaleh, N.; Alrasheedi, N.H.; Yavari, A.R. Coalescence and subsequent twinning of nanocrystals during deformation of CuZr-based metallic glasses: The grain size effect. J. Non-Cryst. Solids 2017, 464, 39–43. [Google Scholar] [CrossRef]
  26. Almyras, G.A.; Lekka, C.E.; Mattern, N.; Evangelakis, G.A. On the microstructure of the Cu65Zr35 and Cu35Zr65 metallic glasses. Scr. Mater. 2010, 62, 33–36. [Google Scholar] [CrossRef]
  27. Tripathi, M.K.; Chattopadhyay, P.P.; Ganguly, S. A predictable glass forming ability expression by statistical learning and evolutionary intelligence. Intermetallics 2017, 90, 9–15. [Google Scholar] [CrossRef]
  28. Turchanin, A.A.; Tomilin, I.A.; Turchanin, M.A.; Belokonenko, I.V.; Agraval, P.G. Enthalpies of formation of liquid and amorphous Cu–Zr alloys. J. Non-Cryst. Solids 1999, 250–252, 582–585. [Google Scholar] [CrossRef]
  29. Yang, X.; Zhang, Y. Prediction of high-entropy stabilized solid-solution in multi-component alloys. Mater. Chem. Phys. 2012, 132, 233–238. [Google Scholar] [CrossRef]
  30. Hu, Y.C.; Li, F.X.; Li, M.Z.; Bai, H.Y.; Wang, W.H. Five-fold symmetry as indicator of dynamic arrest in metallic glass-forming liquids. Nat. Commun. 2015, 6, 8310. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Lü, Y.J.; Bi, Q.L.; Huang, H.S.; Pang, H.H. Role of fivefold symmetry in the dynamical slowing down of metallic glass-forming liquids. Phys. Rev. B 2017, 96, 064301. [Google Scholar] [CrossRef]
  32. Plimpton, S. Fast Parallel Algorithms for Short-Range Molecular Dynamics. J. Comput. Phys. 1995, 117, 1–19. [Google Scholar] [CrossRef] [Green Version]
  33. Stukowski, A. Visualization and analysis of atomistic simulation data with OVITO–the Open Visualization Tool. Model. Simul. Mater. Sci. Eng. 2010, 18, 015012. [Google Scholar] [CrossRef]
  34. Berendsen, H.J.C.; Postma, J.P.M.; van Gunsteren, W.F.; DiNola, A.; Haak, J.R. Molecular dynamics with coupling to an external bath. J. Chem. Phys. 1984, 81, 3684–3690. [Google Scholar] [CrossRef]
  35. Daw, M.S.; Baskes, M.I. Embedded-atom method: Derivation and application to impurities, surfaces, and other defects in metals. Phys. Rev. B 1984, 29, 6443–6453. [Google Scholar] [CrossRef]
  36. Graves, D.B.; Brault, P. Molecular dynamics for low temperature plasma–surface interaction studies. J. Phys. D Appl. Phys. 2009, 42, 194011. [Google Scholar] [CrossRef] [Green Version]
  37. Zhen, S.; Davies, G.J. Calculation of the Lennard-Jones n–m potential energy parameters for metals. Phys. Status Solid 1983, 78, 595–605. [Google Scholar] [CrossRef]
  38. Xie, L.; Brault, P.; Thomann, A.-L.; Bedra, L. Molecular dynamic simulation of binary ZrxCu100−x metallic glass thin film growth. Appl. Surf. Sci. 2013, 274, 164–170. [Google Scholar] [CrossRef]
  39. Finney, J.L. Modelling the structures of amorphous metals and alloys. Nature 1977, 266, 309–314. [Google Scholar] [CrossRef]
  40. Wu, Z.W.; Li, M.Z.; Wang, W.H.; Liu, K.X. Hidden topological order and its correlation with glass-forming ability in metallic glasses. Nat. Commun. 2015, 6, 6035. [Google Scholar] [CrossRef] [Green Version]
  41. Liu, X.J.; Xu, Y.; Lu, Z.P.; Hui, X.; Chen, G.L.; Zheng, G.P.; Liu, C.T. Atomic packing symmetry in the metallic liquid and glass states. Acta Mater. 2011, 59, 6480–6488. [Google Scholar] [CrossRef]
  42. Zhang, W.; Liaw, P.K.; Zhang, Y. Science and technology in high-entropy alloys. Sci. China Mater. 2018, 61, 2–22. [Google Scholar] [CrossRef] [Green Version]
  43. Li, M.Z.; Peng, H.L.; Hu, Y.C.; Li, F.X.; Zhang, H.P.; Wang, W.H. Five-fold local symmetry in metallic liquids and glasses. Chin. Phys. B 2017, 26, 016104. [Google Scholar] [CrossRef]
  44. Spaepen, F. Condensed-matter science: Five-fold symmetry in liquids. Nature 2000, 408, 781–782. [Google Scholar] [CrossRef] [PubMed]
Materials 11 02548 g001 550

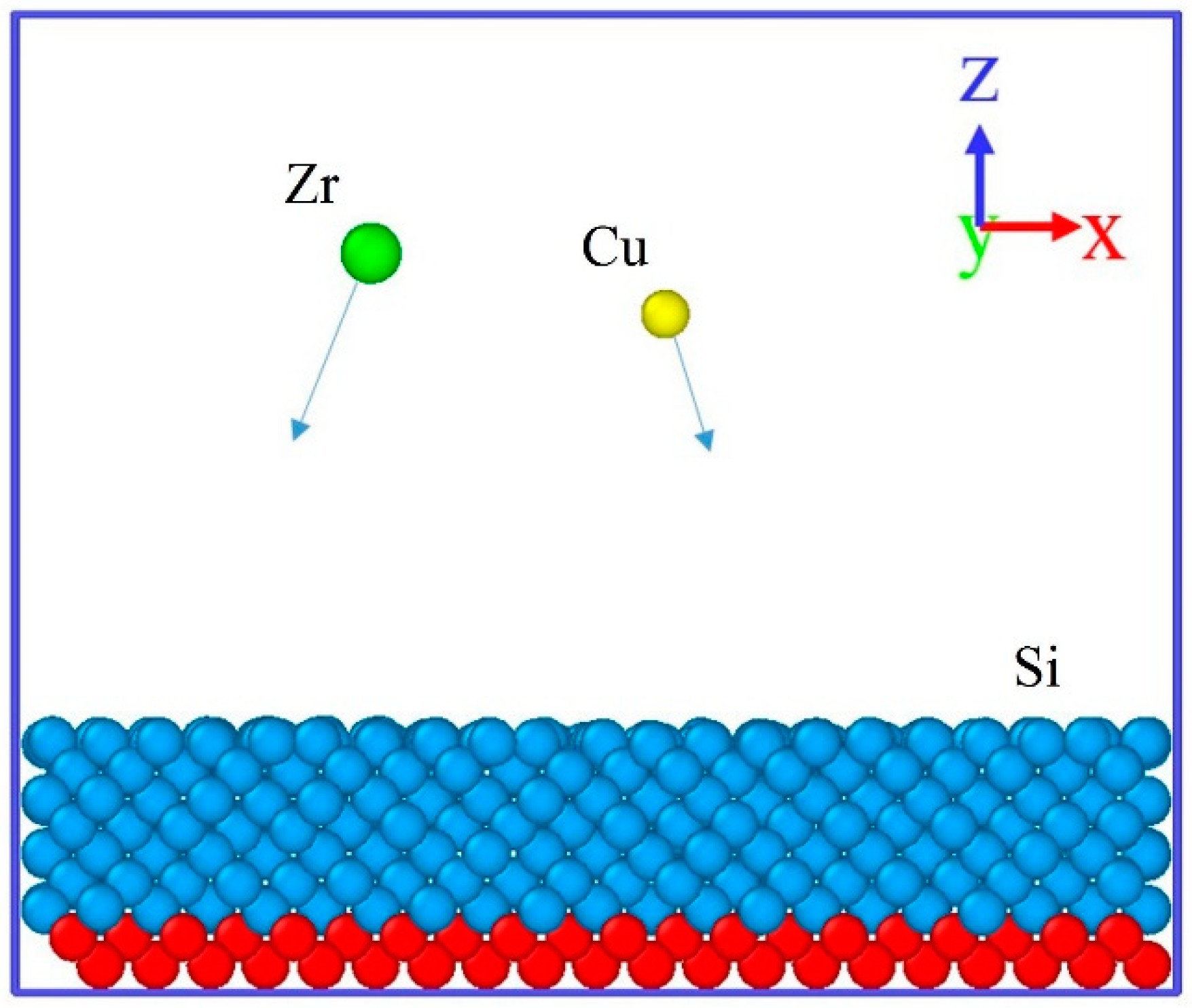

Figure 1. Schematic picture of the deposition model. Green atom is Zr, yellow atom is Cu, blue and red atoms are moving and fixed Si, respectively. The simulation box is periodic in the x and y directions. (In order to facilitate the display of nanostructures, the atom radius in the figure does not represent the actual atomic size, the same below).
Figure 1. Schematic picture of the deposition model. Green atom is Zr, yellow atom is Cu, blue and red atoms are moving and fixed Si, respectively. The simulation box is periodic in the x and y directions. (In order to facilitate the display of nanostructures, the atom radius in the figure does not represent the actual atomic size, the same below).
Materials 11 02548 g001
Materials 11 02548 g002 550
Figure 2. Snapshots of Zr50Cu50 deposited on Si substrate at 2 ns, 5 ns and 10 ns under different energies. The (a), (b), and (c) show the deposition process under three different energies, and the films grew to approximately 7.0 nm, 5.5 nm, and 5.5 nm thickness respectively.
Figure 2. Snapshots of Zr50Cu50 deposited on Si substrate at 2 ns, 5 ns and 10 ns under different energies. The (a), (b), and (c) show the deposition process under three different energies, and the films grew to approximately 7.0 nm, 5.5 nm, and 5.5 nm thickness respectively.
Materials 11 02548 g002
Materials 11 02548 g003 550
Figure 3. Simulated deposition of Zr50Cu50 thin films. (a) Radial distribution function g(r) of deposited alloy film under different energies, and the abscissa indicates atomic distance r; (b) the relationship between X-ray diffraction intensity and diffraction angle 2θ of deposited alloy film under different energies.
Figure 3. Simulated deposition of Zr50Cu50 thin films. (a) Radial distribution function g(r) of deposited alloy film under different energies, and the abscissa indicates atomic distance r; (b) the relationship between X-ray diffraction intensity and diffraction angle 2θ of deposited alloy film under different energies.
Materials 11 02548 g003
Materials 11 02548 g004 550
Figure 4. Snapshots of Zr70Cu30 deposited on Si substrate at 2 ns, 5 ns and 10 ns under different energies. The (a), (b), and (c) show the deposition process under three different energies, and the films grew to approximately 6.0 nm, 6.4 nm, and 6.2 nm thickness respectively.
Figure 4. Snapshots of Zr70Cu30 deposited on Si substrate at 2 ns, 5 ns and 10 ns under different energies. The (a), (b), and (c) show the deposition process under three different energies, and the films grew to approximately 6.0 nm, 6.4 nm, and 6.2 nm thickness respectively.
Materials 11 02548 g004
Materials 11 02548 g005 550
Figure 5. Simulated deposition of Zr70Cu30 thin films. (a) Radial distribution function g(r) of deposited alloy film under different energy conditions, and the abscissa indicates atomic distance r; (b) the relationship between X-ray diffraction intensity and diffraction angle 2θ of deposited alloy film under different energy conditions.
Figure 5. Simulated deposition of Zr70Cu30 thin films. (a) Radial distribution function g(r) of deposited alloy film under different energy conditions, and the abscissa indicates atomic distance r; (b) the relationship between X-ray diffraction intensity and diffraction angle 2θ of deposited alloy film under different energy conditions.
Materials 11 02548 g005
Materials 11 02548 g006 550
Figure 6. Snapshots of Zr90Cu10 deposited on Si substrate at 2 ns, 5 ns and 10 ns under different energies. The (a), (b), and (c) show the deposition process under three different energies, and the films grew to approximately 7.1 nm, 7.0 nm, and 7.0 nm thickness respectively.
Figure 6. Snapshots of Zr90Cu10 deposited on Si substrate at 2 ns, 5 ns and 10 ns under different energies. The (a), (b), and (c) show the deposition process under three different energies, and the films grew to approximately 7.1 nm, 7.0 nm, and 7.0 nm thickness respectively.
Materials 11 02548 g006
Materials 11 02548 g007 550

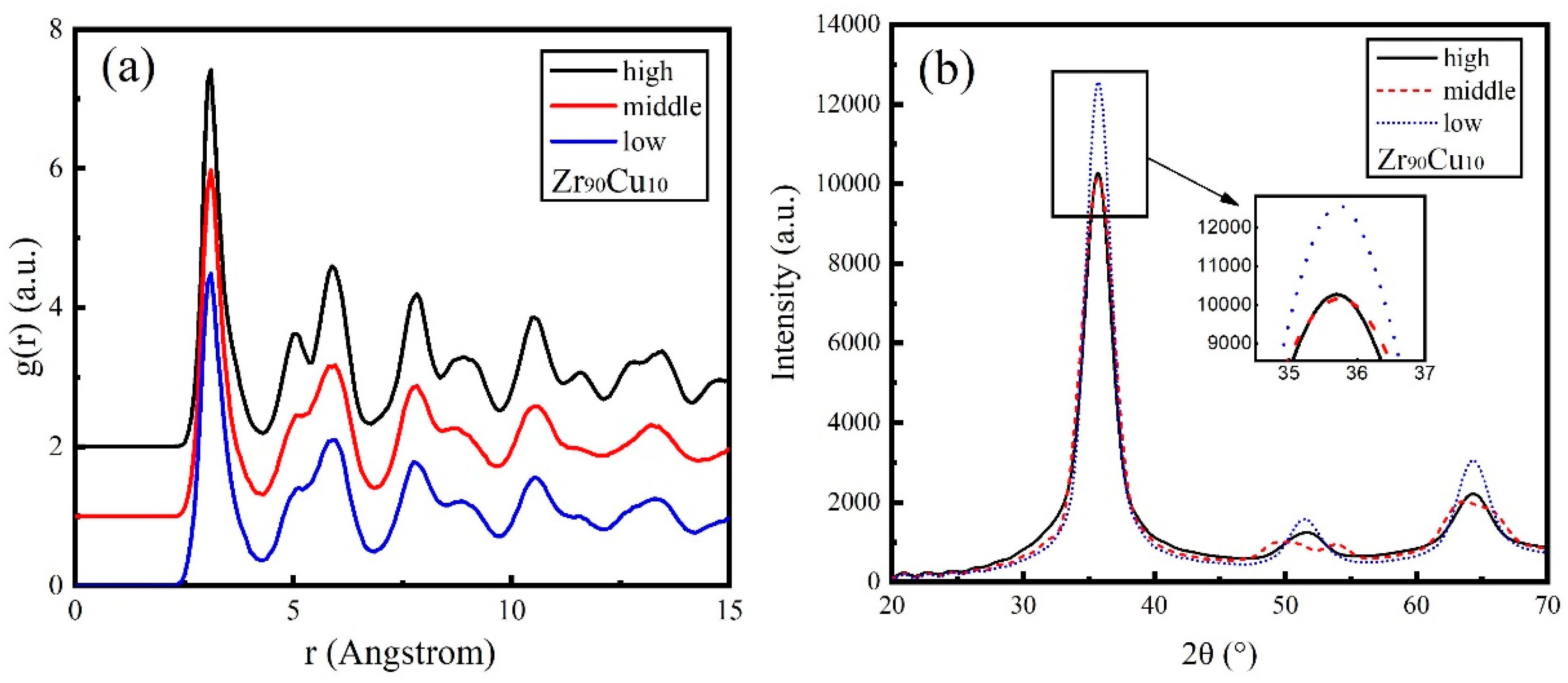

Figure 7. Simulated deposition of Zr90Cu10 thin films. (a) Radial distribution function g(r) of deposited alloy film under different energy conditions, and the abscissa indicates atomic distance r; (b) the relationship between X-ray diffraction intensity and diffraction angle 2θ of deposited alloy film under different energy conditions.
Figure 7. Simulated deposition of Zr90Cu10 thin films. (a) Radial distribution function g(r) of deposited alloy film under different energy conditions, and the abscissa indicates atomic distance r; (b) the relationship between X-ray diffraction intensity and diffraction angle 2θ of deposited alloy film under different energy conditions.
Materials 11 02548 g007
Materials 11 02548 g008 550
Figure 8. Snapshots of Zr90Cu10 deposited at three energies. (a) The deposited film is a polycrystalline structure with both A and B crystal lattice orientations under low energy conditions; (b) the deposited film is a single crystal structure under middle energy conditions; (c) the deposited film exhibits a crystal-amorphous structure under high energy conditions.; the green solid line in (c) separate the crystalline and amorphous zones.
Figure 8. Snapshots of Zr90Cu10 deposited at three energies. (a) The deposited film is a polycrystalline structure with both A and B crystal lattice orientations under low energy conditions; (b) the deposited film is a single crystal structure under middle energy conditions; (c) the deposited film exhibits a crystal-amorphous structure under high energy conditions.; the green solid line in (c) separate the crystalline and amorphous zones.
Materials 11 02548 g008
Materials 11 02548 g009 550

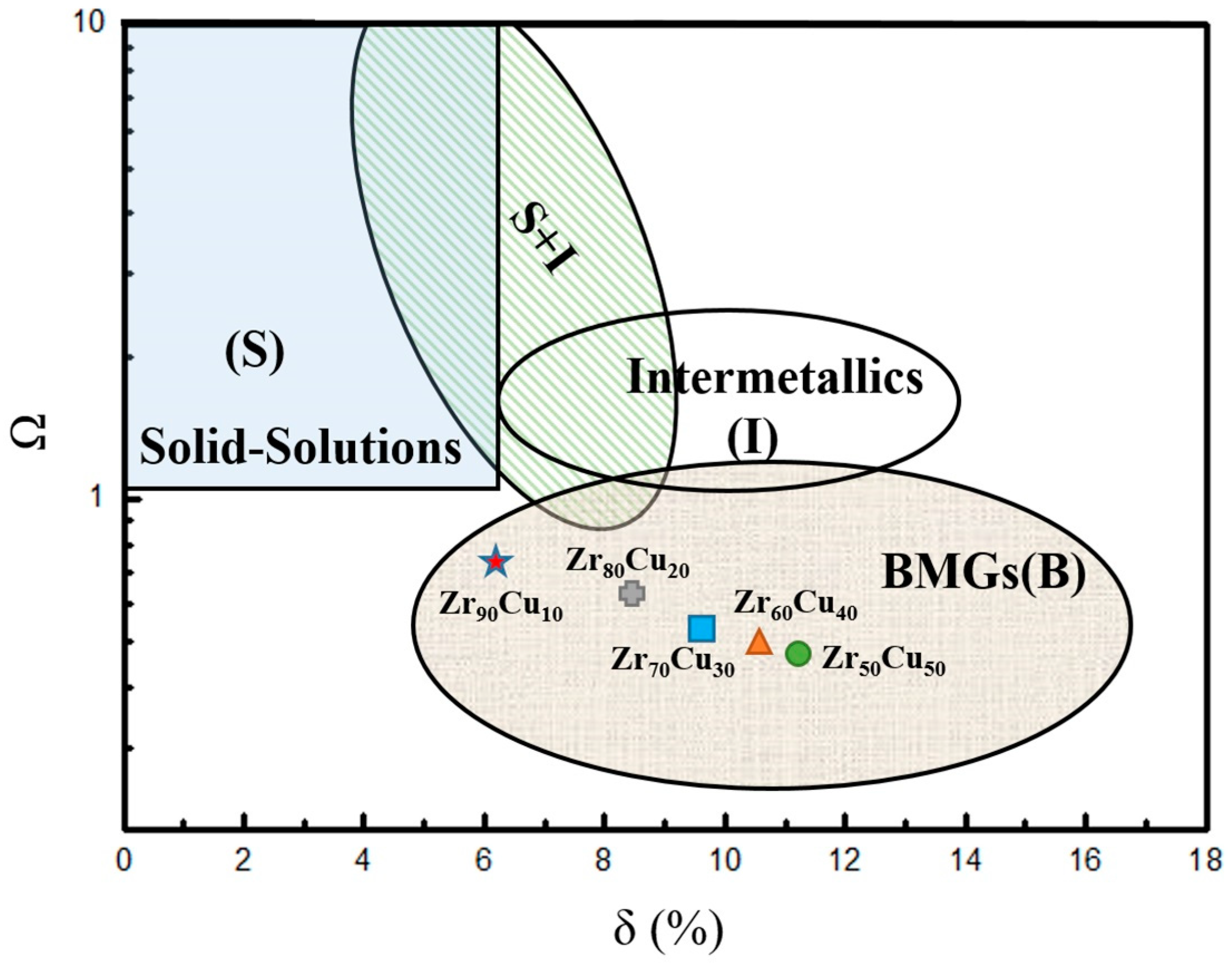

Figure 9. The prediction of phase formation for alloys. The region (S) shows that the alloy can form a solid solution. The alloy in the region (I) mainly consists of intermetallic compounds. The region (S+I) indicate that the solid solution and the intermetallic compound coexist, and alloy forms an amorphous phase metallic glass at the region (B) for bulk metal glasses (BMGs). Ω is the ratio of the average melting temperature timing the mixing entropy and the mixing enthalpy, and δ is the mean square deviation of the atomic size (reproduced from reference [29]).
Figure 9. The prediction of phase formation for alloys. The region (S) shows that the alloy can form a solid solution. The alloy in the region (I) mainly consists of intermetallic compounds. The region (S+I) indicate that the solid solution and the intermetallic compound coexist, and alloy forms an amorphous phase metallic glass at the region (B) for bulk metal glasses (BMGs). Ω is the ratio of the average melting temperature timing the mixing entropy and the mixing enthalpy, and δ is the mean square deviation of the atomic size (reproduced from reference [29]).
Materials 11 02548 g009
Materials 11 02548 g010 550

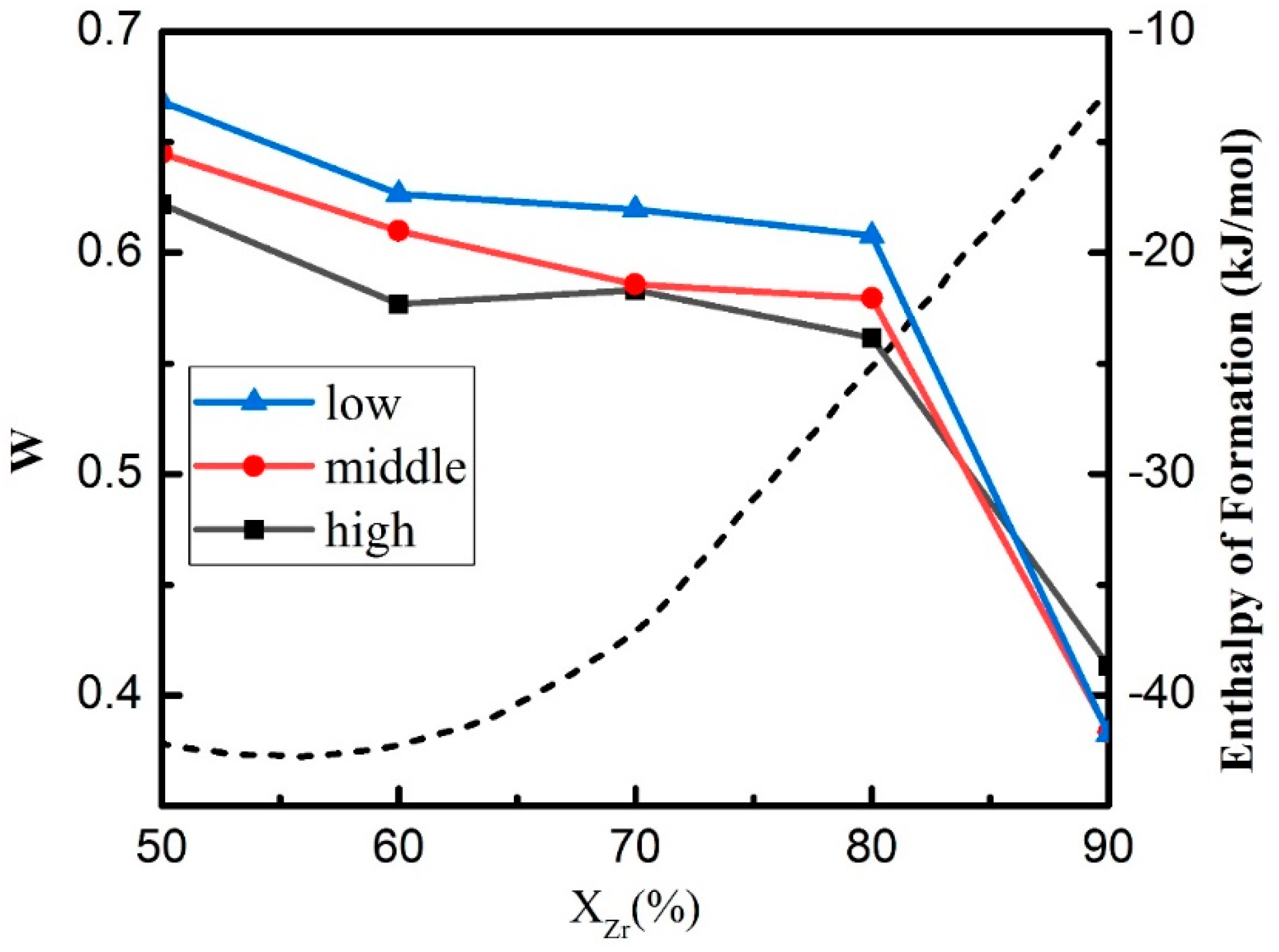

Figure 10. The evolution of five-fold local symmetry in ZrxCu100−x. W is the average degree of five-fold local symmetry (FFLS). The component dependence of W in different energy conditions shows similar trend. The dash line is the formation enthalpy of Zr-Cu amorphous alloys from pure amorphous elements at the temperature of 298 K (reproduced from Turchanin [28]).
