Open AccessArticle
Energies 2016, 9(6), 417;

Development of a PEM Fuel Cell City Bus with a Hierarchical Control System

Department of Automotive Engineering, State Key Laboratory of Automotive Safety and Energy, Tsinghua University, Beijing 100084, China
Collaborative Innovation Center of Electric Vehicles in Beijing, Beijing 100081, China
Institute of Energy and Climate Research, IEK-3: Electrochemical Process Engineering, Forschungszentrum Jülich GmbH, 52425 Jülich, Germany
Author to whom correspondence should be addressed.
Academic Editor: Vladimir Gurau
Received: 19 April 2016 / Revised: 21 May 2016 / Accepted: 24 May 2016 / Published: 30 May 2016
(This article belongs to the Special Issue Polymer Electrolyte Membrane Fuel Cells 2016)
Full-Text   |   PDF [4343 KB, uploaded 30 May 2016]   |

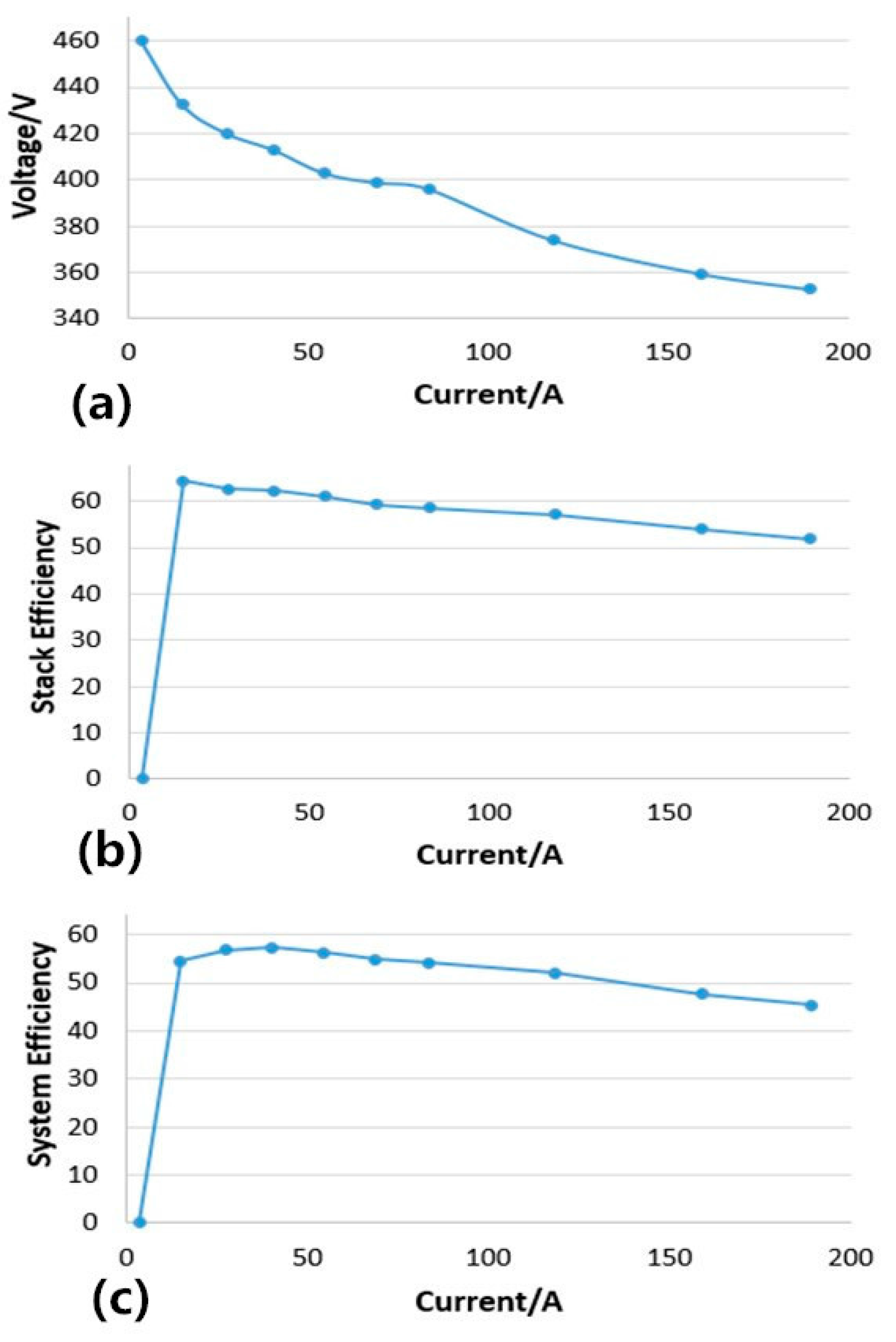

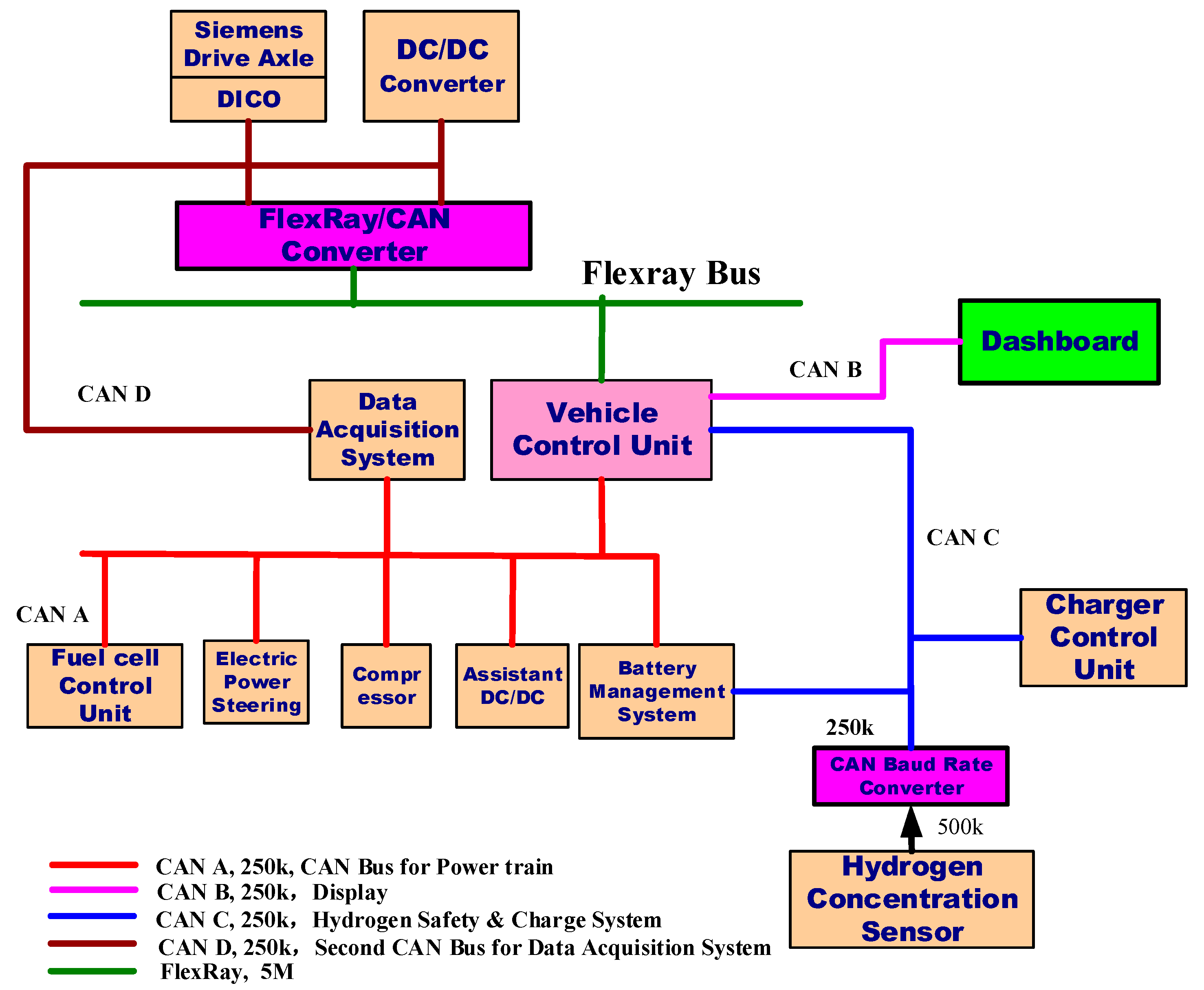

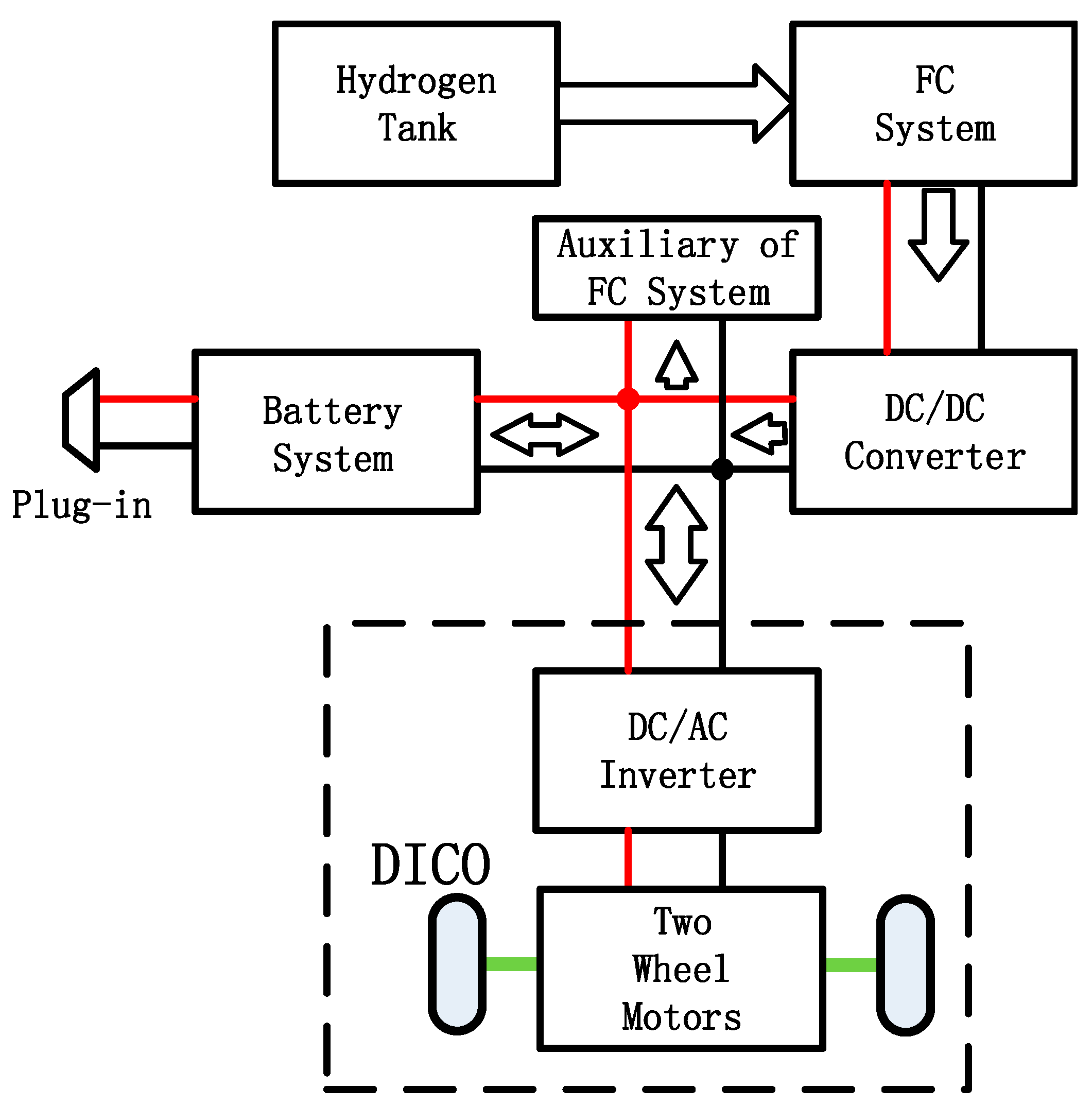

The polymer electrolyte membrane (PEM) fuel cell system is considered to be an ideal alternative for the internal combustion engine, especially when used on a city bus. Hybrid buses with fuel cell systems and energy storage systems are now undergoing transit service demonstrations worldwide. A hybrid PEM fuel cell city bus with a hierarchical control system is studied in this paper. Firstly, the powertrain and hierarchical control structure is introduced. Secondly, the vehicle control strategy including start-stop strategy, energy management strategy, and fuel cell control strategy, including the hydrogen system and air system control strategies, are described in detail. Finally, the performance of the fuel cell was analyzed based on road test data. Results showed that the different subsystems were well-coordinated. Each component functioned in concert in order to ensure that both safety and speed requirements were satisfied. The output current of the fuel cell system changed slowly and the output voltage was limited to a certain range, thereby enhancing durability of the fuel cell. Furthermore, the economic performance was optimized by avoiding low load conditions. View Full-Text
Keywords: the polymer electrolyte membrane (PEM) fuel cell; city bus; hierarchical control; performance analysis the polymer electrolyte membrane (PEM) fuel cell; city bus; hierarchical control; performance analysis

Figure 1
