Life Cycle Assessment of New Oxy-Fuels from Biodiesel-Derived Glycerol

Abstract

Biodiesel is obtained by the process of transesterification of vegetable oils and animal fats and crude glycerol is the main by-product of the biodiesel manufacturing chain. As a result glycerol production has rapidly increased in the last decades. This work focuses on the development and the validation of a process to convert biodiesel-derived glycerol into a fuel for internal combustion engines. In order to obtain a higher conversion efficiency it was necessary to convert crude glycerol to tert-butyl ethers by means of an etherification process that was carried out in the laboratory. Then the obtained glycol-ethers mixture (GEM) was blended with a commercial diesel fuel to improve its thermal efficiency. In this paper a life cycle analysis for these GEM/diesel blends was carried out using a Life Cycle Assessment (LCA) methodology, in order to evaluate the environmental impacts of these new oxy-fuels; from GEM production to GEM use as an additive for diesel fuel. The LCA results highlight that the use of these new oxy-fuels in diesel engines can lead to an effective reduction in terms of greenhouse gases emissions throughout the entire life cycle.

1. Introduction

The conversion of biomass into energy is experiencing a fast and growing market, and many different technologies are being developed in order to increase energy efficiency and reduce environmental impacts. The use and valorization of bio sub-products of other technological processes is extremely interesting from both the economic and environmental point of view [1,2,3,4,5].

Pushed by the great interest in renewable energies and biomass in particular [6,7], and despite the uncertain political context in the European Union, biofuel consumption is growing, reaching almost 14.4 million toe in 2012. The trend is confirmed by Eurobserv’ER Barometer 2013: the increase was 2.9% between 2011 and 2012 [8]. However, OECD-FAO [9] forecasts a biodiesel production growth trend of 9.1% in Western Europe in the period 2013–2022. During the same time OECD-FAO expects a worldwide growth of biodiesel consumption greater than 4.9%. Faster growth of biodiesel use is expected in the European Union by 2022 as a result of the Renewable Energy Directive (RED).

This consumption and production growth of biodiesel results in a significant surplus of glycerol. Glycerol is, in fact, the principal byproduct obtained in the biodiesel transesterification reaction. In general, the production of 100 kg of biodiesel creates 10 kg of crude glycerol.

As a consequence the market price of glycerol quickly decreased, so research has been focusing on the development of new technologies for using glycerol, in order to improve the biodiesel chain business. Various methods for disposal and utilization of crude glycerol have been attempted, including combustion, composting, anaerobic digestion, animal feeds, and thermochemical/biological conversions to value-added products. Fangxia et al. [10] highlighted that one of the best ways to employ crude glycerol from biodiesel is in the animal feed sector because of the increase in the price of corn compared with crude glycerol derived from biodiesel production. Glycerol [11], in fact, has high absorption rates and is a good energy source. Once absorbed, it can be converted in the liver of animals to glucose for energy production by the enzyme glycerol kinase. Furthermore, the use of glycerol as a source of heat, together with the use of rape cake as a feed stock for animals, proved to be a sustainable system, resulting in Greenhouse Gases (GHG) emission savings of 75% [12]. Glycerol is also extensively used in the cosmetic and pharmaceutical industries, although the use of crude glycerol is limited due to the presence of impurities such as methanol, salts, and fatty acids [13]. Several examples of chemical modification of crude glycerol have been reported: etherification of biodiesel-derived glycerol with pure ethanol over different heterogeneous catalysts was investigated [14]; it was also demonstrated that the esterification of glycerol with acetic acid to yield glycerine acetates results in a valuable transportation fuel additive [15]. A second way is a thermochemical/biological conversion of crude glycerol. In [16] the authors report a wide variety of high-value products derived from the microbial conversion of crude glycerol. In addition, Luna et al. [17] proposed a new biofuel which was obtained by the incorporation of glycerol as a monoglyceride in a FAME composition and this could reduce the waste glycerol production.

One of the most interesting ways to employ glycerol from the energy point of view is the synthesis of oxygenated compounds, such as glycerol ethers, by an etherification process with alcohols or short-chain olefins.

In the recent years, the use of glycerol derivatives as fuel additives for diesel fuel, biodiesel fuel and gasoline was investigated [18,19]. Moreover, experimental investigations and engine experiments evidenced that the use of glycerol ethers as oxygenate additives for diesel engines can reduce emissions and improve thermal efficiency [20,21,22,23].

Eaton et al. proposed to burn glycerol-diesel emulsions to improve glycerol combustion [21]. Two glycerol-diesel emulsions at 10% vol. and 20% vol. glycerol were burned in a diesel engine and they were compared with ultra lowsulphur diesel (ULSD) combustion; particulate matter (PM) emissions were reduced by 25%–50%, respectively.

The properties of glycerol tertiary butyl ethers (GTBEs) were examined by Di Serio [23] and Lovestead et al. [22]; results showed that the mixture of glycerol ethers can be used directly as a diesel additive.

Finally, a mixture of diesel fuel and GTBEs at 10% vol. was burned in a single-cylinder research engine by Beatrice et al. [20] and engine experiments evidenced that unburned compounds were reduced using a Glycol-Ether Mixture (GEM, a mixture of glycerol di- (DBG) and tri-tert-butyl (TBG) ethers of glycerol) blend; furthermore, these results evidenced the compatibility of GEM with fuel standards.

Recent research papers [24,25,26,27] show how a blend of GEM can be employed as an excellent additive for diesel, being characterized by compatible physical and chemical properties in terms of flash point, viscosity and cetane number. In addition, the burning of GEM-diesel mixtures can ensure reduced pollutant and particulate matter emissiond thanks to their oxygen content. Therefore, glycerol derived oxy-fuels can be an interesting alternative to substitute for conventional fuels.

Within this context, a research project funded by the Italian Ministry for Agriculture and Forestry started in 2010. The aim of project was to improve the energy valorization of glycerol as a product of the biodiesel chain, and in particular, to complete the validation of the GEM as a fuel in experimental engine tests, and also through a Life Cycle Assessment (LCA).

The LCA methodology is a useful tool to evaluate the environmental impacts of the entire life cycle of products, from raw material extraction to waste disposal. International studies have assessed the LCA methodology’s reliability and effectiveness for evaluating improvements in terms of sustainability and GHG savings by means of by-product utilization [12].

In particular, LCAs of biofuels can evidence both advantages and disadvantages, especially if biofuels are suitable and cost-effective alternative to fossil fuels [28,29]. Since biofuels derive from biomass exploitation, they are considered carbon neutral during direct combustion.

The comparison between biodiesel, diesel and gasoline as automotive fuels shows that biodiesel fuel contributes less to climate change and fossil energy depletion with respect to the other ones, but it was observed that biodiesel caused more damage to the natural ecosystem than fossil fuels. The life cycle impacts of biodiesel were mainly due to inorganic respiratory effects, acidification and eutrophication caused by NO_x emissions [30]. Other LCA studies evidenced the same environmental aspects for other alternative fuels, such as bio-ethanol or bio-methanol [31,32].

Therefore, the aim of this paper is the evaluation by means of a LCA assessment of the impact of GEM/diesel blend combustion on human health, quality of ecosystems and on resources compared with diesel and alternative fuels.

2. Methodology

The Life Cycle Assessment (LCA) methodology is a standardized method developed by Society of Environmental Toxicology and Chemistry (SETAC) and the International Organization for Standardization since the early ‘90s. This analysis encompasses the entire life cycle of goods or services in order to assess potential or avoided environmental impacts caused by exchanges between the examined system and the environment. Thus, it allows analysts to support decisions relative to process design or optimize a process chain on the basis of a life cycle’s environmental sustainability.

In accordance with the general framework provided by the ISO standards 14040 and 14044 [33,34], the structure of a LCA is subdivided in four parts:

-

Goal and scope definition;

-

Life Cycle Inventory;

-

Life CycleAssessment;

-

Interpretation of the results.

Defining goal and scope means to declare the aim of the study and the limits of examined system. It is important to define system boundaries because all the environmental burdens outside are ignored. Therefore it is necessary to specify assumptions, methodological approaches, boundary conditions and data sources as well as the functional unit chosen. This is a reference unit that represents the function performed by system under study: all inflows and outflows of each life cycle stage must be normalized with respect to that quantity (i.e., one kilogram of product). Furthermore, functional unit allows to make comparison analysis between different but functionally equivalent systems.

All relevant processes were identified and substances and energy flows across system boundaries were quantified; data were collected and validated.

On the basis of life cycle inventory results, environmental impacts were calculated by applying appropriate evaluation methods. The outcomes were expressed by single index or category indicators.

In this work the Eco-indicator 99 (H), the Cumulative Energy Demand (CED) and the Intergovernmental Panel on Climate Change (IPCC GWP 2007) methods were considered [35].

The Eco-indicator 99 damage factors for substances and resources of life cycle inventory were calculated according to eleven impact categories (Carcinogens, Respiratory organics, Respiratory inorganics, Climate change, Ozone depletion, Radiation, Acidification and eutrophication, Ecotoxicity, Land use and Mineral and fossil resources depletion). After normalization and weighting, environmental impacts were grouped in three damages categories: damages to Human Health (HH), Ecosystem Quality (EQ) and Resources depletion (R). Each environmental score was expressed in Eco-indicator points (Pt); Eco-scores allow to make comparison between categories as well as different product systems [36].

Uncertainties in LCA were considered according to different cultural perspective (Egalitarian, Hierarchist, Individualist). In this study the Hierarchist perspective (H) was considered as the default perspective in the Eco-indicator method [36].

The CED method evaluates all primary energy requirements throughout the entire life cycle of a product or service including both direct and indirect use of energy. CED indicators were measured in Mega Joule equivalents of primary energy (MJ-eq).

CED-value was split into two main categories (non-renewable and renewable resources) subdivided in eight sub-categories (fossil, nuclear, primary forest, biomass, wind, solar, geothermal, water).

The IPCC GWP method evaluated greenhouse gas emissions due to anthropogenic activities in calculating the global warning potential (GWP). The GWP indicator is an index for representing the contribution to global warming of a gaseous substance released into the atmosphere compared to the impact of one kilogram of carbon dioxide. The GWP indicator was measured in kilograms of CO₂ equivalents (kg CO₂-eq) and three time horizons are considered (20, 50, 100 years). In this study 100 years of time horizon was chosen.

The life cycle analysis was carried out with SimaPro v.7.3 software (Prè Consultants, Amersfoort, The Netherlands). In addition, data was gathered from the Ecoinvent database in case of a lack of information about a life cycle’s processes [37].

3. LCA Application

3.1. Goal and Scope

The goal of this LCA study was to investigate the potential environmental impacts of using the new oxygenated fuels produced by conversion of glycerol. The aim was to evaluate the effectiveness of the benefits they could offer to biofuels and bioenergy systems, especially to the biodiesel production chain. Crop cultivation, transport, oil extraction and transesterification were the processes included in the biodiesel production, as shown in Figure 1. After the transesterification reaction, crude glycerol was extracted and refined to achieve the desired grade of purity [26,38,39]. It was purified to be marketed and used in industrial applications.

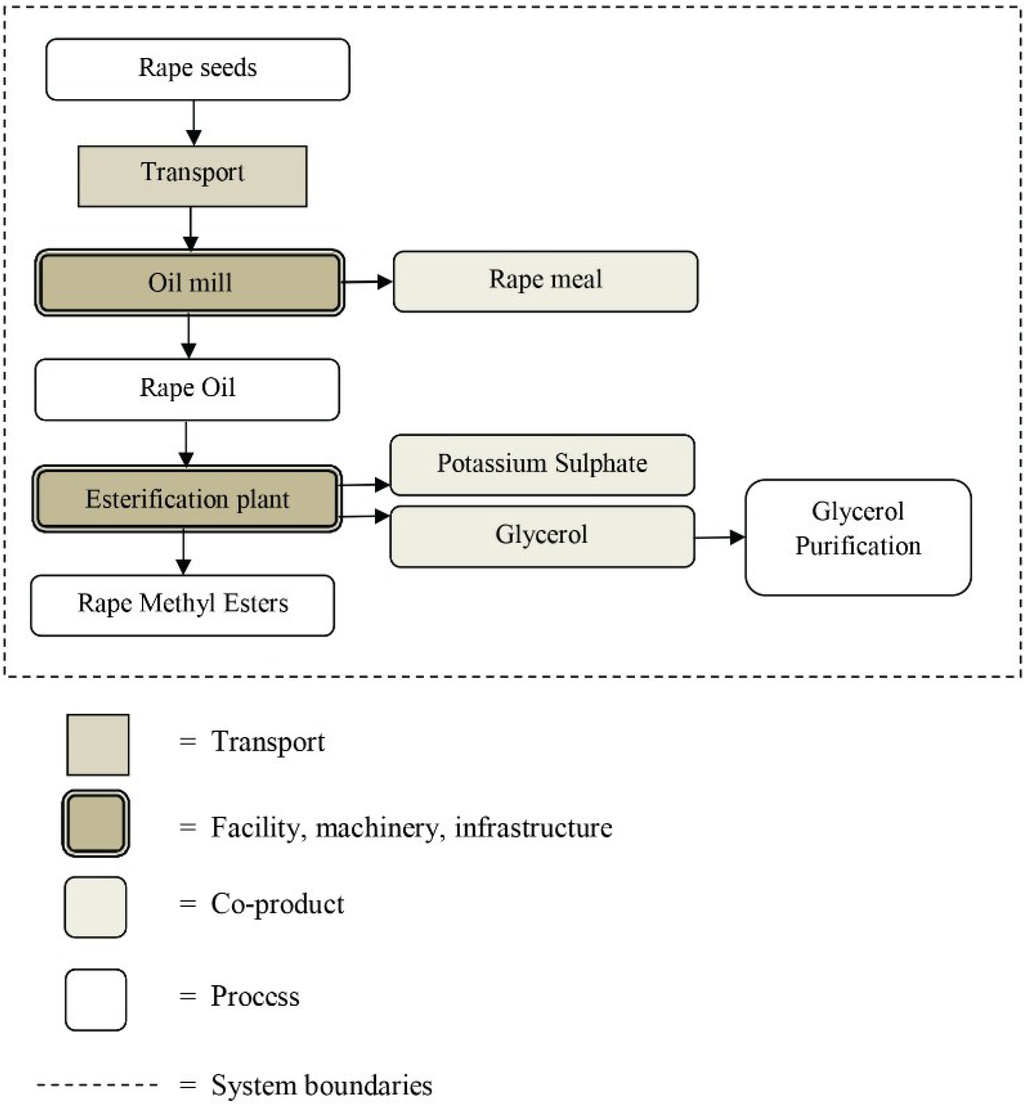

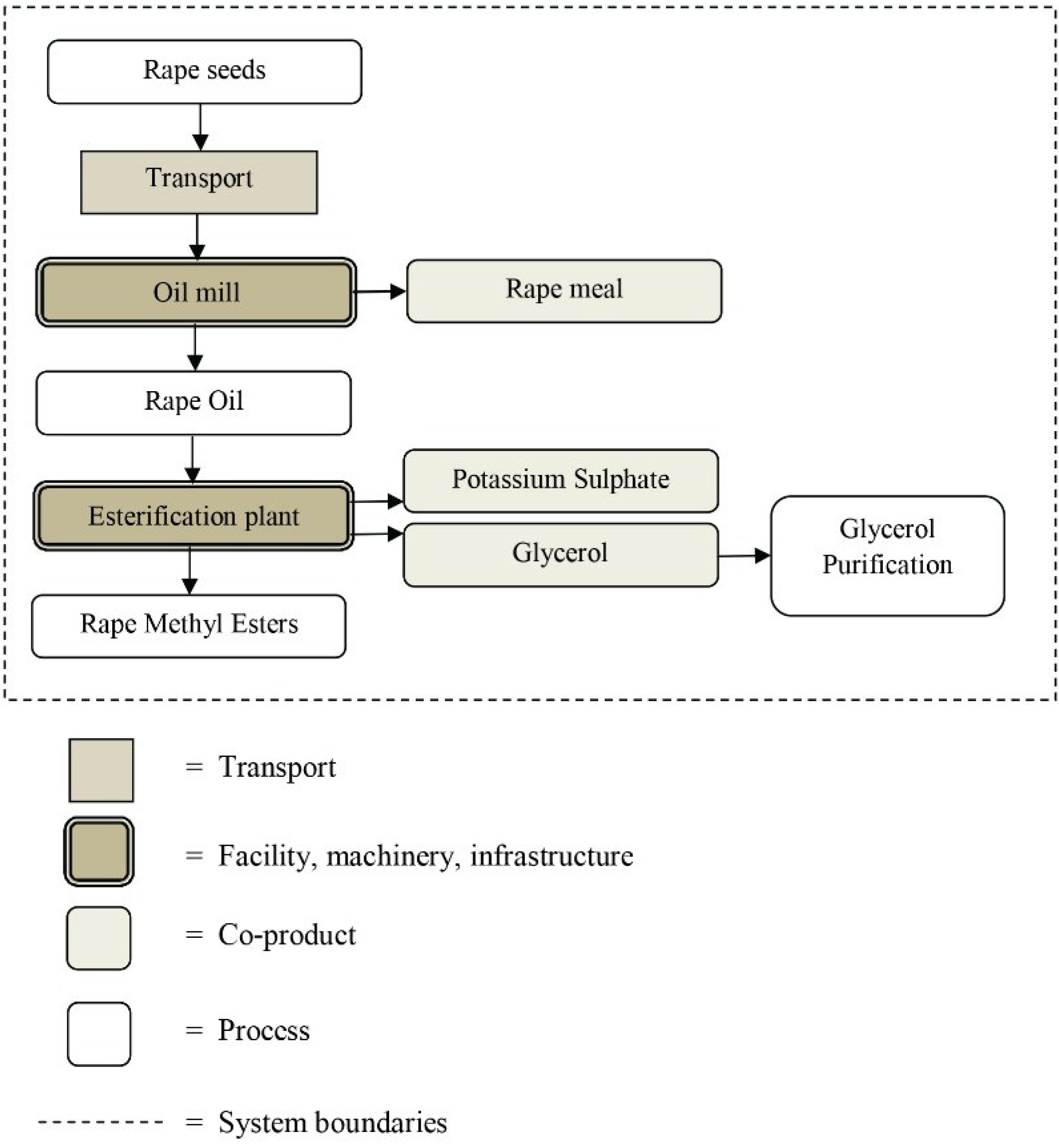

Figure 1. Flowchart of biodiesel (rape methyl esters) and glycerol production from rape seed oil at a transesterification plant.

Figure 1. Flowchart of biodiesel (rape methyl esters) and glycerol production from rape seed oil at a transesterification plant.

3.2. System Boundaries

The oxygenated fuels life cycle was subdivided into three main subsystems: the production process of the glycerol ethers mixture (GEM) used as fuel additive; the blending of GEM with a commercial diesel fuel and the final use in internal combustion engine; Figure 2 shows a flowchart of the life cycle processes involved; only relevant processes were included in the system boundaries.

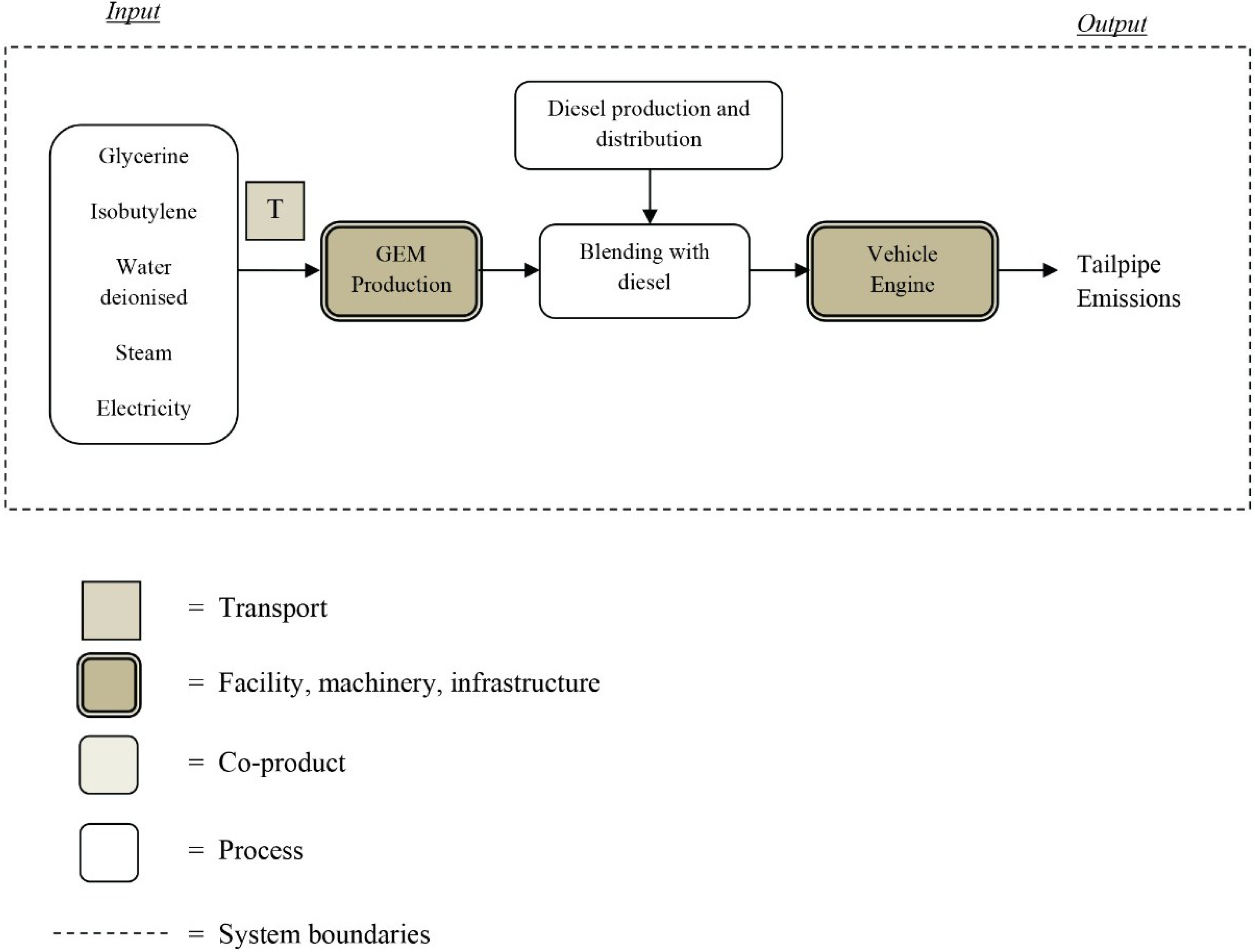

Figure 2. Flowchart of GEM production and consumption and system boundaries.

Figure 2. Flowchart of GEM production and consumption and system boundaries.

3.3. Functional Unit

The functional unit of the overall analysis is one kilometer (km) driven by a Euro V passenger car; all input and output flows were therefore referred to it.

3.4. Allocation

Processes can generate multiple output streams and it was necessary to use an allocation method to split the environmental burdens between co-products. The co-products can be allocated according to mass allocation (based on mass outputs), energy allocation (based on energy content), economic allocation (based on market value) or substitution method (credits due to avoided processes) [33].

In this study, glycerol was co-produced with biodiesel by the transesterifcation process and environmental burdens were shared between biodiesel and crude glycerol. Allocation on market values basis was performed because of remarkably different market prices of biodiesel and the glycerol by-product [26,39]. A share of 12.9% of the total environmental impact relative to the transesterification process was assigned to biodiesel derived-glycerol, according to [39].

3.5. Inventory Analysis

3.5.1. GEM Production

The system described in this section is the GEM production process by glycerol etherification; the GEM production on large scale is still under development [11,25,40]. To identify and quantify the mass and energy flows required for GEM production, the adopted production stage in this LCA study was the reaction between glycerol and isobutylene (IB) carried out in the laboratory. Afterward, scale factors were applied to laboratory values to extend them on a large scale. In particular the etherification reaction between anhydrous glycerol (purity ≥ 99.5%) and isobutylene on an ion-exchange dry resin (a cationic resin) used as a solid acid catalyst was considered [41,42].

Etherification was carried out in the liquid phase at a temperature of 343 Kelvin and autogenous pressure in a stainless steel batch reactor with a stirring frequency of 1,200 rpm. The reactor was fed with glycerol (28% by weight of the total mass of reactants) and catalyst (2% wt.). Then liquid IB (69% wt.) was added into the reactor using a nitrogen flow as carrier. After the appropriate reaction time a mixture of mono-ethers, di-ethers and tri-ether was produced (about 77% wt. of the initial input) along with other compounds (21% wt.), while the catalyst (2% wt.) was extracted and recycled back to the reactor. The reaction mixture was cooled to room temperature in an ice-bath to condense the gas phase compounds; the MTBG were less soluble in diesel fuel therefore they were extracted with water in a decanter placed after the reactor and they were reused for a subsequent reaction. Finally, the reaction mixture was passed through a distillation column to separate GEM (about 90% wt. of the final output) from other unconverted compounds (10% wt.).

The following simplified Equations (1)–(3) describe the reaction chain between glycerol (G) and IB forming two mono-tert-butyl glycerol ethers (MTBG), two di-tert-butyl glycerol ethers (DTBG) and one tri-tert-butyl glycerol ether (TTBG):

G + IB → MTBG

(1)

MTBG + IB → DTBG

(2)

DTBG + IB → TTBG

(3)

It was assumed that the glycerol etherification plant was attached to the transesterification plant and there was no transport of glycerin. Transport of isobutylene was considered.

Data related to building and facilities of that etherification plant (required amounts of steel, iron, concrete, etc.) were gathered from the Ecoinvent database, but after verifying that these impacts were lower than the other ones, the environmental impact of the infrastructure has been neglected.

This process was represented by consumptions of materials such as glycerin, isobutylene and water. In addition electricity usage and steam for the chemical process were estimated and data were gathered according to the production process of methyl tert-butyl ether (MTBE), an oxygenated gasoline additive. MTBE is made by etherification reaction between methanol and isobutylene [43].

To model the GEM production process, isobutylene (for the etherification reaction) and water (needed in the extraction phase) were included as mass inputs in agreement with the reaction stoichiometry; data were gathered from a CNR-ITEA (Italy) questionnaire [42].

Data for glycerin production were gathered from the literature [39]; isobutylene is a refinery product manufactured by catalytic cracking of naphtha which is a product of petroleum distillation; upstream data were taken from the Ecoinvent database [44].

Since catalyst, MTBG and unconverted compounds were recovered they were not included in the system boundaries. If included in the system they lead to positive environmental burdens.

For the transport isobutylene to the GEM production plant a standard distance of 100 km by road with a16 t lorry was considered [33].

Using GEM blends or diesel fuels the engine efficiency was constant [20,42]; it was assumed that the GEM blend consumption in terms of energy content was similar to diesel fuel. Diesel consumption was set equal to 2.36 MJ per km according to the Ecoinvent database [39]. Estimated fuel consumption in kilograms (kg) per kilometer are reported in Table 1. Table 2 shows mass and energy balance of the GEM production process; scale factors were applied to convert inputs from the laboratory to an industry scale. Scale factors are reported in Table 3.

Table 1. Fuel consumptions.

Parameter	Unit	GEM10	GEM20	Diesel
Energy content	MJ/kg	41.3 [36]	40.3 [36]	43 [38]
Fuel consumption	MJ/km	2.36	2.36	2.36 [29]
Fuel consumption	kg/km	0.057	0.059	0.055

Table 1. Fuel consumptions.

Parameter	Unit	GEM10	GEM20	Diesel
Energy content	MJ/kg	41.3 [36]	40.3 [36]	43 [38]
Fuel consumption	MJ/km	2.36	2.36	2.36 [29]
Fuel consumption	kg/km	0.057	0.059	0.055

Table 2. Inventory data (per km travelled) for GEM production.

Process	Unit	GEM10	GEM20	Sources
Input from technosphere
Materials
Glycerine	kg	0.0036	0.0075	Derived from GEM chemical reaction
IB	kg	0.0088	0.018	Derived from GEM chemical reaction
Water	kg	0.0006	0.0013	Derived from GEM chemical reaction
Steam	kg	0.0068	0.014	Calculation from MTBE production; data from Literature [43]
Energy
Electricity	kWh	7.98 × 10−5	1.65 × 10−4	Calculation from MTBE production; data from Literature [43]
Transport
Lorry > 16 t, fleetaverage	tkm	0.0009	0.0018	Standard distance of 100 km; data from literature [37]

Table 2. Inventory data (per km travelled) for GEM production.

Process	Unit	GEM10	GEM20	Sources
Input from technosphere
Materials
Glycerine	kg	0.0036	0.0075	Derived from GEM chemical reaction
IB	kg	0.0088	0.018	Derived from GEM chemical reaction
Water	kg	0.0006	0.0013	Derived from GEM chemical reaction
Steam	kg	0.0068	0.014	Calculation from MTBE production; data from Literature [43]
Energy
Electricity	kWh	7.98 × 10−5	1.65 × 10−4	Calculation from MTBE production; data from Literature [43]
Transport
Lorry > 16 t, fleetaverage	tkm	0.0009	0.0018	Standard distance of 100 km; data from literature [37]

Table 3. Factors applied to convert inputs for GEM production process.

Process	Unit	Scale Factors	References
Glycerine	kg/kg GEM	0.635	Survey; CNR-ITEA
IB	kg/kg GEM	1.546	Survey; CNR-ITEA
Water deionised	kg/kg GEM	0.109	Survey; CNR-ITEA
Steam	kg/kg GEM	1.2	[43]
Electricityconsumptions	kWh/kg GEM	0.014	[43]

Table 3. Factors applied to convert inputs for GEM production process.

Process	Unit	Scale Factors	References
Glycerine	kg/kg GEM	0.635	Survey; CNR-ITEA
IB	kg/kg GEM	1.546	Survey; CNR-ITEA
Water deionised	kg/kg GEM	0.109	Survey; CNR-ITEA
Steam	kg/kg GEM	1.2	[43]
Electricityconsumptions	kWh/kg GEM	0.014	[43]

3.5.2. GEM Blending

After the production phase, GEM was incorporated into petroleum diesel at a concentration of 10% and 20% by volume respectively (GEM10 and GEM20). The diesel production and distribution were taken into account in the life cycle boundaries according to data derived from the literature [44].

3.5.3. GEM Combustion

Finally, the GEM/diesel blends were burned in the internal combustion engine of an automotive vehicle (diesel vehicle). Fuel consumption to travel one kilometer burning GEM/diesel blends is reported in Table 1. The amount of mass of additive and diesel to blend were calculated on the basis of the respective densities of the alternative fuel and the conventional diesel fuel as shown in Table 4.

Table 4. Inventory data (per km travelled) for GEM blending phase.

Process	Unit	GEM10	GEM20	Sources
Input from technosphere
Materials
Diesel	kg	0.051	0.047	Estimated from GEM blend density (*) and fuel consumption

* Calculations according to the incorporation rate of GEM and the respective densities of GEM and diesel.

Table 4. Inventory data (per km travelled) for GEM blending phase.

Process	Unit	GEM10	GEM20	Sources
Input from technosphere
Materials
Diesel	kg	0.051	0.047	Estimated from GEM blend density (*) and fuel consumption

* Calculations according to the incorporation rate of GEM and the respective densities of GEM and diesel.

Tailpipe emissions of the vehicle due to direct combustion of GEM/diesel blends were derived from engine tests, according to [20,42]. The experimental tests were carried out with two GEM/diesel blends, with 10% and 20% by volume of GEM, respectively, with a single cylinder diesel research engine for evaluating engine performance under different operating conditions. According to these experimental tests unburned hydrocarbons (HC), carbon monoxide (CO) and particular matter (PM) emissions were reduced despite a slightly increase of nitrogen oxide (NO_x) emissions, by burning GEM/diesel blends in comparison with neat diesel fuel combustion. Measured tailpipe emissions are reported in Table 5.

Table 5. Tailpipe emissions.

Emissions	Unit	GEM10	GEM20
CO	kg/kWh	0.00085	0.00069
HC	kg/kWh	0.00038	0.00031
NOx	kg/kWh	0.00215	0.00203
PM	kg/kWh	0.000123	0.00008

Table 5. Tailpipe emissions.

Emissions	Unit	GEM10	GEM20
CO	kg/kWh	0.00085	0.00069
HC	kg/kWh	0.00038	0.00031
NOx	kg/kWh	0.00215	0.00203
PM	kg/kWh	0.000123	0.00008

Fuel conversion efficiency of GEM blends (η_fuel) were calculated by Equation (4) [20,42]:

$${\mathrm{\eta }}_{\text{fuel}}=\frac{1}{ISFC\times LH{V}_{GEM blends}}$$

(4)

where ISFC was specific fuel consumption (kg/kWh) and LHV_{GEM blends} were the low heating values of GEM10 and GEM20 blends, respectively, equal to 41.3 MJ/kg and 40.3 MJ/kg [42].

Emissions for the combustion phase were estimated per kilometer travelled and reported in Table 6. As shown in Table 6, fossil CO₂ emissions were taken into account due to the fossil portion of the GEM blends. Fossil CO₂ emissions were calculated according to the carbon content of diesel fuel and fuel consumption.

Table 6. Inventory data (per km travelled) for GEM blends combustion in a vehicle engine.

Emissions	Unit	GEM10	GEM20
Output to technosphere
Emissions to air
CO	kg	0.0031	0.0025
HC	kg	0.0014	0.0011
NOx	kg	0.0077	0.0072
PM	kg	0.0004	0.0003
FossilCO2	kg	0.16 (*)	0.14 (*)

(*) 1 kg of diesel fuel (C₁₂H₂₃) produces 3.16 kg CO₂ according to the stoichiometric coefficients of the chemical reaction with oxygen (O₂).

Table 6. Inventory data (per km travelled) for GEM blends combustion in a vehicle engine.

Emissions	Unit	GEM10	GEM20
Output to technosphere
Emissions to air
CO	kg	0.0031	0.0025
HC	kg	0.0014	0.0011
NOx	kg	0.0077	0.0072
PM	kg	0.0004	0.0003
FossilCO2	kg	0.16 (*)	0.14 (*)

(*) 1 kg of diesel fuel (C₁₂H₂₃) produces 3.16 kg CO₂ according to the stoichiometric coefficients of the chemical reaction with oxygen (O₂).

The vehicle’s life cycle was not included in the system boundaries.

3.6. Results

Life cycle impacts were calculated by applying the Eco-indicator 99 (H) method and they were calculated with the SimaPro v.7.3 software. This evaluation method aggregates environmental impacts in a single score expressed in Eco-indicator Points (Pt), subdivided into 1000 milliPoints (mPt). The highest score is associated to the worst environmental performance. Table 7 shows the results of this methodology for each life cycle stage.

Table 7. Life cycle impacts of diesel/GEM blends expressed in millipoints (mPt) per km travelled (Eco-indicator method).

Eco-Indicator		GEM Production	Blending	Combustion	Total
GEM10	mPt/km	7.96	16.21	29.21	53.37
GEM20	mPt/km	16.48	14.91	26.95	58.33

Table 7. Life cycle impacts of diesel/GEM blends expressed in millipoints (mPt) per km travelled (Eco-indicator method).

Eco-Indicator		GEM Production	Blending	Combustion	Total
GEM10	mPt/km	7.96	16.21	29.21	53.37
GEM20	mPt/km	16.48	14.91	26.95	58.33

In addition, results for the impact categories of Econdicator 99 are shown in Figure 3 (carcinogens, respiratory effects, climate changes, ozone depletion, radiation, acidification and eutrophication, ecotoxicity, land use and fossil resources depletion). Figure 3 shows the percentage contribution of the different impact categories for GEM10 and GEM20.

Finally environmental impacts were grouped into three damage categories: Human Health, Ecosystem Quality and Resources. Results for damage categories are shown in Table 8.

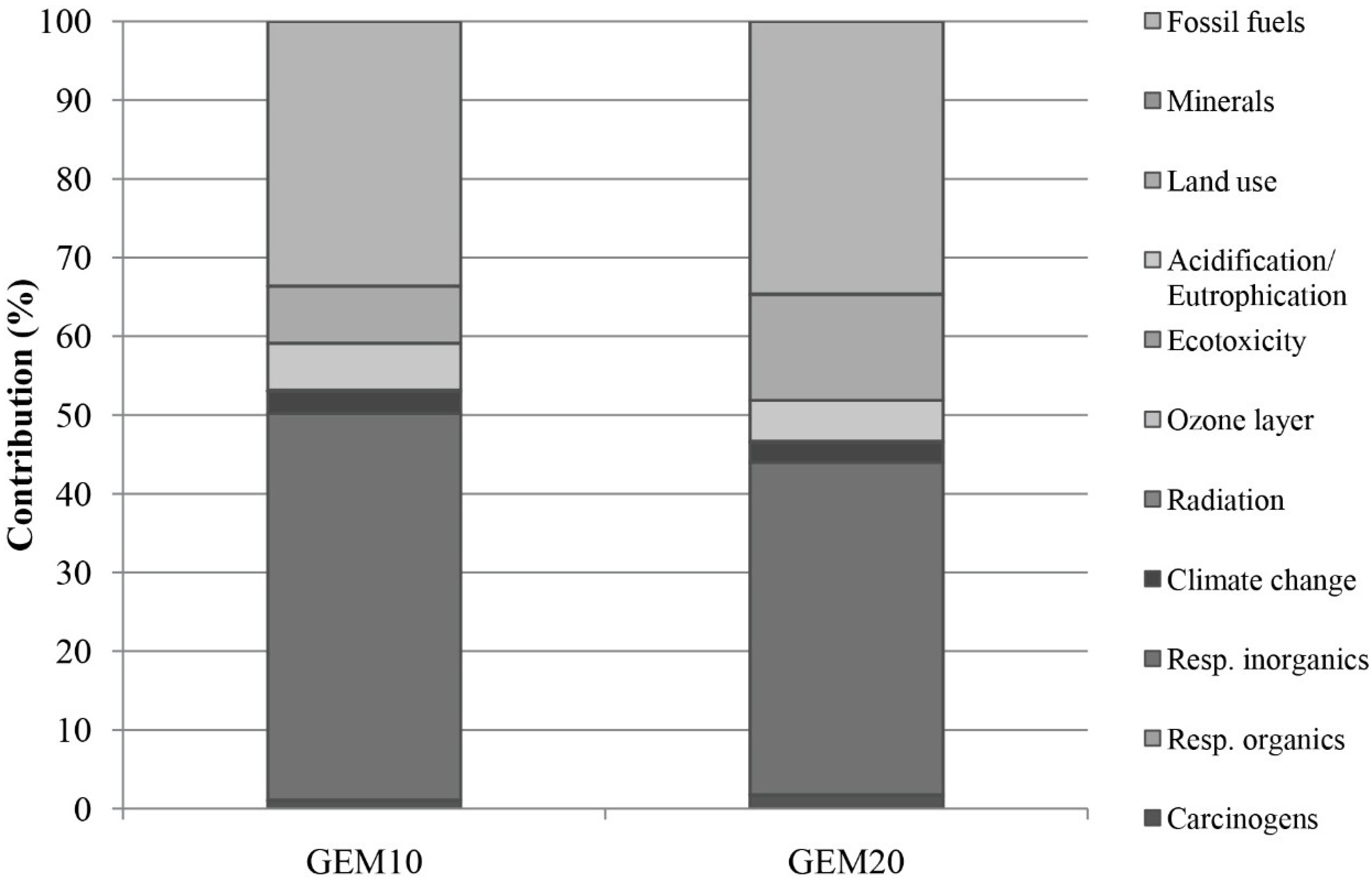

Figure 3. Results for impact categories of GEM10 and GEM20.

Figure 3. Results for impact categories of GEM10 and GEM20.

Table 8. Damage categories of Eco-indicator 99 (H) for GEM blends expressed in millipoints (mPt) per km travelled.

Eco-Indicator		Human Health	Ecosystem Quality	Resources
GEM10	mPt/km	28.30	7.10	17.96
GEM20	mPt/km	27.15	10.94	20.23

Table 8. Damage categories of Eco-indicator 99 (H) for GEM blends expressed in millipoints (mPt) per km travelled.

Eco-Indicator		Human Health	Ecosystem Quality	Resources
GEM10	mPt/km	28.30	7.10	17.96
GEM20	mPt/km	27.15	10.94	20.23

On the basis of this environmental analysis, the best environmental profile corresponds to the GEM10 blend.

The Human Health damage category gave the highest score for both blends, as shown in Table 8. This can be mostly attributed to Carcinogens due to GEM production and Respiratory effects due to the combustion in the vehicle engine. In fact, the major contribution of overall impact is due to the combustion phase for both GEM blends, as shown in Table 7.

To validate and extend these results, GEM blends were compared with other conventional fuels. LCA was performed estimating GWP indicators and CED indicators both for GEM10 and GEM20. In this study the most representative fuels in Europe were investigated and CED and GWP values were calculated and summarized in Table 9. The Table below shows the comparison between GEM blends and fossil and alternative fuels per kilometer driven by a Euro V passenger car.

It can be observed that GEM 20 presents a slight reduction of life cycle greenhouse gas emissions if compared with diesel or gasoline. This is mainly due to the reduction of soot and unburned gases during the combustion of the GEM blends. These results were also verified by measurements with the test engine [42].

Table 9. Indicators of examined fuels.

Fuel	System	CED (MJ-eq/km)	GWP (kg CO2-eq)	Source
GEM10	Production and use of GEM10	3.64	0.200	Calculated by SimaPro 7.3
GEM20	Production and use of GEM20	4.31	0.190	Calculated by SimaPro 7.3
Diesel	Production and use of diesel fuel	2.91	0.201	Ecoinvent database; Calculated by SimaPro 7.3
Gasoline	Production and use of gasoline	2.69	0.203	Derived from Literature [45]
RME5	Production and use of Rape seed methyl esters blend	3.11	0.210	Ecoinvent database; Calculated by SimaPro 7.3
Biodiesel from recycledoil	Production and use of Biodiesel from recycled oil at 10% diesel	1.77	0.148	Derived from Literature [45]
E5	Production and use of 5% vol. Ethanol/gasoline blend	3.73	0.239	Ecoinvent database; Calculated by SimaPro 7.3
ETBE/gasoline	Production and use of 15% vol. ETBE/gasoline blend	3.58	0.229	Ecoinvent database; Calculated by SimaPro 7.3.3

Table 9. Indicators of examined fuels.

Fuel	System	CED (MJ-eq/km)	GWP (kg CO2-eq)	Source
GEM10	Production and use of GEM10	3.64	0.200	Calculated by SimaPro 7.3
GEM20	Production and use of GEM20	4.31	0.190	Calculated by SimaPro 7.3
Diesel	Production and use of diesel fuel	2.91	0.201	Ecoinvent database; Calculated by SimaPro 7.3
Gasoline	Production and use of gasoline	2.69	0.203	Derived from Literature [45]
RME5	Production and use of Rape seed methyl esters blend	3.11	0.210	Ecoinvent database; Calculated by SimaPro 7.3
Biodiesel from recycledoil	Production and use of Biodiesel from recycled oil at 10% diesel	1.77	0.148	Derived from Literature [45]
E5	Production and use of 5% vol. Ethanol/gasoline blend	3.73	0.239	Ecoinvent database; Calculated by SimaPro 7.3
ETBE/gasoline	Production and use of 15% vol. ETBE/gasoline blend	3.58	0.229	Ecoinvent database; Calculated by SimaPro 7.3.3

4. Discussion

LCA of GEM blends were performed through three evaluation methods (Eco-indicator 99 method, CED method and IPCC method). The Eco-indicator 99(H) method showed that the main contributing phase of GEM10 was the combustion phase (54% of overall impact) followed by the blending phase (30%) and GEM production phase (15%). A contribution of 47% of the overall impacts of GEM20 was due to its combustion phase, 25% was due to blending with diesel and 28% was due to GEM production. In addition, results obtained showed that about 90% of the overall impact of both blends could be attributed to:

-

Carcinogens due to GEM production;

-

Land use due to glycerol production;

-

Fossil fuels depletion due to blending with fossil diesel;

-

Responsibility effects, acidification/eutriphication and climate change due to the combustion phase.

Damages to Human Health were responsible for 53% of the global impact of GEM10, damages to Ecosystem Quality accounted for 13% and damages to Resources accounted for 33%. In addition, about 46% of the overall impact of GEM20 was due to damages to Human Health, 18% due to damages to Ecosystem Quality and 34% due to Resources depletion.

Furthermore, CED values of GEM10 and GEM20 was estimated respectively equal to 3.64 and 4.31 MJ-eq/km. GWPs were estimated equal to 0.200 kg and 0.190 kg of CO₂-eq per kilometer driven by a passenger car. In addition, GEM blends were compared with pure conventional diesel fuel and other alternative fuels (rape seed methyl esters blend, ethanol blend and ETBE blend).

High primary energy requirements were evaluated for the entire life cycle of GEM10 and GEM20 and these results were reasonable because the upstream processes, such as the glycerol production process, need high energy flows. However, it is interesting to note that greenhouse gas emissions decreased using GEM20 with respect to the other investigated fuels, except for biodiesel blend derived from recycled oil.

Furthermore, the positive environmental benefits of glycerol derived oxy-fuels were also confirmed through an experimental investigation carried out by the Istituto Motori [36]; these results evidenced a pollutant emissions reduction respect to conventional fuel.

5. Conclusions

Worldwide biodiesel production is projected to grow and consequently research is focusing on new alternatives for using the crude glycerol produced as a result of biodiesel transesterification. New research has developed a diesel additive (Glycol-Ether Mixture: GEM), synthesized from crude glycerin and isobutylene, that has good engine combustion performance.

The aim of this paper was to analyze the GEM-diesel blend with the LCA approach, in order to evaluate the impacts of its use compared with conventional fuels. LCA of GEM10 and GEM20 were performed by the Eco-indicator 99(H) method, CED method and IPCC GWP 2007 method.

In terms of environmental impacts, high damages to human health were attributed to the combustion phase and high damages to Ecosystem Quality were due to the GEM production phase for both GEM10 and GEM20. However, these results could change and the damages could be reduced if both process were enhanced and implemented by carrying out further research. Nevertheless, GEM blends used as automotive fuels, in particular GEM20, can reduce greenhouse gas emissions throughout the entire life cycle. These obtained results could be extremely significant for the achievement of the 10% renewable energy target for the EU transportation sector by 2020, as mandated by the Renewable Energy Directive.
