Net Energy, CO2 Emission and Land-Based Cost-Benefit Analyses of Jatropha Biodiesel: A Case Study of the Panzhihua Region of Sichuan Province in China

Center for Chinese Agricultural Policy, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
Graduate University of Chinese Academy of Sciences, Beijing 100049, China
Author to whom correspondence should be addressed.
Energies 2012, 5(7), 2150-2164;
Submission received: 16 November 2011 / Revised: 18 June 2012 / Accepted: 19 June 2012 / Published: 28 June 2012
(This article belongs to the Special Issue Low Carbon Transitions Worldwide)


Bioenergy is currently regarded as a renewable energy source with a high growth potential. Forest-based biodiesel, with the significant advantage of not competing with grain production on cultivated land, has been considered as a promising substitute for diesel fuel by many countries, including China. Consequently, extracting biodiesel from Jatropha curcas has become a growing industry. However, many key issues related to the development of this industry are still not fully resolved and the prospects for this industry are complicated. The aim of this paper is to evaluate the net energy, CO2 emission, and cost efficiency of Jatropha biodiesel as a substitute fuel in China to help resolve some of the key issues by studying data from this region of China that is well suited to growing Jatropha. Our results show that: (1) Jatropha biodiesel is preferable for global warming mitigation over diesel fuel in terms of the carbon sink during Jatropha tree growth. (2) The net energy yield of Jatropha biodiesel is much lower than that of fossil fuel, induced by the high energy consumption during Jatropha plantation establishment and the conversion from seed oil to diesel fuel step. Therefore, the energy efficiencies of the production of Jatropha and its conversion to biodiesel need to be improved. (3) Due to current low profit and high risk in the study area, farmers have little incentive to continue or increase Jatropha production. (4) It is necessary to provide more subsidies and preferential policies for Jatropha plantations if this industry is to grow. It is also necessary for local government to set realistic objectives and make rational plans to choose proper sites for Jatropha biodiesel development and the work reported here should assist that effort. Future research focused on breading high-yield varieties, development of efficient field management systems, and detailed studies lifecycle environmental impacts analysis is required to promote biologically and economically sustainable development of Jatropha biodiesel and to assist government agencies in setting realistic objectives and appropriate and advantageous policies for the regions and the country.

1. Introduction

With its rapid economic development in the last few decades, China has become the largest energy consumer in the world. China’s aggregate energy consumption rose to 2.43 billion tons of oil equivalent in 2010, accounting for 20.3% of global energy consumption [1]. Reportedly, China has accounted for nearly three quarters of world energy demand growth in recent years [2]. As China is in the process of rapid industrialization, urbanization and modernization, it is expected that energy consumption will continue to increase [3]. However, the coal-dominant energy structure in China leads to many significant problems, such as shortages of resources, high CO2 emissions and severe environmental pollution [4,5,6,7,8].
In recent years more people have come to realize that substituting renewable energy can contribute significantly to global climate change mitigation and is also important for national energy security [9,10,11]. It can play a strong role in reducing greenhouse gas emissions and helping achieve sustainable development of all the substitute energy sources, so bioenergy is currently regarded as the renewable carbon-based energy source with the highest potential, for it is the only renewable carbon resource that can be directly converted to liquid fuel [12,13]. Known for being renewable, biodegradable, nontoxic and environmental friendly, biofuels have showed high potential in coping with the worldwide energy crisis and increasingly serious environmental problems [14,15]. The production and utilization of biofuel will reduce dependence on petroleum, improve environmental quality, mitigate greenhouse gas emissions, alleviate rural poverty and promote rural development. As a substitute to fossil fuels, biodiesel has attracted worldwide attention [16,17,18]. The Chinese government also has recognized the importance of developing biofuel sources, and thus understanding energy efficiency and CO2 emission reduction for each candidate source become critical factors in forming policy decisions. In 2006, the National Development and Reform Commission of China set an aim that biofuel will provide 15% of the total transportation energy needs by 2020 [19]. Since then, various research programs have been carried out and relevant technologies have been developed and used for commercial applications. In the current debate, biofuels are generally divided into “first-generation” and “second-generation” biofuels, based on the types of feedstocks and processing technologies. The first generation biofuels are generally derived from sources like starch, sugar, animal fats and vegetable oil. Relatively simple processing of the biomass is required to produce a finished fuel. The two main first-generation liquid biofuels are biodiesel and bioethanol, representing about 15% and 85% of the current global production respectively [20]. For biodiesel production, the feedstocks include vegetable oils, used frying oil or animal fat. The major components of vegetable oils and animal fats are triacylglycerides (TAGs), which consist of three long-chain fatty acids linked to a glycerol backbone. Since natural oils are too viscous to be used in modern diesel engines, they are usually directly blended with diesel, or converted into biodiesel through a transesterification reaction with methanol. Through the transesterification reaction alkyl esters (methyl esters), generically known as biodiesel, are formed and their properties are very close to those of petroleum diesel. On the other hand, bioethanol can be produced from any biomass which contains appreciable amounts of sugar or materials that can be converted into sugar. It is derived from saccharification, fermentation, and distillation of biomass feedstock, such as starch, sugar, cellulosic materials, etc. The available feedstocks consist of sugarcane, sweet sorghum, sugar beet, maize and wheat and many other agricultural products.
There is a growing international recognition that while growth in biofuel offers new opportunities for sustainable agricultural development, it also bears significant risks [16]. The first generation biofuels, whose feedstocks are agricultural crops, are contributing to the rise of food prices and may have negative impacts on food security and the environment [17,18]. However, the second generation biofuels extracted from lignocellulosic materials, will not compete with food production on cultivated land, and can be more conducive to significantly mitigating GHG than the first generation biofuels [19,20]. In recognition of the advantages of second generation biofuel production much attention has been paid to woody oil plants, among which Jatropha curcas (Jatropha for short) is considered a promising feedstock species for biodiesel production. Many countries, especially those in South America, Africa and south Asia, including India, Mali, Nicaragua, Tanzania, and Zimbabwe, have carried out large-scale Jatropha biodiesel programs [21,22,23]. Jatropha, known as being highly adaptable to a wide range of soil and climatic conditions, is a multipurpose shrub or small tree commonly used for fencing, erosion prevention and land reclamation. It produces seeds which have rich non-edible oil (35%–48%) and this has led Jatropha to receive worldwide consideration as a preferred feedstock for biodiesel production. It is widely described in the literature as a vigorous drought and pest tolerant plant that can grow on barren eroded lands under harsh climatic conditions [24,25].
Although biodiesel extraction from Jatropha has become a booming business in China, it will inevitably face many challenges and uncertainties as a new industry [26,27]. To be a viable substitute for fossil diesel, biodiesel should yield a positive energy balance, produce environmental benefits, be economically feasible, and possible to produce in large quantities without compromising food security [28,29,30]. Careful calculation of net energy, CO2 emissions and cost efficiency are therefore critical to rigorously assess Jatropha biodiesel as a sustainable energy resource [31,32,33]. In addition, it is necessary to analyze land suitability for Jatropha plantation in China [34,35] as is true for any region or country attempting to develop Jatropha as an energy crop. While those above questions have not yet been addressed completely, efforts are containing.
The aim of this paper is to evaluate the net energy, CO2 emission, and cost efficiency of Jatropha biodiesel production as a substitute diesel fuel in China, based on data from the Panzhihua region of Sichuan province which has had significant experience with this production system. The rest of the paper is organized into five sections. The study area is discussed in the second section, the methodology is described in the third section and the data sources are presented in the fourth section. Results and discussion are presented in the fifth section and a summary and conclusions are put forth in the sixth section, along with policy recommendations based on the results.

2. Study Area

Panzhihua is a prefecture-level city located where the Jinsha River and the Yalong River converge in the southwest of Sichuan Province, ranging from 101°8′ to 102°15′ E and 26°5′ to 27°21′ N. It covers an area of 7434 km2 and is regarded as the first industrial city in the upper reaches of the Yangtze River.
Panzhihua is characterized by a monsoon-influenced subtropical climate with concentrated precipitation, modest annual temperature differences, large daily temperature differences, abundant sunshine (2300–2700 hours in total each year) and strong solar radiation (578–628 kJ/cm2). The annual average temperature is around 20.3 °C. The annual precipitation ranges from 700 to 1600 mm, much of which occurs from June to September.
Panzhihua is currently the major Jatropha plantation region in Sichuan Province. The total area of Jatropha forests is up to 253.33 km2, including 93.33 km2 original and secondary forests, 40 km2 planted forest for ecological conservation and 120 km2 planted forest for energy. A large area of energy plantation has been afforested since 2006, with areas of 13.33 km2, 66.66 km2, and 40 km2 in 2006, 2007 and 2008 respectively. The sponsors for Jatropha plantations in Panzhihua are the PetroChina Company Limited and the local Forestry Bureau, while the farmers participate in Jatropha plantation in the form of leasing land and supplying labor.
Jatropha was mainly planted in barren mountains above 1600 m. There are two reasons for this arrangement. Most significantly, lower elevation land with relatively better land quality is used to plant subtropical fruits such as late-maturing mango and pomegranate for the pursuit of higher profits. Importantly, however, Jatropha on the higher elevation barren hillsides can contribute much to land reclamation, water conservation and soil erosion mitigation. Planting Jatropha in highland areas can make more challenging the problems of field management and productivity improvement. The benefits from land reclamation, water conservation, and soil erosion mitigation have not been quantified and are not included in this analysis.

3. Methodology

3.1. Lifecycle Assessment Framework of Jatropha Biodiesel Production System

As a process where the material and energy flow within a system are quantified and evaluated, lifecycle assessment (LCA) is widely applied in the energy research field [36,37,38,39]. In this study, LCA was used to account for the material and energy in the lifecycle production system of Jatropha biodiesel. The entire lifecycle begins with Jatropha planting (source) and ends at fuel combustion (wheel). It consists of three stages: feedstock stage, fuel stage, fuel combustion and energy conversion stage [39,40,41]. The feedstock stage refers to the production of Jatropha seeds, while the fuel stage involves seed and byproduct processing, transportation, storage and distribution of Jatropha biodiesel. The last stage, fuel combustion and energy conversion, comes when Jatropha biodiesel is consumed. The framework is illustrated in Figure 1.

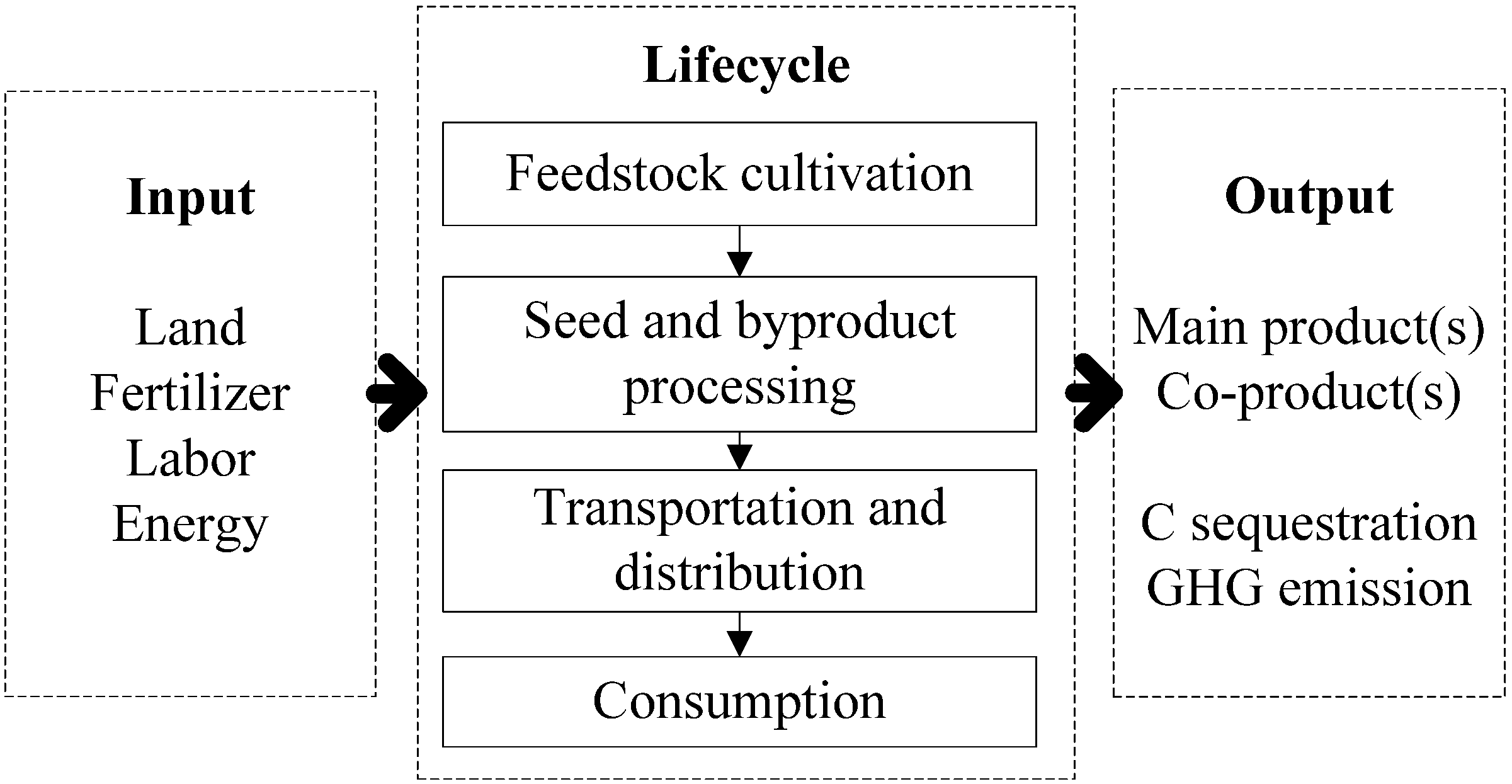

Figure 1. The lifecycle production system of Jatropha biodiesel.
Figure 1. The lifecycle production system of Jatropha biodiesel.
Energies 05 02150 g001
The production of Jatropha seeds involves the establishment and maintenance of Jatropha plantations, seeds harvest, and their preliminary treatment. Jatropha trees are mainly propagated with seedlings, since the survival rate of plantations established with cuttings is low and micro-propagation is more costly than seedlings. Generally speaking, the inputs include land, labor, seedlings, fertilizers, machines and energy during the process of Jatropha plantation establishment.
The main outputs of Jatropha trees are their seeds with a high content of non-edible oil (35%–48%). The harvested fruits are dried in sunlight followed by husk removal. The husks are viewed as a co-product and a substitute for coal. In addition, other biomass products including leaves and latex are also co-products, which can be used as medicine. The co-products, while potentially important, are not currently commercial products and the impacts are not well quantified. Their potential energy and economic contributions are not included in this analysis.
In the Jatropha biodiesel production chain, there are a series of possible environmental impacts to be concerned with, especially the carbon sequestration and greenhouse gas (GHG) emissions. We focus on the carbon balance analysis in the following paragraphs, as they have a significant influence on the environment and the global climate. In this analysis, we assumed that Jatropha plantation mainly occurred on marginal land. The time horizon for the project of Jatropha plantation lasts for 25 years. The Jatropha seed oil is directly blended with diesel for utilization. There is some other required information in the planning of Jatropha plantation establishment and utilization. For example, the planting density of Jatropha is approximately 1650 trees ha−1 on average, other information needed is shown in subsequent tables and text as it is required for the analysis.

3.2. Energy and Carbon Balance Analysis

An energy balance analysis was included in the lifecycle assessment so as to assess the feasibility and sustainability in the production system of Jatropha biodiesel. The energy balance can be quantified by comparing the energy inputs required in each LCA stage, and comparing the total required energy inputs with the embodied energy of the biodiesel product [42,43,44,45,46]. In this analysis, net energy was used to measure energy efficiency, since it is the net energy yield that measures the true value of an energy resource to society [47,48,49]. The net energy available from a fuel is equal to: NE = GE − E, where GE is the gross energy produced by the fuel during its combustion and E is the total energy consumption during its lifecycle production, in this case in Figure 2, below where E1 and E2 represent the energies consumed during the feedstock growth and production and fuel production stages, respectively. The overall concept is shown in Figure 2. Both direct and indirect energy inputs are involved in the production system of Jatropha biodiesel. Direct energy inputs include diesel consumed in transportation, and coal and electricity consumed in oil extraction and refining. Indirect energy inputs are embodied in a variety of non-energy inputs, such as fertilizers and labor.
Accordingly, the gross CO2 emissions (GCE) from a fuel include the direct CO2 emissions during the stage of fuel combustion and indirect CO2 emissions at the stages of feedstock and fuel, defined as: GCE = CE1 + CE2 + CE3, where CE1, CE2, and CE3 represent CO2 emissions during the stages of feedstock production, fuel production, and fuel combustion respectively [38,39]. The net CO2 emissions (NCE) from a fuel are equal to: NCE = GCE − CE4, where CE4 represent absorption of CO2 during the stage of feedstock production.

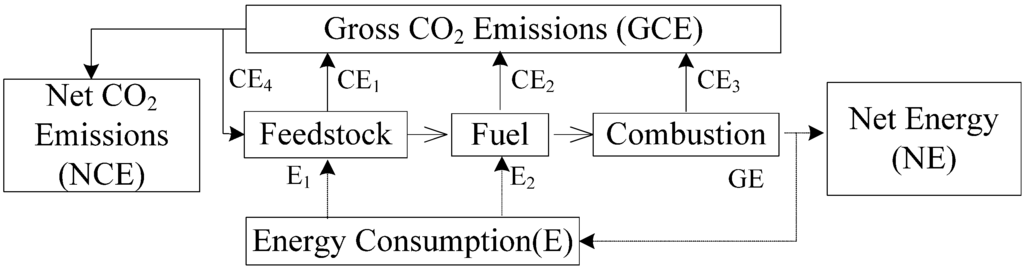

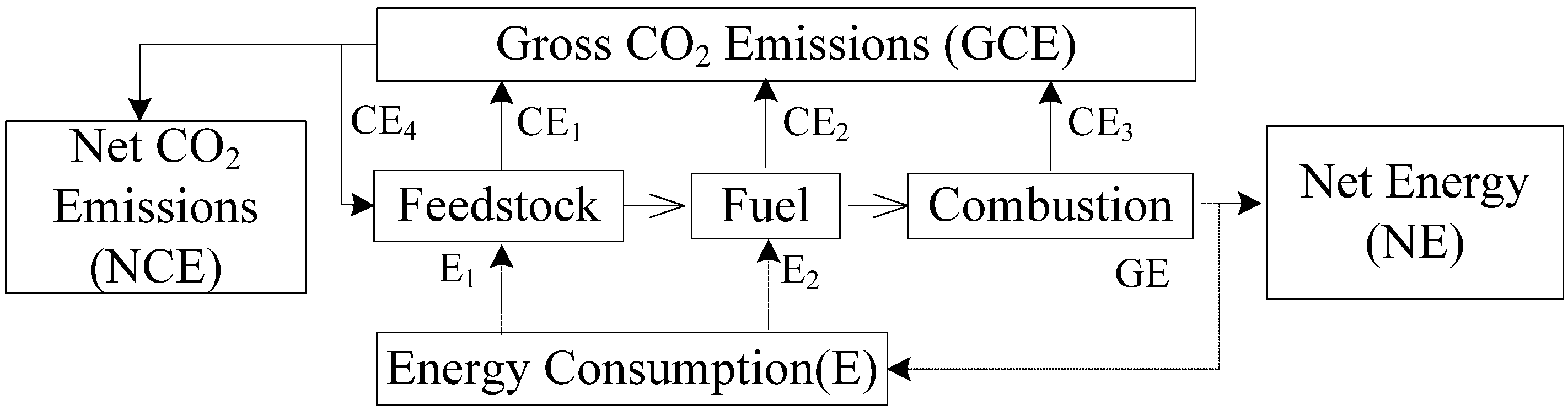

Figure 2. Net energy and gross CO2 emissions in the production system of Jatropha biodiesel.
Figure 2. Net energy and gross CO2 emissions in the production system of Jatropha biodiesel.
Energies 05 02150 g002

3.3. Land Suitability Evaluation

Relevant indicators should be selected to help to evaluate land suitability for Jatropha plantation use. Several studies have examined the correlation between Jatropha production and natural conditions, and there is a consensus that climate, terrain, and soil quality are key factors to Jatropha growth [34,35]. Based on literature review and expert interview, we summarized the suitable conditions for Jatropha plantation and these are shown below (Table 1).
Table 1. Suitable conditions for Jatropha plantations.
Table 1. Suitable conditions for Jatropha plantations.
CharacteristicTolerance Parameters
Annual mean temperature (°C)≥17
Annual extreme minimum temperature (°C)≥0
Thornthwaite humidity index−66.7~100
Effective accumulated temperature above 10 °C≥5000
Sunshine hours≥1000
Soil depth (m)≥0.3
Average slope (°)≤25
Altitude (m)≤1800

3.4. Cost-Benefit Analysis

An evaluation of the financial cost and income over time that lead to profits from Jatropha production provides for an overall cost benefit analysis from Jatropha plantations in the area studied. According to the experts, the lifecycle of a Jatropha plantation is about 25 years in length and can be divided into three periods: the planting period (the first year), the rearing period (from the second year to the fifth year) and full bearing period (from the sixth year to the 25th year). There is no harvest in the planting period, and it is assumed that Jatropha will have a constant yield in the full bearing period. Since large areas of planting Jatropha began in Panzhihua in 2006, the yield of Jatropha seeds in full bearing period was projected by experts. We do not include any costs or benefits from harvesting the stems at the end of the 25 year period as the economics are uncertain for that activity.
We use Net Present Value (NPV) as a measure to analyze the profitability of Jatropha plantations as an economic operation. The calculation formula of NPV is as follows:
NPV = t = 0 n ( CI CO ) t ( 1 + i e ) t
where CI is the current year income, which is determined by the price and yield of Jatropha seeds; CO is the current year cost, including the cost of land, labor and materials such as seeding and fertilizer; ie is the discount rate, which is set to 0.72%.
We also assume that the prices of input and output are invariable over the time studied and the exchange rate between USD and RMB is 1:6.479. The price of each Jatropha bare root seeding is 0.18 RMB and the repair planting rate is 15%. The price of compound fertilizer is 1500 RMB/ton, and the price of organic fertilizer (oil cake) is 1,300 RMB/ton. The average labor price for the year 2005, 2006 and 2007 is 35 RMB per day, which is used for the labor cost estimation. The current price of Jatropha seeds is 2 RMB/kg, which is used for the income estimation. Unlike other input costs measured by the prices, it is rather difficult to estimate the cost of land. In our analysis, the cost of land used for Jatropha plantation is expressed as the opportunity cost, i.e., the profitability of alternative land uses.

4. Data

4.1. Land Use Data

Land use data set is developed by the Chinese Academy of Sciences from Landsat TM/ETM scenes at a spatial resolution of 30 m × 30 m [50,51]. The data set contains 6 first class land use categories and 25 second order land use categories. In this study, land categories were reclassified into 8 classes: cultivated land, closed forest, shrub, open forest, barren/grass land, water area, build-up area and unused land.

4.2. Geophysical Data

The meteorological data, consisting of annual mean temperature, annual extreme minimum temperature, humidity index, effective accumulated temperature and sunshine hours were derived from China Meteorological Bureau data, which was originally filed in the form of text, and then we interpolated the text information into 1 km × 1 km grid pixel data using the Kriging method. The Kriging algorithm is a general method of statistical interpolation that can be applied within any discipline to sampled data from random fields that satisfy the appropriate mathematical assumptions, to interpolate the site-based data into the surface [52]. Information on the terrain slope was derived from DEM data at a scale of 1:250,000. Soil property data were gathered from the second national soil survey of China, and were interpreted into 1 km × 1 km grid pixel data using the Kriging method.

4.3. Social and Economic Data

The social and economic data mainly refer to the input and output of Jatropha plantations, which were collected from Forestry Bureau of Panzhihua or by our investigations, including questionnaire surveys, field research and structured interviews carried out in Panzhihua, Sichuan Province, in April 2011. The input of Jatropha plantation consists of Jatropha afforestation cost and maintenance cost in the later stage. Specifically speaking, the input can be classified into seedling, labor, fertilizer and land. We consider the seeds of Jatropha as the only output. The parameters of energy consumption and CO2 emission are derived from the literature [27,48,53].

5. Results

5.1. Energy and Carbon Balance Analysis of Jatropha Biodiesel Production

Net energy is an important index to measure energy efficiency. We estimated the source to pump energy consumption and net energy yield of Jatropha biodiesel (Table 2). The net energy yield of Jatropha biodiesel is 0.03 MJ/MJ, much lower than that of fossil fuel (0.76 MJ/MJ for conventional gasoline). The low net energy is mainly caused by the high energy consumption during Jatropha plantation and fuel conversion stages. At the stage of feedstock cultivation, energy attributed to fertilizer is the main energy input, i.e., the energy inputs for the production of these fertilizers. Because of a low level of mechanization, the activities of fruit collection and drying, husk removal, planting and tending are completed by hand and energy input of labor is included. At the stage of fuel conversion, the energy input is mainly used in the extraction and refining of Jatropha oil. Although net energy yield of Jatropha biodiesel production is relatively low, the net energy is renewable. For the long term, more productive Jatropha varieties and more energy efficient conversion technologies need to be developed to increase the returns from cultivation and reduce the energy consumption during the fuel conversion process.
We also analyzed carbon sequestration and CO2 emission in the production process of Jatropha biodiesel (Table 3). Carbon sequestration is mainly attributed to absorption of CO2 through photosynthesis during Jatropha tree growth. The major CO2 emissions stem from the application of fertilizers, transportation of seeds and fertilizers, oil extraction and refining. The net carbon sequestration of Jatropha biodiesel production is 8343 kg/ha In addition, at the stage of fuel combustion, CO2 emission rate of Jatropha biodiesel is 74.6 g CO2/MJ, which is similar to that of diesel (74.7 g CO2/MJ). Hence, as the cost efficient carbon sink, Jatropha biodiesel is a better choice as a type of substitute energy.
Table 2. Energy input and net energy yield of Jatropha biodiesel production.
Table 2. Energy input and net energy yield of Jatropha biodiesel production.
Feedstock stage
  Fertilizer (MJ/kg)9.39
  Labor (MJ/kg)0.26
  Transportation (MJ/kg)0.17
Fuel stage
  Oil extraction (MJ/kg)2.70
  Refining (MJ/kg)0.42
  Total energy input (MJ/kg)12.93
  Jatropha biodiesel output (MJ/kg)13.3
  Net energy (MJ/ MJ)0.03
Table 3. The carbon balance of Jatropha biodiesel production.
Table 3. The carbon balance of Jatropha biodiesel production.
Source of CO2 EmissionQuantity of CO2 Equivalent (kg/ha)
Application of fertilizers45735
Transportation of seeds and fertilizers1808
Oil extraction and refining39114
Jatropha plantation *−95000
Net carbon balance−8343
* The average annual rate of carbon sequestration is set to 3800 kg/(ha·a) during the lifecycle of a Jatropha plantation.

5.2. Land Resources for Jatropha Plantation

According to our estimation, 1.72 × 105 ha land is suitable for Jatropha plantation in Panzhihua, located in the dry-hot valley of the Jinsha and Yalong Rivers (Table 4 and Figure 3). Cultivated land, barren/grass land and open forest are the major potential land sources for Jatropha plantation.
Table 4. Land suitable for Jatropha plantation in Panzhihua.
Table 4. Land suitable for Jatropha plantation in Panzhihua.
Type of LandSuitable Land (ha)Available suitable land (ha)
 Cultivated land541501080
 Closed forest242300
 Open forest4224021100
 Barren/grass land4365021800
 Unused land340170
In order to avoid land competition with agriculture and other industries, we also considered the social-economic restrictions of Jatropha plantation. Firstly, biofuel development should not compete for land with food production. We assumed that there would be only 2% of suitable cultivated land that could be used for Jatropha plantation, which can be used as fences around crop fields.

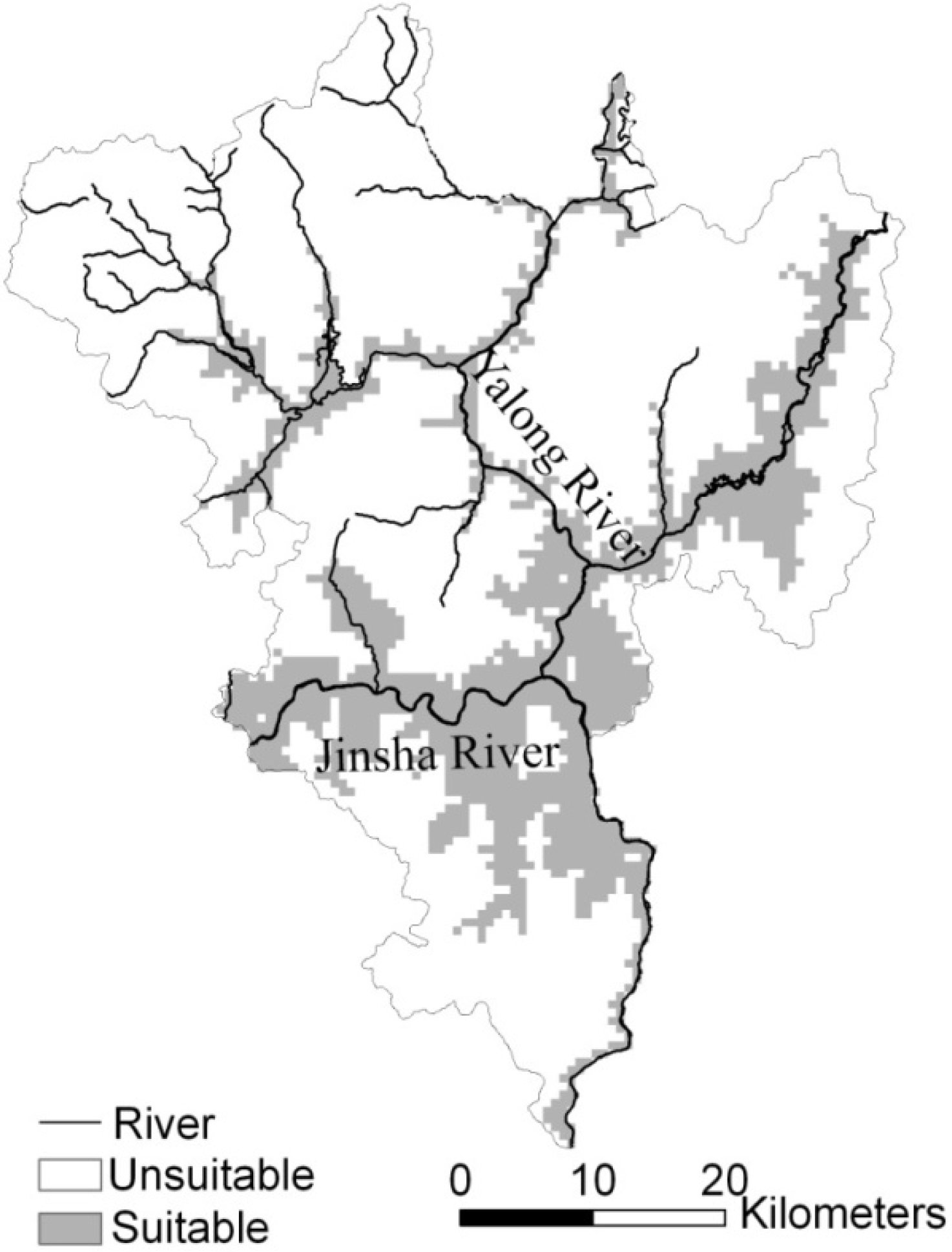

Figure 3. Spatial distribution of suitable land for Jatropha plantation in Panzhihua.
Figure 3. Spatial distribution of suitable land for Jatropha plantation in Panzhihua.
Energies 05 02150 g003
Secondly, considering that closed forest and bush play an important role in ecological conservation, we excluded the lands from land conversion from Jatropha plantation use. Thirdly, although barren/grass land, open forest and unused land are suitable for Jatropha plantation, we must consider the land demand of other sectors and difficulties in land preparation and management. Therefore, we assumed that 50% of the barren/grass, open forest and unused land were suitable for Jatropha growth and could be available. Due to these constraints mentioned above, the area of available suitable land for Jatropha plantation shrinks, and the available potential land for Jatropha plantation is made up mostly of open forest and barren/grass land (Table 4).

5.3. Cost-Benefit Analysis of Jatropha Plantation

Jatropha are mainly planted on marginal land in Panzhihua. As a consequence, there is almost no land use competition between Jatropha plantations and food production at the local level. This is also a result of the high cost of high quality land which is capable of profitable agricultural production. The cost of land was estimated in terms of the opportunity cost, based on the net gross margin of crop cultivation. The net profit of planting subtropical fruit such as late-mature mango and pomegranate is as high as 15,576 USD/year∙ha. At lowest economic return in agricultural use, a net margin of 2,176 USD/year∙ha is obtained from corn cultivation. Based on our field survey, the cost of land for Jatropha plantations is about 35 USD/ha.
Based on this investigation and estimation (Table 5), the total cost of Jatropha afforestation is 9,266.47 RMB (1,430 USD) per hectare in the three-year afforestation period. The cost in the first year is much higher than those of the following years, for it contains the seedling cost, labor cost of land preparation and planting as well as significant fertilizer cost. In the first year, labor cost is the largest expense which accounts for 59.83% of the total cost, followed by fertilizer cost. Fertilizer cost becomes the largest expense in the second and the third years, which exceeds half of the total cost in both years. With the rapid economic development, the average labor price showed a huge increase, from 35 RMB (5.4 USD) per day in 2005, 65 RMB (10 USD) per day in 2008, to 90 RMB (13.9 USD) per day in 2010. The estimated labor cost in this study is quite conservative and labor cost will account for a larger proportion of the total cost in Jatropha afforestation in the future.
Table 5. Cost of planting Jatropha for the first three years.
Table 5. Cost of planting Jatropha for the first three years.
ItemThe First YearThe Second YearThe Third Year
Seedling cost (USD/ha)4600
Compound fertilizer (kg/ha)825146213
Organic fertilizer (kg/ha)0825825
Fertilizer cost (USD/ha)191199215
Labour hour of land preparation (hour/ha)4000
Labour hour of planting (hour/ha)1100
Labour hour of weeding (hour/ha)191919
Labour hour of fertilizering (hour/ha)566
Total labour hour (hour/ha)752525
Total labour cost (USD/ha)405134136
Land cost (USD/ha)353535
Total cost (USD/ha)676368386
According to this estimation (Table 6), the labor cost and fertilizer cost are the main inputs in the lifecycle of Jatropha plantation. Since most Jatropha is planted on low-quality land, the yield is limited and the profits are negative during the planting and rearing periods. The NPV of benefit of Jatropha plantation is very sensitive to the price of Jatropha seeds. If we use the current price of Jatropha seeds, 2 RMB/kg, to calculate, the benefit NPV is 25772 RMB (3978 USD) per hectare and it is economically feasible to plant Jatropha. But if the price of Jatropha seeds drops to 1.5 RMB/kg, as expected, the benefit NPV will be −41 RMB (−6.3 USD) per hectare.
Table 6. Accounting of the inputs and outputs for a Jatropha plantation.
Table 6. Accounting of the inputs and outputs for a Jatropha plantation.
ItemPlanting PeriodRearing PeriodFull Bearing Period
Seedling cost (USD/year·ha)4600
Labor cost (USD/year·ha)405182183
Fertilizer cost (USD/year·ha)191207238
Land cost (USD/year·ha)353535
Total cost (USD/year·ha)676423456
Yield (kg/year·ha)07502250
Income (USD/year·ha)0232695
Profit (USD/year·ha)676−192238

6. Concluding Remarks

It is of great importance to develop renewable energy alternatives to ensure energy security and permit sustainable development. Since biofuels can help reduce dependence on petroleum, improve environmental quality and mitigate greenhouse gas emissions it can be utilized as an important substitute energy in coping with urgent worldwide energy and environmental needs. Biofuel has achieved rapid development in China, incentivized recently by the ambitious plan which is formulated under the guidelines of enhancing the financial and taxation policy support for developments of bioenergy and biochemical industry from the Chinese government. Nevertheless, we understand that the Chinese central government needs to make rational planning decisions and consider the energy efficiency, CO2 emissions, lifecycle costs and land resources when expanding the bioenergy programs.
Our case study indicates that Jatropha biodiesel has lower total CO2 emissions than diesel fuel does, mainly thanks to the absorption of CO2 through photosynthesis during the Jatropha tree growth stage. Hence, Jatropha biodiesel is a good substitute for diesel fuel from the viewpoint of global warming mitigation. However, the net energy yield of Jatropha biodiesel is much lower than that of fossil fuel. The lower net energy is mainly caused by high energy consumption during Jatropha plantation establishment and the fuel conversion stage. Although the net energy yield of Jatropha biodiesel production is relatively low, the net energy is renewable. In the long run, more productive Jatropha varieties and more energy efficient conversion technologies are needed to increase the returns for the growing system and reduce energy consumption during the fuel conversion process. This will make diesel produced from Jatropha more competitive economically and in energy utilization.
Due to low profit and high risks under current market condition, farmers have little incentive to maintain or increase Jatropha production. It is necessary to provide more subsidies and preferential policies to the planters of Jatropha if more is to be produced. While there are about 1.03 million hectares of barren land existing in Southwest China that could be used for growing Jatropha, the quality of barren land varies widely. Jatropha might indeed grow on this marginal land, but it is not clear that seed quality and yields would be sufficiently high, or that available plots would be sufficiently large to achieve financial profits. The local government should carefully set realistic objectives and plan rationally to choose potentially profitable sites for Jatropha biodiesel development. In addition, future research focused on breeding high-yield varieties, continued development of advantageous field management techniques and more detailed lifecycle environmental impact analyses are also needed to facilitate the difficult decisions that need to be made and promote growth and sustainable development of Jatropha biodiesel production in China, based on this study of the Panzhihua region of Sichuan Province.


This research was supported by the National Basic Research Program of China (973 Program) (No. 2010CB950904; 2012CB95570001). Data support from projects of the National Natural Science Foundation of China (No. 41171434; No. 41071343), The National Soft Science Research Program (No. 2010GXS5B163), Exploratory Forefront Project for the Strategic Science Plan in IGSNRR, CAS and the National Key Technologies R&D Program of Ministry of Science and Technology of the People’s Republic of China (No. 2008BAK50B05; No. 2008BAK50B06) are also appreciated. Special thanks are also given to Jintao Xu of Peking University for his coordination for authors to collect the dataset and conduct the survey.


  1. Statistical Review of World Energy 2010; BP-British Petroleum Co.: London, UK, 2011.
  2. Guy, C.K.L. China’s Energy Security: Perception and Reality. Energy Policy 2011, 39, 1330–1337. [Google Scholar] [CrossRef]
  3. Zhang, N.; Lior, N.; Jin, H. The energy situation and its sustainable development strategy in China. Energy 2011, 35, 1–11. [Google Scholar]
  4. Jiang, M.M.; Zhou, J.B.; Chen, B.; Chen, G.Q. Emergy account of the Chinese Economy 2004. Commun. Nonlinear Sci. Numer. Simul. 2008, 13, 2337–2356. [Google Scholar] [CrossRef]
  5. Chen, Z.M.; Chen, G.Q.; Zhou, J.B.; Jiang, M.M.; Chen, B. Ecological input-output modeling for embodied resources and emissions in Chinese economy. Commun. Nonlinear Sci. Numer. Simul. 2010, 15(7), 1942–1965. [Google Scholar] [CrossRef]
  6. Liu, G.Y.; Yang, Z.F.; Chen, B.; Zhang, Y.; Zhang, L.X.; Zhao, Y.W.; Jiang, M.M. Emergy-based urban ecosystem health assessment: A case study of Baotou, China. Commun. Nonlinear Sci. Numer. Simul. 2009, 14(3), 972–981. [Google Scholar] [CrossRef]
  7. Zhang, L.X.; Chen, B.; Yang, Z.F.; Chen, G.Q.; Jiang, M.M.; Liu, G.Y. Comparison of typical mega cities in China using emergy synthesis. Commun. Nonlinear Sci. Numer. Simul. 2009, 14(6), 2827–2836. [Google Scholar] [CrossRef]
  8. Jiang, M.M.; Zhou, J.B.; Chen, B.; Yang, Z.F.; Ji, X.; Zhang, L.X.; Chen, G.Q. Ecological evaluation of Beijing economy based on emergy indices. Commun. Nonlinear Sci. Numer. Simul. 2009, 14(5), 2482–2494. [Google Scholar] [CrossRef]
  9. Liu, J.; Deng, X. Impacts and mitigation of climate change on Chinese cities. Curr. Opin. Environ. Sustain. 2011, 3, 188–192. [Google Scholar] [CrossRef]
  10. Chen, G.Q.; Chen, B. Extended exergy analysis of the Chinese society. Energy 2009, 34(9), 1127–1144. [Google Scholar] [CrossRef]
  11. Chen, B.; Chen, G.Q. Ecological footprint accounting and analysis of the Chinese Society 1981–2001 based on embodied energy. Ecol. Econ. 2007, 61(2–3), 335–376. [Google Scholar] [CrossRef]
  12. Zhang, P.; Yang, Y.; Tian, Y.; Yang, X.; Zhang, Y.; Zheng, Y.; Wang, L. Bioenergy industries development in China: Dilemma and solution. Renew. Sustain. Energy Rev. 2009, 13, 2571–2579. [Google Scholar] [CrossRef]
  13. Askew, M.; Holmes, C. The potential for biomass and energy crops in agriculture, in Europe, in land use, policy and rural economy terms. Int. Sugar J. 2002, 104, 482–492. [Google Scholar]
  14. Zamboni, A.; Murphy, R.J.; Woods, J.; Bezzo, F.; Shah, N. Biofuels carbon footprints: Whole-systems optimisation for GHG emissions reduction. Bioresour. Technol. 2011, 102, 7457–7465. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, Z.; Jiang, S.; Xiao, M.; Luo, J. Comparison on performance of biodiesel and fossil diesel. China Oils Fats 2008, 33, 1–5. [Google Scholar]
  16. Food and Agriculture Organization (FAO). Bioenergy, food security and sustainability—towards an international framework. In Proceedings of High-level Conference on World Food Security: The Challenges of Climate Change and Bioenergy, Rome, Italy, 3–5 June 2009.
  17. Wang, Z.; Calderon, M.M.; Lu, Y. Lifecycle assessment of the economic, environmental and energy performance of Jatropha curcas L. biodiesel in China. Biomass Bioenergy 2011, 35, 2893–2902. [Google Scholar] [CrossRef]
  18. Yang, Q.; Chen, B.; Ji, X.; He, Y.F.; Chen, G.Q. Exergetic evaluation of corn-ethanol production in China. Commun. Nonlinear Sci. Numer. Simul. 2009, 14(5), 2450–2461. [Google Scholar] [CrossRef]
  19. Huang, J.; Qiu, H.; Michiel, K.; Erika, M.; Wimvan, V. Impacts of bioethanol development on China’s regional agricultural development. China Econ. Q. 2009, 2, 727–742. [Google Scholar]
  20. Flavin, C. Time to move to a second generation of biofuels. Available online: (accessed on 28 March 2009).
  21. Latner, K.; O’Kray, C.; Jiang, J.Y. China, Peoples Republic of Bio-Fuels: An Alternative Future for Agriculture; GAIN Report CH6049; USDA Foreign Agricultural Service: Washington, DC, USA, 8 August 2006.
  22. John, R.; Andrea, S.; Astrid, A. Bioenergy and the potential contribution of agricultural biotechnologies in developing countries. Biomass Bioenergy 2010, 34, 1427–1439. [Google Scholar] [CrossRef]
  23. Mol, A.P.J. Boundless biofuels? Between vulnerability and environmental sustainability. Sociol. Rural. 2007, 47, 297–315. [Google Scholar] [CrossRef]
  24. Openshaw, K. A review of Jatropha curcas: an oil plant of unfulfilled promise. Biomass Bioenergy 2000, 19, 1–15. [Google Scholar] [CrossRef]
  25. Jongschaap, R.E.E.; Corré, W.J.; Bindraban, P.S.; Brandendurg, W.A. Claims and Facts on Jatropha curcas L.: Global Jatropha curcas Evaluation, Breeding and Propagation Programme; Plant Research International: Wageningen, The Netherlands, 2007. [Google Scholar]
  26. Ye, M.; Li, C.Y.; Francis, G.; Makkar, H.P.S. Current situation and prospects of Jatropha curcas as a multipurpose tree in China. Agrofor. Syst. 2009, 76, 487–497. [Google Scholar] [CrossRef]
  27. Ou, X.; Zhang, X.; Chang, S. Scenario analysis on alternative fuel/vehicle for China’s future road transport: Life-cycle energy demand and GHG emissions. Energy Policy 2010, 38, 3943–3956. [Google Scholar] [CrossRef]
  28. Delucchi, M. A conceptual framework for estimating the climate impacts of land-use change due to energy crop programs. Biomass Bioenergy 2011, 35, 2337–2360. [Google Scholar] [CrossRef]
  29. Jiang, Q.; Deng, X.; Zhan, J.; He, S. Estimation of land production and its response to cultivated land conversion in north China plain. Chin. Geogr. Sci. 2011, 21, 685–694. [Google Scholar] [CrossRef]
  30. Deng, X.; Huang, J.; Scott, R.; Emi, U. Cultivated land conversion and potential agricultural productivity in China. Land Use Policy 2006, 23, 372–384. [Google Scholar] [CrossRef]
  31. Sunde, K.; Brekke, A.; Solberg, B. Environmental impacts and costs of woody Biomass-to-Liquid (BTL) production and use—A review. For. Policy Econ. 2011, 13, 591–602. [Google Scholar] [CrossRef]
  32. Chen, B.; Yang, Z.F.; Hao, F.H.; Chen, G.Q. Emergy-based energy and material metabolism of the Yellow River Basin. Commun. Nonlinear Sci. Numer. Simul. 2009, 14(3), 923–934. [Google Scholar] [CrossRef]
  33. Chen, B.; Chen, G.Q.; Hao, F.H.; Yang, Z.F. The water resources assessment based on resource exergy for the mainstream Yellow River. Commun. Nonlinear Sci. Numer. Simul. 2009, 14(1), 331–334. [Google Scholar] [CrossRef]
  34. Jingura, R.M.; Matengaifa, R.; Musademba, D.; Musiyiwa, K. Characterisation of land types and agro-ecological conditions for production of Jatropha as a feedstock for biofuels in Zimbabwe. Biomass Bioenergy 2011, 35, 2080–2086. [Google Scholar] [CrossRef]
  35. Maesa, W.H.; Trabucco, A.; Achten, W.M.J.; Muys, B. Climatic growing conditions of Jatropha curcas L. Biomass Bioenergy 2009, 33, 1481–1485. [Google Scholar] [CrossRef]
  36. Rajagopal, D.; Hochman, G.; Zilberman, D. Indirect fuel use change (IFUC) and the lifecycle environmental impact of biofuel policies. Energy Policy 2011, 39, 228–233. [Google Scholar] [CrossRef]
  37. Ou, X.; Zhang, X.; Chang, S.; Guo, Q. Energy consumption and GHG emissions of six biofuel pathways by LCA in (the) People’s Republic of China. Appl. Energy 2009, 86, S197–S208. [Google Scholar] [CrossRef]
  38. Hou, J.; Zhang, P.; Yuan, X.; Wang, Y. The methodology to analysis the energy consumption and CO2 emission of chemical synthesis of biodiesel based on life cycle assessment. Renew. Energy Resour. 2009, 27, 72–75. [Google Scholar]
  39. Wang, M.; Saricks, C.; Santini, D. Effects of Fuel Ethanol Use on Fuel-Cycle Energy and Greenhouse Gas Emissions; U.S. Department of Energy: Washington, DC, USA, 1999.
  40. Dong, J.; Ma, X. Life cycle assessment on biodiesel production. Mod. Chem. Ind. 2007, 27, 59–63. [Google Scholar]
  41. Xing, A.; Ma, J.; Zhang, Y.; Wang, Y.; Jin, Y. Life cycle assessment of biodiesel environmental effects. J. Tsinghua Univ. Sci. Tech. 2010, 50, 917–922. [Google Scholar]
  42. Chen, B.; Chen, Z.M.; Zhou, Y.; Chow, J.B.; Chen, G.Q. Emergy as embodied energy based assessment for local sustainability of a constructed wetland in Beijing. Commun. Nonlinear Sci. Numeri. Simul. 2009, 14(2), 622–635. [Google Scholar] [CrossRef]
  43. Chen, Z.M.; Chen, B.; Zhou, J.B.; Li, Z.; Zhou, Y.; Xi, X.R.; Lin, C.; Chen, G.Q. Constructed wetland treatment of municipal wastewater in Longdao River, Beijing. Commun. Nonlinear Sci. Numer. Simul. 2008, 13(9), 1986–1997. [Google Scholar] [CrossRef]
  44. Zhou, J.B.; Jiang, M.M.; Chen, B.; Chen, G.Q. Emergy evaluations for constructed wetland and conventional wastewater treatments. Commun. Nonlinear Sci. Numer. Simul. 2009, 14(4), 1781–1789. [Google Scholar] [CrossRef]
  45. Zhao, X.; Chen, B.; Yang, Z.F. National water footprint in an input-output framework-a case study of China 2002. Ecol. Model. 2009, 220, 245–253. [Google Scholar] [CrossRef]
  46. Ji, X.; Chen, G.Q.; Chen, B.; Jiang, M.M. Exergy-based assessment for waste gas emissions from Chinese transportation. Energy Policy 2009, 37, 2231–2240. [Google Scholar] [CrossRef]
  47. Kamahara, H.; Hasanudin, U.; Widiyanto, A.; Tachibanad, R.; Atsutae, Y.; Gotoe, N.; Daimone, H.; Fujief, K. Improvement potential for net energy balance of biodiesel derived from palm oil: A case study from Indonesian practice. Biomass Bioenergy 2010, 34, 1818–1824. [Google Scholar] [CrossRef]
  48. Hu, Z.; Fang, F.; Ben, D.; Pu, G.; Wang, C. Net energy, CO2 emission, and life-cycle cost assessment of cassava-based ethanol as an alternative automotive fuel in China. Appl. Energy 2004, 78, 247–256. [Google Scholar] [CrossRef]
  49. Hu, Z.; Dai, D.; Pu, G.; Wang, C. Life Cycle energy efficiency assessment of cassava-based fuel ethanol. J. Shanghai Jiao Tong Univ. 2004, 38, 1715–1720. [Google Scholar]
  50. Deng, X.Z.; Huang, J.K.; Scott, R.; Emi, U. Growth, population and industrialization and urban land expansion of China. J. Urban Econ. 2008, 63, 96–115. [Google Scholar] [CrossRef]
  51. Deng, X.Z.; Su, H.; Zhan, J.Y. Integration of multiple data sources to simulate the dynamics of land systems. Sensors 2008, 8, 620–634. [Google Scholar] [CrossRef]
  52. Asli, M.; Marcotte, D. Comparison of Kriging methods in a multivariate context. Math. Geol. 1995, 27(5), 641–658. [Google Scholar] [CrossRef]
  53. Wang, M.Q. Methodology, development, use, and results. ANL/ESD-39; In GREET 1.5 Transportation Fuel-Cycle Model; U.S. Department of Energy: Washington, DC, USA, 1999; Volume 1. [Google Scholar]
