Deep-Learning-Based Controller for Parallel DSTATCOM to Improve Power Quality in Distribution System

Abstract

Modern utility systems are being heavily strained by rising energy consumption and dynamic load variations, which have an impact on the quality and reliability of the supply. Harmonic injection and reactive power imbalance are caused by the widespread divergence. Power quality (PQ) issues are mostly caused by renewable energy powered by power electronic converters that are integrated into the utility grid, despite the fact that a range of industries require high-quality power to function properly at all times. Several solutions have been created, but continuing efforts and newly improved solutions are needed to solve these problems by operating according to various international standards. Distributed Static Compensator (DSTATCOM) was created in the proposed model to enhance PQ in a standard bus system. A standard bus system using the DSTATCOM model was initially developed. A real-time dataset was gathered while applying various PQ disturbance conditions. A deep learning controller was created using this generated dataset, which examined the bus voltages to generate the DSTATCOM pulse signal. Two case studies, the IEEE 13 bus and the IEEE 33 bus system, were used to analyze the proposed work. Performance of the proposed deep learning controller was verified in various situations, including interruption, swell, harmonics, and sag. The outcome of THD in the IEEE 13 bus is 0.09% at the sag period, 0.08% at the swell period, 0.01% at the interruption period, and in the IEEE 33 bus was 1.99% at the sag period, 0.44% at the swell period, and 0.01% at the interruption period. Also, the effectiveness of the proposed deep learning controller was examined and contrasted with current methods like K-Nearest Neighbor (KNN) and Feed Forward Neural Network (FFNN). The validated results show that the suggested method provides an efficient mitigation mechanism, making it suitable for all cases involving PQ issues.

1. Introduction

Power Quality (PQ) has been a concern for both utility and end-user consumers over the past twenty years [1]. Interest in power electronics has grown quickly due to its widespread application in industrial processes, regulators, microprocessor-based devices, nonlinear loads, and the growth of computer networks. The quality of power delivered is also impacted by the grid integration of Distributed Generation (DG) technologies, including wind, fuel cells, and solar photovoltaics [2]. PQ is the term for any variation in current, voltage, or frequency from their typical values that might lead to malfunctions or failures in user equipment [3]. PQ is related to many other types of disturbances, such as oscillatory and impulsive transients, voltage sag, voltage flicker, harmonics, multiple notches, and swell [4].

Several techniques have been suggested and put into use in order to lessen the impact on the system caused by voltage and power quality disturbances. The voltage differential between normal and disturbed operation circumstances is typically compensated for by using custom equipment [5]. Recently, load balancing, reactive power compensation, and harmonic reduction have been implemented in the distribution system via use of the Distribution Static Compensator (DSTATCOM) [6]. The performance of DSTATCOM is influenced by the control method utilized for the extraction of reference current components. Several scholars have proposed a variety of control techniques to accomplish this goal. These algorithms are based on a number of theories, including the ones on Instantaneous Reactive Power (IRP) [7], the Synchronous Reference Frame (SRF) [8], the Symmetrical Component (SC) [7], and the current compensation approach employing dc bus voltage regulation.

Afterward, some of the traditional controlling schemes were introduced to improve the power quality, like Proportional Integral Differentiator (PID) [9], Proportional Integral (PI), fuzzy controller [10], and Fractional Order PID (FOPID) controller [11]. However, the ideal problem for these devices is challenging. In order to solve the problems with choosing the best parameters, an optimal controlling method is presented. Numerous optimal solving models were introduced for optimal parameter selection, such as Particle Swarm Optimization (PSO) [12] and Atom Search Optimization (ASO). However, due to their long response times, high frequency noise, poor performance under parameter fluctuations, and difficult parameter tweaking, these approaches are not always effective. Artificial Intelligence (AI) is chosen to manage the compensator’s performance to overcome these constraints.

AI methods are now widely used to solve a variety of power system issues, including forecasting, planning, scheduling, control, and more [13]. These solutions are able to perform difficult tasks in modern massive power networks with even more interconnections established to suit increased load demand. A regulating technique based on Deep Learning (DL) is created to enhance PQ in the distribution system in light of these advantages. A real-time dataset is generated under both normal and varied PQ problem conditions when the DSTATCOM model is integrated into a system. This dataset is used to construct the DL controller, which analyzes the system’s voltage ranges and generates the appropriate compensator pulsed to inject power for compensation. Enhancing a system’s power quality is necessary for safe and dependable operation. To enhance security, a well-designed controlling system is essential for managing the compensator’s operational condition. The following is a discussion of the planned work’s primary contribution:

• A standard bus system like IEEE 13 and IEEE 33 test bus system with DL-based DSTATCOM model is designed to analyze various PQ issue scenarios.
• At the grid, a generator is chosen whose bus is regarded as PCC. In that system, a DSTATCOM compensator is connected.
• A real-time dataset is generated that contains three-phase bus voltages under normal and various PQ issue conditions.
• As per the obtained dataset, a Deep Neural network (DNN) controller is constructed, and its trained model is integrated into the system.
• The controller analyzes the voltage of each bus every second and generates the appropriate pulse signal of the compensator. The proposed model mitigation process is validated in several circumstances, like swell, sag, interruption, and harmonics.

The following is the way the manuscript is set up: A few modern controlling techniques for enhancing PQ in a system with compensators are shown in Section 2. The operational process and numerical modeling of the compensator using the DL controller for improving PQ are explained in Section 3. The results and discussion are offered in Section 4, and the proposed model’s conclusions are found in Section 5.

2. Related Work

Mitigation of PQ issues in the distribution system is essential for improving power quality in a system. According to the development of technology, several methods were developed to improve PQ in the distribution system. Some of the recently developed approaches were discussed as follows.

Prasad, et al. [14] had developed a Reduced Switch Count Multilevel Converter coupled with a PV system, and a dc-link voltage of a DSTATCOM was optimized according to the requirement for load adjustment. The speedier and simpler hysteresis controller was employed to regulate the inverter switch gate pulses. However, it has a delayed transient reaction because of the hysteresis controller’s behavior, which causes rippling dc-link voltage and renders it unstable for fast-changing loads. Badoni, et al. [15] had suggested a shunt compensator designed and implemented with an affine projection control technique to lessen PQ problems. The weighted values’ convergence served as the basis for the control approach, which was independent of the properties of the input signal. A working DSTATCOM prototype was created using a digital signal processor (DSP) and a three-phase voltage supply (VSC). Nevertheless, the models are not desirable choices because of their size, increased space requirements, gradual detuning, and potential for resonance load.

Kumar and Kumar [16] had developed a DSTATCOM to enhance the grid-connected PV system’s PQ. The online weight is determined by the ADALINE-based LMS controller based on the measured load current and the previous weights. However, there are downsides to these systems, including oscillation around the goal point, fixed perturbation steps, and limited efficiency in dynamic situations. Kanase and Jadhav [17] had suggested a Voltage Source Converter (VSC) reference signal by using an SRFT method to extract the necessary current components. DSTATCOM removed harmonics and reactive power from the three-phase distribution system using this technique. One of this model’s biggest flaws was its dependence on voltage feed-forward and cross-coupling blocks.

Pandu, et al. [18] had developed a DSTATCOM for neutral current compensation, load balancing, and the reduction of harmonics. To enhance power quality in the Local Distribution Grid, Recursive Least Square and the Interval Type-2 Fuzzy Logic Controller filter were used to generate switch signals for IGBT in DSTATCOM. The FLC cannot deduce knowledge or relationships from the system’s imprecise data, which is a disadvantage of utilizing this paradigm. Babu and Malligunta [19] had suggested to enhance power quality in the power distribution system that provides high-quality power to consumers and load devices, a multilevel DSTATCOM configuration. The “PQ”-based control approach creates a reference signal that was then further processed using a level-shifted multi-carrier PWM technique to produce gate pulses for a multi-level DSTATCOM structure. However, the usage of a high pass filter can result in undesirable phase shifts at some frequencies, as well as ripples in the passband or the stopband.

Hasanzadeh, et al. [20] had developed a STATCOM-based one-cycle controller to boost distribution network power quality. Switching pulses, a perfect control method, could be generated in STATCOM’s compensating switching design for a variety of goals. But this approach exhibits substantial inaccuracy in the response to the permanent state and poor response to the dynamic state, in addition to being extremely difficult to execute. Arya, et al. [21] had developed a D-STATCOM for the study of DS that was precisely positioned and scaled employing the gravitational search algorithm (GSA). IEEE 33 and IEEE 69 buses were utilized to test the algorithm’s efficacy. However, because reactive power modifies the voltage across the entire power system network, it jeopardizes the security of electrical networks.

Gopal and Sreenivas [22] had suggested a Voltage Source Converter (VSC)-based model for improving power factor, lowering harmonics, and eliminating voltage sags and swells utilizing a Distribution Static Compensator. This model simulates the IEEE 15 bus system, and it uses the sensitivity index to determine where the D-STATCOM should be placed within the test system. However, the model’s poor controlling performance rendered it unsuitable for actual application. Ahmed [23] had suggested an IEEE 14-bus system Flexible AC transmission system (FACTS) device for enhancing PQ. The system with STATCOM responds to voltage changes better than the system without STATCOM in terms of overshoot. The 3-phase voltage and currents d-q components are calculated using the PLL output. However, because the model has poor regulating performance, it cannot withstand all conditions.

The aforementioned literature presents several recently developed approaches aimed at improving power quality in electrical systems. While these models perform better in mitigating power quality (PQ) issues, they still exhibit several limitations. Some models are unreliable under fast-changing load conditions [14], while others demand more installation space, limiting their applicability in space-constrained environments [15]. Certain methods suffer from low efficiency under dynamic load conditions [16], and the use of cross-coupling blocks increases control complexity and can introduce stability issues, especially under dynamic conditions [17]. In addition, some approaches are very complex to implement [18], and the limited learning capability of Fuzzy Logic Controllers (FLC) restricts adaptability [19]. Other models show poor control performance [20], pose risks to power system security [21], and are unable to reliably maintain power quality under all grid scenarios [22]. Finally, some systems fail to ensure consistent performance in rapidly changing grid environments [23]. To overcome these issues, the proposed model used a compact Distributed Static Compensator (DSTATCOM) controlled by a deep-learning-based system that automatically generated control pulses without complex structures or manual tuning. This approach improved stability, efficiency, and adaptability, effectively mitigating voltage sags, swells, interruptions, and harmonics.

3. Proposed Methodology

PQ improvement on the distribution side is considered as a significant task in the power system. Poor PQ causes several economic losses, interrupted power supply, and component misbehavior. To maintain a constant power on the load side, several controlling system-based FACTS devices were introduced, but the models had some limitations due to a poor parameter selection process. A controller based on DL has been developed recently to govern the efficiency of the compensator power injection. DL offers a wonderful alternative to classical machine learning, which depends on human experience. It can handle enormous amounts of data for small networks with a considerably reduced learning cost and can also adapt instantly to all data. So, in the proposed model, an advanced DL controller is designed to regulate the DSTATCOM for improving PQ in the distribution system.

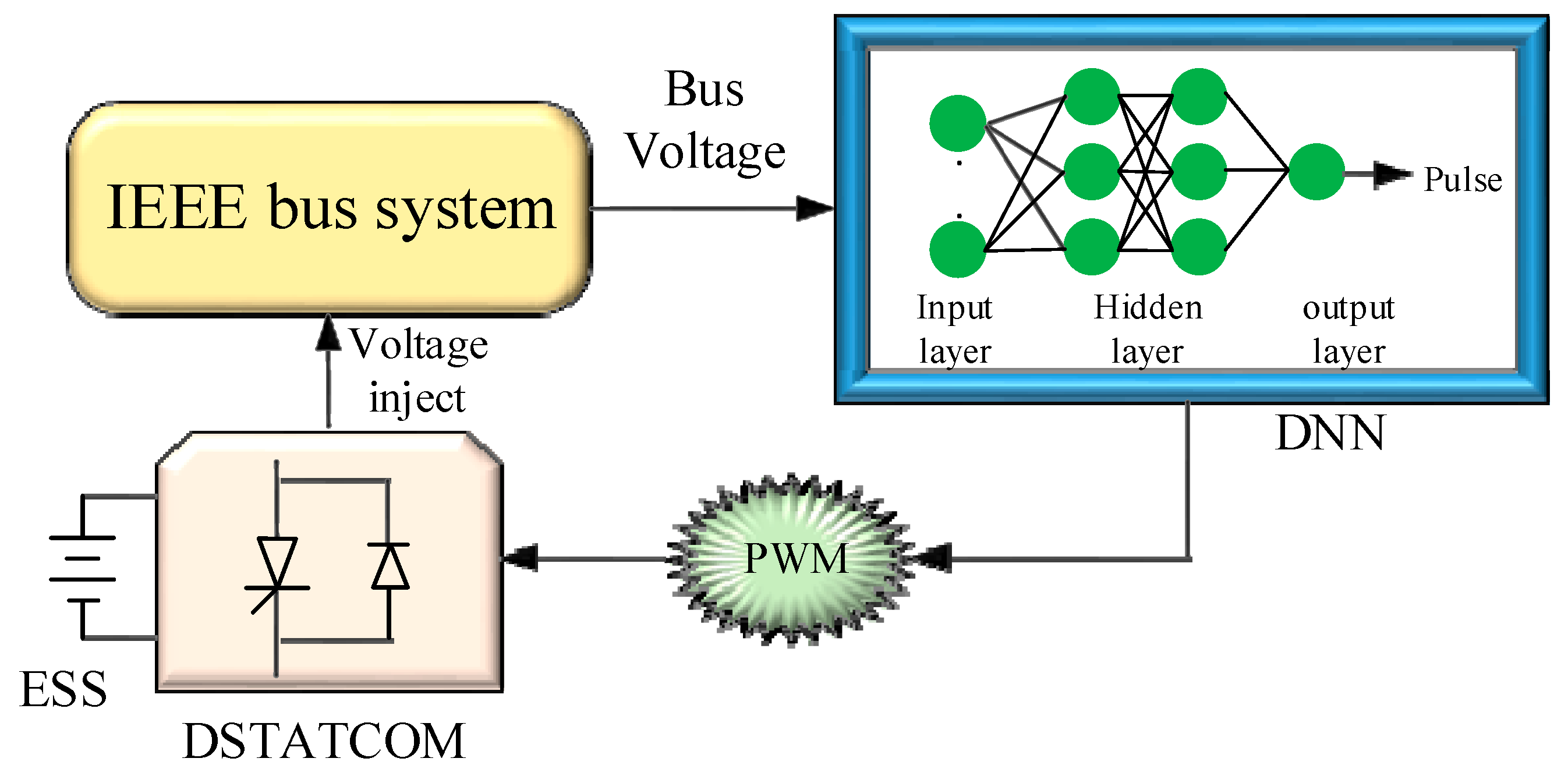

Intelligent learning controller-based DSTATCOM for the PQ improvement model is illustrated in Figure 1. At first, a standard bus system is designed based on the rule of IEEE standards. One of the generators is assumed as the grid supply in the designed bus system. The nearest bus of the grid is taken as a point of common coupling (PCC). A DSTATCOM is fixed at any location in a system; also, an Energy Storage System (ESS) is linked to the DSTATCOM. A real-time implemented dataset is generated that contains voltage ranges of all buses at normal and PQ issue conditions. Based on this dataset, the DL controller model is designed, and its trained model is fixed into the system. The DL model decides whether the power may inject from the energy storage system at the present period based on the trained model. PThe mathematical design of the proposed components are discussed as follows.

3.1. Modeling of STATCOM

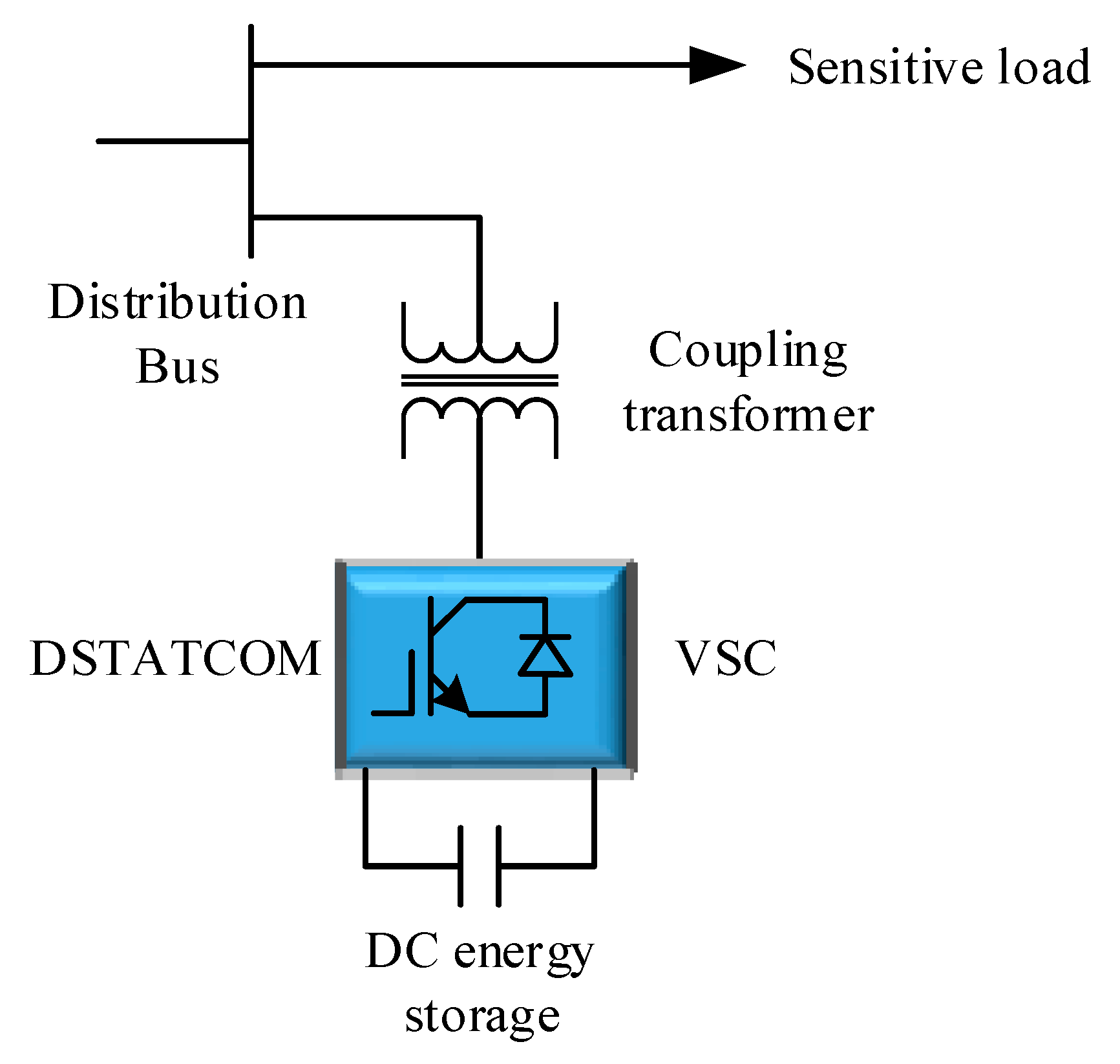

Insulated Gate Bipolar Transistors (IGBT) are constant high speed switching elements used in DSTATCOM, a reactive power compensation device for diversion, with a control strategy based on “pulse-width modulation.” Through the use of energy loading devices at its input terminals, it may receive power from a DC energy source and generate and excite fully controlled reactive and real power at its output terminals. The equivalent diagram of DSTATCOM is shown in Figure 2.

The equation of the DSTATCOM terminal is stated as follows:

$$\overline{V}=\left[\begin{array}{c}{V}_a\\ V_b\\ V_c\end{array}\right]; \overline{V_{sh}}=\left[\begin{array}{c}{V}_{a sh}\\ V_{b sh}\\ V_{c sh}\end{array}\right]; \overline{I_{sh}}=\left[\begin{array}{c}{I}_{sh a}\\ I_{sh b}\\ I_{sh c}\end{array}\right]$$

(1)

where $I_{sh}$ signifies shunt current and $V_{sh}$ denotes shunt voltage. The real and reactive power exchanged with the system is stated as:

$$\left\{\begin{array}{c}P={\displaystyle \frac{V_s{V}_{sh}}{X_t}}\mathit{sin}{\delta }_{sh}\\ Q={\displaystyle \frac{V_s^2}{X_t}}-{\displaystyle \frac{V_s{V}_{sh}}{X_t}}\mathit{cos}{\delta }_{sh}\end{array}\right.$$

(2)

The reference compensator currents by $i_{fa}^{\ast }$, $i_{fb}^{\ast }$, and $i_{fc}^{\ast }$ are expressed as:

$$\left.\begin{array}{c}{i}_{fa}^{\ast }=i_{la}-{\displaystyle \frac{v_{ta}-v_0}{∆}}{p}_{lav}\\ i_{fb}^{\ast }=i_{lb}-{\displaystyle \frac{v_{tb}-v_0}{∆}}{p}_{lav}\\ i_{fc}^{\ast }=i_{lc}-{\displaystyle \frac{v_{tc}-v_0}{∆}}{p}_{lav}\end{array}\right\}$$

(3)

where $∆=\left[\sum _{\gamma =a,b,c}{v}_{t\gamma }^2\right]-v_0^2$ and $v_0=\left(1/3\right)\sum _{\gamma =a,b,c}{v}_{t\gamma }$, $p_{lav}$ denotes the average load power, and $i_{la}, i_{lb}$, and $i_{lc}$ are three-phase current. The power injected is given in the below equation.

$$\overline{S}=\overline{V_t}\ast \overline{I_{sh}}={\displaystyle \frac{\overline{V_t}\left(\overline{V_{sh}^{\ast }}-\overline{V_t^{\ast }}\right)}{-j{X}_t}}={\displaystyle \frac{\overline{V_t}·\overline{V_{sh}^{\ast }}-\overline{V_t^2}}{-j{X}_t}}$$

(4)

The DSTATCOM injects the power based on the PWM signal of the switches. In order to inject enough power into the compensator to offset the load demand, an ESS is connected to it.

3.2. Voltage Regulation of DSTATCOM

It is feasible to regulate the compensator’s current by including one in tandem with the load:

$$I_s=I_L+I_R$$

(5)

where $I_R$ signifies compensator current and $I_L$ denotes load current.

$$I_L=\left[{\displaystyle \frac{P_L-j{Q}_L}{v}}\right]$$

(6)

The fundamental workings of a DSATCOM are comparable to those of synchronous machines. When underexcited, the synchronous machine will produce lagging current; when anxious, it will produce a leading current. Similar to synchronous machines, DSTATCOM may produce and absorb reactive power. If an external device is connected to it, it may exchange real power with the DC power supply.

Exchange of reactive power—When the voltage source converter’s voltage output exceeds the system voltage, the DSATCOM functions as a capacitor and produces reactive power.

Exchange of real power—The DC capacitor is necessary to give the switches the necessary actual power because the switching devices cannot be lossless. For direct voltage management, actual power exchange to an AC system is therefore required to maintain a constant capacitor voltage.

Reactive power correction keeps the source current at unity power factor (UPF) by supplying reactive power as required by the load using DSTATCOM. Load balancing is accomplished by balancing the source reference current because the source is the only source of power. The true basic frequency component of the load current is present in the reference source current, which is utilized to determine when to switch on the DSTATCOM. The most crucial aspect of DSTATCOM control is the generation of appropriate PWM firing, which has a significant influence on both steady state and transient performances, as well as compensating objectives. The suggested approach uses a DL-based controller to create a PWM signal in a compensator so that the power supply remains constant while the load is being operated.

3.3. Modeling of DL Controller

A deep-learning-based controlling system of the compensator is discussed in this section. Deep learning (DL) teaches computers to learn from examples in the same way that people do. A computer may build a hierarchy of complicated concepts from smaller ones by using layer-based learning. So, in the proposed model, a deep-learning-based controlling system of DSTATCOM is developed to improve PQ in the distribution system. Here, a deep neural network (DNN) is preferred to analyze the voltage and produce a suitable PWM signal for a compensator. The numerical expression of the proposed controller is stated as follows.

3.4. Modeling of DNN Controller

In the proposed model, a dataset is created as per the real-time simulation analysis. On the basis of the generated dataset, the intelligent controller is constructed. In this case, the DNN is made to produce the proper pulse signal for the compensator. The key advantage of employing this controller is its capacity to bridge extremely long-time lags without the need for fine modifications due to its constant error back propagation between memory cells. The voltage of each bus is sent as the input to the DNN, and the output is the pulse signal of the compensator at that time.

3.5. Working Process

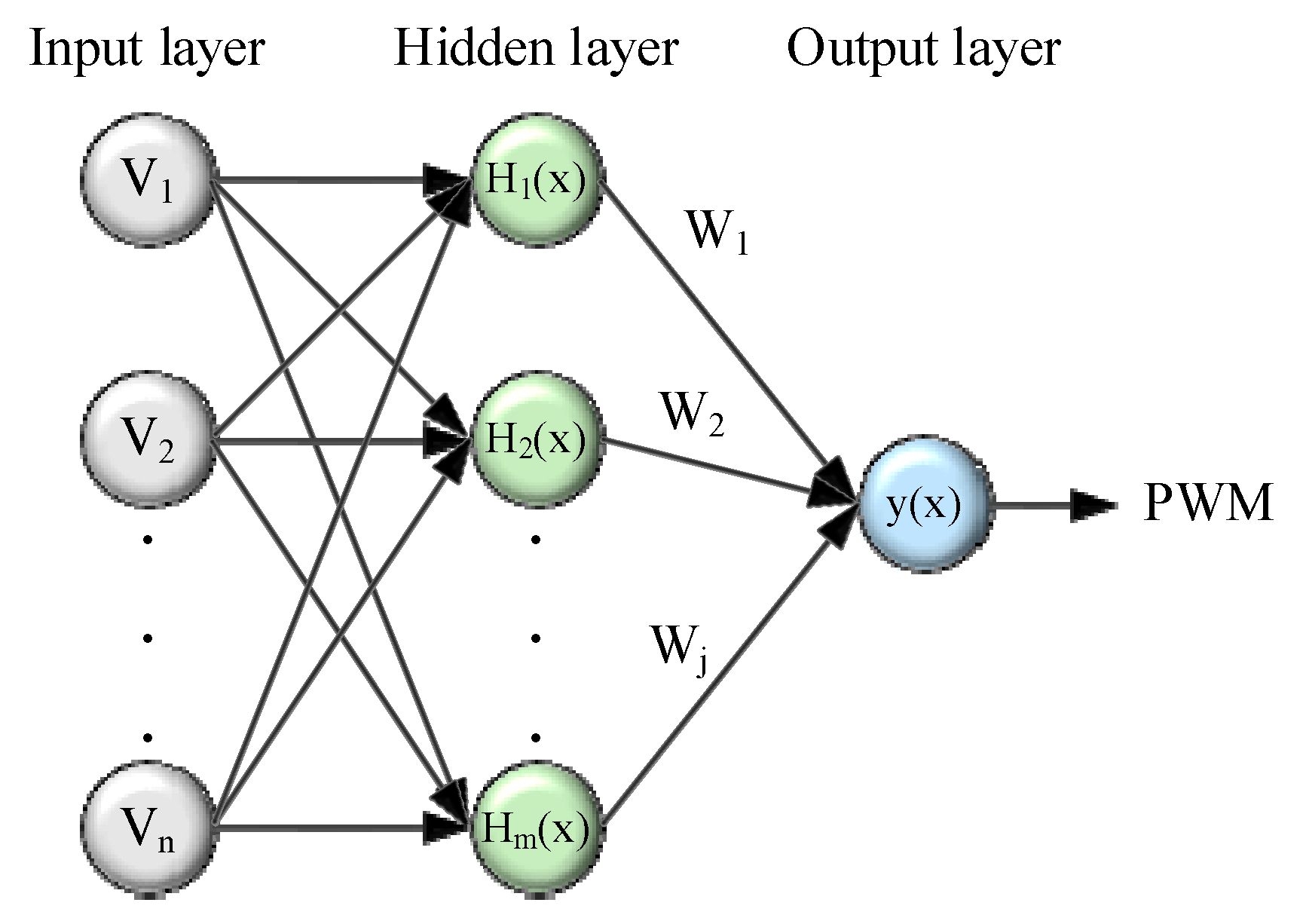

A DNN is a system of neurons organized in layers, where each layer processes simple calculations and receives input from the layers above it. The layers are made up of nodes that are just locations where computation takes place. For each pair of units in every two-layer succession, there is a difference in the bias and weight of every node. The output layer, input layer, and hidden layer are the three stages that comprise a DNN. The DNN input layer receives the given input data. Thirteen distinct sources provide input to the proposed model’s input layer. The input data are processed mathematically by the DNN hidden layer. There are a lot of hidden layers in DNN. The final layer, also known as the output layer, has a direct connection to the desired outcome that the model is trying to predict. The architecture of DNN is shown in Figure 3.

The number of inputs are $v_1, v_2, \dots , v_i, i=1, 2, \dots , n$; $H_1, H_2, \dots , H_k$ is hidden layers k differs from 1, 2, …, n; the hidden neuron bias, $B=1, 2, \dots n$ and $W$ denote the weight of the layer.

The general form of the input layer is

$$V_N=\left({\sum }_{i=1}^m{v}_i\times w_{iN}^I\right)+B$$

(7)

Taking into account a DNN with three hidden layers, the term for network computing with three hidden layers is

$$h_i^{\left(1\right)}={\phi }^{(1)}\left({\sum }_j{w}_{11}^I{x}_i+B_i\right)$$

(8)

$$h_i^{\left(2\right)}={\phi }^{\left(2\right)}\left({\sum }_j{w}_{11}^{II}{h}_j^{\left(1\right)}+B_i\right)$$

(9)

$$h_i^{\left(3\right)}={\phi }^{\left(3\right)}({\sum }_j{w}_{11}^{III}{h}_j^{\left(2\right)}+B_i)$$

(10)

The general phrase for a hidden layer is

$$h_i^{\left(i\right)}={\phi }^{\left(i\right)}\left({\sum }_{j=1}^N{w}_{jN}^{h ij}\right)+B$$

(11)

The following equation is computed as the output:

$$y_i={\phi }^{\left(3\right)}({\sum }_j{w}_{ij}^{\left(i\right)}{h}_j^{\left(i\right)}+b_i^{\left(i\right)})$$

(12)

where $b$ is bias, $v_j$ is refers to input units, $w$ is the input, $h_j^{\left(i\right)}$ is units in the hidden layer, $y$ is the output unit, and $\phi$ is the activation function, using this DL controller to generate the pulse signal of a compensator.

4. Result and Discussion

The purpose of the proposed DL controller-based DSTATCOM model is to validate its efficacy under the different conditions covered in this part. Initially, a standard bus system with a DSTATCOM model is designed; at this period, the bus voltages are collected and named as a normal condition. Then, applying various kinds of faults in the system to generate PQ issues, at each period, the bus voltages are collected and named individually. The collected bus voltages are termed as a real-time dataset; as per this dataset, the proposed DL controller is designed. Each second, the proposed controller analyzes the bus voltages and produces a parallel PWM signal of DSTATCOM. The proposed model was designed, and the performance was validated using MATLAB/Simulink 2021b software. The performance analysis of the proposed model is validated under two conditions, namely,

• Case 1: Performance analysis in IEEE 13 bus system
• Case 2: Performance analysis in IEEE 33 bus system

Each case is examined separately, and the results are given in the sections that follow. In each scenario, the suggested controller efficiency is validated in several circumstances, like sag, interruption, swell, and Total Harmonic Distortion (THD) content.

Table 1. STATCOM parameter.

Parameter	Ranges
Capacitance	1000 × 10−6 F
Initial voltage	800 V

demonstrates the designing parameters of STATCOM.

Table 2. Simulation parameters of proposed and existing approaches.

Parameter	Method	Ranges
Hidden neuron	DNN	10
Epoch		30
Epoch	FFNN	100
Gradient		6.8 × 10−5
µ		1 × 10−7
Training algorithm		Levenberg-Marquardt
Num. Neighbors	KNN	5
Num. Observations		150
Distance		Euclidean

contains the parameters that were utilized to create the proposed and present controller designs.

4.1. Dataset Generation

The generation of the dataset, which is a crucial step for PQ mitigation, comes first in the suggested paradigm. A standard IEEE bus model with DSTATCOM is developed and collects each bus voltage without altering any of the factors that are taken into account for normal system data. Apply a fault to the system next to make it sag in a similar manner; swells and interruptions are made in the system to gather data. The categorized collected datasets are saved in an excel file.

Designing the DNN controller that generates the pulse signal for the IGBT of DSTATCOM uses this real-time dataset. The suggested controller analyszs the bus system voltage once every second and produces a suitable pulse for the switches. In this manner, the dataset for a bus system is produced, and its PQ mitigation effectiveness is examined.

Table 3. Dataset samples.

Dataset	IEEE 13 Bus	IEEE 33 Bus
Overall data	20,000	20,000
Attributes	39	99

demonstrates the overall samples of the dataset and its attributes.

The voltage data used for training and testing the deep-learning-based DSTATCOM controller were collected at a sampling rate of 10 kHz, which provides adequate temporal resolution to capture transient events and high-frequency components commonly associated with power quality disturbances. For each type of disturbance voltage, sag, swell, and interruption, a fault duration of 0.2 s was used within a 1 s simulation window. This time frame ensures that the controller can detect and react to PQ events promptly. This fault injection helps the controller learn to operate effectively under variable and imperfect conditions that are typically found in practical utility environments.

4.2. Case 1: Performance Analysis in IEEE 13 Bus System

In this case, the effectiveness of PQ mitigation is analyzed using the IEEE 13 bus system. The suggested controller-based DSTATCOM is intended to be kept in the bus system, and its mitigation process has been examined in the issues of sag, swell, and interruption. Additionally, its THD was examined both before and after compensation.

4.2.1. IEEE 13 Bus System

The executed simulations were based on the IEEE-13 bus test feeder to analyze the impact of DSTATCOM on PQ concerns in distribution systems. This system is comprised of a single generation unit, a voltage regulator unit consisting of three single-phase units linked in a wye, a main transformer ∆-Y to 115/4.16 kV (substation), an in-line Y-Y transformer to 4.16/0.480 kV, scattered, two shunt capacitor banks, unbalanced loads, and thirteen buses via ten lines [24]. This bus system is used to analyze the sag, swell, interruption, and THD, which are all discussed in the section below.

i.

Sag issues

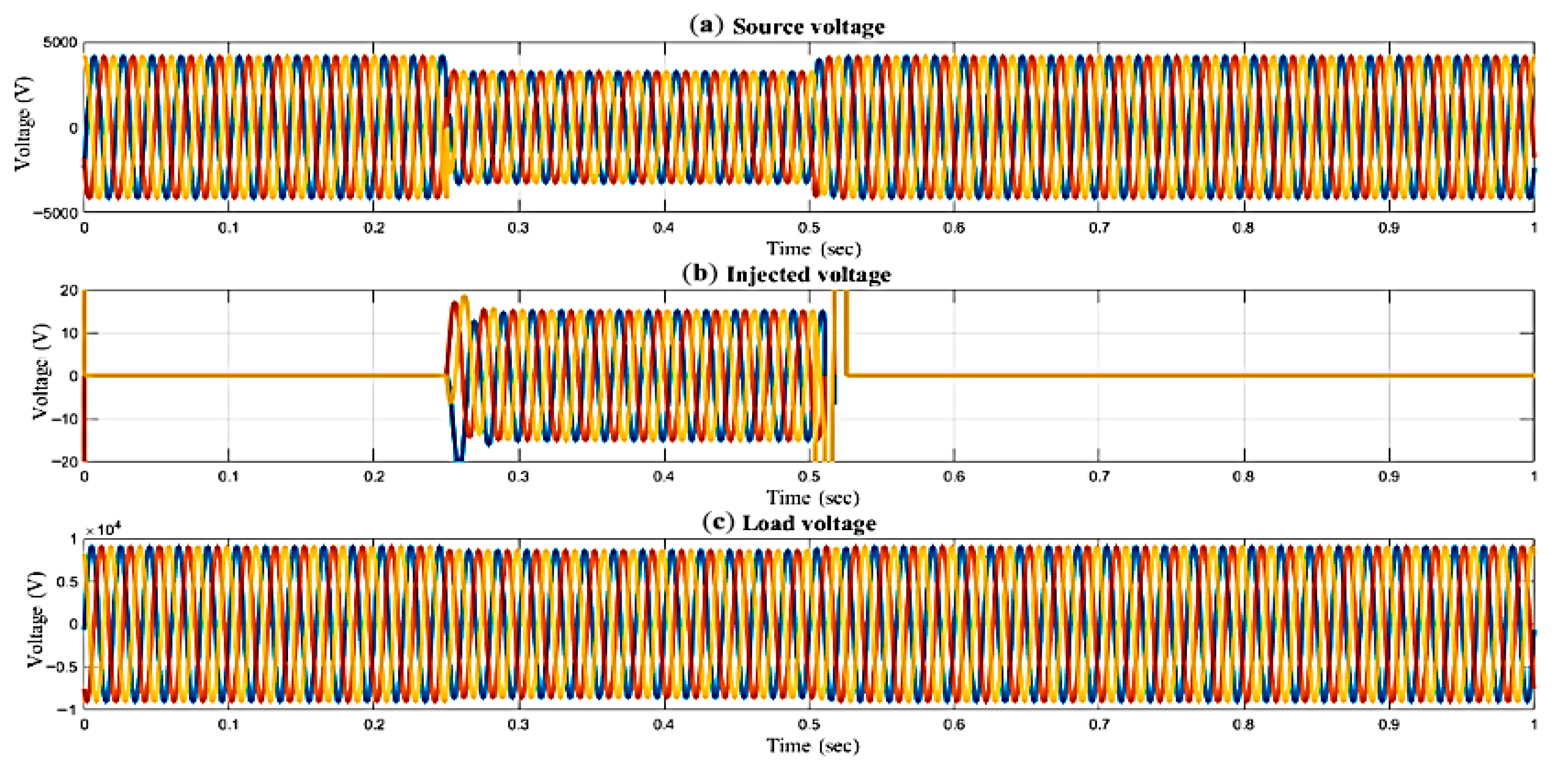

The voltage drops by 10% of the nominal voltage during the short instant when the waveforms collapse. Every bus voltage is transmitted to the proposed controller, which analyzes the input voltages (39 attributes) and produces the appropriate DSTATCOM pulse signal. Bus number 4 develops a sag fault, which lowers the voltage for a short period of time.

The compensator injects voltage to make up for the voltage in the load during a sag event, which occurs when the voltage falls below the nominal value. The voltage waveforms for the proposed model are shown in Figure 4 during the sag period. That causes the sag problems to occur between 0.25 and 0.5 s. DSTATCOM injects voltage throughout that time, allowing the load voltage to be adjusted and a steady power flow to be maintained. Figure 5 analyzes and plots the THD data for the load side. THD is a measure of signal distortion that assesses the energy contained in the harmonics of the original signal. According to the graphical model, the load side’s THD value after correction is 0.09%.

ii.

Swell issues

Sag compensation is followed by analysis of the swell fault, and performance is observed. The voltage is raised 10% over the nominal voltage during this time. The suggested controller receives the bus voltages every second, analyzes them, and generates the pulse signal for the compensators.

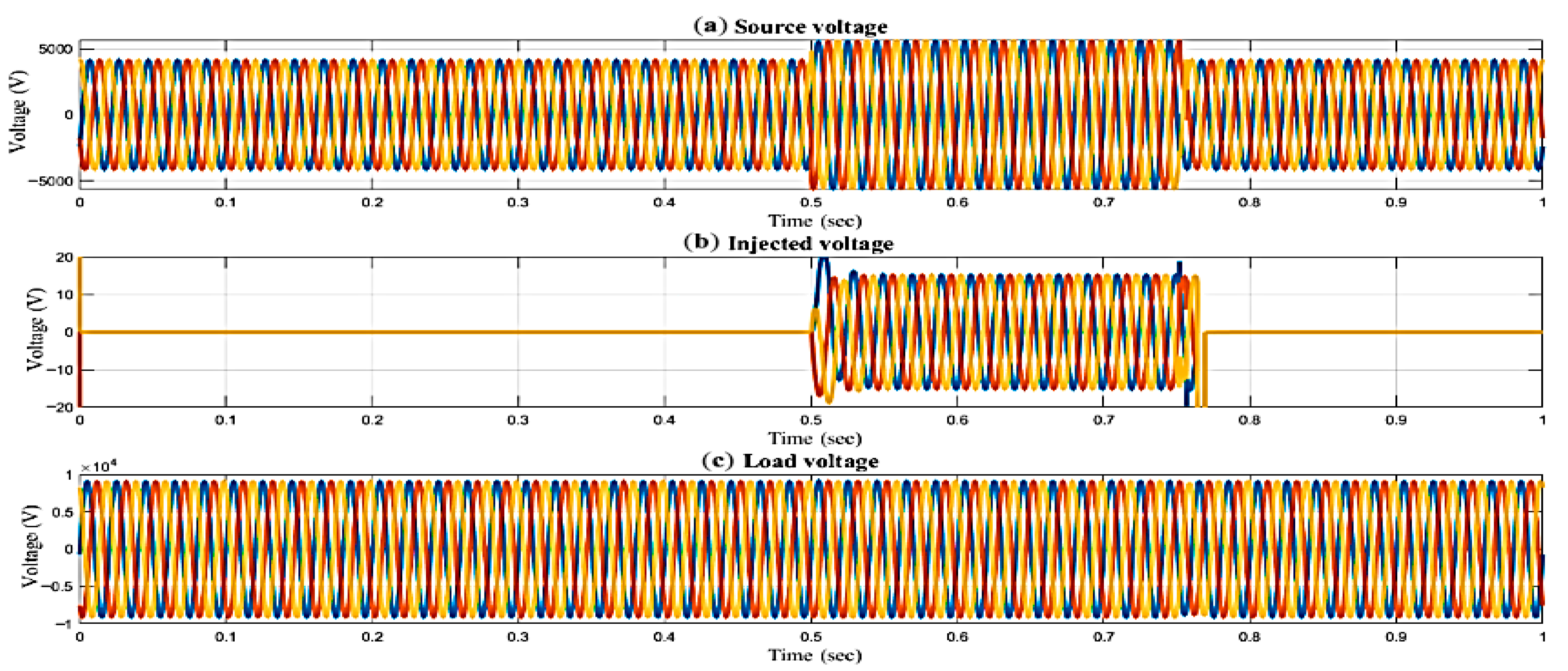

Figure 6 analyzes and shows the voltage waveform of the swell period on the source side, the injected side, and the load. The waveform shows that the swell problem appears between 0.5 and 0.75 s, during which time the waveform increases above the nominal voltage. The injected voltage shows that the voltage was injected between 0.5 and 0.75 s at the swell issue, compensating the load voltage in order to keep the constant power flow. The THD value is then analyzed during this time, as seen in Figure 7. After resolving the PQ issues, the THD value on the load side before compensation is 0.08%, which is less than IEEE standard limits.

iii.

Interruption issues

Analyzing the issue of interruptions and its compensation performance is observed. Deployment of a fault in bus number 4 causes interruption. During that moment, the voltage is 0.1 p.u for a short time that will not last longer than 1 min. Figure 8 shows the proposed controller’s interruption mitigation process.

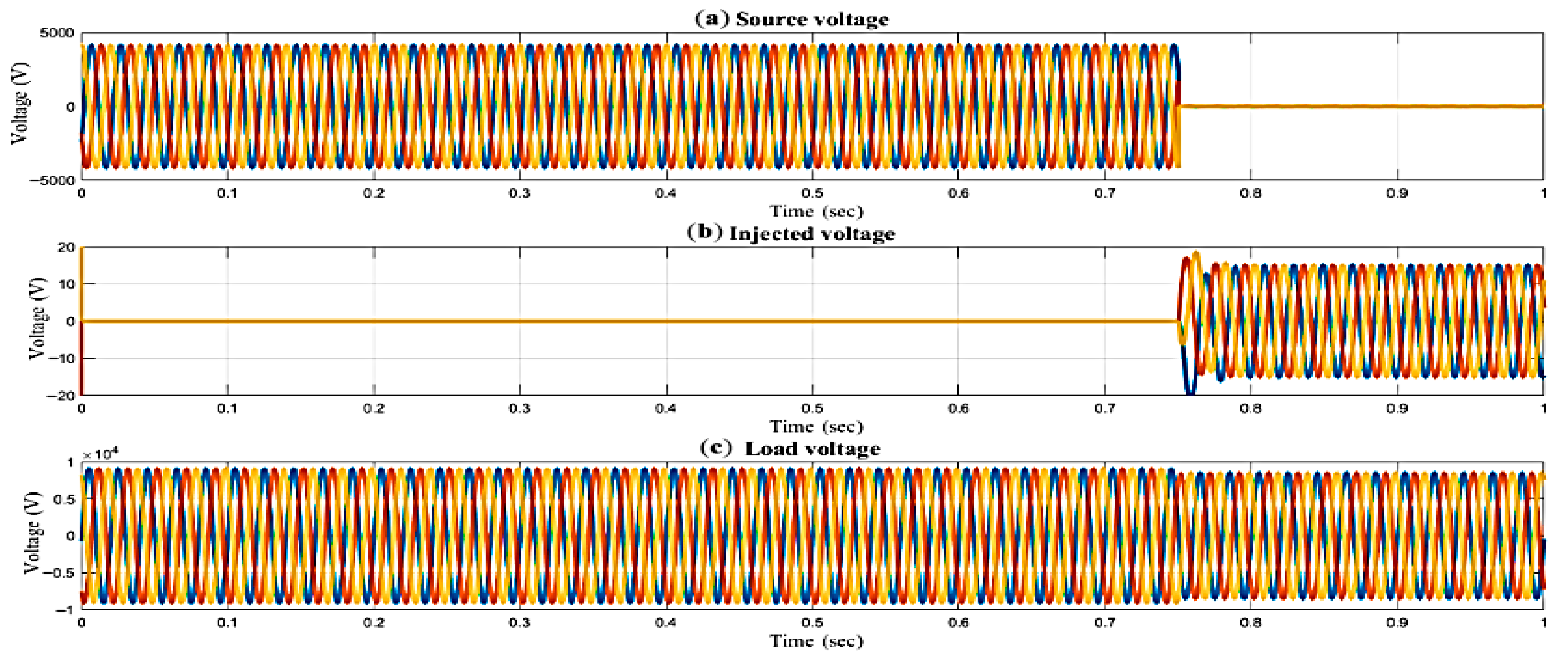

The voltage drops to 0.1 p.u. for a second during the interruption time, thus creating a major problem on the load side. To keep the load voltage constant flow, the suggested controller analyzes the bus voltage and generates the pulse signal of the compensator. Figure 8 shows the suggested controller interruption compensation. It contains a source voltage interruption fault that lasts between 0.75 and 1 s. The proposed controller would inject voltage during such time, reducing the effect of the interruption on the load voltage.

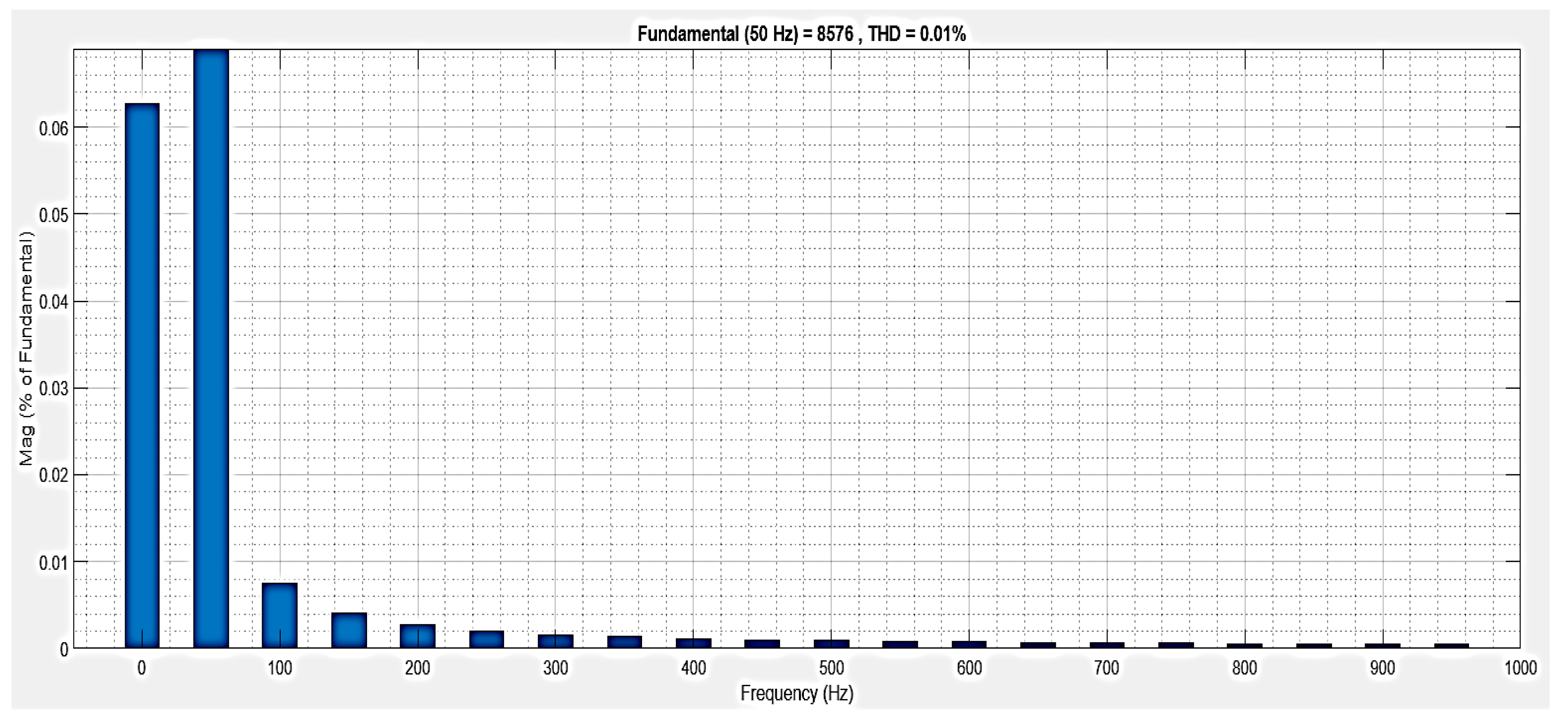

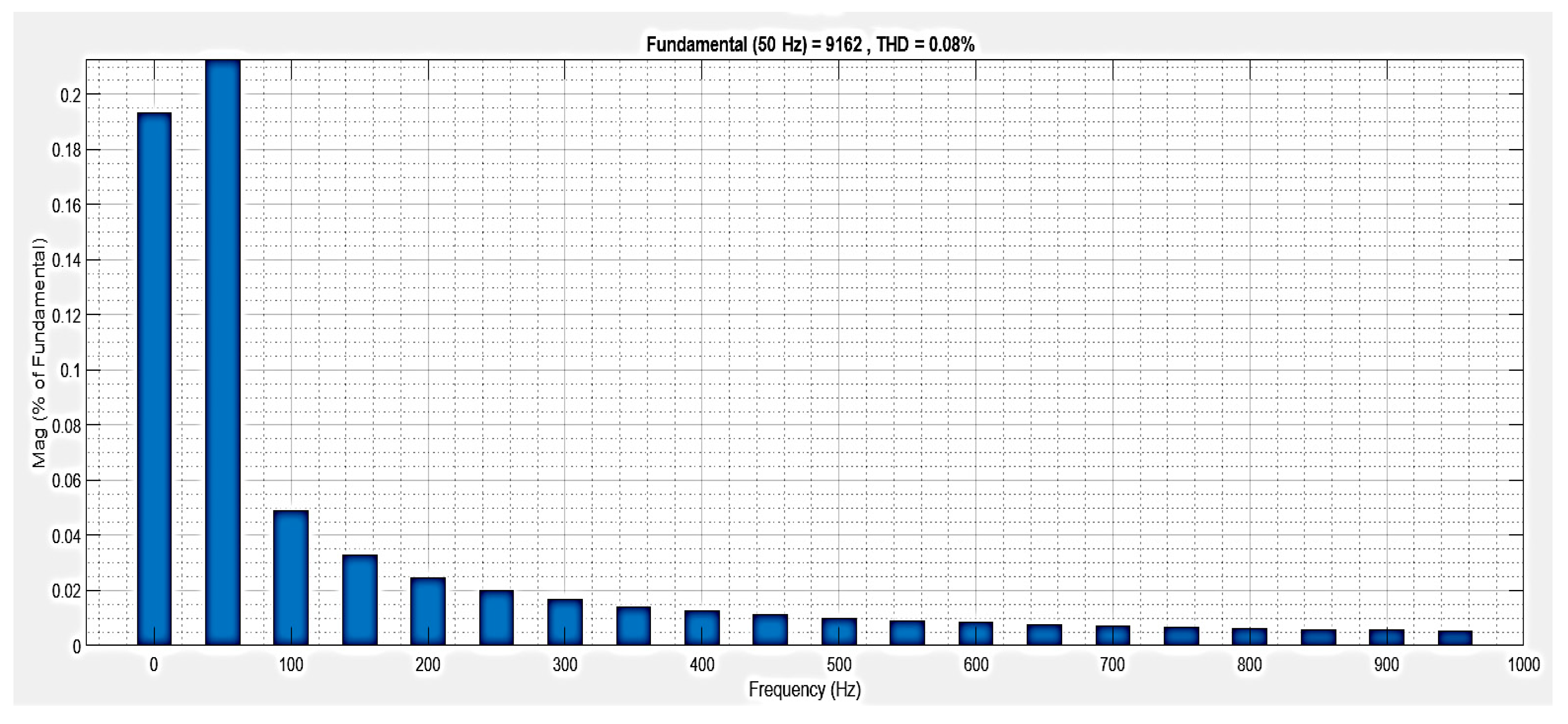

Figure 9 displays the proposed model’s load-side THD value. For a short time, the interruption caused the nominal voltage to drop. The THD value similarly decreased to 0.01% after the interruption was compensated for by using the suggested controller. The observed values show that the suggested methodology regularly yields superior outcomes.

4.2.2. Performance Analysis of the Proposed Controller

The performance metrics are computed using the confusion matrix. The metrics for geometrical modeling are discussed as follows.

• Sensitivity: Its definition was given as the proportion of real positives to the sum of true positives and false negatives.

  $$Sensitivity={\displaystyle \frac{TP}{TP+FN}}$$

  (13)
• Specificity: The total number of true negatives produced to the sum of true negatives and false positives produced is defined by this measure.

  $$Specificity={\displaystyle \frac{TN}{TN+FP}}$$

  (14)
• Accuracy: It can be calculated with specificity and sensitivity metrics. In mathematics, it looks as follows:

  $$Accuracy={\displaystyle \frac{TP+TN}{TP+TN+FP+FN}}$$

  (15)
• FPR: It is the percentage of all drawbacks that still result in benefits.

  $$FPR={\displaystyle \frac{FP}{FP+TN}}$$

  (16)
• Precision: The quantity of created labels is divided by the quantity of appropriately annotated labels.

  $$Precision={\displaystyle \frac{TP}{(TP+FP)}}$$

  (17)
• F1 measure: It is the recall and precision scores’ geometric mean.

  $$F-measure={\displaystyle \frac{2\times \left(Precision\times Recall\right)}{\left(Precision+Recall\right)}}$$

  (18)
• Error: It is computed using the accuracy metrics; the numerical modeling of error computation is stated as follows:

  $$Error=1-accuracy$$

  (19)
• Kappa: A metric used to compare an actual accuracy with a predicted accuracy is the Kappa statistic.

  $$Kappa={\displaystyle \frac{2\ast \left(TP\ast TN-FN\ast FP\right)}{\left(TP+FP\right)\ast \left(FP+TN\right)+\left(TP+FN\right)\ast \left(FN+TN\right)}}$$

  (20)
• MCC: The Mathew Correlation Coefficient (MCC) is essentially a correlation coefficient among observed and predicted classifications.

  $$MCC={\displaystyle \frac{TP\ast TN-FP\ast FN}{\sqrt{\left(TP+FP\right)\left(TP+FN\right)\left(TN+FP\right)\left(TN+FN\right)}}}$$

  (21)

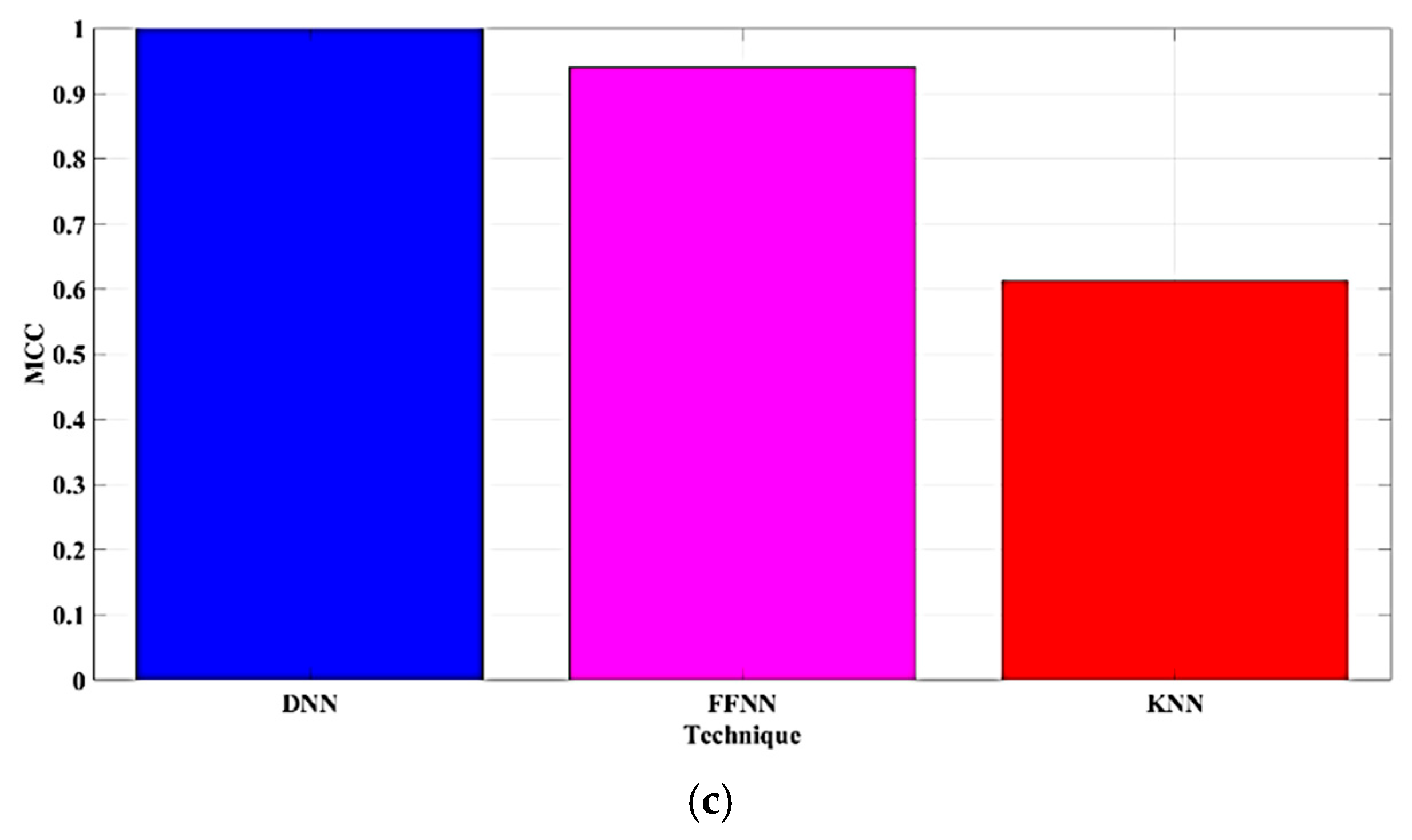

To verify the proposed controller’s effectiveness, its performance measures are contrasted with those of certain different methods. Feed Forward Neural Network (FFNN) and K-Nearest Neighbor (KNN) are contrasted with the suggested DNN controller. Metrics for suggested and current methods are compared in Figure 10, Figure 11 and Figure 12.

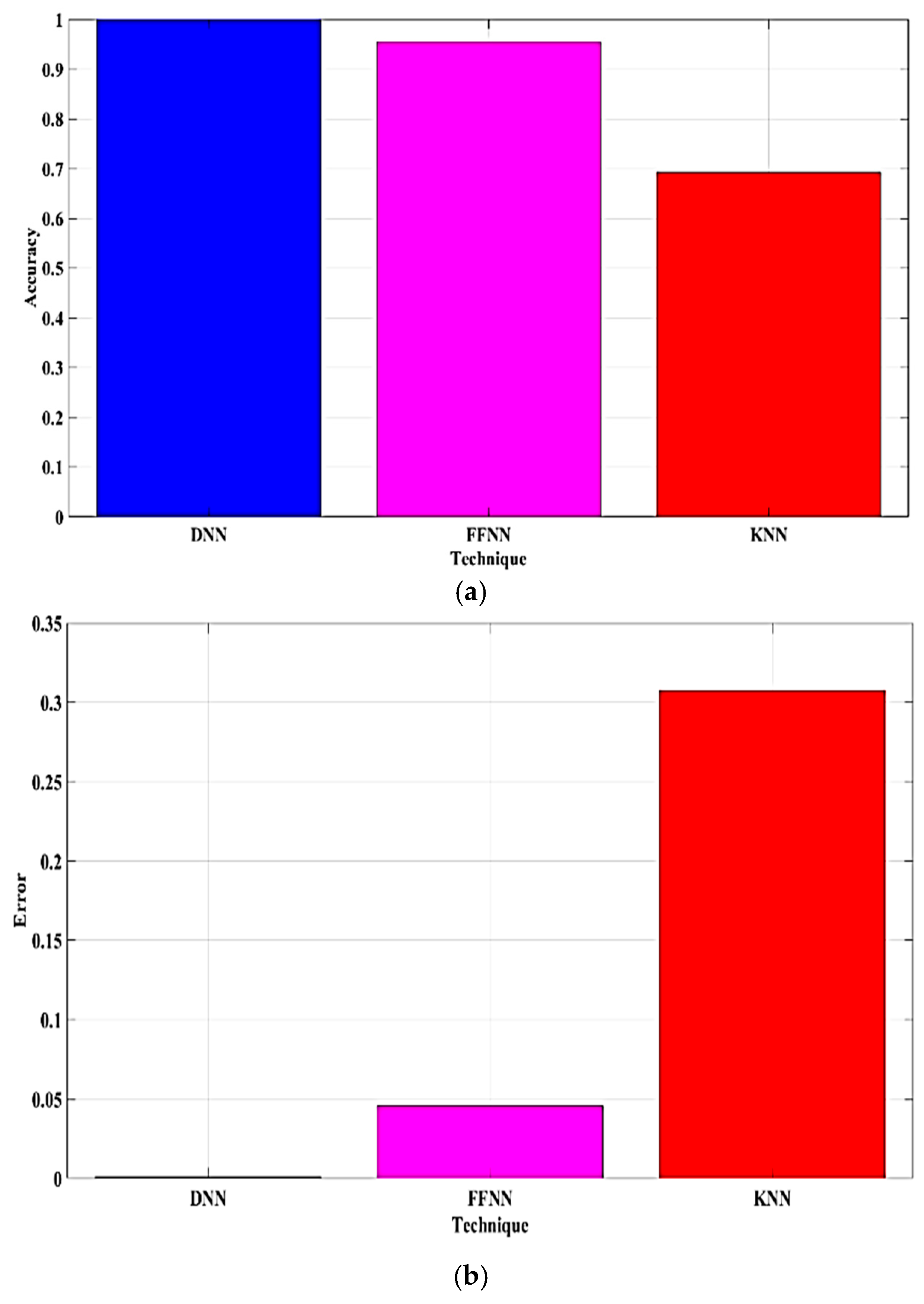

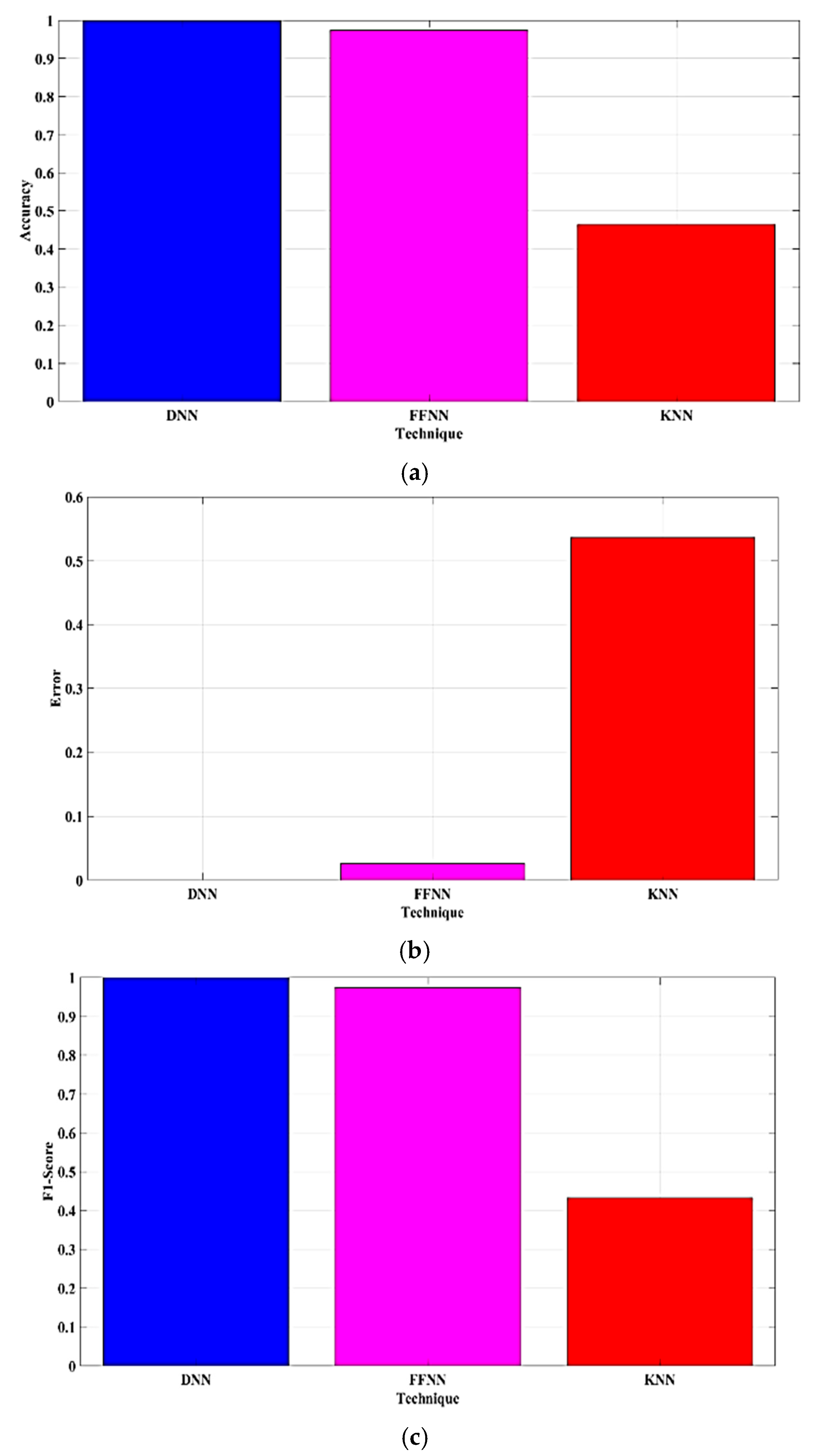

The comparison is initially performed to ensure accuracy, which is shown in Figure 10a. The accuracy of the proposed DNN model is 99.9%, while those of the FFNN and KNN are 97% and 69.5%, respectively. The accuracy values of existing techniques are substantially lower than the one proposed. The error values of the proposed and current models are then compared, illustrated in Figure 10b. The accuracy is subtracted from 100 to calculate the inaccuracy. The existing FFNN and KNN have 0.3% and 35.5% error, compared to the suggested model, which is 0.1% error. Consequently, this confirms that the suggested strategy yields superior results than the current models.

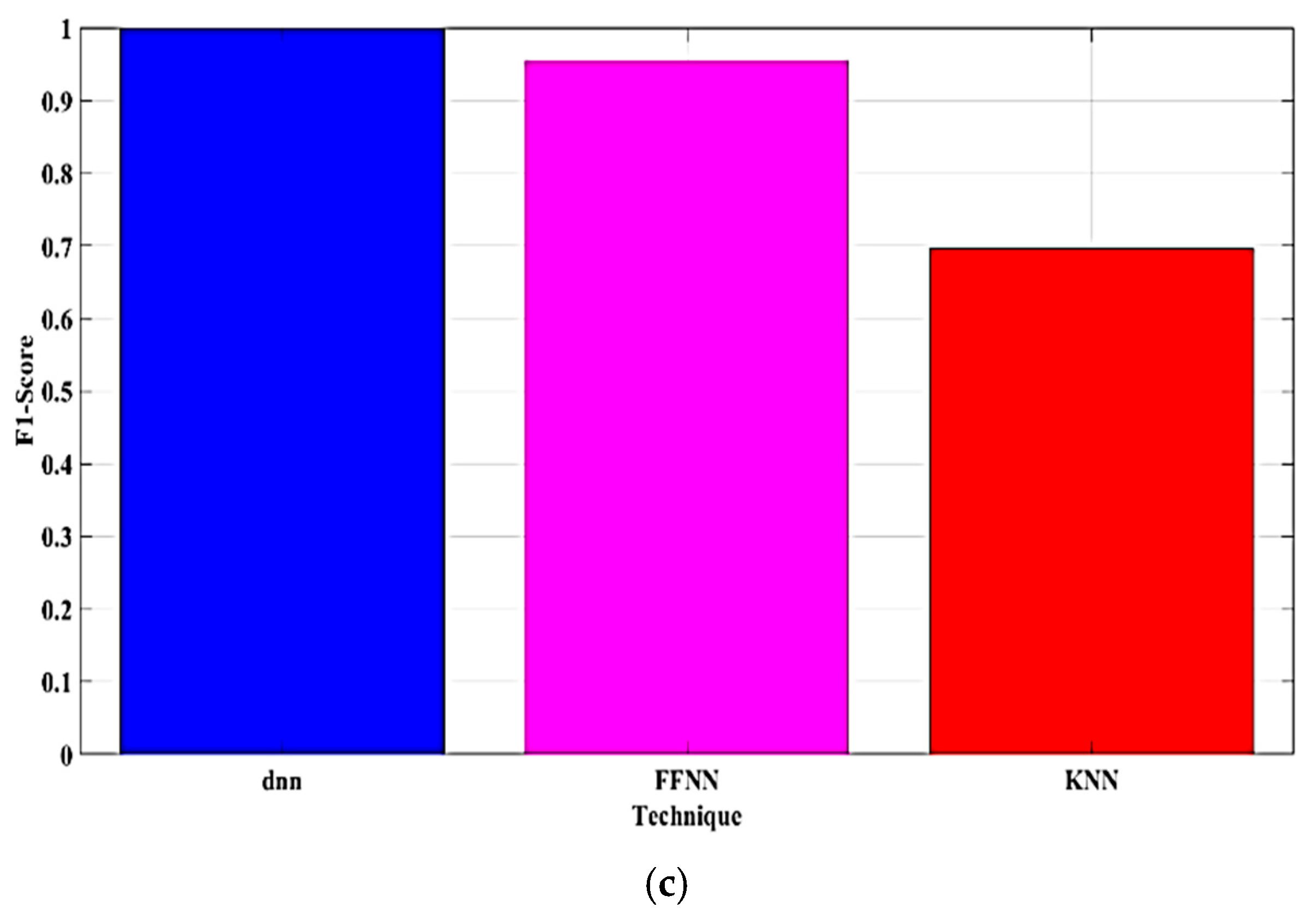

The F1 score results from the DNN, and the presently used methods are then compared, demonstrated in Figure 10c. The current models of FFNN and KNN have F1 scores of 98% and 69.9%, respectively, whereas the DNN model provides a 99.9% F1 score.

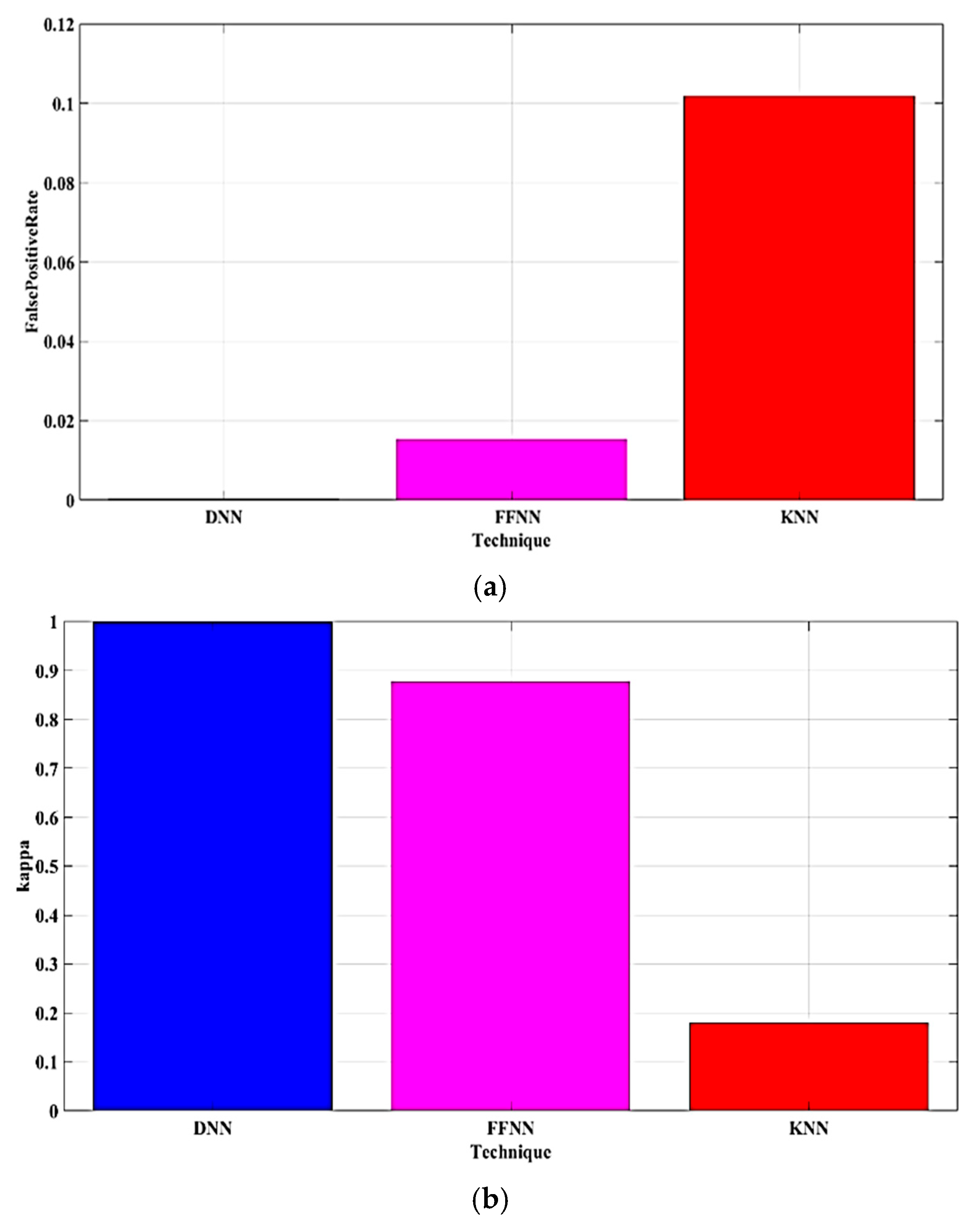

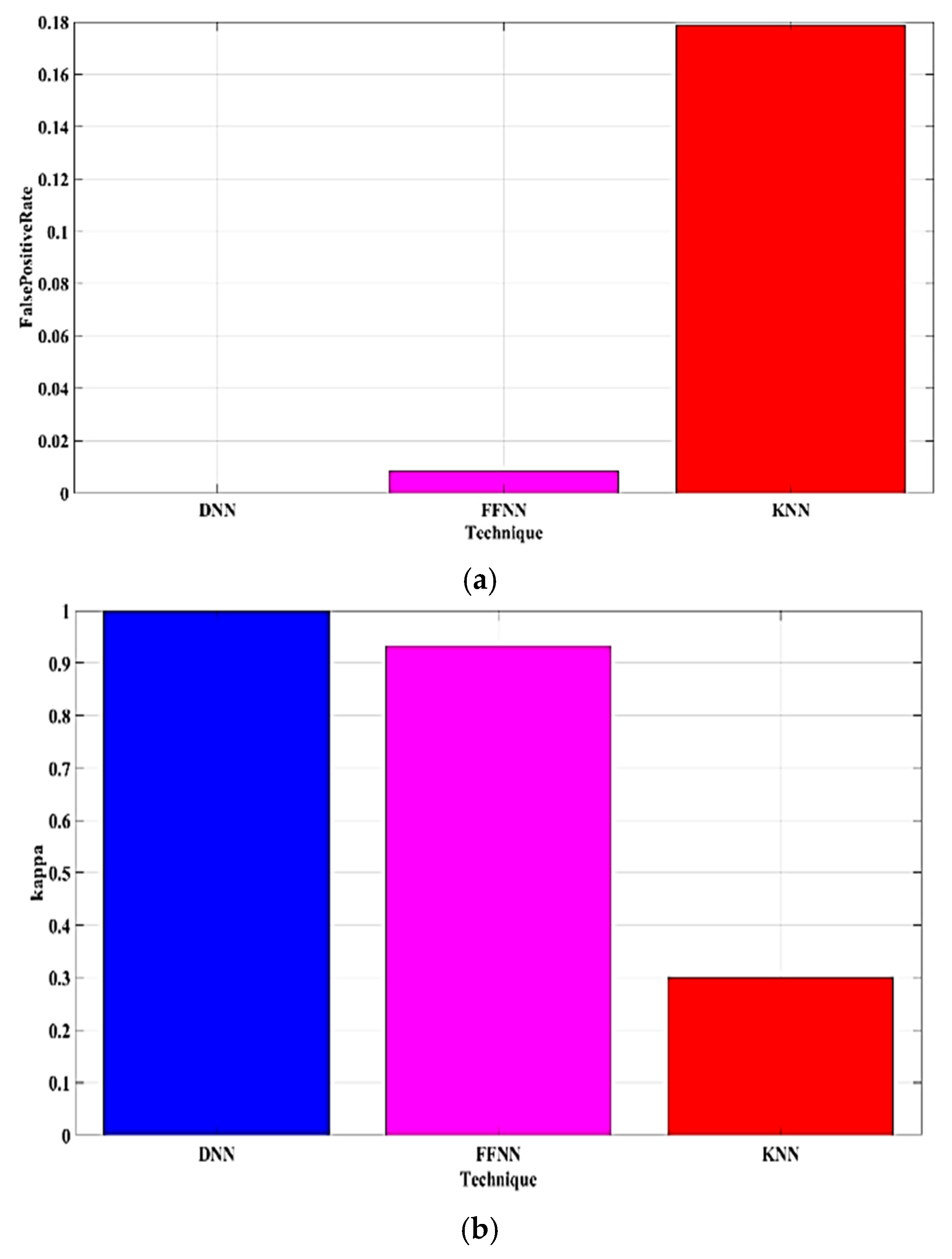

After that, an analysis and comparison of the False Positive Rate (FPR) of DNN and current methods follows, shown in Figure 11a. The proposed DNN model FPR is 0.1%, FFNN is 1.5%, and KNN is 11.3%. A comparative study shows that the suggested DNN model has a lower FPR value than the current methods. The DNN kappa value and current techniques are then analyzed, which is shown in Figure 11b.

Kappa is able to categorize the consistency of several variables across rates. The FFNN has a kappa value of 88%, the KNN has a kappa value of 61%, and the DNN controller has a kappa value of 99.9%. Current methods and FFNN approach Mathew Correlation Coefficient (MCC) are analyzed, as shown in Figure 11c, and the observed values are compared. The MCC is the correlation between the observed and expected binary categorization. The existing FFNN has 95% MCC, the KNN has 62% MCC, and the proposed DNN has 99% MCC. Figure 12a illustrates the analysis of the DNN precision values and existing techniques. The accuracy of the DNN is 99.9%, that of the FFNN is 96%, and that of the KNN is 75%. Figure 12b compares sensitivity to other methods after it has been tested. It is recognized that there is a ratio between what is actually positive and what is positive in the related elements. The sensitivity of the proposed DNN is 99.9%, FFNN is 95%, and KNN is 69%. The specificity of the suggested strategies is then contrasted and investigated to confirm their efficacy. The specificity of the suggested DNN model is 98%, FFNN is 93%, and KNN is 90%.

Table 4. Load flow analysis of IEEE 13 bus system.

Bus no.	Voltage (V)	Sag (V)	Swell (V)	Interruption (V)
1	3417	2890	3900	2300
2	4100	3560	4630	3325
3	4180	3455	4850	2200
4	4180	3278	5600	15
5	4180	2280	5600	15
6	10,890	10,550	10,600	10,500
7	9143	8677	9150	8580
8	6937	6340	7300	6000
9	7175	6800	7450	6665
10	6860	6445	7150	6265
11	6650	6200	6950	6000
12	6600	6125	6920	5858
13	6770	6230	7105	6910

demonstrates the outcome of the load flow analysis of the IEEE 13 bus system.

4.3. Case 2: Performance Analysis in IEEE 33 Bus System

In this instance, the IEEE 33 bus system’s performance of the suggested controller PQ mitigation is analyzed. The generator bus system is intimately connected to the proposed controller-based DSTATCOM design. The performance of the suggested controller was then examined under a variety of conditions, including sag, swell, interruption, and THD.

IEEE 33 Bus System

There are no reactive power compensation units in the IEEE 33 bus system, which consists of 33 buses, 32 fixed lines, and 5 switchable lines. There are no additional power-producing units in the grid, and the feeder that supplies the grid is connected to the first bus. Bus voltage restrictions range from 0.9 to 1.1 p.u. The IEEE 33-bus radial distribution system’s total reactive and real power loads are 2300 kVAr and 3,715 kW, individually, and the system’s rated line voltage is 12.66 kV [25]. The proposed model controller PQ mitigation performance is examined using this bus system.

i.

Sag issue

Sag problems are a type of PQ disturbance that causes the source voltage to drop by 10%. Economic loss and component malfunctions are the results of sag problems. This section examined the proposed controller mitigation process for the sag issue.

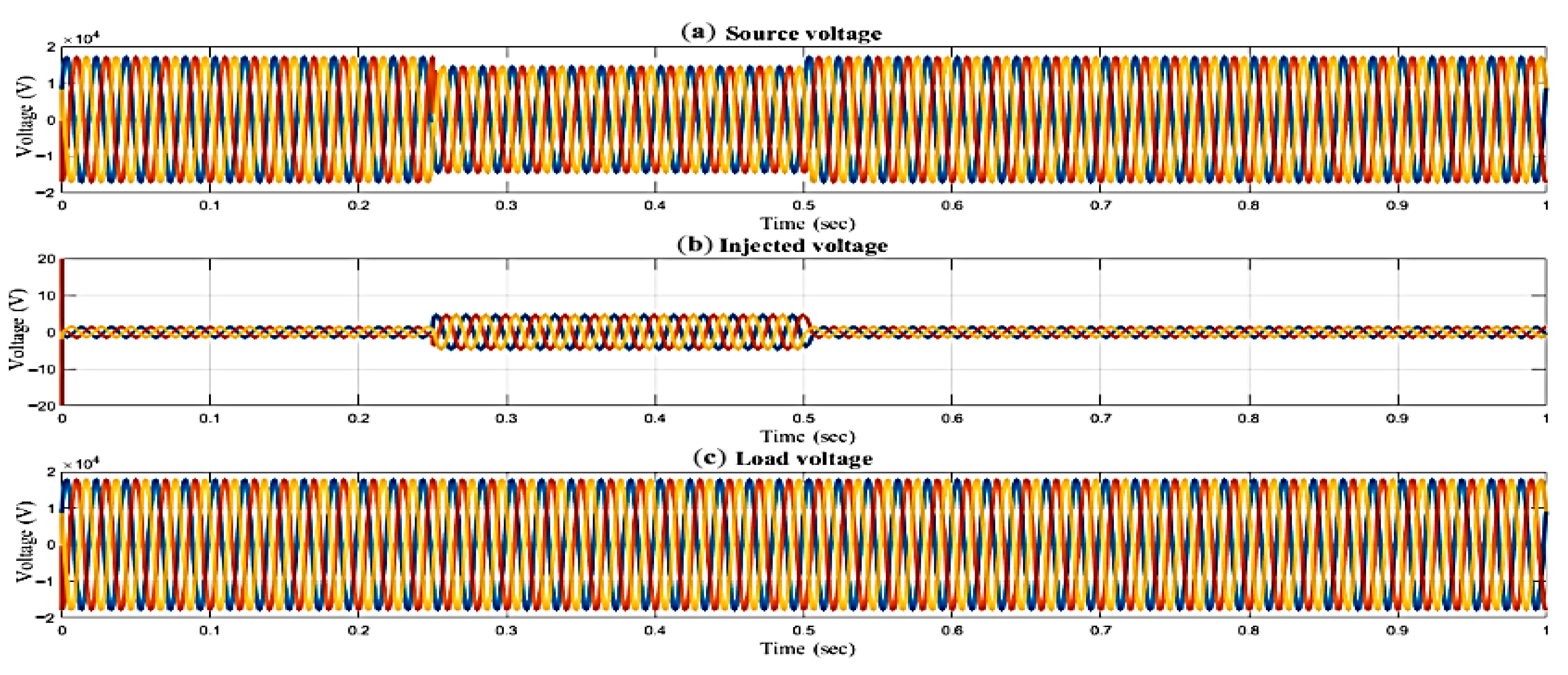

The sag fault waveform, the injected waveform, and the adjusted load waveform are shown in Figure 13. The fault occurs between 0.25 and 0.5 s, during which the voltage is injected. The load voltage is maintained consistently owing to the DSTATCOM’s voltage injection.

The THD was also examined in the system after the sag problem was corrected, as shown in Figure 14. The compensated load voltage’s THD value is 1.99%, which is a highly satisfactory figure by IEEE standards. Examined is the suggested model’s performance in the context of the swell issue.

ii.

Swell issue

Swell is a PQ issue that occurs temporarily while nonlinear load or grid integration is occurring. This damages the equipment and has a severe impact on the load side. The suggested DNN controller analyzes the bus voltage every second to control the DSTATCOM and minimize the swell problem. The following is a discussion of the proposed controller’s mitigation performance.

The suggested controller generates the pulse of DSTATCOM, which is off during ordinary times. Bus voltages are delivered into the suggested controller input once every second, producing the appropriate pulse signal for the compensator. Figure 15 shows the source voltage under swell conditions, as well as the load voltage that has been corrected.

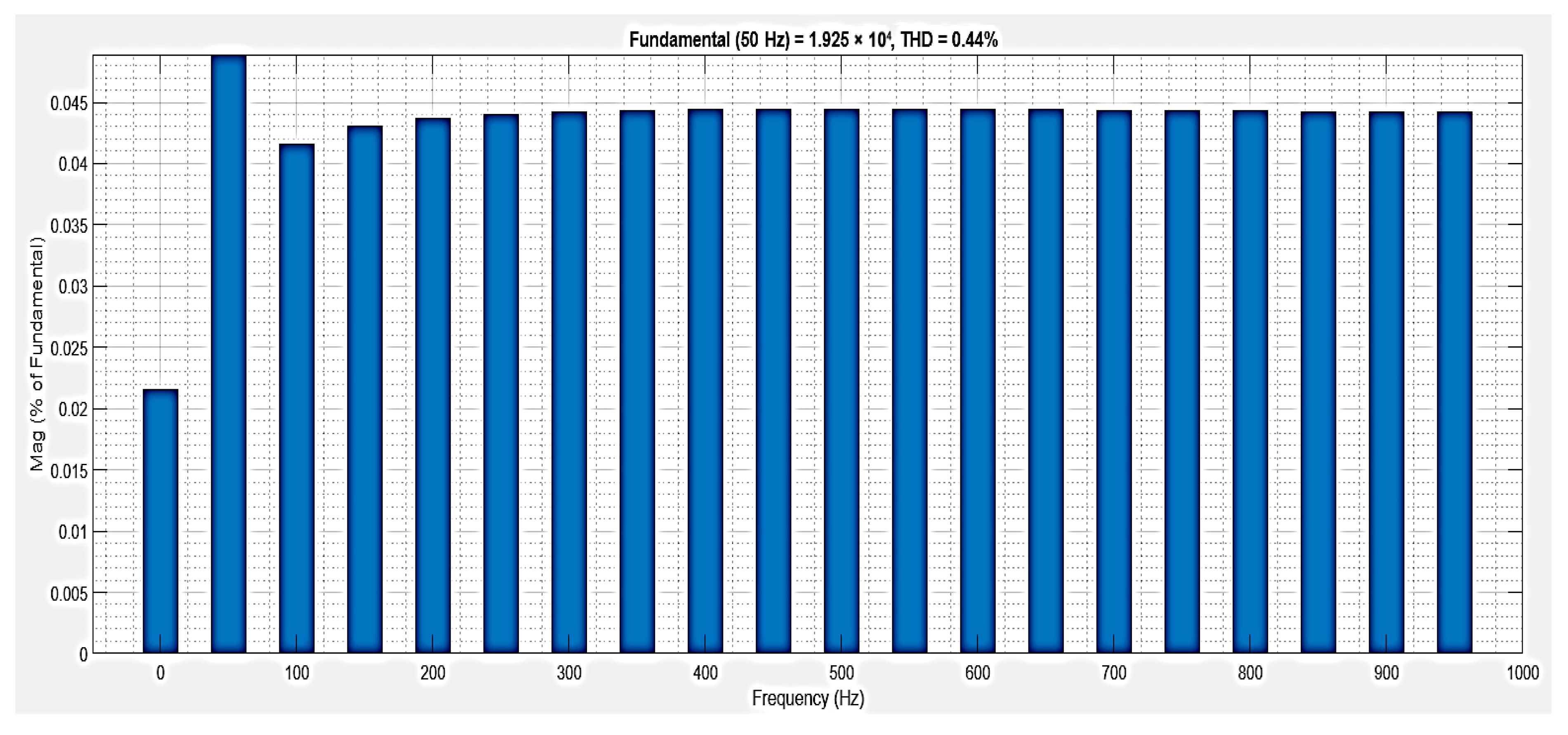

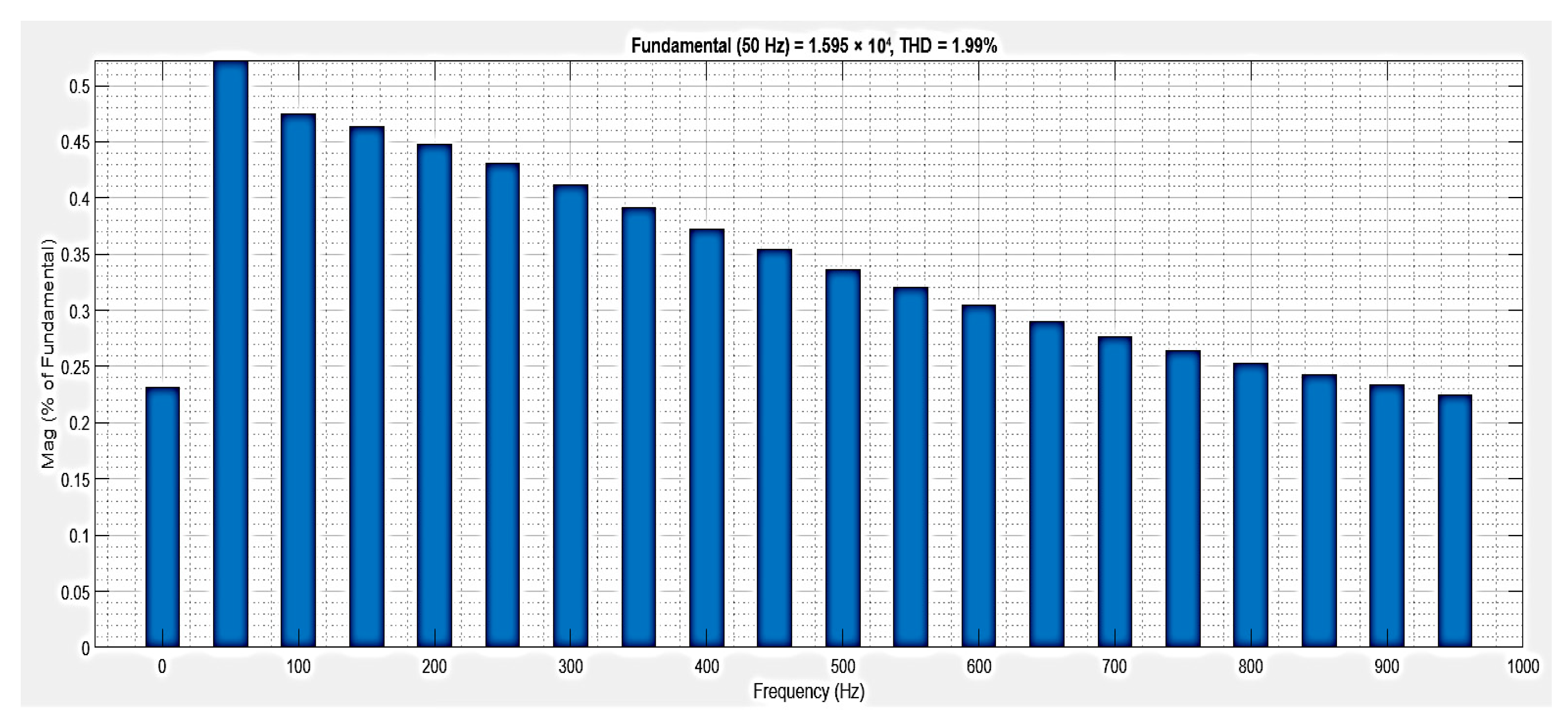

After analyzing the swell state, Figure 16 analyzes and plots the THD of the corrected load voltage. The harmonic is 0.44% in the compensated waveform, which is a satisfactory value in the power system. The proposed model’s functioning procedure is then verified under the interruption circumstance.

iii.

Interruption issues

The term interruption refers to a voltage reduction of less than 1 p.u. for a brief period of time. This causes end users to fluctuate, which causes sensitive loads to malfunction. The proposed controller has the capability to reduce interruptions.

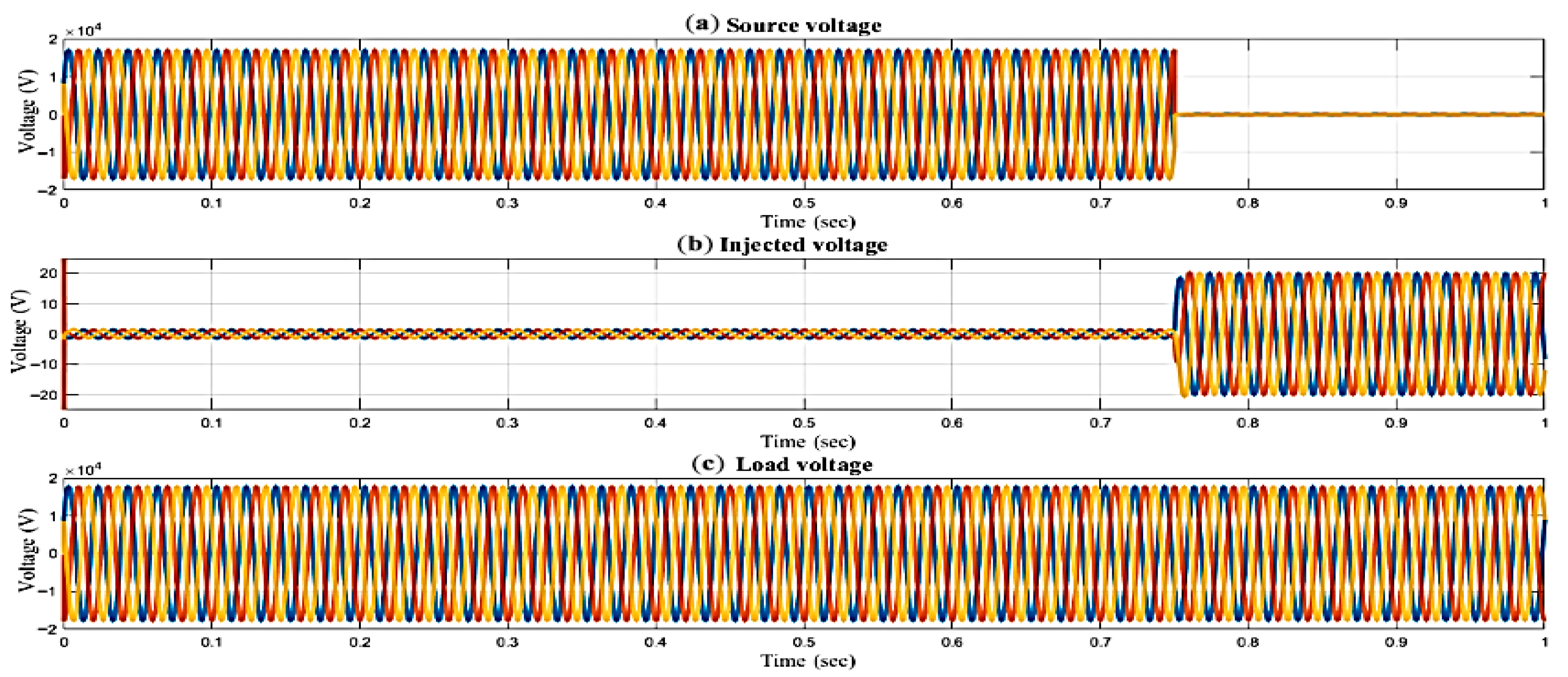

Figure 17 depicts the proposed controller’s mitigation method during the interruption period. It demonstrates that interruptions occur every 0.75 to 1 s. The DSTATCOM injects voltage to correct the load voltage at the same time.

The performance is then shown in Figure 18, along with an analysis of the THD value of the compensated load voltage. The observed harmonic value during the interruption duration is 0.01%. The aforementioned explanation and the measured results show how well the suggested model fits all PQ issue conditions.

4.4. Comparison of Performance Metrics

Performance measures for the suggested controller are compared to those of several other approaches in order to assess its effectiveness. The proposed DNN controller is contrasted with the FFNN and KNN controllers. Initially, the comparison is performed to confirm accuracy. Accuracy is defined as the system’s ability to forecast a value with the least amount of error. Figure 19a illustrates the DNN accuracy as well as a comparison to the present FFNN and KNN techniques. The accuracy of the suggested DNN model is 99.9%, compared to 98% and 48% for the FFNN and KNN, respectively. Accuracy estimates for existing methodologies are much inferior to the suggested model.

Then, the suggested and present model error values are compared. Figure 19b displays the graphical modeling of the present and proposed methods. The suggested models have a 0.1% error, while the current FFNN and KNN have 3% and 52% error, respectively. Consequently, this verifies that the suggested strategy yields superior outcomes compared to the current models. The results of the currently employed methodologies and the DNN F1 score are then compared.

Figure 19c compares the analysis of the DNN with the existing FFNN and KNN. The F1 scores for the present FFNN and KNN models are 98% and 44%, respectively, while the F1 scores for the DNN model are 99.9%. Following that, a comparison and analysis of the FPR of DNN and existing techniques was performed. Figure 20a shows a proposed DNN controller and a comparison of current techniques to FPR. FPR value of FFNN is 0.9%, KNN is 17.9%, and the suggested DNN is 0.01%. The comparison reveals that the suggested DNN model has a very low FPR value when compared to other recent approaches. Then, the kappa values of the suggested and existing approaches are analyzed. Kappa is a statistical measure of consistency across rates of various variables. Figure 20b depicts a Kappa contrast of the proposed DNN controller with present FFNN and KNN techniques. The Mathew Correlation Coefficient (MCC) of the DNN models is analyzed, and its observed values are compared. The MCC serves as a connecting factor between observed and anticipated binary categorization. Figure 20c compares the MCC for the DNN, FFNN, and KNN models. The planned DNN has 99.9% MCC, the FFNN has 99% MCC, and the KNN has 31% MCC. The precision metrics for the DNN were investigated and compared to existing approaches. The amount of favorable events that can be predicted with confidence is frequently used to define accurate measurement. Figure 21a compares the precision of the present FFNN and KNN controllers with the DNN controller. The precision values for the DNN, FFNN, and KNN are 99.9%, 98%, and 51%, respectively.

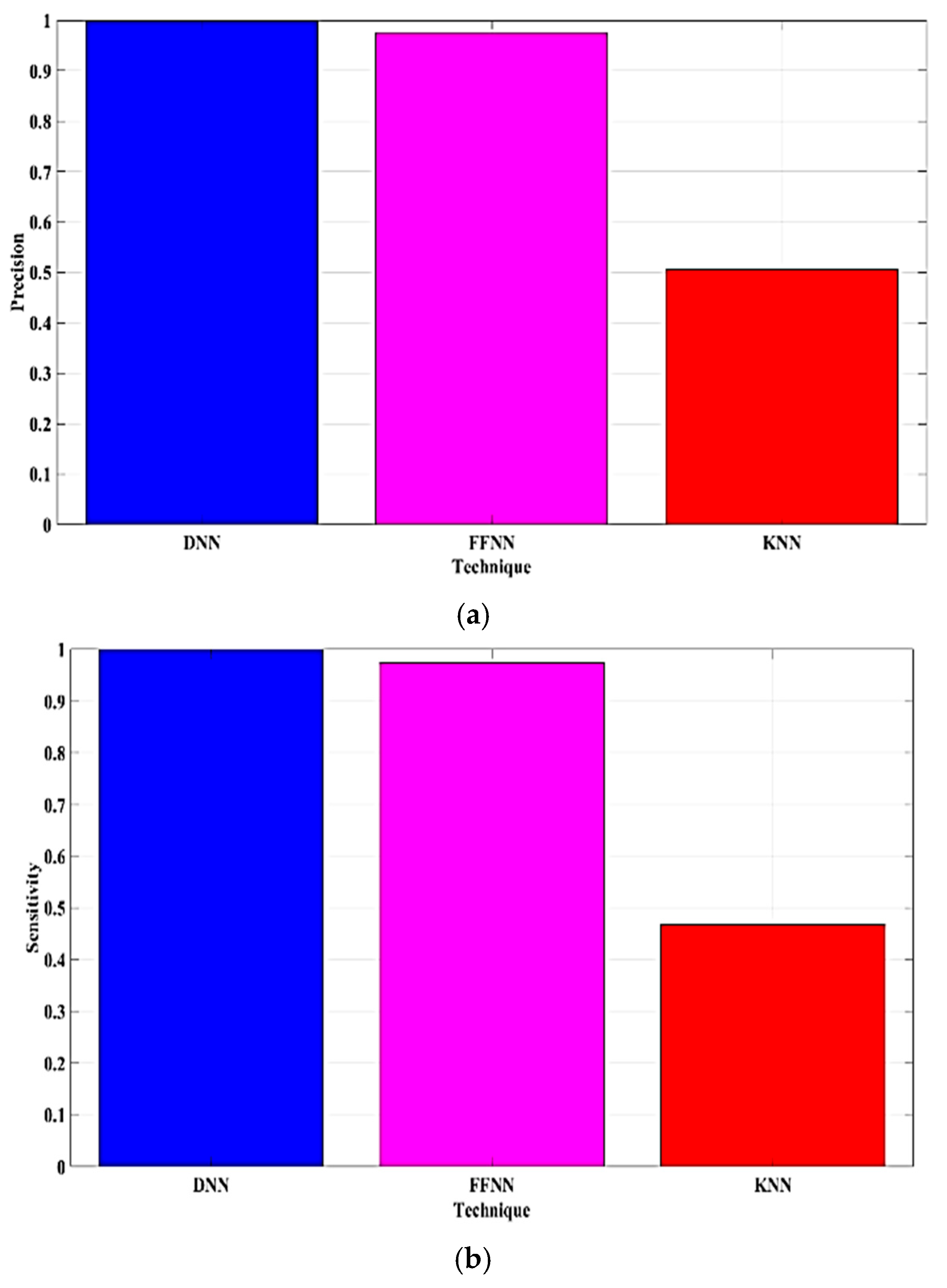

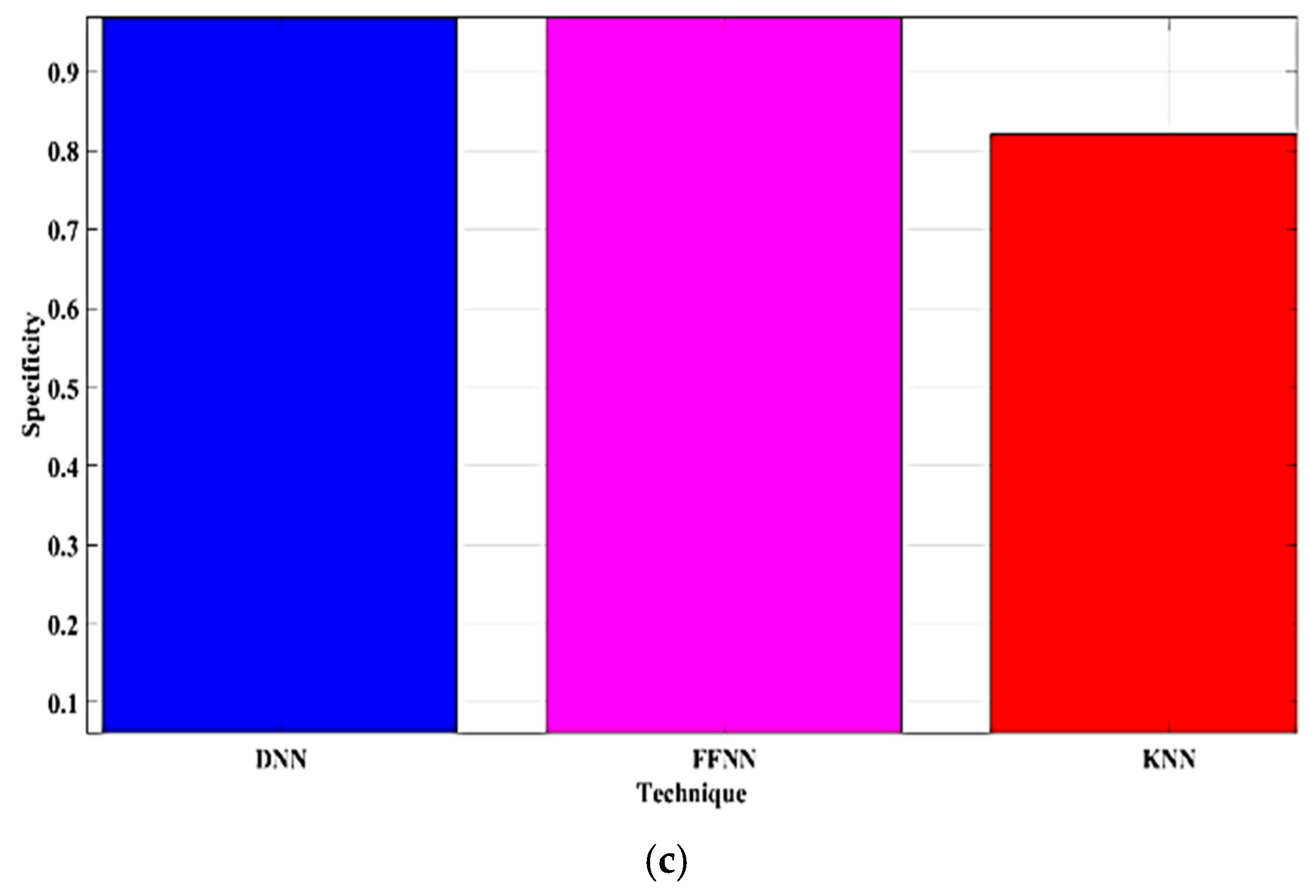

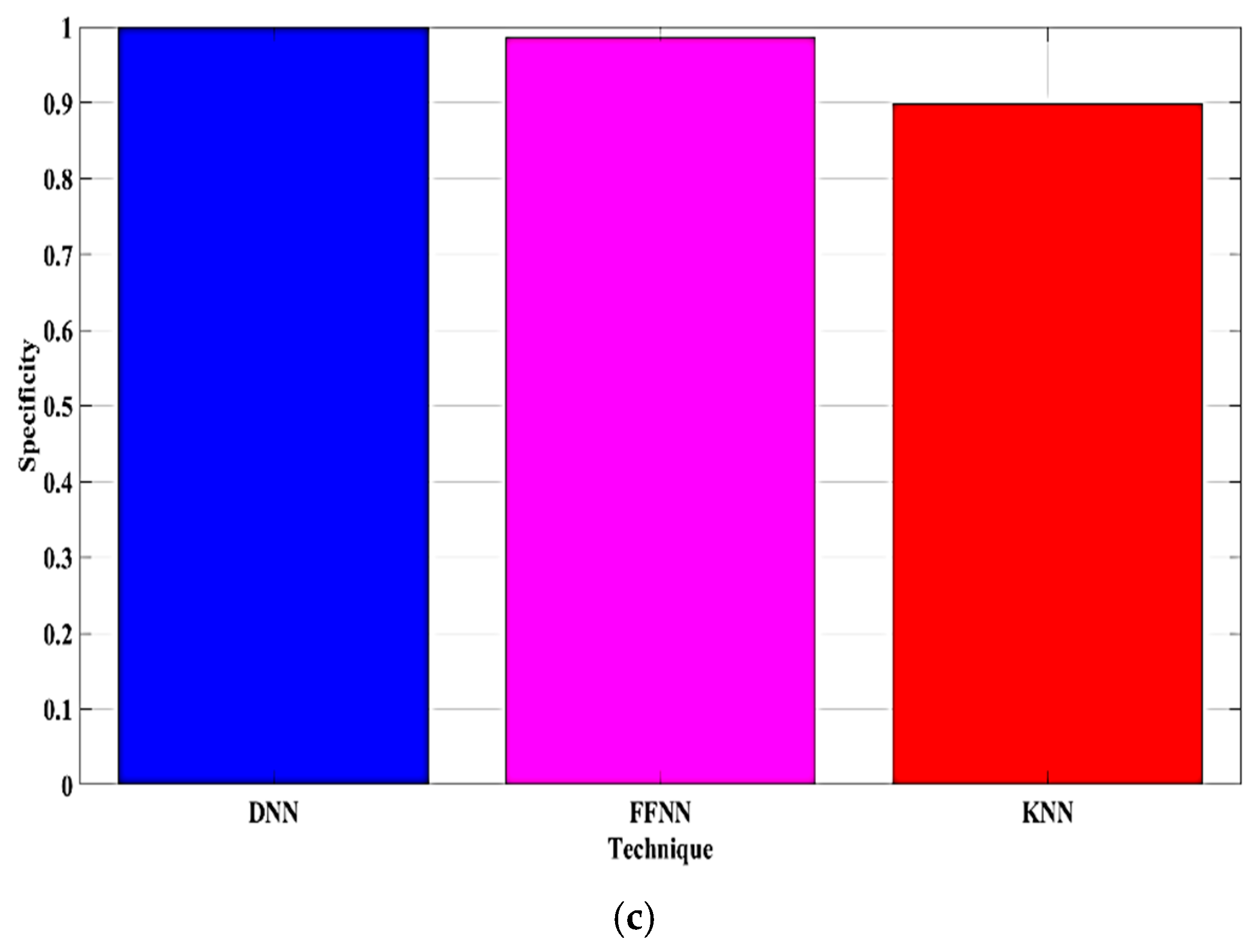

Afterwards, sensitivity is studied and compared to other strategies. It is acknowledged that there is a ratio between what is actually positive and what is positive in the exact sense. Figure 21b shows the sensitivity analysis graphical model. Sensitivity for DNN is 99.9%, FFNN is 98%, and KNN is 48%. Figure 21c provides an analysis and demonstration of the specificity of the proposed and current methodologies. It shows that the specificity of the DNN technique is 99.9%, the FFNN is 99%, and the KNN is 83%. The comparative analysis demonstrates the proposed DL controller provides a better outcome compared to existing approaches.

Table 5. Load flow analysis of IEEE 33 bus system.

Bus no.	Voltage (V)	Sag (V)	Swell (V)	Interruption (V)
1	1.79 × 104	1.7885 × 104	1.7913 × 104	1.7837 × 104
2	1.785 × 104	1.77 × 104	1.8 × 104	1.7 × 104
3	1.765 × 104	1.69 × 104	1.865 × 104	1.334 × 104
4	1.7578 × 104	1.67 × 104	1.874 × 104	1.25 × 104
5	1.75 × 104	1.65 × 104	1.88 × 104	1.175 × 104
6	1.736 × 104	1.6 × 104	1.915 × 104	9680
7	1.734 × 104	1.6 × 104	1.9 × 104	1 × 104
8	1.732 × 104	1.618 × 104	1.894 × 104	1 × 104
9	1.725 × 104	1.607 × 104	1.89 × 104	1 × 104
10	1.724 × 104	1.61 × 104	1.888 × 104	1 × 104
11	1.725 × 104	1.61 × 104	1.883 × 104	1 × 104
12	1.725 × 104	1.6 × 104	1.887 × 104	1 × 104
13	1.718 × 104	1.58 × 104	1.9 × 104	9400
14	1.7162 × 104	1.58 × 104	1.9 × 104	9050
15	1.715 × 104	1.58 × 104	1.91 × 104	8700
16	1.712 × 104	1.564 × 104	1.92 × 104	8000
17	1.705 × 104	1.5 × 104	1.95 × 104	6200
18	1.703 × 104	1.5 × 104	1.97 × 104	5450
19	1.781 × 104	1.76 × 104	1.80 × 104	1.667 × 104
20	1.754 × 104	1.688 × 104	1.84 × 104	1.37 × 104
21	1.7468 × 104	1.668 × 104	1.856 × 104	1.275 × 104
22	1.74 × 104	1.65 × 104	1.864 × 104	12,000
23	1.752 × 104	1.642 × 104	1.9 × 104	1750
24	1.734 × 104	1.55 × 104	2 × 104	5400
25	1.72 × 104	1.456 × 104	2.1 × 104	78
26	1.734 × 104	1.6 × 104	1.82 × 104	9130
27	1.731 × 104	1.584 × 104	1.94 × 104	8357
28	1.722 × 104	1.5 × 104	2 × 104	5000
29	1.715 × 104	1.5 × 104	2.07 × 104	2300
30	1.700 × 104	1.5 × 104	2.02 × 104	2785
31	1.703 × 104	1.5 × 104	2 × 104	3750
32	1.7 × 104	1.5 × 104	2 × 104	4300
33	1.7 × 104	1.5 × 104	2 × 104	5000

demonstrates the outcome of load flow analysis of the IEEE 33 bus system.

4.5. Comparison of Performance in IEEE 13 and IEEE 33 Bus System

In this section, the operational performance of both bus systems is validated by comparison of their respective performance metrics. According to the comparison, both bus systems provide a similar performance under all conditions.

Table 6. Comparison of performance metrics.

Metrics	IEEE 13 Bus System	IEEE 33 Bus System
Accuracy	99.9	99.9
Error	0.1	0.1
F1 score	99.9	99.9
False positive rate	0.01	0.01
Kappa	99.9	99.9
MCC	99.9	99.9
Precision	99.9	99.9
Sensitivity	99.9	99.9
Specificity	99.9	99.9

displays a comparison of both bus systems.

The comparison of THD in the two bus systems is then covered. The bus system is connected to the FFNN-based DSTATCOM model, and PQ problems and THD analysis were developed to study the mitigation process.

Table 7. THD comparison.

Condition	IEEE 13 Bus System THD	IEEE 33 Bus System THD
Sag	0.09	1.99
Swell	0.08	0.44
Interruption	0.01	0.01

compares the THD mitigation abilities of the suggested controller for the IEEE 33 and IEEE 13 bus systems. The comparison study shows that the proposed model-based IEEE 33 bus system produces better results.

4.6. Comparative Analysis of the Controller

This section compares the suggested model’s performance to a few alternative methods, like the 15-level CHBMLI and A-LMS model at the balanced load condition. The comparative analysis is shown in

Table 8. Comparison of THD at sag condition.

Parameters	A-LMS [26]	VSC [27]	Deep Reinforcement Learning (IC-DSTATCOM) [28]	Proposed FFNN
				IEEE 13 Bus	IEEE 33 Bus
Load side THD	1.21%	3.65%	27.90%	0.09%	1.99%
Source side THD	-	21.10%	0.94%	0%	0%

, demonstrating the proposed approach offers 0.09% THD and 1.99% THD; yet, the existing approach has 3.91% THD in CHBMLI, 3.65% THD in VSC, and 1.21% THD in A-LMS. Consequently, this shows that the suggested model yields a sufficient result when compared to the current model.

The above observed values show the proposed model provides a better performance compared to other models because it has an advanced neural network learning process to analyze the voltages and generate the pulse signal based on the trained value; thus, the model was more fit for all PQ issue conditions.

The

Table 9. Ablation study for the model.

Model Variation	No. of Hidden Layers	Neurons Per Layer	Total Weights	THD (%) IEEE 13-Bus (Sag)	THD (%) IEEE 33-Bus (Sag)
Baseline (proposed)	1	10	1100	0.09	1.99
Variation 1	2	20	4200	0.07	1.50
Variation 2	3	30	9300	0.05	1.20
Variation 3	4	50	20,500	0.04	1.10
Variation 4	2	10	2200	0.08	1.70

presents a ablation study of different neural network model architectures used for reducing THD% under voltage sag conditions in IEEE 13-Bus and 33-Bus systems.

Table 10. Scenario-Based Performances of Proposed Model.

Scenario No	Power Load(kw)	Harmonic Distortion (%)	Control Unit Location	THD After Compensation (%)
1	500	5	Bus 5	0.09
2	750	7	Bus 5	0.12
3	500	10	Bus 10	1.12
4	1000	5	Bus 15	0.18
5	600	8	Bus 5	0.11
6	750	12	Bus 10	1.20

shows that the scenario-based analysis demonstrates the effectiveness of the proposed deep-learning-based DSTATCOM controller under varying operating conditions, including changes in power load, harmonic distortion levels, and control unit location.

5. Conclusions

A standard IEEE bus system’s performance under various PQ disturbances was validated using a DSTATCOM model based on a deep learning controller. Low power quality damages electrical and mechanical equipment, increases electricity costs, and has an adverse effect on the economy. With its flexibility, simplicity, and allowance for dynamic load, DSTATCOM was able to address these problems. A standard bus system using the DSTATCOM model was designed, and the normal voltage flow of each bus was collected. Similar to this, voltages were collected after applying various PQ issues in the same standard bus system. A deep learning controller was created utilizing this gathered dataset. Each and every second, the controller examined the voltage to produce a corresponding pulse signal for the compensator. The compensator injects voltage based on the pulse signal to reduce harmonic content and PQ difficulties in the system. Using the IEEE 13 bus and IEEE 33 bus, the performance of the proposed controller-based DSTATCOM model in mitigating PQ problems was evaluated. The performance of the suggested controller was compared to a few other modern methods to ensure that it would truly function. THD results for the IEEE 13 bus are 0.09% during sag, 0.08% during swell, and 0.01% during interruption; for the IEEE 33 bus, the results are 1.99% during sag, 0.44% during swell, and 0.01% during interruption. Likewise, the efficiency of the proposed model is the same in both bus systems; 99.9% accuracy, 99.9% F1 score, and 99.9% specificity, which is further compared to traditional models for validation. The mitigation performance of the compensator in the standard bus system will be significantly improved in the future with the development of an advanced novel controller.

The proposed deep-learning-based DSTATCOM controller showed significant accuracy in alleviating power quality concerns on IEEE 13 bus and 33 bus systems; nevertheless, this study is confined to simulations and primarily addresses sag, swell, and interruption phenomena. Real-time problems such as controller delays, sensor faults, and switching non-idealities were not dealt with. Future work should concentrate on the advancement of sophisticated hybrid AI controllers, the expansion of validation to encompass bigger and renewable-integrated grids, and the execution of hardware-in-the-loop or real-time implementation. Also, looking into multi-objective optimization and cyber–physical resilience will make the suggested system more useful and dependable.
