Advancing Fast Frequency Response Ancillary Services in Renewable-Heavy Grids: A Global Review of Energy Storage-Based Solutions and Market Dynamics

Abstract

This paper addresses the growing challenges and developments in frequency control within power systems influenced by the increasing penetration of renewable energy sources. It evaluates the advancements and limitations of renewable-based control technologies and explores the critical role of diverse energy storage technologies in providing fast frequency response ancillary services. Through a comprehensive analysis of the global literature, this paper categorises energy storage solutions according to their efficacy in meeting fast frequency response demands and potential for revenue generation. It reveals significant gaps in the current research, which predominantly focuses on battery energy storage systems and microgrid applications, with insufficient attention to grid-scale storage solutions and innovative energy storage technologies. This analysis identifies a lack of detailed technical simulations and hybrid storage models for frequency control, as well as a minimal exploration of the environmental benefits, particularly in terms of carbon dioxide emission reductions, associated with deploying new energy storage technologies in ancillary service markets. The paper concludes by emphasising the urgent need for further research incorporating detailed techno-economic evaluations and the carbon dioxide reduction potential of modular, scalable energy storage technologies, which should be facilitated by advanced network simulation models and comprehensive market analysis to drive future advancements in the field.

1. Introduction

In traditional grids, frequency control has been performed using conventional synchronous machines. The aim of such control is to continuously ensure the generation–load balance in the network. This is achieved through a hierarchical approach involving inertial, primary, secondary, and tertiary frequency controls [1]. Inertial (fast-acting) control limits the immediate rate of change of frequency (ROCOF—how fast the frequency changes after a disturbance [Hz/s]) by “buying” time for the primary control to be deployed to limit the frequency deviation after disturbances. Secondary control restores the frequency and tie line flows to nominal or scheduled values, while tertiary control facilitates the re-dispatching of the power plants to free up the reserves [2]. As inertial and primary controls rely on the available rotating mass in the grid, both the ROCOF and the steady-state frequency error, which represent the final frequency deviation from nominal frequency after a disturbance, are primarily determined by the system’s available inertia.

When increasing converter-connected renewable energy sources (RESs) generation to replace conventional machines, the equivalent inertia of the system (rotating mass) decreases, ultimately leading to an increased ROCOF and greater frequency deviations following disturbances [3]. Renewable sources typically operate at maximum power output subject to weather conditions; hence, they are neither dispatchable nor have active power reserves for frequency control purposes. Characterised by reduced system inertia and the absence of reserves, the extensive penetration of RES results in an inadequate inertial response. This situation fails to provide adequate time for primary control activation, thereby compromising system stability [4].

Significant research in recent years, such as [3,4,5], has focused on developing novel control strategies to enable artificial frequency control capabilities with RES. These strategies include deloading, inertia emulation, and synthetic inertia response. However, beyond a certain level of RES penetration, these techniques often fall short in achieving necessary control performance [6]. Consequently, additional energy storage-based frequency control solutions are essential for integration into the grid.

Recent research, highlighted in [7,8,9], has explored various energy storage technologies suitable for providing ancillary services on power grids. Most studies have focused on battery energy storage solutions (BESSs) and location-specific technologies like pumped hydro storage or compressed air energy storage. However, current BESS technologies face challenges such as rapid degradation under frequent charging/discharging cycles [10], and limitations in cost-effectively storing energy, making them unsuitable for stand-alone ancillary service provision. A few studies, such as [11,12,13,14], have investigated new technologies like proton exchange membrane (PEM) electrolysers, fuel cells, and hydrogen-ready gas turbines (GTs) for frequency control and stabilisation purposes. However, these investigations often lack detailed technical analysis, verification in real-grid environments, comprehensive coverage across multiple power networks, and evaluations of economic feasibility and potential emission reductions.

This review paper bridges the gap between traditional frequency control mechanisms in power systems and the emerging challenges posed by the high penetration of RES. It explores the decline in system inertia due to the replacement of conventional machines with converter-connected RESs, leading to increased ROCOF and larger-frequency deviations post disturbances. The paper highlights significant research efforts in developing novel control strategies for RES, such as deloading and the synthetic inertia response, and acknowledges their limitations beyond certain RES penetration levels. The review then explores the potential of various energy storage technologies in providing ancillary services, recognising both the advantages and limitations of the storage solutions. The review underscores the need for comprehensive studies that integrate detailed technical analysis, real-grid environment validation, and economic feasibility and emission reduction potential evaluations, thus filling a crucial gap in the current literature and setting the stage for future research directions.

The primary aim of this paper is to examine the evolving dynamics of frequency control in power systems amidst the escalating integration of renewable energy sources. It seeks to explore how these changes impact traditional frequency control mechanisms and the potential of various energy storage technologies to adapt and sustain these systems.

The specific objectives of this review paper include the following:

• Assess the challenges posed by high RES penetration on the system inertia and the resulting frequency stability issues.
• Evaluate the effectiveness of current renewable-based control technologies and their limitations at higher levels of RES penetration.
• Explore the array of energy storage technologies and their roles in providing fast frequency response (FFR) ancillary services, with a focus on both existing solutions and emerging innovations.
• Identify significant research gaps, particularly in the areas of grid-scale storage solutions, advanced hybrid storage models, and environmental impacts.
• Propose directions for future research, emphasising the need for detailed techno-economic evaluations and the potential for carbon dioxide reduction through these technologies.

The structure of this paper is designed to systematically address these objectives:

• Section 2: This section delves into how traditional frequency control mechanisms are being challenged and adapted to accommodate the unique characteristics of wind and solar photo-voltaic (PV) energy systems. In addition, it discusses the limitations of relying solely on RES for frequency control. The section also discusses how BESS are currently used in the grid to enhance frequency response, including their benefits and limitations.
• Section 3: This section provides a comprehensive overview of various energy storage solutions beyond batteries, such as compressed air, hydrogen electrolysers, and supercapacitors, examining their sizing, efficacy, and potential for providing FFR.
• Section 4: A discussion is provided on the implications of the findings, examining how the integration of these technologies can be optimised for economic and environmental benefits. This section also provides an overview of the various storage technologies potential to provide FFR.
• Section 5: The limitations of the current research and the unresolved issues are highlighted, and future research needs are outlined.
• Section 6: The key insights gained from the review are summarised.

2. Development of Frequency Control Practices in High RES Penetration Grids

2.1. Wind and Solar PV-Based Frequency Controls

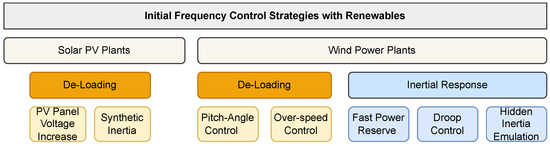

RES-only frequency control techniques are summarised in Figure 1.

Increasing the penetration of RES and the transition towards low-inertia grids are known to exacerbate frequency control and stability challenges. Therefore, it is crucial to review current practices and research addressing these issues. Fernandez-Guillamon et al. [3] provide an overview of the primary, secondary, and tertiary frequency control objectives and their significance. They highlight that the majority of renewable generation facilities are either wind farms or PV farms operating in maximum power point tracking (MPPT) mode. This technique aims to maximize the power output from RES under prevailing weather conditions such as wind speed for wind turbine generators (WTGs) and solar irradiance and temperature for solar PV plants. MPPT, by definition, maximises the active power output of the units, hence providing no “reserve” for the frequency control proposed. As also highlighted by Alam et al. [15], wind turbines have rotating kinetic energy stored in their blades and rotors, suggesting that shifting from the MPPT operating point has the potential to utilise WTGs for frequency support. Since modern WTGs are connected to the grid via full converters, their rotating mass (inertia) is practically decoupled from the network, so it is considered hidden [3]. By modifying the MPPT control, this hidden inertia can be emulated and made available for grid support. Fernandez-Guillamon et al. [3] state that WTG inertia time constants are comparable to conventional machines, which is true; however, the inertia time constant H is considered on machine rated power. Therefore, the WTG inertia response is expected to be marginal compared to conventional synchronous generators as argued by Munisamy and Sundarajan [16]. As far as solar PV plants are concerned, the recent review papers by Alpizar Castillo et al., Alam et al., Fernandez-Guillamon et al., and Bostrom et al. [3,9,13,17] all agree that having no rotating parts, their inertia is effectively zero; however, with modified MPPT settings, an emulated synthetic inertia-type response can be achieved.

Achieving the desired frequency control performance through synthetic inertia emulation with PV farms involves employing a deloading technique [3]. This approach aligns with recommendations from other studies focused on PV, including the works of Debanjan and Karuna, Preston et al., and Safiullah et al. [18,19,20]. The purpose of deloading is to move the operating point of the solar photovoltaic unit in the $P-V$ characteristic away from the MPPT driven maximum power output, thus enabling the unit to have a certain capacity reserve for frequency control purposes. The major downside of PV deloading is discussed by Dreidy et al. [5], concluding that due to the large geographical footprint of PV farms, the MPPT power output of the units is not equally distributed; hence, their emulated inertia-based control is not coherent within a solar PV farm. This requires additional control to distribute the park-assigned power command among individual units, based on their actual operating conditions.

Regarding wind turbine generators, there are broader options for artificially creating frequency control capabilities. Ref. [3] mentions that the deloading technique applied for solar PV units can be implemented for WTGs as well. In the case of wind generators, deloading can be achieved either by pitch angle or over speed control. The available power for a wind turbine generator is described by its power-rotor speed characteristic [21], which suggests that for a constant wind speed, there is a corresponding pitch angle, which results in an optimal operating point, delivering the maximum power output. Consequently, adjusting the pitch angle of the machine results in a lower power output than MPPT. Operating at sub-MPPT output allows the excess reserve capacity of the WTG to be used for frequency regulation purposes, a point corroborated by Alam et al. and Kazemi Golkhandan et al. [15,22]. When applying over-speed control, for the same pitch angle, the control forces the operation to a power output lower than the MPPT determined value by artificially shifting the machine to higher rotor speed. For the same wind velocity and pitch angle, increasing the rotor speed beyond the MPPT calculated optimal value results in sub-MPPT power output. In such a case, when frequency up-regulation is required, the rotor speed can be decreased so that stored kinetic energy is released. Ref. [3] further mentions that underspeed control could also be used, which would force the power output to a sub-MPPT value, corresponding to a slower rotor speed. This operation mode would require speeding up the rotor to provide extra power output in the case of up-regulation. As highlighted by Gonzalez-Inostroza et al. and Dreidy et al. [5,23], increasing the rotor speed would necessitate additional power, thereby reducing the effective active power output of the machine. This type of control is counterproductive, as it limits the power output surplus the WTG should produce in the case of up-regulation. For the same reasons, Sarasua et al. and Sun et al. [24,25] also suggest not to use under-speed deloading for WTGs.

Sun et al. [25] recommend considering the droop control technique instead for WTGs by inputting the system frequency deviation into the converter control, thus forcing it to vary the MPPT output according to the network conditions. This action mimics the droop control action of the speed governors of the synchronous machine.

The latest control technique originally mentioned by Gonzalez-Inostroza et al. and Huang et al. [12,23] and later refined by Sun et al. [25] recommends the use of the double loop hidden inertia emulation technique for WTG. In the work by Alam et al. and Farhoodnea et al. [4,26], this is called the fast power reserve technique. When the WTG is operated in over-speed deloaded mode, the system ROCOF signal is fed into (single loop) the controller to raise the active power output during up-regulation by decreasing the rotor speed and releasing kinetic energy. This method provides the same response as primary control with conventional machines. Adding the actual frequency error to the controller (double loop) would drive the WTG further to eliminate the frequency deviation. Such control actions aim to mimic the primary and secondary frequency control of conventional synchronous machines. However, as Sun et al. [25] highlighted, this technique has its drawbacks since after the overproduction period, the delivered energy requires recovery in an underproduction period, in which the WTG is unable to participate in frequency control.

Similarly to solar PV plants, the power output of units within a wind farm can vary depending on wind conditions. To tackle this variability, Kazemi Golkhandan et al. [22] proposed using a master controller for the wind park with a fuzzy logic system. This controller employs three inputs: it first calculates the necessary power output from the wind farm to regulate the grid frequency, then distributes this required amount among the individual machines based on their current power outputs.

Some recent work, such as that of Jasim et al., Kumar et al., Zhao et al. and Zulu et al. [27,28,29,30], focused on improving the mentioned RES control techniques using artificial intelligence (AI); however, the results were only tested on microgrid environments, which does not provide valuable information on how AI-implemented controls could improve the frequency response of these units in large power networks.

2.2. Inadequacy of RES-Only-Based Frequency Control

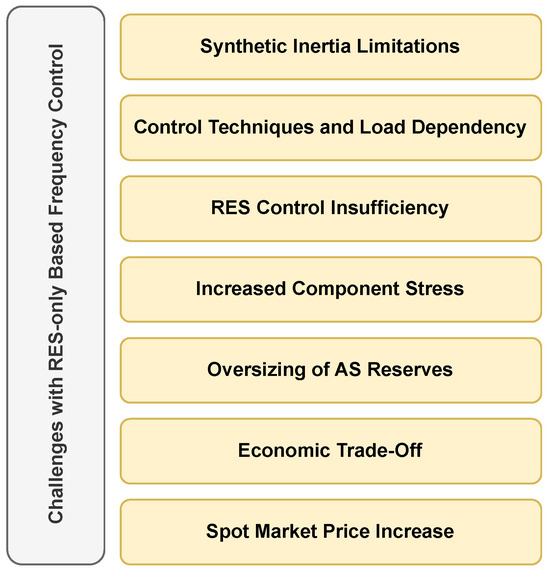

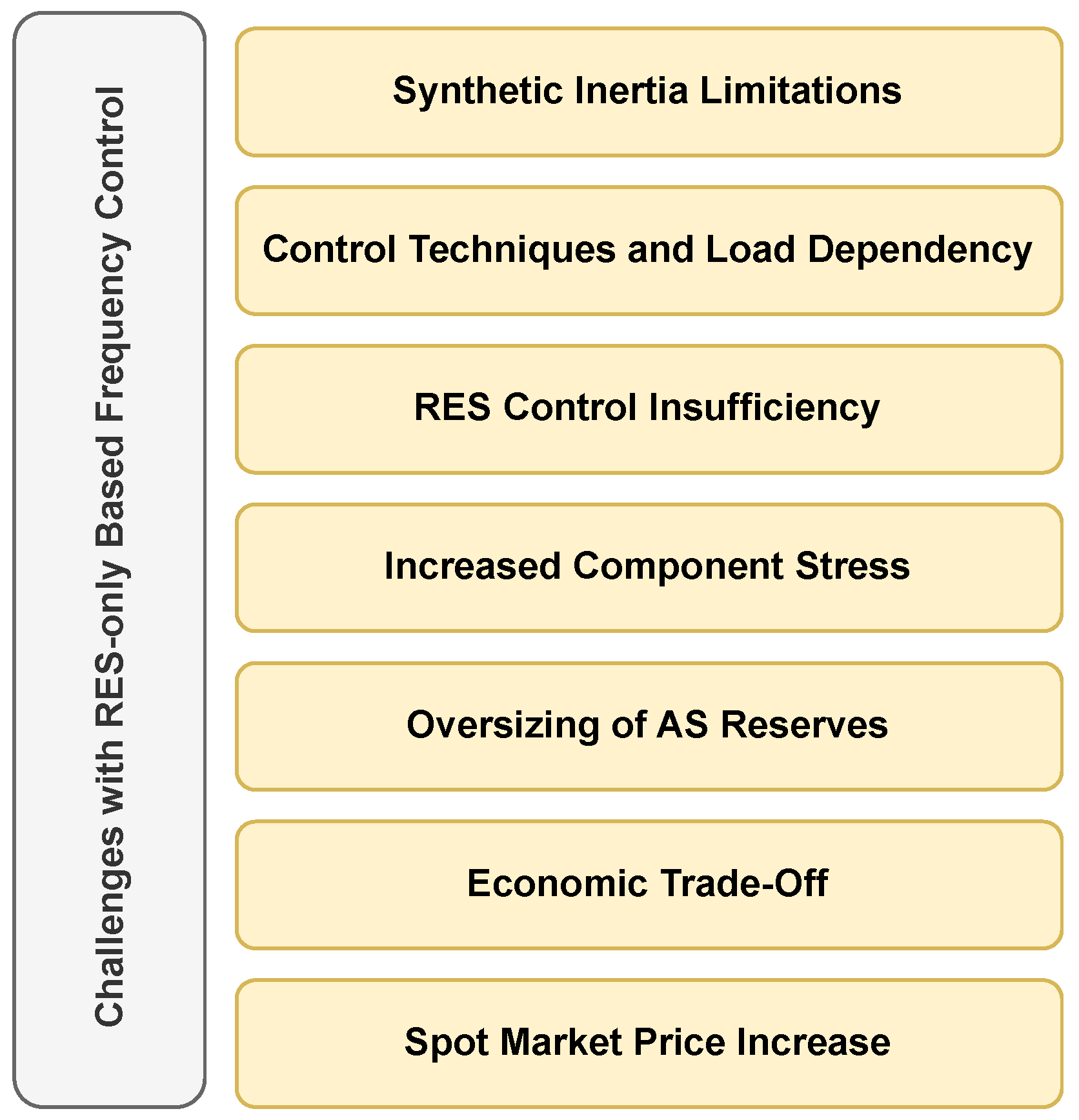

The initial, RES-only-based frequency control techniques gradually became inadequate as the penetration level of RES increased, leading to various new challenges as shown in Figure 2.

Despite many publications focusing on reviewing the methodologies for providing frequency control with renewable generation plants, only a limited number of articles in the public domain have verified the performance via time domain-based simulations. Makolo et al. [31] focus on the simulation of solar photovoltaic farms with the implementation of synthetic inertia control. The paper presents a mathematical summary to prove that the equivalent system inertia is dependent on the RES penetration level. However, the simulation focuses only on a test network with 20% RES penetration, and finds that synthetic inertia is faster than the primary control but slower than the inertial response of synchronous machines. It is important to note that this study on solar PV is based on the assumption that as RES penetration increases, an equivalent amount of conventional units are decommissioned. These assumptions are aligned with Xiong et al. [32], focusing on wind farms instead. Ref. [32] proposes the droop–inertia combined technique, advancing the control methods described above, proved with simulations that the combined control logic provides a better frequency response. However, the work assumes that with increased RES penetration, the frequency dependency of the loads also decreases, an assumption that lacks sufficient support.

One of the most recent works by Alqahtani et al. [6] provides an overview of selected, recent studies worldwide that highlight frequency control challenges related to the high penetration of RES, obtained by grid simulations. Analysing these studies from the USA [33], the UK [34], Jordan [35], Egypt [36], and Turkey [37] concludes that achieving RES share over 40% indeed leads to reduced frequency control capabilities. Alqahtani et al. [6] focus on Saudi Arabia and conclude that the excellent solar irradiation profile of the country will drive the penetration level of RES up to 41% by 2030, depending on the actual progression scenario. The work simulates the ROCOF and frequency nadir under various penetration levels in 2030 considering loss of generation events, and concludes that in the case of high progression, the nadir could reach levels that trigger the under-frequency load shedding.

Interestingly, a similar result has been presented in other Middle Eastern-focused studies [35,36,37], concluding that with the increased penetration of RES, grid code revisions are also required to prepare the grids for the transition. Alqahtani et al. [6] further conclude that RES control techniques alone are not sufficient to achieve the right frequency response in a grid; therefore, additional energy storage or conversion technologies must be used. Ref. [6] suggests battery energy storage systems; however, the simulation is carried out using only test networks and a simplified Saudi equivalent grid, using a simple transfer function representation of the BESS, hence not giving sufficient details of the frequency control performances.

It should be noted that as the global RES penetration has increased, initial RES-based artificial frequency control techniques have turned out to be inadequate to solve grid stability issues alone. Recognising the increasing challenges when providing frequency control with RES technologies alone, Karbouj et al. [38] summarise the main technical and economic downsides of these practices. Consequently, practical experience shows that the use of wind turbines for frequency ancillary services results in increased mechanical stress on the components responsible for pitching and underspeed/overspeed control. Furthermore, due to the intermittency of RES generation and their dependence on weather conditions, it is typically necessary to oversize ancillary service reserves. This oversizing increases service costs and is impractical from a technical standpoint as well.

Ku et al. [39] evaluate the impact of using PV generation for AS provision in Thailand. The system is characterised by high penetration of the PV level, posing operating challenges around sunrise and sunset, when approximately 3000 MW/h and 2500 MW/h conventional generation needs to be ramped down and up, respectively, to accommodate solar generation. The Thai system operator uses emergency generation control (EGC) to shift the operating point of the PV (and wind) farms away from MPPT, thus achieving the AS provision. However, due to solar intermittency, the peak load for conventional machines shifts to night (as also discussed by Bai et al. [40]), which requires additional ancillary services to be obtained.

Using RES generation alone for the provision of additional services creates an economic trade-off between the energy and ancillary markets. Since RES-based frequency control requires that the wind and solar PV units be scheduled away from the MPPT operating point (which corresponds to the maximum power generation), the revenues of ancillary service provision can only be derived at the cost of reducing the revenues of the energy market. Ai et al., Aldaadi et al., and Naemi et al. [41,42,43] all confirm the same, indicating the impracticality of such a setup.

In addition to the growing technical challenges, economic issues have appeared in the case of pure RES-based AS provision. Agostini et al. [44] assess the impact of large-scale PV penetration in the Chilean grid. Ancillary services in Chile were historically provided by conventional machines under compulsory provision without remuneration. In 2020, regulatory changes introduced remuneration, and the article evaluated the impact of adopting the USA-based pay-as-bid (PAB) [45] or the EU-based system marginal price (SMP) procurement model [46] on the overall costs of auxiliary services (AS). The energy and ancillary markets are cleared with the central dispatch system (CDS) method. The study considers four levels of PV penetration and assesses the impact of the AS profit (AS revenue minus the opportunity cost of providing the AS provision instead of selling capacity in the energy market). The results show that increased PV penetration led to a decrease in energy spot prices, making conventional generation investments less attractive. Supporting RES development tends to lower energy spot prices. However, this often leads to a decrease in the use of conventional units. Such a decline can cause two main issues: first, AS reserves may become inadequate, and second, the prices for AS may increase.

The same conclusions can be drawn from the work of Badesa et al., Ghiani et al., and Lisi et al. [47,48,49]. The first two assessed changes in the AS regulation price in the UK and Italy during the COVID-19 pandemic, while the latter focused on AS cost forecasting in high-RES penetration scenarios in Italy. During the COVID-19 pandemic, the UK grid was generally characterised by high levels of RES generation coupled with low demand. This scenario is widely considered the most difficult from the frequency control perspective [4,50,51]. In the UK, the Contracts of Difference (CfD) pricing encourages investment in RES, guaranteeing a certain target price for energy generation from RES. Due to high RES load demand cases, the system operator marketed a new AS product aimed at curtailing the non-conventional generation in the grid and also struck a bilateral contract with the largest nuclear power plant (NPP), requesting halving its generation output by the operator’s request, leading to reduced AS reserve needs. Due to the new AS product and the optional NPP power reduction contract, AS costs reached approximately three times the normal regulation costs during the COVID-19 pandemic time [47]. In Italy, similar depressed consumption was observed (37% below the average level), which also resulted in lower prices on the energy market. Due to intermittency-related constraints, the participation of RES generation in AS markets was alone not sufficient; therefore, conventional units, which were switched off as a consequence of low demand, had to be resynchronised with the provider’s AS regulation. This resulted in the double cost of the AS provision during the COVID-19 pandemic times, especially in the south of the country, where most RES generation occurs, resulting in highly differentiated AS zonal prices [48]. In order to allow the Italian system operator (Terna) to deal with uncertainties related to the future increase in the costs of AS provision, Lisi et al. [49] developed an economic model to quantify the cost at risk (CaR) associated with frequency regulation. CaR calculates the maximum expected cost of 1 day and a 30-day horizon that the system operator is expected to incur.

2.3. Integrating Battery Energy Storages for Improved Frequency Response

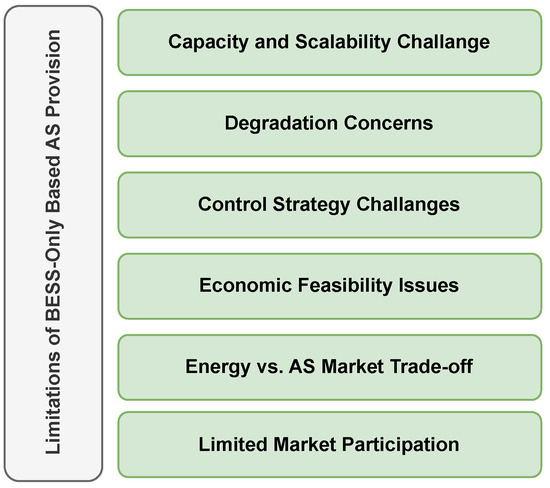

Despite the growing use of BESS to support frequency control in RES systems, several limitations have emerged from relying solely on BESS-based AS provision as illustrated in Figure 3.

With the experienced technical and economic challenges associated with the provision of AS based solely on RES, new ways of providing ancillary services were required to be identified. Consequently, most of the recent research, such as the work of Alam et al., Alpizar Castillo et al., Debanjan and Karuna, and Kim et al. [9,13,18,52,53], is now focusing on using energy storage technologies as additional support. However, these works are typically concerned with BESS as the most mature technology when it comes to adding energy storage solutions to the grid to provide frequency support, although some previous works by Amin et al. and Engels et al. [10,54] have already highlighted that BESS alone is not sufficient for fast frequency control due to the high level of degradation associated with increased charging/discharging cycles.

The work of Tan and Zhang [55] in 2017 was one of the first articles to explore the integration of batteries into wind farm setups, and they developed a coordinated state machine-based control strategy to optimise technical performance. The work considered BESS to be a secondary resource for the wind farm, with the objective of supporting the provision of AS during undesirable weather conditions. Under normal grid conditions, the BESS state of charge (SoC) was kept within a pre-defined optimum area, and the control system ensured that no full charge or discharge states are reached, hence extending the battery life time. The control was validated for primary and secondary AS provision in a test network model and found that a significant ROCOF reduction and higher nadir could be achieved with the combined setup. Further works by Munisamy and Sundarajan, Lei et al., Fernandez-Guillamon et al., and Alam et al. [3,9,15,16,50] utilised various control strategies to coordinate wind or solar PV plants with BESS for AS provision, and also found that batteries can enhance the technical performance of frequency control capabilities. However, these works ignored the economic and financial aspects of battery integration for AS provision.

To also examine economic aspects, Ai et al. [41] developed a Model Predictive Control strategy for the wind/battery system to maximise energy and ancillary market profits in the United States on the PJM market, while Neami et al. [43] looked at net present value (NPV) optimisation on the AEMO market in Australia. Interestingly, both studies concluded that adding BESS to a wind farm to participate in energy markets alone does not generate financially feasible business cases. This is because global experience shows that the prices in the energy market are typically lower than the prices in the AS market [45,46]. Consequently, the high CAPEX associated with batteries cannot be recovered with a typical battery life of 10 years. Looking into the PJM market, Ai et al. [41] assessed the techno-economic performance of following the Reg D dynamic regulation signal. This energy-neutral signal allows the charging of batteries after delivering either up- or down-regulation service; hence, the SoC can be optimised, positively impacting the storage life. The results showed that in jointly cleared energy and AS markets, the battery can significantly improve the combined system AS performance. This leads, on the one hand, to reduced penalty payments (cost) for the wind farm, while also generating extra revenues from AS provision with the battery. The study by Ai et al. [41] focused solely on profits from joint operations in the energy ancillary market. As a result, it did not provide insight into the actual NPV or the recovery of initial CAPEX. This is complemented by Namei et al. [43], who assessed the performance of the wind + battery system in the energy alone as well as in the combined energy and ancillary markets in the AEMO network. The results indicated that participating only in energy markets requires 85% CAPEX reduction to be able to achieve 10% internal rate of return (IRR), considering historic market prices for 2022 in Australia. The combined energy and AS market provision concluded that the overall NPV can be marginally improved (1–2%) since the increased AS revenues are coupled with the decreased energy market revenue of the wind farm, as the AS provision calls for curtailment.

The increasing technical challenges and the multiplication of regulation costs have recently forced system operators around the world to find new ways for ancillary service provision. In today’s high-RES penetrated power grids, it is required to have fast-acting reserves that can successfully limit the ROCOF and frequency nadir after disturbances so that stable system operation can be ensured. Such developments led to the ability of various energy storage technologies to participate in AS markets, as well as the appearance of fast frequency reserve ancillary markets (FFR ASs).

Table 1. TSOs with batteries enabled for FFR and major grid size battery manufacturers.

TSO with Battery FFR Product	REF	Major Grid Size Battery Manufacturers	REF
EirGrid (Ireland)	[56]	Siemens Energy	[57]
National Grid (UK)	[58]	TESLA	[59]
PJM (USA)	[60]	SAMSUNG SDI	[61]
MISO (USA)	[62]	LG Energy Solutions	[63]
NY-ISO (USA)	[64]	BYD	[65]
CAISO (USA)	[66]
ISO-NE (USA)	[67]
SPP (USA)	[68]
ERCOT (USA)	[69]
AEMO (Australia)	[70]

shows the Transmission System Operators (TSOs) that use batteries for the provision of fast frequency response, alongside the major global battery manufacturers.

3. Multiple Energy Storage Technologies on FFR AS Markets

Since only a handful of countries have currently opened FFR markets (as per Table 1) and allowed energy storage technologies to provide ancillary services, the available literature (especially focused on combined techno-economic evaluation) is very limited. Furthermore, because of the maturity of the technology, battery energy storage systems have been studied the most in recent works.

3.1. Sizing FFR Reserve Needs

To understand the FFR AS reserve requirements, the initial work focused on developing methodologies to size the FFR reserve requirements. The works of Alcaida-Godinez et al. [71,72] from 2022 and 2023, respectively, provide fundamental work about quantifying the required amount of fast frequency reserve capacity in power grids. The suggested methodology is a combination of analytical and simulation-based assessment, developed originally for the Mexican and Australian grids; however, the procedure is applicable in any power network environment and focuses on quantifying the fast frequency response energy requirements in the case of the largest generation outage. The method builds on the valid assumptions that in any power grids, under frequency load shedding (UFLS) is applied to prevent cascaded system blackout in the case where the frequency drops below a certain threshold. The pre-disturbance system inertia (and associated available kinetic energy) level can be determined based on the actual generation dispatch scenario. Similarly, the kinetic energy and inertia corresponding to the frequency value that triggers the UFLS relays can be manually calculated. By simulating the trip of the largest generator in the network, the system frequency locus can be identified. The position of the post-disturbance nadir value dictates whether sufficient FFR capacity is available in the grid. In the event that the nadir is below the UFLS threshold, additional FFR capacity is needed that can be manually sized and estimated.

The estimation provides the required kinetic energy and inertia that FFR technology needs to supply so that the ROCOF and frequency drop can be arrested, avoiding load shedding. Based on the energy and corresponding delivery time needs, the applicable storage technology can be sized. Alcaida-Godinez et al. [71] sized a single BESS in Mexico and concluded that the battery response time and the required capacity are inversely correlated. Subsequent studies by del Rosario and Orillaza, Dadkhah et al., and Bahloul et al. [56,73,74] confirm the same relation.

Ref. [72] refined this methodology in the Australian grid while sizing multiple batteries. The refined approach considered the individual battery characteristics, and the assessment confirmed that the optimal power reserve is not equally distributed among the participating energy storage units. Despite the theory originally assuming that the frequency control solution can be placed anywhere in the network (frequency being a global variable), only the most recent works found that in certain, geographically large countries, there is an optimal selection of the FFR location.

Taking the above further, del Rosario and Orillaza [73] as well as Rapizza and Canevese [75] examined the size of the AS requirements in the Philippines and the Sardinia power grid.

Ref. [73] focused on secondary and tertiary reserves. The system operator procures three reserve types a day ahead, regulating the reserve (4% of the foretasted hourly demand), contingency (N-1 outage) and dispatchable (N-1-1 outage) reserves. The authors highlighted that load forecast and statistical plant outage data errors can significantly impact the procured ancillary service. Accordingly, they proposed a kernel-density-based estimation method and suggested to decrease AS procurement steps from 1-hour to 5 min slots, which would lead to better forecasting, hence reducing the AS reserve needs. The assessment showed that with 5 min procurement window, the AS reserve size can be decreased by over 80%. However, this leads to increased transaction number, complicating the procurement process, which is not generally favoured by system operators [76,77].

Ref. [75] provided a sizing method for potential fast primary reserve (FPR) and synthetic inertia (SI) AS products within the Italian island grid of Sardinia, considering the future 2030 operating scenario with hourly resolution. The article considered FPR and SI proportional to the power variation and ROCOF, respectively. In 2030, the RES penetration (wind and solar PV combined) expected to reach 61%. The assessment focused on generation and load losses in the network. The proposed methodology computes the split of required FPR and SI reserves, based on the available conventional machine-based inertia. Since the simulation is run on hourly load-generation dispatch scenarios, the simulation results show the cumulative % of various level load loss as well as generation MW, inertia (MWs), and primary control capability (MW/Hz) losses. Accordingly, the study quantified the required amount of fast acting control capabilities (in MW/Hz), which can be sized considering various energy storage characteristics, that would tackle load and generation outages 100% of the time. As an example, the determined 1200 MW/Hz FFR requirement can be achieved with 300 MW BESS, having 4% droop.

3.2. Batteries

Gonzalez-Inostroza et al. [23] evaluated the BESS-based FFR AS provision in the case of the Chilean network, highlighting that considering the future high-RES penetration states of the grid, converter-based fast frequency control solutions will be mandatory in Chile. The work supports previous research showing that only RES-based frequency control techniques are insufficient to provide adequate stabilisation in cases of high renewable penetration. RES-based control capabilities can be expanded with various BESS system integration to minimise the ROCOF below the desired value of the grid code. Currently, most of the frequency control in Chile is done with hydro power plants. The comprehensive study assessed the strength of the grid in terms of limiting the ability to limit ROCOF, assuming various levels of conventional inertia, system and zone-wide stability constraints, and available technologies for the provision of AS FFR. The results showed that due to the high penetration levels of PV in Chile, hydro cannot adequately control ROCOF, and due to solar intermittency, regardless of which technology provides AS provision, the overall reserve requirements are marginally different. The most important findings of [23] is that in grids with long transmission lines and with an uneven distribution of the RES generation, the measured ROCOF values can differ at various parts of the grid, and hence there is an optimal distribution of the fast frequency reserves, as far as geographic location is concerned. Although [23] did not cover economic assessment, the results obtained (correlation between zonal AS costs and RES penetration levels) from the Italian grid by Schwidtal et al. [78] support the findings.

Amin et al. [54] investigated the ability of BESS to provide AS provision alone, investigating the impact of battery operating parameters, such as capacity and droop coefficient, assuming batteries with a top-of-class ramping rate of $1 \mathrm{pu}/20 \mathrm{ms}$. Performance assessment was performed using the ROCOF, frequency nadir, and frequency settling time as the criteria, testing the Australian grid model under 40%, 60%, and 80% penetration levels of RES.

The studies found that each 20% increase in the RES penetration level reduces the available system inertia by approximately 25%, resulting in the activation of UFLS relays in the scenarios 60% and 80%, without any BESS in service, when only conventional generators provide frequency control. Assessing the droop coefficient of the BESS technologies, the work concluded that high droops results in fast FFR provision; however, extreme droop values are counterproductive, driving the batteries to saturation quickly. When droop is considered constant, the study showed that higher BESS capacity generally performs better.

In general, high-droop BESS with high capacity, corresponding to about 15% of the total installed generation base, is favourable to avoid driving low-capacity units to saturation.

Note that most of the research simply ignored the technical limitation of batteries in terms of degradation and charging–discharging cycles. Engles et al. [10] provided one of the first overviews on how battery characteristics can limit their frequency provision capabilities. The authors highlight that the AS provision could force the batteries into fully charged or discharged states, which has two consequences. On the one hand, this can significantly reduce their useful life and, on the other hand, reach their limits, allowing them to further participate in the AS provision, resulting in penalty payments on certain markets [46]. Consequently, batteries shall be operated using an SOC controller to ensure that the charging state is kept within an optimal range. The article proposed a methodology for optimising the charging cycles and states, which has been widely adopted in recent research works such as those by Amin et al., Khalilisenobari and Wu, and Naemi et al. [8,43,54], focussing on battery-based AS provision.

Despite the important results of [23,54,71,72,73,78] on the sizing of the BESS-based FFR requirements, none of these works took into account the limitation of the BESS-based AS provision associated with SOC levels and degradation. As the literature review suggests, BESS technology alone is not sufficient to provide fast frequency control due to degradation challenges in technical terms, and neither of the batteries can achieve economically feasible AS provision on their own. However, such bottlenecks have been identified only recently, and accordingly, there is only a handful of relevant work available on techno-economic assessment of various energy storage technologies for AS provision.

3.3. Compressed and Liquid Air Energy Storage

Huang et al. [12] in 2022 evaluated the provision of AS for a wind and sodium sulphur battery system combined with a compressed air energy storage system (CAES). Despite having a long lifespan and relatively low construction capital expenditure (CAPEX), CAES technology has two major downsides, according to Chukhin et al. [79]. First, it is geographic location dependent; second, the CAES system alone is worthless, unless it is coupled with gas turbines where compressed air can be used for regeneration purposes. The aim of the CAES is to eliminate the need of a compressor for the GT, hence allowing an efficiency boost. Accordingly, the CAES system is economically feasible to install only in certain geographic locations where the brown field GT setup is already available.

However, the findings of [12] are important from an AS provision point of view. They applied the tiered energy system on the Australian market to provide fast raise/lower, slow raise/lower, and delayed raise/lower services with 6 s, 1 min, and 5 min response times, respectively. As concluded, the sodium–sulphur (NaS) batteries have a response time faster than that of lithium-ion batteries, and despite the fact that their energy storage capacity is much lower, they can discharge power up to six times their power rating, making them an ideal candidate for the AS purpose. Huang et al. [12] and Chukhin et al. [79] highlighted that the charging cycle of NaS batteries can be reduced by 80% if the depth of discharge (DoD) increases from 10% to 90%. Consequently, its SoC must be managed within a narrow range of 10% as also recommended by Engles et al. [10]. The proposed tiered energy storage system provides improved frequency control capability, in which the battery is used as long as the SoC can be maintained within the prescribed range. When limits are reached, the CAES provides further AS provision as a second-level resource. It should be noted that the system was not used for real FFR AS provision since AEMO opened the very fast increase and lower service (VFRS, VFLS) AS markets (with 1 s response time) later [70].

The missing economic assessment of Huang et al. [12] was complemented by Aldaadi et al. [42], who provided a bid strategy to optimise the revenue of a wind + CAES system in the combined energy and ancillary markets of the USA. Coordinated bidding of the system provided increased revenues. At low spot market prices, instead of selling the wind power on the energy market and charging the CAES from the market (hence significantly reducing revenue potential), the wind power can be used to charge the CAES, whose capacity is then sold later at higher spot prices, achieving arbitrage. Consequently, the proposed technical setup and bidding strategy achieved the required service provisions, while also increasing the operating profit of the system.

Technology-wise, liquid air energy storage (LAES) is comparable to CAES; however, its major advantage is the independence of the geographic location. A recent work assessed the performance of the ancillary service of a wind + battery system supported by LAES [80] in a microgrid environment, simulating the requirements of the UK’s grid. The technical performance assessment considered inertial, droop-based, and combined term control actions. The LAES system operating in combined inertial–droop response mode could improve the frequency control capability of the wind+battery system by achieving a better nadir after generation loss scenarios. It should be noted that since both CAES [12] and LAES [80] could improve the frequency control ability of a wind+battery system, having lower CAPEX requirements and location independence, LAES generally provides more flexibility when it comes to AS provision.

3.4. Hydrogen Electrolysers

One of the most promising energy storage technologies related to the potential provision of FFR-AS is hydrogen proton exchange membrane electrolysers (H₂ PEM). Alshehri et al. [81] were the first article exploring the potential techno-economic benefits of using PEM for ancillary frequency control (frequency containment reserve in Europe-FCR) and secondary (automatic frequency restoration reserve in Europe-aFRR) service within the European AS markets. The article highlighted that despite the fact that AS prices have declined, availability-based SPM pricing could generate substantial revenues on AS markets [46], and provided some initial technical simulations on the Dutch system. The technical assessment concluded that PEM can effectively contribute to frequency regulation; in the case of loss of power generation, the resulting nadir improves when PEM is used in the grid. The main strength of a H₂ PEM is its extremely fast ramping capacity [81], making it an ideal variable load.

The basic idea of a PEM is to generate H₂ and oxygen from water using electricity [82]. Consequently, the actual power demand of the PEM dictates the amount of H₂ that can be generated. Jovan and Dolanc [83] indicated that if the generation of H₂ is the main driver behind the investment in PEM, participation in the AS market will fluctuate the actual amount of hydrogen produced, which could be problematic. However, if the PEM investment is driven by AS provision, then hydrogen, as a by-product, can generate additional revenue streams, leading to economically feasible business cases.

Alshehri et al. [81] mentioned that to accurately model the frequency control response of a PEM, detailed modelling of the stack, the power conversion system, and the balance of the plant is required; however, the details of such a modelling were first presented by Dozein et al. [11,84]. The works concluded that the PEM stack model is described with fast current dynamics, and hence they are superior for frequency AS provision, compared to alkaline electrolysers. The main conclusion from [11] is that when the PEM is connected to downstream processes (generated H₂ is used), a minimum level of H₂ production must be maintained, affecting the up-regulation capability of the PEM (decreasing load). In the opposite direction, H₂ production could be limited by storage capacity, in which case the frequency down-regulation performance (load increase) can be affected. In order to avoid sudden changes in the H₂ output of a PEM, [84] recommended applying a dead band when frequency control is provided. Furthermore, [11] suggested that the limitation of the downstream hydrogen system can be eliminated by adding BESS to the PEM. It is apparent that the frequency AS provision of the PEM considering the downstream system limitations shows similarities to the challenges of battery SoC management [13]; therefore, proper hydrogen production modelling is required to assess the real AS performance of the PEM.

Based on this, Tuinema et al. [85] investigated the frequency regulation potentials of small-scale 1 MW electrolysers in the Dutch network. PEM control systems are, by default, responsible for regulating the hydrogen production to match demand; therefore, a proposed supplementary control scheme was introduced, enabling AS provision. The work used a simplified grid model and tested the frequency regulation performance of the PEM under various loading conditions, as well as cold-start and shutdown scenarios. The technical assessment showed that the fast ramping capability of the PEM provides frequency control before the primary control action of conventional synchronous machines are delivered; therefore, PEM can be used for ancillary service provision for FFR.

Similar findings were provided by Samani et al. [86], who investigated the ability of a 25 MW PEM to provide primary control (FCR) in the Belgium grid while increasing operating profits by delivering ancillary services. Similarly to the research cited, the article emphasised that using a PEM for AS provision as a controllable load does not affect its lifetime. The financial assessment compared the potential NPV under two strategies; following energy spot prices and providing FCR service. However, it ignored the H₂ storage and downstream process, assuming that any amount of hydrogen generated can be produced and sold. The AS performance was tested under four scenarios, providing bidirectional symmetric frequency regulation (up and down) with 100 mHz and 200 mHz dead bands as well as asymmetric up and down regulation with 100 mHz insensitivity. As expected, running an electrolyser following the price of the spot market (and minimising electricity expenditure) results in hydrogen production revenue that cannot recover the high CAPEX of the PEM. To maximise cash flow, the PEM is supposed to operate at high sensitivity (100 mHz dead band) while providing symmetric reserve, in which case positive NPV can be achieved. It should be noted that the article recommended running the electrolyser at half load as a base for symmetrical AS provisions, as this strategy maximises the revenues. However, it can happen that on different markets, the hydrogen and AS prices differ in a way that an alternative base-loading strategy needs to be followed for revenue and NPV maximisation. It is understood from recent academic work that combining AS provision revenues with hydrogen selling income can lead to NPV-positive business cases.

Wu et al. [87] provided a techno-economic assessment within the ISO-New England network of a PEM-based system considering three energy pathways (H₂ generation, injection H₂ into existing gas pipe network, and the re-electrification using either hydrogen-ready gas turbine or a fuel cell). The path economic performance was assessed under five scenarios (bulk hydrogen sale, hydrogen + AS revenue, bulk sale + gas pipe injection revenues, and re-electrification with AS provision) with various PEM ratings. Hydrogen storage and the associated limitations were considered, while, due to the ISO-NYE market setup, the demand response was also considered as a revenue generator for curtailing the load according to system needs. The study showed that the sale of hydrogen alone is not economically viable, whereas bulk hydrogen sale along with the provision of AS also results in a negative NPV business case in the ISO-NYE network. An interesting comparison can be drawn with Samani et al. [86], who concluded that in Belgium, hydrogen selling and AS provision can together reach a financially justified business case, highlighting how the AS remuneration structure and local hydrogen prices can impact the profitability of using a PEM for grid regulation. Wu et al. [87] further concluded that the gas network injection revenues can overcome the break-even position, while re-electrification can further increase and economic performance of the system. Because the assessment considered fuel cell for re-electrification, it is important to highlight that a PEM rating matching the fuel cell rating is advisable under constant hydrogen storage conditions, as a PEM rating superior to the fuel cell rating results in excess CAPEX that cannot be recovered from the combined revenue streams.

A similar assessment was presented by Dadkhah et al. [74], where the techno-economic performance of the hydrogen refuelling station (HRS) was investigated, using grid and market data from Belgium. The HRS consists of a PEM and the hydrogen generated is stored in tanks. Cars and buses can be refuelled at various pressures on site, while excess H₂ can be delivered to the industry or injected into existing gas pipelines. The HRS ecosystem is expanded with AS provision capabilities, allowing it to provide primary, secondary (aFRR), and tertiary (mFRR) provision according to the ENTSO-E specifications [46]. It is important to note that FCR bids are required to be symmetrical, while aFRR and mFFR provision can be performed via asymmetrical bids as well. The economic assessment was carried out via an optimisation model to maximise profit considering various prices associated with the different delivery pathways and AS revenues (FCR is remunerated for capacity only, while aFRR and mFRR are remunerated for capacity and utilisation). It should be noted that, as an existing facility, only operational expenditure (OPEX) was considered on the cost side, while the system CAPEX was ignored. Five cases were tested, one without AS provision, and four with different ancillary services, FCR, aFFR up, aFRR down, and mFFR up, respectively. The observations suggest that, on the basis of the expected hydrogen demand and contracted AS capacity, the PEM can be optimally sized. Providing ancillary services along with hydrogen sales leads to positive NPV business cases. In the assessed setup, FCR provision was marginally profitable (due to payment based only on capacity); however, secondary and tertiary AS revenues showed significant increase in the NPV values, especially in cases of aFRR-up regulation.

Consequently, Dadkhah et al. [74] further confirmed that the AS payment structure can significantly impact the revenue potentials of energy storage technologies. Dadkhah et al. also assessed the techno-economic feasibility of using HRS for AS provision in the Belgium grid [88]. The setup of the system compared to [74] was different, as industrial hydrogen usage was ignored, while during the evaluation, only the symmetric primary response was provided with the dead band of 200 mHz. The economic optimisation model also included CAPEX at the site, instead of [74]. The study covered current and future grid scenarios that incorporate expected increases in energy prices and reductions related to technology advancement. The cross-market (hydrogen, energy, and AS) arbitrage opportunity concluded that the major operating cost is associated with the purchase price of electricity and, therefore, the PEM size needs to be optimised based on the requirements of the hydrogen downstream system. The AS provision results in an increase in approximately 20%. This means that the provision of AS using PEM can meet the technical requirements while also increasing operating revenues, and at the same time, setting the path for lower hydrogen prices for the transportation sector, creating a win–win situation. However, it should be noted that all the above research focused on primary and secondary AS provisions with PEM.

Since the FFR AS markets are currently very limited around the world, the only academic work that has been found to evaluate the ancillary provision of fast frequency using H₂ PEM is the work by Ribeiro et al. [89]. The work investigated the possibility of providing FFR and primary AS in the Iberian Peninsula for a future grid scenario. The technical assessment focused on identifying whether system minimum (critical) inertia levels (to stabilise frequency after disturbances) can be reached by allowing multiple PEMs to provide frequency control. ROCOF and nadir were used as technical criteria; however, only the up-regulation performance was tested, assuming a nominal power PEM operation pre-disturbance (loss of generation). The study cases focused only on the primary, primary + synthetic inertia, and primary + FFR provision combinations. The conclusions suggest that PEM technology is superior to alkaline for AS provision purpose because of its fast dynamics. The actual response speed is a decisive factor when it comes to economic feasibility. Compared with other discussed works, the large-scale PEM system introduced a new technical challenge. In Europe, each country is mandated to provide a prescribed primary reserve capacity. Ref. [89] found that if the PEM installed base for primary provision is larger than the reserve requirement, then due to the fast ramping capability, PEMs quickly deliver the full FCR, resulting in un-utilised AS capacity on the PEMs. Accordingly, oversizing PEM for primary AS provision alone is not economically meaningful, or, looking at it from the other side, if the available PEM capacity is larger than the primary reserve requirements, then it is economically beneficial to also provide FFR ancillary service to utilise the excess capacity. Since [89] did not provide an economic assessment of the setup, it is unclear how profitable such a large-scale PEM system could be.

3.5. Fuel Cells

Compared to PEM electrolysers, the assessment of fuel cells (FCs) for frequency AS provision is even more limited in the recent academic work. Dong et al. and Crespi et al. [90,91] discussed FC modelling and application for grid regulation, while Apostolou and Ezeodili et al. [14,92] focused on combined electrolyser–fuel cell operation.

Crespi et al. [91] developed a dynamic model of hydrogen fuel cells (FCs), highlighting their rapid ramp-up capabilities and load-following capabilities, which are sufficiently rapid to be considered for the provision of ancillary services. The model consists of stack, plant components, and controller models, validated by field measurements, and reflects the required thermal and electrical transient behaviour. The article emphasises that the cold start-up time for FCs is excessively long, even for tertiary frequency regulation. Consequently, FCs must maintain continuous operation to be viable for the provision of ancillary services. Furthermore, a possible combination with the PEM electrolyser can enhance the overall frequency regulation capability of the combined system.

This investigation was carried out on the Danish grid by Apostolou [14], assessing the economic viability of using the combination PEM-FC for only AS provision, to generate hydrogen related to transport only, and to combine both objectives. AS provision assumed that purchased hydrogen was used to power up the FC to deliver ancillary services, the transportation-only scenario assumed that the PEM produced hydrogen based on the purchased electricity, while in the combined objective case, the PEM-produced hydrogen could be utilised by the FC for the AS provision. The hydrogen downstream system and associated constraints were modelled. The economic assessment was performed on the basis of NPV and IRR calculations, considering system CAPEX and OPEX measured against hydrogen and/or ancillary service revenues.

The simulation showed that selling AS provision with FC alone is not feasible under current Danish market conditions (and spot prices); however, in other markets, NPV-positive business cases might be achieved. However, selling PEM-generated hydrogen can offset the CAPEX, OPEX, and electricity prices to justify the system investment, while the combined transportation and AS market objective results in well-justifiable investment decisions. The importance of the work is two-fold. On the one hand, hydrogen-based systems that are operated with the combined objective of producing hydrogen and delivering ancillary service can result in economically feasible cases, depending on individual market conditions. However, the combination of various technologies (when complementing each other’s technical characteristics) can significantly improve the AS provision performance and profitability.

Ezeodili et al. [92] evaluated PEM-FC from a purely technical point of view, by integrating such a hydrogen ecosystem into a single-wind farm network powered by a solar farm. The hydrogen system balances the operation and fluctuation in power output related to the intermittency of the wind farm. In the case of excess wind generation (or frequency down-regulation requirements), instead of power curtailment [93], the extra wind power can be used to generate hydrogen with the PEM, while during up-regulation, FC can deliver extra power if the wind conditions are not favourable.

Dong et al. [90] considered a techno-economic assessment of the combination of reversible solid oxide fuel cells (rSOFCs) with hydrogen-ready gas turbines for ancillary service provision. The economic optimisation was carried out considering energy and ancillary market revenues as well as the OPEX of the combined rSOFC-GT system. In the energy market during low price times, the energy can be purchased (and used) by running the rSOFC in the electrolyser mode to generate hydrogen, while in high-price market conditions, the rSOFC can be switched to the fuel cell mode for regeneration purposes. When this is combined with GT capability, not only is energy market arbitrage possible but additional revenues can also be harvested on the ancillary service market.

3.6. Supercapacitors

In order to understand the potential to achieve additional revenues and profits in the ancillary markets, the scientific literature only very recently began to focus on exploring the potential of novel energy storage technologies.

Glass and Glass [94] evaluated the technical performance of using supercapacitors (SCs) for the AS provision. Compared to GTs [90] and batteries [54], super capacitors have significantly faster response times, making them potential candidates for FFR AS provision. The major technology downside of super capacitors is the high level of self-discharge, which can be overcome if they are used in markets where the provision of energy-neutral AS is allowed, such as the Reg D signal in the PJM grid [60]. The fast response and high power injection potential of SCs can reduce the FFR reserve requirements [72], which is welcomed from a system operator point of view, while, on the other hand, complementing other energy storage technologies for better provision of AS.

Bahloul and Khadem [95] investigated the FFR AS provision of a combined battery and supercapacitor set up within the UK (EFR signal) and PJM (Reg D signal) grids. The article highlighted the benefits of hybrid energy storage systems for frequency regulation purposes. As widely covered by recent academic work, such as Khalilisenobari and Wu, Naemi et al., and Fernandez-Munoz et al. [8,43,77], the AS provision of the BESS-based storage system is significantly limited by the SoC and charging–discharging characteristic of the actual battery. This limitation can be solved by combining SC with BESS, where SC can be used to share the regulation provision with BESS. The assessment provided by Bahloul and Khadem [95] concluded that the SC rating required for the support of BESS operations on AS markets depends on the actual regulatory and market conditions of the grid; therefore, it has to be sized in each individual case.

3.7. Flywheels

Despite flywheels being a very mature technology, the literature available focusing on the evaluation of techno-economic performance under the FFR AS provision is very limited. Flywheels are grouped into two categories, low-speed (up to 6000 rpm) and high-speed (up to 100,000 rpm) flywheels, and have been used widely for various frequency stabilisation objectives of power systems, such as adding actual inertia to the system [96]. From an ancillary service provision point of view, the flywheel is characterised by very fast response time (equivalent to conventional generation units) and high-power density, making them an ideal solution in low-inertia grids to limit ROCOF right after severe disturbances. However, on the other hand, their energy density is low and the self-discharge rate is high; therefore, the frequency stabilisation response cannot be maintained for a long time, limiting the revenue potential of the ancillary services.

Lu et al. [97] evaluated the techno-economic performance of the ancillary services of the flywheel within the USA energy market (CAISO). The article also confirmed the very fast response time (in a range of milliseconds) and highlighted that flywheels are ideal in energy-neutral ancillary service markets, where recharging is allowed after each discharge period. The economic evaluation (possibility to achieve financial break-even as far as CAPEX; lifecycle OPEX against ancillary revenues) considered two scenarios and two payment methods: ancillary service provision by flywheel only, and by flywheel coupled with RES (hydro) plant, as well as payment for availability and for energy utilisation. The study implied that relying solely on flywheels may limit ancillary service revenue due to their frequent charge–discharge cycles. Consequently, coupling with other RES or energy storage technologies is recommended. The findings are supported by Khaterchi et al. [98], who assessed the performance of a wind turbine–flywheel combined set up, under various network disturbances. The technical simulation concluded that the flywheel coupling helps smooth the frequency regulation response of the wind turbine, thus reducing its mechanical stress. However, the additional response from the flywheel results in lower-frequency nadirs that allow the wind turbines to remain connected to the grid.

Achour et al. [99] also investigated the performance of a coupled wind turbine–flywheel system, and highlighted that flywheels are better suited for frequent and fast regulation purposes, compared to batteries, due to their fast recharging potential. The investigation of frequency regulation capability showed that the actual master controller can significantly impact the coupled system performance, and it is recommended to use a fuzzy PI controller instead of the traditional PI one, to achieve better raise time from the flywheel.

Ramakrishnan et al. [100] investigated various ancillary services provided using different storage technologies. In support of the arguments from [96,97,98], they found that the battery-coupled flywheel can overcome the low-energy density issue of the flywheel, which can also increase the lifetime of the lithium-ion battery by 20%. The techno-economic investigation further revealed that flywheels are one of the best-suited technologies for FFR AS provision; however, as already discussed, the self-discharge rate typically requires flywheels to be coupled with RES or other energy storage mediums. Beltran et al. [101] assessed the techno-economic performance of a coupled wind farm flywheel system and found that in the high-penetration grid of RES, hybrid coupled energy storage solutions are typically the lowest-cost balancing solutions. The authors concluded that flywheels are the best candidates for FFR based on the response to inertia, considering the technical performance, commercial aspects, and the useful life of the technology.

In addition to FFR considerations, flywheels can also be used for primary frequency control purposes when coupled with wind turbines [102]. The study focused on optimising the control strategy for the coupled system to improve the primary frequency response. The assessment suggested that the addition of the flywheel significantly reduces the need to operate the wind farm at sub-MPPT points, therefore improving the revenues of the energy market as [38,41,42,43] also suggested.

3.8. Demand-Side Management for FFR AS Provision

As opposed to energy storage-based FFR AS provision, a handful of recent works focused on FFR provision using demand-side management (DMS), such as Chau et al., Agbonaye et al., and Prakash and Pandzic [103,104,105]. The outcome of these articles points in one direction. Despite the technical potential of having successful AS provision via DMS, currently, the participating loads are individually too small to be able to achieve the minimum AS bid limits, and on the other hand, the pooling of small, distributed resources into a “virtual load” is currently not yet supported by the global AS markets. However, it should be noted that in the case of increasing the flexibility of the AS market in this direction, with the right AS remuneration structure in place, demand response-based AS provision can gain space.

4. Discussions

4.1. Comparison of Research Methods

Table 2. Research methods comparison.

Aim	System	Method’s PRO	Method’s CON	REF
General FFR Sizing	Simplified Grid Model	Great for “rule of thumb”	Not location based sizing	[56,71,72,73,74]
	Detailed Grid Model	Catches ROCOF variation	Complex to develop	[75,77]
ESS Bidding Strategy for AS	Wind+BESS Off-Grid	Valid for given market structure	Not scalable	[41,43,55]
	PV+BESS Off-Grid	Ideal for remote areas.	Dynamic performance not verified	[3,9,15,16,50]
Individual ESS Sizing for AS	Market Simulation Only	Reveal Price Impact / Forecast	Dynamic performance not verified	[12,23,42,78,79,81,85,103,104,105]
	Grid Simulation Only	Technical confirmation.	Nodal pricing impact location selection	[11,54,80,84,86,94]
	Simplified Grid + Market Simulation	Market / Grid Code Relevant	System-wide performance missed	[8,10,43,88]
	Detailed Grid + Market Simulation	Full techno-economic understanding	N/A	[13,87,89]
Multiple ESSs Sizing for AS	Grid Simulation Only	Technical confirmation.	Pricing ignored in decision-making	[90,91,93,95,96,98,99,102]
	Market Simulation Only	Reveal Price Impact / Forecast	Dynamic performance not verified	[100]
	Simplified Grid + Market Simulation	Market / Grid Code Relevant	System-wide performance missed	[14,92,97,101]
BESS Specific Assessment	SOC Ignored	Simplified simulations	Suboptimal sizing	[23,54,71,72,73,78]
	SOC Acknowledged	Market relevant details caught	N/A	[9,13,18,52,53]

provides a summary comparison of the research methods reviewed. It is transparent that the research methods used for the sizing of energy storages (whether single or multiple storage technologies) can be grouped into four different approaches. Among these, market-only and grid-only assessments provide either economic or technical understanding of the AS provision capability. Simplified grid models can provide high-level techno-economic evaluation; however, only fully detailed, combined grid and market simulations can result in full understanding of the AS provision capabilities and their economic potentials.

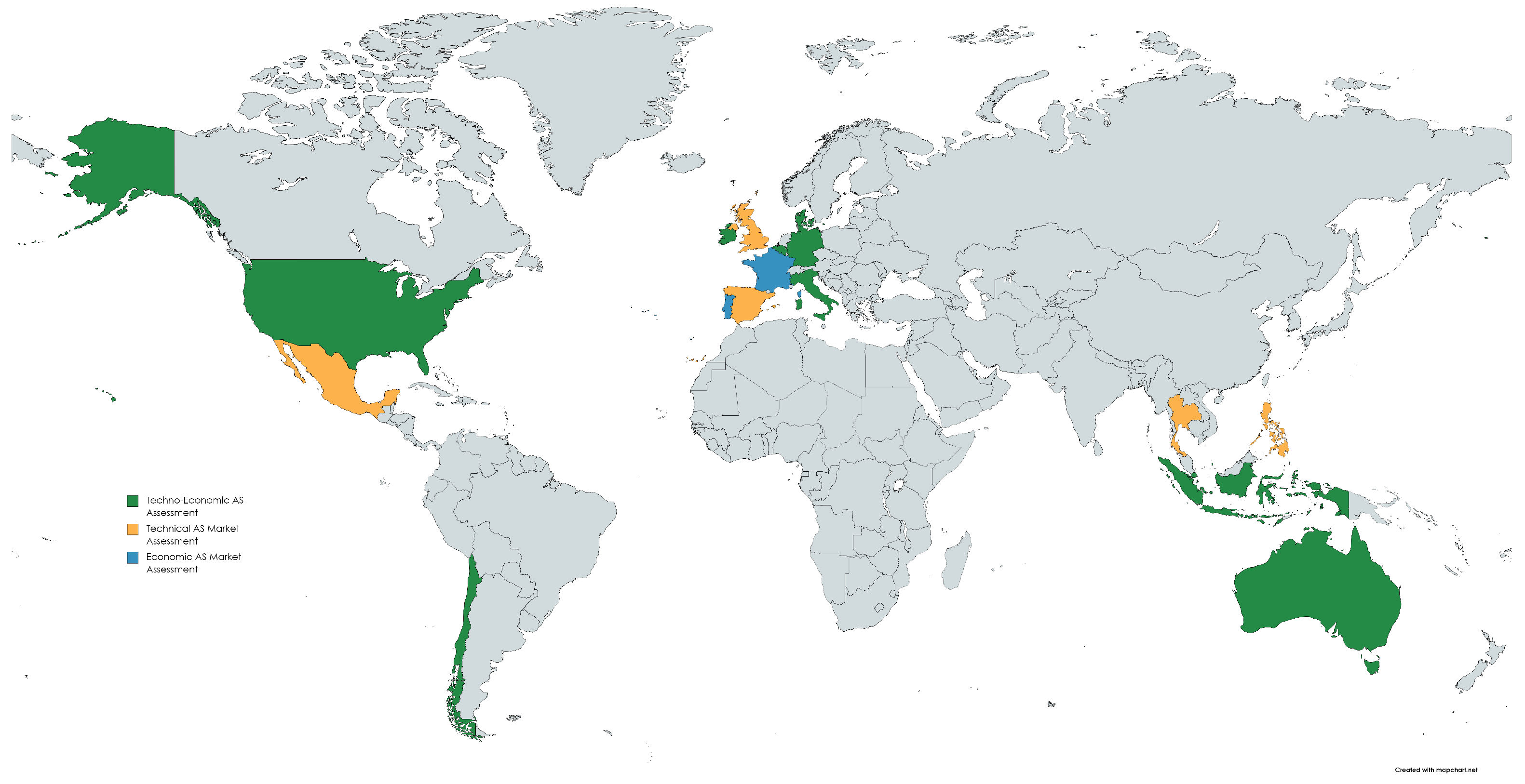

The geographic distribution of the reviewed studies as indicated by Figure 4, generated using [106], underscores the global interest in optimising energy storage for AS provision. The countries are colour coded to indicate the nature of the evaluations performed in each study on various energy storage technologies for the provision of FFR ancillary service:

• Green: Represents countries where the papers focused on both technical and economic evaluations of the technologies. These studies provide a comprehensive analysis of technological capabilities and economic viability, offering insights into the full spectrum of considerations for the deployment of these technologies in real-world scenarios.
• Orange: Indicates countries where the research mainly addressed the technical aspects of AS provision. These articles dive into the operational and performance characteristics of energy storage technologies, focusing on their effectiveness and efficiency in grid stabilisation without discussing economic factors.
• Blue: Denotes countries where the studies are concentrated solely on the economic assessment of AS provision. These articles evaluate the cost implications, financial benefits, and market potential of using different energy storage technologies, providing valuable information for decision-making on investments and policy formulation.

This colour-coded mapping ensures that the reader can quickly determine the focus areas of research in different regions, enhancing the understanding of how various global perspectives and priorities shape the development and evaluation of energy storage technologies for grid support.

In exploring the capacity of various energy storage technologies to provide fast frequency response ancillary service, this review reveals a complex landscape where each technology’s strengths and weaknesses need to be carefully balanced against the operational demands and economic realities of modern power grids.

Table 3. Summary of the techno-economic advantages and disadvantages of various storage FFR AS-relevant storage technologies.

Technology	Technology Advantage	References	Technology Disadvantage	References
BESS	Better performance if placed closed to RES	[23]	SoC, DoD is major technical issue	[8,10,43,54]
	Zonal AS price can suggest location	[78]	SoC limit results in penalty payment	[46]
	High droop and high capacity best for AS	[54]
	Charging Cycle can be optimised	[8,43,54]
	NaS response is faster than Li-ion	[12]	NaS SoC must be in narrow band of 10%	[79]
CAES	Increase GT efficiency and reduce cost	[12]	Location specific, need GT coupling	[79]
	Increased AS revenue when RES coupled	[42]	Not fast for FFR	[70]
LAES	Droop-mode increases AS performance	[80]	Location dependent	[80]
	Lower CAPEX compared to CAES	[80]
H2 PEM	Bidirectional AS provision	[82]	economic if AS is not main goal	[83]
	Fast ramp rates ideal for AS	[81,85]	H2 subsytem impact AS provsion	[11,84]
	PEM lifetime not impacted by AS	[86]	FFR provision only limits revenue	[46,74,89]
	Higher revenue when FFR + secondary	[86,87]	PEM to be sized based on H2 demand	[88]
FuelCells	Good primary response if combined with PEM	[92]	Not fast for FFR	[91]
	High revenue potential with GT coupling	[90]	Not economic for AS alone	[14]
Super Capacitor	Very fast response	[94]	Capacity limits AS revenue	[94]
	No SoC issue (like BESS)	[95]
Flywheel	Very fast FFR response	[96,102]	Frequent re-charging	[96,101]
	High power density	[97,100]	Need coupling with other RES/storage	[98,99,101]
Demand Management	Potential revenue when with right AS remuneration	[105]	Need virtual loads (complex metering)	[103]
			AS markets are not yet ready for DMS	[104]

highlights these differences and serves as a critical tool for stakeholders to evaluate the feasibility and strategic deployment of these technologies.

• Battery Energy Storage Systems

BESS technology, particularly lithium-ion and sodium–sulphur (NaS) batteries, offers considerable advantages in terms of placement flexibility and high discharge capabilities, making them well suited for FFR AS. However, their efficiency is marred by significant concerns about SoC and DoD, which can lead to rapid degradation and potential economic penalties if not managed correctly. This requires advanced management systems that can significantly increase the total cost of ownership and operation.

• Compressed and Liquid Air Energy Storage

Both CAES and LAES show promise because of their increased efficiency when coupled with RES and gas turbines, and lower CAPEX, respectively. Their geographic dependence and complexity of integration can limit their deployment and economic viability. These systems must be designed with a keen awareness of location-specific factors and potential integration benefits to maximise their AS revenue.

• Hydrogen-Based Systems

Hydrogen PEM systems are highlighted for their fast ramp rates and the ability to provide bidirectional AS, which is crucial for grids with fluctuating renewable inputs. Despite these benefits, the economic viability of PEM systems can be constrained when FFR is not the primary market goal, as the subsystems required to support hydrogen production can interfere with the flexibility needed for optimal AS provision.

• Fuel Cells and Supercapacitors

Fuel cells complement hydrogen systems but are often not fast enough for the provision of FFR AS without integration with other technologies such as PEM electrolysers. Supercapacitors, which offer the fastest response among the technologies reviewed, face limitations in capacity that can hinder their revenue potential unless used in hybrid setups with other storage technologies.

• Flywheels

Flywheels offer a robust solution with very fast FFR response capabilities and high power density, ideal for immediate grid stabilisation needs. However, their lower energy density and high self-discharge rates limit their standalone application, making them more suitable for integration with other RES or storage technologies.

• Demand Management

Finally, DSM offers potential revenue streams in markets with appropriate remuneration structures. Despite this, current market designs often do not support the aggregation of small, distributed loads into virtual loads necessary for DSM to be a viable FFR AS provider.

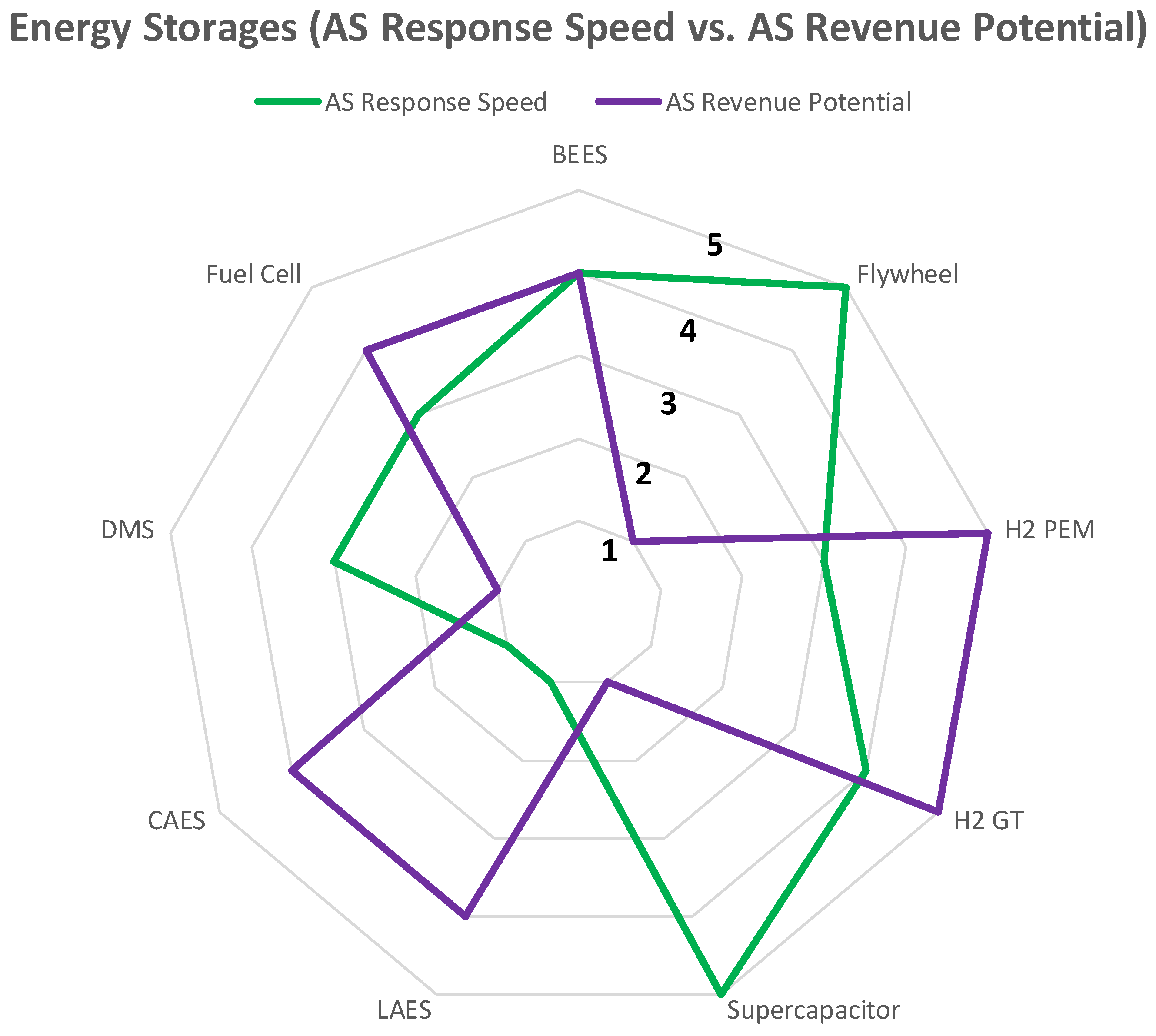

Based on the literature review findings, the various storage technologies have been classified based on their expected technical (AS response speed) and economic (AS revenue) performance potential as shown in Figure 5. The authors of this article assigned technical and economic scores on a scale of [1:5], where higher scores mean faster response speed/greater revenue potential for the given energy storage technology.

A technical score of five means that the given technology can provide an immediate or very fast frequency response service, making it highly suitable for FFR. This high score indicates that the technology can rapidly adjust its output to stabilise the frequency of the grid following disturbances. In contrast, a technical score of one means that the storage technology is not sufficient to provide a fast frequency response, highlighting significant limitations in its application for this purpose. This low score suggests that the technology is too slow or has insufficient ability to react quickly to frequency changes, making it unsuitable for FFR.

Similarly, an economic score of five suggests that the potential revenue generation from ancillary service provision is high. This high score indicates that the technology can provide rapid service for an extended period of time, making it economically viable and attractive to grid operators and investors. Technologies with high economic scores are expected to generate substantial revenue because of their ability to sustain performance over long periods and participate effectively in ancillary service markets. An economic score of one, on the other hand, indicates that the expected ancillary service revenues are very limited. This low score points to a technology that cannot sustain its response for a long period before being fully utilised, reducing its economic attractiveness and potential for revenue generation.

For example, a flywheel can provide very fast response but only for a short duration; therefore, the AS revenue is very limited. As opposed to this, a BESS can provide comparably fast AS response and sustain this for an extended time, leading to much higher AS revenues.

Consequently, there is no technology that alone would be an ideal choice for FFR AS provision; however, modular coupling of the technologies, thereby complementing their pros and cons, carries the potential to meet the grid-specific technical requirements under diverse market conditions.

4.2. Multiple Energy Storage Technologies for Frequency Control in High RES Penetration Grids

Energy storage systems (ESSs) are proving to be crucial in the realm of frequency control within grids with a high penetration of RES. They are lauded for their rapid response and versatile control capabilities. Recent advances in control methodologies, optimisation models, and economic strategies are significantly improving their functionality and application.

Research in this field has consistently introduced robust control strategies designed to stabilise and optimise the performance of grids incorporating multiple ESS. Notable among these is the two-layer control strategy developed by Zhang et al. [107], which ingeniously combines Model Predictive Control (MPC) with a detailed allocation model. This model utilises Area Regulation Requirement (ARR) and Area Control Error (ACE) signals to manage the dynamic responses and optimise battery usage throughout the grid, demonstrating a remarkable improvement in the grid stability in scenarios of high penetration of RES.

Similarly, Wang et al. [108] have proposed another MPC-based strategy tailored for optimal task allocation among multiple BESS. This method categorises the ACE signal and SOC into different intervals, thus ensuring not only dynamic performance but also effective frequency regulation while maintaining SOC health. The adoption of MPC in these studies underscores its efficacy in handling the complexities associated with multiple ESSs under conditions of high penetration of RES.

Further enhancing the breadth of this research, Mao et al. [109] focused on primary frequency regulation (PFR) power allocation among multiple distributed energy storage aggregators. They crafted a PFR power allocation model based on MPC, employing the distributed interior point method for the solution. This model is designed for speed, accuracy, and the protection of private data, ensuring the efficient allocation of PFR power and mitigating SOC shifts.

The integration of carbon trading with energy storage solutions presents a novel approach to enhance frequency regulation while simultaneously promoting environmental sustainability. This innovative approach was explored by Zhang et al. [110] through a day-ahead dispatch optimisation model that not only incorporates various types of ESS into frequency control ancillary services but also integrates carbon emission trading, using dynamic carbon pricing schemes to manage wind power fluctuations and reduce carbon emissions.

Liu et al. [111] investigated hybrid energy storage systems that combine lithium batteries with flywheel energy storage to assist thermal power units in frequency modulation. Their study revealed that this hybrid approach significantly mitigates frequency deviations and bolsters grid stability more efficiently than thermal power units alone. It also highlighted the reduced mechanical wear on the thermal power units, which prolongs their service life and encourages the integration of renewable energy.

The economic implications of deploying multiple ESSs for frequency control are critical. Studies such as those by Zhang et al. [107] and Wang et al. [108] emphasised cost optimisation in conjunction with technical performance. Their research highlighted the economic advantages of merging environmental incentives with ESS deployment, and their models have undergone rigorous validation through practical simulations. These simulations have proven to be effective in real-world scenarios, confirming the transition from theoretical models to practical operational solutions in grids with high penetration of RES.

5. Limitations and Future Research Direction

Despite the significant advancements in energy storage technologies for power systems, substantial research gaps remain, particularly in the context of high renewable energy RES penetration grids. While various storage solutions demonstrate potential in providing fast frequency response ancillary services, no single technology sufficiently meets all the operational demands required for future high-RES grids. The inherent pros and cons of each storage technology necessitate a more integrated approach to ensure effective frequency control.

Recent research has begun to explore the combined use of multiple ESSs for FFR provision. Studies such as those by Mao et al. (2023) and Wang et al. (2023) introduce sophisticated control methodologies, like MPC, and optimisation models that manage the dynamic behaviour of multiple ESSs to enhance grid stability [108,109]. However, these investigations often rely on simplified simulation models or focus primarily on isolated control strategies without conducting comprehensive techno-economic simulations [111] using real power grid dynamic models and coupled energy market models [112].

5.1. Identified Gaps

• Complex System Integration: Most studies do not adequately address the integration complexities of multiple ESSs within large-scale, real-world power systems. The interaction between different storage technologies and their collective impact on grid dynamics remains under-explored.
• Techno-Economic Analysis: There is a distinct lack of detailed techno-economic evaluations that consider both the technical performance and economic viability of using multiple ESSs for FFR. Such analyses are crucial to understand the practical implications and financial sustainability of these systems.
• Market Dynamics: Few studies integrate energy market dynamics, which are essential to assess the economic incentives and feasibility of deploying multiple ESSs in competitive electricity markets.
• Environmental Impact: While some research, like that by Zhang et al. (2024), incorporates carbon trading into dispatch models, the broader environmental impacts of deploying multiple ESSs remain largely unquantified [110].

5.2. Future Research Directions

• Developing integrated simulation environments that combine multiple ESSs with real grid dynamics and market conditions to provide a more accurate assessment of system performance and economic outcomes;
• Expanding the scope of techno-economic studies to include long-term sustainability assessments and detailed cost–benefit analyses under various market scenarios;
• Enhancing the environmental assessments of ESS deployments, particularly in terms of their role in reducing carbon emissions and other pollutants in line with global climate goals.

The need for modular and scalable energy storage solutions is clear, as is the necessity for innovative research that can bridge the current gaps in knowledge and technology. By fostering a holistic approach that considers technical, economic, and environmental factors, the potential of multiple energy storage technologies to support high-RES penetration grids can be fully realised.

6. Conclusions

This review paper has systematically addressed the dynamic and evolving landscape of frequency control within power systems, particularly under the increasing influence of renewable energy sources. By critically evaluating the advancements and limitations of renewable-based control technologies and, more importantly, the role of diverse energy storage technologies in providing fast frequency response ancillary services, this research has unearthed significant insights and notable gaps in the existing body of knowledge. It has become evident that while battery energy storage system applications remain at the forefront of current research, there is a pronounced under-representation of grid-scale storage solutions and novel energy storage technologies that are potentially transformative for frequency control.

Moreover, the review highlights a crucial shortfall in the literature: a lack of detailed technical simulations and hybrid storage models that can effectively address frequency control challenges. There is also minimal exploration of the environmental benefits associated with these technologies, particularly the potential for carbon dioxide emission reductions, which is paramount in today’s context of mitigation of climate change.

This paper underscores the urgent need for more comprehensive research. Future studies should not only incorporate detailed techno-economic evaluations and assess the carbon dioxide reduction potential of scalable, modular energy storage technologies but also employ advanced network simulation models and thorough market analyses. By bridging these gaps, research can significantly advance our understanding and implementation of energy storage solutions, ultimately contributing to a more stable, sustainable, and economically viable power system.
