Drop-In Replacement of R134a in a Household Refrigerator with Low-GWP Refrigerants R513A, R516A, and R1234ze(E)

Juan M. Belman-Flores
Yonathan Heredia-Aricapa
Juan J. García-Pabón
Vicente Pérez-García
1 and
César G. Pérez-Reguera
IRSE Research Group, Department of Mechanical Engineering, Engineering Division, Campus Irapuato-Salamanca, University of Guanajuato, Salamanca 36885, Mexico
Institute of Mechanical Engineering, Federal University of Itajubá (UNIFEI), Av. BPS, Itajubá 37500-903, Brazil
Mabe TyP, Acceso B#406, Parque Industrial Jurica, Jurica 76120, Mexico
Author to whom correspondence should be addressed.
Energies 2023, 16(8), 3422;
Submission received: 28 February 2023 / Revised: 25 March 2023 / Accepted: 4 April 2023 / Published: 13 April 2023
(This article belongs to the Topic Cooling Technologies and Applications)


This study proposes the experimental evaluation of alternative refrigerants with low global warming potentials (GWPs) such as R1234ze(E), R513A, and the mixture R516A as a drop-in replacement for R134a in a domestic refrigerator with a volumetric capacity of 513 L. Initially, the optimal charge for each refrigerant was defined based on the minimum energy consumption of the refrigerator, then the thermal and energy performance of the refrigerator was evaluated. Finally, a total equivalent warming impact analysis (TEWI) was performed. The main results indicated that the optimal charge of the alternative refrigerants was below that corresponding to R134a (105 g), of which R516A (86 g) presented the greatest charge reduction. Regarding the average temperature of the refrigerator compartments, very adequate thermal conditions were observed; thus, the alternative refrigerants showed very similar conditions to R134a. For the coefficient of performance (COP) and considering R134a as a reference, it was observed that R513A presented the greatest reduction of around 28%, while R1234ze(E) showed an increase of 13% in relation to R134a. Finally, the TEWI analysis showed R1234ze(E) as the refrigerant with the least impact.

1. Introduction

Systems based on vapor compression technology for heating, air conditioning, and refrigeration (HACR) have worked with a wide range of refrigerants in the past. Given the fact that they have specific thermophysical and safety features suitable for certain applications, these fluids are crucial to the operation and design of refrigeration systems.
Hydrofluorocarbons (HFCs) are among these refrigerants and are widely utilized all over the world. Due to their high global warming potential (GWP) or high permanence in the atmosphere, they significantly contribute to the greenhouse effect [1]. For instance, R134a is one of the most often utilized as a working fluid HFC refrigerants in HACR because of its high efficiency. However, it is a fluid that significantly contributes to the greenhouse effect because of its high GWP of 1300 [2].
Primarily as a result of growing global warming, various agreements and regulations have been established in recent decades to lessen the environmental damage produced by refrigerants. Regarding this, the European Union intends to phase out 79% of HFC refrigerants by the end of 2030 by limiting their use if they have global warming potential values exceeding 150 [3] in HACR. In addition to the aforementioned, internationally speaking, the Kigali Amendment, which called for a decrease of 80 to 85% in HFC consumption and production by the middle of the twenty-first century, was passed in 2016 [4]. The roadmap for the implementation of this amendment was established in Mexico by the Ministry of the Environment and Natural Resources [5], and it defines alternative refrigerants in domestic refrigeration applications such as the use of R600a (a hydrocarbon (HC)), and R1234yf (a hydrofluoroolefin (HFO)), as alternatives to R134a.
Thus, the refrigeration industry has been forced to make significant changes towards the development and use of environmentally friendly refrigerants. In this sense, synthetic fluids such as HFOs have been considered as viable refrigerants to replace R134a. Where R1234yf is a pure HFO widely studied and used in HACR due to its low GWP < 1 and thermophysical properties such as R134a [6,7], there are also new mixtures (HFC/HFO/HC/R744) that have been evaluated and may be very attractive due to their low global warming potential compared to R134a [8,9]. Among the recent alternative mixtures to replace R134a, mainly HFC/HFO, are R513A and R516A [10], the latter being more attractive from an environmental point-of-view due to its low GWP of 131 compared to that for R513A of 573.
As mentioned above, there are several investigations on alternate refrigerants in the recent literature. For instance, an evaluation of a dual-evaporator ejector refrigeration system using R1234ze(E) and R516A was conducted by Iskan and Direk [11]. According to the experimental findings, R516A performed quite similarly to R134a, indicating that it can be employed in this system. Al-Sayyab [12], on the other hand, examined R513A, R516A, and R1234yf in a heat pump (cooling and heating mode) under different operating conditions. Their findings indicated that R513A performed similarly to R134a, whereas R516A using refrigeration systems needs to be modified to perform similarly to R134a. In a mobile air-conditioning system, Li and Tang [13] investigated binary mixes made from pure refrigerants such R134a, R1234yf, R1234ze(E), R32, R227ea, and R152a. In comparison to R134a, they were unable to find a mixture that performed better. Binary mixes can be modified to have better performance, though, by changing their chemical composition. The refrigerants R1234yf, R1234ze, R717, and R600a were used to hypothetically analyze a vapor compression system by Soni et al. [14]. From an energy efficiency standpoint, the results indicated that R600a was the best R134a substitute. In a study employing R1234ze(E) and its binary mixes, Ramirez-Hernández et al. [15] examined the efficiency of a vertical display refrigerator at controlled ambient temperatures. After analyzing the results, it was concluded that R1234ze(E), in addition to demonstrating a 6% energy boost, constituted a strong contender to replace R134a. In a heat pump system, the new refrigerant blend RGT2 (R134a/R1234yf/R161, 54%/43%/3% wt%) was theoretically and experimentally assessed by Liu et al. [16]. The findings demonstrated that RGT2 has a cooling capability comparable to R134a while having a 3.8% lower COP. When Sánchez et al. [17] examined various low-GWP refrigerants to replace R134a in a commercial refrigerator, they discovered that R290 and R1270 offered the greatest energy savings. while R1234yf consumed more energy than R134a. Between the various refrigerants, the refrigerator’s internal temperatures stayed remarkably constant. To determine the appropriate charge of R513A, Yang et al. [18] examined the performance of R513A and R134a in a household refrigerator. In accordance with the findings, the refrigerator’s energy usage when using R513A was 3.5% less than when using R134a. The thermal and energy efficiency of a household refrigerator using R513A was assessed by Belman-Flores et al. in their publication [19]. According to the findings, a refrigerator running on R513A provides the best conditions for food preservation and uses around 9% less energy than one running on R134a.
Based on the above, a continuous effort was observed in the development and evaluation of new low-GWP refrigerants in the refrigeration and air-conditioning industry. This aims to minimize the environmental impact by transitioning to more environmentally sustainable refrigerants without neglecting the energy consumption and thermal conditions for each application. On the other hand, due to the properties of the refrigerants and the design of each refrigerator, different energy and thermal results have been obtained. This allows for further exploration of the compatibility and performance of alternative refrigerants to replace conventional refrigerants, such as R134a.
In the case of Mexico, there is a progressive reduction in halogenated refrigerants according to the Kigali Amendment, in which domestic refrigeration ranked fifth in the consumption of HFCs, with approximately 2.07 MtCO2eq, using R134a [5]. Despite the fact that R600a is mandated as the working fluid in new refrigerators, it is important to note that 88% of homes have at least one refrigerator and that most of them use R134a [20].
Therefore, the present study explores the use of low-GWP refrigerants as a direct replacement for R134a in a typical Mexican domestic refrigerator. Among the refrigerants to be studied, R1234ze(E) is proposed, which, although it has been evaluated [21], it is important to understand its behavior in domestic refrigeration in more detail. R513A is another one of the refrigerants analyzed in this work with a different refrigerator design from the one evaluated in [19]. The mixture R516A is also introduced as a novelty in the field of domestic refrigeration, where there is no solid knowledge about performance. This study aims to contribute to decision-making in the short and medium term for the replacement of R134a in refrigerators in use.
The objective of the study is to expand the information on the thermal and energy performance of alternative refrigerants in domestic refrigeration. In the different experimental tests carried out in this work under controlled chamber conditions, the effect of the refrigerant charge variation on some characteristic parameters was analyzed, as well as the determination of the optimal charge of each refrigerant. Finally, a comparison was made from the thermal and energy point-of-view between the refrigerants studied and a TEWI projection is presented.

2. Low-GWP Refrigerants Alternative to R134a

Because of their physical and chemical qualities, performance traits, and safety considerations, refrigerants utilized in vapor compression systems are recognized to be less than optimal [22]. However, the development of new refrigerant mixtures has led to improved selection conditions according to existing limitations in environmental regulations. Thus, in this work the azeotropic mixtures R513A (R134a/R1234yf) and R516A (R1234yf/R134a/R152a) were evaluated, the latter being a recently developed mixture whose performance is explored in this work. In addition, this work also evaluates the pure refrigerant R1234ze(E), which is considered as an almost immediate replacement for R134a. Table 1 defines and compares some of the main thermophysical properties and safety aspects of the refrigerants under study. The properties are estimated using the REFPROP 10 software [23] at a temperature of 25 °C.
Reviewing the table, most of the properties of the refrigerants under study are very similar. Among the properties, the one with the most notable variation is density, which directly affects the amount of refrigerant charge, a relevant aspect in the analysis of this work. The liquid density of alternative refrigerants is lower compared to R134a. For example, the refrigerant R516A presents the smallest decrease in density, approximately 11.6% with respect to R134a. Another important property to consider is the latent heat; the higher its value, the greater the heat absorbed, causing a high cooling production and a lower circulating mass flow. In this sense, it is observed that R134a is the fluid with the highest value in this property. One of the limitations in the use of refrigerants is the value of the GWP; refrigerants R1234ze(E) and R516A can be considered as long-term alternatives to R134a since they have a GWP of less than 150. R513A shows a 56% reduction in GWP compared to R134a, so it would be considered a short-term alternative. On the other hand, R513A is non-flammable (A1), similar to R134a. This is different from R516A, which is moderately flammable (A2L), like R1234ze(E). However, A2L-classified refrigerants are suitable for use in domestic refrigeration. In general, the refrigerants have similar thermophysical characteristics to R134a; in addition, the compatibility with the POE10 lubricant is adequate for alternative refrigerants, which motivates their evaluation and comparison in this work.

3. Experimental Refrigeration System

The experimental facility is equipped with a Mabe refrigerator model RMT1951X No-Frost type (automatic defrost), which has a total refrigerated volume of 513 L, of which 372 L corresponds to the fresh food compartment and 141 L to the freezer. Note that the refrigerator is designed to work initially with an R134a refrigerant and POE10 lubricant. The refrigerator consists of a spine-finned evaporator, where heat transfer is carried out by forced convection through a fan with a constant operating speed of 2500 rpm and a 290 W resistive element. It has a mounted multilayer tube-wire condenser operating by forced convection and, finally, a hermetic reciprocating compressor model EM3Z50HLT. It should be noted that this compressor is different from the one presented in the study [19], with the purpose of increasing the exploration and information on the performance of the domestic refrigerator working with alternative refrigerants. Figure 1 illustrates the refrigerator under study in this work: the freezer is located at the top and the fresh food compartment is at the bottom. Table 2 defines the technical specifications of the main components.

3.1. Test Procedure

Determining the ideal refrigerant charge is crucial for the refrigerator’s thermal and energy efficiency. Therefore, the least energy consumption of the refrigerator is used to determine the ideal refrigerant charge in this study [26]. The charging process is carried out for all refrigerants, including R134a, since it works with a refrigerator that operates with a different compressor than the one that leaves the factory. To determine the optimal charge of each refrigerant, a variation of charges with increments of 10 g was established to evaluate the energy consumption of the refrigerator. The measurements of each charge were made with a digital scale with an uncertainty of ±0.01 g. The experimental charging process is specified in detail in [19]. For the charge evaluation, the refrigerator was kept inside a room whose temperature was maintained at 32.2 °C ± 0.6 °C and a relative humidity of 65%. The tests presented a duration until the refrigerator reached thermal stability in both compartments, which varies between each of the refrigerants evaluated, approximately between 8 and 10 h of testing. Table 3 defines the charges made for each evaluated refrigerant. Note that for R134a there is a different charge variation; this is because the tests began with this refrigerant, which allowed knowledge of the performance of the refrigerator and a perspective on the charge variation for the other refrigerants. Once the optimal charge for each refrigerant had been defined, the energy consumption of the refrigerator was evaluated under the official Mexican standard NOM-015-ENER-2018.

3.2. Instrumentation and Measurements

The proposed refrigerants have been evaluated using a fully instrumented refrigerator. While temperature was measured with K-type thermocouples, pressure was monitored using transducers with a measurement range of 0–25 bar. Additionally, measurements for the compressor’s energy usage were made using a digital wattmeter. Table 4 defines the parameters measured in this work with their respective uncertainty.
Twelve thermocouples were installed inside the refrigerator compartments to evaluate the ideal charge. To prevent density and volume changes throughout the test, four thermocouples were put within wooden blocks to detect the temperature in the freezer. The remaining thermocouples were placed in 0.245 L plastic containers filled with a solution of 80% water and 20% glycol in the fresh food compartment. The thermocouples were properly distributed within the compartments (see Figure 1a). Once the appropriate charge for each refrigerant was defined, the refrigerator was instrumented under the NOM-015-ENER-2018 standard, where Figure 1b illustrates the distribution of the thermocouples, which were fixed in copper cylinders with a diameter of 2.9 cm and the same height. The test room conditions were the same as for the charge determination. It is worth mentioning that the climate room was certified. All tests in this study were performed without opening the refrigerator doors, with no food charge, and with the thermostat position (5/5).
The main components of the refrigerator were instrumented as well with thermocouples installed at the input and output of each piece of equipment to further study the behavior of the appliance. Five uniformly spaced thermocouples were inserted along the length of the tube in the heat exchangers, evaporator, and condenser. Thermal paste and dielectric tape were used to secure these thermocouples to the tube wall. In addition, the refrigerant pressure in the suction and discharge lines was also measured. The signals generated by each of the devices were stored in a computer through the Compact-RIO data acquisition system and processed in the LabVIEW graphical interface. Data collection was performed at two-second intervals for the duration of each test in this work.

4. Results and Discussions

This section shows the main results on the performance of the domestic refrigerator working with the refrigerants R513A, R516A, and R1234ze(E), compared to R134a. First, the effect of the refrigerant charge on some parameters of interest in the refrigerator operation was analyzed. Second, the thermal and energy behavior of the refrigerator was shown with the optimal charge of each refrigerant, and, finally, a TEWI analysis comparing the combined effect refrigerants was carried out. The data presented in this section correspond to the average results of two tests conducted with each refrigerant charge, as well as with the optimal charge.

4.1. The Effect of the Refrigerant Charge

The refrigerant charge is an aspect of great interest and study because of its effect on the performance of any refrigeration system [27]. Therefore, in this work, a study was conducted to determine the optimal charge of each refrigerant; in addition, the effect of the charge on some characteristic parameters of the domestic refrigerator was analyzed. Thus, Figure 2 shows the thermal behavior of the refrigerant along the length of the heat exchanger tube as the refrigerant charge varied. Each point shown in the figure represents the average temperature during the period of thermal stability of the refrigerator (see Section 3.1). In addition, five measurements are indicated in the figure with respect to the length of the tube: zero indicates the refrigerant inlet to the exchanger, half the length to position one, which indicates the refrigerant outlet of the equipment. For illustrative purposes, the figure shows the behavior for refrigerant R1234ze(E) and the behaviors for the other refrigerants evaluated in this work are similar.

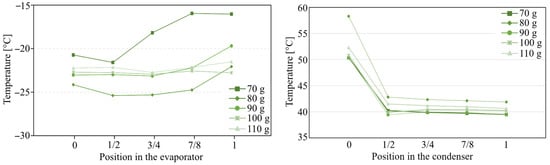

Figure 2 shows a greater irregularity in the refrigerant temperature along the evaporator compared to the temperature in the condenser. For the case of the evaporator, in this study the degree of superheating was defined as the difference between the refrigerant temperature at position one (temperature at the outlet of the evaporator) and the temperature at position three-quarters. The higher refrigerant charge ensures that flow is present along the evaporator two-phase and not completely vapor, which makes the process inefficient. Note that with a smaller quantity of mass (70 g), the evaporator is almost empty. Therefore, a greater quantity of mass is required to ensure the correct operation of the evaporator. On the other hand, the degree of subcooling in the condenser is defined as the difference in temperature in position seven-eighths and position one (temperature at the outlet of the condenser), representing a minimum variation between the different charges.
Based on the above, the degrees of superheating and subcooling of each refrigerant with respect to the variation of the charge are shown in Figure 3. It is expected that the increased charge causes an accumulation of refrigerant in both the evaporator and the condenser. Regarding the degree of superheating, it has been found that the highest superheating is displayed at low refrigerant charges because the evaporator is emptier. In contrast, at higher charges, the evaporator overflows, which lowers the degree of superheating as well as the refrigerant temperature in the suction line. Comparing the refrigerants, it is observed that R513A has the highest degree of superheating. As for the degree of subcooling, this increases slightly with the increasing refrigerant charge, which can also cause a minimal increase in operating pressures. In addition, the cooling capacity of the system can be favored. Figure 3 shows that R134a had the lowest degrees of subcooling, even lower than the unit.
The evaporator with low refrigerant charge does not have a sufficient capacity to absorb heat, which can be reflected in the behavior of Figure 4, where the cooling capacity of the refrigerator increases as the refrigerant charge increases. This parameter is calculated based on experimental data (pressure and temperature) to estimate the enthalpy values at the inlet and outlet of the evaporator. This calculation considers an average of two compressor operations cycles during the period of thermal stability of the refrigerator. Note that R134a has the highest cooling capacity among the alternative refrigerants, and, in fact, has the largest latent heat favoring heat absorption (as shown in Table 1). For example, for a charge of 90 g, R134a represents an increase of 8.7% in its cooling capacity compared to R1234ze(E), whose latent heat is 6% lower than that of R134a. R513A has the lowest cooling capacity.

4.2. Methodology to Define the Optimal Charge

In this paper, the determination of the optimal charge for each refrigerant is defined in relation to the minimum energy consumption of the refrigerator. Thus, Figure 5 illustrates the energy performance of the refrigerator for each refrigerant charge variation. Each point represents the energy consumption of the refrigerator, which is calculated considering an ON/OFF cycle of the compressor, where the total time, ttotal, is previously defined to estimate the number of cycles per day, Ncycles.
t t o t a l = t O N + t O F F
N c y c l e s = 1440 t t o t a l
From the equation above, 1440 corresponds to the minutes of a day. Therefore, the average consumption for a cycle is calculated by the following equation:
E C = W O N · t O N + W O F F · t O F F 60000 N c y c l e s d a y
where 60,000 represents a conversion factor and W is the power consumed by the refrigerator. It should be noted that the power consumption of the refrigerator for each charge is estimated under the Mexican standard NOM-015-ENER-2018, whereby an interpolation is performed between the values obtained for power consumption and temperature at the FF and FZ for the damper positions (1/1, 5/5) of the refrigerator under study. The position 1/1 corresponds to an average temperature of −14.4 °C in the freezer and 7.2 °C in the fresh food compartment, while a temperature of −17.8 °C in the freezer and 2.8 °C in the fresh food compartment correspond to position 5/5. Equations (4) and (5) represent such interpolation, where the reported energy consumption corresponds to the maximum value between both equations.
E C 3.9 ° C = E C 1 / 1 E C 5 / 5 T F F , 1 / 1 T F F , 5 / 5 3.9 ° C T F F , 5 / 5 + E C 5 / 5
E C 17.7 ° C = E C 1 / 1 E C 5 / 5 T F Z , 1 / 1 T F Z , 5 / 5 17.7 ° C T F Z , 5 / 5 + E C 5 / 5
Figure 5 shows the experimental energy consumptions for each charge variation; in addition, there is a curve for each refrigerator that represents a quadratic regression. The minimum degree of correlation is of the 0.94 order and corresponds to the regression of R513A. Therefore, the appropriate charge for each refrigerator is that which corresponds to the minimum energy consumption according to the quadratic regression. Thus, Table 5 defines the optimal charge found for each refrigerator; it is observed that the charge for alternative refrigerants is lower with respect to R134a. For example, a reduction in the refrigerant charge of 16% is obtained for R513A (very similar to that reported in [19]), 18% for R516A, and 10.5% for R1234ze(E). This reduction in the refrigerant charge is due to the lower density of alternative refrigerants in relation to R134a. This is contrary to what was reported in [21], where the refrigerator working with R1234ze(E) had a higher mass than R134a.

4.3. Refrigerator Performance Working with Alternative Refrigerants

Once the optimal charge for each refrigerant is defined, we proceed to evaluate the performance of the refrigerator by comparing the different refrigerants. The tests for this comparison were performed with the door of both compartments closed, without thermal charge, at position (5/5) of the thermostat, and with the chamber conditions defined in Section 3.

4.3.1. Temperature Abatement in Both Compartments

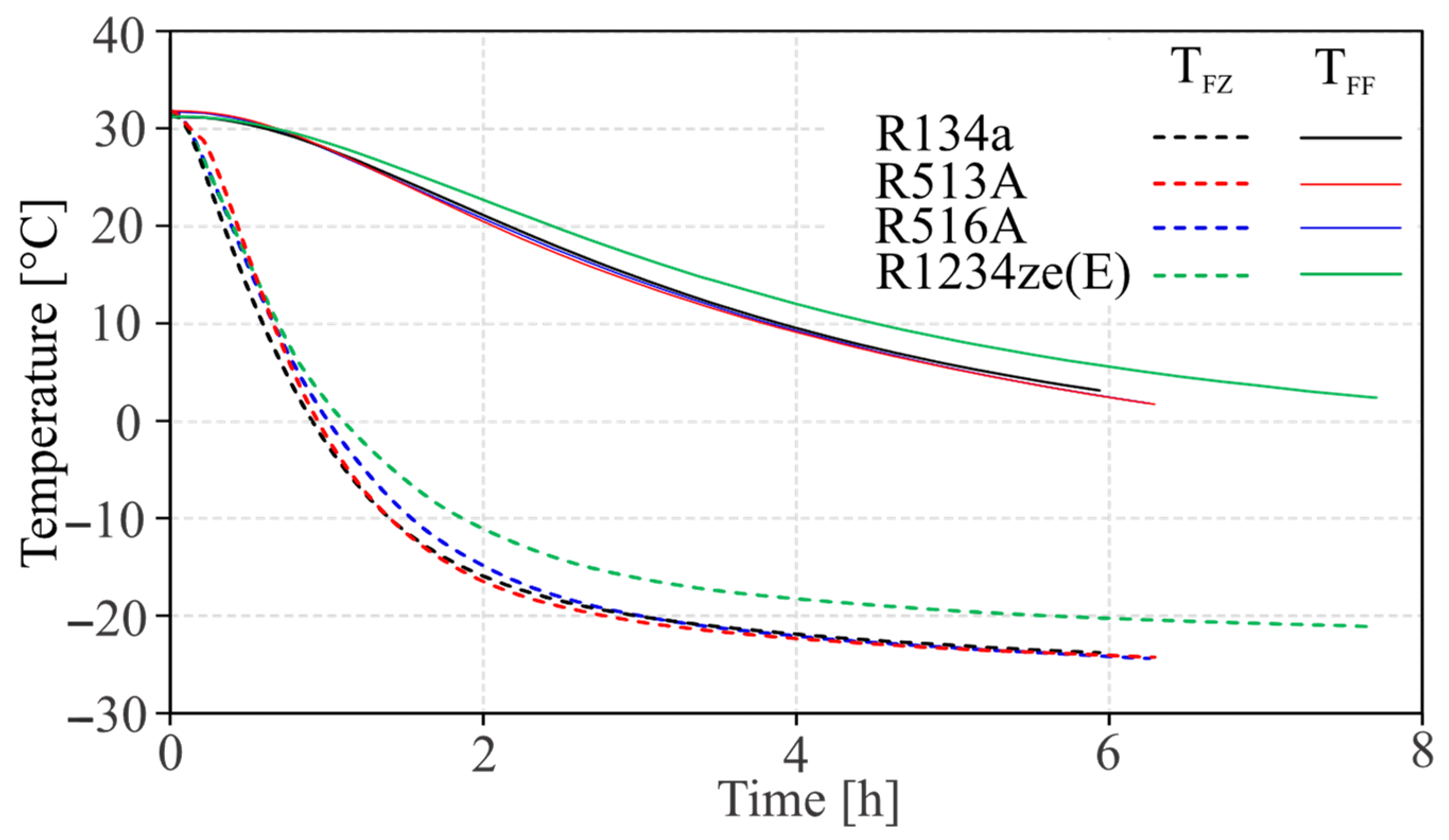

Figure 6 shows the initial thermal behavior of both refrigerator compartments for each of the refrigerants evaluated. The test was performed at a chamber temperature of 32.2 °C ± 0.6 °C and represents the thermal condition from startup to the first stop of the compressor. By a quick inspection it is observed that the refrigerants R513A and R516A have very similar thermal performance in both compartments regarding R134a, while R1234ze(E) shows a warmer condition that, in turn, involves a longer start-up time of the compressor.
In more detail, the abatement time obtained for refrigerant R134a was 5.94 h, in which a temperature of −23.71 °C was reached in the freezer and a temperature 3.26 °C in the fresh food compartment. The refrigerants R513A and R516A show very similar performances to R134a with an abatement time of 6.29 h and 6.25 h, respectively, with a slight decrease in temperature for both refrigerants, in the freezer of 0.5 °C and 1.2 °C in the fresh food compartment, compared to the values obtained with R134a. For the refrigerator R1234ze(E), the abatement period was 7.71 h, which represents an increase in the operating time of 30% compared to R134a. The temperature of the fresh food compartment for this refrigerant is −21.03 °C and 2.5 °C for the freezer.

4.3.2. Operating Pressures

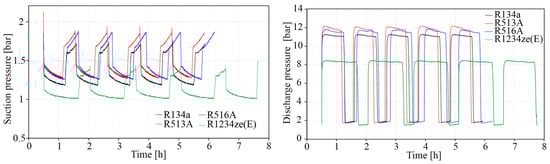

The performance of the refrigerator operating pressures, suction, and discharge are shown in Figure 7. These pressures represent the stable condition of the ON/OFF cycling of the compressor, i.e., the normal operation of the appliance after the first start-up. By a quick inspection of the figure, it can be noted that R1234ze(E) presented a different behavior to other refrigerators. For example, the average suction pressure for R134a was 1.24 bar, while for R1234ze(E) it was about 1.06 bar, representing a 14.5% reduction in suction pressure. As for the refrigerants R513A and R516A, suction pressures very similar to R134a were observed. As for the discharge pressure, R1234ze(E) showed a decrease of about 26% with respect to R134a, while the discharge pressure of the mixtures was very similar and slightly higher than R134a. The behavior presented by the operating pressures of R1234ze(E) with respect to other refrigerants has to do with the lower density that this refrigerant has.
On the other hand, Table 6 illustrates the compression ratio of the refrigerants evaluated, concluding that the alternative refrigerants required a lower compression ratio than R134a, which could be reflected in an increase in volumetric efficiency. Similar to the work presented in [18], R513A showed a slight reduction in the compression ratio compared to R134a.

4.3.3. Operating Temperatures

The suitable operation of domestic refrigerators is known to significantly extend the life cycle of perishable foods, including preventing the growth of certain types of bacteria. This performance is linked to the temperature, distribution, and air flow inside the compartments [28]. Thus, Figure 8 illustrates the thermal behavior in the fresh food compartment, TFF, and the freezer, TFZ, for each refrigerator during a thermal stability period of approximately 8 h of testing. In general, it was observed that the refrigerants exhibited adequate thermal behaviors for both compartments (see Figure 8a). The variability in the fresh food compartment was minimal between the alternative refrigerants with respect to R134a, while for the freezer, the refrigerant R1234ze(E) had a higher temperature than the rest of the refrigerants, which is reflected in Figure 6.

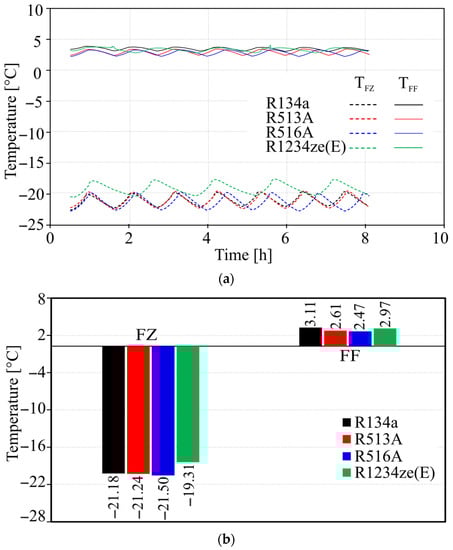

More specifically and considering the performance, Figure 8a,b shows the average temperatures in both compartments. The average temperature of the fresh food compartment for R134a was 3.11 °C, slightly higher than the temperatures of the other refrigerants, with R516A representing the lowest temperature with a decrease of 20% compared to R134a. For the freezer, R513A and R516A presented minimal differences of −0.3 °C with respect to R134a. While the refrigerator operating with R513A reflected a less cold condition for the freezer. However, the low-GWP refrigerants proposed in this study reflected very suitable thermal behaviors for domestic application. Note that the thermostat was at position (5/5) where, by calibration, the average temperature in the compartments was expected to be 2.8 °C and −17.8 °C for the fresh food and freezer compartments, respectively [26].

4.3.4. COP Analysis

In this study, an approximate COP was estimated by the ratio of enthalpy differences, as shown in the following equation:
C O P = h o u t , e v a p h i n , e v a p h i n , c o m p h o u t , c o m p
From the previous equation, the numerator represents the cooling capacity which represents the difference in enthalpies between the input and output of the refrigerant in the evaporator, considering that there are no charge losses, while the denominator represents the work per unit mass, which is estimated with the difference in enthalpies between the suction and discharge of the compressor. These enthalpy values were estimated based on experimental measurements of pressure and temperature. Thus, Figure 9 shows the comparative COP between the different refrigerants evaluated, assuming that R134a represents 100%, i.e., the figure reflects the percentage variation of the COP of refrigerants R513A, R516A, and R1234ze(E) with respect to R134a as a reference. R513A and R516A showed a reduction of 28% and 25%, respectively, while R1234ze(E) showed an increase in COP of 13% compared to R134a. These variations in COP were mainly due to the reduction in the refrigerator’s cooling capacity. Although R1234ze(E) has a lower cooling capacity, it also has a lower energy consumption, which is reflected in the increase in COP, showing this refrigerant as a viable option from the energy point-of-view, as well as thermal to replace R134a. The same case as that reported in [21] where the refrigerator working with R1234ze€ showed a decrease in the energy consumption with respect to R134a.
An analysis was conducted to assess the uncertainty associated with the estimation of the parameters from the measurements and to evaluate the reliability of the results. The EES software was used to calculate the relative errors in the output parameters, specifically in the COP calculation, using the methodology provided by the same software. The maximum error obtained was ±2.1%.

4.4. TEWI Analysis

A measurement known as the total equivalent warming impact (TEWI) has been put in place to quantify the combined effect of refrigerant leakages into the atmosphere over the course of an equipment life and the emissions produced during the creation of electrical energy for the activation of the refrigeration system. Such measurements may be made as part of the design process for a refrigeration system or, as in this instance, as part of the diagnostic process for switching from R134a to a low-GWP alternative refrigerant. The TEWI can be assessed using Equation (7), in which the first term represents direct emissions and the second represents indirect emissions [29].
T E W I = G W P 100 · m · L · n + G W P 100 · m · 1 α + E C · β · n
From the Equation (7), m is the refrigerant charge, L is the annual refrigerant leakage rate, n is the operating life system, α is the recovery factor, EC is the energy consumption per year, and β is the emission factor, CO2. In this study, the TEWI analysis was based on a household refrigerator’s 15-year useful lifespan, an average annual refrigerant leakage rate of 2%, and a 70% refrigerant recovery rate α. We suggested comparing the situations of Mexico and Spain to further investigate the TEWI. Then, it would be possible to see the impact of each nation’s emission factor value in relation to its energy production.
An emission factor for the national electricity system in Mexico of 0.423 kg CO2-eq kWh−1 was considered [30]. For Spain, a value of 0.150 kg CO2-eq kWh−1 [31] was considered, reflecting a notable difference between the two countries. Table 7 shows the values used in this study for the estimation and comparison of the TEWI between the refrigerators evaluated.

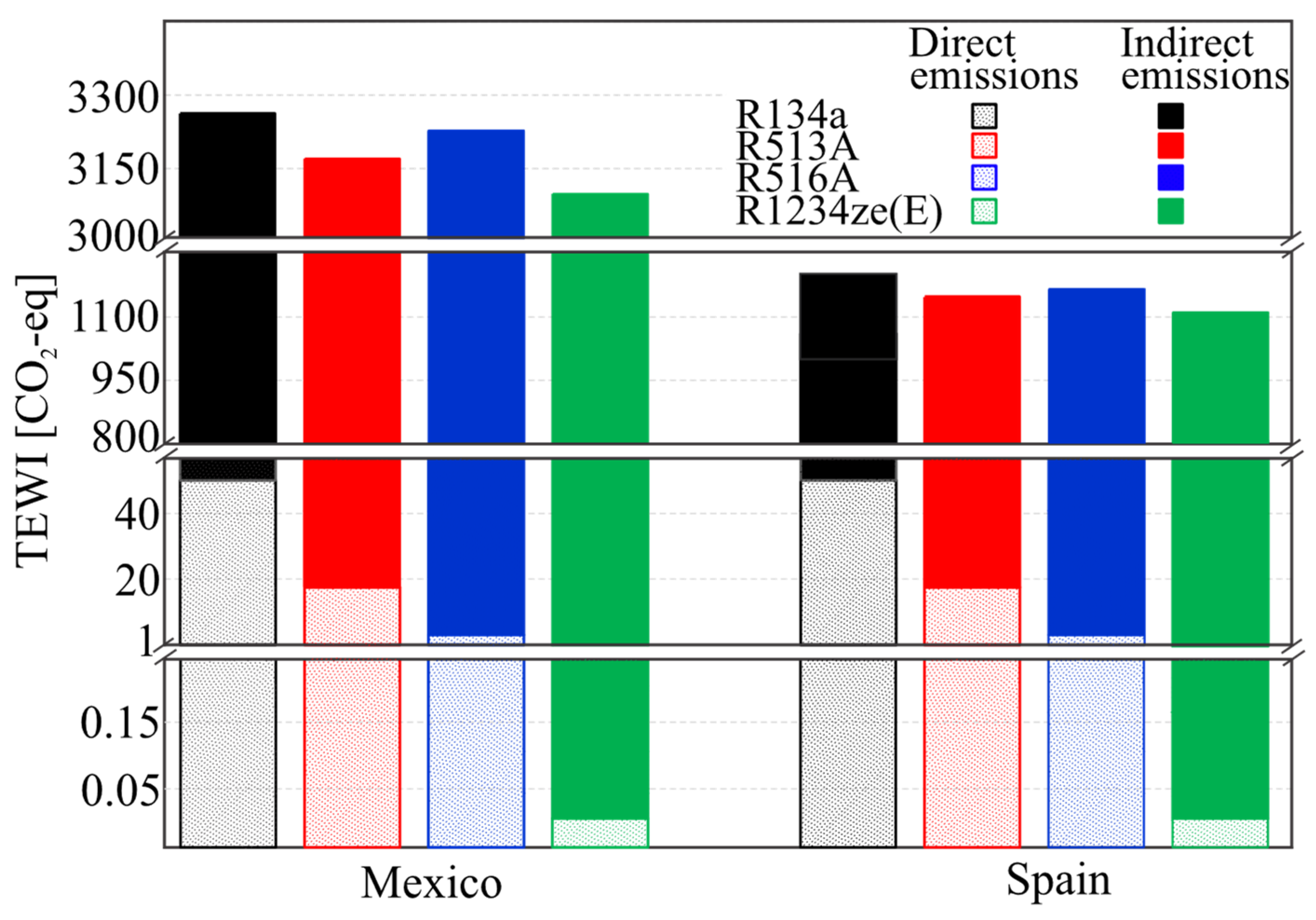

Figure 10 shows the contribution of the combined impact of the refrigerator, noting that direct emissions are minimal compared to indirect emissions by type and energy consumption. It was also noted that the situation of the refrigerator in Mexico reflects a higher TEWI value than in Spain; this is largely marked by the type of power generation between the two countries. Therefore, the use of these alternative refrigerants in domestic refrigeration would be more advisable in Spain, specifically R1234ze(E) and R516A. Refrigerants R134a and R516A have a practically similar combined impact, and this is because the R516A presented the highest energy consumption among the alternative refrigerants of 505.89 kWh per year, 3% below the consumption of R134a. R1234ze(E) is the refrigerator that presents lower impacts, reflecting a reduction of 6% compared to R134a.
According to the main results of this work, it can be deduced that the direct replacement of R134a by the R513A and R516A mixtures, and pure refrigerant R1234ze(E), is an acceptable proposal in general terms both energetically and operationally, under the direction of maintaining an adequate thermal behavior in the thermal compartments of the refrigerator. Among the refrigerants evaluated, R1234ze(E) specifically seems to be the best choice as a refrigerant in the long term for its low GWP of one and it also yielded the lowest energy consumption which was reflected in the highest % COP and lower TEWI, while R513A continues to show interesting environmental and energy aspects that allow it to be considered as a fluid in the short term [19]. On the other hand, the expectation of the new refrigerant R516A is limited in this study by the high energy consumption recorded, which leads to the use of this refrigerant in domestic refrigeration as more viable through improvements to the design of the refrigerator and not as a direct replacement. Due to the low GWP of R516A, it is necessary to expand the research to improve its performance in domestic refrigeration.

5. Conclusions

This paper presented the experimental results of the thermal and energy performance of a domestic refrigerator working with low-GWP alternative refrigerants as a direct replacement of R134a. The pure refrigerant R1234ze(E) and the azeotropic blends R513A and R516A, the latter as a novelty in the domestic refrigeration industry, were evaluated. The most relevant aspects are listed below.
The optimal charge of each refrigerant was defined by the proposed methodology, which focused on the minimum energy consumption of the refrigerator. The alternative refrigerants had a lower mass compared to R134a (105 g), with R513A (86 g) presenting the smallest reduction.
The refrigerator was evaluated with each optimal charge under the NOM-015-ENER-2018 standard. The average temperatures of the refrigerator compartments showed adequate conditions regarding the position of the thermostat (5/5). Thermally, the alternate refrigerants presented remarkably similar conditions to R134a, which makes them suitable for domestic refrigeration.
R1234ze(E) showed a COP increase of 13% regarding R134a, while the blends presented reductions of 25% for R516A and 28% for R513A.
According to the TEWI analysis and the Mexico case, R1234ze(E) presented the maximum reduction of 5% in the combined impact with respect to R134a, with the R516A refrigerant being more similar to R134a due to its high energy consumption.
Finally, this study raised options on low-GWP refrigerants in domestic refrigeration due to the need to eliminate R134a. Although some countries have defined their roadmap, as in the case of Mexico, it is important to expand the availability of refrigerants in the short and long term according to a low GWP and thermal and energy performance. Hence, this work showed that R1234ze(E) is the most suitable refrigerant for the direct replacement of R134a; however, R513A and R516A mixtures may present better conditions under a redesign of the refrigerator.

Author Contributions

Conceptualization, J.M.B.-F.; investigation, Y.H.-A.; writing-review and editing, J.J.G.-P.; validation, V.P.-G.; supervision, C.G.P.-R.; formal analysis, J.M.B.-F. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

Not applicable.


We acknowledge the University of Guanajuato, Mexico (CIIC 2022) for its sponsorship in realizing this work. We also want to thank the Company Arkema for the donation of the refrigerant R516A, and to acknowledge the support of Mabe TyP in the performing of the tests.

Conflicts of Interest

The authors declare no conflict of interest.


Cpheat capacity [kJ kg−1 K−1]
ECenergy consumption [kWh day−1, kWh yr −1]
henthalpy [kJ kg−1]
Laverage annual refrigerant leakage [kg yr −1]
mrefrigerant charge [kg]
nsystem lifetime [yr]
Ncyclesnumber of cycles
OFFstop of the compressor
ONworking of the compressor
ttotaltime [min]
Ttemperature [°C]
Wpower consumption [W]
Greek symbol
αrecovery/recycling factor [%]
βindirect emission factor [kgCO2-eq kWh−1]
COPcoefficient of performance
FFfresh food compartment
FZfreezer compartment
GWPglobal warming potential
TEWItotal equivalent warming impact [kgCO2-eq]


  1. Nair, V. HFO refrigerants: A review of present status and future prospects. Int. J. Refrig. 2021, 122, 156–170. [Google Scholar] [CrossRef]
  2. Myhre, G.; Shindell, D.; Bréon, F.M.; Collins, W.; Fuglestvedt, J.; Huang, J.; Koch, D.; Lamarque, J.F.; Lee, D.; Mendoza, B.; et al. Climate change: The physical science basis. Contrib. Work. Group I Fifth Assess. Rep. Intergov. Panel Clim. Chang. 2013, 1535, 659–740. [Google Scholar]
  3. European Parliament and the Council. No 517/2014 of the European Parliament and of the Council of 16 April 2014 on Fluorinated Greenhouse Gases and Repealing Regulation (EC) No 842/2006 Text with EEA Relevance. 2014. Available online: (accessed on 13 February 2023).
  4. Birmpili, T. Montreal Protocol at 30: The governance structure, the evolution, and the Kigali Amendment, C.R. Geoscience 2018, 350, 425–431. [Google Scholar] [CrossRef]
  5. SEMARNAT (Secretaría de Medio Ambiente y Recursos Naturales). Roadmap to Implement the Kigali Amendment in Mexico. 2019. Available online: (accessed on 13 February 2023).
  6. Chen, X.; Liang, K.; Li, Z.; Zhao, Y.; Xu, J.; Jiang, H. Experimental assessment of alternative low global warming potential refrigerants for automotive air conditioners application. Case Stud. Therm. Eng. 2020, 22, 100800. [Google Scholar] [CrossRef]
  7. Pabon, J.J.G.; Khosravi, A.; Belman-Flores, J.M.; Machado, L.; Revellin, R. Applications of refrigerant R1234yf in heating, air conditioning and refrigeration systems: A decade of researches. Int. J. Refrig. 2022, 118, 104–113. [Google Scholar] [CrossRef]
  8. Heredia-Aricapa, Y.; Belman-Flores, J.M.; Mota-Babiloni, A.; Serrano-Arellano, J.; García-Pabón, J.J. Overview of low GWP mixtures for the replacement of HFC refrigerants: R134a, R404A and R410A. Int. J. Refrig. 2020, 111, 113–123. [Google Scholar] [CrossRef]
  9. Poongavanam, G.; Sivalingam, V.; Prabakaran, R.; Salman, M.; Kim, S.C. Selection of the best refrigerant for replacing R134a in automobile air conditioning system using different MCDM methods: A comparative study. Case Stud. Therm. Eng. 2021, 27, 101344. [Google Scholar] [CrossRef]
  10. Yang, Z.; Feng, B.; Ma, H.; Zhang, L.; Duan, C.; Liu, B.; Zhang, Y.; Chen, S.; Yang, Z. Analysis of lower GWP and flammable alternative refrigerants. Int. J. Refrig. 2021, 126, 12–22. [Google Scholar] [CrossRef]
  11. Iskan, Ü.; Direk, M. Experimental performance evaluation of the dual-evaporator ejector refrigeration system using environmentally friendly refrigerants of R1234ze(E), ND, R155a, R456a, and R516a as replacement for R134a. J. Clean. Prod. 2022, 352, 131612. [Google Scholar] [CrossRef]
  12. Al-Sayyab, A.K.S.; Navarro-Esbrí, J.; Barragán-Cervera, A.; Kim, S.; Mota-Babiloni, A. Comprehensive experimental evaluation of R1234yf-based low GWP working fluids for refrigeration and heat pumps. Energy Convers. Manag. 2022, 258, 115378. [Google Scholar] [CrossRef]
  13. Li, H.; Tang, K. A comprehensive study of drop-in alternative mixtures for R134a in a mobile air-conditioning system. Appl. Therm. Eng. 2022, 203, 117914. [Google Scholar] [CrossRef]
  14. Soni, S.; Mishra, P.; Maheshwari, G.; Verma, D.S. Comparative energy analysis of R1234yf, R1234ze, R717 and R600 in vapour compression refrigeration system as replacement of R134a. Mater. Today Proc. 2022, 56, 1600–1603. [Google Scholar] [CrossRef]
  15. Amírez-Hernández, H.G.; Morales-Fuentes, A.; Sánchez-Cruz, F.A.; Méndez-Díaz, S.; García-Lara, H.D.; Martínez-Martínez, S. Experimental study on the operating characteristics of a display refrigerator phasing out R134a to R1234ze(E) and its binary blends. Int. J. Refrig. 2022, 138, 1–12. [Google Scholar] [CrossRef]
  16. Liu, B.; Yang, Z.; Zhang, O.; Lv, Z.; Chen, Y.; Chen, S. Evaluation of a low-GWP and nonflammable blend as a new alternative for R134a in the heat pump system. Int. J. Refrig. 2022, 143, 1–10. [Google Scholar] [CrossRef]
  17. Sánchez, D.; Andreu-Nácher, A.; Calleja-Anta, D.; Llopis, R.; Cabello, R. Energy impact evaluation of different low-GWP alternatives to replace R134a in a beverage cooler. Experimental analysis and optimization for the pure refrigerants R152a, R1234yf, R290, R1270, R600 and R744. Energy Convers. Manag. 2022, 256, 115388. [Google Scholar] [CrossRef]
  18. Yang, M.; Zhang, H.; Meng, Z.; Qin, Y. Experimental study on R1234yf/R134a mixture (R513A) as R134a replacement in a domestic refrigerator. Appl. Therm. Eng. 2019, 146, 540–547. [Google Scholar] [CrossRef]
  19. Belman-Flores, J.M.; Heredia-Aricapa, Y.; Pardo-Cely, D.; Rodríguez-Valderrama, D.A.; De Alba-Rosano, M.; Silva-Romero, J.C. Experimental evaluation of R513A as a low GWP refrigerant to replace R134a in a domestic refrigerator. Int. J. Refrig. 2022, 142, 148–155. [Google Scholar] [CrossRef]
  20. ENIGH. Encuesta Nacional de Ingresos y Gastos de los Hogares (ENIGH) [WWW Document]. Nueva Ser. 2020. Available online: (accessed on 8 September 2021).
  21. Aprea, C.; Greco, A.; Maiorino, A.; Massellia, C.; Metallo, A. HFO1234ze as drop-in replacement for R134a in domestic refrigerators: An environmental impact analysis. Energy Procedia 2016, 101, 964–971. [Google Scholar] [CrossRef]
  22. Bell, I.H.; Domanski, P.T.; McLinden, M.; Linteris, G.T. The hunt for nonflammable refrigerant blends to replace R-134a. Int. J. Refrig. 2019, 104, 484–495. [Google Scholar] [CrossRef]
  23. Lemmon, E.W.; Bell, I.H.; Huber, M.L.; McLinden, M.O. NIST Standard Reference Database 23, NIST Reference Fluid Thermodynamic and Transport Properties, REFPROP; Version 10.0; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2018.
  24. ASHRAE. Designation and Safety Classification of Refrigerants ANSI/ASHRAE Addenda to ANSI/ASHRAE Standard 34-2019; American Society of Heating Refrigerating and Air-Conditioning Engineers (ASHRAE): Atlanta, GA, USA, 2019. [Google Scholar]
  25. Li, G. Performance evaluation of low global warming potential working fluids as R134a alternatives for two-stage centrifugal chiller applications. Korean J. Chem. Eng. 2021, 38, 1438–1451. [Google Scholar] [CrossRef]
  26. Belman-Flores, J.M.; Rodríguez-Muñoz, A.P.; Gutiérrez Pérez-Reguera, C.; Mota-Babiloni, A. Experimental study of R1234yf as drop-in replacement for R134a in a domestic refrigerator. Int. J. Refrig. 2017, 81, 1–11. [Google Scholar] [CrossRef]
  27. Sieres, J.; Ortega, I.; Cerdeira, F.; Álvarez, E. Influence of the refrigerant charge in an R407C liquid-to-water heat pump for space heating and domestic hot water production. Int. J. Refrig. 2020, 110, 28–37. [Google Scholar] [CrossRef]
  28. Belman-Flores, J.M.; Pardo-Cely, D.; Elizalde-Blancas, F.; Gallegos-Muñoz, A.; Pérez-García, V.; Gómez-Martínez, M.A. Perspectives on consumer habits with domestic refrigerators and its consequences for energy consumption: Case of study in Guanajuato, Mexico. Energies 2019, 12, 860. [Google Scholar] [CrossRef] [Green Version]
  29. AIRAH. Methods of Calculating Total Equivalent Warming Impact (TEWI) 2012; Australian Institute of Refrigeration, Air Conditioning and Heating: Melbourne, Australia, 2012. [Google Scholar]
  30. Comisión Reguladora de Energía (CRE). Factor de Emisión del Sistema Eléctrico Nacional 2021. 2022. Available online: (accessed on 13 September 2022).
  31. REData. CO2 eq. Emission Factor and Ghg Emissions Regarding Non-Renewable Generation (tCO2 eq.|tCO2 eq./MWh)|Electricity System: National REE. Available online: (accessed on 19 May 2022).

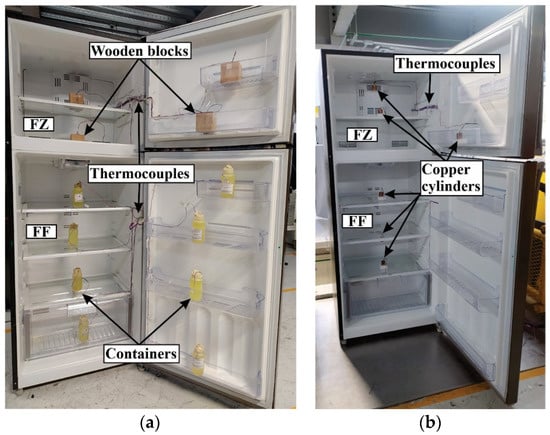

Figure 1. Location of the thermocouples in the refrigerator compartments: (a) refrigerant charge test; (b) NOM-015-ENER-2018.
Figure 1. Location of the thermocouples in the refrigerator compartments: (a) refrigerant charge test; (b) NOM-015-ENER-2018.
Energies 16 03422 g001
Figure 2. Thermal behavior of the refrigerant R1234ze(E) along the heat exchangers.
Figure 2. Thermal behavior of the refrigerant R1234ze(E) along the heat exchangers.
Energies 16 03422 g002

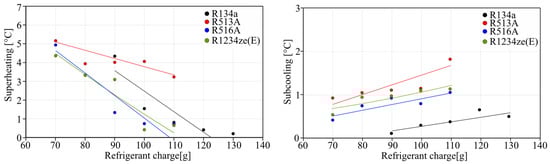

Figure 3. Superheating and subcooling degree vs. refrigerant charge.
Figure 3. Superheating and subcooling degree vs. refrigerant charge.
Energies 16 03422 g003

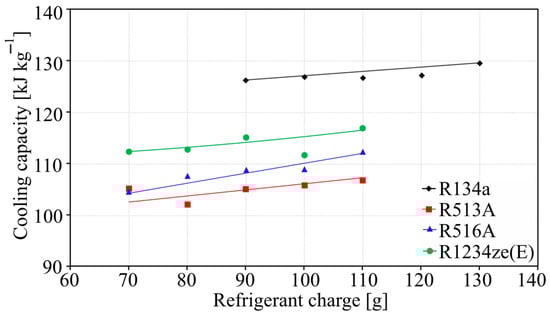

Figure 4. Cooling capacity vs. refrigerant charge.
Figure 4. Cooling capacity vs. refrigerant charge.
Energies 16 03422 g004

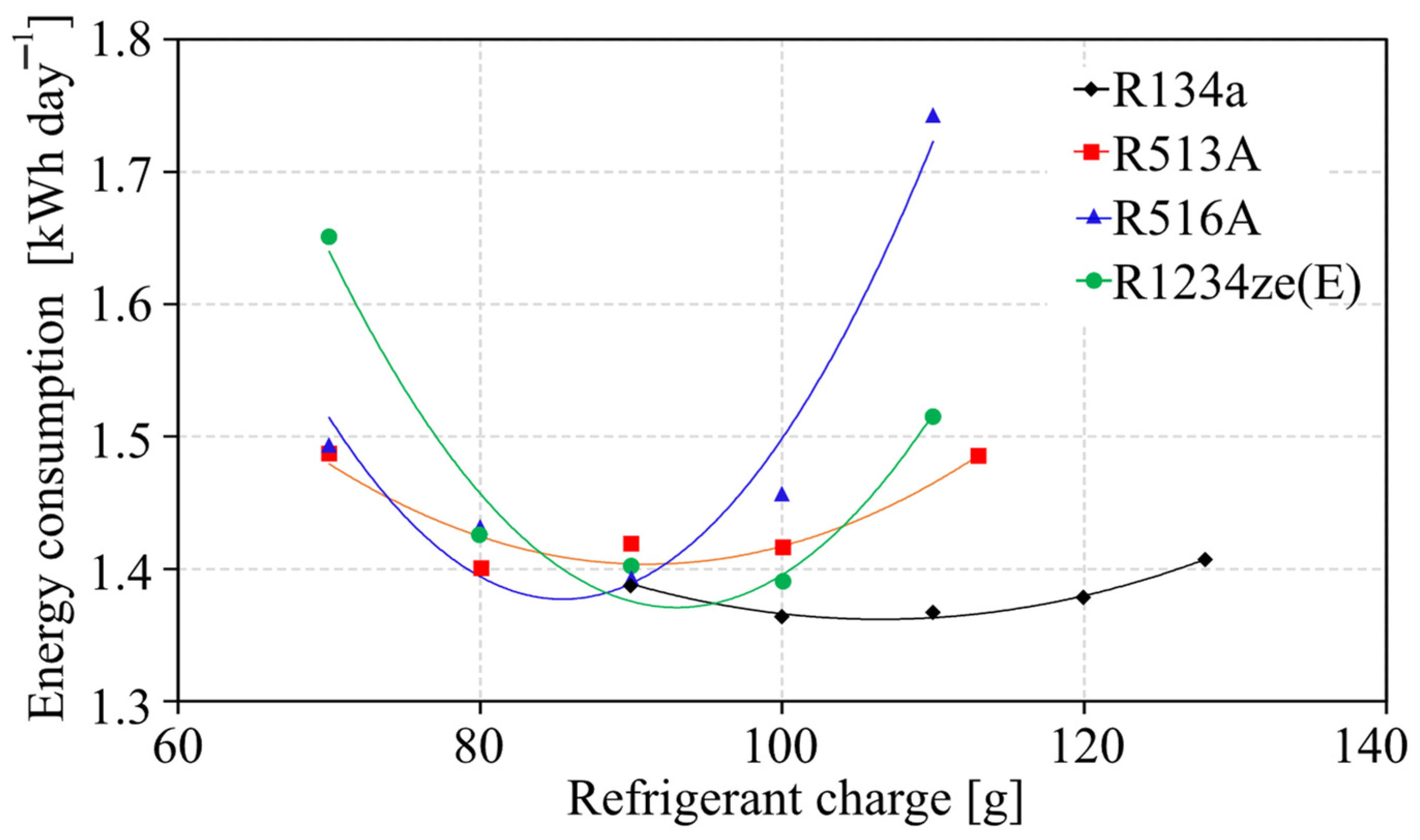

Figure 5. Energy consumption vs. refrigerant charge.
Figure 5. Energy consumption vs. refrigerant charge.
Energies 16 03422 g005

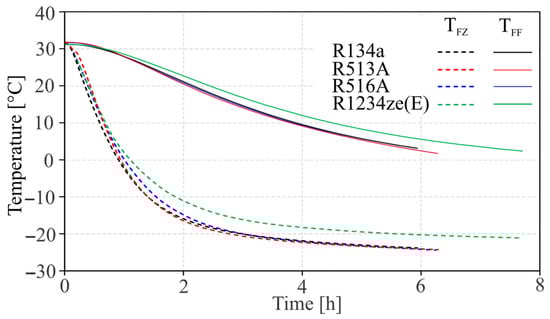

Figure 6. Temperature abatement of the compartments until the first stop of the compressor.
Figure 6. Temperature abatement of the compartments until the first stop of the compressor.
Energies 16 03422 g006
Figure 7. Operating pressures.
Figure 7. Operating pressures.
Energies 16 03422 g007
Figure 8. Temperature in the compartments of the domestic refrigerator: (a) Thermal behavior; (b) average temperature in compartments.
Figure 8. Temperature in the compartments of the domestic refrigerator: (a) Thermal behavior; (b) average temperature in compartments.
Energies 16 03422 g008

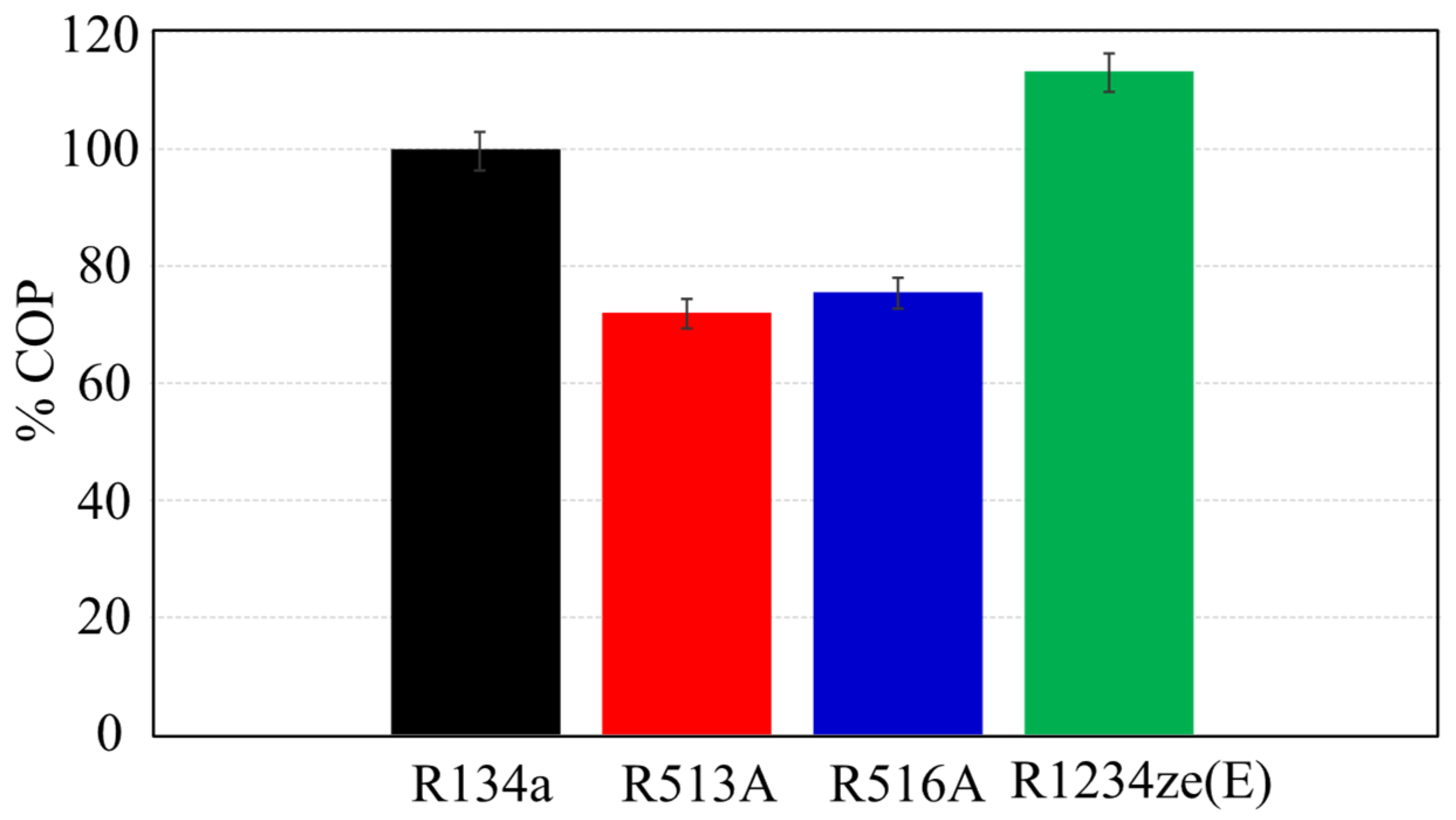

Figure 9. COP variation.
Figure 9. COP variation.
Energies 16 03422 g009
Figure 10. TEWI comparison.
Figure 10. TEWI comparison.
Energies 16 03422 g010
Table 1. Properties of the replacement refrigerants for R134a.
Table 1. Properties of the replacement refrigerants for R134a.
Mass percentage-56/4477.5/8.5/14-
Boiling point [°C]−26.07−29.82−29.35−18.97
Critical temperature [°C]101.0694.9196.65109.36
Critical pressure [bar]40.5936.4836.1536.35
Liquid density [kg m−3]1206.701134.201066.811163.10
Vapor density [kg m−3]32.3537.6334.5826.32
Latent heat [kJ kg−1]177.78156.35164.01166.92
Cp liquid [kJ kg−1 K−1]1.431.411.461.38
Cp vapor [kJ kg−1 K−1]
Liquid conductivity [mW m−1 K−1]81.1369.9370.0974.22
Vapor conductivity [mW m−1 K−1]13.8314.0314.3813.59
Viscosity liquid [μPa s]194.90166.01154.84190.51
Viscosity vapor [μPa s]11.6911.6211.4212.23
GWP1001300 a573 b131 b1 a
ASHRAE class [24]A1A1A2LA2L
a [2]; b [25].
Table 2. Technical specifications of the experimental refrigerator.
Table 2. Technical specifications of the experimental refrigerator.
CompressorHermetic reciprocating
115–127 V
Frequency 60 Hz
Capacity 164.2 W
Displacement 4.5 cm3
Capillary tubeCopper material
Length 2.44 m
Internal diameter 6.6 × 10−4 m
CondenserForced convection
Carbon steel material
Number of layers 7
Total tube length 8.5 m
EvaporatorForced convection
Aluminum material
Inverted-V tube array
External diameter 9.5 × 10−3 m
Table 3. Refrigerant charge.
Table 3. Refrigerant charge.
Charge [g]90707070
Table 4. Measured parameters and uncertainty.
Table 4. Measured parameters and uncertainty.
K-type thermocouples
±0.3 K
Pressure transducers
Digital wattmeter
±0.4 W
Digital balance
±0.01 g
Table 5. Optimal charge of each refrigerant.
Table 5. Optimal charge of each refrigerant.
RefrigerantOptimal Charge [g]
Table 6. Compressor pressure ratio.
Table 6. Compressor pressure ratio.
Pressure ratio9.068.768.787.87
Table 7. Total equivalent warming impact for R134a and low-GWP refrigerants.
Table 7. Total equivalent warming impact for R134a and low-GWP refrigerants.
L [kg per year]0.002100.001760.001720.00188
n [years]15151515
m [kg]0.1050.0880.0860.094
α [%]70707070
EC [kWh per year]507.35494.94505.89489.46
βMexico [kg CO2-eq kWh−1]0.4230.4230.4230.423
βSpain [kg CO2-eq kWh−1]0.1500.1500.1500.150
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Belman-Flores, J.M.; Heredia-Aricapa, Y.; García-Pabón, J.J.; Pérez-García, V.; Pérez-Reguera, C.G. Drop-In Replacement of R134a in a Household Refrigerator with Low-GWP Refrigerants R513A, R516A, and R1234ze(E). Energies 2023, 16, 3422.

AMA Style

Belman-Flores JM, Heredia-Aricapa Y, García-Pabón JJ, Pérez-García V, Pérez-Reguera CG. Drop-In Replacement of R134a in a Household Refrigerator with Low-GWP Refrigerants R513A, R516A, and R1234ze(E). Energies. 2023; 16(8):3422.

Chicago/Turabian Style

Belman-Flores, Juan M., Yonathan Heredia-Aricapa, Juan J. García-Pabón, Vicente Pérez-García, and César G. Pérez-Reguera. 2023. "Drop-In Replacement of R134a in a Household Refrigerator with Low-GWP Refrigerants R513A, R516A, and R1234ze(E)" Energies 16, no. 8: 3422.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
