Behavioral Economics Optimized Renewable Power Grid: A Case Study of Household Energy Storage ^†

Abstract

Power systems optimization is generally subject to the compromise between performance and cost. The 2021 Texas grid outage illustrates the worldwide dangers for the regional-centralized power grid, with comparable advantages to safety and flexibility for the distributed energy system. The storage of household batteries helps balance grid load and increase system stability and flexibility. However, household storage battery is still not widely used today because of its high costs. Currently, research on increasing household battery storage applicability is focused largely on optimizing economic strategies, such as configuration, dispatching and subsidy policies, which rely substantially more on technologies and financial perspectives. Consumers are not ‘rational’ individuals, and non-economic incentives can affect their decisions without raising prices. This paper consequently proposes to encourage users to acquire household battery storage to increase efficiency of power dispatching and economic advantages based on behavioral economics. In this paper, an empirical research builds upon the utility model of behavioral economics incentives and purchase willingness. Moreover, the multi-objective genetic algorithm is utilized to optimize the dispatching of household battery storage by using grid variance and user revenues as optimizing goals. The results of this paper show that the behavioral economics incentive improves intention to buy the household battery energy storage by 10.7% without raising subsidies. By improving the energy dispatching strategy, peak-load shifting performance and user revenues are improved by 4.2% and 10.6%, respectively.

1. Introduction

The optimization of the energy system typically faces a balance between higher efficiency and reduced expenses. In attaining grid efficiency, household battery storage is of major importance for improving renewable power absorbance and for improving the grid stability of regional electricity dispatching [1]. However, due to the high cost, the global usage is not high enough, especially in the countries with relatively low energy prices However, because of the high cost, global use of the household battery storage is not adequate, particularly in the countries where energy prices are relatively low [2,3]. Furthermore, the recent grid blackout in Texas (February 2021) indicates it is unreliable to only depend on the centralized regional grid. The distributed energy structure offers relative safety and flexibility advantages [4]. In this context, the power system reliability is hopeful to be guaranteed by promoting the penetration of household battery energy storage [5,6].

So far, existing researches such as power system configuration, economic benefits optimization, energy dispatching strategies and subsidy policies, have been adopted to enhance the applicability of household battery energy storage, which are currently technologically and financially dependent [7,8]. For instance, Alejandro et al. conducted an economic optimization on self-consumption and load transfer with dynamic tariffs applied in a photovoltaic system. The results demonstrated that if the battery is utilized for a photovoltaic system with self-consumption considered under a single set price, the maximum monetary value of installed power per kilowatt-hour can be achieved [9]. Kanzumba developed an optimum model for energy management for two interactive prosumers in peer-to-peer energy sharing to provide loads from both hybrid renewable sources and energy storage systems, while reducing energy costs bought from the state grid [10]. Zhang et al. also simulated and analyzed a grid-tied photovoltaic system with battery energy storage system under different electricity prices and configurations from both a technical and an economic perspective. It is found that the system with high self-sufficiency is more vulnerable to the subsidy policy compared to the high self-consumption system [11]. Schopfera et al. created a technologically and economically combined model for the photovoltaic with energy storage to optimize the system configuration under a specific load profile [12]. Andreas and Christoph also found that the economic incentives for initial battery investment would be a dominating factor for photovoltaic systems from the user perspective [13]. Valentin et al. compared the influence on the investment of photovoltaic energy storage systems under different subsidy and geographical variations. Germany benefits from the photovoltaic energy storage system, while such a system in Ireland is not yet profitable. This position might soon change, though, given the drop in technological prices. In addition, in conjunction with economic incentives the photovoltaic storage system can reduce the grid demand to 25 to 35% [14].

Current researches, to a certain degree, improved the applicability of household battery energy storage systems, but are based largely on technology advances and financial supports without taking account of behavior psychology. Behavioral economics found the decisions and cognition of individuals to be biased and to psychologically impact decision-making. Behavioral economics shows that persons have a time discount, loss aversion, status quo bias and compliance which are extremely important in real-world instances [15]. Richard Thaler, Nobel Prize winner, has pushed his policies towards the usage of household power. He observed that consumers lowered 40% of their electricity use by putting red light alerts to help them save energy at the peak period [16]. The irrational decision making of the intuitive judgment of individuals has been proven by Allcott and Dubinsky. Through the controlled investigation, the number of customers who choose energy-saving lights increased by 12% after being informed of the energy consumption in the lifetime of incandescent lamps and energy-saving lights [17]. The peer effect was validated by Bollinger and Gillingham. The number of installed photovoltaic systems considerably encourages the number of newly installed ones in the same region [18]. Korcaj et al. discovered that the influence of social norm is one of the key elements in household photovoltaic systems purchases. To put it in another way, the green behavior of communities, neighborhoods or relatives positively impacts on personal behavior and decision-making as a normative effect [19]. In addition, some perspectives in prototyping the process automation with light IT systems, green energy labelling with eco-design and the environmental–economical integrated analysis are all of vital importance to economically, environmentally and electrically promote the renewable energy storage system currently in a separate paradigm [20,21,22,23].

This paper aims to apply behavioral economics to power system improvement, using behavioral economics to generate incentive effect for users, and guiding users to purchase household battery storage. Moreover, the energy dispatching strategy optimization was carried out by multi-objective genetic algorithm, with peak load shifting and economic benefits as the optimization objectives, so as to improve the friendly interaction between the users and the grid. The objective of this paper is, with the dual-goal of enhancing the power system stability under behavioral economics and providing incentives for consumers, to acquire household battery energy storage. In addition, a multi-objective genetic algorithm is adopted to optimize energy dispatching strategies with peak load shifting and economic advantages as objective goals, as a promotion for user-to-grid interaction. The novel behavioral economics-based power grid optimization strategy combines the user experience with the traditional grid management idea as a preliminary but promising guidance for a highly green, accessible and steady renewable energy storage system in the future.

2. Methodology

This paper aims to integrate the behavioural economics into the optimization strategy of the power system with a household battery energy storage system. There are mainly two parts to this paper (in Figure 1): (1) the empirical study and (2) the dispatch strategy optimization. The empirical study provides the guidance for the parameter setting on the scale of household battery energy storage of dispatch strategy to be further optimized. That is, the behavioural economics incentives serve as the input of the power system with the household battery energy storage system, while the optimized dispatch strategy is the output.

For the empirical study, the user motivation framework is proposed to study the effect of behavioural economics, where the gain goal, normative goal and hedonic goal are considered as the dominating factors that constitute the behavioral economics model. In order to study the impact of the behavioral economics on the purchase intention, the hypothesis on gain goal, normative goal and hedonic goal are formulated, respectively. The questionnaire is designed and distributed to collect the primary data by randomly asking the interviewee questions with controlled behavior incentives (i.e., the incentive condition may randomly change according to the set conditions). To ensure an acceptable confidence level in the context of statistics, a correlation analysis is also conducted. Finally, the relationship between the user motivation and the purchase intention on household battery energy storage is formulated by a regression analysis.

For the dispatch strategy optimization, the parameter for the case study is set with controlled behavior incentives (i.e., two case scenarios are set as baseline conditions and behavioral incentives-involved conditions, respectively). The objective functions to be optimized are set as user revenues and the grid variance. For the optimization process involving multi objective functions, the multi genetic algorithm (NSGA-II) is adopted for good convergence ability. To simplify the solving procedure, the basic manipulation of population initialization, fitness evaluation, tolerance, elite selection, crossover and mutation is set in the built-in toolbox in MATLAB.

3. Behavioral Economics Incentive Model

3.1. User Motivation Framework

Human behavioral decisions are driven by motivations. The goal-framing theory stipulates that users’ behavioral motivations can be classified into three basic components: gain, normative and hedonic goal [24]. In terms of household battery storage, the motivations correspond to the economic return on peak-load shaving arbitrage, social norms in the tendency of following the others and spiritual incentives as a self-honour from green behaviour, respectively. According to the principles of behavioral economics, the present bias, herd effect and intrinsic motivation are used to stimulate the effect of users’ behavioral motivations on the household battery energy storage purchase intention. On these bases, we integrate the emerging insights of both battery energy storage and user’s behavioral economic incentives into an overall framework to describe the model of behavioral economics incentives. As is shown in Figure 2, the proposed behavioral economics incentive-based household battery energy storage framework aims to facilitate the peak-load shaving, energy conservation, accommodation, emergency response with the dual purpose of flexibility and economy.

3.2. Hypothesis Development

This section aims to formulate the potential research questions (hypothesises) under the user motivation framework proposed. To be specific, the effect of gain goal, normative goal and hedonic goal on household battery energy storage purchase intention in terms of behavioral economics are considered. To date, there are several researches on the integration of economic incentives and renewable energy storage systems. The combination of photovoltaic energy storage systems and economic incentives can reduce the share of electricity demand from the grid side to 25–35% [14]. Dietrich believes that economic incentives is a key factor affecting the investment in user-side photovoltaic energy storage systems [13]. From the perspective of behavioral economics, the gain goal substantially influences user purchasing decisions. The behavioral economics also indicates that individuals are inclined to compromise or even assimilate, which is the herd effect. Although Bollinger and Gillingham have verified the influence of the peer effect, where their conclusion showed that the number of installed PV significantly promoted the number of new PV in the same area [18]. Likewise, the users’ intention to purchase household battery energy storage may imitate the positive-feedback paradigm as an essence of the herd effect. On this basis, it is possible to define normative goal as a result of the herd effect from green, low-carbon behaviors of surrounding friends, neighbors or communities on individual behavior and decision-making on the household battery energy storage. Another aspect of the behavior economics is quite interesting in that the extra energy-saving reminder by simply installing a read warning light should empower an energy conservation up to 40% during peak hours [16]. Allcott and Dubinsky found through a randomized controlled experiment study that after informing consumers of the energy consumption potential of different appliances (i.e., the incandescent lamps and energy-saving lamps), a 12% increase of the consumers tended to choose energy-saving lamps [17]. It is suggested by behavioral economics that individuals’ decision-making will be affected by psychological and behavioral preferences. In the context of energy conservation, the hedonic motivation of environmental awareness consequentially affects household battery energy storage purchase intention. Based on the aforementioned analysis, it thereby comes to the following three Hypotheses:

Hypothesis 1.

The gain goal in terms of behavioral economics has a positive incentive effect on household battery energy storage purchase intention.

Hypothesis 2.

The normative goal in terms of behavioral economics has a positive incentive effect on household battery energy storage purchase intention.

Hypothesis 3.

The hedonic goal in terms of behavioral economics has a positive incentive effect on household battery energy storage purchase intention.

3.3. The Behavioral Economics Incentive-Controlled Experiment

To study the users’ purchase intention of battery, a user incentive model with three components of gain goal, normative goal and a hedonic goal is established. Based on behavioral economics principles such as present bias, herd effect and intrinsic motivation relating to the real-world user behaviors, this paper designs a control experiment for these three kinds of motivation, and tests the influence on user motivation. Furthermore, the influence of behavioral economics on purchase intention is evaluated. The above variable control experiments are tested by a scale questionnaire, which is commonly adopted in the behavioral economics and psychophysics experiments of Nobel Prize winners Daniel Kahneman and Vernon Smith [25]. Scales can transform abstract and subjective expressions into quantitative objective data. The variables and their corresponding definitions are listed in

Table 1. Variables and definition.

Variables	Class	Definition
Demography		Age, gender, education level, income
Product attitude	Info. access	Information access to green and renewable energy systems
	Environmental. friendliness	Recognition of environmental protection and renewable energy
User attitude	Gain	Recognition of the economic benefit of energy storage products
	Normative	Recognition of the social popularity of energy storage products
	Hedonic	Recognition of the green attributes of energy storage products
Purchase intention		Intention to purchase energy storage products

. The questionnaire was distributed in China, with underdeveloped areas such as Tibet and Xinjiang excluded for their potentially poor access to the state-of-the-art technologies. Considering the impact of COVID-19, the questionnaire was distributed via the Internet. The Internet channels used included WeChat social platforms and mailboxes. To ensure the authenticity of the questionnaire, repeated answers and false answers were forbidden by technical measures. Moreover, IP (internet protocol) and device restrictions were implemented for potentially redundant data. The survey time was from 20 December 2020 to 27 December 2020, and a total of 381 questionnaires were collected.

(1)

Questionnaire design (see Appendix A for detailed information): The questionnaire includes incentive control experiments based on the three factors of the user motivation framework and behavior economics, and questions of demography. The overall design adopts Ozaki’s questionnaire design [26]. Some of the scale questions were designed with the questionnaire on relevant studies of electric vehicles [27].

(2)

Data collection: According to the three types of incentive conditions, a total of 8 groups were set, with 40–50 people in each group.

(3)

Data analysis and processing: SPSS 22 was used for statistical analysis. Reliability analysis, correlation analysis and regression analysis were conducted.

3.4. User Incentive Model Formation

A total of 381 questionnaires were collected and 327 of them were used for further analysis after screening. In

Table 2. The constitution of the demographic data.

Variable	Unit	Statistical Data
EE	Years old	30.6
Sex ratio: male	%	51.7
Sex ratio: female	%	48.3
Family annual income	CNY
>300,000	%	19.3
100,000–300,000	%	63.0
<100,000	%	17.7
Education level
Master’s degree or above	%	26.6
College or undergraduate degree	%	68.2
High school or below	%	5.2
City of residence
1st-tier cities	%	52.3
2nd-tier cities	%	28.1
3rd-tier cities	%	12.8
County seats	%	4.9
Rural area	%	1.8

, among the valid 327 interviewees, the average age was 30.6. The male (female) ratio is 51.7% (48.3%), and the gender distribution was relatively even. The family income level was relatively high, with an annual income of more than 100,000-yuan (300,000-yuan) accounting for 82.3% (some 20%). This potentially resulted from the fact that the questionnaires were sent to areas with a higher level of economic development. The education level was mainly college and undergraduate, accounting for 68.2%. The overall education level of the questionnaire respondents was relatively high. This may be attributed to the cutting-edge feature of the household energy storage products, thereby, people with a higher level of knowledge were more likely to be interested in answering this questionnaire. In terms of regional distribution, the interviewees were mainly from first- and second-tier cities, which is consistent with the potential market for household battery energy storage.

In terms of user attitudes, information access (4.55/7) and green attitude (5.53/7) were higher, which is consistent with a higher income and educational background. The high income and high education levels are reasonable in this paper. The main reason for them is that household energy storage is mainly used in developed areas of the first and second tier cities, where people with environmental awareness and a certain level of knowledge are interested in reaching the questionnaire. E. Vigants et al. also observed a similar phenomenon in their use behavior research. In terms of product attitudes, the user motivation indicators are overall moderate, with the behavioral economics excited values indicated in the round brackets in

Table 3. The statistical description of the variables in the behavioral economics-controlled experiment.

Variables	Minimum	Maximum	Mean	Standard Error
Information access	1.00	7.00	4.55	1.67
Green attitude	2.7	7.00	5.53	0.62
Gain goal	1.00 (1.00)	7.00 (7.00)	4.64 (4.93)	1.25 (1.24)
Normative goal	1.00 (1.00)	7.00 (7.00)	3.55 (4.19)	1.59 (1.46)
Hedonic goal	1.00 (1.00)	7.00 (7.00)	4.78 (5.11)	1.47 (1.29)
Purchase intention	6.00 (16.00)	100.00 (100.00)	55.74 (61.85)	22.30 (20.76)

. Among them, the gain goal is 4.64 above average, which reflects that the household energy storage rate of return presented in the questionnaire is acceptable to most people. The average level of normative goal is low. This may be because household energy storage has a low penetration rate in most areas of China, and users have a weaker perception of its true nature. The hedonic goal index is 4.78, which is higher than the other two. This reflects the recognition of the green and environmentally friendly attributes of household energy storage, which may be related to the population’s higher green attitude. The overall intention to purchase the rate of users increases from 55.74% to 61.85% by applying behavioral economics incentives, indicating an increase ratio of 10.97%.

In the questionnaire, there is a behavioural economics incentive-controlled condition. The collected data contains the potential information of behavioural economics incentives for purchase intention. However, the setting of the questionnaire is sensitive to factors such as the sample size, the specific individuals being interviewed, and the degree of economic development in the survey region. Therefore, it is necessary to analyse the validity of the data collected by the questionnaire. This paper uses a t-test to determine whether behavioural economics incentives will have a significant relationship on gain goal, normative goal, and hedonic goal (i.e., the question being asked is suitable to evaluate the parameters under the user motivation framework). In the t-test, T and p are the notations for t-statistic and p-values, respectively. The T is statistically essential to describe the significant relationship between the collected sample data, and p is the confidence level to reject the hypothesis. In addition, the relationship between T and p can be retrieved in the look-up table for the critical value of t-test. To be specific, the current bias is significantly related to gain goals (p = 0.034 < 0.05). The herd effect is significantly related to normative goals (p = 0.000 < 0.05). The intrinsic motivations are significantly related to hedonic goals (p = 0.030 < 0.05). As a result, the data in

Table 4. Correlation analysis of variables.

Model	Present Bias		Herd Effect		Intrinsic Motivation
	T	p	T	p	T	p
Gain goal	−2.127	0.034 *	−1.491	0.137	−0.043	0.965
Normative goal	−0.693	0.489	−3.784	0.000 *	−0.077	0.939
Hedonic goal	−0.217	0.828	0.558	0.577	−2.177	0.030 *
Purchase probability	0.537	0.592	−1.056	0.292	−0.838	0.403

* Symbol stands for statistically significant.

confirm that the incentive-controlled condition in the questionnaire shows the statistically significant relationship between the three dimensions of the user motivation framework and the variables assigned in the questionnaire without causing cross-effects. The designed variables in controlled incentives consequentially serve as a valid measure for the gain goal, normative goal and hedonic goal, which supports the user motivation framework proposed.

Since the collected data are valid for the measurement of the gain goal, normative goal and hedonic goal under the user motivation framework, the purchase intention on the household battery energy storage can be further quantitatively presented by conducting a regression analysis. The linear regression equation regarding the purchase intention and the factors under user motivation framework can be consequentially formulated as:

$$F_i={\alpha }_0+{\beta }_1{G}_i+{\beta }_2{N}_i+{\beta }_3{H}_i+{\epsilon }_i$$

(1)

where, $F_i$ is purchase probability, $G_i$ is gain goal, $N_i$ is normative goal, $H_i$ is hedonic goal and ${\epsilon }_i$ is the relaxation term (constant).

The user incentive model is derived by solving the linear regression equation. As is shown in

Table 5. Multiple variable linear regression.

Model	Ustd. Coefficient		Std. Coefficient	t	Sig.	VIF
	B	SE	Beta
Constant	−17.307	3.764		−4.598	0.001
Gain	6.338	0.784	0.340	8.080	0.000	1.367
Normative	2.882	0.608	0.194	4.743	0.000	1.290
Hedonic	7.009	0.704	0.420	9.961	0.000	1.369
R2				0.621
F				149.164
p				<0.001
Dependent variable: Purchase probability

, the linear regression equation fits well with the gain goal, normative goal and hedonic goal with R² = 0.621 > 0.6. The linear regression equation (user incentive model) is as the following:

$$F=6.338G+2.882N+7.009H-17.307$$

(2)

This indicates that the gain goal, normative goal and hedonic goal under the user motivation framework interpretate the purchase intention as a positive effect, respectively. Additionally, the t-test indicates a significance value lower than 0.05. Consequentially, the positive correlation between the user motivation framework and the purchase intention is trustable at the 95% confidence level. As for the multi co-linearity, VIF (variance inflation factor) is also applied to test the independence of each selected variable. It is normally acceptable that there is no multi co-linearity when VIF is less than 10. This further verified that the gain goal, normative goal and hedonic goal under the user motivation framework can be considered as independent variables to ensure the goodness of the user incentive model. Based on the above analysis, the overall linear relationship between the user motivation framework and purchase intension stands confidently by conducting F-test (F = 149.164, p < 0.001). As a result, the user motivation framework can be effectively adopted as a measurement for purchase intention on household battery energy storage with good independence and robustness.

4. Optimization of Household Battery Dispatching

The purchase intention of household battery energy storage is effectively incentivized under behavioral economics. This paper uses the multi-objective genetic algorithm to verify the impact on both the power grid and users. The optimization is implemented under a renewable energy accessible community where peak load shifting is carried out for arbitrage. Furthermore, the effectiveness of behavioral economics incentives in both grid variance and user revenues is validated by comparing the optimization results under different case parameter settings (i.e., with and without behavioral economics incentives).

4.1. Case Description

The case study of this article takes a Chinese new energy community as an example. Its power system is composed of grid, distributed energy, load and energy storage system. The community has adopted a time-of-use electricity price system. The total capacity of the household energy storage system installed in community is up to 2 MWh, and the total rated power is 0.5 MW [28]. This paper sets scenario 1 (Case1) and scenario 2 (Case2). Scenario 1 is the baseline situation of the community. Scenario 2 is the community situation after applying behavioral economics incentives. The overall intention to purchase intention increases from 55.74% to 61.85% by applying behavioral economics incentives, indicating an increase ratio of 10.97% according to the empirical study. On this basis, the total energy storage capacity in Case2 is thereby set as 2.22 WMh (corresponding to an 10.97% increase from the baseline) in

Table 6. Case settings under behavioral economics incentives-controlled experiment.

Situation	Capacity	Power	SOC
Case1	2 MW	−0.45~0.45 MW	10%~90%
Case2	2.22 MW	−0.50~0.50 MW	10%~90%

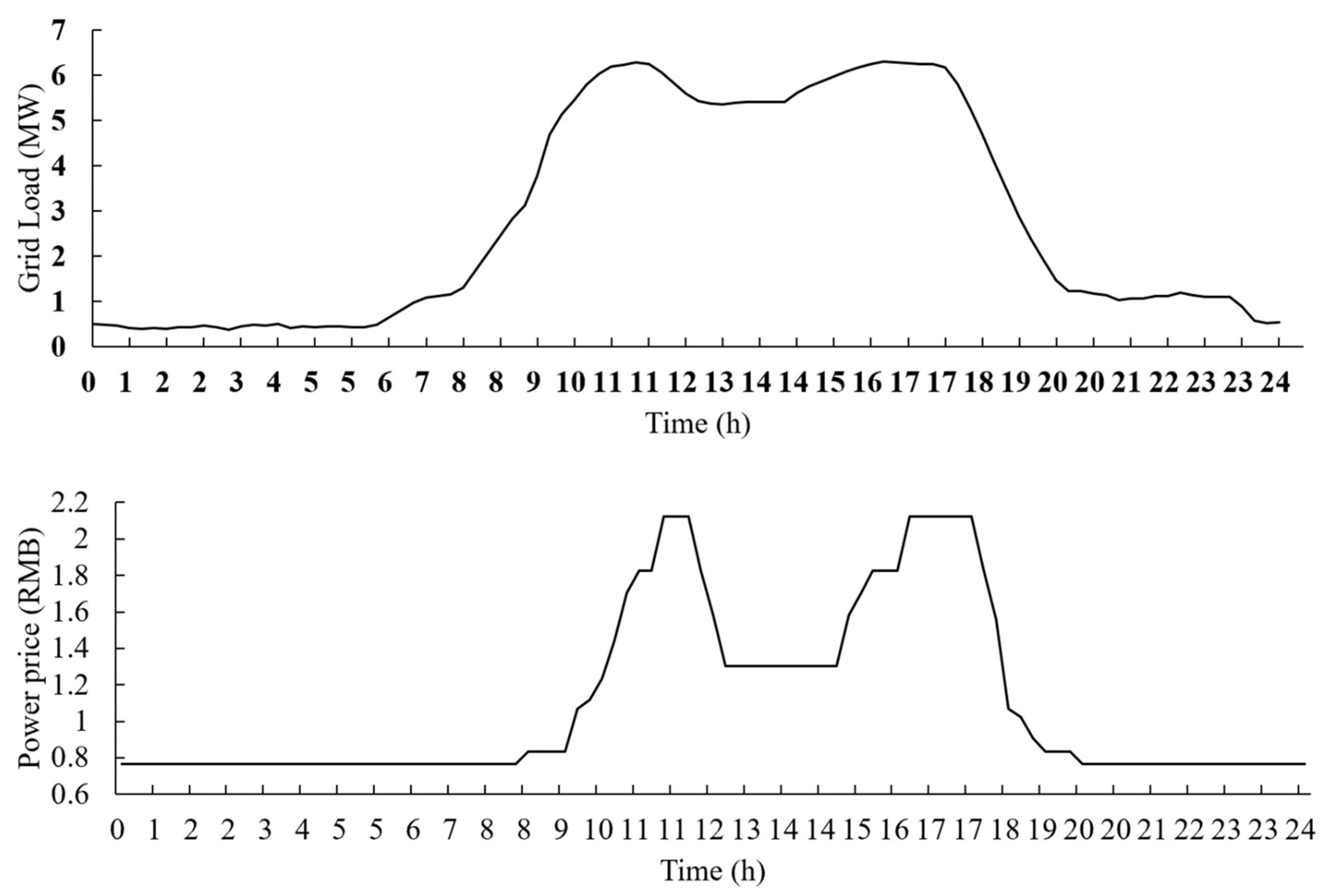

. In order to study the role of household battery storage in this community, the data of daily load and electricity price are extracted, as shown in the Figure 3. The daytime is divided into 96-time nodes, with interval of 15 min.

4.2. Objective Function

The following objective functions to be optimized are set as grid stability and user revenue.

Grid stability: battery storage regulates the peak and valley load. With the grid stability considered, the grid variance is expressed as Equation (3):

$$min{F}_1=\frac{1}{T}{\displaystyle \sum }_{t=1}^T{\left[\left(P_{t,load}-P_{t,ess}\right)-\frac{1}{T}{\displaystyle \sum }_{t=1}^T\left(P_{t,load}-P_{t,ess}\right)\right]}^2$$

(3)

where, $P_{t,load}$ is the power grid load at time $t$, $P_{t,ess}$ is the battery power at time $t$ (negative for discharging and positive for charging). $T$ is the sampling periods with 96 nodes.

User revenue: the peak load shifting is applied for arbitrage under the time of use electricity price system. The user revenue is derived as Equation (4):

$$max{F}_2={{\displaystyle \sum }}_{t=1}^{T}1000\Delta t·P_{t,ess}·e_t$$

(4)

where $\Delta t$ is the time interval of 15 min, $e_t$ is the power grid price (RMB/Yuan).

4.3. Constraints

For this paper, the electrical topology is unconsidered for simplicity. Only the constrains related to the battery energy storage system are taken into consideration.

Power constraint: the optimization process is terminated when the operation limit of the battery energy storage system is hit. The power constrain is expressed as Equation (5):

$$P_{t,min}\le P_{t,ess}\le P_{t,max}$$

(5)

SoC (State of Charge) constraint: $SO{C}_{min}$ is the minimum remaining capacity of the battery storage system, $SO{C}_{max}$ is the maximum remaining capacity of the battery storage system, 10% and 90% are taken in this paper.

SoC (State of Charge) constraint: for safety operation of the battery energy storage system, 10% and 90% are set as lower and upper limit. The SOC constrain is expressed as Equation (6):

$$SO{C}_{min}\le SOC\le SO{C}_{max}$$

(6)

4.4. Optimization Strategy

This paper adopts a multi-objective genetic algorithm to solve the real-time charging/discharging power of the battery energy storage system. The mutation and crossover manipulation are implemented by using built-in function mutationadaptfeasible and crossoverintermediate in MATLAB,(2021a, MATHWORKS, MA, USA) respectively. The population size, evolutionary generation, constraint tolerance and objective function tolerance is 400, 10,000, 10⁻³ and 10⁻⁶, respectively. When the iteration comes to 3415 generation, objective function tolerance converges to 10⁻⁶. The case settings for dispatch optimization are listed in

Table 7. Case settings for dispatch optimization.

Situation	Capacity	Power	SOC	ζ	Δt	T
Case1	2 MW	0~0.45 MW	10%~90%	0.9	15 min	96
Case2	2.22 MW	0~0.50 MW	10%~90%	0.9	15 min	96

.

4.5. Results and Discussion

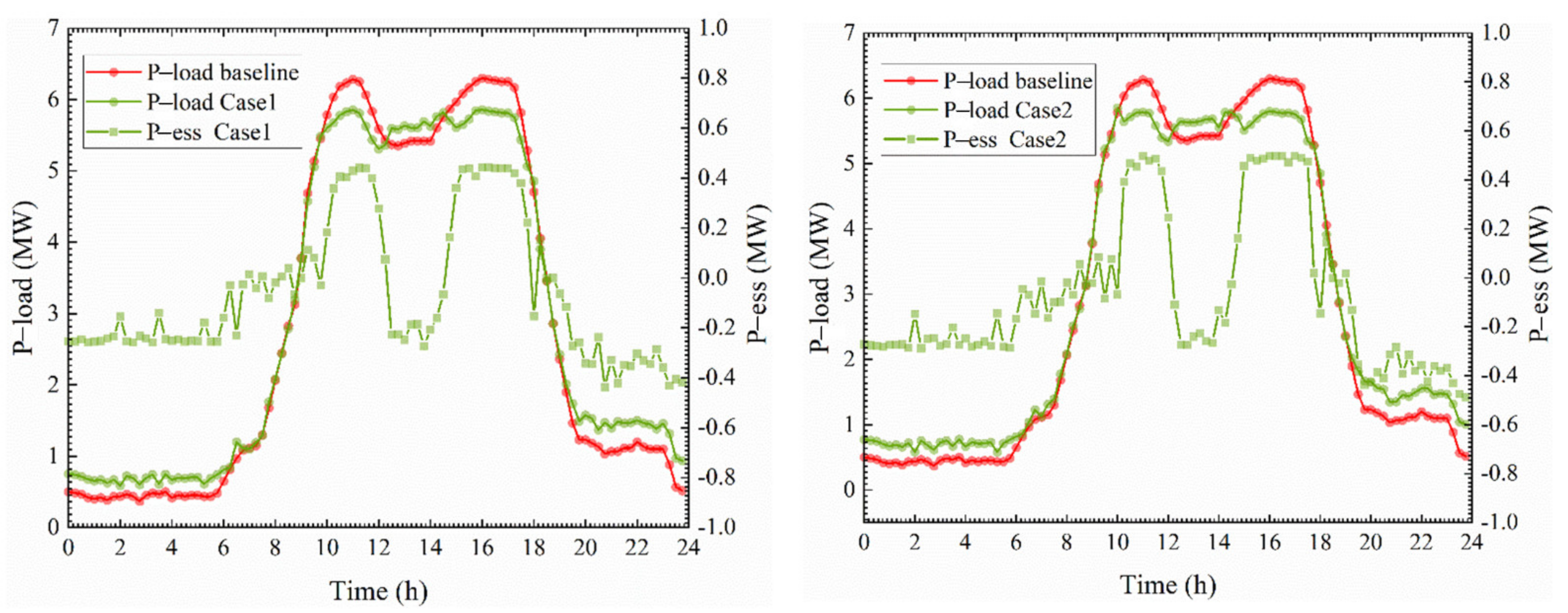

As was previously illustrated in Figure 1, the multi-objective optimization is implemented. The optimized strategy indicates a featured charging/discharging behavior, where 0–7 h and 9–12 h are taken as discharging hours preferentially. Meanwhile, optimized strategy also indicates a low-power charging at 12–14, followed by a discharge in period 14–18 and a charge in period 18–24 (in Figure 4).

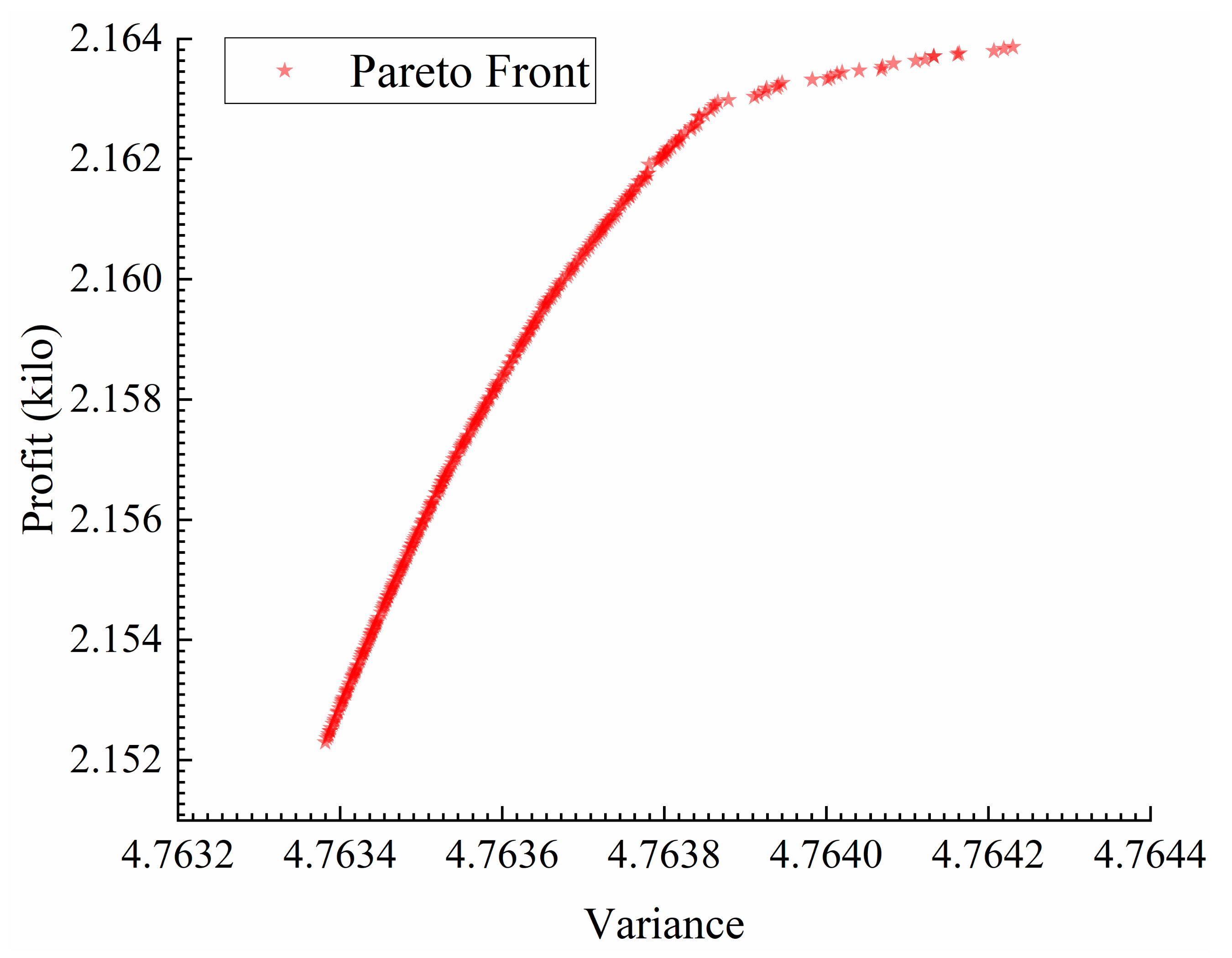

The Pareto optimal solution set is obtained solving with multi-objective optimization problems. As can be seen from the Pareto Front (Figure 5), the variance decreases with profit. However, variance and profit vary little; that is, pareto optimal solutions are very concentrated. It can be understood that the two optimization objectives of this scheme are consistent in the global scheduling (since the electricity price is positively correlated with the peak and valley of load, the variance is reduced and the profit is maximized in the process of peak and valley shifting). This phenomenon is reasonable. The price system based on market supply and demand will encourage the behavior of participating in the maintenance of grid stability, and the more unbalanced the supply and demand is, the stronger the incentive will be. However, the grid variation and user revenue vary little, which is extremely focused on Pareto optimum solutions. It is clear that the two optimization goals in current case settings are consistent with the global planning. This is resulted from the fact that the gird variance is reduced and the profit is maximized in the process of peak and valley shifting. That is a plausible phenomenon, since the time of use electricity price system is according to the peak and valley. The pricing system based on the supply and demand markets will foster the grid stability under the behavioral economics incentive.

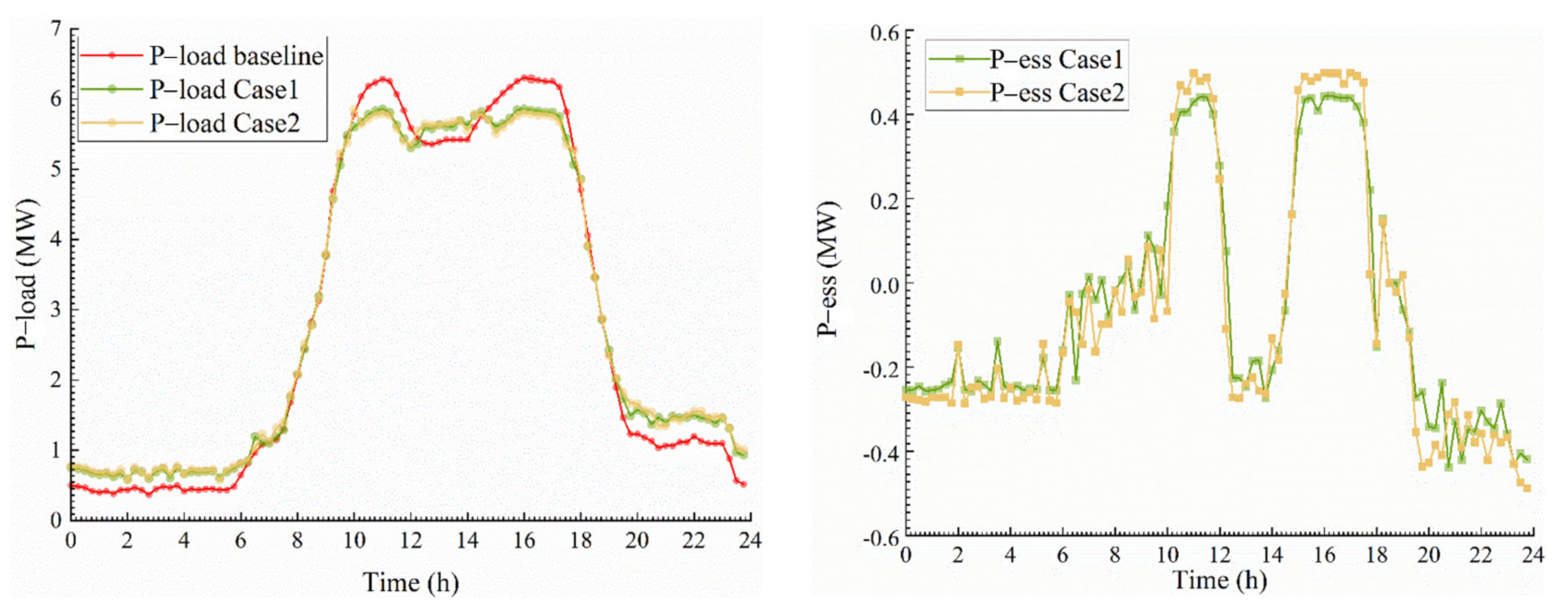

The effectiveness of behavioral economic incentives is shown in Figure 6 and

Table 8. Comparison of variance and revenue.

Situation	Capacity	Power	Variance	Revenue
No battery	0	0	5.640	0
Constant power	2 MWh	±0.45 MW	5.124	1996
Case1	2 MWh	Real-time	4.764	2164
Case2	2.22 MWh	Real-time	4.562	2392

. With the applied economic incentives, the total capacity and power of household battery storage are increased, indicating a better purchase intention. Moreover, the peak load shifting is of performance in grid variance. Therefore, a more uniformly distributed load curve can be observed.

• The behavioral economics incentives effectively promote both grid stability and user revenues. Under the set scenario, the purchase intention (installed capacity) is increased by 10.7%, leading to a grid variance drop from 4.764 to 4.662. With respect to the user revenue, daily profit increases by 10.5% (from 2164 to 2392 Yuan).

5. Conclusions

This paper conducts an empirical study to investigate behavioral economics incentives with the dual goal of power system optimization and user revenue. A user incentive model is proposed to quantitatively describe the battery energy storage purchase intention. The effectiveness of behavioral economics incentives is verified by carrying out the multi-objective optimization under behavioral economics incentives-controlled scenarios. The results indicate that:

(1)

The behavioral economic incentives positively encourage the promotion of household battery storage purchase intention, without increasing economic costs. This effect is mainly achieved through users’ motivation goals. Behavioral economic incentives can increase the total capacity of household battery storage, which can enhance the effect of peak load shifting and improve user benefits.

(2)

The 10.7% increase in installed energy storage capacity can reduce the grid variance by 4.2% and increase user revenue by 10.6%. It is proved that behavioral economic incentives can improve the stability of power grid and user benefits from energy storage.

The behavioral economic incentives proposed in this paper can effectively improve the purchase intention of household energy storage users, guide users’ behavioral decisions without additional economic expenditure. Thus, the dual goals of power grid stability and user benefits are integrated as one currently in separate paradigm. It is worth noticing that the study is currently a simple application of behavioral economics to model individual behavioral decisions. Human behavior motivation is a complex system and more factors remain to be studied. Since the future behavioural economics and renewable energy system will further be integrated and coupled as a complex process, future works should concentrate on the automated assessment of the user behaviours, the health status of the electrical equipment and on green energy labelling and so on. Furthermore, energy policies should not only support the user side subsidies on household battery energy storage as a direct incentive, but also introduce both economic and environmental paradigms to build a comprehensively integrated household battery energy storage system. Understanding human behavior motivations is crucial in the analysis and modeling of power systems. The novel behavioral economics-based power grid optimization strategy combines the user experience with the traditional grid management idea as a preliminary but promising guidance for a highly green, accessible and steady renewable energy storage systems in the future.
