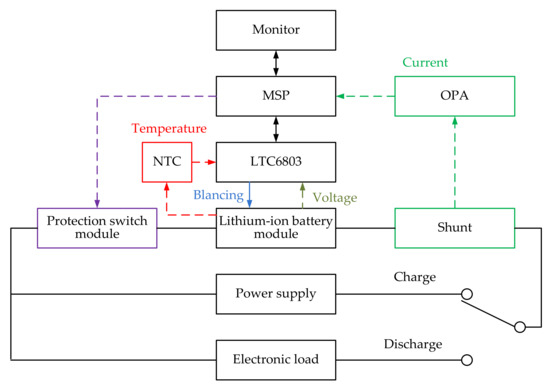

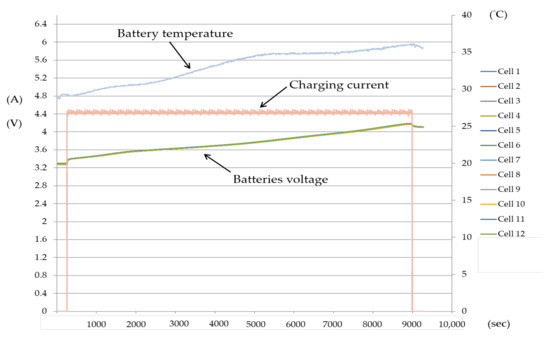

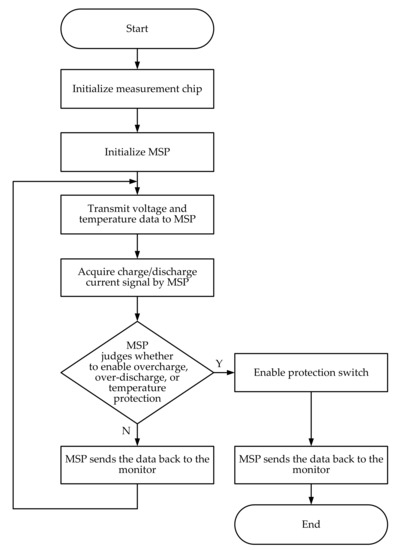

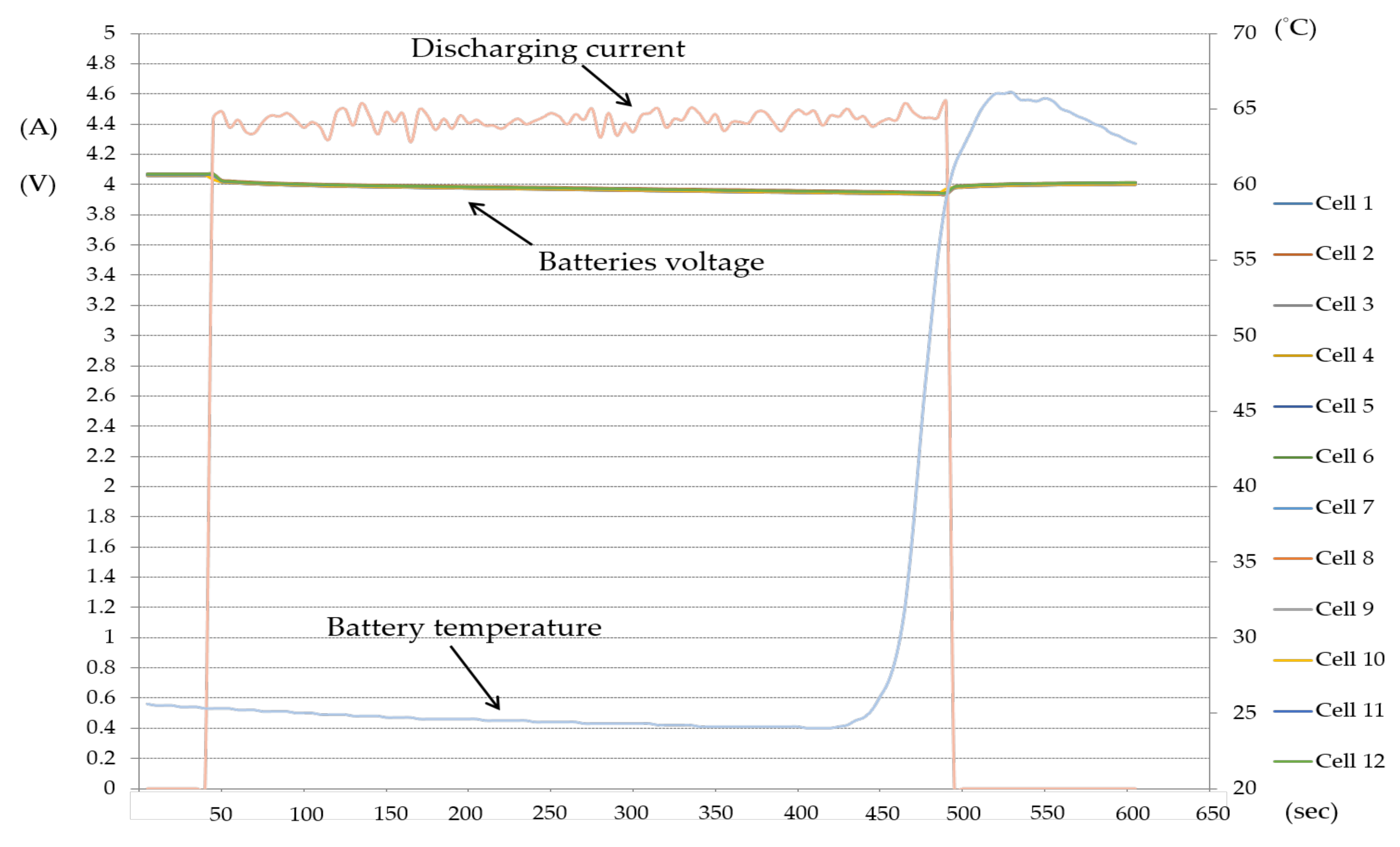

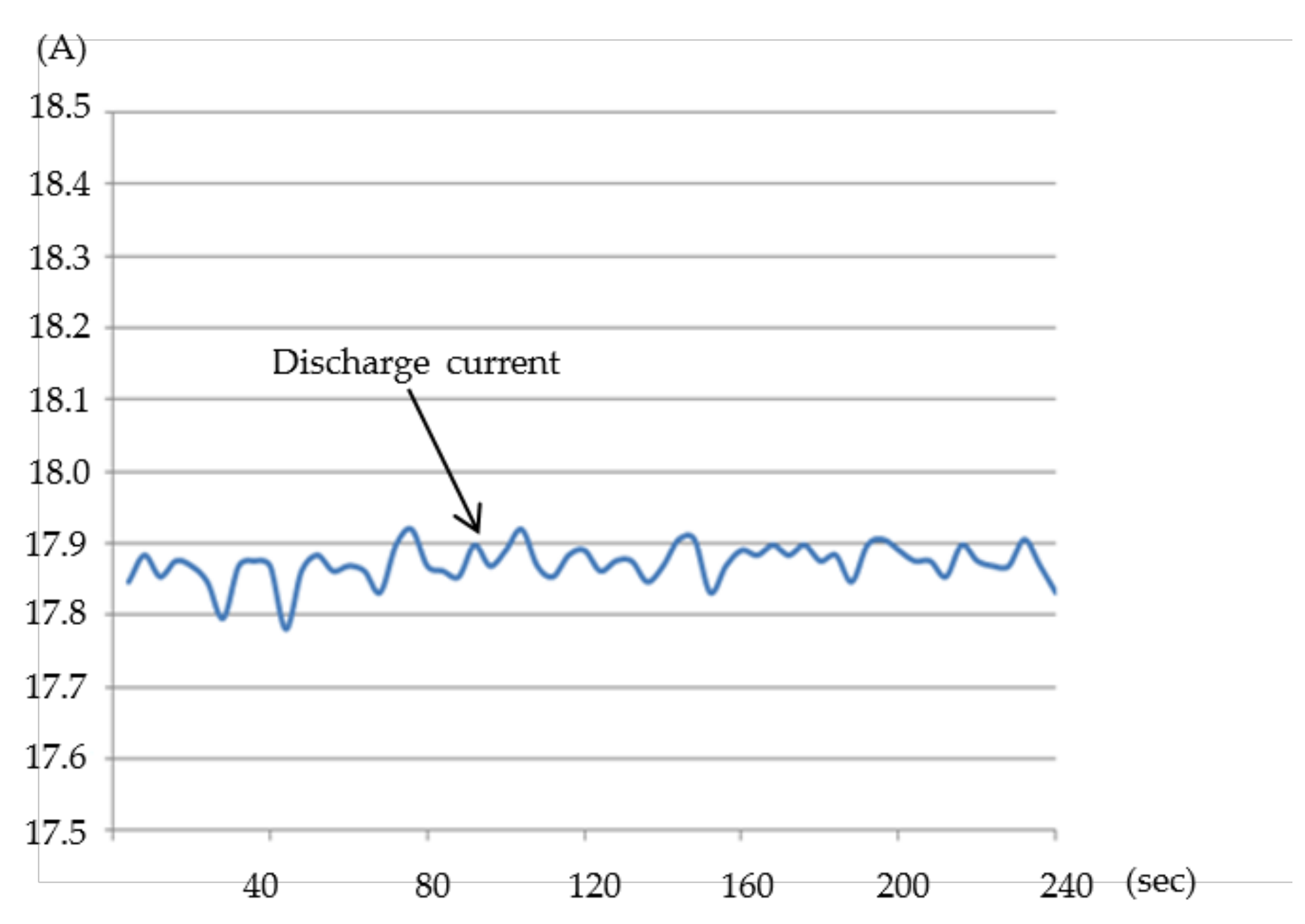

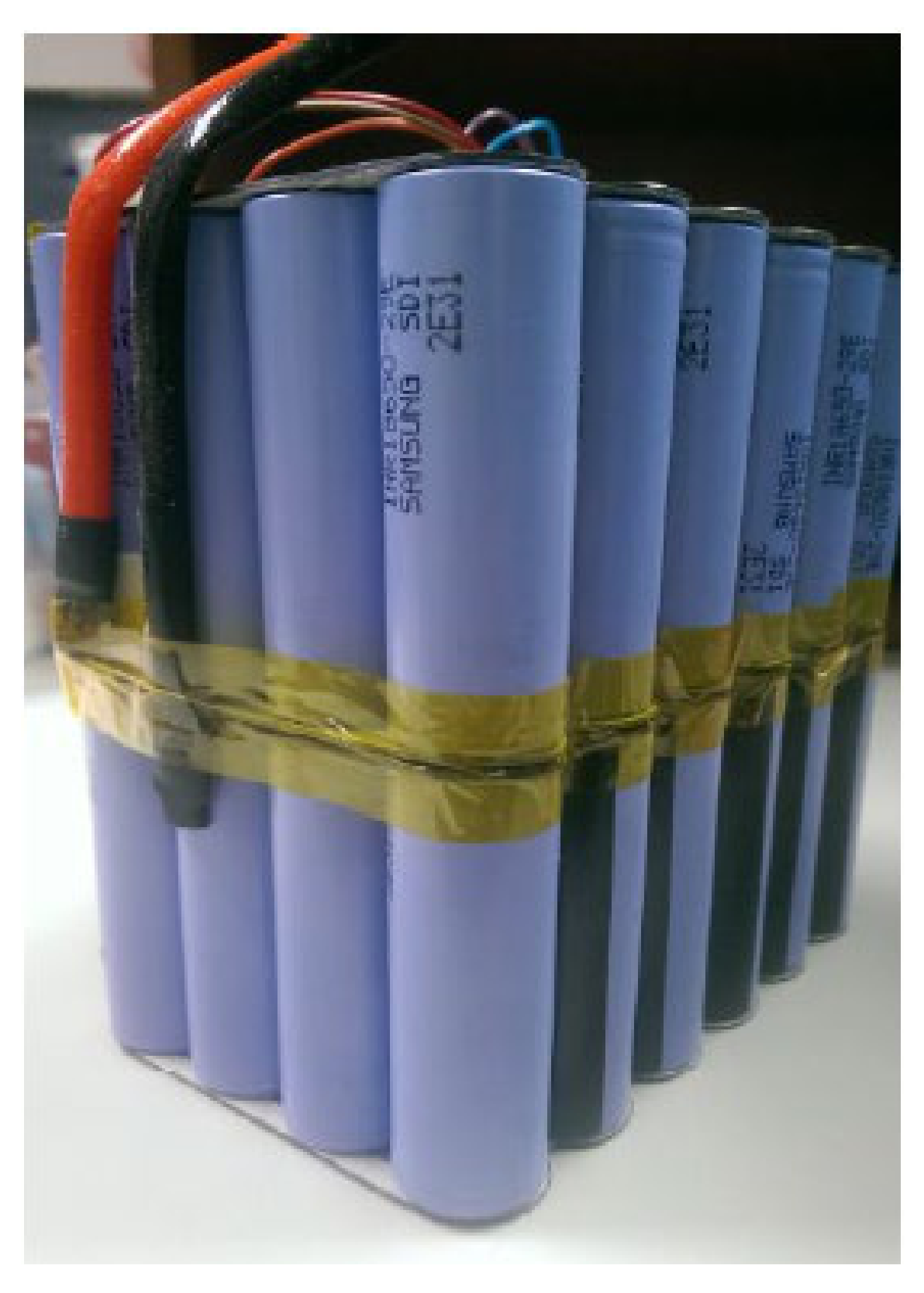

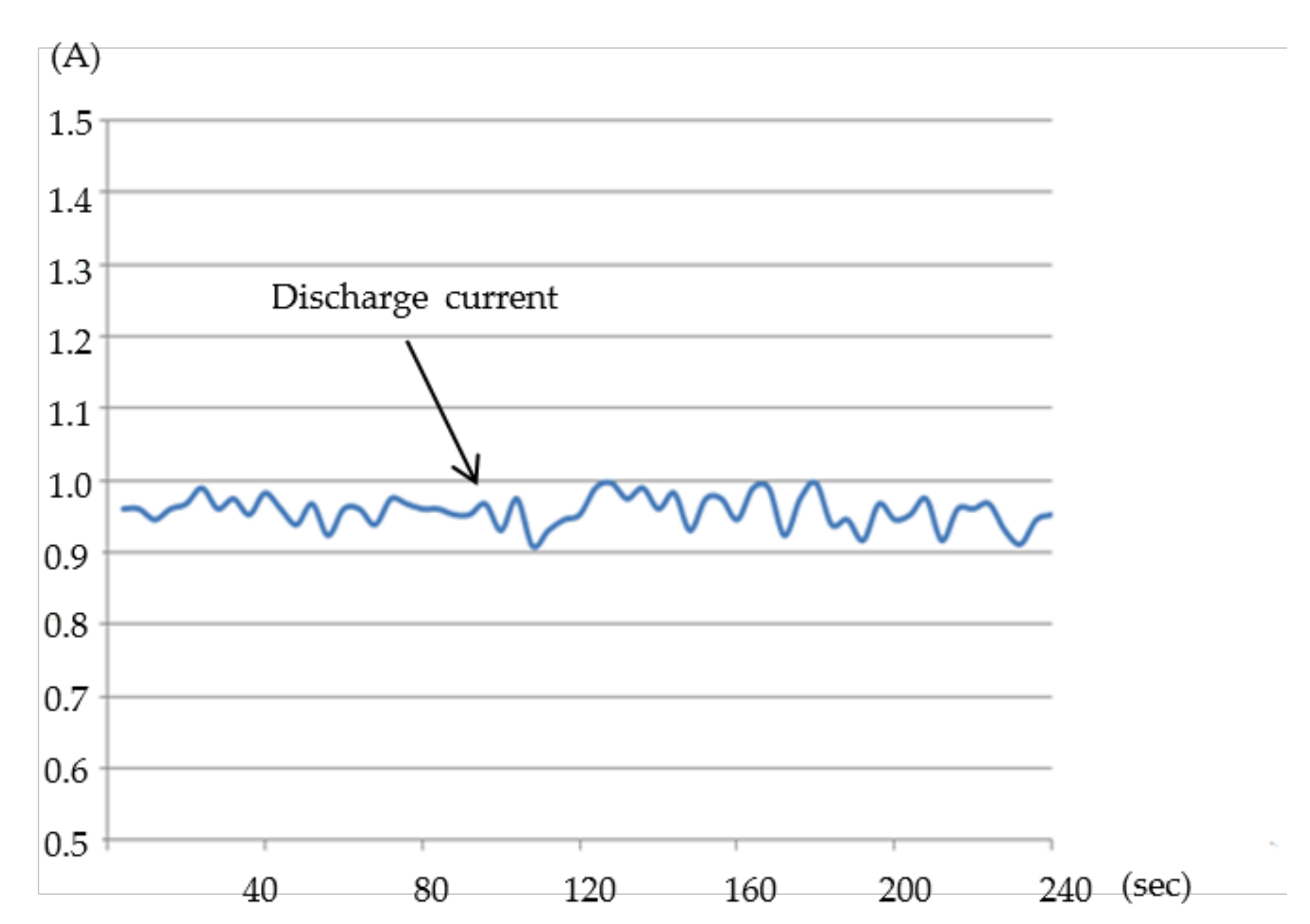

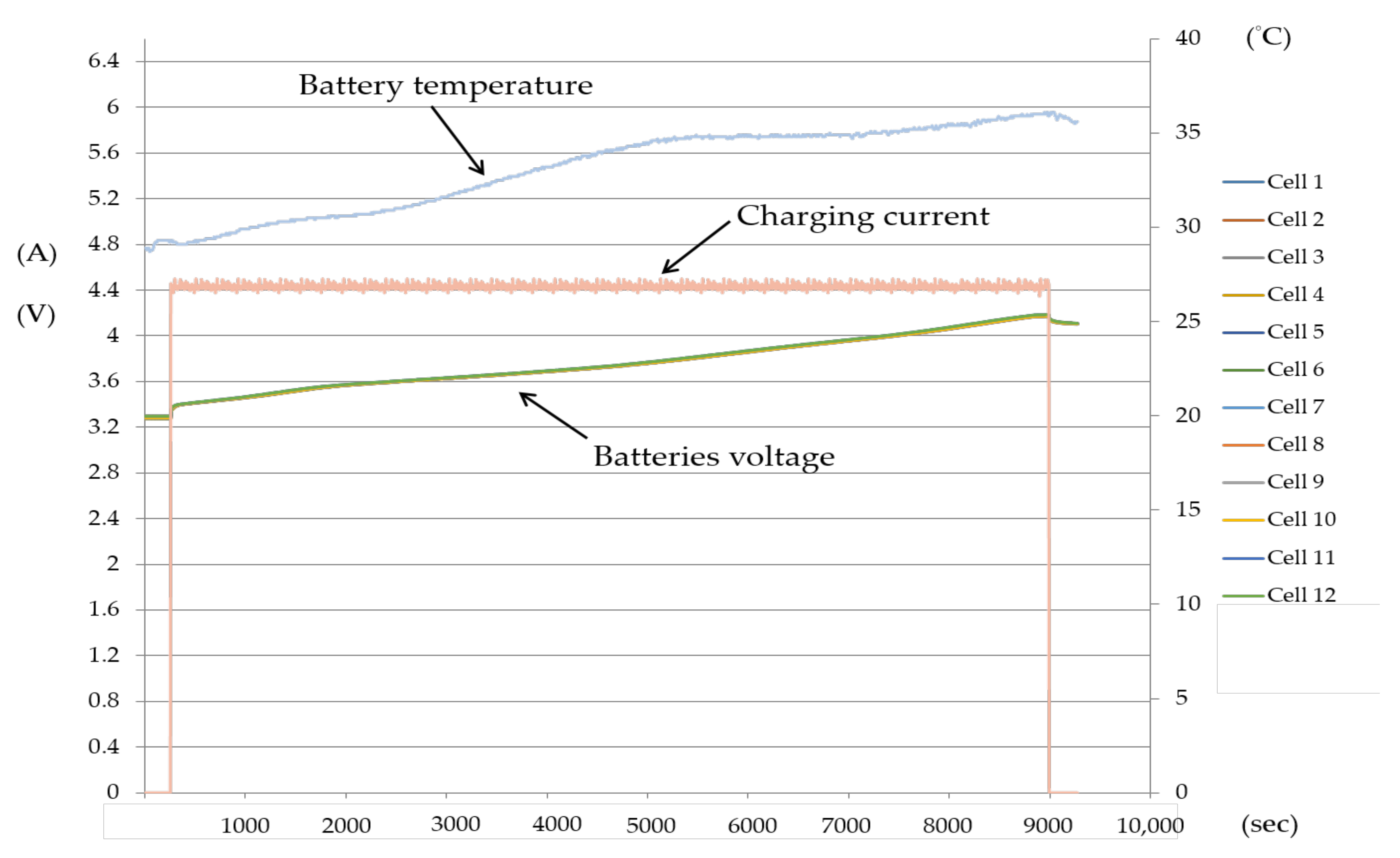

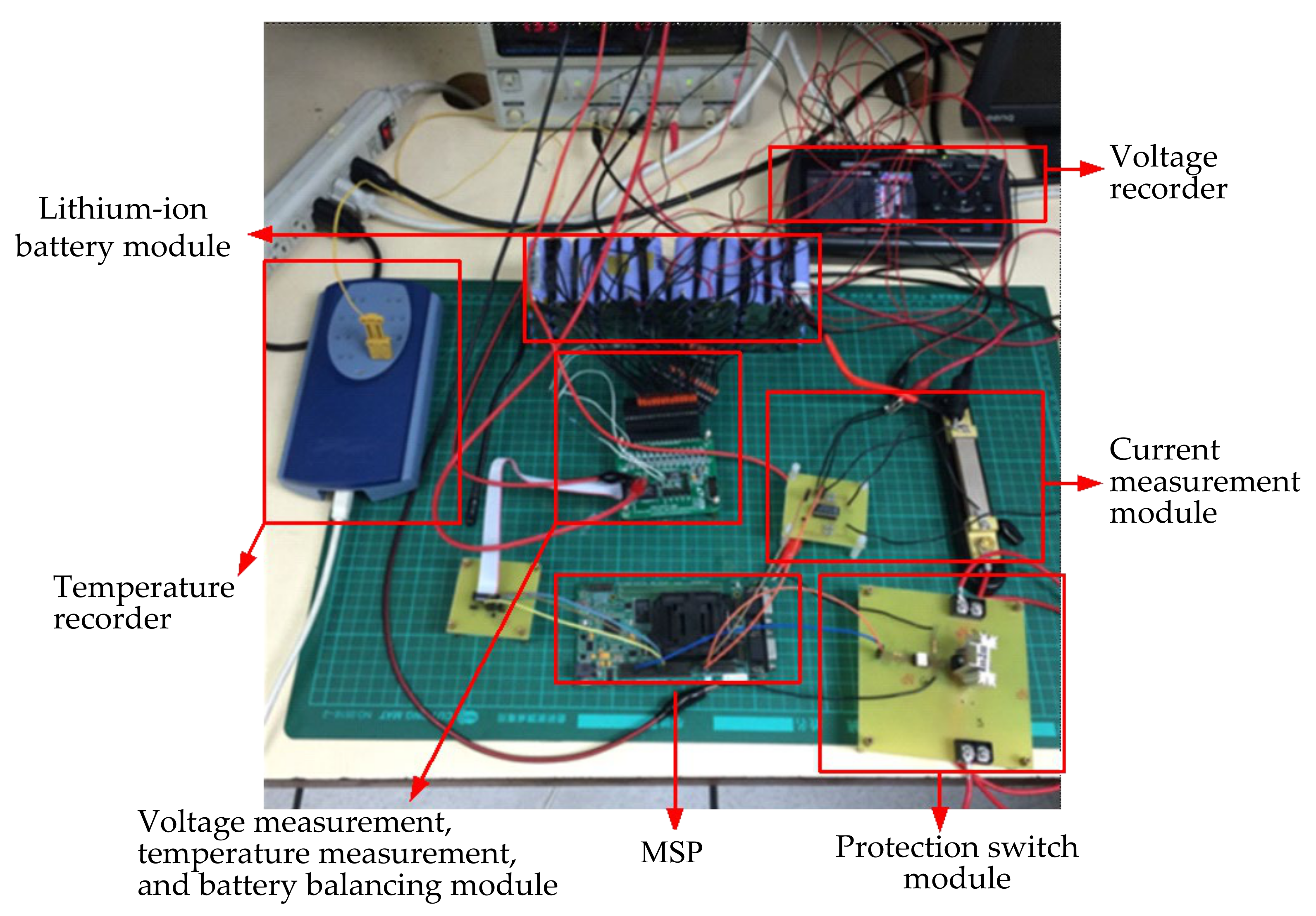

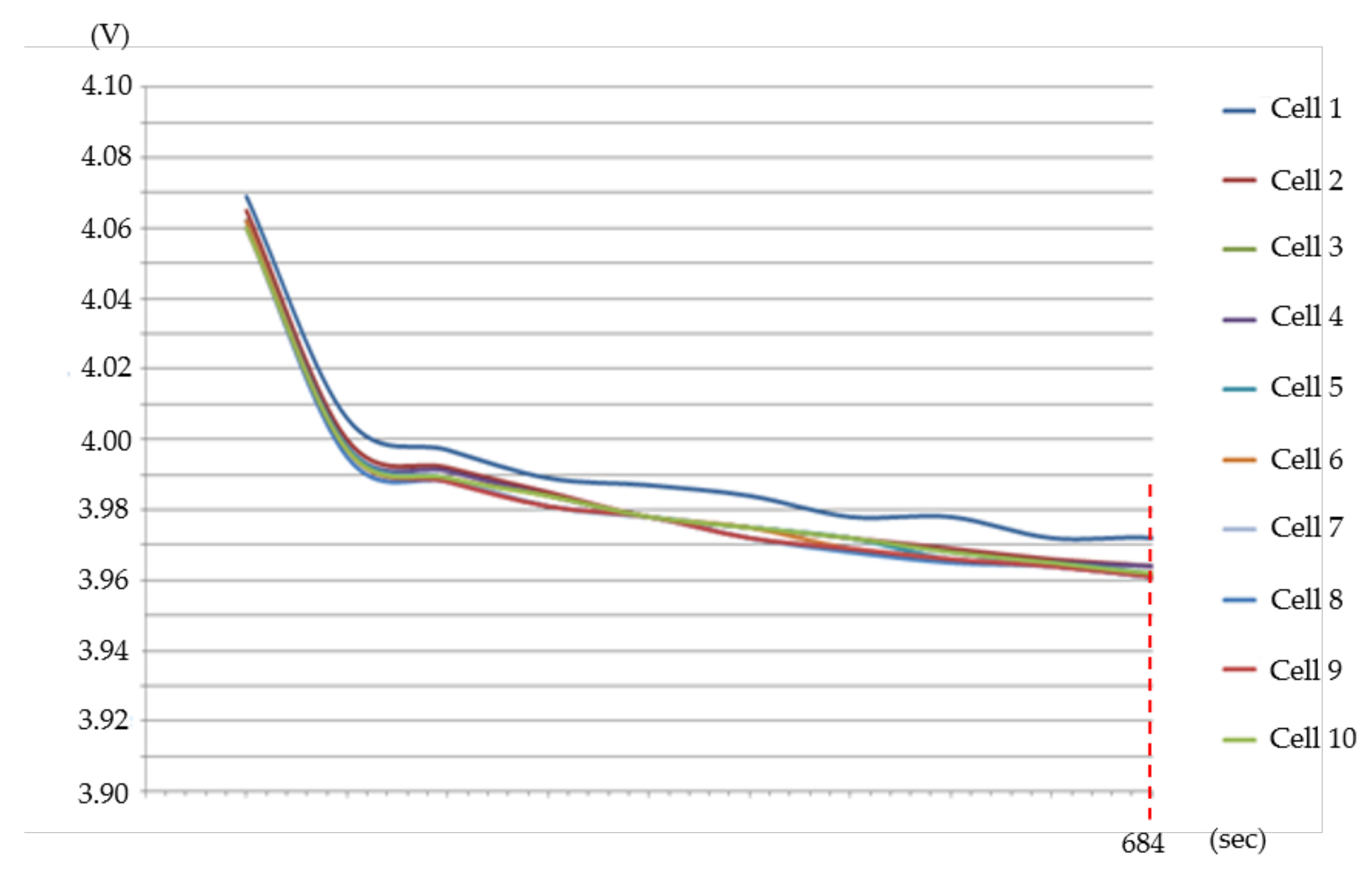

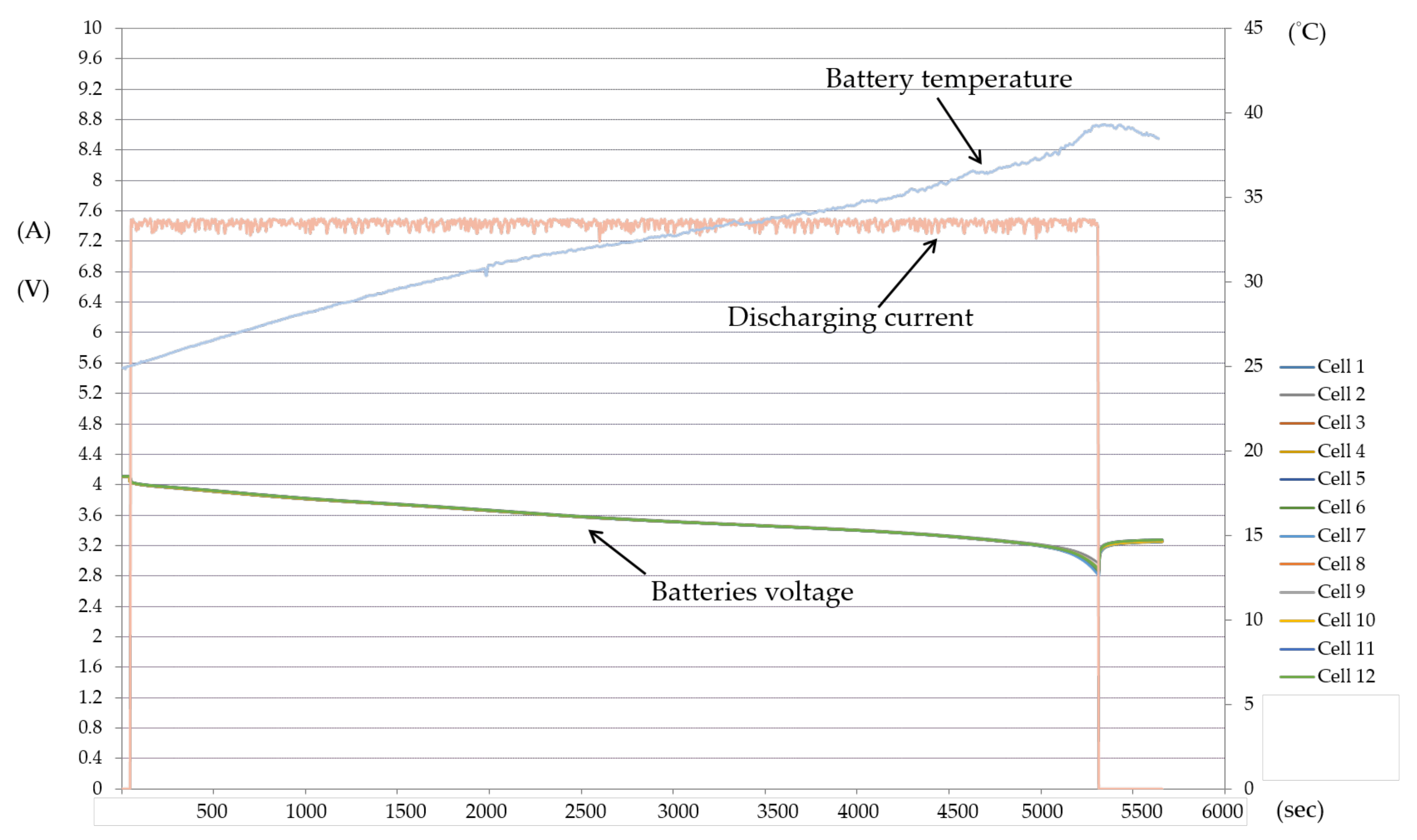

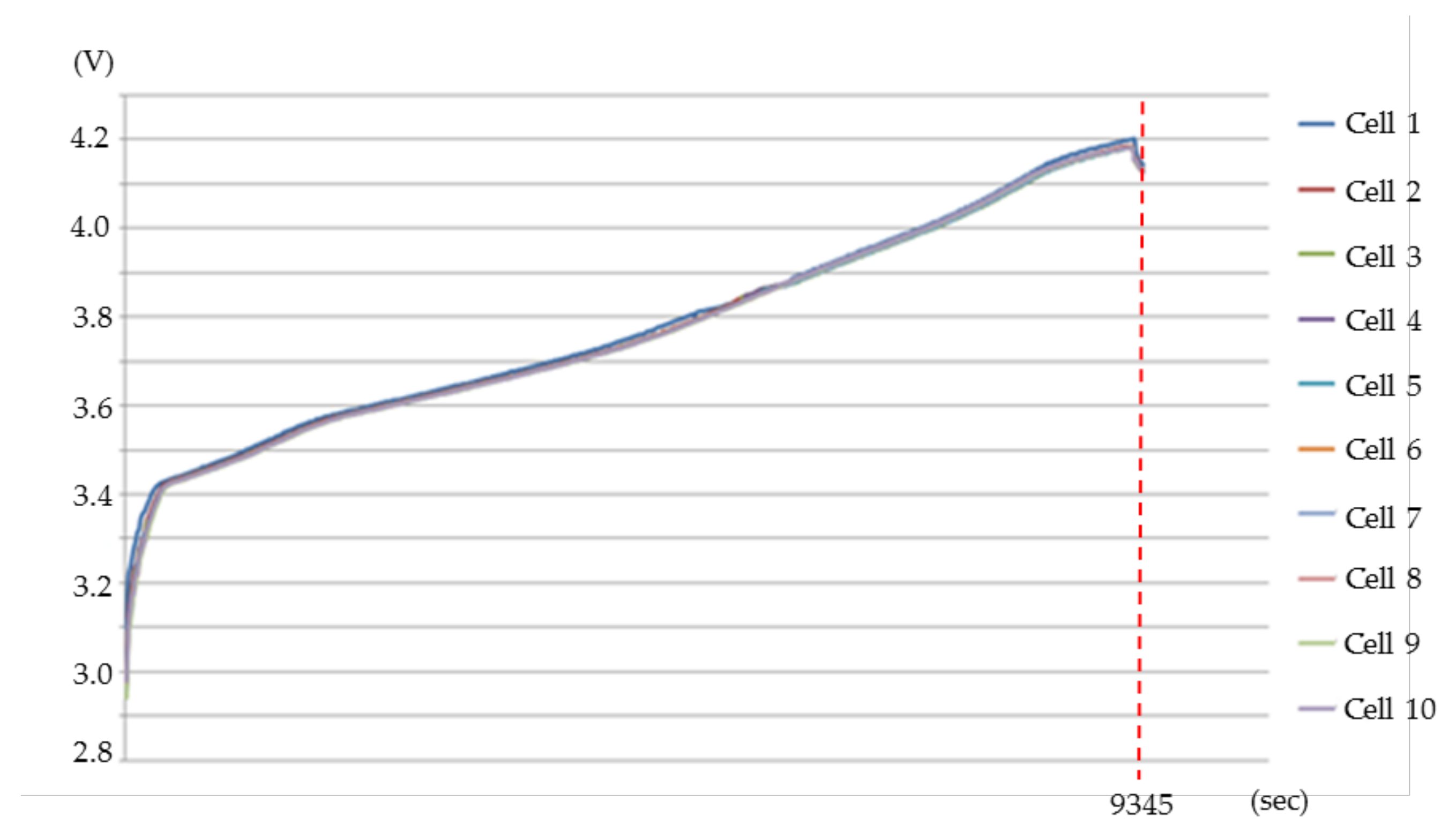

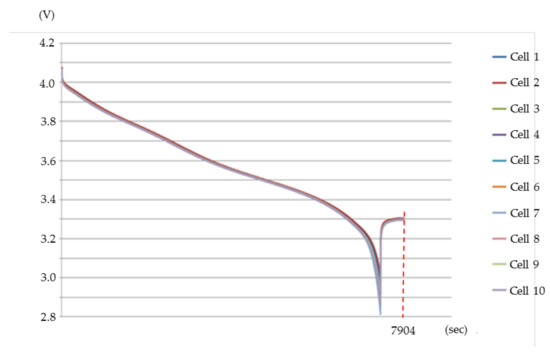

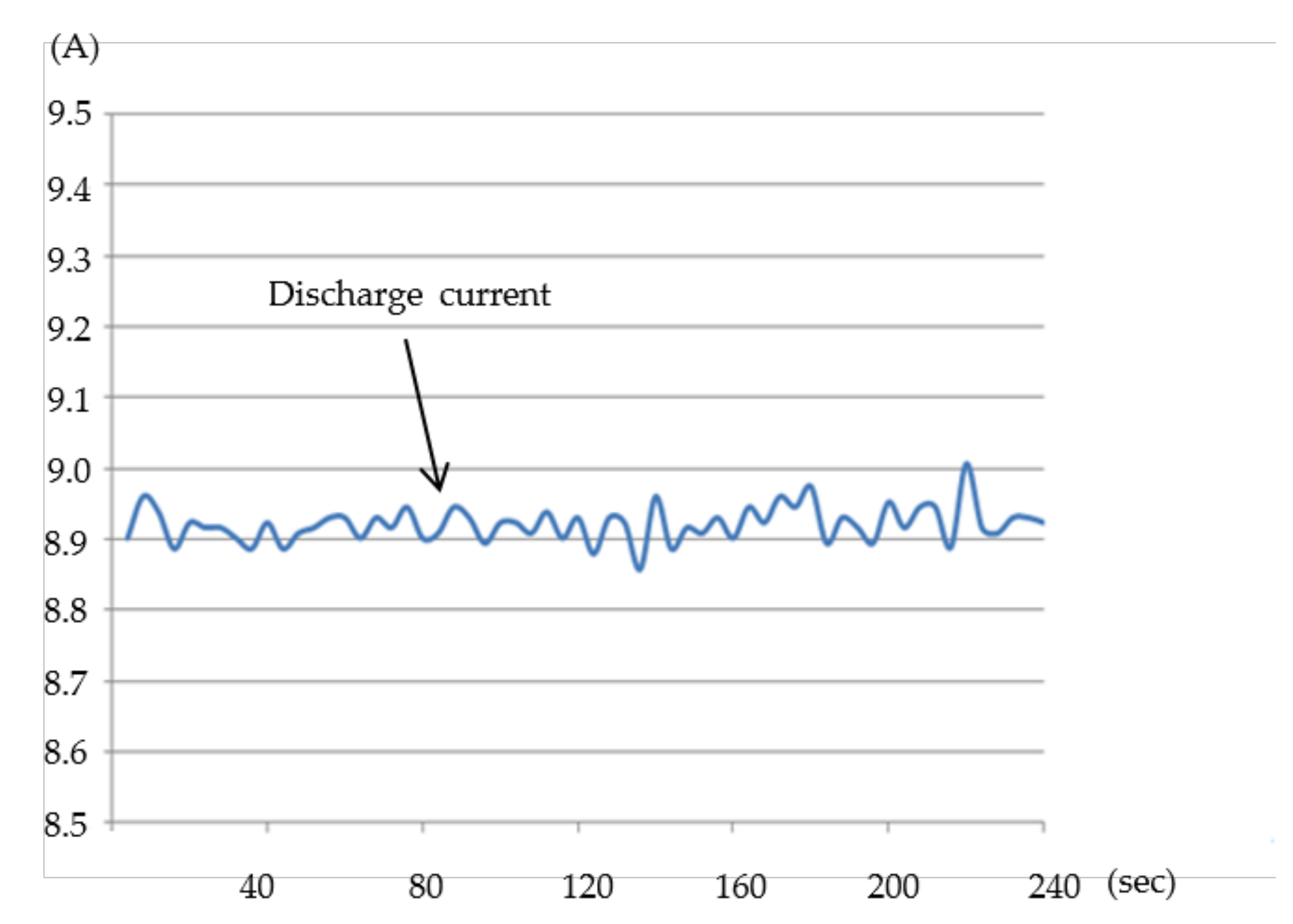

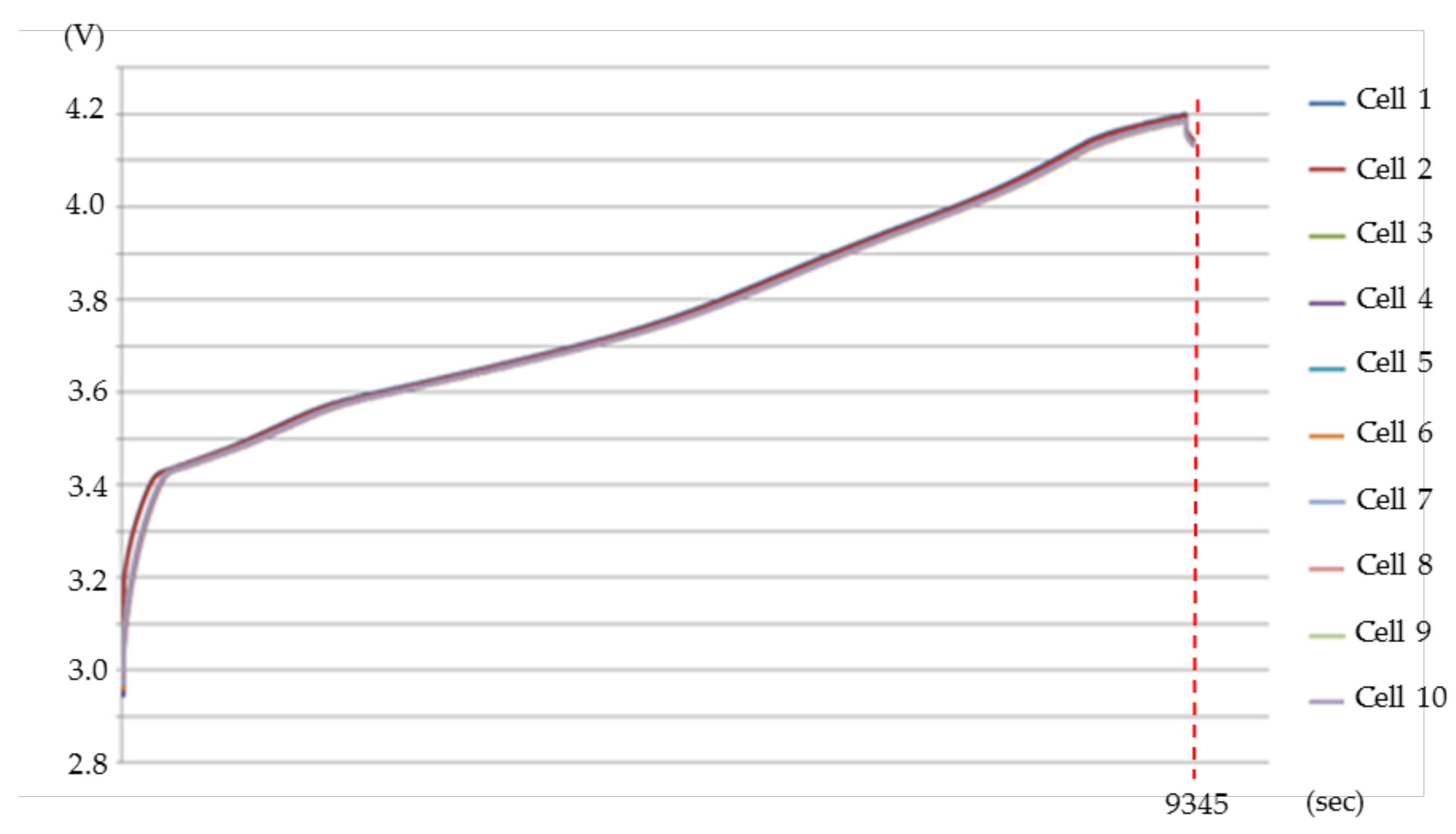

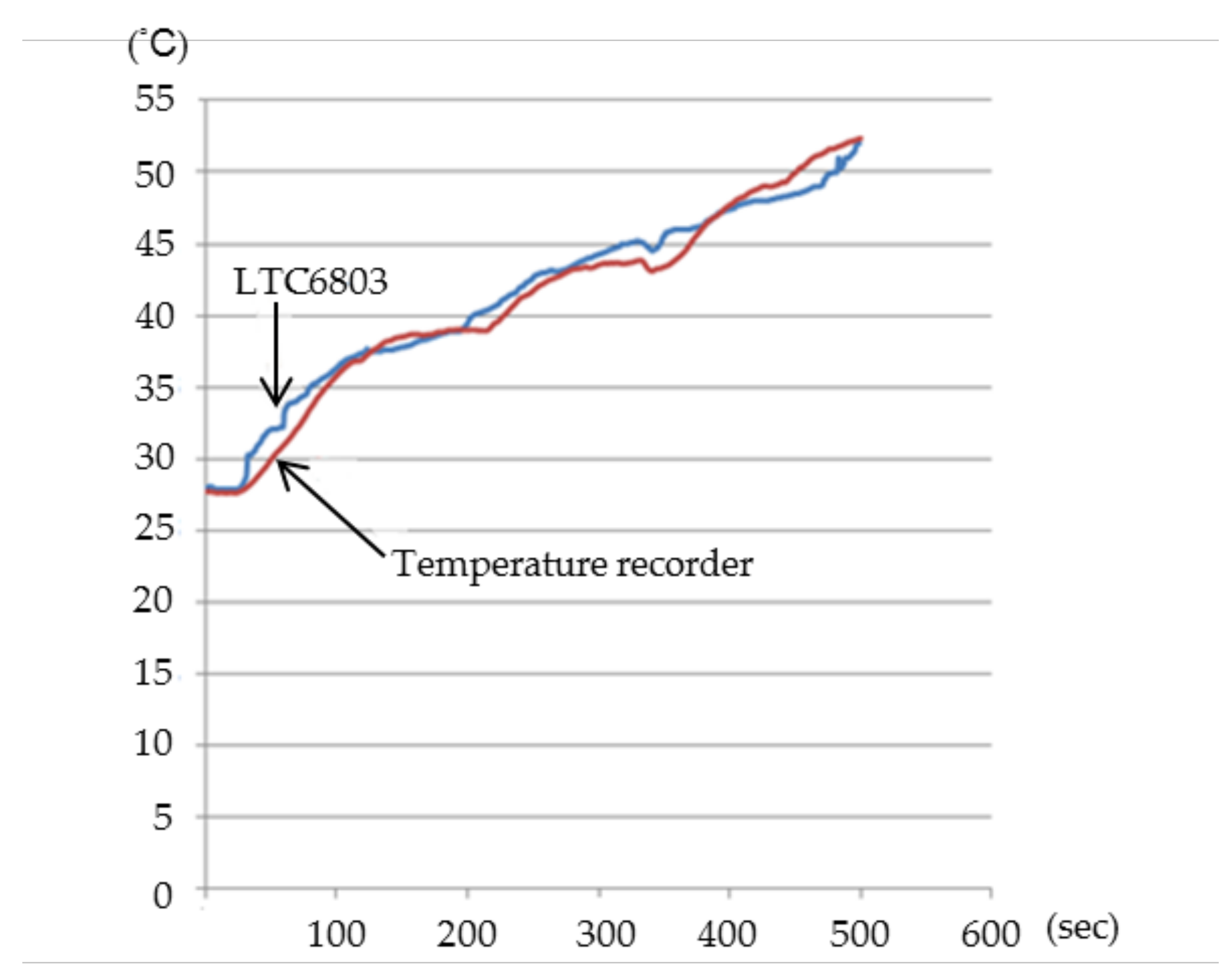

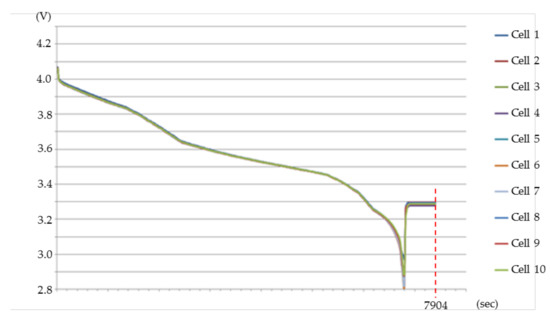

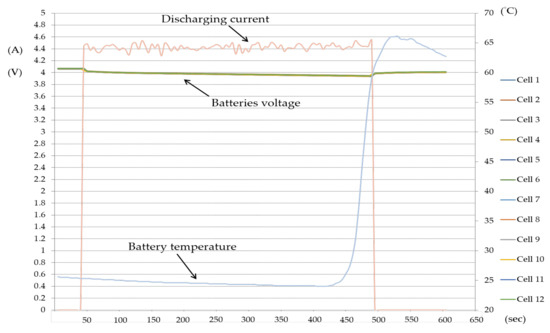

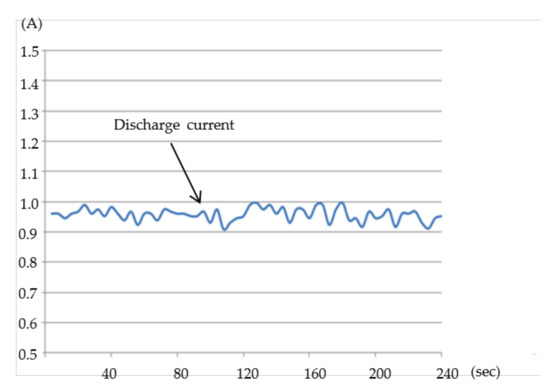

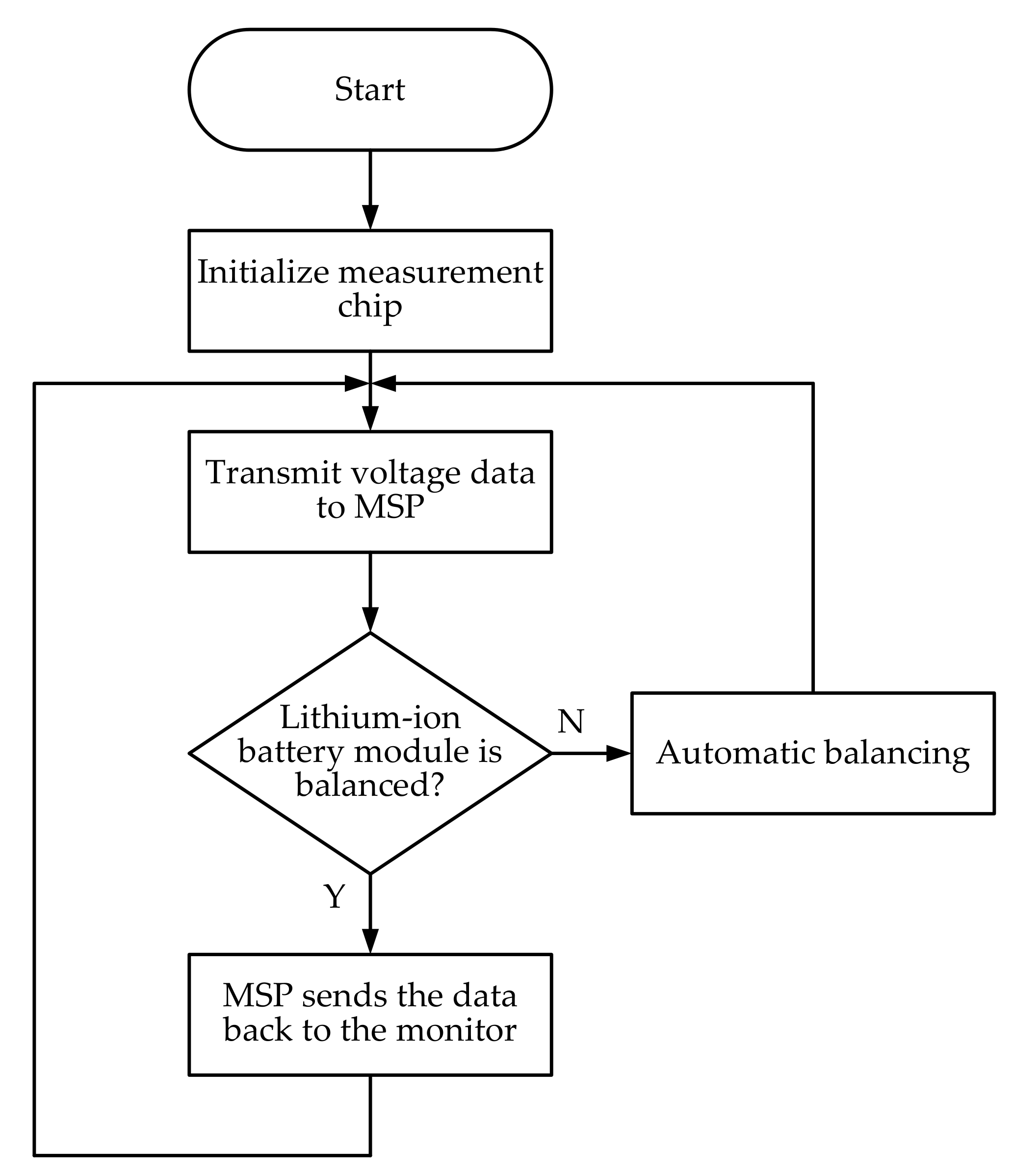

This paper proposes a modular battery management system for an electric motorcycle. The system not only can accurately measure battery voltage, charging current, discharging current, and temperature but also can transmit the data to the mixed-signal processor for battery module monitoring. Moreover, the system can control the battery balancing circuit and battery protection switch to protect the battery module charging and discharging process safety. The modular battery management system is mainly composed of a mixed-signal processor, voltage measurement, current measurement, temperature measurement, battery balancing, and protection switch module. The testing results show that the errors between the voltage value measured by the voltage measurement module and the actual value are less than 0.5%, about 1% under the conditions of different charging and discharging currents of 9 A and 18 A for the current measuring module, less than 1% for the temperature measurement module; and the battery balancing in the battery management system during the charging process. When the module is charged at 4.5 A for about 805 s, each cell of the battery has reached the balancing state. Finally, the testing results validate that the modular battery management system proposed in this paper can effectively manage the battery balancing of each cell in the battery module, battery module overcharge, over-discharge, temperature protection, and control.
