# Review of Design and Modeling of Regenerative Heat Exchangers

*Keywords:*regenerative heat exchanger; packed bed; heat transfer; pressure drop

Previous Article in Journal

Previous Article in Special Issue

Previous Article in Special Issue

Received: 28 December 2019
/
Revised: 23 January 2020
/
Accepted: 5 February 2020
/
Published: 9 February 2020

(This article belongs to the Special Issue Advances in Design, Modelling, and Applications of Heat Transfer Equipment)

Heat regenerators are simple devices for heat transfer, but their proper design is rather difficult. Their design is based on differential equations that need to be solved. This is one of the reasons why these devices are not widely used. There are several methods for solving them that were developed. However, due to the time demands of calculation, these models did not spread too much. With the development of computer technology, the situation changed, and these methods are now relatively easy to apply, as the calculation does not take a lot of time. Another problem arises when selecting a suitable method for calculating the heat transfer coefficient and pressure drop. Their choice depends on the type of packed bed material, and not all available computational equations also provide adequate accuracy. This paper describes the so-called open Willmott methods and provides a basic overview of equations for calculating the regenerative heat exchanger with a fixed bed. Based on the mentioned computational equations, it is possible to create a tailor-made calculation procedure of regenerative heat exchangers. Since no software was found on the market to design regenerative heat exchangers, it had to be created. An example of software implementation is described at the end of the article. The impulse to create this article was also to broaden the awareness of regenerative heat exchangers, to provide designers with an overview of suitable calculation methods and, thus, to extend the interest and use of this type of heat exchanger.

Regenerative heat exchangers are devices used for indirect heat exchange between hot and cold media. In these devices, heat is first transferred from a hot medium to a storage material and then is transferred to a cold medium. Thus, the hot and cold media are alternately in contact with the solid material forming the packed bed. In the hot cycle, heat is transferred from the medium to the packed bed, and, in the cold cycle, the cold medium absorbs the heat stored in the solid material. This cycle is the reason why regenerative heat exchangers must operate in pairs (they must have two beds) to work continuously. Regenerative heat exchangers are used mainly in the metallurgical industry, in air treatment, air preheating, or recovery of waste heat, and in turbine applications. However, the complexity of the calculations resulted in their limited expansion.

Although there are several approaches to calculating these devices, more accurate methods require the solution of differential equations. Their solution is quite time-demanding and they need the use of a computer. This paper describes the solution of the calculation of regenerative heat exchangers using the Willmott open method, which seems to be the best for computer use. This method shows great stability (convergence) and allows the inclusion of calculation of the equations describing heat transfer and pressure drop. The solution is performed by an iterative calculation, and the result is the distribution of gas temperatures and pressure over time and along the bed.

Another difficulty when calculating these devices is finding suitable computational equations to describe the heat transfer between the gas and the packed bed material. Although these equations can be found in the literature, they are usually given only for spherical shapes. In addition, different equations give different results. It is, therefore, necessary to choose a suitable calculation equation in order to get the best results. A better situation is in the calculation of pressure drops, for which many computational equations can be found in the literature. However, some of them give different results from those measured. This paper, therefore, provides an overview of suitable computational equations so that a complete computational algorithm of regenerative heat exchangers can be compiled.

Regenerators can be divided into two categories: fixed-bed and rotary regenerators. In the fixed-bed regenerator, a single fluid stream has cyclical or reversible flow. Valves are employed to switch the flow the hot and cold gas streams. In the rotary regenerator, the storage material rotates continuously through two counterflowing streams of fluids. Only one stream flows through a section of the storage material at a given time. However, both streams eventually flow through all sections of the storage material during one rotation.

Fixed-bed regenerators are commonly run in pairs. It means that two or more regenerators are used in parallel because of the requirement for a continuous stream of the gas. During one part of a cycle, the hot gas flows through one of the regenerators and heats up the storage material, while the cold gas flows through and cools down the storage material in the second regenerator. Both gases directly contact storage material in the regenerators, although not both at the same time, since each is in a different regenerator at any given time. After a sufficient amount of time, the cycle is switched such that the cooler storage material in the second regenerator is preheated with the hot gas, while the hot storage material in the first regenerator exchanges its heat into the cold gas. This cycle is permanently repeated.

The advantage of regenerators over recuperators is that they have a much higher surface area for a given volume. Hence, the regenerator usually has a smaller volume and weight than an equivalent recuperator. This means that regenerators are more economical in terms of materials and manufacturing. The storage material of regenerators also has a degree of self-cleaning characteristics, reducing fluid-side fouling and corrosion. Disadvantages include mixing the media as a result of alternating the passage of hot and cold media through the packed bed. Regenerators are, thus, ideal for gas–gas heat exchange.

Various materials and shapes can be used as storage materials. Because solids have a very large heat capacity compared to gases, they are used as intermediary storage of the heat. Their selection depends on given conditions and requirements, especially temperature. For very high temperature, ceramic storage material should be used. For low or moderate temperatures, the heat storage material can be made of metal, e.g., steel or aluminum. There exist several types of storage shapes (see Figure 1). For large regenerators, bricks can be used. For smaller regenerators, honeycombs, spherical particles, monoliths, saddles, rings, or Raschig rings can be used.

Regenerative heat exchangers can be used in various processes. The most common applications include the following:

The benefit of the exchanger is seen in the potential of its current multiple function. The exchanger could be used, for example, for simultaneous gas purification. This means that the storage material also serves as a catalyst on which the chemical reaction takes place.

Packed bed calculations use various geometric characteristics describing the packed bed. The main ones are specified in this section.

An important parameter in the calculation of the flow in a packed bed is voidage. The voidage ε is defined as the ratio of the free volume of the packed bed to the total volume.
where V_{b} is the total volume of the packed bed (m^{3}), V_{p} is the volume of the packed bed material (m^{3}), and V_{m} is the free volume of the packed bed (m^{3}).

$$\epsilon =\frac{{V}_{b}-{V}_{p}}{{V}_{b}}\times 100=\frac{{V}_{m}}{{V}_{b}}\times 100,$$

The particle diameter can be defined as the diameter of a sphere that has the same volume as the particle,
or as the equivalent particle diameter d_{p} (m), according to the specific surface given by Ergun [2], which has the same ratio of the surface to the volume as the given particle and is given by
where A_{p} is the particle surface area (m^{2}).

$${d}_{V}={\left(\frac{6}{\pi}{V}_{p}\right)}^{1/3},$$

$${d}_{p}=\frac{6\sum {V}_{p}}{{A}_{p}},$$

Sphericity is defined in Reference [3] as the ratio of the surface area of the sphere to the surface area of the particle. The sphericity is 1 for a sphere and is less than 1 for any particle that is not a sphere.
where A_{s} is the surface area of a sphere that has the same volume as the particle (m^{2}), A_{p} is the particle surface area (m^{2}), and V_{p} is the volume of the particle (m^{3}).

$$\psi =\frac{{A}_{s}}{{A}_{p}}={\left[\frac{36\pi {V}_{p}^{2}}{{A}_{p}^{3}}\right]}^{1/3}=\frac{\pi {d}_{p}^{2}}{{A}_{p}},$$

$${d}_{h}=4{r}_{h}=4\frac{\epsilon}{a}=\frac{4\epsilon}{{a}_{r}\left(1-\epsilon \right)},$$

Absolute specific surface is the ratio between the particle surface area and the volume of the packed bed.

$$a=\frac{{A}_{p}}{{V}_{b}}=\frac{{A}_{p}\left(1-\epsilon \right)}{{V}_{p}}.$$

Relative specific surface is the ratio between the particle surface area and the volume of the particle in the packed bed.

$${a}_{r}=\frac{{A}_{p}}{{V}_{p}}.$$

The relationship between relative and absolute specific surface is

$$a={a}_{r}\left(1-\epsilon \right).$$

If the gas flows through the packed bed of the regenerator and the total heat transfer area between the bed and the gas is A_{p}, then the mean temperature change of packed bed T_{b} at time t can be expressed in the form
where M_{b} is the mass of packed bed (kg), T_{b} is the mean temperature of packed bed (°C), T_{g} is the temperature of the gas flowing through the bed (°C), h_{t} is the total heat transfer coefficient (W∙m^{−2}∙K^{−1}) between the flowing gas and the bed material, C_{p}_{,b} is the heat capacity of packed bed (J∙kg^{−1∙}K^{−1}), and A is the total heat transfer area (m^{2}). In a cooling period, where the gas temperature, T_{g}, is lower than the bed temperature, T_{b}, the gas temperature increases over time while the bed temperature decreases $\frac{d{T}_{b}}{dt}<0$. During the heating period (T_{g} > T_{b}), the gas outlet temperature decreases with time, while the bed temperature increases $\frac{d{T}_{b}}{dt}>0$.

$${M}_{b}{C}_{p,b}\frac{\partial {T}_{b}}{\partial t}={h}_{t}A\left({T}_{g}-{T}_{b}\right),$$

Heat is recovered or absorbed by the flowing gas through the packed bed of the regenerator. Since the gas flowing through the regenerator changes its temperature over time, we consider a change in the y-axis (along the height of the regenerator).
where m_{g} is the mass flow rate of gas (kg∙s^{−1}), C_{p}_{,g} is the heat capacity of gas (J∙kg^{−1∙}K^{−1}), M_{g} is mass of gas resident in the regenerator (kg), and L is the height of regenerator (m).

$${m}_{g}{C}_{p,g}L\frac{\partial {T}_{g}}{\partial y}+{M}_{g}{C}_{p,g}\frac{\partial {T}_{g}}{\partial t}={h}_{t}A\left({T}_{b}-{T}_{g}\right),$$

The most important assumption in this model is that the thermal conductivity of the packing material is infinite in a direction perpendicular to gas flow (and zero in a direction parallel to the gas flow). This implies that, at any level in the regenerator, the solid material is isothermal in a direction perpendicular to gas flow, and this may be true or approximately true where the packing is thin or is made of materials of high conductivity. In this case, the coefficient h_{t} is the surface heat transfer coefficient, usually a convective coefficient to which may be added a radiative component.

However, if the packing of the regenerator is constructed of material of low thermal conductivity and/or the thickness of packing around the channels through which the gases flow is comparatively large, then it is necessary to incorporate the resistances to heat transfer at the solid surface and within the solid into a lumped or total heat transfer coefficient. Hausen [4] developed an equation to calculate this heat transfer coefficient in the following form:
where n = 1 for slabs (plane walls) of thickness d in (m), n = 2 for solid cylinders of diameter d in (m), and n = 3 for spheres of diameter d in (m), λ_{b} is the thermal conductivity of packing material of regenerator (W∙m^{−1}∙K^{−1}), h_{lum} is the lumped heat transfer coefficient (W∙m^{−2}∙K^{−1}), h_{c} is the convective heat transfer coefficient (W∙m^{−2}∙K^{−1}), and h_{r} is the radiative heat transfer coefficient (W∙m^{−2}∙K^{−1}). The lumped heat transfer coefficient incorporates the surface convective heat transfer coefficient, h_{c}, and the resistance to heat transfer within the regenerator packing, as represented by the $\frac{d}{2\left(n+2\right)k}{\varphi}_{H}$ therm. The total heat transfer coefficient can be used in the conventional model of the thermal performance of the regenerator, set out in the differential equations.

$$\frac{1}{{h}_{t}}=\frac{1}{{h}_{lum}}+\frac{1}{{h}_{r}}=\frac{1}{{h}_{c}}+\frac{d}{2\left(n+2\right){\lambda}_{b}}{\varphi}_{H}+\frac{1}{{h}_{r}},$$

The function ${\varphi}_{H}$, called Hausen factor, attempts to reproduce the effect of the very rapid temperature changes within the packing, immediately after a reversal, at the start of a hot or cold period. According to Reference [5], this factor can be calculated in the case that $\frac{{d}^{2}}{4\alpha}\left(\frac{1}{{P}^{\prime}}+\frac{1}{{\mathrm{P}}^{\u2033}}\right)\le 5\left(n+1\right)/2$ using equation
and, for other values,
where α is the thermal diffusivity (m^{2}∙s^{−1}), P is the length of period for heating and cooling process (s), ε = 2.7 for plates, ε = 9.9 for cylinders, and ε = 27.0 for spheres, Ω′ is the reduced time for hot period, and Ω″ is the reduced time for cold period.

$${\varphi}_{H}=1-\frac{{d}^{2}}{4\alpha {\left(n+3\right)}^{2}-1}\left\{\frac{1}{{P}^{\prime}}+\frac{1}{{\mathrm{P}}^{\u2033}}\right\},$$

$${\varphi}_{H}=\pi \left(n+2\right)/\sqrt{\left(\epsilon +\frac{{d}^{2}}{4\alpha}18\left\{\frac{1}{{P}^{\prime}}+\frac{1}{{\mathrm{P}}^{\u2033}}\right\}\right)},$$

This problem is described in more detail in Reference [5].

Equations (9) and (10) were rearranged by Hausen [6] to the form
and
where $\xi $ is the dimensionless length, and $\eta $ is the dimensionless time.
and

$$\frac{\partial {T}_{g}}{\partial \xi}={T}_{b}-{T}_{g},$$

$$\frac{\partial {T}_{b}}{\partial \eta}={T}_{g}-{T}_{b},$$

$$\eta =\frac{{h}_{t}A}{{M}_{b}{C}_{p,b}}\left(t-\frac{{M}_{g}}{{m}_{g}L}y\right),$$

$$\xi =\frac{{h}_{t}A}{{m}_{g}{C}_{p,g}L}y.$$

When t = P and y = L, each period of regenerator operation is defined in terms of two dimensionless parameters given by Hausen [6] “reduced period”, Π, and “reduced length”, Λ.
and

$$\mathsf{\Pi}=\frac{{h}_{t}A}{{M}_{b}{C}_{p,b}}\left(P-\frac{{M}_{g}}{{m}_{g}}\right),$$

$$\mathsf{\Lambda}=\frac{{h}_{t}A}{{m}_{g}{C}_{p,g}}.$$

The effectiveness of regenerator behavior may be measured in terms of the thermal ratios, ${\eta}_{REG}$. The thermal ratio for the heating period is ${\eta}_{REG}^{\prime}$ and that for the cooling period is ${\eta}_{REG}^{\u2033}$. Ideally, the exit gas temperature in the hot or cold period should be equal to the inlet gas temperature in the opposite period. The thermal ratios, which are defined below, measure the degree to which this ideal is achieved.

For the heating period,
and, for the cooling period,

$${\eta}_{REG}^{\prime}=\frac{{T}_{g,o,m}^{\prime}-{T}_{g,i}^{\prime}}{{T}_{g,i}^{\prime}-{T}_{g,i}^{\u2033}},$$

$${\eta}_{REG}^{\u2033}=\frac{{T}_{g,i}^{\u2033}-{T}_{g,o,m}^{\u2033}}{{T}_{g,i}^{\prime}-{T}_{g,i}^{\u2033}}.$$

The term thermal ratio can be misleading in the sense that it is not always a measure of efficiency, and perhaps the term temperature ratio might be more appropriate.

In fixed-bed regenerators, the exit gas temperatures vary with time. The chronological average exit temperatures are, therefore, computed (${T}_{g,o,m}^{\prime}$ and ${T}_{g,o,m}^{\u2033}$).

For the symmetric regenerator (Λ = Λ′ = Λ″, Π = Π′ = Π″, and η_{REG} = η’_{REG} = η″_{REG}), an estimate of the thermal ratio is given by

$${\eta}_{REG}=\frac{\mathsf{\Lambda}}{\mathsf{\Lambda}+2}.$$

It can be seen that a larger reduced length leads to a greater thermal ratio.

Let us suppose that we have a heat balance, once cyclic equilibrium is attained,
Dividing this equation by $\left({T}_{g,i}^{\prime}-{T}_{g,i}^{\u2033}\right)$, we get

$${m}_{g}^{\prime}{C}_{p,g}^{\prime}{P}^{\prime}\left({T}_{g,i}^{\prime}-{T}_{g,o}^{\prime}\right)={m}_{g}^{\u2033}{C}_{p,g}^{\u2033}{P}^{\u2033}\left({T}_{g,o}^{\u2033}-{T}_{g,i}^{\u2033}\right).$$

$${m}_{g}^{\prime}{C}_{p,g}^{\prime}{P}^{\prime}{\eta}_{REG}^{\prime}={m}_{g}^{\u2033}{C}_{p,g}^{\u2033}{P}^{\u2033}{\eta}_{REG}^{\u2033}.$$

If ${m}_{g}^{\prime}{C}_{p,g}^{\prime}{P}^{\prime}={m}_{g}^{\u2033}{C}_{p,g}^{\u2033}{P}^{\u2033}$, the regenerator is said to be balanced and both thermal ratios are equal.

Equation (24) can be converted to the following form:

$$\frac{{\mathsf{\Pi}}^{\prime}}{{\mathsf{\Lambda}}^{\prime}}{\eta}_{REG}^{\prime}=\frac{{\mathsf{\Pi}}^{\u2033}}{{\mathsf{\Lambda}}^{\u2033}}{\eta}_{REG}^{\u2033}.$$

We can say that, in general, a regenerator is balanced if

$$\frac{{\mathsf{\Pi}}^{\prime}}{{\mathsf{\Pi}}^{\u2033}}=\frac{{\mathsf{\Lambda}}^{\prime}}{{\mathsf{\Lambda}}^{\u2033}}=k.$$

If k = 1, the regenerator is said to be symmetric. Equation (25) can be modified to the following form:

$$\frac{{\mathsf{\Pi}}^{\prime}}{{\mathsf{\Lambda}}^{\prime}}\times \frac{{\mathsf{\Lambda}}^{\u2033}}{{\mathsf{\Pi}}^{\u2033}}=\gamma .$$

If γ = 1, the regenerator is balanced.

When ${m}_{g}^{\prime}{C}_{p,g}^{\prime}{P}^{\prime}\ne {m}_{g}^{\u2033}{C}_{p,g}^{\u2033}{P}^{\u2033}$, this corresponds to the most general case where $\gamma \ne 1$, ${\eta}_{REG}^{\prime}\ne {\eta}_{REG}^{\u2033}$, and the regenerator is said to be unbalanced. A summary of these classifications is presented in Table 1.

The previous equations apply if the regenerative heat exchanger is symmetric. Hausen [4] proposed that the performance of a balanced nonsymmetric regenerator can be accurately estimated using the symmetric regenerator model employing the harmonic reduced length ${\mathsf{\Lambda}}_{H}$ and the harmonic reduced period ${\mathsf{\Pi}}_{H}$ in both hot and cold periods.
and

$$\frac{2}{{\mathsf{\Lambda}}_{H}}=\frac{1}{{\mathsf{\Pi}}_{H}}\left(\frac{{\mathsf{\Pi}}^{\prime}}{{\mathsf{\Lambda}}^{\prime}}+\frac{{\mathsf{\Pi}}^{\u2033}}{{\mathsf{\Lambda}}^{\u2033}}\right),$$

$$\frac{2}{{\mathsf{\Pi}}_{H}}=\frac{1}{{\mathsf{\Pi}}^{\prime}}+\frac{1}{{\mathsf{\Pi}}^{\u2033}}.$$

This proposal was verified as acceptable by Iliffe [7], and its applicability was extended to unbalanced regenerators by Razelos [8]. The thermal ratio than can be calculated using Equation (22).

A factor K/K_{0} describing the effect of nonlinear variations of temperature using a factor is given in Reference [4].

$$\frac{K}{{\mathrm{K}}_{0}}=\frac{{\mathsf{\eta}}_{\mathrm{REG}}}{1-{\mathsf{\eta}}_{\mathrm{REG}}}\frac{2}{{\mathsf{\Lambda}}_{H}}.$$

A smaller value of K/K_{0} results in a greater effect of both the nonlinear variations of temperature and the corresponding truncation error.

Several methods were developed to determine the solution of regenerative heat exchangers. Some of them are shown in Figure 3. These methods can be divided into two groups: rapid and precise methods. Rapid methods are intended only for fast and preliminary calculation and do not provide sufficient accuracy. In addition, only the media outlet temperatures are the result. These methods are not suitable for the application of real calculations and designs. Rapid methods were created mainly before the expansion of computers. An example of a rapid method is given in Reference [4].

The most suitable methods for the design of these heat exchangers are precise methods which involve the solution of differential equations, and the result is the variation of the media temperatures at the outlet over time. These methods can be classified into two groups: open and closed. Each of these two methods comprises two subgroups, namely, linear and nonlinear methods, according to the way in which thermophysical properties of the gas and the storage material are calculated.

In the open methods, the gas and solid temperatures are evaluated by solving differential equations over successive cycles of regenerator operation. The temperature profiles in each cycle and time are the result. We know the number of cycles to equilibrium at the end of the calculation. The closed methods are those in which the steady-state performance is calculated directly without the consideration of any previous cycles. In general, the closed methods are faster than open methods; however, when using modern computers, the difference is slight. The closed methods appear to be suitable for solving a linear problems, but are becoming extremely complicated (and sometimes unstable) in solving nonlinear problems, i.e., the thermophysical properties of both fluid and solids, including heat transfer coefficients, can vary spatially and temporally, depending on temperature and/or when mass flow rates of fluids in one or both periods of regeneration operation may vary with time. Open methods show great stability even when solving nonlinear problems. In these cases, open methods are preferable. Another advantage of open methods is their easy modification by including equations for calculating heat transfer coefficient and pressure drops.

For computer solutions, the open methods proposed by Willmott, given in References [9,10], seem to be the most suitable. These methods were chosen because they are relatively easy to program, and they involve the calculation of important parts (i.e., calculation of heat transfer coefficient, calculation of radiation influence, calculation of pressure losses, geometric characteristics). In addition, these methods enable including the effect of changes in the thermophysical properties of media flowing through the packed bed in time (nonlinear model) and are more stable.

The selected Willmott open method can be further divided into a linear, quasi-linear, and nonlinear model. The difference between these models is in the calculation of the thermophysical properties of gas and bed.

The linear model calculates the thermophysical properties of the gas and bed based on the reference temperature, i.e., the properties are constant at each packed bed point and at every moment. The calculation is fast, but it may not be accurate enough in some cases, especially when the temperature changes significantly. The fluid properties are calculated at a reference temperature.

$${T}_{g,ref}=\frac{{T}_{g,i}^{\prime}+{T}_{g,i}^{\u2033}}{2}.$$

The quasi-linear model was described in Reference [13]. This model uses a different reference temperature for hot and cold media.

$${T}_{g,ref}^{\prime}=\frac{{T}_{g,i}^{\prime}+{T}_{g,o}^{\prime}}{2};{T}_{g,ref}^{\u2033}=\frac{{T}_{g,i}^{\u2033}+{T}_{g,o}^{\u2033}}{2}.$$

The outlet temperatures are replaced by the newly calculated ones, and the reference temperatures are recalculated after each period or cycle. Based on these temperatures, all thermophysical properties of fluids, packed bed material, and related values are recalculated.

The nonlinear model considers the change in gas and bed properties at the place and time as a function of temperature. The heat transfer coefficient is then calculated from these properties at every moment and place. This is important for the most realistic simulation of high-temperature regenerators. The calculation is much more accurate but time-consuming. However, this is not a considerable problem with up-to-date computers.

Reference [9] proposed a method for solving Equations (14) and (15) so that it could be used for the solution on computers. This method uses a trapezoidal method for the numerical solution of differential equations. This method of calculating the regenerator is known as the Willmott open method. The simplifications introduced to the derivation and calculation of these differential equations are as follows, according to Reference [9]:

- The effect of the reversals can be neglected, that is, the rapid gas temperature transients which are associated with the residual gas in the regenerator being replaced by the gas flowing in the opposite direction at the reversal can be ignored.
- The entrance gas temperatures in both periods remain constant.
- The mass flow rates of the heating and cooling gases do not vary throughout each period.
- Heat transfer between gas and solid can be represented in terms of an overall heat transfer coefficient relating gas temperature to mean solid temperature. Furthermore, the rate of heat transfer in the packed bed at any height is represented by the time variation of the mean solid temperature.
- The heat capacity of the gas in the channels of the packed bed at any instant is small relative to the heat capacity of the solid and, therefore, can be neglected.
- The heat transfer coefficients and the thermal properties of the heat storing mass and the gas do not vary throughout a period and are identical at all parts of the regenerator in that period.
- Longitudinal thermal conductivity is neglected.

There are determined two boundary conditions.

- The inlet temperatures for both hot and cold cycles are constant.
- The surface temperatures along the length of the regenerator at the end of the hot/cold period are the same as those at the beginning of the following cold/hot period. Since the gases flow in opposite directions in successive cycles, the boundary conditions are expressed by the equations

$${T}_{b}^{\prime}\left(y,0\right)={T}_{b}^{\u2033}\left(L-y,{P}^{\u2033}\right),$$

$${T}_{b}^{\u2033}\left(y,0\right)={T}_{b}^{\prime}\left(L-y,{P}^{\prime}\right).$$

For the first cycle, the temperature along the bed is set arbitrarily, e.g., to ambient temperature. In the following cycles, the mentioned condition is already applied.

Using the trapezoidal numerical method, which provides excellent properties of numerical stability, the differential equations move to the following forms:
and
where r refers to distance (r = 0..m) and S refers to the time (S = 0..P). Thus, the distance step is L/m and the time step is mostly 1 s.

$${T}_{gr+1,S}={T}_{gr,s}+\frac{\mathsf{\Delta}\xi}{2}\left\{{\left(\frac{\partial {T}_{g}}{\partial \xi}\right)}_{r+1,S}+{\left(\frac{\partial {T}_{g}}{\partial \xi}\right)}_{r,S}\right\},$$

$${T}_{br,S+1}={T}_{br,s}+\frac{\mathsf{\Delta}\eta}{2}\left\{{\left(\frac{\partial {T}_{b}}{\partial \eta}\right)}_{r+1,S}+{\left(\frac{\partial {T}_{b}}{\partial \eta}\right)}_{r,S}\right\},$$

In the case of the linear model, these equations can be further adjusted to form
and
where

$${T}_{gr+1,S}={A}_{1}{T}_{gr,S}+{A}_{2}\left({T}_{br+1,S}+{T}_{br,S}\right),$$

$${T}_{br,S+1}={B}_{1}{T}_{br,S}+{B}_{2}\left({T}_{gr,S+1}+{T}_{gr,S}\right),$$

$${A}_{1}=\frac{1-\alpha}{1+\alpha},{A}_{2}=\frac{\alpha}{1+\alpha},{B}_{1}=\frac{1-\beta}{1+\beta},{B}_{2}=\frac{\beta}{1+\beta},$$

$$\alpha =\frac{1}{2}\mathsf{\Delta}\xi =\frac{\Lambda}{2m},\beta =\frac{1}{2}\mathsf{\Delta}\eta =\frac{\Pi}{2P}.$$

In these equations, Λ is the reduced length, Π is the reduced time, m is the number of sections, and P is the cycle time.

These equations are the main equations needed to calculate the regenerative heat exchanger. For the proper solution of these equations, the bed needs to be divided into a suitable number of sections, in which the temperature calculations are gradually performed. The calculation is then a combination of the above and other supplementary equations. The calculation is solved by an iterative procedure for the given time over the entire length of the bed. This procedure is then repeated for all times and all periods (cooling and heating) until equilibrium is reached, i.e., for consecutive cooling cycles, abs (Φ(n) − Φ(n − 1)) must be less than the value given by the user. Then, the cycle (n + 1) is the equilibrium cycle.

$$\Phi \left(n\right)=\frac{{T}_{g,o,m}^{\prime}-{T}_{g,i}^{\prime}}{{T}_{g,i}^{\prime}-{T}_{g,i}^{\u2033}}.$$

This is not an exhaustive description of the solution of differential Equations (33) and (34) using a trapezoidal rule for a linear model. See Reference [9] for more information how to apply this method to the computer. This basic computational model was developed in GNU Octave software and then applied to several examples differing in reduced period value and reduced length. Subsequently, the influence of these reduced quantities on the calculation was evaluated.

The input data of the calculation are given in Table 2. The task was to calculate the outlet temperature of the hot and cold medium for the different number of sections m. If we divide the regeneration bed into a small number of sections, the outlet temperature does not correspond to reality (see the results).

The results of the calculation are shown in graphical form in Figure 4.

These calculations showed that the accuracy of the outlet temperature is dependent on the number of sections on which the regenerator (packed bed) is divided. In this case, the limit number of sections is 10. However, this is not true in all cases. From further calculations, it was possible to prove that, with a higher value of reduced length, the required number of sections on which the packed bed must be divided decreases; however, at the same time, the number of cycles needed to reach the equilibrium increases. On the other hand, as the reduced period increases, the number of sections (steps) increases, but the number of cycles necessary to establish equilibrium decreases. I suggest having a minimum of 50 sections. This is no problem for computers.

The linear model considers only the constant properties of fluids. This means faster calculation; however, in some cases, the results may differ significantly from reality. Such a procedure is only suitable for preliminary calculations. More accurate results are obtained when changing the properties of fluid with a change in temperature. This model is called the nonlinear model.

In the case of the nonlinear model, Equations (33) and (34) can be further adjusted to form
and
where
$$\alpha =\frac{1}{2}\mathsf{\Delta}\xi =\frac{\Lambda}{2m},\beta =\frac{1}{2}\mathsf{\Delta}\eta =\frac{\Pi}{2P}.$$

$${T}_{gr+1,S}={A}_{1,r,S}{T}_{gr,S}+{A}_{2,r+1,S}{T}_{br+1,S}+{A}_{3,r,S}{T}_{br,S},$$

$${T}_{br,S+1}={B}_{1,r,S}{T}_{br,S}+{B}_{2,r,S+1}{T}_{gr,S+1}+{B}_{3,r,S}{T}_{gr,S},$$

$${A}_{1,r,S}=\frac{1-{\alpha}_{r,S}}{1+{\alpha}_{r+1,S}},{A}_{2}=\frac{{\alpha}_{r+1,S}}{1+{\alpha}_{r+1,S}},{A}_{3,r,S}=\frac{{\alpha}_{r,S}}{1+{\alpha}_{r+1,S}},$$

$${B}_{1,r,S}=\frac{1-{\beta}_{r,S}}{1+{\beta}_{r,S+1}},{B}_{2,r,S+1}=\frac{{\beta}_{r,S+1}}{1+{\beta}_{r,S+1}},{B}_{3,r,S}=\frac{{\beta}_{r,S}}{1+{\beta}_{r,S+1}},$$

These constants are calculated in every point and time with changing temperature. This is not an exhaustive description of the solution of differential Equations (33) and (34) using a trapezoidal rule for a nonlinear model. See Reference [10] for more information how to apply this method to the computer.

A very important value in designing a regenerative heat exchanger or, generally, a device using a packed or structured material layer is the amount of pressure drop of the flowing gas. The general equation for its calculation is mostly defined as
where $\overline{c}$ is the velocity of gas based on the empty cross-section of the bed (m∙s^{−1}), and λ_{k} is the friction factor, most often given in the form
where k_{1} and k_{2} are constants, and b is the exponent. Re_{m} is the modified Reynolds number given by Ergun as follows:

$$\mathsf{\Delta}p={\lambda}_{k}\frac{L}{{d}_{p}}{\overline{c}}^{2}\times \frac{\left(1-\epsilon \right)}{{\epsilon}^{3}}\times \rho ,$$

$${\lambda}_{k}=\frac{{k}_{1}}{R{e}_{m}}+\frac{{k}_{2}}{R{e}_{m}^{b}},$$

$$R{e}_{m}=\frac{{d}_{p}\rho \overline{c}}{\eta \left(1-\epsilon \right)}=\frac{Re}{\left(1-\epsilon \right)}.$$

Pressure drop in the packed bed is commonly calculated using the Ergun equation [2].

$${\lambda}_{k}=\frac{-\mathsf{\Delta}P\text{}{d}_{p}}{L\rho {\overline{c}}^{2}}\frac{{\epsilon}^{3}}{\left(1-\epsilon \right)}=\frac{150}{R{e}_{m}}+1.75.$$

According to Reference [15], this equation very often over-predicts the respective value, and it is better to use special equation tailored to specific storage materials which are based on experimental data.

Ergun also defined the friction coefficient in the shape

$${\lambda}_{v}=\frac{-\mathsf{\Delta}P\text{}{d}_{p}^{2}}{\mu L\overline{c}}\frac{{\epsilon}^{3}}{{\left(1-\epsilon \right)}^{2}}={\lambda}_{k}\frac{Re}{1-\epsilon}={\lambda}_{k}R{e}_{m}.$$

Sometimes, friction coefficient proposed in Reference [16] is used.

$${\lambda}_{p}=\frac{-\mathsf{\Delta}P\text{}{d}_{p}}{L\rho {\overline{c}}^{2}}=\text{}{\lambda}_{k}\frac{\left(1-\epsilon \right)\text{}}{{\epsilon}^{3}}=\text{}{\lambda}_{v}\frac{{\left(1-\epsilon \right)}^{2}\text{}}{{\epsilon}^{3}\text{}Re}.$$

The Reynolds number is often also given in a modified form, which is defined by the equation

$$R{e}_{l}=\frac{{d}_{p}\rho \overline{c}}{6\eta \left(1-\epsilon \right)}=\frac{Re}{6\left(1-\epsilon \right)}.$$

There are many correlations for calculating the friction coefficient. The best known is the Ergun equation mentioned above, but it overestimates pressure drop for a bed of randomly arranged smooth spheres for Re_{m} > 700.

Based on an extensive comparison of the computational equations for determining the pressure drop through the packed bed performed in Reference [17], the computational equations listed in Table 3 were selected.

There are several other computational equations. These are mentioned, for example, in Reference [15], which deals with the effect of particle shape, size distribution, packing arrangement, and roughness of particles on pressure drop.

The Eisfeld and Schnitlein equation (see Table 3) using the constants K_{1} = 190, k_{1} = 2.00, and k_{2} = 0.77 can be used for the cylindrical shapes of the particles. For other particles, the constants K_{1} = 155, k_{1} = 1.42, and k_{2} = 0.83 can be used.

For non-spherical particles, Reference [25] proposed altering the constants in the Ergun equation by means of the particle sphericity ψ. For cylindrical particles, the friction factor is altered to

$${\lambda}_{k}=\frac{150}{{\psi}^{3/2}R{e}_{m}}+\frac{1.75}{{\psi}^{4/3}}.$$

This equation is based on experimental data for Re_{m} < 400.

Singh et al. [26] presented a correlation for pressure drop through beds of differently shaped particles in the form

$${\lambda}_{k}=\frac{{\epsilon}^{3}}{\left(1-\epsilon \right)}4.466R{e}^{-0.2}{\psi}^{0.696}{\epsilon}^{-2.945}{e}^{11.85{\left(log\psi \right)}^{2}}.$$

This is not an exhaustive list of all available computational equations to determine the friction coefficient as the medium flows through the packed bed. Other equations can be obtained in References [15,17].

For calculating the pressure drop across a layer consisting of a set of straight channels, e.g., honeycomb, the formulas for calculating pressure drop in a straight channel can be used.
where the friction factor can be calculated using the Swamee–Jain equation [27].
where e is the effective roughness height (m), and d_{h} is the hydraulic diameter (m).

$$\mathsf{\Delta}p=\lambda \frac{\overline{c}}{2\epsilon}\frac{h}{{d}_{h}}\rho ,$$

$$\lambda =\frac{0.25}{{\left[log\left(\frac{\frac{e}{{d}_{h}}}{3.7}+\frac{5.74}{R{e}^{0.9}}\right)\right]}^{2}},$$

An important value is the pressure drop of the sieve on which the bed is placed. This pressure drop must also be determined and included in the total pressure drop.

The pressure drop is strongly influenced by the mean voidage in the packed bed. In industrial practice, a large number of different non-spherical shaped particles are used, which form the bed and have different voidage. The most cited and experimentally verified effect on voidage is the ratio of regenerator diameter to equivalent particle diameter. This effect is most significant for a ratio of diameters less than 10 (see Figure 5). If the bed consists of non-spherical particles, their diameter is expressed by the equivalent diameter d_{p}. In the randomly packed bed, other than spherical particles, the influence of particle orientation affects the local distribution of the voidage, which affects the mean voidage. This means that different medium voidage can be achieved with each filling of the packing.

Among the most used empirical formulas for calculating the voidage are those from References [28,29,30,31,32]. These equations tend to be awkward and have too many parameters. Due to the complexity of using the mentioned equations, simpler but sufficiently accurate equations were developed to calculate the voidage. Some of them are listed below.

The equation designed by Zou and Yu [33] and recommended by Di Felice and Gibilaro [34] is in the form
for $\frac{{d}_{p}}{D}\le 0.256$.

$$\epsilon ={\epsilon}_{b}+0.01\left[exp\left(\frac{10.686}{D/{d}_{p}}\right)-1\right],$$

By analyzing experimental data, Zou and Yu suggested a coefficient of ε_{b} = 0.4, while Reference [35] suggested that ε_{b} = 0.373, a value derived from their own data (subscript b means a bulk region).

Benyahia et al. [36] developed the following equations based on the measured data:

For spherical particles (1.5 ≤ D/d_{p} ≤ 50),

$$\epsilon =0.390+\text{}\frac{1.740}{{\left(D/{d}_{p}+1.140\right)}^{2}}.$$

For solid cylinders (1.7 ≤ D/d_{p} ≤ 26.3),

$$\epsilon =0.373+\text{}\frac{1.703}{{\left(D/{d}_{p}+0.611\right)}^{2}}.$$

For hollow cylinders (1.9 ≤ D/d_{p} ≤ 14.5),

$$\epsilon =0.465+\text{}\frac{2.030}{{\left(D/{d}_{p}+1.033\right)}^{2}}.$$

Pro general particles (1.5 ≤ D/d_{p} ≤ 50; 0.42 < $\psi $ < 1.0),

$$\epsilon =\left(0.1504+\text{}\frac{0.2024}{\psi}\right)+\text{}\frac{1.0814}{{\left(D/{d}_{p}+0.1226\right)}^{2}}.$$

The course of the voidage versus the D/d_{p} ratio is shown in Figure 5. It can be seen that, up to value 10, the voidage strongly depends on this ratio. From this value, the voidage is approximately constant.

Determination of the heat transfer coefficient of the gas flowing through the packed bed is the most sensitive point of the calculation. Even if we set the correct number of sections and consider the variable properties of the fluids and the packed bed material, if we determine the wrong heat transfer coefficient, we get poor results.

The heat transfer coefficient mostly includes the effect of both convection and radiation for both streams. Heat transfer coefficient depends predominantly on the type of storage material. The respective equations for convective heat transfer were published, e.g., in Reference [37], while those for radiative heat transfer were discussed, e.g., in Reference [38].

The heat flux density q between the gas and the packed bed material can be expressed as follows:
where q_{c} is the convective heat flux density (W∙m^{−2}), q_{r} is the radiative heat flux density (W∙m^{−2}), and the total heat transfer coefficient is defined as

$$q={q}_{c}+{q}_{r}=\overline{{h}_{t}}\left({T}_{g}-{T}_{b}\right),$$

$${h}_{t}={h}_{c}+{h}_{r}.$$

The influence of the conductive transfer is negligible compared to the others. As mentioned previously, the convective component must be, in some cases, replaced by the effective heat transfer coefficient h_{lum}.

$${h}_{t}={h}_{lum}+{h}_{r}.$$

The choice of the heat transfer coefficient is a crucial factor. Many computational equations can be found to calculate the heat transfer coefficient in the literature. However, they can give different results. It is necessary to choose a computational equation that was verified for the particles that form the packed bed.

The equation for a randomly packed bed (Equation (59)), which was verified on experimental data, was recommended in Reference [39].
for Pr = 0.7–0.8, Re > 100. Here, λ_{g} is the thermal conductivity (W∙m^{−1}∙K^{−1}), Re is the Reynolds number (-), and Pr is the Prandtl number (-).

$$Nu=\frac{{h}_{c}{d}_{p}}{{\lambda}_{g}}=2+1.8R{e}^{1/2}P{r}^{1/3},$$

The heat transfer coefficient in the packed bed of spheres can be calculated according to Reference [40] using the following equation:
for Re = 500–50,000. This equation was also recommended in Reference [41]. A significant wall effect was observed at ratios of bed diameter to particle diameter less than 20. Above that ratio, this equation is valid.

$$Nu=\frac{{h}_{c}{d}_{p}}{{\lambda}_{g}}=0.584R{e}^{0.7}P{r}^{1/3},$$

An equation for a packed bed formed with spheres was recommended in Reference [42].
for Re = 200–10,400.

$$Nu=\frac{{h}_{c}{d}_{p}}{{\lambda}_{g}}=1.09R{e}^{0.68}P{r}^{1/3},$$

Another suitable equation was mentioned in Reference [40].

$$Nu=\frac{{h}_{c}{d}_{p}}{{\lambda}_{g}}=\epsilon ReP{r}^{1/3}\left(0.0108+\frac{0.929}{R{e}^{0,58}-0.483}\right).$$

This equation takes into account the voidage, ε, and it is valid for a Reynolds number of 20–10,000.

The equation for flow in a packed bed can also be used [43].
for 20 < Re < 100,000.

$$Nu=\frac{{h}_{c}{d}_{p}}{{\lambda}_{g}}=\left(0.5R{e}^{0.5}+0.2R{e}^{2/3}\right)P{r}^{1/3},$$

As mentioned in Reference [44], the heat transfer performances in a packed bed are usually formulated by traditional correlation as follows:
where a_{1}, a_{2}, and n are model constants. The values of these constants given by Reference [44] are a_{1} = 2.0, a_{2} = 1.1, and n = 0.6. Values of these constant for different packed cells were mentioned in Reference [45].

$$Nu=\frac{{h}_{c}{d}_{p}}{{\lambda}_{g}}={a}_{1}+{a}_{2}P{r}^{1/3}R{e}^{n}{\left(\frac{{d}_{p}}{{d}_{h}}\epsilon \right)}^{n},$$

An experimental study was carried out to investigate the heat transfer of packed bed solar energy storage system having large-sized elements of storage material of different shapes [26].

$$Nu=\frac{{h}_{c}{d}_{p}}{{\lambda}_{g}}=0.437R{e}^{0.75}{\psi}^{3.35}{\epsilon}^{-1.62}{e}^{29.03{\left(log\psi \right)}^{2}}.$$

The heat transfer in the structured packed bed formed by straight channels can be determined using the following basic equation:

$$Nu=\frac{{h}_{c}{d}_{p}}{{\lambda}_{g}}=0.023R{e}^{4/5}P{r}^{1/3}.$$

In certain high-temperature applications, the heat exchanger is heated up by a flue gas containing significant proportions of CO_{2} and H_{2}O vapor. In these circumstances, the radiation heat transfer must be considered.

The heat flux density due to gas–solid radiation is given by
where ε_{g} and α_{g} are the emissivity and mean absorptivity of gases (-), respectively, ε_{b} is the emissivity of bed material (-), and σ is Stefan Boltzmann’s constant, 5.67 × 10^{−8} (W∙m^{−2}∙K^{−1}). The fraction of $\frac{{\epsilon}_{b}+1}{2}$ is sometimes called the emissivity correction factor.

$${q}_{r}=\frac{{\epsilon}_{b}+1}{2}\sigma \left[{\epsilon}_{g}{T}_{g}^{4}-{\alpha}_{g}{T}_{b}^{4}\right],$$

The values of emissivity and absorptivity are proportional to the percentage of carbon dioxide and water vapor in the gas and to the beam length. Both are functions of the gas temperature. These values can be obtained from Hottel’s charts [46] or using the methods given in the literature.

$${q}_{r}={h}_{r}\left({T}_{g}-{T}_{b}\right).$$

According to Reference [47], it is possible to calculate the radiative heat transfer h_{r} using the equation mentioned in Reference [48].

$${h}_{r}\approx 4\sigma {\epsilon}_{b}{T}_{b}^{3}.$$

More specifically, however, the emissivity and gas absorption can be determined based on the mean beam length (m), L_{b}, in a given space and on the partial pressures of the respective radiant gas components. Several methods can be found in the literature.

The mean beam length L_{b} is determined from a known equation for the case when L_{b} > 1 m,
and, for the case when L_{b} < 1 m,
where V is the mean channel volume (m^{3}), and P is the mean inner surface of the channel in the packed bed (m^{2}).

$${L}_{b}=\frac{3.6V}{P},$$

$${L}_{b}=\frac{3.4V}{P},$$

The emissivity of gas can be calculated using the equation from Reference [49].
where ε_{CO}_{2} is the emissivity of carbon dioxide (-), ε_{H}_{2O} is the uncorrected emissivity of water vapor (-), C_{H2O} is Beer’s law correction factor for water vapor (-), and C_{SO} is the spectral overlap correction factor (-).

$${\epsilon}_{g}=\left[{\epsilon}_{C{O}_{2}}+\left({\epsilon}_{{H}_{2}O}{C}_{{H}_{2}O}\right)\right]\left(1-{C}_{SO}\right),$$

The emissivity of carbon dioxide (ε_{CO}_{2}) is a function of temperature and the product (p_{CO}_{2}L), where p_{CO}_{2} is the partial pressure of carbon dioxide in the gases (Pa) and L_{b} is the mean beam length (m). Thus,

$${\epsilon}_{C{O}_{2}}=f\left({p}_{C{O}_{2}}{L}_{b},{T}_{g}\right).$$

The emissivity of water vapor (ε_{H}_{2O}) is a function of temperature and (p_{H}_{2O}L_{b}), where p_{H}_{2O} is the partial pressure of water vapor (Pa) and L_{b} is the mean beam length (m). Thus,

$${\epsilon}_{{H}_{2O}}=f\left({p}_{{H}_{2}O}{L}_{b},{T}_{g}\right).$$

Mean absorptivity of gas (αg) is estimated using the equation from Reference [49].
where n = 0.5 for T_{b} < 500 °C, n = 0.4 for T_{b} > 900 °C, and n = 0.45 for 500 °C < T_{b} < 900 °C.

$${\alpha}_{g}=\left({\alpha}_{CO}{}_{2}+{\alpha}_{{H}_{2}O}\right)\left(1-{C}_{SO}\right)=\left(\left[{\epsilon}_{C{O}_{2}}{\left(\frac{{T}_{g}}{{T}_{b}}\right)}^{0.65}\right]+\left[{\epsilon}_{{H}_{2}O}{C}_{{H}_{2}O}{\left(\frac{{T}_{g}}{{T}_{b}}\right)}^{n}\right]\right),$$

If the wall of the regenerator is not sufficiently insulated, the heat losses through the wall of the equipment should also be included in the calculation.

These are defined as follows:
where A_{w} is the wall area (m^{2}), T_{w} is the wall temperature (°C), T_{inf} is the ambient temperature (°C), and h_{o} is the outside convective heat transfer coefficient (W∙m^{−2}∙K^{−1}).

$${Q}_{w}={h}_{o}{A}_{w}\left({T}_{w}-{T}_{inf}\right),$$

For vertical cylinders, the convective heat transfer coefficient h_{o} is calculated from a correlation of Churchill and Chu [54] for plane surfaces as
where H is the height of the regenerator (m), and Ra is the Rayleigh number given as follows:
where H is the height of the regenerator (m), g is the gravity acceleration (m∙s^{−2}), $\beta =\frac{1}{{T}_{f}}=\frac{2}{{T}_{w}+{T}_{inf}}$ is the thermal expansion coefficient (K^{−1}), α is the thermal diffusivity (m^{2}∙s^{−1}), and ν is the kinematic viscosity of gas (m^{2}∙s^{−1}) as defined in the temperature of Tf. Validity of the correlation is in the range 10^{−1} < Ra < 10^{12}. This correlation can be used provided the curvature effect is not too significant. This represents the limit where boundary layer thickness is small relative to cylinder diameter D. The correlations for vertical plane walls can be used when D/L ≥ 35/Gr^{0.25} where Gr is the Grashof number.

$$Nu=\frac{{h}_{o}H}{{\lambda}_{o}}={\left\{0.825+\frac{0.387R{a}^{\frac{1}{6}}}{{\left[1+{\left(0.492/Pr\right)}^{9/16}\right]}^{8/27}}\right\}}^{2},$$

$$Ra=\frac{g\beta \left({T}_{w}-{T}_{\infty}\right){H}^{3}}{\alpha \nu}.$$

Since no software was found on the market to design regenerative heat exchangers, it had to be created. The abovementioned Willmott methods for the linear and nonlinear model, together with mentioned equations for determination of heat transfer and pressure drop, were used in creating the computational software. To make the software user-friendly, the JAVA environment was used to build the software. The created calculation software (see Figure 6) enables effectively solving these types of heat exchangers, and it provides results in the form of text output and graphical dependencies of temperatures and pressure drops along the packed bed and over time. The software enables a user to print input data, text results, and various graphical dependencies. It is also possible to save these data and charts in various graphic file formats and copy dependencies in text form to Excel.

In order to perform the calculation, the user must specify the geometric characteristics of the packed bed, the media properties, the time of hot and cold period, the number of sections into which the packed bed is divided, and so on. Furthermore, the method of calculation and suitable equations for calculating heat transfer and pressure drop are selected.

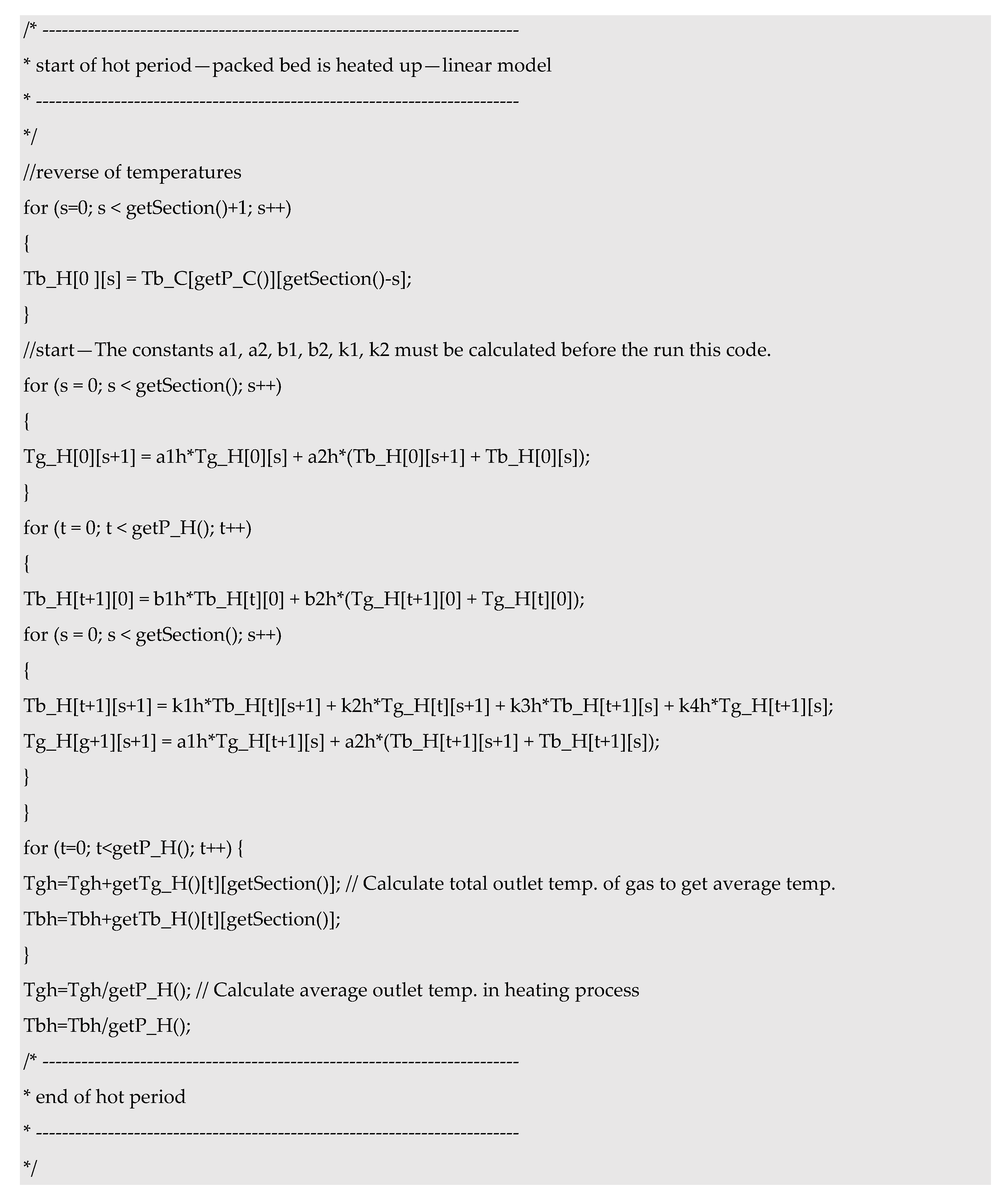

The code of the created software has thousands of lines and it consists of many classes (for various methods, heat transfer, pressure drop, display results, saving, etc.); therefore, it is not possible to show all the code here. As mentioned in the article, the trapezoidal method is used to solve differential equations. A small part of the code for solving differential Equations (33) and (34) for the hot period is shown in the gray rectangle below.

One possibility of how to improve the created software is to implement an open-source database of fluid properties. Currently, it is necessary to specify fluid properties using interpolation curves, which is not quite effective and delays the calculation. The user must firstly create interpolation curves and then insert their constants into the software. The next step would be to add the possibility of using the regenerative heat exchanger for flue gas cleaning. This means the software would be able to divide the packed bed into a part where heat accumulation or heat output occurs and a part where the chemical reactions (catalytic bed) take place.

The developed software was used to solve the regenerative heat exchanger. It should be noted the software is still being developed and improved.

The task was to utilize the heat from the gas stream at an inlet temperature of 727 °C and to heat up the gas at an inlet temperature of 27 °C with the accumulated heat. Flow rates, hot and cold periods, and media properties are given in Table 4. A regenerative heat exchanger with a packed bed diameter of 0.2 m and a height of 1 m should be used. The geometry of the regenerator and properties of the packed bed are given in Table 5. The Willmott linear method was used for calculating the heat exchanger.

It should be noted that the cooling period means that the bed is cooling down and the heating period means that the bed is heating up.

Convergence is attained when the pseudo-thermal ratios given by Equation (37) in two subsequent cycles are numerically equal, with a difference of less than 1 × 10^{−6}. According to the calculation results, the equilibrium was reached after 18 cycles, and the calculation time was 48 milliseconds. It is obvious that the calculation is fast. The main results are shown in Table 6, and graphical dependencies of temperatures and pressures are shown in the figures below. These are only basic graphical outputs provided by the software. Similarly, the output text protocol contains much more data than shown in Table 6.

The basic graphical output is the course of the gas temperatures and the packed bed at the outlet as a function of time (see Figure 7). It can be seen the temperature of the cold medium at the outlet is the highest at the beginning of the period. Gradually, the stored heat decreases and the outlet temperature of the cold gas falls. The opposite situation occurs with hot gas. The hot gas transfers most heat at the start of the period and, gradually, the ability of the bed to absorb energy decreases and the hot gas outlet temperature increases.

Figure 8 shows the temperature variations of the packed bed material along with its height for the hot and cold periods at steady state. It can be seen that the packed bed has the highest temperature in the first sections. With an increase in the height of the packed bed, the temperature decreases significantly. This is the reason why both media flow gradually in opposite directions.

Figure 9a,b illustrates that the temperature profiles of the gaseous phase along the bed gradually change with time. In this calculation, they were obtained after a simulation of 18 cycles from the initial condition. Moreover, these figures predict the temperature variations at the same location of the bed but different time of the period.

The pressure drop variations for the hot and cold periods over time is shown in Figure 10. When calculating the pressure drop, the variable physical properties of the gases as a function of temperature were considered. The pressure drop increases with the temperature, while the gas volume increases with temperature and, hence, medium velocity increases. The pressure drop increases during the heating process and decreases during the cooling process with time. Thus, the pressure drop variations correspond to the temperatures shown in Figure 7 and Figure 9.

The text and graphical results shown in the paper are not complete results provided with the software. They represent only a selection of the main results.

Our task was to create software for calculating regenerative heat exchangers with a fixed bed at the request of an engineering office in the Czech Republic. Research revealed there are several computational methods that differ in accuracy and computational stability. It was shown that the open computational methods proposed by Willmott seem to be the most suitable for use on a computer. Although these methods are several years old, they were not suitable because of their complexity at the time of their creation. In subsequent years, the methods were simplified in order to facilitate and accelerate the calculation. This is because, for the exact solution of these types of exchangers, it is necessary to solve the system of differential equations. With the development of computers, however, the situation changed, and these methods are again up to date. The advantage of these methods is their stability and possibility to adjust them by adding suitable calculation formulas for the determination of heat transfer and pressure drop.

The impulse to create this paper was also to broaden the awareness of regenerative heat exchangers, to provide designers with an overview of suitable calculation methods and, thus, to extend the interest and use of these types of heat exchangers. This is the reason why not only calculation methods, but also equations for determining the heat transfer coefficient of convection and radiation and equations for predicting pressure drops are mentioned in the paper. Potential candidates for the calculations of these devices are given as an overview of suitable calculation methods and equations, and one does not need to extensively search for them in the available literature.

This research has been supported by the project No. CZ.02.1.01/0.0/0.0/16_026/0008413 “Strategic partnership for environmental technologies and energy production”, which has been co-funded by the Czech Ministry of Education, Youth and Sports within the EU Operational Programme Research, Development and Education.

The authors gratefully acknowledge the financial support provided by the EU project Strategic Partnership for Environmental Technologies and Energy Production, funded as project No. CZ.02.1.01/0.0/0.0/16_026/0008413 by the Czech Republic Operational Program Research, Development, and Education, Priority Axis 1: Strengthening capacity for high-quality research.

The author declares no conflict of interest.

Greek symbols | |

a | absolute specific surface (m^{−1}) |

a_{r} | relative specific surface (m^{−1}) |

A_{p} | particle surface area or heat transfer surface area (m^{2}) |

A_{s} | surface area of a sphere that has the same volume as the particle (m^{2}) |

A_{w} | wall area (m^{2}) |

b | exponent in the Equation (41) (-) |

$\overline{c}$ | velocity of gas based on the empty cross-section of the bed (m∙s^{−1}) |

C_{p} | heat capacity (J∙kg^{−1∙}K^{−1}) |

C_{H2O} | Beer’s law correction factor for water vapor (-) |

C_{SO} | spectral overlap correction factor (-) |

D | diameter of packed bed or regenerator (m) |

d_{h} | hydraulic diameter of packed bed (m) |

d_{V} | diameter of a sphere that has the same volume as the particle (m) |

d_{p} | particle diameter which has the same surface-to-volume ratio as the given particle (m) |

e | effective roughness height (m) |

g | gravity acceleration (m∙s^{−2}) |

h_{c} | convective heat transfer coefficient (W∙m^{−2}∙K^{−1}) |

h_{lum} | lumped heat transfer coefficient (W∙m^{−2}∙K^{−1}) |

h_{o} | outside convective heat transfer coefficient (W∙m^{−2}∙K^{−1}) |

h_{r} | radiative heat transfer coefficient (W∙m^{−2}∙K^{−1}) |

h_{t} | total heat transfer coefficient (W∙m^{−2}∙K^{−1}) |

k_{1}k_{2} | constants in the Equation (41) (-) |

K/K_{0} | ratio specified in the Equation (30) (-) |

L | height of regenerator (m) |

L_{b} | mean beam length (m) |

m | number of section (-) |

M_{b} | mass of packed bed (kg) |

m_{g} | mass flow rate of gas (kg∙s^{−1}) |

M_{g} | mass of gas resident in the regenerator (kg) |

n | number of cycles (-) |

Nu | Nusselt number (-) |

P | length of period (s) |

P | mean inner surface of the channel in the packed bed in Equations (70) and (71) (m^{2}) |

p_{CO2} | partial pressure of carbon dioxide in the gases (Pa) |

p_{H2O} | partial pressure of water vapor (Pa) |

Pr | Prandtl number (-) |

q | total heat flux density (W∙m^{−2}) |

q_{c} | convective heat flux density (W∙m^{−2}) |

q_{r} | radiative heat flux density (W∙m^{−2}) |

r | refers to the distance (m) |

r_{h} | hydraulic radius (m) |

Ra | Rayleigh number (-) |

Re Re_{m} Re_{l} | Reynolds number (-) |

S | refers to the time (s) |

t | time (s) |

T_{b} | mean temperature of packed bed (°C) |

T_{g} | temperature of the gas flowing through the bed (°C) |

T_{w} | wall temperature (°C) |

T_{inf} | ambient temperature (°C) |

V | mean channel volume in Equations (70) and (71) (m^{3}) |

V_{b} | total volume of the packed bed (m^{3}) |

V_{p} | volume of the material of the packed bed (m^{3}) |

V_{m} | free volume of the packed bed (m^{3}) |

Superscripts | |

′ | refers to heating period |

″ | refers to cooling period |

Substricpts | |

b | packed bed |

g | gas |

H | harmonic |

i | input |

m | mean value or modified (for Reynolds number) |

o | output |

r | refers to distance |

ref | reference value |

S | refers to time |

- Kilkovsky, B.; Jegla, Z. An Experimental Verification of Pressure Drop for Integrated Regenerative Equipment. Chem. Eng. Trans.
**2019**, 76, 253–258. [Google Scholar] [CrossRef] - Ergun, S. Fluid Flow Through Packed Columns. Chem. Eng. Prog.
**1952**, 48, 89–94. [Google Scholar] - Wadell, H. Volume, Shape, and Roundness of Quartz Particles. J. Geol.
**1935**, 43, 250–280. [Google Scholar] [CrossRef] - Hausen, H. Vervollständigte Berechnung des Wärmeaustasches in Regeneratoren. VDI.-Beiheft “Verfahrenstechnik”
**1942**, 3, 31–43. [Google Scholar] - Hinchcliffe, C.; Willmott, A.J. Lumped Heat-Transfer Coefficients for Thermal Regenerators. Int. J. Heat Mass Transf.
**1981**, 24, 1229–1236. [Google Scholar] [CrossRef] - Hausen, H. Über Die Theorie Des Wärmeaustausches in Regeneratoren. Z. Angew. Math. und Mech.
**1929**, 9, 173–200. [Google Scholar] [CrossRef] - Iliffe, C.E. Thermal Analysis of the Contra-Flow Regenerative Heat Exchanger. Proc. Inst. Mech. Eng.
**1948**, 159, 363–372. [Google Scholar] [CrossRef] - Razelos, P. An Analytic Solution to the Electric Analog Simulation of the Regenerative Heat Exchanger with Time-Varying Fluid Inlet Temperatures. Wärme und Stoffübertragung
**1979**, 12, 59–71. [Google Scholar] [CrossRef] - Willmott, A.J. Digital Computer Simulation of a Thermal Regenerator. Int. J. Heat Mass Transf.
**1964**, 7, 1291–1302. [Google Scholar] [CrossRef] - Willmott, A.J. Simulation of a Thermal Regenerator under Conditions of Variable Mass Flow. Int. J. Heat Mass Transf.
**1968**, 11, 1105–1116. [Google Scholar] [CrossRef] - Baclic, B.S. The Application of the Galerkin Method to the Solution of the Symmetric and Balanced Counterflow Regenerator Problem. J. Heat Transf.
**1985**, 107, 214–221. [Google Scholar] [CrossRef] - Hill, A.; Willmott, A.J. A Robust Method for Regenerative Heat Exchanger Calculations. Int. J. Heat Mass Transf.
**1987**, 30, 241–249. [Google Scholar] [CrossRef] - Kulakowski, B.; Anielewski, J. Application of the Closed Methods of Computer Simulation to Non-Linear Regenerator Problems. Arch. Autom. Telemech.
**1979**, 24, 43–63. [Google Scholar] - Hill, A.; Willmott, A.J. Modelling the Temperature Dependence of Thermophysical Properties in a Closed Method for Regenerative Heat-Exchanger Simulations. Proc. Inst. Mech. Eng. Part A J. Power Energy
**1991**, 205, 195–206. [Google Scholar] [CrossRef] - Allen, K.G.; von Backström, T.W.; Kröger, D.G. Packed Bed Pressure Drop Dependence on Particle Shape, Size Distribution, Packing Arrangement and Roughness. Powder Technol.
**2013**, 246, 590–600. [Google Scholar] [CrossRef] - Montillet, A.; Akkari, E.; Comiti, J. About a Correlating Equation for Predicting Pressure Drops through Packed Beds of Spheres in a Large Range of Reynolds Numbers. Chem. Eng. Process. Process Intensif.
**2007**, 46, 329–333. [Google Scholar] [CrossRef] - Erdim, E.; Akgiray, Ö.; Demir, İ. A Revisit of Pressure Drop-Flow Rate Correlations for Packed Beds of Spheres. Powder Technol.
**2015**, 283, 488–504. [Google Scholar] [CrossRef] - Fahien, R.W. Fundamentals of Transport Phenomena; McGraw-Hill: New York, NY, USA, 1983. [Google Scholar]
- KTA 3102.3 Reactor Core Design of High-Temperature Gas-Cooled Reactors Part 3: Loss of Pressure Through Friction in Pebble Bed Cores; Nuclear Safety Standards Commission: Berlin, Germany, 1981.
- Harrison, L.D.; Brunner, K.M.; Hecker, W.C. A Combined Packed-Bed Friction Factor Equation: Extension to Higher Reynolds Number with Wall Effects. AIChE J.
**2013**, 59, 703–706. [Google Scholar] [CrossRef] - Carman, P.C. Fluid Flow Through Granular Beds. Trans. Inst. Chem. Eng.
**1937**, 15, 155–166. [Google Scholar] [CrossRef] - Brauer, H. Eigenschaften der Zweiphasen-Strömung bei der Rektifikation in Füllkörpersäulen. Chem. Ing. Tech.
**1960**, 32, 585–590. [Google Scholar] [CrossRef] - Eisfeld, B.; Schnitzlein, K. The Influence of Confining Walls on the Pressure Drop in Packed Beds. Chem. Eng. Sci.
**2001**, 56, 4321–4329. [Google Scholar] [CrossRef] - Hicks, R.E. Pressure Drop in Packed Beds of Spheres. Ind. Eng. Chem. Fundam.
**1970**, 9, 500–502. [Google Scholar] [CrossRef] - Nemec, D.; Levec, J. Flow through Packed Bed Reactors: 1. Single-Phase Flow. Chem. Eng. Sci.
**2005**, 60, 6947–6957. [Google Scholar] [CrossRef] - Singh, R.; Saini, R.P.; Saini, J.S. Nusselt Number and Friction Factor Correlations for Packed Bed Solar Energy Storage System Having Large Sized Elements of Different Shapes. Sol. Energy
**2006**, 80, 760–771. [Google Scholar] [CrossRef] - Swamee, P.; Jain, A. Explicit Eqations for Pipe-Flow Problems. ASCE J. Hydraul. Div.
**1976**, 102, 657–664. [Google Scholar] - Haughey, D.P.; Beveridge, G.S.G. Structural Properties of Packed Beds—A Review. Can. J. Chem. Eng.
**1969**, 47, 130–140. [Google Scholar] [CrossRef] - Dixon, A.G. Correlations for Wall and Particle Shape Effects on Fixed Bed Bulk Voidage. Can. J. Chem. Eng.
**1988**, 66, 705–708. [Google Scholar] [CrossRef] - Beavers, G.S.; Sparrow, E.M.; Rodenz, D.E. Influence of Bed Size on the Flow Characteristics and Porosity of Randomly Packed Beds of Spheres. J. Appl. Mech.
**1973**, 40, 655–660. [Google Scholar] [CrossRef] - Foumeny, E.A.; Benyahia, F. Predictive Characterization of Mean Voidage in Packed Beds. Heat Recover. Syst. CHP
**1991**, 11, 127–130. [Google Scholar] [CrossRef] - Foumeny, E.; Roshani, S. Mean Voidage of Packed Beds of Cylindrical Particles. Chem. Eng. Sci.
**1991**, 46, 2363–2364. [Google Scholar] [CrossRef] - Zou, R.P.; Yu, A.B. The Packing of Spheres in a Cylindrical Container: The Thickness Effect. Chem. Eng. Sci.
**1995**, 50, 1504–1507. [Google Scholar] [CrossRef] - Di Felice, R.; Gibilaro, L.G. Wall Effects for the Pressure Drop in Fixed Beds. Chem. Eng. Sci.
**2004**, 59, 3037–3040. [Google Scholar] [CrossRef] - Ribeiro, A.M.; Neto, P.; Pinho, C. Mean Porosity and Pressure Drop Measurements in Packed Beds of Monosized Spheres: Side Wall Effects. Int. Rev. Chem. Eng.
**2010**, 2, 40–46. [Google Scholar] - Benyahia, F.; O’Neill, K.E. Enhanced Voidage Correlations for Packed Beds of Various Particle Shapes and Sizes. Part. Sci. Technol.
**2005**, 23, 169–177. [Google Scholar] [CrossRef] - Sadrameli, S.M.; Heggs, P. Heat Transfer Calculations in Asymmetric and Unbalanced Regenerators. Iran. J. Sci. Technol. Trans. A Sci.
**1998**, 22, 77–94. [Google Scholar] - Narayanan, C.M.; Pramanick, T. Computer Aided Design and Analysis of Regenerators for Heat Recovery Systems. Ind. Eng. Chem. Res.
**2014**, 53, 19814–19844. [Google Scholar] [CrossRef] - Amelio, M.; Morrone, P. Numerical Evaluation of the Energetic Performances of Structured and Random Packed Beds in Regenerative Thermal Oxidizers. Appl. Therm. Eng.
**2007**, 27, 762–770. [Google Scholar] [CrossRef] - Baldwin, D.E.; Beckman, R.B.; Rothfus, R.R.; Kermode, R.I. Heat Transfer in Beds of Oriented Spheres. Ind. Eng. Chem. Proc. Des. Dev.
**1966**, 5, 281–284. [Google Scholar] [CrossRef] - Park, P.M.; Cho, H.C.; Shin, H.D. Unsteady Thermal Flow Analysis in a Heat Regenerator with Spherical Particles. Int. J. Energy Res.
**2003**, 27, 161–172. [Google Scholar] [CrossRef] - Baumeister, E.B.; Bennett, C.O. Fluid-Particle Heat Transfer in Packed Beds. AIChE J.
**1958**, 4, 69–74. [Google Scholar] [CrossRef] - Gao, W.; Hodgson, P.D.; Kong, L. Numerical Analysis of Heat Transfer and the Optimization of Regenerators. Numer. Heat Transf. Part A Appl.
**2006**, 50, 63–78. [Google Scholar] [CrossRef] - Wakao, N.; Kagei, S. Heat and Mass Transfer in Packed Beds; Gordon and Breach Science Publishers: New York, NY, USA, 1982. [Google Scholar]
- Yang, J.; Wang, Q.; Zeng, M.; Nakayama, A. Computational Study of Forced Convective Heat Transfer in Structured Packed Beds with Spherical or Ellipsoidal Particles. Chem. Eng. Sci.
**2010**, 65, 726–738. [Google Scholar] [CrossRef] - Hottel, H.C.; Sarofim, A.F. Radiative Transfer; McGraw Hill: New York, NY, USA, 1967. [Google Scholar]
- Sadrameli, S.M.; Ajdari, H.R.B. Mathematical Modelling and Simulation of Thermal Regenerators Including Solid Radial Conduction Effects. Appl. Therm. Eng.
**2015**, 76, 441–448. [Google Scholar] [CrossRef] - Nusselt, W. Die theorie des winderhitzers. In V.D.I; Zeitschrift des Vereines deutscher Ingenieure, 1927; Volume 71, pp. 85–91. [Google Scholar]
- Schack, A. Industrial Heat Transfer: Practical and Theoretical, with Basic Numerical Examples, 6th ed.; Gutman, I., Ed.; Springer: New York, NY, USA, 1965. [Google Scholar]
- Mehrotra, A.K.; Karan, K.; Behie, L.A. Estimate Gas Emissivities for Equipment and Process Design. Chem. Eng. Prog.
**1995**, 91, 70–77. [Google Scholar] - Leckner, B. Spectral and Total Emissivity of Water Vapor and Carbon Dioxide. Combust. Flame
**1972**, 19, 33–48. [Google Scholar] [CrossRef] - Bahadori, A.; Vuthaluru, H. Predicting Emissivities of Combustion Gases. Chem. Eng. Progress
**2009**, 105, 38–41. [Google Scholar] - Hewitt, G.F. HEDH: Heat Exchanger Design Handbook 2002; Begell House: New York, NY, USA, 2002. [Google Scholar]
- Churchill, S.W.; Chu, H.H.S. Correlating Equations for Laminar and Turbulent Free Convection from a Vertical Plate. Int. J. Heat Mass Transf.
**1975**, 18, 1323–1329. [Google Scholar] [CrossRef]

Nonsymmetric | |||
---|---|---|---|

Symmetric | Balanced | Unbalanced | |

Parameters | Λ, Π | Λ′, Π′, Λ”, Π″ | Λ′, Π′, Λ”, Π″ |

Relationships | Λ = Λ′ = Λ″ Π = Π′ = Π″ | Π′/Π″ = Λ′/Λ″ = k ≠ 1 | Π′/Π″ ≠ Λ′/Λ″ |

Thermal ratios | η_{REG} = η′_{REG} = η″_{REG} | η_{REG} = η′_{REG} | η_{REG} ≠ η′_{REG} |

γ | 1 | 1 | ≠1 |

Hot | Cold | ||
---|---|---|---|

T_{g}_{,i} | 1000 | 0 | °C |

Λ | 6 | 3.5 | - |

Π | 6 | 3.5 | - |

P | 12 | 6 | s |

K/K_{0} | 0.73 | - |

Autor(s) | Equation | Range of Validity |
---|---|---|

Erdim [17] | ${\lambda}_{v}=160+2.81R{e}_{m}^{0.904}$ | $2<R{e}_{m}<3600$ |

Fahien and Schriver [18] | ${\lambda}_{k}=q\frac{{f}_{1L}}{R{e}_{m}}+\left(1-q\right)\left({f}_{2}+\frac{{f}_{1T}}{R{e}_{m}}\right)$ $q=exp\left(-\frac{{\epsilon}^{2}\left(1-\epsilon \right)}{12.6}R{e}_{m}\right)$ ${f}_{1L}=\frac{136}{{\left(1-\epsilon \right)}^{0.38}}$ ${f}_{1\mathrm{T}}=\frac{29}{{\left(1-\epsilon \right)}^{1.45}{\epsilon}^{2}}$${f}_{2}=\frac{1.87{\epsilon}^{0.75}}{{\left(1-\epsilon \right)}^{0.26}}$ | NA it can be consider $0.2<R{e}_{l}<700$ |

KTA [19] | ${\lambda}_{k}=\frac{160}{R{e}_{m}}+\frac{3}{R{e}_{Erg}^{0.1}}$ | $1<R{e}_{m}<\mathrm{100,000}$ |

Harrison, Brunner and Hecker [20] | ${\lambda}_{k}=\frac{119.8A}{R{e}_{m}}+\frac{4.63B}{R{e}_{Erg}^{\frac{1}{6}}}$ $A={\left(1+\pi \frac{{d}_{p}}{6\left(1-\epsilon \right)D}\right)}^{2}$$B=1-\text{}\frac{{\pi}^{2}{d}_{p}}{24D}\text{}$ | $0.32<Re<7700$ |

Carman [21] | ${\lambda}_{k}=\frac{180}{R{e}_{m}}+\frac{2.871}{R{e}_{m}^{0.1}}$ | $0.01<R{e}_{l}<\mathrm{10,000}$ |

Brauer [22] | ${\lambda}_{k}=\frac{160}{R{e}_{m}}+\frac{3.1}{R{e}_{m}^{-0.1}}$ | $0.01<R{e}_{Erg}<\mathrm{20,000}$ |

Eisfeld and Schnitlein [23] | ${\lambda}_{k}=\frac{{K}_{1}{M}^{2}}{R{e}_{m}}+\frac{M}{{B}_{W}}$ $M=1+\frac{2{d}_{p}}{3\left(1-\epsilon \right)D}$${B}_{W}=\left[{k}_{1}{\left(\frac{{d}_{p}}{D}\right)}^{2}+{k}_{2}\right]$ K _{1} = 154 k_{1} = 1.15 k_{2} = 0.87 | $0.01<Re<\mathrm{17,635}$ |

Ergun [2] | ${\lambda}_{k}=\frac{150}{R{e}_{m}}+1.75$ | $0.2<R{e}_{l}<700$ |

Hicks [24] | ${\lambda}_{k}=\frac{6.8}{R{e}_{m}^{0.2}}$ | $300<R{e}_{m}<\mathrm{60,000}$ |

Hot Gas | Cold Gas | ||
---|---|---|---|

Mass flowrate | 79.2 | 79.2 | kg∙h^{−1} |

Input temperature | 727 | 27 | °C |

Period | 600 | 600 | s |

Density | 0.51 | 0.51 | kg∙m^{−3} |

Dynamic viscosity | 364 × 10^{−7} | 364 × 10^{−7} | Pa∙s |

Heat capacity | 1060 | 1060 | J∙kg^{−1}∙K^{−1} |

Thermal conductivity | 0.046 | 0.046 | W∙m^{−1}∙K^{−1} |

Bed Diameter | 0.2 | m |
---|---|---|

Bed height | 1 | m |

Number of sections | 100 | - |

Type of packed bed | Ceramic balls | - |

Ball diameter | 0.03 | m |

Voidage | 0.38 | - |

Density | 3970 | kg∙m^{−3} |

Heat capacity | 765 | J∙kg^{−1}∙K^{−1} |

Therma conductivity | 15.8 | W∙m^{−1}∙K^{−1} |

Thermal diffusivity | 0.463 × 10^{−6} | m^{2}∙s^{−1} |

Cold Gas | Hot Gas | ||
---|---|---|---|

Input temperature | 27.0 | 727.0 | °C |

Out. temp. at the start of the period | 702.7 | 51.4 | °C |

Out. temp. at the end of the period | 576.2 | 178.2 | °C |

Heat transfer coefficient | 92.7 | 92.7 | W∙m^{−2∙}K^{−1} |

Velocity of gas | 3.6 | 3.6 | m∙s^{−1} |

Efficiency of regenerator | 87.8 | % | |

Heat transfer area | 3.9 | m^{2} | |

Mass of packed bed | 77.3 | kg | |

Mena pressure drop | 3141 | 3573 | Pa |

© 2020 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
