# Deep Reinforcement Learning Control of Cylinder Flow Using Rotary Oscillations at Low Reynolds Number

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Problem Formulation and Computational Details

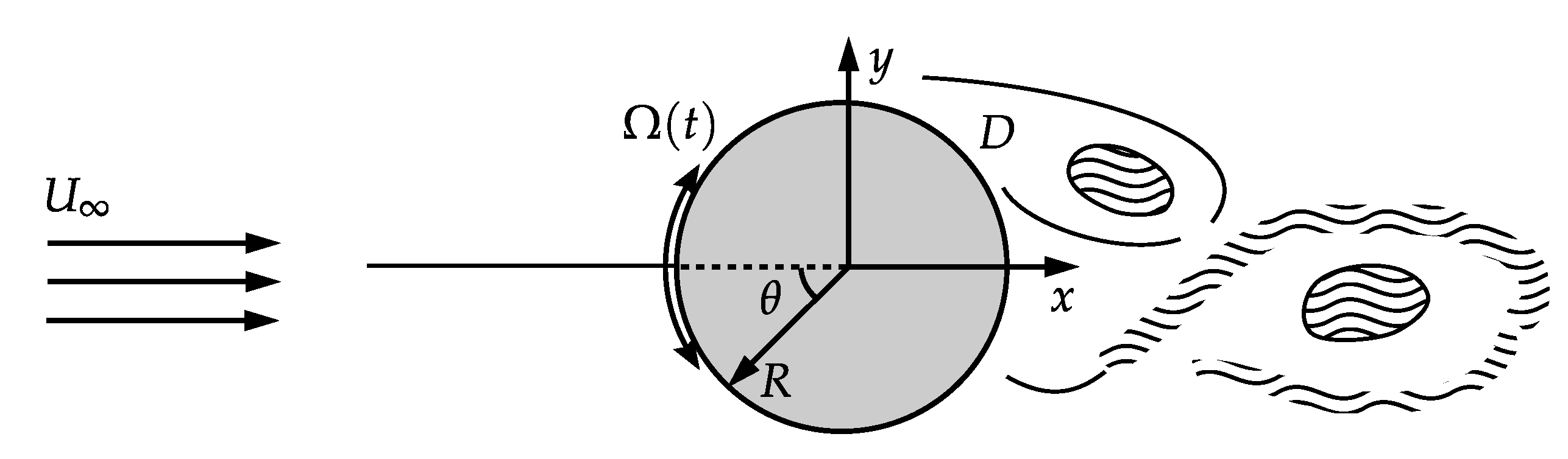

#### 2.1. Flow Computations

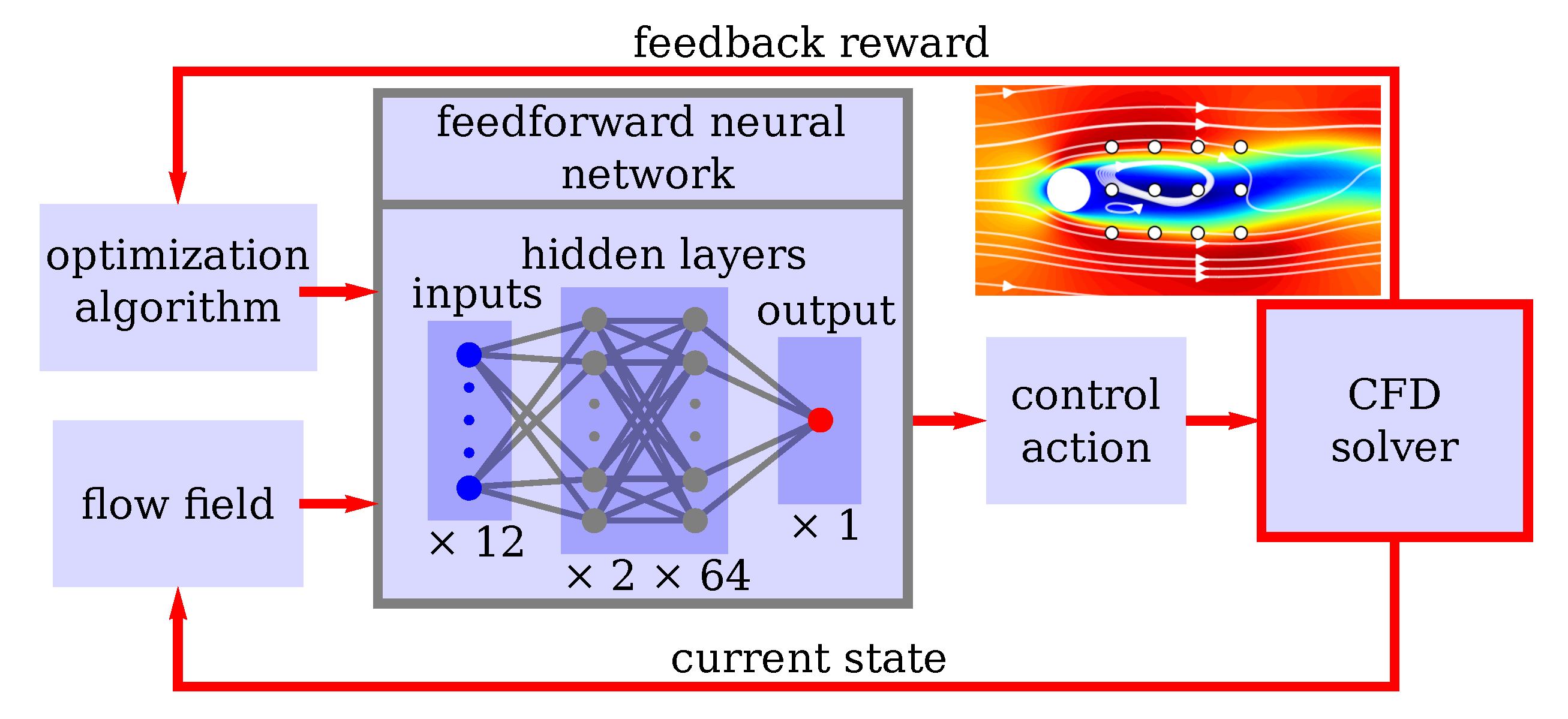

#### 2.2. Machine-Learning Architecture, Feedback Loop and Parallelization

## 3. Results and Discussion

## 4. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Williamson, C. Vortex dynamics in the cylinder wake. Annu. Rev. Fluid Mech.
**1996**, 28, 477–539. [Google Scholar] [CrossRef] - Choi, H.; Jeon, W.P.; Kim, J. Control of flow over a bluff body. Annu. Rev. Fluid Mech.
**2008**, 40, 113–139. [Google Scholar] [CrossRef][Green Version] - Gad-el Hak, M. Flow Control: Passive, Active, and Reactive Flow Management; Cambridge University Press: Cambridge, UK, 2007. [Google Scholar]
- Brunton, S.; Noack, B.; Koumoutsakos, P. Machine learning for fluid mechanics. Annu. Rev. Fluid Mech.
**2020**, 52, 477–539. [Google Scholar] [CrossRef][Green Version] - Weatheritt, J.; Sandberg, R. A novel evolutionary algorithm applied to algebraic modifications of the RANS stress-strain relationship. J. Comput. Phys.
**2016**, 325, 22–37. [Google Scholar] [CrossRef] - Leoni, P.; Mazzino, A.; Biferale, L. Inferring flow parameters and turbulent configuration with physics-informed data assimilation and spectral nudging. Phys. Rev. Fluids
**2018**, 3, 104604. [Google Scholar] [CrossRef][Green Version] - Agostini, L. Exploration and prediction of fluid dynamical systems using auto-encoder technology. Phys. Fluids
**2020**, 32, 067103. [Google Scholar] [CrossRef] - Bewley, T.; Moin, P.; Temam, R. DNS-based predictive control of turbulence: An optimal benchmark for feedback algorithms. J. Fluid Mech.
**2001**, 447, 179–225. [Google Scholar] [CrossRef][Green Version] - Müller, S.; Milano, M.; Koumoutsakos, P. Application of machine learning algorithms to flow modeling and optimization. Annu. Res. Briefs
**1999**, 169–178. [Google Scholar] - Milano, M.; Koumoutsakos, P. A clustering genetic algorithm for cylinder drag optimization. J. Comput. Phys.
**2002**, 175, 79–107. [Google Scholar] [CrossRef] - Parezanović, V.; Laurentie, J.; Fourment, C.; Delville, J.; Bonnet, J.; Spohn, A.; Duriez, T.; Cordier, L.; Noack, B.; Abel, M.; et al. Mixing layer manipulation experiment. Flow, turbulence and combustion. Flow Turbul. Combust.
**2015**, 94, 155–173. [Google Scholar] [CrossRef] - Gautier, N.; Aider, J.; Duriez, T.; Noack, B.; Segond, M.; Abel, M. Closed-loop separation control using machine learning. J. Fluid Mech.
**2015**, 770, 442–457. [Google Scholar] [CrossRef][Green Version] - Antoine, D.; Von Krbek, K.; Mazellier, N.; Duriez, T.; Cordier, L.; Noack, B.; Abel, M.; Kourta, A. Closed-loop separation control over a sharp edge ramp using genetic programming. Exp. Fluids
**2016**, 57, 40. [Google Scholar] - Li, R.; Noack, B.; Cordier, L.; Borée, J.; Harambat, F. Drag reduction of a car model by linear genetic programming control. Exp. Fluids
**2017**, 58, 103. [Google Scholar] [CrossRef] - Li, R.; Noack, B.; Cordier, L.; Borée, J.; Kaiser, E.; Harambat, F. Linear genetic programming control for strongly nonlinear dynamics with frequency crosstalk. Arch. Mech.
**2018**, 70, 505–534. [Google Scholar] - Bingham, C.; Raibaudo, C.; Morton, C.; Martinuzzi, R. Suppression of fluctuating lift on a cylinder via evolutionary algorithms: Control with interfering small cylinder. Phys. Fluids
**2018**, 30, 127104. [Google Scholar] [CrossRef] - Ren, F.; Wang, C.; Tang, H. Active control of vortex-induced vibration of a circular cylinder using machine learning. Phys. Fluids
**2019**, 31, 093601. [Google Scholar] [CrossRef] - Raibaudo, C.; Zhong, P.; Noack, B.; Martinuzzi, R. Machine learning strategies applied to the control of a fluidic pinball. Phys. Fluids
**2020**, 32, 015108. [Google Scholar] [CrossRef] - Li, H.; Maceda, G.; Li, Y.; Tan, J.; Morzyński, M.; Noack, B. Towards human-interpretable, automated learning of feedback control for the mixing layer. arXiv
**2020**, arXiv:2008.12924. [Google Scholar] - Sutton, R.; Barto, A. Reinforcement Learning: An Introduction; MIT Press: Cambridge, MA, USA, 2018. [Google Scholar]
- Mnih, V.; Kavukcuoglu, K.; Silver, D.; Rusu, A.; Veness, J.; Bellemare, M.; Graves, A.; Riedmiller, M.; Fidjeland, A.; Ostrovski, G.; et al. Human-level control through deep reinforcement learning. Nature
**2015**, 7540, 529–533. [Google Scholar] [CrossRef] - Rabault, J.; Ren, F.; Zhang, W.; Tang, H.; Xu, H. Deep reinforcement learning in fluid mechanics: A promising method for both active flow control and shape optimization. J. Hydrodyn.
**2020**, 32, 234–246. [Google Scholar] [CrossRef] - Bingham, C.; Raibaudo, C.; Morton, C.; Martinuzzi, R. Feedback control of Karman vortex shedding from a cylinder using deep reinforcement learning. In Proceedings of the AIAA, Atlanta, GA, USA, 25–29 June 2018; p. 3691. [Google Scholar]
- Rabault, J.; Kuchta, M.; Jensen, A.; Reglade, U.; Cerardi, N. Artificial neural networks trained through deep reinforcement learning discover control strategies for active flow control. J. Fluid Mech.
**2019**, 865, 281–302. [Google Scholar] [CrossRef][Green Version] - Rabault, J.; Kuhnle, A. Accelerating deep reinforcement learning strategies of flow control through a multi-environment approach. Phys. Fluids
**2019**, 31, 094105. [Google Scholar] [CrossRef][Green Version] - Ren, F.; Rabault, J.; Tang, H. Applying deep reinforcement learning to active flow control in turbulent conditions. arXiv
**2020**, arXiv:2006.10683. [Google Scholar] - Tang, H.; Rabault, J.; Kuhnle, A.; Wang, Y.; Wang, T. Robust active flow control over a range of Reynolds numbers using an artificial neural network trained through deep reinforcement learning. Phys. Fluids
**2020**, 32, 053605. [Google Scholar] [CrossRef] - Paris, R.; Beneddine, S.; Dandois, J. Robust flow control and optimal sensor placement using deep reinforcement learning. arXiv
**2020**, arXiv:2006.11005. [Google Scholar] - Belus, V.; Rabault, J.; Viquerat, J.; Che, Z.; Hachem, E.; Reglade, U. Exploiting locality and translational invariance to design effective deep reinforcement learning control of the 1-dimensional unstable falling liquid film. AIP Adv.
**2019**, 9, 125014. [Google Scholar] [CrossRef] - Bucci, M.; Semeraro, O.; Allauzen, A.; Wisniewski, G.; Cordier, L.; Mathelin, L. Control of chaotic systems by deep reinforcement learning. Proc. R. Soc. A
**2019**, 475, 20190351. [Google Scholar] [CrossRef][Green Version] - Beintema, G.; Corbetta, A.; Biferale, L.; Toschi, F. Controlling Rayleigh-Bénard convection via Reinforcement learning. arXiv
**2020**, arXiv:2003.14358. [Google Scholar] [CrossRef] - Han, Y.; Hao, W.; Vaidya, U. Deep learning of Koopman representation for control. arXiv
**2020**, arXiv:2010.07546. [Google Scholar] - Schulman, J.; Wolski, F.; Dhariwal, P.; Radford, A.; Klimov, O. Proximal policy optimization algorithms. arXiv
**2017**, arXiv:1707.06347. [Google Scholar] - Tokumaru, P.; Dimotakis, P. Rotary oscillation control of a cylinder wake. J. Fluid Mech.
**1991**, 224, 77–90. [Google Scholar] [CrossRef] - Shiels, D.; Leonard, A. Investigation of a drag reduction on a circular cylinder in rotary oscillation. J. Fluid Mech.
**2001**, 431, 297–322. [Google Scholar] [CrossRef][Green Version] - Sengupta, T.; Deb, K.; Talla, S. Control of flow using genetic algorithm for a circular cylinder executing rotary oscillation. Comput. Fluids
**2007**, 36, 578–600. [Google Scholar] [CrossRef] - Du, L.; Dalton, C. LES calculation for uniform flow past a rotationally oscillating cylinder. J. Fluids Struct.
**2013**, 42, 40–54. [Google Scholar] [CrossRef] - Palkin, E.; Hadžiabdić, M.; Mullyadzhanov, R.; Hanjalić, K. Control of flow around a cylinder by rotary oscillations at a high subcritical Reynolds number. J. Fluid Mech.
**2018**, 855, 236–266. [Google Scholar] [CrossRef] - Hadžiabdić, M.; Palkin, E.; Mullyadzhanov, R.; Hanjalić, K. Heat transfer in flow around a rotary oscillating cylinder at a high subcritical Reynolds number: A computational study. Int. J. Heat Fluid Flow
**2019**, 79, 108441. [Google Scholar] [CrossRef] - Baek, S.; Sung, H. Numerical simulation of the flow behind a rotary oscillating circular cylinder. Phys. Fluids
**1998**, 10, 869–876. [Google Scholar] [CrossRef][Green Version] - He, J.; Glowinski, R.; Metcalfe, R.; Nordlander, A.; Periaux, J. Active control and drag optimization for flow past a circular cylinder: I. Oscillatory cylinder rotation. J. Comput. Phys.
**2000**, 163, 83–117. [Google Scholar] [CrossRef] - Cheng, M.; Chew, Y.; Luo, S. Numerical investigation of a rotationally oscillating cylinder in mean flow. J. Fluids Struct.
**2001**, 15, 981–1007. [Google Scholar] [CrossRef] - Protas, B.; Styczek, A. Optimal rotary control of the cylinder wake in the laminar regime. Phys. Fluids
**2002**, 14, 2073–2087. [Google Scholar] [CrossRef] - Protas, B.; Wesfreid, J.E. Drag force in the open-loop control of the cylinder wake in the laminar regime. Phys. Fluids
**2002**, 14, 810–826. [Google Scholar] [CrossRef] - Homescu, C.; Navon, I.; Li, Z. Suppression of vortex shedding for flow around a circular cylinder using optimal control. Int. J. Numer. Methods Fluids
**2002**, 38, 43–69. [Google Scholar] [CrossRef][Green Version] - Bergmann, M.; Cordier, L.; Brancher, J. Optimal rotary control of the cylinder wake using proper orthogonal decomposition reduced-order model. Phys. Fluids
**2005**, 17, 097101. [Google Scholar] [CrossRef] - Ničeno, B.; Hanjalić, K. Unstructured large eddy and conjugate heat transfer simulations of wall-bounded flows. Model. Simul. Turbul. Heat Transf.
**2005**, 32–73. [Google Scholar] - Ničeno, B.; Palkin, E.; Mullyadzhanov, R.; Hadžiabdić, M.; Hanjalić, K. T-Flows Web Page. 2018. Available online: https://github.com/DelNov/T-Flows (accessed on 27 October 2020).
- GitHub OpenAI Baselines Code Repository. Available online: https://github.com/openai/baselines (accessed on 27 October 2020).
- GitHub AICenterNSU Code Repository. Available online: https://github.com/AICenterNSU/cylindercontrol (accessed on 27 October 2020).
- Pastoor, M.; Henning, L.; Noack, B.; King, R.; Tadmor, G. Feedback shear layer control for bluff body drag reduction. J. Fluid Mech.
**2008**, 608, 161–196. [Google Scholar] [CrossRef][Green Version] - Flinois, T.; Colonius, T. Optimal control of circular cylinder wakes using long control horizons. Phys. Fluids
**2015**, 27, 087105. [Google Scholar] [CrossRef][Green Version]

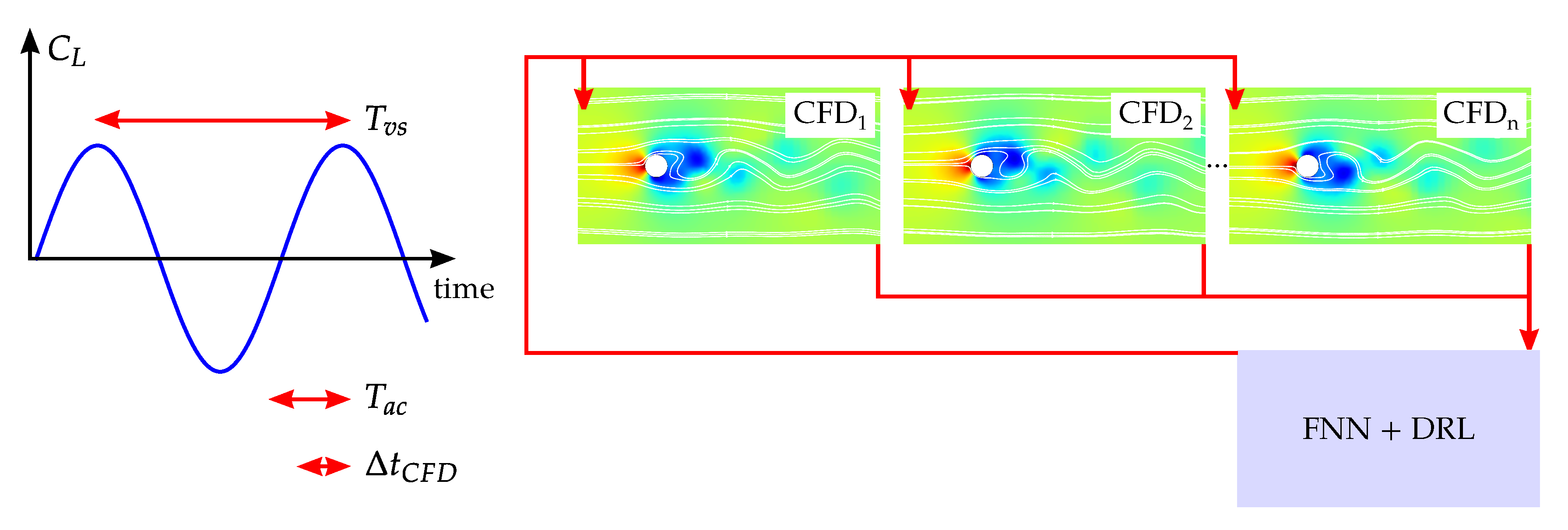

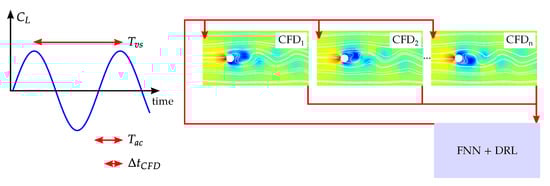

**Figure 3.**(

**Left**) Illustration of different time scales referred to in the text with the vortex shedding period ${T}_{vs}$, action time step ${T}_{ac}$ and CFD time step $\Delta {t}_{CFD}$; and (

**Right**) multi-environment scheme of the flow control approach.

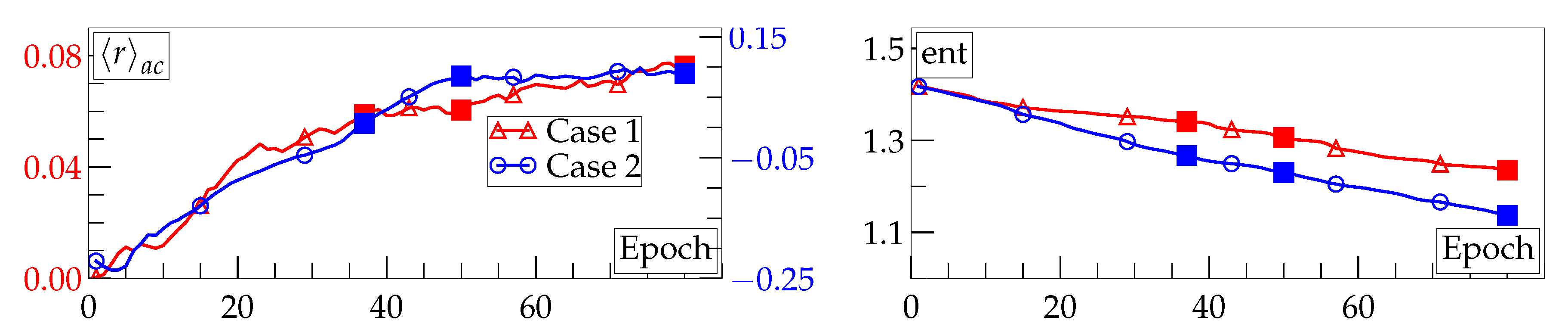

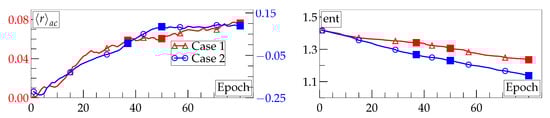

**Figure 4.**(

**Left**) Evolution of the reward value averaged over the action time step ${\langle r\rangle}_{ac}$ during training (random policy); and (

**Right**) random policy entropy decrease during the optimization process. Square points on both sets correspond to Epochs 37, 50 and 80.

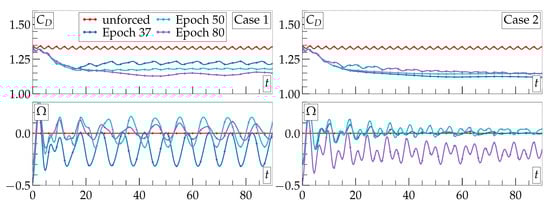

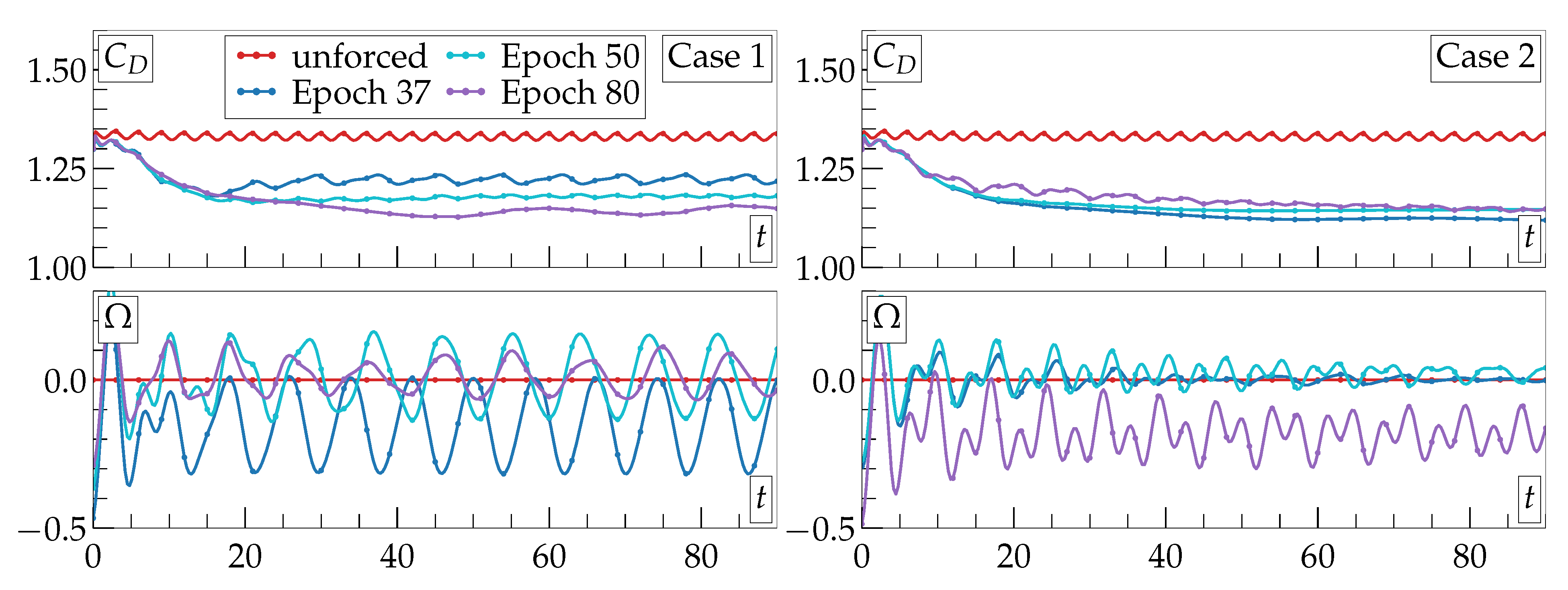

**Figure 5.**Evolution of ${C}_{D}$ and $\Omega $ for Cases 1 (

**Left**) and 2 (

**Right**) for different epoch number DRL-based control schemes in comparison with the stationary cylinder flow.

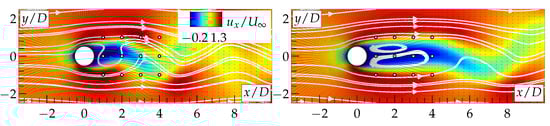

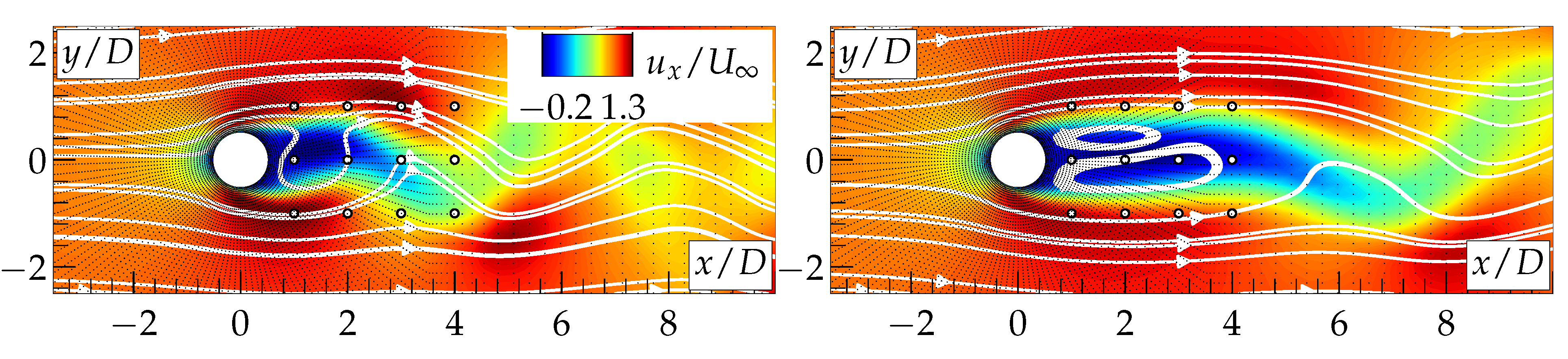

**Figure 6.**Typical instantaneous streamwise velocity field with streamlines: (

**Left**) stationary cylinder; and (

**Right**) DRL-based control for c1e80 after sufficiently long time interval to establish a steady regime. See also the Supplementary Material Video S1 (also available at: https://youtu.be/9X8XtHk0R84). The array of $4\times 3$ white points corresponds to pressure sensors serving as the input for the neural network (see Figure 2).

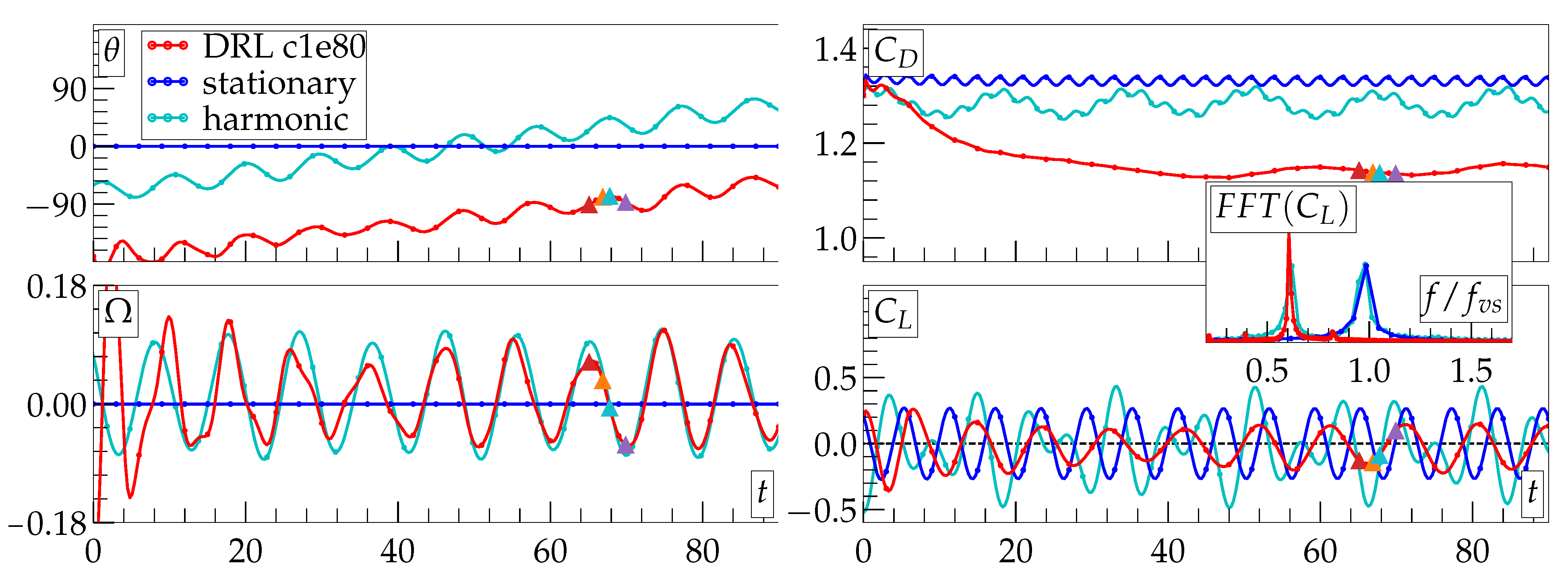

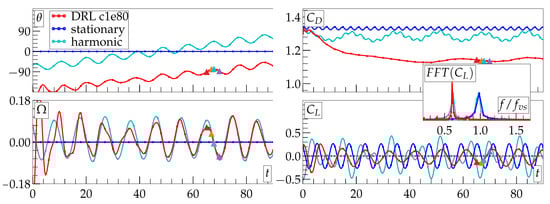

**Figure 7.**Rotation angle and angular velocity (

**Left**); and the drag and lift coefficients (

**Right**). Three flow regimes are shown: the stationary cylinder (blue line), with a DRL-scheme corresponding to c1e80 for control (red line) and forced with harmonic-based oscillations with $\Omega \left(t\right)={\Omega}_{0}[sin(2\pi {f}_{1}t+{\phi}_{1})+0.15][1+0.1sin(2\pi {f}_{2}t+{\phi}_{2})]$ where ${\Omega}_{0}=0.09$, ${f}_{1}=0.61{f}_{vs}$, ${f}_{2}=0.22{f}_{vs}$ (green line). See also the Supplementary Material Video S1 (also available at: https://youtu.be/9X8XtHk0R84). Several triangle points within $t=65.1$–$69.9$ interval are depicted on DRL-based results and are discussed below in the text.

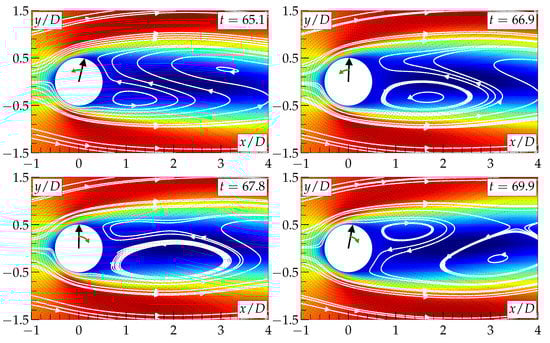

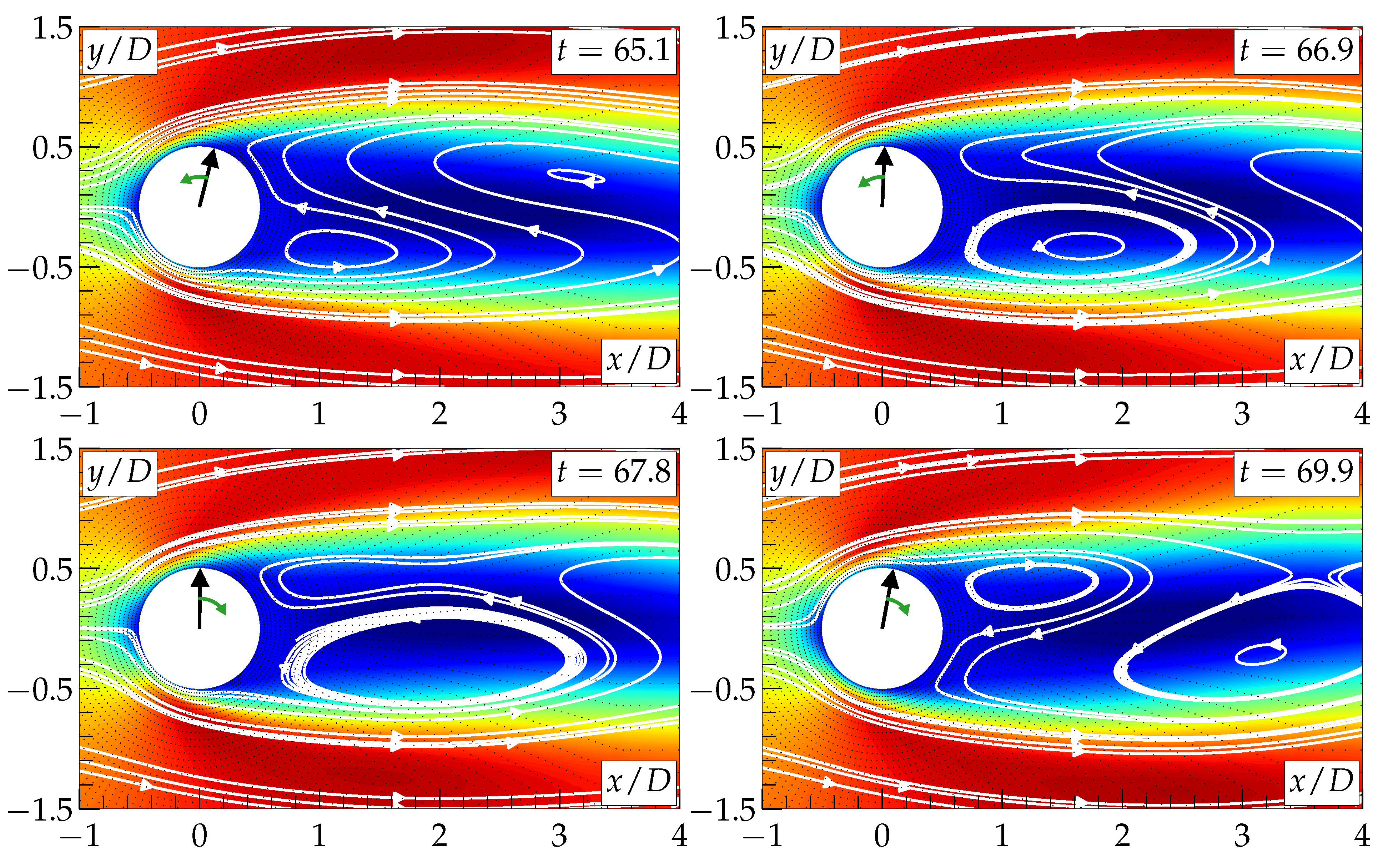

**Figure 8.**Instantaneous streamwise velocity field for c1e80 at particular time instants for $t=65.1$, $66.9$, $67.8$ and $69.9$, respectively, highlighted in Figure 7 by four triangles. Black arrow denotes the instantaneous angular position of the rotating cylinder while the green circular arrow indicates the direction of the rotation.
