Electro-Fenton Based Technique to Enhance Cell Harvest and Lipid Extraction from Microalgae
Abstract
1. Introduction
2. Materials and Methods
2.1. Strain and Culture Conditions
2.2. Neutral Lipid Extraction and Fatty Acid Analysis
2.3. Cell Disruption
2.4. Optimization of Electro-Fenton Conditions
2.5. Hydroxyl Radical Detection
2.6. Iron Detection
2.7. Electron Microscopy and Fluorescence Microscope Analysis
2.8. Reuse of Electro-Fenton Treated Microalgal Culture Medium for Subsequent Cultivation of Algae
3. Results and Discussion

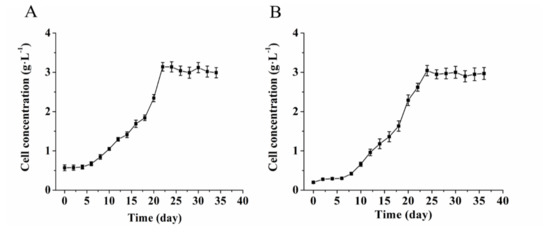

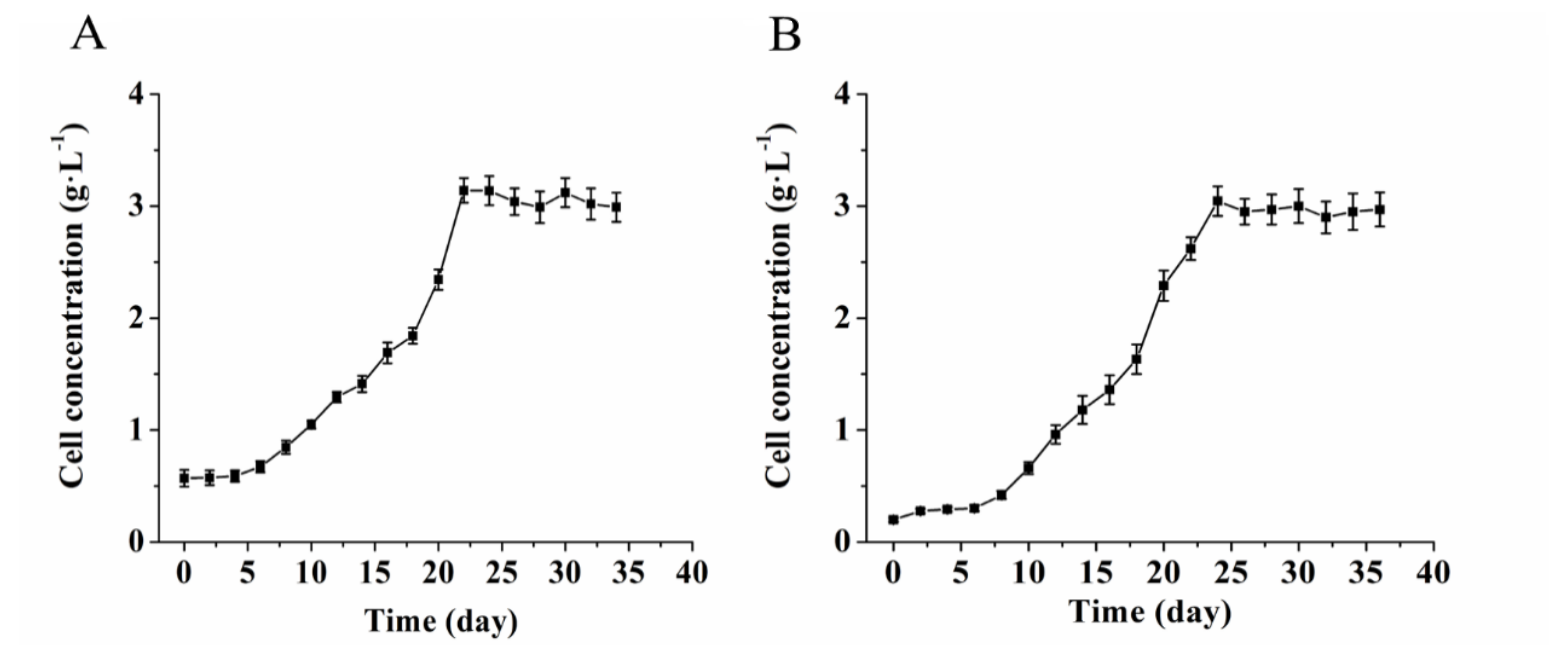

3.1. Growth Properties

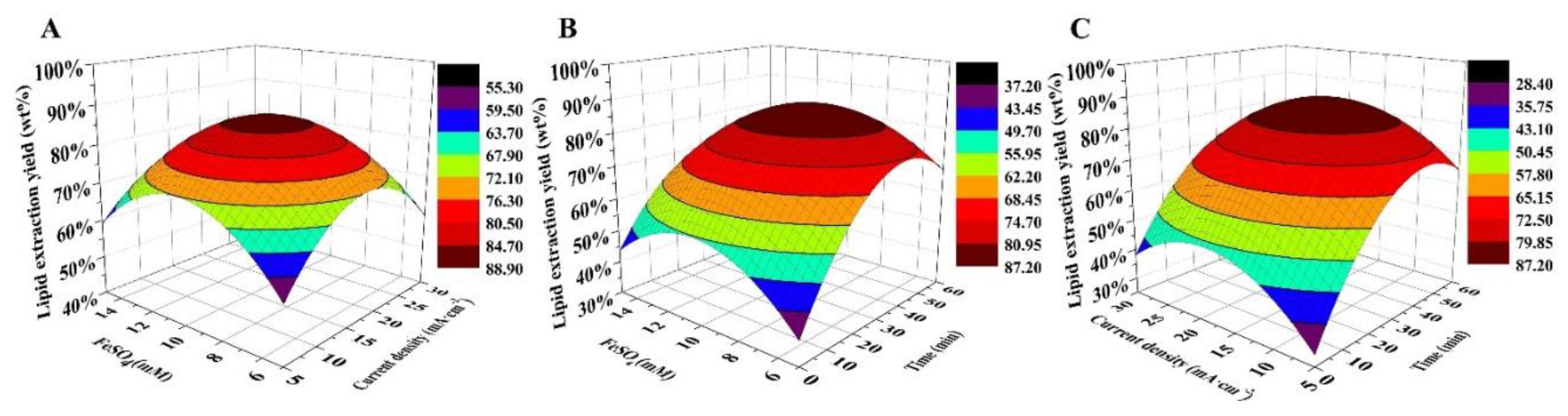

3.2. The Effects of Different Factors on Electro-Fenton Treatment for Lipid Extraction
3.3. Confirmation of Predicted Optimum Condition

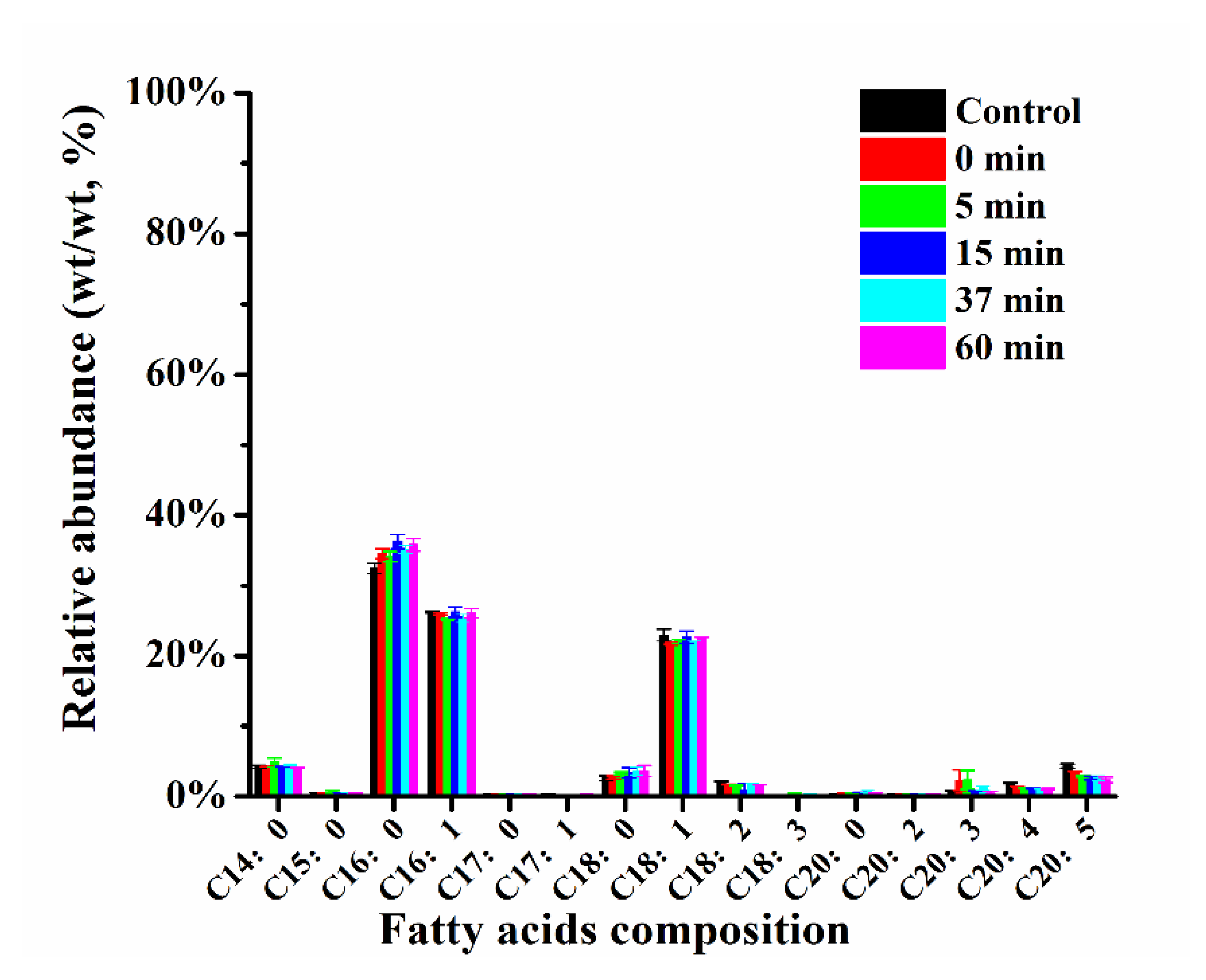

3.4. Fatty Acid (FA) Composition Analysis during Electro-Fenton Reaction
3.5. Microalgae Cell Disruption Mechanism in the Electro-Fenton Reaction

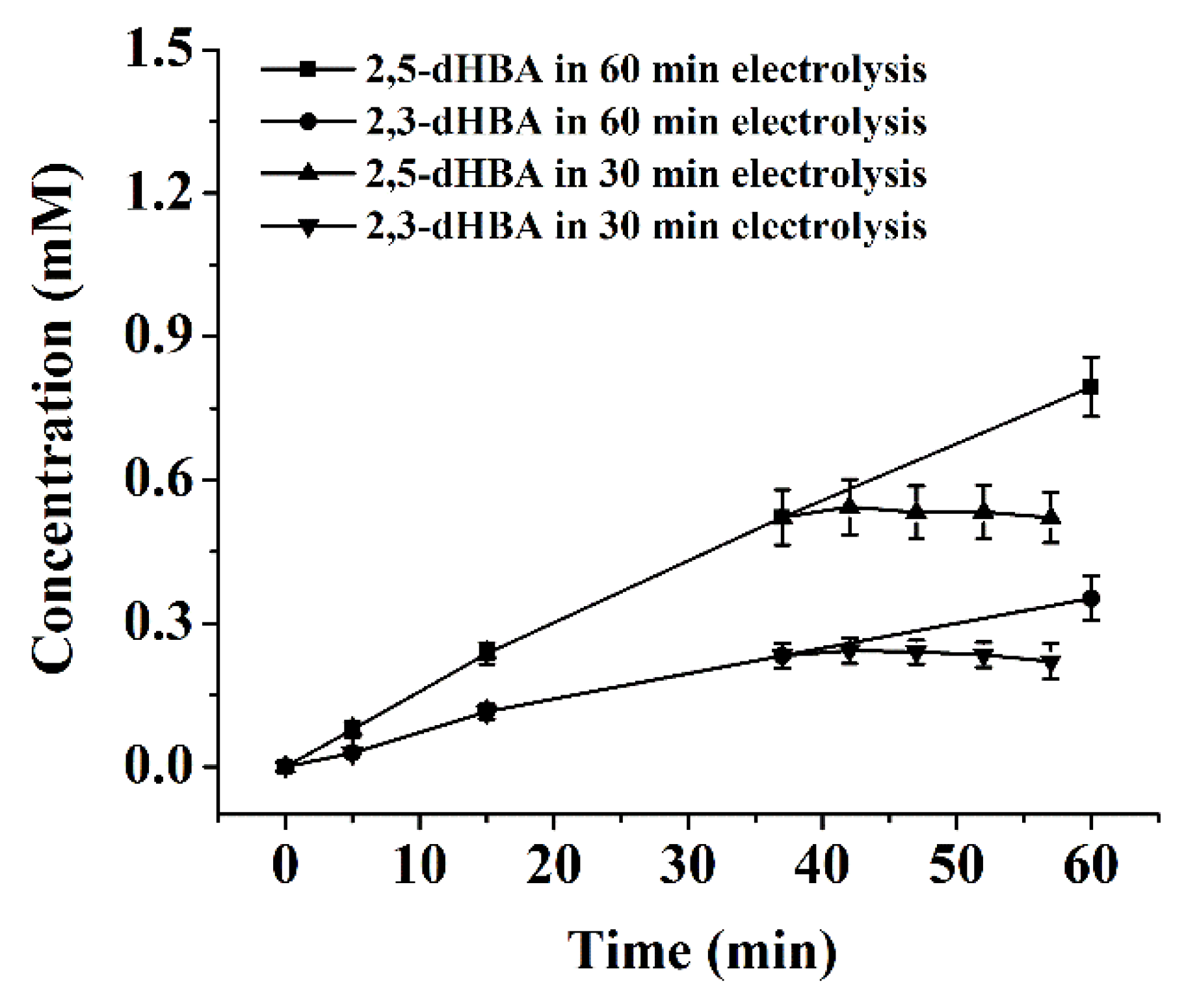

3.5.1. Hydroxyl Radical Generation in the Electro-Fenton Reaction

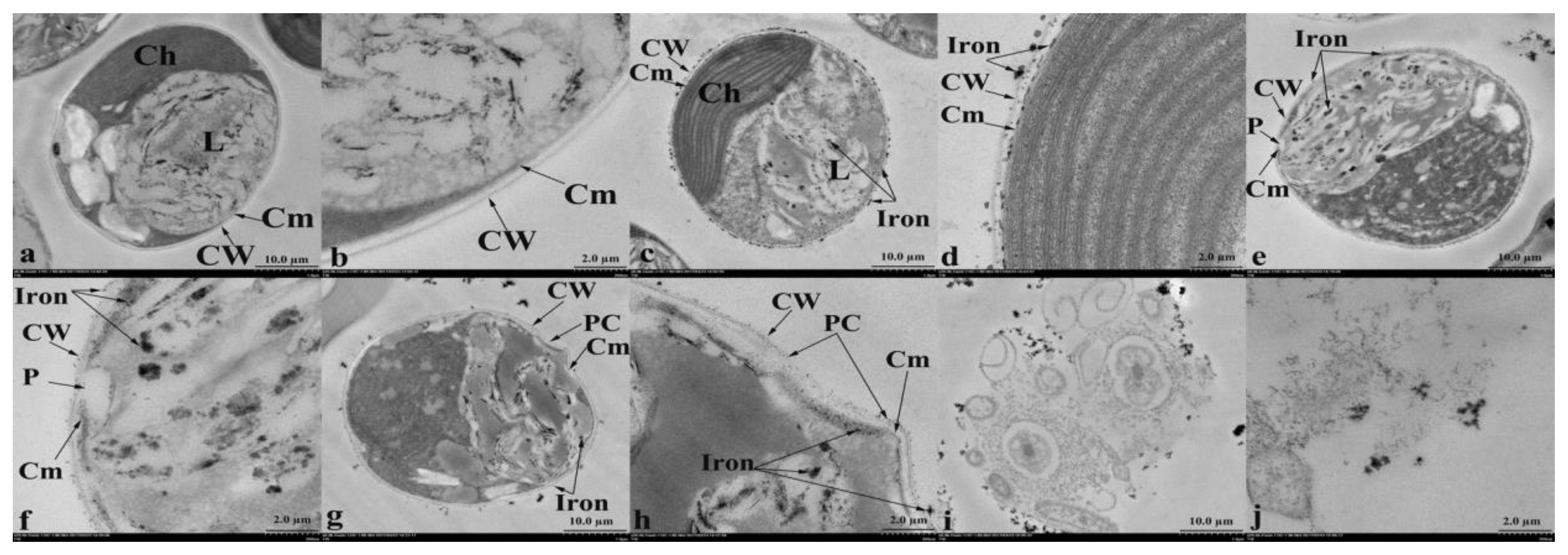

3.5.2. TEM for Microalgae Cell Wall and Cytomembrane Degradation in Electro-Fenton Reaction

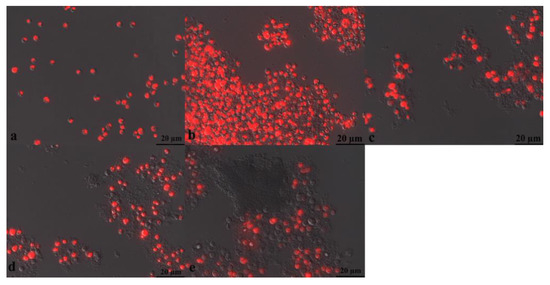

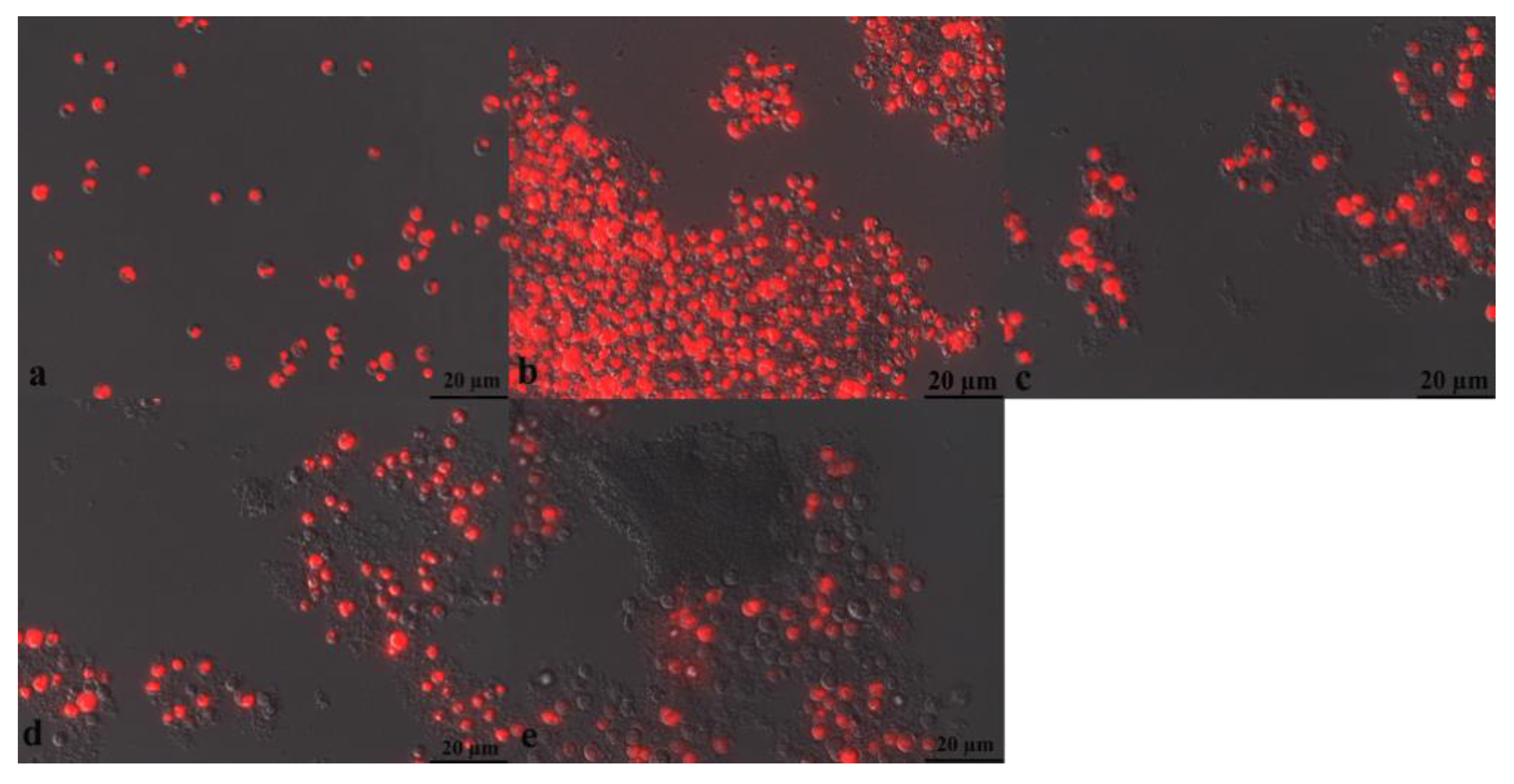

3.5.3. Fluorescence Microscope (FM) for Microalgae Observation during Electro-Fenton Reaction

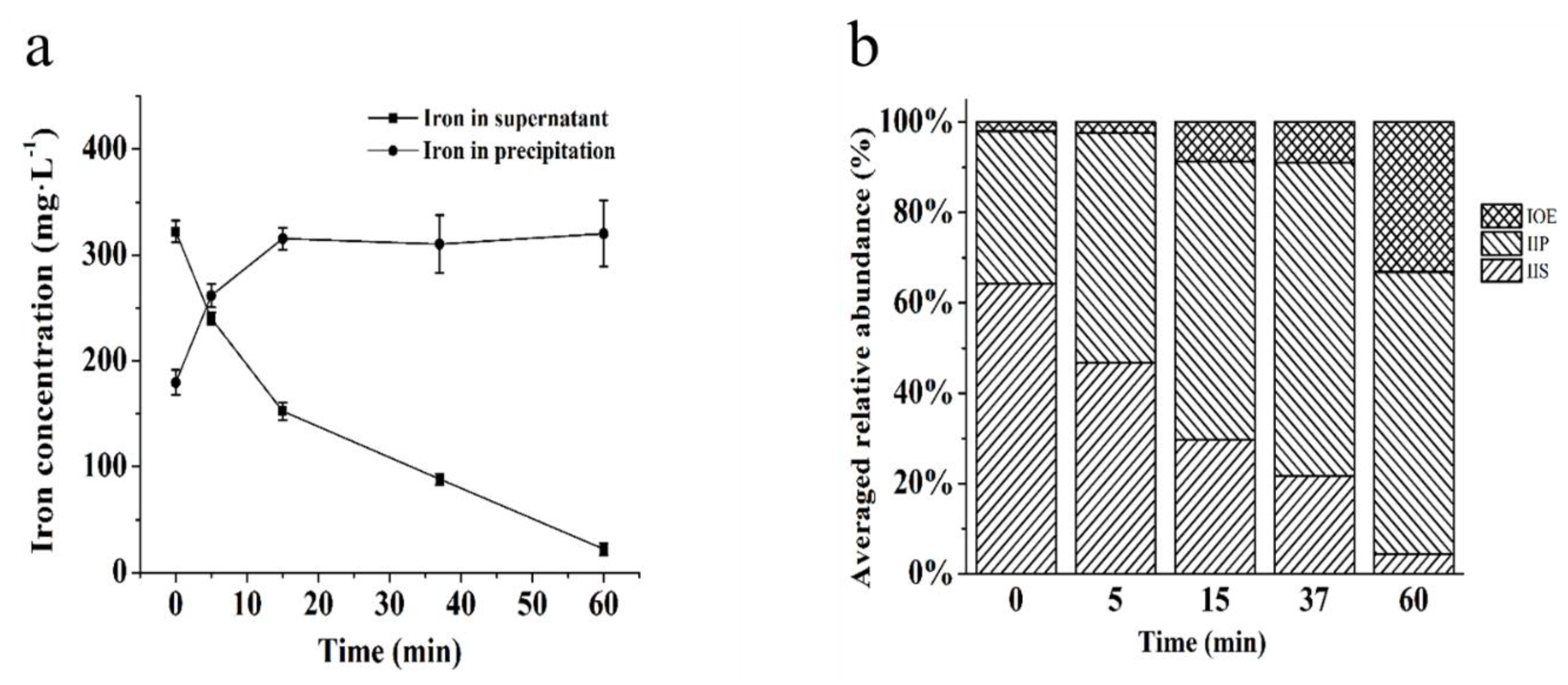

3.6. Iron Distribution
3.7. Microalgae Cultivation in the Electro-Fenton Wastewater
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
