# Challenges and Design Requirements for Industrial Applications of AC/AC Power Converters without DC-Link

## Abstract

**:**

## 1. Introduction

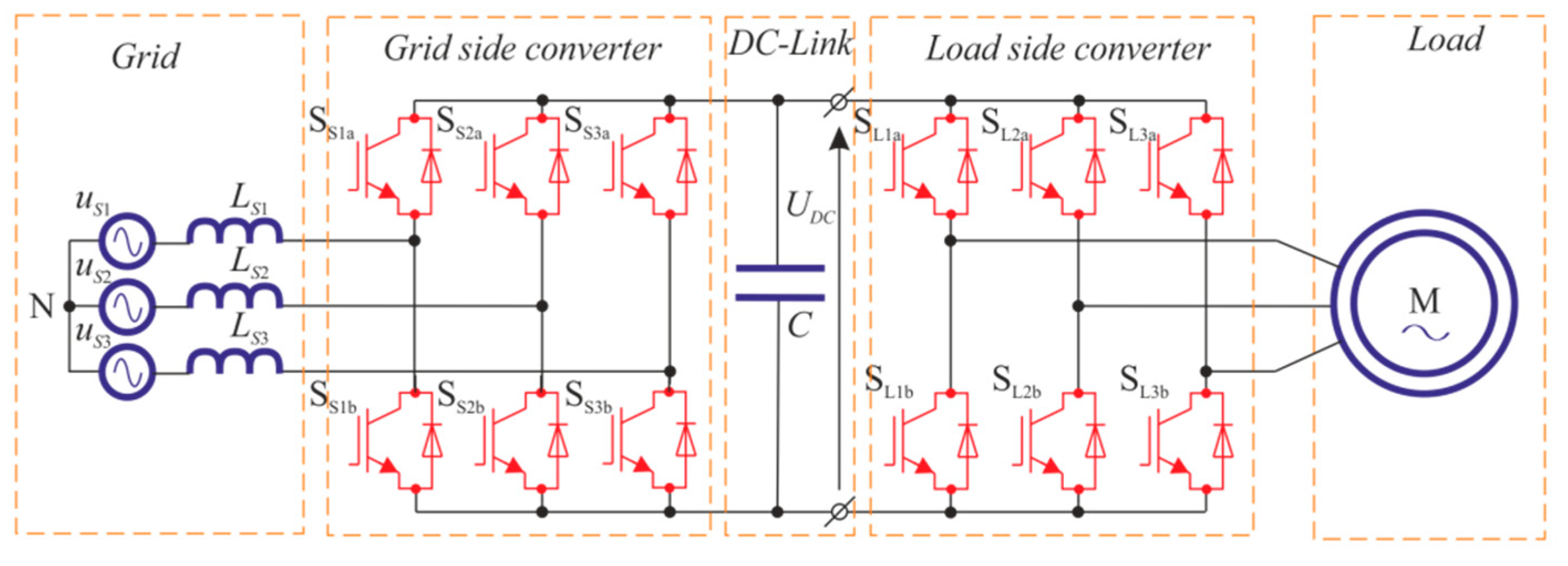

_{ESR}. The heating up of the electrolyte and its consequent evaporation and deterioration of electrical parameters is the most significant factor in the degradation of the electrolytic capacitor. One of the main reasons for the increase in capacitor temperature is the ripple of the capacitor current. In addition, the second most critical parameter for the failure of the capacitor is its voltage capacity, usually determined by the rated voltage or operating voltage, surge voltage, or allowed short-term maximum voltage. The voltage parameter is so critical that exceeding its nominal values for a few tenths of a second can cause an immediate failure or significantly accelerate the degradation of capacitor nominal parameters. For the presented reasons, in power converters, especially high power ones, particular attention is paid to environmental and operational conditions affecting their lifespan, with special emphasis on DC-link capacitors.

_{L}= const [16], f

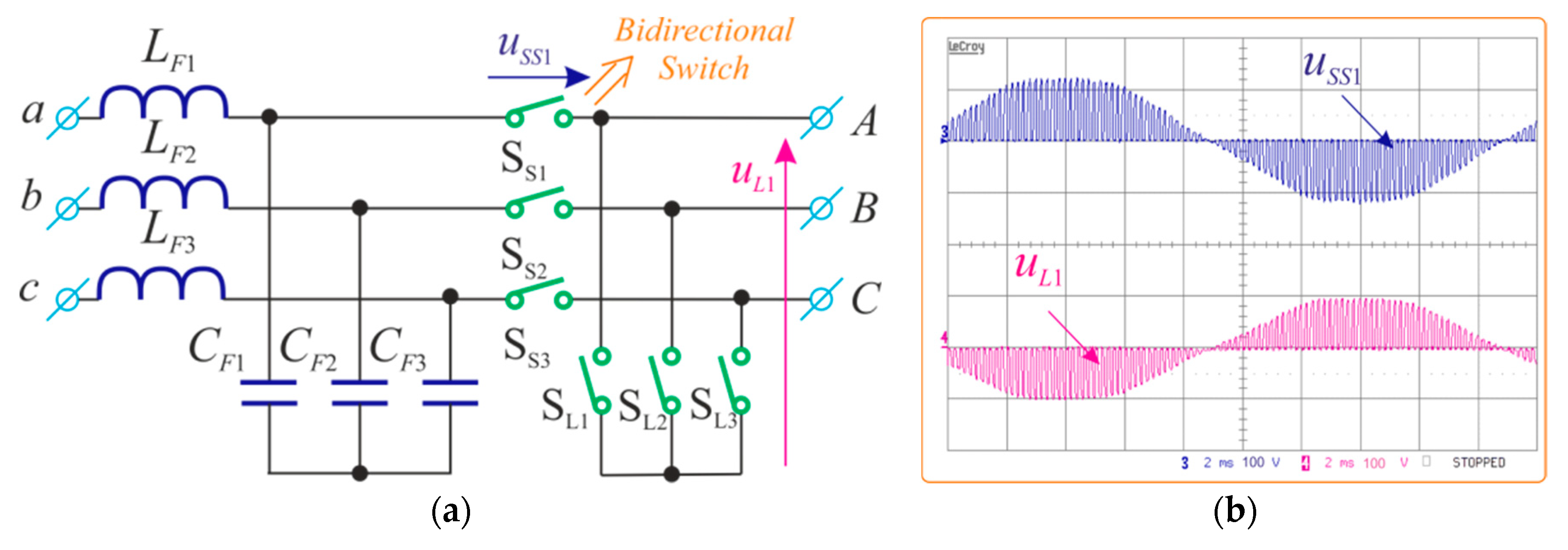

_{L}= var [15,16,17,18]). In addition, different structures of AC/AC converters are distinguished, such as direct and indirect (with a fictitious DC-link) topology. An example of an AC/AC converter without an intermediate circuit capacitor and f

_{L}= const is a matrix controller (matrix chopper), whereas f

_{L}= var is a matrix converter.

## 2. Description of Selected Topologies

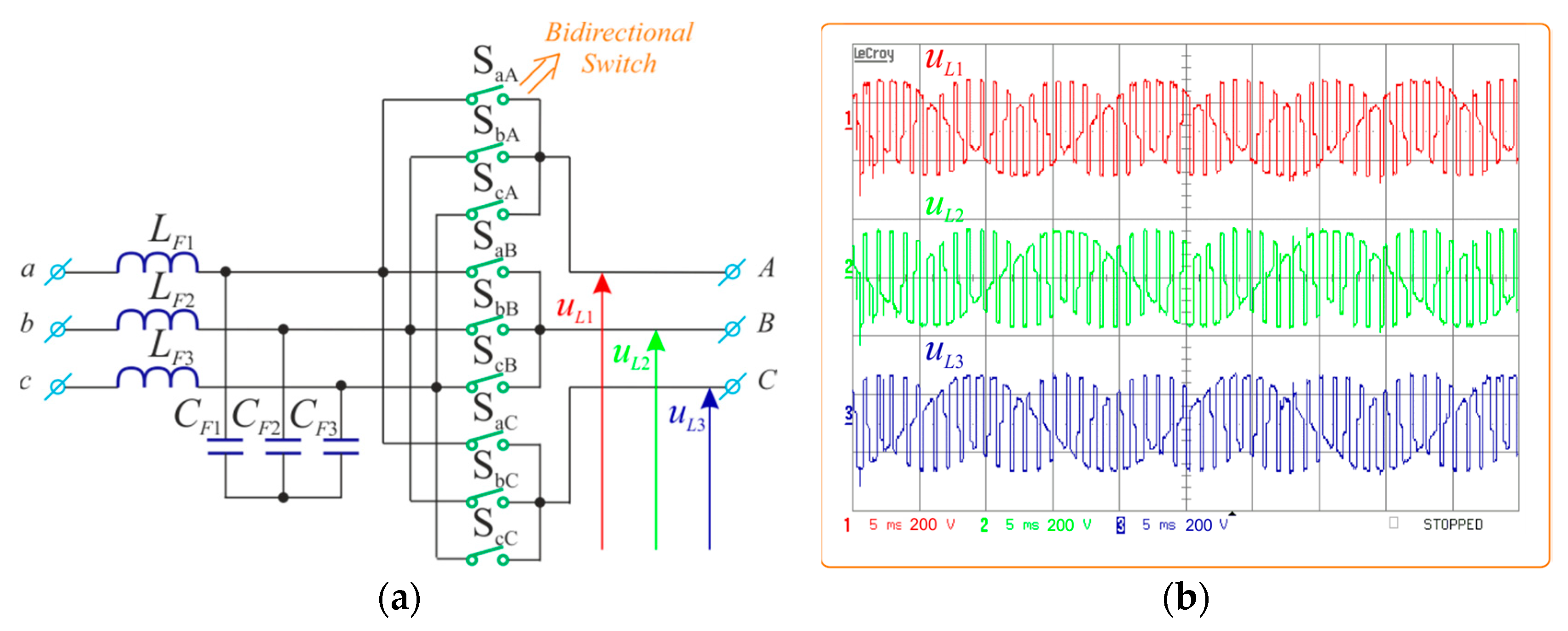

_{L}= var) without DC-link is the matrix converter (MC) in its direct topology shown in Figure 4a [15,16,17,18,22,23,24]. Generally, in three-phase systems, the MC consists of nine bidirectional switches connected in a matrix—each input is connected to each output. Similar to the matrix controller, there is an input low pass filter in the MC topology that fulfills identical functions. MC output voltages are formed from pieces of input voltages, shown in Figure 4b, as exemplary experimental time waveforms.

## 3. Design, Construction, and Implementation Barriers

#### 3.1. Power Semiconductors

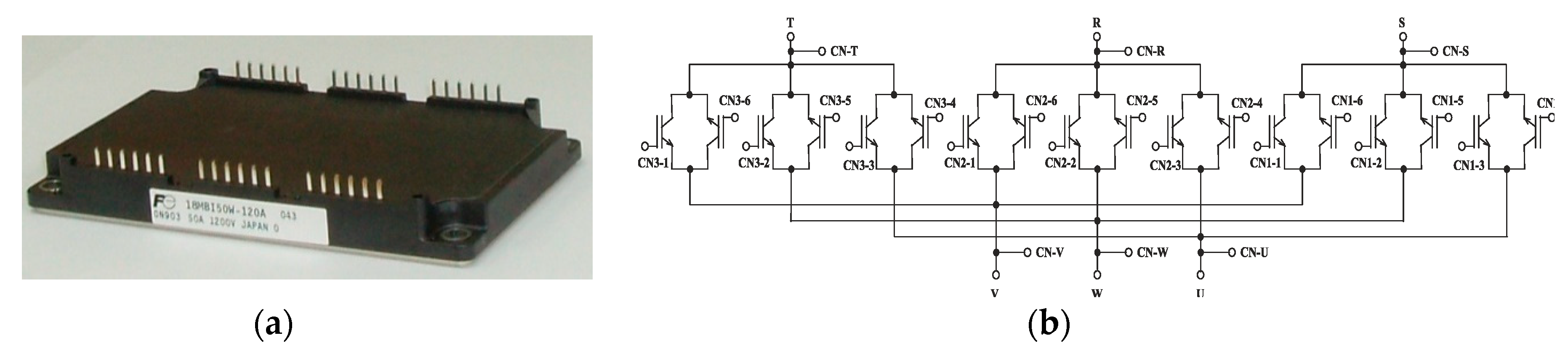

#### 3.1.1. Si Semiconductors

#### 3.1.2. SiC Semiconductors

#### 3.2. Control Units

_{Seq}. Since there are three bidirectional switches connected in one output branch (six transistors) and two or three of them cannot be switched on simultaneously, the switching sequence will be responsible for three switching operations during one period T

_{Seq}(Figure 11a). In the classic bridge voltage inverter, for a single branch, there are two transistors working alternately. A pair of complementary control signals are then generated and are negated in relation to each other (Figure 11b). In addition, additional dead times (dead-band) are used to ensure correct current commutation. Modern DSP processors and microcontrollers have built-in PWM modulators that generate complementary control signals that occur in classic bridge voltage inverters with built-in dead time generation functions [28]. The control implementation for the matrix converter using built-in PWM modulators is not simple and requires either multiple-core systems (at least two) or additional logic circuits. It is also possible to solve this problem using software I/O outputs instead of built-in PWM modulator procedures. These are, of course, more complicated solutions than in the classic branches of the inverter bridge.

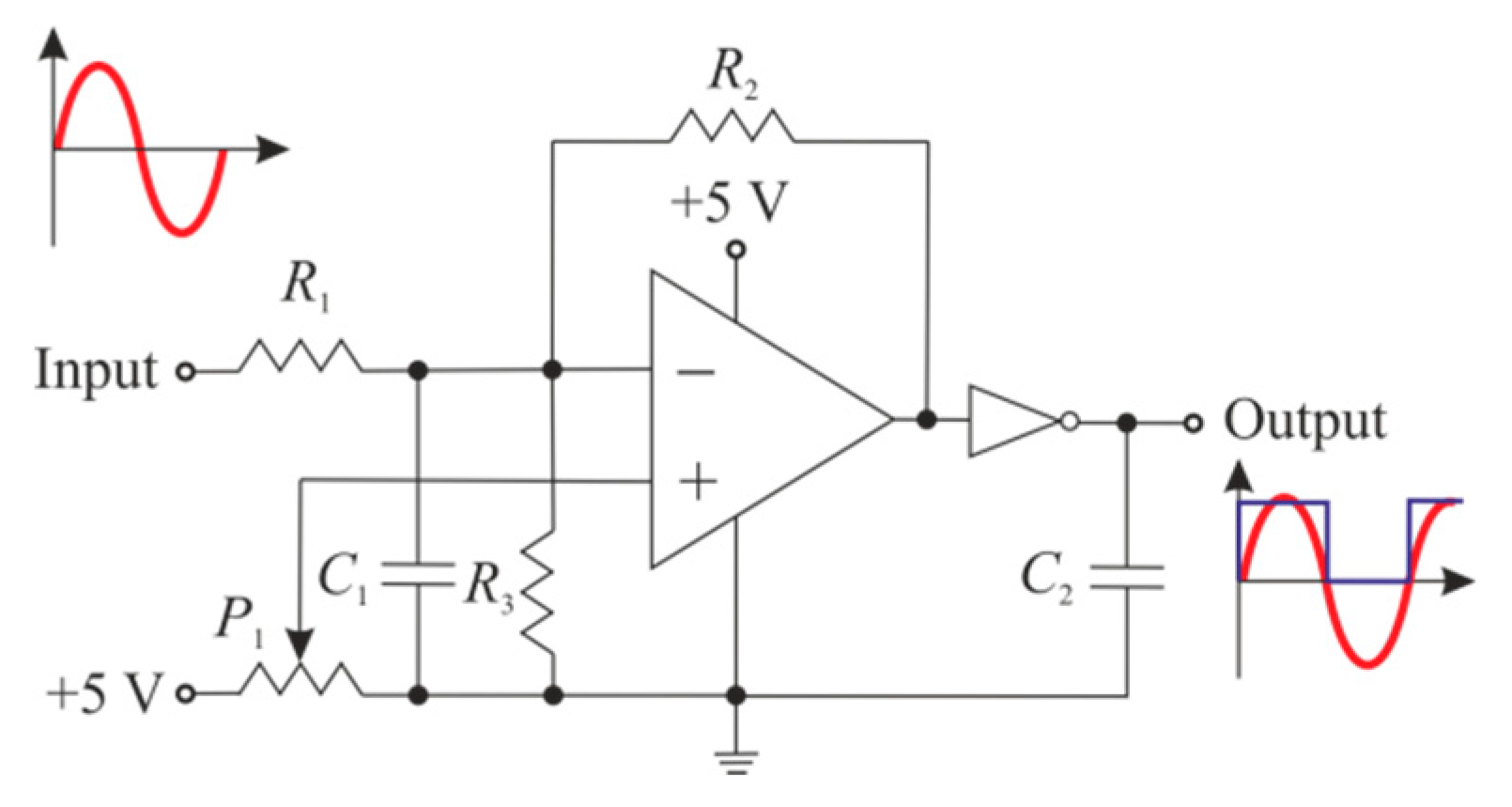

#### 3.3. Measurement of Voltages and Currents

#### 3.4. Commercialization of Prototype Solutions

#### 3.5. Modular Construction

#### 3.6. The Development of Modulation Methods

_{d}, MPC examines a model of a controlled system and predicts its condition in the next step. The configuration of converter switches is selected to ensure a minimum value of the cost function [40]. Scientific publications with MPC of an MC show better achievements in the quality of current and voltage waveforms, torque ripple, and internal switching power losses [30,41,42]. An example MPC scheme for the MC is shown in Figure 16, and this example is one that minimizes the cost function related to the accuracy of shaping the output current and the input power factor. Development of predictive control methods in AC systems without DC-link capacitors is a future area of extensive conceptual and implementation research.

## 4. Novel Applications of AC/AC Converters without DC-Link Capacitor

_{S}) parameters, after activation of the additional bypass switch. In the case of the configuration shown in Figure 20c, the reliability can be assessed as low. In the event of damage to the AC/AC converter, the whole circuit must be turned off, because it is unable to continue to operate. As a result, all receivers connected to the load side have to be shut off.

## 5. Conclusions

## Funding

## Conflicts of Interest

## References

- Yang, Y.; Wang, H.; Sangwongwanich, A.; Blaabjerg, F. Design for Reliability of Power Electronic Systems. In Power Electronics Handbook, 4th ed.; Butterworth-Heinemann: Oxford, UK, 2018; pp. 1423–1440. [Google Scholar]
- Chung, H.S.-H.; Wang, H.; Blaabjerg, F.; Pecht, M. Reliability of Power Electronic Converter Systems; The Institution of Engineering and Technology: London, UK, 2015. [Google Scholar]
- Sang, Z.; Mao, C.; Lu, J.; Wang, D. Analysis and Simulation of Fault Characteristics of Power Switch Failures in Distribution Electronic Power Transformers. Energies
**2013**, 6, 4246–4268. [Google Scholar] [CrossRef] - Fischer, K.; Pelka, K.; Puls, S.; Poech, M.-H.; Mertens, A.; Bartschat, A.; Tegtmeier, B.; Broer, C.; Wenske, J. Exploring the Causes of Power-Converter Failure in Wind Turbines based on Comprehensive Field-Data and Damage Analysis. Energies
**2019**, 12, 593. [Google Scholar] [CrossRef] - Choi, U.M.; Blaabjerg, F.; Lee, K.B. Study and Handling Methods of Power IGBT Module Failures in Power Electronic Converter Systems. IEEE Trans. Power Electron.
**2015**, 30, 2517–2533. [Google Scholar] [CrossRef] - Kamel, T.; Biletskiy, Y.; Chang, L. Fault Diagnoses for Industrial Grid-Connected Converters in the Power Distribution Systems. IEEE Trans. Ind. Electron.
**2015**, 62, 6496–6507. [Google Scholar] [CrossRef] - Peftitsis, D.; Rabkowski, J. Gate and Base Drivers for Silicon Carbide Power Transistors: An Overview. IEEE Trans. Power Electron.
**2016**, 31, 7194–7213. [Google Scholar] [CrossRef] - Marzoughi, A.; Burgos, R.; Boroyevich, D. Characterization and Performance Evaluation of the State-of-the-Art 3.3 kV 30 A Full-SiC MOSFETs. IEEE Trans. Ind. Appl.
**2019**, 55, 575–583. [Google Scholar] [CrossRef] - Zhang, L.; Yuan, X.; Wu, X.; Shi, C.; Zhang, J.; Zhang, Y. Performance Evaluation of High-Power SiC MOSFET Modules in Comparison to Si IGBT Modules. IEEE Trans. Power Electron.
**2019**, 34, 1181–1196. [Google Scholar] [CrossRef] - Jones, E.A.; Wang, F.F.; Costinett, D. Review of Commercial GaN Power Devices and GaN-Based Converter Design Challenges. IEEE J. Emerg. Sel. Top. Power Electron.
**2016**, 4, 707–719. [Google Scholar] [CrossRef] - Wang, H.; Blaabjerg, F. Reliability of capacitors for DC-Link applications in power electronic converters—An overview. IEEE Trans. Ind. Appl.
**2014**, 50, 3569–3578. [Google Scholar] [CrossRef] - Yun, G.; Cho, Y. Active Hybrid Solid State Transformer Based on Multi-Level Converter Using SiC MOSFET. Energies
**2019**, 12, 66. [Google Scholar] [CrossRef] - Zhu, Q.; Dai, W.; Guan, L.; Tan, L.; Li, Z.; Xie, D. A Fault-Tolerant Control Strategy of Modular Multilevel Converter with Sub-Module Faults Based on Neutral Point Compound Shift. Energies
**2019**, 12, 876. [Google Scholar] [CrossRef] - Volosencu, C. System Reliability; Intech Open: Rijeka, Croatia, 2017. [Google Scholar]
- Kolar, J.W.; Friedli, T.; Rodriguez, J.; Wheeler, P.W. Review of three-phase PWM AC–AC converter topologies. IEEE Trans. Ind. Electron.
**2011**, 58, 4988–5006. [Google Scholar] [CrossRef] - Szcześniak, P.; Kaniewski, J.; Jarnut, M. AC/AC power electronic converters without DC energy storage: A review. Energy Convers. Manag.
**2015**, 92, 483–497. [Google Scholar] [CrossRef] - Zhang, J.; Li, L.; Dorrell, D.G. Control and applications of direct matrix converters: A review. Chin. J. Electr. Eng.
**2018**, 4, 18–27. [Google Scholar] - Empringham, L.; Kolar, J.W.; Rodriguez, J.; Wheeler, P.W.; Clare, J.C. Technological issues and industrial application of matrix converters: A review. IEEE Trans. Ind. Electron.
**2013**, 60, 4260–4271. [Google Scholar] [CrossRef] - Kaniewski, J.; Fedyczak, Z.; Szcześniak, P. AC voltage transforming circuits in power systems. Electr. Rev.
**2015**, 91, 8–17. [Google Scholar] - Kaniewski, J.; Szcześniak, P.; Jarnut, M.; Benysek, G. Hybrid voltage sag/swell compensator. A review of AC/AC converters. IEEE Ind. Electron. Mag.
**2015**, 9, 37–48. [Google Scholar] [CrossRef] - Szcześniak, P.; Kaniewski, J. Power electronics converters without DC energy storage in the future electrical power network. Electr. Power Syst. Res.
**2015**, 129, 194–207. [Google Scholar] [CrossRef] - Andreu, J.; Kortabarria, I.; Ormaetxea, E.; Ibarra, E.; Martin, J.L.; Apiñaniz, S. A step forward towards the development of reliable matrix converters. IEEE Trans. Ind. Electron.
**2012**, 59, 167–183. [Google Scholar] [CrossRef] - Rodriguez, J.; Rivera, M.; Kolar, J.W.; Wheeler, P.W. A review of control and modulation methods for matrix converters. IEEE Trans. Ind. Electron.
**2012**, 59, 58–70. [Google Scholar] [CrossRef] - Safari, S.; Castellazzi, A.; Wheeler, P. Experimental and Analytical Performance Evaluation of SiC Power Devices in the Matrix Converter. IEEE Trans. Power Electron.
**2014**, 29, 2584–2596. [Google Scholar] [CrossRef] - Empringham, L.; de Lillo, L.; Schulz, M. Design Challenges in the Use of Silicon Carbide JFETs in Matrix Converter Applications. IEEE Trans. Power Electron.
**2014**, 29, 2563–2573. [Google Scholar] [CrossRef] - Trentin, A.; de Lillo, L.; Empringham, L.; Wheeler, P.; Clare, J. Experimental Comparison of a Direct Matrix Converter Using Si IGBT and SiC MOSFETs. IEEE J. Emerg. Sel. Top. Power Electron.
**2015**, 3, 542–554. [Google Scholar] [CrossRef] - Trentin, A.; Empringham, L.; de Lillo, L.; Zanchetta, P.; Wheeler, P.; Clare, J. Experimental Efficiency Comparison Between a Direct Matrix Converter and an Indirect Matrix Converter Using Both Si IGBTs and SiC mosfets. IEEE Trans. Ind. Appl.
**2016**, 52, 4135–4145. [Google Scholar] [CrossRef] - Buccella, C.; Cecati, C.; Latafat, H. Digital Control of Power Converters—A Survey. IEEE Trans. Ind. Inform.
**2012**, 8, 437–447. [Google Scholar] [CrossRef] - Kobravi, K.; Iravani, R.; Kojori, H.A. Three-Leg/Four-Leg Matrix Converter Generalized Modulation Strategy—Part II: Implementation and Verification. IEEE Trans. Ind. Electron.
**2013**, 60, 860–872. [Google Scholar] [CrossRef] - Gulbudak, O.; Santi, E. FPGA-Based Model Predictive Controller for Direct Matrix Converter. IEEE Trans. Ind. Electron.
**2016**, 63, 4560–4570. [Google Scholar] [CrossRef] - Wiśniewski, R.; Bazydło, G.; Szcześniak, P.; Wojnakowski, M. Petri Net-Based Specification of Cyber-Physical Systems Oriented to Control Direct Matrix Converters with Space Vector Modulation. IEEE Access
**2019**, 7, 23407–23420. [Google Scholar] [CrossRef] - Yamamoto, E.; Hara, H.; Uchino, T.; Kawaji, M.; Kume, T.J.; Kang, J.-K.; Krug, H.-P. Development of MCs and its Applications in Industry. IEEE Ind. Electron. Mag.
**2011**, 5, 4–12. [Google Scholar] [CrossRef] - Oancea, C.D.; Dinu, C. LEM transducers interface for voltage and current monitoring. In Proceedings of the 9th International Symposium on Advanced Topics in Electrical Engineering (ATEE’15), Bucharest, Romania, 7–9 May 2015; pp. 949–952. [Google Scholar]
- Sozański, K. Digital Signal Processing in Power Electronics Control Circuits, 2nd ed.; Springer: London, UK, 2017. [Google Scholar]
- Bobrowska-Rafal, M.; Rafal, K.; Jasinski, M.; Kazmierkowski, M.P. Grid synchronization and symmetrical components extraction with PLL algorithm for grid connected power electronic converters—A review. Bull. Pol. Acad. Sci. Tech. Sci.
**2011**, 59, 485–497. [Google Scholar] [CrossRef] - Irmak, E.; Colak, I.; Kaplan, O.; Guler, N. Design and application of a novel zero-crossing detector circuit. In Proceedings of the International Conference on Power Engineering, Energy and Electrical Drives, Malaga, Spain, 11–13 May 2011. [Google Scholar]
- Iyer, A.R.; Kandula, R.P.; Moghe, R.; Hernandez, J.E.; Lambert, F.C.; Divan, D. Validation of the Plug-and-Play AC/AC Power Electronics Building Block (AC-PEBB) for Medium-Voltage Grid Control Applications. IEEE Trans. Ind. Appl.
**2014**, 50, 3549–3557. [Google Scholar] [CrossRef] - Laka, A.; Barrena, J.A.; Chivite-Zabalza, J.; Rodriguez, M.A. Analysis and Improved Operation of a PEBB-Based Voltage-Source Converter for FACTS Applications. IEEE Trans. Power Deliv.
**2013**, 28, 1330–1338. [Google Scholar] [CrossRef] - You, K.; Xiao, D.; Rahman, M.F.; Uddin, M.N. Applying Reduced General Direct Space Vector Modulation Approach of AC/AC Matrix Converter Theory to Achieve Direct Power Factor Controlled Three-Phase AC-DC Matrix Rectifier. IEEE Trans. Ind. Appl.
**2014**, 50, 2243–2257. [Google Scholar] [CrossRef] - Rodríguez, J.; Cortes, P. Predictive Control of Power Converters and Electrical Drives; John Wiley & Sons: Hoboken, NJ, USA, 2012. [Google Scholar]
- Zhang, J.; Norambuena, M.; Li, L.; Dorrell, D.; Rodriguez, J. Sequential Model Predictive Control of Three-Phase Direct Matrix Converter. Energies
**2019**, 12, 214. [Google Scholar] [CrossRef] - Rivera, M.; Rojas, C.; Rodriguez, J.; Wheeler, P.W.; Wu, B.; Espinoza, J.R. Predictive Current Control with Input Filter Resonance Mitigation for a Direct Matrix Converter. IEEE Trans. Power Electron.
**2011**, 26, 2794–2803. [Google Scholar] [CrossRef] - Khan, A.A.; Cha, H.; Ahmed, H.F. High-Efficiency Single-Phase AC–AC Converters Without Commutation Problem. IEEE Trans. Power Electron.
**2016**, 31, 5655–5665. [Google Scholar] [CrossRef] - Khan, A.A.; Cha, H.; Kim, H. Three-Phase Three-Limb Coupled Inductor for Three-Phase Direct PWM AC–AC Converters Solving Commutation Problem. IEEE Trans. Ind. Electron.
**2016**, 63, 189–201. [Google Scholar] [CrossRef] - Kaniewski, J.; Fedyczak, Z.; Benysek, G. AC voltage sag/swell compensator based on three-phase hybrid transformer with buck-boost matrix-reactance chopper. IEEE Trans. Ind. Electron.
**2014**, 61, 3835–3846. [Google Scholar] [CrossRef] - Szcześniak, P.; Kaniewski, J. Hybrid transformer with matrix converter. IEEE Trans. Power Deliv.
**2016**, 31, 1388–1396. [Google Scholar] [CrossRef] - Szcześniak, P.; Tadra, T.; Kaniewski, J.; Fedyczak, Z. Model predictive control algorithm of AC voltage stabilizer based on hybrid transformer with a matrix converter. Electr. Power Syst. Res.
**2019**, 170, 222–228. [Google Scholar] [CrossRef]

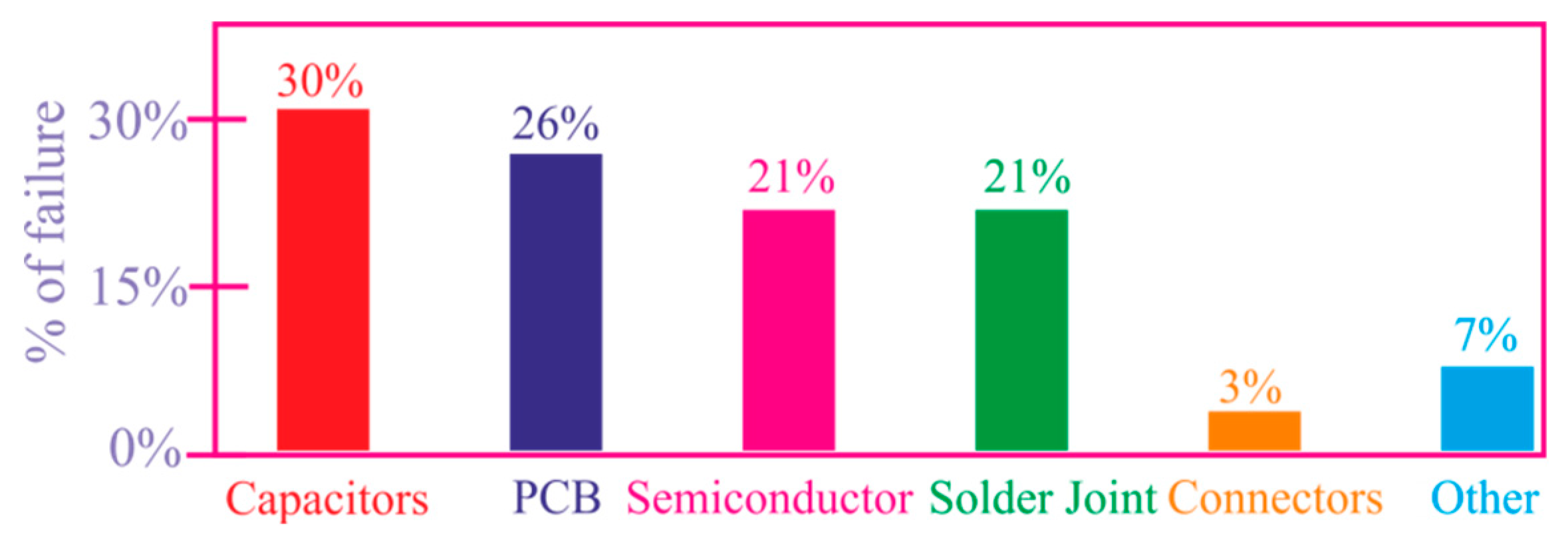

**Figure 2.**Distribution of faults in power electronic converters [14].

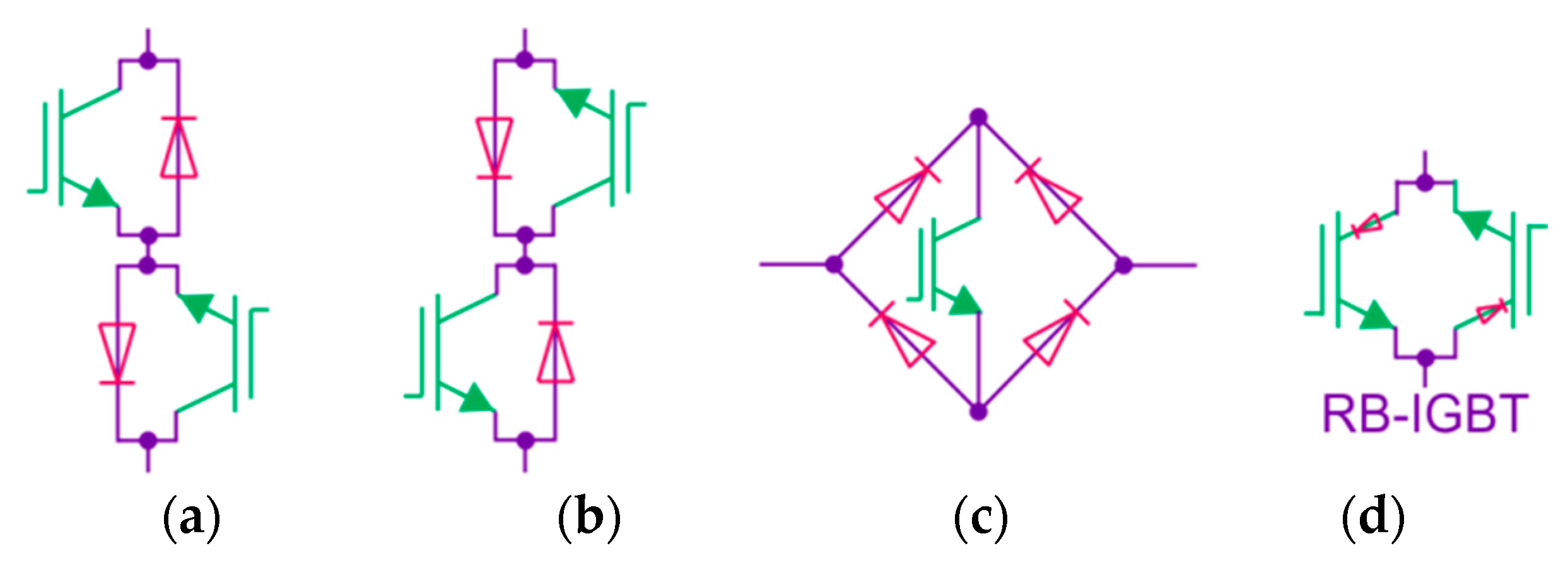

**Figure 5.**Bi-directional switches: (

**a**) Common emitter IGBT, (

**b**) common collector IGBT, (

**c**) IGBT with a diode bridge, and (

**d**) RB-IGBT reverse blocking IGBTs.

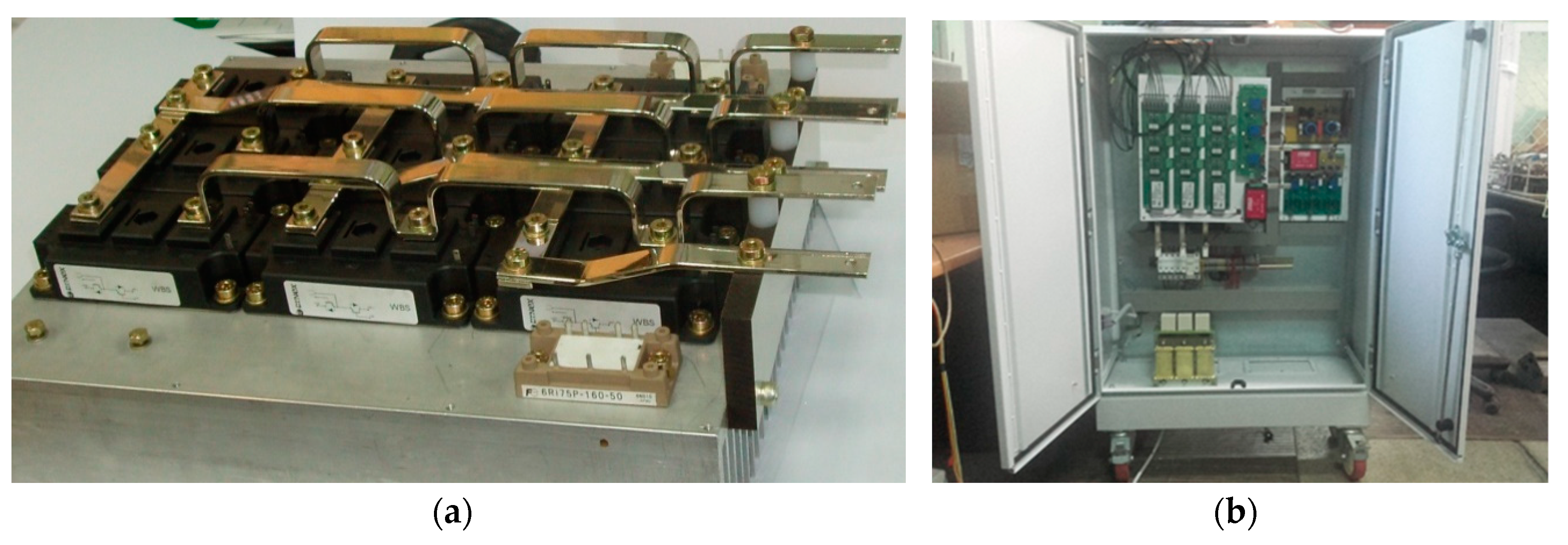

**Figure 6.**MC construction: (

**a**) Dynex 1.2 kV/200 A IGBT; (

**b**) a built-in MC structure in the control cabinet.

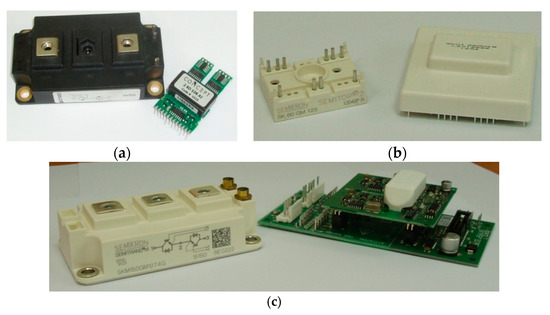

**Figure 8.**A photograph of the IGBTs with dedicated drivers: (

**a**) Dynex IGBT with Concept driver; (

**b**,

**c**) Semicron drivers and IGBTs.

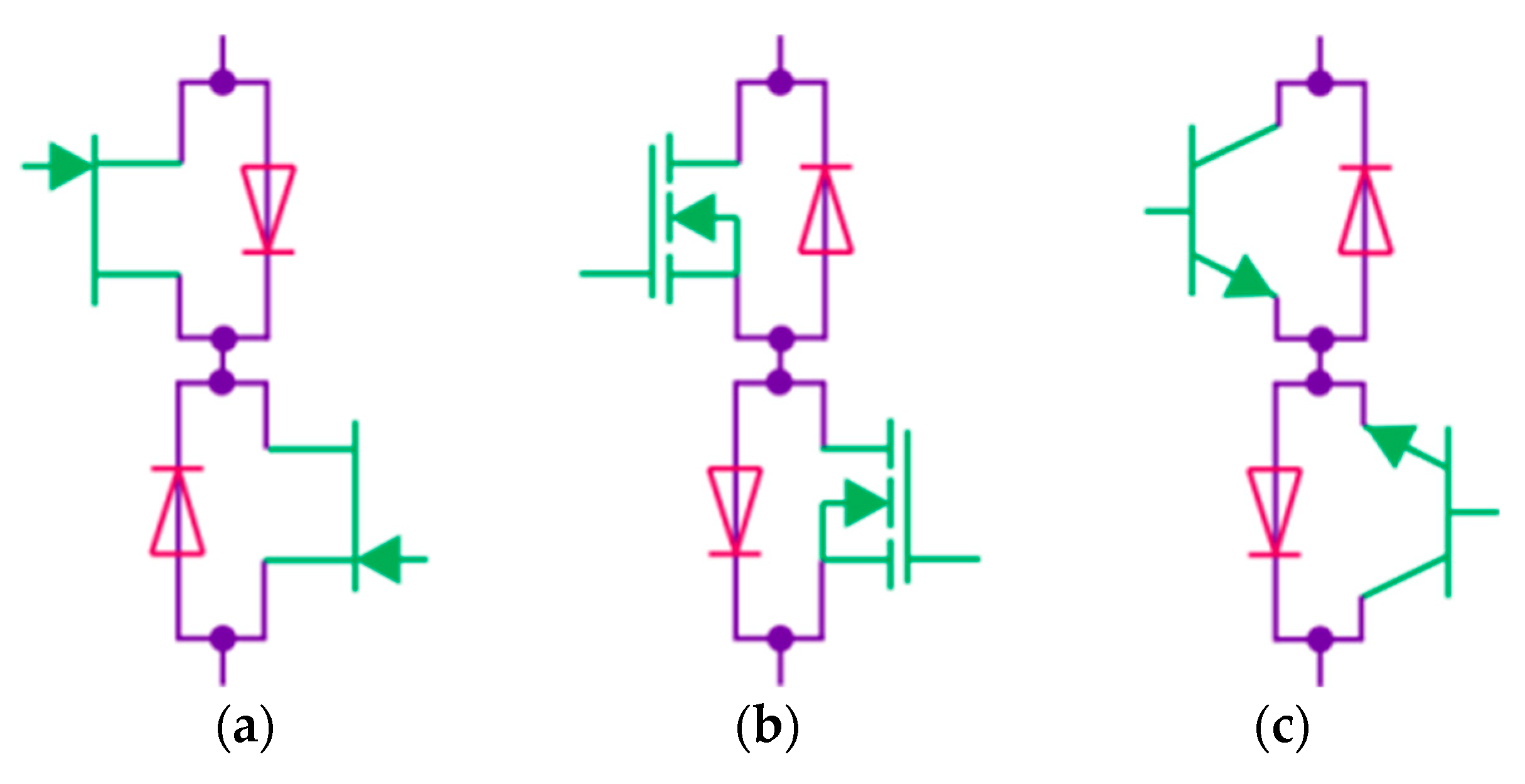

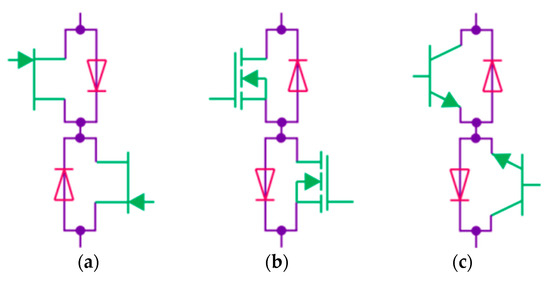

**Figure 9.**Main topologies for SiC bi-directional switches: (

**a**) common drain anti-paralleled JFET, (

**b**) common source anti-paralleled SiC MOSFET, and (

**c**) common emitter anti-paralleled SiC BJT.

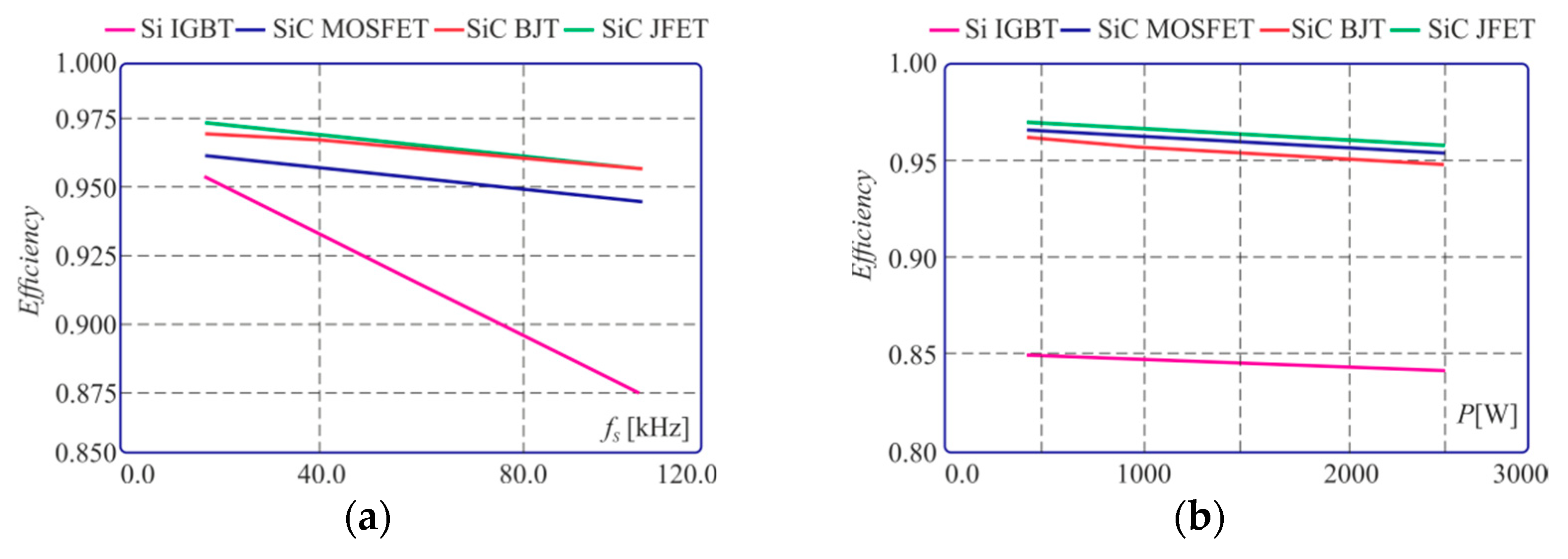

**Figure 10.**Illustration of the beneficial properties of the use of SiC transistors, taken from [24], presents the efficiency of a two-phase to single-phase 2.5 kW MC in Si and SiC technology (

**a**) as a function of switching frequency at T

_{c}= 125 °C and (

**b**) as a function of power at f

_{s}= 100 kHz, T

_{c}= 125 °C.

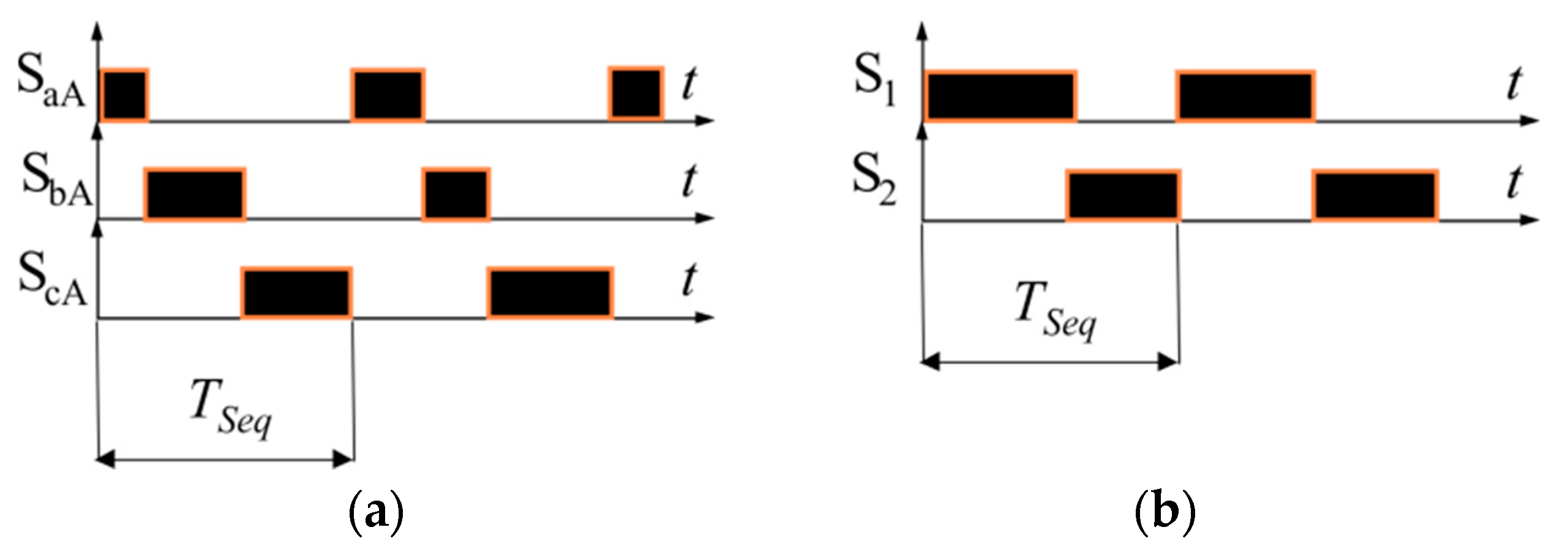

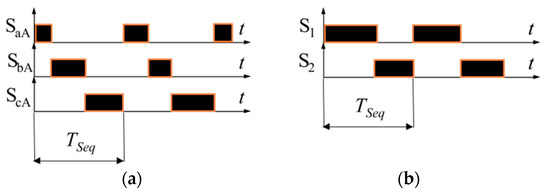

**Figure 11.**Distribution of control pulses in a single period of the control sequence T

_{Seq}: (

**a**) in the phase leg of a matrix converter, (

**b**) in the phase leg of a classical inverter.

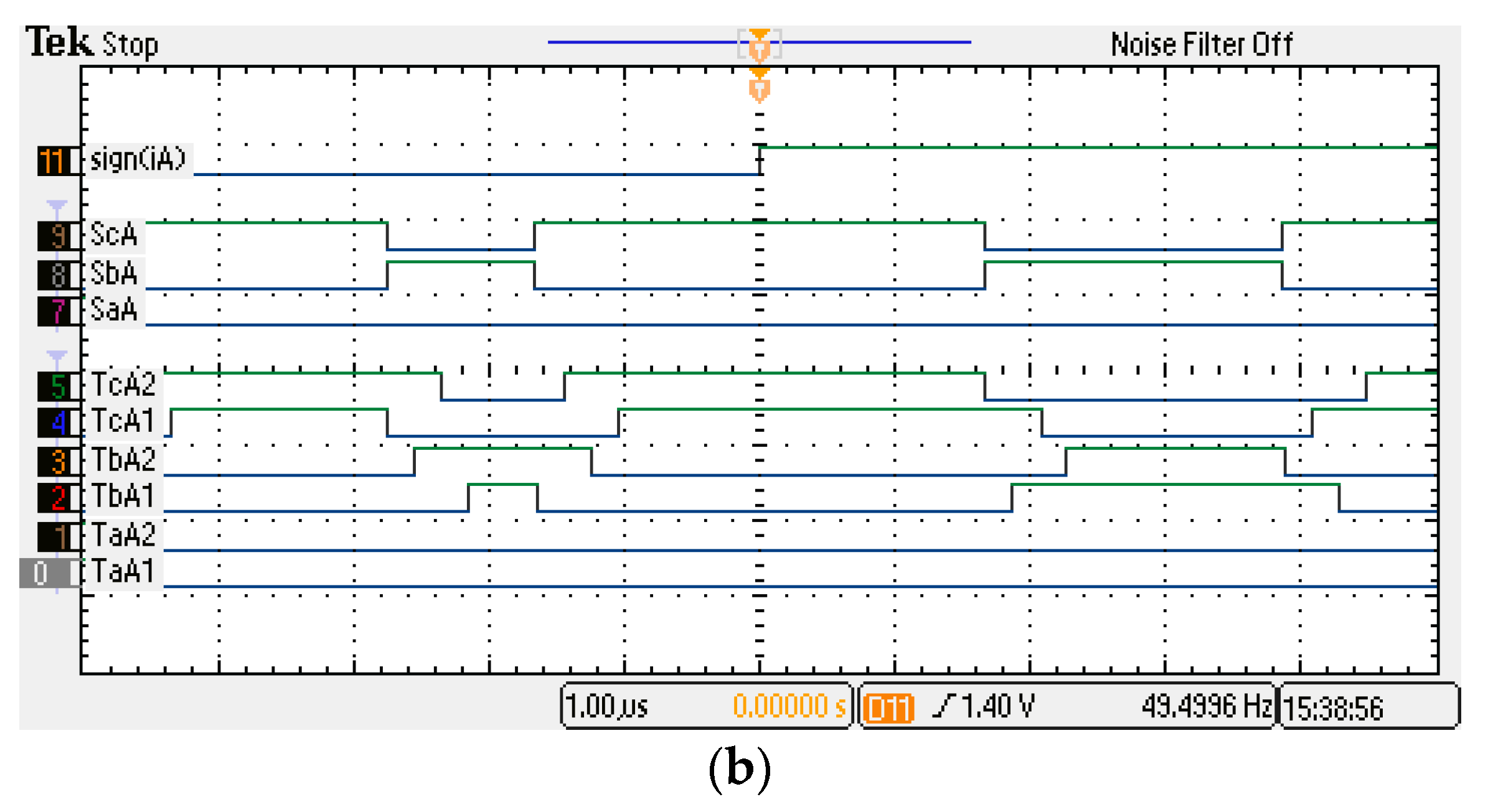

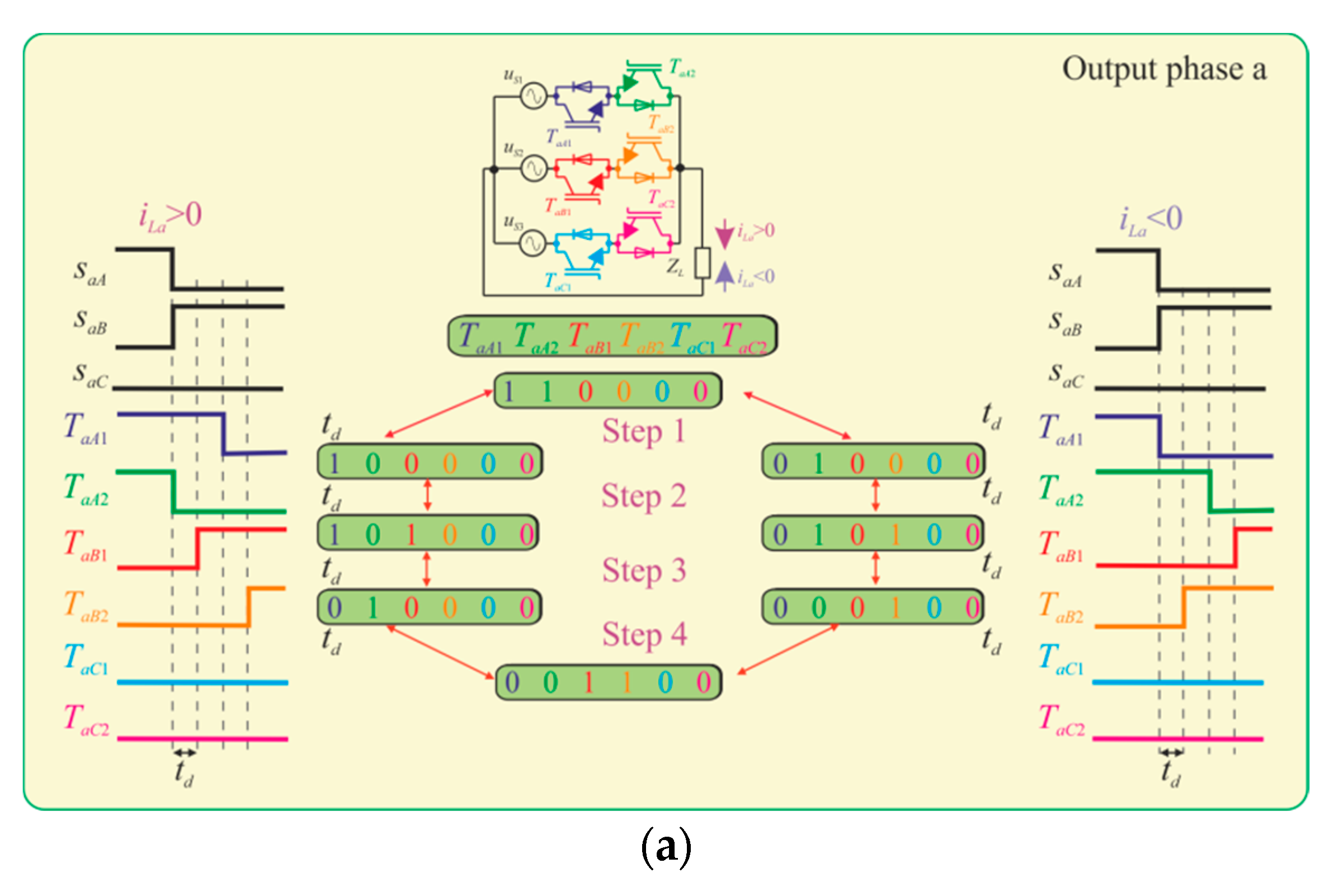

**Figure 12.**Four-step commutation process in one output phase of the MC: (

**a**) switching diagram; (

**b**) control signals from FPGA devices.

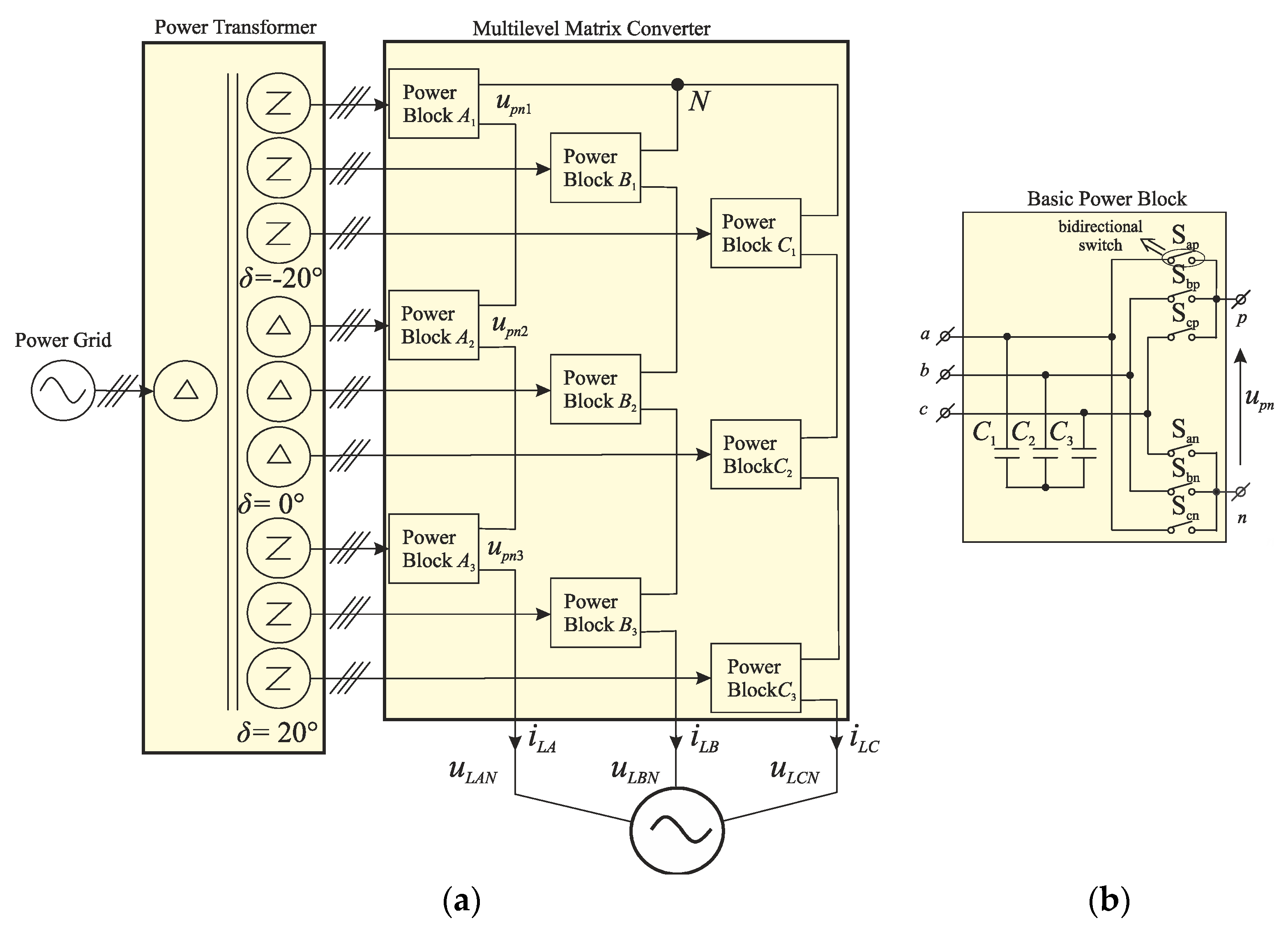

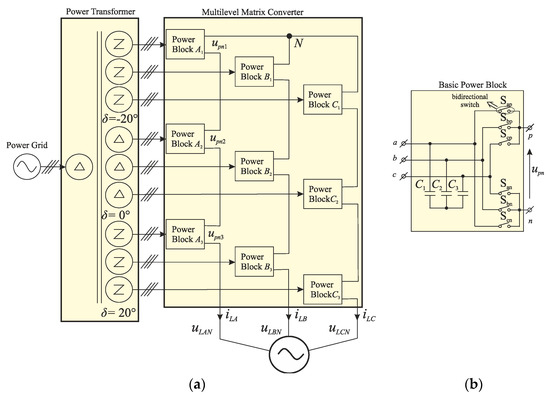

**Figure 14.**Multilevel, medium voltage matrix converters: (

**a**) a multilevel MC with nine basic power switch blocks; (

**b**) a three-phase to single-phase (3 × 2) MC power block.

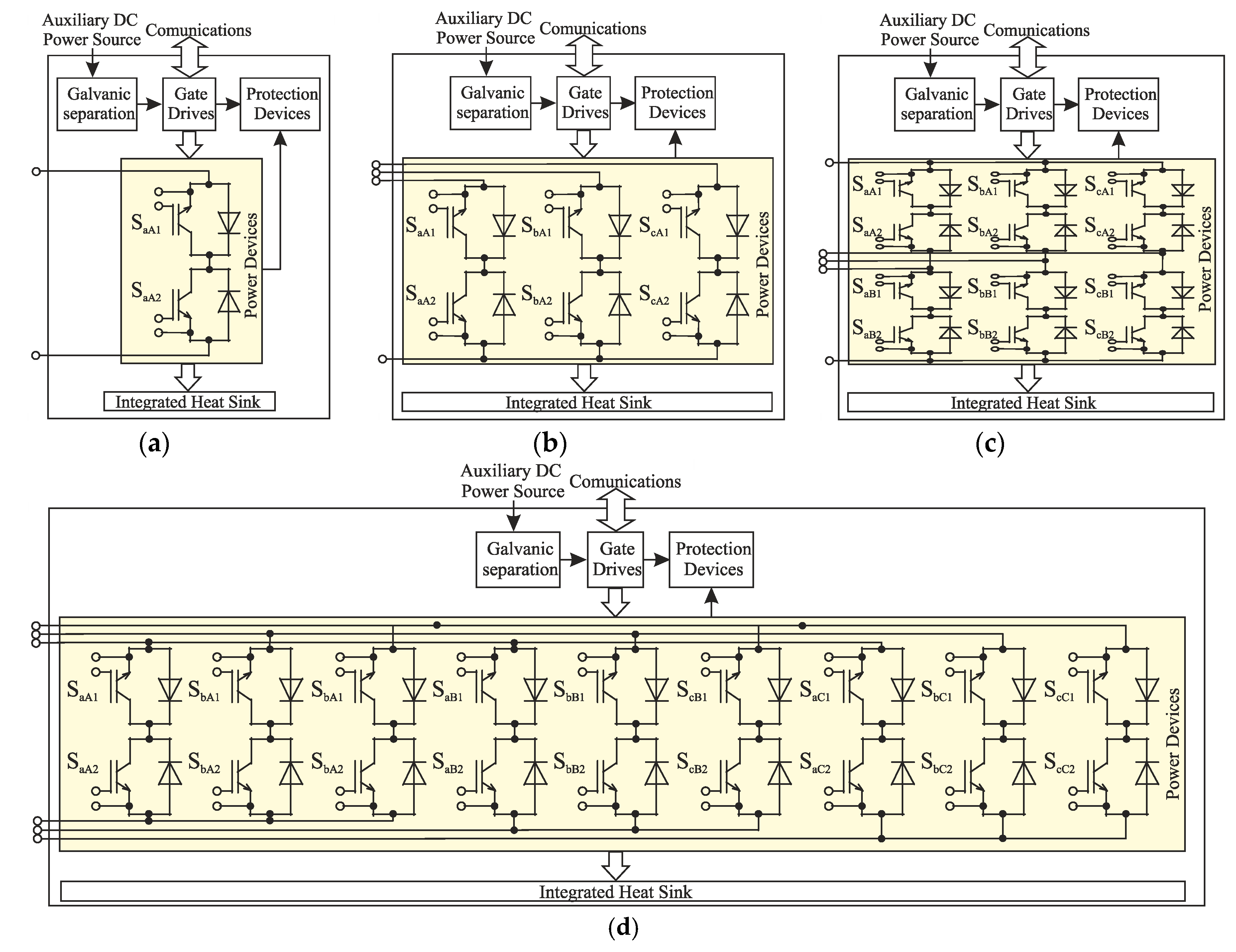

**Figure 15.**Common switching structures for power-electronic building blocks (PEBBs) in AC/AC power converters (

**a**) single bidirectional switch structure, (

**b**) single output phase of MC switch configuration, (

**c**) two phase of MC switch configuration, (

**d**) three phase of MC switch configuration.

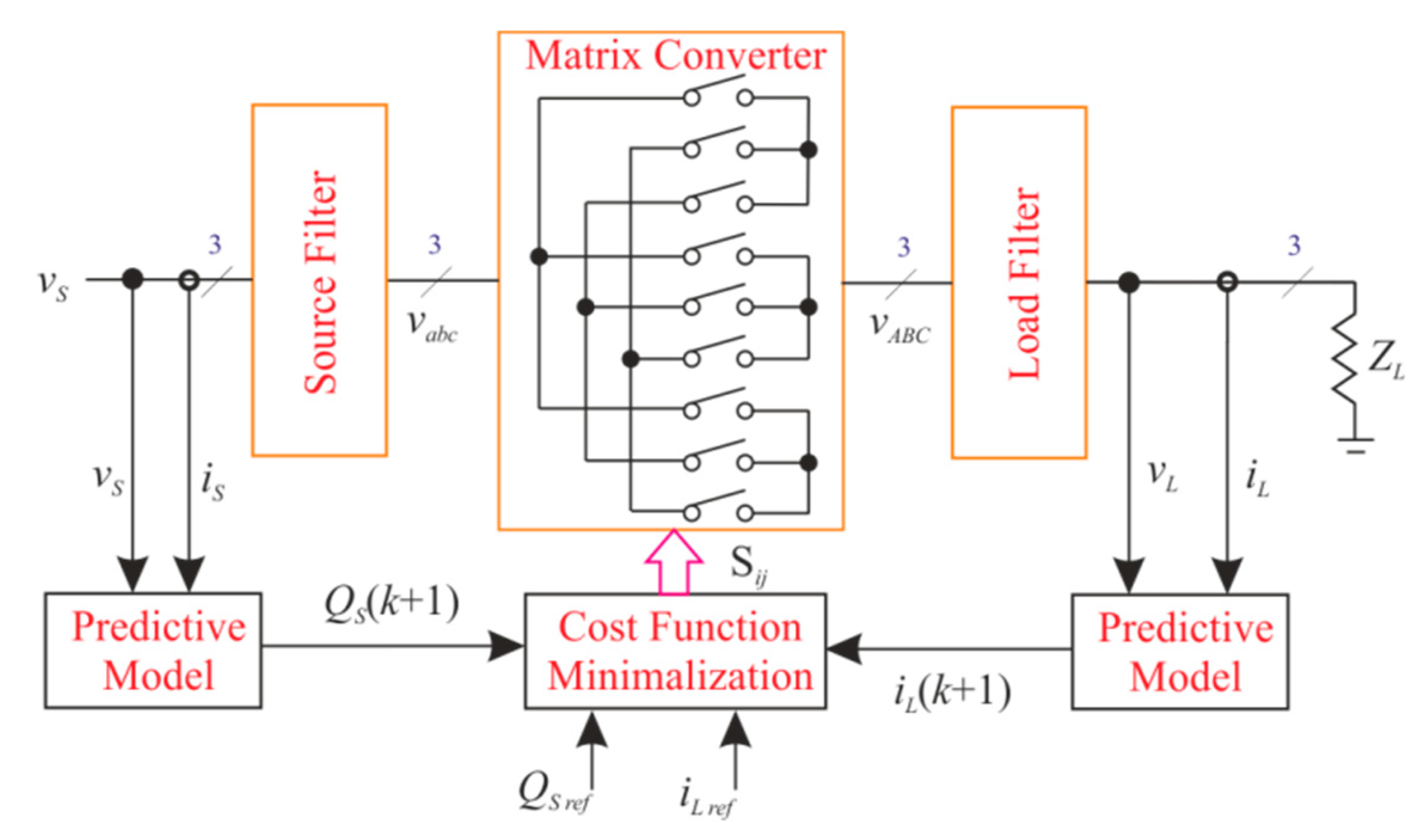

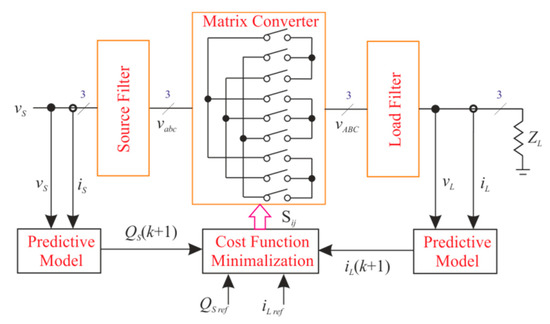

**Figure 16.**Model predictive control (MPC) of an MC with minimalization of the output current ripples and input power factor (reactive power).

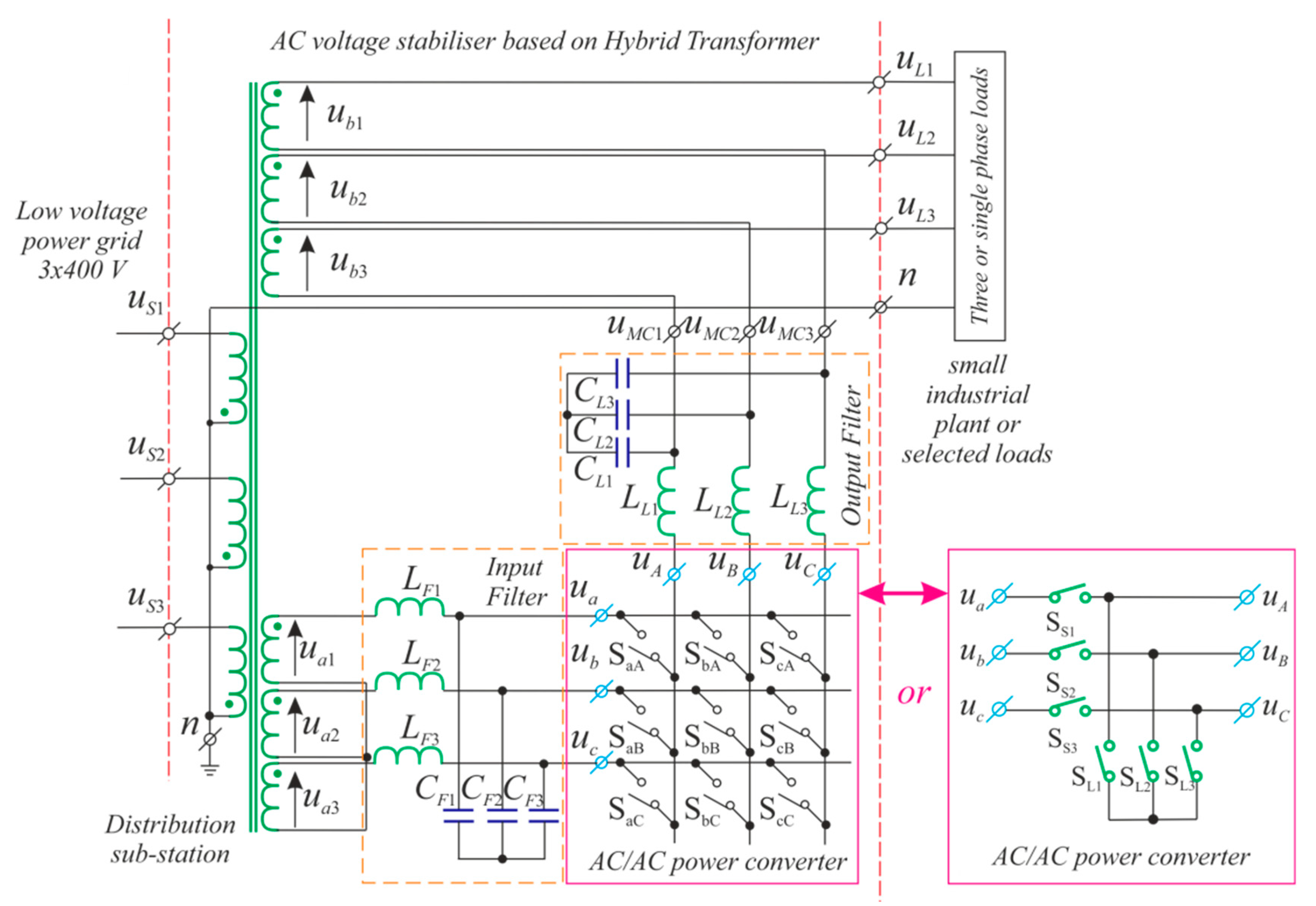

**Figure 17.**Compensator for voltage fluctuations, based on the HT with an MC or matrix chopper, installed at connection terminals of an industrial plant, a building, or selected industrial loads.

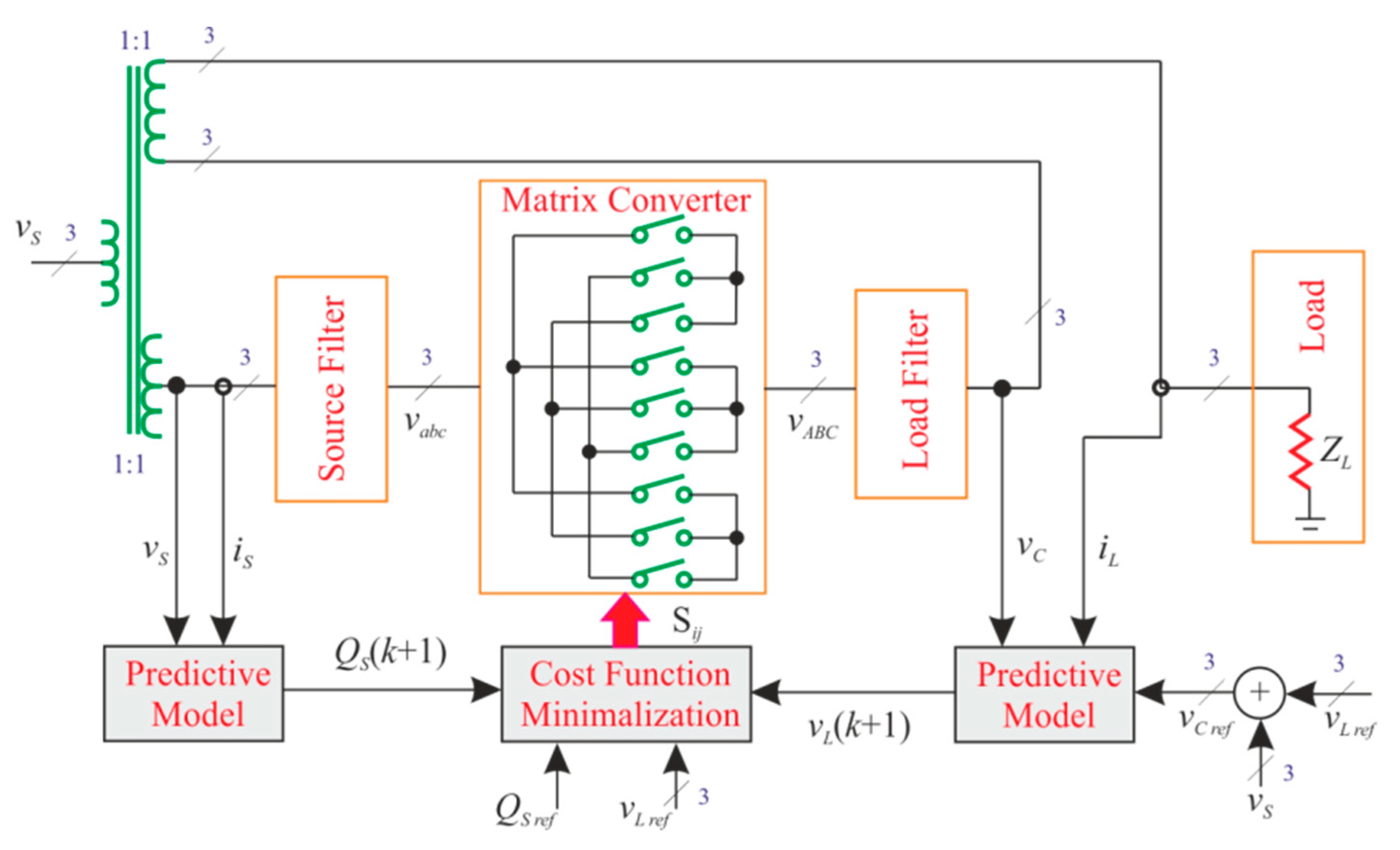

**Figure 18.**MPC of an HT voltage compensator with an MC and minimalization of the output voltage tracking error and input power factor.

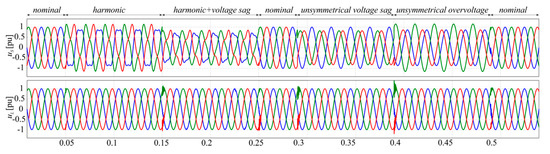

**Figure 19.**Results of compensations of electric power grid voltage fluctuation using an HT with an MC and MPC control (author’s simulation results); red – voltage phase 1, blue – voltage phase 2, green – voltage phase 3.

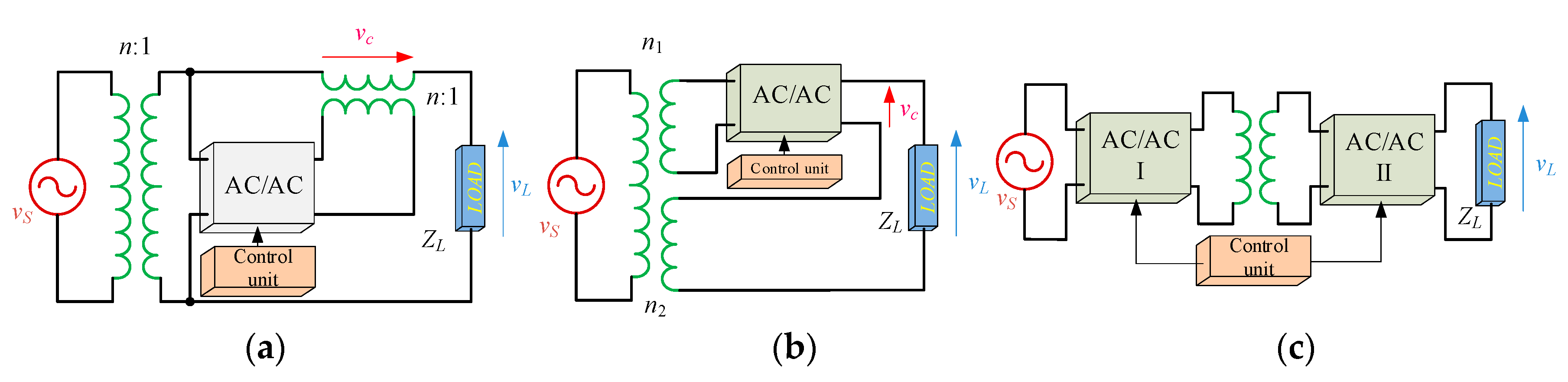

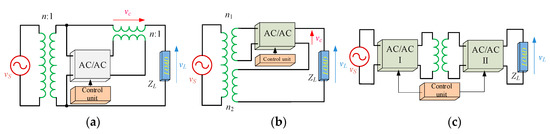

**Figure 20.**Single phase equivalent models of AC/AC converters installed in the power grid, (

**a**,

**b**) high reliability configurations, (

**c**) low reliability configuration.
