Techno-Economic Analysis of a 600 MW Oxy-Enrich Pulverized Coal-Fired Boiler

Abstract

Oxy-fuel combustion is one of the most promising methods for CO₂ capture and storage (CCS) but the operating costs—mainly due to the need for oxygen production—usually lead to an obvious decrease in power generation efficiency. An “oxy-enrich combustion” process was proposed in this study to improve the efficiency of the oxy-fuel combustion process. The oxidizer for oxy-enrich combustion was composed of pure oxygen, air and recycled flue gas. Thus, the CO₂ concentration in the flue gas decreased to 30–40%. The PSA (pressure swing adsorption), which has been widely used for CO₂ removal from the shifting gases of ammonia synthesis in China, was applied to capture CO₂ during oxy-enrich combustion. The technological economics of oxy-enrich combustion with PSA was calculated and compared to that of oxy-fuel combustion. The results indicated that, compared with oxy-fuel combustion: (1) the oxy-enrich combustion has fewer capital and operating costs for the ASU (air separation unit) and the recycle fan; (2) there were fewer changes in the components of the flue gas in a furnace for oxy-enrich combustion between dry and wet flue gas circulation; and (3) as the volume ratio of air and oxygen was 2 or 3, the economics of oxy-enrich combustion with PSA were more advantageous.

1. Introduction

Traditional energy resources (coal, gas, oil, etc.) account for approximately half of all the electric power currently generated in the world [1,2,3]. Tremendous quantities of CO₂ are produced from fossil fuel combustion every year. Among CO₂-capturing technologies, oxy-fuel combustion is one of the most promising technologies [4,5,6,7]. However, compared with air combustion, extra energy is required (e.g., ASU (air separation unit) etc.) for oxy-fuel combustion, which can lead to a decrease in generating efficiency from 38.5% (Supercritical pulverized coal plant) to 30.6% (Supercritical oxy-fuel plant) [8]. This loss may be the largest obstacle for applications of oxy-fuel combustion, especially in developing countries.

A new approach that allows air to be partially used in oxy-fired coal power plants was proposed by Zanganeh [9] and Doukelis [10]. Techno-economic simulations and analysis of this type of technology were carried out by Zanganeh [9] and Huang [11]. The results showed that the novel oxy-fuel combustion system needed less auxiliary power from the ASU and circulating fan, based on capturing CO₂ with full-scale cryogenic separation and its process efficiency was slightly lower than that of the full-scale oxy-fuel-based CO₂ capture configuration. The most likely reason was that cryogenic separation was suitable for the capture of relatively high concentrations of CO₂ (approximately 60%) [12]. Techno-economic simulations of the modified oxy-fuel combustion system with MEA (monoethanolamine) [10] showed the total electricity generation cost of the novel system (per net electricity) was lower than that of pure oxy-fuel or post-combustion CO₂ capture technologies.

Based on the modified oxy-fuel technology, “oxy-enrich combustion” has been defined in our previous research [13]. By adjusting the volume of air mixed with oxygen entering the furnace, the CO₂ volume concentration in the flue gas was limited to approximately 30–40%. The range of 30–40% was chosen because PSA (pressure swing adsorption) was a highly efficient, low energy consumption technology for the separation and purification of CO₂, which had become a competitive CO₂ capturing technology [14]. Japan is a pioneer in using PSA for separating CO₂, where PSA has mainly been applied to the power plant and manufacturing industries [15,16]. However, there are several difficulties when PSA technology is applied to a modern power plant due to a lower CO₂ concentration (3–20%) and an enormous flue gas volume [17]. PSA technology for CO₂ removal from the shifting gases of ammonia synthesis has been commercialized in China, where the CO₂ concentration is approximately 30–40%. This technology has been verified successfully in modern industry. According to the “oxy-enrich combustion” mode suggested in this study, the CO₂ concentration in flue gas is approximately 30–40% and the flue gas volume is less than half that of air combustion; therefore, it provides the possibility for the use of PSA technology in modern power plants, even in a 600 MW or more coal-fired boiler.

Because “oxy-enrich combustion” is a novel technology recently proposed by scholars, there have been few discussions relating to the “oxy-enrich combustion.” In this investigation, the “oxy-enrich combustion” mode is discussed in detail. In addition, using a 600 MW pulverized coal boiler as an example, a techno-economic analysis for oxy-enrich combustion plus PSA was conducted to provide a reference for the practical application of this technology.

2. Technical Description

2.1. Oxy-Fuel Combustion Technology

The oxy-fuel combustion process—where air is replaced with oxygen supplied by the ASU—burns the fuel in a mixture of oxygen and recycled flue gas to produce an enriched CO₂ flue gas [18], as shown in Figure 1.

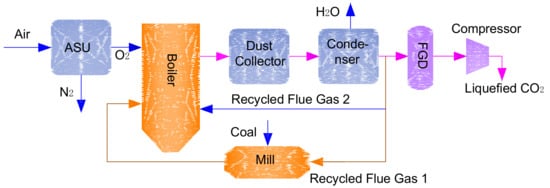

To maintain the temperature in the furnace within a suitable range, abundant recycled flue gas (usually 70–80%) is needed for oxy-fuel combustion. As shown in Figure 1, the recycled flue gas after the water condenser is divided into two parts entering the furnace. This process is called dry flue gas circulation. Recycled flue gas 1 is used to carry coal into the furnace and recycled flue gas 2 is directly introduced into the furnace. The exhaust gas passes through the flue gas desulfurization (FGD) and the compressors, SO₂ is removed and the CO₂ in the exhaust gas is liquefied. The discussion regarding wet flue gas circulation—where the recycled flue gas is directly introduced into the furnace without a condenser—will be detailed in Section 4.2.

2.2. Oxy-Enrich Technology

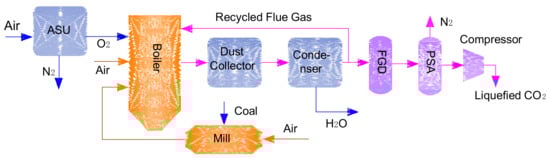

The system diagram of oxy-enrich combustion is shown in Figure 2.

Under oxy-enrich conditions, the gases introduced into the furnace consist of three parts: air, pure oxygen and recycled flue gas. The air heated by a preheater is divided into two parts: the primary air carries the pulverized coal into the furnace and the remainder of the air is directly introduced into the furnace for burning. Again, the dry flue gas circulation is defined as the recycled flue gas that is introduced into the furnace after the condenser. The exhaust gas after SO₂ removal by the FGD goes through a booster fan first and then CO₂ is adsorbed in the adsorption tower and the other gases (mainly N₂) are discharged directly. CO₂, desorbed by the vacuum pump, is compressed and liquefied in the compressor. The discussion regarding wet flue gas circulation under oxy-enrich conditions will be presented in detail in Section 4.2.

2.3. The PSA Cycle

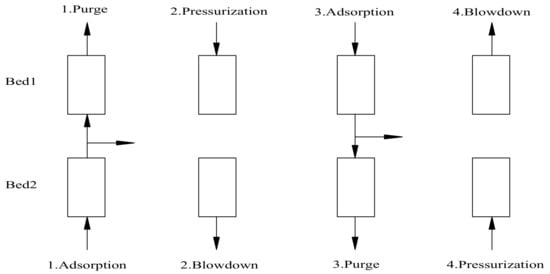

PSA can be operated on the basis of equilibrium, steric or kinetic selectivity. Using the two-bed cycle for example, Gomes et al. [19] described the PSA cycle in detail. The simple two-bed PSA cycle, involving four steps, is shown in Figure 3.

During step 1, a high-pressure feed is supplied continuously to bed 2, in which the preferential adsorption of the more strongly adsorbed or faster diffusing species occurs. The less strongly or slower diffusing species are removed as a raffinate product at the bed outlet. A small portion of this stream is expanded to low pressure and is used to purge bed 1. In step 2, bed 1 is pressurized and the contents of bed 2 are blown down in the reverse flow direction. This completes one half of a cycle. The other half cycle is accomplished similarly in steps 3 and 4.

In CO₂ separation from the flue gas, activated carbon, carbon molecular sieves and synthetic zeolites are candidate adsorbents. In general, zeolites have higher adsorption capacities for CO₂ and higher equilibrium selectivities for CO₂ over N₂ than activated carbon [20] but the cost of activated carbon is lower than that of zeolites [21].

The design of a PSA process is very important for CO₂ purity and recovery. At present, 4–12 adsorption tower cycle devices have been applied to industrial production. Reynolds et al. [22] evaluated nine stripping PSA cycle configurations, all with a heavy reflux step and the results showed that the 5-bed 5-step stripping PSA cycle with a heavy reflux exhibited the highest CO₂ purity and recovery in all the PSA cycles evaluated.

During the process of decarburization ammonia synthesis in China, the mixture of adsorbents, activated carbon, Al₂O₃, silica gel and diatomaceous earth were reloaded and delaminated in the adsorption tower with different ratios, which reached a very high CO₂ purity and recovery.

3. Calculation Base

The theoretical combustion temperature in the furnace under dry/wet flue gas circulation of the oxy-fuel and oxy-enrich modes was kept constant, (oxygen purity of 95% was applied) during the calculations. The selected calculation cases are as follows: (V_air/V_O2 is the volume ratio of air and oxygen):

Case 0: oxy-fuel combustion (30%O₂/70%CO₂);

Case 1: oxy-enrich combustion, V_air/V_O2 = 1;

Case 2: oxy-enrich combustion, V_air/V_O2 = 2;

Case 3: oxy-enrich combustion, V_air/V_O2 = 3.

The fuel analysis is given in

Table 1. Coal analysis.

Aar/%	Mar/%	Car/%	Har/%	Oar/%	Nar/%	Sar/%	LHV/kJ·kg−1
15.18	7.40	65.2	4.21	6.43	0.88	0.70	25,080

The subscript of ‘ar’ indicates the as-received basis.

.

The main design parameters for the 600 MW furnace are given in

Table 2. The main input data for the boiler.

Parameter	Unit	Data
Superheated steam flow	t/h	2060
Superheated steam pressure	Mpa (a)	17.6
Superheated steam temperature	°C	541
Reheat steam flow	t/h	1678
Reheat steam inlet and outlet pressures	Mpa (a)	3.97/3.79
Reheat steam inlet and outlet temperatures	°C	324.7/541
Economizer inlet temperature of water	°C	282.1
Economizer inlet pressure of water	Mpa (a)	19.49

.

4. Results and Discussion

4.1. Combustion Parameters

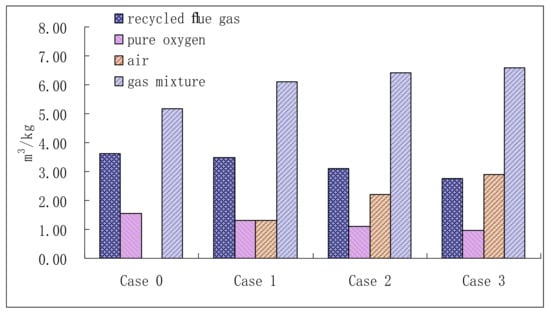

Based on 1 kg of coal, the volume of gases introduced into the furnace for the four cases are presented in Figure 4.

As shown in Figure 4, for oxy-fuel combustion (Case 0), the gaseous mixture consists of pure oxygen and recycled flue gas and the total volume of the gaseous mixture is the lowest but the volumes of pure oxygen and recycled flue gas were the highest among the four Cases 0–3. For oxy-enrich combustion, the volumes of pure oxygen and recycled flue gas decreased with an increase in the volume ratio of air and oxygen. Under oxy-enrich conditions, coal was burnt in a mixture of air, recycled flue gas and pure oxygen, where air was not only used to support combustion but also to replace part of the recycled flue gas to adjust the temperature in the furnace. Therefore, compared with Case 0, the volumes of recycled flue gas and pure oxygen are smaller for oxy-enrich combustion. However, the total volume of the gaseous mixture under oxy-enrich conditions increased with an increasing volume ratio of air and oxygen because N₂ followed O₂ into the furnace.

It is well known that the operating costs of the ASU and the flue gas recycling fan are relatively very high for oxy-fuel combustion. As shown in Figure 4, the decreasing volume of pure oxygen and recycled flue gas under oxy-enrich conditions provided the potential for improved economy.

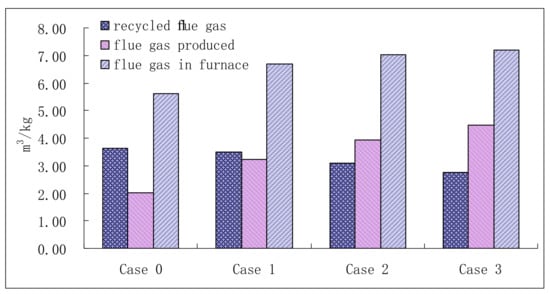

Again based on 1 kg of coal, the volumes of flue gas in the furnace for four cases are presented in Figure 5.

The flue gases in the furnace consisted of recycled flue gas and the flue gas produced from coal burning. Figure 5 shows that under oxy-fuel combustion (Case 0), the volume of flue gas in the furnace and produced by coal firing were the lowest among the four cases. For oxy-enrich combustion, both gases increased with the volume ratio of air and oxygen. For Case 0, coal was burnt in a mixture of oxygen and recycled flue gas and the flue gas produced by burning was the lowest because of the absence of N₂. For Cases 1–3, when the amount of air increased in the furnace, the volume of gas produced by burning increased and the volume of flue gas in the furnace also changed, which probably led to some changes in the heat transfer characteristics of the furnace, which will be discussed in the future.

4.2. Dry and Wet Flue Gas Circulation

Dry flue gas circulation has been introduced briefly in Section 2.1. Corresponding to dry flue gas circulation, wet flue gas circulation is defined as when the flue gas is introduced into the furnace directly as recycled flue gas, without water vapor removal. The “low-temperature corrosion” on the surfaces of the posterior heater in the boiler are more likely to occur due to the formed H₂SO₄ under wet flue gas circulation. For the dry flue gas circulation, because most of the water in the recycled flue gas was removed, the “low-temperature corrosion” decreased greatly but the costs increased because of the added condenser and consumption. The component of flue gas in the furnace is different during dry/wet circulation, which could lead to different radiation characteristics of triatomic gases in the furnace.

The theoretical combustion temperature in the furnace under dry/wet cycle of oxy-fuel and oxy-enrich modes was kept constant (oxygen purity of 95%) in the following calculations. The components of flue gas in the furnace under dry/wet cycle ways for Case 0–3 are given in

Table 3. The components of flue gases under dry/wet flue gas circulation modes.

Case	Case 0		Case 1		Case 2		Case 3
	WFGR	DFGR	WFGR	DFGR	WFGR	DFGR	WFGR	DFGR
Oxygen concentration in mixture/(%)	29.00	30.00	25.5	25.4	24.4	24.2	23.7	23.5
VREY/VLY/(%)	65.41	64.32	51.74	51.92	43.65	43.97	37.64	38.12
Component of flue gas/(%)	-	-	-	-	-	-	-	-
N2	3.86	5.03	39.96	44.71	50.51	54.60	56.11	59.58
CO2	60.60	78.91	37.74	42.24	30.93	33.44	27.31	28.99
H2O	31.97	11.41	18.65	8.97	15.57	8.72	13.94	8.62
O2	3.33	4.33	3.50	3.92	2.87	3.10	2.53	2.69
SO2	0.24	0.32	0.15	0.17	0.12	0.13	0.11	0.12

V_REY/V_LY: the volume ratio of the recycled flue gas and the flue gas in the furnace; WFGR: wet flue gas recirculation; DFGR: dry flue gas recirculation.

.

Table 3 shows that the oxygen concentration of the gaseous mixture of oxy-fuel combustion is the highest among Cases 0–3. The oxygen concentration decreased with an increasing volume ratio of air and oxygen for Cases 1–3, which resulted from more gases introduced into the furnace with the increasing volume ratio of air and oxygen. Similarly, the oxygen concentrations of the gaseous mixture of dry/wet circulation for Cases 0–3 were also different. For Case 0, the CO₂ concentration of flue gas for dry circulation was much higher than that for wet circulation. For Cases 1–3, N₂ that held the largest proportion increased gradually in the gaseous mixture; therefore, the CO₂ concentration of flue gas decreased with an increase in the volume ratio of air and oxygen. However, for Cases 1–3, the difference in the CO₂ concentration between the dry and wet cycles was not as obvious as it was in Case 0.

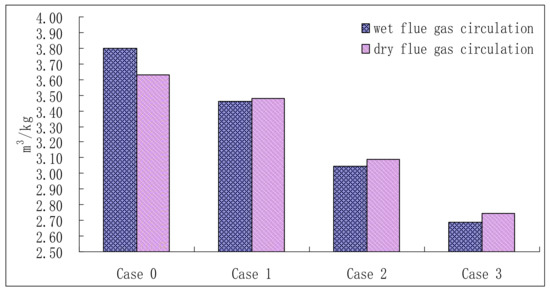

On the basis of a consistent theoretical combustion temperature under dry/wet flue gas circulation for Cases 0–3, the volumes of recycled flue gas are shown in Figure 6.

An interesting phenomenon, depicted in in Figure 6, was that the volume of recycled flue gas of the wet flue gas circulations was more than that of the dry flue gas circulations for Case 0 but not for Cases 1–3.

The theoretical combustion temperature was mainly influenced by the components, and volume, of the flue gas. As shown in Table 3, for Case 0, the CO₂ concentration was 60.6% for wet flue gas recirculation (WFGR) and 78.91% for dry flue gas recirculation (DFGR). Because the specific heat capacity of CO₂ was higher than that of H₂O and N₂, the volume of the recycled flue gas of the wet flue gas circulation could be more than that of the dry flue gas circulation for maintaining a consistent theoretical combustion temperature. For Cases 1–3, there was little difference in CO₂ concentration between the dry and wet flue gas circulations (see Table 3), so the key factor was not CO₂ but H₂O and N₂, especially H₂O (because the specific heat capacity of H₂O was higher than that of N₂). Thus, the volumes of the recycled flue gas for the wet flue gas circulations were less than those of the dry flue gas circulation. For either dry or wet circulations, the volume of the recycled flue gas of Case 0 was the highest among Cases 0–3. In addition, the recycled flue gas decreased with an increase in the volume ratio of air and oxygen for Cases 1–3.

5. Economic Evaluation

5.1. Economic Evaluation Model

5.1.1. The Total Annual Cost (C_T) of a Power Plant

To evaluate the C_T, the following factors should be considered: the annual cost (C_AI), which is also referred to as the amortization cost; the cost of operation and maintenance (OM, C_OM) and the annual cost of fuel (C_F).

$$C_T=C_{AI}+C_{OM}+C_F$$

(1)

(1) The amortization cost (C_AI)

C_AI of technical economics used for an economic evaluation is an economic indicator that combines the investment pay-back period, interest rate and the rate of inflation. C_AI is defined as follows: [23]

$$C_{AI}=\phi f{C}_I=\xi C_I$$

(2)

where $\phi$ is the maintenance factor ($\phi =1.06$ [24]); $\xi$ is the amortization factor; and C_I is the total investment cost, which can be described as follows:

$$C_{I-oxy}=C_P+C_{FGD}+C_{SCR}+C_{ASU}+C_{FG}+C_{BU}$$

(3)

$$C_{I-PSA}=C_P+C_{FGD}+C_{SCR}+C_{ASU}+C_{PSA}+C_{FG}+C_{BU}$$

(4)

where C_P is the infrastructure investment for a power plant; C_FGD is the desulfurization investment; C_SCR is the denitration investment; C_ASU is the air separation unit (ASU) investment; C_PSA is the PSA investment; C_FG is the CO₂ compression investment; C_BU are the expenses of modifying the boiler; and f expressed as follows is the annual capital recovery factor [25].

$$f={\left[\frac{q^{(k+P)}-1}{(q-1)q^{(k+P)}}-\frac{q^P-1}{(q-1)q^P}\right]}^{-1}$$

(5)

$$q=(1+i)(1+r)$$

(6)

where P is the construction period (P = one year in this paper), k is the amortization period (k = 20 years), i is the interest rate (i = 6.6%) and r is the rate of inflation (r = 2.424%, the average value of the last ten years in China).

(2) The cost of operation and maintenance (C_OM)

C_OM is 4% of the total investment cost (C_I) [26] and can be calculated as follows (r_OM = 4%):

$$C_{OM}=r_{OM}{C}_I$$

(7)

(3) The annual cost of fuel (C_F)

$$C_F=c_{F}H{M}_F$$

(8)

where c_F is the unit price of standard coal (c_F = 91 $/t in this study), H is the number of operation hours (H = 7200) and M_F is the annual consumption of standard coal.

(4) The revenue from CO₂ sale ($C_{C{O}_2}$)

High-purity CO₂ obtained from the flue gas can be utilized to produce urea, methanol, drinks, dry ice and can enhance oil/gas/coal-bed-methane recovery (CO₂-EOR/EGR/ECMR). Thus, $C_{C{O}_2}$ can counteract part of the total cost and decrease the unit electricity cost. In China, a market price of 15–25 $/t of industrially produced CO₂ for EOR is acceptable.

The $C_{C{O}_2}$ can be described as follows:

$$C_{C{O}_2}=r_{C{O}_2}{c}_{C{O}_2}{M}_P$$

(9)

where $r_{C{O}_2}$ is the CO₂ capture rate ($r_{C{O}_2}$ = 90% [27]), $c_{C{O}_2}$ is the unit price of the CO₂ sale and M_P is the annual amount of CO₂ emissions.

5.1.2. The Cost of Electricity

With the decarburization system added, there are two different methods used to calculate the electricity cost.

Without considering the revenue from the CO₂ sale, the cost of electricity—E_COE1 with a dimension of $/MWh—is calculated by

$$E_{COE1}=C_T/\left(W_{net}\times H\right)$$

(10)

Considering the revenue from the CO₂ sale, the cost of electricity—E_COE2—is calculated by

$$E_{COE2}=\left(C_T-C_{C{O}_2}\right)/\left(W_{net}\times H\right)$$

(11)

where W_net is the net electricity output (MW).

5.1.3. The CO₂ Avoidance Cost (CAC)

The CO₂ avoidance cost (CAC) is an economic indicator widely used in the techno-economic evaluation of CO₂ emission control systems. This cost is the cost to avoid CO₂ emission ($/t). The CAC ranges from 26 to 42 $/t according to References [26,28] and can be calculated as follows [24]:

$$E_{CAC}=\frac{E_{COE2}-E_{COE-air}}{m_{P-air}-m_p}$$

(12)

where m_p is the unit CO₂ emission amount (tCO₂/MWh) and the subscript “air” identifies a conventional coal-fired plant. E_COE-air and m_p can be calculated by Equations (10) and (13), respectively.

$$m_p=M_P/\left(W_{net}\times H\right)$$

(13)

5.2. Results and Discussion

The base data applied to the calculations originated from a Chinese power plant: a 600 MW coal-fired boiler with a desulfurization and denitration device; economic parameters of a PSA device according to shift gas decarburization for a 180-thousand-ton Chinese ammonia plant; ASU and CO₂ compression [28] and the expense of modifying the boiler can be found in the literature [29]. It was also important to note that CO₂ price may change drastically due to massively switching the big electro installations into CO₂ capturing and the costs of CO₂ emissions and carbon prices are highly uncertain in the future. Therefore, the economic efficiency of oxy-fuel combustion and oxy-enrich combustion were only evaluated based on the current situation.

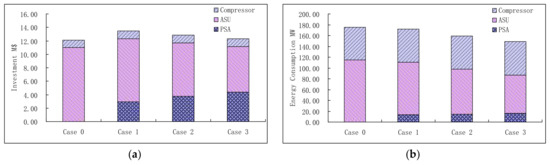

The capital costs and the energy consumptions of the CO₂ compressor, ASU and PSA for four cases are given in Figure 7.

The capital cost and the energy consumption of PSA increased with an increase in the volume ratio of air and oxygen for oxy-enrich combustion but not for ASU. For Cases 0–3, the total capital costs of the three devices (CO₂ compressor, ASU and PSA, M$) were $12.12, 13.44, 12.84 and 12.30 M, respectively, and the total energy consumption (MW) values were 175.14, 171.64, 158.81 and 148.65 MW, respectively. Compared with Case 0, the capital costs of the three devices were more for Cases 1–3 but Case 3 was very close to Case 0. However, the total energy consumption of Cases 1–3 were always less than that of Case 0. For Cases 1–2, the decrease in the capital costs of ASU relative to Case 0 were smaller than the increase in the capital costs of PSA. However, when the volume ratio of air and oxygen increased to 3 (Case 3), the investments of ASU and PSA approximately counteract each other. In addition, the higher the volume ratio of air and oxygen is, the more flue gas could be purified by the PSA decarburization device per unit time, which leads to increased capital costs and energy consumption of the PSA but the capital cost and energy consumption of the ASU was reduced.

Economic analysis results are provided in

Table 4. The economic analysis results of the unit.

Case	Air Combustion	Case 0	Case 1	Case 2	Case 3
Total investment cost (M$)	449.14	550.65	568.03	564.56	561.05
Amortization cost (M$/y)	57.69	70.73	72.96	72.52	72.07
Cost of O&M (M$/y)	17.97	22.03	22.72	22.58	22.44
Annual cost of fuel (M$/y)	147.05	142.21	142.82	143.52	144.23
Revenue from CO2 sale (M$/y)	0	105.44	107.63	106.41	106.93
Net electricity output (MW)	564.85	393.21	394.68	407.54	417.70
Annual CO2 missions (Mt/y)	3.8764	0.3372	0.3444	0.3405	0.3422
Not considering the revenue from CO2 sale, the cost of electricity ($/MWh)	54.77	83.00	83.92	81.33	79.39
Considering the revenue from CO2 sale, the cost of electricity ($/MWh)	54.77	45.75	46.05	45.06	43.83
CO2 avoidance cost ($/t)	-	33.85	35.06	31.73	29.33
Coal-consuming rate (g/(KWh))	309.01	428.79	429.68	417.90	409.71

.

As shown in Table 4, if the revenue from the CO₂ sale was not considered, the electricity costs of Cases 0–3 were more than that of air combustion without a decarburization system, because the capital costs and energy consumption can increase due to the additional decarburization system of Cases 0–3. Notably, the CO₂ avoidance cost of Case 1 was just over that of oxy-fuel combustion. A decrease in the capital cost for the ASU relative to Case 0 was not enough to counteract the increased cost of the PSA decarburization system, which leads to a relatively high cost of CO₂ avoidance. However, when the volume ratio of air and oxygen was 2–3 (Cases 2 or 3), the CO₂ avoidance cost was lower than that of oxy-fuel combustion.

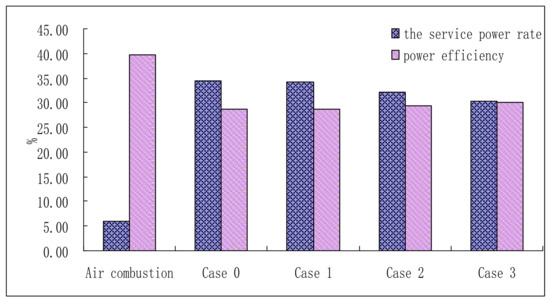

The service power rates and power efficiencies of five cases are shown in Figure 8.

Figure 8 shows that the net electricity output of the unit of Cases 0–4 was less than that of air combustion due to the additional decarburization system. As a result, the power efficiency decreased and the service power rate increased greatly. Additionally, the service power rates and power efficiencies of Case 0 and Case 1 were very close to each other. Compared to Case 0, the service power rates of Case 2 and Case 3 were lower but they had higher power efficiencies. During oxy-enrich combustion, an increase in the energy consumption of the PSA decarburization device could be compensated for by the decrease in the energy consumption of the ASU and when the volume ratio of air and oxygen grew, the net electricity output of the unit obviously increased with the changes in the service power rate and power efficiency.

6. Conclusions

The concept of “oxy-enrich combustion” was discussed in this study. The gases for coal combustion were composed of pure oxygen, air and some recycled flue gases and the CO₂ concentration in the flue gas was approximately 30–40%. Thus, CO₂ in the flue gas could easily be removed by PSA. Techno-economic analyses of a 600 MW pulverized coal boiler were carried out during oxy-fuel combustion and oxy-enrich combustion. The main conclusions are outlined as follows:

(1)

The demand of oxy-enrich combustion for pure oxygen was less than that of oxy-fuel combustion, which leads to fewer capital and operating costs for the ASU. The air entering the furnace of oxy-enrich combustion played a role in adjusting furnace temperature; therefore, the recycled flue gas was less than that of oxy-fuel combustion, which leads to lower operating costs of the recycle fan.

(2)

When the ratio of air and oxygen was 1 during oxy-enrich combustion, the service power rate, the unit power supply and CO₂ emissions costs were higher than those during oxy-fuel combustion. However, when the volume ratio was 2–3, the economy of oxy-enrich combustion with PSA was more advantageous.

(3)

The volume of flue gas in the furnace per unit time of oxy-fuel combustion and oxy-enrich combustion were less than that of air combustion and the characteristics of radiation and convective heat transfer could be changed, which could lead to some changes in the boiler structure.
