Stochastic Dynamic Response Analysis of a 10 MW Tension Leg Platform Floating Horizontal Axis Wind Turbine

1
State Key Laboratory for Alternate Electrical Power System with Renewable Energy Sources, North China Electric Power University, Beijing 102206, China
2
CAS Key Laboratory of Wind Energy Utilization, Institute of Engineering Thermophysics, Chinese Academy of Sciences, Beijing 100190, China
*
Author to whom correspondence should be addressed.
Energies 2018, 11(12), 3341; https://doi.org/10.3390/en11123341
Received: 2 October 2018 / Revised: 9 November 2018 / Accepted: 23 November 2018 / Published: 30 November 2018
(This article belongs to the Special Issue Sustainable Energy Systems)

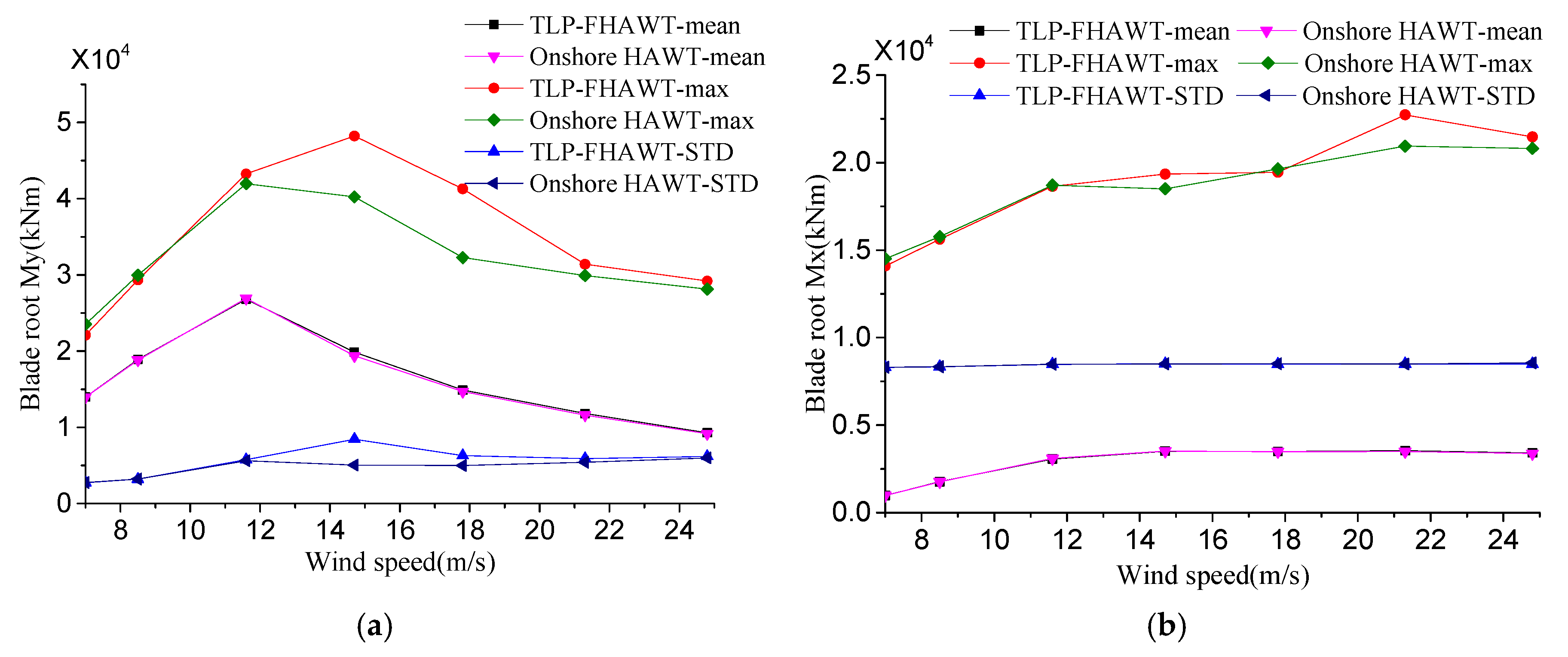

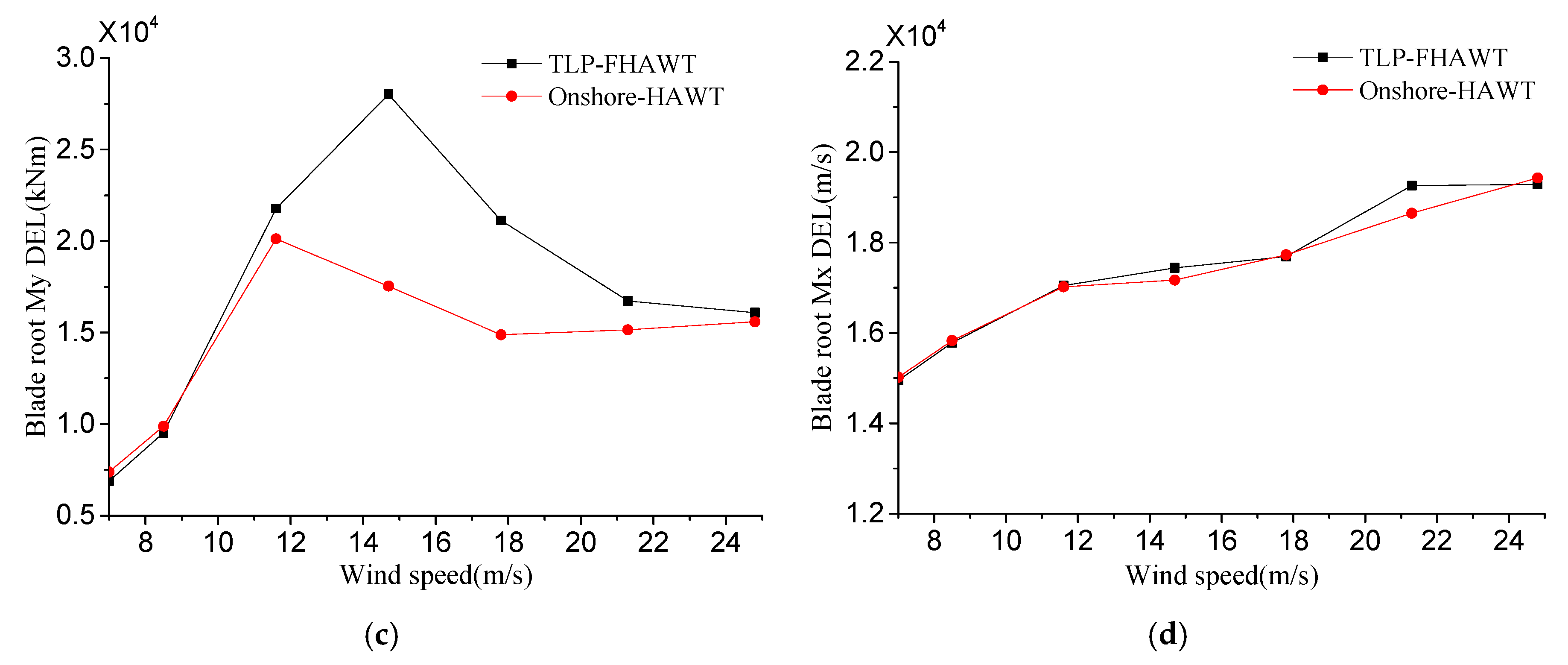

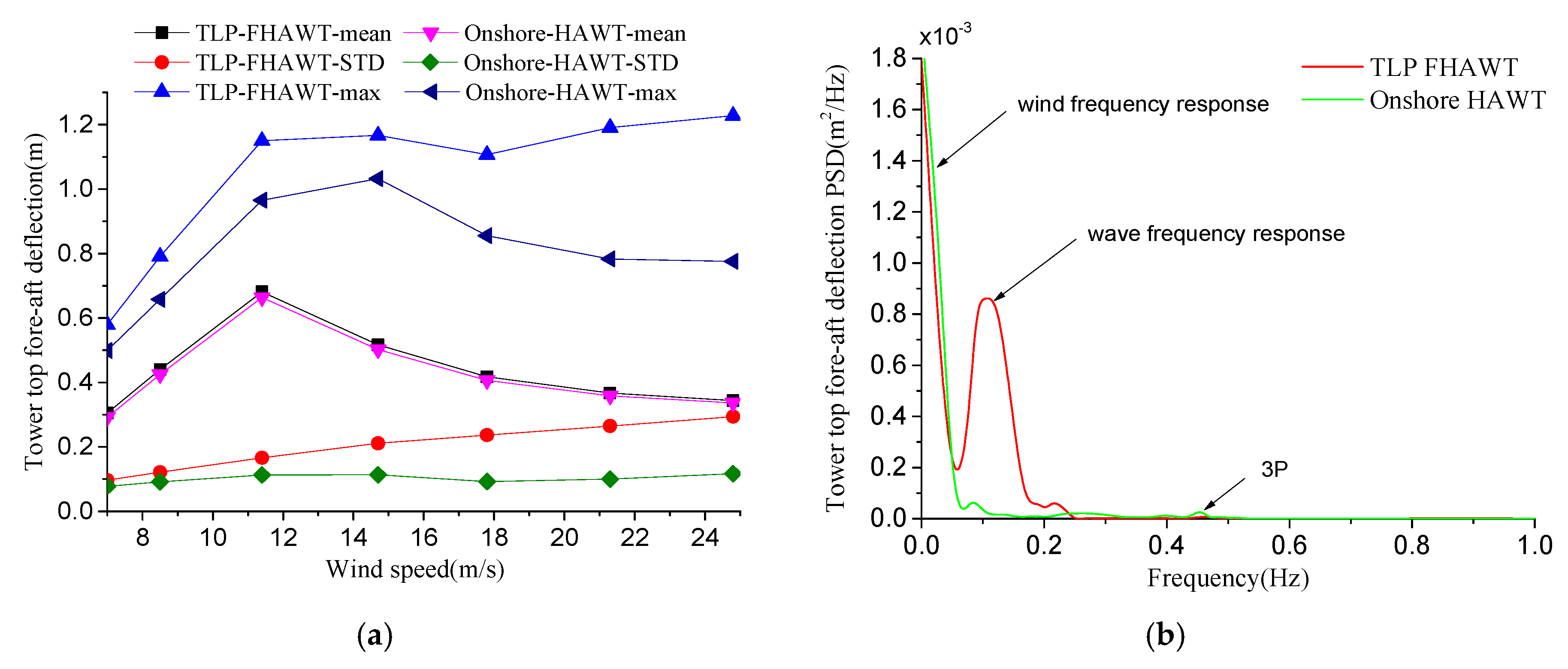

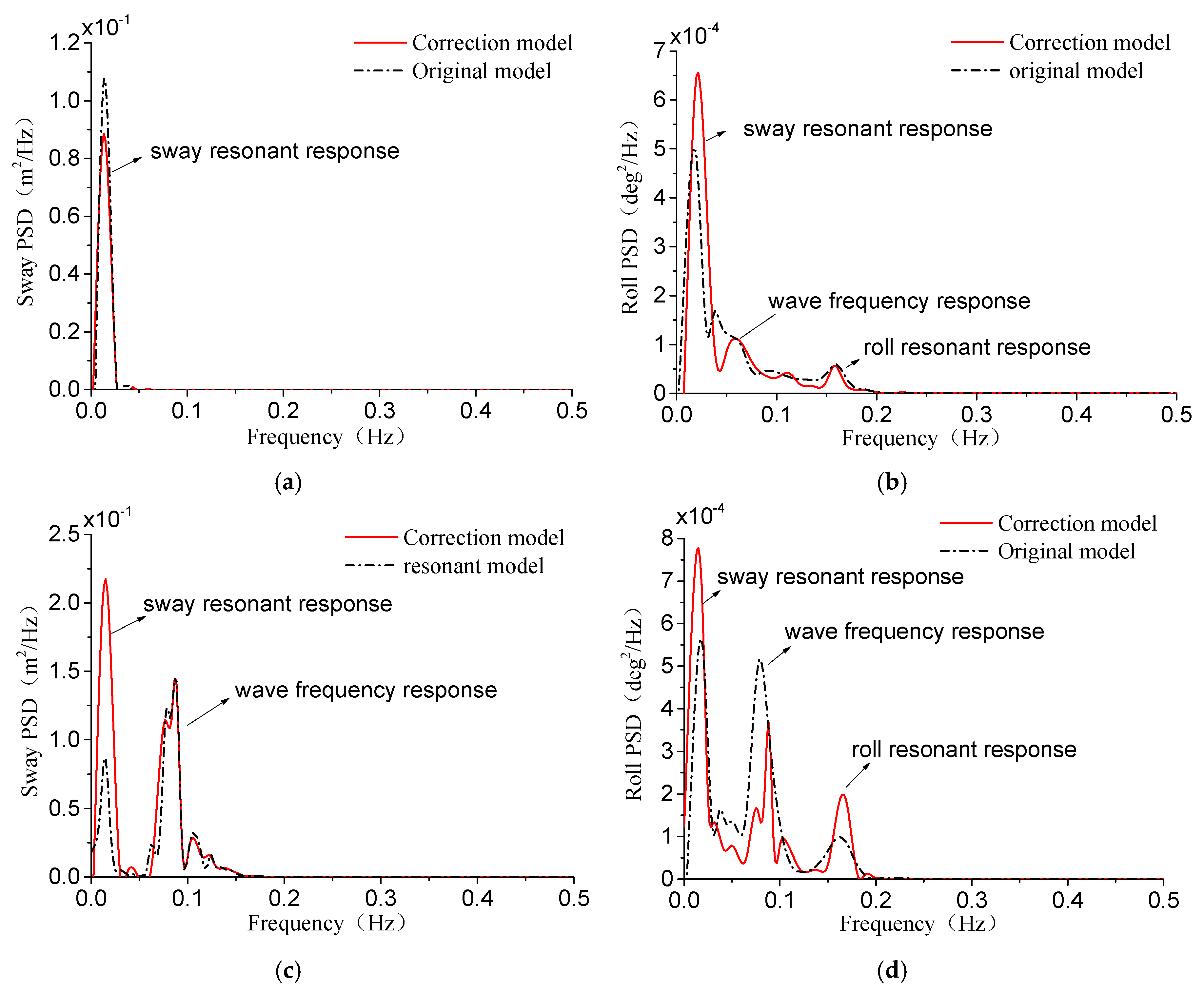

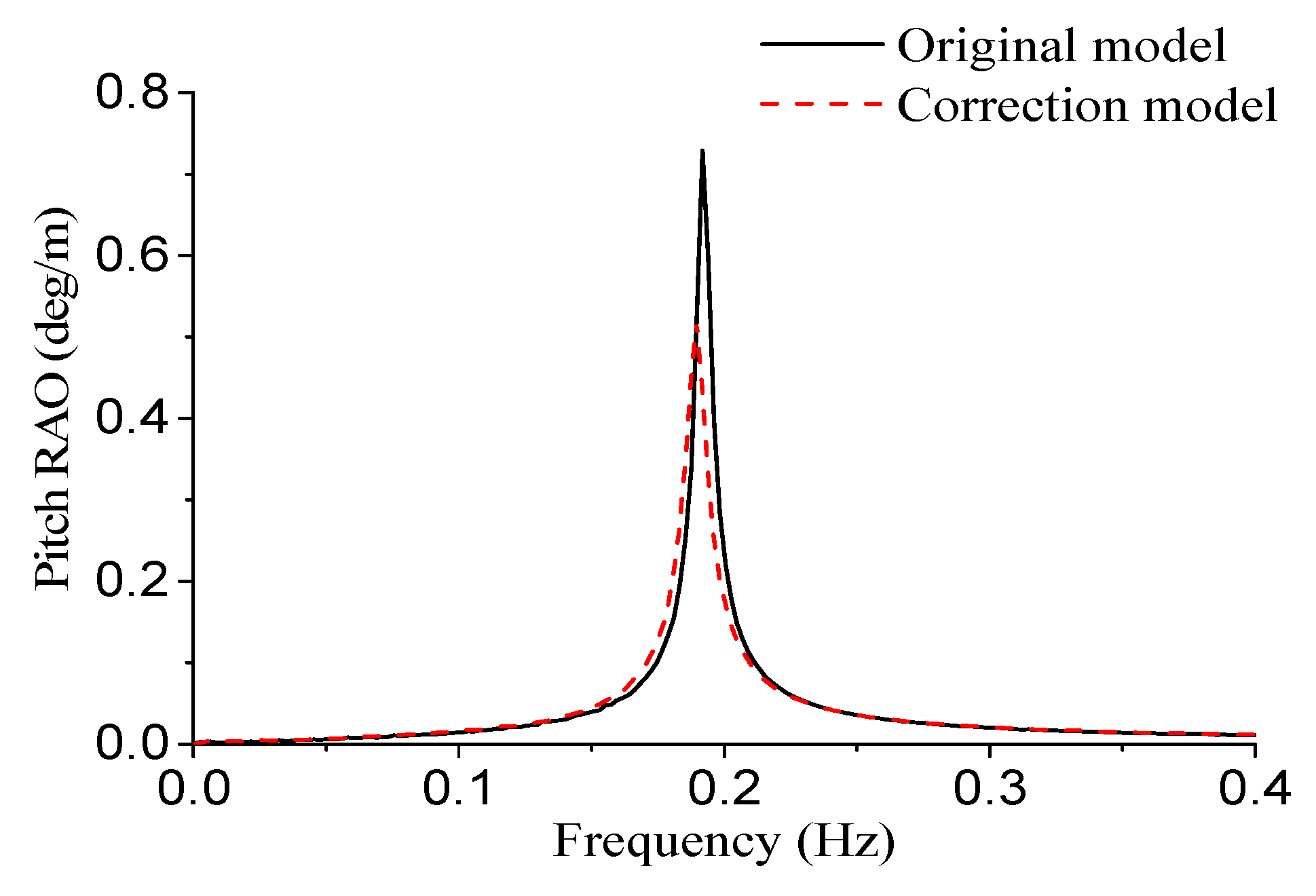

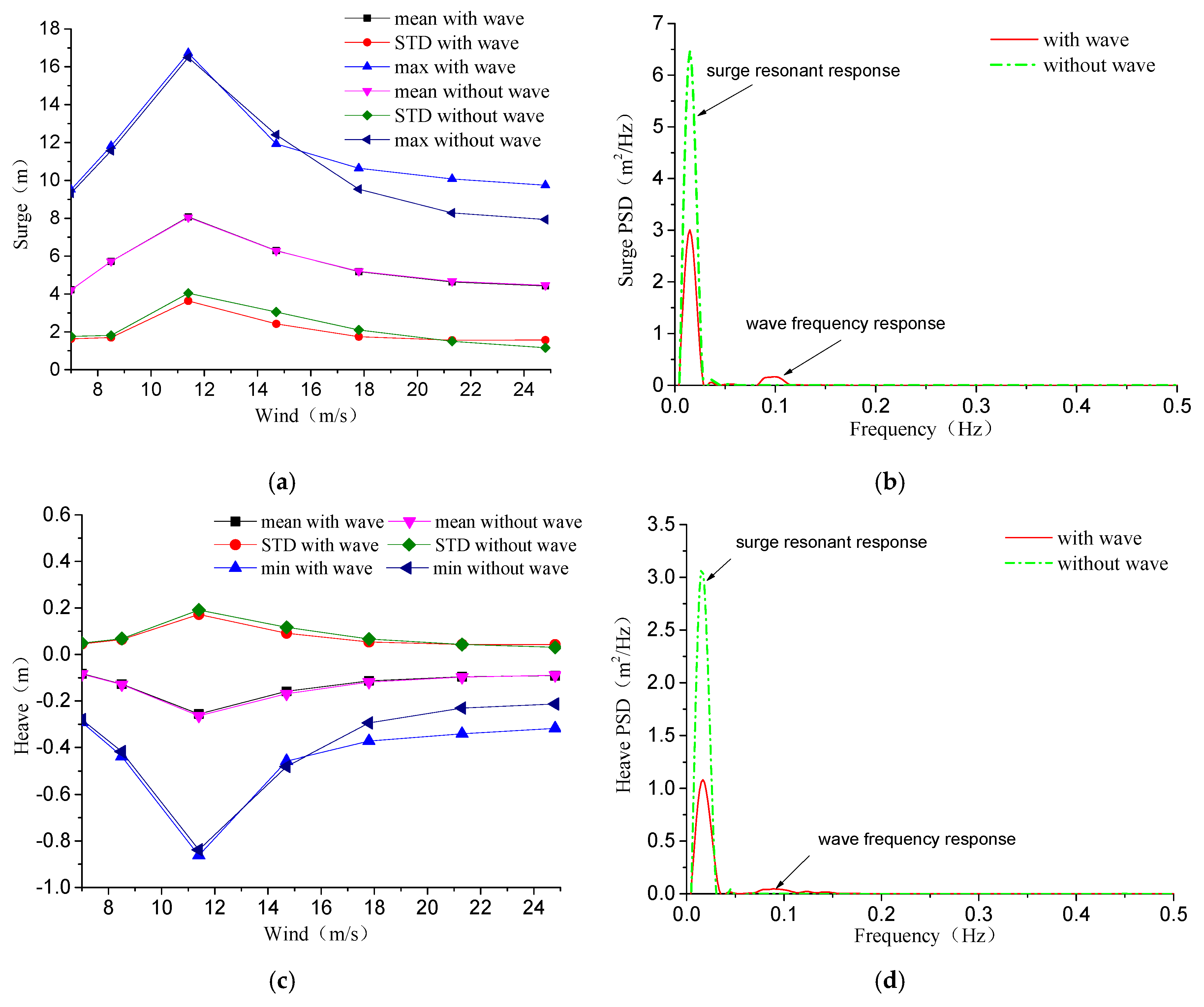

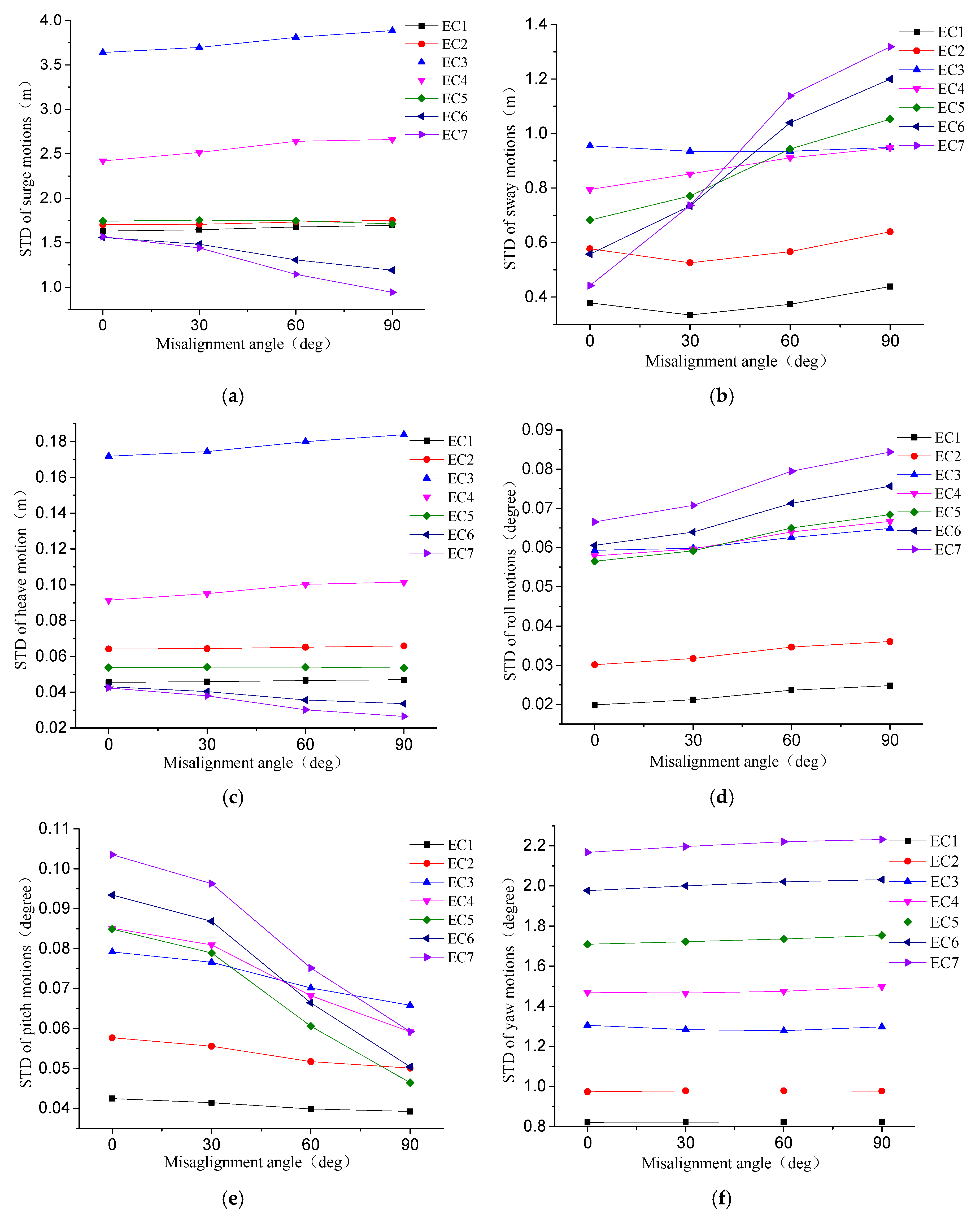

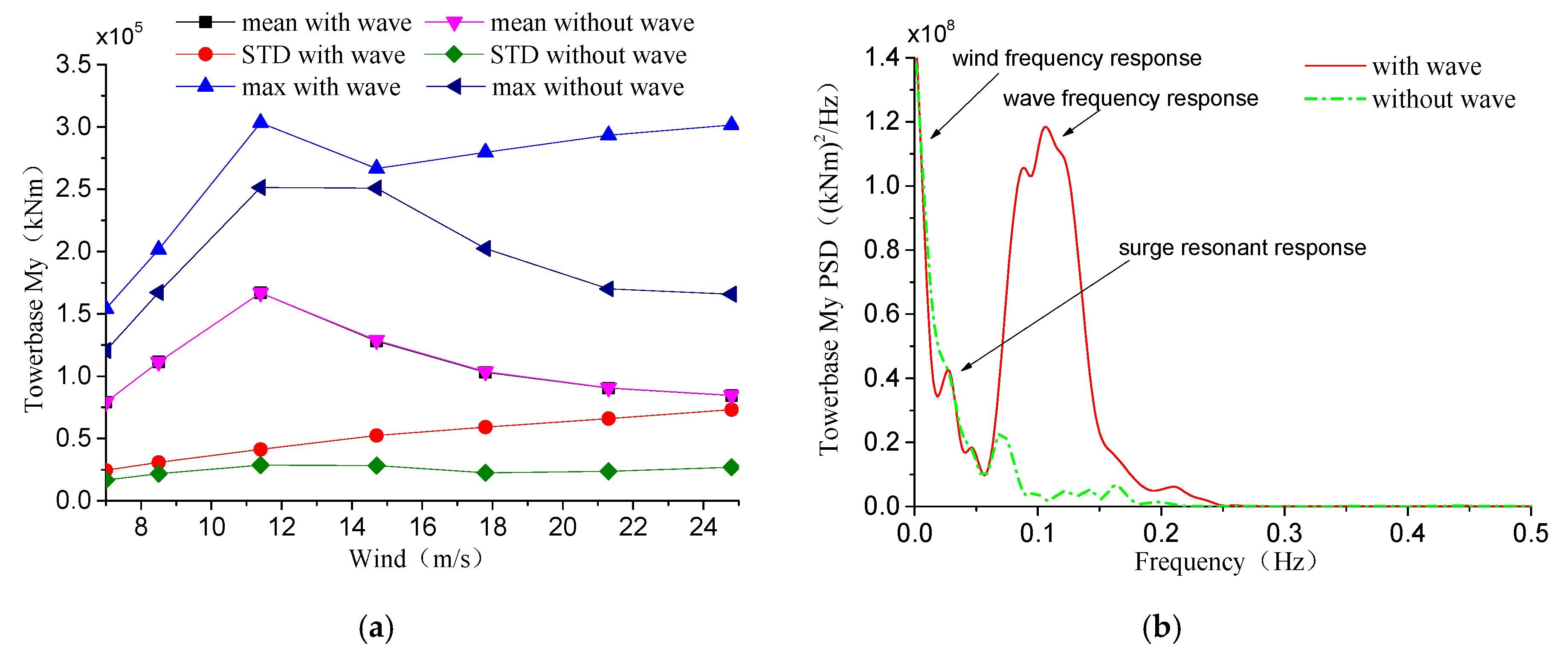

The dynamic response of floating horizontal axis wind turbines (FHWATs) are affected by the viscous and inertia effects. In free decay motion, viscous drag reduces the amplitude of pitch and roll fluctuation, the quasi-static mooring system overestimates the resonant amplitude values of pitch and roll. In this paper, the quasi-static mooring system is modified by introducing linear damping and quadratic damping. The dynamic response characteristics of the FHAWT modified model of the DTU 10 MW tension leg platform (TLP) were studied. Dynamic response of the blade was mainly caused by wind load, while the wave increased the blade short-term damage equivalent load. The tower base bending moment was affected by inclination of the tower and the misaligned angle βwave between wind and wave. Except the yaw motion, other degrees of freedom motions of the TLP were substantially affected by βwave. Ultimate tension of the mooring system was related to the displacement caused by pitch and roll motions, and standard deviation of the tension was significantly affected by the wave frequency response. Under the action of wave load, the viscous drag would stimulate the mooring system and increase the resonance of the platform motion. View Full-Text
Keywords: floating horizontal axis wind turbines; dynamic response analysis; tension leg platform; mooring system; viscous drag floating horizontal axis wind turbines; dynamic response analysis; tension leg platform; mooring system; viscous drag
Show Figures

Figure 1

MDPI and ACS Style

Luo, T.; Tian, D.; Wang, R.; Liao, C. Stochastic Dynamic Response Analysis of a 10 MW Tension Leg Platform Floating Horizontal Axis Wind Turbine. Energies 2018, 11, 3341.
