Simulation Models to Size and Retrofit District Heating Systems
Thermodynamics Laboratory, University of Liège, 4420 Liège, Belgium
Received: 30 October 2017 / Accepted: 28 November 2017 / Published: 1 December 2017


District heating networks are considered as convenient systems to supply heat to consumers while reducing CO 2 emissions and increasing renewable energies use. However, to make them as profitable as possible, they have to be developed, operated and sized carefully. In order to cope with these objectives, simulation tools are required to analyze several configuration schemes and control methods. Indeed, the most common problems are heat losses, the electric pump consumption and the peak heat demand while ensuring the comfort of the users. In this contribution, a dynamic simulation model of all the components of the network is described. It is dedicated to assess some energetic, environmental and economic indicators. Finally, the methodology is used on an existing application test case namely the district heating network of the University of Liège to study the pump control and minimize the district heating network heat losses.
district heating network; dynamic modeling; CHP plant; modelica

1. Introduction

Nowadays the domestic hot water and the domestic spacing heating count towards approximately 20% of the total energy consumption in the European Union [1,2]. This part is extended to 31% if the ones of industrial and tertiary buildings are considered [3]. This thermal energy (more than 300 Mtoe) mainly comes from fossil fuels, 66 %, and only 13% from renewable ones. On another hand, about 1% of the total energy consumption is dedicated to the cooling of buildings (all fields).
From an environmental point of view, this energy consumption produces wide CO 2 and pollutant emissions. These emissions are harmful for the environment (e.g., increase of the world temperature, eutrophication of grounds, etc.) and for humanity. Indeed, the World Health Organization estimates that 5% of the world population die each year due to outside air pollution, mainly due to energy use (e.g., particles, NO x emissions, etc.) [4].
Therefore, energy systems with high energy efficiency and low pollutant emissions have to be developed and widely used to avoid these issues. The European Union has proposed several energy directives, supported by academia [5], to encourage the use of a district heating network (DHN) [6] and their related limitations [7], renewable sources and combined heat and power plant; in particular, the EU estimates that 50% of its heating and cooling demand should be fed by DHN in 2050 [8]. Fourth generation district heating networks, widely described in [9], are one of the future energetic transition solutions as they combine low energy building, high conversion energy systems and smart energy generation. However, the European building stock is quite old—about 40% of the buildings stock was built before 1960 and 45% was built between 1961–1990 [10]. On the other hand, the new building construction rate is quite limited (about 0.5% in Belgium for example [11] and less than 0.7% for EU28 [12]). This leads to a reduced penetration of new low energy buildings and the related fourth generation of the district heating network. Moreover, the energetic performance of the current buildings stock is quite limited [12]. Thenceforth, other major topics of the energetic transition are to improve the building envelope of current buildings to reduce the heat demand [13] and to improve the heating systems to supply them [14]. This contribution tends to propose a methodology compatible with all generations of DHN to perform integration and retrofit studies to improve the current building stock heating.
The focus of this study is performed on DHN given they are an efficient way to supply heat to buildings [15,16], especially if they are fed by renewable energy systems capable of reducing CO 2 emissions [17]. Therefore, retrofit studies of current neighborhoods or towns should be a part of the energetic transition as well as a retrofit of existing DHN. Indeed, a lot of existing DHN are high temperature DHN (For example, more than 40% of the DHN-delivered heat is from high temperature DHN (>120 °C) in France [18]) leading to high heat losses.
To perform these studies, simulations and planning tools are required to consider the integration of renewable energy systems and assess their efficiency and influence into the environment while ensuring comfort into buildings. Indeed the heat transport can reach some hours in large DHN due to the reduced speed of the fluid carrier, typically one or two meters per second to limit the electric pump consumption [19,20,21,22]. Therefore, dynamic simulation tools are also required, while optimizing the operation of existing DHN through dedicated optimized control strategies [23,24,25], which is considered as a future challenge to improve DHN [9].
Previous works intended to assess the energy, economic and environmental performances of a DHN fed by a biomass CHP plant [26] and to study with some scenario improvements [27]. However these works were based on existing heat demand curves to assess global system performance, i.e., only the heating plant was really studied. In this contribution, an extension of these works is proposed to consider the dynamic behavior of DHN and assess the heat demand of consumers while ensuring their comfort. The developed tools are also able to study complex control strategies and renewable sources integration as wind turbines or solar energy systems whose generated heat and power fluctuate more by nature. In this contribution, the control strategy of heat generation is the only solution which is considered.
On the other hand, some professional software is available on the market as Bentley [28], Modelon [29] or Schneider Electric [30] software. However they are dedicated to the optimization of the DHN itself (temperature and electric pump consumption) without considering the part load performance of heating systems such as the CHP plant, the plant subsidies, the comfort inside the buildings or the CO 2 and pollutant emissions.
The current contribution is intended to present the methodology used to assess the dynamic global system performance. An open-source programming platform is selected and used, namely Modelica [31], to propose a validated tool for plant owners or for communities considering a DHN as a heating system. Moreover, several existing open-source libraries are available to simulate a lot of DHN and building configurations to make the developed tool as generic as possible. Finally, the developed tool can be used as a decision tool for design or retrofit of such installations as it takes into consideration energy, environmental and cost approaches.
The considered tool is applied to an existing DHN fed by natural gas boilers and biomass CHP plant of the University of Liège. The study of a control strategy is performed to optimize the electric pump consumption while keeping the DHN heat losses at a reasonable level and ensuring the comfort of DHN users.

2. Problem Statement

A district heating network can be seen as the combination of three main components. Basically, it is composed of heat sources, renewable or not, where energy is produced or recovered from processes; sinks, namely buildings; and a network piping that transports energy from one to the other. To size or retrofit a district heating network, several characteristics of each component are required to assess the DHN performances correctly. For example, heat losses due to a determined DHN insulation involve a related overall heat demand; the heat demand profile of the buildings connected to a DHN involves a minimal thermal power of heating installation systems (and so investment costs). Despite some of these characteristics being found in the literature, in this contribution, they are assessed by several models described later to capture a more precise performance of the system and its dynamic behavior to ensure the users’ comfort.
The present research focuses on the dynamic modeling of heat sources and related piping systems. The heat demands of consumers are assessed by internal simulations performed. In order to assess the technical solutions investigated, it is proposed to define several indicators. For this purpose, the economic, energy, environmental and exergy approaches are considered.
The energy approach consists of an assessment of the energy conversion efficiency of an energy system. It is used to quantify the primary energy requirements of a process and the related costs. The environmental one is dedicated to assessing the influence of the process use on the environment. Despite the fact that a lot of environmental criteria are available in Life Cycle Analyses, such as the use and the eutrophication of land and ozone layer depletion, only the CO 2 and the restricted pollutant emissions will be considered in this contribution. The economic approach is generally the main criterion for the choice of a technical solution. Therefore, several costs have to be considered. Investments, maintenance and operation costs are used to assess the total energy produced cost of a system. Reliable information about generic costs of domestic and industrial energy systems are respectively available in [32,33], while energy costs are available in [34]. However, the proposed tool in this contribution is able to assess precisely the energy costs of a defined scenario case in order to improve them by studying some other, alternative scenarios.
On the other hand, the energetic approach, based on the first law of the thermodynamics, is often misleading in ranking energy systems as it does not always provide an indicator how the process is near the optimality [35]. For example, a heat generation system uses, generally, high-grade energy i.e., electricity or fuel in a combustion process which reaches 1500 °C [36] to produce low-grade energy such as hot water at 55 °C [37]. In this case, the energy conversion of this combustion process is currently close to one but the quality of the energy is widely degraded. The exergy analysis, which is detailed in the following section, is able to rank energy systems because it is based on the first and the second laws of thermodynamics and states that despite the energy cannot be created or destroyed, its quality can be degraded up to an equilibrium state with the surroundings. Moreover, this analysis is able to point out the parts of the energy process which degrade the available exergy in order to improve them too. Therefore, in a sustainable global energy use, the exergy approach completes the energy approach.
Previously, some works [26,27,36,38] were performed to assess the performance of district heating systems based on all these approaches. However, they are based on the pseudo-dynamic behavior of the DHN. This involves some limitations while the heat transport delay inside the DHN was not considered, and so the related comfort could not be ensured, especially when the production systems can vary widely as it is the case with the use of renewable energy systems such as thermal solar systems. On the other hand, control strategies, such as heat demand peaks optimization [25], require dynamic modeling to ensure comfort inside the buildings. So, the current work is a dynamic extension of these previous works, able to consider all these features.
In this contribution, a retrofit of an existing system is studied dynamically. Previously, experimental data measured on the considered DHN show that the difference temperature between the supply and the return line is quite reduced. This behavior leads to a high pumping work and related electric consumption. So, it is proposed to consider a control strategy to minimize the electric pump consumption while ensuring the user’s comfort inside the buildings fed by the DHN which is not currently ensured.

3. Modeling Methods

As discussed previously, three main parts compose a DHN, namely, the production plant, the pipes and the consumers. This section is dedicated to the presentation of the different modeling methods used to assess the performance of these parts based on the indicators required to rank these energy systems.

3.1. Energy Approach

To assess the production system’s energetic performance, unidimensional thermodynamic models were previously implemented and validated on an application test case [26]. In this model, each subsystem of the energy system is modeled by zero-dimensional components where the relation between the input and output satisfies energy, mass and momentum balances. This modeling method is generic while geometric or specific characteristics can be used as input of the model: heat exchangers geometry; steam turbine, fan or pump characteristics, etc. Thus, energy conversion efficiency can be assessed during the whole year, considering off-design ambient conditions and part load operation of the plant. The heat systems off-design behavior is important to assess the annual mean system efficiency and to provide reliable estimates for energy and cost predictions.
For example, the studied CHP plant, detailed in the application test case section, is composed of steam turbines, heat exchangers and a boiler and is dedicated to produce heat and power. P e l , c h p and P t h , c h p represent respectively the net electrical power and heat generated by the CHP plant. P p r i m , c h p denotes the primary energy used to generate P e l , c h p and P t h , c h p . The electrical and thermal efficiency are defined respectively as:
η e l , c h p = P e l , c h p P p r i m , c h p   and   η t h , c h p = P t h , c h p P p r i m , c h p
The total CHP efficiency is defined as η c h p = η e l , c h p + η t h , c h p . The assessed performance of this plant is available in Figure 1.
This methodology could be extended to each kind of thermodynamic system, renewable or not, to integrate them into the developed tool as it has already been performed for a heat pump in [27] or through a new dynamic simulation of boilers from [39]. In this case, the pseudo-dynamic approach is considered, i.e., the assessment for each time step of the performance of the system based on steady state performances (Figure 1 shows the studied CHP plant steady-state performances in function of the thermal load supplied to the DHN).
Indeed, the heat demand for a DHN can vary widely during the year (as depicted in Figure 2) as a function of the users’ habit or climatic conditions. However, these changes generally occur slowly and the corresponding supply heat is limited due to technical constraints. For example, the control valves have mechanical inertia or the control system limits the temperature variation of the DHN to avoid too large an expansion of the material constituting the pipes. Therefore, this pseudo-dynamic modeling can be suitable for the developed tool.
As previously discussed, the heat transport modeling is required to assess the behavior of the heat transport inside a DHN. Indeed the temperature level reached a building has to be beyond a threshold to ensure the comfort inside the building connected to the DHN. Due to the heat transport delay induced by the large distance of piping network and reduced fluid velocity, the dynamic behavior has to be correctly assessed.
The heat transport modeling is based on a plug flow model to assess its dynamic behavior [40,41]. It is derived from the Lagrangian approach [42], i.e., the properties of each fluid particle are considered along their direction as a function of time, considering the energy balance in each cell with its environment [42]. It is assumed that the fluid carrier is incompressible, which is valid if water is considered and for low pressure variations [43]. This method was previously analyzed, developed [44] and validated under Matlab for different operating conditions and pipe layouts [45], but it has now been successfully ported to Modelica [46] and the related open-source Modelica library is available in [47].
To assess the delay time between the entry and the exit of a fluid parcel inside the pipe, the following equation is solved:
z ( y , t ) t + v ( t ) z ( y , t ) y = 0
where z ( y , t ) is the transported quantity, y is the normalized spatial coordinate, t is the time, and v ( t ) the normalized velocity. An approximation of the one-way wave equation was successfully introduced with the spatialDistribution() operator defined in the Modelica Language Specification [48].
This model considers the heat transport, thermal inertia of the pipes and the related heat losses.
Heat losses are assessed through a global heat transfer coefficient. The assessment of this coefficient is based on a bi-dimensional steady state heat transfer model, which considers the insulation, geometry and buried layout of the pipes [26].
A thermal capacity is added to the core pipe model at the outlet of the pipe to account for the thermal inertia of the pipe constituting material as [49].
The hydraulic behavior is assessed by a previously developed model denoted HydraulicDiameter of the Annex 60 Library [50]. In this case, the pressure drop is coupled to the mass flow rate using a quadratic relation.
An interested reader could refer to [46] for further details.

3.2. Environmental Approach

To complete the analysis from an environmental point of view, a detailed combustion model was previously performed [36] and validated on several fuels and boiler sizes to assess the CO 2 and regulated pollutant emissions of biomass combustion such as NO x and SO x . The developed model considers chemical reaction kinetics coupled to a zero-dimensional, steady-state thermodynamic model. The fuel as biomass could be specified as a general model C m H n O x N y S z , where the subscripts are the ratio between the wet basis mass fraction of each component and its molar mass. The model is also able to consider natural gas as fuel under the form C m H n O x N y He z .
The assessed combustion products produced in the exhaust gas are 15 chemical species (H 2 , O 2 , H 2 O, CO, CO 2 , OH, H, O, N 2 , N, NO, NO 2 , CH 4 , SO 2 , SO 3 ). While the NO x emissions at the equilibrium were overestimated [51], a complementary chemical analysis is performed to lead to a corrected thermal NO x formation calculation with the assessment of the fraction of the fuel nitrogen, which is converted into NO x [52].
The emphasis of the model on the NO x emissions is performed to assess if the operator plant requires the use of a de NO x fuel system leading to extra investments and operational costs, which are required for the economic indicator.
If other energy sources (electricity or heavy fuel) are used or if the energy conversion process is currently not known, CO 2 emissions factor can also be retrieved from literature (see Table 1 for the combustion process reference CO 2 emissions in Belgium and for electricity consumption).

3.3. Economic Indicator

One of the most critical and decisive criteria for the development of energy systems (DHN or CHP plant for example) is the cost of the energy.
The cost model per unit of thermal energy used herein is derived similarly to the one defined for electricity in [56]. According to this model, the cost of heat is expressed as:
C O H = 1 ξ D H N C · ψ + U f i x P i , t h , c h p · τ e Fixed cost + y f η ¯ t h , c h p + u v a r Variable cost y e l + τ c v y c v η ¯ e l , c h p η ¯ t h , c h p Elec . selling price
where C is the total investment cost and ψ is the annuity factor, which takes into account for the present value of money and represents the annual repayment for the initial investment expressed in year 1 . The annuity factor is defined as:
ψ = d 1 ( 1 + d ) N
where d is the discounting rate per year and N the number of years for which the installation is used (e.g., the life time of the plant). P i , t h , c h p is the installed thermal power of the CHP plant in MW and τ e is the equivalent utilization time at rated power output. τ e embeds the availability factor of the plant (around 92% for a biomass CHP plant [56]). y f is the cost of fuel in €/MWh, U f i x is the fixed cost of operation, maintenance and administration in €/year and u v a r is the variable cost of operation, maintenance and repair in €/MWh. η ¯ t h , c h p is the average annual thermal efficiency defined similarly to η t h , c h p yet taking into account the start/stop procedures (if any) and the part load efficiency. These efficiencies are assessed by the thermodynamic modeling described previously. y e l is the price of electricity in €/MWh while τ c v and y c v are, respectively, the number of green certificates per MWh of electricity produced (For the Walloon region of Belgium one green certificate is granted for every 456 kg of CO 2 saving. A maximum of two green certificates are allowed per MWh of electricity produced.) and the unit price of green certificate. The term τ c v y c v is replaced by the premium on the electricity selling when feed-in tariffs are used instead. ξ D H N is defined as the ratio of the heat delivered to the consumers to the heat produced by the plant depending on the temperature level, the insulation of the network and the ambient conditions.
A reliable estimate of C, U f i x , u v a r , d and N can be found, for example, in [32,33,56]. Neither the influence of fuel cost y f nor the one of the supporting policies τ c v y c v will be long discussed herein and representative value of the market in Belgium will be used, as it is relatively straightforward for the reader to include his proper data into the above model.

3.4. Exergy Analysis

The use of energy refers generally to the first law of thermodynamics which states that energy is stored in every device and process and can neither be consumed nor destroyed; it can only be transformed [57]. As it was discussed previously, this concept is “inadequate for depicting some important aspects of energy resource utilization” [57] as energy system performance. The exergy indicates the maximum work potential of a system under determined conditions. There are no conventions widely accepted to define the exergy concept but in the present study, the exergy analysis proposed by [58] is used. Exergy (Ex) expressed in J/kg is defined as:
E x = ( H H 0 ) ( T 0 + 273.15 ) * ( S S 0 )
where H stands for the enthalpy [J/kg], S for the entropy [J/kg/K], T for the temperature [°C] and the subscript 0 the reference or ’dead’ state. In this study, this reference state is defined as the daily temperature of a location with a pressure of 1 atmosphere. For the fuel exergy calculations, the air studied has a relative humidity of 70% [59] and a composition defined according to [60].
This complementary analysis can be useful to point out the design problem of current energy systems or the parts of these systems where the exergy is destroyed to optimize the available exergy [61]. An example of this analysis is performed in [62] to study a CHP plant. In this case, the pressure level of an extraction turbine was identified as too high, leading to exergy degradation and related energy efficiency drop.

3.5. Heat Demand Profile

The head demand of consumers can be assessed by experimental data, building performance energy reports or dedicated modeling libraries. In this contribution, internal reports performed to assess the building performance are used. These heat demand profiles are derived as a function of occupancy profile depending on each building to assess the dynamic consumption of each building. A typical heat consumption profile for two studied buildings is available in Figure 3.
For other building topologies, the internal Modelica library can be used [63] (It should be available into the Thermocycle Library [64] soon.) or a more generic library as [65]. To go one step further, these libraries can be modified to take into account specific dynamic behavior as those appearing in a condensing boiler [66] as a function of the control strategy.

4. Application Test Case

The application test case studied is the DHN of the University of Liège (The interested reader can refer to [26] for the detailed configuration of the DHN and the heating plant). It is fed by a biomass CHP plant of a nominal thermal power of 7 MW dedicated to the base heat demand and natural gas back-up boilers (50 MW) to complete it. The nominal power generation of this CHP plant is 2.4 MW. The total length of the DHN is 10 km and the fluid carrier is pressurized (12 bar) hot water at a mean temperature of 120 °C. About 70 buildings (classroom, office rooms, administrative office, a sport center and a hospital) are connected to the DHN for a normalized annual heat demand of 61 GWh and represents a heated area of 470,000 m 2 whose a quarter is dedicated to the hospital. A typical heat demand curve is available in Figure 2. During the summer time (between May and October), only the hospital and the sport center (swimming pool) are fed by the DHN. The relative high temperature of the fluid carrier is due to the use of steam by the hospital for his kitchen and its humidification system.
The DHN is assumed to be composed of 23 sections. They are insulated with mineral wool with an identified thermal conductivity of 0.047 W/m/K. The corresponding heat transfer global coefficient is assessed to 0.9 W/K per meter of duct containing the pipes of the DHN. The DHN has operated since the sixties and it is divided into three main pipe networks whose one ensures the hospital back-up and is usually not used. Each main pipe network is fed by pumps whose efficiency in function of the mass flow rate is available in Figure 4a, blue line. Due to specificities of the DHN which are not within the scope of the present contribution, only one main pipe network optimization will be considered in this study. This pipe network works continuously throughout the year while it feeds the hospital and the sport center.
However, the pumps were over sized. Indeed, the mass flow rate of the pipe network is frequently under 200 t/h (over half a year, Figure 4b) while the nominal mass flow rate reaches about 1000 t/h. The corresponding mass involves that the pump works at an efficiency lower than 45%. On the other hand, the temperature difference between the supply and the return pipe is quite reduced (about 13 °C) while a common temperature difference tends to 30 °C to minimize electric pump work and the DHN heat losses as advised by [19,20,67]. This reduced temperature difference is due to inadequate control strategies of the power injected into the DHN, leading to too high a mass flow rate. On the other hand, some discomfort currently occur in buildings due to too low a supply temperature reaching the furthest buildings from the heating plant. That is why it is proposed to investigate an optimal control strategy to increase the temperature difference while minimizing the mass flow rate, the related pump work and ensuring the building comfort.
To perform economic calculations, the cost of electricity is considered at 112 € per MWh [34], while the cost of heat identified by the energy and cost modeling for the considered system is about 65 € per MWh [26].
A schematic diagram of the application test case performed under Modelica is available in Figure 5.

5. Results and Discussion

5.1. Improved Control Strategy

The proposed strategy is based on keeping a temperature difference in each substation located in the building as close as 25 °C by using dedicated control valves. T-Thermocouples are placed in sleeves in the supply and return pipes connected to the heat exchanger of the substation located in the building. The thermocouples are Class 1 and their related error is 0.5 °C. An electronic proportional–integral–derivative controller is used to control the valve to regulate the flow rate to get the temperature difference set-point. A complementary constraint is that the minimal return temperature is 80 °C to keep the performances of the emissions heating system (radiators) inside the building to guarantee the users’ comfort. However, the current minimal temperature can decrease up to 60 °C due to control strategy issues involving users’ discomfort (a typical winter day is illustrated in Figure 6, blue curve). With the proposed strategy, the temperature is more constant and does not go below the set-point (Figure 6, orange curve). The bumps which are present in the current controlled temperature come from a too high supply temperature. Indeed, the return temperature cannot be decreased below 25 °C under the supply temperature. When the supply temperature difference set-point is higher than 105 °C, the return temperature is higher than 80 °C.
The improved control strategy leads to a reduced pump electric consumption ( 30 %, Figure 7) due to a higher temperature difference in the DHN and a reduced mass flow rate correspond to an annual economy of about 9.4 k€. From an environmental point of view, this involves a CO 2 emissions reduction of about 70 tons per year. On the other hand, the temperature difference being maximized, the annual mean temperature of the network is lower. It involves reduced DHN heat losses ( 7 %, Figure 7) and an extra economy of about 14 k€.

5.2. Pump Replacement

To extend the present contribution, it is proposed to consider a pump replacement. Indeed these pumps are quite old. Moreover, they were over sized, leading to a reduced efficiency as depicted previously in Figure 4a,b. To be conservative and without considering higher pump efficiency, the efficiency curve is just kept and shifted with a nominal mass flow rate of 500 t/h instead of 1000 t/h (grey circles on Figure 4a). The corresponding DHN heat losses are the same as in the previous section.
The use of a new pump involves an annual economy of about 18 k€, compared to the current case, and 19.5 k€, if the control strategy is used in addition to the pump replacement, according to the energy consumption of the pump (Figure 8). The corresponding annual CO 2 emissions savings are of 72 and 111 tons, respectively. The slight economic performance of this last scenario (replacement of the pump with optimized control strategy) is due to the large electric consumption reduction resulting of a higher average annual efficiency of the pump. Therefore, a simple retrofit of the current pump systems could be economically profitable.
The aims of the dynamic approach are not disrupted by these last results as it is necessary to assess the cost of heat to consider the heat losses economy and to further develop complex control strategies for DHN.

6. Conclusions and Perspectives

District heating networks are considered as a convenient way to supply buildings while reducing CO 2 emissions and introducing renewable energies into the current energy production mix. However, to optimize the profitability of new DHN or perform a retrofit of current DHN installations, some modeling tools are required to investigate several scenario and assess what is the best option. To achieve this, models were developed to assess the behavior and the energetic, economic and environmental performances of the production plant, the pipes of the DHN and the consumers.
In this contribution, all the models previously developed and validated are implemented into one open-source language, Modelica, to assess the dynamic behavior of such a system. To illustrate the usefulness of the method, an application test case is selected to study an improved control strategy dedicated to reducing the electric pump work while minimizing the DHN heat losses and ensuring the users’ comfort inside the building.
The use of an improved control strategy leads to a significant reduction of the electric consumption of the pump by about 30%. As expected, the heat losses are reduced ( 7 %) while the average annual temperature of the DHN is lower due to the higher temperature difference. Another solution to reduce the electric pump consumption is to replace the current over sized pump with a new one. All these results involve CO 2 emissions savings (from 70 to 111 tons per year). Moreover the users’ comfort, which was not previously satisfied, is ensured by this control strategy.
Therefore this contribution has shown that the developed open tool is able to perform a simple or more complex retrofit of DHN installations while ensuring the comfort inside connected buildings and assessing useful indicators to rank the considered scenario.
For perspective, other complex control strategies could be investigated, especially the heat storage inside the network itself, to reduce the peak heat demand due to the night setback for example [23]. On the other hand, the integration of solar thermal systems will be considered to study the use of the network as a heat storage facility during the summer time, while reducing the CHP plant use and its related emissions.


Kevin Sartor wants to thank the University of Liège for the subsiding of this study and the Professor Pierre Dewallef for its guidance.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
CHPCombined heat and power
DHNDistrict heating network


  1. Eurostat. Eurostat—Simplified Energy Balances—Annual Data; Eurostat: Luxembourg, 2017. [Google Scholar]
  2. European Commission. EU: Heating and Cooling; European Commission: Brussels, Belgium, 2016. [Google Scholar]
  3. European Commission. Heating and Cooling—Facts and Figures; Technical Report; European Commission: Brussels, Belgium, 2017. [Google Scholar]
  4. World Health Organization. WHO Releases Country Estimates on Air Pollution Exposure and Health Impact; World Health Organization: Geneva, Switzerland, 2016. [Google Scholar]
  5. Persson, U.; Möller, B.; Werner, S. Heat roadmap Europe: Identifying strategic heat synergy regions. Energy Policy 2014, 74, 663–681. [Google Scholar] [CrossRef]
  6. Lund, H.; Moller, B.; Mathiesen, B.V.; Dyrelund, A. The role of district heating in future renewable energy systems. Energy 2010, 35, 1381–1390. [Google Scholar] [CrossRef]
  7. Gabillet, P. Energy supply and urban planning projects: Analysing tensions around district heating provision in a French eco-district. Energy Policy 2015, 78, 189–197. [Google Scholar] [CrossRef]
  8. European Commission. Communication from the Commission to the European Parliament, the Council, the European Economic and Social Committee and the Committee of the Regions on an EU Strategy for Heating and Cooling; Technical Report; European Commission: Brussels, Belgium, 2016. [Google Scholar]
  9. Lund, H.; Werner, S.; Wiltshire, R.; Svendsen, S.; Thorsen, J.E.; Hvelplund, F.; Mathiesen, B.V. 4th Generation District Heating (4GDH). Energy 2014, 68, 1–11. [Google Scholar] [CrossRef]
  10. Buildings Performance Institute Europ. Europe’s Buildings under the Microscope—A Country-By-Country Review of the Energy Performance of Buildings; Buildings Performance Institute Europ: Bruxelles, Belgium, 2011. [Google Scholar]
  11. FPS Economy. Chiffres Clés—Aperçu Statistique de la Belgique; Technical Report; FPS Economy: Brussels, Belgium, 2015. [Google Scholar]
  12. European Commission. EU Buildings Database; European Commission: Brussels, Belgium, 2017. [Google Scholar]
  13. Tuominen, P.; Klobut, K.; Tolman, A.; Adjei, A.; De Best-Waldhober, M. Energy savings potential in buildings and overcoming market barriers in member states of the European Union. Energy Build. 2012, 51, 48–55. [Google Scholar] [CrossRef]
  14. Klobut, K.; Tuominen, P. Energy savings potential in the building stock of nine member states of European Union. In Proceedings of the 10th REHVA World Congress ‘Sustainable Energy Use in Buildings’, Antalya, Turkey, 9–12 May 2010. [Google Scholar]
  15. Rezaie, B.; Rosen, M.A. District heating and cooling: Review of technology and potential enhancements. Appl. Energy 2012, 93, 2–10. [Google Scholar] [CrossRef]
  16. Wissner, M. Regulation of district-heating systems. Util. Policy 2014, 31, 63–73. [Google Scholar] [CrossRef]
  17. Varun; Bhat, I.K.; Ravi, P. LCA of renewable energy for electricity generation systems—A review. Renew. Sustain. Energy Rev. 2009, 13, 1067–1073. [Google Scholar]
  18. Syndicat National de Chauffage Urbain. Enquête Nationale sur les Réseaux de Chaleur et de Froid—Restitution des Statistiques Portant sur l’année—Restitution des Statistiques sur les Données 2015; Technical Report; SCNU: Paris, France, 2016. [Google Scholar]
  19. Woods, P. Heat Networks: Code of Pratice for the UK. Available online: (accessed on 23 November 2017).
  20. Energiteknologisk Udviklings-og Demonstration Program. Guidelines for Low-Temperature District Heating; Technical Report; EUDP: Esbjerg, Denmark, 2014. [Google Scholar]
  21. Ljubenko, A.; Poredos, A.; Morosuk, T.; Tsatsaronis, G. Performance analysis of a district heating system. Energies 2013, 6, 1298–1313. [Google Scholar] [CrossRef]
  22. Gabrielaitiene, I.; Bøhm, B.; Sunden, B. Evaluation of approaches for modeling temperature wave propagation in district heating pipelines. Heat Transf. Eng. 2008, 29, 45–56. [Google Scholar] [CrossRef]
  23. Basciotti, D.; Judex, F.; Pol, O.; Schmidt, R. Sensible heat storage in district heating networks: A novel control strategy using the network as storage. In Proceedings of the IRES 6th International Renewable Energy Storage Conference and Exhibition, Berlin, Germany, 28–30 November 2011. [Google Scholar]
  24. Gadd, H.; Werner, S. Achieving low return temperatures from district heating substations. Appl. Energy 2014, 136, 59–67. [Google Scholar] [CrossRef]
  25. Basciotti, D.; Schmidt, R. Demand side management in district heating networks: Simulation case study on load shifting. Euroheat Power 2013, 10, 43–46. [Google Scholar]
  26. Sartor, K.; Quoilin, S.; Dewallef, P. Simulation and optimization of a CHP biomass plant and district heating network. Appl. Energy 2014, 130, 474–483. [Google Scholar] [CrossRef]
  27. Sartor, K.; Lemort, V.; Dewallef, P. Improved district heating network operation by the integration of high temperature heat pumps. Int. J. Sustain. Energy 2017. [Google Scholar] [CrossRef]
  28. Bentley: Advancing Infrastructure. Available online: (accessed on 30 November 2017).
  29. Modelon. Energy & Process—District Heating, 2017. Available online: (accessed on 30 November 2017).
  30. Schneider Electric. Termis District Energy Optimization Software. Available online: (accessed on 30 November 2017).
  31. Elmqvist, H.; Mattsson, S.E. Modelica—The next generation modeling language an international design effort. In Proceedings of the WCSS ’97: First World Congress on Systems Simulation: Second Joint Conference of Internationsl Simulation Societies, Singapore, 1–4 September 1997; pp. 1–5. [Google Scholar]
  32. Danish Energy Agency. Technology Data for Energy Plants—Generation of Electricity and District Heating, Energy Storage and Energy Carrier Generation and Conversion; Danish Energy Agency: Kobenhavn, Denmark, 2012. [Google Scholar]
  33. Danish Energy Agency. Technology Data for Energy Plants—Individual Heating Plants and Energy Transport; Technical Report; Danish Energy Agency: Kobenhavn, Denmark, 2012. [Google Scholar]
  34. Eurostat. Detailed Statistics on the EU and Candidate Countries, and Various Statistical Publications for Sale; Eurostat: Luxembourg, 2017. [Google Scholar]
  35. Dincer, I.; Rosen, M. Exergy Analysis of Renewable Energy Systems; Elsevier Ltd.: Amsterdam, The Netherlands, 2013; pp. 193–259. [Google Scholar]
  36. Sartor, K.; Restivo, Y.; Ngendakumana, P.; Dewallef, P. Prediction of SOx and NOx emissions from a medium size biomass boiler. Biomass Bioenergy 2014, 65, 91–100. [Google Scholar] [CrossRef]
  37. Brebbia, C.A.; Marinov, A.M.; Mammoli, A.A.; Safta, C.A. Energy and Sustainability IV; WIT Transactions on Ecology and the Environment; Computational Mechanics; WIT Press: Billerica, MA, USA, 2013. [Google Scholar]
  38. Sartor, K.; Dewallef, P. Optimized integration of heat storage into district heating networks fed by a biomass chp plant. Energy Procedia 2017, 135, 317–326. [Google Scholar] [CrossRef]
  39. Satyavada, H.; Baldi, S. A novel modelling approach for condensing boilers based on hybrid dynamical systems. Machines 2016, 4, 10. [Google Scholar] [CrossRef]
  40. Dahm, J. District Heating Pipelines in the Ground—Simulation Model; Technical Report; Department of Building Services Engineering, Chalmers University of Technology: Göteborg, Sweden, 2001. [Google Scholar]
  41. Massachusetts Institute of Technology. TRNSYS 17 Manual—Volume 4—Mathematical Reference; MIT: Cambridge, MA, USA, 2009. [Google Scholar]
  42. Bennett, A. Lagrangian Fluid Dynamics; Cambridge Monographs on Mechanics; Cambridge University Press: Cambridge, UK, 2006. [Google Scholar]
  43. Hoffman, J.; Johnson, C. Computational Turbulent Incompressible Flow. Available online: (accessed on 23 November 2017).
  44. Sartor, K.; Thomas, D.; Dewallef, P. A comparative study for simulating heat transport in large district heating networks. In Proceedings of the Ecos 2015 28th International Conference on Efficiency, Cost, Optimization, Simulation and Environmental Impact of Energy Systems, Pau, France, 29 June–3 July 2015; pp. 1–12. [Google Scholar]
  45. Sartor, K.; Dewalef, P. Experimental validation of heat transport modelling in district heating network. Energy 2017, 137, 961–968. [Google Scholar] [CrossRef]
  46. Van der Heijde, B.; Fuchs, M.; Ribas Tugores, C.; Schweiger, G.; Sartor, K.; Basciotti, D.; Müller, D.; Nytsch-Geusen, C.; Wetter, M.; Helsen, L. Dynamic equation-based thermo-hydraulic pipe model for district heating and cooling systems. Energy Convers. Manag. 2017, 151, 158–169. [Google Scholar] [CrossRef]
  47. International Energy Agency. IEA EBC Annex 60; IEA: Paris, France, 2017. [Google Scholar]
  48. Modelica Association. Modelica®—A Unified Object-Oriented Language for Systems Modeling Language Specification; Technical Report; Modelica Association: Bielefeld, Germany, 2014. [Google Scholar]
  49. Bennonysson, A. Dynamic Modelling and Operation Optimization of District Heating Systems. Ph.D. Thesis, Technical University of Denmark (DTU), Lyngby, Denmark, 1991. [Google Scholar]
  50. Wetter, M.; Fuchs, M.; Grozman, P.; Helsen, L.; Jorissen, F.; Lauster, M. IEA EBC ANNEX 60 Modelica library—An international collaboration to develop a free opensource model library for buildings and community energy systems. In Proceedings of the International Building Performance Simulation Association, Hyderabad, India, 7–9 December 2015; pp. 395–402. [Google Scholar]
  51. Flagan, R.C.; Seindeld, J.H. Fundamentals of Air Pollution Engineering; Prentice Hall: Upper Saddle River, NJ, USA, 2012. [Google Scholar]
  52. Vermeulen, I.; Block, C.; Vandecasteele, C. Estimation of fuel-nitrogen oxide emissions from the element composition of the solid or waste fuel. Fuel 2012, 94, 75–80. [Google Scholar] [CrossRef]
  53. Walloon Region, Les émissions de polluants liée à la consommation énergétique. 2007. Available online: (accessed on 30 November 2017).
  54. Commission Wallonne Pour l’Energie, Emissions Reference. Available online: (accessed on 30 November 2017).
  55. ADEME. Base Carbone v11; Technical Report; ADEME: Angers, France, 2014. [Google Scholar]
  56. Rolf, B.; Henrik, N.; Judy, W. Combined—Cycle Gas & Steam Turbine Power Plants; PennWell Books: Houston, TX, USA, 1999. [Google Scholar]
  57. Moran, M.J.; Shapiro, H.N. Fundamentals of Engineering Thermodynamics; Wiley: Hoboken, NJ, USA, 2009. [Google Scholar]
  58. Kotas, T.J. Exergy Concepts for Thermal Plants. Int. J. Heat Fluid Flow 1980, 2, 105–114. [Google Scholar] [CrossRef]
  59. Szargut, J.; Morris, D.R.; Steward, F.R. Exergy Analysis of Thermal, Chemical, and Metallurgical Processes; Hemisphere Publishing Corporation: New York, NY, USA, 1988. [Google Scholar]
  60. Ertesvåg, I.S. Sensitivity of chemical exergy for atmospheric gases and gaseous fuels to variations in ambient conditions. Energy Convers. Manag. 2007, 48, 1983–1995. [Google Scholar] [CrossRef]
  61. Gong, M.; Werner, S. Mapping energy and exergy flows of district heating in Sweden. Energy Procedia 2016, 116, 119–127. [Google Scholar] [CrossRef]
  62. Sartor, K.; Dewallef, P. Exergetic, Environmental and Economical Analysis of a Cogeneration Plant Connected to a District Heating Network; Sayigh, A., Ed.; Springer: Cham, Vietnam, 2016; pp. 961–972. [Google Scholar]
  63. Ransy, F.; Gendebien, S.; Lemort, V. Description of a Modelica-based thermal building model integrating multi-zone airflows calculation. In Proceedings of the CLIMA 2016 12th REHVA World Congress Proceedings & Presentations Now Available, Aalborg, Denmark, 22–25 May 2016. [Google Scholar]
  64. Quoilin, S.; Desideri, A.; Wronski, J.; Bell, I.; Lemort, V. ThermoCycle: A modelica library for the simulation of thermodynamic systems. In Proceedings of the 10th International Modelica Conference, Lund, Sweden, 10–12 March 2014. [Google Scholar]
  65. Wetter, M.; Zuo, W.; Nouidui, T.S.; Pang, X. Modelica Buildings library. J. Build. Perform. Simul. 2014, 7, 253–270. [Google Scholar] [CrossRef]
  66. Verhelst, C.; Logist, F.; Van Impe, J.; Helsen, L. Study of the optimal control problem formulation for modulating air-to-water heat pumps connected to a residential floor heating system. Energy Build. 2012, 45, 43–53. [Google Scholar] [CrossRef]
  67. Danfoss. The Heating Book 8 Steps—Control of Heating Systems; Danfoss: Nordborg, Denmark, 2017. [Google Scholar]

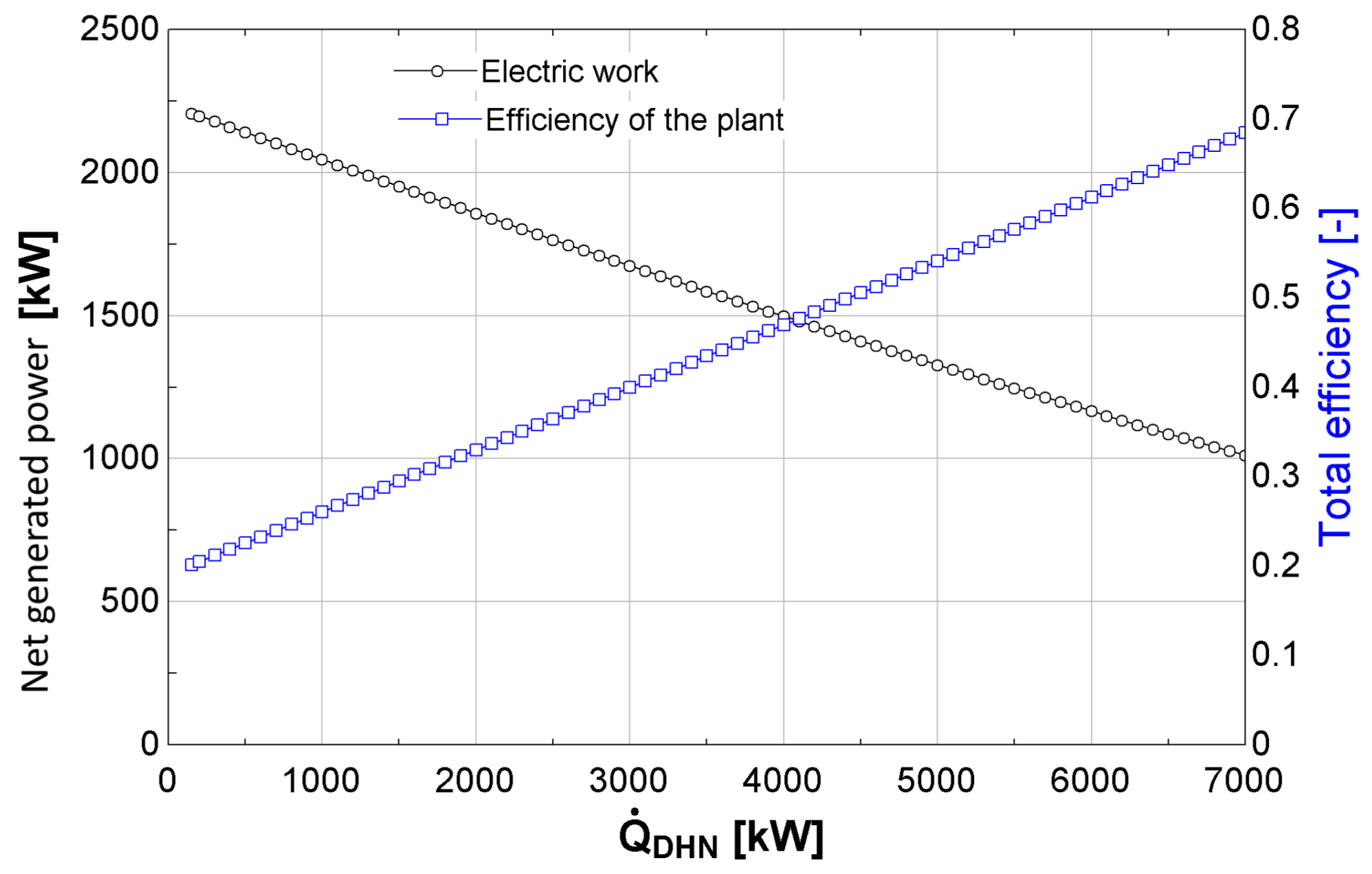

Figure 1. Combined Heat and power plant plant performance in function of the thermal output of the plant (validated on experimental data).
Figure 1. Combined Heat and power plant plant performance in function of the thermal output of the plant (validated on experimental data).
Energies 10 02027 g001

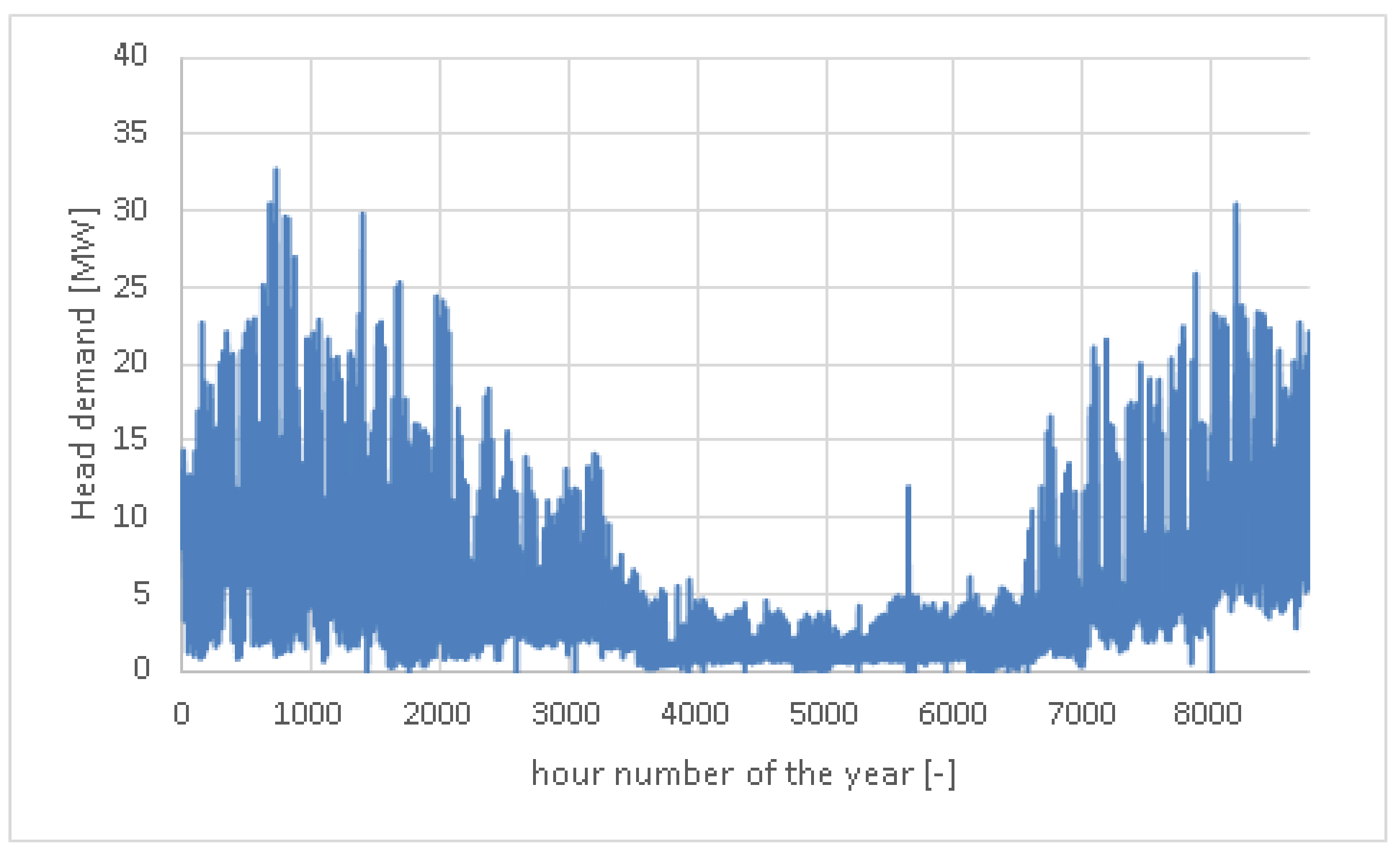

Figure 2. Hourly consumption of the studied District Heating Network in 2014.
Figure 2. Hourly consumption of the studied District Heating Network in 2014.
Energies 10 02027 g002

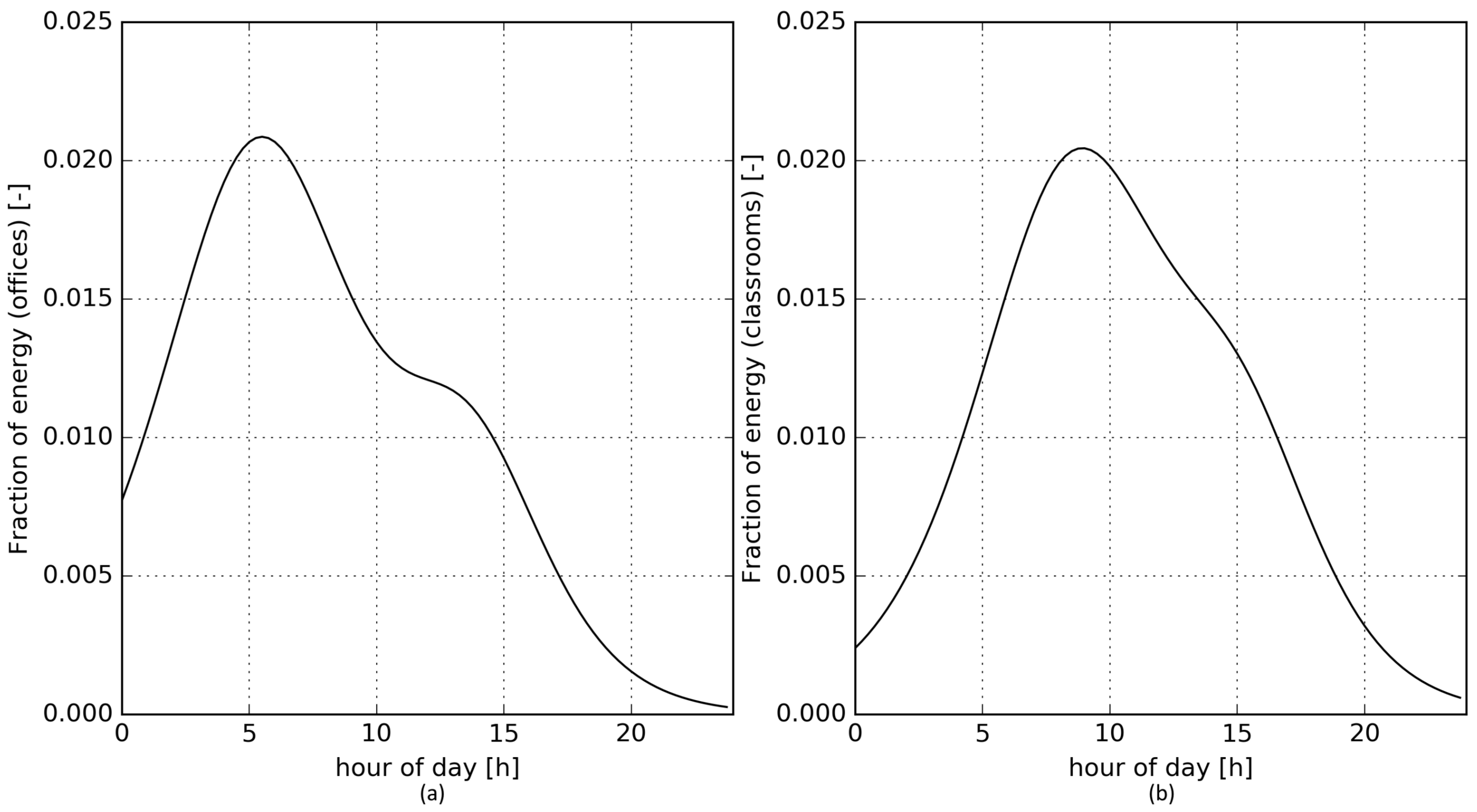

Figure 3. Typical heat consumption profile for a building composed of classrooms (a) and another dedicated to offices (b). The considered time step is half a hour.
Figure 3. Typical heat consumption profile for a building composed of classrooms (a) and another dedicated to offices (b). The considered time step is half a hour.
Energies 10 02027 g003

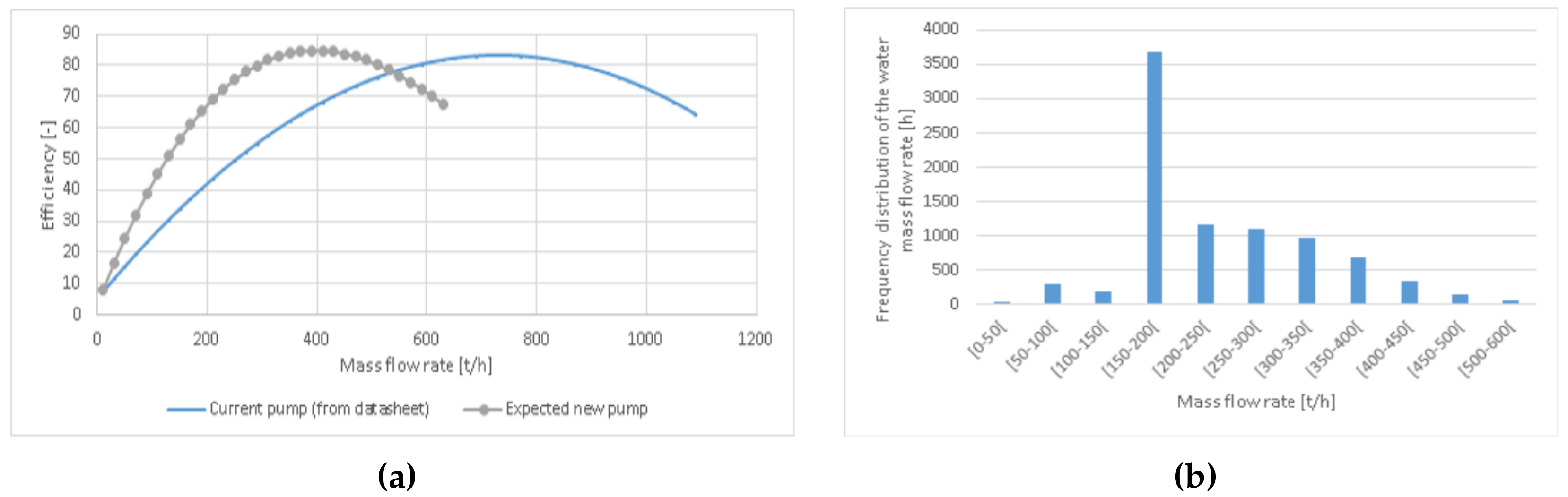

Figure 4. Pump characteristics. (a) Pump efficiency as a function of mass flow rate; and (b) frequency distribution of the pump use in function of the mass flow rate (based on one year).
Figure 4. Pump characteristics. (a) Pump efficiency as a function of mass flow rate; and (b) frequency distribution of the pump use in function of the mass flow rate (based on one year).
Energies 10 02027 g004

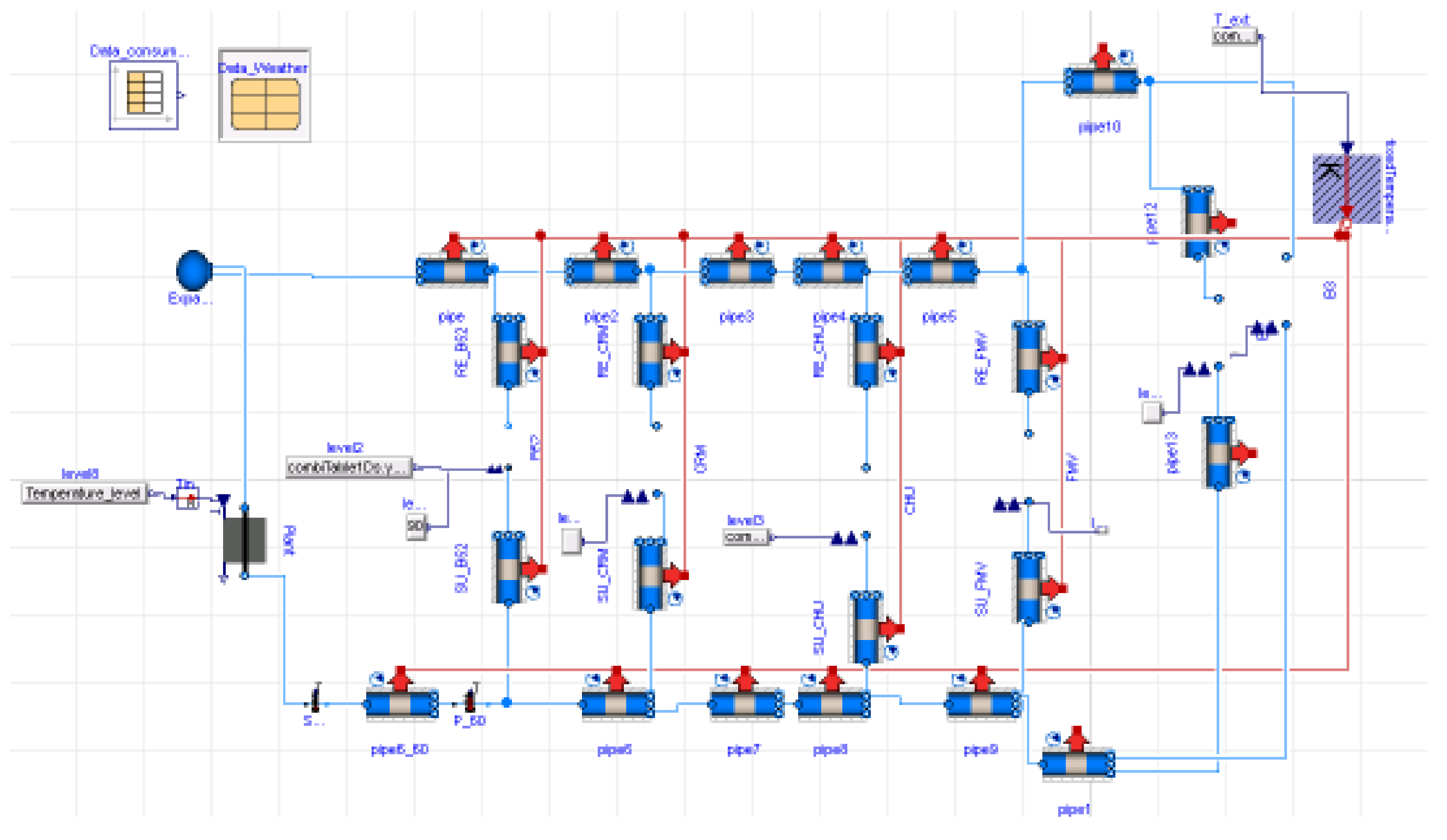

Figure 5. Schematic diagram of one network of the University of Liège DHN under Dymola platform.
Figure 5. Schematic diagram of one network of the University of Liège DHN under Dymola platform.
Energies 10 02027 g005

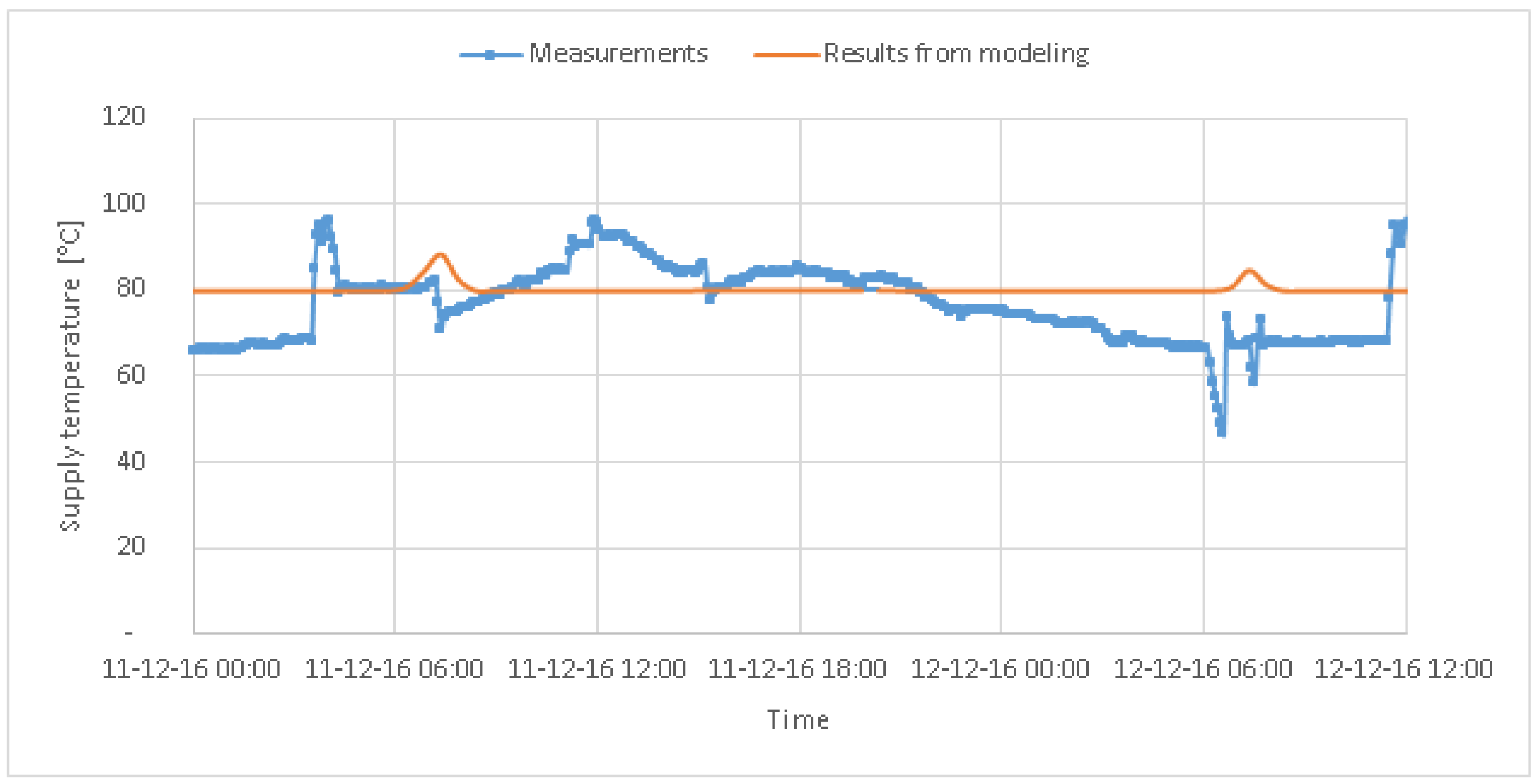

Figure 6. Supply temperature of a studied building with (modeling) and without control strategy (experimental data).
Figure 6. Supply temperature of a studied building with (modeling) and without control strategy (experimental data).
Energies 10 02027 g006

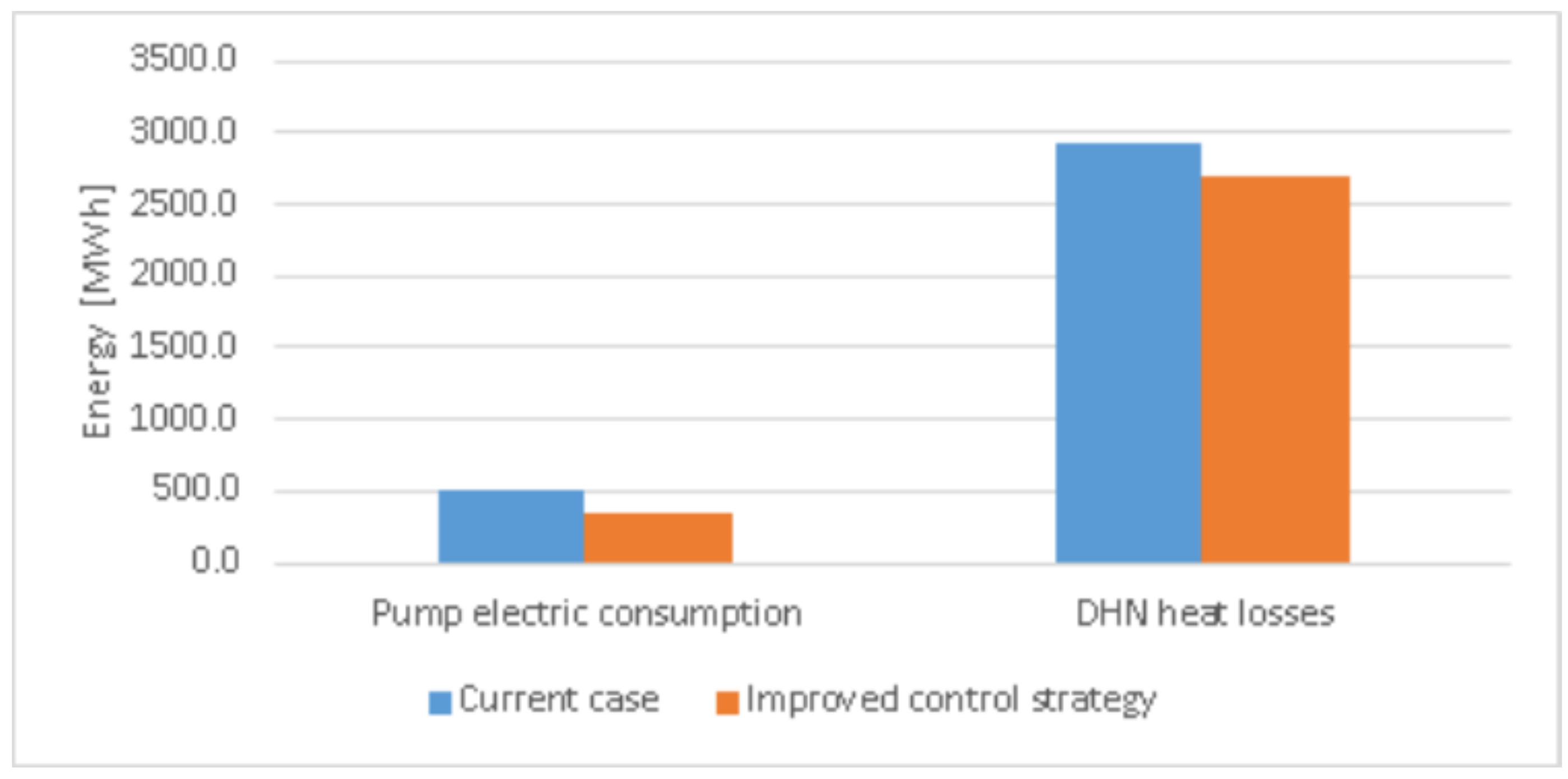

Figure 7. Pump electric consumption and DHN heat losses of the case study and improved control strategy.
Figure 7. Pump electric consumption and DHN heat losses of the case study and improved control strategy.
Energies 10 02027 g007

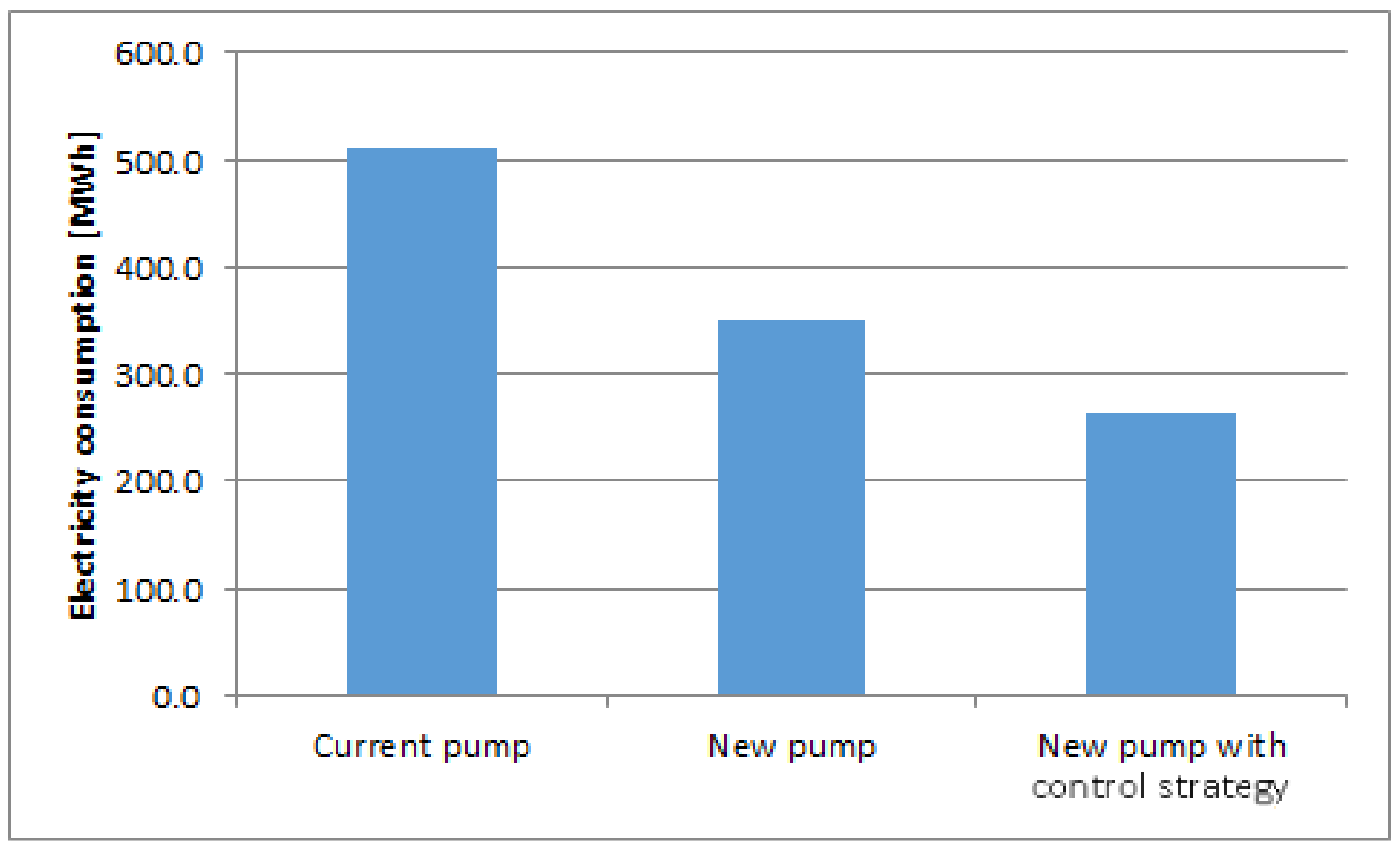

Figure 8. Pump electric consumption.
Figure 8. Pump electric consumption.
Energies 10 02027 g008
Table 1. CO 2 emissions energy based.
Table 1. CO 2 emissions energy based.
ElectricityNatural GasGasoilWood
Energy based [g/kWh]456 [53]251 [54]306 [54]42 [55]

© 2017 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (
Back to TopTop
