Novel Carbon Materials in the Cathode Formulation for High Rate Rechargeable Hybrid Aqueous Batteries

by
Xiao Zhu
,
Tuan K. A. Hoang
and
Pu Chen
*
Department of Chemical Engineering and Waterloo Institute for Nanotechnology, University of Waterloo, 200 University Avenue West, Waterloo, ON N2L 3G1, Canada
*
Author to whom correspondence should be addressed.
Energies 2017, 10(11), 1844; https://doi.org/10.3390/en10111844
Submission received: 27 September 2017 / Revised: 27 October 2017 / Accepted: 8 November 2017 / Published: 11 November 2017
(This article belongs to the Section D: Energy Storage and Application)
Browse Figures
Versions Notes

Abstract

:
Novel carbon materials, carbon nanotubes (CNTs) and porous graphene (PG), were exploited and used as conductive additives to improve the rate performance of LiMn2O4 cathode for the rechargeable aqueous Zn/LiMn2O4 battery, namely the rechargeable hybrid aqueous battery (ReHAB). Thanks to the long-range conductivity and stable conductive network provided by CNTs, the rate and cycling performances of LiMn2O4 cathode in ReHAB are highly improved—up to about 100 mAh·g−1 capacity is observed at 10 C (1 C = 120 mAh·g−1). Except for CNTs, porous graphene (PG) with a high surface area, an abundant porous structure, and an excellent electrical conductivity facilitates the transportation of Li ions and electrons, which can also obviously enhance the rate capability of the ReHAB. This is important because the ReHAB could be charged/discharged in a few minutes, and this leads to potential application of the ReHAB in automobile industry.

1. General Introduction of Aqueous Rechargeable Battery

Batteries are widely used as energy storage systems. Lithium ion batteries can operate at high voltages due to the wide electrochemical stability range of the organic electrolytes (3–5 V vs. Li+/Li electrode), resulting in high energy densities. Therefore, lithium ion batteries have been widely used in electronic devices and they have been chosen as one of the most promising power sources for electric vehicles (EVs). Unfortunately, these organic electrolytes show high flammability and low ionic conductivity (about two orders of magnitude lower than those of aqueous electrolytes); besides, the fabrication cost of lithium ion batteries is generally high. Aqueous electrolytes are electrochemically stable just in a narrower voltage (1.23 V vs. SHE) than organic electrolytes; however, they are much safer (inherently non-flammable and low toxic) and the fabrication cost of aqueous batteries is much lower than lithium ion batteries, so aqueous batteries are more suitable for low cost and large-scale energy storage [1,2,3]. Thus far, a variety of aqueous batteries, including alkaline Zn-MnO2, lead-acid, Ni-Metal (e.g., zinc, cobalt, and iron), and Ni-metal hydride (Ni-MH) are used extensively or studied widely [1,4,5,6,7,8]. However, these systems also have their own problems. Specifically, the alkaline Zn/MnO2 is a primary battery, and its disposal causes plenty of pollution to the environment; the poisoning metals of lead and cadmium utilized in lead-acid and Ni-Cd batteries, respectively, may cause damage to the environment; Ni-MH (M = La, Ce, Nd, Gd, etc.) batteries utilize rare earth elements, which makes them expensive; and Ni-Co (Fe, Zn) batteries have narrow voltage range.
Recently, a series of aqueous “rocking-chair” batteries based on the ion (e.g., Li+, Na+, K+, and Zn2+) intercalation/de-intercalation processes have been developed [9,10,11,12,13,14,15,16,17,18,19,20]. In 1994, Dahn et al. first developed the aqueous LiMn2O4/VO2 battery [9], with LiNO3 solution (5 mol·L−1) as the electrolyte. Then, various kinds of aqueous “rocking-chair” lithium ion batteries (e.g., LiFePO4/LiTi2(PO4)3, LiMn2O4/LiTi2(PO4)3, and LiMn2O4/LiV3O8) have been reported; [9,10,11,12]. Besides, Cui et al. reported a potassium ion battery, using carbon/polypyrrole hybrid and copper hexacyanoferrate as the anode and the cathode. This battery exhibited an excellent rate capability [14]. Different from aqueous lithium or potassium ion batteries, aqueous sodium ion batteries may be more promising to be used as large-scale energy storage systems due to the rich sodium resources in nature. Whitacre’s and Chiang’s groups both reported aqueous Na0.44MnO2/NaTi2(PO4)3 batteries [18,19]. However, sodium-intercalated compounds for aqueous systems are limited. Unique Li/Na mixed ion batteries, Na0.44MnO2/TiP2O7 and LiMn2O4/Na0.22MnO2, were developed by Xia’s group, which mainly depend on the intercalation/de-intercalation of Na ions and Li ions, respectively. The specific energy of these two batteries was 25 and 17 Wh·kg−1, respectively. It is worth mentioning that Li ions and Na ions are separated in aqueous LiMn2O4/Na0.22MnO2 battery due to the special operating mechanism of this system [21]. In addition, Cui et al. found that materials with the Prussian Blue crystal structure (nickel hexacyanoferrate and copper) possess large interstitial sites, which allows for the intercalation/de-intercalation of sodium (potassium) ions [20,22]. Their capacities are between 50 and 60 mAh·g−1.

2. Introduction of Rechargeable Hybrid Aqueous Battery

New types of aqueous rechargeable batteries, including new electrode materials and chemistry, are required to achieve high power as well as high safety and eco-friendliness. Herein, rechargeable Zn/MnO2 batteries have been widely studied; however, the redox reactions on the cathode show poor reversibility, which hinders its commercial applications. When electrolytes with pH ≥ 7, Zn(OH)2, ZnO22−, and [Zn(OH)4]2− are formed depending on potential and pH value, while with pH < 7, Zn − 2 e − → Zn 2 + [23]. Minakshi et al. found that replacing MnO2 by LiMn2O4 and changing the electrolyte to aqueous LiOH/ZnSO4 solution could improve the reversibility; however, due to the high pH value of the electrolyte, only a few amount of cathode material can be used during charge/discharge processes [23]. Recently, Kang et al. developed a mild zinc ion battery, using α-MnO2 as cathode and Zn as anode [15], which showed high capacities and a high rate capability. Additionally, a new secondary aqueous Zn/LiMn2O4 battery system, namely the rechargeable hybrid aqueous battery (ReHAB) has been developed by our group (Figure 1) [24]. The operation of this battery system is based on two different kinds of redox reactions. At the anode, zinc ions are deposited on the zinc sheet and then dissolved into a mild acidic aqueous solution, containing zinc ions, during charge and discharge processes, respectively. At the cathode, Li ions are de-intercalated from and intercalated into LiMn2O4 during charge and discharge processes. The advantages of this battery include the capability of functioning at high rate when the cathode formulation is optimized, and the low cost. Most of the materials used in this battery are commercially available. The battery can be assembled under the atmospheric environment.
Table 1 shows the comparison of various types of major secondary aqueous batteries. Among them, lead-acid batteries have the most widely applications [1]. Compared to lead-acid batteries, our ReHAB (Zn/LiMn2O4 batteries) shows about doubled energy density and up to 10 times higher cycle life; and is more environmentally friendly; besides, the cost of our ReHAB is almost the same as lead-acid batteries. However, some technical problems must be solved before the commercialization of the ReHAB. The first problem is the rate capability. The capacity of a standard 10 kg ReHAB battery should be about 0.6 kWh. If it could discharge 100% of its capacity at 10 C rate (or 6 min), the power would be high enough to crank a passenger vehicle [25]. To do this, the ReHAB is required to work at 10 C with the specific discharge capacity of not less than ~100 mAh·g−1. This is accomplished via applying novel carbon materials in the cathode formulation, which is the topic of this review paper. The second problem is the maintenance issue, which we propose to solve by the design of novel thixotropic gel electrolytes [26,27]. The remaining problems are the dendrite formation, corrosion, and hydrogen gas evolution on the zinc anode [28,29]. Intensive research efforts based on these issues are under progress. With reasonable high energy density, high power, high safety, and low cost, the ReHAB can be exploited as uninterruptible power supplies, large energy storage devices to interface with the grid, and novel start-stop battery in automobile vehicles.

3. Introduction of LiMn2O4

Compared with other cathode materials (e.g., LiCoO2 [30,31,32], LiNiO2 [33], LiFePO4 [34], NaMnO2 [35] and KMnO2 [36]) in aqueous rechargeable batteries, spinel LiMn2O4 is the most promising cathode material for aqueous rechargeable batteries due to its safety, eco-friendliness, low cost, and excellent structural stability [37]. The crystal structure of spinel LiMn2O4, space group F d 3 ¯ m , is illustrated in Figure 2, in which the Li and Mn cations occupied the 8a tetrahedral and the 16d octahedral sites; Li ions transfer in the three-dimensional (3-D) interstitial space provided by the Mn2O4 framework, which can be expressed by Equations (1) and (2) [38,39].
LiMn2O4 ⇄ Li0.5Mn2O4 + 0.5Li+ + 0.5e−
Li0.5Mn2O4 ⇄ 2MnO2 + 0.5Li+ + 0.5e−

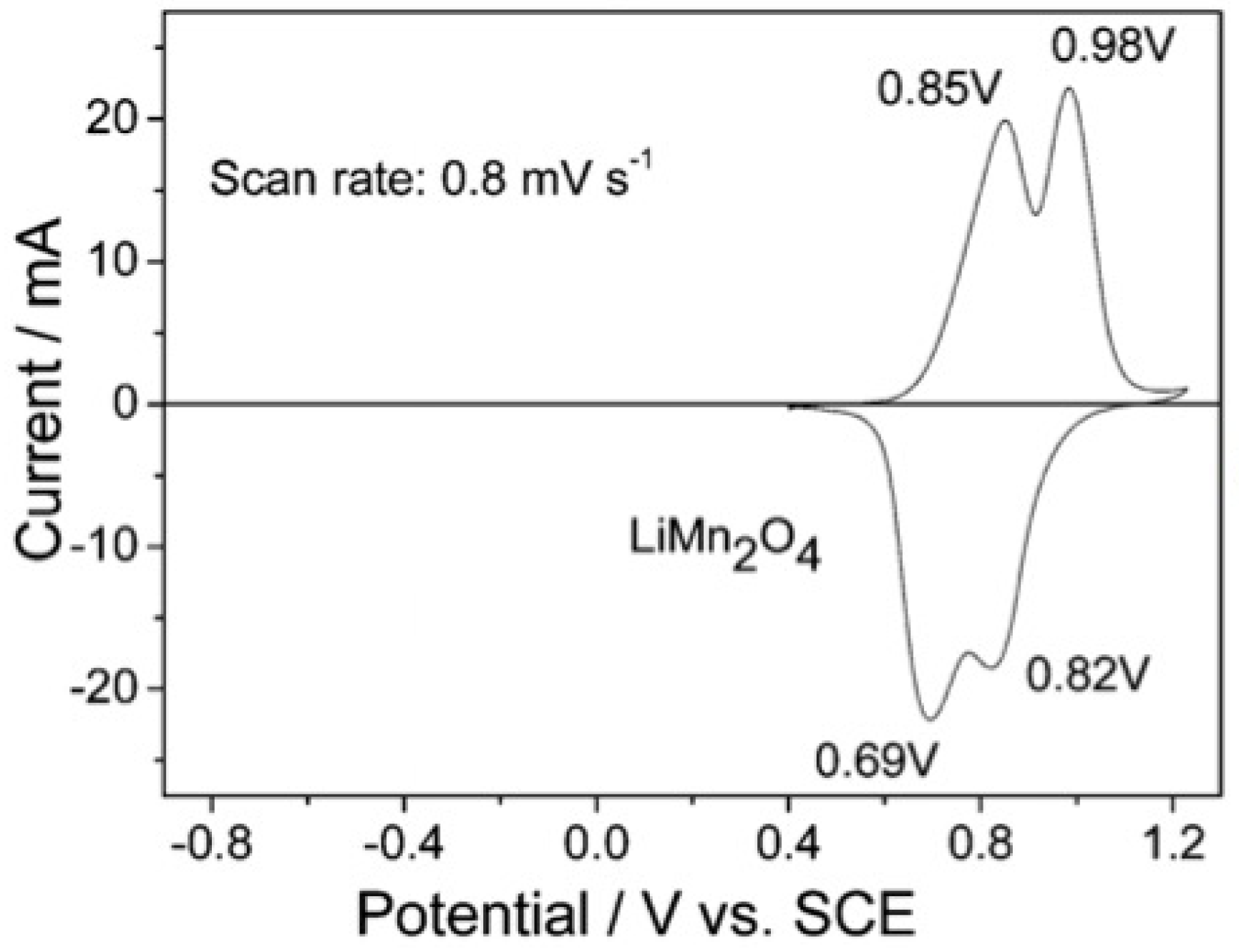

In 1994, it was reported that Li ion could de-intercalate/intercalate from/into LiMn2O4 in aqueous electrolyte for the first time [9]. In the CV curve of the LiMn2O4 in the saturated Li2SO4 solution (Figure 3), two pairs of redox peaks at 0.85/0.69 V and 0.98/0.82 V vs. standard calomel electrode (SCE), respectively, represent the two-step de-intercalation/intercalation of Li ions from/into the tunnels of LiMn2O4. Besides, the oxidation potentials are much lower than the oxygen generation potential (~1.5 V vs. SCE), revealing the excellent stability of LiMn2O4 as the cathode for aqueous rechargeable batteries [41].
However, the dissolution of Mn3+ in acid electrolytes, Mn3+(solid) → Mn4+(solid)+ Mn2+(liquid), and the phase transition from cubic to tetragonal phase result in the capacity decay, which hindered its practical application [42,43]. The dissolution of Mn3+ can be alleviated by surface modification and/or cation doping [38,44,45,46].
Besides, the rate capability of the LiMn2O4 cathode is intrinsically low. Specifically, the diffusion of Li ions and electrons in LiMn2O4 is slow, leading to the insufficient Li ion intercalation/de-intercalation under high current density, which cannot satisfy the requirements for energy storage system that can transfer (store or release) energy at high rates [47,48,49]. Thus, to make the ReHAB capable of working at high rate capability, the development of cathode formulation is one of the most important keys. In this review, we focus on using novel carbon materials, porous graphene and carbon nanotubes (CNTs), as conductive additives to improve the electrical conductivity, thus improving the rate capability of the battery.

4. Increase the Electrical Conductivity of LiMn2O4 Cathode by Adding CNTs or Graphene as Conductive Additive

4.1. Increase the Electrical Conductivity of LiMn2O4 Cathode by Adding CNTs as Conductive Additive

4.1.1. Structure, Properties and Synthesis of CNTs

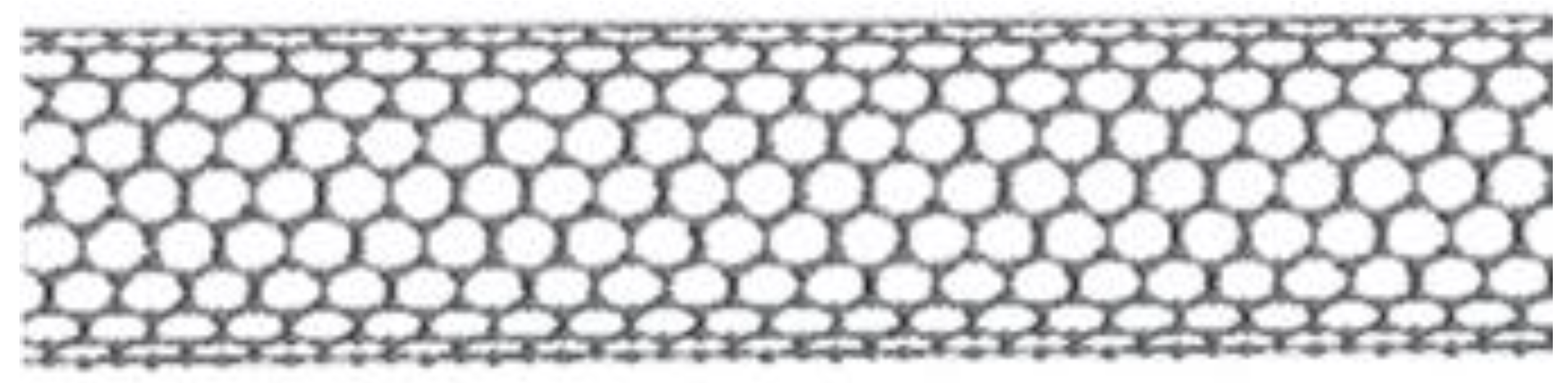

Since being discovered by Sumio Iijima in 1991 [50], carbon nanotubes (CNTs) have aroused great interest of researchers. CNTs can be envisaged as cylinders rolled by graphene layers (Figure 4). The length of CNTs ranges from ~100 nm to a few centimeters, while the diameter of the hollow cores changes from less than 1 nm to ~100 nm, resulting in a high length-to-diameter ratio, or aspect ratio. Based on the number of graphene layers, CNTs can be distinguished into single-walled CNTs (SWNTs) and multi-walled CNTs (MWNTs). SWNTs consist of a single rolled graphene layer, while MWNTs consist of two or more rolled graphene layers [51].
CNTs possess unusual properties, including exceptionally high mechanical strength and high electrical conductivity. The bonds of CNTs employ sp2-hybrid carbon atoms, which are stronger than the sp3-hybrid carbon atoms found in diamond, resulting in amazing mechanical strength of CNTs. The free electrons formed π-electron system, which determines the electronic property; and the one-dimensional (1-D) tube structure facilities the transport of electrons, which contributes to the high electrical conductivity of CNTs. These unique properties make CNTs be widely used in different kinds of applications, such as nanotechnology, energy storage, electronics, gas storage, water filtration, sensors, and so forth [51,52].
Based on the wide application of CNTs, mass production of CNTs with controlled structures becomes urgent. The techniques usually used to prepare CNTs include arc-discharge [50,53], laser ablation [54], gas-phase pyrolysis [55], and chemical vapor deposition (CVD) [56]. Among these methods, CVD has been used to mass-produce CNTs at a low cost. Wei et al. could produce over thousands of tons of CNTs per year by fluidized bed reactor-based CVD method, with the price of MWNTs below US $100 kg−1 and that of SWNTs below US $2000 kg−1 [57].

4.1.2. LiMn2O4/CNT Nanocomposites

Recently, LiMn2O4/CNT composites have been prepared by the following methods: mechanical alloying method [58], self-assembly process [59], in-situ hydrothermal method by using MnO2/CNT and LiOH as reaction [60,61,62], microwave-assisted hydrothermal reactions [63,64], spray-deposition method [65] and in-situ hydrothermal growth of binder-free flexible LiMn2O4/CNT composite [63]. These composites have been used in lithium ion batteries as cathode materials, where high electrochemical performances of LiMn2O4 were attained.
Additionally, LiMn2O4/CNT composites have been used in aqueous rechargeable batteries. Zhang et al. prepared LiMn2O4/MWNTs composite by a ball-milling process with a high temperature treatment at 500 °C for 1 h [66], the morphology of the prepared LiMn2O4/MWNTs composite is shown in Figure 5a The LiMn2O4/MWNTs cathode was investigated in 1 mol·L−1 Li2SO4 for aqueous rechargeable batteries and it delivered higher discharge capacities than the LiMn2O4 cathode at different current densities (Figure 5b). Moreover, the results from electrochemical impedance spectroscopy (EIS) revealed that the transfer of Li ions in the LiMn2O4/MWNTs cathode is much faster than that in the LiMn2O4 cathode. This means that the MWNTs can obviously enhance the capacity storing and the rate capability of the battery. Tang et al. prepared LiMn2O4/CNT composite by a hydrothermal method with a heat treatment at 700 °C for 8 h, the morphology of the prepared LiMn2O4/CNT composite is shown in Figure 5c The LiMn2O4/CNT cathode was investigated in 5 mol·L−1 LiNO3 aqueous electrolyte, and it delivered higher capacities than LiMn2O4/active carbon (LiMn2O4/AC) electrode at different current densities (Figure 5d) [61].
Besides, Dillon’s group developed an aqueous paper battery, using LiMn2O4 as cathode, carbon coated TiP2O7 as anode, and carbon nanotube coated paper as current collector in 5 mol·L−1 LiNO3 solution [67]. Coated by SWNTs not only reduced the resistance of the paper, but also facilitated the penetration of anode and cathode materials into the conductive substrates, resulting in an improved rate capability in comparison with the organic system.
A three-dimensional carbon nanotube/acetylene black (CNT/AB) network was fabricated and used as conductive additive by our group to improve the rate capability of the LiMn2O4 cathode of the rechargeable aqueous Zn/LiMn2O4 battery system, or ReHAB, using a simple mechanical mixing approach [68]. Figure 6a shows the schematic structure of hierarchical CNT/AB/LiMn2O4 electrodes. The small black dots represent AB nanoparticles, the brown squares represent LiMn2O4 nanoparticles, and the blue lines represent CNTs. The morphology of the CNT/AB/LiMn2O4 electrode can also be confirmed by SEM (Figure 6b) and TEM (Figure 6c) images. The CNTs, prepared by a chemical vapor deposition method, show ~100 µm in length and ~11 nm in diameter, which can provide long-range conductive pathways for fast electron transfer. Herein, the CNT/AB/LiMn2O4 electrode (CNT:AB = 1:2, wt %) shows an excellent rate capability (a specific capacity of 105 mAh·g−1 at 10 C, 1 C = 120 mAh·g−1, Figure 6d).
Additionally, a binder-free flexible LiMn2O4/CNT hybrid film was prepared by our group (Figure 7a) and used as a high power cathode for the ReHAB [69]. LiMn2O4 particles and CNTs are highly entangled together (Figure 7b) to form a free-standing hybrid film with a high mechanical strength (Figure 7c,d) and a good conductivity which facilitate the transfer of electrons. Herein, the LiMn2O4/CNT electrode exhibits an excellent rate capability (a specific capacity of 100 mAh·g−1 at 10 C, 1 C = 120 mAh·g−1, Figure 7e). While, the Van Der Waals forces between LiMn2O4 nanoparticles and CNTs are weak and these bonding may get weaken during cycling, which results in the minor decrease of capacity (Figure 7f) [70]. It is worth mentioning that this is the first demonstration of using highly stable binder-free flexible LiMn2O4/CNT electrodes in aqueous rechargeable battery.

4.2. Increase the Electrical Conductivity of LiMn2O4 Cathode by Adding Graphene as Conductive Additive

4.2.1. Structure, Properties and Synthesis of Graphene

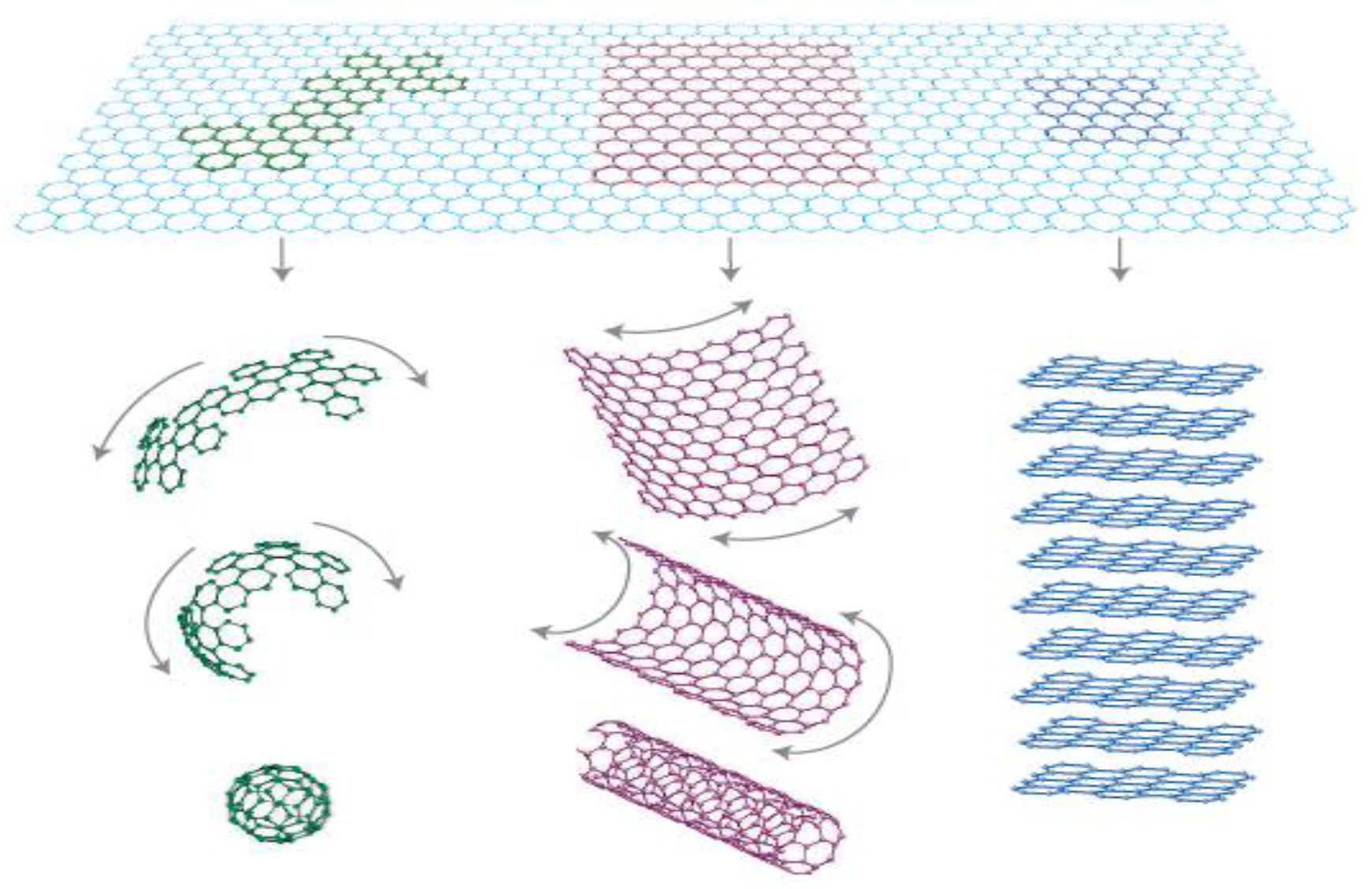

Since being discovered by Geim in 2004, graphene has caused widespread concerns of scientists. Graphene, a two-dimensional (2-D) monolayer graphite sheet of sp2 carbon atoms with a honeycomb structure, has a large specific surface area of 2630 m2·g−1 [71,72]. It is considered as the fundamental structural units, which can be wrapped into zero-dimensional (0-D) fullerene, rolled into 1-D CNTs, and stacked into three-dimensional (3-D) graphite, as shown in Figure 8.
Graphene possesses unique mechanical and thermal properties. The intrinsic tensile strength of graphene is up to 130 GPa, which makes it the strongest material [73]. The thermal conductivity of graphene is up to 5300 W·(m·K)−1, which is four times of the diamond [74]. Moreover, the highly special electrical properties of graphene attract much more attentions of researchers: the giant intrinsic mobility of which is up to 15,000 cm2·(V·s)−1 [75]; the velocity of electrons in which is three hundredth of the speed of light, exceeding most of conductors [76]. All of these electrical properties contribute to the best conductivity of graphene. Graphene is expected to be widely used in different kinds of fields, such as energy storage, nanotechnology, electronic devices, biomedical materials, and so forth [71,77,78].
Currently, there are usually six different methods to prepare graphene: mechanical exfoliation [79], graphene oxide (GO) reduction [80], CVD [81,82], epitaxial growth [83], cutting carbon nanotubes [84], direct sonication and chemical reduction [85]. Among these methods, only GO reduction method and CVD method are suitable for large-scale graphene production.
Li et al. [86] reported the preparation of graphene through a GO reduction method, which includes three steps as following (Figure 9): (1) oxidize graphite to hydrophilic GO with greater interlayer distance by modified Hummers’ method; (2) disperse GO in water with ultra-sonication to form GO colloids; (3) convert the insulated GO back to conducted graphene by chemical reduction, for example, using hydrazine. The graphene prepared by the GO reduction method is named as reduced graphene oxide (RGO). The graphene oxide reduction method has inevitable disadvantages: the structure of graphene is destroyed by strong oxidant and reductant used in the preparation process, compromising the electrochemical performance of RGO; besides, graphene oxide is easily accumulated in aqueous solution due to the van der Waals force. However, this method is of low cost and is suitable to prepare graphene derivatives, which expands the application of graphene.
The CVD method provides a promising way to realize the controllable preparation of graphene [82]. Graphene with different properties can be obtained by selecting different substrates and carbonaceous sources, as well as controlling reaction temperature in the preparation process. Typically, the substrate (including metal substrates such as Fe, Co, Ni, Cu, etc., and nonmetal substrates such as CuO, NiO, etc.) is exposed to the volatile precursors (usually carbon sources such as acetylene, ethylene, methane, etc.), which cracked at high temperature to form desired deposit on the surface of the substrate. Generally, volatile by-products produced in the CVD process flow out through the reactor. After the substrate is removed, the desired product is obtained.
The ability to form sp2 crystalline carbon from solid solutions of various transition metals (e.g., Fe, Co, Ni, and Cu) is determined by their carbon affinity [87]. In the case of Fe, the asymmetrical distribution of electrons in the d-shell {[Ar]3d64s2} leads to mutual repulsion, which results in its higher affinity towards carbon [88]; the high affinity between Fe and C makes it more favorable to form carbide than graphitic carbon. Cu has the lowest affinity to carbon [89,90] and has very low carbon solubility compared to Co and Ni (0.001–0.008 wt % at ~1084 °C for Cu [90,91], ~0.6 wt % for Ni at ~1326 °C, and ~0.9 wt % for Co at ~1320 °C) [92], which can owe to the fully filled 3d-electron shell {[Ar]3d104s1} structure of Cu, the most stable configuration; hence, Cu can only form soft bonds with carbon via charge transfer from the p electrons in the sp2 hybridized carbon to the empty 4s states of Cu [88,93]. Therefore, the very low affinity between carbon and Cu along with the ability to form intermediate soft bonds makes copper the most suitable catalyst for graphitic carbon formation.

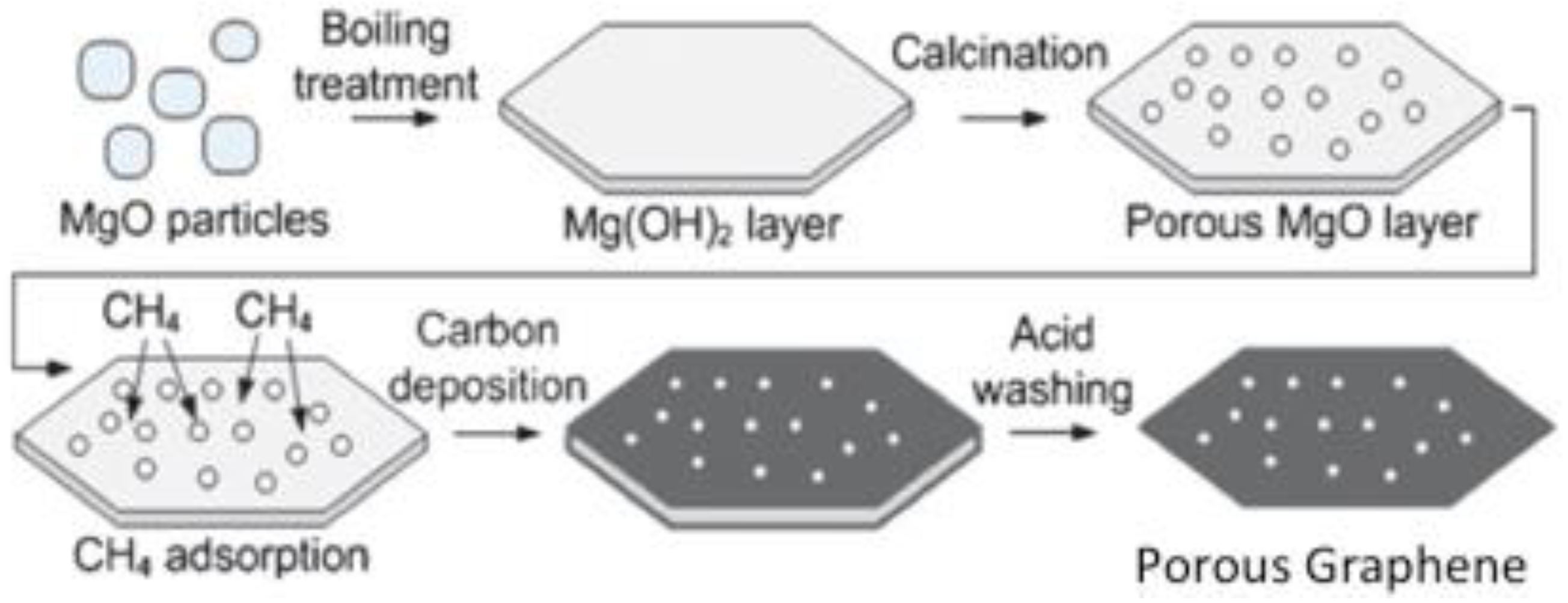

Ning et al. prepared a kind of porous graphene, or PG, by CVD method, using porous MgO as substrates. Figure 10 shows the two-step preparation process of PG, synthesis of porous MgO layers and template growth of PG [82]. Firstly, MgO powder was mixed with deionized water under super-ultrasonic stirring. The mixture was boiled in a reflux apparatus for 24 h. After filtration, drying, and calcination at 500 °C for 30 min, porous MgO layers were obtained. Then, PG was prepared by a one-step CVD process, in which CH4 was cracked at 875 °C to create carbon deposits on the MgO templates, after removing MgO by an acid washing process and drying at 80 °C for 12 h, PG was finally obtained.

4.2.2. LiMn2O4/Graphene Nanocomposites

Except for CNTs, graphene, a 2-D single layer of carbon atoms, possesses unique properties such as high surface area and superior electrical conductivity [94]. The high surface area can increase the interfacial contact between electrode and electrolyte, resulting in a fast transportation of Li ions; the superior electrical conductivity contributes to a fast electron transport. Therefore, graphene can also be used as an ideal conductive additive to improve the electrochemical performance of LiMn2O4 cathode [59,95,96]. Recently, LiMn2O4/graphene [97,98] and LiMn2O4/RGO [99,100] composites have been prepared and studied as the cathodes of lithium ion batteries, resulting into highly improved rate capabilities.

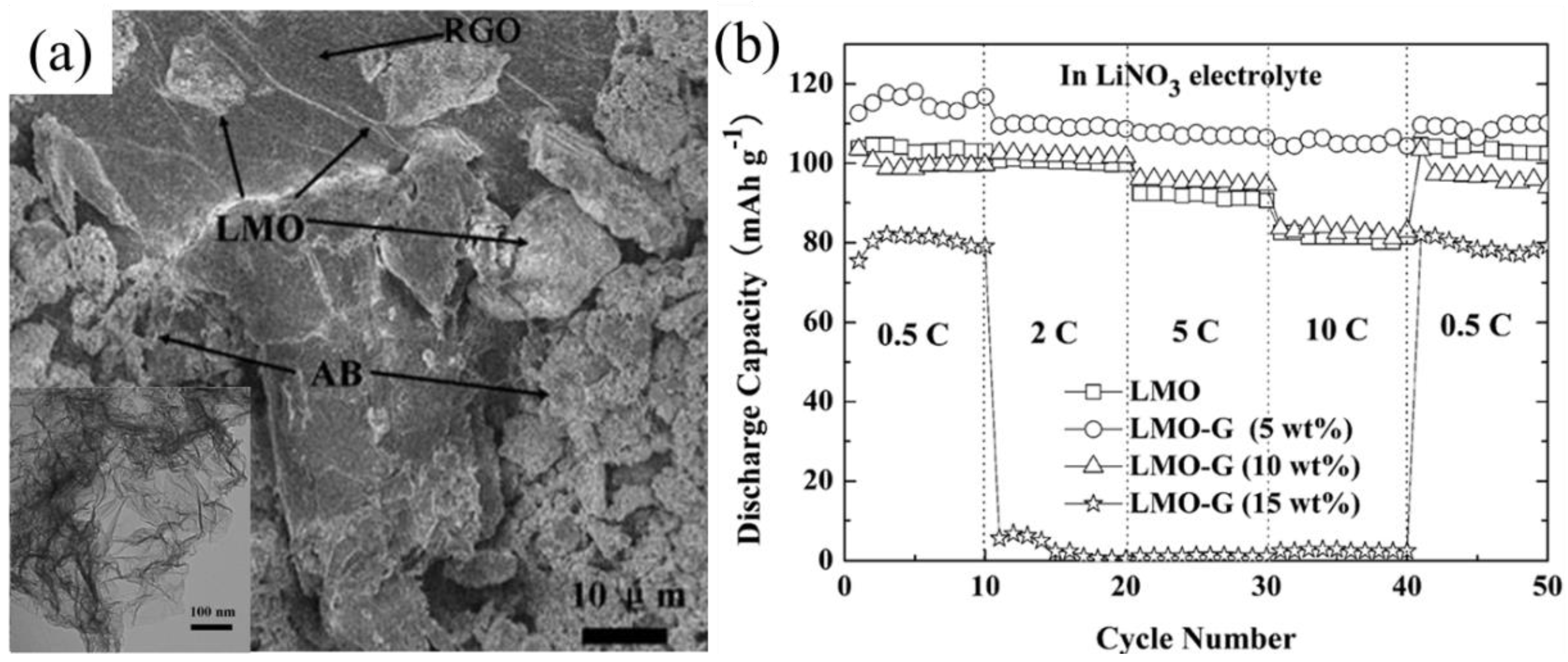

Additionally, there are a few reports about using graphene in aqueous rechargeable battery [97,101,102,103]. Jiang et al. used reduced graphene oxide (RGO) nanosheets (inserted figure of Figure 11a) as conductive additive to improve the rate capability of the LiMn2O4 cathode. The electrochemical measurements were conducted in 5 mol·L−1 LiNO3 aqueous electrolyte. When RGO nanosheets and acetylene black (AB) nanoparticles co-existed with the weight ratio of 1:2 (the content of RGO is 5 wt %, Figure 11a) in the electrode, the rate performance of the LiMn2O4 electrode was highly enhanced (Figure 11b). The effective conducting pathways formed by RGO nanosheets and acetylene black nanoparticles contribute to the high rate capability [97].
Besides, PG was prepared and directly used in our ReHAB as conductive additive in the LiMn2O4 cathode [104]. The PG can provide facile access for the electrolyte and high electrical conductivity for the cathode. When mixed with AB with the weight ratio of 1:2 (the content of PG is 3.3 wt %) in the electrode, it also shows a higher rate capability (a specific capacity of 94 mAh·g−1 at 10 C, 1 C = 120 mAh·g−1), which is comparable to the results of Jiang et al.

4.3. Comparison of Different Conductive Additives in LiMn2O4 Cathodes in Aqueous Batteries

The electrochemical performances of LiMn2O4 cathodes with different conductive additives in aqueous batteries are listed in Table 2. It shows that better rate capability can be achieved by using CNTs as conductive additive than graphene. Among which, the 3.3 wt % CNT/AB/LiMn2O4 and binder-free flexible LiMn2O4/CNT electrodes prepared by our group both exhibit high rate capability, which attributes to the long-range conductivity provided by CNTs. Although LiMn2O4/CNT composite [61] prepared by a hydrothermal method shows a higher capacity than our electrodes, its content of conductive additive is as high as ~33 wt %, including ~13 wt % CNTs and 20 wt % acetylene black, while, for our electrodes, the content of conductive additive is only 10 wt %, especially for the 3.3 wt % CNT/AB/LiMn2O4 electrode, only 3.3 wt % CNTs was used. Besides, the 3.3 wt % CNT/AB/LiMn2O4 electrode was prepared by a simple mechanical mixing method, which is very simple and feasible to large scale industry applications. Compared to the 3.3 wt % CNT/AB/LiMn2O4 electrode, the 3.3 wt % PG/AB/LiMn2O4 electrode prepared by the same mechanical mixing method shows a much better cycling performance (17% higher capacity retention after 300 cycles at 4 C).
Table 3 compares the properties of different conductive additives, AB, CNTs, and PG, used in the formulation of the LiMn2O4 cathode in the ReHAB. Compared to AB, CNTs can provide long-range conductivity; PG with a large surface area can provide a large conducting contact area between LiMn2O4 and conducting pathways. However, for CNTs, the reaction between CNTs and Li ions during cycling processes makes them more fragile, so they may break into shorter lengths with the volume changes of the active materials, resulting in the destroy of the long-range conductivity, thus the decrease of capacity [51]; for the PG, the high cost hinders its large-scale application.

5. Conclusions

This paper gives a review of exploiting CNTs and porous graphene as conductive additives to improve the rate capability of LiMn2O4 cathode in the rechargeable aqueous Zn/LiMn2O4 battery, namely the ReHAB. CNTs can provide stable and long-range conducting network, so they can be used as an ideal conductive additive to improve electrical conductivity of battery electrodes. In addition to CNTs, porous graphene with an abundant porous structure, a high surface area, and an excellent electrical conductivity, was used as a conductive additive to the LiMn2O4 cathode for the first time, resulting in highly improved electrochemical performance of the LiMn2O4 cathode.
CNTs and graphene can highly improve the rate capability of the ReHAB by simple mechanical mixing. Compared to CNTs, LiMn2O4 cathode with porous graphene as conductive additive shows much better cycling stability; however, mass production of porous graphene with high quality at a much lower price is still the main problem that hinders its large-scale application; besides, systematic studies of deposition/dissolution rate of zinc at the anode are needed to eliminate its influence on the Li ion diffusion.
Although many obstacles still need to be overcome before the commercialization of the ReHAB, major advances in both performance enhancement and mechanism elucidation of the ReHAB have been reported. It is believed that further investigation will eventually lead to the practical application of the ReHAB in the near future.

Acknowledgments

This research was financially supported by Positec (No. 2100-500-105-2974-121701), the Natural Sciences and Engineering Research Council of Canada (NSERC, No. 216990), Canadian Foundation for Innovation (CFI, No. 202335), the Canada Research Chairs (CRC, No. 211464) program and Mitacs (Nos. IT04444 and IT06145). One of the authors (Xiao Zhu) thanks the China Scholarship Council for Study Abroad Scholarship (No. 201306440001).

Author Contributions

Xiao Zhu wrote the paper; Tuan K. A. Hoang and Pu Chen provided peer review of paper; and Pu Chen provided academic research supervision.

Conflicts of Interest

The authors declare no conflict of interest.
