A New Classification Based on the Kaban's Modification for Surgical Management of Craniofacial Microsomia

Abstract

In medicine, classifications are designed to describe accurately and reliably all anatomic and structural components, establish a prognosis, and guide a given treatment. Classifications should be useful in a universal way to facilitate communication between health professionals and to formulate management protocols. In many situations and particularly with craniofacial microsomia, there have been many different classifications that do not achieve this goal. In fact, when there are so many classifications, one can conclude that there is not a clear one that accomplishes all these ends and defines a treatment protocol. It is our intent to present a new classification based on the Pruzansky’s classification, later modified by Kaban, to determine treatment protocols based on the degree of osseous deficiency present in the body, ramus, and temporomandibular joint. Different mandibular defects are presented in two patients with craniofacial microsomia type III and IV according to our classification with the corresponding management proposed for each type and adequate functional results.

In 1963, Longacre et al. [1] proposed a descriptive classification based on the unilateral or bilateral involve- ment of the external ear alteration and the presence or absence of facial deformity. Two years later, Grabb[2] proposed an anatomic classification in which he established six groups based on the combination of external ear, middle ear, mandible, maxilla, zygoma, temporal bone, and oral involvement. Converse[3] recognized a wide spectrum of anatomic alterations that he catego- rized into four groups. The first three groups were based on ear and mandible findings, whereas the fourth in- cluded facial soft tissue and bone involvement.

Edgerton and Marsh[4] described four clinical groups based on the dominant pattern of dysplasia: I, mandibular; II: craniofacial soft tissue; III, auricular; and IV, composite deformity.

The first phenotypic classification, described by Tanconi and Hall [5], introduced and incorporated ocular and extracranial findings such as ocular dermoides, microphthalmos, limb deficiencies, and vertebral, heart, or renal abnormalities.

The most recent descriptive classification was devised by Vento et al.[6] in 1991, using an alphanumeric coding system to classify the patients based on the severity of deformity in the different anatomic structures. It used an acronym, OMENS—O, orbital alteration; M, mandibular deformity; E, ear deformity; N, nerve in- volvement; and S, soft tissue alterations.

Munro and Lauritzen[7,8] described a surgical- anatomic classification scheme divided according to the skeletal deformity but based on treatment considera- tions. This classification is determined by whether the skeleton is complete (type I) or incomplete (types II to V), whether the occlusal plane is level (type Ia) or tilted (types Ib to V), and whether the orbit is involved (type IV and V).

David et al.[9] devised an alphanumeric coding classification called SAT, wherein S stands for skeletal grade of deformity, A for auricle alteration, and T for soft tissue anomalies.

Pruzansky[10] reported a grading system of pro- gressive mandibular deficiency: grade I, minimal hypo- plasia of the mandible; grade II, functioning but deformed temporomandibular joint with anteriorly and medially displaced condyle; and grade III, absence of the ramus and glenoid fossa.

This classification was later modified by Kaban et al. [11]. They established the following classification: type I, all mandibular and temporomandibular joint compo- nents are present and normal in shape but hypoplastic to a variable degree; type IIa, the mandibular ramus, condyle, and temporomandibular joint are present but hypoplastic and abnormal in shape; type IIb, the man- dibular ramus is hypoplastic and markedly abnormal in form and location, being medial and anterior, and with no articulation with the temporal bone; and type III, the mandibular ramus, condyle, and temporomandibular joint are absent and the lateral pterygoid muscle and temporalis, if present, are not attached to the mandibular remmant.

Prahl-Andersen and colleagues[12] described a clas- sification system, which incorporates the deformity of not just the mandible but also includes other craniofacial bony structures assessed using three-dimensional com- puted tomographic (3-D CT) imaging, called the Cra- niofacial Deformity Score. This was subdivided into a score for the mandible (Mandibular Deformity Score) and a score for the other craniofacial bones (Cranial Deformity Score).

On the basis of the mandibular anatomic involve- ment, the classification that fits best and has shown the most practical utility is the one described by Pruzansky and later modified by Kaban. It is important to deter- mine the mandibular anatomic deformity to proceed with surgical treatment.

In our department, the treatment for craniofa- cial microsomia has been based on the Kaban’s modi- fied classification. In type I, the management we use is orthopedic treatment to stimulate maxillary and mandibular growth. In type IIa and IIb we use distraction osteogenesis of the mandible and practice orthopedic treatment management at the same time. In type III, we find two different situations: absence of ramus in which case the treatment is based on the utilization of iliac and costochondral bone grafts with later distraction osteogenesis on the integrated bone and absence of ramus with mandibular body hypo- plasia in which case we reconstruct the mandible with fibular free flap.

According to Kaban’s classification, the absence of the ramus with or without mandibular body hypoplasia is grouped in type III. This is a point of potential confusion because the management is different depending on whether the alteration or deformity of the mandibular body is present.

From a practical point of view, we propose a modification to Kaban’s classification leaving type III for absence of the ramus and incorporating a type IV for presence of mandibular body hypoplasia associated with absence of the ramus (

Table 1. New Classification.

), because this requires a different management (

Table 2. Management Protocol Based on New Classification.

).

Patients and Methods

We presented a patient with Goldenhar syndrome and a deformity of type III craniofacial microsomia, based on our classification, who was managed with iliac bone graft, and another patient with craniofacial microsomia of type IV, according to our classification, who was managed with fibular free flap.

Case No. 1

An infant patient with craniofacial microsomia Golden- har type, presented with left microtia, left mandibular hypoplasia, deviation of mandible and mandibular in- cisive teeth to the left, and restricted mouth opening. The left condilar head and ascending ramus of the mandible were missing, and there was no functional temporomandibular joint but the mandibular body did not show hypoplasia. Therefore, mandibular defect on that side was classified as type III according to our classification, and reconstruction was planned to replace the missing bony segment of mandible (Figure 1). A panoramic was obtained before the surgical treatment as baseline and after the surgical treatment to compare postoperative results (Figure 2). Iliac bone graft was chosen as the method of reconstruction (Figure 3).

Case No. 2

Another infant patient with craniofacial microsomia, presented with right microtia, right mandibular hypo- plasia, and deviation of mandible and mandibular in- cisive teeth to the right. The right condilar head and ascending ramus of the mandible were missing, and there was no functional temporomandibular joint and the mandibular body was hypoplastic. Therefore, mandibular defect on that side was classified as type IV according to our classification, and reconstruction was planned to replace the missing bony segment of man- dible (Figure 4). 3-D CT scans were obtained after the surgical treatment (Figure 5). Fibular-free flap was chosen as the method of reconstruction (Figure 6).

Results

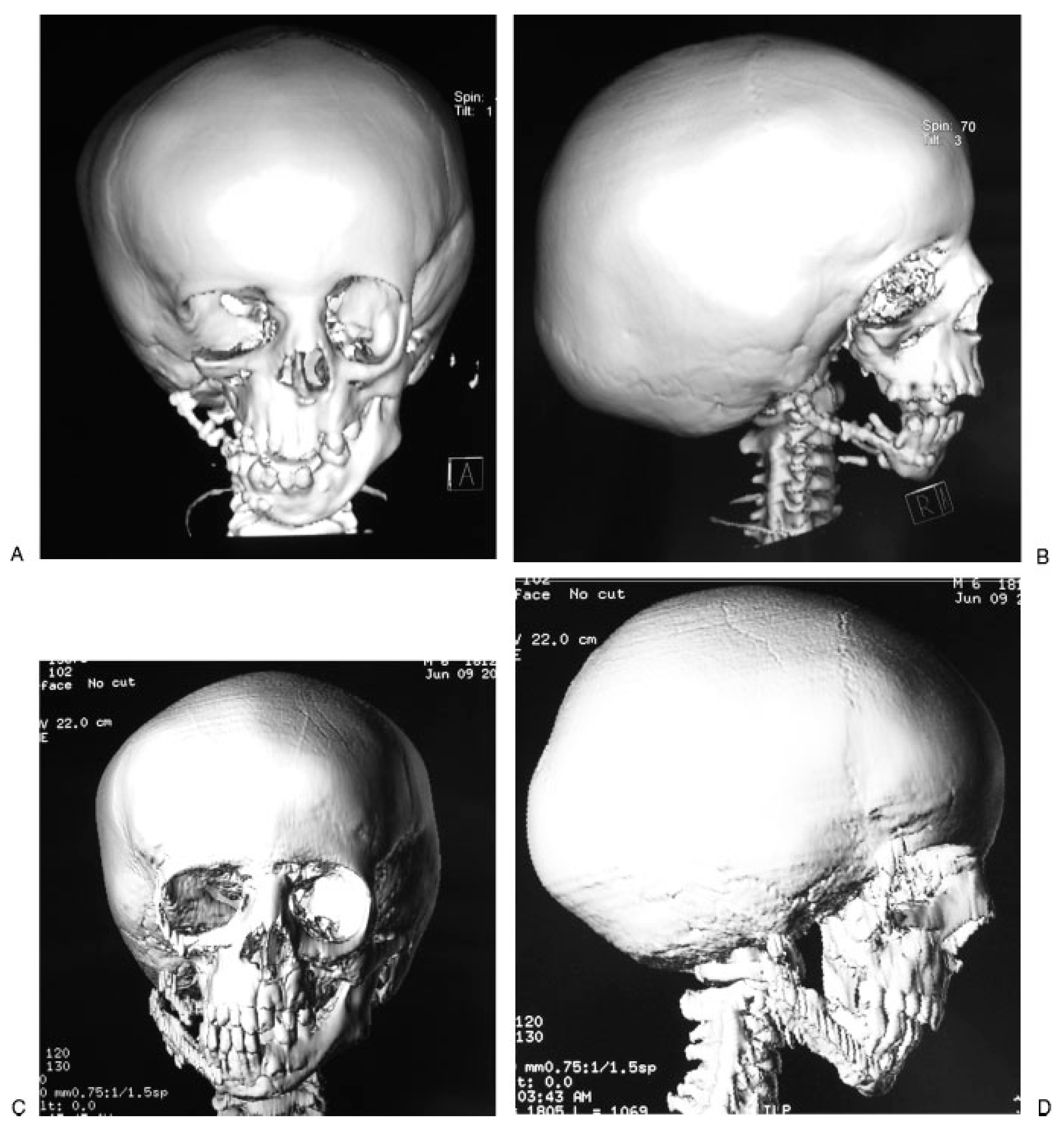

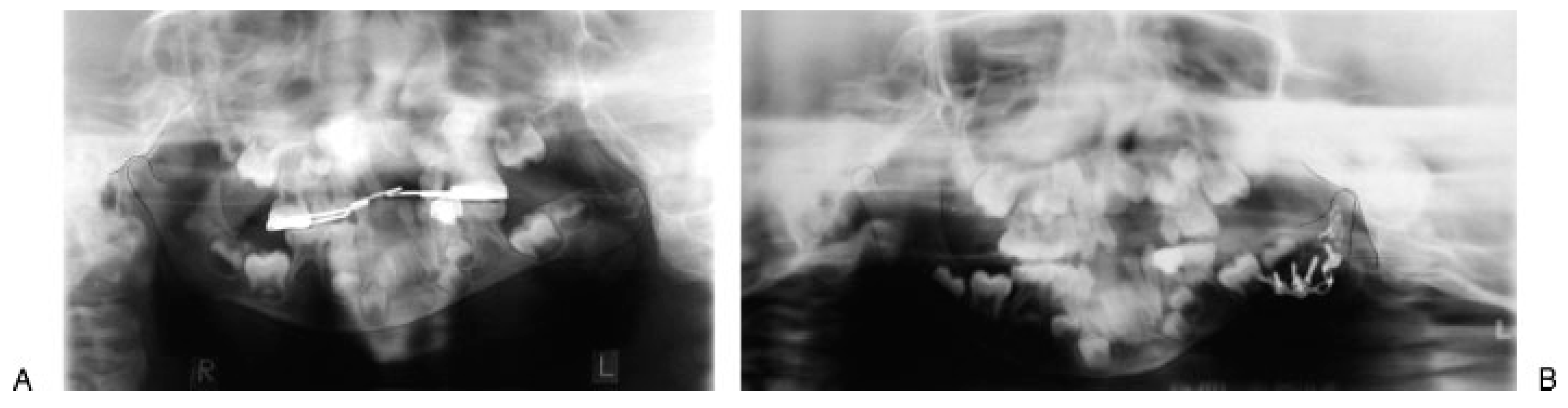

Plain radiographic evaluation with panoramic and 3-D CT showed that mandibular symmetry increased, and normooclusive closure of incisive teeth was achieved after surgery and retained in the postoperative period with both surgical techniques (Figs. 1 and 4). Our classification guided us in the management of both patients in obtaining adequate functional results.

Discussion

The modification made by Kaban added a subdivision based on whether the temporomandibular joint is func- tional (type IIa) or dysfunctional (type IIb). Although an important finding from a descriptive point of view, there is no difference in management between the groups. Our proposal differentiates the two groups based on an important anatomic finding that gives rise to different surgical management.

The importance of establishing this new classi- fication with differentiation between the patients with and without mandibular body hypoplasia is that the osseous requirements are not the same. A patient with mandibular body hypoplasia can achieve excellent func- tional results with iliac or costochondral bone grafts and later if needed distraction osteogenesis, without the further morbidity of a free flap. On the other hand, a patient with mandibular body hypoplasia has a larger osseous deficiency that has to be managed with refined microvascular techniques. If a persisting structural deficit is observed after this treatment, distraction osteogenesis is a secure and safe option.

In patients classified in group IV, the results of using nonvascularized bone grafts have been disappoint- ing because of variable resorption rates ranging from 30 to 80%[13] and unpredictable growth rates. Graft failure has been attributed to poor vascularity of the recipient bed. Those grafts that survive have been poor candidates for distraction osteogenesis, with complication rates far higher than those in patients who were not grafted.

According to Stelnicki et al. [14], distraction of costochondral grafts is prone to fail when the distraction advancement to bone width ratio is more than 1.5:1, as it is in patients classified in group IV. According to Li et al. [15], free flaps have a low rate of resorption compared with nonvascularized bone grafts and are stable over time.

Ideally, we want to prevent the need for maxillo- mandibular distraction osteogenesis by performing free flap surgery before complete maxillary growth so that the maxillary alveolus has the opportunity to descend on its own to meet the neomandible. The upside to this approach is the free flap’s ability to ‘‘unlock’’ maxillary growth, allowing a vertically deficient maxilla to ‘‘catch up’’ to its contralateral counterpart [13].

In a study published by Cheung [16], during a 2-year period from January 1, 1995 to December 31, 1996, the success rate of free flap transfer was 94%. Thus, it is a safe option for patients classified in type IV. He affirmed that the advantages of free flaps were low failure rate, smaller number of surgical procedures to achieve good functional results, and the ability to transfer specific tissue according to the patient’s needs. He demonstrated that with the free fibular flap, any component of a mandibular defect can be recon- structed. This procedure provides not only enough bone stock to achieve anatomic restoration, but also a reliable base on which to attach the osseo-integrated implants during dental rehabilitation.

The free fibular flap was described by Taylor in 1975 (as mentioned by Shenao[17]), and in addition to the advantages mentioned above in patients with craniofacial microsomia, it allows a restoration of the facial contour. It can incorporate a deepithelialized dermis, fat, and fascia, achieving a more favorable reconstruction of more severe soft tissue defects.

The free flap is the workhorse of mandibular reconstruction because of its abundant bone stock, ease of dissection, capacity for simultaneous dissection of the recipient and donor sites, low donor-site morbid- ity, and expectation of successful distraction osteo- genesis. Additional benefits are the ability to perform multiple osteotomies without compromising blood supply and to use septocutaneous perforators to obtain soft tissue to remodel facial contour. But the major advantage of using the free flap is the reliability of distraction osteogenesis thereafter, with its associated benefits.

Some might argue that the epiphyseal portion of the fibula can be included[18] to form a neotemporoman- dibular joint because it contains a cartilaginous growth center. Because there is no glenoid fossa, the addition of a cartilaginous fibular head would still fall short of creating a neotemporomandibular joint. Furthermore, including the proximal epiphysis would compromise knee stability and alteration of growth in a pediatric patient, a risk we are not willing to take.
