# Asymmetric Realized Volatility Risk

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Volatility Risk and the Conditional Distribution of Asset Returns

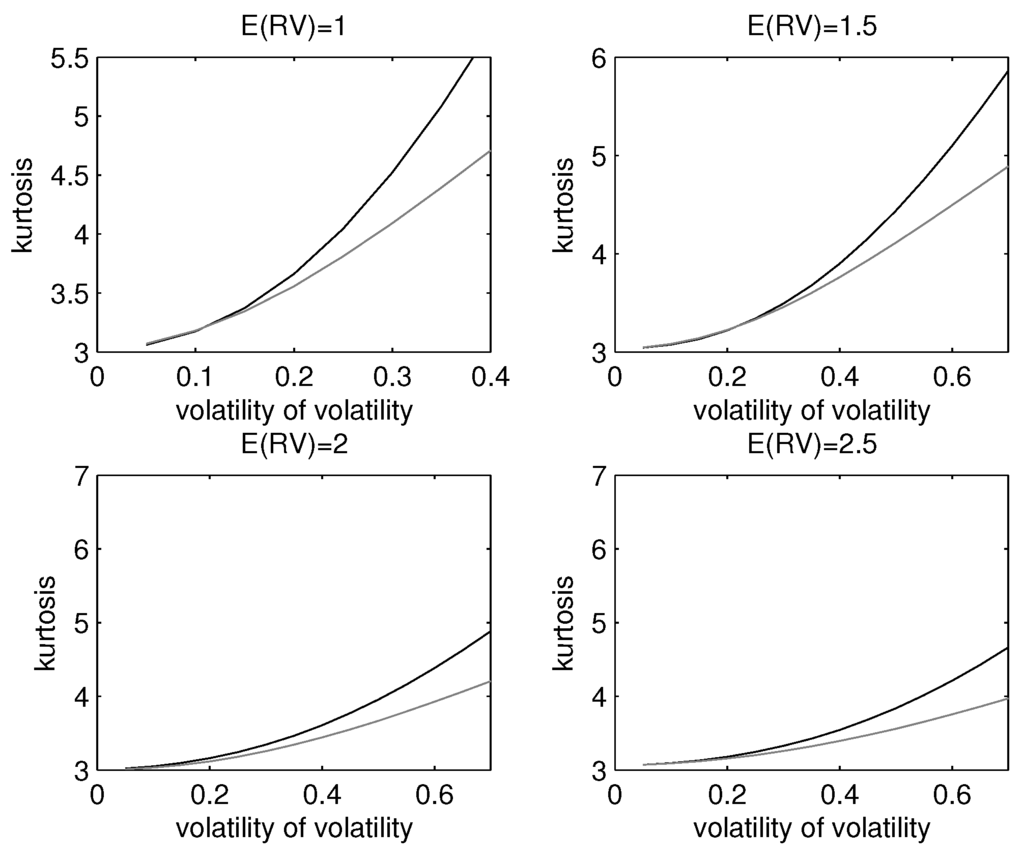

**Figure 1.**The kurtosis of the simulated distribution under the assumption that shocks to realized volatilityhave the normal inverse Gaussian (NIG) (upper line) and normal distributions.

**ex ante**distribution of returns must come from the negative dependence between ${\epsilon}_{t}$ and ${\eta}_{t}$. Writing the expression for the third moment,

#### 2.1. Volatility Risk: Empirical Regularities

Mean | SD | Skewness | Kurtosis | ${Q}_{0.75}$ | ${Q}_{0.9}$ | ${Q}_{0.95}$ | ${Q}_{0.99}$ | |
---|---|---|---|---|---|---|---|---|

S&P 500 | 1.00 | 0.25 | 1.86 | 12.17 | 1.11 | 1.28 | 1.43 | 1.84 |

DJIA | 1.01 | 0.30 | 1.94 | 15.52 | 1.15 | 1.35 | 1.53 | 1.95 |

FTSE | 1.00 | 0.33 | 2.97 | 27.12 | 1.13 | 1.37 | 1.55 | 2.14 |

CAC | 1.00 | 0.25 | 2.14 | 21.84 | 1.12 | 1.29 | 1.41 | 1.76 |

Nikkei | 1.00 | 0.27 | 1.19 | 6.72 | 1.14 | 1.33 | 1.47 | 1.86 |

IBM | 1.00 | 0.22 | 1.13 | 6.96 | 1.11 | 1.25 | 1.38 | 1.72 |

GE | 1.00 | 0.20 | 0.85 | 5.30 | 1.11 | 1.25 | 1.37 | 1.63 |

WMT | 1.00 | 0.24 | 1.25 | 7.82 | 1.12 | 1.29 | 1.41 | 1.74 |

AT&T | 1.00 | 0.27 | 1.67 | 10.25 | 1.12 | 1.32 | 1.48 | 1.87 |

**Figure 3.**In-sample percentage errors for the HAR (heterogeneous autoregressive) model with leverage effects.

**Table 2.**Descriptive statistics for returns standardized by in-sample realized volatility fitted values.

Mean | SD | Skewness | Kurtosis | ${Q}_{0.01}$ | |
---|---|---|---|---|---|

S&P 500 | −0.019 | 1.061 | −0.392 | 4.305 | −2.780 |

DJIA | 0.019 | 1.090 | −0.340 | 3.944 | −2.867 |

FTSE | −0.009 | 1.147 | −0.177 | 3.694 | −2.905 |

CAC | −0.011 | 1.053 | −0.182 | 3.346 | −2.654 |

Nikkei | −0.054 | 1.083 | −0.152 | 3.715 | −2.832 |

IBM | 0.035 | 1.033 | −0.076 | 4.505 | −2.539 |

GE | −0.025 | 1.012 | 0.026 | 3.897 | −2.479 |

WMT | −0.039 | 1.001 | 0.066 | 3.909 | −2.432 |

AT&T | −0.037 | 1.028 | 0.024 | 4.397 | −2.523 |

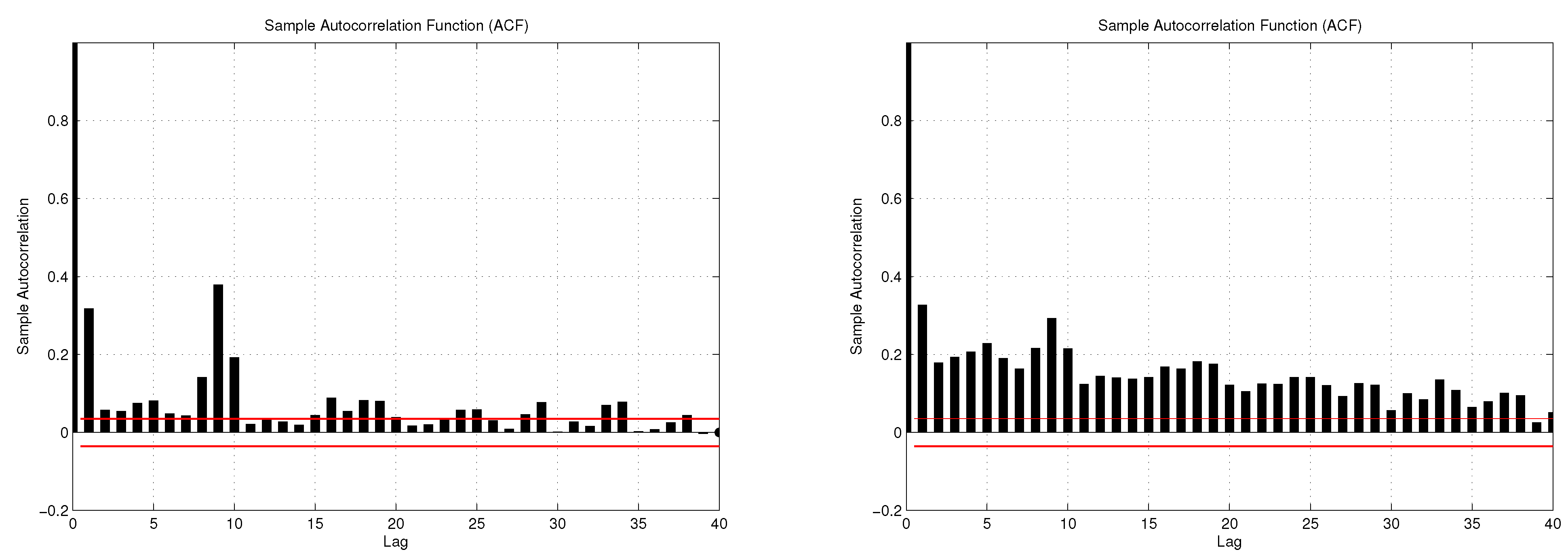

**Figure 5.**Sample autocorrelations for the squared (

**left**) and absolute (

**right**) residuals of the HAR model with leverage effects.

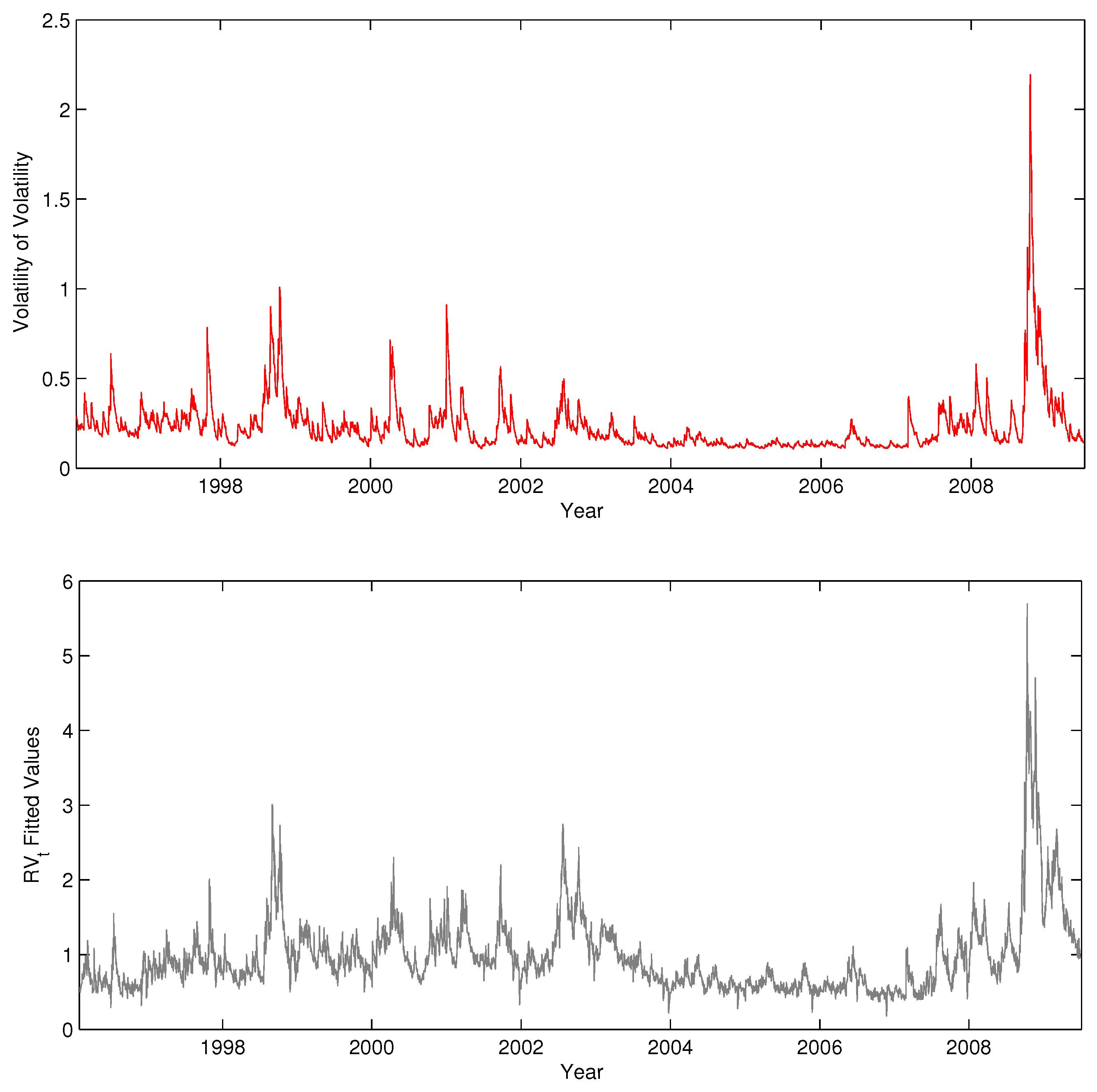

**Figure 6.**GARCHstandard deviation series (

**top**) and realized volatility fitted values (

**bottom**) for the HAR model with leverage effects.

## 3. The Dually Asymmetric Realized Volatility Model

#### 3.1. Model Details

#### 3.1.1. Long Memory Specification

^{1}Statistical tests for distinguishing between those alternatives, such as the one proposed Ohanissian et al. [30], have been hampered by low power. Finally, Granger and Ding [31] and Scharth and Medeiros [5] discuss how estimates of the fractional differencing parameter are subject to excessive variation over time.

#### 3.1.2. Extended Leverage Effects

#### 3.1.3. The Distribution of the Volatility Disturbances

#### 3.1.4. Days-of-the-Week and Holiday Effects

#### 3.2. The Impact of Microstructure Noise and Other Issues

Statistic | ${r}_{t}$ | ${RV}_{t}$ | ${r}_{t}/{RV}_{t}$ | $\Delta {RV}_{t}$ |
---|---|---|---|---|

Mean | 0.012 | 0.984 | 0.042 | 0.000 |

SD | 1.343 | 0.605 | 1.013 | 0.359 |

Skewness | −0.186 | 3.417 | 0.040 | −0.913 |

Kurtosis | 10.570 | 26.342 | 2.743 | 65.184 |

Min | −9.470 | 0.212 | −3.296 | −6.840 |

${Q}_{0.1}$ | −1.443 | 0.478 | −1.282 | −0.308 |

${Q}_{0.25}$ | −0.610 | 0.606 | −0.658 | −0.135 |

${Q}_{0.75}$ | 0.654 | 1.153 | 0.711 | 0.127 |

${Q}_{0.9}$ | 1.368 | 1.584 | 1.382 | 0.301 |

Max | 10.957 | 9.673 | 3.230 | 5.280 |

^{2}The use of jumps does not seem to bring important forecasting advantages in our framework. On the other hand, the inclusion of a jump equation would substantially increase the complexity of the model, requiring us to model and estimate the joint distribution of return, volatility and jump shocks. For predicting and simulating the model multiple periods ahead, this is a substantial burden. Since the ultimate interest lies in the conditional distribution of returns, a parsimonious alternative is to ignore the distinction between continuous and jump components in realized volatility and to carefully model the distribution of returns given realized volatility (considering the possible impact of jumps on it). Corsi and Reno (2012) provides some evidence that the impact of jumps on volatility is quite transitory.

#### 3.3. Estimation and Density Forecasting

^{3}The use of this approximate estimator does not impact, in any away, the main arguments of this paper. For reference, the log-likelihood function is given by:

- In the first step, the functional form of the model is used for the evaluation of forecasts ${\widehat{RV}}_{t+1}$ and ${\widehat{h}}_{t+1}$ conditional on past realized volatility observations, returns and other variables.
- Using the estimated copula, we randomly generate S pairs of return (${\tilde{\epsilon}}_{t+1,j}$, $j=1,..,S$) and volatility (${\tilde{\eta}}_{t+1,j}$, $j=1,..,S$) shocks with the according marginal distributions. Antithetic variables are used to balance the return innovations for location and scale.
- We obtain S simulated volatilities through ${\tilde{RV}}_{t+1,j}={\widehat{RV}}_{t+1}+{h}_{t}{\tilde{\eta}}_{t+1,j}$, $j=1,...,S$. Each of these volatilities generate a returns ${\tilde{r}}_{t+1,j}={\widehat{\mu}}_{t}+{\tilde{RV}}_{t+1,j}{\tilde{\epsilon}}_{t+1,j}$.
- This procedure can be iterated in the natural way to generate multiple paths for returns and realized volatility.

## 4. Empirical Analysis

#### 4.1. Realized Volatility Measurement and Data

^{4}Following the results of Hansen and Lunde [44], we adopt the previous tick method for determining prices at time marks where a quote is missing.

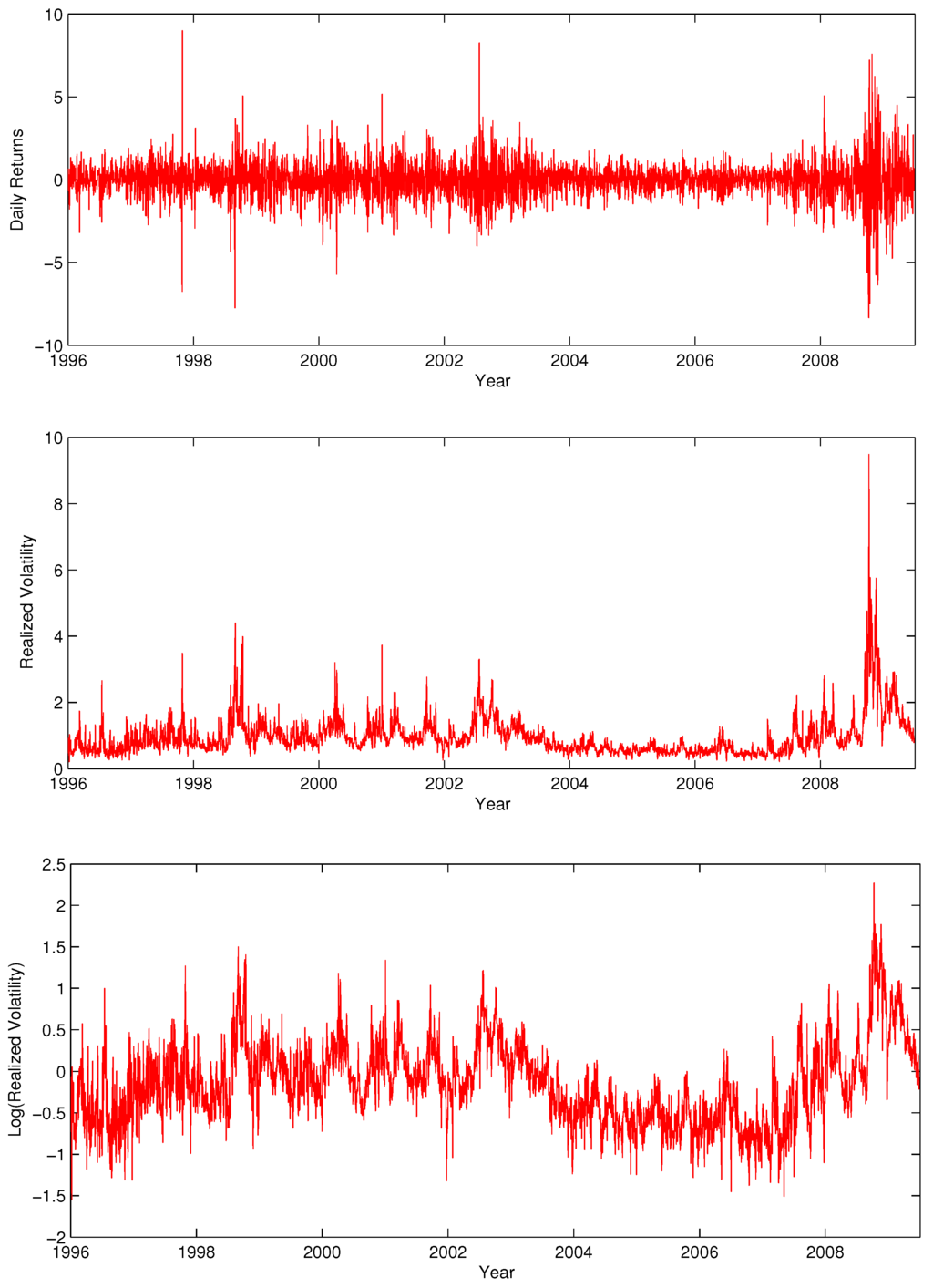

**Figure 8.**Time Series of returns (

**top**), realized volatility (

**middle**) and log realized volatility (

**bottom**) for the S&P 500 index.

#### 4.2. Full Sample Parameter Estimates and Diagnostics

**Table 4.**Estimated parameters (S&P 500): ARFIMAmodels. DARV, dually asymmetric realized volatility; AE, asymmetric effects.

Parameter | ARFIMA | ARFIMA + AE | ARFIMA-GARCH | ARFIMA + AE-GARCH | DARV-FI | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

ψ | 0.989 | (0.029) | 0.653 | (0.028) | 0.970 | (0.053) | 0.546 | (0.028) | 0.400 | (0.025) | ||||

d | 0.340 | (0.011) | 0.261 | (0.008) | 0.464 | (0.012) | 0.352 | (0.013) | 0.367 | (0.015) | ||||

${\varphi}_{1}$ | 0.064 | (0.017) | 0.033 | (0.019) | −0.075 | (0.017) | −0.047 | (0.020) | −0.074 | (0.019) | ||||

${\lambda}_{1}$ | − | − | −0.055 | (0.006) | − | − | −0.049 | (0.005) | −0.072 | (0.006) | ||||

${\lambda}_{2}$ | − | − | −0.018 | (0.003) | − | − | −0.012 | (0.003) | −0.023 | (0.004) | ||||

${\lambda}_{3}$ | − | − | −0.014 | (0.002) | − | − | −0.011 | (0.002) | −0.013 | (0.002) | ||||

${\theta}_{0}$ | 0.105 | (0.005) | 0.089 | (0.006) | 0.002 | (0.000) | 0.001 | (0.000) | 0.013 | (0.001) | ||||

${\theta}_{1}$ | − | − | − | − | − | − | − | − | 0.101 | (0.007) | ||||

${\theta}_{2}$ | − | − | − | − | 0.845 | (0.018) | 0.852 | (0.015) | − | − | ||||

${\theta}_{3}$ | − | − | − | − | 0.127 | (0.017) | 0.121 | (0.015) | − | − | ||||

α | 0.906 | (0.046) | 0.855 | (0.052) | 1.841 | (0.125) | 1.663 | (0.117) | 1.800 | (0.168) | ||||

β | 0.548 | (0.046) | 0.479 | (0.049) | 1.075 | (0.106) | 0.910 | (0.095) | 1.037 | (0.140) | ||||

κ | 0.169 | (0.024) | 0.157 | (0.023) | 0.207 | (0.024) | 0.228 | (0.024) | 0.254 | (0.025) |

Parameter | HAR/AE-GARCH | DARV (HAR) | |||
---|---|---|---|---|---|

${\varphi}_{0}$ | 0.090 | (0.008) | 0.087 | (0.009) | |

${\varphi}_{1}$ | 0.231 | (0.016) | 0.250 | (0.016) | |

${\varphi}_{2}$ | 0.357 | (0.017) | 0.362 | (0.022) | |

${\varphi}_{3}$ | 0.273 | (0.016) | 0.244 | (0.018) | |

${\lambda}_{1}$ | −0.052 | (0.005) | −0.072 | (0.006) | |

${\lambda}_{2}$ | −0.016 | (0.003) | −0.024 | (0.004) | |

${\lambda}_{3}$ | −0.007 | (0.002) | −0.009 | (0.002) | |

${\theta}_{0}$ | 0.001 | (0.000) | 0.001 | (0.001) | |

${\theta}_{1}$ | − | − | 0.054 | (0.003) | |

${\theta}_{2}$ | 0.853 | (0.014) | − | − | |

${\theta}_{3}$ | 0.122 | (0.014) | − | − | |

α | 1.752 | (0.136) | 1.669 | (0.149) | |

β | 1.014 | (0.116) | 0.931 | (0.121) | |

κ | 0.242 | (0.024) | 0.272 | (0.025) |

ARFIMA | ARFIMA + AE | ARFIMA GARCH | ARFIMA + AE GARCH | DARV (FI) | HAR + AE GARCH | DARV (HAR) | |
---|---|---|---|---|---|---|---|

Log-Likelihood | 292.34 | 455.29 | 757.00 | 882.31 | 955.65 | 870.12 | 915.38 |

${R}^{2}$ | 0.688 | 0.723 | 0.739 | 0.778 | 0.789 | 0.778 | 0.787 |

BIC | −455.59 | −749.20 | −1,360.69 | −1,579.05 | −1,717.64 | −1546.58 | −1629.04 |

SD (${\widehat{\nu}}_{t}$) | 0.323 | 0.295 | 0.312 | 0.288 | 0.281 | 0.288 | 0.283 |

Ljung–Box (1) (${\widehat{\nu}}_{t}$) | 0.000 | 0.000 | 0.000 | 0.021 | 0.009 | 0.325 | 0.000 |

Ljung–Box (5) (${\widehat{\nu}}_{t}$) | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 |

Ljung–Box (10) (${\widehat{\nu}}_{t}$) | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 |

Skewness (${\widehat{\eta}}_{t}$) | 4.58 | 3.86 | 1.63 | 1.68 | 2.02 | 1.64 | 1.95 |

Kurtosis (${\widehat{\eta}}_{t}$) | 65.02 | 52.03 | 9.82 | 10.47 | 14.24 | 9.88 | 13.74 |

ARCH(1) (${\widehat{\eta}}_{t}$) | 0.000 | 0.000 | 0.306 | 0.397 | 0.693 | 0.422 | 0.692 |

ARCH (5) (${\widehat{\eta}}_{t}$) | 0.000 | 0.000 | 0.910 | 0.876 | 0.315 | 0.843 | 0.340 |

ARCH (10) (${\widehat{\eta}}_{t}$) | 0.000 | 0.000 | 0.293 | 0.510 | 0.158 | 0.636 | 0.194 |

K-S Test (${\widehat{\eta}}_{t}$) | 0.000 | 0.000 | 0.051 | 0.076 | 0.716 | 0.015 | 0.913 |

Ljung–Box (1) $(z-\overline{z})$ | 0.073 | 0.362 | 0.000 | 0.039 | 0.927 | 0.251 | 0.181 |

Ljung–Box (1) ${(z-\overline{z})}^{2}$ | 0.000 | 0.000 | 0.199 | 0.250 | 0.994 | 0.283 | 0.716 |

Ljung–Box (1) ${(z-\overline{z})}^{3}$ | 0.003 | 0.011 | 0.002 | 0.115 | 0.998 | 0.619 | 0.357 |

Ljung–Box (1) ${(z-\overline{z})}^{4}$ | 0.000 | 0.000 | 0.274 | 0.208 | 0.965 | 0.479 | 0.857 |

#### 4.3. Point Forecasts

Model | 1 Day | ||||||
---|---|---|---|---|---|---|---|

${R}^{2}$ | RMSE | MAE | MAPE | ${R}^{2}(\Delta )$ | SPA in MSE | SPA in ${R}^{2}$ | |

ARFIMA | 0.767 | 0.342 | 0.189 | 0.205 | 0.178 | 0.001 | 0.002 |

ARFIMA + AE | 0.817 | 0.301 | 0.174 | 0.191 | 0.317 | 0.001 | 0.000 |

ARFIMA-GARCH | 0.790 | 0.316 | 0.167 | 0.166 | 0.244 | 0.034 | 0.033 |

ARFIMA + AE-GARCH | 0.829 | 0.283 | 0.157 | 0.160 | 0.380 | 0.573 | 0.585 |

DARV (FI) | 0.834 | 0.277 | 0.156 | 0.161 | 0.407 | 0.719 | 0.727 |

HAR + AE-GARCH | 0.827 | 0.285 | 0.159 | 0.166 | 0.374 | 0.405 | 0.416 |

DARV (HAR) | 0.831 | 0.280 | 0.158 | 0.165 | 0.395 | 0.400 | 0.382 |

Model | 5 Days (Cumulated) | ||||||

${\mathit{R}}^{\mathbf{2}}$ | RMSE | MAE | MAPE | ${\mathit{R}}^{\mathbf{2}}(\Delta )$ | SPA in MSE | SPA in ${\mathit{R}}^{\mathbf{2}}$ | |

ARFIMA | 0.790 | 1.593 | 0.936 | 0.195 | 0.089 | 0.008 | 0.003 |

ARFIMA + AE | 0.819 | 1.494 | 0.875 | 0.183 | 0.132 | 0.009 | 0.001 |

ARFIMA-GARCH | 0.820 | 1.348 | 0.789 | 0.148 | 0.123 | 0.005 | 0.007 |

ARFIMA + AE-GARCH | 0.834 | 1.296 | 0.749 | 0.141 | 0.165 | 0.009 | 0.012 |

DARV (FI) | 0.841 | 1.269 | 0.733 | 0.139 | 0.201 | 0.538 | 0.536 |

HAR + AE-GARCH | 0.842 | 1.265 | 0.740 | 0.143 | 0.173 | 0.014 | 0.015 |

DARV (HAR) | 0.847 | 1.244 | 0.728 | 0.141 | 0.213 | 0.787 | 0.761 |

Model | 22 Days (Cumulated) | ||||||

${\mathit{R}}^{\mathbf{2}}$ | RMSE | MAE | MAPE | ${\mathit{R}}^{\mathbf{2}}(\Delta )$ | SPA in MSE | SPA in ${\mathit{R}}^{\mathbf{2}}$ | |

ARFIMA | 0.651 | 8.246 | 5.062 | 0.235 | 0.137 | 0.008 | 0.002 |

ARFIMA + AE | 0.683 | 7.862 | 5.528 | 0.283 | 0.202 | 0.000 | 0.000 |

ARFIMA-GARCH | 0.701 | 7.183 | 4.238 | 0.178 | 0.220 | 0.043 | 0.043 |

ARFIMA + AE-GARCH | 0.714 | 7.031 | 4.066 | 0.170 | 0.272 | 0.010 | 0.011 |

DARV (FI) | 0.720 | 6.953 | 3.994 | 0.167 | 0.283 | 0.252 | 0.290 |

HAR + AE-GARCH | 0.732 | 6.806 | 4.059 | 0.178 | 0.309 | 0.010 | 0.007 |

DARV (HAR) | 0.736 | 6.752 | 4.020 | 0.176 | 0.332 | 0.576 | 0.573 |

ARFIMA | ARFIMA + AE | ARFIMA GARCH | ARFIMA + AE GARCH | DARV (FI) | HAR + AE GARCH | DARV (HAR) | |
---|---|---|---|---|---|---|---|

DJIA | 0.207 | 0.269 | 0.262 | 0.345 | 0.381 | 0.346 | 0.377 |

(0.000) | (0.004) | (0.018) | (0.142) | (0.802) | (0.128) | (0.659) | |

FTSE | 0.236 | 0.314 | 0.259 | 0.347 | 0.368 | 0.334 | 0.346 |

(0.001) | (0.001) | (0.001) | (0.023) | (0.819) | (0.002) | (0.004) | |

CAC | 0.199 | 0.265 | 0.232 | 0.278 | 0.301 | 0.269 | 0.283 |

(0.001) | (0.005) | (0.008) | (0.167) | (0.862) | (0.013) | (0.026) | |

Nikkei | 0.213 | 0.256 | 0.223 | 0.266 | 0.270 | 0.258 | 0.259 |

(0.037) | (0.096) | (0.040) | (0.510) | (0.834) | (0.120) | (0.091) | |

IBM | 0.193 | 0.232 | 0.254 | 0.290 | 0.296 | 0.294 | 0.301 |

(0.000) | (0.000) | (0.000) | (0.423) | (0.604) | (0.354) | (0.809) | |

GE | 0.161 | 0.199 | 0.206 | 0.259 | 0.281 | 0.251 | 0.275 |

(0.004) | (0.007) | (0.007) | (0.111) | (0.851) | (0.051) | (0.576) | |

WMT | 0.269 | 0.287 | 0.296 | 0.321 | 0.334 | 0.316 | 0.325 |

(0.002) | (0.001) | (0.078) | (0.051) | (0.789) | (0.130) | (0.340) | |

AT&T | 0.211 | 0.221 | 0.237 | 0.252 | 0.259 | 0.251 | 0.259 |

(0.000) | (0.000) | (0.002) | (0.019) | (0.896) | (0.005) | (0.720) |

#### 4.4. Volatility Risk

$\Delta {RV}_{t}$ | >80th Percentile | >90th Percentile | >95th Percentile | >99th Percentile | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|

Model | ${R}^{2}$ | MSE | ${R}^{2}$ | RMSE | ${R}^{2}$ | RMSE | ${R}^{2}$ | RMSE | |||

ARFIMA | 0.092 | 0.399 | 0.080 | 0.504 | 0.070 | 0.637 | 0.000 | 1.068 | |||

ARFIMA + AE | 0.035 | 0.402 | 0.013 | 0.513 | 0.000 | 0.658 | 0.034 | 1.114 | |||

ARFIMA-GARCH | 0.254 | 0.353 | 0.255 | 0.446 | 0.231 | 0.569 | 0.059 | 1.002 | |||

ARFIMA + AE-GARCH | 0.246 | 0.354 | 0.248 | 0.448 | 0.214 | 0.577 | 0.039 | 1.015 | |||

DARV (FI) | 0.300 | 0.343 | 0.317 | 0.428 | 0.285 | 0.549 | 0.198 | 0.900 | |||

HAR + AE-GARCH | 0.242 | 0.355 | 0.244 | 0.449 | 0.209 | 0.578 | 0.037 | 1.016 | |||

DARV (HAR) | 0.309 | 0.343 | 0.324 | 0.426 | 0.286 | 0.549 | 0.166 | 0.909 |

${RV}_{t}$ | >80th Percentile | >90th Percentile | >95th Percentile | >99th Percentile | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|

Model | ${R}^{2}$ | MSE | ${R}^{2}$ | RMSE | ${R}^{2}$ | RMSE | ${R}^{2}$ | RMSE | |||

ARFIMA | 0.542 | 0.633 | 0.397 | 0.818 | 0.198 | 1.044 | 0.000 | 1.452 | |||

ARFIMA + AE | 0.663 | 0.544 | 0.563 | 0.700 | 0.473 | 0.874 | 0.134 | 1.403 | |||

ARFIMA-GARCH | 0.584 | 0.582 | 0.455 | 0.744 | 0.299 | 0.919 | 0.004 | 1.305 | |||

ARFIMA + AE-GARCH | 0.672 | 0.515 | 0.574 | 0.658 | 0.493 | 0.789 | 0.069 | 1.227 | |||

DARV (FI) | 0.685 | 0.499 | 0.592 | 0.639 | 0.520 | 0.754 | 0.360 | 1.055 | |||

HAR + AE-GARCH | 0.669 | 0.515 | 0.568 | 0.658 | 0.486 | 0.784 | 0.067 | 1.223 | |||

DARV (HAR) | 0.682 | 0.502 | 0.589 | 0.646 | 0.517 | 0.758 | 0.347 | 1.049 |

ARFIMA | ARFIMA + AE | ARFIMA GARCH | ARFIMA + AE GARCH | DARV (FI) | HAR + AE GARCH | DARV (HAR) | |
---|---|---|---|---|---|---|---|

${R}^{2}$ of $E(\Delta R{V}_{t}|\Delta R{V}_{t}>{Q}_{0.9}):$ | |||||||

DJIA | 0.100 | 0.074 | 0.147 | 0.136 | 0.224 | 0.141 | 0.210 |

FTSE | 0.084 | 0.106 | 0.138 | 0.135 | 0.211 | 0.124 | 0.191 |

CAC | 0.036 | 0.073 | 0.245 | 0.219 | 0.169 | 0.206 | 0.192 |

Nikkei | 0.038 | 0.029 | 0.123 | 0.108 | 0.153 | 0.105 | 0.158 |

IBM | 0.008 | 0.014 | 0.219 | 0.226 | 0.287 | 0.229 | 0.291 |

GE | 0.170 | 0.120 | 0.270 | 0.264 | 0.285 | 0.253 | 0.294 |

WMT | 0.059 | 0.082 | 0.105 | 0.109 | 0.170 | 0.116 | 0.165 |

AT&T | 0.016 | 0.020 | 0.021 | 0.019 | 0.026 | 0.023 | 0.033 |

${R}^{2}$ of $E\left(R{V}_{t}\right|R{V}_{t}>{Q}_{0.9}):$ | |||||||

DJIA | 0.333 | 0.463 | 0.389 | 0.506 | 0.542 | 0.494 | 0.540 |

FTSE | 0.114 | 0.234 | 0.210 | 0.278 | 0.311 | 0.266 | 0.300 |

CAC | 0.078 | 0.162 | 0.213 | 0.202 | 0.220 | 0.188 | 0.218 |

Nikkei | 0.466 | 0.490 | 0.506 | 0.526 | 0.526 | 0.503 | 0.512 |

IBM | 0.431 | 0.466 | 0.462 | 0.485 | 0.498 | 0.486 | 0.497 |

GE | 0.435 | 0.478 | 0.463 | 0.499 | 0.520 | 0.480 | 0.511 |

WMT | 0.135 | 0.186 | 0.186 | 0.216 | 0.241 | 0.206 | 0.228 |

AT&T | 0.288 | 0.307 | 0.310 | 0.317 | 0.337 | 0.339 | 0.357 |

#### 4.5. Value-at-Risk

1% VaR | ||||||||
---|---|---|---|---|---|---|---|---|

Monte Carlo | Forecast VaR | |||||||

Failures | UC | IND | ES | Failures | UC | IND | ||

ARFIMA | 0.007 | 0.162 | 0.643 | 0.006 | 0.021 | 0.000 | 0.951 | |

ARFIMA + AE | 0.008 | 0.358 | 0.599 | 0.006 | 0.023 | 0.000 | 0.943 | |

ARFIMA-GARCH | 0.009 | 0.815 | 0.536 | 0.005 | 0.025 | 0.000 | 0.806 | |

ARFIMA + AE-GARCH | 0.009 | 0.646 | 0.556 | 0.005 | 0.025 | 0.000 | 0.773 | |

DARV (FI) | 0.009 | 0.815 | 0.536 | 0.005 | 0.025 | 0.000 | 0.806 | |

HAR + AE-GARCH | 0.010 | 0.990 | 0.515 | 0.006 | 0.025 | 0.000 | 0.773 | |

DARV (HAR) | 0.009 | 0.646 | 0.556 | 0.004 | 0.026 | 0.000 | 0.740 | |

2.5% VaR | ||||||||

Monte Carlo | Forecast VaR | |||||||

Failures | UC | IND | ES | Failures | UC | IND | ||

ARFIMA | 0.023 | 0.510 | 0.943 | 0.015 | 0.044 | 0.000 | 0.238 | |

ARFIMA + AE | 0.024 | 0.817 | 0.839 | 0.014 | 0.042 | 0.000 | 0.310 | |

ARFIMA-GARCH | 0.030 | 0.161 | 0.480 | 0.014 | 0.047 | 0.000 | 0.143 | |

ARFIMA + AE-GARCH | 0.030 | 0.125 | 0.950 | 0.014 | 0.046 | 0.000 | 0.193 | |

DARV (FI) | 0.030 | 0.161 | 0.932 | 0.013 | 0.046 | 0.000 | 0.193 | |

HAR + AE-GARCH | 0.029 | 0.204 | 0.506 | 0.013 | 0.047 | 0.000 | 0.155 | |

DARV (HAR) | 0.030 | 0.125 | 0.455 | 0.013 | 0.045 | 0.000 | 0.207 | |

5% VaR | ||||||||

Monte Carlo | Forecast VaR | |||||||

Failures | UC | IND | ES | Failures | UC | IND | ||

ARFIMA | 0.054 | 0.447 | 0.654 | 0.027 | 0.071 | 0.000 | 0.837 | |

ARFIMA + AE | 0.056 | 0.250 | 0.032 | 0.027 | 0.072 | 0.000 | 0.011 | |

ARFIMA-GARCH | 0.060 | 0.035 | 0.130 | 0.026 | 0.076 | 0.000 | 0.941 | |

ARFIMA + AE-GARCH | 0.062 | 0.013 | 0.007 | 0.026 | 0.073 | 0.000 | 0.027 | |

DARV (FI) | 0.061 | 0.022 | 0.009 | 0.025 | 0.072 | 0.000 | 0.034 | |

HAR + AE-GARCH | 0.060 | 0.044 | 0.013 | 0.025 | 0.076 | 0.000 | 0.004 | |

DARV (HAR) | 0.059 | 0.055 | 0.014 | 0.025 | 0.075 | 0.000 | 0.001 |

Date | Return | ${RV}_{t}$ | ARFIMA | ARFIMA + AE | ARFIMA GARCH | ARFIMA + AE GARCH | DARV (FI) | HAR + AE GARCH | DARV (HAR) |
---|---|---|---|---|---|---|---|---|---|

September 29, 2008 | −9.219 | 4.845 | 0.002 | 0.001 | 0.003 | 0.002 | 0.002 | 0.003 | 0.002 |

October 7, 2008 | −5.911 | 4.017 | 0.007 | 0.009 | 0.019 | 0.024 | 0.026 | 0.023 | 0.027 |

October 9, 2008 | −7.922 | 4.393 | 0.008 | 0.009 | 0.021 | 0.022 | 0.025 | 0.022 | 0.027 |

October 15, 2008 | −9.470 | 3.665 | 0.018 | 0.013 | 0.044 | 0.039 | 0.031 | 0.047 | 0.043 |

October 22, 2008 | −6.295 | 3.678 | 0.113 | 0.145 | 0.129 | 0.149 | 0.164 | 0.161 | 0.174 |

November 5, 2008 | −5.412 | 2.499 | 0.057 | 0.053 | 0.066 | 0.067 | 0.065 | 0.086 | 0.084 |

November 19, 2008 | −6.311 | 3.532 | 0.033 | 0.027 | 0.043 | 0.038 | 0.042 | 0.042 | 0.048 |

November 20, 2008 | −6.948 | 5.858 | 0.035 | 0.068 | 0.045 | 0.077 | 0.100 | 0.083 | 0.106 |

December 1, 2008 | −9.354 | 2.562 | 0.005 | 0.004 | 0.014 | 0.011 | 0.010 | 0.015 | 0.013 |

January 20, 2009 | −5.426 | 2.505 | 0.019 | 0.016 | 0.023 | 0.019 | 0.025 | 0.014 | 0.019 |

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- F. Corsi, U. Kretschmer, S. Mittnik, and C. Pigorsch. “The Volatility of Realized Volatility.” Econom. Rev. 27 (2008): 46–78. [Google Scholar] [CrossRef]
- S. Heston. “A Closed-Form Solution for Options with Stochastic Volatility with Applications to Bond and Currency Options.” Rev. Financ. Stud. 6 (1993): 327–343. [Google Scholar] [CrossRef]
- C. Jones. The Dynamics of Stochastic Volatility: Evidence from Underlying and Options Markets. Working Paper; Rochester, NY, USA: Simon School of Business, University of Rochester, 2000. [Google Scholar]
- T. Bollerslev, U. Kretschmer, C. Pigorsch, and G. Tauchen. “A Discrete-Time Model for Daily S&P500 Returns and Realized Variations: Jumps and Leverage Effects.” J. Econom., 2009. forthcoming. [Google Scholar]
- M. Scharth, and M. Medeiros. “Asymmetric Effects and Long Memory in the Volatility of Dow Jones Stocks.” Int. J. Forecast. 25 (2009): 304–327. [Google Scholar] [CrossRef]
- T. Andersen, T. Bollerslev, F. Diebold, and P. Labys. “Modeling and Forecasting Realized Volatility.” Econometrica 71 (2003): 579–625. [Google Scholar] [CrossRef]
- F. Corsi. A Simple Long Memory Model of Realized Volatility. Manuscript; Lugano, Switzerland: University of Southern Switzerland, 2004. [Google Scholar]
- E. Ghysels, A. Sinko, and R. Valkanov. “MIDAS Regressions: Further Results and New Directions.” Econom. Rev. 26 (2007): 53–90. [Google Scholar] [CrossRef]
- S. Koopman, B. Jungbacker, and E. Hol. “Forecasting Daily Variability of the S&P 100 Stock Index Using Historical, Realised and Implied Volatility Measurements.” J. Empir. Financ. 23 (2005): 445–475. [Google Scholar]
- N. Shephard, and K. Sheppard. “Realising the future: forecasting with high frequency based volatility (HEAVY) models.” J. Appl. Econom., 2009. forthcoming. [Google Scholar] [CrossRef]
- M. Martens, D. van Dijk, and M. de Pooter. Modeling and Forecasting S&P 500 Volatility: Long Memory, Structural Breaks and Nonlinearity. Discussion Paper 04-067/4; Amsterdam, The Netherlands: Tinbergen Institute, 2004. [Google Scholar]
- T. Andersen, T. Bollerslev, and F. Diebold. “Roughing it up: Including Jump Components in the Measurement, Modeling and Forecasting of Return Volatility.” Rev. Econom. Stat. 89 (2007): 701–720. [Google Scholar] [CrossRef]
- G. Tauchen, and H. Zhou. Identifying Realized Jumps on Financial Markets. Working Paper; Durham, NC, USA: Department of Economics, Duke University, 2005. [Google Scholar]
- M. McAleer, and M. Medeiros. “A Multiple Regime Smooth Transition Heterogeneous Autoregressive Model for Long Memory and Asymmetries.” J. Econom. 147 (2008): 104–119. [Google Scholar] [CrossRef]
- E. Ghysels, A. Harvey, and E. Renault. “Stochastic Volatility.” In Handbook of Statistics. Edited by G. Maddala and C. Rao. Amsterdam, The Netherlands: Elsevier, 1996, Volume 14. [Google Scholar]
- T. Andersen, T. Bollerslev, F. Diebold, and H. Ebens. “The Distribution of Realized Stock Return Volatility.” J. Financ. Econ. 61 (2001): 43–76. [Google Scholar] [CrossRef]
- J. Fleming, and B. Paye. “High-frequency returns, jumps and the mixture of normals hypothesis.” J. Econom. 160 (2011): 119–128. [Google Scholar] [CrossRef]
- C. Brooks, S. Burke, S. Heravi, and G. Persand. “Autoregressive Conditional Kurtosis.” J. Financ. Econom. 3 (2005): 399–421. [Google Scholar] [CrossRef]
- D. Creal, S. Koopman, and A. Lucas. A General Framework for Observation Driven Time-Varying Parameter Models. Tinbergen Institute Discussion Papers 08-108/4; Amsterdam, The Netherlands: Tinbergen Institute, 2008. [Google Scholar]
- N. Areal, and S.R. Taylor. “The Realized Volatility of FTSE-100 Futures Prices.” J. Futures Markets 22 (2002): 627–648. [Google Scholar] [CrossRef]
- A. Beltratti, and C. Morana. “Statistical Benefits of Value-At-Risk with Long Memory.” J. Risk 7 (2005): 4. [Google Scholar]
- R. Deo, C. Hurvich, and Y. Lu. “Forecasting Realized Volatility Using a Long-Memory Stochastic Volatility.” J. Econom. 131 (2006): 29–58. [Google Scholar] [CrossRef]
- D. Thomakos, and T. Wang. “Realized Volatility in the Futures Market.” J. Empir. Financ. 10 (2003): 321–353. [Google Scholar] [CrossRef]
- F. Diebold, and A. Inoue. “Long Memory and Regime Switching.” J. Econom. 105 (2001): 131–159. [Google Scholar] [CrossRef]
- C. Granger, and N. Hyung. “Occasional Structural Breaks and Long Memory with an Application to the S&P 500 Absolute Stock Returns.” J. Empir. Financ. 11 (2004): 399–421. [Google Scholar]
- I.N. Lobato, and N.E. Savin. “Real and Spurious Long-Memory Properties of Stock-Market Data.” J. Bus. Econ. Stat. 16 (1998): 261–268. [Google Scholar]
- A. Beltratti, and C. Morana. “Breaks and Persistency: Macroeconomic Causes of Stock Market Volatility.” J. Econom. 131 (2006): 151–177. [Google Scholar] [CrossRef]
- C. Morana, and A. Beltratti. “Structural Change and Long Range Dependence in Volatility of Exchange Rates: Either, Neither or Both? ” J. Empir. Financ. 11 (2004): 629–658. [Google Scholar] [CrossRef]
- N. Hyung, and P. Franses. Inflation Rates: Long-Memory, Level Shifts, or Both? Report 2002-08; Rotterdam, The Netherlands: Econometric Institute, Erasmus University Rotterdam, 2002. [Google Scholar]
- A. Ohanissian, J. Russell, and R. Tsay. True or Spurious Long Memory in Volatility: Does it Matter for Pricing Options? Working Paper; Chicago, IL, USA: Graduate School of Business, University of Chicago, 2004. [Google Scholar]
- C. Granger, and Z. Ding. “Varieties of Long Memory Models.” J. Econom. 73 (1996): 61–77. [Google Scholar] [CrossRef]
- T. Bollerslev, J. Litvinova, and G. Tauchen. “Leverage and Volatility Feedback Effects in High-Frequency Data.” J. Financ. Econom. 4 (2006): 353–384. [Google Scholar] [CrossRef]
- O. Barndorff-Nielsen, and N. Shephard. “Econometric analysis of realized volatility and its use in estimating stochastic volatility models.” J. R. Stat. Soc. B 64 (2002): 253–280. [Google Scholar] [CrossRef]
- O. Barndorff-Nielsen, P. Hansen, A. Lunde, and N. Shephard. “Designing realised kernels to measure the ex-post variation of equity prices in the presence of noise.” Econometrica 76 (2008): 1481–1536. [Google Scholar] [CrossRef]
- F. Corsi. “A Simple Approximate Long-Memory Model of Realized Volatility.” J. Financial Econometrics 7 (2009): 174–196. [Google Scholar] [CrossRef]
- O. Barndorff-Nielsen, and N. Shephard. “Econometrics of Testing for Jumps in Financial Economics using Bipower Variation.” J. Financ. Econom. 4 (2006): 1–30. [Google Scholar] [CrossRef]
- F. Sowell. “Maximum Likelihood Estimation of Stationary Univariate Fractionally Integrated Time Series Models.” J. Econom. 53 (1992): 165–188. [Google Scholar] [CrossRef]
- L. Zhang, P. Mykland, and Y. Ait-Sahalia. “A Tale of Two Time Scales: Determining Integrated Volatility with Noisy High-Frequency Data.” J. Am. Stat. Assoc. 100 (2005): 1394–1411. [Google Scholar] [CrossRef]
- Y. Ait-Sahalia, P. Mykland, and L. Zhang. Ultra High Frequency Volatility Estimation with Dependent Microstructure Noise. NBER Working Papers 11380; Cambridge, MA, USA: National Bureau of Economic Research, 2005. [Google Scholar]
- L. Zhang. “Efficient Estimation of Stochastic Volatility Using Noisy Observations: A Multi-Scale Approach.” Bernoulli 2 (2006): 1019–1043. [Google Scholar] [CrossRef]
- J. Jacod, Y. Li, P. Mykland, M. Podolskij, and M. Vetter. “Microstructure noise in the continuous case: The pre-averaging approach.” Stoch. Processes Their Appl. 119 (2009): 2249–2276. [Google Scholar] [CrossRef]
- M. McAleer, and M. Medeiros. “Realized Volatility: A Review.” Econom. Rev. 27 (2008): 10–45. [Google Scholar] [CrossRef]
- J. Gatheral, and R. Oomen. Zero Intelligence Variance Estimation. Working Paper; Warwick, UK: Warwick Business School, 2007. [Google Scholar]
- P. Hansen, and A. Lunde. “Realized variance and market microstructure noise (with discussion).” J. Bus. Econ. Stat. 24 (2006): 127–218. [Google Scholar] [CrossRef]
- P. Hansen, and A. Lunde. “A Forecast Comparison of Volatility Models: Does Anything beat a GARCH(1,1) Model? ” J. Appl. Econom. 20 (2005): 873–889. [Google Scholar] [CrossRef]
- P. Hansen. “A Test for Superior Predictive Ability.” J. Bus. Econ. Stat. 23 (2005): 365–380. [Google Scholar] [CrossRef]
- P. Christoffersen. “Evaluating Interval Forecasts.” Int. Econ. Rev. 39 (1998): 841–862. [Google Scholar] [CrossRef]

^{3}${(1-L)}^{d}=1-dL+\frac{d(d-1){L}^{2}}{2!}-\frac{d(d-1)(d-2){L}^{3}}{3!}+...$^{4}The fully electronic E-Mini S&P500 futures contracts feature among the most liquid derivative contracts in the world, therefore closely tracking price movements of the S&P 500 index. The index prices used for the other series are unfortunately less frequently quoted. The volatility measurements for the DJIA, FTSE 100, CAC 40 and Nikkei 225 indexes are therefore of somewhat inferior quality compared to the S&P 500 index and the stocks.

© 2014 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).

## Share and Cite

**MDPI and ACS Style**

Allen, D.E.; McAleer, M.; Scharth, M. Asymmetric Realized Volatility Risk. *J. Risk Financial Manag.* **2014**, *7*, 80-109.
https://doi.org/10.3390/jrfm7020080

**AMA Style**

Allen DE, McAleer M, Scharth M. Asymmetric Realized Volatility Risk. *Journal of Risk and Financial Management*. 2014; 7(2):80-109.
https://doi.org/10.3390/jrfm7020080

**Chicago/Turabian Style**

Allen, David E., Michael McAleer, and Marcel Scharth. 2014. "Asymmetric Realized Volatility Risk" *Journal of Risk and Financial Management* 7, no. 2: 80-109.
https://doi.org/10.3390/jrfm7020080
