2.2.1. Index System Establishment
According to environmental risk systems theory, an environmental risk system consists of a risk source, primary control mechanism, secondary control mechanism and risk receptor [
19]. The primary control system refers to facilities controlling risk source and human-related factors of maintenance and management, whereas the secondary control system refers to control of natural conditions of transmission risk. In this study, both primary and secondary control mechanisms were considered:
(1) Selection of goal layer A (first-level index)
Layer A is the highest level of the index with a single index value. We considered the environmental risk assessment index of chemical enterprises in CIP to be layer A.
(2) Selection of criteria layer B (second-level index)
According to environmental risk systems theory, layer B consists of three indices, the inherent risk associated with the risk source, effectiveness of prevention and control mechanisms, and vulnerability of the receptors.
(3) Selection of sub-criteria layer C (third-level index)
The source of risk, which forms the main body of an accidental risk, includes the inherent toxicity and flammability/explosibility of risk factors, as well as the possibility of sudden risk accidents and the operating condition of production processes [
10]. Therefore, the sub-criteria layer of the inherent risk associated with the risk source includes two sub-indices, the risk factor essential characteristic index and the risk accident characteristic index. The effectiveness index of the prevention and control mechanism includes the environmental management mechanism index and considers the positive role that fire departments and medical institutions play in emergency rescue [
20]. The risk receptors include human and other environmentally sensitive receptors vulnerable to risk accidents [
21]. When evaluating risk associated with an accident, human beings are the primary objects of protection, followed by an environment that ensures the quality of human life, and finally the property that relates to human production and living. In this study, we focused on the indices of population- and environmentally-sensitive receptors.
(4) Selection of alternative layer x (fourth-level index)
The presence of a risk factor is a prerequisite for the occurrence of any risk event. Major risk characteristics of chemical enterprises include toxic and hazardous risk materials in storage and in use during production, flammable and explosive hazardous materials that cause secondary pollution, and chemically reactive hazardous materials. Because the quantity of hazardous materials forms the basis for determining whether these materials form a major risk source, the risk factor index should also include a quantitative hazardous material sub-index. The accident hazard characteristic index includes the probability of risk accident and the operating pressure and temperature conditions of production processes. The main pathway to reduction of regional environmental risks is increased regulation of major CIP environmental risk sources, and this index includes the risk manager of CIPs, the command center for early warning and emergency response, completeness of contingency plans, and real-time monitoring of each enterprise. The fire and rescue status index reflects the emergency response capability of fire departments post-accident and includes the arrival time of the fire department at the site of the accident and the quantity of emergency facilities. Medical rescue ensures that wounded are out of danger, and this index includes the medical rescue time and equipped facilities. The most direct victims of an risk accident are sensitive populations surrounding the chemical enterprises, and the population sensitive receptor index is related to the distance of populations from the CIP, as well as the density and degree of sensitivity of surrounding populations. These three indices are considered to be the alternative layer index of the population-sensitive receptor. The environmentally sensitive receptor is directly affected by its distance from the risk area and its degree of sensitivity, which are both considered to be the alternative layer index of the environmentally sensitive receptor.
Overall, the comprehensive risk index system of CIP enterprises consists of three indices in the criteria layer, seven indices in the sub-criteria layer and 19 indices in the alternative layer. These indices cover the major risk factors of CIP enterprises and thus reflect the environmental risk conditions of these facilities (
Figure 1).

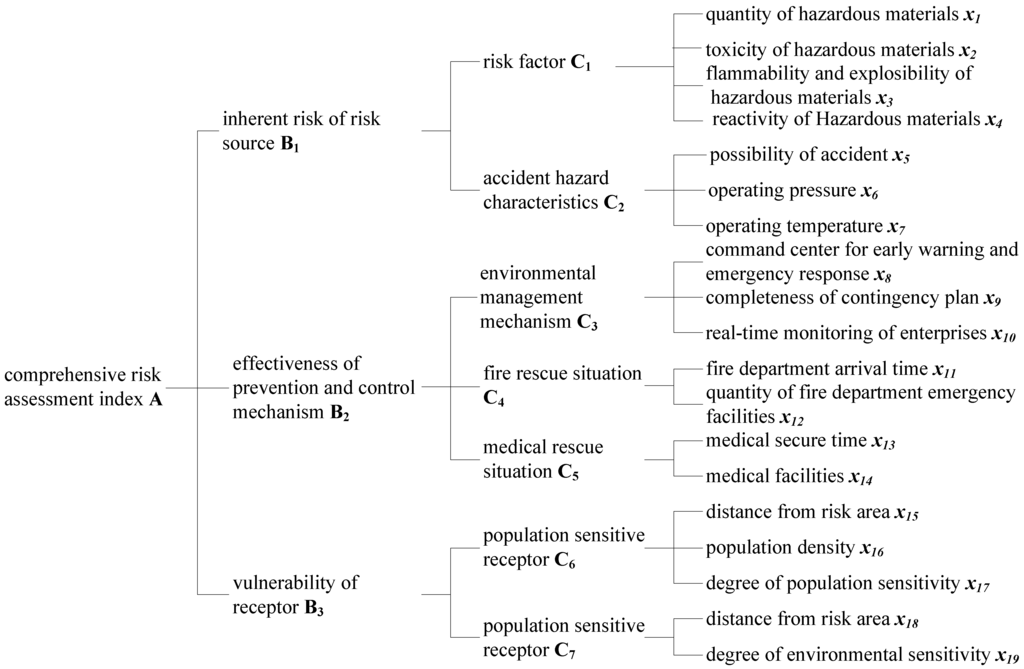

Figure 1.
Comprehensive risk assessment index system for enterprises in chemical industrial parks.
Figure 1.
Comprehensive risk assessment index system for enterprises in chemical industrial parks.
2.2.2. Determination of Primary and Secondary Status of Variable Indices in Each Layer
(1) Primary and secondary status of variable indices in the criteria layer (B)
Of the three indices in the criteria layer, the inherent risk of the risk source is the source of risk events. This factor is also prerequisite for the occurrence of risk accidents and is therefore given the primary priority [
19]. Effective prevention and control mechanisms are an important guarantee for timely control and risk reduction following accidents and thus have the second priority. The receptor vulnerability index has the third priority.
(2) Primary and secondary status of variable indices in the sub-criteria layer (C)
The inherent risk indices of risk source include the risk factor index and the accident hazard characteristic index. The former directly reflects the essential characteristics of risk source and thus has priority over the latter.
A sound environmental management mechanism provides excellent warnings prior to an accident, as well as systematic emergency command at the site of an accident and coordination of fire control and medical treatment post-accident. Therefore, the environmental management mechanism index has the highest priority. Fire rescue can control the effects of an accident, thus its index has the second priority. The medical rescue index has the third priority. Of the two sub-indices of receptor vulnerability, the population-sensitive receptor index has priority over the environmentally sensitive receptor index, as human beings are the primary objects of protection.
(3) Primary and secondary status of risk indices in the alternative layer (x)
For chemical enterprises, there are four sub-indices of the risk factor index in the alternative layer: toxicity, quantity, flammability and explosibility, and reactivity of hazardous materials. Of these, the quantity of hazardous materials has the highest priority, as leakage can directly impact human health and environmental safety. The accident hazard characteristic index includes two sub-indices, the probability of accident and operating pressure and temperature conditions. Of these, the former directly corresponds to the consequences of an accident. A risk accident with a high probability commonly results in small consequences, whereas that with a low probability results in relatively large consequences. Therefore, accident probability has priority over operating pressure and temperature conditions. Among the three sub-indices of the environmental management mechanism index, the command center for early warning and emergency response has the highest priority, as a sound risk management department is the foundation of environmental management. Of the two sub-indices of the fire rescue index, the arrival time of the fire department has priority over the quantity of emergency facilities because arrival time is a key factor involved in rescue. Similarly, medical rescue time has priority over the quantity of medical treatment facilities in the medical rescue index because arrival time is a key factor in life-saving. Among the three sub-indices of the population-sensitive receptor index, the distance of population from the risk area has priority over population density and degree of population sensitivity because the former directly determines the degree of risk injury. Of the two sub-indices of the environmentally sensitive receptor index, the distance from risk area has priority over the degree of environmental sensitivity.
2.2.3. Control Variable Standardization
The raw data of the alternative layer are standardized to obtain multi-dimensional catastrophe fuzzy membership values between 0 and 1, which solves problems related to non-comparative raw data from alternative layer indices caused by different ranges and units. All the indices are standardized using the following equations:
where
i is the index,
xi is the original value of
i,
xmax is and
xmin are respectively the maximum and the minimum value of
i. Equation (1) is for positive indices and Equation (2) is for negative indices.
As shown in
Figure 1, control variables
x1 to
x4 constitute the butterfly catastrophe model C
1, while control variables
x5 to
x7,
x8 to
x10, and
x8 to
x10 constitute the swallowtail catastrophe model C
2, C
3 and C
6, respectively, and control variables
x11 to
x12,
x13 to
x14, and
x18 to
x19 constitute the cusp catastrophe model C
4, C
5 and C
7, respectively. Of these,
x1 to
x7,
x11,
x13,
x15,
x16, and
x18 are smaller-the-better type indices, which can be calculated using Equation (1). The control variables
x8 to
x10,
x12,
x14,
x17 and
x19 are bigger-the-better type indices, which can be calculated using Equation (2). The control variables
x2 to
x5,
x8 to
x10,
x12,
x14,
x17, and
x19 are qualitative indices, with x
2 taken as an example for value selection and instruction. According to the Hazardous Materials Identification System for Emergency Treatment (NFPA 704) of the National Fire Protection Association (NFPA), the toxicity of hazardous materials can be classified at five levels (0–4), with level 0 indicating the least hazard to humans, and level 4 indicating the greatest hazard to humans. Relevant data were obtained by querying the list of hazardous materials. The values of other qualitative indices were selected in a similar fashion according to the literature [
22,
23].
