Use of Ionizing Radiation Technology for Treating Municipal Wastewater

Department of Environmental Engineering, Al-Mustansyriah University, Baghdad, Iraq
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2006, 3(4), 360-368;
Received: 24 February 2005 / Accepted: 20 August 2006 / Published: 31 December 2006


In big cities, the cost of treating wastewater is increasing with more stringent environmental requirements. Ionizing radiation technology for treating municipal wastewater may be an alternative to reduce treatment costs. In this paper, laboratory tests were carried out using different doses of radiation to treat wastewater samples collected from the AL-Rustamia wastewater treatment plant in Baghdad city. According to the results, irradiation by gamma radiation with a dose ranging from 100 to 500 krad was efficient in reducing some of the physical contaminants. The organic contaminants were degraded and reduced to about 12% of their original concentrations. Generally, irradiation technology could effectively modify the characteristics of the wastewater to such levels that are compatible with Iraqi disposal standards. The results of the study also showed that, an experimental pilot plant study is required to optimize the cost of wastewater treatment through the use of this technology.


The need for new technology in treating municipal wastewater is continuously developing. The newest technology should have advantages in minimizing the required cost for wastewater treatment.
In big cities, the sewerage works are costly compared to other municipalities’ services. Then the cost should be minimized for sewerage works to mobilize this environmental service by municipalities. The construction of small efficient wastewater treatment plants for individual sections of the city will help in reducing the cost of sewerage works.
Technically, ionizing radiation is an advanced form of energy, available for societal use, but feared by many people as being an environmentally dangerous and health hazard. Radiation energy treatment for a clean water supply and wastewater treatment is currently under study in many countries. Greater application of this technology in the treatment of water, wastewater and sludge may help not only for the development of technical processes, but also on greater acceptance of the technology as engineering needs [1].
The typical costs for the treatment of wastewater by radiation are found to be favorably comparable with the other advanced wastewater treatment systems [2].
The objectives of this study are: To evaluate the applicability of ionizing radiation technology for the removal of biochemical oxygen demand (BOD) and fat, oil, and grease (FOG) from municipal wastewater; to assess the physical and biochemical characteristics of municipal wastewater before and after the irradiation; and to determine the optimum doses for irradiation of wastewater.

Radiation Treatment

Radiation treatment may be defined as the application of ionizing radiation energy to produce a useful change in a material, such as disinfection. The amount of radiation energy absorbed in a material depends on both the chemical and physical state of the material and on the type and energy distribution of the radiation. The respective radiation dose units for biological comparison units are the rem and the sievert (sv) which indicate the physical dose unit multiplied by a radiation quality factor (QF).
The application of radiation energy to water and wastewater treatment needs to achieve a sufficient dose absorbed uniformly at a given flow rate and an economic yield. The involved factors include the type of radiation, its energy distribution, and the penetrability into the water stream, the geometric configuration of the radiation-water interaction volume and the thickness of water normal to the radiation flux [1, 3].
There are many types of radiation such as gamma, beta, alpha, X-rays and UV. However, the type of radiation mostly used in the treatment of wastewater is gamma radiation. So in this study, gamma radiation was used in wastewater treatment. Gamma ray, emitted during the decay of radioactive atoms, which is electromagnetic radiation, has relatively high penetrating power. The intensity of a gamma ray source determines the exposure time for a given dosage. Some factors such as the source-to-water geometry and the presence of solids in the water affect the bulk density and irradiator design.
An important characteristic of gamma rays from either Co60 or Cs137 is that it is highly penetrating. For water, the half value and tenth value layer for Co60 gamma ray are 27 and 61 cm respectively. For Cs137 the half value and tenth value gamma ray are 24 and 58 cm, respectively. Therefore, it is clear that with an appropriate mixing to provide homogenous exposure, targets with thickness of 50–60 cm can be readily treated.

Biological Phase Treatment

Although the idea of using ionizing radiation for treatment of sewage waste was conceived almost five decades ago, it is only in recent years that there have been several reports on the potential role of radiation in the treatment of sewage and other wastewater. The rationale for utilizing radiation in treatment of sewage waste rests on number of documented facts [1]:
  • Radiation destroys microbial life and this property is considered particularly beneficial, since it will result in the inactivation of pathogenic micro flora;
  • Radiation is capable of altering the structure of organic molecules, thereby leading to a decrease in Biochemical Oxygen Demand (BOD5) and Chemical Oxygen Demand (COD).
  • Radiation can bring out physiochemical alteration in suspended solid, leading to the formation of more compact sludge and higher capacity for settling.
It is generally agreed that radiation is an exceptionally effective disinfection method. The sequence of events during radiation exposure includes three periods; latent period; demonstrable effects period, and recovery Period.

Responses of Microorganisms to Irradiation Used in Wastewater Treatment

The responses of microorganisms and parasites to a given dose can be altered in different ways. This is possible because the response depends on:
  • physical factors (temperature and type of radiation);
  • chemical factors (sensitizing and protecting agents);
  • © Biological or physiological factors (growth phase and amount of DNA).
The effect of radiation on microorganisms and parasites can be modified not only by agents present during irradiation, but also by biochemical processes occurring over a much longer period of time. Proper pretreatment of wastewater prior to irradiation offers an advantage in maximizing the lethal effect [3]
The treatment of wastewater by irradiation can be optimized to enhance the synergistic inactivation of microorganisms and parasites. The main factors, other than the genotype of the microorganisms that influence, radio sensitivity are oxygen, chemicals present in wastewater and temperature.

Materials and Methods

Sample Collection

Samples of wastewater were collected from AL-Rustamia sewage treatment plant for three months: January, February and March (2002) whereBOD5 were estimated as 243mg/L, 309 mg/L and 321mg/L respectively. The samples were collected by using different types of clean containers. Samples were taken from the effluent of the primary settling tank.


The facility used in irradiation is Gamma-cell 220 (Canadian made) supplied with Co60 which has a calculated dose rate of two Mrad/hr and radioactivity of 50 kCi in January 1985. Samples were arranged in the cylindrical irradiation chamber (16 cm in diameter and 20 cm in height). This room moved vertically down to the radiation sources of Co60 as roods rotate around the room to supply a homogenous dose for all samples (Fig 1) [4].

Absorbing Dose

All tests in this study were taken as an average of three samples subjected to the same absorbing dose. The doses used were 0, 10, 25, 50, 100, 200, 300, 400, and 500 krad. The dose rate in recent time (i.e. 2002) was approximately 0.2 Mrad/hr (Calculated on the basis that the half-life of Co60 is 5.26 years). The irradiation times for these dosages were 0, 3, 7.5, 15, 30, 60, 90, 120, and 150 min. respectively where:
D = DR × T
D = Absorbing dose, (rad): DR = Dose Rate, (rad/min.): and T = Irradiation time, (min).

Physical and Chemical Measurements

The physical and chemical measurement parameters taken for this study were: turbidity, electrical conductivity (EC) and hardness., pH, dissolved oxygen (DO), biochemical oxygen demand (BOD5) and chemical oxygen demand (COD), total suspended solid (TSS ), total dissolved solids (TDS), fat, oil and grease (FOG), and phenolic compounds.

Results and Discussion

Ionizing radiation has a drastic effect on the organic materials in the wastewater, because of the strong activity of gamma radiation energy that changes the characteristics of pollutants in the wastewater [3]. The results were found in the undetectable levels for most of the tests, but there were some tests which did not respond to the radiation energy because of inorganic compounds. The result of this research consisted of 320 tests. All tests involved 1008 irradiation processes.


Figure 2 and Table 1 indicated a decrease in turbidity as the radiation dose increased to a certain absorbing dose, thereafter, turbidity started to increase with the increase of radiation doses.
Turbidity decreased to 68 NTU at 25 krad for January and 92 NTU at 50 krad for February and 118 NTU at 50 krad for March, respectively. Then the values increased to 120, 200 and 210 NTU for January, February and March, respectively at an irradiation dose of 500 krad. Sometimes turbidity surpassed the starting value. This increase in turbidity was attributed to the dissolved organic materials in the sludge [3].

Electrical Conductivity (EC) and Hardness

Results revealed that EC values and hardness remained stable with the increase in radiation dose (Fig. 3). This is because EC and hardness are functions of dissolved salts in water. It is known that the organic salts are not conductive materials, but the inorganic salts are very conductive materials when dissolved in water since they are electrolytes. Moreover, the radiation doses do not degrade the inorganic materials consequently the salinity value does not change with the increase in radiation dose. Therefore, EC (2.25mmhos/cm) and hardness (800mg/L as CaCO3) values remained stable (Table 1) as previously shown in an earlier I.P.S. work, [7].


pH increased as the radiation dose increased. Figure (4) shows that pH values tended to increase as a result of the radiolysis of water. These values reached 8.1, 9.0 and 8.5 for January, February and March, respectively. This pH increase resulted from the increase of hydroxyl radicals at very large quantities due to the hydrolysis of water. The G-value of OH (G-OH) is high when compared with the other radicals, which caused a large concentration of free hydroxyl radicals in water consequently increasing the pH value. All pH measurements remained within accepted values, as shown in (Tables 1 and 2).

Dissolved Oxygen (DO)

The reduction in DO concentration values with increasing radiation doses are shown in Fig. 5 and Table 1. The AL-Rustamia treatment plant used a primary aeration tank, hence the value of DO increased in the raw samples. On the other hand, the irradiation process decreased the values of DO. The decrease in DO concentration resulted from the following mechanism:
The irradiation in aqueous solutions forms solvated electrons. It may react by neutralization reaction or may add to molecules. These electrons react with oxygen in the presence of hydrogen, as in the following reaction (1) [5]:
e - aq ( H ) + 2 O 2 O 2 - ( HO 2 )
Pulses radiolysis data confirm the assumption that C6H5OH(OH) radicals formed in reaction (2), and reacted with dissolved oxygen, [6].
C 6 H 5 OH + OH C 6 H 5 OH ( OH )
The optical absorption shows the first order decay dependent on oxygen with a spectrum of indicated long-live O2 identification. These observations could best be the sequence of reactions such as reactions (3), (4) and (5), [6]:
C 6 H 5 OH ( OH ) + O 2 C 6 H 5 OH ( OH ) O 2
C 6 H 5 OH ( OH ) O 2 C 6 H 4 ( OH ) 2 + HO - 2 ( O 2 - )
2 H + + O 2 - H 2 O 2
Also, the energy of radiation applied to hydrogen radicals in water leads to the reaction indicated in (6), that will react with DO to form HO2, as in the following reaction, [3]:
H 2 O H + OH
O 2 + H HO 2
In addition, the free electrons react with oxygen to form O2, as in the following reaction: -
O 2 + e - aq O 2 -
It is well known that HO2 and O2 are the most reactive species, and they react with wastewater pollutants, although they are less powerful reactants compared with H and eaq[3]. For all the above reactions and others, it is clear that a large number of receivers for oxygen cause a decrease in dissolved oxygen concentration.

Biochemical Oxygen Demand (BOD5) and Chemical Oxygen Demand (COD)

(BOD5): - Figures 6 and 7 show the decrease in BOD5 and COD concentration values respectively with respect to the increase of radiation dose. This decrease resulted from the destruction of microorganisms responsible for oxygen consumption. It is known that microorganisms are very sensitive to radiation pulses. In addition, the radiation energy can degrade organic compounds found in biological systems.
The BOD5 values reached 12.3% of their initial value through the use of 500 krad absorbing dose, while the accepted value of BOD5 is 40 mg/l, (Tables and 2). However, in March, the concentration of BOD5 at the same radiation dose remained high, but they were within the accepted value. This observation can be explained by the fact that sometimes samples contain surfactant pathogens such as Bacillus spores and Micrococcus radiodurant and mineral organics, which are not degraded by radiation. To reduce these types of pathogens, the combined processes must be used (i.e., radiation with either heat or ozone) [8].
(COD) values show the attainment of the acceptable value for January but were higher than the accepted value in February and March (see Tables 1 and 2). To achieve the accepted values in February and March, higher radiation doses were needed. This decrease in BOD5 and COD matched previous research reports from I.P.S. [7], Compton et. al [9]; Etzel & Condern [10], Mytelka [11].

Total Suspended Solid (TSS)

Figure 8 shows the decrease in total suspended solids (TSS) as the absorbed radiation dose increased. For the three months, January, February and March, the removal percentage reached 18.2 %, 11.85% and 11.23% of the initial values, respectively. All these values were within the accepted range (see Tables 1 and 2). The total suspended solids (TSS) were decreased, as they were converted to precipitates resulting from the degradation of organic substances and suspended matter in wastewater. These results are in agreement with previous work of I.P.S. [7], Compton [12], and Undynamic Corporation (U.C.) [13].

Total Dissolved Solid (TDS)

Total Dissolved Solids (TDS) concentrations showed different patterns of interaction with radiation doses. The TDS concentration decreased with respect to the increase in the absorbed radiation doses to certain values, after which TDS concentration increased with increases in absorbed radiation dose. Based from Fig 9 and Table 1, the TDS concentration decreased to 11.4% of its initial value at 10 krad absorbing dose then it increased to 77.5% at 500 krad for January and February. The concentration decreased to 8.85% of it’s the initial value at 25 krad then it increased to 70.4%. For March, it decreased to 9.2% at 25 krad then it increased to 52.4% at 500 krad. This might be due to the conversion of the dissolved organic substances to simple molecular compounds or formation of dimmers or trimmers. Also, the high doses may have dissolved the suspended solids and sludge that were at the bottom of the container, thus increasing the concentration of TDS It was noted however that the TDS values never reached the starting values [1]. Since the inorganic materials were not altered by radiation, our results are similar to an earlier I.P.S. finding [7].

Fat, Oil and Grease (FOG)

Figure 10 and Table 1 show the decrease of FOG concentrations as the absorbed radiation dose increased. Fat, oil and grease values were reduced by radiation to 23.4%, 27% and 1.4% of their initial values for January, February and March, respectively. FOG is composed of long chains of hydrocarbons. The radiation energy lysed the bonds of these hydrocarbon chains converting the FOG to shorter hydrocarbon fragments. These findings agree with previous results [7, 14]. The degradation of FOG depends on the presence of mineral FOG. It is known that radiation does not degrade the mineral FOG [3]. These new compounds have certain characteristics and composition that differ from FOG, and have fewer impacts as wastewater hazards.

Phenolic Compounds and Standards of Phenols

Concentrations of irradiated phenolic compounds fand standard phenol solutions decreased as the radiation dose increased (Figs. 11 and 12).
All these values at final absorbing dose of radiation are within the in accepted range (see Tables 1 and 2). They varied from 8.4% of their initial value in January, 6.2% for February and 13.16% for March, respectively. The decrease in the concentration of phenol agreed very well with the results of Takehtsa & Sakumoto [15] and Machi [16]. The degradation of phenol samples never reached zero concentration value, while standard solutions of phenol reached zero concentration. This is because the standard solutions of phenol are pure, while the samples of wastewater contain different types of phenols such as chlorophenols and nitrophenols that contain surfactants.


Irradiation by gamma radiation is an efficient physical way to destroy organic compounds, as long as the radiation parameters delivered are correctly suited to the application. Under the experimental conditions imposed in the present study, the optimal doses are mentioned in Table 3. Even at these values, the radiation efficiency for most parameters is, surprisingly, not completely satisfactory. The applicability of a laboratory experiment like this should be further tested in the field using, a pilot plant. The established pilot plant must be supplied by wastewater from the effluent of the primary sedimentation tank of the Baghdad wastewater treatment plant. All the laboratory-tested parameters, including sludge management should be considered in order to evaluate the multiple benefits of ionizing radiation technologically for treating municipal wastewater in Baghdad city.

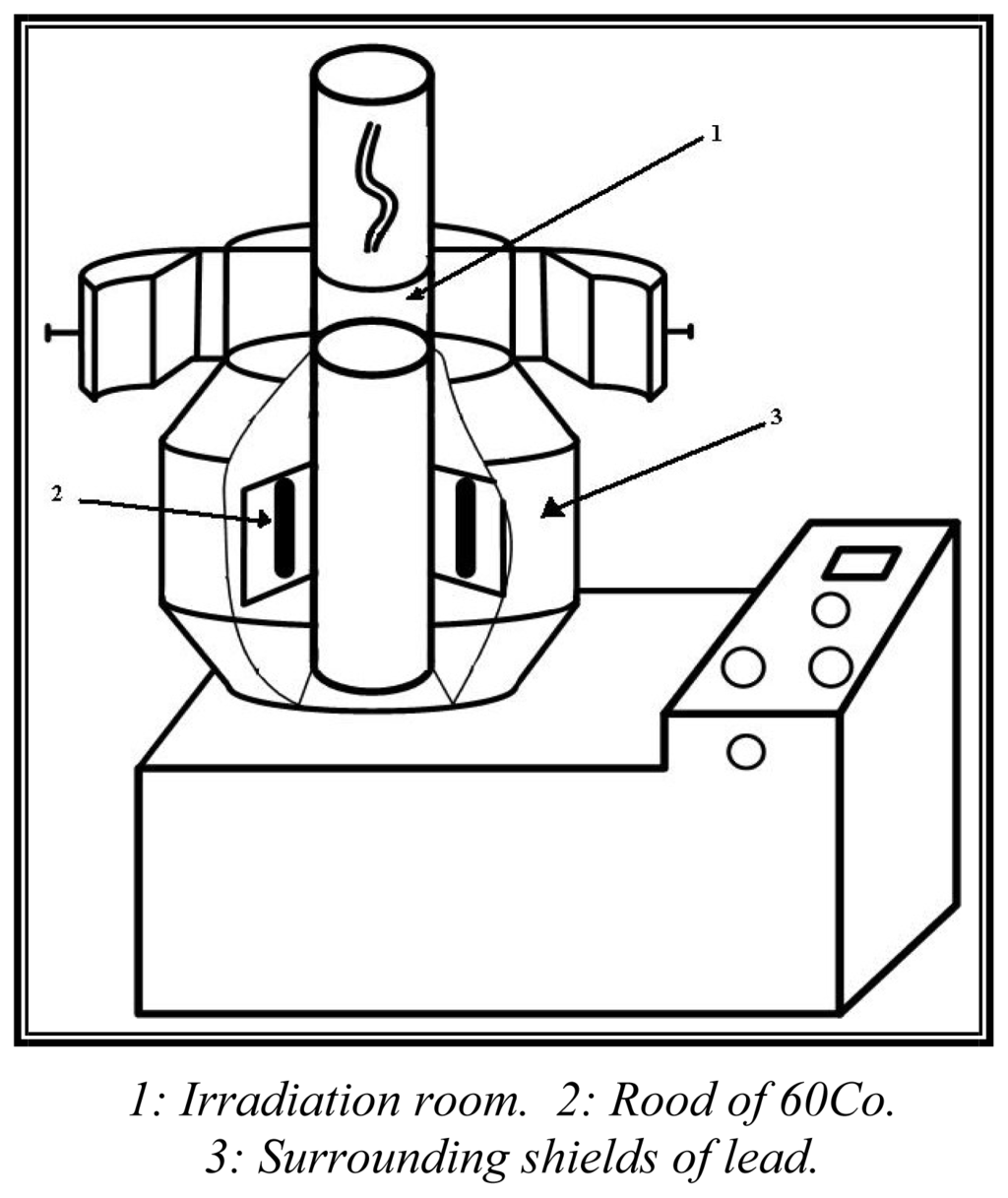

Figure 1. Gamma cell irradiation facility type 220 Canadian made [4].
Figure 1. Gamma cell irradiation facility type 220 Canadian made [4].
Ijerph 03 00360f1

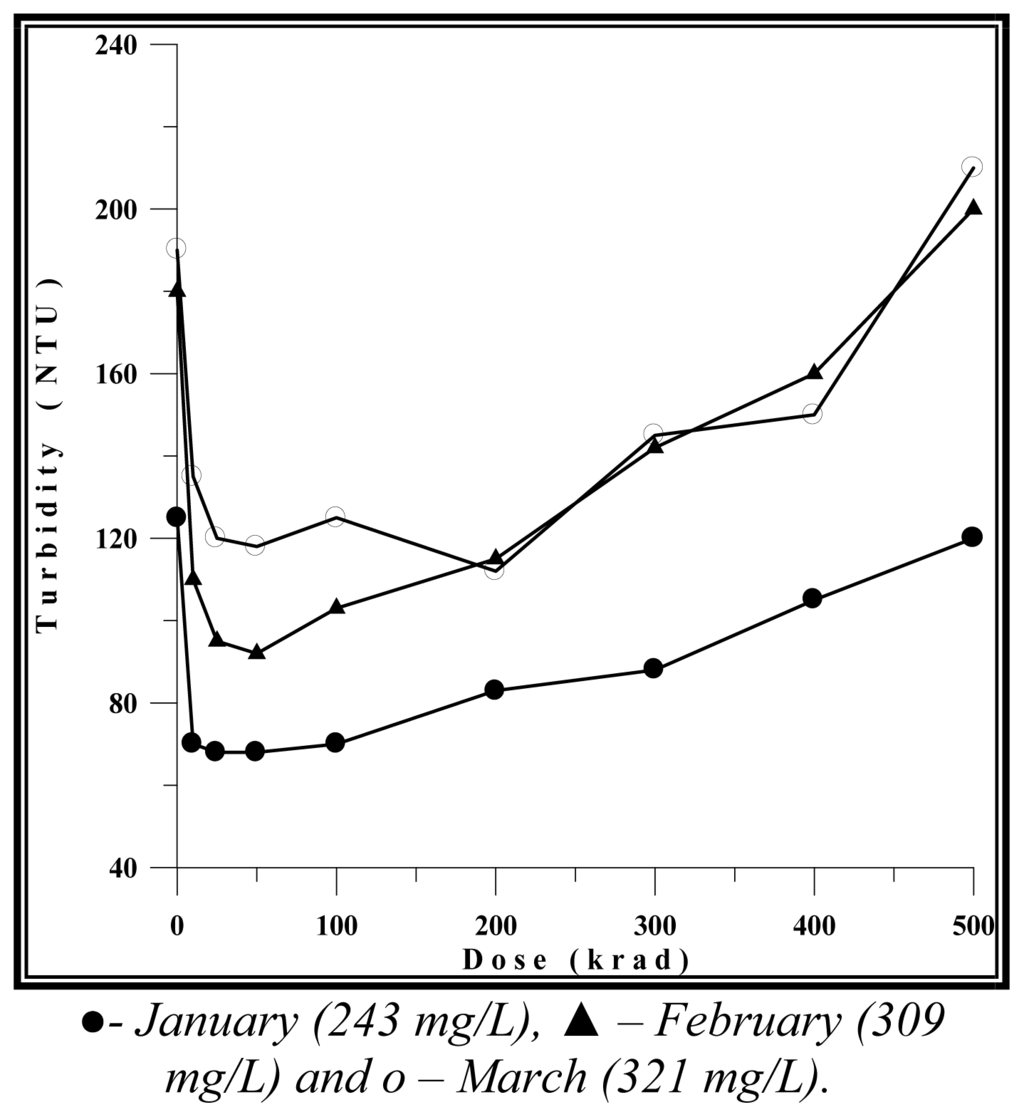

Figure 2. Turbidity values of irradiated sample of wastewater for BOD5
Figure 2. Turbidity values of irradiated sample of wastewater for BOD5
Ijerph 03 00360f2

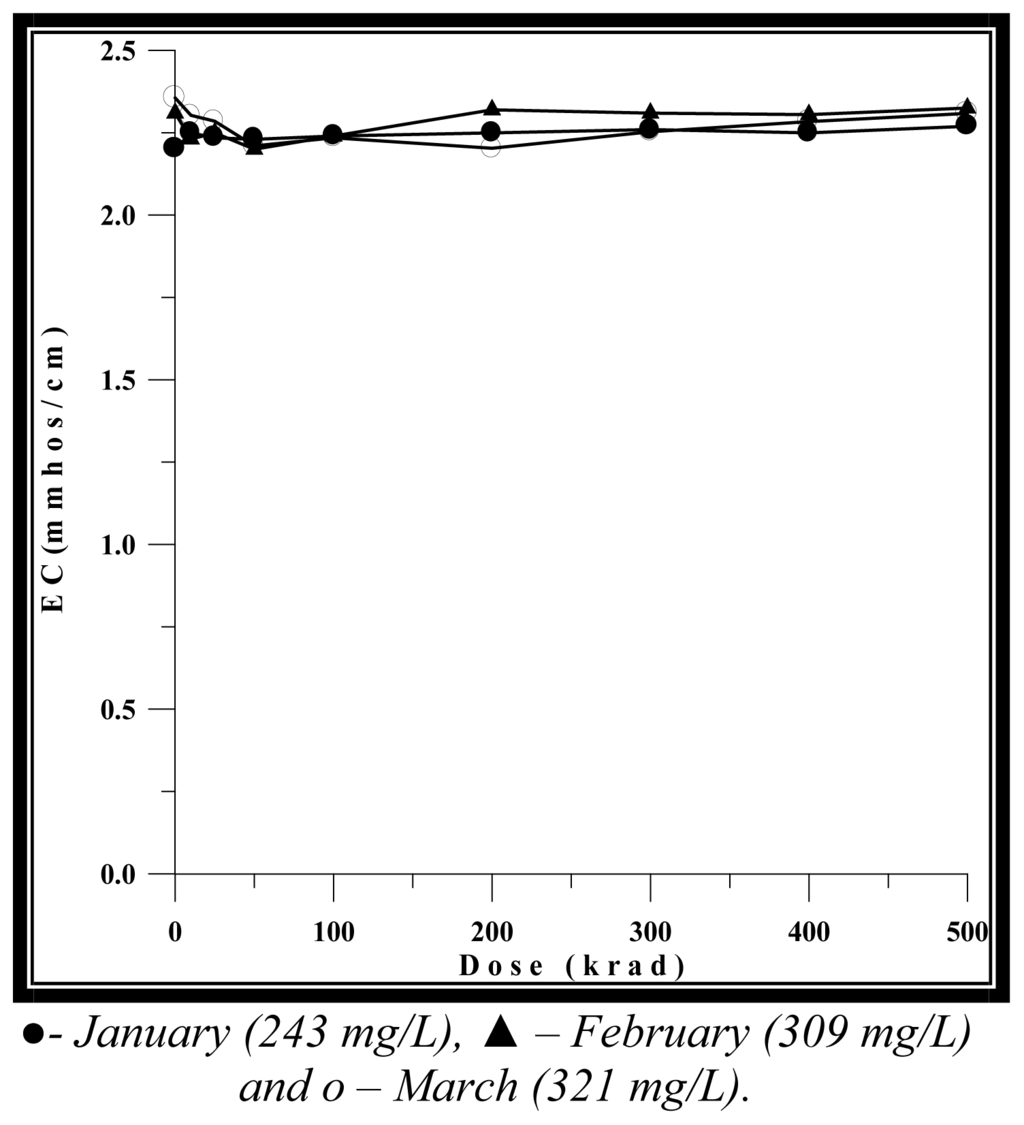

Figure 3. EC values of irradiated sample of wastewater for BOD5
Figure 3. EC values of irradiated sample of wastewater for BOD5
Ijerph 03 00360f3

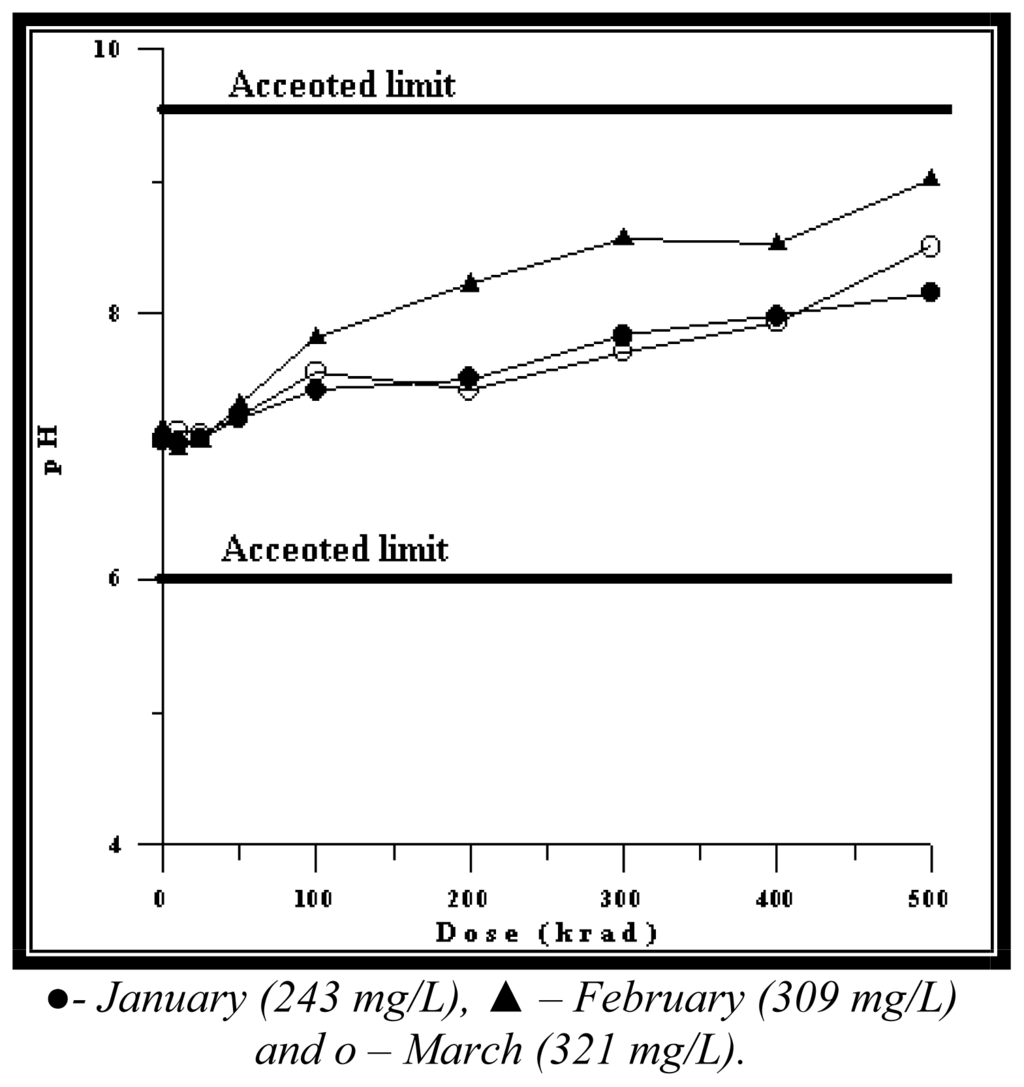

Figure 4. pH values of irradiated sample of wastewater for BOD5
Figure 4. pH values of irradiated sample of wastewater for BOD5
Ijerph 03 00360f4

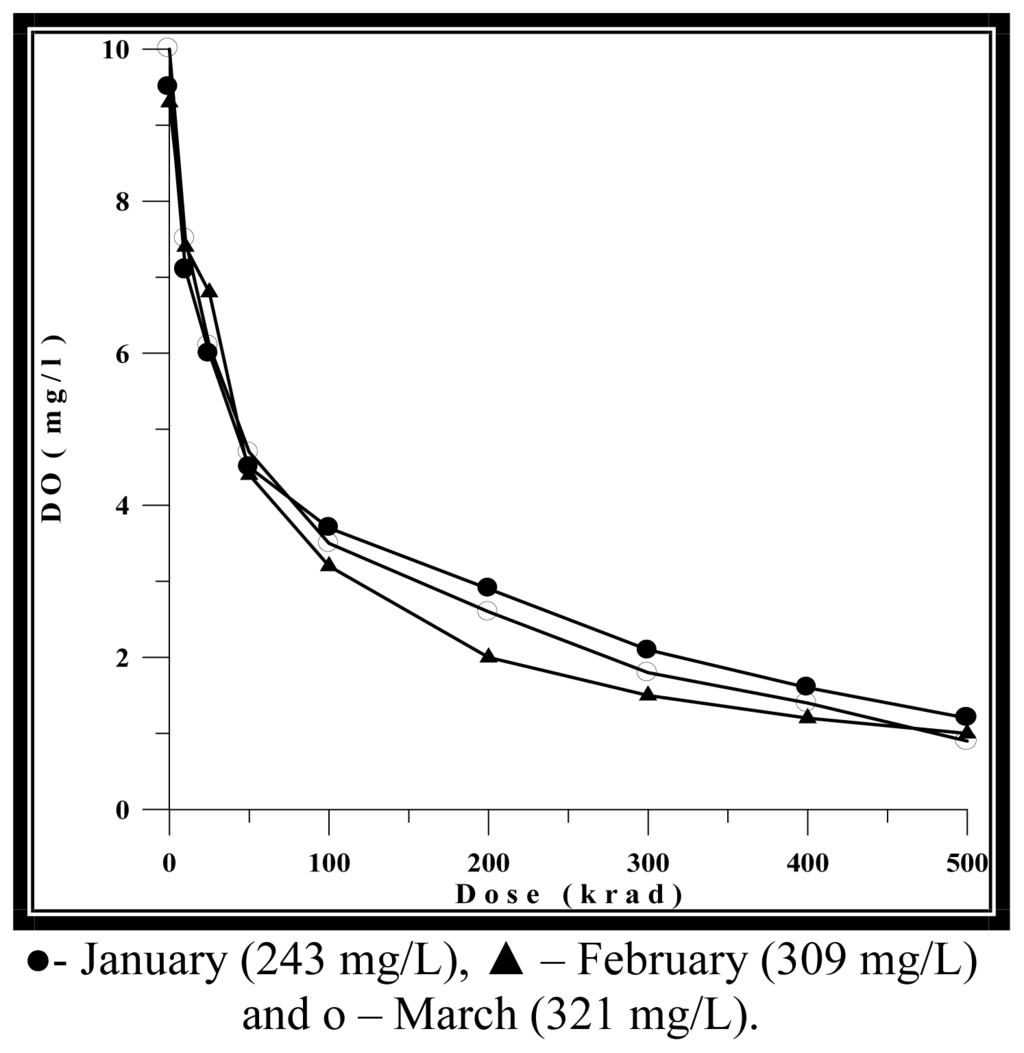

Figure 5. DO values of irradiated samples of wastewater for BOD5
Figure 5. DO values of irradiated samples of wastewater for BOD5
Ijerph 03 00360f5

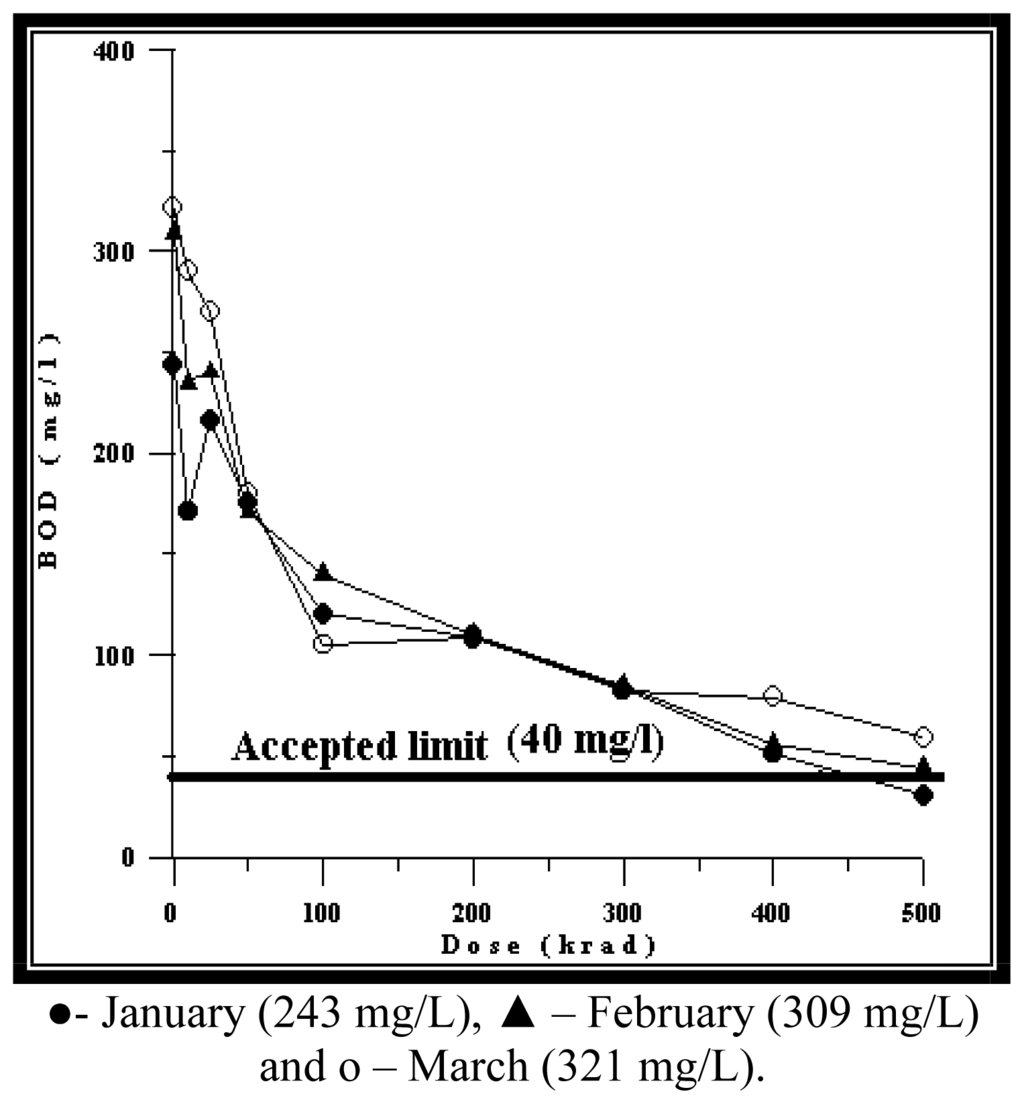

Figure 6. BOD5 concentration of irradiated sample of wastewater for BOD5.
Figure 6. BOD5 concentration of irradiated sample of wastewater for BOD5.
Ijerph 03 00360f6

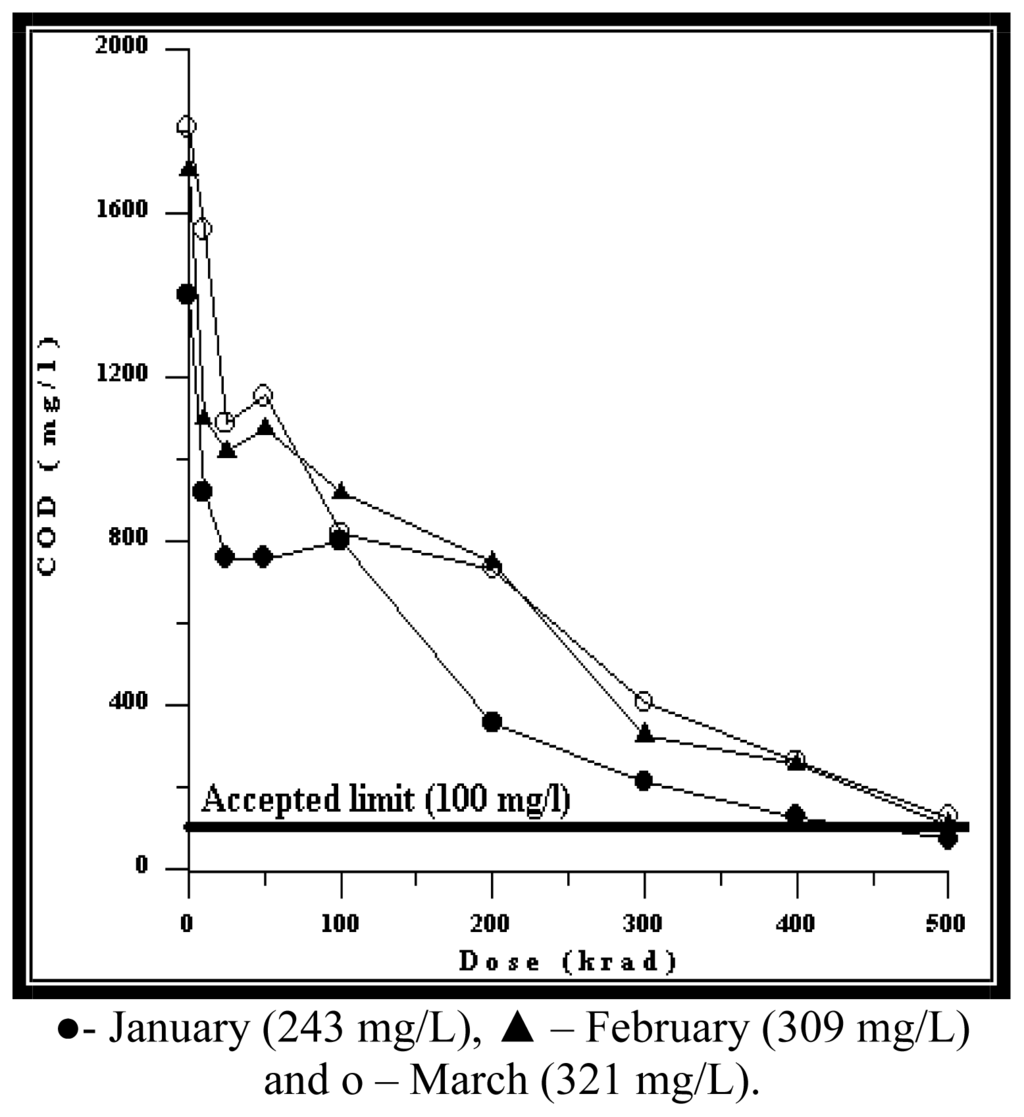

Figure 7. COD concentration of irradiated sample of wastewater for BOD5
Figure 7. COD concentration of irradiated sample of wastewater for BOD5
Ijerph 03 00360f7

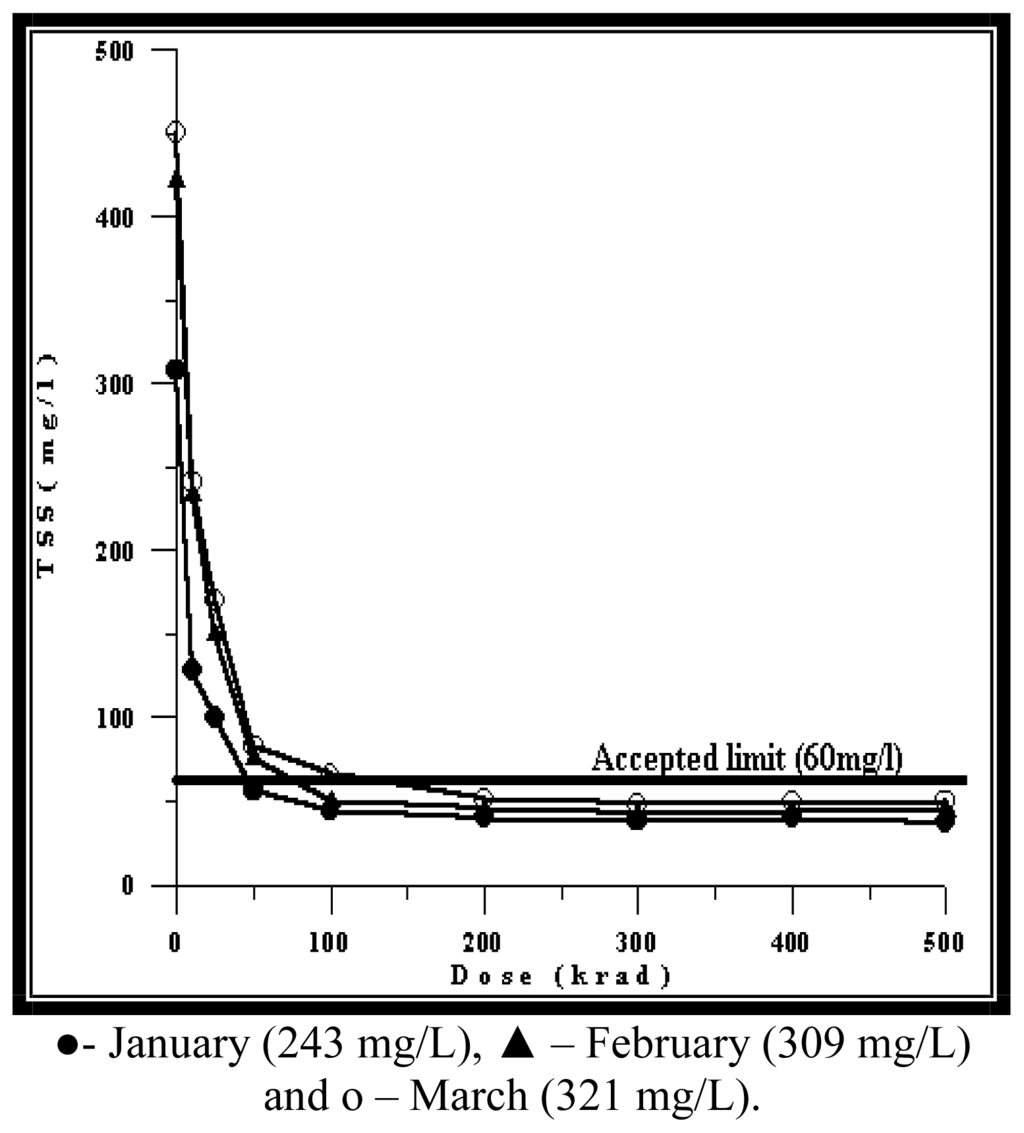

Figure 8. TSS concentration values of irradiated sample of wastewater for BOD5.
Figure 8. TSS concentration values of irradiated sample of wastewater for BOD5.
Ijerph 03 00360f8

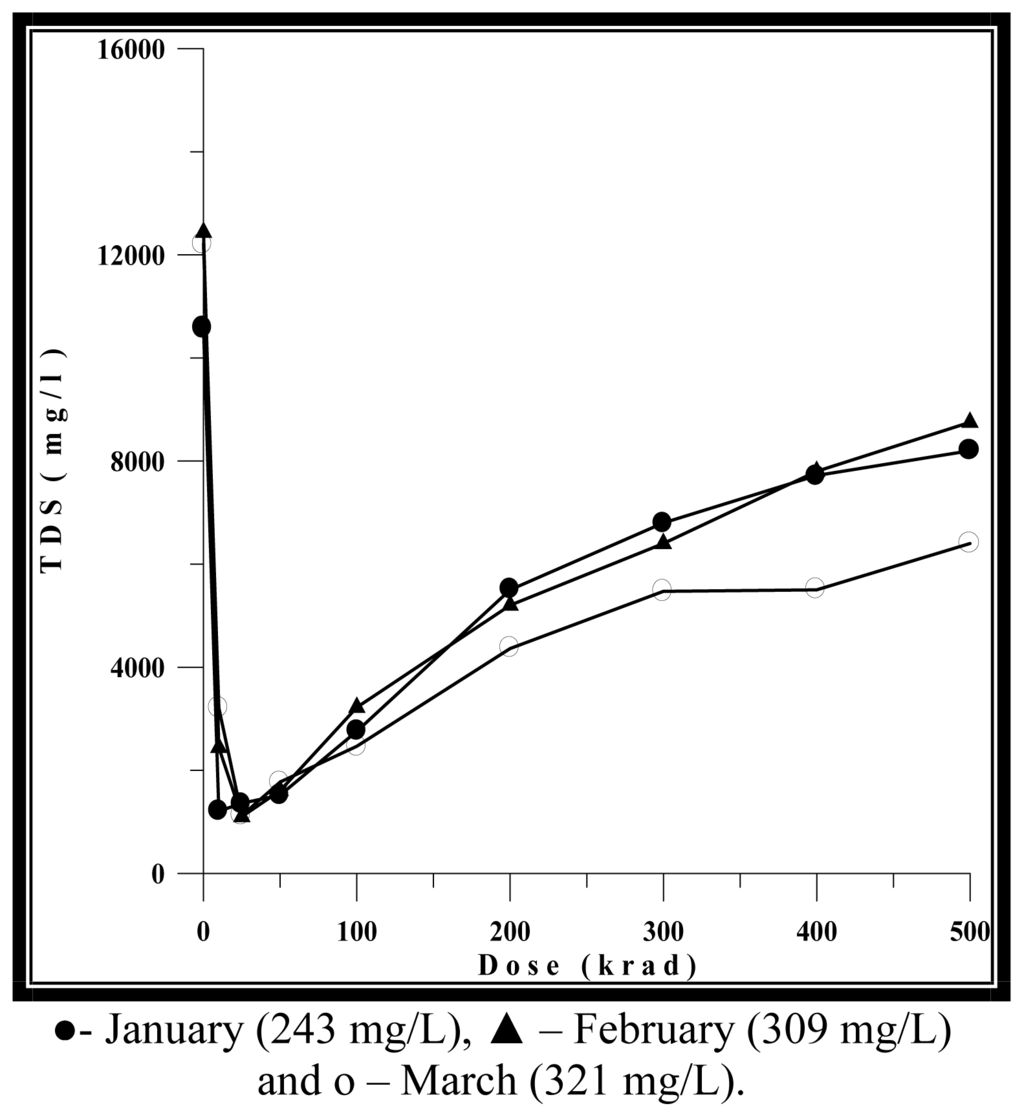

Figure 9. TDS values of irradiated sample of wastewater for BOD5.
Figure 9. TDS values of irradiated sample of wastewater for BOD5.
Ijerph 03 00360f9

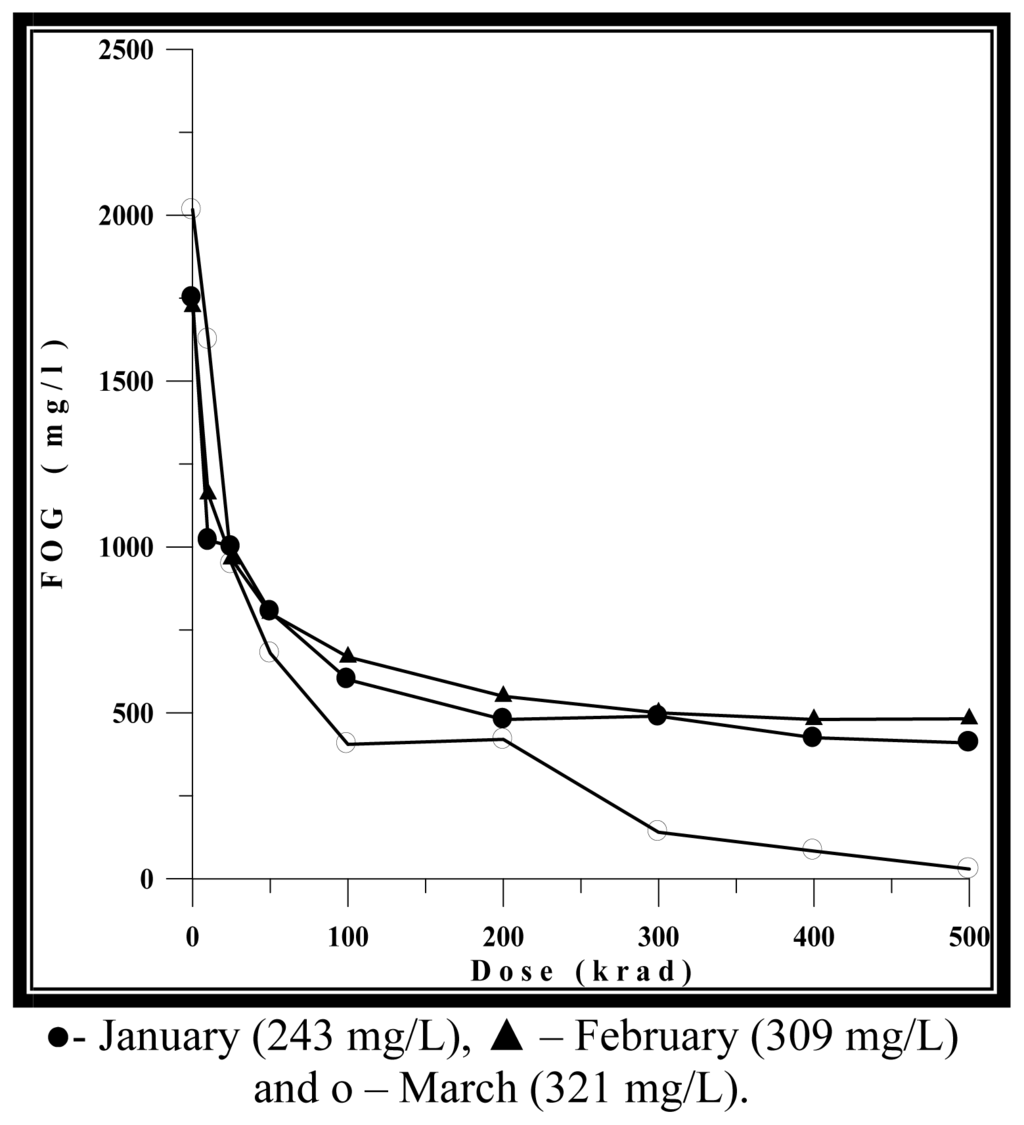

Figure 10. FOG concentration of irradiated sample of wastewater for BOD5.
Figure 10. FOG concentration of irradiated sample of wastewater for BOD5.
Ijerph 03 00360f10

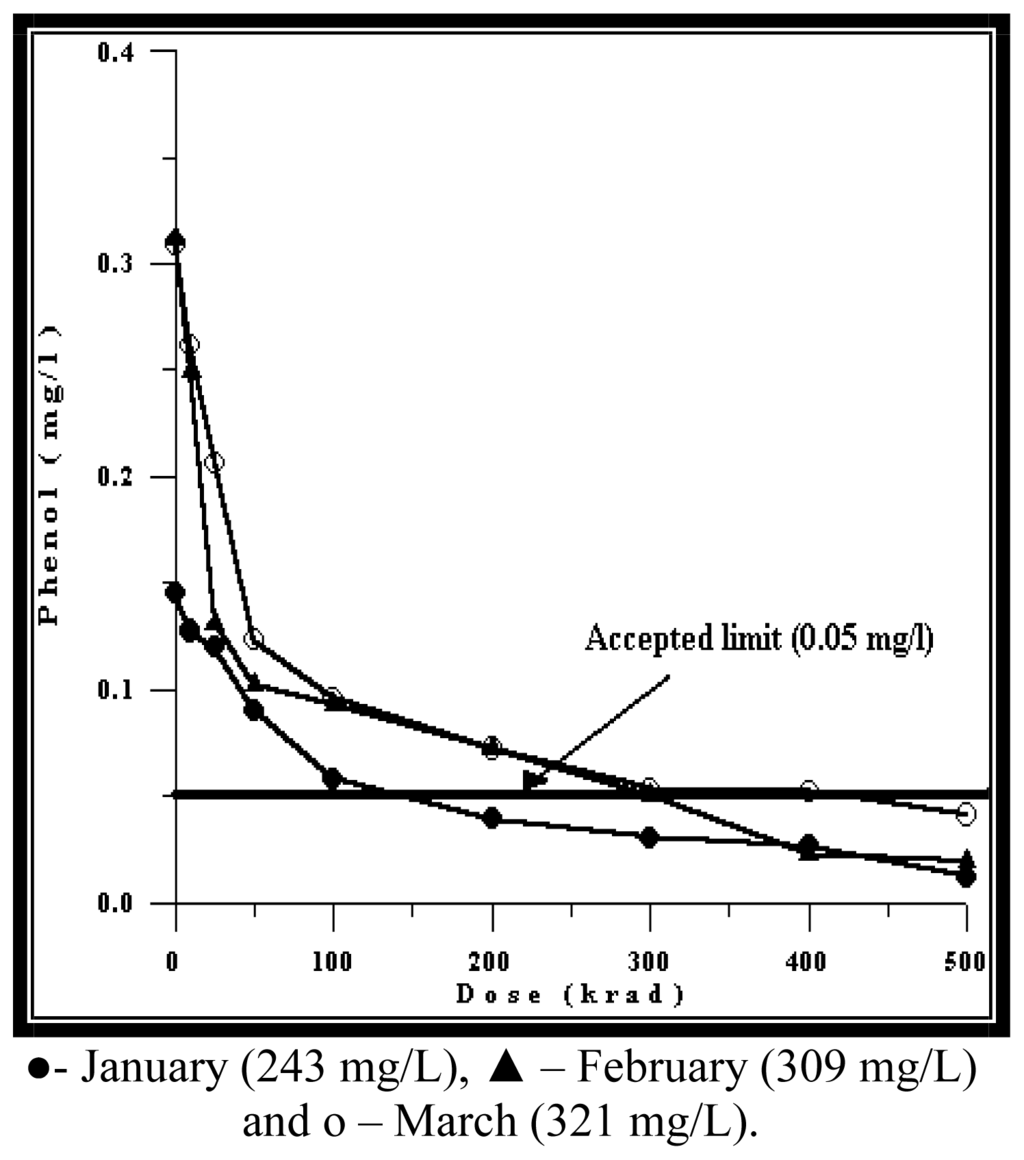

Figure 11. Phenol concentration of irradiated sample of wastewater for BOD5
Figure 11. Phenol concentration of irradiated sample of wastewater for BOD5
Ijerph 03 00360f11

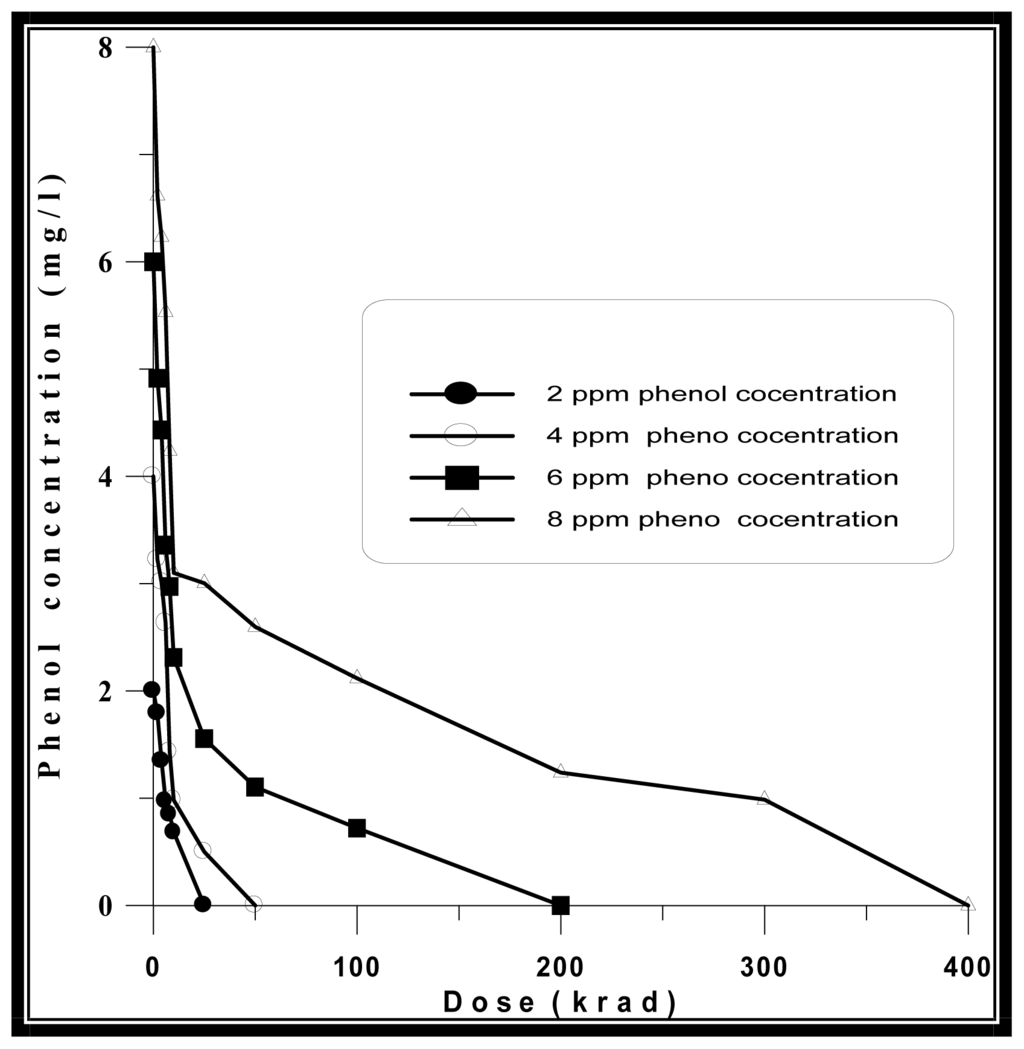

Figure 12. Phenol concentration values of standard solution of phenol with respect to radiation dose.
Figure 12. Phenol concentration values of standard solution of phenol with respect to radiation dose.
Ijerph 03 00360f12
Table 1. Summary for the conventional result of experimental work
Table 1. Summary for the conventional result of experimental work
ParameterMonthInitial value ( mg/l)aAffect dose (krad)Final Value ( mg/l)aPercentage to initial value
TurbidityJanuary125 (NTU)2568 (NTU)54.4
February180 (NTU)5092 (NTU)51.11
March190 (NTU)50118 (NTU)62.1

ECJanuary2.2 (mmhos/cm)Does not affect----
February2.31 (mmhos/cm)Does not affect----
March2.356 (mmhos/cm)Does not affect----

PHJanuaryNo more 5008.15 * (unit less)--
February7.13 (unit less)No more 5009.01 * (unit less)--
March7.06 (unit less)No more 5008.5 * (unit less)--


BOD5January24350030 *12.3

CODJanuary140050075 *5.36

FOGJanuary1750500 and more40923.4
February1725500 and more48227
March2017500 and more291.4

TSSJanuary3085056 *18.2
February42210050 *11.85
March45020051 *11.33


HardnessJanuary800 (mg/l as CaCO3)Does not affect----
February820 (mg/l as CaCO3)Does not affect----
March850 (mg/l as CaCO3)Does not affect----

PhenolJanuary0.14495000.0121 *8.4
February0.31155000.0192 *6.2
March0.30915000.041 *13.16
aAll unit in mg/l except those shown in brackets.
*Accepted values within the Iraqi limits.
Table 2. Iraqi allowable values of conventional concentrations that can be disposed to the surface water [19].
Table 2. Iraqi allowable values of conventional concentrations that can be disposed to the surface water [19].
BOD540 mg/l
COD100 mg/l
TSS60 mg/l
Phenol0.010.05 mg/l
Table 3. Suitable Radiation dose to minimize each parameter to accepted value
Table 3. Suitable Radiation dose to minimize each parameter to accepted value
ParameterInitial valuea(mg/l)Suitable dose (krad)Final valuea(mg/l)
Turbidity165 (NTU)100–200103.33 (NTU)
EC2.288 (mmhos/cm)Does not response2.30 (mmhos/cm)
Hardness823.33 (mg/l as CaCO3)Does not response800 (mg/l as CaCO3)
pH7.08 (unitless)Increased8.553 (unitless)
aAll unit in mg/l except those shown in brackets. All values are an average of three months January, February, and March.


  1. International Atomic Energy Agency (IAEA), Radiation for a clean environment; Vienna, 1975.
  2. International Atomic Energy Agency (IAEA), The Annual Report for 1999; Vienna, 1999.
  3. International Atomic Energy Agency (IAEA), Application of isotopes and radiation in conservation of environment; Vienna, 1992.
  4. Atomic Energy of Canada, Certification 42 of measurement gamma cell 220 No.200; John Wiley & Sons Ltd: Toronto, 1984.
  5. Anbar, M.; Neta, P. Radiation chemical destruction of phenol in oxygenated aqueous solutions. Int. J. appl. Radiat. Isot 1967, 18, 493. [Google Scholar]
  6. Land, E. J.; Ebert, M. Radiation chemistry-fundamentals. Trans. Faraday. Soc 1967, 63, 1181. [Google Scholar]
  7. International Purification System, Inc, Pilot plant experience in the treatment of industrial and municipal waste water by means of radiation induced oxidation; Oak Ridge, Tennessee, USA, 1975; p. 1181.
  8. Sivinskih, D. Treatment of sewage and sewage sludge with combination of heat and ionizing radiation (thermo radiation); Sandia, Laboratories: USA, 1975. [Google Scholar]
  9. Compton, D. M. J.; Black, S. J.; Lieurancefl, Witiemore W. L. Application of ionizing radiation to the treatment of waste water and sewage sludge “Large radiation sources for industrial processes (procsymp Munich). 1969, 399. [Google Scholar]
  10. Etzel, J. E.; Condern, A. J. Radiation treatment of waste waters. Trans. Am. Nucl. Soc 1968, 11, 56. [Google Scholar]
  11. Mytleka, A. I. “Radiation treatment of industrial waste water”, an economic analysis. Isot. Radiat. Technol 1971, 84, 444. [Google Scholar]
  12. Compton, D. M. J. Isot. Radiat. Technol 1971, 8, 453.
  13. Undynamics Corporation. Investigation of the Effect of Ionizing Radiation on synthetic Detergent, sewage, colloidal characteristic and sewage sedimentation. Usaec Rep. Coo – 275 1963.
  14. Unidynamics Corporation. effects of ionizing on colloids. USAEC Rep COO– 1653 1967, 15.
  15. Takehtsa, M.; Sakumoto, A. Radiation treatment of wastewater. In Takasaki radiation chemistry research establishment; Japan Atomic Energy Research Institute: Takasaki, Japan, 1982. [Google Scholar]
  16. Machi, S.; Arai, H. Wastewater treatment by electron beam and gamma rays Use of high energy electron for treatment of water and waste water. Proc. NSF Seminar – workshop, Miami; 1988. [Google Scholar]
  17. Abawi, Soad A.; Hassan, M. S. Practical Environmental Engineering–Water Test. Mosul Press (Arabic Text) 1990, 290. [Google Scholar]
