Lean Management Approach for Reengineering the Hospital Cardiology Consultation Process: A Report from AORN “A. Cardarelli” of Naples

by
Eduardo Bossone
1,
Massimo Majolo
1,
Serena D’Ambrosio
2,*,
Eliana Raiola
1,
Michele Sparano
1,
Giuseppe Russo
1,
Giuseppe Longo
1,
Maria Triassi
3,4 and
Angelo Rosa
5
1
A.O.R.N. “Antonio Cardarelli”, 80131 Naples, Italy
2
Department of Electrical Engineering and Information Technology, University of Study of Naples “Federico II”, 80125 Naples, Italy
3
Department of Public Health, University of Naples “Federico II”, 80131 Naples, Italy
4
Interdepartmental Center for Research in Healthcare Management and Innovation in Healthcare (CIRMIS), University of Naples “Federico II”, 80131 Naples, Italy
5
Department of Management, Finance and Technology, University LUM “Giuseppe De Gennaro” of Casamassima, 70010 Puglia, Italy
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2022, 19(8), 4475; https://doi.org/10.3390/ijerph19084475
Submission received: 18 March 2022 / Revised: 4 April 2022 / Accepted: 6 April 2022 / Published: 8 April 2022
(This article belongs to the Special Issue Telemedicine and Tools for Health Monitoring in Adults and Foetuses)
Browse Figures
Versions Notes

Abstract

:
Background: Consultations with specialists are essential for safe and high-quality care for all patients. Cardiology consultations, due to a progressive increase in cardiology comorbidities, are becoming more common in hospitals prior to any type of treatment. The appropriateness and correctness of the request, the waiting time for delivery and the duration of the visit are just a few of the elements that can affect the quality of the process. Methods: In this work, a Lean approach and Telemedicine are used to optimize the cardiology consultancy process provided by the Cardiology Unit of “Antonio Cardarelli” Hospital of Naples (Italy), the largest hospital in the southern Italy. Results: The application of corrective actions, with the introduction of portable devices and telemedicine, led to a reduction in the percentage of waiting for counseling from 29.6% to 18.3% and an increase in the number of patients treated. Conclusions: The peculiarity of the study is to apply an innovative methodology such as Lean Thinking in optimizing the cardiology consultancy process, currently little studied in literature, with benefits for both patients and medical staff.

1. Introduction

Clinical consultation offers patients an important opportunity to participate in the healthcare process and interact with a range of healthcare professionals [1]. From this interaction, it is possible to provide the main means for a correct diagnosis, for the treatment of diseases and for the prevention of health problems [2,3,4,5].
The growing complexity of cardiology care is associated with the progressive aging of the population, more often affected by comorbidities [6,7]. In the hospital setting, a formal cardiology consultation is often used. The cardiologist evaluates the clinical situation and offers specific recommendations regarding diagnosis and treatment, recommending any further diagnostic tests or a specific drug therapy, in a written note that becomes a permanent and integral part of the medical record [5]. In accordance with guidelines on the subject [8,9], it is a key step in cardiologic risk assessment for noncardiac procedures [10,11,12,13].
To ensure the effectiveness, efficiency and appropriateness of all hospital processes, health managers have sought improvement strategies based on objective data in several areas. Several studies have shown that the support of biomedical data and signal analysis by means of advanced techniques has proved to be successful in clinical practice, with particular regards to the development of decision-making support systems based on artificial intelligence and statistical analysis [14,15,16,17,18,19,20,21]. In addition, the combined use of managerial approaches organization together with data analysis techniques showed to be a promising tool in the healthcare management. In particular, a paradigm increasingly used for the management of healthcare processes is the Lean Thinking [22,23,24].
Lean Thinking is based on the concept of continuous improvement focusing on flow, on the concept of value aiming at reducing waste. Although lean was born in an industrial context, it quickly spread to other contexts, reaching as far as healthcare. This concept applied in healthcare is called ‘lean healthcare’.
Thanks to the introduction of Information and Communications Technology (ICT), it was possible to achieve further significant improvements. Telemedicine is the use of telecommunications to provide remote health care [25]. The adoption of telemedicine has allowed better access to care, improved re-source efficiency and a reduction in the costs associated with traditional visits [26,27]. Specifically, electronic cardiovascular counseling is a new line of services in advisory medicine and represents a cost-effective and safe alternative to providing advisory cardiovascular care. [28] A further push in the diffusion of these solutions came due to the COVID-19 emergency, where teleconsultation was used as an effective tool for reducing the risk of transmission for both healthcare workers and physicians [10,29,30,31].
In this work, a Lean approach is used to optimize the cardiology consultancy pro-cess provided by the Cardiology Unit of “Antonio Cardarelli” Hospital of Naples (Italy), which provides consultancy services to 43 Units including COVID-19 positive patients. To do this, both alternative delivery methods, such as teleconsultation, and the use of portable biomedical technologies, such as ultrasound scans, widely discussed in the literature [32,33], will be introduced as improvement/corrective actions within the Lean Thinking approach.

2. Materials and Methods

In this study, the main principles and tools of Lean Thinking have been applied in order to eliminate the wastes in the cardiology consultancy process (the so-called “muda” according to the Lean theory), i.e., by identifying, understanding and reduce the incidence of those process activities or steps that do not create value in the customer’s perception. The study was conducted at the A.O.R.N. “A. Cardarelli” Hospital (Naples, Italy), representing a center of national relevance and the largest hospital in the southern Italy. In fact, the “Antonio Cardarelli” National Importance Hospital is the first hospital in Campania (Italy), in terms of size and quality-quantity offer. The organizational structure of the Hospital identifies each single building (pavilion) with the letters of the alphabet, as shown below in Figure 1, occupying a total area of 250,000 square meter of these, 50,000 square meters are represented by buildings, and the remaining 200,000 by tree-lined avenues and pinewood:
The mission of the A.O.R.N. “Antonio Cardarelli” is to be an acute care hospital that provides highly effective and quality diagnosis, treatment, and rehabilitation services; it offers emergency (with over 300 daily accesses) and in election, in ordinary hospitalization, day-surgery, day-hospital and outpatient services. The hospital has a role of National Importance of particular importance for the offer of health services of excellence, for the demonstrated ability to design and implement innovations in the health area, for the role assumed in the sector of scientific and technical research, in the training of doctors and health professions. In the year 2021, the structure has 1060 beds in assets divided between the 99 different medical specialties present and related to eight health departments.

2.1. Principles of Lean Thinking

The application principles of the Lean approach followed in this study are the following:
  • Value: define the value of the process and the sources of waste.
  • Value stream: identify the value stream that describe the process.
  • Flow: make the value flow across the process steps.
  • Pull: make the flow pulled by the customers.
  • Perfection: continue to improve to pursue the perfection (i.e., the total absence of wastes).
These five principles represent the basic elements for an effective Lean project implementation. In this study, each of these principles has been adopted in distinct phases of the project and through different managerial tools, as described in the following paragraphs.

2.2. Goal Definition and Team Building

As a first step of the methodology, the general objective of the project was defined, and a qualified multidisciplinary team aimed towards the achievement of the specific and shared goal was formed. In particular, the general aim of the project was the improvement of the cardiology consultancy process by reducing the waiting time for the consultation, i.e., the difference between the time when the consultation is requested and the time when the consultation is carried out, which is termed as the Critical to Quality (CTQ) of the process, as summarized int the following Equation (1):
CTQ = Waiting Time for the consultation = WTc = Tserved − Trequested
where Tserved and Trequested are the time of the consultation execution and the time of the consultation request, respectively.
To pursue this goal, the project management team was constituted by the following stakeholders: doctors, nurses, health managers, engineers and all other professionals included in the process.

2.3. Study of the as-is Process: Identify the Value and the Value Stream

The second phase of the Lean approach involves identifying the activities that make up the patient’s overall care path in the current state. For the purposes of the project, joint meetings were held between the management team member in order to examine the process under study and identify the critical aspects by classifying the process activities in “value-added” and “non-value-added” ones.
The fundamental Lean tool that was adopted in this phase is the Value Stream Map (VSM) that conducted with the support of the management team together with a group of operators of the hospital. The use of the VSM helped in identifying the wastes and problems in the consultation process and served as a basis to propose improvement strategies.
In addition, a two-ways data and information collection plan has been conducted in order to design, validate, and quantify the built VSM. The following information gathering approaches have been adopted:
  • Qualitative analysis of the process: this was conducted through periodic meetings and interviews with doctors and healthcare staff held by the representative of the management team.
  • Quantitative analysis of the process: data about the consultation times were collected through the hospital information system from January 2018 to December 2018.

2.4. Design of the to-be Process: Improvement of the Value Stream and Flow

Once the major causes affecting the increase in the consultation times were identified, the VSM has been redesigned in order to optimize the value stream and flow in order to reduce the process inefficiency and wastes. Among the corrective actions to be introduced, the teleconsulting and the use of handheld portable ultrasound scanners have played a significant role in the re-organization of the process, which took place between January 2019 and December 2020.

2.5. Assess and Monitoring the Improvement

A comparison between the as-is and to-be processes has been conducted by means of visual tools (histograms) and statistical analysis (Student’s t-test with a 95% confidence interval). Data starting from January 2021 to December 2021 were collected in order to monitor the improvement after the implementation of the corrective actions.

3. Results

In the following figure (Figure 2) we report the flow chart before the Lean management intervention.
The process begins with the request for counselling. The specialist proceeds to evaluate the PMR (paper medical records) near the patient’s bedside, examines the patient and decides whether to perform instrumental examinations. If instrumental examinations are necessary, the patient is transferred to the Echo-lab. The process ends after the examination results are reported.
The existing situation was analyzed by observation and VSM; the activation of the Kaizen improvement process took place with the involvement of a multidisciplinary team that analyzed the emerging problems and identified solutions immediately evaluated in the specialist clinic.
Through the mapping of the processes, the following criticalities have been identified and solutions were proposed accordingly, as showed in Table 1.

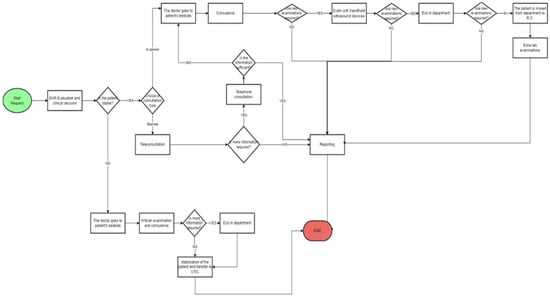

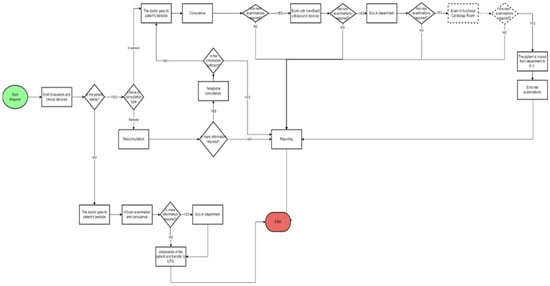

In the following figure (Figure 3) we report the flow chart after the Lean management intervention with the introduction of the teleconsulting and of the handheld echography instruments.
With the introduction of the Lean method, the specialist doctor does not go directly to the patient’s bedside, but he assesses the patient’s state of health first. If the patient is stable, the doctor evaluates the EHR and chooses how to do the consultation. If the consultation is conducted remotely, and if the specialist doctor considers it appropriate to conduct further investigations, the consultation will be conducted in presence and diagnostic tests can be performed directly at the patient’s bedside. In this case, the new instruments used are the handheld ultrasound devices and the ultrasound machine located in the department where the patient is hospitalized. If these examinations are still not sufficient for a diagnosis, the patient is transferred to the Echo-Lab where the following diagnostic examinations can be performed:
  • Physical stress echo
  • Pharmacological stress echo
The patient’s condition is critical, the examination is conducted exclusively in presence. In both cases, the process ends after the examination results are reported.

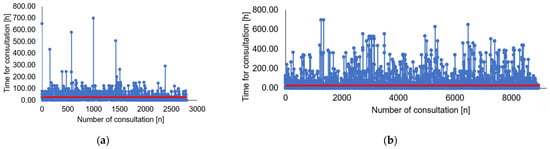

The reduction of the average waiting time can be observed in the following Figure 4.
The horizontal axis represents the number of medical consultation request. The vertical axis represents the difference between the time of when the consultation is requested and the time of when the consultation is conducted. The comparison between Figure 4a,b shows that the average waiting time for consultation is reduced and the number of consultations provided in a year increase.
The reduction of the average waiting time can be observed in the following Figure 5.

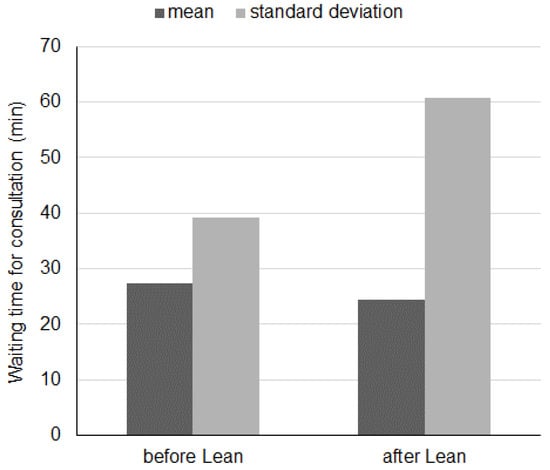

Bar graph describing the variation in waiting time for consultation before and after lean approach. The X-axis shows the different mean and standard deviation. The Y-axis shows the waiting time for consultation ranging from 0 to 70 min.
The higher standard deviation can be explained by the larger variability in the requests due to the COVID-19 pandemic for patients hospitalized in 2021. The reduction of the average waiting time for different consultations approach can be observed in the following Figure 6.

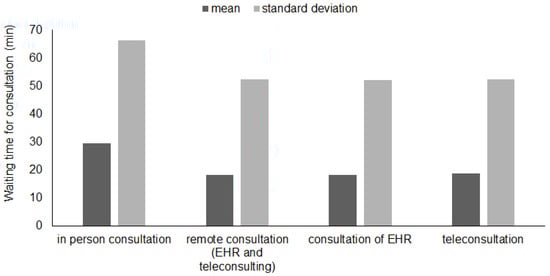

Bar graph shows the result of waiting time for consultation with different approach: in person consultation, remote consultation, consultation of EHR and teleconsultation. Consultation of EHR is any consultation requested by physicians in other specialties done by reviewing only the Electronic Health Record (EHR) without direct patient contact.
Table 2 shows the average waiting times evaluated, before and after the introduction of the improvements, through statistical tests with a significance level of 0.05 using the mean and standard deviation. Considering the average waiting time for total consultations, a percentage reduction of 10.9% is noted. The average waiting time for in person consultation increases by 7.6% unlike other cases where there is a reduction of about 30%. The p-values obtained show that these variations are statistically significant.
Table 3, on the other hand, shows the result of statistical comparison between the in-person and remote consultation in the post-improvement phase.

4. Discussion

Consultations with specialists are essential in a process of patient care that can be considered quality. This work provides a Lean intervention to improve the quality of consultations in hospital rehabilitation cardiology.

4.1. Previous Studies

From a careful analysis of the literature, the consultations most analyzed are psychological ones or those relating to palliative care [34,35]. The cardiology consultations mainly concern an analysis of comorbidities. In fact, the patients admitted to a non-cardiology ward and in need of a cardiology consultation are the elderly with a high prevalence of heart disease and high hospital mortality [36]. Furthermore, one of the most frequent causes of cardiology consultation is the pre-operative cardiology risk assessment [10,11,12,13]. With a steadily decreasing morbidity and mortality due to non-cardiology procedures, more attention is paid to the management of cardiovascular disorders to guarantee long-term effects. Preoperative cardiology consultation may represent an opportunity to initiate or modify cardiology care, already in primary and secondary preventive measures [37].
Given the massive use of in-house specialist advice, increasing the effectiveness of these interactions is essential for patient-centered care [2]. The problems associated with this process, however, are many. The appropriateness and correctness of the request, the waiting time for delivery and the duration of the visit are just some of the elements to be evaluated [38,39]. Studies have in fact shown that a poor quality of requests and of the subsequent consultation provided cause an increase in the risk of repetition of unnecessary diagnostic procedures, delaying obtaining the best diagnosis and subsequently delaying the start of treatment, increase the risk of medical mis-management, excessive costs of treatment, ultimately negatively affecting patient con-fidence [40,41].
Since the healthcare organizations are based on highly structured and complex processes resulting in high costs and, sometimes, in low quality of services and, consequently, poor levels of customer satisfaction, there is a good opportunity to improve the processes by adopting managerial tools like the Lean Thinking.
The goal is therefore to make the value flow, understood as that for which a cus-tomer/patient would pay, at each stage by reducing the activities that do not add value (waste) which often cause delays, require extra resources, and therefore further costs, and which ultimately lower the quality of the process [42].
Although Lean was born in an industrial production context, service organiza-tions soon began to think about an implementation to improve the effectiveness and efficiency of processes. The transfer of Lean to healthcare is relatively new [43], but there is now several evidence of widespread consensus demonstrating the potential of Lean; with significant benefits obtained in the areas of costs, waiting and patient safety [44]. With Telemedicine [45,46] it is possible to further improve secure access to specialist skills through a web system that effectively reduces diagnosis and therapy times [47]. This could lead to the creation in each pavilion of a “Functional Cardiology Room” equipped with a echocardiogram machine and eletrocardiograph machine both connected to the Cardiology Division/Echo—Lab for teleconsulting expert opinion if needed. This would avoid the continuous external movement of the patient who can be examined directly at the bedside through the use of portable devices (FoCUS [48]) and carried to the Functional Cardiology Room of the department only when necessary for a more detailed echocardiogram and/or transoesophageal echocardiography. Thus the patients have to be referred to the central Echo-Lab only for echo stress tests and for particular TTE/TEE exams (Figure 7).

4.2. Uniqueness of the Present Study

Our study shows how a combined approach between Lean Thinking and Telemedicine have brought significant benefits to the cardiology consultation process of A.O.R.N. “A. Cardarelli” (Naples, Italy). Comparing the data for year 2018 (pre-intervention) with those for year 2021 (after intervention), it is observed that a reduction in the average waiting time benefits waitlist with a greater number of patients treated in a year. The year 2021 is also the year in which Italy, like other countries in the world, had to face the COVID-19 pandemic. For this reason, there is an increase in the use of remote consultations which makes it possible to further reduce the waiting time compared to that in person of over 38%.
The peculiarity of the study is to apply an innovative methodology such as Lean Thinking in optimizing an important process such as that of cardiology consultations, currently little studied in literature.

4.3. Clinical Implications, Limitations, and Future Directions of the Study

The main clinical implication lies in this optimization, with better management of resources and a reduction in waitlist, which produces an increase in the quality perceived by the patient. Our work is not without limitations. First of all, only two years are compared without analyzing any differences in the execution times of the visits due to the complexity of the cases treated or to emergencies.
Future developments, therefore, will involve overcoming the limits set out, also using data mining techniques, already used in various fields of diagnostics [49,50,51,52,53,54] and optimization of health processes [55,56,57,58,59,60,61], for the study of correlations with clinical and demographic variables of patients.

5. Conclusions

The objective of the project developed at the A.O.R.N. “A. Cardarelli” of Naples (Naples, Italy) has implemented the lean methodology as a tool to improve cardiology consultation processes. The lean method supported the team members in defining the project and implementing corrective actions to improve the process in question. Statistical analysis was used to characterize the benefits obtained from a Lean approach. The application of corrective actions, with the introduction of portable devices and telemedicine, led to a reduction in the percentage of waiting for counseling from 29.6% to 18.3%. Furthermore, corrective actions have increased the number of consultations provided in a year which went from 2799 (year 2018) to 8979 (year 2021).
Therefore, the benefits of this new process are manifold for both patients and medical staff. For patients, a reduction in the duration of the consultation and an increase in the number of services provided is expected, with consequent satisfaction for the health service. In addition, for the hospital, there is a reduction in costs and an improvement in health quality. In addition, the results of the study show that the introduction of digital tools is useful to improve the level of assistance and optimize performance. The correct allocation of resources, understood as the reduction of waste, is now fundamental, even in health care.

Author Contributions

Conceptualization, E.B., M.M., E.R., G.L., G.R. and A.R.; methodology, A.R. and M.T.; software, A.R. and M.T.; validation, E.B., M.M., E.R., M.S., G.R. and G.L.; formal analysis, S.D.; investigation, S.D.; resources, S.D.; data curation, S.D.; writing—original draft preparation, S.D.; writing—review and editing, E.B., M.M., A.R. and M.T.; visualization, E.R., G.L., G.R. and M.S.; supervision, E.B., M.M., A.R. and M.T.; project administration, E.B., M.M., A.R. and M.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

In compliance with the Declaration of Helsinki and with the Italian Legislative Decree 211/2003, Implementation of the 2001/20/CE directive, since no patients/children participated in the study, the signed informed consent form and the ethical approval are not mandatory for these types of studies. Furthermore, in compliance with the regulations of the Italian National Institute of Health, our study is not reported among those needing assessment by the Ethical Committee of the Italian National Institute of Health.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated and/or analyzed during the current study are not publicly available for privacy reasons but are available from the corresponding author on reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Haywood, K.; Marshall, S.; Fitzpatrick, R. Patient participation in the consultation process: A structured review of intervention strategies. Patient Educ. Couns. 2006, 63, 12–23. [Google Scholar] [CrossRef] [PubMed]
  2. Janati, A.; Hasanpoor, E.; Aslan, F.; HaghGoshayie, E.; Hassanzadeh, E. Evaluating visit quality in plan of health sector evolution in Iran: A local survey from Tabriz. Int. J. Epidemiol. Res. 2017, 4, 69–77. [Google Scholar]
  3. Mohebbifar, R.; Hasanpoor, E.; Mohseni, M.; Sokhanvar, M.; Khosravizadeh, O.; Isfahani, H.M. Outpatient waiting time in health services and teaching hospitals: A case study in Iran. Glob. J. Health Sci. 2013, 6, 172–180. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Kuusela, M.; Vainiomäki, P.; Hinkka, S.; Rautava, P. The quality of GP consultation in two different salary systems A Finnish experience. Scand. J. Prim. Health Care 2004, 22, 168–173. [Google Scholar] [CrossRef]
  5. Mackenzie, T.B.; Popkin, M.K.; Collies, A.L.; Jorgensen, C.R.; Cohn, J.N. The effectiveness of cardiology consultation: Concordance with diagnostic and drug recommendations. Chest 1981, 79, 16–22. [Google Scholar] [CrossRef] [PubMed]
  6. Feigin, V.L.; Lawes, C.M.; Bennett, D.A.; Anderson, C.S. Stroke epidemiology: A review of population-based studies of incidence, prevalence, and case-fatality in the late 20th century. Lancet Neurol. 2003, 2, 43–53. [Google Scholar] [CrossRef]
  7. Piscitelli, P.; Iolascon, G.; Greco, M.; Marinelli, A.; Gimigliano, F.; Gimigliano, R.; Gisonni, P.; Giordano, A.; Migliore, A.; Granata, M.; et al. The occurrence of acute myocardial infarction in Italy: A five-year analysis of hospital discharge records. Aging Clin. Exp. Res. 2011, 23, 49–54. [Google Scholar] [CrossRef]
  8. Kristensen, S.D.; Knuuti, J.; Saraste, A.; Anker, S.D.; Bøtker, H.E.; de Hert, S.; Ford, I.; Juanatey, J.R.G.; Gorenek, B.; Heyndrickx, G.R.; et al. 2014 ESC/ESA guidelines on non-cardiac surgery: Cardiovascular assessment and management. Eur. Heart J. 2014, 35, 2383–2431. [Google Scholar] [CrossRef]
  9. Fleisher, L.A.; Fleischmann, K.E.; Auerbach, A.; Barnason, S.A.; Beckman, J.; Bozkurt, B.; Davila-Roman, V.G.; Gerhard-Herman, M.D.; Holly, T.A.; Kane, G.C.; et al. 2014 ACC/AHA guideline on perioperative cardiovascular evaluation and management of patients undergoing noncardiac surgery. Circulation 2014, 130, e278–e333. [Google Scholar]
  10. Bossone, E.; Cademartiri, F.; AlSergani, H.; Chianese, S.; Mehta, R.; Capone, V.; Ruotolo, C.; Tarrar, I.H.; Frangiosa, A.; Vriz, O.; et al. Mehta RH preoperative assessment and management of cardiovascular risk in patients undergoing non-cardiac surgery: Implementing a systematic stepwise approach during the COVID-19 pandemic era. J. Cardiovasc. Dev. Dis. 2021, 8, 126. [Google Scholar] [CrossRef]
  11. Smilowitz, N.R.; Berger, J.S. Perioperative cardiovascular risk assessment and management for noncardiac surgery. JAMA 2020, 324, 279. [Google Scholar] [CrossRef] [PubMed]
  12. Duceppe, E.; Parlow, J.; MacDonald, P.; Lyons, K.; McMullen, M.; Srinathan, S.; Graham, M.; Tandon, V.; Styles, K.; Bessissow, A.; et al. Canadian cardiovascular society guidelines on perioperative cardiac risk assessment and management for patients who undergo noncardiac surgery. Can. J. Cardiol. 2016, 33, 17–32. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Vardas, P.E.; Asselbergs, F.W.; van Smeden, M.; Friedman, P. The year in cardiovascular medicine 2021: Digital health and innovation. Eur. Heart J. 2022, 43, 271–279. [Google Scholar] [CrossRef] [PubMed]
  14. Improta, G.; Ponsiglione, A.M.; Parente, G.; Romano, M.; Cesarelli, G.; Rea, T.; Russo, M.; Triassi, M. Evaluation of medical training courses satisfaction: Qualitative analysis and analytic hierarchy process. In European Medical and Biological Engineering Conference; Springer: Cham, Switzerland, 2020; pp. 518–526. [Google Scholar]
  15. Improta, G.; Scala, A.; Trunfio, T.A.; Guizzi, G. Application of supply chain management at drugs flow in an Italian hospital district. J. Phys. Conf. Ser. 2021, 1828, 012081. [Google Scholar] [CrossRef]
  16. Giovanni, I.; Pasquale, N.; Carmela, S.L.; Triassi, M. Health worker monitoring: Kalman-based software design for fault isolation in human breathing. In Proceedings of the European Modeling and Simulation Symposium (EMSS) 2014, Bordeaux, France, 22–24 September 2014. [Google Scholar]
  17. Di Laura, D.; D’Angiolella, L.; Mantovani, L.; Squassabia, G.; Clemente, F.; Santalucia, I.; Improta, G.; Triassi, M. Efficiency measures of emergency departments: An Italian systematic literature review. BMJ Open Qual. 2021, 10, e001058. [Google Scholar] [CrossRef] [PubMed]
  18. Improta, G.; Triassi, M.; Guizzi, G.; Santillo, L.C.; Revetria, R.; Catania, A.; Cassettari, L. An innovative contribution to health technology assessment. In Modern Advances in Intelligent Systems and Tools; Springer: Berlin/Heidelberg, Germany, 2012; Volume 431, pp. 127–131. [Google Scholar]
  19. Ponsiglione, A.M.; Cosentino, C.; Cesarelli, G.; Amato, F.; Romano, M. A comprehensive review of techniques for processing and analyzing fetal heart rate signals. Sensors 2021, 21, 6136. [Google Scholar] [CrossRef] [PubMed]
  20. Ponsiglione, A.M.; Amato, F.; Romano, M. Multiparametric investigation of dynamics in fetal heart rate signals. Bioengineering 2021, 9, 8. [Google Scholar] [CrossRef] [PubMed]
  21. Profeta, M.; Ponsiglione, A.M.; Ponsiglione, C.; Ferrucci, G.; Giglio, C.; Borrell, A. Comparison of machine learning algorithms to predict length of hospital stay in patients undergoing heart bypass surgery. In Proceedings of the 2021 International Symposium on Biomedical Engineering and Computational Biology, Nanchang, China, 13–15 August 2021; pp. 1–5. [Google Scholar]
  22. Ferraro, A.; Centobelli, P.; Cerchione, R.; Cicco, M.V.D.; Montella, E.; Raiola, E.; Triassi, M.; Improta, G. Implementation of lean practices to reduce healthcare associated infections. Int. J. Healthc. Technol. Manag. 2020, 18, 51. [Google Scholar] [CrossRef]
  23. Papadopoulos, T.; Radnor, Z.; Merali, Y. The role of actor associations in understanding the implementation of lean thinking in healthcare. Int. J. Oper. Prod. Manag. 2011, 31, 167–191. [Google Scholar] [CrossRef]
  24. Hines, P.; Holweg, M.; Rich, N. Learning to evolve: A review of contemporary lean thinking. Int. J. Oper. Prod. Manag. 2004, 24, 994–1011. [Google Scholar] [CrossRef] [Green Version]
  25. Atanda, A.; Pelton, M.; Fabricant, P.D.; Tucker, A.; Shah, S.A.; Slamon, N. Telemedicine utilisation in a paediatric sports medicine practice: Decreased cost and wait times with increased satisfaction. J. ISAKOS Jt. Disord. Orthop. Sports Med. 2018, 3, 94–97. [Google Scholar] [CrossRef]
  26. Moller, D.S.; Dideriksen, A.; Sorensen, S.; Madsen, L.D.; Pedersen, E.B. Tele-monitoring of home blood pressure in treated hypertensive patients. Blood Press 2003, 12, 56–62. [Google Scholar] [CrossRef] [PubMed]
  27. Kaliyadan, F.; Ramsey, M.L. Teledermatology. In StatPearls; StatPearls Publishing: Treasure Island, FL, USA, 2017. [Google Scholar]
  28. Bauer, B.S.; Nguyen-Phan, A.L.; Ong, M.K.; Ziaeian, B.; Nguyen, K.L. Cardiology electronic consultations: Efficient and safe, but consultant satisfaction is equivocal. J. Telemed. Telecare 2020, 26, 341–348. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Salzano, A.; D’Assante, R.; Stagnaro, F.M.; Valente, V.; Crisci, G.; Giardino, F.; Arcopinto, M.; Bossone, E.; Marra, A.M.; Cittadini, A. Heart failure management during COVID-19 outbreak in Italy. Telemedicine experience from a heart failure university tertiary referral centre. Eur. J. Heart Fail. 2020, 22, 1048–1050. [Google Scholar] [CrossRef]
  30. Bossone, E.; Mauro, C.; Maiellaro, A.; Raiola, E.; Cocchia, R.; Ranieri, B.; Sepe, C.; Capone, V.; Chianese, S.; Maramaldi, R.; et al. Cardiac teleconsulting in the time of COVID-19 global pandemic: The “Antonio Cardarelli” hospital project. Monaldi Arch. Chest Dis. 2021, 91. [Google Scholar] [CrossRef]
  31. Skulstad, H.; Cosyns, B.; Popescu, B.A.; Galderisi, M.; Salvo, G.D.; Donal, E.; Petersen, S.; Gimelli, A.; Haugaa, K.H.; Muraru, D.; et al. COVID-19 pandemic and cardiac imaging: EACVI recommendations on precautions, indications, prioritization, and protection for patients and healthcare personnel. Eur. Heart J. Cardiovasc. Imaging 2020, 21, 592–598. [Google Scholar] [CrossRef]
  32. Sicari, R.; Galderisi, M.; Voigt, J.U.; Habib, G.; Zamorano, J.L.; Lancellotti, P.; Badano, L.P. The use of pocket-size imaging devices: A position statement of the European Association of Echocardiography. Eur. J. Echocardiogr. 2011, 12, 85–87. [Google Scholar] [CrossRef] [Green Version]
  33. Cardim, N.; Dalen, H.; Voigt, J.-U.; Ionescu, A.; Price, S.; Neskovic, A.N.; Edvardsen, T.; Galderisi, M.; Sicari, R.; Donal, E.; et al. The use of handheld ultrasound devices: A position statement of the European Association of Cardiovascular Imaging (2018 update). Eur. Heart J. Cardiovasc. Imaging 2019, 20, 245–252. [Google Scholar] [CrossRef]
  34. Robinson, J.D.; Baker, J. Psychological consultation and services in a general medical hospital. Prof. Psychol. Res. Pract. 2006, 37, 264. [Google Scholar] [CrossRef]
  35. Penrod, J.D.; Deb, P.; Dellenbaugh, C.; Burgess, J.F., Jr.; Zhu, C.W.; Christiansen, C.L.; Luhrs, C.A.; Cortez, T.; Livote, E.; Allen, V.; et al. Hospital-based palliative care consultation: Effects on hospital cost. J. Palliat. Med. 2010, 13, 973–979. [Google Scholar] [CrossRef]
  36. Pantilat, S.Z.; O’Riordan, D.L.; Dibble, S.L.; Landefeld, C.S. Hospital-based palliative medicine consultation: A randomized controlled trial. Arch. Intern. Med. 2010, 170, 2038–2040. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Schellings, D.A.A.M.; Symersky, T.; Ottervanger, J.P.; Ramdat Misier, A.R.; de Boer, M.J. Clinical cardiology consultation at non-cardiology departments: Stepchild of patient care? Neth. Heart J. 2012, 20, 260–263. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Cohen, M.C. The role of the cardiology consultant: Putting it all together. Prog. Cardiovasc. Dis. 1998, 40, 419–440. [Google Scholar] [CrossRef]
  39. Kishi, Y.; Meller, W.H.; Kathol, R.G.; Swigart, S.E. Factors affecting the relationship between the timing of psychiatric consultation and general hospital length of stay. Psychosomatics 2004, 45, 470–476. [Google Scholar] [CrossRef] [PubMed]
  40. Geist, S.-M.R.Y.; Geist, J.R. Improvement in medical consultation responses with a structured request form. J. Dent. Educ. 2008, 72, 553–561. [Google Scholar] [CrossRef] [PubMed]
  41. Bidary, M.Z.; Sahranavard, M.; Rezayat, A.A.; Omranzadeh, A.; Hoseiny, S.H.; Kabirian, A.; Sahebkar, A. Opium as a carcinogen: A systematic review and meta-analysis. Clin. Med. 2021, 33, 100768. [Google Scholar] [CrossRef]
  42. Gandhi, T.K.; Sittig, D.F.; Franklin, M.; Sussman, A.J.; Fairchild, D.G.; Bates, D.W. Communication breakdown in the outpatient referral process. J. Gen. Intern. Med. 2000, 15, 626–631. [Google Scholar] [CrossRef]
  43. Burgess, N.; Radnor, Z. Evaluating lean in healthcare. Int. J. Health Care Qual. Assur. 2013, 26, 220–235. [Google Scholar] [CrossRef]
  44. Young, T.P.; McClean, S.I. A critical look at lean thinking in healthcare. Qual. Saf. Health Care 2008, 17, 382–386. [Google Scholar] [CrossRef]
  45. Armstrong, D.G.; Giovinco, N.; Mills, J.L.; Rogers, L.C. FaceTime for physicians: Using real time mobile phone-based videoconferencing to augment diagnosis and care in telemedicine. Eplasty 2011, 11, e23. [Google Scholar]
  46. Zennaro, F.; Grosso, D.; Fascetta, R.; Marini, M.; Odoni, L.; di Carlo, V.; Dibello, D.; Vittoria, F.; Lazzerini, M. Teleradiology for remote consultation using iPad improves the use of health system human resources for paediatric fractures: Prospective controlled study in a tertiary care hospital in Italy. BMC Health Serv. Res. 2014, 14, 327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Vimalananda, V.G.; Gupte, G.; Seraj, S.M.; Orlander, J.; Berlowitz, D.; Fincke, B.G.; Simon, S.R. Electronic consultations (e-consults) to improve access to specialty care: A systematic review and narrative synthesis. J. Telemed. Telecare 2015, 21, 323–330. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Neskovic, A.N.; Skinner, H.; Price, S.; Via, G.; de Hert, S.; Stankovic, I.; Galderisi, M.; Donal, E.; Muraru, D.; Sloth, E.; et al. Reviewers: This document was reviewed by members of the 2016–2018 EACVI scientific documents committee. Focus cardiac ultrasound core curriculum and core syllabus of the European Association of Cardiovascular Imaging. Eur. Heart J. Cardiovasc. Imaging 2018, 19, 475–481. [Google Scholar] [CrossRef]
  49. Santini, S.; Pescapé, A.; Valente, A.S.; Abate, V.; Improta, G.; Triassi, M.; Ricchi, P.; Filosa, A. Using fuzzy logic for improving clinical daily-care of β-thalassemia patients. In Proceedings of the 2017 IEEE International Conference on Fuzzy Systems (FUZZ-IEEE), Naples, Italy, 9–12 July 2017; pp. 1–6. [Google Scholar]
  50. Improta, G.; Mazzella, V.; Vecchione, D.; Santini, S.; Triassi, M. Fuzzy logic–based clinical decision support system for the evaluation of renal function in post-transplant patients. J. Eval. Clin. Pract. 2020, 26, 1224–1234. [Google Scholar] [CrossRef] [Green Version]
  51. Scala, A.; Loperto, I.; Carrano, R.; Federico, S.; Triassi, M.; Improta, G. Assessment of proteinuria level in nephrology patients using a machine learning approach. In Proceedings of the 2021 5th International Conference on Medical and Health Informatics (ICMHI 2021), Kyoto, Japan, 14–16 May 2021; Association for Computing Machinery: New York, NY, USA, 2021; pp. 13–16. [Google Scholar] [CrossRef]
  52. Ponsiglione, A.M.; Cesarelli, G.; Amato, F.; Romano, M. Optimization of an artificial neural network to study accelerations of fetal heart rhythm. In Proceedings of the 2021 IEEE 6th International Forum on Research and Technology for Society and Industry (RTSI), Naples, Italy, 6–9 September 2021; pp. 159–164. [Google Scholar] [CrossRef]
  53. Montella, E.; Alfano, R.; Sacco, A.; Bernardo, C.; Ribera, I.; Triassi, M.; Ponsiglione, A.M. Healthcare associated infections in the neonatal intensive care unit of the “Federico II” university hospital: Statistical analysis and study of risk factors. In Proceedings of the 2021 International Symposium on Biomedical Engineering and Computational Biology, Nanchang, China, 13–15 August 2021; pp. 1–4. [Google Scholar]
  54. Colella, Y.; de Lauri, C.; Ponsiglione, A.M.; Giglio, C.; Lombardi, A.; Borrelli, A.; Amato, F.; Romano, M. A comparison of different Machine Learning algorithms for predicting the length of hospital stay for pediatric patients. In Proceedings of the 2021 International Symposium on Biomedical Engineering and Computational Biology, Nanchang, China, 13–15 August 2021; pp. 1–4. [Google Scholar]
  55. Ponsiglione, A.M.; Romano, M.; Amato, F. A finite-state machine approach to study patients dropout from medical examinations. In Proceedings of the 2021 IEEE 6th International Forum on Research and Technology for Society and Industry (RTSI), Naples, Italy, 6–9 September 2021; pp. 289–294. [Google Scholar] [CrossRef]
  56. Trunfio, T.A.; Scala, A.; Borrelli, A.; Sparano, M.; Triassi, M.; Improta, G. Application of the lean six sigma approach to the study of the LOS of patients who undergo laparoscopic cholecystectomy at the San Giovanni di Dio and Ruggi d’Aragona university hospital. In Proceedings of the 2021 5th International Conference on Medical and Health Informatics (ICMHI 2021), Kyoto, Japan, 14–16 May 2021; Association for Computing Machinery: New York, NY, USA, 2021; pp. 50–54. [Google Scholar] [CrossRef]
  57. Trunfio, T.A.; Ponsiglione, A.M.; Ferrara, A.; Borrelli, A.; Gargiulo, P. A comparison of different regression and classification methods for predicting the length of hospital stay after cesarean sections. In Proceedings of the 2021 5th International Conference on Medical and Health Informatics (ICMHI 2021), Kyoto, Japan, 14–16 May 2021. [Google Scholar]
  58. Cesarelli, G.; Scala, A.; Vecchione, D.; Ponsiglione, A.M.; Guizzi, G. An innovative business model for a multi-echelon supply chain inventory management pattern. J. Phys. Conf. Ser. 2021, 1828, 012082. [Google Scholar] [CrossRef]
  59. Ponsiglione, A.M.; Ricciardi, C.; Scala, A.; Fiorillo, A.; Sorrentino, A.; Triassi, M.; Dell’Aversana Orabona, G.; Improta, G. Application of DMAIC cycle and modeling as tools for health technology assessment in a university hospital. J. Healthc. Eng. 2021, 2021, 8826048. [Google Scholar] [CrossRef] [PubMed]
  60. Improta, G.; Luciano, M.A.; Vecchione, D.; Cesarelli, G.; Rossano, L.; Santalucia, I.; Triassi, M. Management of the diabetic patient in the diagnostic care pathway. In Proceedings of the 8th European Medical and Biological Engineering Conference: Proceedings of the EMBEC 2020, Portorož, Slovenia, 29 November–3 December 2020; Jarm, T., Cvetkoska, A., Mahnič-Kalamiza, S., Miklavcic, D., Eds.; Springer: Cham, Switzerland, 2020; Volume 80. [Google Scholar] [CrossRef]
  61. Converso, G.; Improta, G.; Mignano, M.; Santillo, L.C. A simulation approach for agile production logic implementation in a hospital emergency unit. In Intelligent Software Methodologies, Tools, and Techniques; Springer International Publishing: Cham, Switzerland, 2015; Volume 532, pp. 623–634. [Google Scholar]
Ijerph 19 04475 g001 550

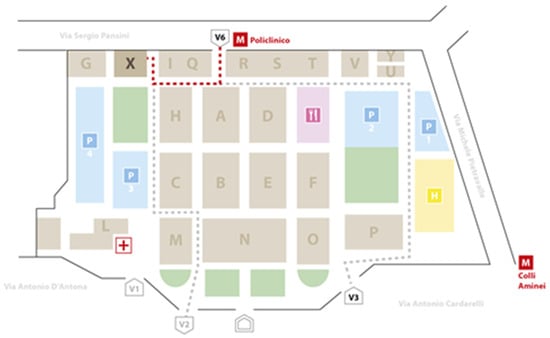

Figure 1. A.O.R.N. “A. Cardarelli” of Naples.
Figure 1. A.O.R.N. “A. Cardarelli” of Naples.
Ijerph 19 04475 g001
Ijerph 19 04475 g002 550

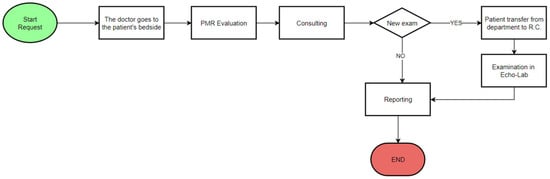

Figure 2. Flow chart of the consultation process before the Lean management intervention.
Figure 2. Flow chart of the consultation process before the Lean management intervention.
Ijerph 19 04475 g002
Ijerph 19 04475 g003 550
Figure 3. Flow chart of the consultation process after the Lean management intervention.
Figure 3. Flow chart of the consultation process after the Lean management intervention.
Ijerph 19 04475 g003
Ijerph 19 04475 g004 550
Figure 4. Process flow chart: (a) before Lean intervention; (b) after Lean intervention. The X-axis shows the numbers of consultations. The Y-axis shows the time to complete consultation. Average waiting time for consultations is reported in red (solid line).
Figure 4. Process flow chart: (a) before Lean intervention; (b) after Lean intervention. The X-axis shows the numbers of consultations. The Y-axis shows the time to complete consultation. Average waiting time for consultations is reported in red (solid line).
Ijerph 19 04475 g004
Ijerph 19 04475 g005 550
Figure 5. Comparison of average waiting times for consultations before and after improvement.
Figure 5. Comparison of average waiting times for consultations before and after improvement.
Ijerph 19 04475 g005
Ijerph 19 04475 g006 550
Figure 6. Comparison of average waiting times for each consultation approach before and after improvement.
Figure 6. Comparison of average waiting times for each consultation approach before and after improvement.
Ijerph 19 04475 g006
Ijerph 19 04475 g007 550
Figure 7. Flow chart of the consultation process after the Lean management intervention with the presence of Functional Cardiology Room.
Figure 7. Flow chart of the consultation process after the Lean management intervention with the presence of Functional Cardiology Room.
Ijerph 19 04475 g007
Table
Table 1. Causes and proposed solutions to improve the process.
Table 1. Causes and proposed solutions to improve the process.
Process ActivityCause of InefficiencyProposed Solution
The doctor goes to
patient’s bedside		Waste of time and resourceTeleconsultation
PMR EvaluationCan be used by one user at time
Paper deteriorability
Space occupation		EHR Evaluation
Patient transfer from department to cardiac rehabilitationElevated risk of infection and worsening
of the patient’s health condition		Handheld ultrasound devices and echocardiographic exam in department
Table
Table 2. Statistical comparison between the as-is and the to-be processes.
Table 2. Statistical comparison between the as-is and the to-be processes.
ParameterBefore
Intervention
(min)		After
Intervention
(min)		Percentage
of Reduction
(%)		p-Value
Mean waiting time for overall consultations27.5 ± 39.224.5 ± 60.7−10.90.000
Mean waiting time for in person consultations27.5 ± 39.229.6 ± 66.4+7.60.000
Mean waiting time for remote consultations (EHR and teleconsulting)27.5 ± 39.218.3 ± 52.2−33.40.008
Mean waiting time for EHR consultations27.5 ± 39.218.1 ± 52.2−34.20.024
Mean waiting time for teleconsultations27.5 ± 39.218.9 ± 52.4−31.30.006
Table
Table 3. Statistical comparison between the in person and remote consultation after the Lean intervention.
Table 3. Statistical comparison between the in person and remote consultation after the Lean intervention.
ParameterIn Person
Consultations		Remote
Consultations		Percentage
of Reduction
(%)		p-Value
Mean waiting time (min)29.6 ± 66.418.3 ± 52.2−38.20.000
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bossone, E.; Majolo, M.; D’Ambrosio, S.; Raiola, E.; Sparano, M.; Russo, G.; Longo, G.; Triassi, M.; Rosa, A. Lean Management Approach for Reengineering the Hospital Cardiology Consultation Process: A Report from AORN “A. Cardarelli” of Naples. Int. J. Environ. Res. Public Health 2022, 19, 4475. https://doi.org/10.3390/ijerph19084475

AMA Style

Bossone E, Majolo M, D’Ambrosio S, Raiola E, Sparano M, Russo G, Longo G, Triassi M, Rosa A. Lean Management Approach for Reengineering the Hospital Cardiology Consultation Process: A Report from AORN “A. Cardarelli” of Naples. International Journal of Environmental Research and Public Health. 2022; 19(8):4475. https://doi.org/10.3390/ijerph19084475

Chicago/Turabian Style

Bossone, Eduardo, Massimo Majolo, Serena D’Ambrosio, Eliana Raiola, Michele Sparano, Giuseppe Russo, Giuseppe Longo, Maria Triassi, and Angelo Rosa. 2022. "Lean Management Approach for Reengineering the Hospital Cardiology Consultation Process: A Report from AORN “A. Cardarelli” of Naples" International Journal of Environmental Research and Public Health 19, no. 8: 4475. https://doi.org/10.3390/ijerph19084475

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
