Metal Exposure-Related Welder’s Pneumoconiosis and Lung Function: A Cross-Sectional Study in a Container Factory of China

by
Siyun Zhou
1,†,
Yue Wang
1,†,
Chen Yu
2,
Chunguang Ding
3,
Jiayu He
2,
Yi Liu
4,
Huanqiang Wang
2,* and
Chunhui Ni
1,*
1
Department of Occupational Medical and Environmental Health, Key Laboratory of Modern Toxicology of Ministry of Education, School of Public Health, Nanjing Medical University, Nanjing 211166, China
2
Department of Occupational Respiratory Disease, National Institute of Occupational Health and Poison Control, Chinese Center for Disease Control and Prevention, Beijing 100050, China
3
National Center for Occupational Safety and Health, Beijing 102300, China
4
Gusu School, Nanjing Medical University, Nanjing 211166, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Environ. Res. Public Health 2022, 19(24), 16809; https://doi.org/10.3390/ijerph192416809
Submission received: 5 October 2022 / Revised: 8 December 2022 / Accepted: 10 December 2022 / Published: 14 December 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
Long-term inhalation of welding fume at high exposure can cause welder’s pneumoconiosis, and metals in welding dust are associated with respiratory dysfunction. This cross-sectional study, which contains 384 Chinese male workers who were or had been working in a container factory, aimed to assess the potential risk of haemal and urinary metal content in welder’s pneumoconiosis. Further, we investigated their effects on lung function parameters. Metal content and lung function were measured using inductively coupled plasma–mass spectrometry (ICP-MS) and spirometer, respectively. The concentration and metal content of respirable dust as well as total dust were collected at this container factory. Lung function of cases with welder’s pneumoconiosis was significantly worse, as indicated by lower values of FVC, FVC% predicted, FEV1, FEV1% predicted, MEF25% predicted, and MMEF% predicted (p < 0.05). Results of logistic regression models showed that haemal Cr and Zn were risk factors of welder’s pneumoconiosis (OR = 4.98, 95%CI: 1.73–21.20, p = 0.009 for Cr; OR = 5.23, 95%CI: 1.56–41.08, p = 0.033 for Zn) after adjusted with age, BMI, working years, welding dust exposure years, and smoking status. Multiple linear regression models showed that several metals (haemal Cd and Pb; urinary Cd and Fe) were significantly associated with different lung function indices in the welder’s pneumoconiosis group. Compared to non-welders, welders were exposed to considerably higher levels of respirable dust, total dust, and six kinds of metals (p < 0.05). In conclusion, haemal Cr and Zn are positively related to welder’s pneumoconiosis. Meanwhile, Cd and Pb might worsen lung function in welder’s pneumoconiosis.

1. Introduction

Electric welding is widely applied in the modern industry involving an estimated 11 million welders worldwide [1]. Welding fume is the main hazard factor to welder’s health. Ample evidence has indicated the association between welding fume and adverse physiological changes or multiple disease outcomes [2,3,4,5]. Welding fume has been classified as carcinogenic to humans (Group 1) by the International Agency for Research on Cancer (IARC) since 2017 [6]. The main carcinogenic components of welding fume are considered to be respirable particles of 20–1000 nm [7]. During the welding process, complex aerosols (0.005–20 µm in size) are generated from the consumption of metal electrodes or wires under extremely high temperatures (>2000 °C) at the weld area [8]. Then, those small particles are carried by thermal updrafts and dispersed throughout the workplace [9]. Particles with different sizes exhibit distinct aerodynamic behaviours. Generally, particles of <2.5 µm can cross the alveolar–capillary barrier, traveling to other organs within the body [10].
Metal particles are enriched in welding dust, and their health hazards have been extensively reported in the literature—the hypothetical mechanisms of metal fume toxicity centre on oxidative stress and inflammatory reaction [11,12]. Inhaled metals could initiate inflammatory responses and cause an imbalance between the production and detoxification of reactive oxygen species (ROS) [13]. A metabolomics study showed evidence that metabolite changes during welding fume exposure were closely associated with systemic inflammation [14]. In addition, several metals in the welding fume (chromium (VI), lead, cadmium, manganese, and some nickel and cobalt oxides) are also recognized as carcinogens [15]. Metal exposure is closely related to changes in lung function. For example, high haemal and urinary Pb levels were associated with decreased lung function and increased risks of respiratory diseases [16,17].
Welder’s pneumoconiosis is caused by long-term inhalation of the welding fume at high exposures, which progresses slowly after being isolated from environmental exposure with continuous and relatively stable performance. It is characterized by diffuse fibrosis in lung tissues and has been listed in the catalogue of statutory occupational diseases in China since 1987 [18]. Welder’s pneumoconiosis cases have lung function abnormalities, but no special treatment is generally required. In this study, we recruited 21 cases with welder’s pneumoconiosis, 69 non-welders, and 294 welders. We also tested participants’ lung functions. The inductively coupled plasma–mass spectrometry (ICP-MS) was applied to determine the metal content in whole blood and urine samples, as well as dust samples collected in a container factory. We aimed to investigate if haemal and urinary metal content were associated with welder’s pneumoconiosis and then explored their effects on lung function parameters.

2. Materials and Methods

2.1. Population and Study Design

A total of 21 cases with welder’s pneumoconiosis, 69 non-welders, and 294 welders working at a container factory in Qingdao, China, were enrolled in our cross-sectional study. The cases of welder’s pneumoconiosis were diagnosed seven years before this study according to the diagnostic criteria of pneumoconiosis (GBZ70-2009) [19]. All the cases worked as a welder and have left welding jobs after diagnosis but are still working at this factory; furthermore, they had not received any treatment, and no other pneumoconiosis cases were newly found in recent years. The stages of cases (in the first and the last diagnosis) are listed in Table S1. All cases were still suffering from welder’s pneumoconiosis at the time of investigation. Non-welders in the present analysis referred to workers who do not have direct contact with welding fume, such as auxiliary workers and security guards. All welders met the recruitment criteria as follows: full-time workers; adults (>18 years); qualified to work in a confined space; without medication use, and self-reported history of chronic lung diseases. Our study was carried out in conjunction with the annual occupational health check-up of the enterprise which was completed within one week. Therefore, body fluids were sampled from all participants in the same manner during physical examinations, as well as lung function test. Moreover, 82 welders were recruited to voluntarily participate in the personal sampling process to evaluate welding dust in the air during the corresponding period.
The Ethics Committee approved this research by the National Institute of Occupational Health and Poison Control of the Chinese Center for Disease Control and Prevention, China (No. NIOHP201302). All participants signed the written informed consent. Confidentiality was ensured by not using the names of the workers in any reports.

2.2. Questionnaire Investigation

Participants were asked to complete a self-reported questionnaire on age, smoking habits, working years, welding dust exposure years, and respiratory symptoms. The standing height and weight were measured without shoes and were used to calculate the body mass index (BMI).

2.3. Spirometry

The spirometer we used to measure lung function was a MasterScreen portable spirometer (Jaeger, Hoechberg, Germany) with a laminar pressure differential flow sensor. The system has a built-in estimated value system, providing a reference standard for lung function of the Chinese population [20]. The specific standard procedures and methods for spirometry can be seen in Supplemental Materials. Two trained physicians performed spirometry according to American Thoracic Society (ATS) standards [21]. Before the test, subjects took a seat to stabilize their breaths. They were required to measure lung function at least 3 times to ensure reliability, and we took the optimal values for analysis. Parameters included in the analysis were forced vital capacity (FVC), forced expiratory volume in one second (FEV1), FEV1/FVC, percent predicted vital capacity (VC% predicted), FVC (FVC% predicted), FEV1 (FEV1% predicted), peak expiratory flow rate (PEF% predicted), maximal expiratory flow at 25%, 50%, 75% of FVC (MEF25% predicted, MEF50% predicted, MEF75% predicted, respectively) and maximal mid-expiratory flow (MMEF% predicted).

2.4. Air Sampling

This state-owned container factory has a fixed production process, and the heat source, welding object, and electrode used in electric welding have not changed. In 2014, the ventilation system was improved which reduced the exposure level of welding fume but did not change its contents. After improvement of the ventilation system, we conducted air sampling inside the container factory (Figure S1) according to the specifications of air sampling for hazardous substances monitoring in the workplace (GBZ 159-2004) [22]. The meteorological conditions of the welding workplace were as follows: ambient temperature, 20.8–21.6 °C; air pressure, 101.3 KPa; relative humidity, 45.6–51.2% RH; wind speed, 0.2–1.1 m/s. Before sampling, detailed information (including workshop, types of sampling and welding, and ventilation situation) were recorded.
For personal sampling [23], 82 welders wore the AirChek2000 portable pumps (SKC, Eighty Four, PA, USA) when working for respirable dust testing. The pre-separators (SKC, USA) were installed in front of the 30 mm sampling heads (Yilian, Suzhou, China), and microporous filter membranes (Yousheng, Beijing, China) were used to collect dust with aerodynamic diameter below 7.07 μm (defined as respirable dust). During sampling, the Air Chek2000 portable pumps were hung on the belt around the worker’s waist, and the sampling heads were fixed to the worker’s collar (near the worker’s breathing zone). For area sampling [24], the Gilian Gilair pumps (Sensidyne, St. Petersburg, FL, USA) were placed as close as possible to workers (near the breathing zone but would not affect their work) at 20 representative working sites for total dust testing. The sampling points were located in the downwind direction of the work site, away from the exhaust port and the place where eddy current may generate. Gilibrator2 soap film flow calibrators (Sensidyne, USA) were used for flow correction before and after field sampling. Another 10 environmental samples were collected. The sampling flow of respirable and total dust was 2 and 5 L/min, correspondingly. Glass fibre and mixed cellulose ester (MCE) filter membranes were used for dust concentration calculation and further metals analysis, respectively. All filters were kept in a desiccator to eliminate humidity. For gravimetric analysis, glass fibre filters were pre- and post-weighed on a microbalance in temperature and humidity-controlled conditions.
Dust collected by the MCE filter membrane was used for metal element analysis. Referring to the National Institute for Occupational Safety and Health (NIOSH) method 7303 [25] and the determination of toxic substances in workplace air (GBZ/T 300.33-2017) [26], the membrane was dissolved in 2.5 mL nitric acid and 1 mL hydrogen peroxide and then was digested by microwave electric heating digestion apparatus.

2.5. Whole Blood and Urine Samples Collection

Whole blood and urine samples were collected and transported according to the general principles of the biological monitoring method in the occupational population (GBZ/T 295-2017) [27]. For pre-treatment, whole blood samples were diluted by Triton X-100-HNO3, while urine samples were diluted by HNO3.

2.6. Metals Analysis

After sample pre-treatment, we used inductively coupled plasma optical emission spectrometry (5100 ICP-OES, Agilent, Santa Clara, CA, USA) and inductively coupled plasma–mass spectrometry (ICP-MS, NexIon 350D, PerkinElmer, Waltham, MA, USA) to analyse the concentrations of chromium (Cr), cuprum (Cu), iron (Fe), manganese (Mn), nickel (Ni), and zinc (Zn) in collected dust, and measure the content of Cr, Mn, cobalt (Co), Ni, Cu, Zn, molybdenum (Mo), cadmium (Cd), Pb, and Fe in whole blood and urine samples. The limits of detection (LOD) ranged from 0.010 to 0.184 μg/L in laboratory testing (Table S2). Metal levels of samples that exceeded the LOD were standardized before being recruited into the final analyses. Table S3 lists the chemical composition of welding wires used in the factory.

2.7. Statistical Analysis

We first checked the normality of all the data by the Shapiro–Wilk test. Data with skewed distribution or normal distribution were presented as median (interquartile range, IQR) or mean ± standard deviation (SD). The Kruskal–Wallis test and one-way ANOVA test followed by Dunn’s test and LSD t test for multiple comparisons were performed to compare skewed distributed and normally distributed continuous variables, respectively, while the Pearson’s chi-squared test and Fisher’s exact test were used for categorical data.
Data on metal levels in blood or urine were log2-transformed, and their correlations were tested by Pearson correlation analysis. Logistic regression models were built to assess the associations between haemal and urinary metal concentrations (categories) with welder’s pneumoconiosis, and to estimate the odds ratio (OR) and 95% confidence interval (CI) with adjustment for age, BMI, working years (<1 year, 1–10 years and ≥10 years), welding dust exposure years (<10 years and ≥10 years) and smoking status. In the welder’s pneumoconiosis group, multiple linear regression analysis was conducted to explore the effects of haemal and urinary metal concentrations (categories) on lung function parameters, adjusted for age, BMI, working years, welding dust exposure years, and smoking status.
According to the type of welding and dust exposure level, the welder group was classified into manual welding (n = 149), automatic welding high exposure (n = 29), and automatic welding low exposure (n = 113) group, during which 3 participants engaged in gas tungsten arc welding (GTAW) work were not included. Then, we conducted a subgroup analysis to explore whether there were differences in lung function among people exposed to different levels of welding fume or among people with different types of welding jobs.
The SPSS 26.0 software (SPSS, New York, NY, USA) and R version 4.1.1 (The R Foundation) were used for all statistical analyses in the present study. Data were visualized by R software or GraphPad Prism software (version 6.0). p values were two-sided, and p < 0.05 was considered statistically significant.

3. Results

Compared with welders and non-welders, cases with welder’s pneumoconiosis showed older age, greater BMI values, longer working years, and longer welding dust exposure years (Table 1, p < 0.05). The lung function in the case group was significantly worse, as indicated by values of VC% predicted, FVC, FVC% predicted, FEV1, FEV1% predicted and MEF25% predicted (p < 0.05), which reflected the tendency of obstructive ventilation dysfunction and impaired small airway function in welder’s pneumoconiosis cases. Moreover, compared to non-welders, welders had significantly lower BMI values, shorter working years, and greater values of MEF25% predicted (Table 1, p < 0.05).
A total of 384 whole blood samples and 351 urine samples were collected and used for metals analysis. The concentrations of many haemal and urinary metals in non-welders, welders, and cases with welder’s pneumoconiosis were statistically different (Table 2, p < 0.05). Data suggested that the haemal Fe level of welder’s pneumoconiosis group was significantly higher, while urinary Cu and Fe concentrations were statistically lower than both welders and non-welders (p < 0.05). Compared to non-welders, the concentrations of Co, Ni, Pb, and Fe in blood, as well as Co, Cd, and Fe in the urine of welders were significantly higher (p < 0.05). In contrast, haemal Zn and Mo, as well as urinary Mn, Zn, and Pb of welders were lower than non-welders (p < 0.05).
We then explored the potential effect of haemal or urinary metals on welder’s pneumoconiosis. The results of logistic regression models showed that there were no significant associations between urinary metals with welder’s pneumoconiosis risk (Figure 1A). In contrast, haemal Cr and Zn were risk factors of welder’s pneumoconiosis (OR = 4.98, 95%CI: 1.73–21.20, p = 0.009 for Cr; OR = 5.23, 95%CI: 1.56–41.08, p = 0.033 for Zn) after adjusted for age, BMI, working years, welding dust exposure years, and smoking status (Figure 1B). Next, we conducted multiple linear regression analyses to investigate whether haemal or urine metals were associated with lung function in cases with welder’s pneumoconiosis (Table 3). FEV1, FEV1% predicted, FEV1/FVC, and MEF75% predicted showed negative associations with haemal Cd. In addition, Pb in whole blood was negatively associated with VC% predicted, FVC, FVC% predicted, MEF75% predicted, and MMEF% predicted. A negative association was also observed between FVC and urinary Cd. However, urinary Fe was a protective factor against FEV1/FVC.
Welders were then sub-grouped into manual welding, automatic welding low exposure group, and automatic welding high exposure group according to different types of welding processes and dust exposure levels (excluding three welders engaged in GTAW). The VC% predicted, FVC and FVC% predicted were lower, while the FEV1/FVC were higher in the automatic welding high exposure group (Table 4, p < 0.05), which implied a tendency of restrictive ventilation patterns in the lungs of the automatic welding high group population. We further compared the metal levels of welders in each subgroup and the automatic welding high exposure group had higher concentrations of Cr, Co and Ni in whole blood than the other two subgroups (Table S4).
Our analysis measured the concentration and metal content of welding dust at this container factory. In total, 82 in-plant samples and 6 environmental samples, collected by the personal sampling method, were used for measuring respirable dust (defined as particulate matter with an aerodynamic diameter of less than 7.07 µm). The respirable dust level of in-plant samples (median, 9.06 mg/m3) was significantly higher than that of environmental samples (median, 0.16 mg/m3), as well as six kinds of metal levels (Fe, Mn, Zn, Ni, Cu, and Cr) in respirable dust (Figure 2A,B, p < 0.05). Another 20 in-plant samples and 4 environmental samples collected by the area sampling method were used to determine total dust. The total dust level of in-plant samples (median, 2.52 mg/m3) was significantly higher than that of environmental samples (median, 0.29 mg/m3), as well as Fe, Mn, Cu, and Zn metal levels in total dust (Figure 2C,D, p < 0.05). In addition, 31.6% of calculated 8 h TWA exceeded the permissible concentration–time weighted average (PC-TWA, 4 mg/m3) referring to the occupational exposure limits for hazardous agents in the workplace (GBZ 2-2007) [28]. Fe is the most abundant metal in welding dust from this container factory.

4. Discussion

In the present study, cases with welder’s pneumoconiosis were diagnosed successively 7 years ago and had been transferred to non-welding jobs in this container factory thereafter, who were still suffering from pneumoconiosis at the time of the investigation. We aimed to analyse the differences in lung function and metal levels among cases with welder’s pneumoconiosis, welders, and non-welders in a cross-sectional study. We measured the metal content of both blood and urine samples and investigated their associations with welder’s pneumoconiosis and lung function parameters. Lung function abnormality was observed in the welder’s pneumoconiosis cases. Our major findings include: (1) Cr and Zn in blood were risk factors of welder’s pneumoconiosis; (2) haemal Cd, urinary Cd, and haemal Pb might be crucial factors that negatively influenced lung function.
In 1936, Doig and McLaughlin first assessed 16 electric arc welders (the main exposure was iron oxide) radiologically and found generalized fine mottling on both lung fields on the chest radiograph of six welders [29]. Subsequently, they followed 15 patients for 9 years and found complete or partial resolution of chest radiograph abnormalities after being isolated from environmental exposure, suggesting that the lung has the ability to recover from the injury caused by iron oxide dust [30]. Similar findings have also been reported. Sun et al. [31] observed that with the extension of divorcing from dust exposure (0–5 years), lung area with small shadows reduced in 8 out of 10 patients. Shi et al. [32] found that 10 out of 39 cases failed to reach the original stages during the 4–6-year follow-up, while the stages of 29 cases remained unchanged. However, it is commonly recognized that after leaving the welding dust environment, welder’s pneumoconiosis still progresses at a relatively slow pace (compared to silicosis); as shown in Table S1 in our study, 6 cases were aggravated, and 15 cases kept at the original stages after leaving welding jobs for 8–10 years. One possible reason to explain the difference in disease development is the overload phenomenon, in which large amounts of fume, the aggregation of iron oxide, and hemosiderin-laden macrophages may exceed the processing capacity of mucociliary movement [33,34]. Moreover, in cases of severe exposure to welding fume, cell injury, hyperplastic repair and abnormal collagen synthesis in lung tissue could lead to irreversible damage to the alveolar structure [35,36]. Epidemiological and experimental research studies have suggested that prolonged inhalation of welding fume suppresses lung defence responses and increases the susceptibility to lung infection [37,38,39,40]. Furthermore, cigarette smoking has a profound effect on the progression and symptom evolution of welder’s pneumoconiosis [41]. Collectively, existing welding dust (containing a variety of hazardous substances that have been deposited in the human body) and constant external irritation (viruses and cigarette smoke) could contribute to the persistence of welder’s pneumoconiosis.
The chronic respiratory risks of welding have been documented [42,43]. A French longitudinal cohort of 21,238 subjects observed a significant accelerated decline in FEV1 (p = 0.046) in non-smokers exposed to welding fume after a 5-year follow-up. However, the baseline lung function parameters were higher in welders than in control subjects [44]. Consistent with our results that welders had better lung function than non-welders, a study observed that welders with longer exposures had better lung function at initial cross-sectional analysis, suggesting a “healthy selection” effect [41,45]. Hence, longitudinal studies may be more helpful in digging out the chronic effects of welding fume exposure on lung function [41]. Restrictive ventilation pattern is defined as FVC < 80% predicted, FEV1/FVC ≥ 75% predicted, and FEV1 ≥ 80% predicted value, whereas FEV1/FVC < 75% predicted value, FVC ≥ 80% and FEV1 < 80% predicted value indicate obstructive pattern [43]. Here, we observed a tendency for restrictive ventilation patterns in the lungs of the automatic welding high exposure group population. However, in Pakistani welding workers with exposure longer than nine years, the obstructive ventilatory defect was found and manifested as a significant reduction in FEV1, FEV1/FVC, and PEF relative to controls [42]. The inconsistent defect patterns of lung function among welders [46] are related to the welding type and smoking status. Younes et al. reported that the spirometry pattern in welders involved in flux cored arc welding and shielded metal arc welding was obstructive, and in those involved in gas metal arc welding, it was mixed (obstructive and restrictive pattern) [43]. Aminian et al. found that smoking welders had respiratory disease with a mixed pattern, while non-smokers had a mostly restrictive pattern [47]. Thus, how welding fumes affect lung function and underlying biological mechanisms needs further exploration.
Evidence for the association between Cd exposure and decreased lung function has been well reported. Consistent with our results in the welder’s pneumoconiosis group, a study in a cadmium battery plant showed that high Cd concentration was associated with decreased values for FEV1, PEF, MEF25, MEF50, and MEF75, suggesting a mild airway obstruction [48]. Another cross-sectional study on welders’ lung function found that urinary Cd was negatively associated with FVC and FEV1 [49]. Exposure to other metals could also pose a threat to the respiratory system. For example, a higher level of Pb in blood was associated with decreased values of FEV1/FVC and MMEF in battery and exhaust workers [50]. Fe is an essential metal for haemoglobin synthesis of erythrocytes, oxidation–reduction reactions, and cellular proliferation. The excessive accumulation of Fe has been implicated in the pathogenesis of lung diseases, including asthma and COPD [51]. However, urinary Fe was reported to have positive dose–response associations with FEV1 and FEV1/FVC in the Wuhan cohort [52], which was consistent with our findings.
Cr and Zn in the blood seem to be risk factors for welder’s pneumoconiosis in our study. To the best of our knowledge, there is little evidence of the association between welder’s pneumoconiosis risk with concentrations of haemal Cr and Zn, but exposure to Cr and Zn harms lung function. A cohort study on chromate exposed population suggested that short-term high exposure to Cr was associated with obstructive ventilatory impairment, and long-term exposure further led to restrictive ventilatory impairment [53]. Elevated urinary Zn was associated with lung function reduction, and a dose-dependent association between urinary Zn and restrictive lung disease risk in the general population was previously observed [54]. Thus, whether haemal Cr and Zn increase the risk of welder’s pneumoconiosis through mediating lung function requires further research in cohort studies.
Both personal and area sampling methods were utilized to collect welding dust in this container factory. Area static sampling is mainly suitable for evaluating work environment health status, while personal sampling is superior when assessing individual exposure to dynamic operation since personal samples are collected near the breathing zone [55]. In our study, personal sampling gave higher values than area sampling. Previous research reported that individual exposure measurements were two to ten times greater than values predicted by area sampling, which in our study was about three times [56,57,58]. The comparative performance of these two methods seems to be highly dependent on working conditions, including the welding process, welding current and materials used, ventilation, and the position of the sampler. The metal composition of welding dust mainly depends on the welding process type and materials used (for example, filler material, shield gas composition, and base metal). Fe is the most abundant metal, followed by Zn and Mn in our study. Long-term exposure to iron dust can lead to siderosis with high levels of ferritin depositing in the lung [59,60]. Mn, a known neurotoxicant, would originate from the welding electrode and base metals and could act as a deoxidizing agent to increase the strength of the resultant weld [61]. A population-based study showed that Mn in welding fume and aging might make welders more susceptible to Alzheimer’s disease or related disorders [62]. In comparison, Zn may be derived from anti-rust painting on pipeline surfaces and additives to welding fillers of electrodes or materials. Metal fume fever is likely caused by Zn fume exposure, with typical symptoms such as dyspnoea, fever, and flu-like symptoms [63]. Furthermore, considering that the 8 h TWA of total dust from 31.6% area samples exceeded the occupational exposure limit in this container factory, effective protective measures are necessary to be taken.

5. Conclusions

Our present findings suggest that haemal Cr and Zn are risk factors of welder’s pneumoconiosis. In addition, Cd and Pb might be harmful to lung function. Further research on the association among haematuric metals, lung function, and welder’s pneumoconiosis is necessary. More attention should be paid to metal exposure-related lung health in occupational populations.

6. Limitations

There are certain limitations in the study. First, the sample size is relatively small. Second, we failed to match welding dust data to the individual participant due to data limitations. Third, smoking habits were based on self-reported data, some of which are missing. Fourth, obvious bias exists in our cross-sectional study, and longitudinal studies should be considered in future studies. Finally, other factors also contribute considerably to metal contents in body fluids; atmospheric and household particulate matter, soil environment, diet, and cigarette smoke are common sources of metal exposure. Thus, the interpretation of our results should be cautious, and further studies are needed to verify our findings.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijerph192416809/s1, Table S1: The pneumoconiosis stages and disease progression of 21 cases; Table S2: LOD and LOQ for metal content detection; Table S3: Chemical composition (%) of welding wires; Table S4: Comparison of haemal and urinary metal concentrations of welders in each subgroup; Figure S1: Sketch of welding workplace and sampling sites.

Author Contributions

S.Z. and Y.W.: methodology, formal analysis, visualization, writing—original draft preparation; C.Y.: methodology, investigation, C.D.: methodology, investigation, J.H.: methodology, investigation, data curation; Y.L.: supervision, writing—review and editing; C.N.: methodology, supervision, writing—review and editing, project administration; H.W.: conceptualization, methodology, supervision, writing—review and editing, funding acquisition, project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Key Technology to Prevent and Control New Official Occupational Disease (grant number 201402021).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We acknowledge the work and contribution of Fang Qi, Xiang-Pei Lv, Zhi-Hui Li, and Han-Bo Song for helping with data collection in this study. We would also appreciate all participants in this study as well as the organizational and management assistance from the container factory.

Conflicts of Interest

The authors declare no competing interests in relation to this particular article.

References

  1. Guha, N.; Loomis, D.; Guyton, K.Z.; Grosse, Y.; El, G.F.; Bouvard, V.; Benbrahim-Tallaa, L.; Vilahur, N.; Muller, K.; Straif, K. Carcinogenicity of welding, molybdenum trioxide, and indium tin oxide. Lancet Oncol. 2017, 18, 581–582. [Google Scholar] [CrossRef] [PubMed]
  2. Kong, N.; Chen, G.; Wang, H.; Li, J.; Leng, S. Blood leukocyte count as a systemic inflammatory biomarker associated with a more rapid spirometric decline in a large cohort of iron and steel industry workers. Respir. Res. 2021, 22, 254. [Google Scholar] [CrossRef] [PubMed]
  3. Gomes, J.; Lloyd, O.L.; Norman, N.J.; Pahwa, P. Dust exposure and impairment of lung function at a small iron foundry in a rapidly developing country. Occup. Environ. Med. 2001, 58, 656–662. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Girma, F.; Kebede, Z. Dust Exposure Associations with Lung Function among Ethiopian Steel Workers. Ann. Glob. Health 2019, 85, 12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Ibfelt, E.; Bonde, J.P.; Hansen, J. Exposure to metal welding fume particles and risk for cardiovascular disease in Denmark: A prospective cohort study. Occup. Environ. Med. 2010, 67, 772–777. [Google Scholar] [CrossRef]
  6. IARC Working Group on Humans. Welding, Molybdenum Trioxide, and Indium Tin Oxide; International Agency for Research on Cancer: Lyon, France, 2018.
  7. Dauter, U.M.; Alhamdow, A.; Cediel-Ulloa, A.; Gliga, A.R.; Albin, M.; Broberg, K. Cancer-related changes and low-to-moderate exposure to welding fumes: A longitudinal study. Scand. J. Work Environ. Health 2022, 48, 21–30. [Google Scholar] [CrossRef]
  8. Sferlazza, S.J.; Beckett, W.S. The respiratory health of welders. Am. Rev. Respir. Dis. 1991, 143, 1134–1148. [Google Scholar] [CrossRef]
  9. Takahashi, J.; Nakashima, H.; Fujii, N. Fume particle size distribution and fume generation rate during arc welding of cast iron. Ind. Health 2020, 58, 325–334. [Google Scholar] [CrossRef] [Green Version]
  10. Arias-Pérez, R.D.; Taborda, N.A.; Gómez, D.M.; Narvaez, J.F.; Porras, J.; Hernandez, J.C. Inflammatory effects of particulate matter air pollution. Environ. Sci. Pollut. Res. Int. 2020, 27, 42390–42404. [Google Scholar] [CrossRef]
  11. Lai, C.H.; Ho, S.C.; Pan, C.H.; Chen, W.L.; Wang, C.C.; Liang, C.W.; Chien, C.Y.; Riediker, M.; Chuang, K.J.; Chuang, H.C. Chronic exposure to metal fume PM(2.5) on inflammation and stress hormone cortisol in shipyard workers: A repeat measurement study. Ecotoxicol. Environ. Saf. 2021, 215, 112–144. [Google Scholar] [CrossRef]
  12. McNeilly, J.D.; Heal, M.R.; Beverland, I.J.; Howe, A.; Gibson, M.D.; Hibbs, L.R.; MacNee, W.; Donaldson, K. Soluble transition metals cause the pro-inflammatory effects of welding fumes in vitro. Toxicol. Appl. Pharmacol. 2004, 196, 95–107. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Jomova, K.; Valko, M. Advances in metal-induced oxidative stress and human disease. Toxicology 2011, 283, 65–87. [Google Scholar] [CrossRef] [PubMed]
  14. Shen, S.; Zhang, R.; Zhang, J.; Wei, Y.; Guo, Y.; Su, L.; Chen, F.; Christiani, D.C. Welding fume exposure is associated with inflammation: A global metabolomics profiling study. Environ. Health 2018, 17, 68. [Google Scholar] [CrossRef] [Green Version]
  15. Mehrifar, Y.; Zeverdegani, S.K.; Rismanchian, M. Chemical pollutants in the respiratory zone of welders: Determination of concentrations and hazard analysis. Work 2020, 67, 591–598. [Google Scholar] [CrossRef] [PubMed]
  16. Pan, Z.; Guo, Y.; Xiang, H.; Hui, Y.; Ju, H.; Xu, S.; Li, L. Effects of Lead, Mercury, and Cadmium Co-exposure on Children’s Pulmonary Function. Biol. Trace Elem. Res. 2020, 194, 115–120. [Google Scholar] [CrossRef] [PubMed]
  17. Skalny, A.V.; Lima, T.; Ke, T.; Zhou, J.C.; Bornhorst, J.; Alekseenko, S.I.; Aaseth, J.; Anesti, O.; Sarigiannis, D.A.; Tsatsakis, A.; et al. Toxic metal exposure as a possible risk factor for COVID-19 and other respiratory infectious diseases. Food Chem. Toxicol. 2020, 146, 111809. [Google Scholar] [CrossRef]
  18. Takahashi, M.; Nitta, N.; Kishimoto, T.; Ohtsuka, Y.; Honda, S.; Ashizawa, K. Computed tomography findings of arc-welders’ pneumoconiosis: Comparison with silicosis. Eur. J. Radiol. 2018, 107, 98–104. [Google Scholar] [CrossRef]
  19. GBZ 70-2009; Diagnostic Criteria of Pneumocoruosis. Ministry of Health of the People’s Republic of China: Beijing, China, 2009.
  20. Zhu, X.; Gao, P.; Gu, Y.; Xiao, P.; Liu, M.; Chen, J.; Cen, Y.; Ma, W.; Li, T. Positive Rates and Factors Associated with Abnormal Lung Function of Greenhouse Workers in China: A Cross-Sectional Study. Int. J. Environ. Res. Public Health 2017, 14, 956. [Google Scholar] [CrossRef] [Green Version]
  21. Graham, B.L.; Steenbruggen, I.; Miller, M.R.; Barjaktarevic, I.Z.; Cooper, B.G.; Hall, G.L.; Hallstrand, T.S.; Kaminsky, D.A.; McCarthy, K.; McCormack, M.C.; et al. Standardization of Spirometry 2019 Update. An Official American Thoracic Society and European Respiratory Society Technical Statement. Am. J. Respir. Crit. Care Med. 2019, 200, e70–e88. [Google Scholar] [CrossRef]
  22. GBZ159-2004; Specifications of Air Sampling for Hazardous Substances Monitoring in the Workplace. Ministry of Health of the People’s Republic of China: Beijing, China, 2004.
  23. GBZ-T 192.2-2007; Method for Determination of Dust in the Air of Workplace—Part 2: Respirable Dust Concentration. Ministry of Health of the People’s Republic of China: Beijing, China, 2007.
  24. GBZ-T 192.1-2007; Method for Determination of Dust in the Air of Workplace—Part 1: Total Dust Concentration. Ministry of Health of the People’s Republic of China: Beijing, China, 2007.
  25. National Institute for Occupational Safety and Health (NIOSH) NIOSH Manual of Analytical Methods, Method 7303. U.S. Department of Health and Human Services, Centers for Disease Control and Prevention, DHHS (NIOSH). Available online: http://www.cdc.gov/niosh/docs/2003-154/ (accessed on 1 January 2015).
  26. GBZ/T 300.33-2017; Determination of Toxic Substances in Workplace Air—Part 33: Metals and Their Compounds. National Health and Family Planning Commission of the People’s Republic of China: Beijing, China, 2017.
  27. GBZ-T 295-2017; General Principles of Biological Monitoring Method in Occupational Population. National Health and Family Planning Commission of the People’s Republic of China: Beijing, China, 2017.
  28. GBZ2-2007; Occupational Exposure Limits for Hazardous agents in the Workplace. Ministry of Health of the People’s Republic of China: Beijing, China, 2007.
  29. Doig, A.T.; Mclaughlin, A. X ray appearances of the lungs of electric arc welders. Lancet 1936, 227, 771–774. [Google Scholar] [CrossRef]
  30. Doig, A.T.; Mclaughlin, A. Clearing of X-ray shadows in welders’ siderosis. Lancet 1948, 6508, 789–791. [Google Scholar] [CrossRef] [PubMed]
  31. Sun, Z.P.; Zhao, D.F.; Li, B.P.; Wang, X.; Lin, L.; Gao, L.N.; Hou, B.W.; Zhang, X.Y. Dynamic imaging observation of 10 cases of welders’ pneumoconiosis after divorcing from dust exposure. Occup. Health 2016, 32, 2775–2777. [Google Scholar]
  32. Jin, S.; Ling, M.; Zidan, C.; Shaowei, Z.; Luqin, B.; Daoyuan, S. Comparison of welder’s pneumoconiosis with silicosis and follow-up study of welder’s pneumoconiosis. Chin. J. Ind. Hyg. Occup. Dis. 2015, 33, 826–829. [Google Scholar] [CrossRef]
  33. Mariani, R.; Pelucchi, S.; Paolini, V.; Belingheri, M.; di Gennaro, F.; Faverio, P.; Riva, M.; Pesci, A.; Piperno, A. Prolonged exposure to welding fumes as a novel cause of systemic iron overload. Liver Int. 2021, 41, 1600–1607. [Google Scholar] [CrossRef]
  34. Kaida, H.; Utsunomiya, T.; Koide, Y.; Ueda, Y.; Wada, K.; Yoshida, Y.; Kinoshita, Y.; Kushima, H.; Ishii, H. A case of welder’s pneumoconiosis treated with corticosteroid followed by nintedanib. Respir. Med. Case Rep. 2022, 39, 101729. [Google Scholar] [CrossRef]
  35. Solano-Lopez, C.; Zeidler-Erdely, P.C.; Hubbs, A.F.; Reynolds, S.H.; Roberts, J.R.; Taylor, M.D.; Young, S.H.; Castranova, V.; Antonini, J.M. Welding fume exposure and associated inflammatory and hyperplastic changes in the lungs of tumor susceptible a/j mice. Toxicol. Pathol. 2006, 34, 364–372. [Google Scholar] [CrossRef] [Green Version]
  36. Hicks, R.; Al-Shamma, K.J.; Lam, H.F.; Hewitt, P.J. An investigation of fibrogenic and other toxic effects of arc-welding fume particles deposited in the rat lung. J. Appl. Toxicol. 1983, 3, 297–306. [Google Scholar] [CrossRef]
  37. Antonini, J.M.; Taylor, M.D.; Millecchia, L.; Bebout, A.R.; Roberts, J.R. Suppression in lung defense responses after bacterial infection in rats pretreated with different welding fumes. Toxicol. Appl. Pharmacol. 2004, 200, 206–218. [Google Scholar] [CrossRef]
  38. Antonini, J.M.; Roberts, J.R. Chromium in stainless steel welding fume suppresses lung defense responses against bacterial infection in rats. J. Immunotoxicol. 2007, 4, 117–127. [Google Scholar] [CrossRef]
  39. Marongiu, A.; Hasan, O.; Ali, A.; Bakhsh, S.; George, B.; Irfan, N.; Minelli, C.; Canova, C.; Schofield, S.; De Matteis, S.; et al. Are welders more at risk of respiratory infections? Findings from a cross-sectional survey and analysis of medical records in shipyard workers: The WELSHIP project. Thorax 2016, 71, 601–606. [Google Scholar] [CrossRef] [Green Version]
  40. Knobloch, J.; Casjens, S.; Lehnert, M.; Yanik, S.D.; Körber, S.; Lotz, A.; Rupp, J.; Raulf, M.; Zschiesche, W.; Weiss, T.; et al. Exposure to welding fumes suppresses the activity of T-helper cells. Environ. Res. 2020, 189, 109913. [Google Scholar] [CrossRef] [PubMed]
  41. Szram, J.; Schofield, S.J.; Cosgrove, M.P.; Cullinan, P. Welding, longitudinal lung function decline and chronic respiratory symptoms: A systematic review of cohort studies. Eur. Respir. J. 2013, 42, 1186–1193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Meo, S.A.; Azeem, M.A.; Subhan, M.M.F. Lung Function in Pakistani Welding Workers. J. Occup. Environ. Med. 2003, 45, 1068–1073. [Google Scholar] [CrossRef] [PubMed]
  43. Mehrifar, Y.; Zamanian, Z.; Pirami, H. Respiratory Exposure to Toxic Gases and Metal Fumes Produced by Welding Processes and Pulmonary Function Tests. Int. J. Occup. Environ. Med. 2019, 10, 40–49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Thaon, I.; Demange, V.; Herin, F.; Touranchet, A.; Paris, C. Increased lung function decline in blue-collar workers exposed to welding fumes. Chest 2012, 142, 192–199. [Google Scholar] [CrossRef]
  45. Mur, J.M.; Pham, Q.T.; Teculescu, D.; Massin, N.; Meyer-Bisch, C.; Moulin, J.J.; Wild, P.; Leonard, M.; Henquel, J.C.; Baudin, V. Arc welders’ respiratory health evolution over five years. Int. Arch. Occup. Environ. Health 1989, 61, 321–327. [Google Scholar] [CrossRef]
  46. Lyngenbo, O.; Groth, S.; Groth, M.; Olsen, O.; Rossing, N. Occupational lung function impairment in never-smoking Danish welders. Scand. J. Soc. Med. 1989, 17, 157–164. [Google Scholar] [CrossRef]
  47. Aminian, O.; Beheshti, S.; Atarchi, M.S. Changes of spirometric indices among welders in a car factory in Tehran during a period of five years (1996-2001). Armaghan Danesh 2003, 7, 9–16. [Google Scholar]
  48. Jakubowski, M.; Abramowska-Guzik, A.; Szymczak, W.; Trzcinka-Ochocka, M. Influence of long-term occupational exposure to cadmium on lung function tests results. Int. J. Occup. Med. Env. 2004, 17, 361–368. [Google Scholar]
  49. Wu, L.; Cui, F.; Ma, J.; Huang, Z.; Zhang, S.; Xiao, Z.; Li, J.; Ding, X.; Niu, P. Associations of multiple metals with lung function in welders by four statistical models. Chemosphere 2022, 298, 134202. [Google Scholar] [CrossRef]
  50. Bagci, C.; Bozkurt, A.I.; Cakmak, E.A.; Can, S.; Cengiz, B. Blood lead levels of the battery and exhaust workers and their pulmonary function tests. Int. J. Clin. Pract. 2004, 58, 568–572. [Google Scholar] [CrossRef] [PubMed]
  51. Ho, T.; Nichols, M.; Nair, G.; Radford, K.; Kjarsgaard, M.; Huang, C.; Bhalla, A.; Lavigne, N.; Mukherjee, M.; Surette, M.; et al. Iron in airway macrophages and infective exacerbations of chronic obstructive pulmonary disease. Respir. Res. 2022, 23, 8. [Google Scholar] [CrossRef] [PubMed]
  52. Feng, W.; Huang, X.; Zhang, C.; Liu, C.; Cui, X.; Zhou, Y.; Sun, H.; Qiu, G.; Guo, H.; He, M.; et al. The dose-response association of urinary metals with altered pulmonary function and risks of restrictive and obstructive lung diseases: A population-based study in China. BMJ Open 2015, 5, e7643. [Google Scholar] [CrossRef] [PubMed]
  53. Zhang, Y.; Su, Z.; Hu, G.; Hong, S.; Long, C.; Zhang, Q.; Zheng, P.; Wang, T.; Yu, S.; Yuan, F.; et al. Lung function assessment and its association with blood chromium in a chromate exposed population. Sci. Total Environ. 2022, 818, 151741. [Google Scholar] [CrossRef] [PubMed]
  54. Zhou, M.; Xiao, L.; Yang, S.; Wang, B.; Shi, T.; Tan, A.; Wang, X.; Mu, G.; Chen, W. Cross-sectional and longitudinal associations between urinary zinc and lung function among urban adults in China. Thorax 2020, 75, 771–779. [Google Scholar] [CrossRef]
  55. Niven, R.M.; Fishwick, D.; Pickering, C.A.; Fletcher, A.M.; Warburton, C.J.; Crank, P. A study of the performance and comparability of the sampling response to cotton dust of work area and personal sampling techniques. Ann. Occup. Hyg. 1992, 36, 349–362. [Google Scholar] [CrossRef]
  56. Watt, M.; Godden, D.; Cherrie, J.; Seaton, A. Individual exposure to particulate air pollution and its relevance to thresholds for health effects: A study of traffic wardens. Occup. Environ. Med. 1995, 52, 790–792. [Google Scholar] [CrossRef] [Green Version]
  57. Meng, C.; Sen, L.; Ling, L.; Yinlei, L.; Zhe, W.; Lili, W.; Longlian, Z. Comparative study on short time area and personal sampling for measuring welding dust between China and USA. Chin. J. Prev. Med. 2016, 17, 655–658. [Google Scholar]
  58. Schoonover, T.; Conroy, L.; Lacey, S.; Plavka, J. Personal exposure to metal fume, NO2, and O3 among production welders and non-welders. Ind. Health 2011, 49, 63–72. [Google Scholar] [CrossRef] [Green Version]
  59. Kalliomäki, P.L.; Junttila, M.L.; Kalliomäki, K.; Lakomaa, E.L.; Kivelä, R. Comparison of the retention and clearance of different welding fumes in rat lungs. Am. Ind. Hyg. Assoc. J. 1983, 44, 733. [Google Scholar] [CrossRef]
  60. Yang, S.Y.; Lin, J.M.; Young, L.H.; Chang, C.W. Mass-size distribution and concentration of metals from personal exposure to arc welding fume in pipeline construction: A case report. Ind. Health 2018, 56, 356–363. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Shoeb, M.; Mustafa, G.M.; Kodali, V.K.; Smith, K.; Roach, K.A.; Boyce, G.; Meighan, T.; Roberts, J.R.; Erdely, A.; Antonini, J.M. A possible relationship between telomere length and markers of neurodegeneration in rat brain after welding fume inhalation exposure. Environ. Res. 2020, 180, 108900. [Google Scholar] [CrossRef] [PubMed]
  62. Nemery, B. Metal toxicity and the respiratory tract. Eur. Respir. J. 1990, 3, 202–219. [Google Scholar] [CrossRef] [PubMed]
  63. Monse, C.; Raulf, M.; Jettkant, B.; van Kampen, V.; Kendzia, B.; Schurmeyer, L.; Seifert, C.E.; Marek, E.M.; Westphal, G.; Rosenkranz, N.; et al. Health effects after inhalation of micro- and nano-sized zinc oxide particles in human volunteers. Arch. Toxicol. 2021, 95, 53–65. [Google Scholar] [CrossRef] [PubMed]
Ijerph 19 16809 g001 550

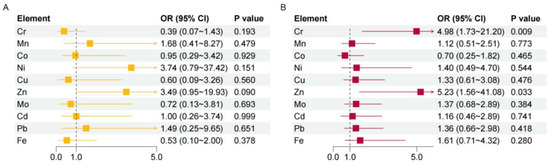

Figure 1. Analysis of the risk of pneumoconiosis for different metals. The associations between urinary (A) or haemal (B) metals with welder’s pneumoconiosis risk were estimated by logistic regression models with adjustment for age, BMI, working years, welding dust exposure years, and smoking status. p < 0.05 indicates statistical significance. OR, odds ratio; CI, confidence interval.
Figure 1. Analysis of the risk of pneumoconiosis for different metals. The associations between urinary (A) or haemal (B) metals with welder’s pneumoconiosis risk were estimated by logistic regression models with adjustment for age, BMI, working years, welding dust exposure years, and smoking status. p < 0.05 indicates statistical significance. OR, odds ratio; CI, confidence interval.
Ijerph 19 16809 g001
Ijerph 19 16809 g002 550

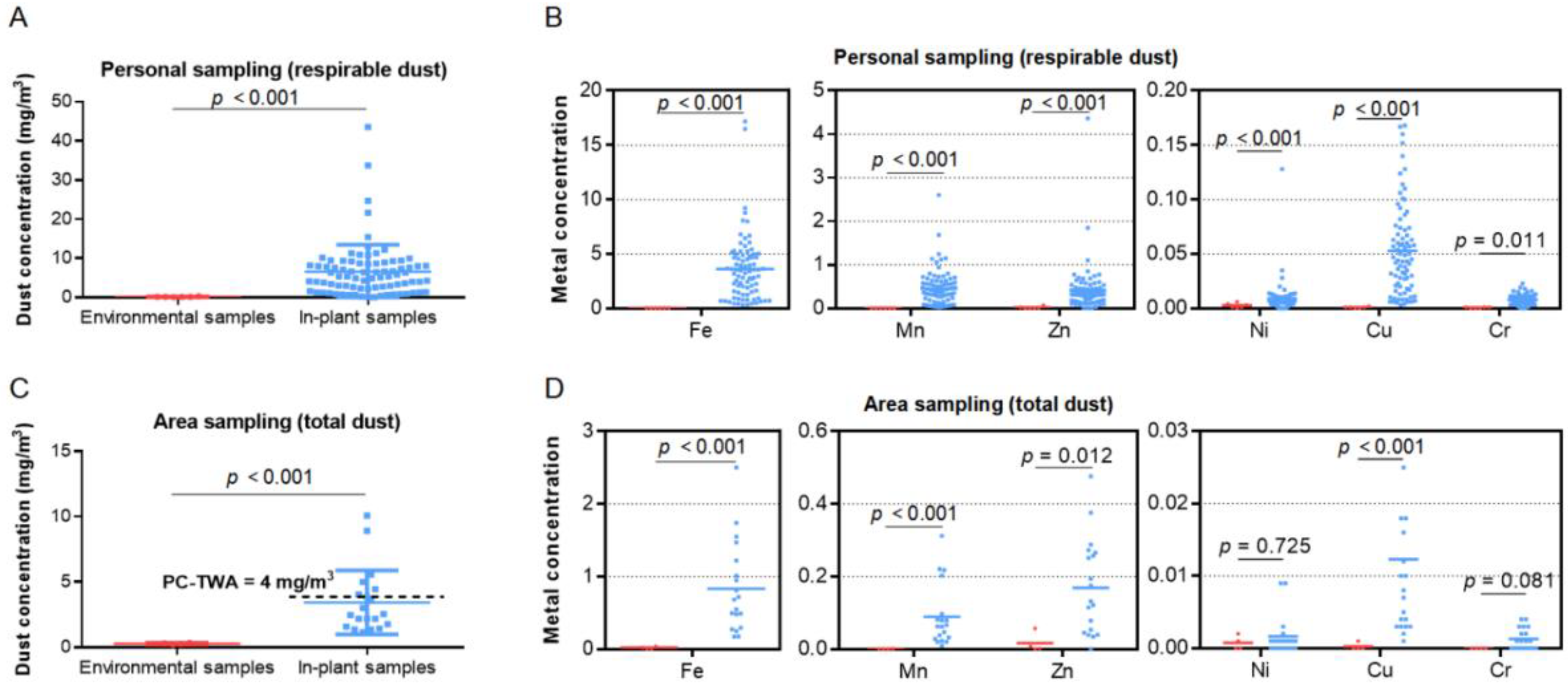

Figure 2. Concentration (mg/m3) and content of welding dust. (A,B) Concentrations of respirable dust and six metals in environmental air samples (red) and in-plant air samples (blue) collected by personal sampling method. (C,D) Concentrations of total dust and six metals in environmental air samples (red) and in-plant air samples (blue) collected by area sampling method, with 4 mg/m3 as the national standard (GBZ 2-2007) for total dust concentration of welding fume. The units for Fe, Mn, Zn, Ni, Cu, and Cr are μg/m3. PC-TWA, permissible concentration–time weighted average.
Figure 2. Concentration (mg/m3) and content of welding dust. (A,B) Concentrations of respirable dust and six metals in environmental air samples (red) and in-plant air samples (blue) collected by personal sampling method. (C,D) Concentrations of total dust and six metals in environmental air samples (red) and in-plant air samples (blue) collected by area sampling method, with 4 mg/m3 as the national standard (GBZ 2-2007) for total dust concentration of welding fume. The units for Fe, Mn, Zn, Ni, Cu, and Cr are μg/m3. PC-TWA, permissible concentration–time weighted average.
Ijerph 19 16809 g002
Table
Table 1. Demographic characteristics and lung function parameters of participants.
Table 1. Demographic characteristics and lung function parameters of participants.
VariablesNon-welders
(n = 69)		Welders
(n = 294)		Cases with Welder’s Pneumoconiosis (n = 21)p
Age (year)29 (7.5)28 (7)43 (6.5) ab<0.001
BMI (kg/m2)23.12 (5.02)21.67 (3.94) a25.2 (3.1) ab<0.001
Working years (year)
 <1012 (4.1%)0<0.001
 1–1042 (60.9%)198 (67.3%)0
 ≥1027 (39.1%)84 (28.6%)21 (100.0%)
Welding dust exposure years (year)
 <10-254 (86.4%)0
 ≥10-40 (13.6%)21 (100.0%)<0.001
Smoking status
 Current smoker22 (31.88%)92 (31.29%)4 (19.0%)0.488
 Non-current smoker47 (68.12%)202 (68.71%)17 (81.0%)
Lung function index
 VC% predicted95.69 ± 11.1894.54 ±10.7488.24 ± 13.72 ab0.023
 FVC (L)4.73 ± 0.634.81 ± 0.624.01 ± 0.69 ab<0.001
 FVC% predicted99.82 ± 11.7998.71 ± 11.2391.68 ±14.26 ab<0.001
 FEV1 (L)3.84 ± 0.573.96 ± 0.503.23 ± 0.56 ab<0.001
 FEV1% predicted96.34 ± 12.2296.30 ± 10.5790.02 ± 14.60 ab0.043
 FEV1/FVC (%)82.23 (7.23)82.44 (8.81)81.37 (8.18)0.125
 PEF% predicted89.48 (21.14)86.71 (22.65)82.40 (26.49)0.319
 MEF75% predicted90.87 (23.07)89.28 (26.21)88.82 (38.93)0.656
 MEF50% predicted82.18 (30.86)87.02 (29.76)76.36 (35.70)0.190
 MEF25% predicted67.34 (32.77)77.75 (38.04) a57.30 (24.19) b<0.001
 MMEF% predicted82.06 ± 20.8485.34 ± 20.9575.08 ± 25.190.067
BMI, body mass index; VC, vital capacity; FVC, forced vital capacity; FEV1, forced expiratory volume in one second; PEF, peak expiratory flow rate; MEF75, maximal expiratory flow at 75% of FVC; MEF50, maximal expiratory flow at 50% of FVC; MEF25, maximal expiratory flow at 25% of FVC; MMEF, maximal mid-expiratory flow. Values are mean ± standard deviation (SD), median (interquartile range (IQR)), or number (%). a Compared with non-welders by Dunn’s test or LSD t test. b Comparison between welders and cases by Dunn’s test or LSD t test. p < 0.05 indicates statistical significance.
Table
Table 2. Distributions of 10 haemal and urinary metal concentrations in cases with welder’s pneumoconiosis, welders, and non-welders.
Table 2. Distributions of 10 haemal and urinary metal concentrations in cases with welder’s pneumoconiosis, welders, and non-welders.
Non-WeldersWeldersCases with Welder’s Pneumoconiosisp
Element content in blood (log2-transformed)
Sample size6929421
 Cr2.85 ± 0.252.83 ± 0.462.91 ± 0.220.653
 Mn4.56 ± 0.364.72 ± 0.554.59 ± 0.600.055
 Co0.30 ± 0.170.56 ± 0.30 a0.38 ± 0.19 b<0.001
 Ni2.37 ± 0.362.61 ± 0.62 a2.35 ± 0.390.002
 Cu9.74 ± 0.159.72 ± 0.169.70 ± 0.200.571
 Zn12.72 ± 0.1612.51 ± 0.29 a12.81 ± 0.18 b<0.001
 Mo1.76 ± 0.411.50 ± 0.47 a1.52 ± 0.58<0.001
 Cd1.56 ± 0.801.71 ± 0.791.92 ± 0.740.152
 Pb4.86 ± 0.465.11 ± 0.49 a5.15 ± 0.38 a<0.001
 Fe18.81 ± 0.2619.05 ± 0.16 a19.21 ± 0.11 ab<0.001
Element contents in urine (log2-transformed)
 Number5828013
 Cr1.20 ± 0.781.38 ± 0.741.09 ± 0.530.105
 Mn2.83 ± 0.872.20 ± 0.79 a2.88 ± 0.63 b<0.001
 Co0.38 ± 0.200.55 ± 0.34 a0.29 ± 0.33 b<0.001
 Ni2.93 ± 0.922.97 ± 0.773.30 ± 0.520.294
 Cu7.16 ± 0.596.99 ± 0.626.47 ± 0.47 ab0.001
 Zn8.99 ± 0.978.60 ± 0.97 a9.56 ± 0.78 b<0.001
 Mo5.81 ± 0.935.97 ± 1.015.15 ± 1.04 b0.012
 Cd0.72 ± 0.570.87 ± 0.38 a1.12 ± 0.68 a0.005
 Pb1.69 ± 0.871.20 ± 0.72 a1.93 ± 0.55 b<0.001
 Fe8.28 ± 0.978.69 ± 1.05 a7.41 ± 1.29 ab<0.001
Values were log2-transformed and presented as mean ± SD. The units for urinary Fe, Mn, Zn, Ni, Cu, and Cr are μg/L. The units for haemal Mn, Zn, Ni, Cu, and Cr are μg/L, while the unit for haemal Fe is mg/L. a Compared with non-welders by LSD t test. b Comparison between welders and cases by LSD t test. p < 0.05 indicates statistical significance.
Table
Table 3. The association between metal levels and lung function in cases with welder’s pneumoconiosis.
Table 3. The association between metal levels and lung function in cases with welder’s pneumoconiosis.
VC% PredictedFEV1FEV1% PredictedFVC
β (95% CI)pβ (95% CI)pβ (95% CI)pβ (95% CI)p
Blood_Cd1.410.716−3.910.028−4.620.0360.110.561
(−6.05 to 8.87)(−7.09 to −0.74)(−8.57 to −0.68)(−0.26 to 0.48)
Blood_Pb−14.660.036−1.570.672−1.970.665−0.710.044
(−27.22 to −2.11)(−8.69 to 5.55)(−10.7 to 6.77)(−1.34 to −0.07)
Urine_Cd−9.000.118−0.400.102−8.500.228−0.510.044
(−19.40 to 1.40)(−0.83 to 0.04)(−21.53 to 4.53)(−0.95 to −0.07)
Urine_Fe−2.580.4170.020.872−0.600.878−0.080.567
(−8.59 to 3.42)(−0.24 to 0.28)(−7.99 to 6.80)(−0.36 to 0.20)
FVC% PredictedFEV1/FVCMEF75% PredictedMMEF% predicted
β (95% CI)pβ (95% CI)pβ (95% CI)pβ (95% CI)p
Blood_Cd1.460.711−3.910.028−12.620.031−9.570.047
(−6.14 to 9.06)(−7.09 to −0.74)(−23.08 to −2.16)(−18.29 to −0.84)
Blood_Pb−14.670.04−1.570.672−28.430.009−21.190.02
(−27.54 to −1.80)(−8.69 to 5.55)(−47.29 to −9.56)(−37.24 to −5.13)
Urine_Cd−9.340.1180.10.959−5.960.537−4.050.613
(−20.13 to 1.45)(−3.78 to 3.98)(−24.28 to 12.35)(−19.31 to 11.20)
Urine_Fe−2.70.4142.120.0273.760.460−1.030.809
(−8.92 to 3.53)(0.49 to 3.75)(−5.88 to 13.40)(−9.20 to 7.14)
Multiple linear regression analyses were applied to investigate the association after adjustment with age, BMI, working years, welding dust exposure years, and smoking status. p < 0.05 indicates statistical significance.
Table
Table 4. Demographic characteristics and lung function parameters of welders in each subgroup.
Table 4. Demographic characteristics and lung function parameters of welders in each subgroup.
Manual Welding (n = 149)Automatic Welding-Low Exposure (n = 113)Automatic Welding-High Exposure (n = 29)p
Age(year)28 (7)28 (7)27 (4.5)0.860
BMI (kg/m2)21.80 (3.74)21.70 (4.17)21.01 (2.80)0.282
Working years (year)
 <19 (6.0%)6 (2.7%)0 (0%)0.001
 1–10102 (68.5%)140 (61.9%)72 (82.8%)
 ≥1038 (25.5%)80 (35.4%)15 (17.2%)
Welding dust exposure years (year)
 <10131 (87.9%)184 (81.4%)84 (96.6%)0.001
 ≥1018 (12.1%)42 (18.6%)3 (3.4%)
Lung function index
 VC% predicted95.42 (12.73)92.78 (13.88) a90.12 (14.90) ab0.016
 FVC (L)4.89 (0.67)4.71 (0.90) a4.41 (0.85) ab0.004
 FVC% predicted99.77 (13.37)97.03 (15.23) a94.18 (15.75) ab0.013
 FEV1 (L)3.98 ± 0.463.94 ± 0.563.95 ± 0.520.837
 FEV1% predicted96.65 ± 9.9695.52 ± 11.3897.68 ± 10.750.530
 FEV1/FVC (%)81.50 ± 7.1183.11 ± 6.48 a86.17 ± 5.79 ab0.002
 PEF% predicted86.08 (26.96)88.61 (21.01)83.55 (20.82)0.539
 MEF75% predicted89.24 (26.06)86.44 (29.15)93.83 (21.91)0.431
 MEF50% predicted86.12 (31.01)87.80 (29.74)92.07 (23.68)0.257
 MEF25% predicted73.73 (36.37)78.74 (38.94)87.32 (48.58)0.066
 MMEF% predicted83.90 ± 21.1785.68 ± 21.0490.93 ± 18.640.246
Values are mean ± SD, median (IQR), or number (%). a Compared with manual welding by Dunn’s test or LSD t test. b Comparison between automatic welding low exposure and automatic welding high exposure group by Dunn’s test or LSD t test. p < 0.05 indicates statistical significance.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhou, S.; Wang, Y.; Yu, C.; Ding, C.; He, J.; Liu, Y.; Wang, H.; Ni, C. Metal Exposure-Related Welder’s Pneumoconiosis and Lung Function: A Cross-Sectional Study in a Container Factory of China. Int. J. Environ. Res. Public Health 2022, 19, 16809. https://doi.org/10.3390/ijerph192416809

AMA Style

Zhou S, Wang Y, Yu C, Ding C, He J, Liu Y, Wang H, Ni C. Metal Exposure-Related Welder’s Pneumoconiosis and Lung Function: A Cross-Sectional Study in a Container Factory of China. International Journal of Environmental Research and Public Health. 2022; 19(24):16809. https://doi.org/10.3390/ijerph192416809

Chicago/Turabian Style

Zhou, Siyun, Yue Wang, Chen Yu, Chunguang Ding, Jiayu He, Yi Liu, Huanqiang Wang, and Chunhui Ni. 2022. "Metal Exposure-Related Welder’s Pneumoconiosis and Lung Function: A Cross-Sectional Study in a Container Factory of China" International Journal of Environmental Research and Public Health 19, no. 24: 16809. https://doi.org/10.3390/ijerph192416809

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
