Propagation and Diffusion of Fluorescent Substances with Footprints in Indoor Environments
Abstract
:1. Introduction
2. Experimental and Analytical Methods
2.1. Selection and Preparation of the Fluorescent Solution
2.2. Selection of the Experimental Floor and Shoes
2.3. Fluorescence Data Collection

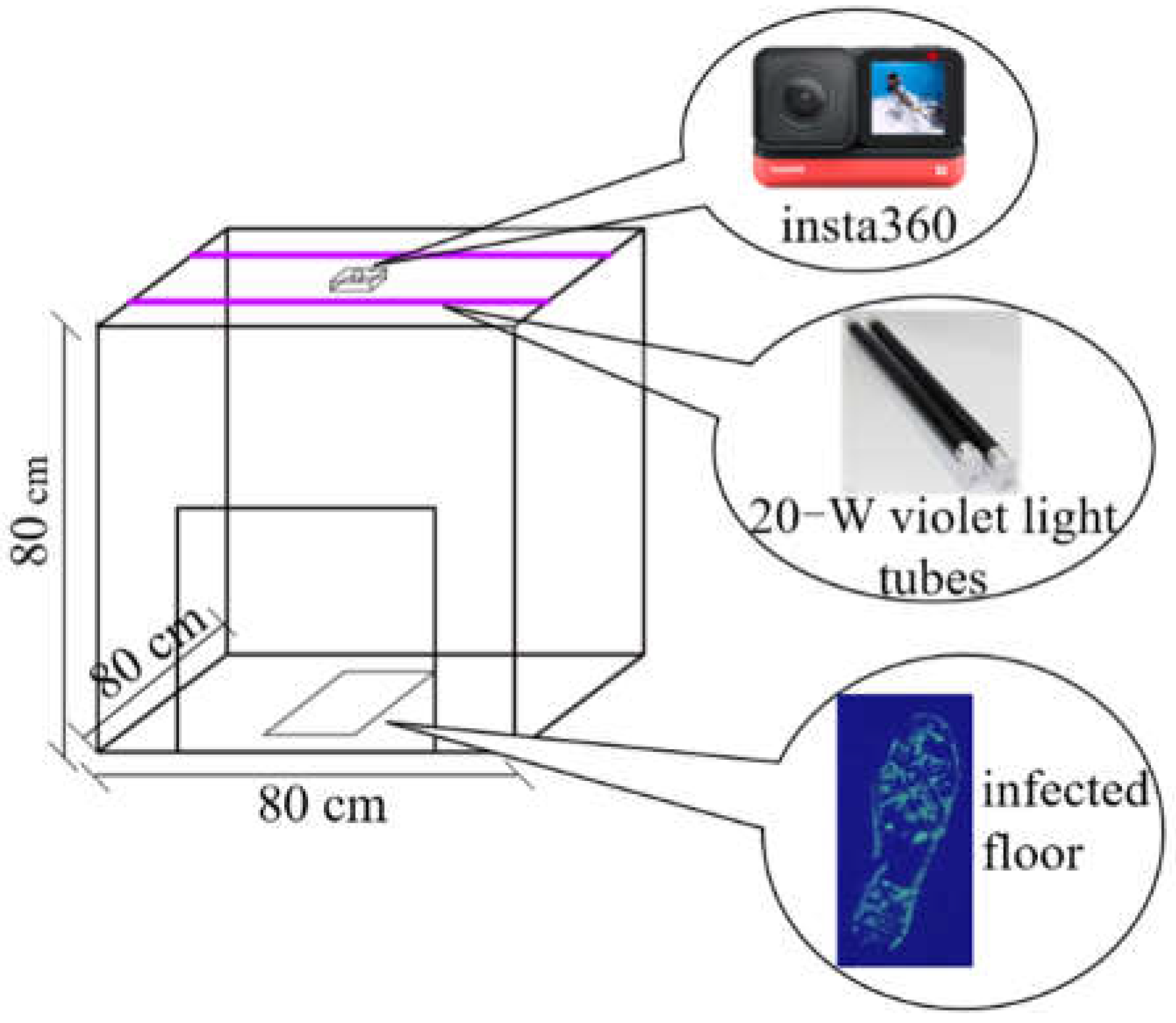

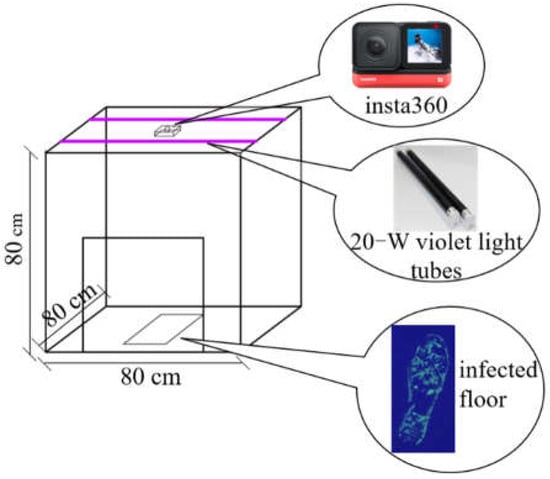

2.3.1. Fluorescence Image Acquisition Device

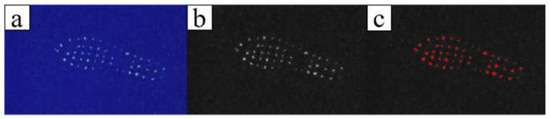

2.3.2. Image Processing and Data Extraction
2.3.3. Statistical Analysis

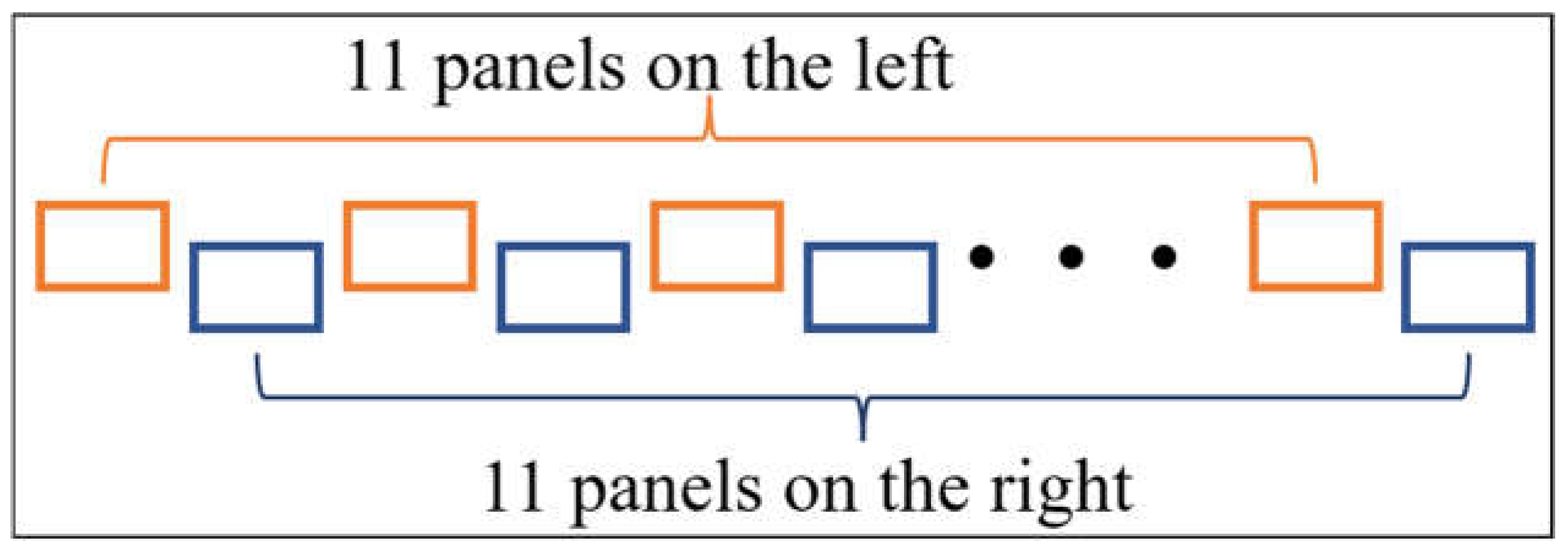

2.4. Experimental Case Design
3. Results and Discussion

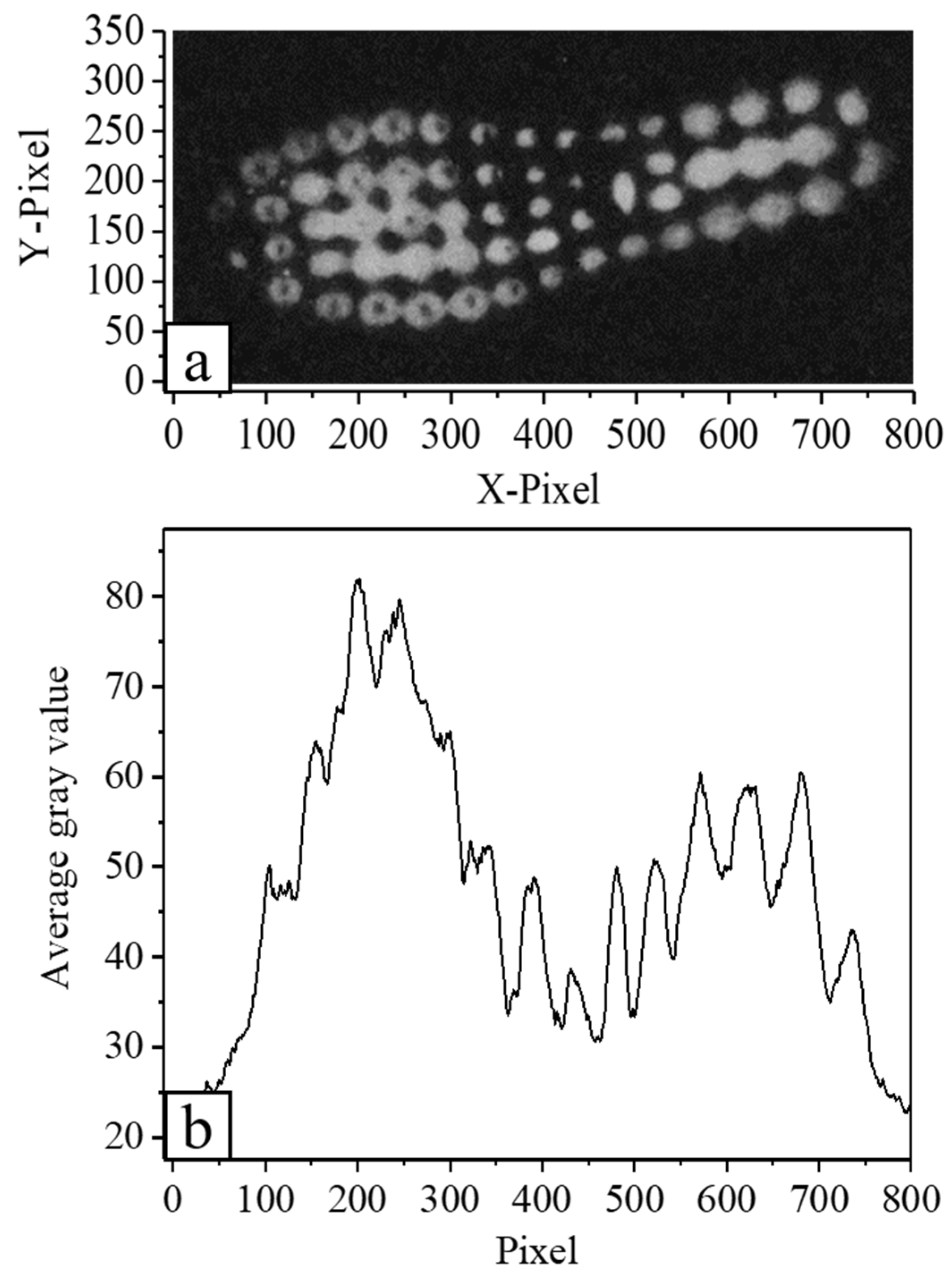

3.1. Single-Footprint Feature Analysis

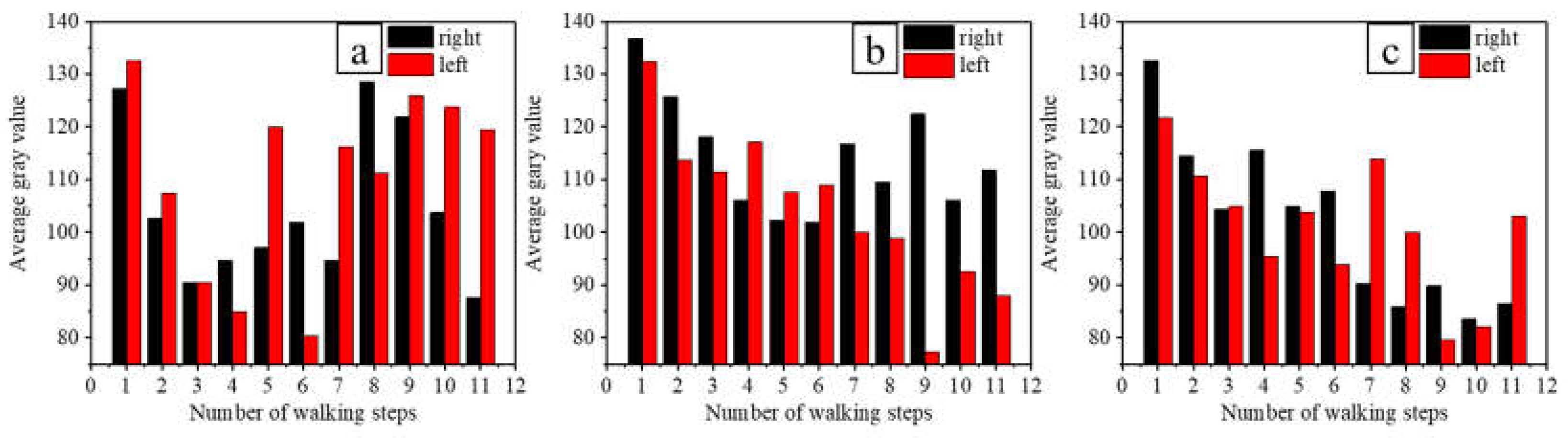

3.2. Analysis of the Independence of Each Foot

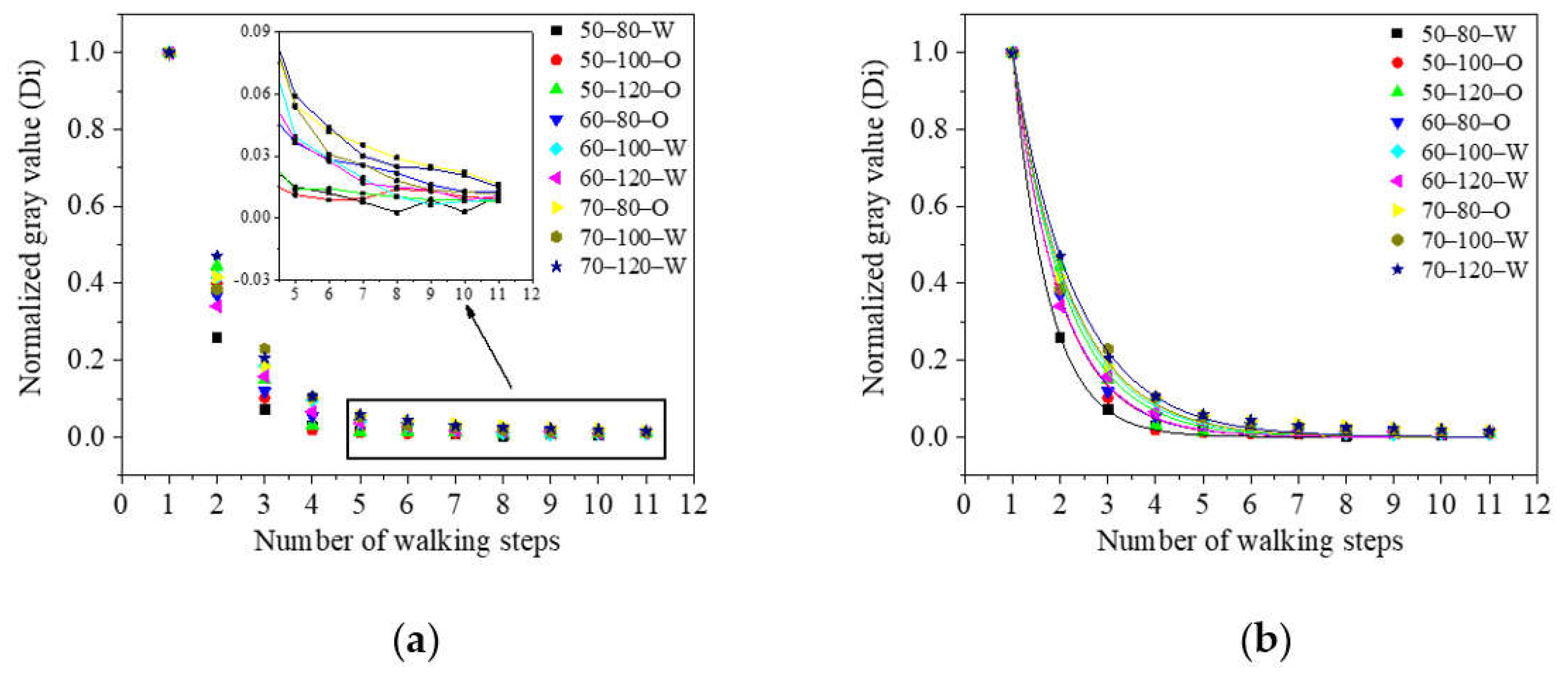

3.3. Analysis of the Variation Law of the Ground Fluorescence Value with Walking
3.4. Analysis of the Propagation and Diffusion Influencing Factors
3.5. Analysis of the Transfer Efficiency and Impact

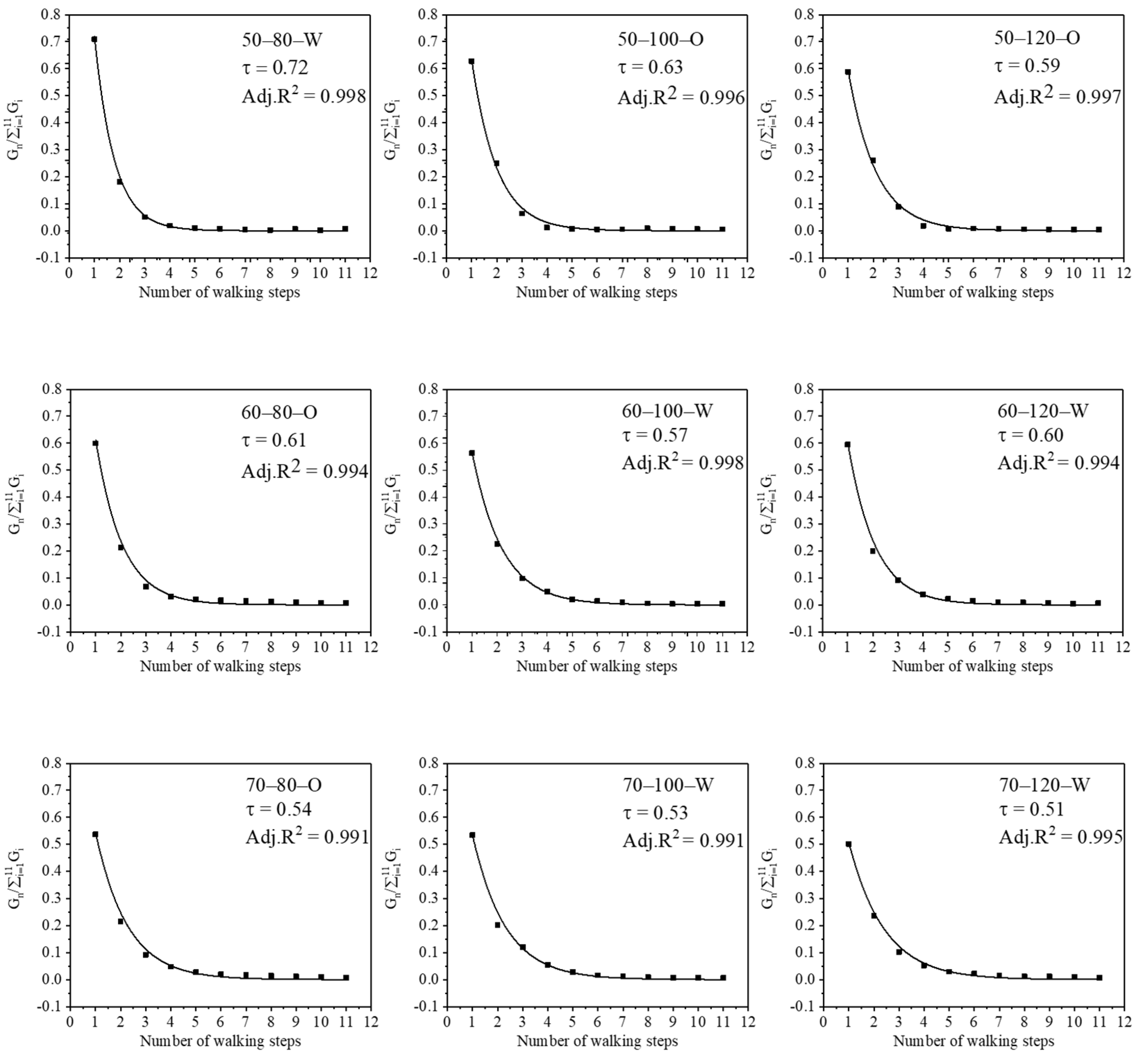

3.5.1. Contact Propagation Transfer Efficiency
3.5.2. Analysis of the Factors Influencing the Transfer Efficiency
4. Conclusions
- (1)
- As the number of walking steps increased, the amount of fluorescent substance transferred onto the experimental floor decreased exponentially, the fluorescence value began to fluctuate and decreased to ~6% of the initial value after the fifth step.
- (2)
- The relationship between the normalized gray value of the fluorescent solution (D) on each floor panel i was , and can be used to estimate the number of pollutants on the ground. Based on the variance analysis, it was found that the body weight, walking frequency, and solution viscosity had a significant effect on a, with body weight being the most important factor. More specifically, a greater body weight yielded a smaller a value. For parameter b, only body weight had a significant effect, wherein b increased with an increase in body weight.
- (3)

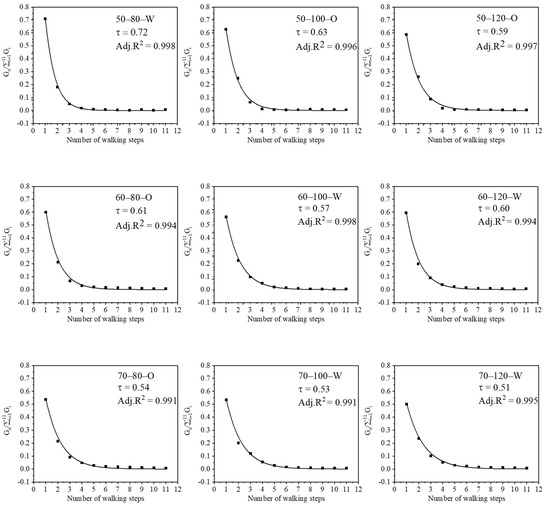

- The transfer efficiency was distributed within a range of 0.51–0.72 for all of the experiments, and only the body weight caused it to change significantly. More specifically, with a constant walking frequency and solution viscosity, a greater body weight led to a lower transfer efficiency.
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Dai, H.; Zhao, B. Association of the infection probability of COVID-19 with ventilation rates in confined spaces. Build Simul. 2020, 13, 1321–1327. [Google Scholar] [CrossRef] [PubMed]
- Dong, Y.; Zhu, L.; Li, S.; Wollensak, M. Optimal design of building openings to reduce the risk of indoor respiratory epidemic infections. Build Simul. 2022, 15, 871–884. [Google Scholar] [CrossRef] [PubMed]
- D’Orazio, M.; Bernardini, G.; Quagliarini, E. A probabilistic model to evaluate the effectiveness of main solutions to COVID-19 spreading in university buildings according to proximity and time-based consolidated criteria. Build Simul. 2021, 14, 1795–1809. [Google Scholar] [CrossRef] [PubMed]
- To, K.K.; Tsang, O.T.; Yip, C.C.; Chan, K.; Wu, T.; Chan, J.M.; Leung, W.; Chik, T.S.; Choi, C.Y.; Kandamby, D.H.; et al. Consistent Detection of 2019 Novel Coronavirus in Saliva. Clin. Infect. Dis. 2020, 71, 841–843. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kampf, G.; Todt, D.; Pfaender, S.; Steinmann, E. Persistence of coronaviruses on inanimate surfaces and their inactivation with biocidal agents. Int. J. Hosp. Manag. 2020, 104, 246–251. [Google Scholar] [CrossRef] [Green Version]
- Li, Z.; Yue, J.; Zhang, H. Research Progress on the Possibility of Faecal-Oral Transmission of COVID-19. J. Jianghan Univ. 2021, 49, 20–28. [Google Scholar]
- Chia, P.Y.; Coleman, K.K.; Tan, Y.K.; Ong, S.W.X.; Gum, M.; Lau, S.K.; Lim, X.F.; Lim, A.S.; Sutjipto, S.; Lee, P.H.; et al. Detection of air and surface contamination by SARS-CoV-2 in hospital rooms of infected patients. Nat. Commun. 2020, 11, 2800. [Google Scholar] [CrossRef]
- Guo, Z.; Wang, Z.; Zhang, S.; Li, X.; Li, L.; Li, C.; Cui, Y.; Fu, R.; Dong, Y.; Chi, X.; et al. Aerosol and Surface Distribution of Severe Acute Respiratory Syndrome Coronavirus 2 in Hospital Wards, Wuhan, China, 2020. Emerg. Infect. Dis. 2020, 26, 1583–1591. [Google Scholar] [CrossRef]
- Sippola, M.R.; Sextro, R.G.; Thatcher, T.L. Measurements and Modeling of Deposited Particle Transport by Foot Traffic Indoors. Environ. Sci. Technol. 2014, 48, 3800–3807. [Google Scholar] [CrossRef]
- Ilieș, D.C.; Marcu, F.; Caciora, T.; Indrie, I.; Ilieș, A.; Albu, A.; Costea, M.; Burtă, L.; Baias, S.; Ilieș, M.; et al. Investigations of Museum Indoor Microclimate and Air Quality. Case Study from Romania. Atmosphere 2021, 12, 286. [Google Scholar]
- Marcu, F.; Hodor, N.; Indrie, L.; Dejeu, P.; Ilieș, M.; Albu, A.; Sandor, M.; Sicora, C.; Costea, M.; Ilieș, D.C.; et al. Microbiological, Health and Comfort Aspects of Indoor Air Quality in A Romanian Historical Wooden Church. Int. J. Environ. Res. Public Health 2021, 18, 9908. [Google Scholar] [CrossRef] [PubMed]
- Zhao, P.; Chan, P.; Gao, Y.; Lai, H.; Zhang, T.; Li, Y. Physical factors that affect microbial transfer during surface touch. Build. Environ. 2019, 158, 28–38. [Google Scholar] [CrossRef]
- Xiao, S.; Li, Y.; Lei, H.; Lin, C.; Norris, S.L.; Yang, X.; Zhao, P. Characterizing dynamic transmission of contaminants on a surface touch network. Build. Environ. 2018, 129, 107–116. [Google Scholar] [CrossRef]
- Johnson, D.L. A first generation dynamic ingress, redistribution and transport model of soil track-in: DIRT. Environ. Geochem. Health 2008, 30, 589–596. [Google Scholar] [CrossRef] [PubMed]
- King, M.F.; López García, M.; Atedoghu, K.P.; Zhang, N.; Wilson, A.M.; Weterings, M.; Hiwar, W.; Dancer, S.J.; Noakes, C.J.; Fletcher, L.A. Bacterial transfer to fingertips during sequential surface contacts with and without gloves. Indoor Air 2020, 30, 993–1004. [Google Scholar] [CrossRef] [PubMed]
- Lei, H.; Xiao, S.; Cowling, B.J.; Li, Y. Hand hygiene and surface cleaning should be paired for prevention of fomite transmission. Indoor Air 2019, 30, 49–59. [Google Scholar] [CrossRef] [PubMed]
- Lei, H.; Li, Y.; Xiao, S.; Yang, X.; Lin, C.; Norris, S.L.; Wei, D.; Hu, Z.; Ji, S. Logistic growth of a surface contamination network and its role in disease spread. Sci. Rep. 2017, 7, 14826. [Google Scholar] [CrossRef]
- Zhang, N.; Li, Y.; Huang, H. Surface touch and its network growth in a graduate student office. Indoor Air 2018, 28, 963–972. [Google Scholar] [CrossRef]
- Rosati, J.A.; Thornburg, J.; Rodes, C. Resuspension of Particulate Matter from Carpet Due to Human Activity. Aerosol Sci. Technol. 2008, 42, 472–482. [Google Scholar] [CrossRef]
- Hunt, A.; Johnson, D.L.; Griffith, D.A. Mass transfer of soil indoors by track-in on footwear. Sci. Total Environ. 2006, 370, 360–371. [Google Scholar] [CrossRef]
- McDonagh, A.; Sextro, R.G.; Byrne, M.A. Mass transport of deposited particles by surface-to-surface contact. J. Hazard. Mater. 2012, 227–228, 370–377. [Google Scholar] [CrossRef] [PubMed]
- Wu, H.; Zhou, X. Effects of the liquid with different PH inhalation on the sputum of patients with chronic obstructive pulmonary disease. J. Clin. Med. 2006, 1, 7–8. [Google Scholar]
- Wang, W.; Zhao, Y.; Xu, F.; Yan, L.; Liu, G.; Wang, X.; Zheng, X. Correlation of mixed saliva viscosity in lichen planus patients. Yunnan J. Tradit. Chin. Med. Mater. Med. 2012, 33, 17–18. [Google Scholar]
- Liu, Y. Report on the state of nutrition and chronic diseases in china (2020). Food Nutr. China 2020, 26, 2. [Google Scholar]
- Zhao, P.; Li, Y.; Tsang, T.; Chan, P. Equilibrium of particle distribution on surfaces due to touch. Build. Environ. 2018, 143, 461–472. [Google Scholar] [CrossRef]
- Zhao, P.; Li, Y. New sequential-touch method to determine bacterial contact transfer rate from finger to surface. J. Appl. Microbiol. 2019, 127, 605–615. [Google Scholar] [CrossRef]
Experiment No. | Body Weight (kg) | Walking Frequency (Steps/min) | Solution Viscosity |
---|---|---|---|
1 | 50–55 | 80 | W |
2 | 50–55 | 100 | O |
3 | 50–55 | 120 | O |
4 | 60–65 | 80 | O |
5 | 60–65 | 100 | W |
6 | 60–65 | 120 | W |
7 | 70–75 | 80 | O |
8 | 70–75 | 100 | W |
9 | 70–75 | 120 | W |
Group | t | Degrees of Freedom | Significance (Two-Tailed) |
---|---|---|---|
Volunteer No. 1 | 0.668 | 10 | 0.519 |
Volunteer No. 2 | −1.234 | 10 | 0.246 |
Volunteer No. 3 | 1.074 | 10 | 0.308 |
Experiment Code | a | b | R2 |
---|---|---|---|
50–80-W | 3.79 | −1.33 | 0.999 |
50–100-O | 2.78 | −1.01 | 0.996 |
50–120-O | 2.48 | −0.90 | 0.996 |
60–80-O | 2.72 | −1.00 | 0.997 |
60–100-W | 2.31 | −0.84 | 0.999 |
60–120-W | 2.68 | −0.99 | 0.996 |
70–80-O | 2.26 | −0.82 | 0.994 |
70–100-W | 2.22 | −0.81 | 0.993 |
70–120-W | 2.11 | −0.75 | 0.997 |
Factor | Sum of Square | F | Significant p |
---|---|---|---|
Body weight | 1.340 | 16.584 | 0.024 ** |
Walking frequency | 0.785 | 9.718 | 0.049 ** |
Solution viscosity | 0.448 | 11.082 | 0.045 ** |
Factor | Sum of Square | F | Significant p |
---|---|---|---|
Body weight | 0.158 | 11.962 | 0.037 ** |
Walking frequency | 0.087 | 6.572 | 0.080 |
Solution viscosity | 0.044 | 6.609 | 0.082 |
Factor | Sum of Square | F | Significant p |
---|---|---|---|
Body weight | 0.025 | 28.538 | 0.011 ** |
Walking frequency | 0.008 | 9.118 | 0.053 |
Solution viscosity | 0.003 | 7.803 | 0.068 |
