Article

Associating Increased Chemical Exposure to Hurricane Harvey in a Longitudinal Panel Using Silicone Wristbands

1
Department of Environmental & Molecular Toxicology, Oregon State University, Corvallis, OR 97331, USA
2
College of Public Health and Human Sciences, Oregon State University, Corvallis, OR 97331, USA
3
Section of Epidemiology and Population Sciences, Department of Medicine, Baylor College of Medicine, Houston, TX 77030, USA
4
Gulf Coast Center for Precision Environmental Health, Baylor College of Medicine, Houston, TX 77030, USA
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2022, 19(11), 6670; https://doi.org/10.3390/ijerph19116670
Received: 13 April 2022 / Revised: 24 May 2022 / Accepted: 25 May 2022 / Published: 30 May 2022
(This article belongs to the Special Issue Public Health Disaster Research: Examples from the Field)

Abstract

:
Hurricane Harvey was associated with flood-related damage to chemical plants and oil refineries, and the flooding of hazardous waste sites, including 13 Superfund sites. As clean-up efforts began, concerns were raised regarding the human health impact of possible increased chemical exposure resulting from the hurricane and subsequent flooding. Personal sampling devices in the form of silicone wristbands were deployed to a longitudinal panel of individuals (n = 99) within 45 days of the hurricane and again one year later in the Houston metropolitan area. Using gas chromatography–mass spectroscopy, each wristband was screened for 1500 chemicals and analyzed for 63 polycyclic aromatic hydrocarbons (PAHs). Chemical exposure levels found on the wristbands were generally higher post-Hurricane Harvey. In the 1500 screen, 188 chemicals were detected, 29 were detected in at least 30% of the study population, and of those, 79% (n = 23) were found in significantly higher concentrations (p < 0.05) post-Hurricane Harvey. Similarly, in PAH analysis, 51 chemicals were detected, 31 were detected in at least 30% of the study population, and 39% (n = 12) were found at statistically higher concentrations (p < 0.05) post-Hurricane Harvey. This study indicates that there were increased levels of chemical exposure after Hurricane Harvey in the Houston metropolitan area.

1. Introduction

Disasters are increasing in frequency throughout the globe and are becoming costlier and more unpredictable and catastrophic [1,2]. There is a rising number of incidents where disasters rooted in meteorological, geological, and hydrological mechanisms have inadvertently caused the release of hazardous materials associated with the industrial production of chemicals, and hence caused a secondary disaster to occur [3,4,5,6]. These compounded events, sometimes referred to as natural–technological disasters (NATECH events), could significantly impact the environment and the surrounding population [5]. During these scenarios, it is challenging yet necessary to evaluate population-level chemical exposure to inform policy decisions regarding the prevention of hazardous material release in future disasters, minimize potential health risks associated with the disaster scenario, and understand the ecological and human health repercussions if disasters where chemical exposure is a concern continue to occur.
Environmental sampling following a disaster typically occurs in close proximity to the release site and may not reflect human health exposure [7]. One alternative is personalized exposure assessment, which also allows for long-term health studies without relying on location and chemical-dispersion data. However, care should be taken in personal exposure studies following disasters, as intrusive sampling, such as the collection of multiple biological samples, may cause an undue burden to participants that are recovering from a disaster scenario [8]. Participant recruitment may suffer as a result [7,9]. Passive sampling techniques provide an alternative that can be used for post-disaster chemical exposure assessment at both release sites and as personalized samplers [10,11].
Passive sampling devices can be effectively used in disaster research, including personal passive sampling devices in the form of silicone wristbands. Silicone wristbands function by diffusing the vapor phase of volatile or semi-volatile organic compounds into a hydrophobic polymer [12,13]. While silicone wristbands do not represent the effective dose of or total exposure to a compound, the fraction of environmental chemicals that the wristband can sample forms a significant portion of human exposure via a combination of inhalation and dermal exposure [14,15,16]. Silicone wristbands were compared to biological samples, and numerous associations between the two were found, providing evidence that they are biomimetic and capture the fraction of available chemicals for human uptake [14,15,17,18,19]. A review of 39 studies using the silicone wristband found that they were successfully used to evaluate exposure to multiple chemical groups to include polycyclic aromatic hydrocarbons, flame retardants, pesticides in multiple countries and across multiple occupations [20]. Several studies reported associations between wristband concentrations and environmental exposures; for example, Paulik et al. found that individuals living close to unconventional natural-gas drilling had higher concentrations than those individuals living farther away [21]. In addition to capturing short- and long-term exposures [20], silicone wristbands are minimally invasive to participants, easy to use, and stable for transport in hot and cold conditions [17,20,22,23]. Additionally, they can be partnered with demographic and location data to determine associations between potential chemical exposure and health outcomes [24]. These properties render them ideal for assessing potential personal chemical exposure in a disaster scenario [11].
A recent example of a disaster where chemical exposure assessment was needed is Hurricane Harvey [3,25]. Hurricane Harvey made landfall on the Texas coast on 25 August, 2017 as a Category 4 tropical cyclone, and brought more than 50 inches of rainfall to some parts of the Houston metropolitan statistical area (MSA) [26]. In addition to the physical damage to infrastructure and buildings, Harvey was associated with flood-related damage to chemical plants and oil refineries, and the flooding of hazardous waste sites, including 13 Superfund sites. Houston MSA, which is the fifth most populous MSA in the U.S., is a major hub for the nation’s petrochemical [27,28] and plastics [26,29] industries. The lack of citywide zoning regulation and related urbanization exacerbated both flood risk [30,31,32,33] and potential exposure to environmental contaminants [28,34,35,36].
At the time when the hurricane took place, little was known about to which chemicals Houston residents were potentially exposed, although there were concerns about excess emissions from industrial centers and flooded superfund sites [37]. To capture a broad range of organic pollutants, silicone wristbands were deployed to individuals living within Houston MSA, and screened for 1500 volatile and semi-volatile organic pollutants (VOCs and SVOCs). There was additional concern about the impact of petrochemical facilities and polycyclic aromatic hydrocarbon (PAH) exposure. PAHs are ubiquitous environmental contaminants that stem from pyrogenic, petrogenic, or biogenic sources. The major source of PAHs is pyrogenic and results from the incomplete combustion of organic substances such as coal, oil, and wood, while petrogenic PAHs stem from petroleum products and are formed during crude oil maturation [38,39]. PAHs from both pyrogenic and petrogenic sources were expected to be present following Hurricane Harvey.
This study was designed to better understand individual exposures to organic pollutants following Hurricane Harvey, and to provide insight on personal chemical exposure assessment during a disaster. Specifically, this study aimed to utilize a longitudinal panel of participants with time points during Hurricane Harvey flooding and in a nondisaster scenario to determine if potential chemical exposure to a variety of SVOCs and PAHs was higher during the aftermath of Hurricane Harvey.

2. Materials and Methods

2.1. Study Design and Population

This analysis includes chemical-exposure data from the Houston Hurricane Harvey Health (Houston-3H) study originally discussed in Oluyomi et al. (2021) [40]. Briefly, the 3H project aims to better understand the link among Hurricane Harvey flooding, flood-related exposures, and health outcomes in Houston residents. The Houston-3H study was approved by the institutional review boards at Oregon State University, Baylor College of Medicine (BCM), and the University of Texas Health Science Center, and all participants provided informed consent.
The Houston-3H project consisted of multiple timepoints. The first sampling period hereafter referred to as “post-hurricane” began within one month of Hurricane Harvey, while parts of the Houston MSA were still experiencing flooding, and active flood clean-up was still occurring [40]. The second time point was taken approximately one year after the hurricane in non-disaster conditions and is hereafter referred to as the “estimated baseline”. At both the post-hurricane and estimated-baseline timepoints, participants wore silicone wristbands for seven days, and completed questionnaires related to their demographics and flood-related exposure. Participants were originally recruited from targeted flood-impacted neighborhoods (e.g., Addicks, Baytown, East Houston, and Bellaire-Meyerland) within the Houston metropolitan area in Harris County, TX. Recruitment for the estimated-baseline timepoint consisted of contacting participants from the original time point that had indicated interest in continuing on in the study, and new participants living within the original study neighborhoods were recruited. Inclusion criteria for the study were being at least five years of age and fluent in either English or Spanish, and having given informed consent. Multiple individuals from the same household were allowed to participate in the study. Wristbands were returned between 21 September and 20 October 2017 for the post-hurricane timepoint (n = 172), and between 13 September and 29 October 2018 for the estimated-baseline timepoint (n = 239) (Figure 1). There was a longitudinal panel of 99 participants who had returned wristbands at both time points.

2.2. Chemical Exposure Assessment

2.2.1. Silicone-Wristband Preparation and Extraction

Conditioning, post-deployment cleaning, and wristband extraction were performed as previously described [22] with limited modifications. Silicone wristbands (size large—width: 1.3 cm; inner diameter: 6.0 cm), were purchased from 24hourwristbands.com (Houston, TX, USA). Upon receipt from the manufacturer, wristbands were rinsed in deionized water to remove particulate matter before being conditioned at 270–300 °C for 180 min under vacuum at 0.1 Torr (Vacuum Oven, Blue-M, model no. POM18VC-2, with Welch Duo-Seal pump, model no. 1405, Mt. Prospect, IL, USA). Wristbands were then stored in sealed metal containers at 4 °C. Prior to deployment, the wristbands were transferred to air-tight polytetrafluoroethylene (PTFE) bags that were used for storage before and after deployment.
Before the returned wristbands were extracted, they first underwent post-deployment cleaning: they were rinsed twice with 18 MΩ-cm water and once with isopropanol to remove particulate matter. Following post-deployment cleaning, extraction methods varied depending on the time point. All wristband samples collected from the post-hurricane timepoint were extracted as indicated in Dixon et al., 2019 [41]. Wristband samples collected during the estimated-baseline timepoint were cut in half using solvent-rinsed scissors, and each half was stored in amber glass jars at −20 °C: one half was archived, and the other extracted. Prior to extraction, samples were spiked with recovery surrogates. Wristbands were extracted twice with 50 mL of ethyl acetate at ambient temperature. Sample extracts were combined and reduced to 1 mL under nitrogen (TurboVap LV, Biotage, Charlotte, NC, USA; RapidVap, LabConco, Kansas City, MO, USA; N-EVAP 111, Organomation Associates, Berlin, MA, USA). Aliquots of 100 μL underwent solid-phase extraction (SPE) using 3.5 mL acetonitrile loaded onto C18 SPE cartridges (Cleanert S C18, Agela Technologies, Torrance, CA, USA). Aliquots were solvent-exchanged to iso-octane (OA-SYS N-EVAP 111, Organomation Associates, Berlin, MA, USA) and stored at 4 °C before instrument analysis. Laboratory blanks were utilized at every step of the process to ensure that the study met data quality objectives. These included a total laboratory processing blank, post-deployment cleaning blank, extraction blank, and SPE blanks.

2.2.2. 1500 Screening Method

Extracts from silicone wristbands were screened for 1500 target analytes using an Agilent 6890 N gas chromatograph (GC) with a 5975B Mass Selective Detector in full scan mode in conjunction with a predictive model automated mass spectral deconvolution and identification system. This method quantifies target analytes within a factor of 2.5 of the actual value. Further details regarding the analytical method, including limits of quantification (LOQs), were reported (Bergmann et al., 2018). All calibration verifications met the data-quality objectives of within 2.5 times the true value for 60% of the target analytes. Background subtraction for the post-hurricane timepoint was performed on the basis of a laboratory processing blank, and the estimated-baseline timepoint did not undergo background subtraction, as no chemicals were detected in the laboratory processing blank (Table S1).
Detected analytes from the 1500 screen were subdivided on the basis of previously published chemical use and type categorization [41,42,43]. Chemicals were first categorized by chemical class. Specifically, polychlorinated biphenyls (PCBs), polycyclic aromatic hydrocarbons (PAHs), phthalates, and dioxins/furans were acknowledged due to prevalence and/or toxicological concern. The remaining chemicals were sorted by primary use: these categories included personal care products (PCPs), pesticides, flame retardants, pharmacological compounds, and industrial compounds (i.e., chemicals that have many uses and did not fit in any other category). Many chemicals could be organized into multiple categories, but for the purposes of the study, they were sorted into one primary use or type. A full list of detected analytes and their chemical categorization can be found in Table S2. The full target list includes 124 flame retardants, 185 industrial compounds, 98 PAHs, 773 pesticides, 76 personal care products, 14 phthalates, and 260 polychlorinated biphenyls (PCBs) including dioxins and furans. A complete list of target analytes can be found at http://fses.oregonstate.edu/1530 (accessed on 26 May 2022).

2.2.3. PAH Analysis Method

In total, 63 parent and alkylated PAHs were quantified using an Agilent (Santa Clara, CA, USA) 7890 gas chromatograph (GC) with a 7000 triple–quadruple mass spectrometer (MS/MS) (Table S3). For this method, we used an Agilent Select PAH column, and each PAH in the method was calibrated with a curve of at least five points (correlations ≥ 0.99). All calibration verifications met data quality objectives +/− 30% of the true value for 70% of the target analytes [12,14,21,22]. Background subtraction was performed using appropriate blanks showing the highest analyte concentrations (Table S1). PAHs were categorized on the basis of ring size and parent versus alkylated status.

2.3. Statistical Analysis

Statistical analyses were performed using SAS software version 9.4 (SAS Institute Inc., Cary, NC, USA) and JMP Pro version 15.2.1 (SAS Institute Inc.). The concentrations of all chemicals were converted into nanomoles per wristband (nmol/WB). Concentrations below the instrument’s limits of detection (LOD) were substituted with a value equal to LOD/√2. Concentrations below the limit of quantification (LOQ) were unchanged. To limit analysis to common chemical exposures, only compounds detected in at least 30% of the population in at least one time point were analyzed for both the 1500 screen and the PAH method. Additionally, to limit redundancy in analysis, PAHs in both the 1500 screen and 63 PAH method were excluded from statistical analysis relating to the 1500 screening method.
To leverage the multi-timepoint study design, a Wilcoxon matched-pair signed-rank test was utilized for individual analytes and various chemical groupings (e.g., all detected chemicals, chemical use and type categories, PAH ring size, and PAH substitution). Chemical groupings represent summed concentration (Σ[group]) for all analytes detected within that designation regardless of detection frequency. All chemical groups from both the 1500 screening method and 63 PAH were investigated for associations with questionnaire data, including the area deprivation index (ADI) [40], study neighborhood, participant race or ethnicity, age, gender, and home flooding status. Quartiles utilized to segregate ADI data were derived by using the entire post-hurricane study population (Samon et al., 2022). Univariate analysis consisting of a Kruskal–Wallis or Mann–Whitney U was conducted using the differences in chemical concentration between timepoints as the dependent variable. Differences were calculated by subtracting individual estimated-baseline concentrations from the paired post-hurricane concentration. A Bonferroni correction was conducted for covariate analysis. The new p-value was the alpha value (αoriginal = 0.05) divided by the number of comparisons (6): (αaltered = 0.05/6) = 0.008. To determine if any of the six correlations were statistically significant, the p-value had to be p < 0.008.

3. Results

3.1. Participant Characteristics

Participant characteristics are described in Table S4. All reported characteristics are from questionnaires completed during the post-hurricane timepoint. Questionnaire data were generally not associated with any chemical grouping with one exception following the Bonferroni correction (Tables S5–S10). Participant age was associated with Σ[flame retardants] (p = 0.006) (Table S9).

3.2. 1500 Screen Results

Within the longitudinal panel of the participants, 162 different chemicals were detected post-hurricane, 137 were detected at the estimated baseline, and 101 chemicals were common across both time points. Overall, there were 188 unique chemicals detected across both time points. Post-hurricane, wristbands had a mean of 26 chemical detections, ranging from a minimum of 6 to a maximum of 43. Conversely, wristbands collected at the estimated baseline had a mean of 25 chemical detections, ranging from a minimum of 14 to a maximum of 40. The sum concentration of all detected analytes was statistically higher at the post-hurricane timepoint (p = 0.0034) (Table S11). There were 26 compounds detected in at least 30% of the study population post-hurricane, 25 at the estimated baseline, and 22 chemicals had a greater than 30% detection frequency for both timepoints (Table 1).

3.2.1. 1500 Screen Chemical Categories

Out of the 162 unique chemicals detected post-hurricane, there were 36 PCPs, 41 pesticides, 14 flame retardants, two pharmacological compounds, four PCBs, 25 PAHs, 10 phthalates, and 30 industrial compounds. Alternatively, the 137 individual chemicals detected at the estimated baseline contained 31 PCPs, 32 pesticides, 11 flame retardants, two pharmacological compounds, one PCB, 14 PAHs, 11 phthalates, one dioxin/furan, and 34 industrial compounds. At both time points, PCPs and phthalates formed the majority of the average total detected chemical exposure. PCPs were the predominant chemical category present post-hurricane, and phthalates were the predominant chemical category at the estimated baseline (Table S11).
Σ[PCPs], Σ[pesticides], Σ[industrial], Σ[flame retardants], and Σ[pharmacological] were all found in statistically higher concentrations post-hurricane (p < 0.05) (Figure 2, Table S11). Σ[phthalates] were found in higher concentrations at the estimated baseline, but this finding was not statically significant. Analysis was not conducted on Σ[PAHs] detected in the screening method, Σ[Dioxins/furans], or Σ[PCBs]. To limit redundancy with the 63 PAH method, PAHs were excluded from statistical analysis relating to the 1500 screening method, and both dioxins/furans and PCBs had very low levels of detections. A dioxin/furan was only detected once across both time points, and PCBs were only detected six times across both timepoints in five discrete wristbands.

3.2.2. Individual Chemical Analysis

On average, 75% of the chemicals detected across both timepoints had higher concentrations post-hurricane. Of the commonly detected chemicals (found in >30% of samples), 79% had statistically higher concentrations post-hurricane (Table 1). This included the 10 most frequently detected compounds across both time points: di-n-butyl phthalate (p < 0.0001), galaxolide (p = 0.016), butyl benzyl phthalate (p < 0.0001), diisobutyl phthalate (p < 0.0001), N,N-diethyl-m-toluamide (p = 0.0013), butylated hydroxytoluene (p < 0.0001), tonalide (p < 0.0001), lilial (p < 0.0001),benzophenone (p < 0.0001), and diethyl phthalate (p < 0.0001). Of the commonly detected chemicals analyzed in the 1500 screen, 10% had statistically higher concentrations at the estimated baseline. This included benzyl salicylate (p = 0.00078), bis(2-ethylhexyl) phthalate (p < 0.0001), and coumarin (p = 0.038) (Table 1). Lastly, the composition of individual chemicals differed across timepoints (Figure 3).

3.3. 63 PAH Results

Within the longitudinal cohort of the participants, 49 PAHs were detected post-hurricane, 47 PAHs were detected at the estimated baseline, and 45 PAHs were common across both time points. There were 51 unique PAHs detected across both timepoints. Of these, 31 were commonly detected (found in >30% of samples) post-hurricane, 21 were commonly detected at the estimated baseline, and 21 chemicals were commonly detected at both timepoints. The number of PAHs found per wristband post-hurricane ranged from a minimum of 9 to a maximum of 37, with a mean of 24. At the estimated baseline the number of PAHs detected per wristband ranged from 12 to 39 with a mean of 19. The sum concentration of all PAHs detected was statistically higher at the post-hurricane timepoint (p = 0.0393) compared to the estimated baseline.

3.3.1. PAH Categories

PAHs were categorized on the basis of ring size and PAH substitution (i.e., whether a PAH was a parent compound or alkylated). Post-hurricane, 61% of the PAHs detected were parent PAHs, and 39% were alkylated. At the estimated baseline, 66% of the PAHs detected were parent PAHs, and 34% were alkylated. There were ten 2-ring PAHs, 12 3-ring PAHs, 12 4-rings PAHs, seven 5-ring PAHs, and eight 6&7-ring PAHs post-hurricane. At the estimated baseline, there were nine 2-ring PAHs, 11 3-ring PAHs, 11 4-ring PAHs, eight 5-ring PAHs, and eight 6&7-ring PAHs.
Σ[parent PAHs] was in statistically higher concentration at the post-hurricane timepoint (p = 0.000328), while there were no differences across timepoints for alkylated PAHs. When evaluated by ring size, Σ[3-ring PAHs], Σ[4-ring PAHs], Σ[5-ring PAHs], and Σ[6&7-ring PAHs] were all in statistically higher concentrations at the post-hurricane timepoint (p < 0.05) (Figure 4, Table S12). The sum concentration of 2-ring PAHs was on average higher at the estimated baseline, but this finding was not statistically significant (Table S12). The total average detected PAH exposure was primarily composed of 2-ring and 3-ring PAHs. The composition of detected PAHs did not change dramatically across timepoints, with limited exceptions. Naphthalene formed a greater proportion of the 2-ring PAHs at the estimated baseline, and benzo[ghi]perylene formed a greater proportion of the 6& 7-ring PAHs post-hurricane (Figure S12).

3.3.2. Individual PAH Analysis

On average, 72% of the detected PAHs had higher concentrations post-hurricane. Of the commonly detected chemicals, 39% had statistically higher concentrations post-hurricane. This included three 3-ring PAHs (phenanthrene (p = 0.00142), acenaphthene (p < 0.0001), and 2,3-dimethyanthracene (p < 0.0001)) and two 4-ring PAHs (pyrene (p < 0.0001) and fluoranthene (p < 0.0001)). All commonly detected 5-, 6-, and 7-ring PAHs also had statistically higher concentrations at the post-hurricane timepoint: benzo[b]fluoranthene (p < 0.0001), benzo[e]pyrene (p < 0.0001), benzo[k]fluoranthene (p = 00.0003), benzo[j]fluoranthene (p = 0.0007), benzo[ghi]perylene (p < 0.0001), and coronene (p < 0.0001) (Table 2).
Two 2-ring PAHs and one 3-ring PAH had higher concentrations at the estimated baseline. These included naphthalene (p = 0.0021), 2-methlnaphthalene (p = 0.0132, and 3,6-dimethylphenanthrene (p < 0.0001) (Table 2).

4. Discussion

The results from this analysis indicate that Houston MSA residents were exposed to higher levels of VOCs and PAHs during the post-hurricane sampling period vs. the estimated baseline. This was true for the sum of all measured chemicals using the 1500 screen and 63 PAHs method, the sum of multiple chemical categories (i.e., pesticides, flame retardants, and pharmacological compounds), and most PAH ring sizes, in addition to individual chemicals. When sampling occurred post-hurricane, all major highways were open in the Houston MSA, and industrial production for plastic resin and organic chemicals, and oil refineries were at ≥90% normal production capacity [44]. Therefore, this study expected to capture chemical exposure associated with daily life in the Houston MSA in addition to chemical exposures associated with the hurricane at the post-hurricane timepoint. The estimated-baseline data showed endemic levels of chemical-exposure generally present in the Houston MSA. Additionally, covariates often associated with chemical exposure (i.e., age, gender, race/ethnicity, and ADI) were not significantly associated with the paired differences in chemical-exposure measures in the wristbands across timepoints. Rather, the predominant factor attributed to changes in chemical exposure appeared to be due to the hurricane, which caused significant flooding and industrial pollution [3,25,26,44].
The majority of detected chemicals (75%) in the 1500 screening method across both timepoints had on average higher concentrations post-hurricane. Of the commonly detected chemicals (found in >30% of samples), 79% had statistically higher concentrations post-hurricane. Most chemical categories were also found in higher concentrations post-hurricane. This included personal care products, pesticides, flame retardants, and pharmacological compounds. Only phthalates had on average higher levels at the estimated baseline, but this finding was not statistically significant, and the large proportion of bis(2-ethylhexyl) phthalate at the estimated baseline drove that finding. The chemical makeup of all of categorizations associated with the 1500 screening method changed to an extent between timepoints, which is indicative of different chemical sources at each time point.
Results showed that 3-ring PAHs, 4-ring PAHs, 5-ring PAHs, and 6&7-ring PAHs all had higher post-hurricane levels. When the most frequently detected PAHs were individually compared across timepoints, heavier-molecular-weight PAHs were identified as having higher concentrations post-hurricane. This is toxicologically relevant, as PAH toxicity generally increases with molecular weight [39,45]. Some PAHs are well-known as carcinogens, mutagens, and teratogens, and thereby pose a serious threat to the health and wellbeing of humans [39,46,47]. The most significant expected health effect from inhalation exposure to PAHs is an excess risk of cancer [39]. Among PAHs that had statistically higher concentrations post-hurricane, benzo[b]fluoranthene, benzo[j]fluoranthene, and benzo[k]fluoranthene were included in the National Toxicology Programs Report on Carcinogens, Fifteenth Edition [48]. The results reported here indicate that there was increased presence of carcinogenic PAHs following Hurricane Harvey.

4.1. Chemical Exposure Assessment during a Disaster

Exposure assessment following disasters is essential to evaluate possible health effects. Since the frequency of disasters is likely to increase [2], it is important to evaluate the success and failure of current disaster research approaches in exposure assessment for future implementation. The Houston-3H project collectively stands out in many ways. First, the Houston-3H project utilized community input to establish study goals in which the community was interested [11,40]. Engaging the community led to increased community interest, evidenced by increased participant enrollment in the estimated-baseline timepoint and admirable participant compliance in the range of 79–90% for all collected timepoints. In disaster studies, there are often no baseline data to which disaster-related exposure levels can be compared [7,8,49]. Given the lack of prior studies using similar technology in Houston, no baseline data were available. However, this study successfully demonstrated that representative baseline data could be taken when the disaster is mitigated, one year later during the same season. Lastly, the choice of sampling tool, namely, silicone wristbands, was well-suited to the study design. Silicone wristbands are minimally invasive and easy to use in disaster scenarios [11], provide individual potential exposure assessments, and are capable of rapidly collecting data. The ease of use also likely contributed to a high compliance rate among participants.

4.2. Limitations

While the study aimed to evaluate chemical exposure immediately after the hurricane, due to logistics, the samples were collected over a month after the Hurricane Harvey landfall. At that point in time, factors other than the hurricane could have contributed to chemical exposure, but distinct differences were still seen between timepoints. As is typical in multi-timepoint studies, some participant loss occurred, but this did not interfere with the power of analysis. This study utilized a 1500 screening method as a semiquantitative screen. While the screening method is capable of quantifying a large number of chemicals, it sacrifices sensitivity and accuracy [42]. Therefore, for further resolution, an additional PAH-specific analytical method was utilized. Lastly, silicone wristbands, the sampling technology utilized in this study, capture a combination of inhalation and dermal exposure. At this time, chemical exposures associated with a specific exposure pathway cannot be isolated. Values obtained with the silicone wristband cannot be compared to reference values or health guidelines [12,13,17]; additionally, while some such values exist, most chemicals assessed in this study lack established reference values or health guideline values.

5. Conclusions

In the last few years, multiple studies reported increased chemical exposure following Hurricane Harvey [34,35,36,50,51,52]. This is the first study to identify higher levels of chemical exposure using personal samples after Hurricane Harvey, and to utilize a longitudinal panel of participants to evaluate chemical exposure across timepoints in a disaster scenario. A major limitation of post-disaster chemical exposure assessment is often the lack of baseline data. In both epidemiological and risk assessment studies, baseline data are necessary to determine whether and how the disaster impacted exposure [9]. While it was not possible to obtain personal-exposure data from before the hurricane, this study successfully demonstrated the use of a post-disaster timepoint to act as an estimated baseline. This study design was further strengthened through the use of paired samples, which showed generally higher levels of chemicals in wristbands worn immediately following Hurricane Harvey.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijerph19116670/s1, Details regarding instrument parameters and target analytes, chemical type/use classification, participant demographics, summary statistics for questionnaire data, summary statistics for differences in chemical categories, across timepoints, composition of the total exposure across timepoints, and a comparison of chemical exposure frequencies to a non-disaster study.

Author Contributions

S.M.S., data curation, formal analysis, investigation, visualization, and writing—original draft and revisions. D.R. and A.O.O., conceptualization, funding acquisition, and manuscript review and editing. L.G.T., conceptualization, data curation, and manuscript review and editing. P.D.H., conceptualization, supervision, and manuscript review and editing. K.A.A., conceptualization, funding acquisition, administration, supervision, and manuscript review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Institute of Environmental Health Sciences of the National Institute of Health (P42-ES016465, P30-ES000210, P30-ES030287, R21-ES029460, T32-ES0007060). The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board of Oregon State University (IRB-2019-0332), Baylor College of Medicine (IRB: H-42111), and University of Texas, Health (IRB: HSC-SPH-17-0846).

Informed Consent Statement

Informed consent was obtained from subjects involved in this study.

Data Availability Statement

Data are available on request from the corresponding author due to, e.g., privacy or ethical restrictions.

Conflicts of Interest

Kim A. Anderson and Diana Rohlman, coauthors for this research, disclose a financial interest in MyExposome Inc., which markets products related to the reported research. The terms of this arrangement have been reviewed and approved by Oregon State University in accordance with its policy on research conflicts of interest. The authors have no other conflict of interest disclosures.

Abbreviations

PAHPolycyclic aromatic hydrocarbon
VOCVolatile organic compound
SVOCSemivolatile organic compound
PCBPolychlorinated biphenyl
PCPPersonal care product
LODLimit of detection
LOQLimit of quantitation
Houston-3HHouston Hurricane Harvey Health

References

  1. NOAA National Centers for Environmental Information (NCEI). U.S. Billion-Dollar Weather and Climate Disasters. Available online: https://www.ncdc.noaa.gov/billions/ (accessed on 24 June 2021).
  2. Banholzer, S.; Kossin, J.; Donner, S. The Impact of Climate Change on Natural Disasters. In Reducing Disaster: Early Warning Systems for Climate Change; Springer: Berlin/Heidelberg, Germany, 2014; pp. 21–49. [Google Scholar]
  3. Misuri, A.; Casson Moreno, V.; Quddus, N.; Cozzani, V. Lessons Learnt from The Impact of Hurricane Harvey On the Chemical and Process Industry. Reliab. Eng. Syst. Saf. 2019, 190, 106521. [Google Scholar] [CrossRef]
  4. Nascimento, K.R.D.S.; Alencar, M.H. Management of Risks in Natural Disasters: A Systematic Review of the Literature on NATECH Events. J. Loss Prev. Process Ind. 2016, 44, 347–359. [Google Scholar] [CrossRef]
  5. Showalter, P.S.; Myers, M.F. Natural disasters in the United States as Release Agents of Oil, Chemicals, Or Radiological Materials Between 1980-1989: Analysis and Recommendations. Risk Anal. 1994, 14, 169–182. [Google Scholar] [CrossRef]
  6. Steinberg, L.J.; Sengul, H.; Cruz, A.M. NATECH Risk and Management: An Assessment of The State of the Art. Nat. Hazards 2008, 46, 143–152. [Google Scholar] [CrossRef]
  7. Scheepers, P.T.; Bos, P.M.; Konings, J.; Janssen, N.A.; Grievink, L. Application of Biological Monitoring for Exposure Assessment Following Chemical Incidents: A Procedure for Decision Making. J. Expo. Sci. Environ. Epidemiol. 2011, 21, 247–261. [Google Scholar] [CrossRef][Green Version]
  8. Finucane, M.L.; Clark-Ginsberg, A.; Parker, A.M.; Becerra-Ornelas, A.U.; Clancy, N.; Ramchand, R.; Slack, T.; Parks, V.; Ayer, L.; Edelman, A.F.; et al. Building Community Resilience to Large Oil Spills: Findings and Recommendations from a Synthesis of Research on the Mental Health, Economic, and Community Distress Associated with the Deepwater Horizon Oil Spill; RAND Corporation: Santa Monica, CA, USA, 2020. [Google Scholar]
  9. Bongers, S.; Janssen, N.A.H.; Reiss, B.; Grievink, L.; Lebret, E.; Kromhout, H. Challenges of Exposure Assessment for Health Studies in the Aftermath of Chemical Incidents and Disasters. J. Expo. Sci. Environ. Epidemiol. 2008, 18, 341–359. [Google Scholar] [CrossRef]
  10. Reams, M.A.; Harding, A.K.; Subra, W.; Lam, N.S.; O’Connell, S.G.; Tidwell, L.; Anderson, K.A. Response, Recovery, And Resilience to Oil Spills and Environmental Disasters: Exploration and Use of Novel Approaches to Enhance Community Resilience. J. Environ. Health 2017, 80, 8–15. [Google Scholar]
  11. Rohlman, D.; Samon, S.M.; Allan, S.E.; Barton, M.; Dixon, H.; Ghetu, C.C.; Tidwell, L.G.; Hoffman, P.D.; Oluyomi, A.; Symanski, E.; et al. Designing equitable, transparent community-engaged disaster research. Citiz. Sci. Theory Pract. 2022, 7, 22. [Google Scholar] [CrossRef]
  12. O’Connell, S.G.; Kincl, L.D.; Anderson, K.A. Silicone Wristbands as Personal Passive Samplers. Environ. Sci. Technol. 2014, 48, 3327–3335. [Google Scholar] [CrossRef]
  13. O’Connell, S.G.; Anderson, K.A.; Epstein, M.I. Determining chemical air equivalency using silicone personal monitors. J. Expo. Sci. Environ. Epidemiol. 2021, 32, 268–279. [Google Scholar] [CrossRef]
  14. Dixon, H.M.; Scott, R.P.; Holmes, D.; Calero, L.; Kincl, L.D.; Waters, K.M.; Camann, D.E.; Calafat, A.M.; Herbstman, J.B.; Anderson, K.A. Silicone Wristbands Compared with Traditional Polycyclic Aromatic Hydrocarbon Exposure Assessment Methods. Anal. Bioanal. Chem. 2018, 410, 3059–3071. [Google Scholar] [CrossRef][Green Version]
  15. Dixon, H.M.; Bramer, L.M.; Scott, R.P.; Calero, L.; Holmes, D.; Gibson, E.A.; Cavalier, H.M.; Rohlman, D.; Miller, R.L.; Calafat, A.M.; et al. Evaluating predictive relationships between wristbands and urine for assessment of personal PAH exposure. Environ. Int. 2022, 163, 107226. [Google Scholar] [CrossRef]
  16. Wang, S.R.; Romanak, K.A.; Stubbings, W.A.; Arrandale, V.H.; Hendryx, M.; Diamond, M.L.; Salamova, A.; Venier, M. Silicone wristbands integrate dermal and inhalation exposures to semi-volatile organic compounds (SVOCs). Environ. Int. 2019, 132, 105104. [Google Scholar] [CrossRef]
  17. Dixon, H.M.; Poutasse Carolyn, M.; Anderson Kim, A. Silicone Wristbands and Wearables to Assess Chemical Exposures. In Total Exposure Health, 1st ed.; Phillips, K.A., Yamamoto, D.P., Racz, L., Eds.; CRC Press: Boca Raton, FL, USA, 2020; pp. 139–160. [Google Scholar] [CrossRef]
  18. Hammel, S.C.; Phillips, A.L.; Hoffman, K.; Stapleton, H.M. Evaluating the Use of Silicone Wristbands To Measure Personal Exposure to Brominated Flame Retardants. Environ. Sci. Technol. 2018, 52, 11875–11885. [Google Scholar] [CrossRef]
  19. Hoffman, K.; Levasseur, J.L.; Zhang, S.; Hay, D.; Herkert, N.J.; Stapleton, H.M. Monitoring Human Exposure to Organophosphate Esters: Comparing Silicone Wristbands with Spot Urine Samples as Predictors of Internal Dose. Environ. Sci. Technol. Lett. 2021, 8, 805–810. [Google Scholar] [CrossRef]
  20. Hamzai, L.; Galvez, N.L.; Hoh, E.; Dodder, N.G.; Matt, G.E.; Quintana, P.J. A Systematic Review of the Use of Silicone Wristbands for Environmental Exposure Assessment, With A Focus on Polycyclic Aromatic Hydrocarbons (PAHs). J. Expo. Sci. Environ. Epidemiol. 2021, 32, 244–258. [Google Scholar] [CrossRef]
  21. Paulik, L.B.; Hobbie, K.A.; Rohlman, D.; Smith, B.W.; Scott, R.P.; Kincl, L.; Haynes, E.N.; Anderson, K.A. Environmental and Individual PAH Exposures Near Rural Natural Gas Extraction. Environ. Pollut. 2018, 241, 397–405. [Google Scholar] [CrossRef]
  22. Anderson, K.A.; Points, G.L.; Donald, C.E.; Dixon, H.M.; Scott, R.P.; Wilson, G.; Tidwell, L.G.; Hoffman, P.D.; Herbstman, J.B.; O’Connell, S.G. Preparation and Performance Features of Wristband Samplers and Considerations for Chemical Exposure Assessment. J. Expo. Sci. Environ. Epidemiol. 2017, 27, 551–559. [Google Scholar] [CrossRef]
  23. Wacławik, M.; Rodzaj, W.; Wielgomas, B. Silicone Wristbands in Exposure Assessment: Analytical Considerations and Comparison with Other Approaches. Int. J. Environ. Res. Public Health 2022, 19, 1935. [Google Scholar] [CrossRef]
  24. Rohlman, D.; Dixon, H.M.; Kincl, L.; Larkin, A.; Evoy, R.; Barton, M.; Phillips, A.; Peterson, E.; Scaffidi, C.; Herbstman, J.B.; et al. Development of An Environmental Health Tool Linking Chemical Exposures, Physical Location and Lung Function. BMC Public Health 2019, 19, 854. [Google Scholar] [CrossRef]
  25. Qin, R.; Khakzad, N.; Zhu, J. An Overview of the Impact of Hurricane Harvey On Chemical and Process Facilities in Texas. Int. J. Disaster Risk Reduct. 2020, 45, 101453. [Google Scholar] [CrossRef]
  26. Phillips, A. Preparing for the Next Storm: Learning from the Man-Made Environmental Disasters That Followed Hurricane Harvey; Environmental Integrity Project: Washington, DC, USA, 2018; Available online: https://www.environmentalintegrity.org/wp-content/uploads/2018/08/Hurricane-Harvey-Report-Final.pdf (accessed on 18 March 2021).
  27. Meyler, D.; Stimpson, J.P.; Cutchin, M.P. Landscapes of Risk: Texas City and the Petrochemical Industry. Organ. Environ. 2007, 20, 204–212. [Google Scholar] [CrossRef]
  28. Ratnapradipa, D.P.; Cardinal, C.M.P.H.J.D.; Ratnapradipa, K.L.P.; Scarbrough, A.P.; Xie, Y.M.H.A.M.P. Implications of Hurricane Harvey on Environmental Public Health in Harris County, Texas. J. Environ. Health 2018, 81, 24–32. [Google Scholar]
  29. Phillips, A. Plastics Pollution on the Rise; E. I. Project: Bournemouth, UK, 2019. [Google Scholar]
  30. Fraase, B.C. The Un-Zoned City and Unplanned Disaster: A Case Study of Hurricane Harvey’s Impact on Houston, Texas. Va. Environ. Law J. 2020, 38, 232. [Google Scholar]
  31. Sebastian, A.; Gori, A.; Blessing, R.B.; van der Wiel, K.; Bass, B. Disentangling the Impacts of Human and Environmental Change on Catchment Response During Hurricane Harvey. Environ. Res. Lett. 2019, 14, 124023. [Google Scholar] [CrossRef]
  32. Slack, T.; Parks, V.; Ayer, L.; Parker, A.M.; Finucane, M.L.; Ramchand, R. NATECH Or Natural? An Analysis of Hazard Perceptions, Institutional Trust, and Future Storm Worry Following Hurricane Harvey. Nat. Hazards 2020, 102, 1207–1224. [Google Scholar] [CrossRef]
  33. Zhang, W.; Villarini, G.; Vecchi, G.A.; Smith, J.A. Urbanization Exacerbated the Rainfall and Flooding Caused by Hurricane Harvey in Houston. Nature 2018, 563, 384–388. [Google Scholar] [CrossRef]
  34. Horney, J.A.; Casillas, G.A.; Baker, E.; Stone, K.W.; Kirsch, K.R.; Camargo, K.; Wade, T.L.; McDonald, T.J. Comparing Residential Contamination in A Houston Environmental Justice Neighborhood Before and After Hurricane Harvey. PLoS ONE 2018, 13, e0192660. [Google Scholar] [CrossRef][Green Version]
  35. Karaye, I.; Stone, K.W.; Casillas, G.A.; Newman, G.; Horney, J.A. A Spatial Analysis of Possible Environmental Exposures in Recreational Areas Impacted by Hurricane Harvey Flooding, Harris County, Texas. Environ. Manag. 2019, 64, 381–390. [Google Scholar] [CrossRef]
  36. Stone, K.W.; Casillas, G.A.; Karaye, I.; Camargo, K.; McDonald, T.J.; Horney, J.A. Using Spatial Analysis to Examine Potential Sources of Polycyclic Aromatic Hydrocarbons in An Environmental Justice Community after Hurricane Harvey. Environ. Justice 2019, 12, 194–203. [Google Scholar] [CrossRef]
  37. Nicole, W. Wristbands for Research: Using Wearable Sensors to Collect Exposure Data after Hurricane Harvey. Environ. Health Perspect. 2018, 126, 042001. [Google Scholar] [CrossRef][Green Version]
  38. Harvey, R.G. Polycyclic Aromatic Hydrocarbons: Chemistry and Carcinogenicity; Cambridge University Press: Cambridge, UK, 1991. [Google Scholar]
  39. Nisbet, I.C.; Lagoy, P.K. Toxic Equivalency Factors (TEFs) for Polycyclic Aromatic Hydrocarbons (PAHs). Regul. Toxicol. Pharmacol. 1992, 16, 290–300. [Google Scholar] [CrossRef]
  40. Oluyomi, A.O.; Panthagani, K.; Sotelo, J.; Gu, X.; Armstrong, G.; Luo, D.N.; Hoffman, K.L.; Rohlman, D.; Tidwell, L.; Hamilton, W.J.; et al. Houston Hurricane Harvey Health (Houston-3H) Study: Assessment of Allergic Symptoms and Stress After Hurricane Harvey Flooding. Environ. Health 2021, 20, 9. [Google Scholar] [CrossRef]
  41. Dixon, H.M.; Armstrong, G.; Barton, M.; Bergmann, A.J.; Bondy, M.; Halbleib, M.L.; Hamilton, W.; Haynes, E.; Herbstman, J.; Hoffman, P.; et al. Discovery of Common Chemical Exposures Across Three Continents Using Silicone Wristbands. R. Soc. Open Sci. 2019, 6, 181836. [Google Scholar] [CrossRef][Green Version]
  42. Bergmann, A.J.; Points, G.L.; Scott, R.P.; Wilson, G.; Anderson, K.A. Development of Quantitative Screen for 1550 chemicals with GC-MS. Anal. Bioanal. Chem. 2018, 410, 3101–3110. [Google Scholar] [CrossRef][Green Version]
  43. Poutasse, C.M.; Poston, W.S.C.; Jahnke, S.A.; Haddock, C.K.; Tidwell, L.G.; Hoffman, P.D.; Anderson, K.A. Discovery of firefighter chemical exposures using military-style silicone dog tags. Environ. Int. 2020, 142, 105818. [Google Scholar] [CrossRef]
  44. Bayard, K.; Decker, R.; Gilbert, C. Natural Disasters and the Measurement of Industrial Production: Hurricane Harvey, a Case Study. FEDS Notes; 2017. Available online: https://www.federalreserve.gov/econres/notes/feds-notes/natural-disasters-and-the-measurement-of-industrial-production-hurricane-harvey-a-case-study-20171011.htm (accessed on 24 June 2021).
  45. Carls, M.G.; Meador, J.P. A Perspective on The Toxicity of Petrogenic PAHs to Developing Fish Embryos Related to Environmental Chemistry. Hum. Ecol. Risk Assess. 2009, 15, 1084–1098. [Google Scholar] [CrossRef][Green Version]
  46. Abdel-Shafy, H.I.; Mansour, M.S.M. A Review on Polycyclic Aromatic Hydrocarbons: Source, Environmental Impact, Effect on Human Health and Remediation. Egypt. J. Pet. 2016, 25, 107–123. [Google Scholar] [CrossRef][Green Version]
  47. Unwin, J.; Cocker, J.; Scobbie, E.; Chambers, H. An Assessment of Occupational Exposure to Polycyclic Aromatic Hydrocarbons in the UK. Ann. Occup. Hyg. 2006, 50, 395–403. [Google Scholar] [CrossRef][Green Version]
  48. NTP (National Toxicology Program). Report on Carcinogens, 15th ed.; National Toxicology Program: Research Triangle Park, NC, USA, 2021. Available online: https://ntp.niehs.nih.gov/go/roc15 (accessed on 24 June 2021).
  49. Bera, G.; Camargo, K.; Sericano, J.L.; Liu, Y.; Sweet, S.T.; Horney, J.; Jun, M.; Chiu, W.; Rusyn, I.; Wade, T.L.; et al. Baseline data for distribution of contaminants by natural disasters: Results from a residential Houston neighborhood during Hurricane Harvey flooding. Heliyon 2019, 5, e02860. [Google Scholar] [CrossRef]
  50. Du, J.; Park, K.; Yu, X.; Zhang, Y.J.; Ye, F. Massive Pollutants Released to Galveston Bay During Hurricane Harvey: Understanding Their Retention and Pathway Using Lagrangian Numerical Simulations. Sci. Total Environ. 2020, 704, 135364. [Google Scholar] [CrossRef]
  51. Flores, A.B.; Castor, A.; Grineski, S.E.; Collins, T.W.; Mullen, C. Petrochemical Releases Disproportionately Affected Socially Vulnerable Populations Along the Texas Gulf Coast After Hurricane Harvey. Popul. Environ. 2021, 42, 279–301. [Google Scholar] [CrossRef]
  52. Kiaghadi, A.; Rifai, H.S. Physical, Chemical, and Microbial Quality of Floodwaters in Houston Following Hurricane Harvey. Environ. Sci. Technol. 2019, 53, 4832–4840. [Google Scholar] [CrossRef]

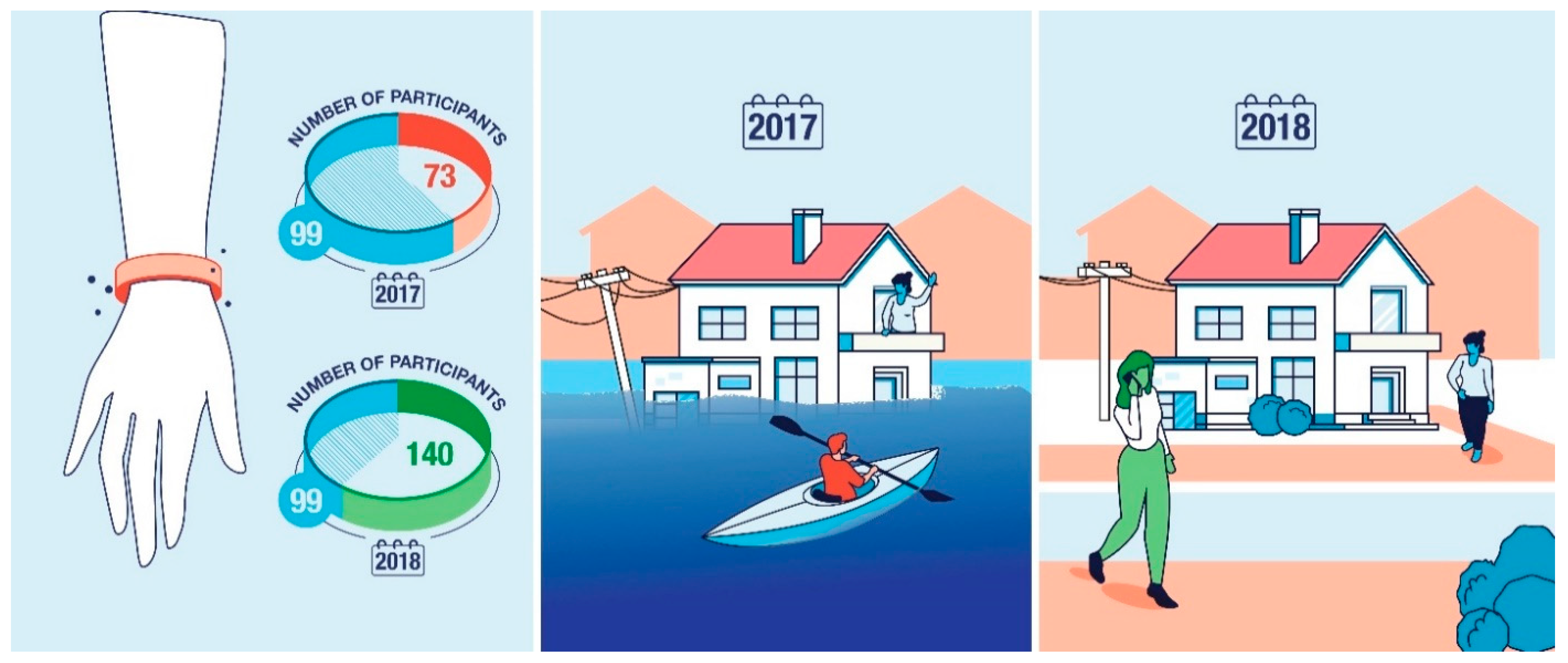

Figure 1. Participants wore and returned a silicone wristband during a post-hurricane timepoint in 2017 (n = 172, 83% compliance), and again one year later, in 2018 (n = 239, 90% compliance). The 2018 timepoint was utilized as an estimated baseline of chemical exposure in non-disaster conditions in Houston, TX. A longitudinal panel (n = 99, 79% compliance) participated in both the post-hurricane and estimated-baseline timepoints.
Figure 1. Participants wore and returned a silicone wristband during a post-hurricane timepoint in 2017 (n = 172, 83% compliance), and again one year later, in 2018 (n = 239, 90% compliance). The 2018 timepoint was utilized as an estimated baseline of chemical exposure in non-disaster conditions in Houston, TX. A longitudinal panel (n = 99, 79% compliance) participated in both the post-hurricane and estimated-baseline timepoints.
Ijerph 19 06670 g001

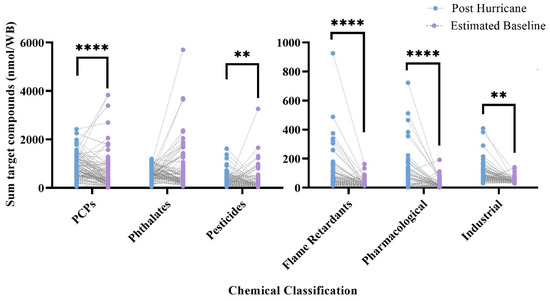

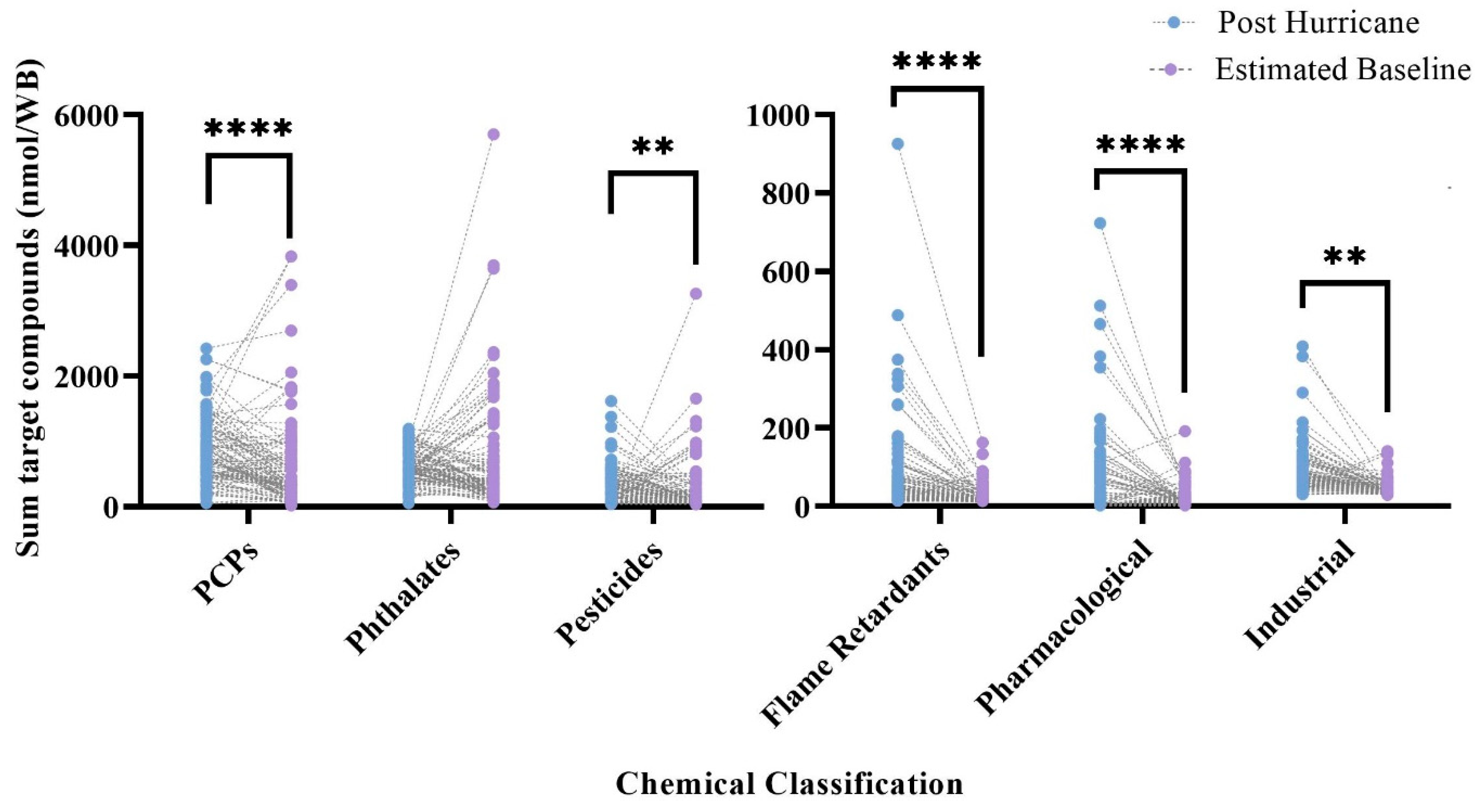

Figure 2. Sum concentration of chemical classifications (i.e., personal-care products (PCPs), phthalates, pesticides, flame retardants, and pharmacological and industrial products) for matched pairs across timepoints. Comparisons represent results from Wilcoxon matched-pair signed-rank tests ** (p < 0.01), **** (p < 0.0001).
Figure 2. Sum concentration of chemical classifications (i.e., personal-care products (PCPs), phthalates, pesticides, flame retardants, and pharmacological and industrial products) for matched pairs across timepoints. Comparisons represent results from Wilcoxon matched-pair signed-rank tests ** (p < 0.01), **** (p < 0.0001).
Ijerph 19 06670 g002

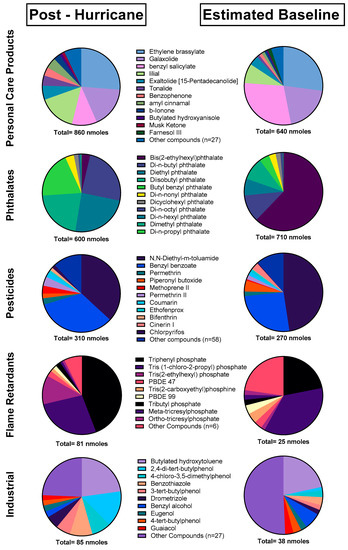

Figure 3. Chemical composition of chemical categories utilized in the 1500 screening method excluding PAHs. All analytes detected at least once in either timepoint were included.
Figure 3. Chemical composition of chemical categories utilized in the 1500 screening method excluding PAHs. All analytes detected at least once in either timepoint were included.
Ijerph 19 06670 g003

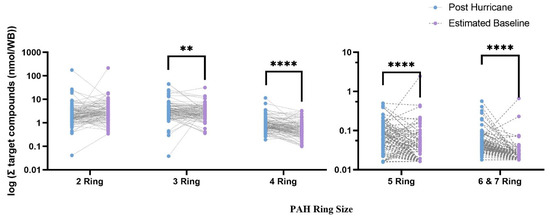

Figure 4. Log scale of sum concentration of PAHs across ring sizes in matched pairs across timepoints. Comparisons represent results from Wilcoxon matched-pair signed-rank tests ** (p < 0.01), **** (p < 0.0001).
Figure 4. Log scale of sum concentration of PAHs across ring sizes in matched pairs across timepoints. Comparisons represent results from Wilcoxon matched-pair signed-rank tests ** (p < 0.01), **** (p < 0.0001).
Ijerph 19 06670 g004
Table 1. Summary statistics including results from Wilcoxon matched-pairs signed rank tests for all analytes detected in the 1500 screening method detected in greater than 30% of the study population in at least one timepoint. The PAHs anthracene, 1-methylnaphthalene, naphthalene, and 2-methylphenanthrene were all excluded due to redundancy with the 63 PAH method and are discussed elsewhere. Differences were calculated by subtracting individual estimated baseline concentrations from the paired post-hurricane concentration. Analytes are ordered in decreasing overall detection frequency across both timepoints.
Table 1. Summary statistics including results from Wilcoxon matched-pairs signed rank tests for all analytes detected in the 1500 screening method detected in greater than 30% of the study population in at least one timepoint. The PAHs anthracene, 1-methylnaphthalene, naphthalene, and 2-methylphenanthrene were all excluded due to redundancy with the 63 PAH method and are discussed elsewhere. Differences were calculated by subtracting individual estimated baseline concentrations from the paired post-hurricane concentration. Analytes are ordered in decreasing overall detection frequency across both timepoints.
Detection Frequency (%)Mean (nmol/WB)
Target AnalytePost-
Hurricane
Estimated BaselinePost-
Hurricane
Estimated BaselineAverage
Difference
SE of
Difference
Sum of Signed Rank (W)p Value
Di-n-butyl phthalate941001508067122900<0.0001 ****
Galaxolide9597150130212414000.016 *
Butyl benzyl phthalate97981203086114200<0.0001 ****
Diisobutyl phthalate80991306761122700<0.0001 ****
N,N-Diethyl-m-toluamide8490120130−114318000.0013 **
Tonalide8594376.7315.13800<0.0001 ****
Lilial83871405283193100<0.0001 ****
Benzophenone8681318.4233.24200<0.0001 ****
Diethyl phthalate90811505096183800<0.0001 ****
Butylated hydroxytoluene7886198.1113.02700<0.0001 ****
Tri-phenyl phosphate8675365.4306.34100<0.0001 ****
Ethylene brassylate628623017053447700.12
Benzyl salicylate529390190−9726−18000.00078 ***
Di-n-nonyl phthalate518422201.45.72400.64
Amyl cinnamal6762397.9315.42500<0.0001 ****
Butylated hydroxyanisole51678.62.26.51.02300<0.0001 ****
Bis(2-ethylhexyl) phthalate229322440−42085−2900<0.0001 ****
Benzyl benzoate44611106936218900.014 *
Tris(2-chloro-2-propyl) phosphate4172229.0138.15900.15
b-Ionone4960256.3186.71600<0.0001 ****
Permethrin47548.25.23.12.89000.0034 **
Benzothioazole51397.91.36.71.22000<0.0001 ****
Caffeine3951581543111100<0.0001 ****
Coumarin14577.14.52.62.1−5800.038 *
2,4-di-tert-butylphenol7112130.56121.12800<0.0001 ****
Linalool29327.02.44.61.64500.0058 **
Bifenthrin35183.90.853.11.1630<0.0001 ****
d-Limonene35181.90.361.50.61610<0.0001 ****
Tris(2-ethylhexyl)
phosphate
424.09.70.419.33.1980<0.0001 ****
* (p < 0.05), ** (p < 0.01), *** (p < 0.001), **** (p < 0.0001).
Table 2. Summary statistics including results from Wilcoxon matched-pair signed-rank tests for all detected analytes in the 63 PAH method, detected in more than 30% of the study population in at least one timepoint. Differences were calculated by subtracting individual estimated baseline concentrations from the paired post-hurricane concentration. Analytes are ordered in decreasing overall detection frequency across both timepoints.
Table 2. Summary statistics including results from Wilcoxon matched-pair signed-rank tests for all detected analytes in the 63 PAH method, detected in more than 30% of the study population in at least one timepoint. Differences were calculated by subtracting individual estimated baseline concentrations from the paired post-hurricane concentration. Analytes are ordered in decreasing overall detection frequency across both timepoints.
Detection Frequency (%)Mean (nmol/WB)
Ring SizeTarget AnalytePost-
Hurricane
Estimated BaselinePost-
Hurricane
Estimated BaselineAverage
Difference
SE of DifferenceSum of Signed Rank (W)p Value
2-ring2-Methylnaphthalene991001.170.6930.4760.621−1750.0021 **
1-Methylnaphthalene981002.113.85−1.742.25−6420.265
Naphthalene991000.5940.3450.2490.307−14100.0132 *
1,6 and 1,3-Dimethylnaphthalene90810.5730.4790.09370.149−10400.0574
2-Ethylnaphthalene85700.1260.1060.02020.02007310.163
1,2-Dimethylnaphthalene70530.04910.0509−0.001840.00847−1480.744
1,4-Dimethylnaphthalene65470.04480.0493−0.004560.00971−3110.468
1,5-Dimethylnaphthalene56430.08480.115−0.03040.0210−6340.0948
3-ringRetene991000.3410.410−0.06880.117−1200.836
Phenanthrene961001.901.360.5460.28813990.0142 *
1-Methylphenanthrene931000.6920.4630.2290.1278820.125
Dibenzothiophene92990.1500.1340.01610.02143180.582
2-Methylphenanthrene891000.6450.5560.08960.06983880.501
Fluorene82930.3060.2600.04560.04511340.809
3,6-Dimethylphenanthrene79760.09700.115−0.01850.0137−11400.0370 *
Acenaphthene6590.2400.08850.15170.02901700<0.0001 ****
Acenaphthylene35220.02880.0458−0.01690.00936−1700.311
Anthracene30190.4010.05580.3450.2932270.159
2,3-Dimethylanthracene3900.04150.001170.04030.016780<0.0001 ****
4-ringPyrene991000.4640.2360.2280.04494060<0.0001 ****
Fluoranthene99970.4860.2980.1880.1042590<0.0001 ****
1-Methylpyrene100930.06270.0655−0.002880.00603−6440.263
Triphenylene58310.03310.02970.003330.005405790.0644
Chrysene57290.02960.02860.0009800.008256710.0279 *
Benz[a]anthracene34180.02000.0212−0.001270.006151240.413
5-ringBenzo[b]fluoranthene65430.02270.02140.001360.006829380.008 **
Benzo[e]pyrene61240.02240.01590.0064400.005601290<0.0001 ****
Benzo[k]fluoranthene3790.008800.008190.0006190.003574980.0003 ***
Benzo[j]fluoranthene3080.007500.00767−0.0001720.004223500.0007 ***
6-ringBenzo[ghi]perylene94430.02180.006460.01530.002114180<0.0001 ****
7-ringCoronene8220.01050.001840.0086900.0005933320<0.0001****
* (p < 0.05), ** (p < 0.01), *** (p < 0.001), **** (p < 0.0001).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Samon, S.M.; Rohlman, D.; Tidwell, L.G.; Hoffman, P.D.; Oluyomi, A.O.; Anderson, K.A. Associating Increased Chemical Exposure to Hurricane Harvey in a Longitudinal Panel Using Silicone Wristbands. Int. J. Environ. Res. Public Health 2022, 19, 6670. https://doi.org/10.3390/ijerph19116670

AMA Style

Samon SM, Rohlman D, Tidwell LG, Hoffman PD, Oluyomi AO, Anderson KA. Associating Increased Chemical Exposure to Hurricane Harvey in a Longitudinal Panel Using Silicone Wristbands. International Journal of Environmental Research and Public Health. 2022; 19(11):6670. https://doi.org/10.3390/ijerph19116670

Chicago/Turabian Style

Samon, Samantha M., Diana Rohlman, Lane G. Tidwell, Peter D. Hoffman, Abiodun O. Oluyomi, and Kim A. Anderson. 2022. "Associating Increased Chemical Exposure to Hurricane Harvey in a Longitudinal Panel Using Silicone Wristbands" International Journal of Environmental Research and Public Health 19, no. 11: 6670. https://doi.org/10.3390/ijerph19116670

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
